1. Log Parser and Microsoft Exchange Server, the Perfect Blend! Ilse Van Criekinge Exchange Trainer & Consultant (Azlan Training)  ilse@vancriekinge.comilse@vancriekinge.com www.Pro-Exchange.be

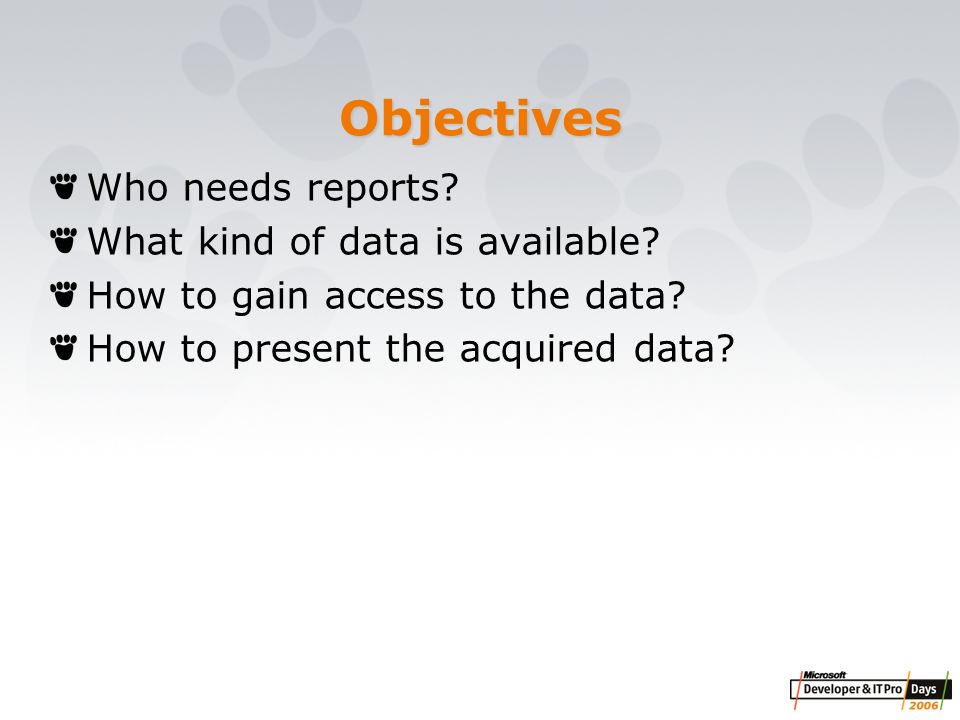

2. Objectives Who needs reports? What kind of data is available? How to gain access to the data? How to present the acquired data?

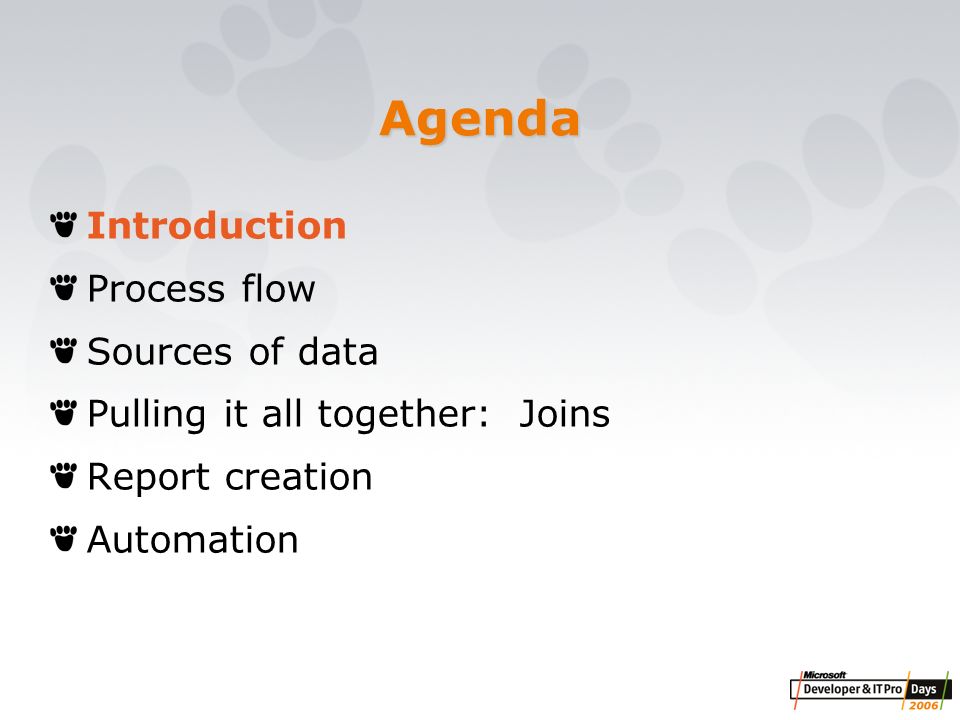

3. Agenda Introduction Process flow Sources of data Pulling it all together: Joins Report creation Automation

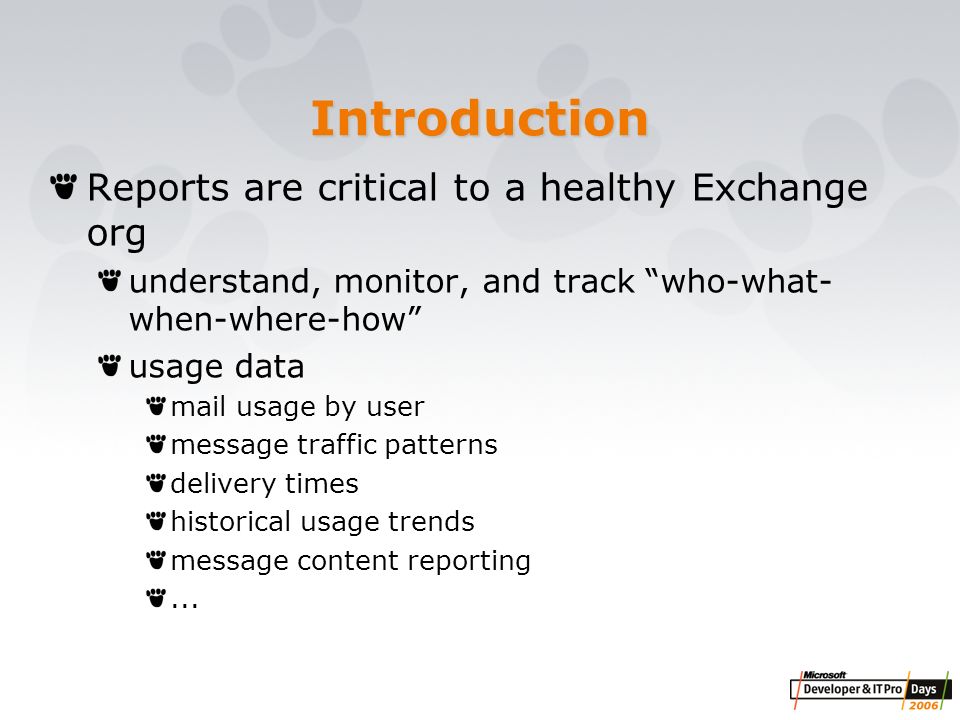

4. Introduction Reports are critical to a healthy Exchange org understand, monitor, and track “who-what- when-where-how” usage data mail usage by user message traffic patterns delivery times historical usage trends message content reporting...

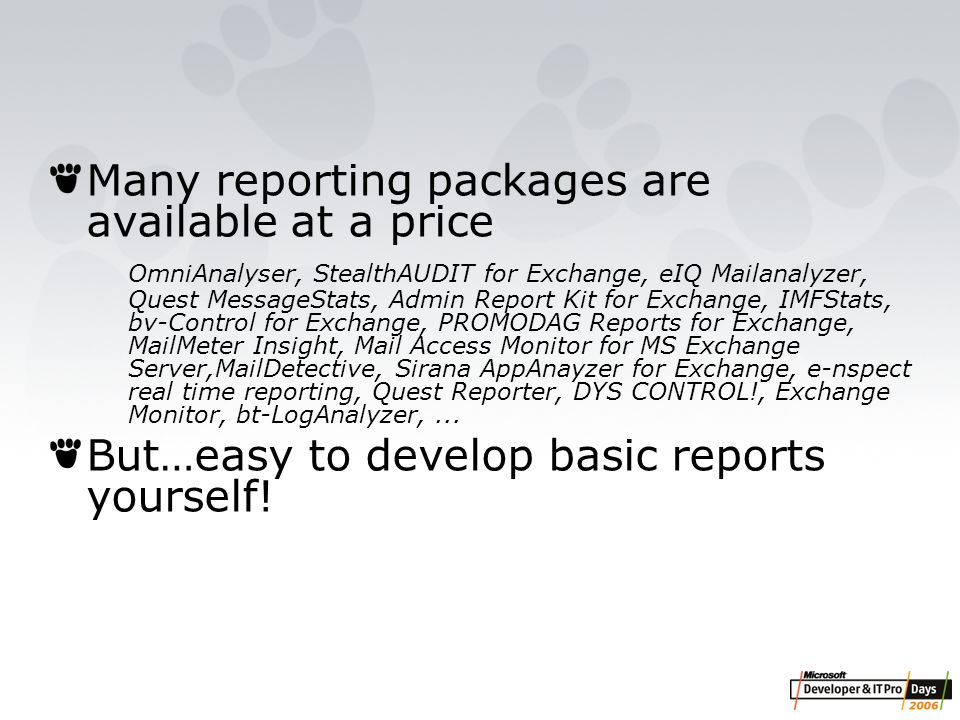

5. Many reporting packages are available at a price OmniAnalyser, StealthAUDIT for Exchange, eIQ Mailanalyzer, Quest MessageStats, Admin Report Kit for Exchange, IMFStats, bv-Control for Exchange, PROMODAG Reports for Exchange, MailMeter Insight, Mail Access Monitor for MS Exchange Server,MailDetective, Sirana AppAnayzer for Exchange, e-nspect real time reporting, Quest Reporter, DYS CONTROL!, Exchange Monitor, bt-LogAnalyzer,... But…easy to develop basic reports yourself!

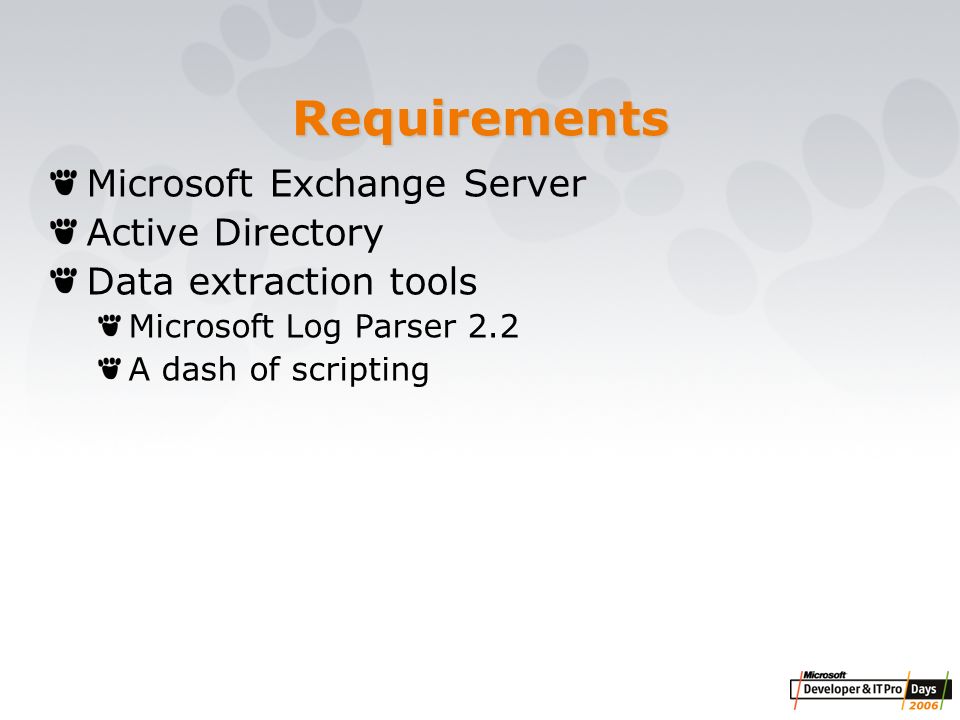

6. Requirements Microsoft Exchange Server Active Directory Data extraction tools Microsoft Log Parser 2.2 A dash of scripting

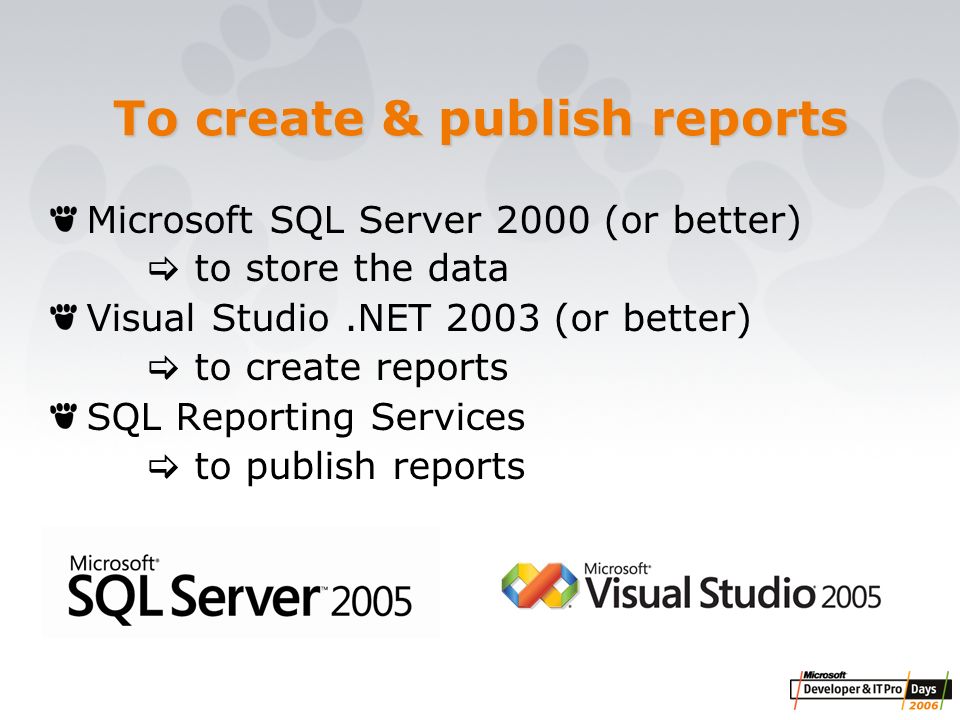

7. To create & publish reports Microsoft SQL Server 2000 (or better)  to store the data Visual Studio.NET 2003 (or better)  to create reports SQL Reporting Services  to publish reports

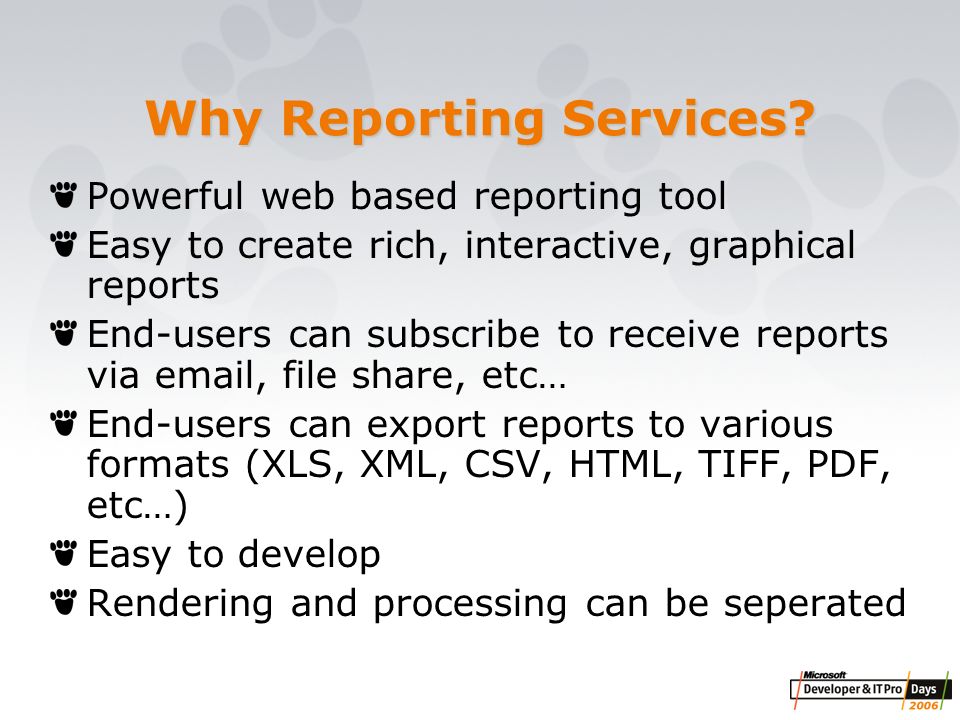

8. Why Reporting Services? Powerful web based reporting tool Easy to create rich, interactive, graphical reports End-users can subscribe to receive reports via email, file share, etc… End-users can export reports to various formats (XLS, XML, CSV, HTML, TIFF, PDF, etc…) Easy to develop Rendering and processing can be seperated

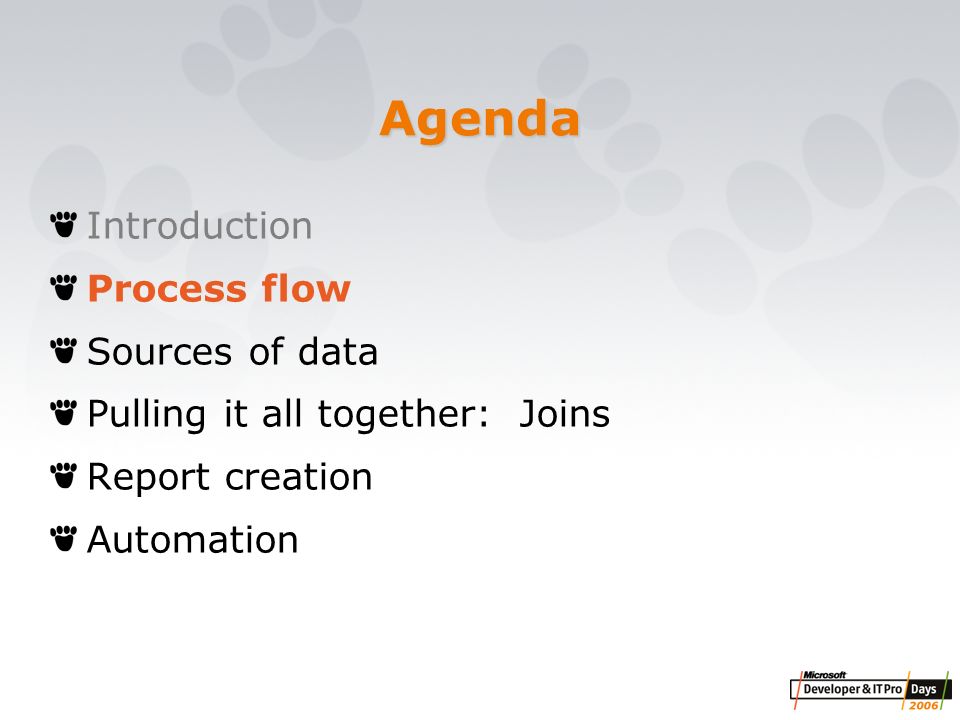

9. Agenda Introduction Process flow Sources of data Pulling it all together: Joins Report creation Automation

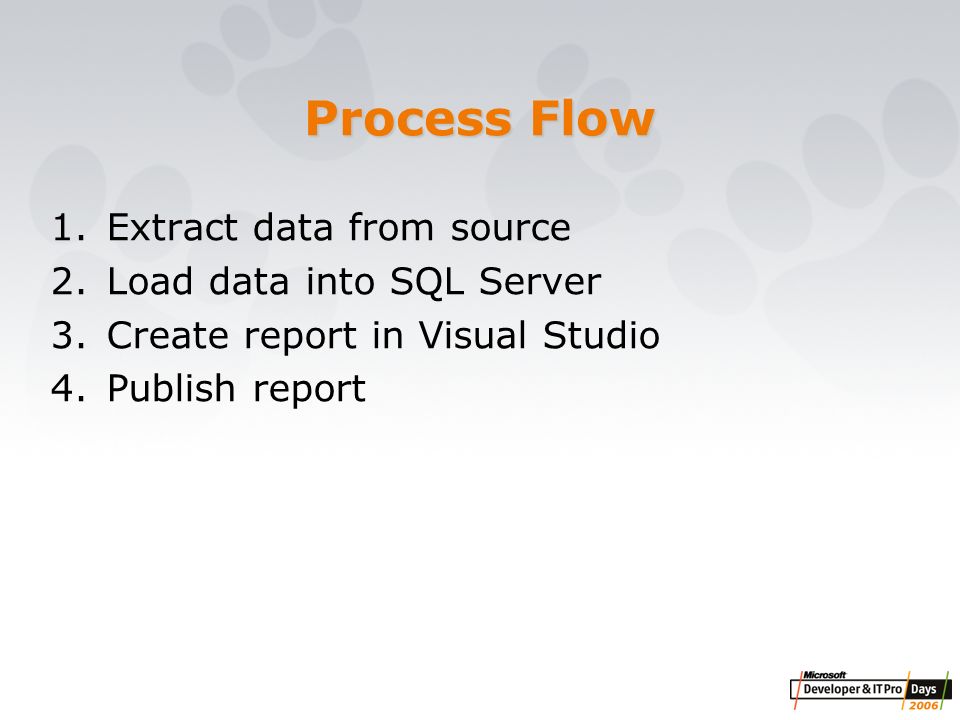

10. Process Flow 1.Extract data from source 2.Load data into SQL Server 3.Create report in Visual Studio 4.Publish report

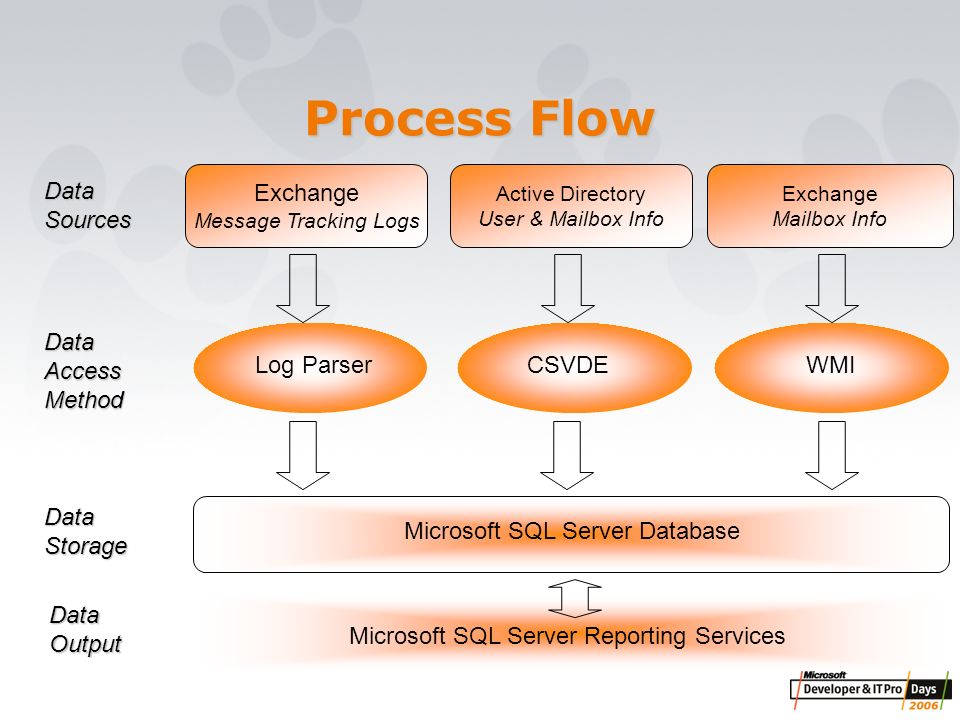

11. Process Flow Exchange Message Tracking Logs Active Directory User & Mailbox Info Exchange Mailbox Info DataSources DataAccessMethod Log ParserCSVDEWMI Microsoft SQL Server Database DataStorage DataOutput Microsoft SQL Server Reporting Services

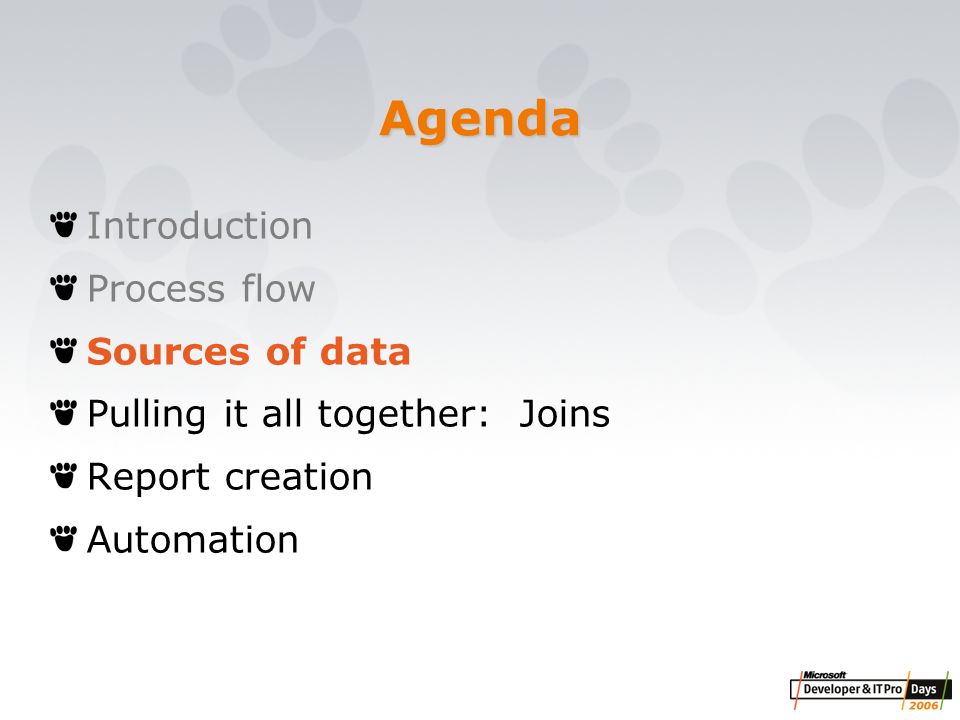

12. Agenda Introduction Process flow Sources of data Pulling it all together: Joins Report creation Automation

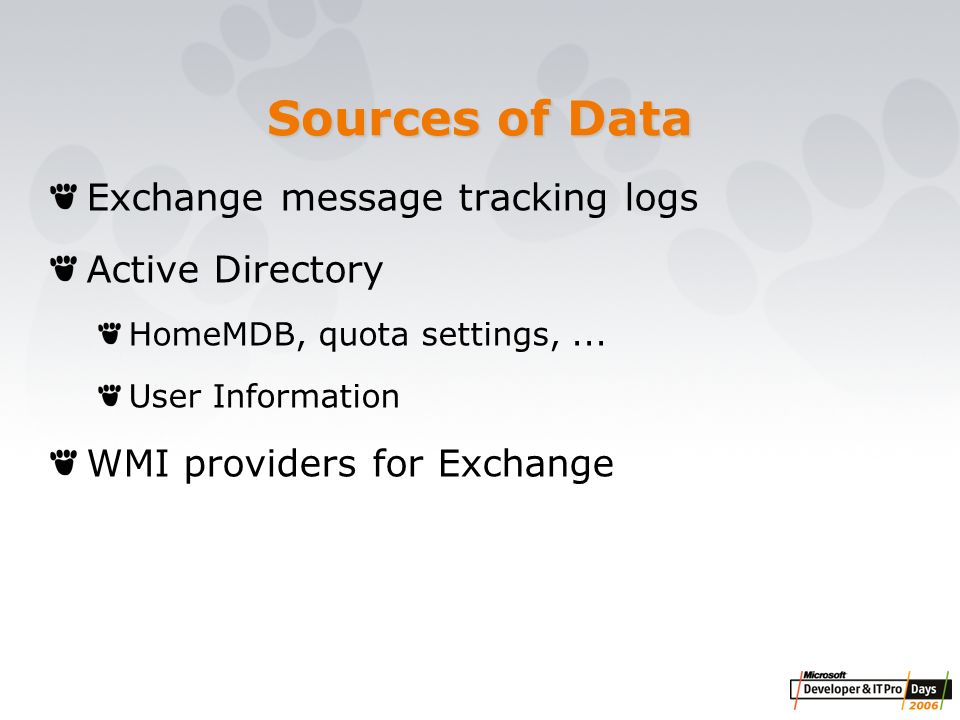

13. Sources of Data Exchange message tracking logs Active Directory HomeMDB, quota settings,... User Information WMI providers for Exchange

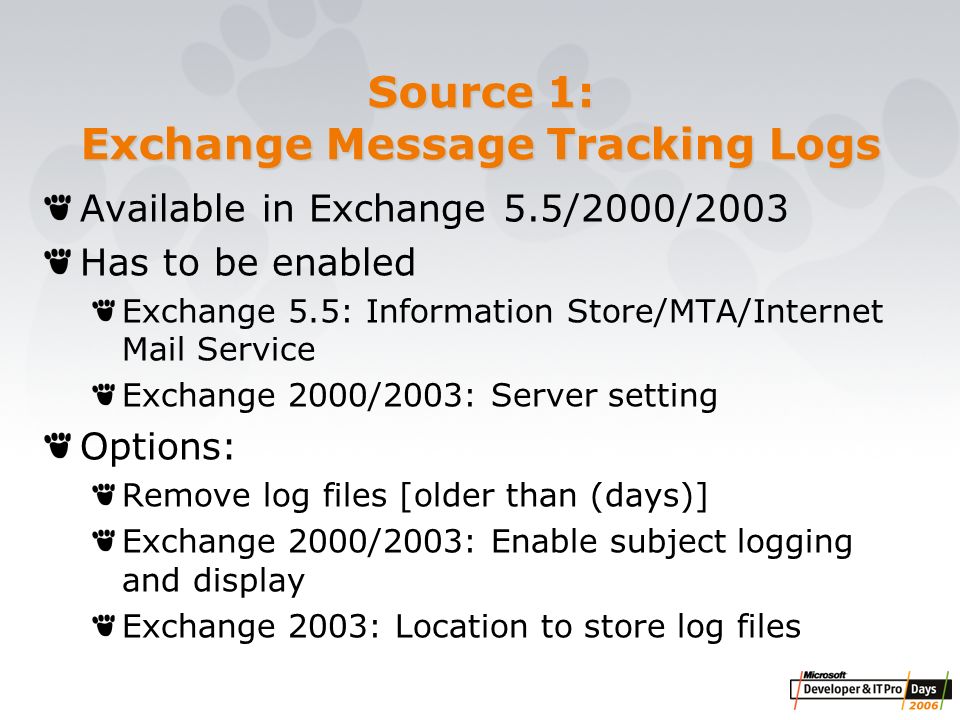

14. Source 1: Exchange Message Tracking Logs Available in Exchange 5.5/2000/2003 Has to be enabled Exchange 5.5: Information Store/MTA/Internet Mail Service Exchange 2000/2003: Server setting Options: Remove log files [older than (days)] Exchange 2000/2003: Enable subject logging and display Exchange 2003: Location to store log files

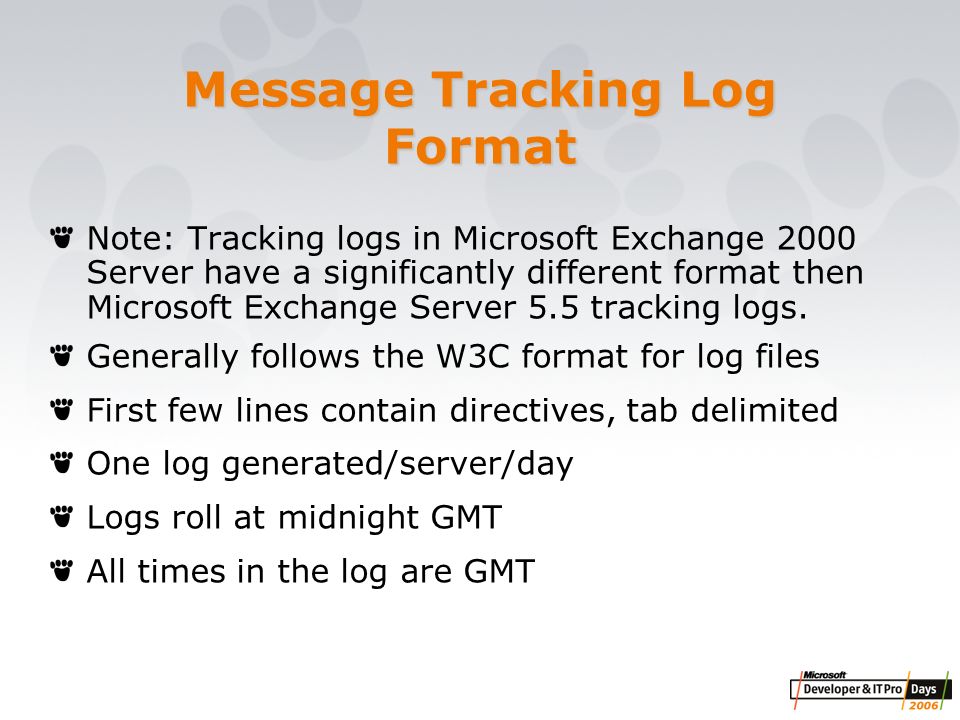

15. Message Tracking Log Format Note: Tracking logs in Microsoft Exchange 2000 Server have a significantly different format then Microsoft Exchange Server 5.5 tracking logs. Generally follows the W3C format for log files First few lines contain directives, tab delimited One log generated/server/day Logs roll at midnight GMT All times in the log are GMT

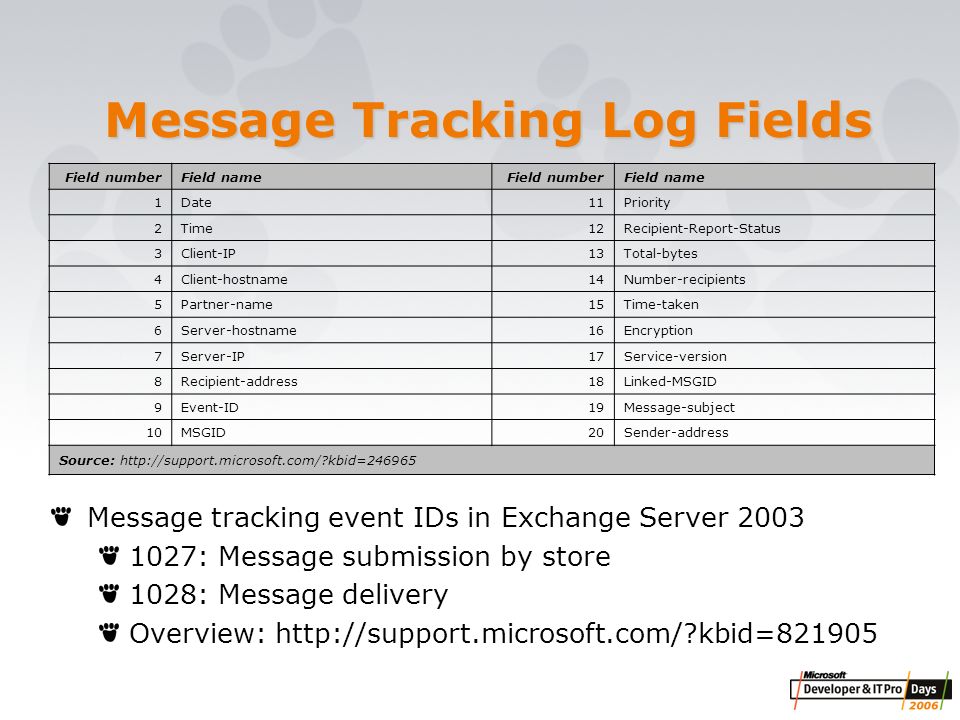

16. Message Tracking Log Fields Field numberField nameField numberField name 1Date11Priority 2Time12Recipient-Report-Status 3Client-IP13Total-bytes 4Client-hostname14Number-recipients 5Partner-name15Time-taken 6Server-hostname16Encryption 7Server-IP17Service-version 8Recipient-address18Linked-MSGID 9Event-ID19Message-subject 10MSGID20Sender-address Source: http://support.microsoft.com/?kbid=246965 Message tracking event IDs in Exchange Server 2003 1027: Message submission by store 1028: Message delivery Overview: http://support.microsoft.com/?kbid=821905

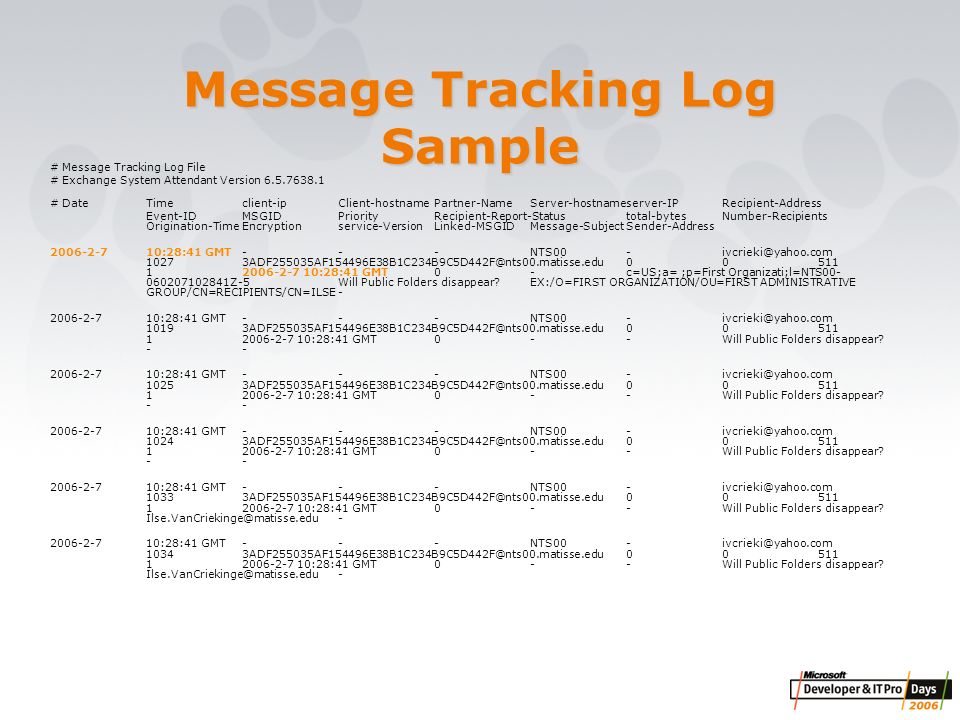

17. Message Tracking Log Sample # Message Tracking Log File # Exchange System Attendant Version 6.5.7638.1 # DateTimeclient-ipClient-hostnamePartner-NameServer-hostnameserver-IPRecipient-Address Event-IDMSGIDPriorityRecipient-Report-Statustotal-bytesNumber-Recipients Origination-TimeEncryptionservice-VersionLinked-MSGIDMessage-SubjectSender-Address 2006-2-710:28:41 GMT---NTS00-ivcrieki@yahoo.com 10273ADF255035AF154496E38B1C234B9C5D442F@nts00.matisse.edu00511 12006-2-7 10:28:41 GMT0-c=US;a= ;p=First Organizati;l=NTS00- 060207102841Z-5Will Public Folders disappear?EX:/O=FIRST ORGANIZATION/OU=FIRST ADMINISTRATIVE GROUP/CN=RECIPIENTS/CN=ILSE- 2006-2-710:28:41 GMT---NTS00-ivcrieki@yahoo.com 10193ADF255035AF154496E38B1C234B9C5D442F@nts00.matisse.edu00511 12006-2-7 10:28:41 GMT0--Will Public Folders disappear? -- 2006-2-710:28:41 GMT---NTS00-ivcrieki@yahoo.com 10253ADF255035AF154496E38B1C234B9C5D442F@nts00.matisse.edu00511 12006-2-7 10:28:41 GMT0--Will Public Folders disappear? -- 2006-2-710:28:41 GMT---NTS00-ivcrieki@yahoo.com 10243ADF255035AF154496E38B1C234B9C5D442F@nts00.matisse.edu00511 12006-2-7 10:28:41 GMT0--Will Public Folders disappear? -- 2006-2-710:28:41 GMT---NTS00-ivcrieki@yahoo.com 10333ADF255035AF154496E38B1C234B9C5D442F@nts00.matisse.edu00511 12006-2-7 10:28:41 GMT0--Will Public Folders disappear? Ilse.VanCriekinge@matisse.edu- 2006-2-710:28:41 GMT---NTS00-ivcrieki@yahoo.com 10343ADF255035AF154496E38B1C234B9C5D442F@nts00.matisse.edu00511 12006-2-7 10:28:41 GMT0--Will Public Folders disappear? Ilse.VanCriekinge@matisse.edu-

18. ColumnData Date2006-2-7 Time10:28:41 GMT Client-IP- Client-Hostname- Partner-Name- Server-HostnameNTS00 Server-IP- Recipient-Addressivcrieki@yahoo.com Event-ID1027 MSGID3ADF255035AF154496E38B1C234B9C5D442F@nts00.matisse.edu Priority0 Recipient-Report-Status0 total-bytes511 Number-Recipients1 Origination Time2006-2-7 10:28:41 GMT Encryption0 Service-Version- Linked-MSGIDc=US;a= ;p=First Organizati;l=NTS00-060207102841Z-5 Message-SubjectWill Public Folders disappear? Sender-AddressEX:/O=FIRST ORGANIZATION/OU=FIRST ADMINISTRATIVE GROUP/CN=RECIPIENTS/CN=ILSE

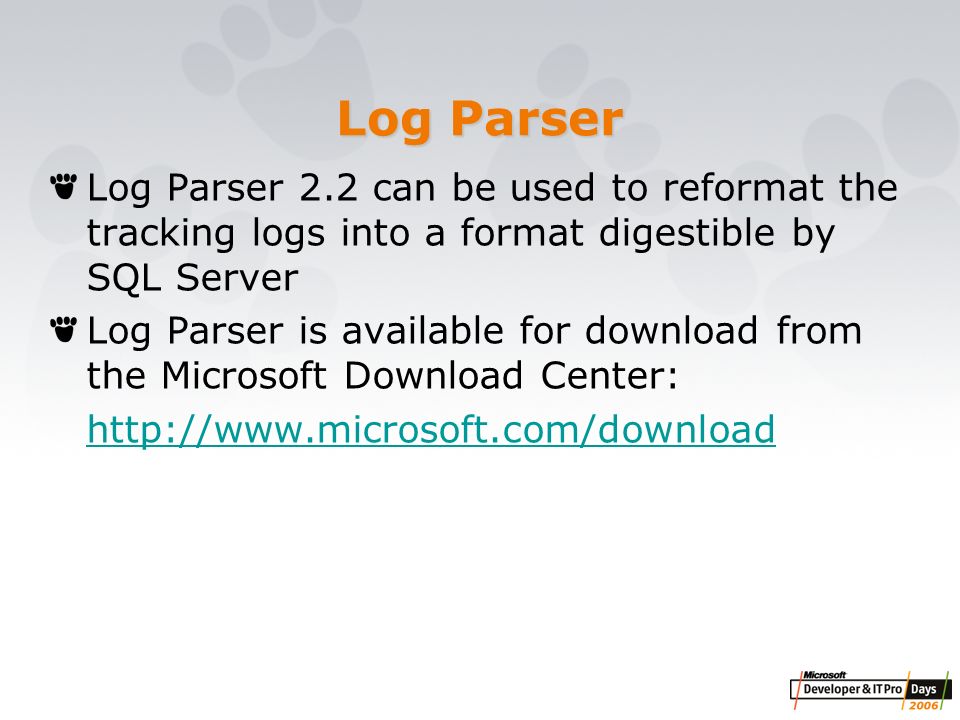

19. Log Parser Log Parser 2.2 can be used to reformat the tracking logs into a format digestible by SQL Server Log Parser is available for download from the Microsoft Download Center: http://www.microsoft.com/download

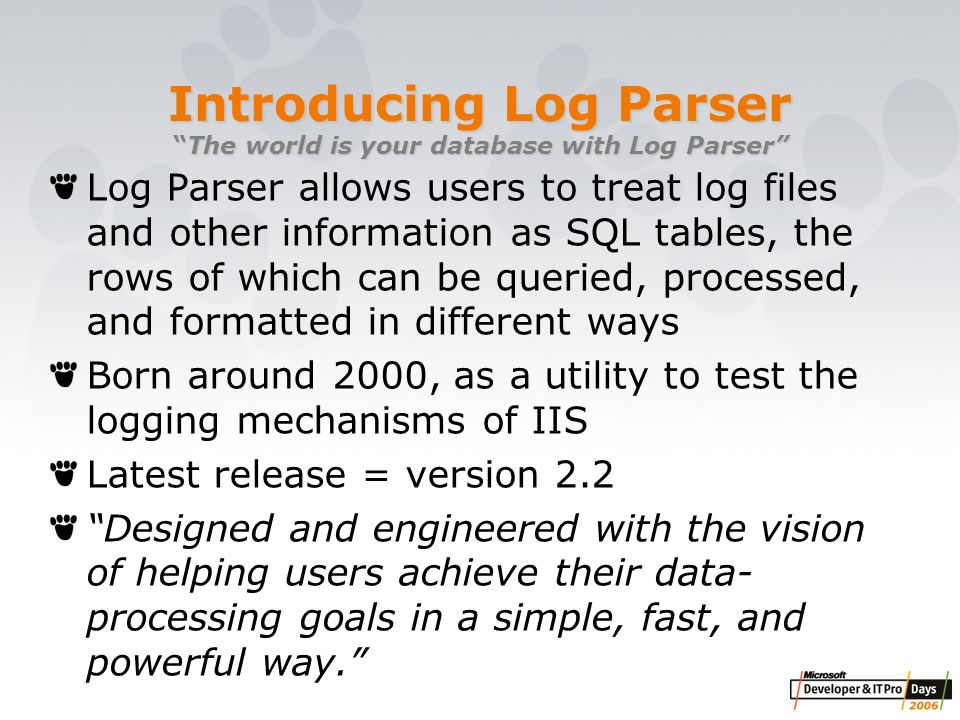

20. Introducing Log Parser “The world is your database with Log Parser” Log Parser allows users to treat log files and other information as SQL tables, the rows of which can be queried, processed, and formatted in different ways Born around 2000, as a utility to test the logging mechanisms of IIS Latest release = version 2.2 “Designed and engineered with the vision of helping users achieve their data- processing goals in a simple, fast, and powerful way.”

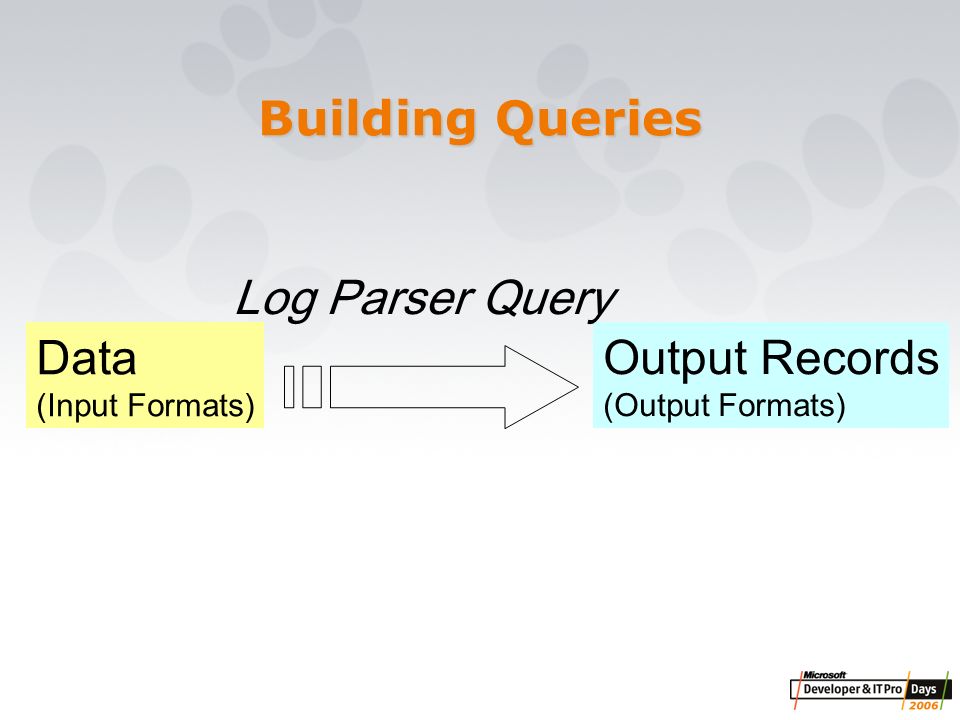

21. Building Queries Data (Input Formats) Output Records (Output Formats) Log Parser Query

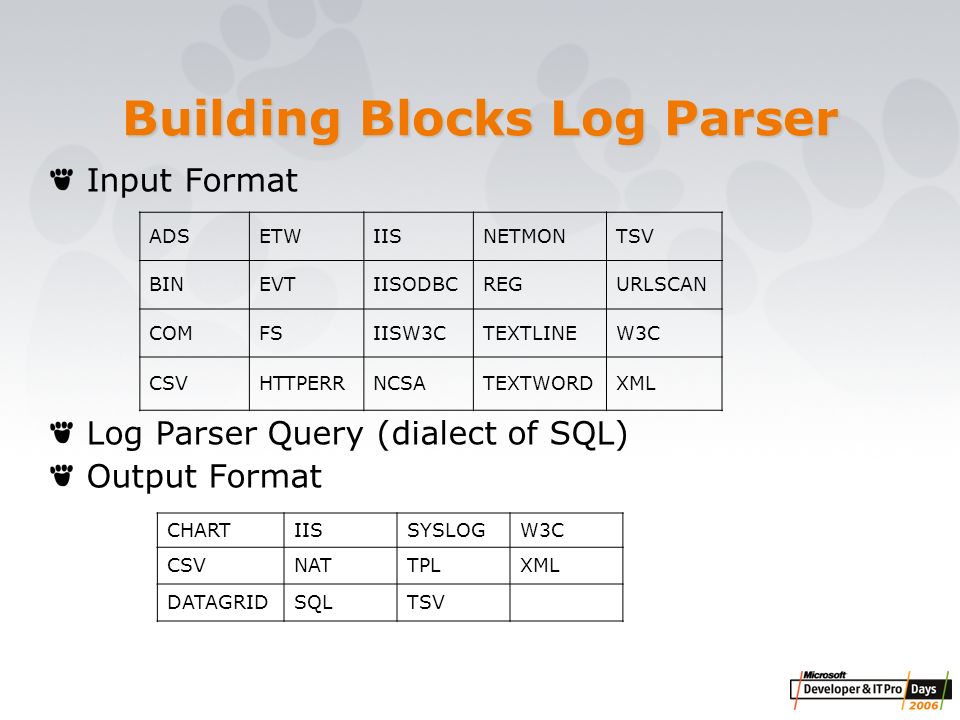

22. Building Blocks Log Parser Input Format Log Parser Query (dialect of SQL) Output Format ADSETWIISNETMONTSV BINEVTIISODBCREGURLSCAN COMFSIISW3CTEXTLINEW3C CSVHTTPERRNCSATEXTWORDXML CHARTIISSYSLOGW3C CSVNATTPLXML DATAGRIDSQLTSV

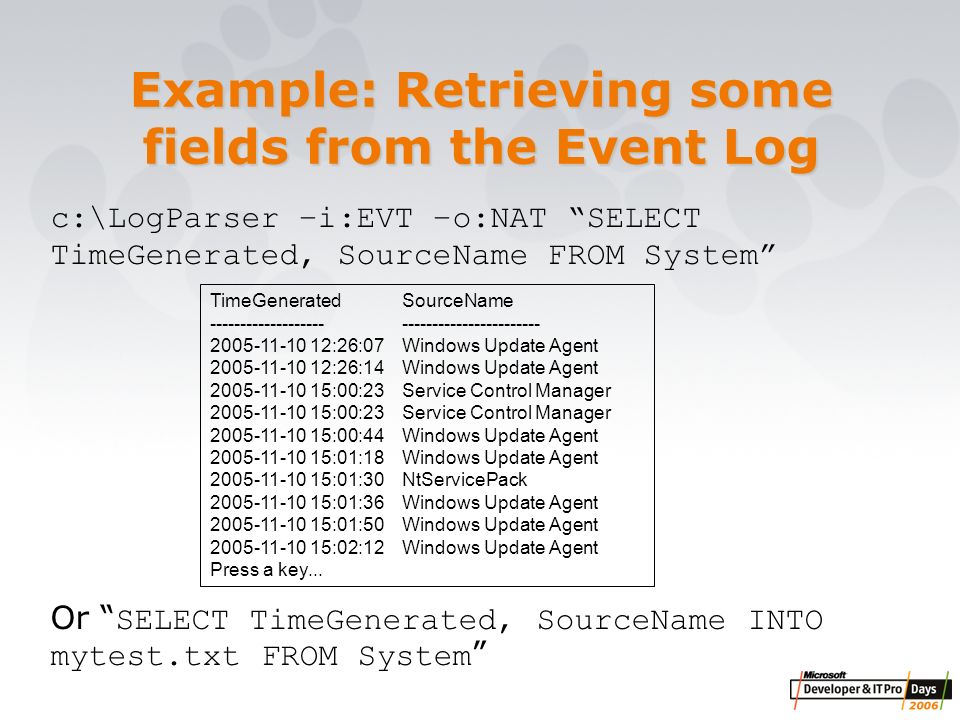

23. Example: Retrieving some fields from the Event Log c:\LogParser –i:EVT –o:NAT “SELECT TimeGenerated, SourceName FROM System” Or “ SELECT TimeGenerated, SourceName INTO mytest.txt FROM System ” TimeGenerated SourceName ------------------- ----------------------- 2005-11-10 12:26:07 Windows Update Agent 2005-11-10 12:26:14 Windows Update Agent 2005-11-10 15:00:23 Service Control Manager 2005-11-10 15:00:44 Windows Update Agent 2005-11-10 15:01:18 Windows Update Agent 2005-11-10 15:01:30 NtServicePack 2005-11-10 15:01:36 Windows Update Agent 2005-11-10 15:01:50 Windows Update Agent 2005-11-10 15:02:12 Windows Update Agent Press a key...

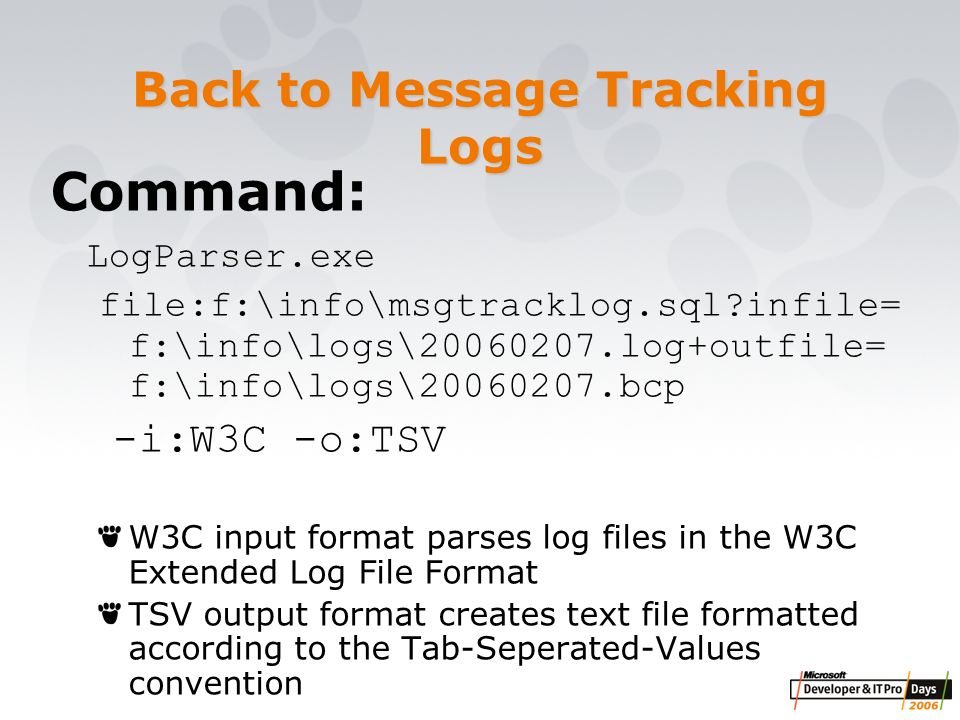

24. Back to Message Tracking Logs Command: LogParser.exe file:f:\info\msgtracklog.sql?infile= f:\info\logs\20060207.log+outfile= f:\info\logs\20060207.bcp -i:W3C -o:TSV W3C input format parses log files in the W3C Extended Log File Format TSV output format creates text file formatted according to the Tab-Seperated-Values convention

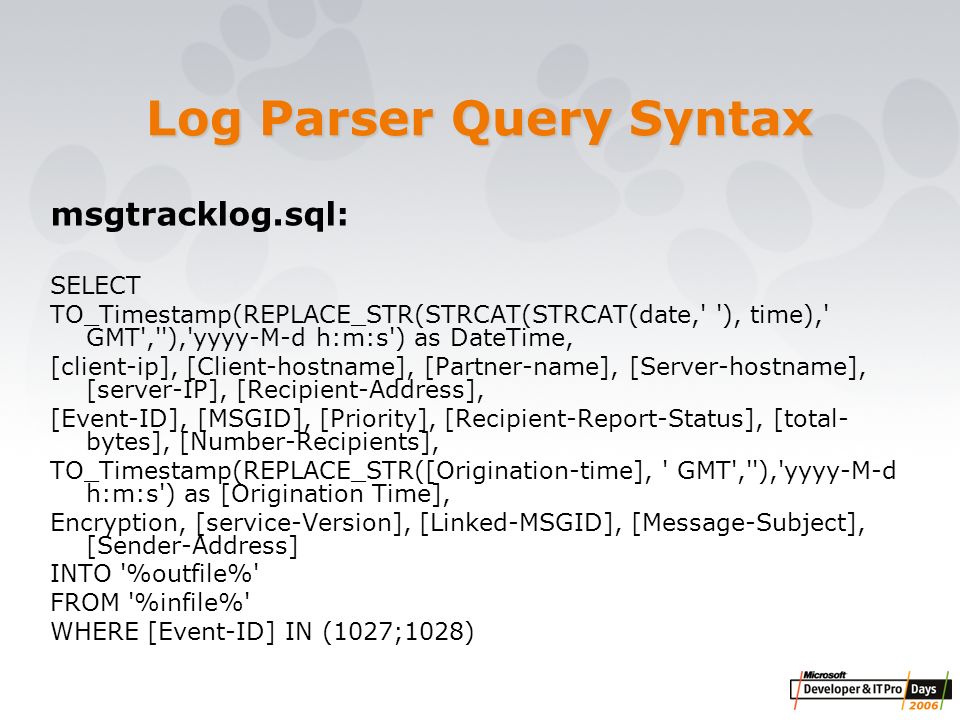

25. Log Parser Query Syntax msgtracklog.sql: SELECT TO_Timestamp(REPLACE_STR(STRCAT(STRCAT(date,' '), time),' GMT',''),'yyyy-M-d h:m:s') as DateTime, [client-ip], [Client-hostname], [Partner-name], [Server-hostname], [server-IP], [Recipient-Address], [Event-ID], [MSGID], [Priority], [Recipient-Report-Status], [total- bytes], [Number-Recipients], TO_Timestamp(REPLACE_STR([Origination-time], ' GMT',''),'yyyy-M-d h:m:s') as [Origination Time], Encryption, [service-Version], [Linked-MSGID], [Message-Subject], [Sender-Address] INTO '%outfile%' FROM '%infile%' WHERE [Event-ID] IN (1027;1028)

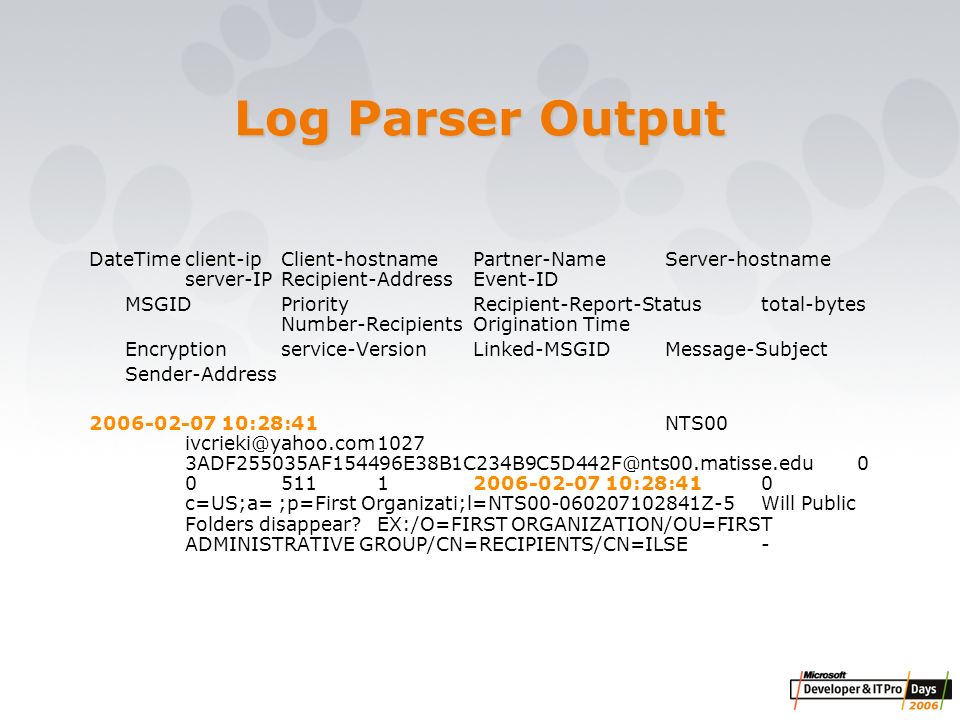

26. Log Parser Output DateTimeclient-ipClient-hostnamePartner-NameServer-hostname server-IPRecipient-AddressEvent-ID MSGIDPriorityRecipient-Report-Statustotal-bytes Number-RecipientsOrigination Time Encryptionservice-VersionLinked-MSGIDMessage-Subject Sender-Address 2006-02-07 10:28:41NTS00 ivcrieki@yahoo.com1027 3ADF255035AF154496E38B1C234B9C5D442F@nts00.matisse.edu0 051112006-02-07 10:28:410 c=US;a= ;p=First Organizati;l=NTS00-060207102841Z-5Will Public Folders disappear?EX:/O=FIRST ORGANIZATION/OU=FIRST ADMINISTRATIVE GROUP/CN=RECIPIENTS/CN=ILSE-

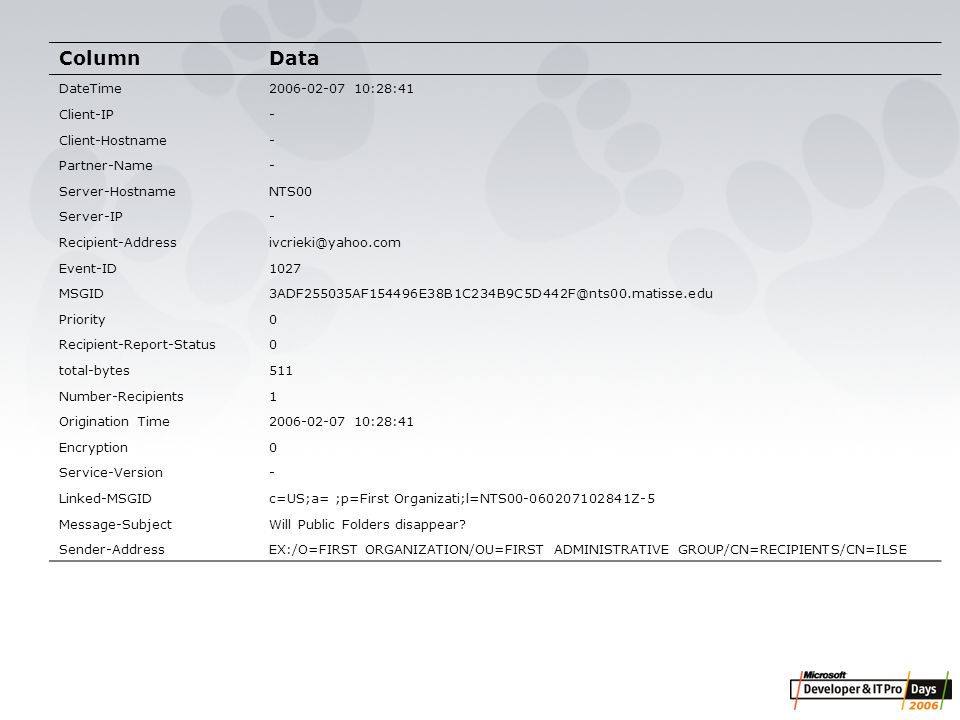

27. ColumnData DateTime2006-02-07 10:28:41 Client-IP- Client-Hostname- Partner-Name- Server-HostnameNTS00 Server-IP- Recipient-Addressivcrieki@yahoo.com Event-ID1027 MSGID3ADF255035AF154496E38B1C234B9C5D442F@nts00.matisse.edu Priority0 Recipient-Report-Status0 total-bytes511 Number-Recipients1 Origination Time2006-02-07 10:28:41 Encryption0 Service-Version- Linked-MSGIDc=US;a= ;p=First Organizati;l=NTS00-060207102841Z-5 Message-SubjectWill Public Folders disappear? Sender-AddressEX:/O=FIRST ORGANIZATION/OU=FIRST ADMINISTRATIVE GROUP/CN=RECIPIENTS/CN=ILSE

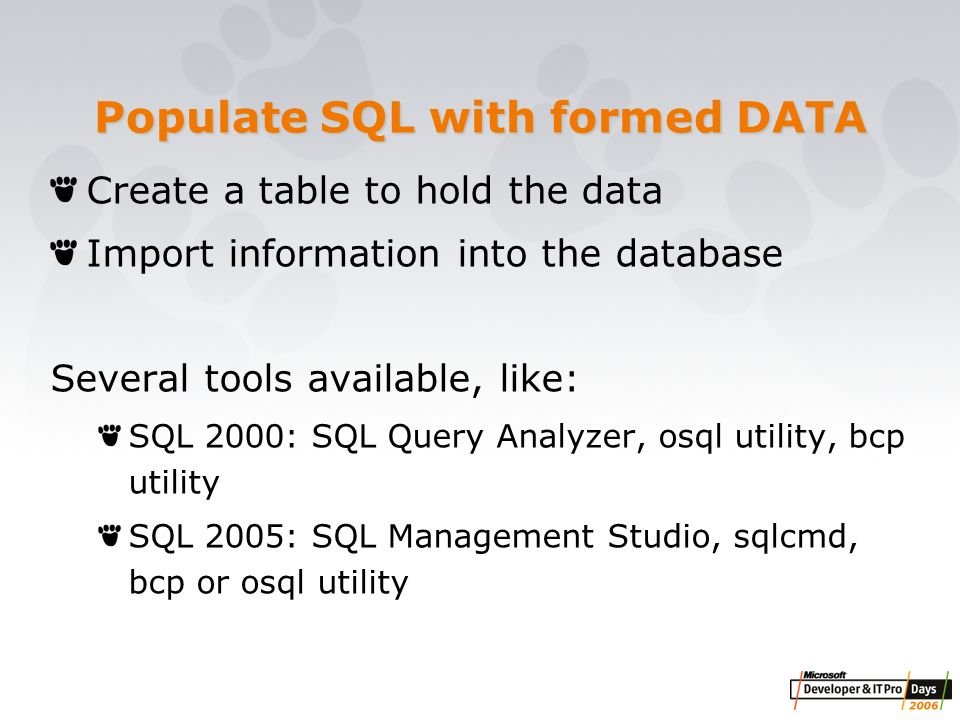

28. Populate SQL with formed DATA Create a table to hold the data Import information into the database Several tools available, like: SQL 2000: SQL Query Analyzer, osql utility, bcp utility SQL 2005: SQL Management Studio, sqlcmd, bcp or osql utility

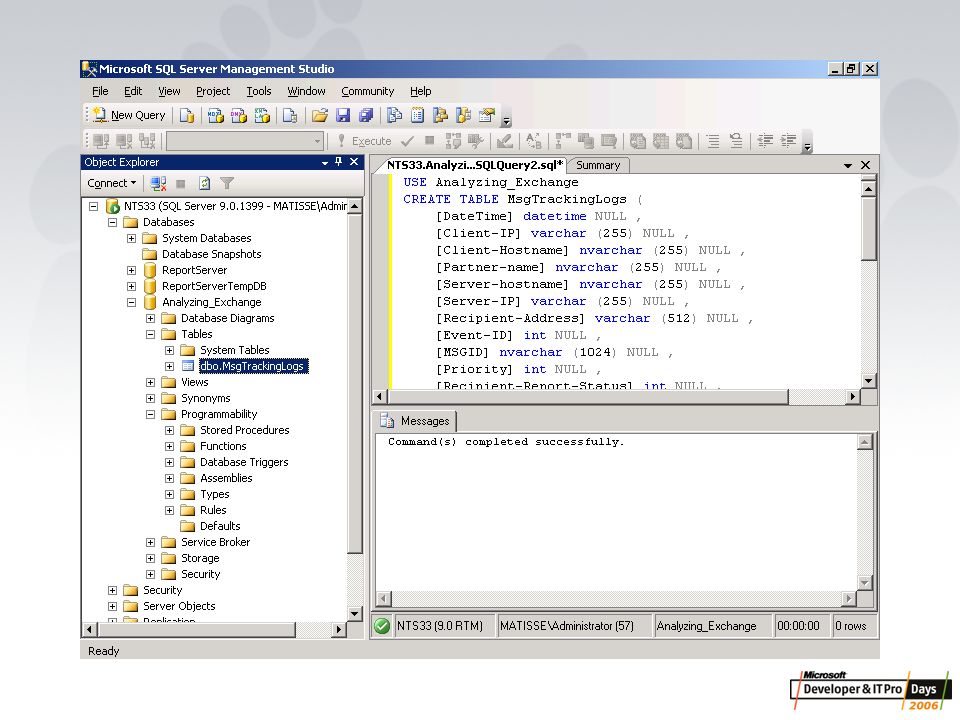

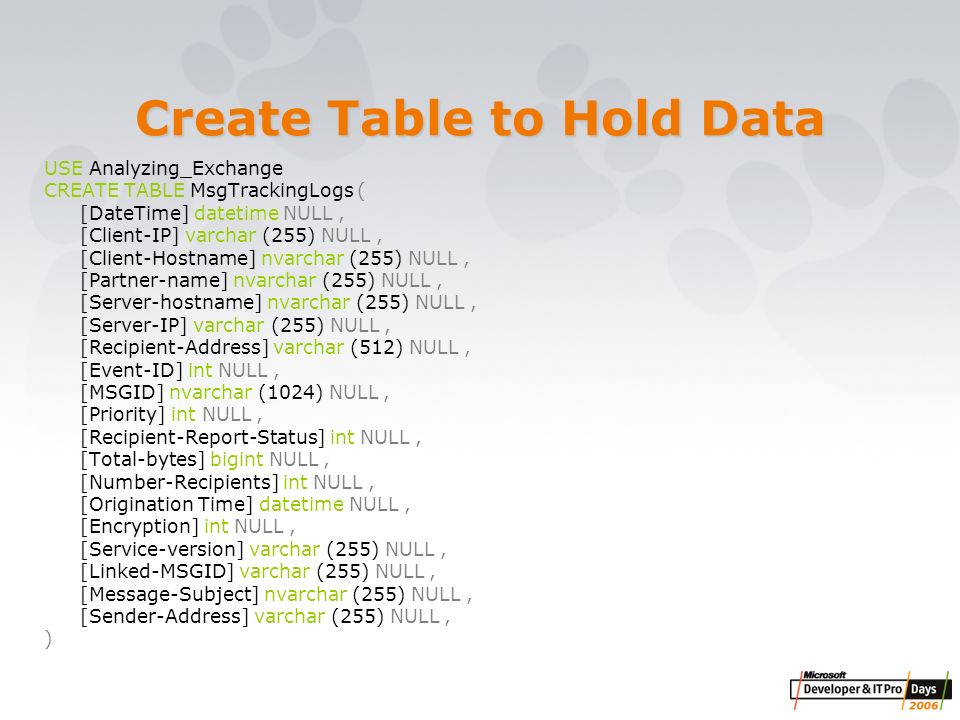

29. Create Table to Hold Data USE Analyzing_Exchange CREATE TABLE MsgTrackingLogs ( [DateTime] datetime NULL, [Client-IP] varchar (255) NULL, [Client-Hostname] nvarchar (255) NULL, [Partner-name] nvarchar (255) NULL, [Server-hostname] nvarchar (255) NULL, [Server-IP] varchar (255) NULL, [Recipient-Address] varchar (512) NULL, [Event-ID] int NULL, [MSGID] nvarchar (1024) NULL, [Priority] int NULL, [Recipient-Report-Status] int NULL, [Total-bytes] bigint NULL, [Number-Recipients] int NULL, [Origination Time] datetime NULL, [Encryption] int NULL, [Service-version] varchar (255) NULL, [Linked-MSGID] varchar (255) NULL, [Message-Subject] nvarchar (255) NULL, [Sender-Address] varchar (255) NULL, )

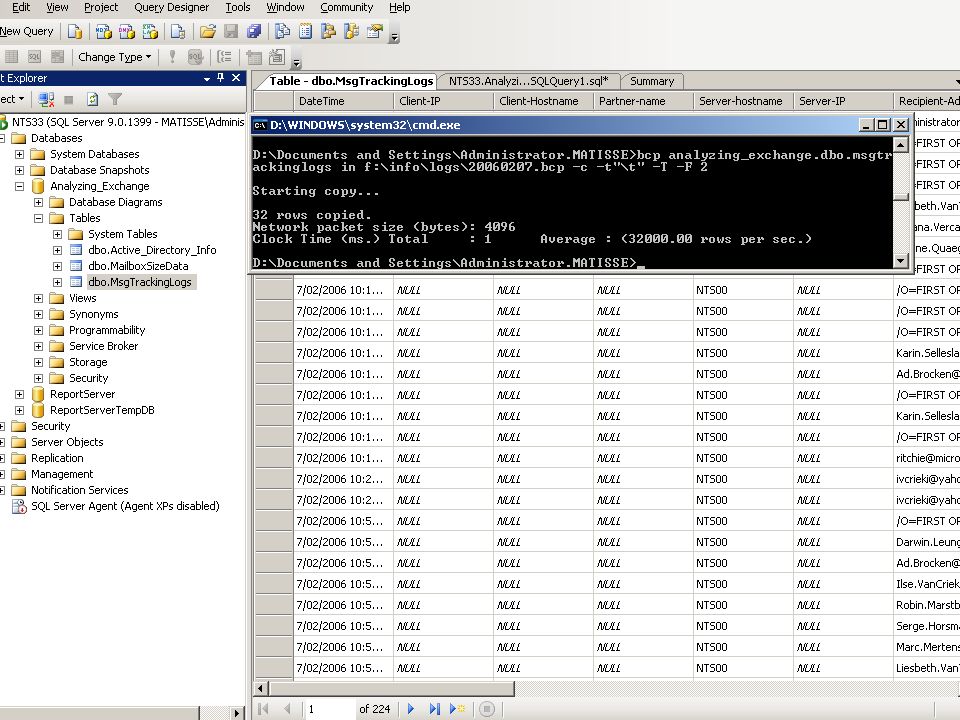

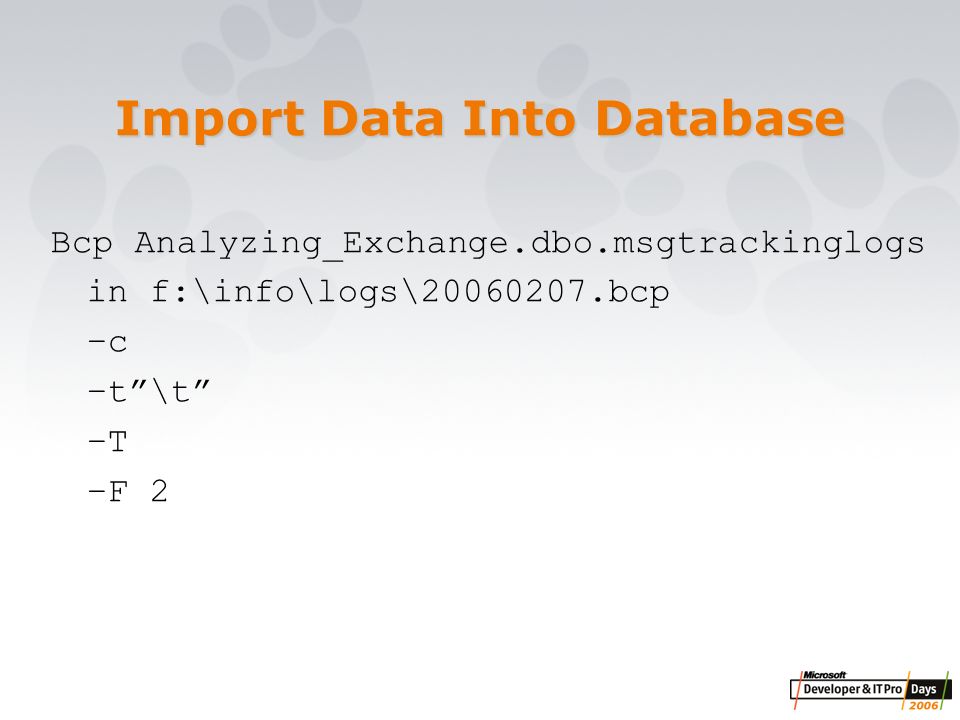

31. Import Data Into Database Bcp Analyzing_Exchange.dbo.msgtrackinglogs in f:\info\logs\20060207.bcp –c –t”\t” –T –F 2

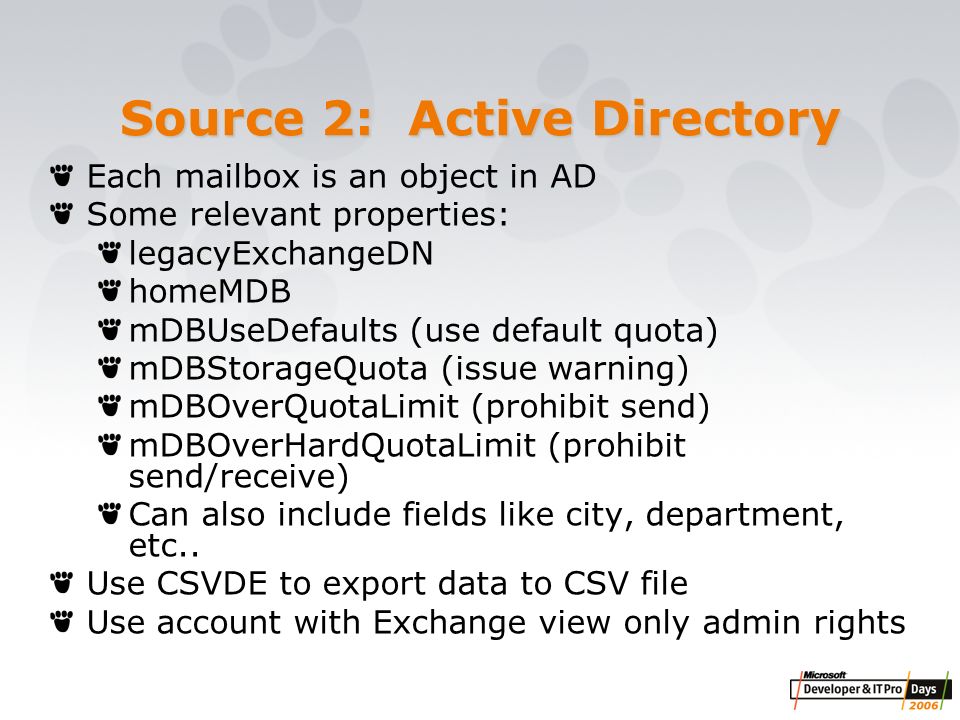

34. Source 2: Active Directory Each mailbox is an object in AD Some relevant properties: legacyExchangeDN homeMDB mDBUseDefaults (use default quota) mDBStorageQuota (issue warning) mDBOverQuotaLimit (prohibit send) mDBOverHardQuotaLimit (prohibit send/receive) Can also include fields like city, department, etc.. Use CSVDE to export data to CSV file Use account with Exchange view only admin rights

35. Introducing CSVDE csvde.exe installed on Windows 200X Server by default Can be run from Windows 2000 Pro or XP Professional Can be used to import and export data from Active Directory by using files that store data in the comma-separated value (CSV) file format standard Also supports batch operations that are based on CSV

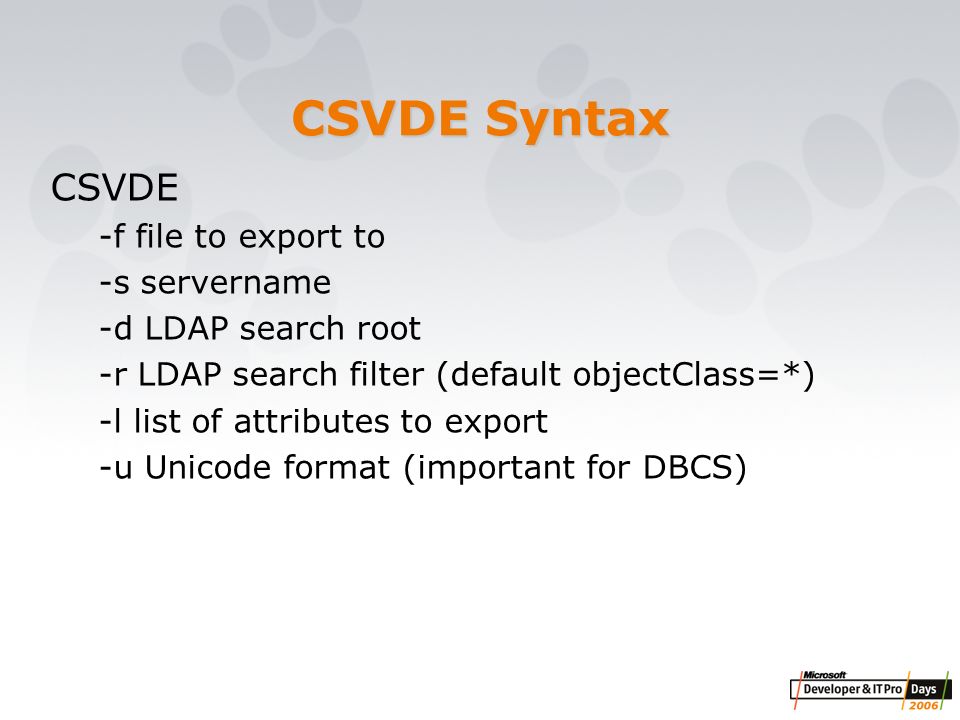

36. CSVDE Syntax CSVDE -f file to export to -s servername -d LDAP search root -r LDAP search filter (default objectClass=*) -l list of attributes to export -u Unicode format (important for DBCS)

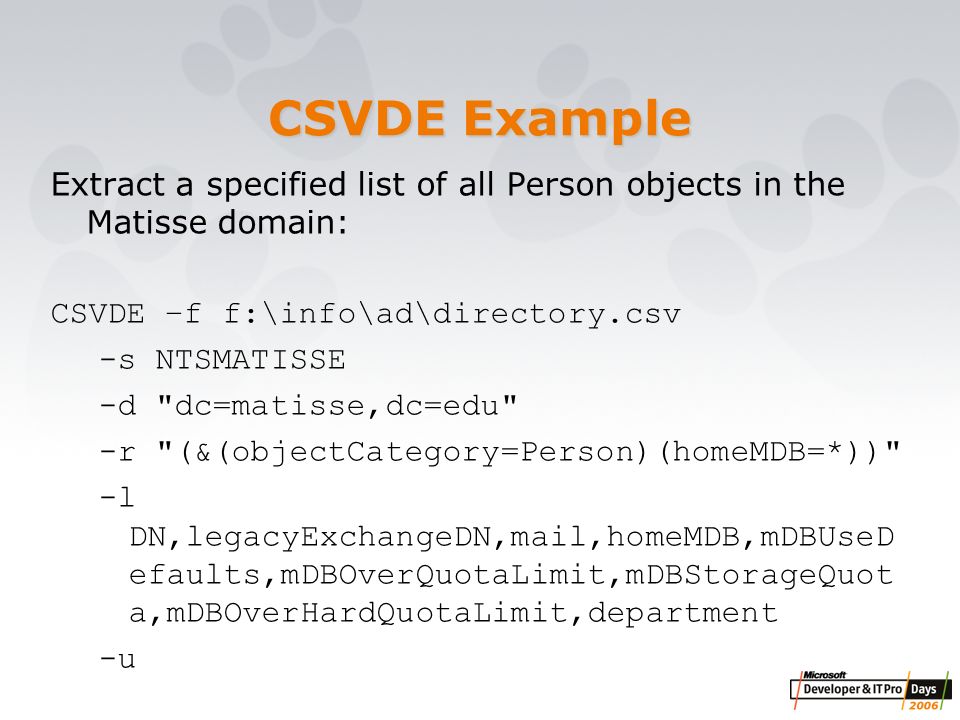

37. CSVDE Example Extract a specified list of all Person objects in the Matisse domain: CSVDE –f f:\info\ad\directory.csv -s NTSMATISSE -d "dc=matisse,dc=edu" -r "(&(objectCategory=Person)(homeMDB=*))" -l DN,legacyExchangeDN,mail,homeMDB,mDBUseD efaults,mDBOverQuotaLimit,mDBStorageQuot a,mDBOverHardQuotaLimit,department -u

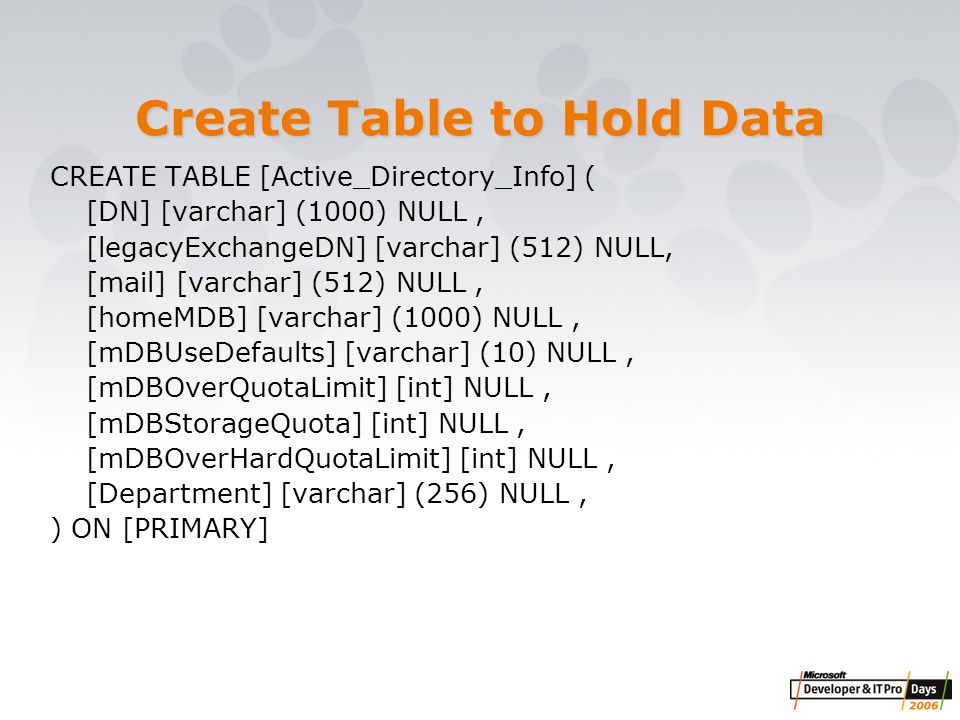

38. Create Table to Hold Data CREATE TABLE [Active_Directory_Info] ( [DN] [varchar] (1000) NULL, [legacyExchangeDN] [varchar] (512) NULL, [mail] [varchar] (512) NULL, [homeMDB] [varchar] (1000) NULL, [mDBUseDefaults] [varchar] (10) NULL, [mDBOverQuotaLimit] [int] NULL, [mDBStorageQuota] [int] NULL, [mDBOverHardQuotaLimit] [int] NULL, [Department] [varchar] (256) NULL, ) ON [PRIMARY]

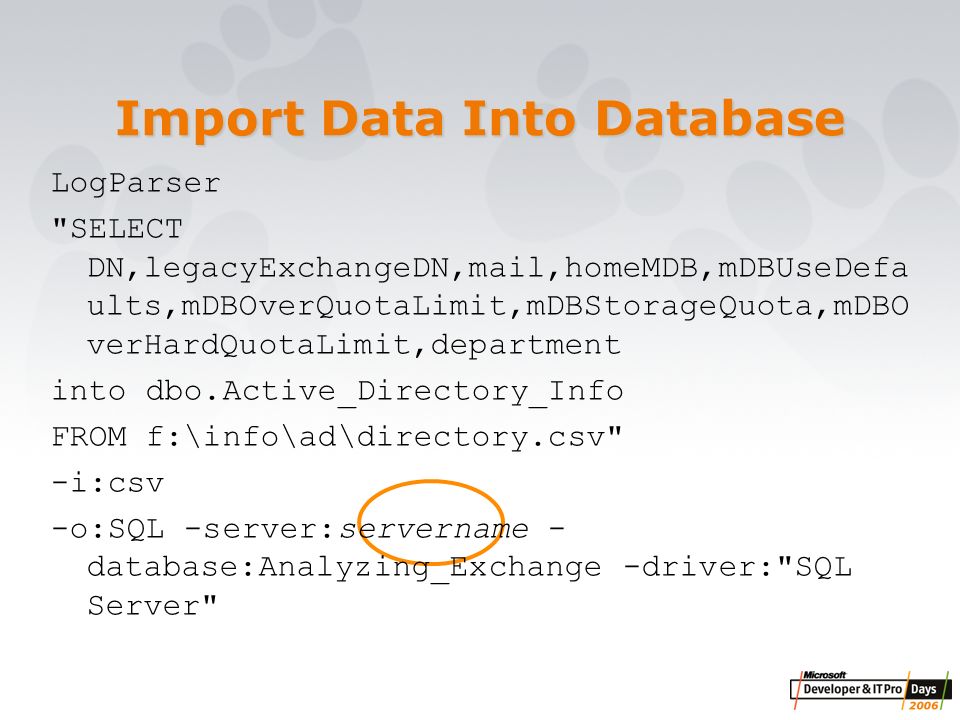

39. Import Data Into Database LogParser "SELECT DN,legacyExchangeDN,mail,homeMDB,mDBUseDefa ults,mDBOverQuotaLimit,mDBStorageQuota,mDBO verHardQuotaLimit,department into dbo.Active_Directory_Info FROM f:\info\ad\directory.csv" -i:csv -o:SQL -server:servername - database:Analyzing_Exchange -driver:"SQL Server"

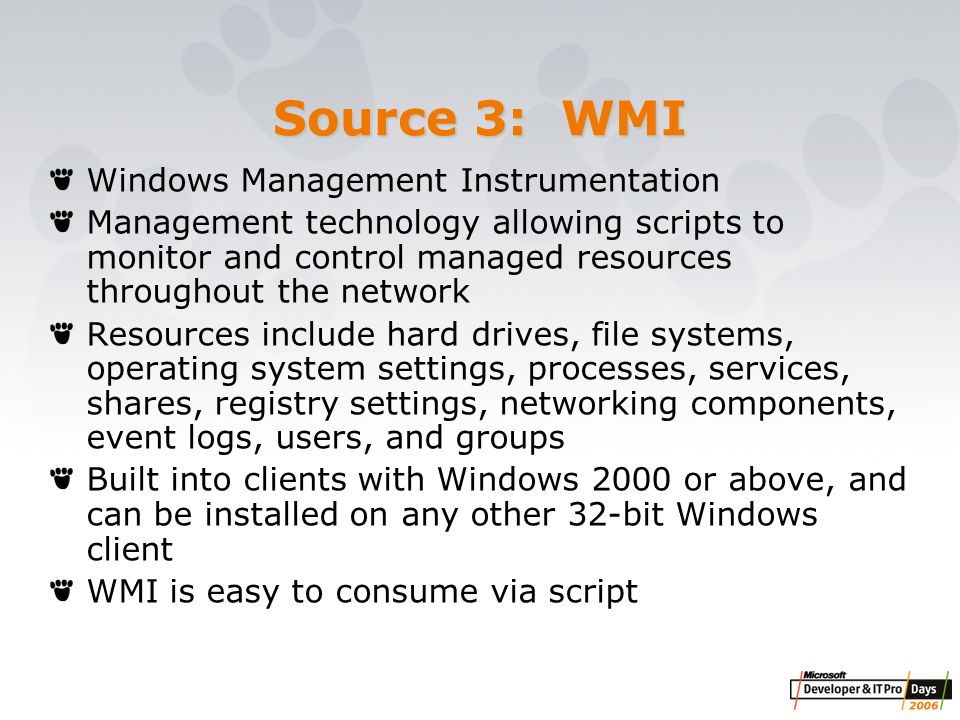

41. Source 3: WMI Windows Management Instrumentation Management technology allowing scripts to monitor and control managed resources throughout the network Resources include hard drives, file systems, operating system settings, processes, services, shares, registry settings, networking components, event logs, users, and groups Built into clients with Windows 2000 or above, and can be installed on any other 32-bit Windows client WMI is easy to consume via script

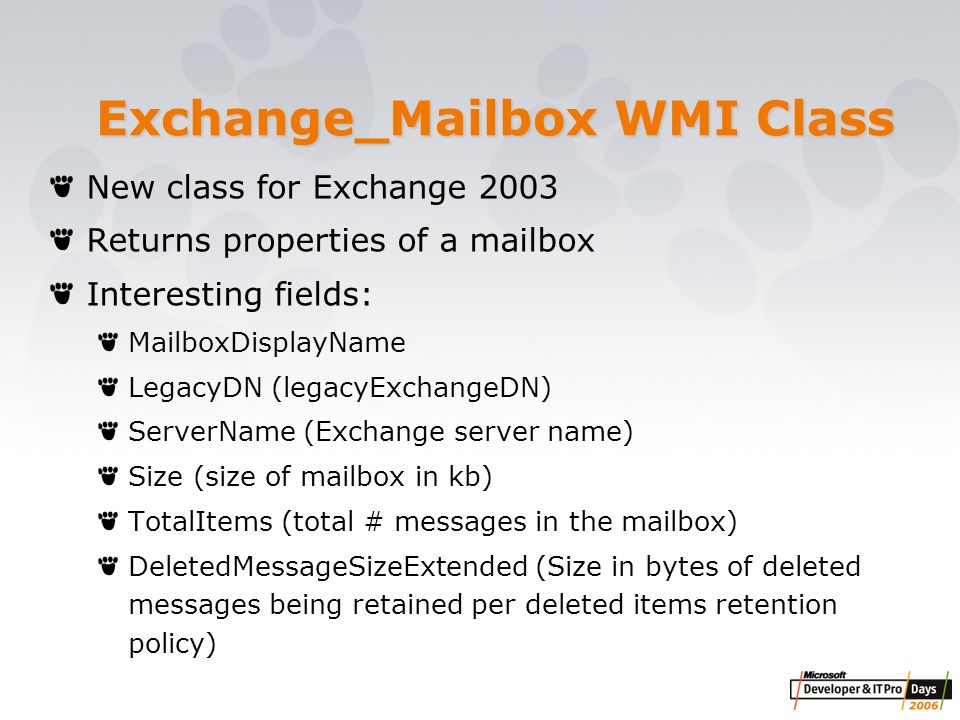

42. Exchange_Mailbox WMI Class New class for Exchange 2003 Returns properties of a mailbox Interesting fields: MailboxDisplayName LegacyDN (legacyExchangeDN) ServerName (Exchange server name) Size (size of mailbox in kb) TotalItems (total # messages in the mailbox) DeletedMessageSizeExtended (Size in bytes of deleted messages being retained per deleted items retention policy)

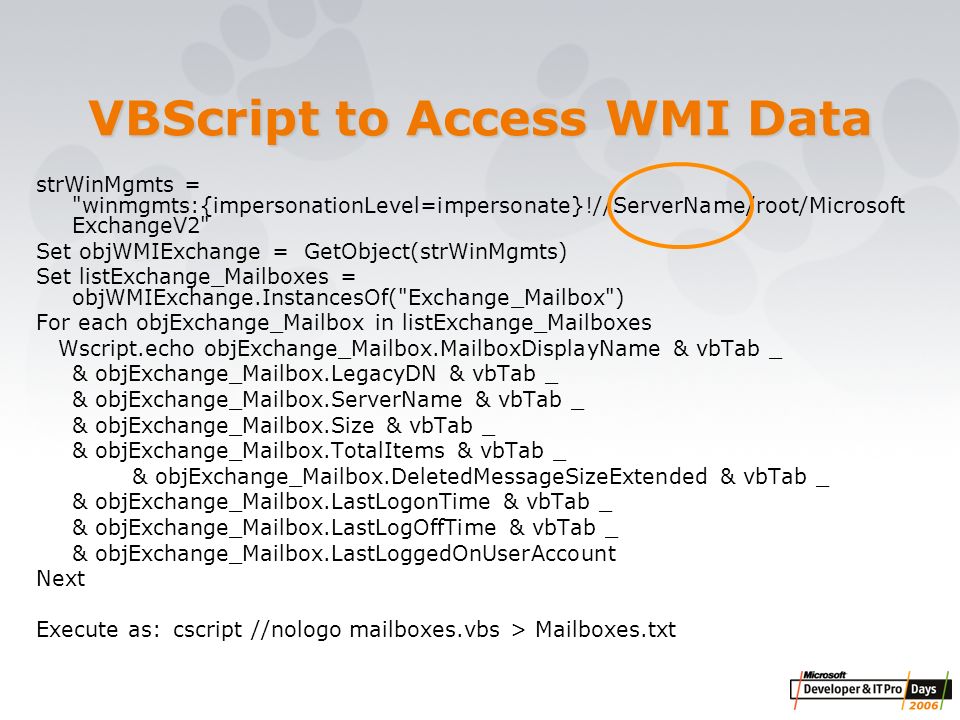

43. VBScript to Access WMI Data strWinMgmts = "winmgmts:{impersonationLevel=impersonate}!//ServerName/root/Microsoft ExchangeV2" Set objWMIExchange = GetObject(strWinMgmts) Set listExchange_Mailboxes = objWMIExchange.InstancesOf("Exchange_Mailbox") For each objExchange_Mailbox in listExchange_Mailboxes Wscript.echo objExchange_Mailbox.MailboxDisplayName & vbTab _ & objExchange_Mailbox.LegacyDN & vbTab _ & objExchange_Mailbox.ServerName & vbTab _ & objExchange_Mailbox.Size & vbTab _ & objExchange_Mailbox.TotalItems & vbTab _ & objExchange_Mailbox.DeletedMessageSizeExtended & vbTab _ & objExchange_Mailbox.LastLogonTime & vbTab _ & objExchange_Mailbox.LastLogOffTime & vbTab _ & objExchange_Mailbox.LastLoggedOnUserAccount Next Execute as: cscript //nologo mailboxes.vbs > Mailboxes.txt

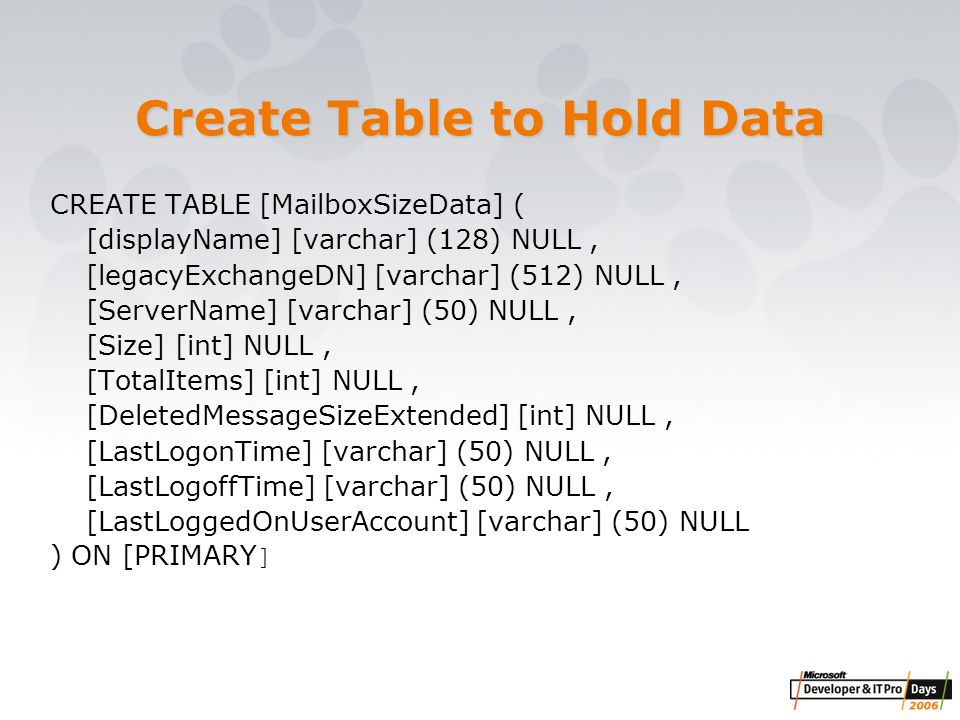

44. Create Table to Hold Data CREATE TABLE [MailboxSizeData] ( [displayName] [varchar] (128) NULL, [legacyExchangeDN] [varchar] (512) NULL, [ServerName] [varchar] (50) NULL, [Size] [int] NULL, [TotalItems] [int] NULL, [DeletedMessageSizeExtended] [int] NULL, [LastLogonTime] [varchar] (50) NULL, [LastLogoffTime] [varchar] (50) NULL, [LastLoggedOnUserAccount] [varchar] (50) NULL ) ON [PRIMARY ]

45. Import Data Into Database Microsoft SQL Server Management Studio “BULK INSERT [MailboxSizeData] FROM ‘f:\info\wmi\Mailboxes.txt'“

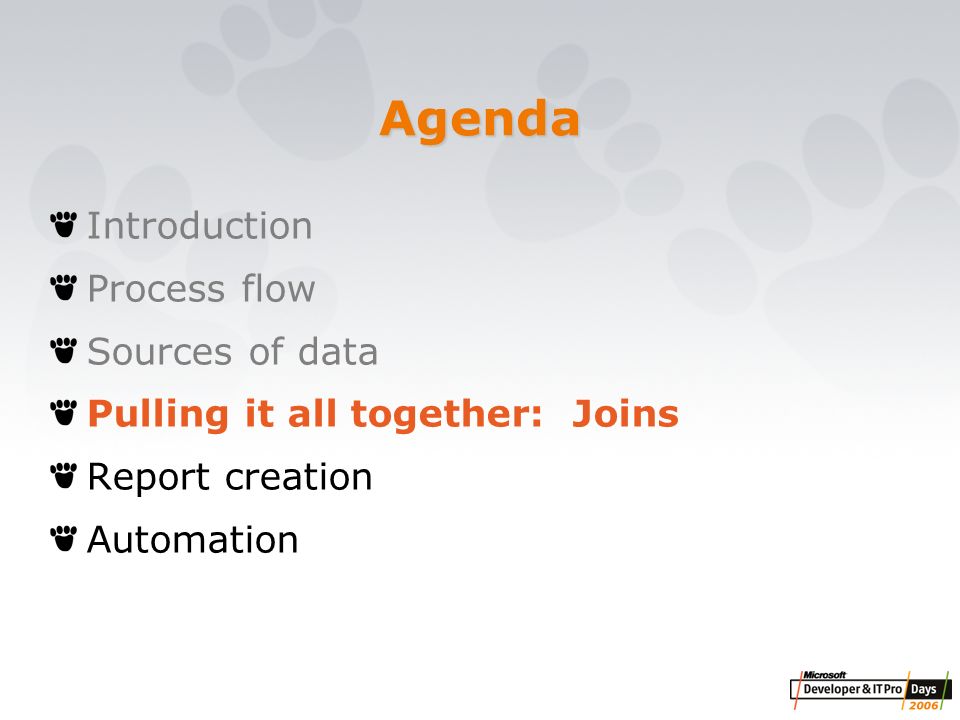

47. Agenda Introduction Process flow Sources of data Pulling it all together: Joins Report creation Automation

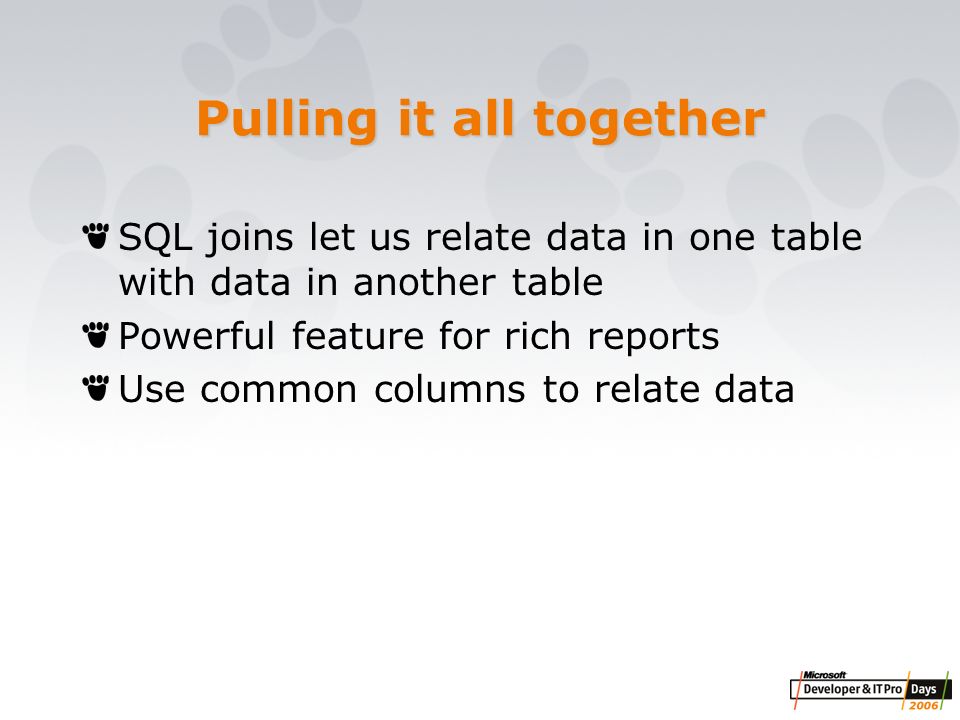

48. Pulling it all together SQL joins let us relate data in one table with data in another table Powerful feature for rich reports Use common columns to relate data

49. Table Joins MsgTrackingLogs, MailboxSizeData and Active_Directory_Info can all be joined Active_Directory_Info and MailboxSizeData join on [legacyExchangeDN] Then join Active_Directory_Info to MsgTrackingLogs on [Recipient-Address]

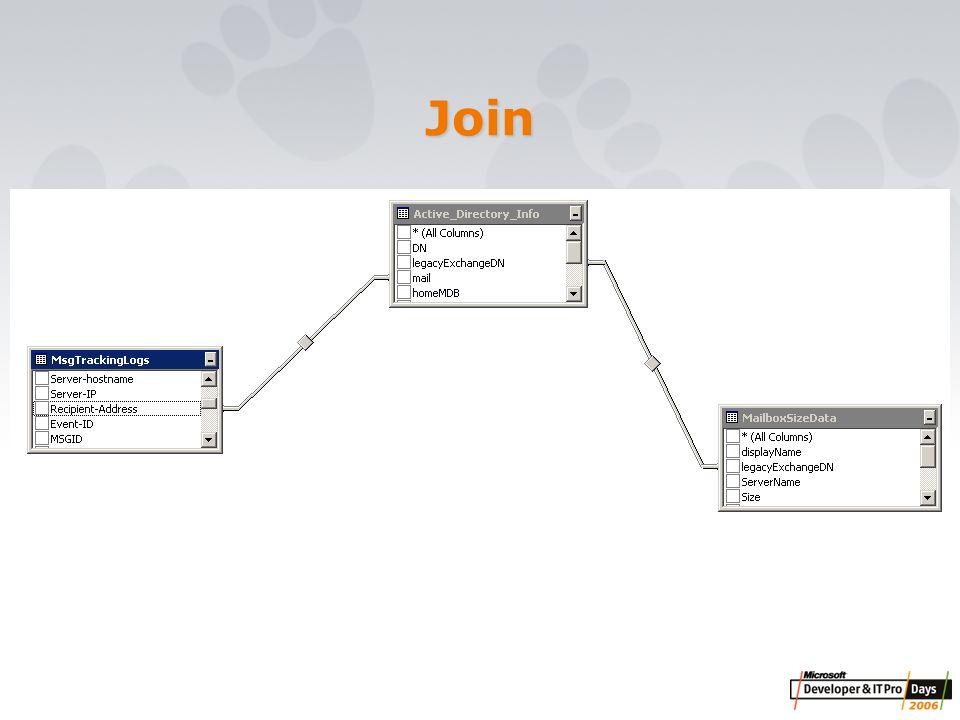

50. Join

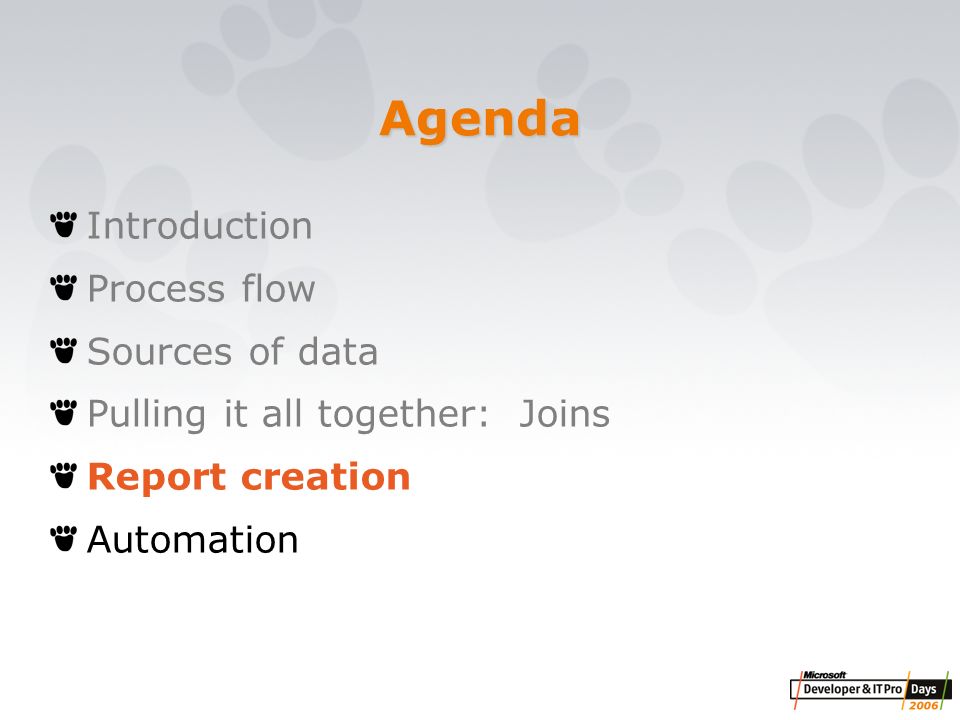

51. Agenda Introduction Process flow Sources of data Pulling it all together: Joins Report creation Automation

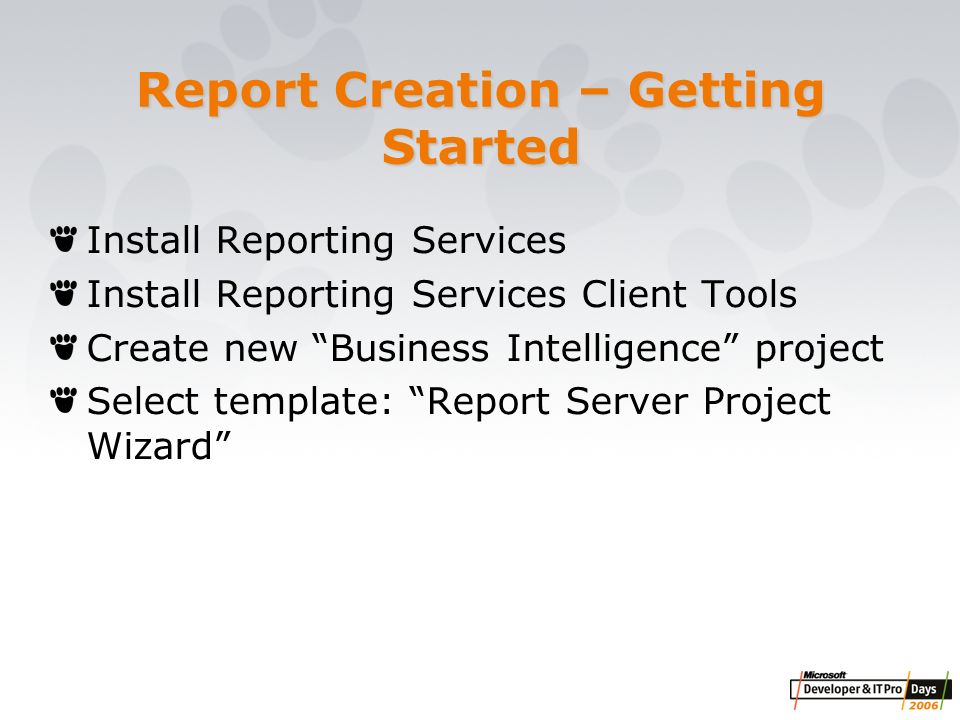

52. Report Creation – Getting Started Install Reporting Services Install Reporting Services Client Tools Create new “Business Intelligence” project Select template: “Report Server Project Wizard”

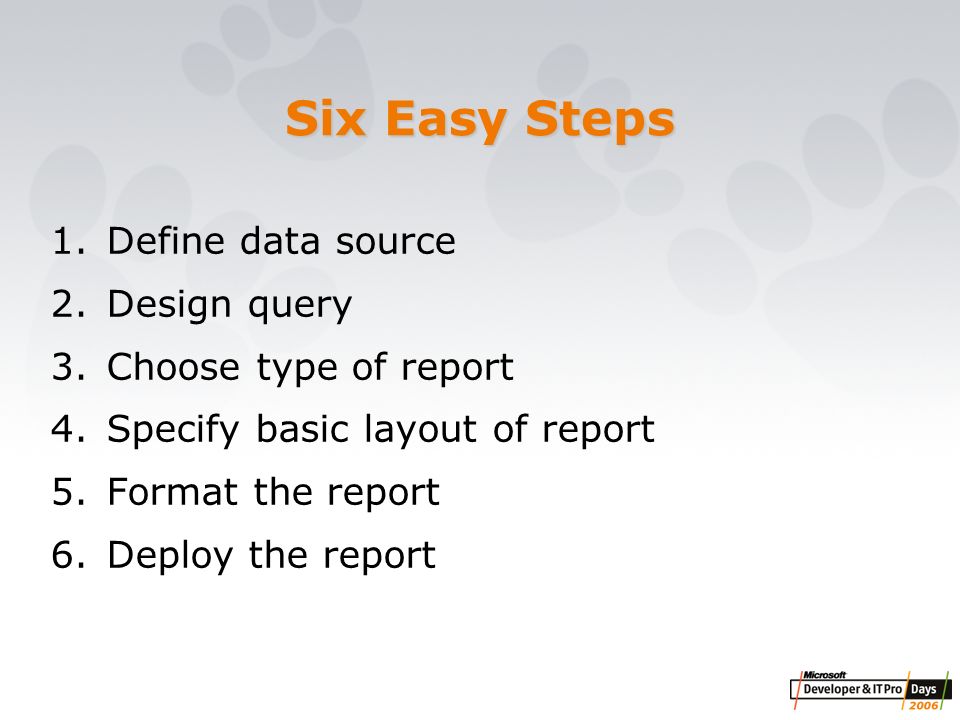

53. Six Easy Steps 1.Define data source 2.Design query 3.Choose type of report 4.Specify basic layout of report 5.Format the report 6.Deploy the report

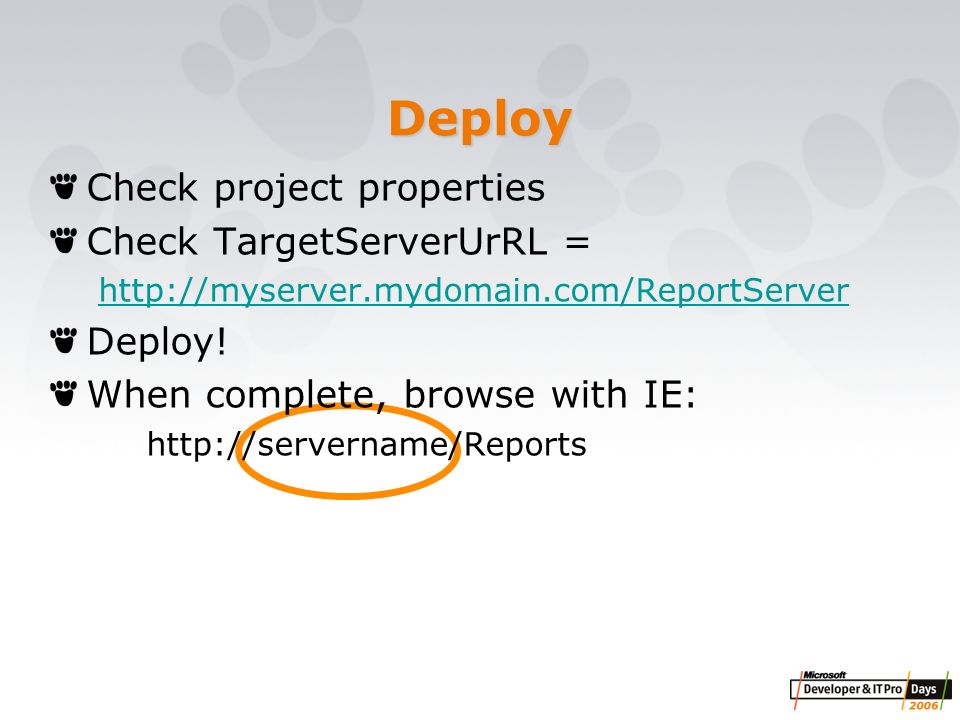

55. Deploy Check project properties Check TargetServerUrRL = http://myserver.mydomain.com/ReportServer Deploy! When complete, browse with IE: http://servername/Reports

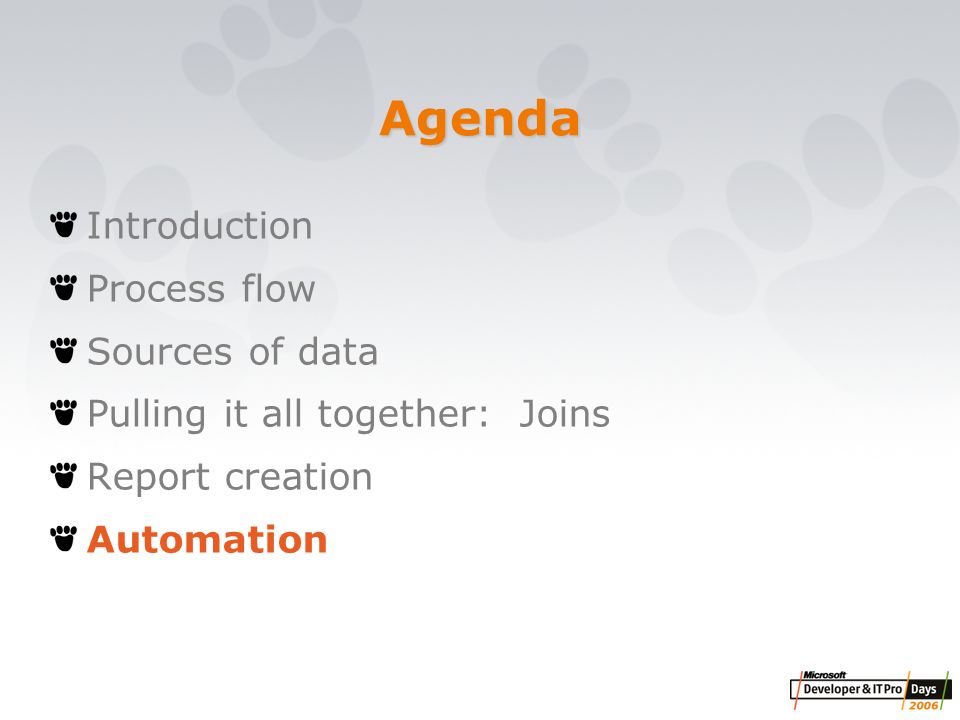

57. Agenda Introduction Process flow Sources of data Pulling it all together: Joins Report creation Automation

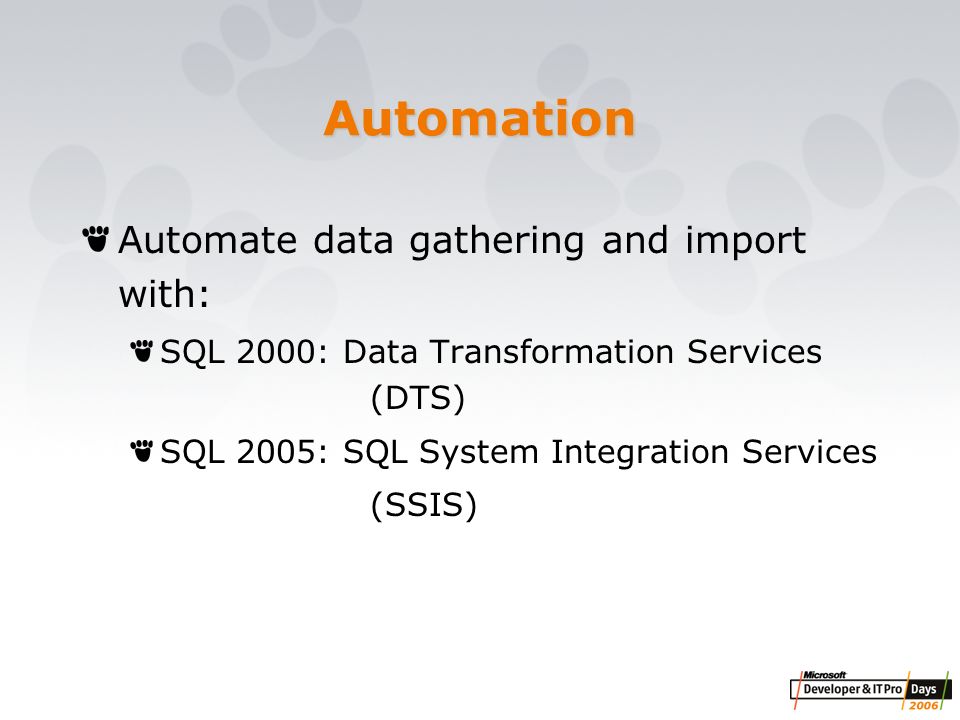

58. Automation Automate data gathering and import with: SQL 2000: Data Transformation Services (DTS) SQL 2005: SQL System Integration Services (SSIS)

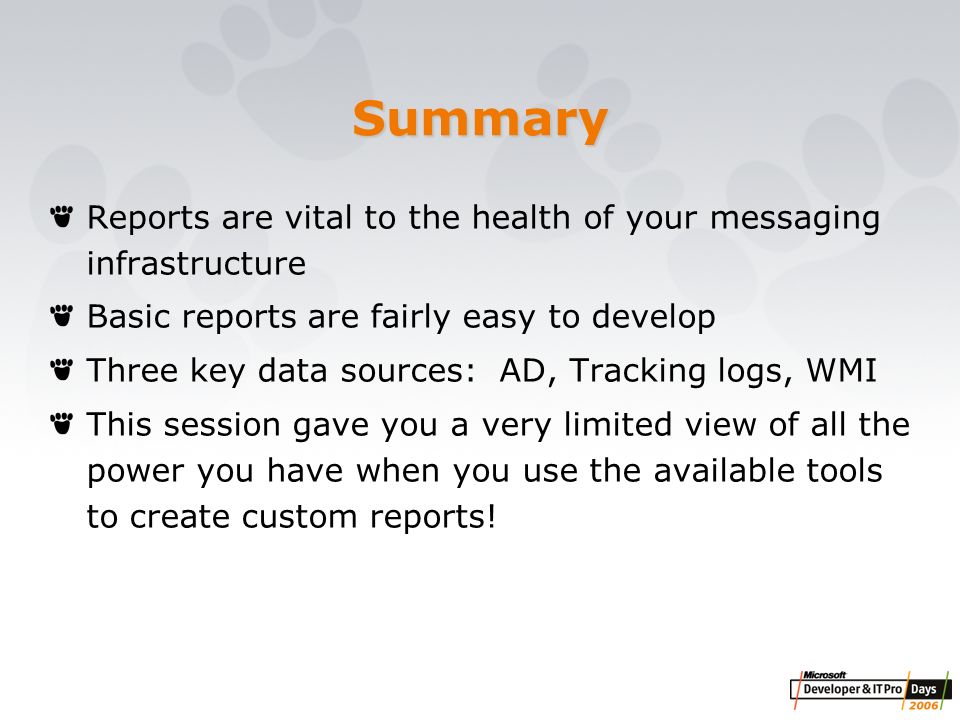

59. Summary Reports are vital to the health of your messaging infrastructure Basic reports are fairly easy to develop Three key data sources: AD, Tracking logs, WMI This session gave you a very limited view of all the power you have when you use the available tools to create custom reports!

60. Thank you for your attention! Ilse Van Criekinge Exchange Trainer & Consultant (Azlan Training)  ilse@vancriekinge.comilse@vancriekinge.com www.Pro-Exchange.be

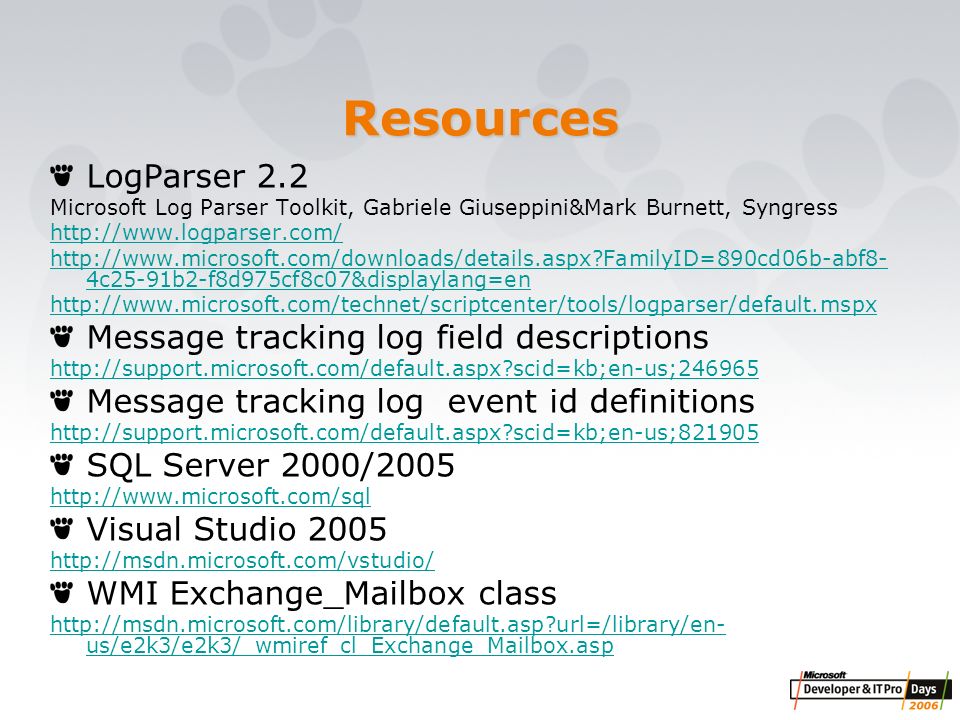

62. Resources LogParser 2.2 Microsoft Log Parser Toolkit, Gabriele Giuseppini&Mark Burnett, Syngress http://www.logparser.com/ http://www.microsoft.com/downloads/details.aspx?FamilyID=890cd06b-abf8- 4c25-91b2-f8d975cf8c07&displaylang=en http://www.microsoft.com/technet/scriptcenter/tools/logparser/default.mspx Message tracking log field descriptions http://support.microsoft.com/default.aspx?scid=kb;en-us;246965 Message tracking log event id definitions http://support.microsoft.com/default.aspx?scid=kb;en-us;821905 SQL Server 2000/2005 http://www.microsoft.com/sql Visual Studio 2005 http://msdn.microsoft.com/vstudio/ WMI Exchange_Mailbox class http://msdn.microsoft.com/library/default.asp?url=/library/en- us/e2k3/e2k3/_wmiref_cl_Exchange_Mailbox.asp
