1. © 2002 The MathWorks, Inc. September 2002 Advanced Embedded Tool capabilities for Texas Instruments DSPs © 2002 The MathWorks, Inc. David Hilf Third Party Manager, DSP/Communications dhilf@mathworks.com

2. © 2002 The MathWorks, Inc. Traditional DSP Design Flow Isolated Design and Development Domains n Research & development isolated from product development n Concept-to-specification tools disconnected from specification-to- code tools 6  MATLAB  C or Assembly  Manual design transfer  Code Composer Studio™  C or Assembly  Manual design verification Design Transfer Program and Test System Design Algorithm Develop. System Design R&D Product Development Concept-to- specification cycle Specification- To-code cycle Paper Specification C or Assembly Code

3. © 2002 The MathWorks, Inc. MathWorks TI Embedded Software design flow C6000 DSP MATLAB ® Stateflow ® Compile & Link User C/ASM Code Simulink ® DSP System Level Design Domain Texas Instruments Code Composer Studio Environment DSP Algorithm Development Down load Debug C5000 DSP DSP Hardware C28xx DSP MATLAB ® Link for Code Composer Studio Development Tools ML Link for CCS 23 RTW & Embedded Coder

4. © 2002 The MathWorks, Inc. MathWorks TI Embedded Software design flow C6000 DSP MATLAB ® Stateflow ® Compile & Link User C/ASM Code Simulink ® DSP System Level Design Domain Texas Instruments Code Composer Studio Environment DSP Algorithm Development Down load Debug C5000 DSP DSP Hardware C28xx DSP Embedded Target for TI C6000 TM DSP 23 RTW & Embedded Coder Embedded Target for C6000

5. © 2002 The MathWorks, Inc. MathWorks TI Embedded Software design flow C6000 DSP MATLAB ® Stateflow ® Compile & Link User C/ASM Code Simulink ® DSP System Level Design Domain Texas Instruments Code Composer Studio Environment DSP Algorithm Development Down load Debug C5000 DSP DSP Hardware C28xx DSP MATLAB ® Link for Code Composer Studio Development Tools Embedded Target for TI C6000 TM DSP 23 RTW & Embedded Coder Embedded Target for C6000 ML Link for CCS

6. © 2002 The MathWorks, Inc. System-level design and rapid prototyping of real-time DSP algorithms Products: l Simulink, Real Time Workshop, Embedded Target for C6000 DSP Platform Capabilities : l Graphical System Level Design l Simulation to target without manual coding l C6711 & C6701 Board Support l C62xx DSP Library l Auto-Generate code as starting point for product Algorithm Developers System Designers R&D/Advanced Technology

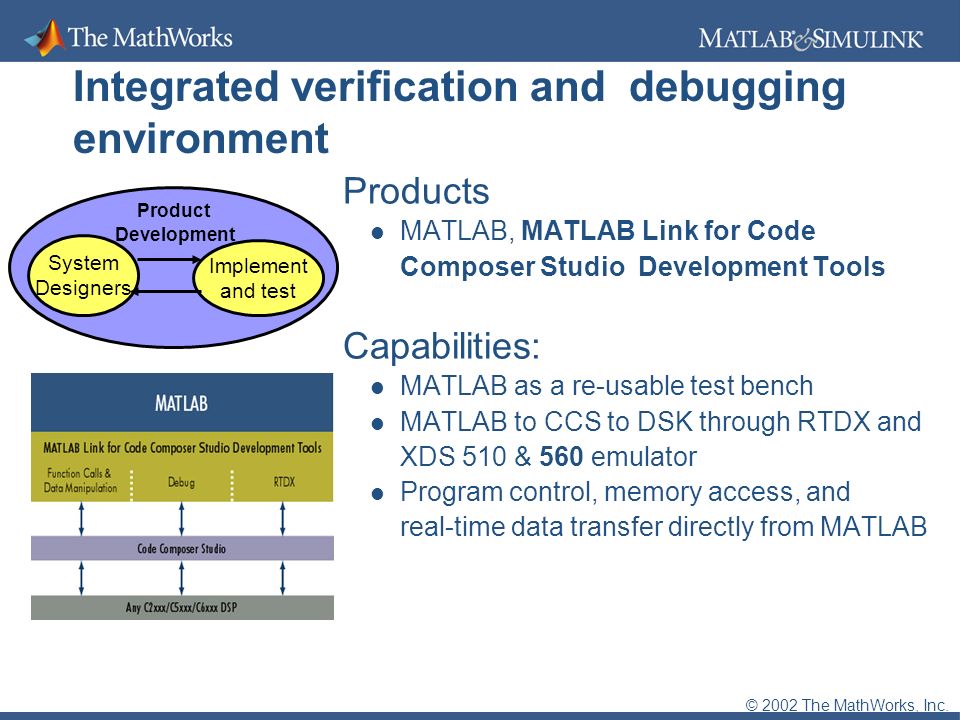

7. © 2002 The MathWorks, Inc. Integrated verification and debugging environment Products l MATLAB, MATLAB Link for Code Composer Studio Development Tools Capabilities: l MATLAB as a re-usable test bench l MATLAB to CCS to DSK through RTDX and XDS 510 & 560 emulator l Program control, memory access, and real-time data transfer directly from MATLAB Implement and test Product Development System Designers

8. © 2002 The MathWorks, Inc. l Code generation-Rapid prototyping l Allows hardware in loop simulation l Appeals to R&D engineers and System architects l Create executable specification or hardware prototype l Links MATLAB and CCS l Enhanced debugging and analysis l Automates bottleneck in current development process l Shortens verification time MATLAB Link for Code Composer Studio Development Tools $1000 MATLAB Link for Code Composer Studio Development Tools $1000 MathWorks Products for TI DSP Embedded Target for C6000 DSP Platform $4000 Embedded Target for C6000 DSP Platform $4000

9. © 2002 The MathWorks, Inc. Resources & Offers Free MATLAB Link for Code Composer Studio Lab Tutorial mathworks.com/ Self Paced Lab Tutorial

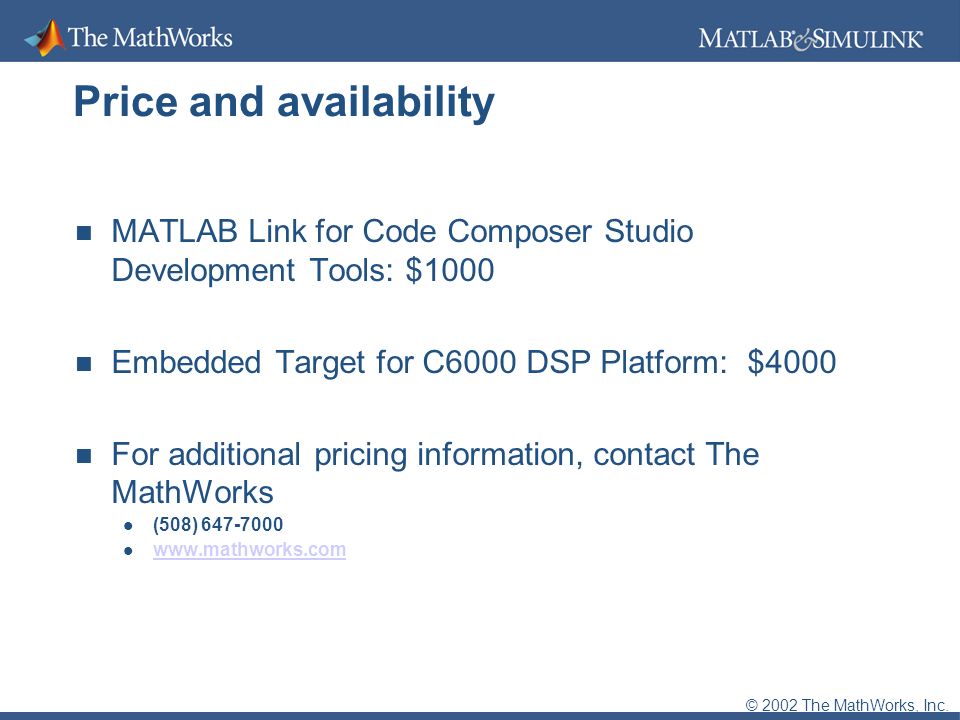

10. © 2002 The MathWorks, Inc. Price and availability n MATLAB Link for Code Composer Studio Development Tools: $1000 n Embedded Target for C6000 DSP Platform: $4000 n For additional pricing information, contact The MathWorks l (508) 647-7000 l www.mathworks.com www.mathworks.com
