1. Estimating historical changes in consonance by counting prepared and unprepared dissonances in musical scores Richard Parncutt and Fabio Kaiser Centre for Systematic Musicology, University of Graz, Austria Craig Sapp CCARH, Department of Music, Stanford University Internat. Conference on Music Perception and Cognition Thessaloniki, Greece 23-30 July 2012 SysMus Graz

2. How did people experience consonance and dissonance (C/D) in the Middle Ages? An interdisciplinary question OrientationHumanitiesSciences PeopleMusic historyMusic psychology InformationMusic theoryMusic computing Cognition of Early Polyphony ESF Exploratory Workshop, Graz 2012  Special issue of JIMS ed. Barbara Tillmann & Frans Wiering ystematic musicology! This is a job for…

3. Preparation of dissonance The dissonant m7 is prepared  Sounds less dissonant The dissonant m7 is unprepared  Sounds more dissonant Psychological explanations: Stream segregation reduces dissonance (Wright & Bregman, 1987) Roughess depends on relative amplitude (Terhardt,1974)

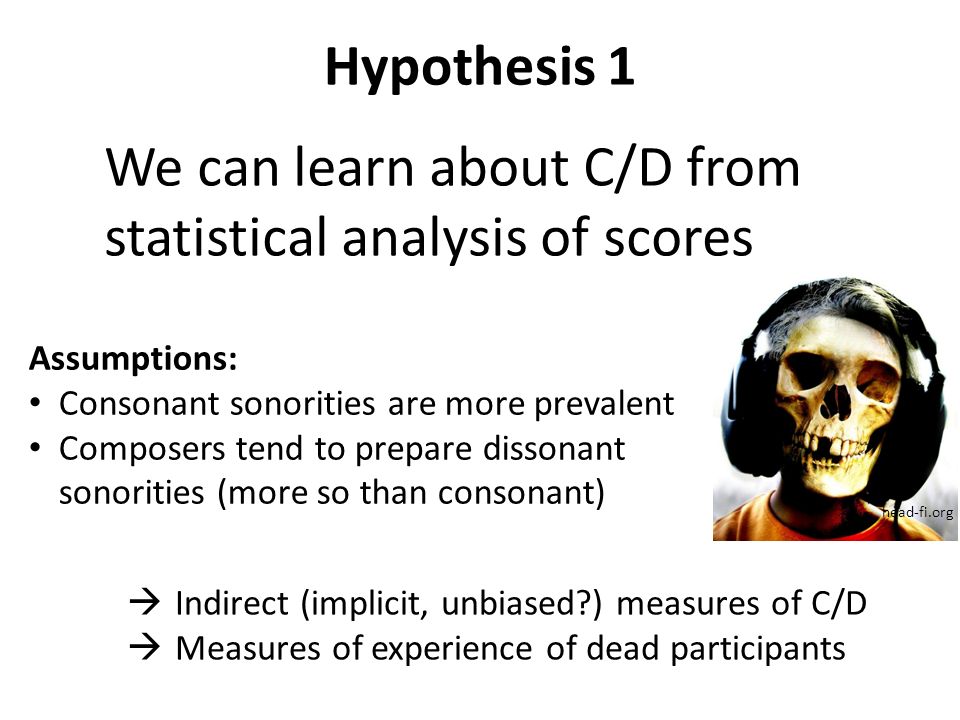

4. Hypothesis 1 head-fi.org We can learn about C/D from statistical analysis of scores  Indirect (implicit, unbiased?) measures of C/D  Measures of experience of dead participants Assumptions: Consonant sonorities are more prevalent Composers tend to prepare dissonant sonorities (more so than consonant)

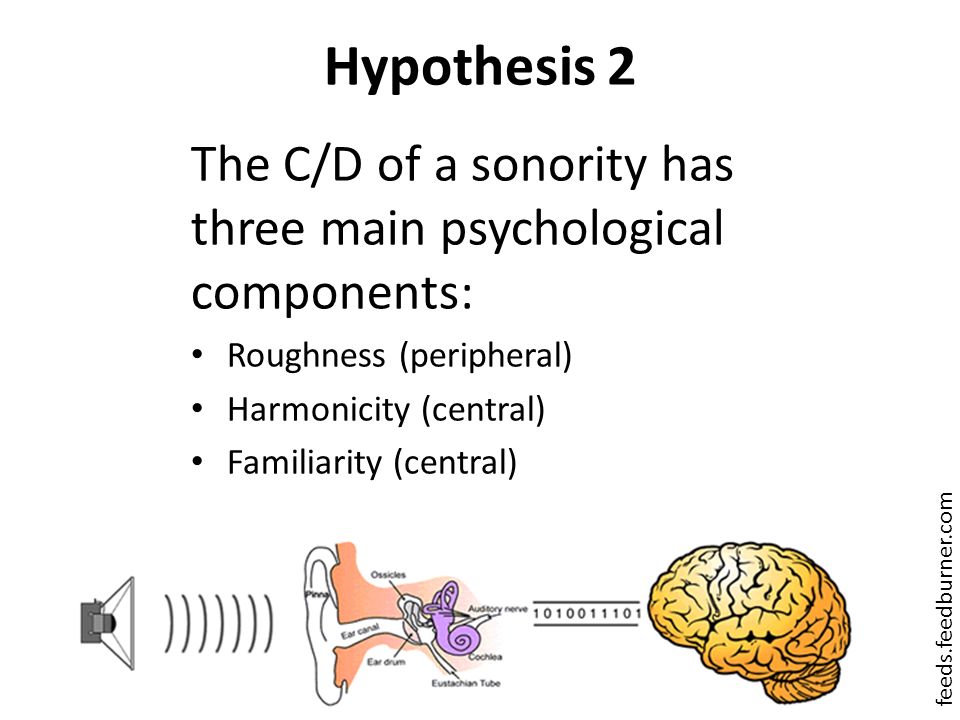

5. Hypothesis 2 The C/D of a sonority has three main psychological components: Roughness (peripheral) Harmonicity (central) Familiarity (central) feeds.feedburner.com

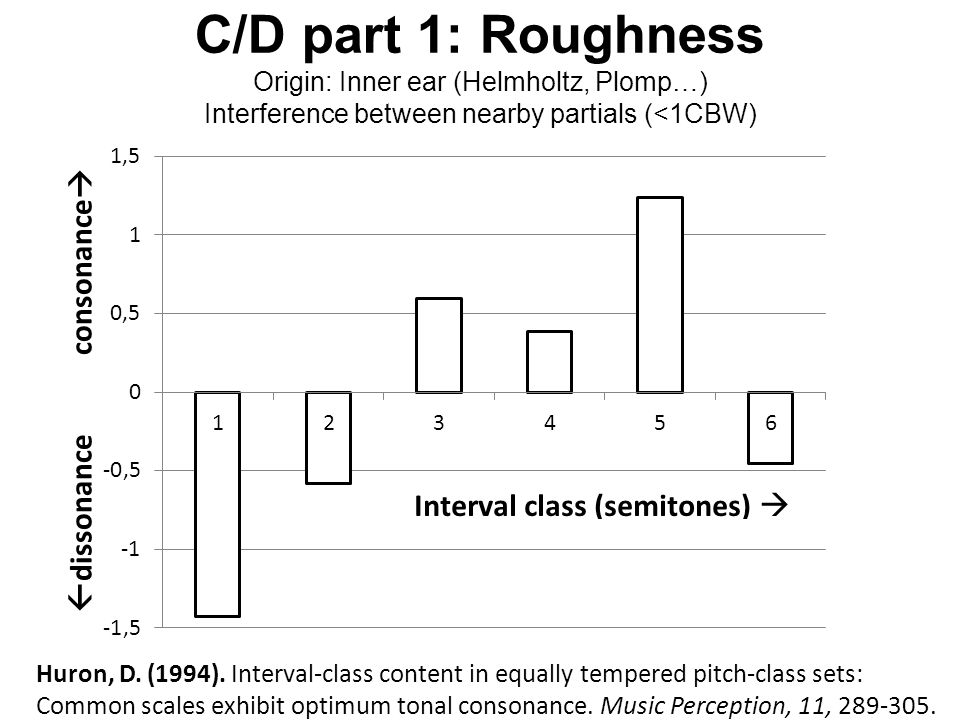

6. C/D part 1: Roughness Origin: Inner ear (Helmholtz, Plomp…) Interference between nearby partials (<1CBW) Huron, D. (1994). Interval-class content in equally tempered pitch-class sets: Common scales exhibit optimum tonal consonance. Music Perception, 11, 289-305.  dissonance consonance 

7. C/D part 2: Harmonicity The harmonicity of an interval or chord “Harmonic”= “Similar to harmonic series” No standard quantitative formulation Seems to explain why… Major triad more consonant/frequent than minor Triads/dyads in root position more cons/freq than inversion E.g. dissonance of P4 is due to harmonicity not roughness www.unc.edu/~chapman3/westernscale.html

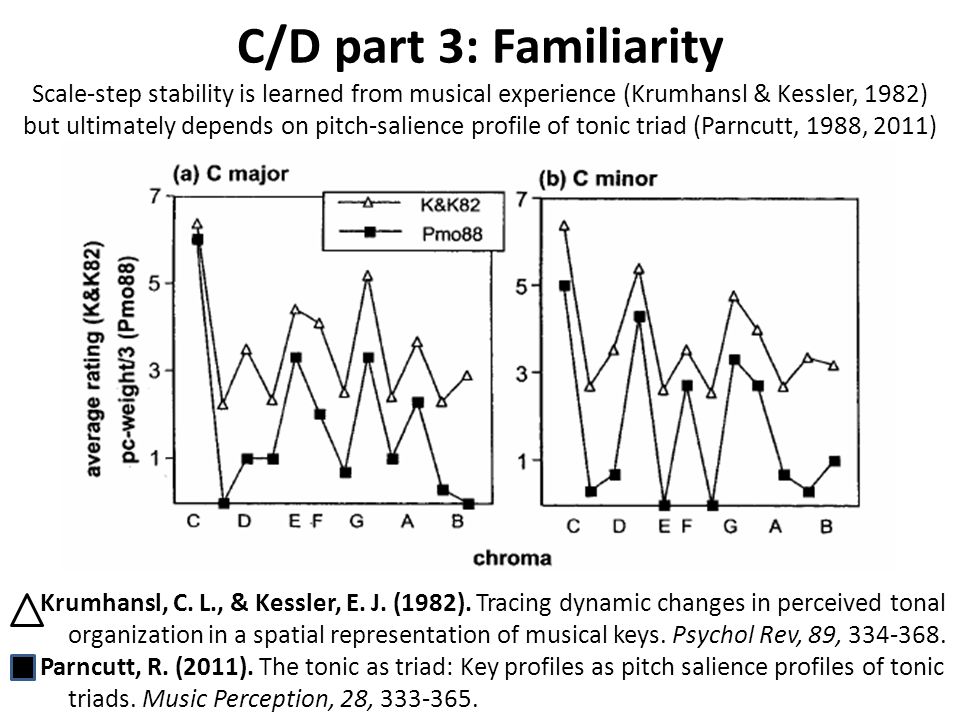

8. C/D part 3: Familiarity Scale-step stability is learned from musical experience (Krumhansl & Kessler, 1982) but ultimately depends on pitch-salience profile of tonic triad (Parncutt, 1988, 2011) Krumhansl, C. L., & Kessler, E. J. (1982). Tracing dynamic changes in perceived tonal organization in a spatial representation of musical keys. Psychol Rev, 89, 334-368. Parncutt, R. (2011). The tonic as triad: Key profiles as pitch salience profiles of tonic triads. Music Perception, 28, 333-365.

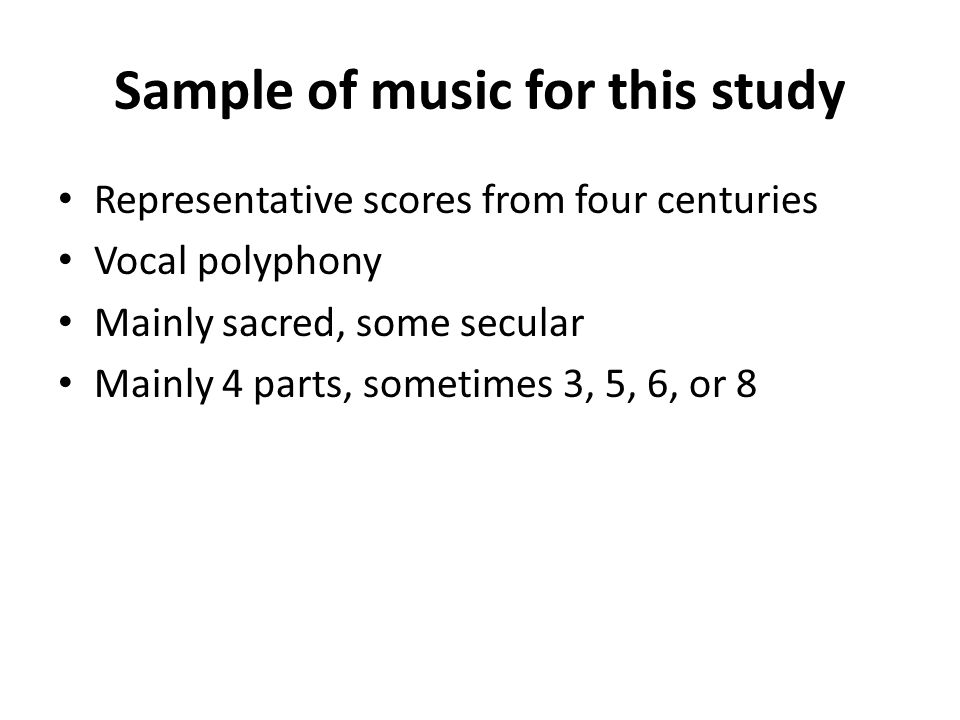

9. Sample of music for this study Representative scores from four centuries Vocal polyphony Mainly sacred, some secular Mainly 4 parts, sometimes 3, 5, 6, or 8

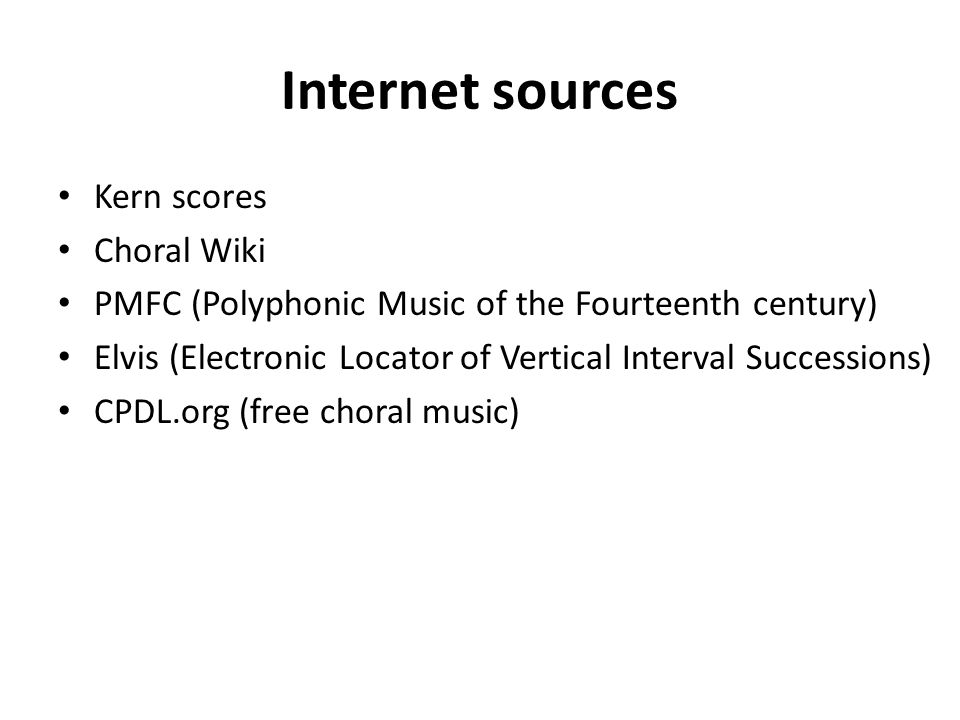

10. Internet sources Kern scores Choral Wiki PMFC (Polyphonic Music of the Fourteenth century) Elvis (Electronic Locator of Vertical Interval Successions) CPDL.org (free choral music)

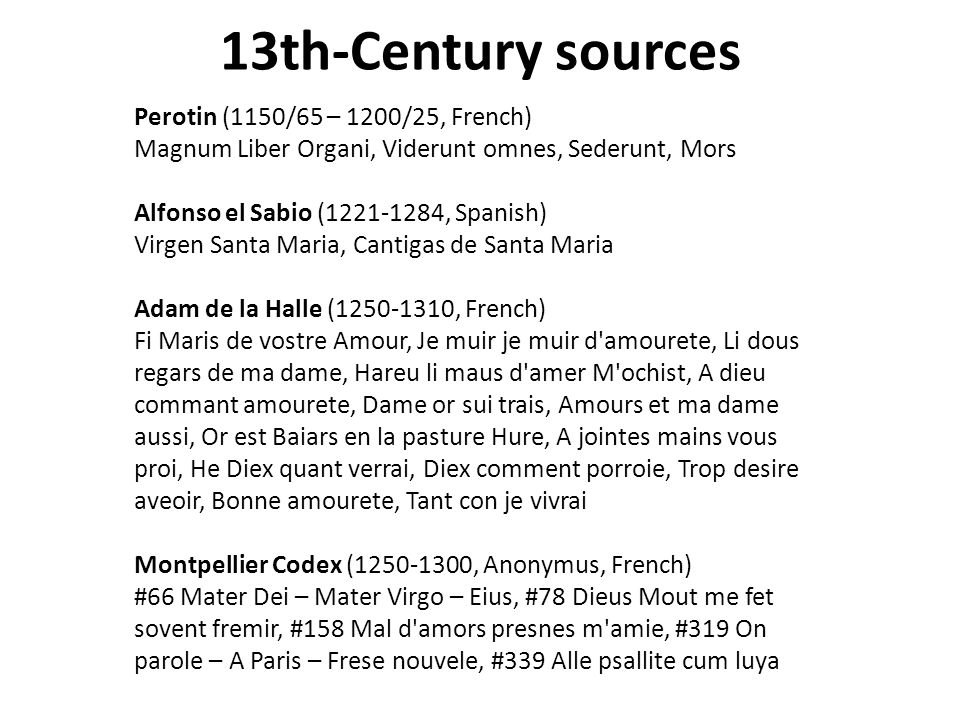

11. 13th-Century sources Perotin (1150/65 – 1200/25, French) Magnum Liber Organi, Viderunt omnes, Sederunt, Mors Alfonso el Sabio (1221-1284, Spanish) Virgen Santa Maria, Cantigas de Santa Maria Adam de la Halle (1250-1310, French) Fi Maris de vostre Amour, Je muir je muir d'amourete, Li dous regars de ma dame, Hareu li maus d'amer M'ochist, A dieu commant amourete, Dame or sui trais, Amours et ma dame aussi, Or est Baiars en la pasture Hure, A jointes mains vous proi, He Diex quant verrai, Diex comment porroie, Trop desire aveoir, Bonne amourete, Tant con je vivrai Montpellier Codex (1250-1300, Anonymus, French) #66 Mater Dei – Mater Virgo – Eius, #78 Dieus Mout me fet sovent fremir, #158 Mal d'amors presnes m'amie, #319 On parole – A Paris – Frese nouvele, #339 Alle psallite cum luya

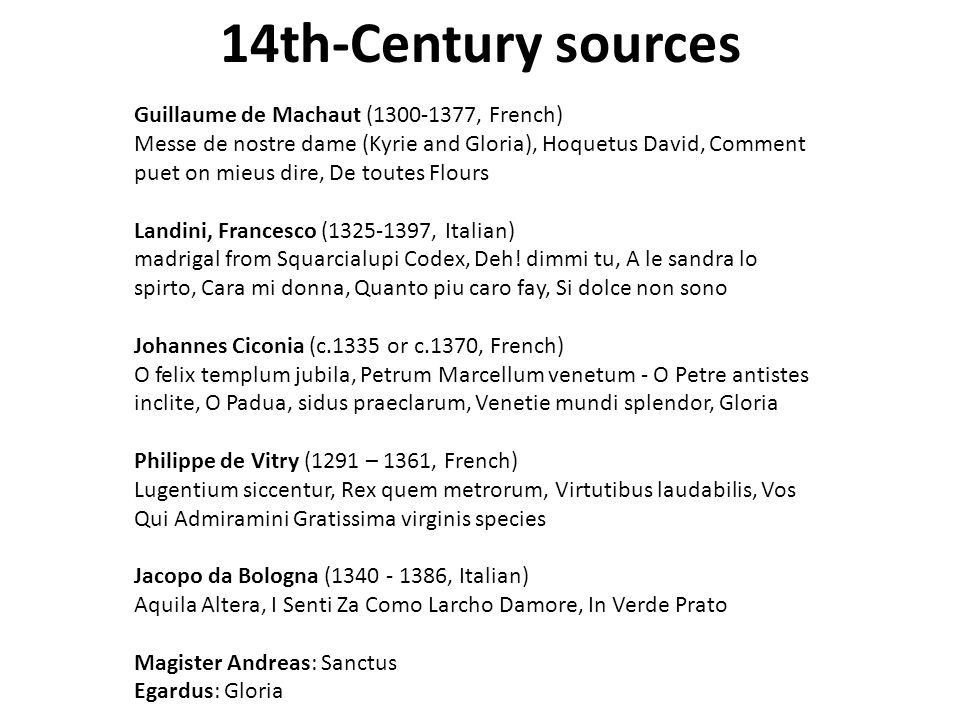

12. 14th-Century sources Guillaume de Machaut (1300-1377, French) Messe de nostre dame (Kyrie and Gloria), Hoquetus David, Comment puet on mieus dire, De toutes Flours Landini, Francesco (1325-1397, Italian) madrigal from Squarcialupi Codex, Deh! dimmi tu, A le sandra lo spirto, Cara mi donna, Quanto piu caro fay, Si dolce non sono Johannes Ciconia (c.1335 or c.1370, French) O felix templum jubila, Petrum Marcellum venetum - O Petre antistes inclite, O Padua, sidus praeclarum, Venetie mundi splendor, Gloria Philippe de Vitry (1291 – 1361, French) Lugentium siccentur, Rex quem metrorum, Virtutibus laudabilis, Vos Qui Admiramini Gratissima virginis species Jacopo da Bologna (1340 - 1386, Italian) Aquila Altera, I Senti Za Como Larcho Damore, In Verde Prato Magister Andreas: Sanctus Egardus: Gloria

13. 15th-Century sources Guillaume Dufay (1397 – 1474, Franco-Flemish) O tres piteulx/Omnes amici, Missa Ave Regina Coelorum, Missa Se la face ay pale, Adieu ces bons Vins John Dunstaple (1390 - 1453) Veni Creator, Descendi in ortum meum, Veni Sancte Spiritus Johannes Ockeghem (1410/30 - 1497) Missa l’homme armé (Kyrie) Jacob Obrecht (1450 - 1505) Parce Domine Heinrich Isaac (1450-1517) A la battaglia, Innsbruck ich muss dich lassen Guillaume le Rouge (1450-1465, Netherlands) Missa Soyez amprantiz, Stella celi (So ys emprentid) Simon de Insula (fl. c.1450–60, English or French) Missa O admirabile

14. 16th-Century sources Orlando de Lassus (1532 - 1594) Matona mia cara, Salve regina mater Giovanni Pierluigi da Palestrina (1514/15 - 1594) Dies sanctificatus, Adoramus Te, Hodie Christus Natus Est, Missa Brevis (Credo), Missa Aeterna Christi munera Josquin Desprez (1450/55 - 1521) Ave Maria, Missa l’homme armé, Salve Regina, Missa Pange lingua, El grillo, Nymphes des Bois a 5, Tulerunt Dominum meum William Byrd (1540 – 1623) Ave verum corpus, Ne irascaris domine Giovanni Gabrieli (1555-1612) O Magnum Mysterium, Plaudite Andrea Gabrieli (1532-1585): Musica tolta da i madrigali di Claudio Monteverdi, e d'altri autori, e fatta spirituale; Bonum est et suaue; Ne confide

15. Counting pc sets: Procedure No. of voices varies from 1 to 8 At every onset in any voice: count number of pcs in vertical sonority  If 2: count a “dyad”  If 3: count a “triad”

16. Dyads 13th-Century sample unprep prep Plus all transpositions, inversions and compounds

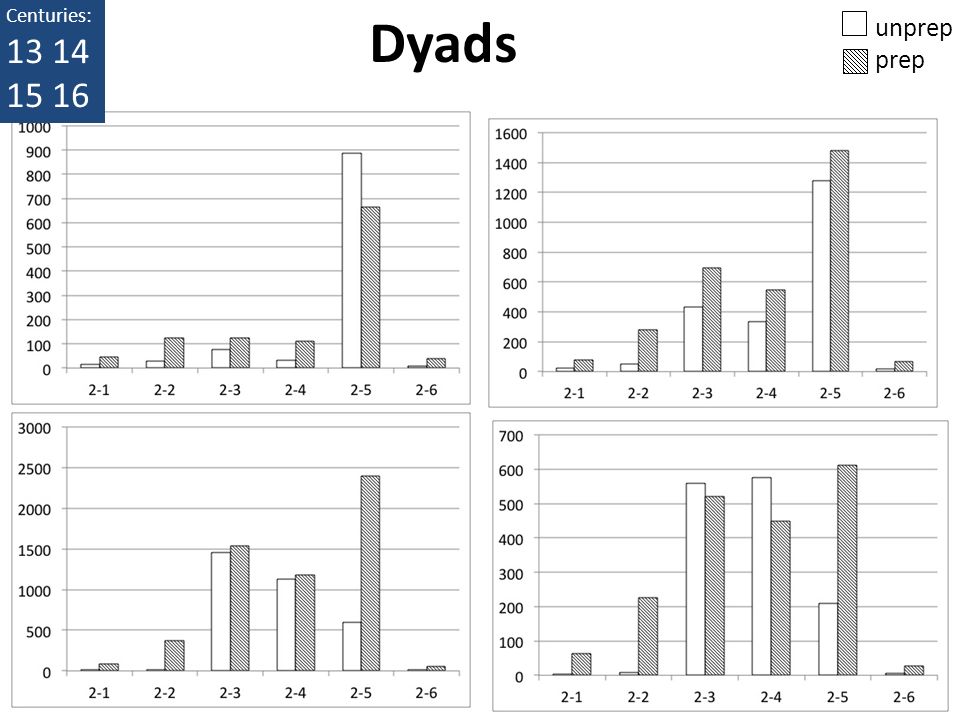

17. Dyads unprep prep Centuries: 13 14 15 16

18. 2-1 (m2, M7) Both are always dissonant; m2 more so (roughness) Centuries: 13 14 15 16 unprep prep

19. 2-2 (M2, m7) both are always dissonant Centuries: 13 14 15 16 unprep prep

20. 2-3 (m3, M6) …historical change from dissonant to intermediate …smaller interval (≈1CBW  rough) became less dissonant Centuries: 13 14 15 16 unprep prep

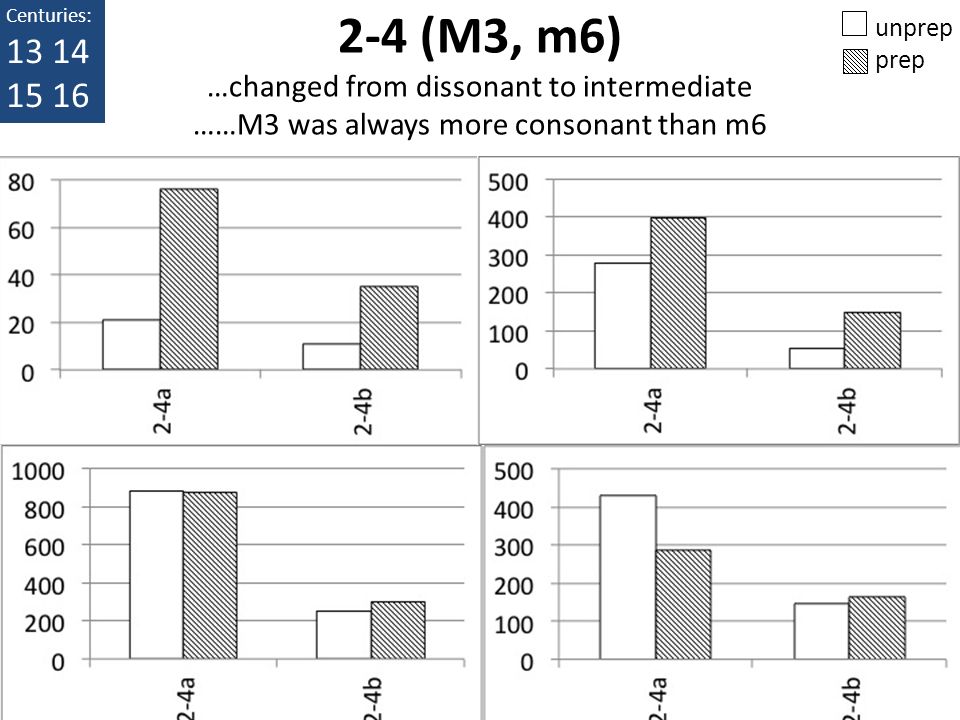

21. 2-4 (M3, m6) …changed from dissonant to intermediate ……M3 was always more consonant than m6 Centuries: 13 14 15 16 unprep prep

22. Centuries: 13 14 15 16 2-5 (P4, P5) …P5 always more consonant than P4 …clearly cons; later, unprep. P5 avoided (reduce fusion?) unprep prep

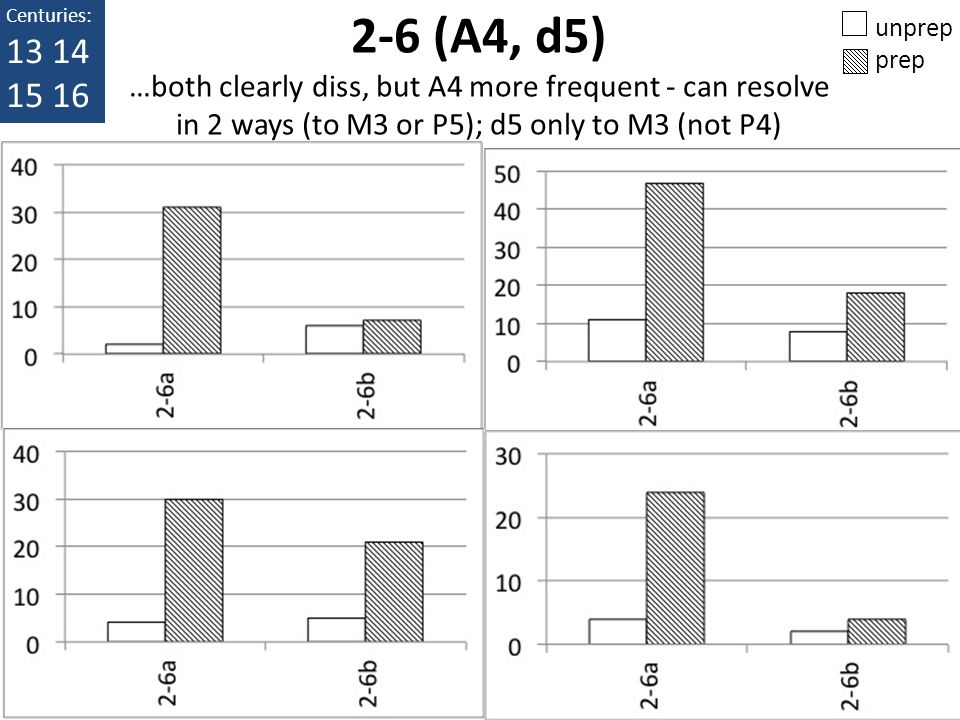

23. Centuries: 13 14 15 16 2-6 (A4, d5) …both clearly diss, but A4 more frequent - can resolve in 2 ways (to M3 or P5); d5 only to M3 (not P4) unprep prep

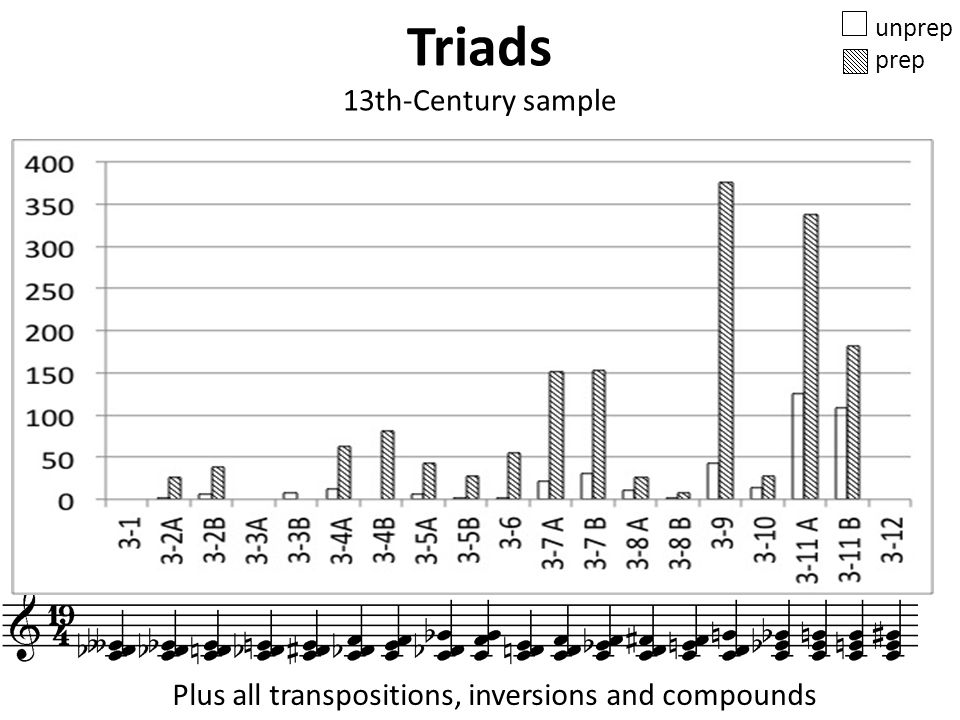

24. Triads 13th-Century sample unprep prep Plus all transpositions, inversions and compounds

25. Triads : Samples from 4 centuries unprep prep Centuries: 13 14 15 16

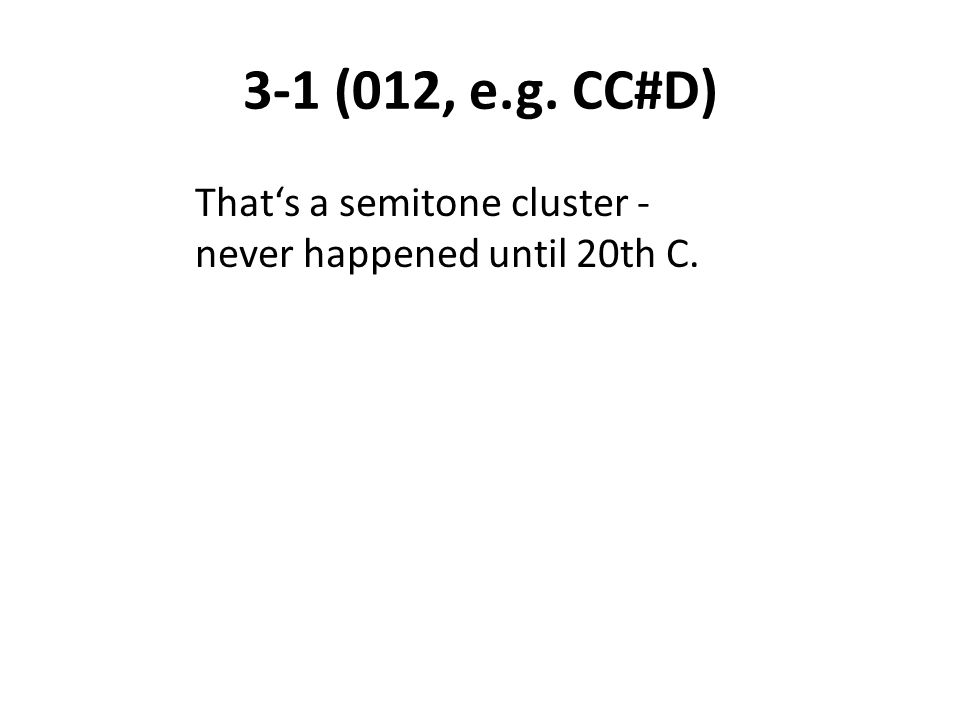

26. 3-1 (012, e.g. CC#D) That‘s a semitone cluster - never happened until 20th C.

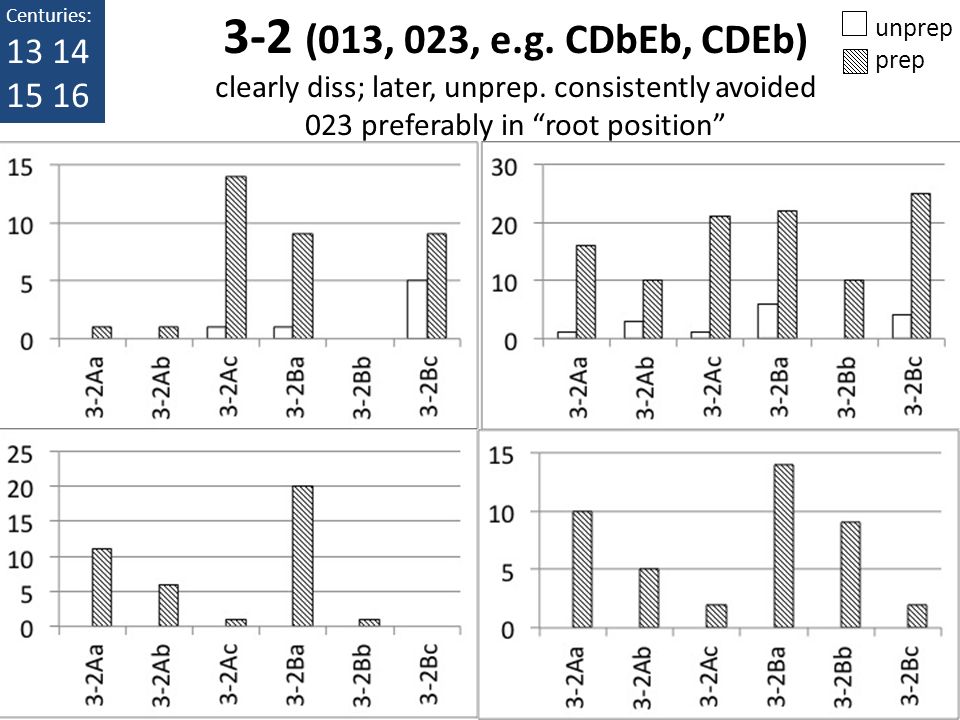

27. 3-2 (013, 023, e.g. CDbEb, CDEb) clearly diss; later, unprep. consistently avoided 023 preferably in “root position” Centuries: 13 14 15 16 unprep prep

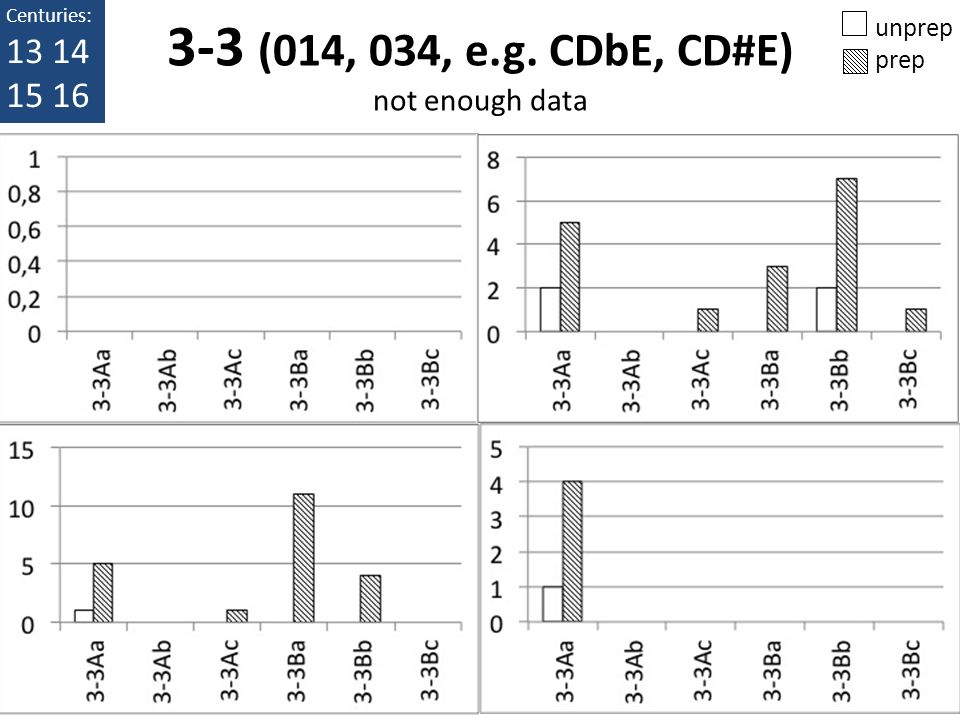

28. 3-3 (014, 034, e.g. CDbE, CD#E) not enough data Centuries: 13 14 15 16 unprep prep

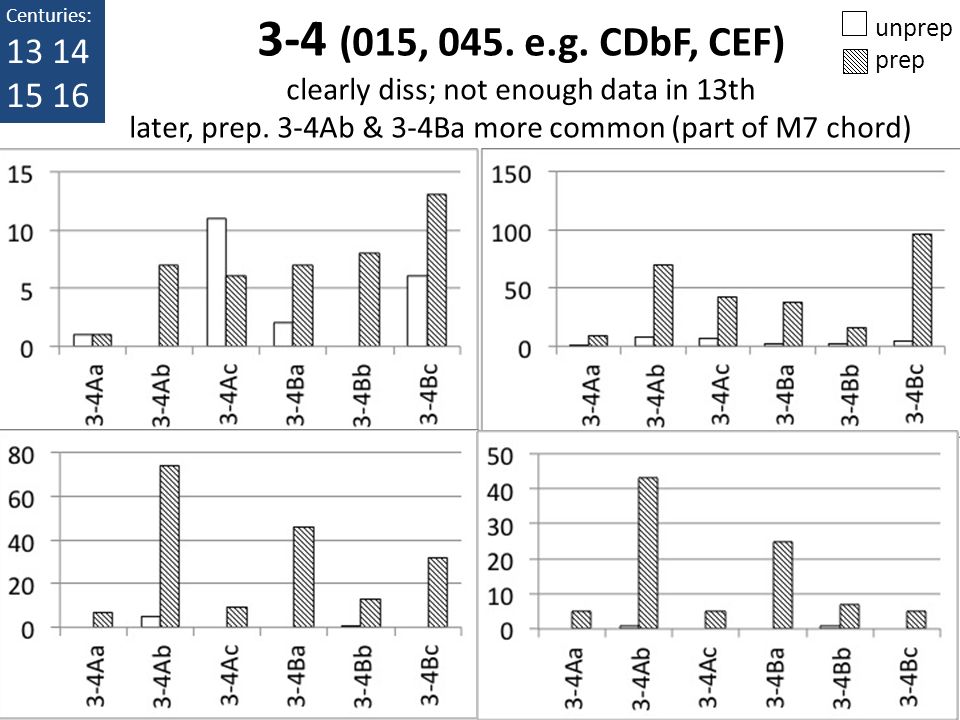

29. 3-4 (015, 045. e.g. CDbF, CEF) clearly diss; not enough data in 13th later, prep. 3-4Ab & 3-4Ba more common (part of M7 chord) Centuries: 13 14 15 16 unprep prep

30. 3-5 (016, 056, e.g. CDbGb, CFGb) clearly diss; most completely avoided in 16th 3-5Ac & 3-5Bb more common (outer voices span P5) Centuries: 13 14 15 16 unprep prep

31. 3-6 (024, e.g. CDE) clearly diss; root position most common (13th: not enough data) Centuries: 13 14 15 16 unprep prep

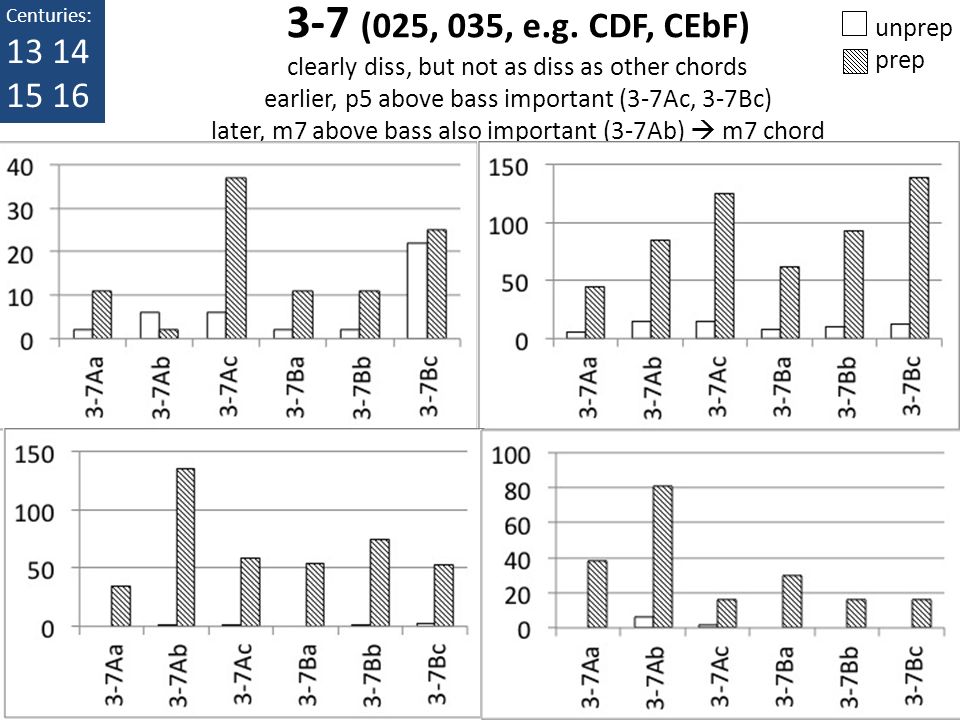

32. 3-7 (025, 035, e.g. CDF, CEbF) clearly diss, but not as diss as other chords earlier, p5 above bass important (3-7Ac, 3-7Bc) later, m7 above bass also important (3-7Ab)  m7 chord Centuries: 13 14 15 16 unprep prep

33. 3-8 (026, 046, e.g. CDF#, CEF#) clearly diss 3-8Ab: early Mm7 chord Centuries: 13 14 15 16 unprep prep

34. 3-9 (027, e.g. CDG sus) clearly diss “sus4” (3-9c) is more common in 13th & 16 th (why?) Centuries: 13 14 15 16 unprep prep

35. 3-10 (036, e.g. CEbGb dim) clearly diss, but not very diss; 1st inv most cons, as expected; 13th C: too few data Centuries: 13 14 15 16 unprep prep

36. 3-11 (037, 047 = min, maj) more major than minor, root position than inversion exception: minor 1st inversion in 14th Centuries: 13 14 15 16 unprep prep

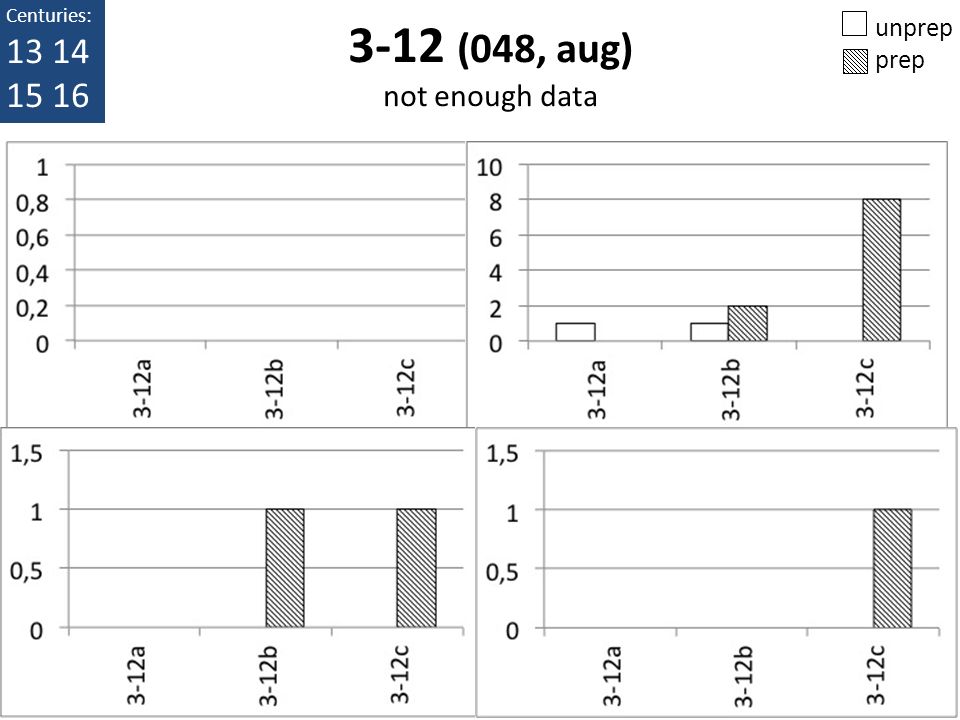

37. 3-12 (048, aug) not enough data Centuries: 13 14 15 16 unprep prep

38. Evidence for 3 components of C/D Roughness Explains most prevalence data in 13th-16th centuries Gradually less important  irrelevant for modern listeners? (McDermott et al., 2010: McLaughlan et al., sub.) Harmonicity Explains dissonance of P4, consonance of triads incl. P5, preference for root position triads Familiarity Moderate dissonances  more consonant Extreme dissonances  more avoided (expertise effect?)

39. Acknowledgment Andreas Gaich Student assistant Centre for Systematic Musicology Uni Graz, Austria

40. Literature Fazio, R. H., & Olson, M. A. (2003). Implicit measures in social cognition research: Their meaning and use. Annual Review of Psychology, 54, 297-327. McDermott, J. H., Lehr, A. J., & Oxenham, A. J. (2010). Individual differences reveal the basis of consonance. Current Biology, 20, 1035–1041. McLachlan, N. M., Marco, D. J. T. & Wilson, S. J. Consonance and pitch. Under review. Parncutt, R., & Hair, G. (2011). Consonance and dissonance in theory and psychology: Disentangling dissonant dichotomies. Journal of Interdisciplinary Music Studies, 5 (2), 119-166.
