1. ENERGY & LIFE 8-1 http://www.science.siu.edu/plant-biology/PLB117/JPEGs%20CD/0076.JPG http://vilenski.org/science/safari/cellstructure/chloroplasts.html

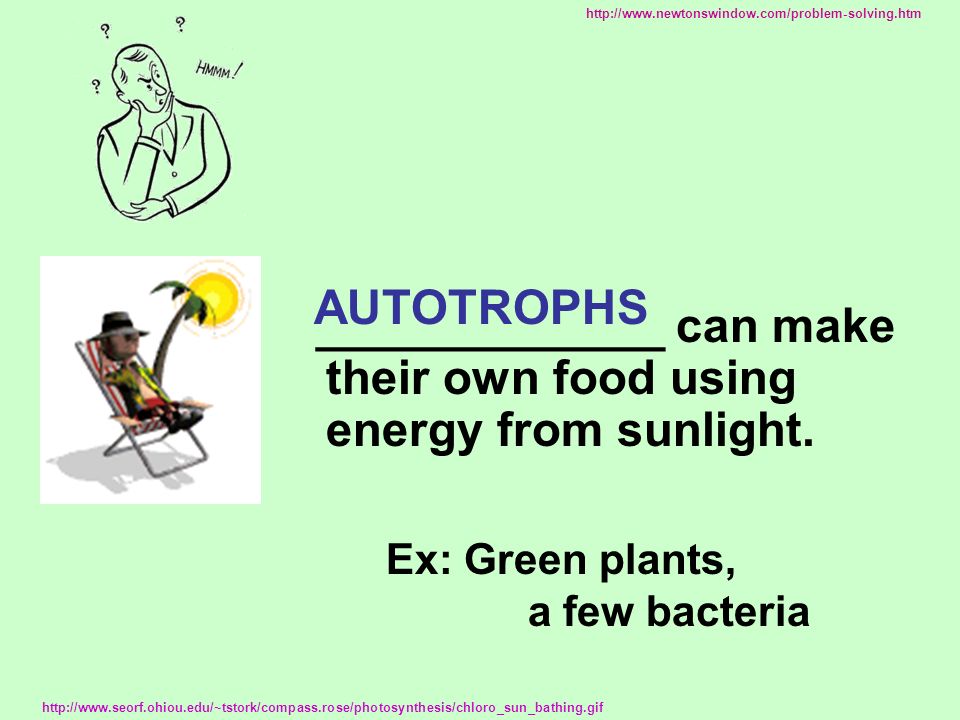

2. _____________ can make their own food using energy from sunlight. Ex: Green plants, a few bacteria AUTOTROPHS http://www.seorf.ohiou.edu/~tstork/compass.rose/photosynthesis/chloro_sun_bathing.gif http://www.newtonswindow.com/problem-solving.htm

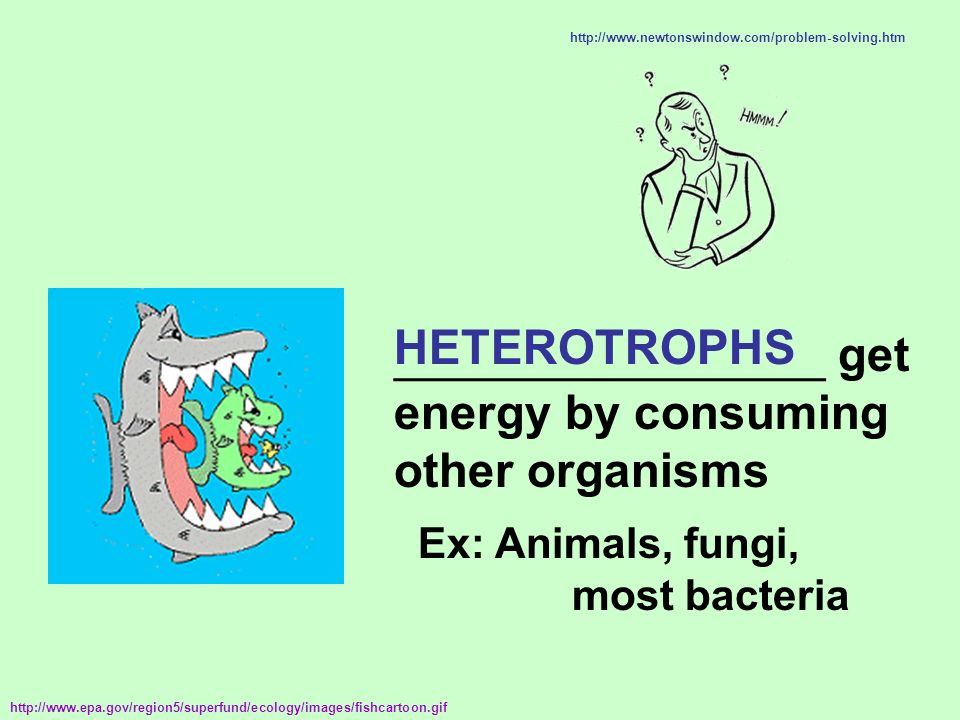

3. __________________ get energy by consuming other organisms Ex: Animals, fungi, most bacteria HETEROTROPHS http://www.epa.gov/region5/superfund/ecology/images/fishcartoon.gif http://www.newtonswindow.com/problem-solving.htm

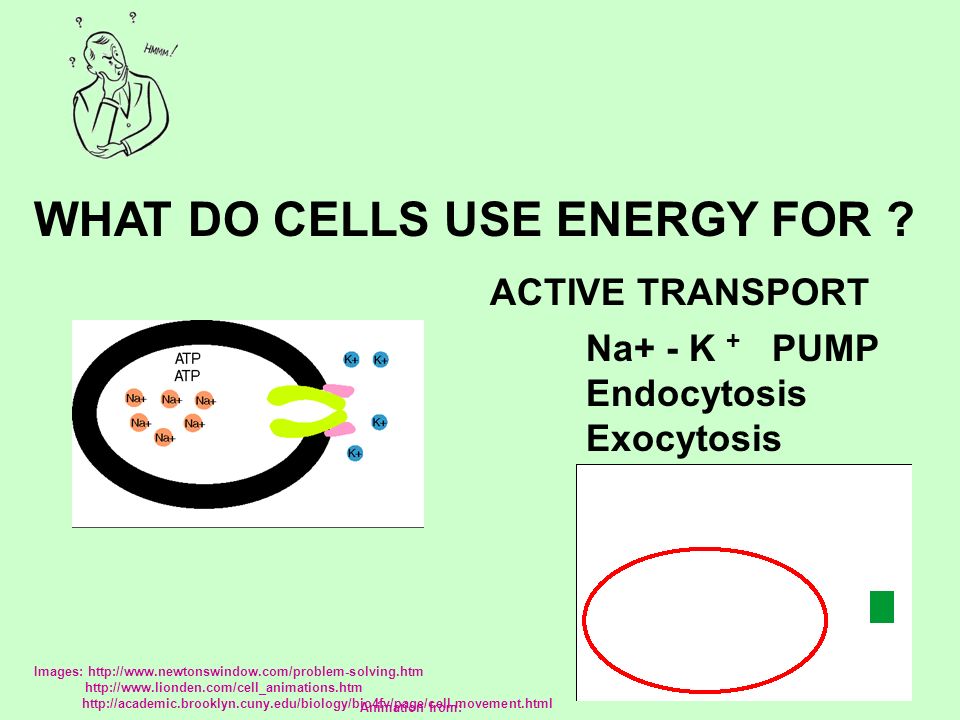

4. Images: http://www.newtonswindow.com/problem-solving.htm http://www.lionden.com/cell_animations.htm http://academic.brooklyn.cuny.edu/biology/bio4fv/page/cell-movement.html WHAT DO CELLS USE ENERGY FOR ? ACTIVE TRANSPORT Na+ - K + PUMP Endocytosis Exocytosis Animation from:

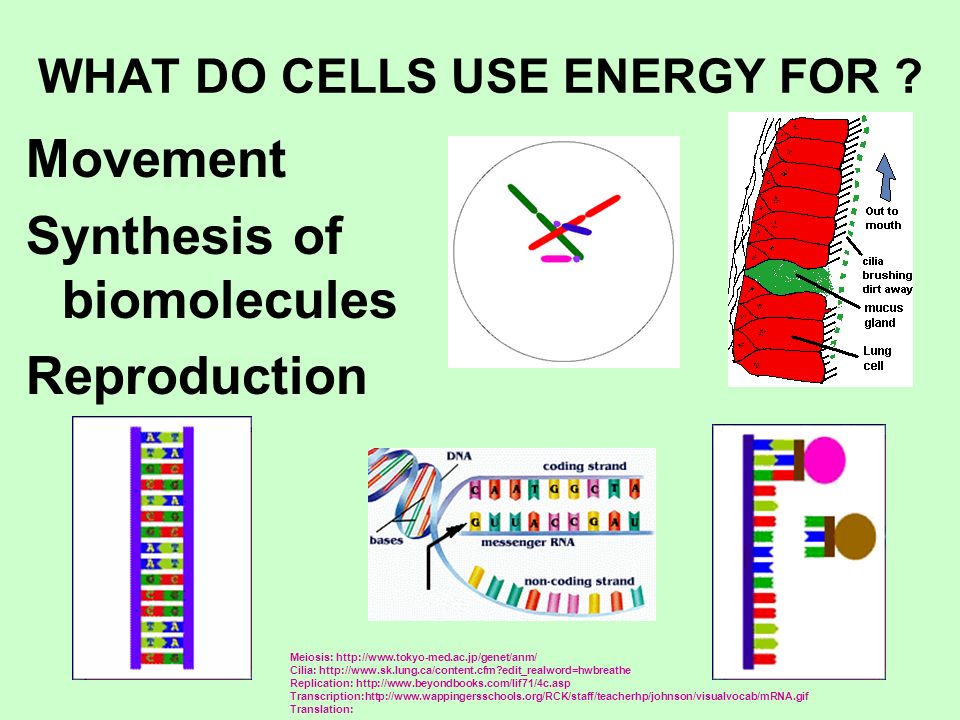

5. WHAT DO CELLS USE ENERGY FOR ? Movement Synthesis of biomolecules Reproduction Meiosis: http://www.tokyo-med.ac.jp/genet/anm/ Cilia: http://www.sk.lung.ca/content.cfm?edit_realword=hwbreathe Replication: http://www.beyondbooks.com/lif71/4c.asp Transcription:http://www.wappingersschools.org/RCK/staff/teacherhp/johnson/visualvocab/mRNA.gif Translation:

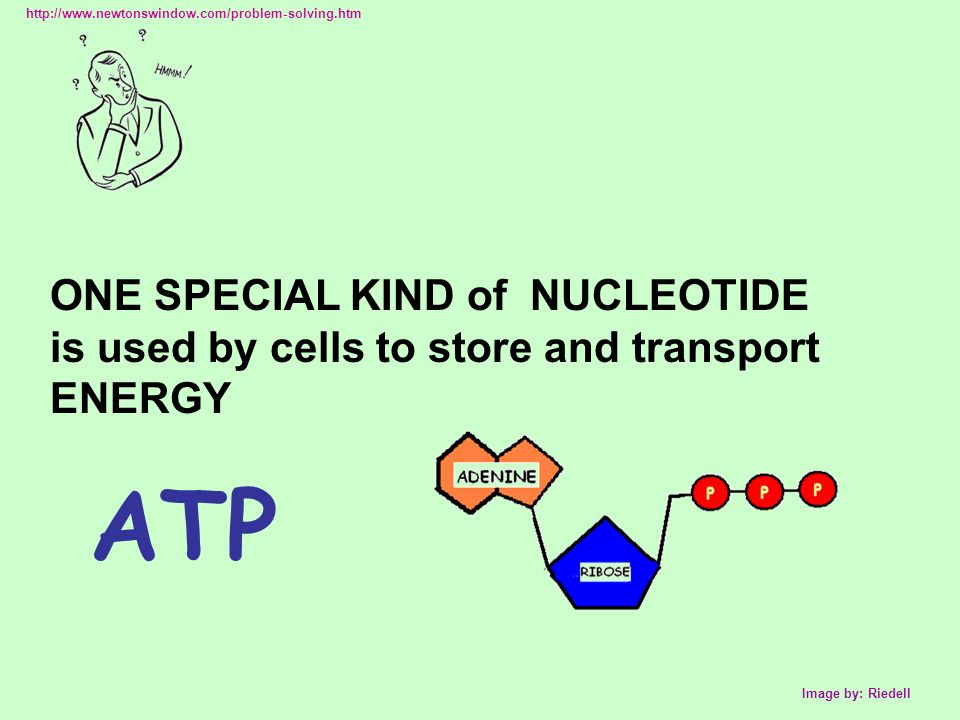

6. ATP Image by: Riedell http://www.newtonswindow.com/problem-solving.htm ONE SPECIAL KIND of NUCLEOTIDE is used by cells to store and transport ENERGY

7. CELLS USE ATP TO STORE and RELEASE ENERGY ATP = __________________________ Adenosine triphosphate ____ PHOSPHATE GROUPS 3

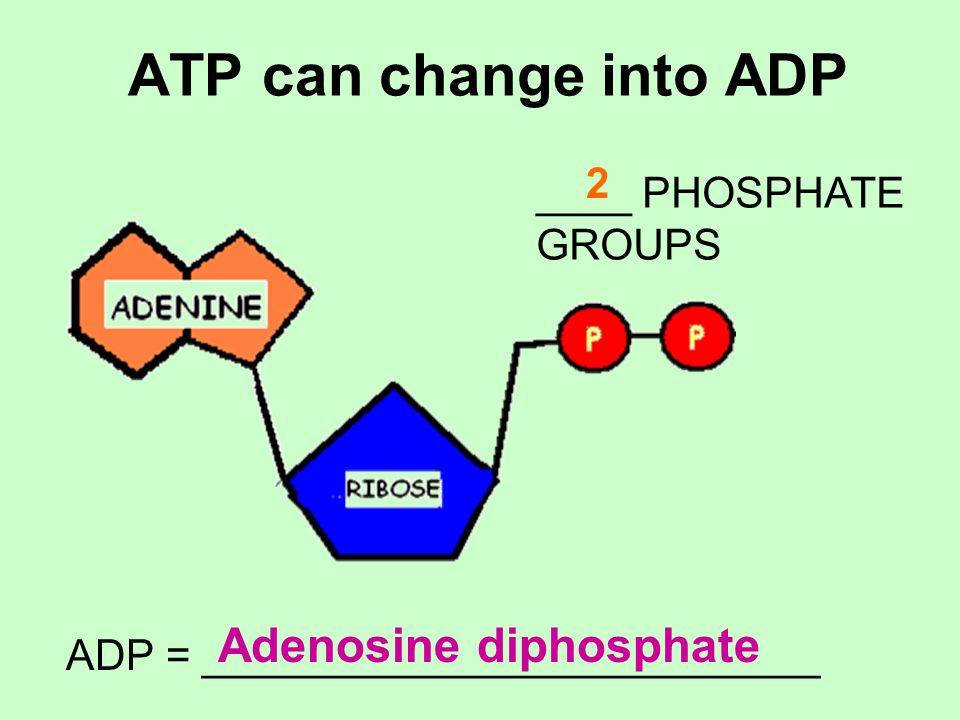

8. ATP can change into ADP ADP = __________________________ Adenosine diphosphate ____ PHOSPHATE GROUPS 2

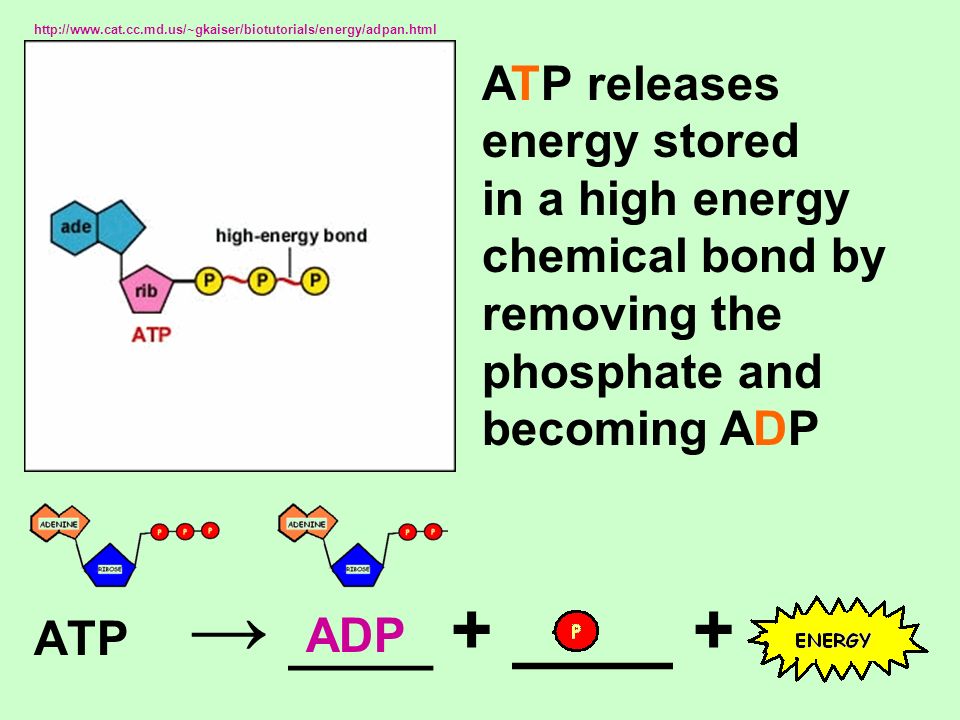

9. ATP → ____ + ____ + http://www.cat.cc.md.us/~gkaiser/biotutorials/energy/adpan.html ATP releases energy stored in a high energy chemical bond by removing the phosphate and becoming ADP ADP

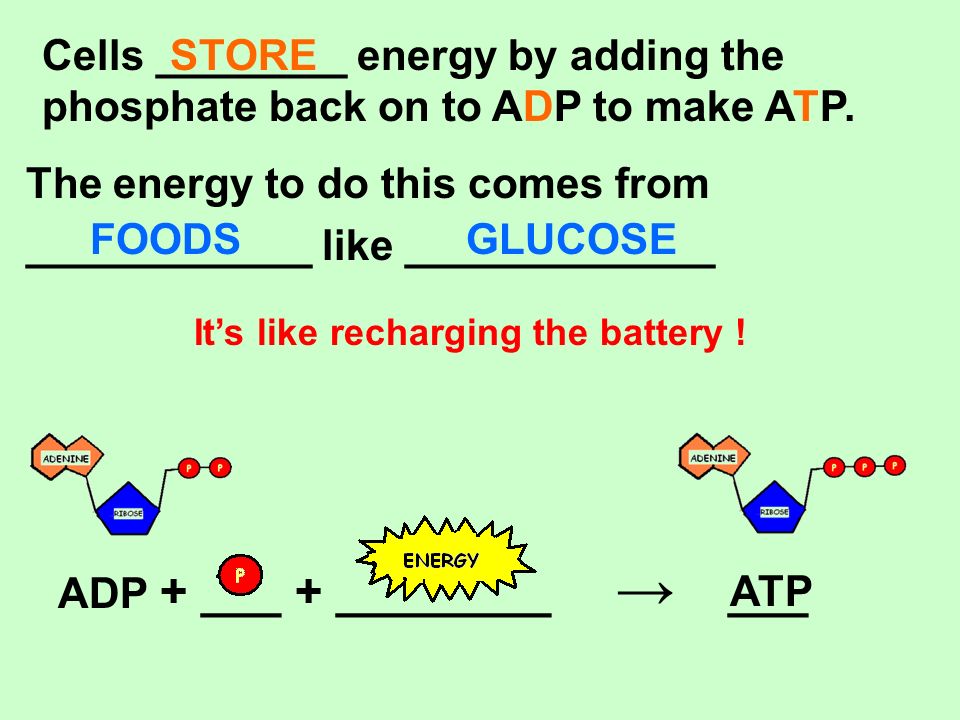

10. ADP + ___ + ________ → ___ The energy to do this comes from ____________ like _____________ Cells ________ energy by adding the phosphate back on to ADP to make ATP. ATP It’s like recharging the battery ! STORE FOODSGLUCOSE

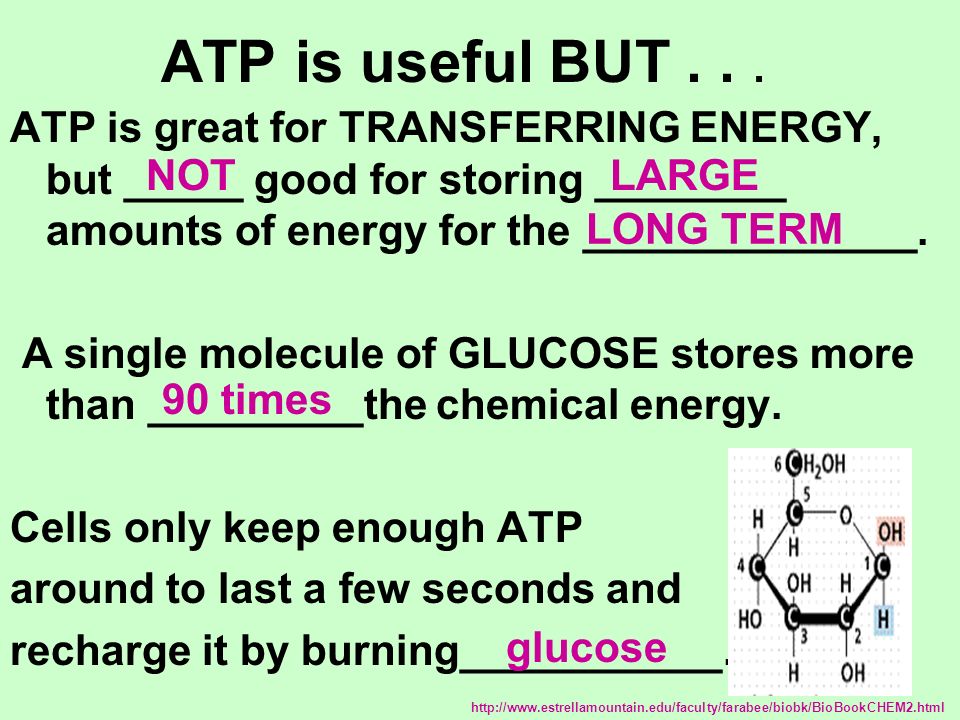

11. ATP is useful BUT... ATP is great for TRANSFERRING ENERGY, but _____ good for storing ________ amounts of energy for the ______________. A single molecule of GLUCOSE stores more than _________the chemical energy. Cells only keep enough ATP around to last a few seconds and recharge it by burning___________. http://www.estrellamountain.edu/faculty/farabee/biobk/BioBookCHEM2.html NOTLARGE LONG TERM 90 times glucose

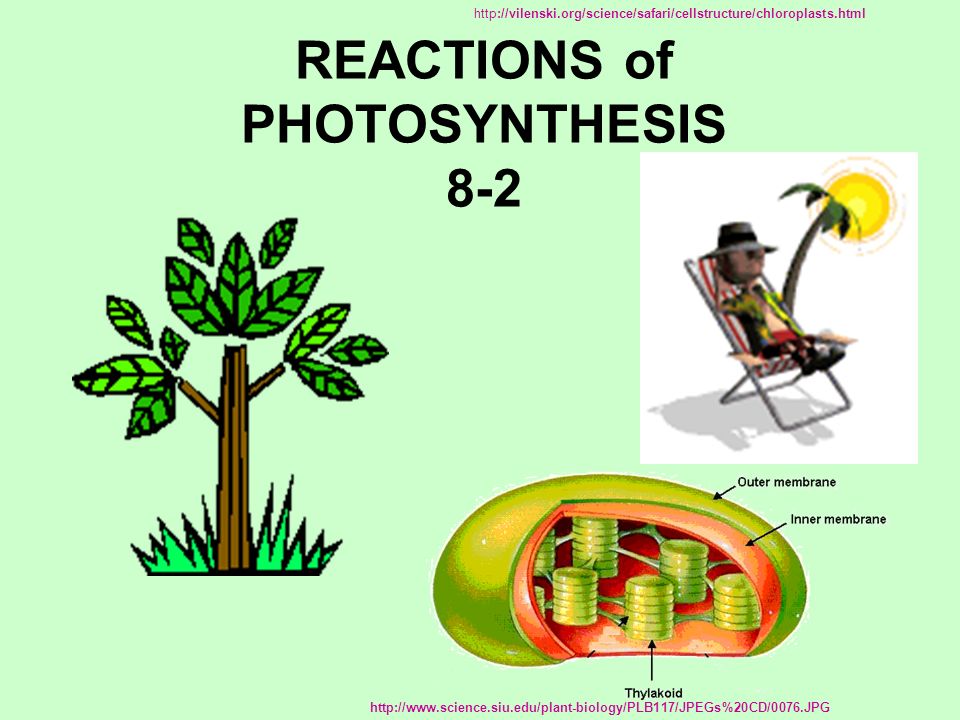

12. REACTIONS of PHOTOSYNTHESIS 8-2 http://vilenski.org/science/safari/cellstructure/chloroplasts.html http://www.science.siu.edu/plant-biology/PLB117/JPEGs%20CD/0076.JPG

13. Research into PHOTOSYNTHESIS began centuries ago with this simple question: When a tiny seed grows into a huge plant, where does all the “new plant” come from? http://www.nofretete-page.de/gemischtNeu/TN_plant_grow_w.JPG

14. EXPERIMENTS TO FIND OUT Then he planted the seedling in the pot and watered it regularly. At the end of 5 years the _____________ __________about 75 kg, but the mass of the _________ was almost ________________. http://www2.nsta.org/Energy/find/primer/primer2_3.html He decided the “increase in plant” had to come from the ________… that was the only thing he had added! In 1643- a Belgian physician ___________________ determined the mass of a pot of dry soil and a small seedling. Jan van Helmont seedling had gained soil unchanged WATER

15. EXPERIMENTS TO FIND OUT Plants use _______ and ______ dioxide to make ___________________ http://www2.nsta.org/Energy/find/primer/primer2_3.html Van Helmont didn’t realize the major contribution to the mass of his tree was something he couldn’t see… __________________ from the air. carbon dioxide watercarbon Carbohydrates

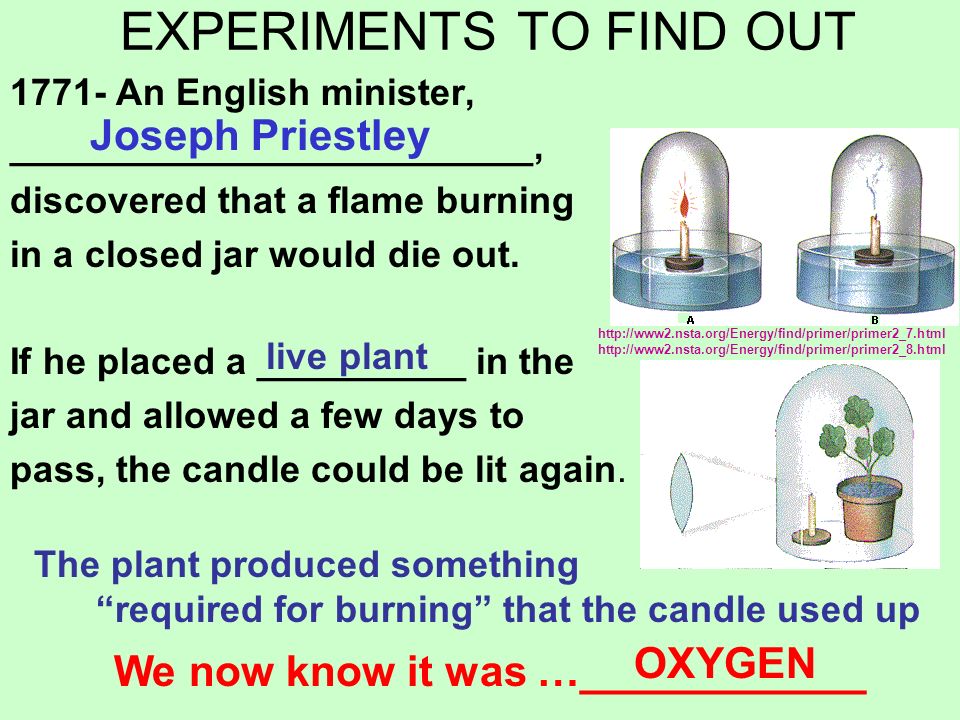

16. EXPERIMENTS TO FIND OUT 1771- An English minister, _________________________, discovered that a flame burning in a closed jar would die out. If he placed a __________ in the jar and allowed a few days to pass, the candle could be lit again. The plant produced something “required for burning” that the candle used up http://www2.nsta.org/Energy/find/primer/primer2_7.html http://www2.nsta.org/Energy/find/primer/primer2_8.html We now know it was …____________ OXYGEN Joseph Priestley live plant

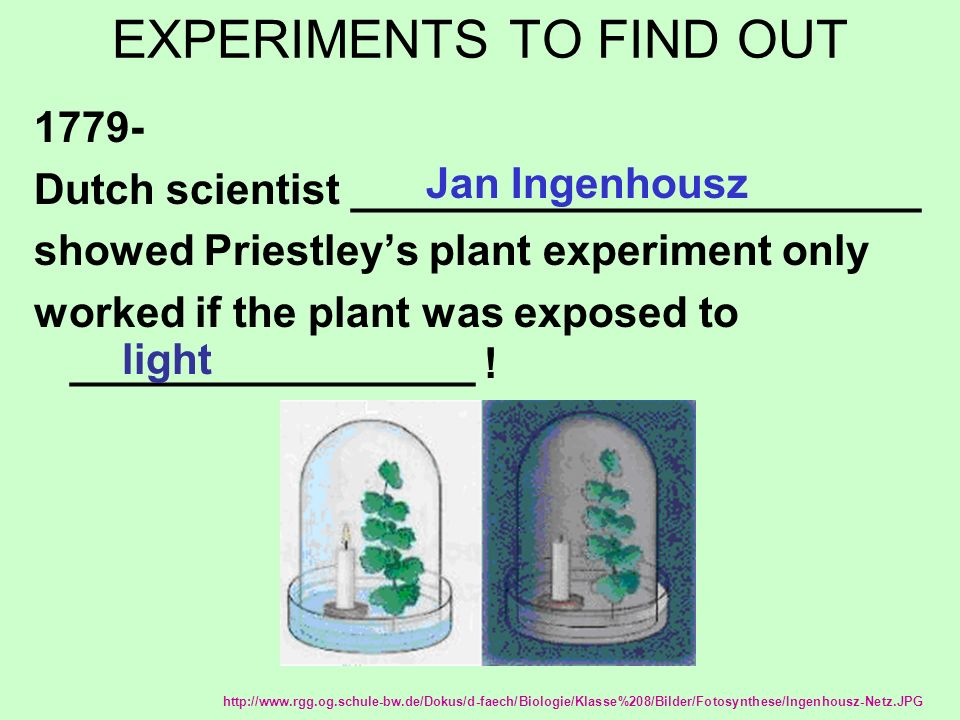

17. EXPERIMENTS TO FIND OUT 1779- Dutch scientist ________________________ showed Priestley’s plant experiment only worked if the plant was exposed to _________________ ! http://www.rgg.og.schule-bw.de/Dokus/d-faech/Biologie/Klasse%208/Bilder/Fotosynthese/Ingenhousz-Netz.JPG Jan Ingenhousz light

18. EXPERIMENTS TO FIND OUT 1961- American chemist ________________________ received the Nobel prize for figuring out the chemical _______________ used by plants to make sugar http://www.bookrags.com/Melvin_Calvin Melvin Calvin pathway http://www.daviddarling.info/encyclopedia/C/Calvincycle.html

19. THE BIG PICTURE These experiments led to work by later scientists who finally discovered that in the presence of light, plants transform CO 2 and water into carbohydrates and release oxygen. _____________ + ____________ _______________ + ____________ Carbon dioxide WATERSugars Oxygen 6 CO 2 _____________ + ____________ _______________ + ____________ 6 H 2 OC 6 H 12 O 6 6 O 2 →

20. In addition to water and carbon dioxide, __________________ and __________________ are needed for photosynthesis to happen. chlorophyll light energy http://fig.cox.miami.edu/~cmallery/255/255phts/255phts.htm

21. ____________________ involves a complex series of chemical reactions, in which the product of one reaction is _____________ by the next reaction. Photosynthesis consumed Reaction 1 →Product → X Reaction 2 → Product Y A series of reactions linked in this way is referred to as a __________________________ biochemical pathway

22. PHOTOSYNTHESIS Light-Dependent Reaction Light-Independent Reactions Light & Water oxygen ATP NADPH Carbon Dioxide (CH 2 O) n Calvin Cycle

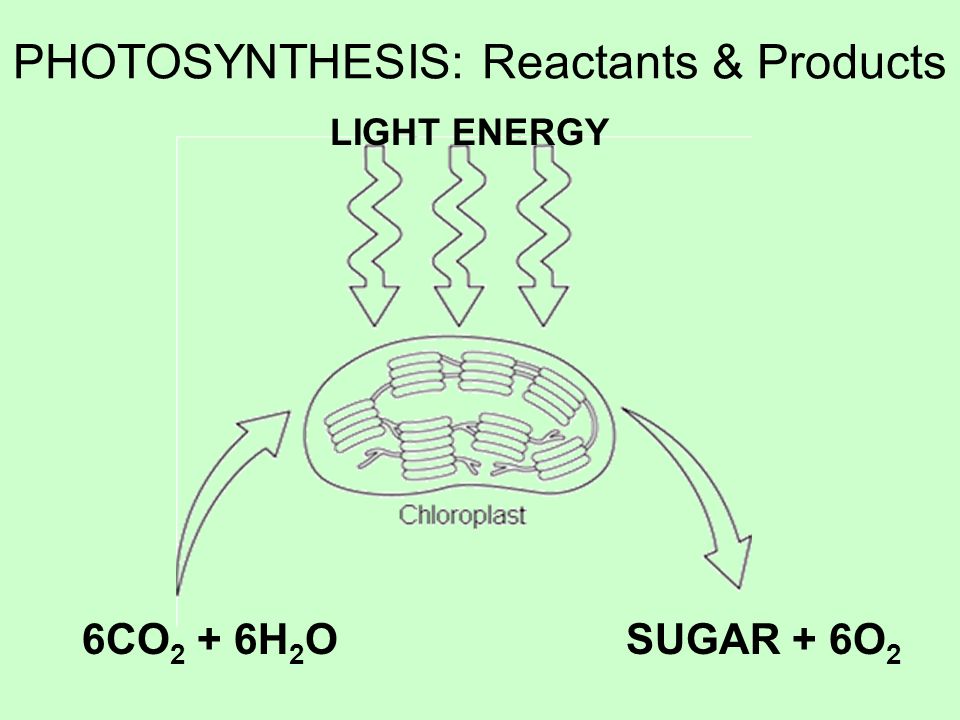

23. PHOTOSYNTHESIS: Reactants & Products LIGHT ENERGY 6CO 2 + 6H 2 OSUGAR + 6O 2

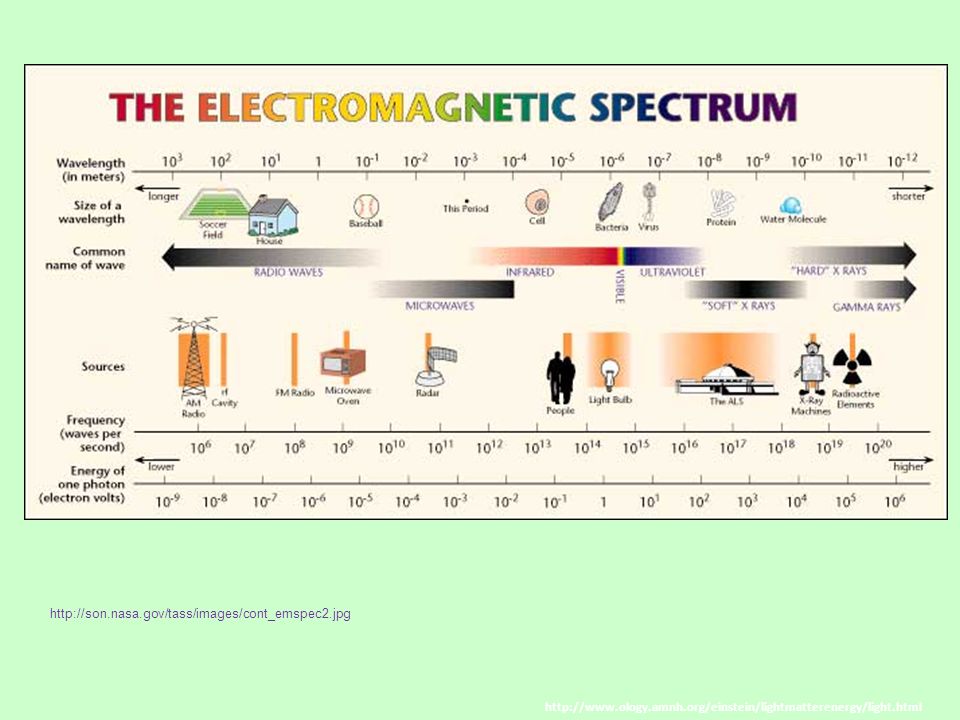

24. http://www.ology.amnh.org/einstein/lightmatterenergy/light.html http://son.nasa.gov/tass/images/cont_emspec2.jpg

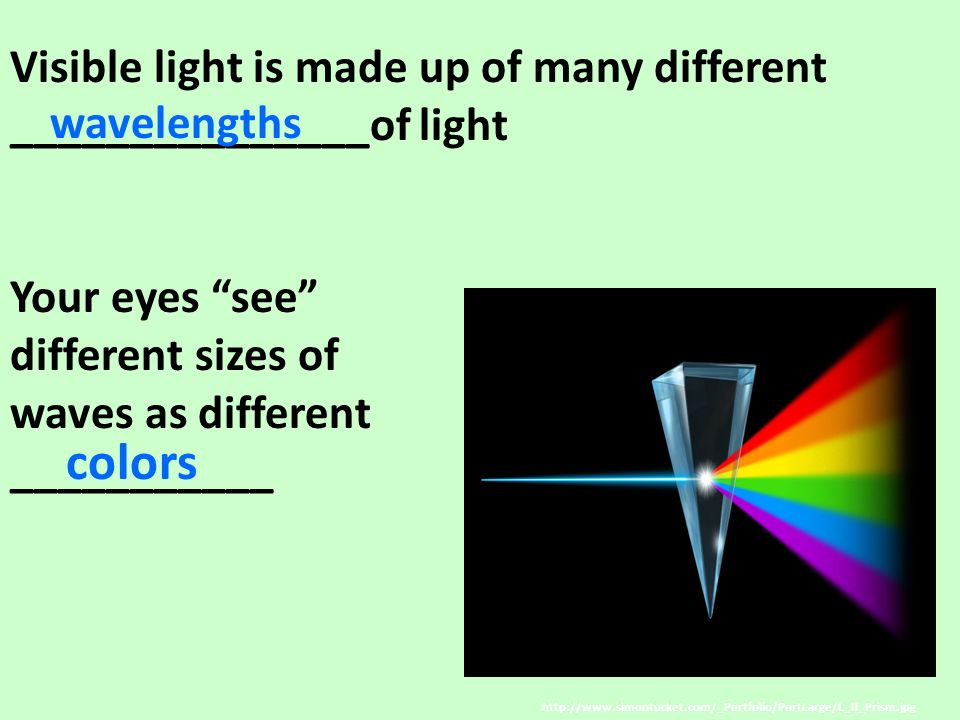

25. Visible light is made up of many different _______________of light Your eyes “see” different sizes of waves as different ___________ http://www.simontucket.com/_Portfolio/PortLarge/L_Il_Prism.jpg wavelengths colors

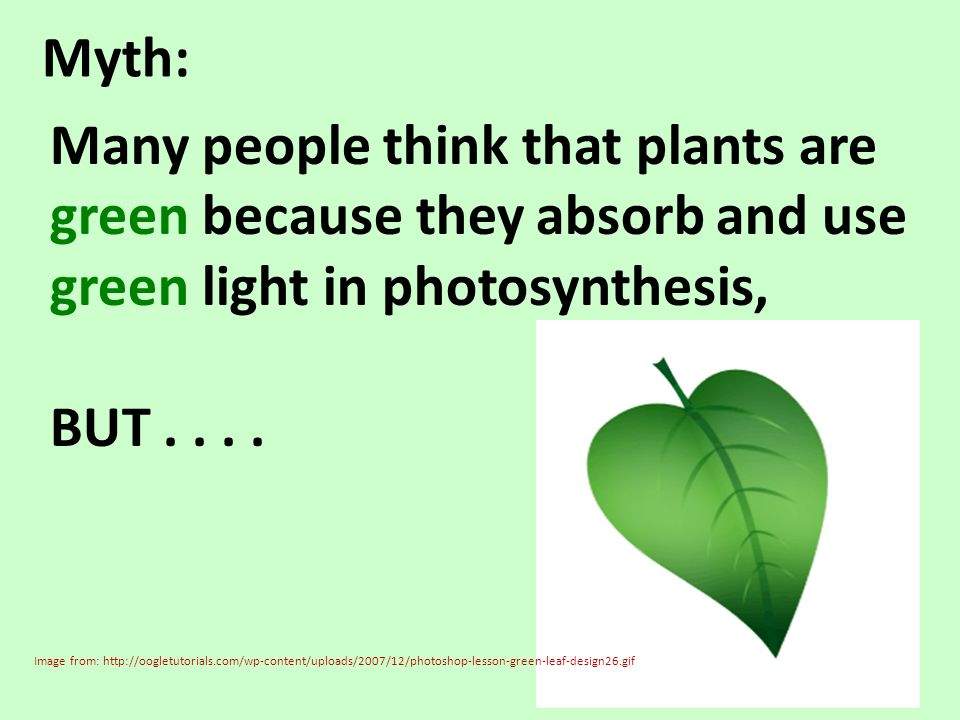

26. Many people think that plants are green because they absorb and use green light in photosynthesis, BUT.... Myth: Image from: http://oogletutorials.com/wp-content/uploads/2007/12/photoshop-lesson-green-leaf-design26.gif

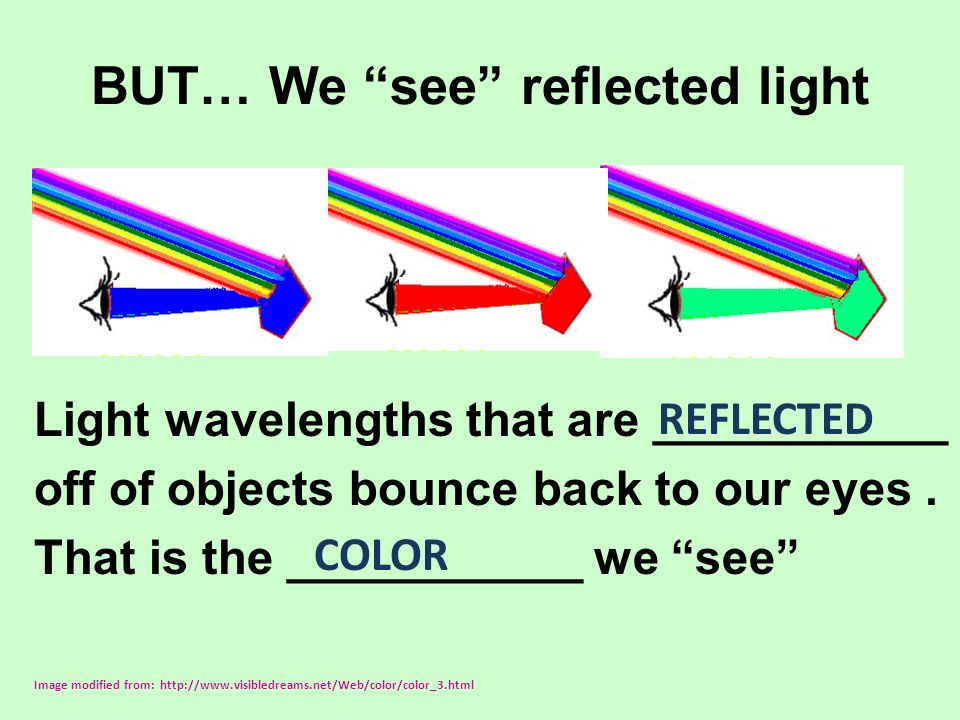

27. BUT… We “see” reflected light Light wavelengths that are ___________ off of objects bounce back to our eyes. That is the ___________ we “see” Image modified from: http://www.visibledreams.net/Web/color/color_3.html REFLECTED COLOR

28. This book “looks BLUE” because the dye in this cover _______________ of the wavelengths of light _________ blue. _______ light is ____________ to your eyes and it looks BLUE http://www.michaelhyatt.com/fromwhereisit/bluebook.jpg except absorbs ALL BLUE reflected

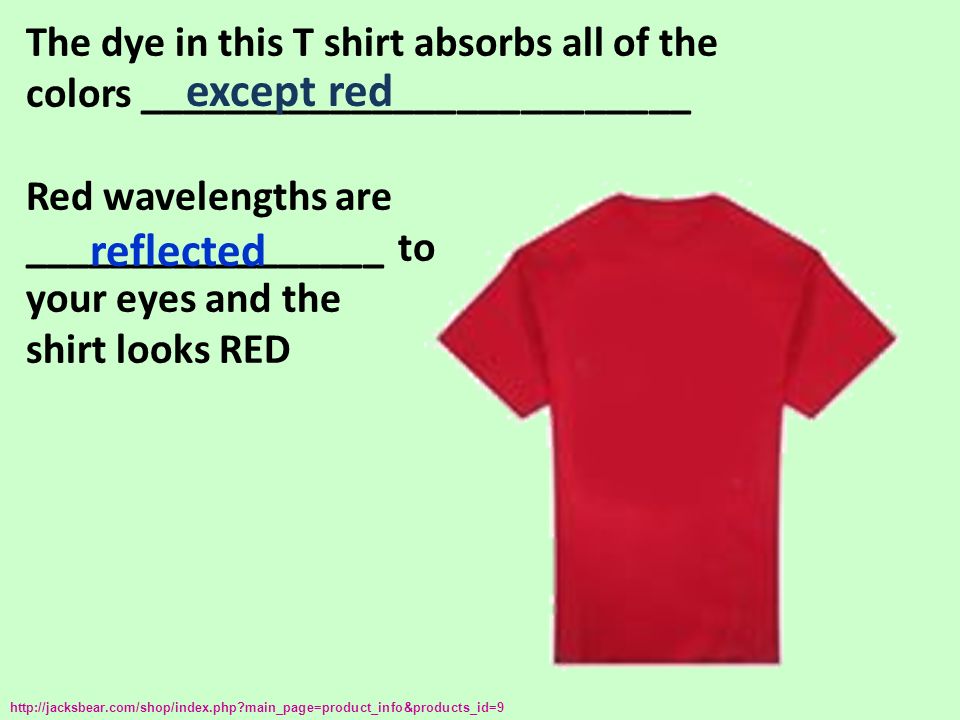

29. The dye in this T shirt absorbs all of the colors __________________________ Red wavelengths are _________________ to your eyes and the shirt looks RED http://jacksbear.com/shop/index.php?main_page=product_info&products_id=9 except red reflected

30. Objects “look BLACK” because black dye ________________ of the wavelengths of light. When wavelengths are absorbed so is the_____________ of the wave. That is why wearing a black T-shirt in the summer feels warmer than wearing a white t-shirt. http://www.eventsonline.ca/events/vowsa/black_shirt.jpg http://www.hotstuffspas.com/pools_files/sunanim.gif absorbs ALL ENERGY

31. The dye in white objects _____________ of the wavelengths of light. _______ energy is ABSORBED so wearing white clothing is “cooler”. REFLECTS ALL LITTLE http://www.hotstuffspas.com/pools_files/sunanim.gif http://www.12stitch.com/shop/images/options/Blank-White-Shirt.jpg

32. Which wavelengths of light are these Flowers REFLECTING? Images by: VanderWal yellowPurple & yellow

33. green Image by: VanderWal Which wavelengths of light do these LEAVES reflect? So green leaves ____________ the green wavelength of light. REFLECT

34. Plants gather the sun’s energy with light absorbing molecules called ___________. pigments By: VanderWal

35. The main energy absorbing molecule in green plants is ___________________ _________________ are plant pigments too. (These look yellow, orange, and red) CAROTENOIDS http://www.russianflora.com/store/images/product/custom_green_plant_35.jpg http://www.rnzih.org.nz/images/gardenimages/carrots_d.jpg CHLOROPHYLL

36. GREEN leaves have BOTH chlorophyll AND carotenoids __________________ but the huge amount of chlorophyll ______ the other colors and leaves usually look green ALL THE TIME hides

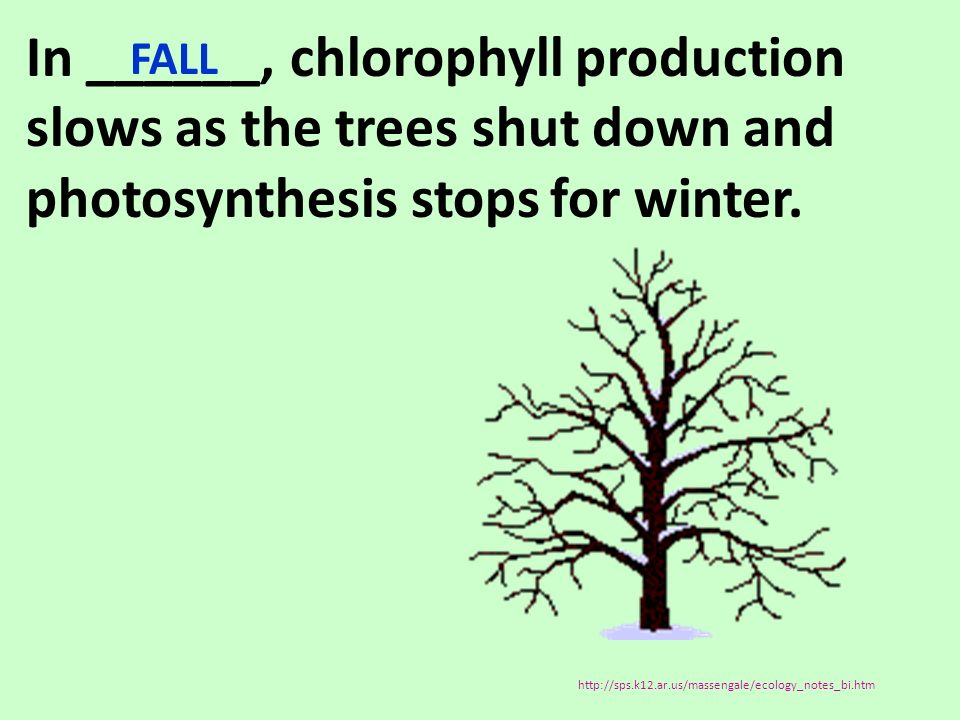

37. In ______, chlorophyll production slows as the trees shut down and photosynthesis stops for winter. FALL http://sps.k12.ar.us/massengale/ecology_notes_bi.htm

38. Then we can see the carotinoid colors that are usually _______ by chlorophyll http://www.litzsinger.org/weblog/archives/email%20AutumnTrees5%20LREC%20102605.jpg HIDDEN

39. red Chlorophyll a Chlorophyll b Absorption of Light by Chlorophyll a and Chlorophyll b © Pearson Education, Inc. Publishing asPearson Prentice-Hall. All rights reserved. There are two types of chlorophyll __________________ & ___________________ Chlorophyll a absorbs the _____ & ________ wavelengths best. It absorbs very little ______ light. Chlorophyll a Chlorophyll b red violet Blue

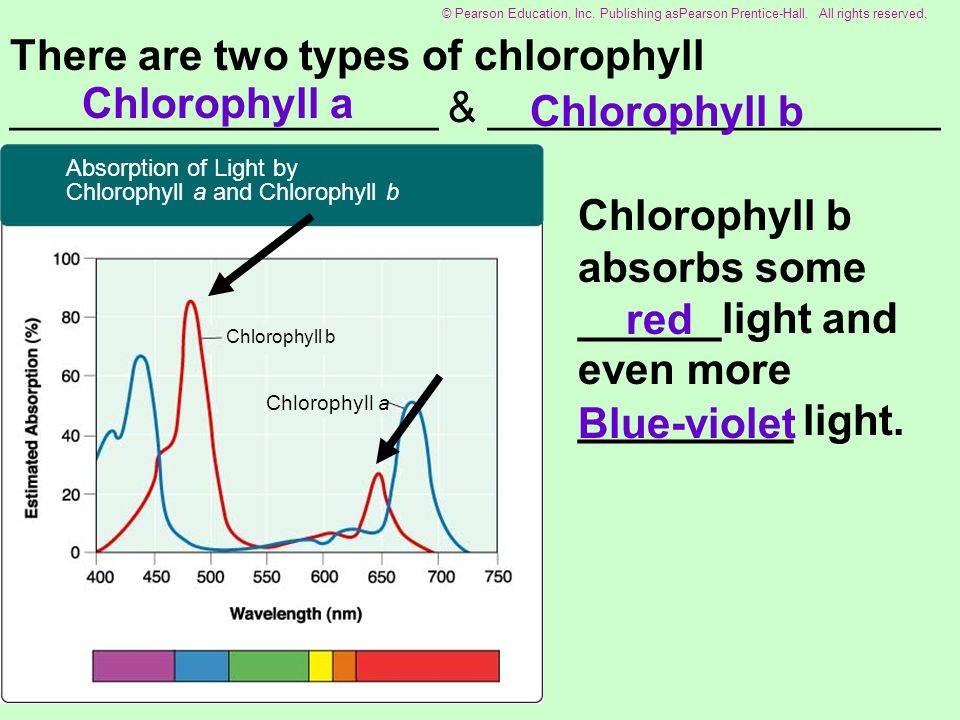

40. red Chlorophyll a Chlorophyll b Absorption of Light by Chlorophyll a and Chlorophyll b © Pearson Education, Inc. Publishing asPearson Prentice-Hall. All rights reserved. There are two types of chlorophyll __________________ & ___________________ Chlorophyll b absorbs some ______light and even more _________ light. Chlorophyll a Chlorophyll b red Blue-violet

41. red Chlorophyll a Chlorophyll b Absorption of Light by Chlorophyll a and Chlorophyll b © Pearson Education, Inc. Publishing asPearson Prentice-Hall. All rights reserved. NEITHER KIND OF CHLOROPHYLL IS VERY GOOD AT ABSORBING _________ LIGHT! GREEN

42. That’s why leaves LOOK GREEN….. Chlorophyll doesn’t absorb…. it ___________ GREEN light! http://www.russianflora.com/store/images/product/custom_green_plant_35.jpg REFLECTS

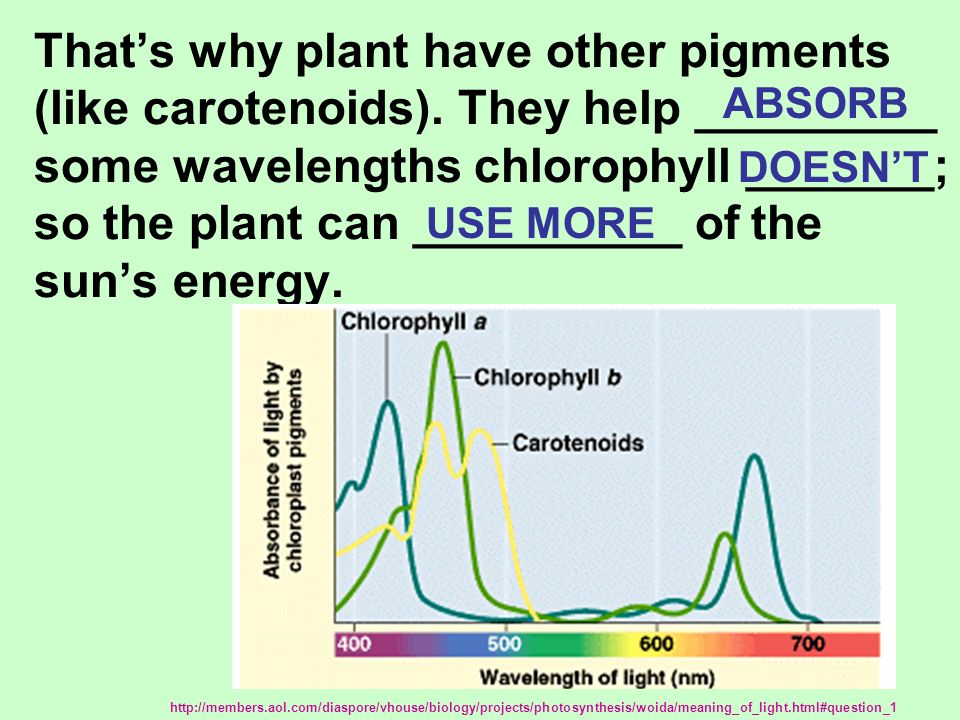

43. That’s why plant have other pigments (like carotenoids). They help _________ some wavelengths chlorophyll _______; so the plant can __________ of the sun’s energy. http://members.aol.com/diaspore/vhouse/biology/projects/photosynthesis/woida/meaning_of_light.html#question_1 USE MORE ABSORB DOESN’T

44. Chlorophyll a Chlorophyll b Absorption of Light by Chlorophyll a and Chlorophyll b © Pearson Education, Inc. Publishing asPearson Prentice-Hall. All rights reserved. SO WHAT WAVELENGTHS ARE BEST FOR PHOTOSYNTHESIS? THE ONES CHLOROPHYLL ABSORBS THE BEST ________ and _______________ red Blue-violet

45. Pearson Education Inc, Pusblishing as Pearson Prentice Hall Because light is a form of ___________, any molecule that absorbs light also ___________the energy from the light. ENERGY ABSORBS

46. ENERGY & ELECTRONS When chlorophyll absorbs light, the energy is transferred to electrons in the chlorophyll molecule. http://www.mhhe.com/biosci/pae/botany/uno/graphics/uno01pob/vrl/images/0160.gif http://www.wjcc.k12.va.us/ROBB/Atom%20Animation%20Resources_files/image003.gif HIGH ENERGY ____________ make photosynthesis work! ELECTRONS
