1. 1 Apache Velocity Overview Dinagar Raghunathan by http://www.rdinagar.com

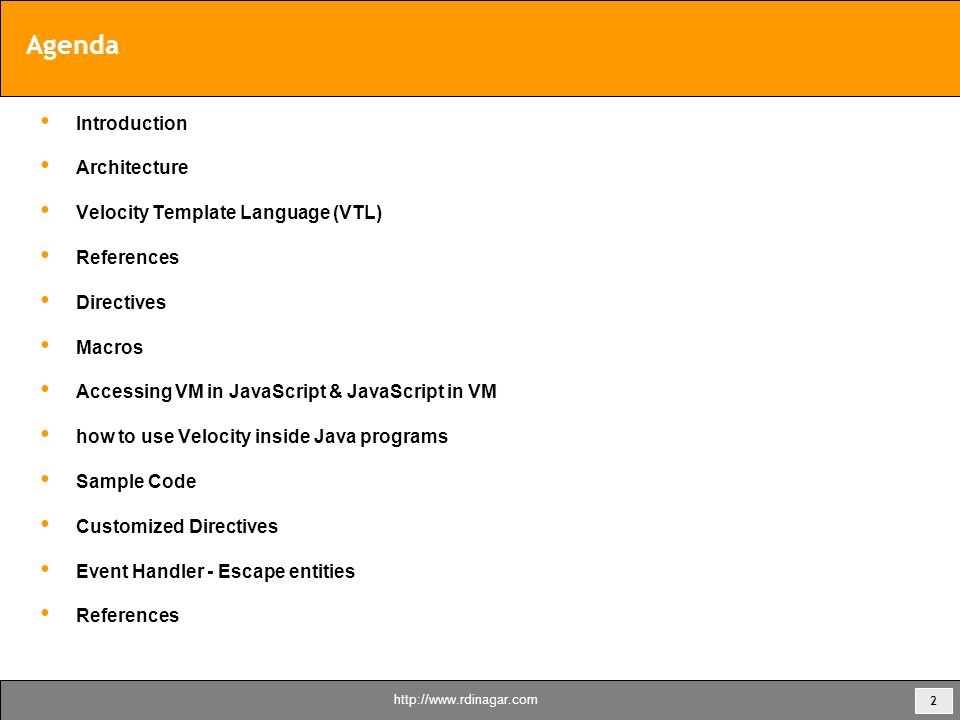

2. 2 Agenda Introduction Architecture Velocity Template Language (VTL) References Directives Macros Accessing VM in JavaScript & JavaScript in VM how to use Velocity inside Java programs Sample Code Customized Directives Event Handler - Escape entities References

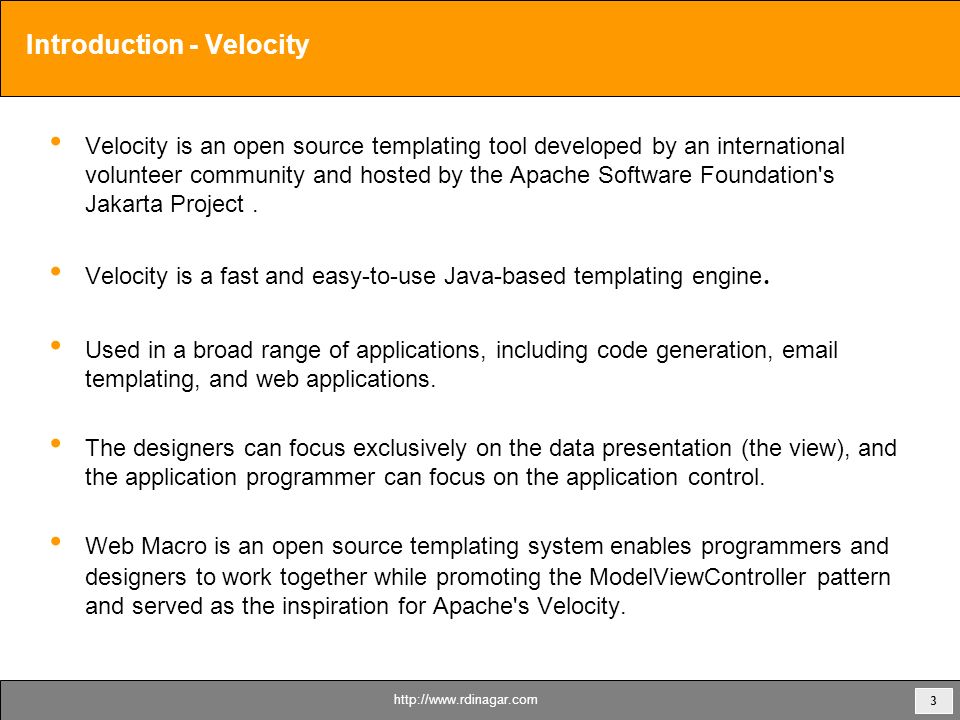

3. 3 http://www.rdinagar.com Introduction - Velocity Velocity is an open source templating tool developed by an international volunteer community and hosted by the Apache Software Foundation's Jakarta Project. Velocity is a fast and easy-to-use Java-based templating engine. Used in a broad range of applications, including code generation, email templating, and web applications. The designers can focus exclusively on the data presentation (the view), and the application programmer can focus on the application control. Web Macro is an open source templating system enables programmers and designers to work together while promoting the ModelViewController pattern and served as the inspiration for Apache's Velocity.

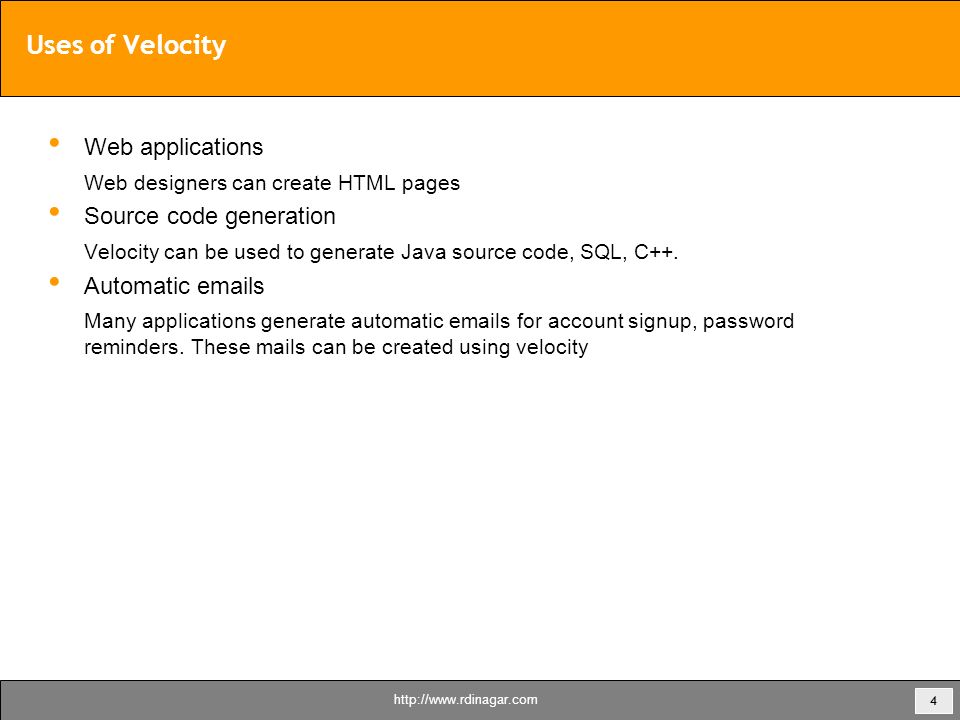

4. 4 http://www.rdinagar.com Uses of Velocity Web applications Web designers can create HTML pages Source code generation Velocity can be used to generate Java source code, SQL, C++. Automatic emails Many applications generate automatic emails for account signup, password reminders. These mails can be created using velocity

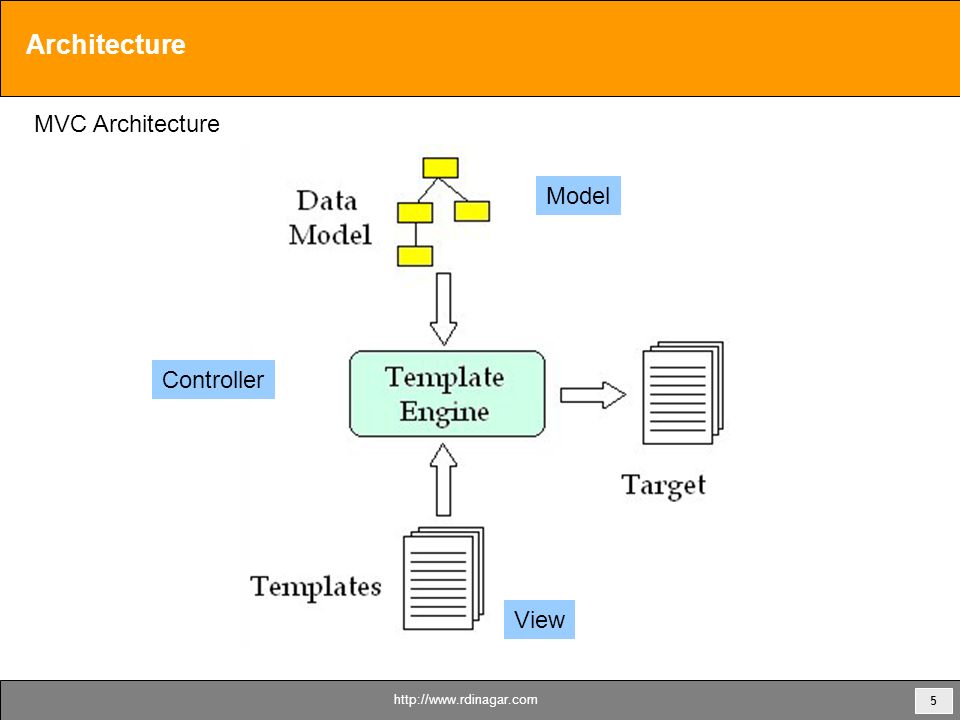

5. 5 http://www.rdinagar.com Architecture MVC Architecture Model View Controller

6. 6 http://www.rdinagar.com Templates and Transformations Data Model Contains data that has to be transformed. Template Formats the data model into the output code Template Engine The application that performs the transformation. It has the input data model and the template, and produces output by replacing the template internal references with real data coming from the model. Target The result of the transformation process.

7. 7 http://www.rdinagar.com Velocity Template Language (VTL) VTL is a template language using which templates are created. VTL has two parts References. Directives. References Objects in the Velocity context are accessed using references from within a template. References begin with a dollar sign.

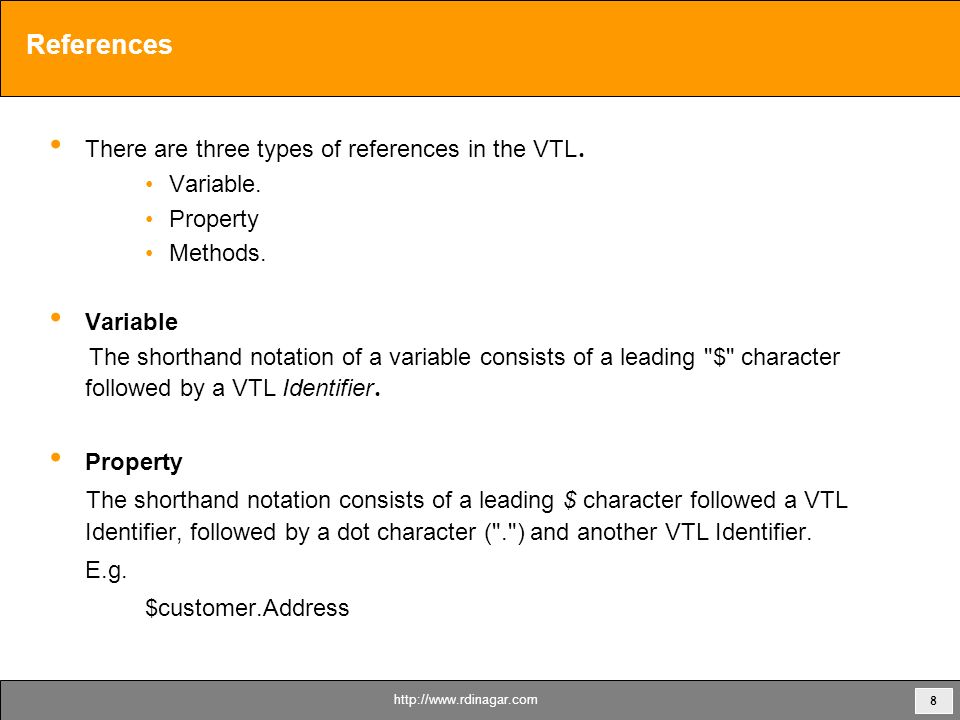

8. 8 http://www.rdinagar.com References There are three types of references in the VTL. Variable. Property Methods. Variable The shorthand notation of a variable consists of a leading "$" character followed by a VTL Identifier. Property The shorthand notation consists of a leading $ character followed a VTL Identifier, followed by a dot character (".") and another VTL Identifier. E.g. $customer.Address

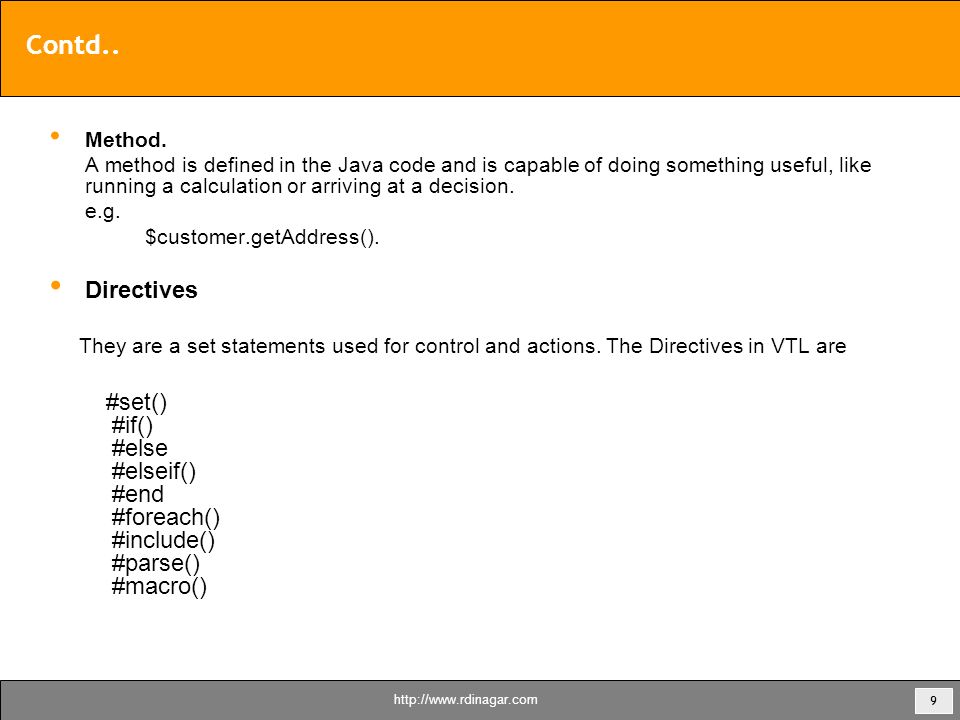

9. 9 http://www.rdinagar.com Contd.. Method. A method is defined in the Java code and is capable of doing something useful, like running a calculation or arriving at a decision. e.g. $customer.getAddress(). Directives They are a set statements used for control and actions. The Directives in VTL are #set() #if() #else #elseif() #end #foreach() #include() #parse() #macro()

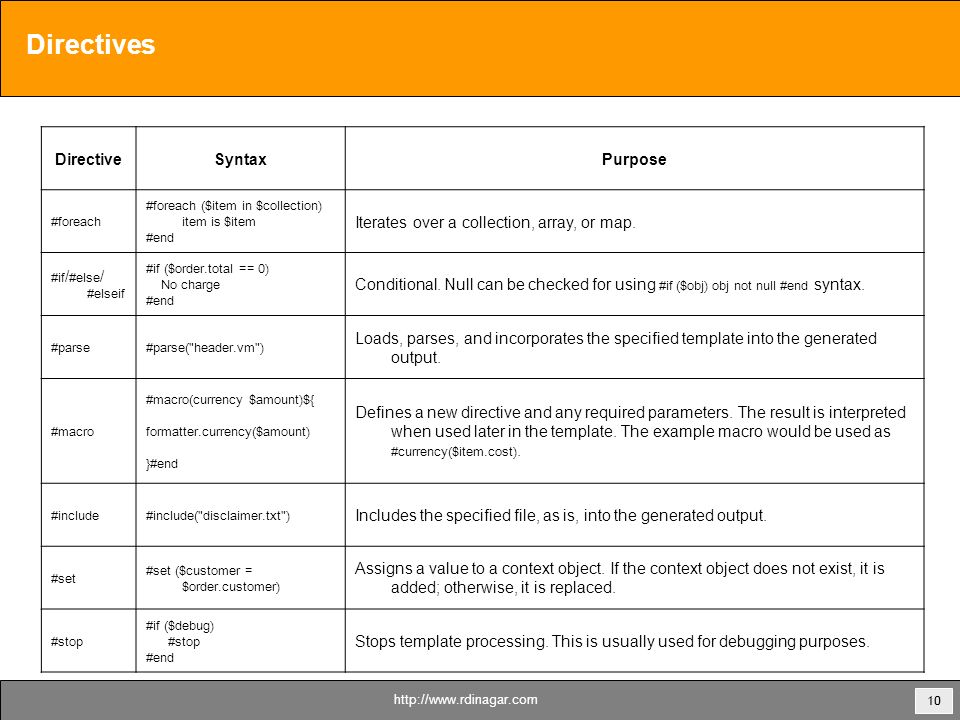

10. 10 http://www.rdinagar.com Directives DirectiveSyntaxPurpose #foreach #foreach ($item in $collection) item is $item #end Iterates over a collection, array, or map. #if / #else / #elseif #if ($order.total == 0) No charge #end Conditional. Null can be checked for using #if ($obj) obj not null #end syntax. #parse#parse("header.vm") Loads, parses, and incorporates the specified template into the generated output. #macro #macro(currency $amount)${ formatter.currency($amount) }#end Defines a new directive and any required parameters. The result is interpreted when used later in the template. The example macro would be used as #currency($item.cost). #include#include("disclaimer.txt") Includes the specified file, as is, into the generated output. #set #set ($customer = $order.customer) Assigns a value to a context object. If the context object does not exist, it is added; otherwise, it is replaced. #stop #if ($debug) #stop #end Stops template processing. This is usually used for debugging purposes.

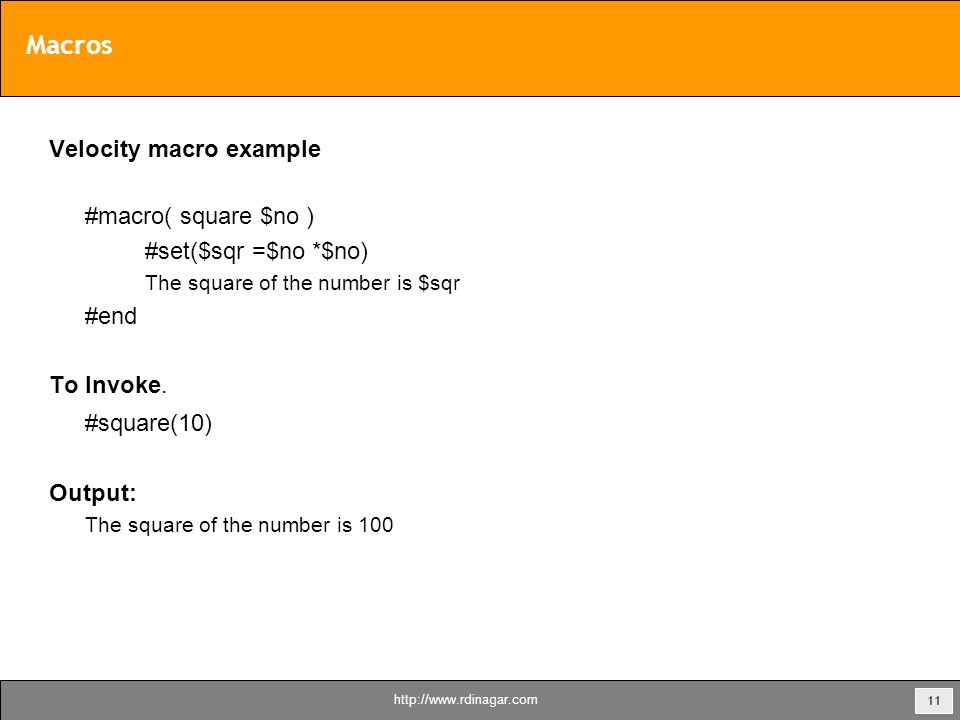

11. 11 http://www.rdinagar.com Macros Velocity macro example #macro( square $no ) #set($sqr =$no *$no) The square of the number is $sqr #end To Invoke. #square(10) Output: The square of the number is 100

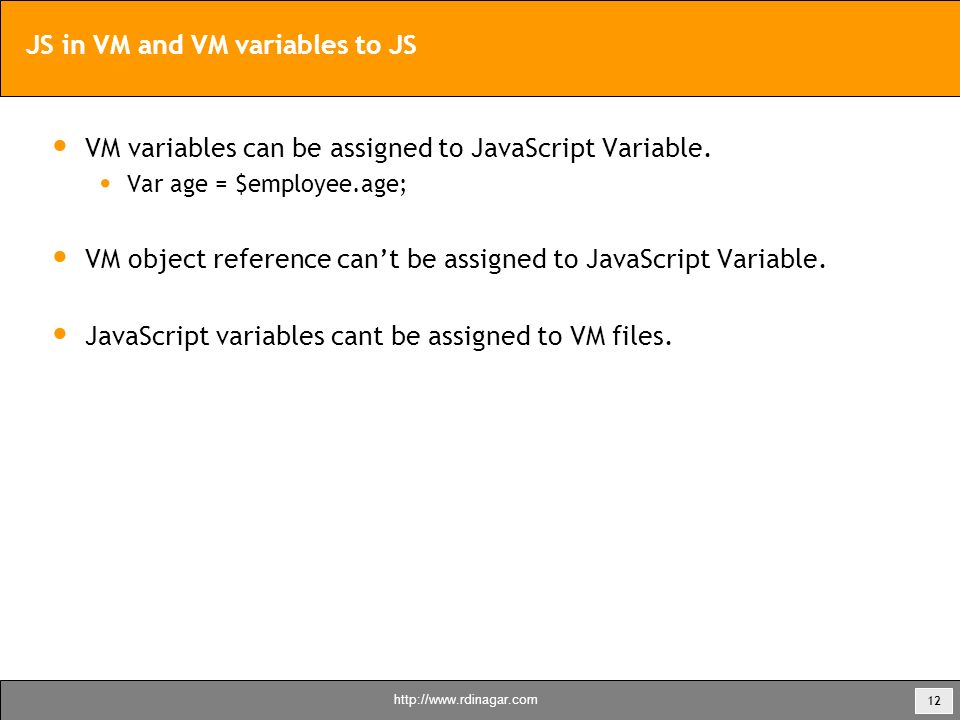

12. 12 http://www.rdinagar.com JS in VM and VM variables to JS VM variables can be assigned to JavaScript Variable. Var age = $employee.age; VM object reference can’t be assigned to JavaScript Variable. JavaScript variables cant be assigned to VM files.

13. 13 http://www.rdinagar.com How to use Velocity inside Java programs VelocityEngine This class provides a separate new-able instance of the Velocity template engine. The alternative model for use is using the Velocity class which employs the singleton model. Please ensure that you call one of the init() variants. This is critical for proper behavior. VelocityContext General purpose implementation of the application Context interface for general application use. This class should be used in place of the original Context class. This implementation uses a HashMap (@see java.util.HashMap ) for data storage. Template This class is used for controlling all template operations. Merge operation merges the information in the Context to the Writer object Velocity Writer JavaVM file Output file

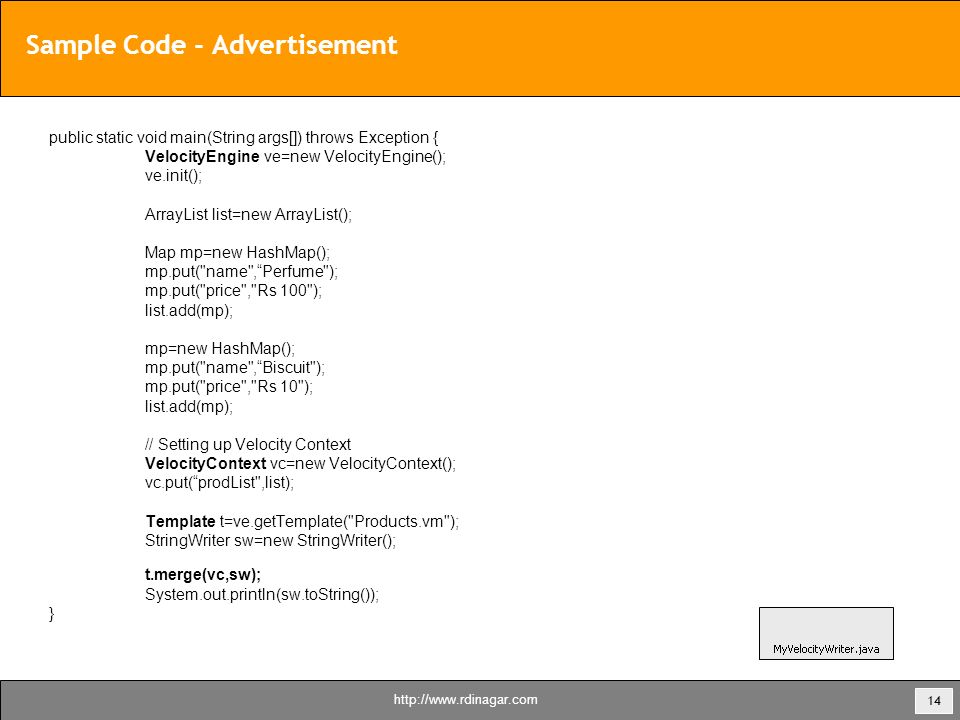

14. 14 http://www.rdinagar.com Sample Code - Advertisement public static void main(String args[]) throws Exception { VelocityEngine ve=new VelocityEngine(); ve.init(); ArrayList list=new ArrayList(); Map mp=new HashMap(); mp.put("name",“Perfume"); mp.put("price","Rs 100"); list.add(mp); mp=new HashMap(); mp.put("name",“Biscuit"); mp.put("price","Rs 10"); list.add(mp); // Setting up Velocity Context VelocityContext vc=new VelocityContext(); vc.put(“prodList",list); Template t=ve.getTemplate("Products.vm"); StringWriter sw=new StringWriter(); t.merge(vc,sw); System.out.println(sw.toString()); }

15. 15 http://www.rdinagar.com Template - Advertisement There are $prodList.size() Products for Sale! We are proud to offer these products at these amazing prices. This month only, choose from: #foreach($prod in $prodList) $prod.name for only $prod.price #end Call Immediately!

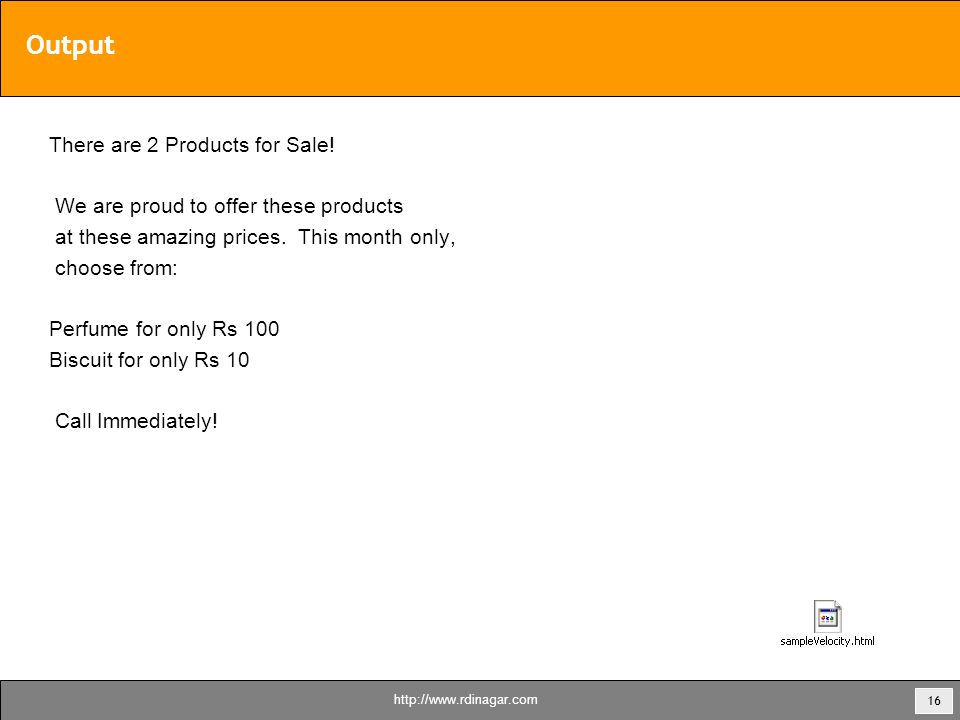

16. 16 http://www.rdinagar.com Output There are 2 Products for Sale! We are proud to offer these products at these amazing prices. This month only, choose from: Perfume for only Rs 100 Biscuit for only Rs 10 Call Immediately!

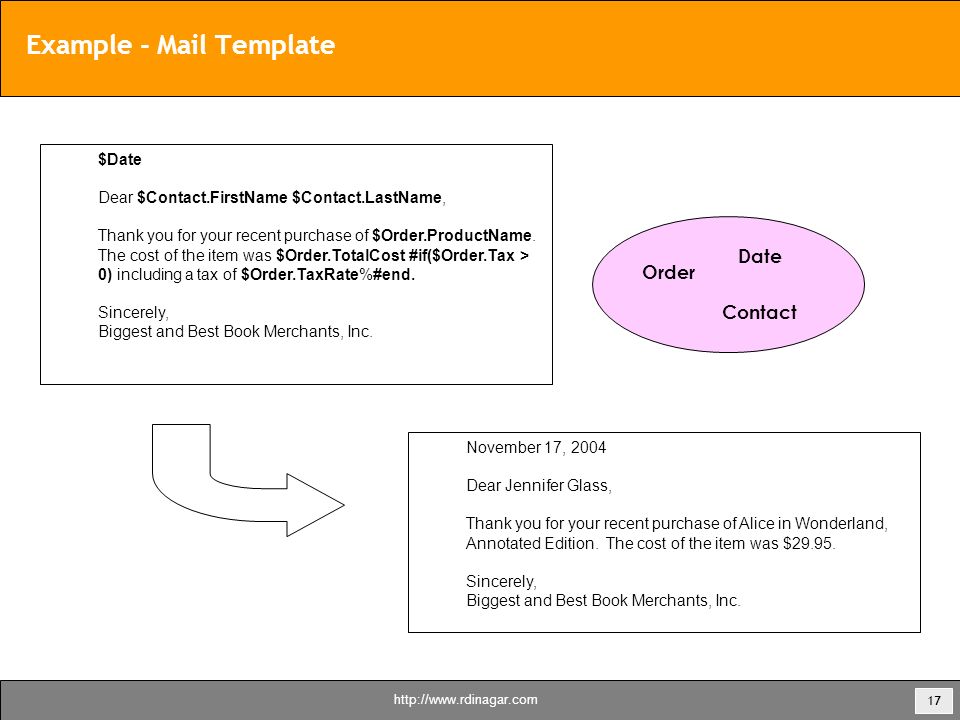

17. 17 http://www.rdinagar.com Example - Mail Template $Date Dear $Contact.FirstName $Contact.LastName, Thank you for your recent purchase of $Order.ProductName. The cost of the item was $Order.TotalCost #if($Order.Tax > 0) including a tax of $Order.TaxRate%#end. Sincerely, Biggest and Best Book Merchants, Inc. November 17, 2004 Dear Jennifer Glass, Thank you for your recent purchase of Alice in Wonderland, Annotated Edition. The cost of the item was $29.95. Sincerely, Biggest and Best Book Merchants, Inc. Order Contact Date

18. 18 http://www.rdinagar.com Controlling Velocity Template Generation with a Custom Directive Consider – can the problem you are trying to solve be done more simply with a Tool or VelocityMacro? If not, Velocity allows you to code your own custom directives by doing the following: Create a class that extends org.apache.velocity.runtime.directive.Directive Add the following to velocity.properties userdirective = yourdirectiveclass Review the directives in the velocity source code for good examples. For example, review org.apache.velocity.runtime.directive.ForEach

19. 19 http://www.rdinagar.com Custom Directive Example: Generate Endnotes #endNotes All in the golden afternoon (*1:In these prefatory verses Carroll recalls that "golden afternoon" in 1862 when he and his friend the Reverend Robinson Duckworth (then a fellow of Trinity College, Oxford, later canon of Westminster) took the three charming Liddell sisters on a rowing expedition up the Thames. *) Full leisurely we glide; For both our oars, with little skill, By little arms are plied, While little hands make vain pretence Our wanderings to guide. (* 2:Note how this stanza puns three times with the word "little." "Liddle" was pronounced to rhyme with "fiddle." *) #end Usage: All in the golden afternoon Full leisurely we glide; For both our oars, with little skill, By little arms are plied, While little hands make vain pretence Our wanderings to guide. NOTES 1: In these prefatory verses Carroll recalls that "golden afternoon" in 1862 when he and his friend the Reverend Robinson Duckworth (then a fellow of Trinity College, Oxford, later canon of Westminster) took the three charming Liddell sisters on a rowing expedition up the Thames. 2:Note how this stanza puns three times with the word "little." "Liddle" was pronounced to rhyme with "fiddle." Results:

20. 20 http://www.rdinagar.com Custom Directive Example: Code Excerpt – Main Class public class MyVelocityWriterDirective { public static void main(String argv[]) throws Exception { VelocityEngine velocityEngine = new VelocityEngine(); // load properties from classpath Properties properties = new Properties(); InputStream inputStream = MyVelocityWriterDirective.class.getResourceAsStream("velocity.properties"); properties.load(inputStream); inputStream.close(); velocityEngine.init(properties); // configure the context Context context = new VelocityContext(); // process the template Template template = velocityEngine.getTemplate("input1.vm"); FileWriter writer = new FileWriter("output.txt"); template.merge(context, writer); writer.close(); }

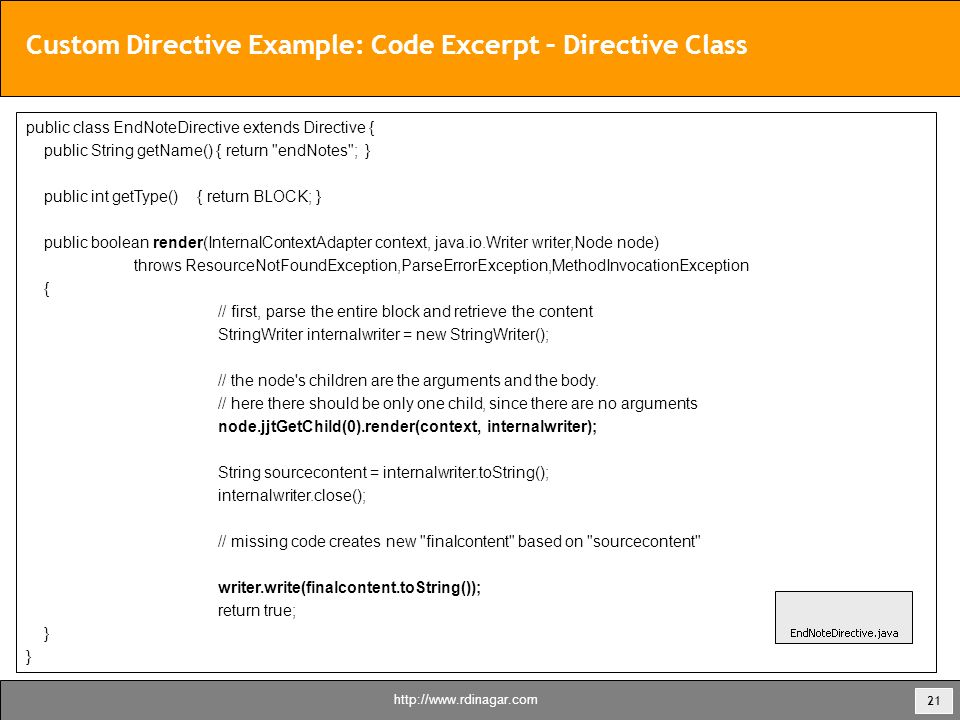

21. 21 http://www.rdinagar.com Custom Directive Example: Code Excerpt – Directive Class public class EndNoteDirective extends Directive { public String getName() { return "endNotes"; } public int getType() { return BLOCK; } public boolean render(InternalContextAdapter context, java.io.Writer writer,Node node) throws ResourceNotFoundException,ParseErrorException,MethodInvocationException { // first, parse the entire block and retrieve the content StringWriter internalwriter = new StringWriter(); // the node's children are the arguments and the body. // here there should be only one child, since there are no arguments node.jjtGetChild(0).render(context, internalwriter); String sourcecontent = internalwriter.toString(); internalwriter.close(); // missing code creates new "finalcontent" based on "sourcecontent" writer.write(finalcontent.toString()); return true; }

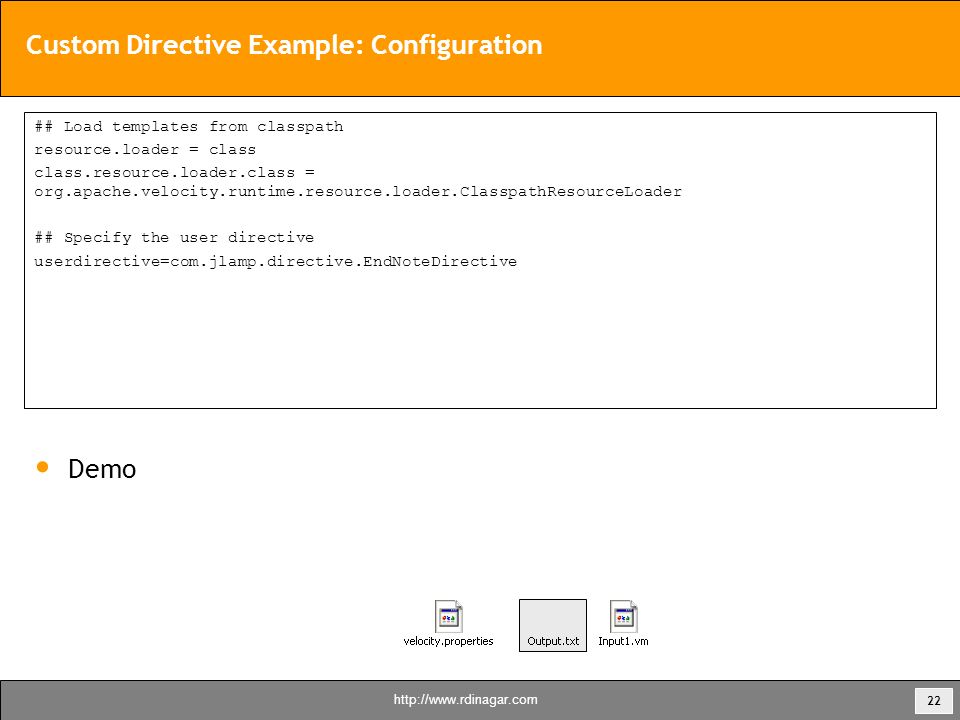

22. 22 http://www.rdinagar.com Custom Directive Example: Configuration ## Load templates from classpath resource.loader = class class.resource.loader.class = org.apache.velocity.runtime.resource.loader.ClasspathResourceLoader ## Specify the user directive userdirective=com.jlamp.directive.EndNoteDirective Demo

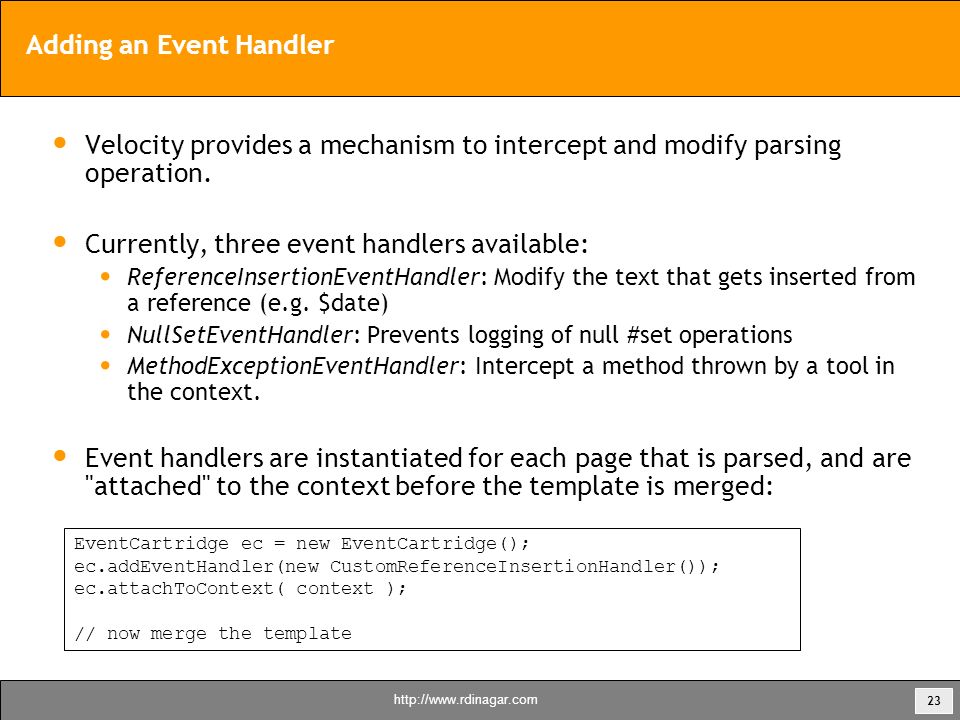

23. 23 http://www.rdinagar.com Adding an Event Handler Velocity provides a mechanism to intercept and modify parsing operation. Currently, three event handlers available: ReferenceInsertionEventHandler: Modify the text that gets inserted from a reference (e.g. $date) NullSetEventHandler: Prevents logging of null #set operations MethodExceptionEventHandler: Intercept a method thrown by a tool in the context. Event handlers are instantiated for each page that is parsed, and are "attached" to the context before the template is merged: EventCartridge ec = new EventCartridge(); ec.addEventHandler(new CustomReferenceInsertionHandler()); ec.attachToContext( context ); // now merge the template

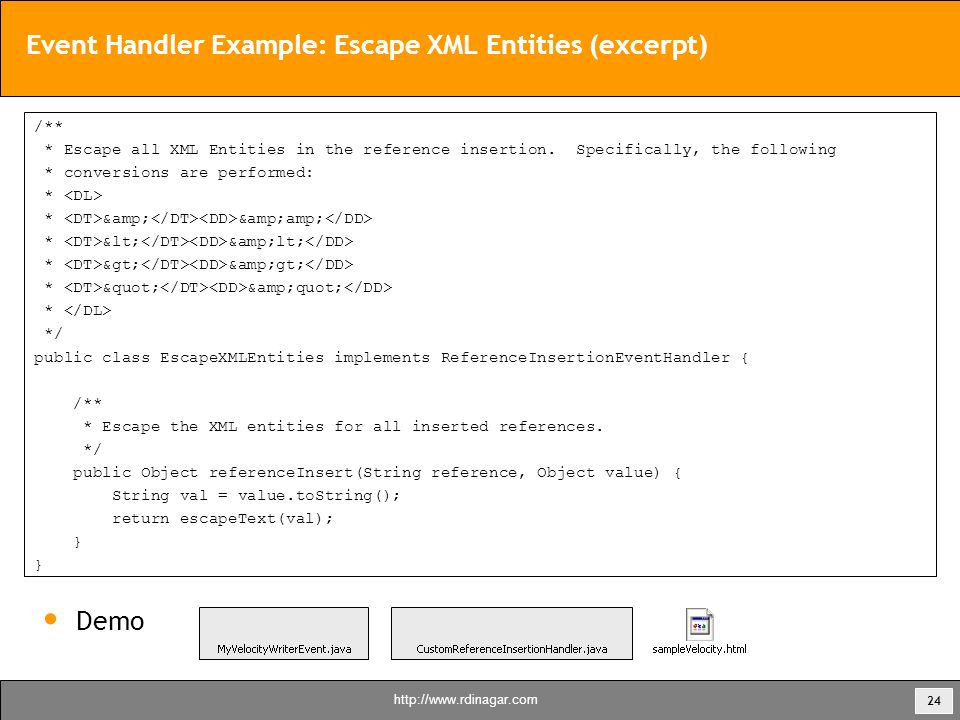

24. 24 http://www.rdinagar.com Event Handler Example: Escape XML Entities (excerpt) /** * Escape all XML Entities in the reference insertion. Specifically, the following * conversions are performed: * * & &amp; * < &lt; * > &gt; * " &quot; * */ public class EscapeXMLEntities implements ReferenceInsertionEventHandler { /** * Escape the XML entities for all inserted references. */ public Object referenceInsert(String reference, Object value) { String val = value.toString(); return escapeText(val); } Demo

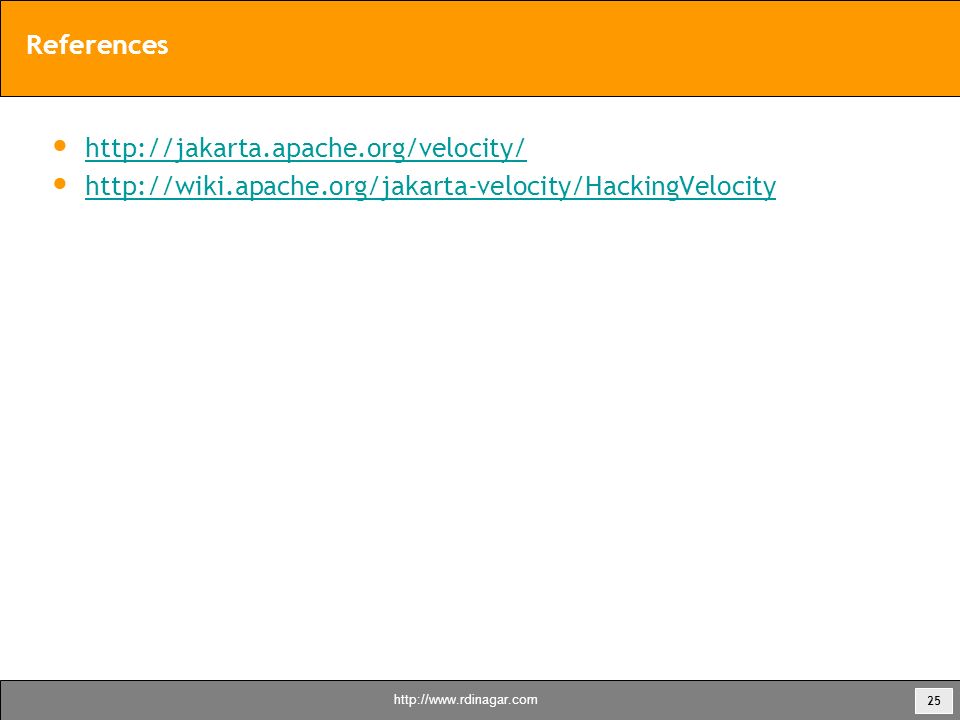

25. 25 http://www.rdinagar.com References http://jakarta.apache.org/velocity/ http://wiki.apache.org/jakarta-velocity/HackingVelocity
