1. Detecting Software Theft via System Call Based Birthmarks Xinran Wang, Yoon-Chan Jhi, Sencun Zhu, Peng Liu ACSAC 2009

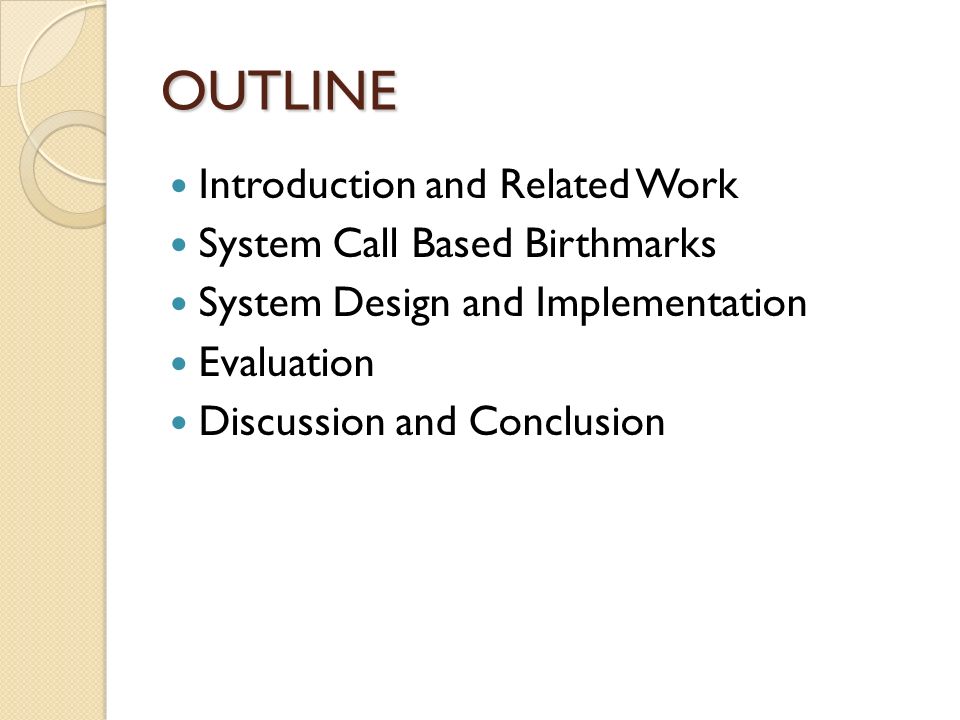

2. OUTLINE Introduction and Related Work System Call Based Birthmarks System Design and Implementation Evaluation Discussion and Conclusion

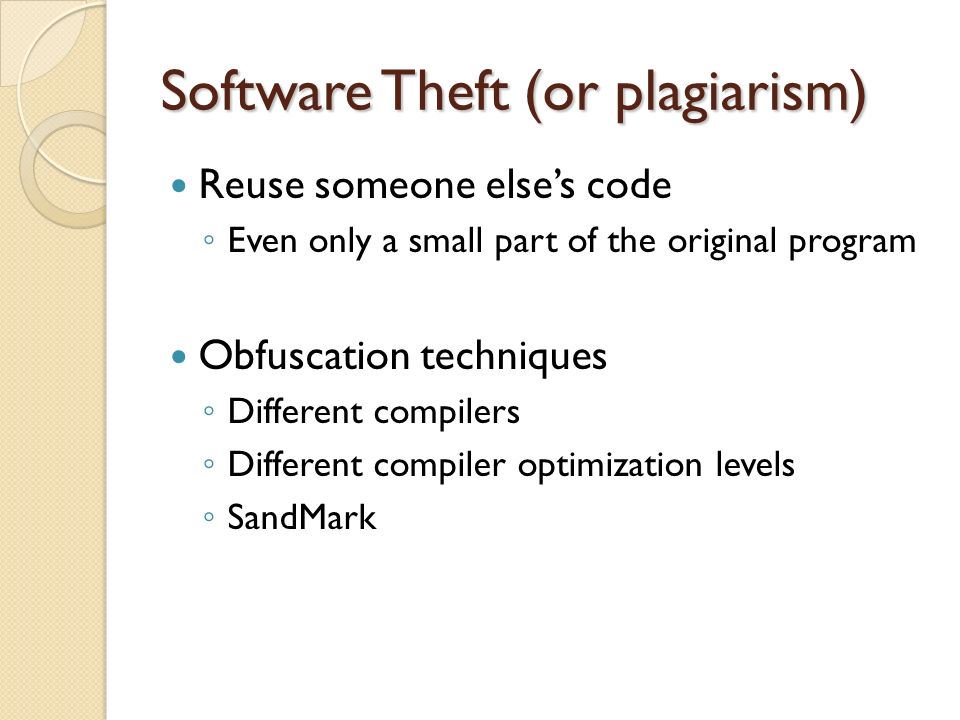

3. Software Theft (or plagiarism) Reuse someone else’s code ◦ Even only a small part of the original program Obfuscation techniques ◦ Different compilers ◦ Different compiler optimization levels ◦ SandMark

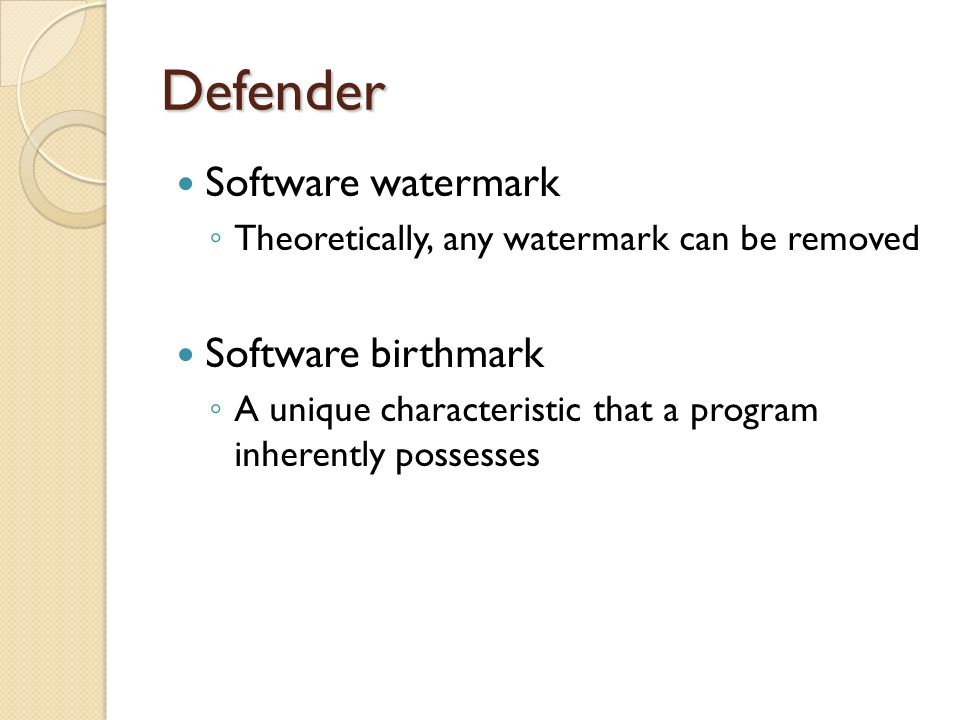

4. Defender Software watermark ◦ Theoretically, any watermark can be removed Software birthmark ◦ A unique characteristic that a program inherently possesses

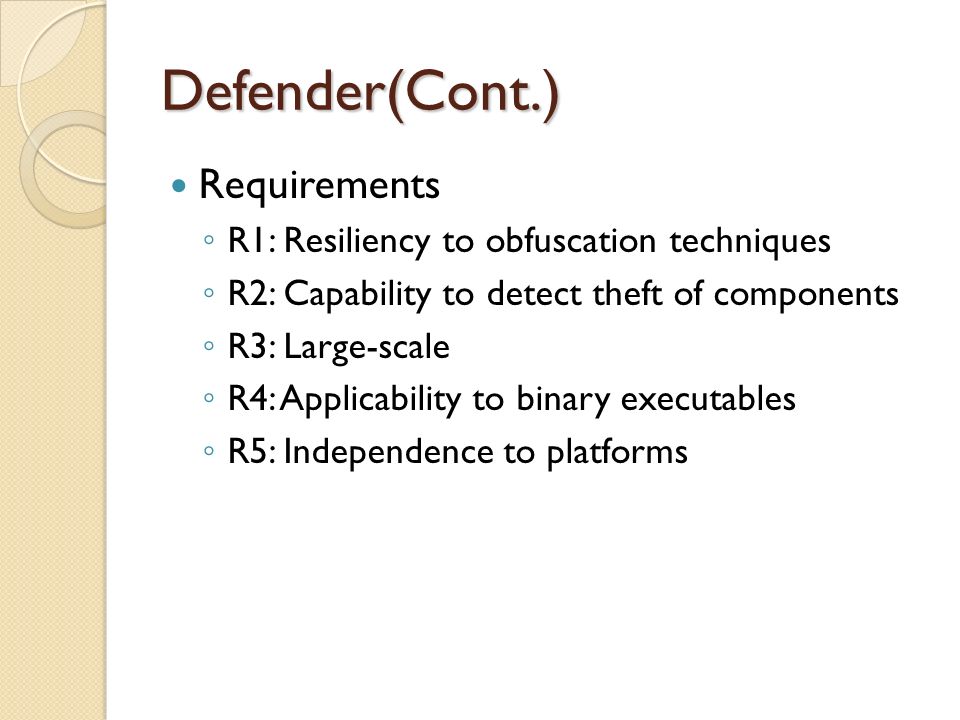

5. Defender(Cont.) Requirements ◦ R1: Resiliency to obfuscation techniques ◦ R2: Capability to detect theft of components ◦ R3: Large-scale ◦ R4: Applicability to binary executables ◦ R5: Independence to platforms

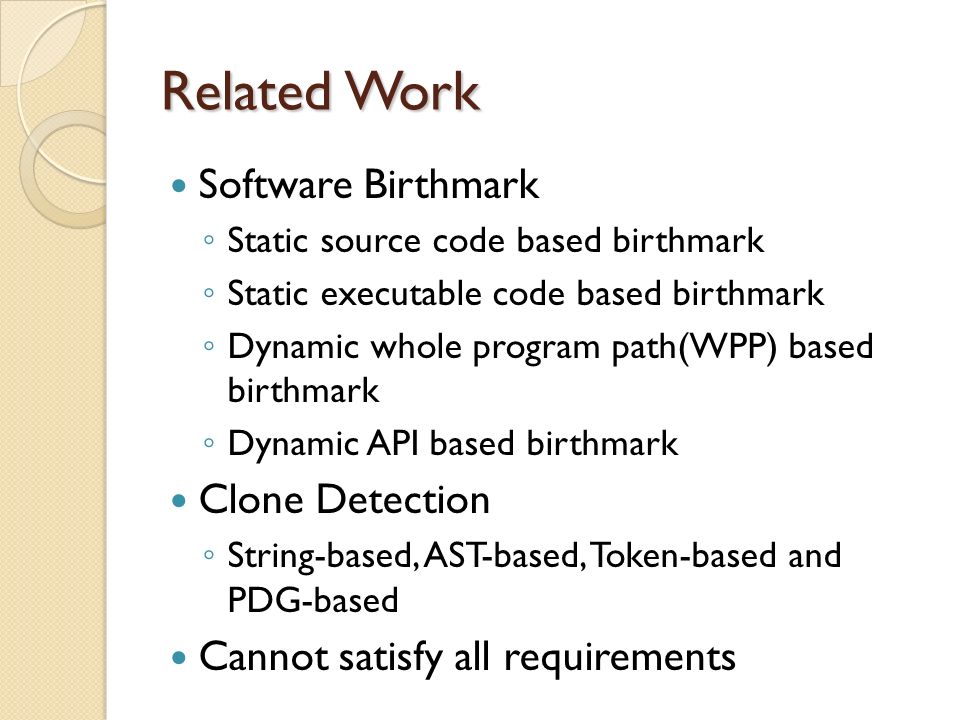

6. Related Work Software Birthmark ◦ Static source code based birthmark ◦ Static executable code based birthmark ◦ Dynamic whole program path(WPP) based birthmark ◦ Dynamic API based birthmark Clone Detection ◦ String-based, AST-based, Token-based and PDG-based Cannot satisfy all requirements

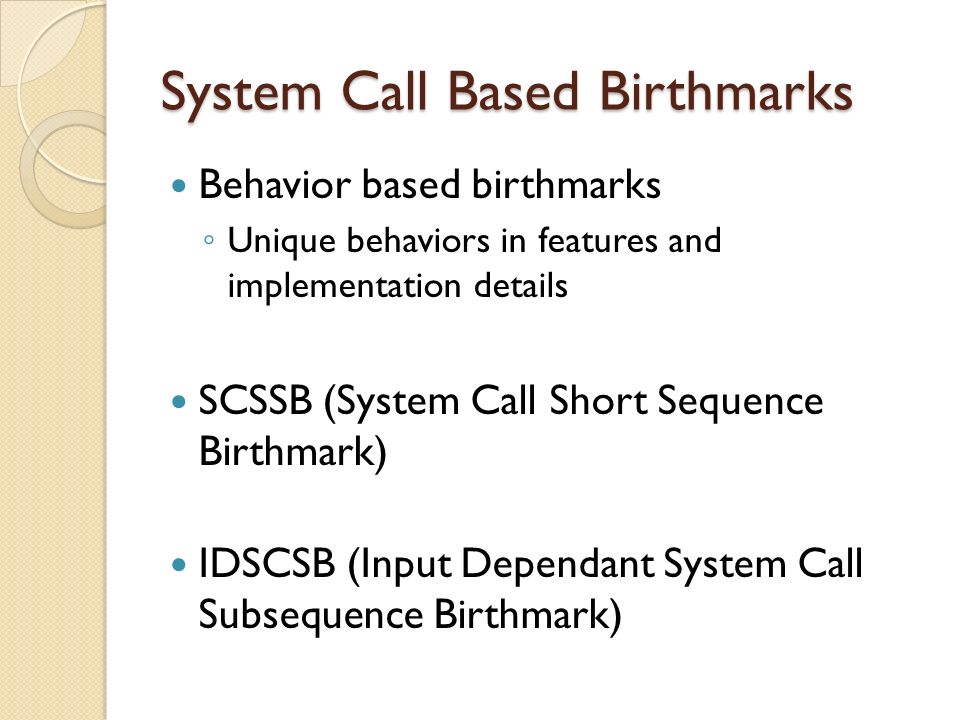

7. System Call Based Birthmarks Behavior based birthmarks ◦ Unique behaviors in features and implementation details SCSSB (System Call Short Sequence Birthmark) IDSCSB (Input Dependant System Call Subsequence Birthmark)

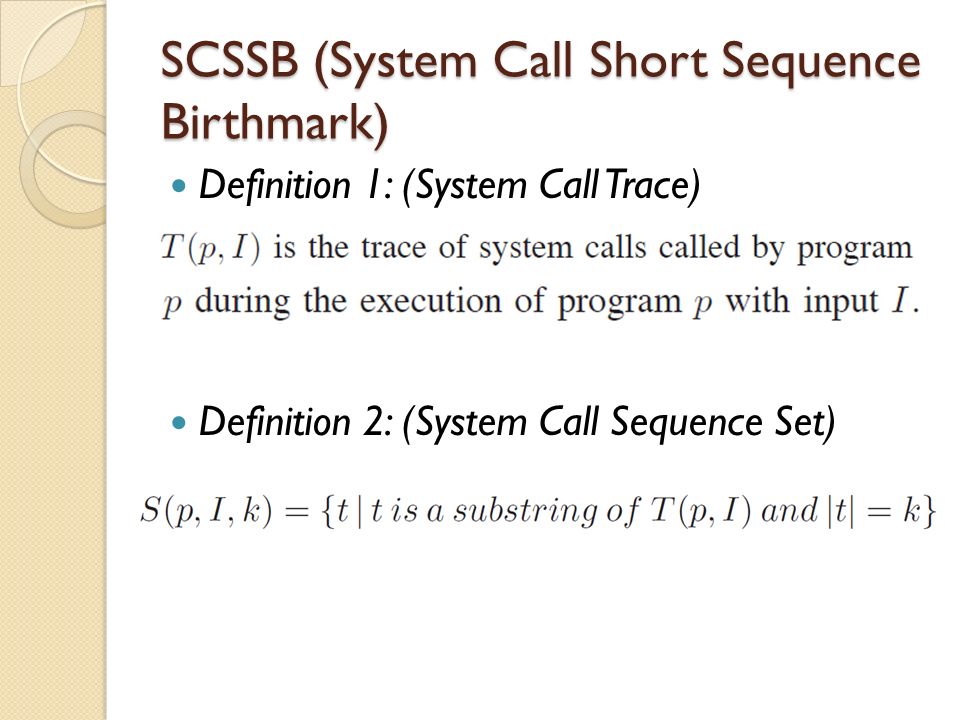

8. SCSSB (System Call Short Sequence Birthmark) Definition 1: (System Call Trace) Definition 2: (System Call Sequence Set)

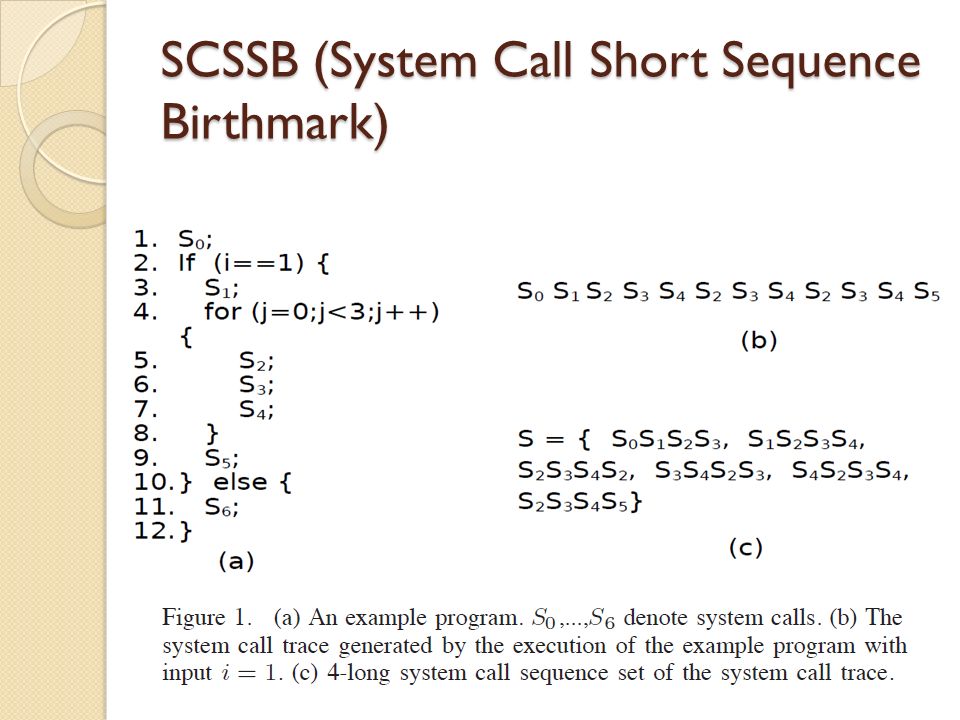

9. SCSSB (System Call Short Sequence Birthmark)

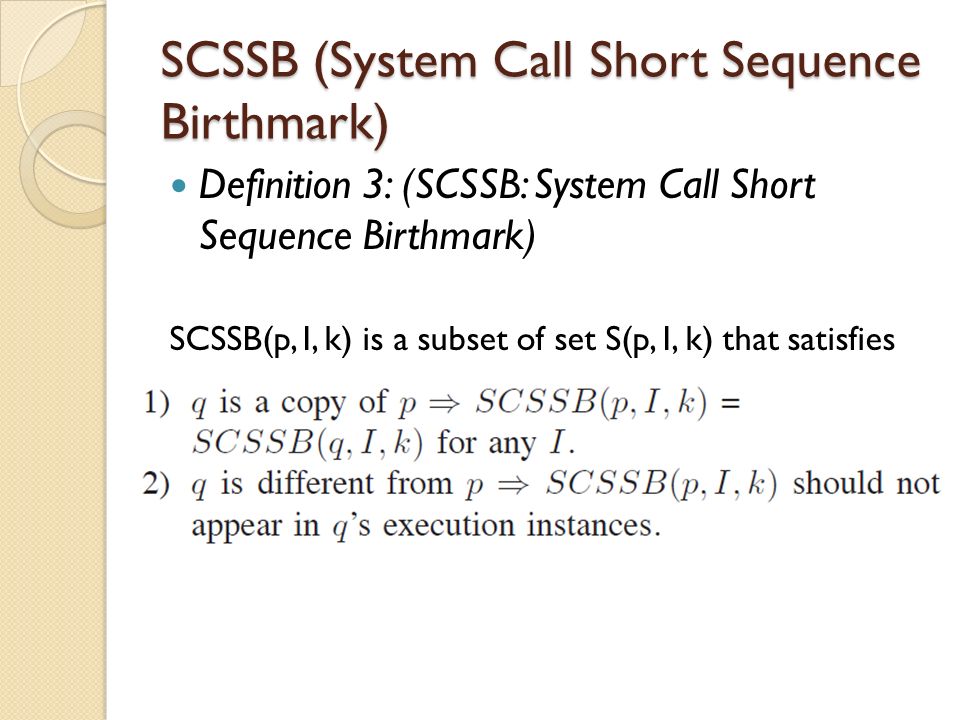

10. Definition 3: (SCSSB: System Call Short Sequence Birthmark) SCSSB(p, I, k) is a subset of set S(p, I, k) that satisfies

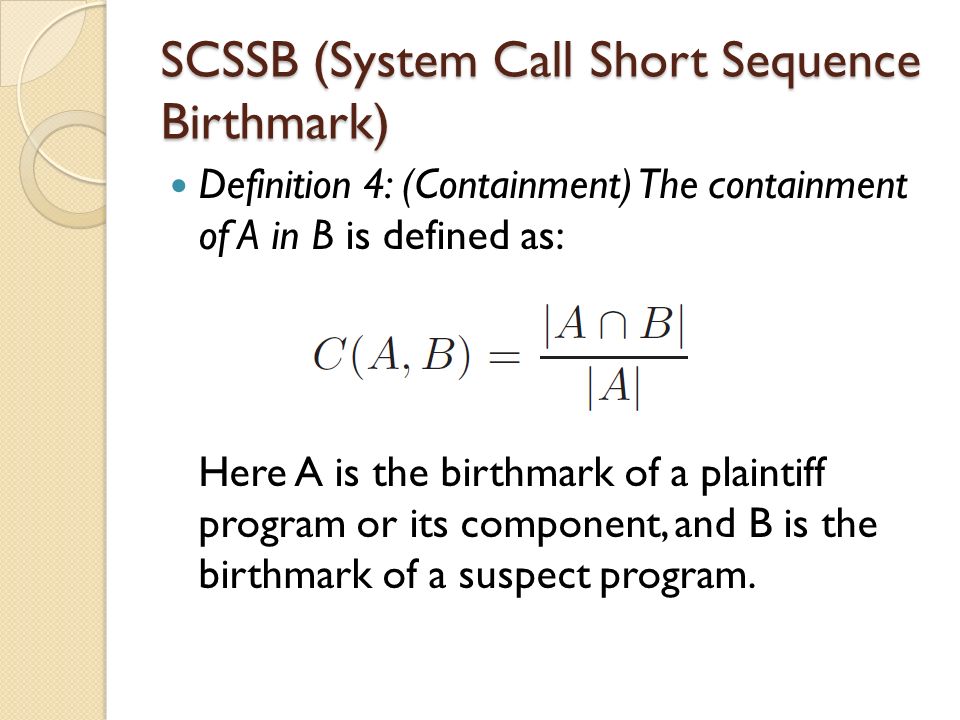

11. SCSSB (System Call Short Sequence Birthmark) Definition 4: (Containment) The containment of A in B is defined as: Here A is the birthmark of a plaintiff program or its component, and B is the birthmark of a suspect program.

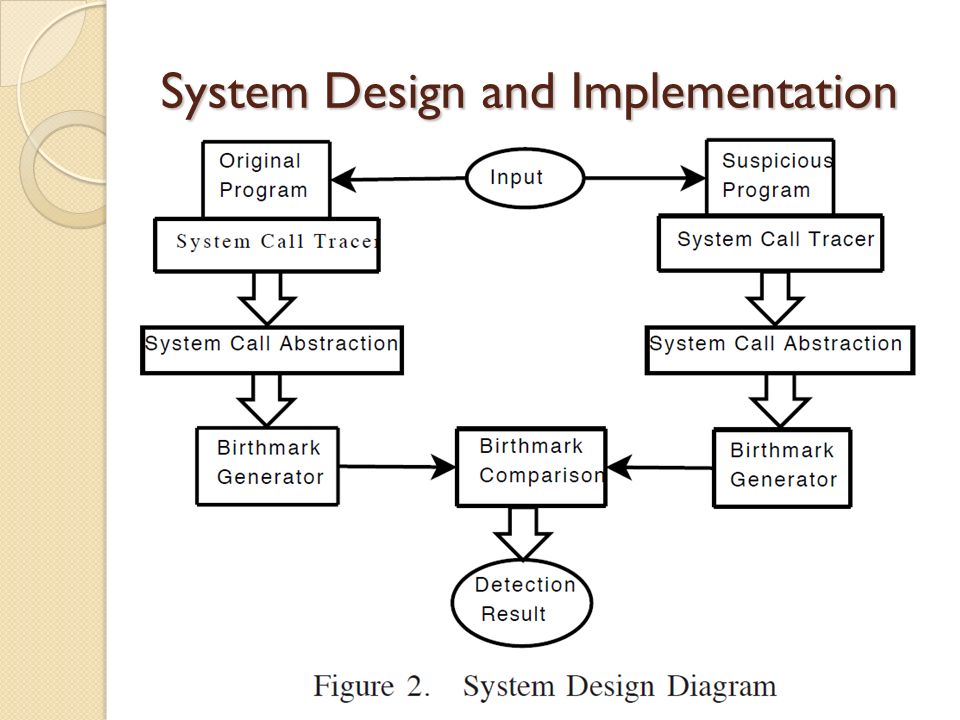

12. System Design and Implementation

13. System Call Tracer System Call Abstraction Birthmark Generator Input Dependant System Call Subsequence Birthmarks

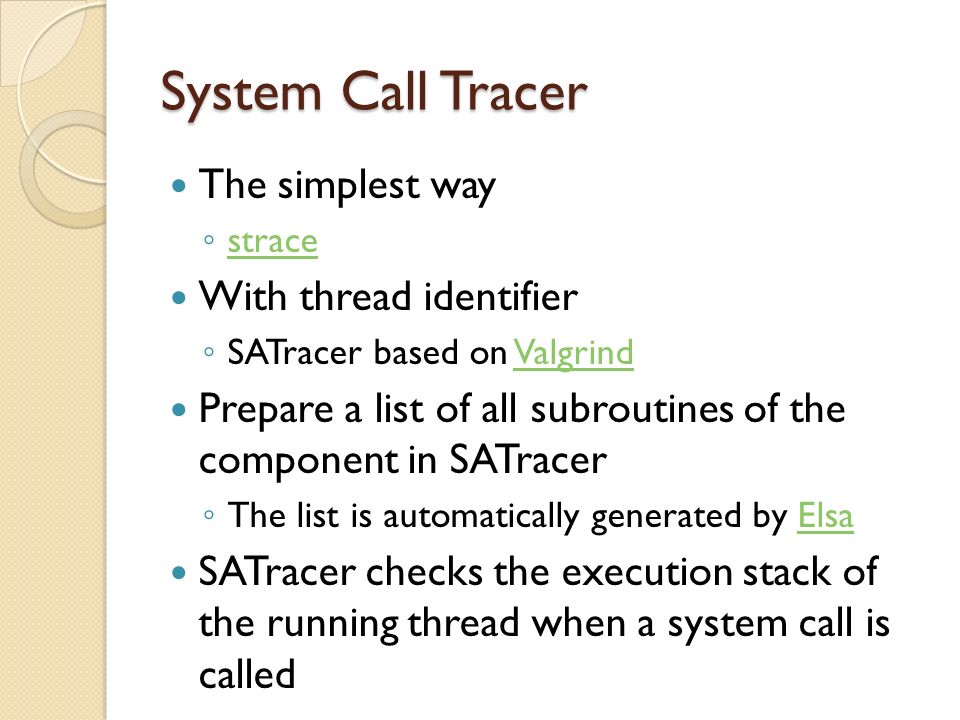

14. System Call Tracer The simplest way ◦ strace strace With thread identifier ◦ SATracer based on ValgrindValgrind Prepare a list of all subroutines of the component in SATracer ◦ The list is automatically generated by ElsaElsa SATracer checks the execution stack of the running thread when a system call is called

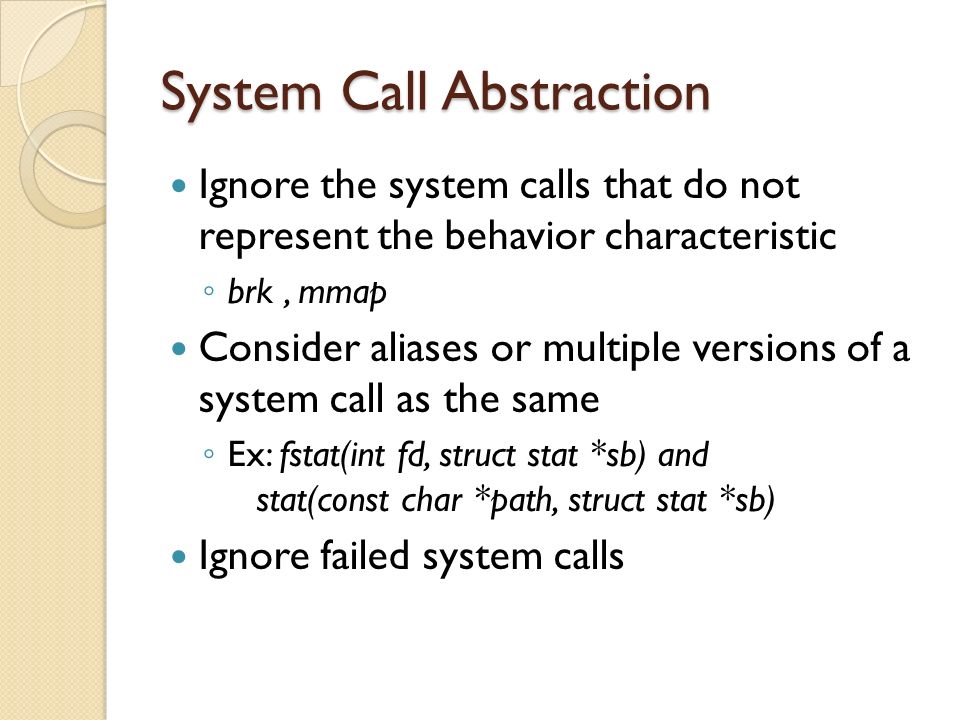

15. System Call Abstraction Ignore the system calls that do not represent the behavior characteristic ◦ brk, mmap Consider aliases or multiple versions of a system call as the same ◦ Ex: fstat(int fd, struct stat *sb) and stat(const char *path, struct stat *sb) Ignore failed system calls

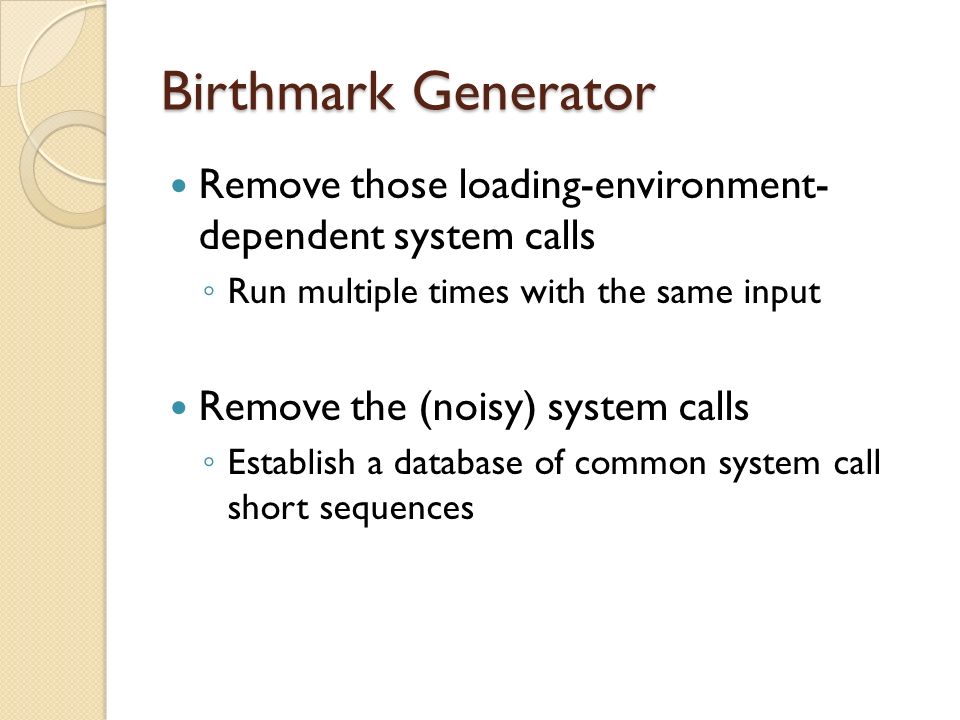

16. Birthmark Generator Remove those loading-environment- dependent system calls ◦ Run multiple times with the same input Remove the (noisy) system calls ◦ Establish a database of common system call short sequences

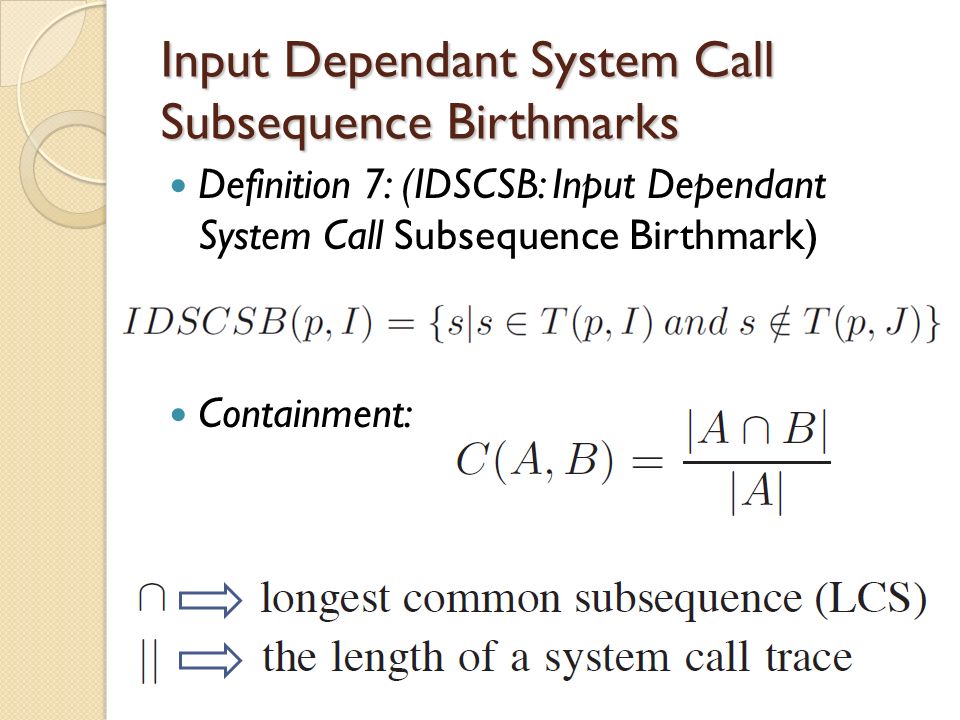

17. Input Dependant System Call Subsequence Birthmarks Definition 7: (IDSCSB: Input Dependant System Call Subsequence Birthmark) Containment:

18. Input Dependant System Call Subsequence Birthmarks “file id” and “process id” are ignored Large parameters are hashed by the MD5

19. Evaluation SCSSB and IDSCSB: ◦ Against some advanced obfuscation techniques and 15 real-world large applications SandMark implements 39 byte code obfuscators x86 Linux executable GCJ 4.1.2

20. Evaluation(Cont.) Programs ◦ bzip2.c, gzip.c and oggenc.c Impact of Compiler Optimization Levels ◦ five optimization switches (-O0,-O1,-O2,-O3 and -Os) of GCC (e.g., bzip2-O0, bzip2-O3, etc.) Impact of Different Compilers ◦ GCC, TCC and Watcom (e.g., bzip2-gcc, bzip2-tcc)

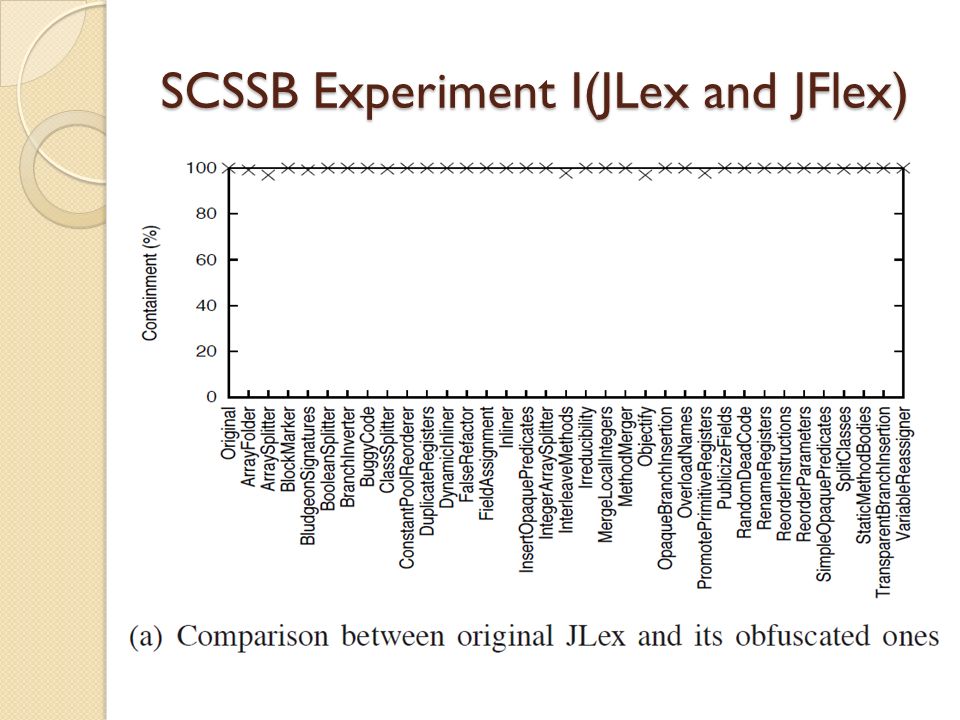

21. SCSSB Experiment I(JLex and JFlex)

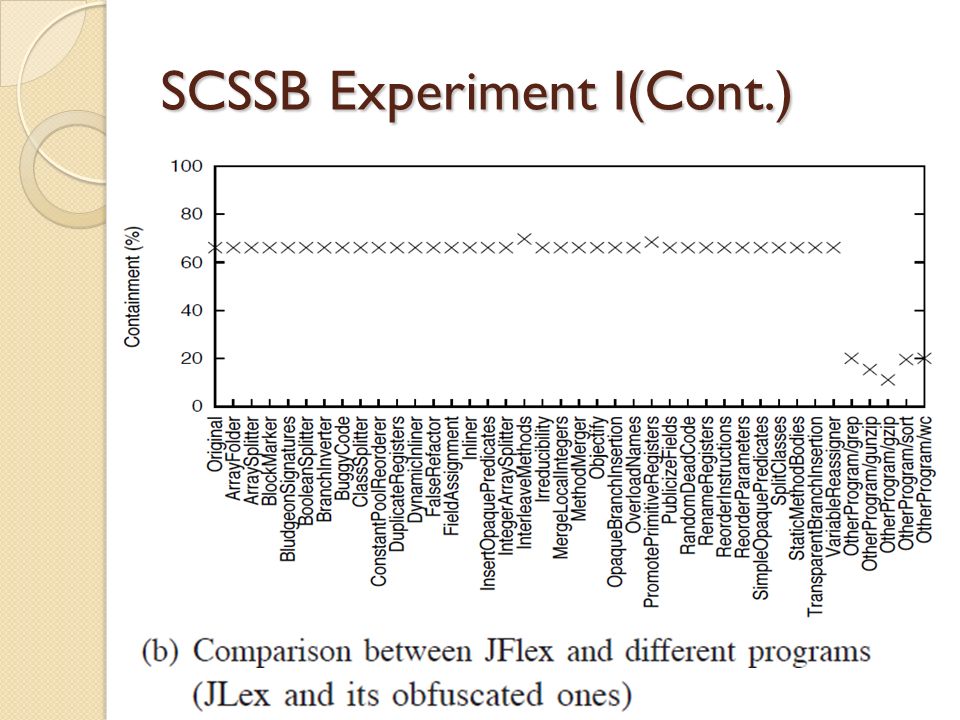

22. SCSSB Experiment I(Cont.) JLex and JFlex

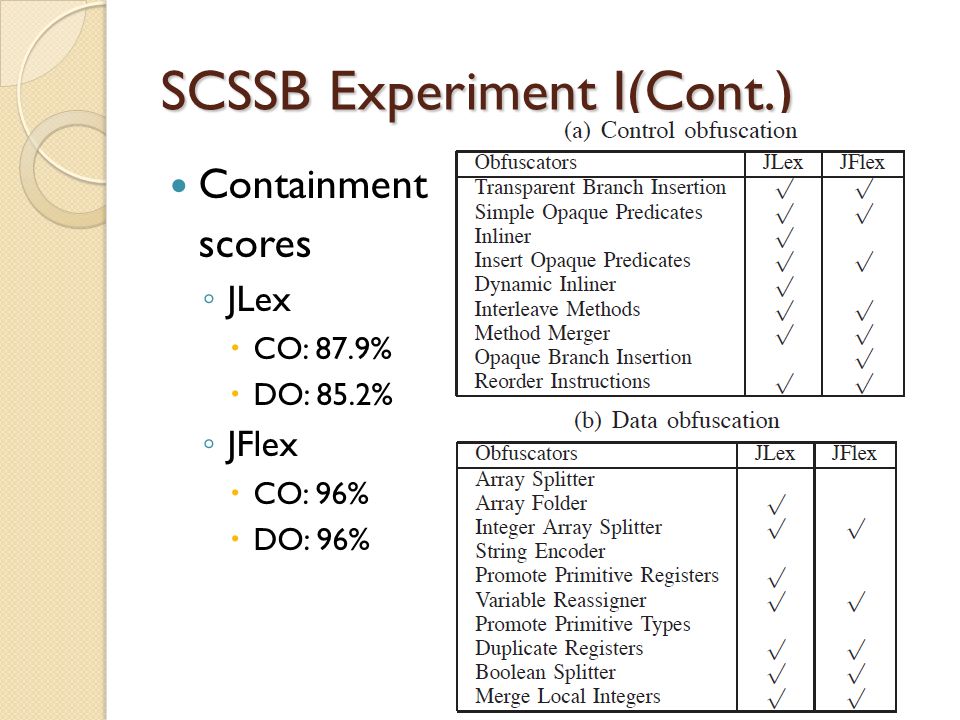

23. SCSSB Experiment I(Cont.) Containment scores ◦ JLex  CO: 87.9%  DO: 85.2% ◦ JFlex  CO: 96%  DO: 96%

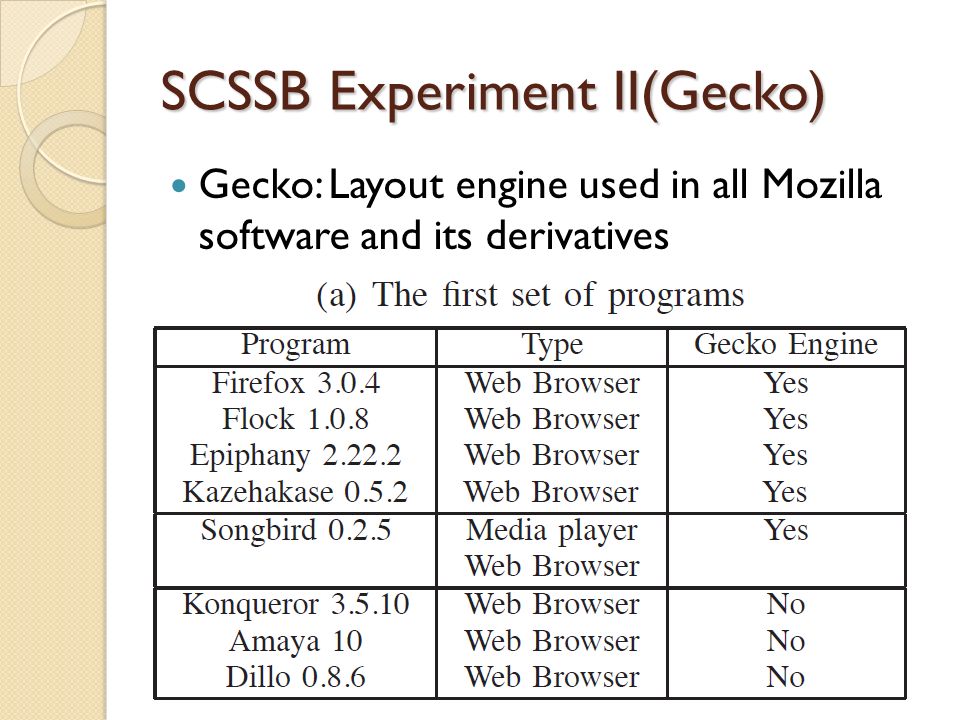

24. SCSSB Experiment II(Gecko) Gecko: Layout engine used in all Mozilla software and its derivatives

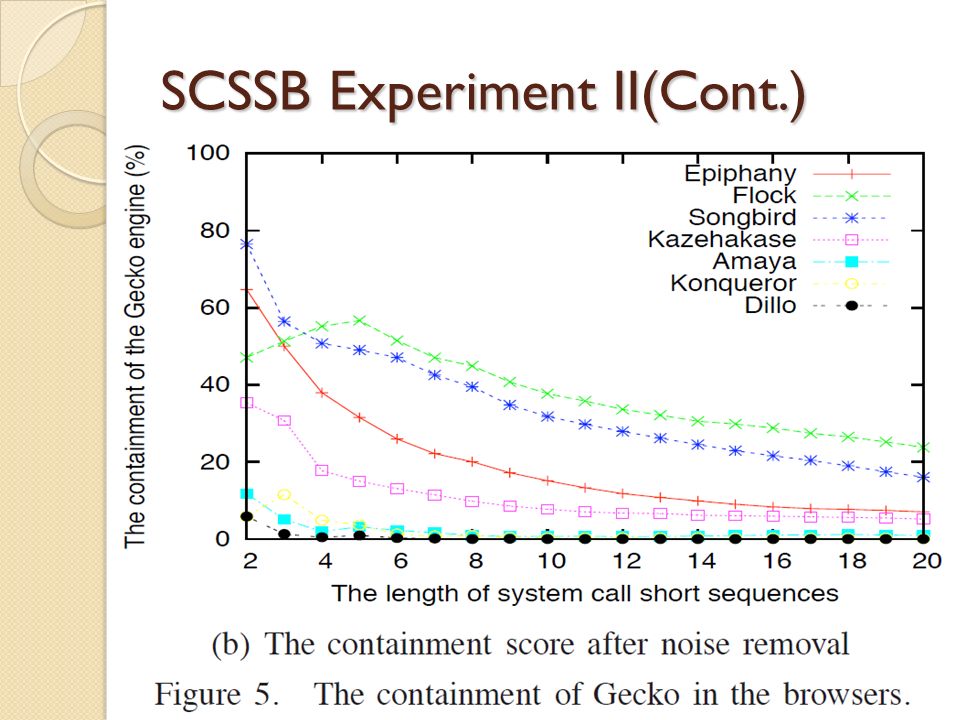

25. SCSSB Experiment II(Cont.)

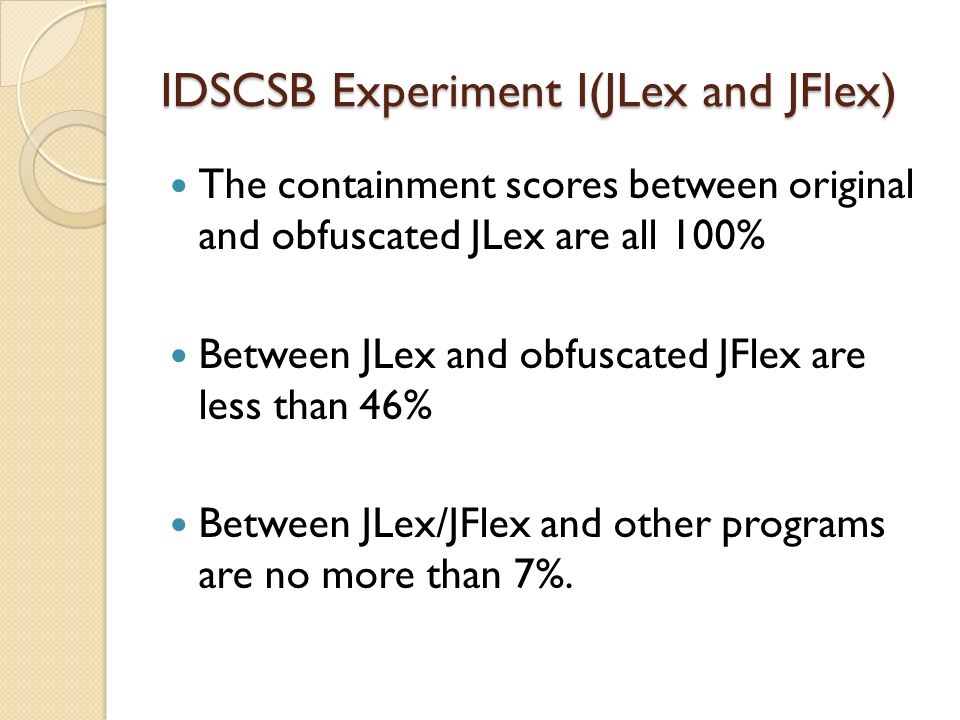

26. IDSCSB Experiment I(JLex and JFlex) The containment scores between original and obfuscated JLex are all 100% Between JLex and obfuscated JFlex are less than 46% Between JLex/JFlex and other programs are no more than 7%.

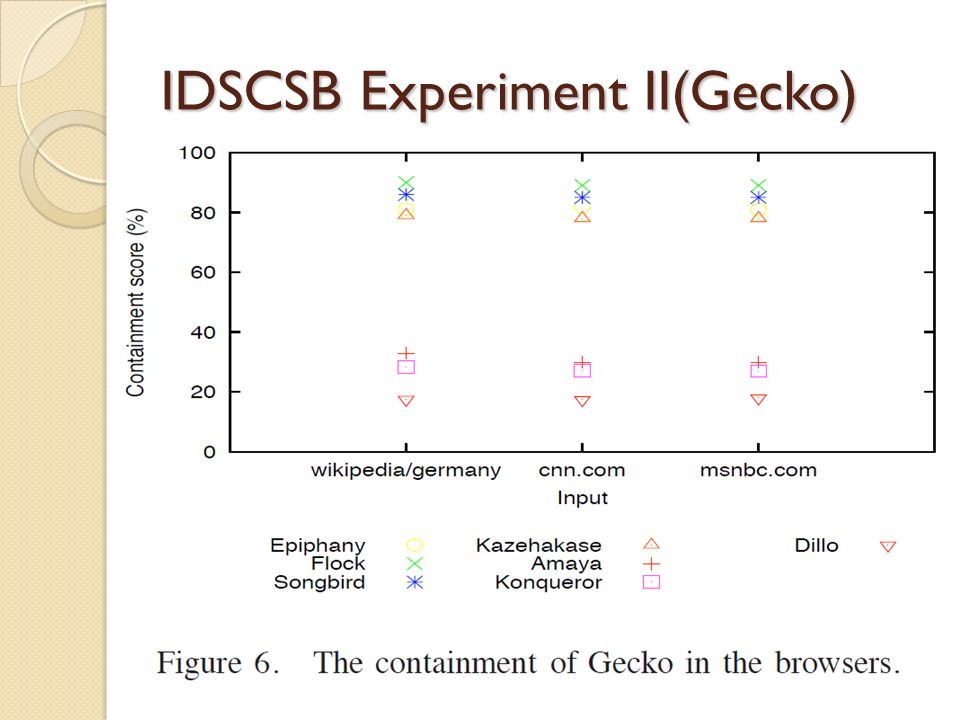

27. IDSCSB Experiment II(Gecko)

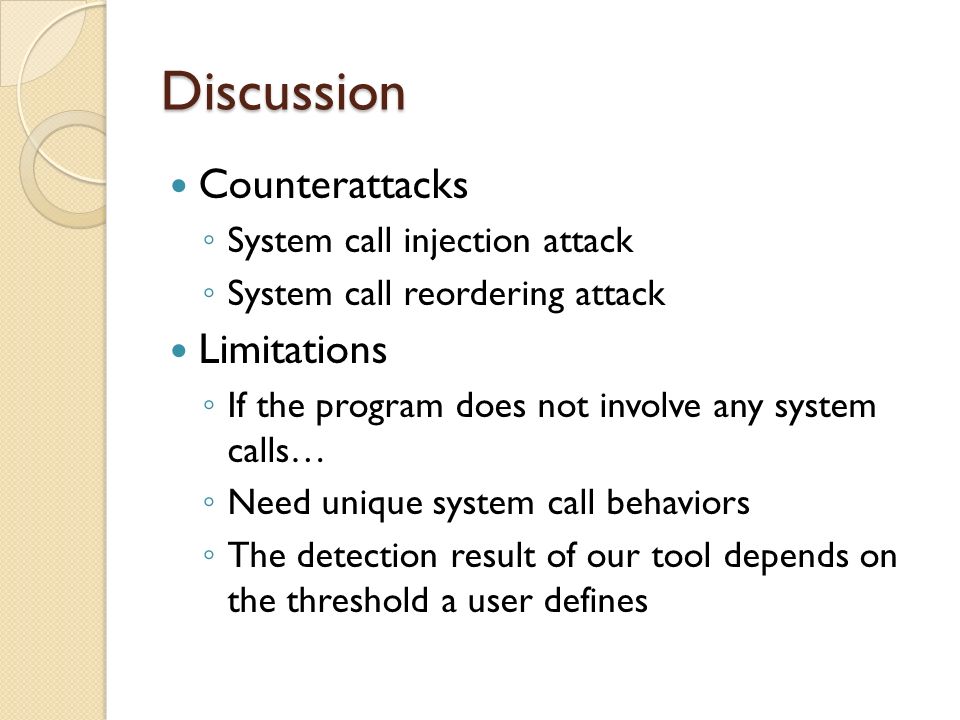

28. Discussion Counterattacks ◦ System call injection attack ◦ System call reordering attack Limitations ◦ If the program does not involve any system calls… ◦ Need unique system call behaviors ◦ The detection result of our tool depends on the threshold a user defines

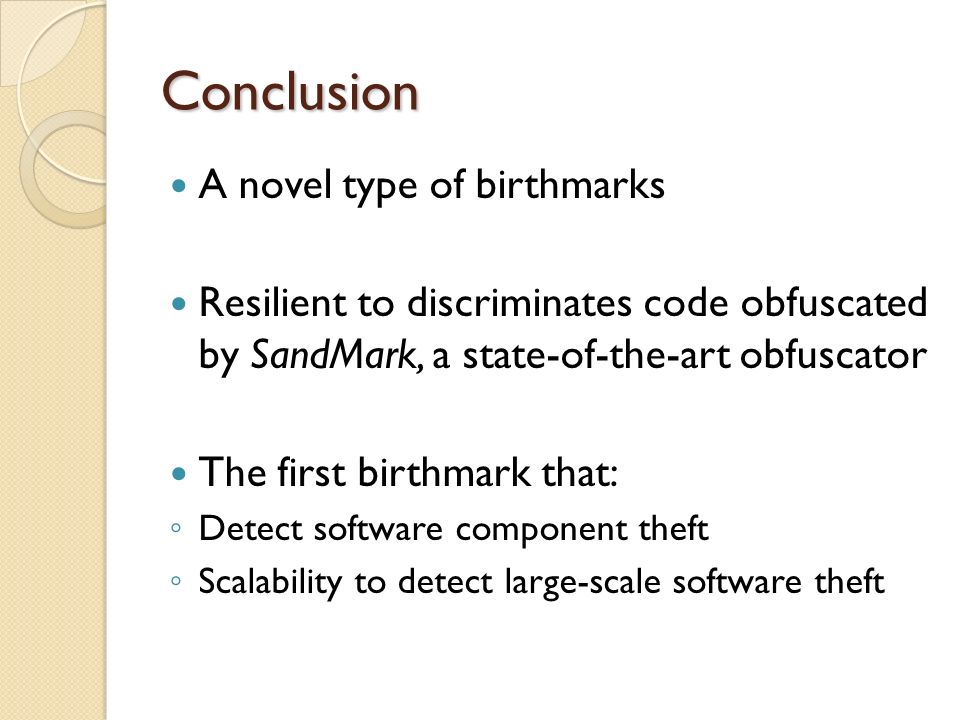

29. Conclusion A novel type of birthmarks Resilient to discriminates code obfuscated by SandMark, a state-of-the-art obfuscator The first birthmark that: ◦ Detect software component theft ◦ Scalability to detect large-scale software theft
