1 Understanding Blood Pressure

2 Your heart sends blood to the whole body Oxygen Nutrients Carries away waste Heart Parts: Arteries Capillaries Veins

3 Blood Pressure Measurement Pressure is the action of one force against another over, a surface. The pressure P of a force F distributed over an area A is defined as: P = F/A Force of blood pushing against the walls of the arteries Force Amount of blood Size Flexibility of the arteries http://www.nlm.nih.gov/medlineplus/ency/article/003398.htm

4 The force of the blood against arterial walls. Maximum blood pressure is exerted on the walls of arteries when the left ventricle of the heart pushes blood through the aortic valve into the aorta at the beginning of systole. Pressure rises as the ventricle contracts and falls as the heart relaxes. This continuous contraction and relaxation of the left ventricle creates a pressure wave that is transmitted through the arterial system.

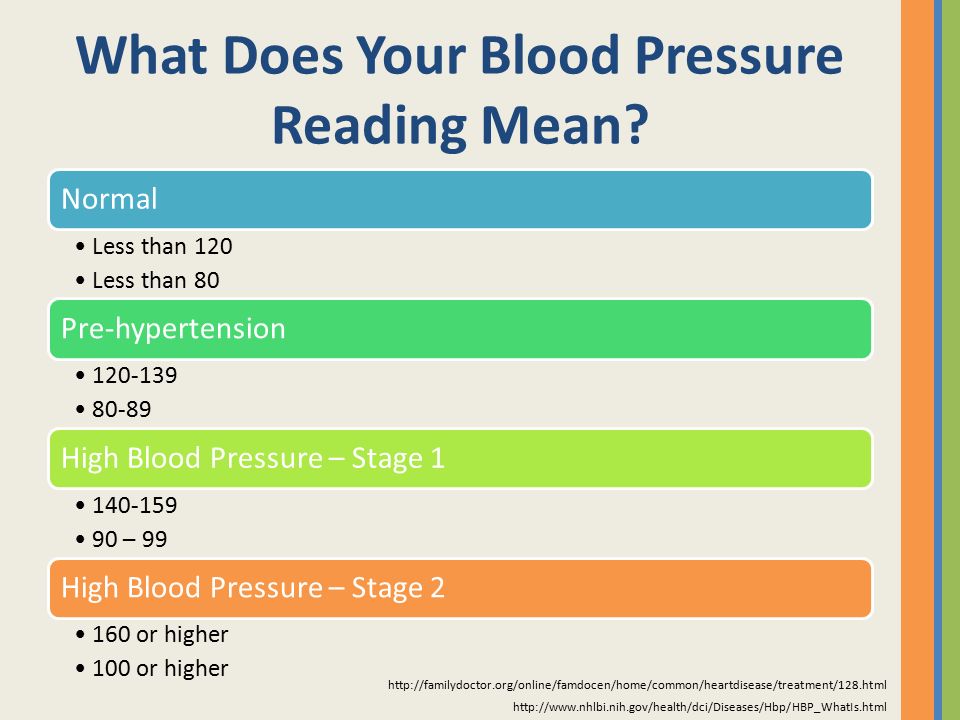

5 What Does Your Blood Pressure Reading Mean? Normal Less than 120 Less than 80 Pre-hypertension 120-139 80-89 High Blood Pressure – Stage 1 140-159 90 – 99 High Blood Pressure – Stage 2 160 or higher 100 or higher http://familydoctor.org/online/famdocen/home/common/heartdisease/treatment/128.html http://www.nhlbi.nih.gov/health/dci/Diseases/Hbp/HBP_WhatIs.html

6 Devices: Aneroid. Mercury. Electronic.

7 Blood Pressure measurement Devices Features: 1- Ease of use. Electronic > Aneroid > Mercury 2- Cost. Electronic > Mercury > Aneroid 3- Accuracy. Mercury > Aneroid > Electronic 4- Memory. Electronic only.

8 Patient position

9 Tips for Accurate Use Same time of day Use the same arm – Left Don’t measure – immediately upon waking up, or – immediately after exercising. Wait an hour.

10 METHODS FOR OBTAINING A BP DIRECT – Direct intra-arterial measurement with a catheter arterial (ICU, surgery) INDIRECT – Compression of the brachial artery using a sphygmomanometer(blood pressure cuff) or using automatic equipment

11 Systolic pressure– the highest pressure Diastolic pressure– the lowest pressure Pulse pressure – the difference between Systolic and Diastolic pressure.

12 Blood Pressure Measurement

13 INDIRECT MEASUREMENT OF BLOOD PRESSURE We use a uscultatory method with an inflatable cuff and manometer we call a sphygmomanometer. We place the stethoscope over the brachial artery and inflate the cuff until it is well above systolic pressure then lower slowly

14

15 The Ultra-sound blood Pressure Measurements The Ultra sound determination of blood pressure uses a Doppler sensor to detect the motion of blood vessel walls. The Fig. shows the placement of compression cuff over two small transmitting and receiving ultra sound crystals (8MHz) on the arm. The reflected signal (shifted in frequency) is detected with the receiving crystal. The difference in frequencies in the range from 40 to 50 Hz, depends on the velocity of the wall motion and blood velocity.

16 As the cuff pressure increased above the diastolic pressure (80mmHg) but below the systolic pressure, the vessel opens and close with each heart beat, the opening and closing of vessel are detected by ultra sound system. As pressured increased as shown in Fig. the time between the opening and closing decreases until they coincide. The reading at this point in the manometer or dial gauge is the systolic pressure. Conversely, when the pressure in the cuff is reduced, the time between opening and closing increases until the closing signal on pulse coincide with opening signal of the next one. The reading in this case is the diastolic pressure. The advantages of the Ultra sound method can be used with infants can be used in high noise environment

17 Automatic Blood Pressure Measurements

18 1- The user adjusts the pressure of the system (by touching digital bottoms) this expected pressure above the expected systolic pressure 2- The pump triggers and gives a pressure to the cuff 3- The cuff pressure is measured using strain gauge system (calibrated) 4- The adjusted pressure from step 1 and the measured pressure by strain gauge and applied by the pump (step 2) are compared through a comparator 5- When the values of 2 pressures are equal, the comparator works in 2 ways ( a) Give signal to stop the pump (b) Give signal to solenoid valve to start to release the cuff pressure gradually

19 6- The pressure is always measured by the strain gauges and recorded all the time using a memory system 7- The microphone (which placed under the cuff) detect the first sound when the cuff pressure equal the systolic pressure. This will trigger the memory and then store s the systolic value 8- The output of microphone is connected with a comparator with a minimum level of sound can be recorded 9- When the pressure reaches to the diastolic pressure the microphone output sound reaches to the value of minimum level of sound, then the comparator works and gives a signal to the memory to record the value of diastolic pressure,, also it gives a signal to repeat the process again (a) Close the solenoid (b) Trigger the pump to be ready to work again

20 Portable blood pressure Hardware Diagram

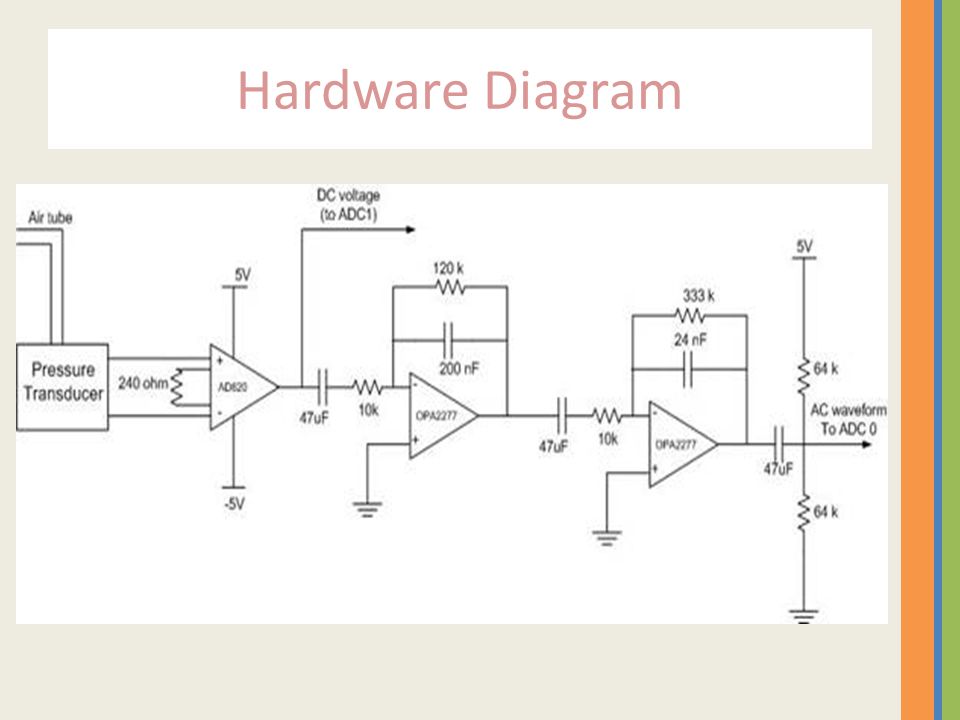

21 Hardware Diagram

22 NOTES The output voltage of the pressure sensor will be proportional to the difference between the pressure in the cuff and the air pressure in the room. The output voltage from the pressure sensor is very small (in mV),so we used a DC Amplifier (AD620) that amplifies according this equation R G= 49.4KOhm/(G-1).

23 NOTES We used a Band-Pass filter to red of the DC voltage and amplify the AC voltage. We used an AC coupling stage to provide the DC bias level. Given this bias level, it is easier for us to process the AC signal using the on-chip ADC in the microcontroller.

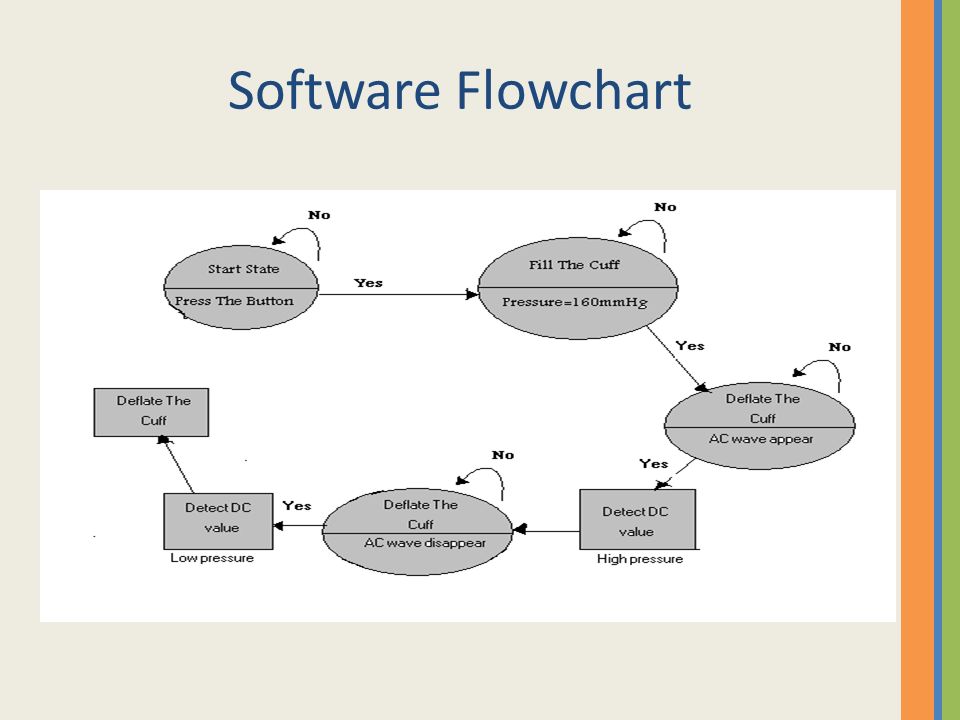

24 Software Flowchart

25 Invasive Blood Pressure Measurements 1-Extra Vascular measurement of blood pressure An electronic pressure transducer can be connected to the patient through a thin piece of tubing called a catheter is filled with a saline- heparin solution and inserted in the patient. The pressure transducer diaphragm is coupled to the patient’s blood stream; the diaphragm senses the pressure of the blood which transmuted through the fluid in the catheter The diaphragm is attached to strain gauge that converts the diaphragm displacement to electric current

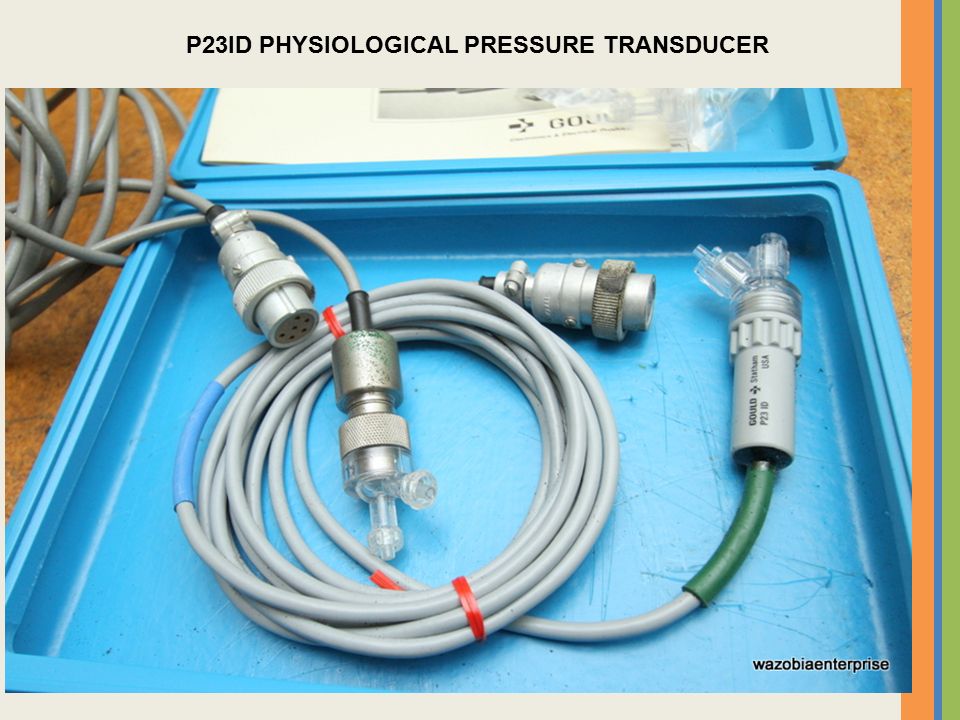

26 P23ID PHYSIOLOGICAL PRESSURE TRANSDUCER

27 Typical Calibration Method 1- zero or balance Is used to adjust the amplifier output to zero volt under zero pressure condition 2- sensitivity or gain Adjust the gain of the amplifier to produce the correct amplifier output voltage to represent a specific calibration pressure 3- calibrate or a control yielding some specific pressure in mmHg (the best accuracy method)

28 Pressure Amplifier Designs 1- DC amplifier 2- Isolated DC 3- Pulsed Excitation 4- AC Carrier

29 1- DC amplifier

30 A1 is a dc amplifier Pressure transducer is a resistive Wheatstone bridge strain gage Diode d1 provide the 7.5 vdc excitation to the transducer& the potentials for the balance and call factor controls

31 1- set switch s1 to operate position, open the transducer stopcock to atmosphere & adjust R3 for zero volts output DC Amplifier Calibration

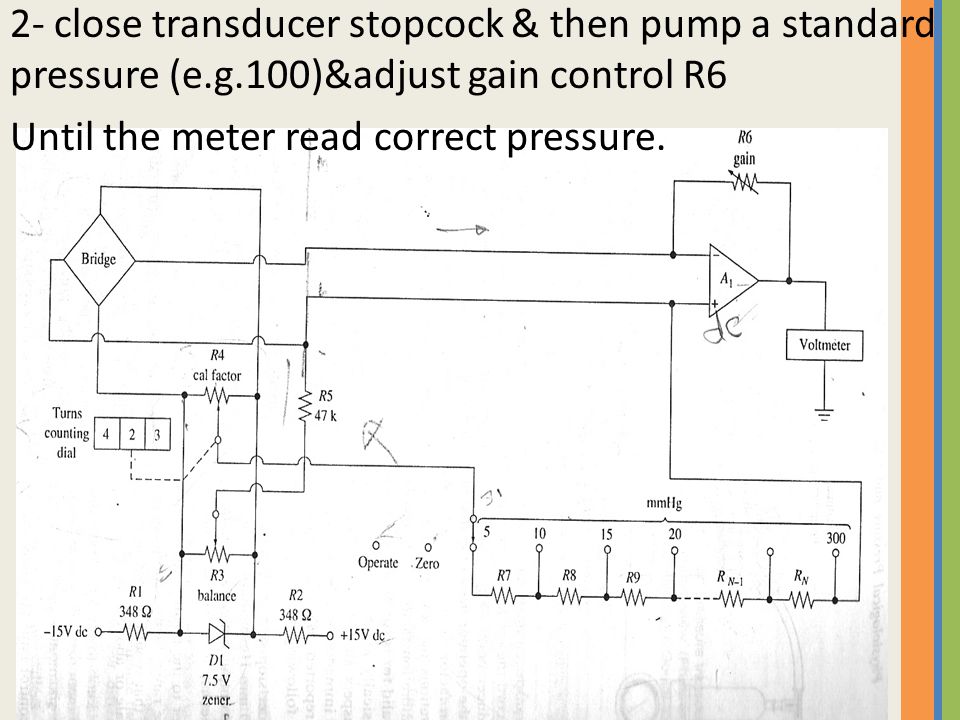

32 2- close transducer stopcock & then pump a standard pressure (e.g.100)&adjust gain control R6 Until the meter read correct pressure.

33 3- turn S1 to position corresponding to applied standard pressure & then Adjust call factor control R4 until the same pressure Is obtained on meter

34 4- the call factor control is gained to a turns counting dial,the number create standard pressure is called calibration factor

35 Detailed version of actual amplifier block

36 3- Pulse excitation amplifier

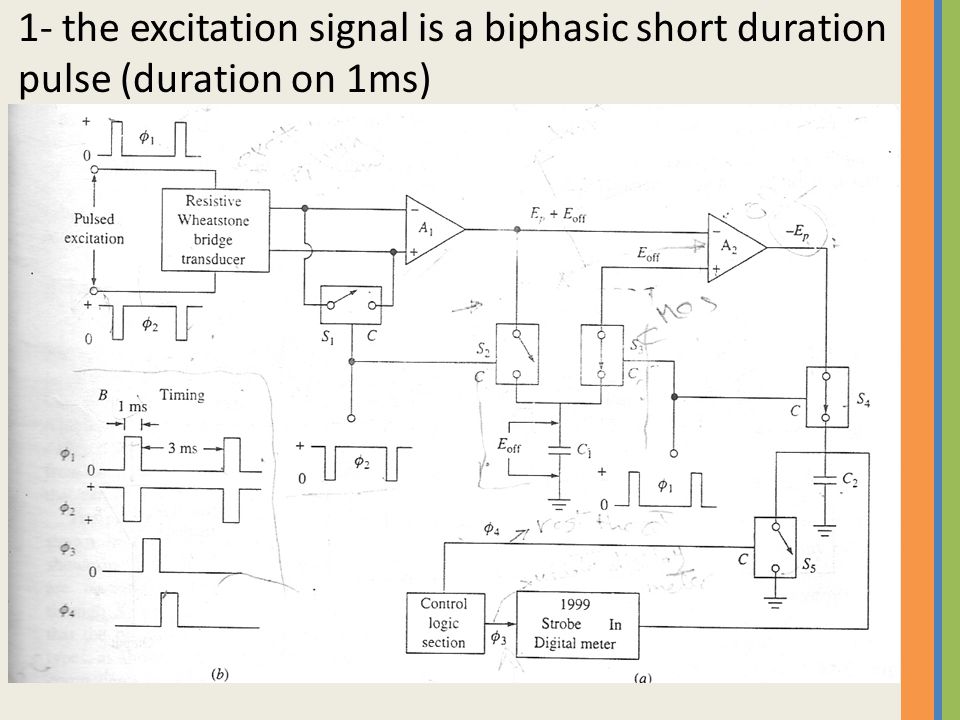

37 1- the excitation signal is a biphasic short duration pulse (duration on 1ms)

38 2- A1 is a dc pressure amplifier & A2 is a unity gain summation stage 3- Switches S1 to S5 are CMOS electronic switches which close when control line is high

39 4 - All circuit action is controlled by 4 phases -phase Φ1 & Φ2 excite the transducer & operate the drift cancellation (offset volt due to thermal changes) - Φ3 update the display meter - Φ1 reset the circuit

40 5-the transducer is excited only when Φ1 is high and Φ2 is low at all other times the transducer is not excited

41 4- AC Carrier -Carrier frequency between 400:5000 Hz with amplitude range 5:12 v rms

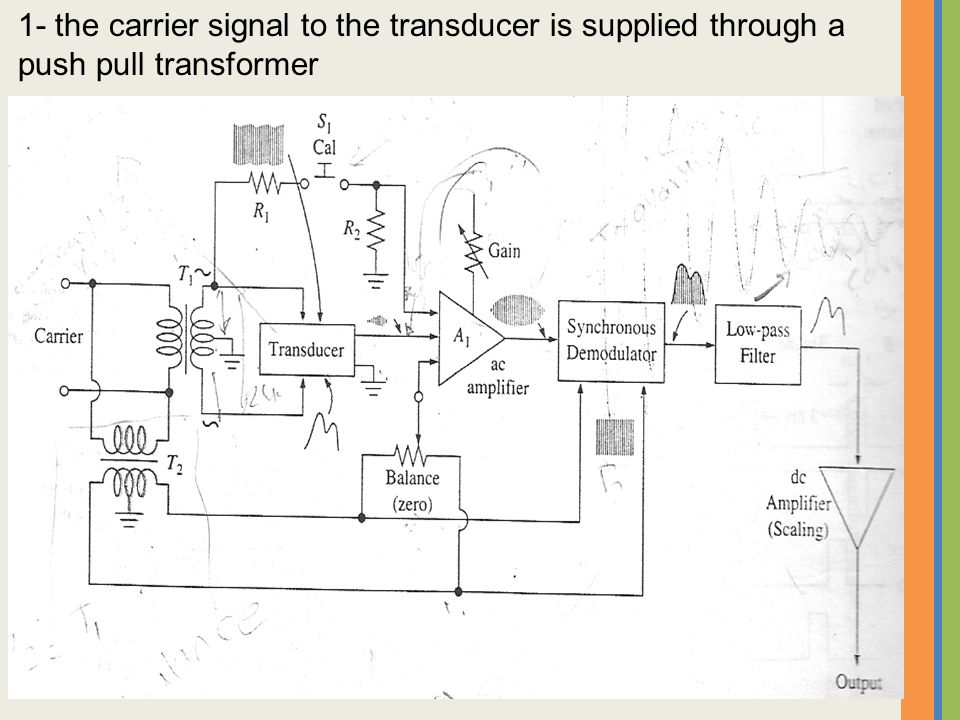

42 1- the carrier signal to the transducer is supplied through a push pull transformer

43 2- A1 is a single ended ac amplifier that is stabilized by a heavy negative feedback (much flexibility and quality on carrier amplifier)

44 3- calibration signal is supplied by S1 4- the balance control is a potentiometer connected to another pair of carrier signal

45 5- balance control nulls the system by injecting a signal equal magnitude but opposite phase into the system to algebraically sum with the offset signal to produce a net zero output

46 6- the same carrier signal that is applied to balance control is also sent to a synchronous demodulator,where it convert the ac amplifier o/p to a varying DC signal 7- L.P.F remove any residual carrier signal & final dc amplifier buffer the o/p

47 Mean Arterial Pressure Wave Pressure amplifier produce analog wave with a peak amplitude represent the systolic pressure And a minimum that represent diastolic pressure - Additional circuit is required to recognized these points

48 Systolic & Diastolic detector circuit

49 circuit operate from a two phase clock created by flip flop - S1& S4 are turned when Q is high -S2& S3 are turned when Q’ is high

50 - analog signal from pressure amplifier is applied in parallel to A1&A2 - During T1 (Q HIGH) then(S1 &S4 closed)

51 - S4 closed then C2 is discharged -S1 closed allows the signal appearing at o/p of A2 charge C1 to peak voltage representing systolic pressure,the voltage forward to D3 which then conducts voltage to i/p of A3

52 - T2-Q’ high S2&S3 closed (S1&S4 open) -S2 closed C2 rapidly charge to peak voltage of i/p signal - S3 close C1 discharge slowly through R3 - charge on C2 will reach peak before any decay of C1 charge take place

53 Questions?
