1. Jens Lemcke Research Associate, SAP AG Co-Authors: Michael Altenhofen, Egon Börger An Execution Semantics for Mediation Patterns

2. Interaction Mismatches Outlook Introduction Virtual Providers

3. Interaction Mismatches Outlook Introduction Virtual Providers

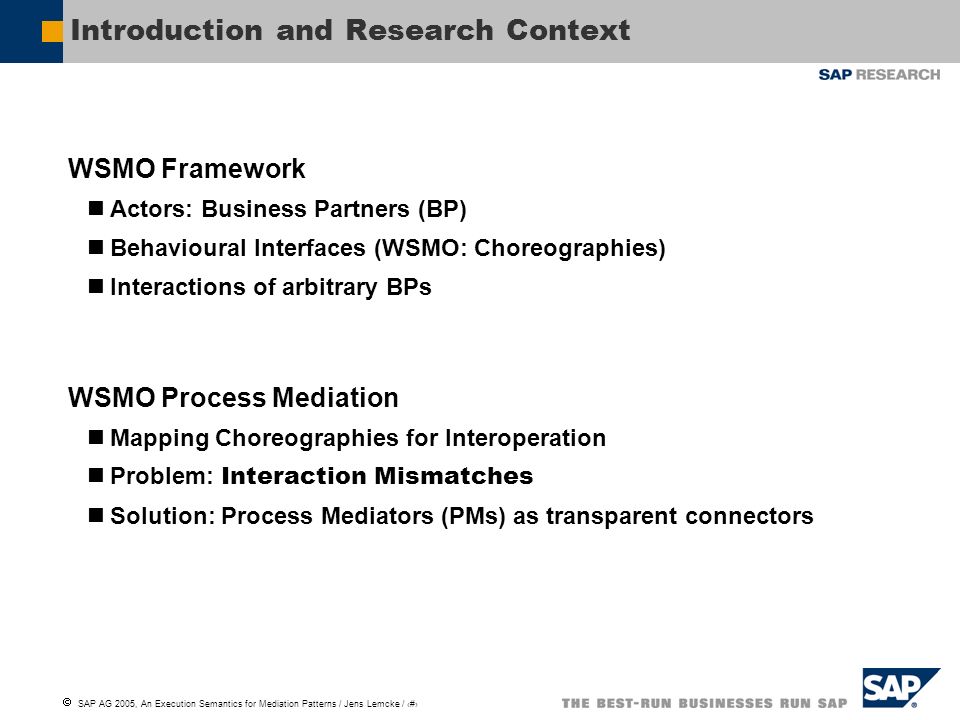

4.  SAP AG 2005, An Execution Semantics for Mediation Patterns / Jens Lemcke / 4 Introduction and Research Context WSMO Framework Actors: Business Partners (BP) Behavioural Interfaces (WSMO: Choreographies) Interactions of arbitrary BPs WSMO Process Mediation Mapping Choreographies for Interoperation Problem: Interaction Mismatches Solution: Process Mediators (PMs) as transparent connectors

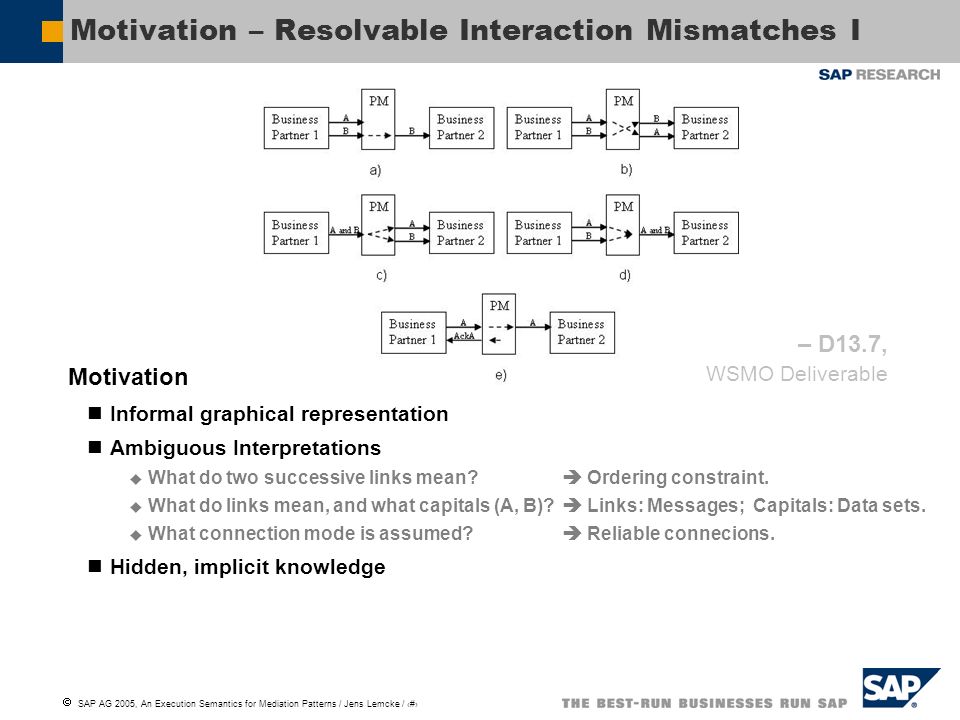

5.  SAP AG 2005, An Execution Semantics for Mediation Patterns / Jens Lemcke / 5 Motivation – Resolvable Interaction Mismatches I Motivation Informal graphical representation Ambiguous Interpretations  What do two successive links mean?  Ordering constraint.  What do links mean, and what capitals (A, B)?  Links: Messages; Capitals: Data sets.  What connection mode is assumed?  Reliable connecions. Hidden, implicit knowledge – D13.7, WSMO Deliverable

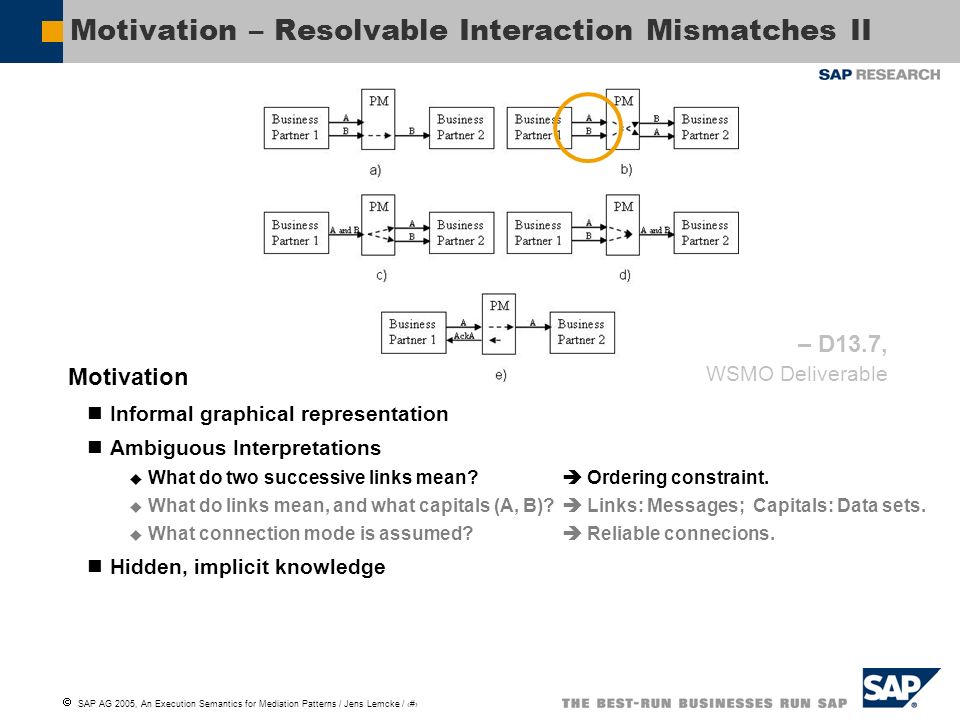

6.  SAP AG 2005, An Execution Semantics for Mediation Patterns / Jens Lemcke / 6 Motivation – Resolvable Interaction Mismatches II Motivation Informal graphical representation Ambiguous Interpretations  What do two successive links mean?  Ordering constraint.  What do links mean, and what capitals (A, B)?  Links: Messages; Capitals: Data sets.  What connection mode is assumed?  Reliable connecions. Hidden, implicit knowledge – D13.7, WSMO Deliverable

7.  SAP AG 2005, An Execution Semantics for Mediation Patterns / Jens Lemcke / 7 Motivation – Resolvable Interaction Mismatches III Motivation Informal graphical representation Ambiguous Interpretations  What do two successive links mean?  Ordering constraint.  What do links mean, and what capitals (A, B)?  Links: Messages; Capitals: Data sets.  What connection mode is assumed?  Reliable connecions. Hidden, implicit knowledge – D13.7, WSMO Deliverable

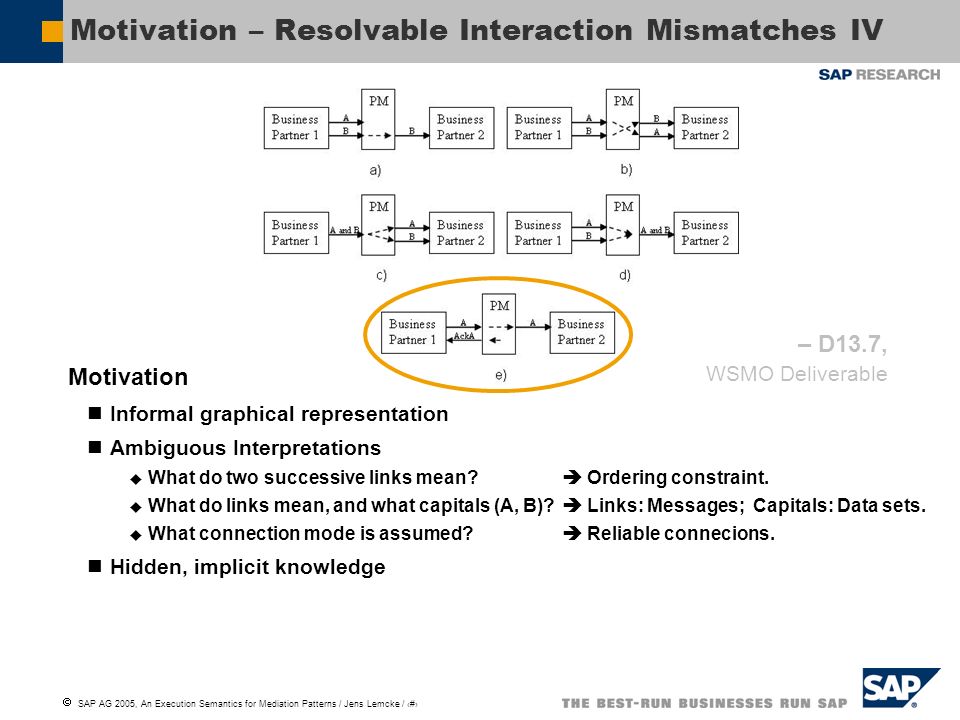

8.  SAP AG 2005, An Execution Semantics for Mediation Patterns / Jens Lemcke / 8 Motivation – Resolvable Interaction Mismatches IV Motivation Informal graphical representation Ambiguous Interpretations  What do two successive links mean?  Ordering constraint.  What do links mean, and what capitals (A, B)?  Links: Messages; Capitals: Data sets.  What connection mode is assumed?  Reliable connecions. Hidden, implicit knowledge – D13.7, WSMO Deliverable

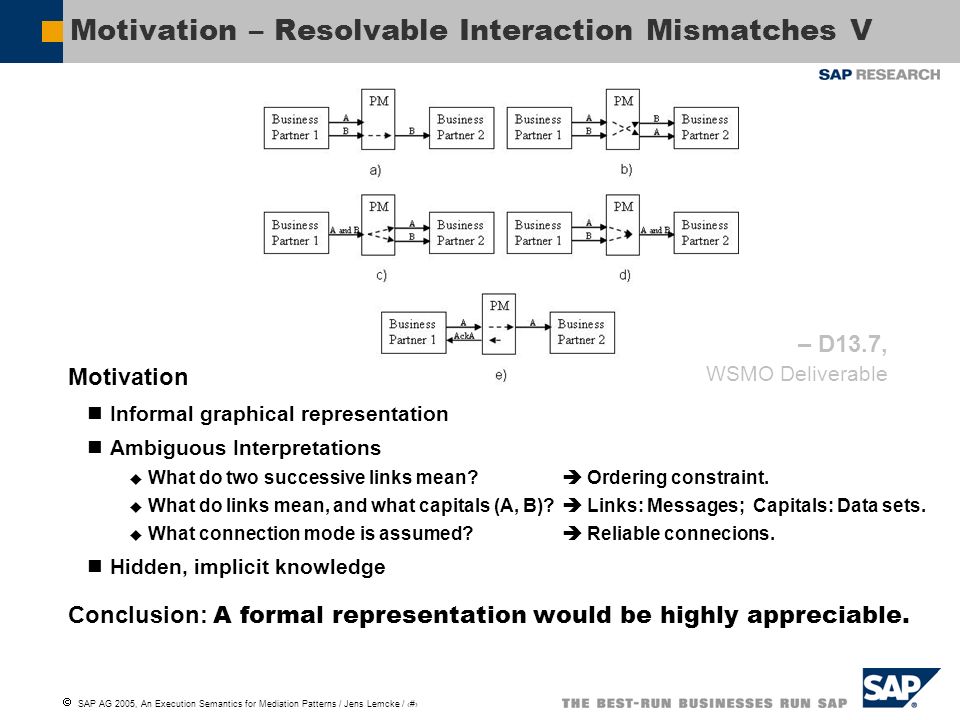

9.  SAP AG 2005, An Execution Semantics for Mediation Patterns / Jens Lemcke / 9 Motivation – Resolvable Interaction Mismatches V Motivation Informal graphical representation Ambiguous Interpretations  What do two successive links mean?  Ordering constraint.  What do links mean, and what capitals (A, B)?  Links: Messages; Capitals: Data sets.  What connection mode is assumed?  Reliable connecions. Hidden, implicit knowledge Conclusion: A formal representation would be highly appreciable. – D13.7, WSMO Deliverable

10. Interaction Mismatches Outlook Introduction Virtual Providers

11. Interaction Mismatches Outlook Introduction Virtual Providers

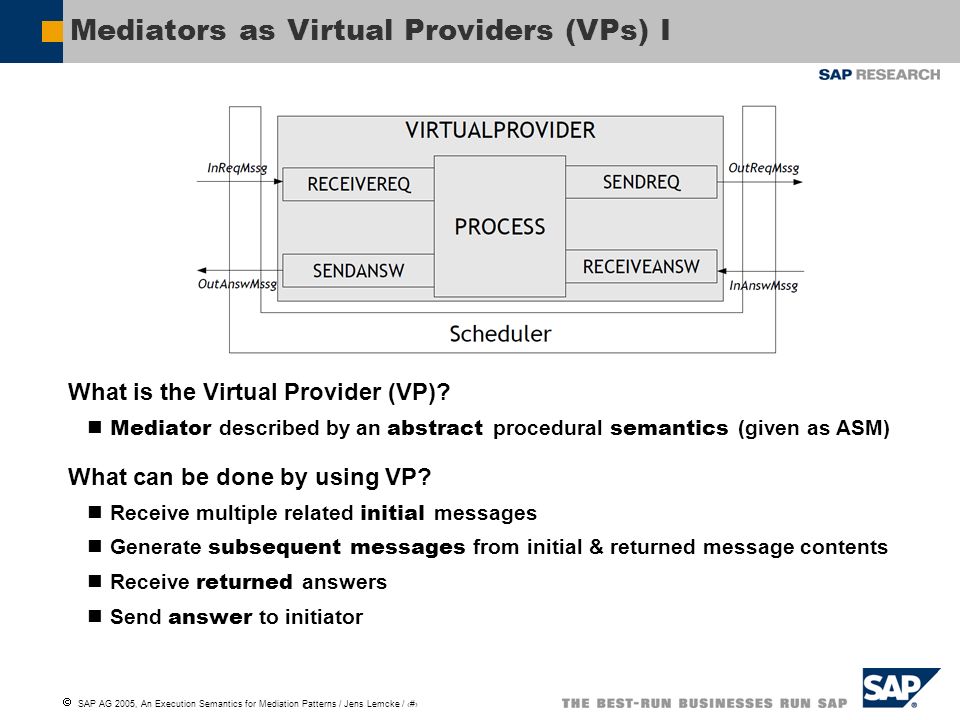

12.  SAP AG 2005, An Execution Semantics for Mediation Patterns / Jens Lemcke / 12 Mediators as Virtual Providers (VPs) I What is the Virtual Provider (VP)? Mediator described by an abstract procedural semantics (given as ASM) What can be done by using VP? Receive multiple related initial messages Generate subsequent messages from initial & returned message contents Receive returned answers Send answer to initiator

13.  SAP AG 2005, An Execution Semantics for Mediation Patterns / Jens Lemcke / 13 Mediators as Virtual Providers (VPs) II What is the Virtual Provider (VP)? Mediator described by an abstract procedural semantics (given as ASM) What can be done by using VP? Receive multiple related initial messages Generate subsequent messages from initial & returned message contents Receive returned answers Send answer to initiator

14.  SAP AG 2005, An Execution Semantics for Mediation Patterns / Jens Lemcke / 14 Mediators as Virtual Providers (VPs) III What is the Virtual Provider (VP)? Mediator described by an abstract procedural semantics (given as ASM) What can be done by using VP? Receive multiple related initial messages Generate subsequent messages from initial & returned message contents Receive returned answers Send answer to initiator

15.  SAP AG 2005, An Execution Semantics for Mediation Patterns / Jens Lemcke / 15 Mediators as Virtual Providers (VPs) IV What is the Virtual Provider (VP)? Mediator described by an abstract procedural semantics (given as ASM) What can be done by using VP? Receive multiple related initial messages Generate subsequent messages from initial & returned message contents Receive returned answers Send answer to initiator

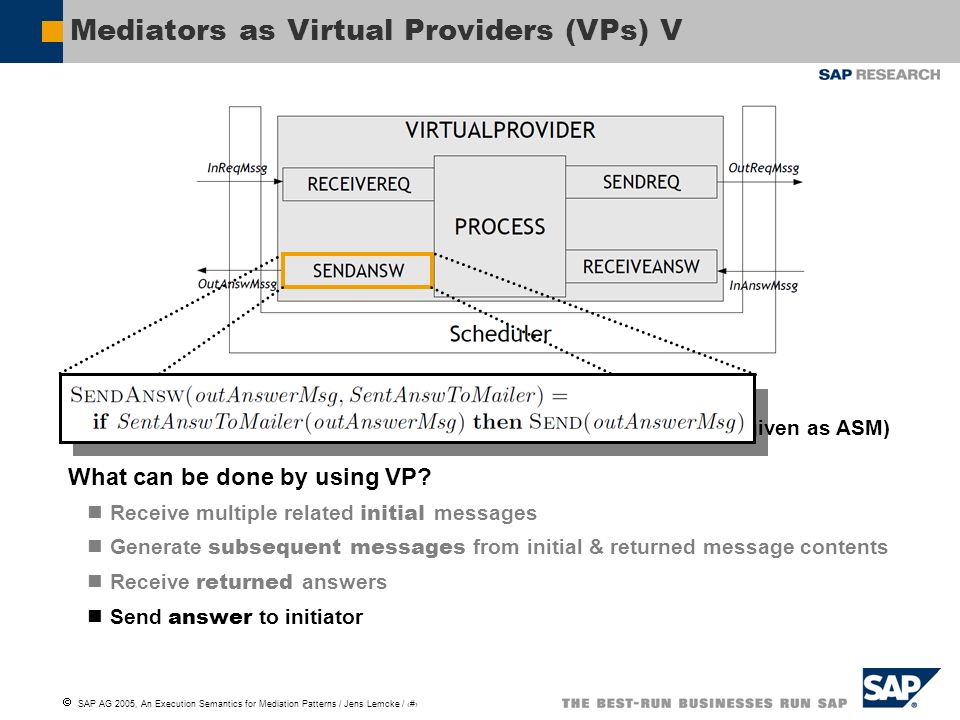

16.  SAP AG 2005, An Execution Semantics for Mediation Patterns / Jens Lemcke / 16 Mediators as Virtual Providers (VPs) V What is the Virtual Provider (VP)? Mediator described by an abstract procedural semantics (given as ASM) What can be done by using VP? Receive multiple related initial messages Generate subsequent messages from initial & returned message contents Receive returned answers Send answer to initiator

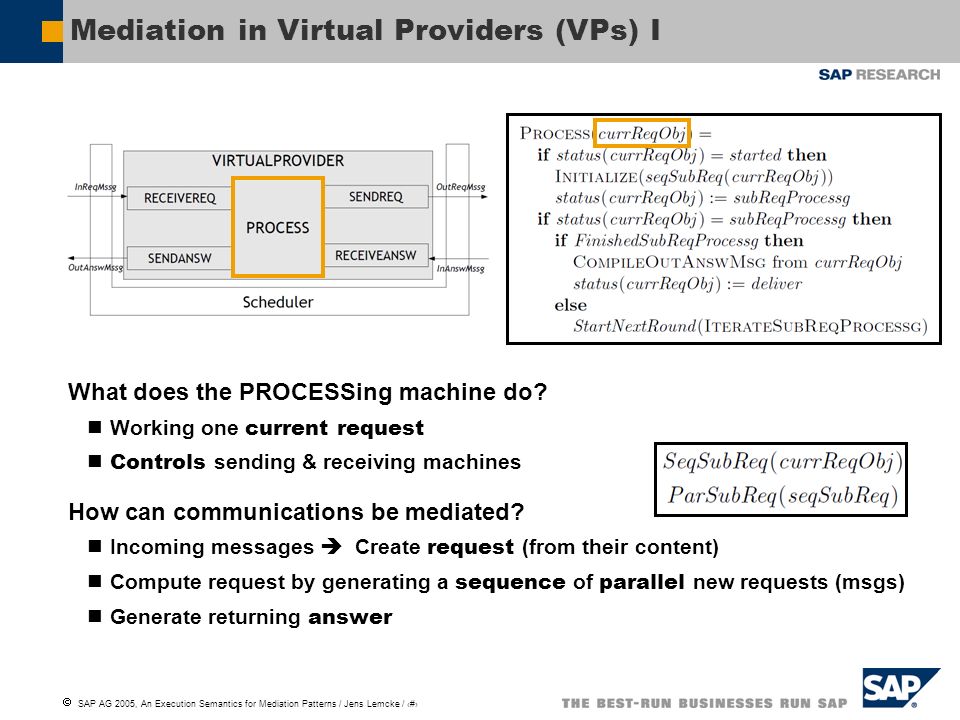

17.  SAP AG 2005, An Execution Semantics for Mediation Patterns / Jens Lemcke / 17 Mediation in Virtual Providers (VPs) I What does the PROCESSing machine do? Working one current request Controls sending & receiving machines How can communications be mediated? Incoming messages  Create request (from their content) Compute request by generating a sequence of parallel new requests (msgs) Generate returning answer

18.  SAP AG 2005, An Execution Semantics for Mediation Patterns / Jens Lemcke / 18 Mediation in Virtual Providers (VPs) II What does the PROCESSing machine do? Working one current request Controls sending & receiving machines How can communications be mediated? Incoming messages  Create request (from their content) Compute request by generating a sequence of parallel new requests (msgs) Generate returning answer

19.  SAP AG 2005, An Execution Semantics for Mediation Patterns / Jens Lemcke / 19 Mediation in Virtual Providers (VPs) III What does the PROCESSing machine do? Working one current request Controls sending & receiving machines How can communications be mediated? Incoming messages  Create request (from their content) Compute request by generating a sequence of parallel new requests (msgs) Generate returning answer

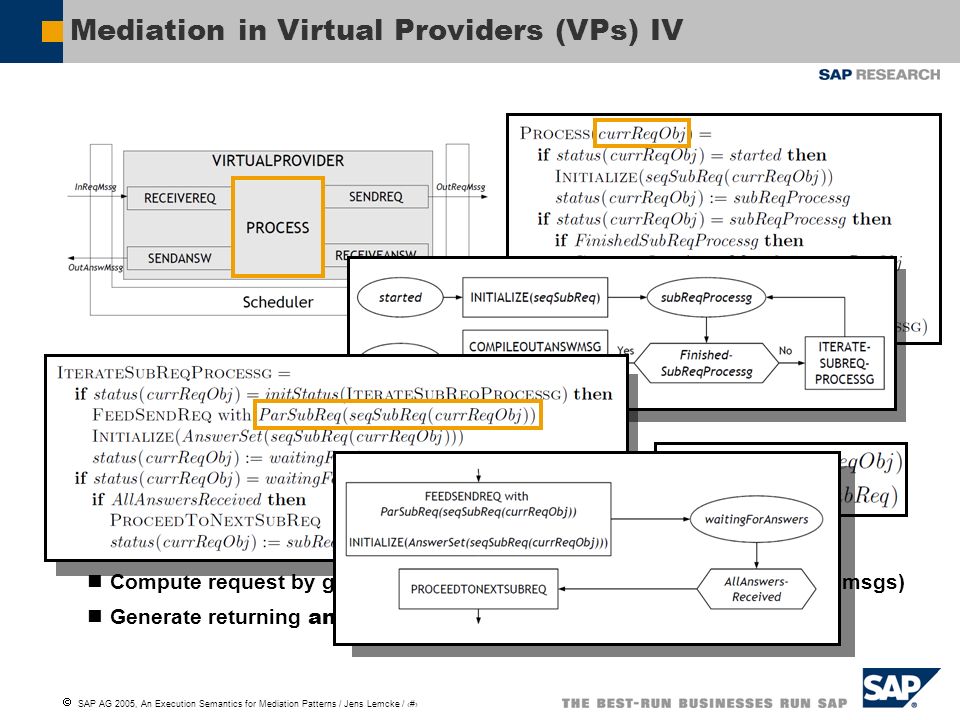

20.  SAP AG 2005, An Execution Semantics for Mediation Patterns / Jens Lemcke / 20 Mediation in Virtual Providers (VPs) IV What does the PROCESSing machine do? Working one current request Controls sending & receiving machines How can communications be mediated? Incoming messages  Create request (from their content) Compute request by generating a sequence of parallel new requests (msgs) Generate returning answer

21. Interaction Mismatches Outlook Introduction Virtual Providers

22. Interaction Mismatches Outlook Introduction Virtual Providers

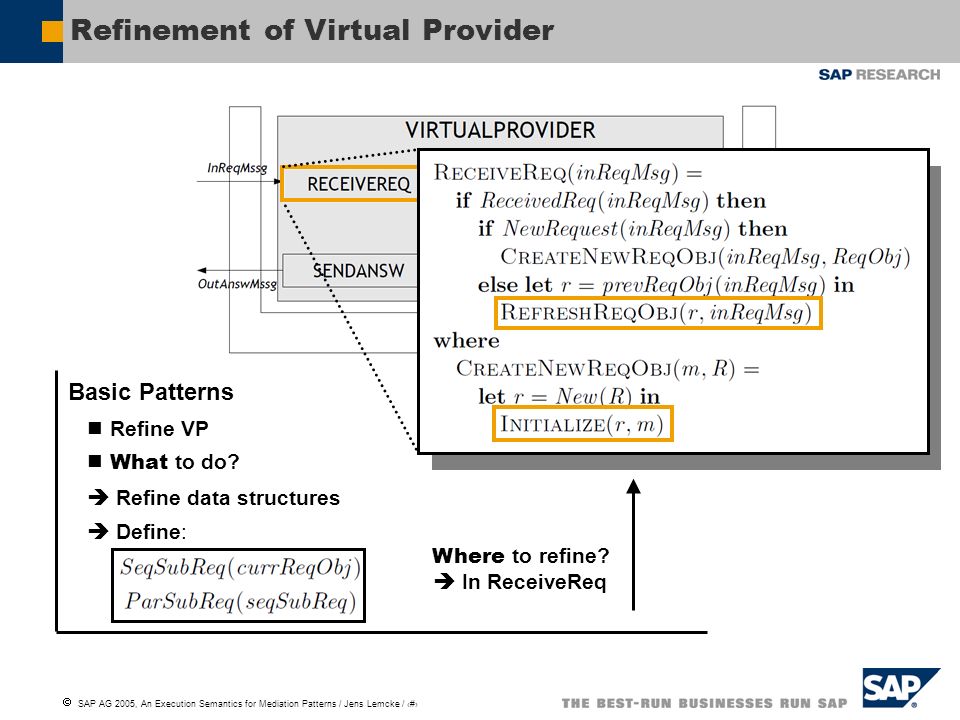

23.  SAP AG 2005, An Execution Semantics for Mediation Patterns / Jens Lemcke / 23 Refinement of Virtual Provider Basic Patterns Refine VP What to do?  Refine data structures  Define: Where to refine?  In ReceiveReq

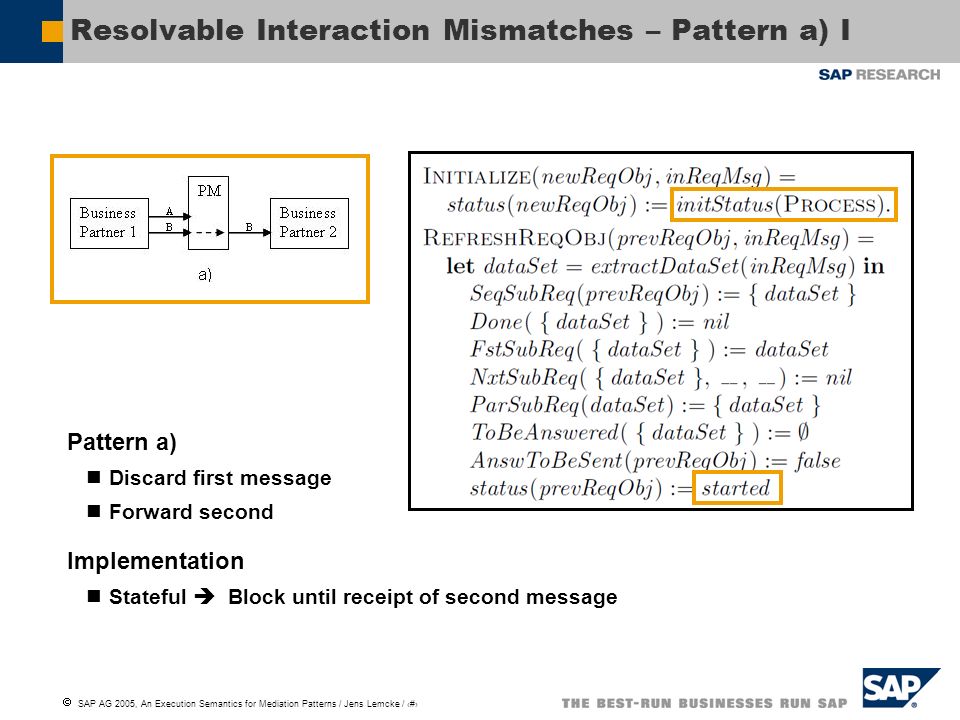

24.  SAP AG 2005, An Execution Semantics for Mediation Patterns / Jens Lemcke / 24 Pattern a) Discard first message Forward second Implementation Stateful  Block until receipt of second message Resolvable Interaction Mismatches – Pattern a) I

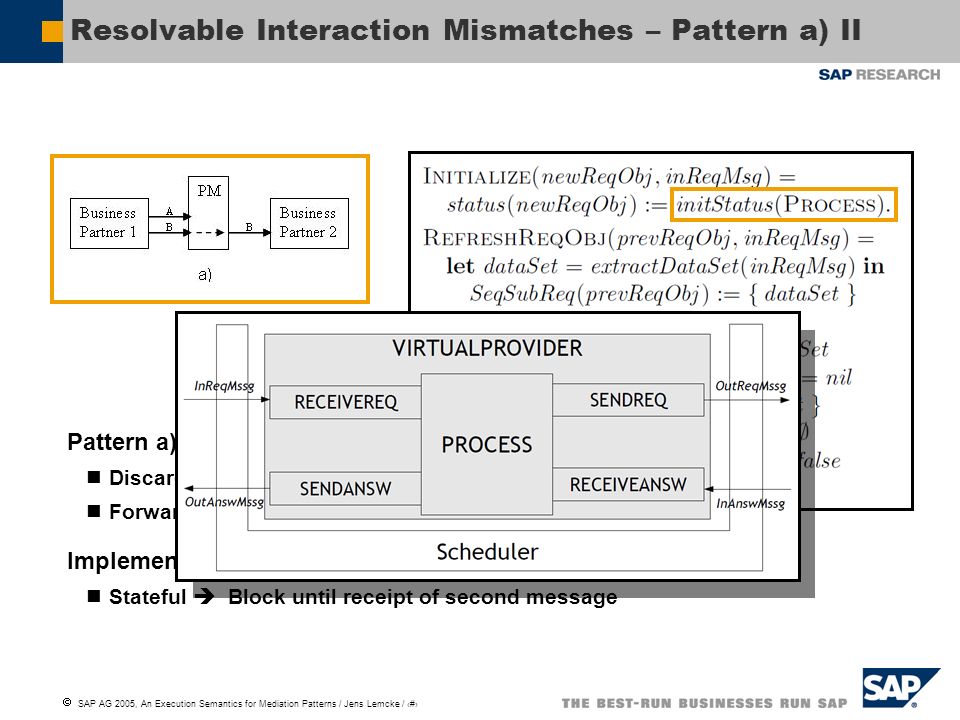

25.  SAP AG 2005, An Execution Semantics for Mediation Patterns / Jens Lemcke / 25 Pattern a) Discard first message Forward second Implementation Stateful  Block until receipt of second message Resolvable Interaction Mismatches – Pattern a) II

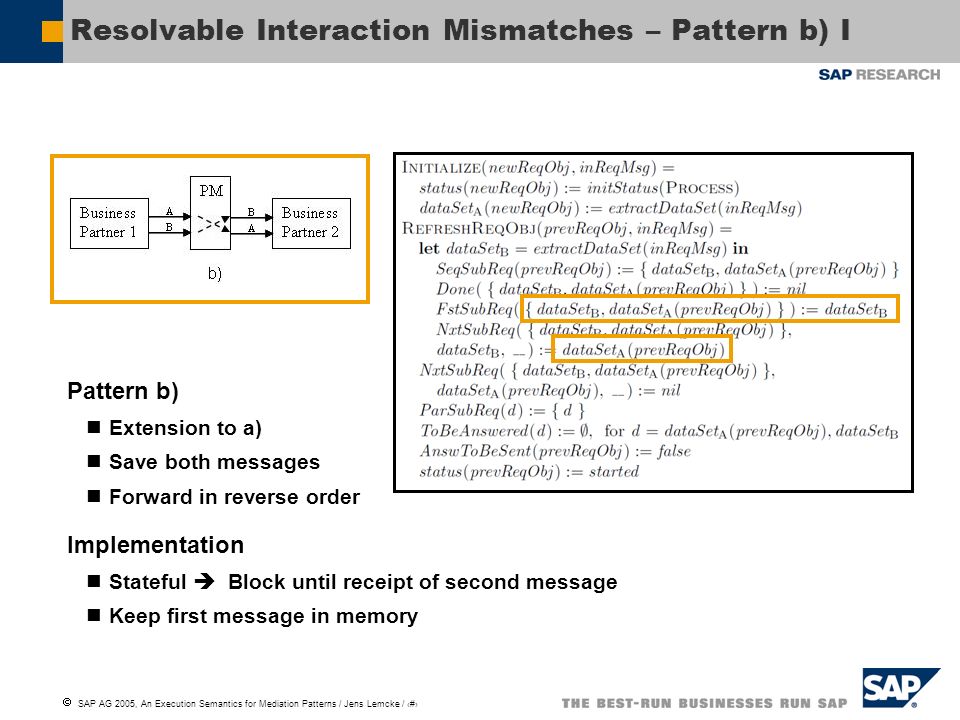

26.  SAP AG 2005, An Execution Semantics for Mediation Patterns / Jens Lemcke / 26 Pattern b) Extension to a) Save both messages Forward in reverse order Implementation Stateful  Block until receipt of second message Keep first message in memory Resolvable Interaction Mismatches – Pattern b) I

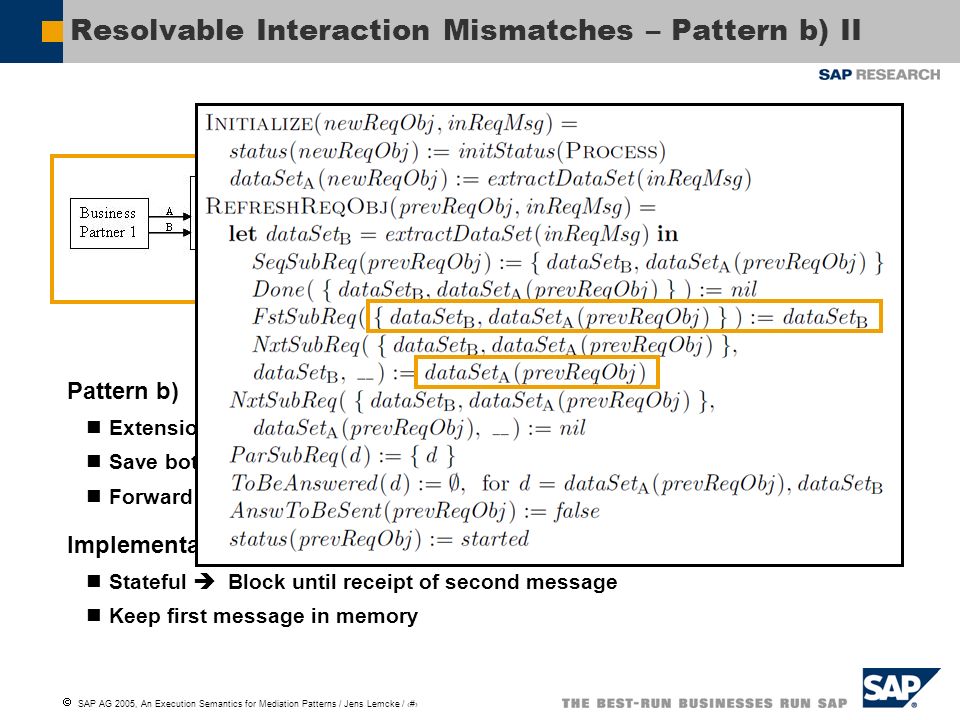

27.  SAP AG 2005, An Execution Semantics for Mediation Patterns / Jens Lemcke / 27 Pattern b) Extension to a) Save both messages Forward in reverse order Implementation Stateful  Block until receipt of second message Keep first message in memory Resolvable Interaction Mismatches – Pattern b) II

28.  SAP AG 2005, An Execution Semantics for Mediation Patterns / Jens Lemcke / 28 Pattern d) Extension to b) Save both messages Forward combined message Implementation Stateful  Block until receipt of second message Keep first message in memory & combine Resolvable Interaction Mismatches – Pattern d) Changes over b)

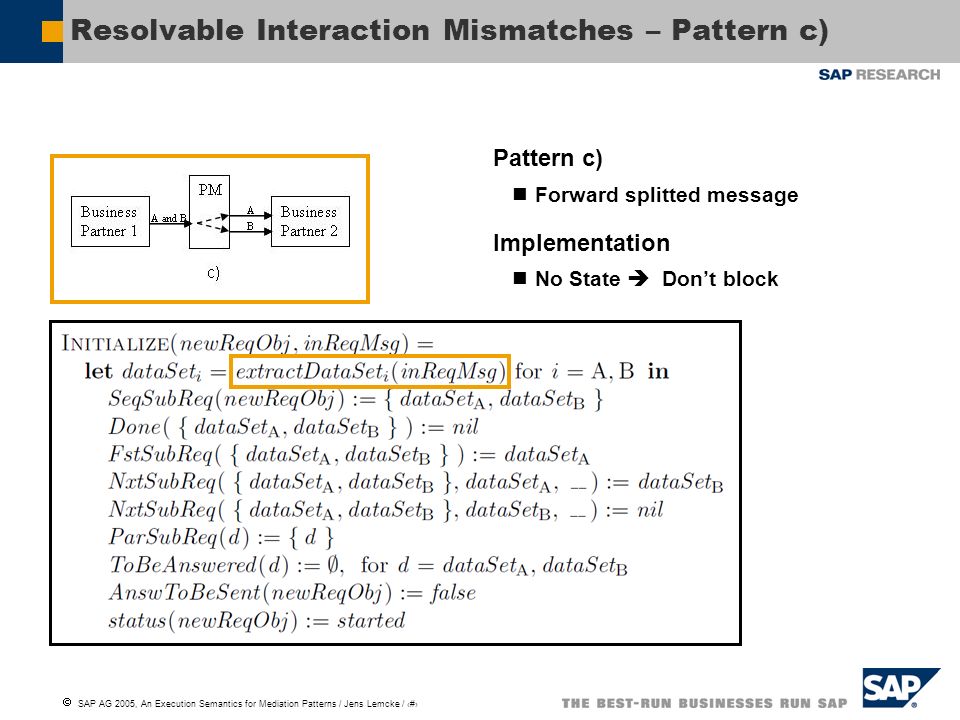

29.  SAP AG 2005, An Execution Semantics for Mediation Patterns / Jens Lemcke / 29 Pattern c) Forward splitted message Implementation No State  Don’t block Resolvable Interaction Mismatches – Pattern c)

30.  SAP AG 2005, An Execution Semantics for Mediation Patterns / Jens Lemcke / 30 Pattern e) Acknowledge receipt (  Reliable connection implied) Implementation No State  Directly send confirmation Resolvable Interaction Mismatches – Pattern e)

31.  SAP AG 2005, An Execution Semantics for Mediation Patterns / Jens Lemcke / 31 Pattern e) Acknowledge receipt (  Reliable connection implied) Implementation No State  Directly send confirmation Resolvable Interaction Mismatches – Pattern e)

32. Interaction Mismatches Outlook Introduction Virtual Providers

33. Interaction Mismatches Outlook Introduction Virtual Providers

34.  SAP AG 2005, An Execution Semantics for Mediation Patterns / Jens Lemcke / 34 Mediator Patterns (MPs) Complex Interaction Patterns VP’s homogeneous Communication structure  Chaining VPs Yields tree-like structure of VP composition: 1. A request can be transformed into a sequence of parallel new requests 2. New requests can be handled as in 1 (by a chained VP) Mediation Component Choose appropriate Mediator Patterns from a library Mediator Pattern Virtual Provider

35.  SAP AG 2005, An Execution Semantics for Mediation Patterns / Jens Lemcke / 35 DN, AH, BH BN Virtual Internet Service Provider Transparently contacting 3rd parties via their (different) interfaces Situation Different interfaces Solution Library of Mediator Patterns Mediator Patterns Example – VISP AN BN DN AH, BH, DH Requestor AN, BN, DN AH, BH, DH Provider 1 AN AH DH Provider 2 BH

36.  SAP AG 2005, An Execution Semantics for Mediation Patterns / Jens Lemcke / 36 DN, AH, BH BN Virtual Internet Service Provider Transparently contacting 3rd parties via their (different) interfaces Situation Different interfaces Solution Library of Mediator Patterns Mediator Patterns Example – VISP AN BN DN AH, BH, DH Requestor AN, BN, DN AH, BH, DH Provider 1 AN AH DH Provider 2 BH Library MP 1 MP 2

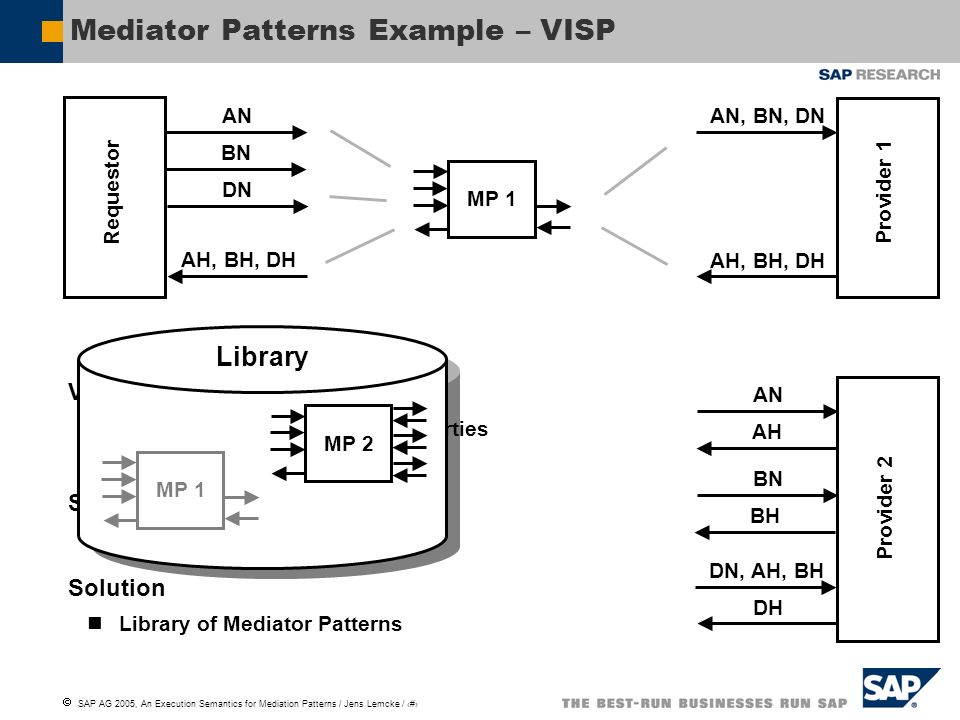

37.  SAP AG 2005, An Execution Semantics for Mediation Patterns / Jens Lemcke / 37 DN, AH, BH BN Virtual Internet Service Provider Transparently contacting 3rd parties via their (different) interfaces Situation Different interfaces Solution Library of Mediator Patterns Mediator Patterns Example – VISP AN BN DN AH, BH, DH Requestor AN, BN, DN AH, BH, DH Provider 1 AN AH DH Provider 2 BH Library MP 1 MP 2 MP 1

38.  SAP AG 2005, An Execution Semantics for Mediation Patterns / Jens Lemcke / 38 DN, AH, BH BN Virtual Internet Service Provider Transparently contacting 3rd parties via their (different) interfaces Situation Different interfaces Solution Library of Mediator Patterns Mediator Patterns Example – VISP AN BN DN AH, BH, DH Requestor AN, BN, DN AH, BH, DH Provider 1 AN AH DH Provider 2 BH Library MP 1 MP 2

39.  SAP AG 2005, An Execution Semantics for Mediation Patterns / Jens Lemcke / 39 Summary and Conclusion Summary Formal high-level mediator specification Composition into Mediator Patterns Representation of interaction mismatches Using ASM facilitates Unambiguous formal specification Clear separation of abstraction layers Identification of refinement spots Future Work Classification of interaction mismatches Automated pattern selection / definition Formalize further components using ASM  Like discovery module spec. (Andreas Friesen, Stephan Grimm) Questions or Comments ?

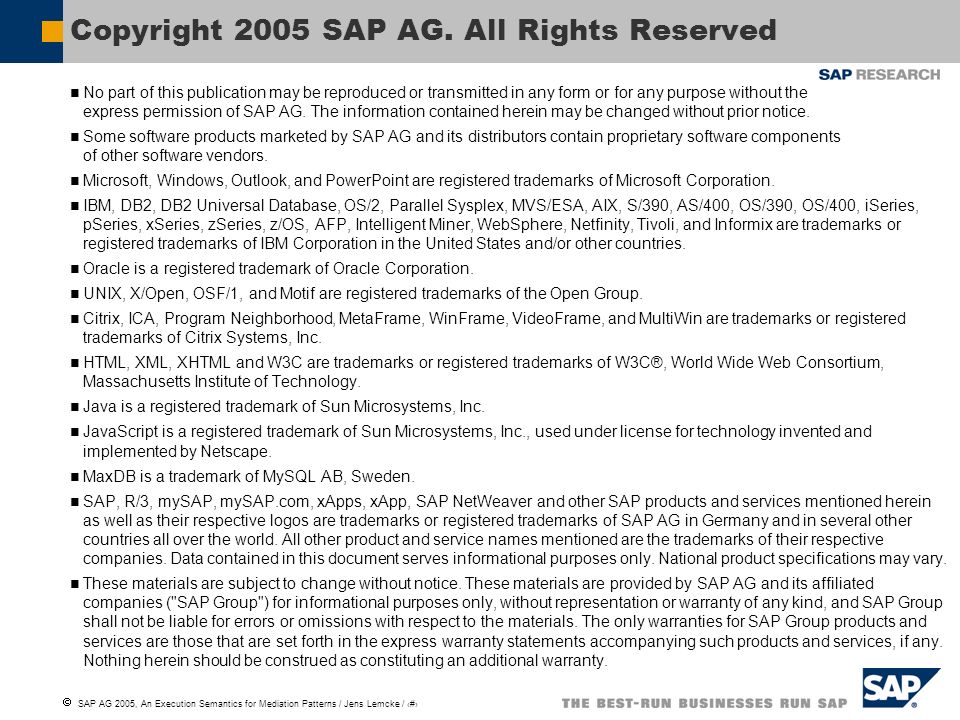

40.  SAP AG 2005, An Execution Semantics for Mediation Patterns / Jens Lemcke / 40 No part of this publication may be reproduced or transmitted in any form or for any purpose without the express permission of SAP AG. The information contained herein may be changed without prior notice. Some software products marketed by SAP AG and its distributors contain proprietary software components of other software vendors. Microsoft, Windows, Outlook, and PowerPoint are registered trademarks of Microsoft Corporation. IBM, DB2, DB2 Universal Database, OS/2, Parallel Sysplex, MVS/ESA, AIX, S/390, AS/400, OS/390, OS/400, iSeries, pSeries, xSeries, zSeries, z/OS, AFP, Intelligent Miner, WebSphere, Netfinity, Tivoli, and Informix are trademarks or registered trademarks of IBM Corporation in the United States and/or other countries. Oracle is a registered trademark of Oracle Corporation. UNIX, X/Open, OSF/1, and Motif are registered trademarks of the Open Group. Citrix, ICA, Program Neighborhood, MetaFrame, WinFrame, VideoFrame, and MultiWin are trademarks or registered trademarks of Citrix Systems, Inc. HTML, XML, XHTML and W3C are trademarks or registered trademarks of W3C®, World Wide Web Consortium, Massachusetts Institute of Technology. Java is a registered trademark of Sun Microsystems, Inc. JavaScript is a registered trademark of Sun Microsystems, Inc., used under license for technology invented and implemented by Netscape. MaxDB is a trademark of MySQL AB, Sweden. SAP, R/3, mySAP, mySAP.com, xApps, xApp, SAP NetWeaver and other SAP products and services mentioned herein as well as their respective logos are trademarks or registered trademarks of SAP AG in Germany and in several other countries all over the world. All other product and service names mentioned are the trademarks of their respective companies. Data contained in this document serves informational purposes only. National product specifications may vary. These materials are subject to change without notice. These materials are provided by SAP AG and its affiliated companies ("SAP Group") for informational purposes only, without representation or warranty of any kind, and SAP Group shall not be liable for errors or omissions with respect to the materials. The only warranties for SAP Group products and services are those that are set forth in the express warranty statements accompanying such products and services, if any. Nothing herein should be construed as constituting an additional warranty. Copyright 2005 SAP AG. All Rights Reserved
