Presentation on theme: "* The distance over which the effort force acts in a simple machine. * The force exerted by a person or motor when using a machine to lift a load."— Presentation transcript:

1

2 * The distance over which the effort force acts in a simple machine. * The force exerted by a person or motor when using a machine to lift a load.

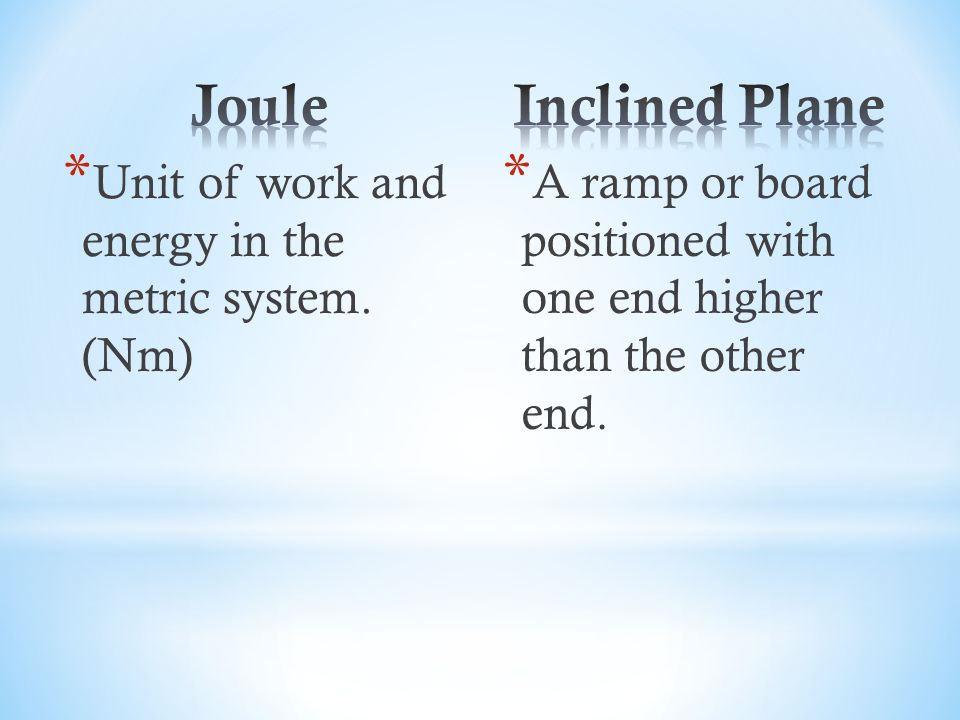

3 * Unit of work and energy in the metric system. (Nm) * A ramp or board positioned with one end higher than the other end.

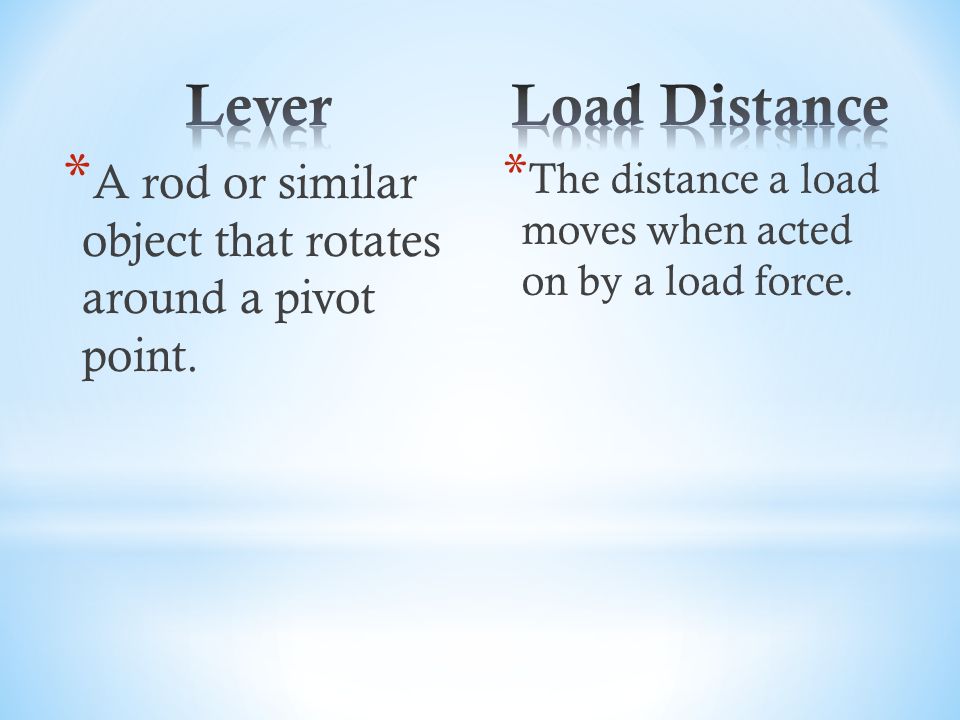

4 * A rod or similar object that rotates around a pivot point. * The distance a load moves when acted on by a load force.

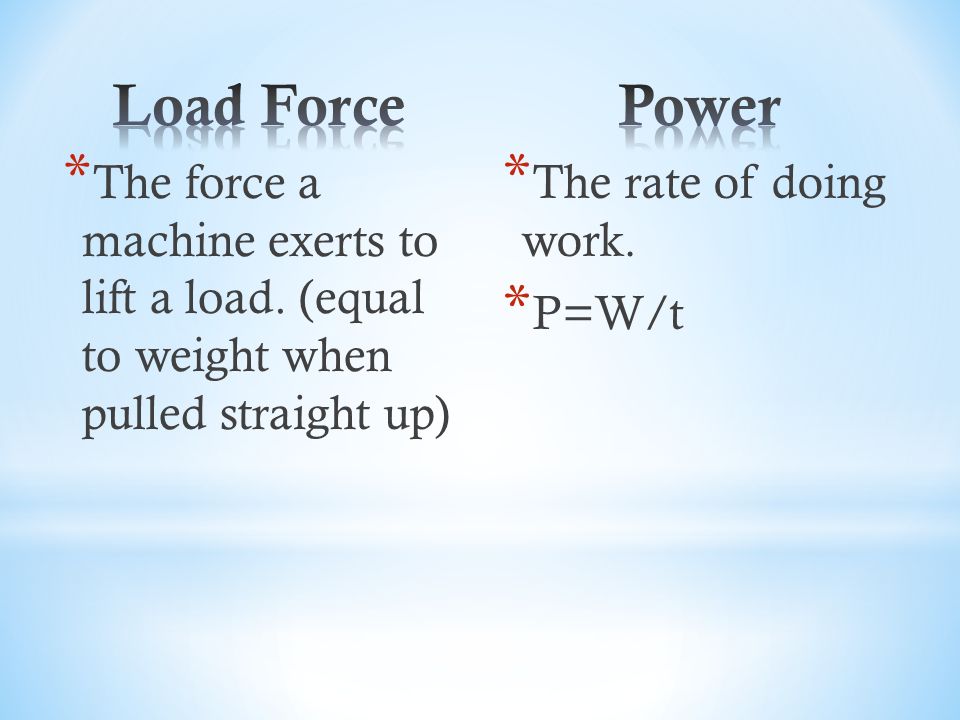

5 * The force a machine exerts to lift a load. (equal to weight when pulled straight up) * The rate of doing work. * P=W/t

6 * A wheel or cylinder with a rope around its outer rim. * A device that can do work and reduce the amount of effort force needed to do the work.

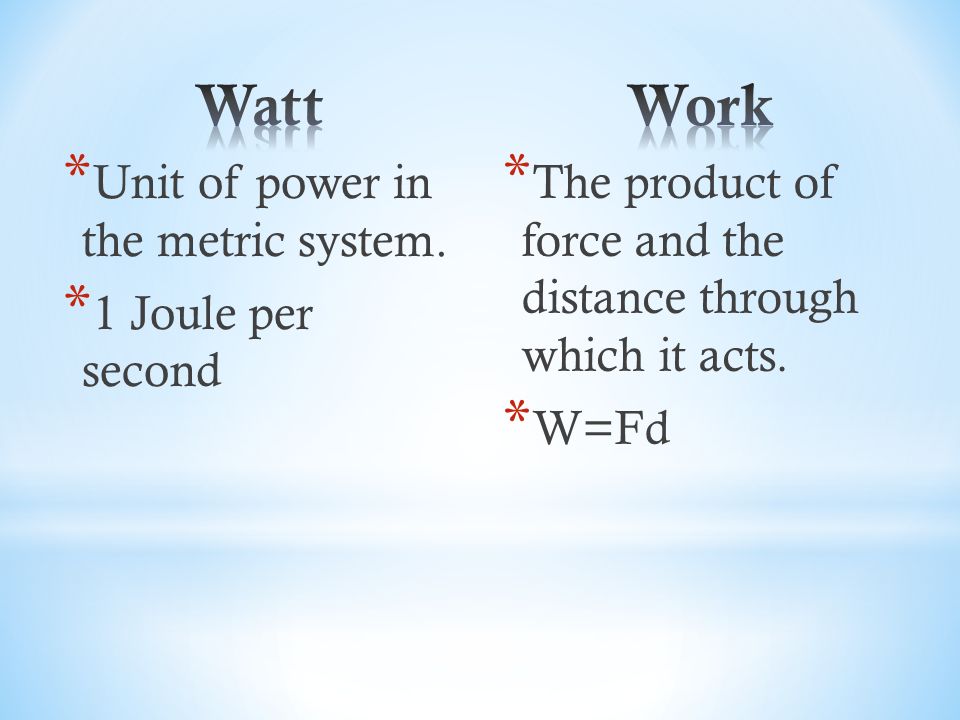

7 * Unit of power in the metric system. * 1 Joule per second * The product of force and the distance through which it acts. * W=Fd

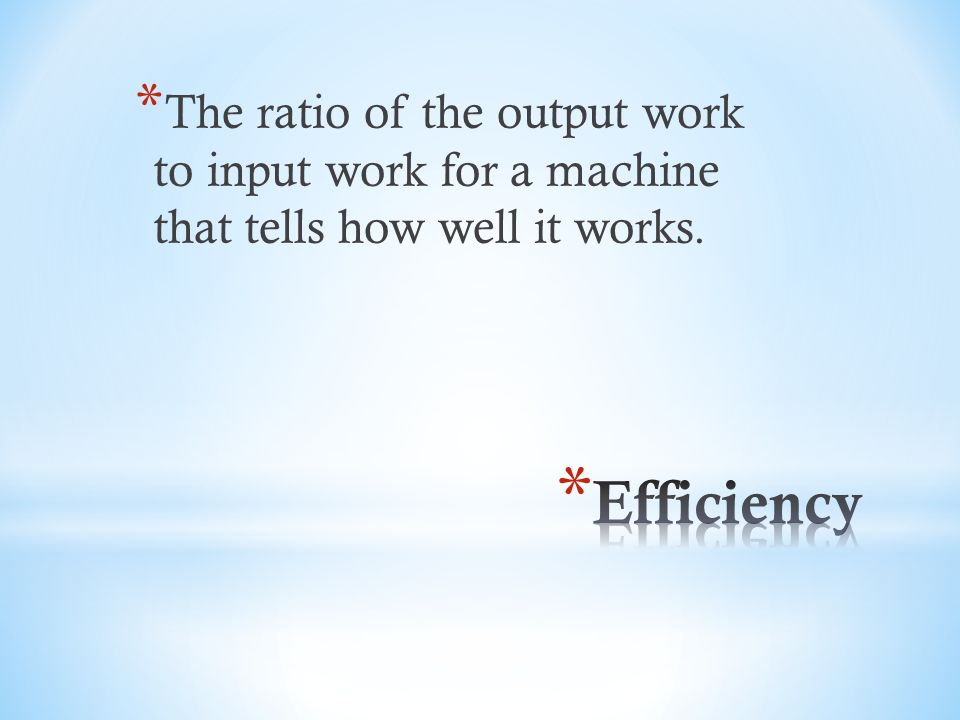

8 * The ratio of the output work to input work for a machine that tells how well it works.

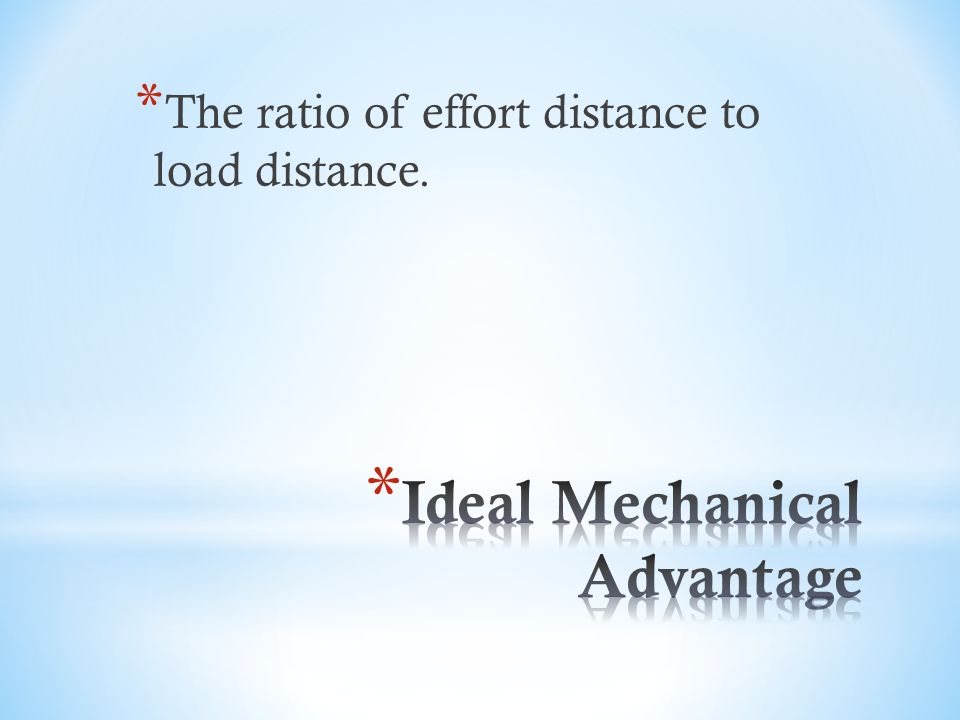

9 * The ratio of effort distance to load distance.

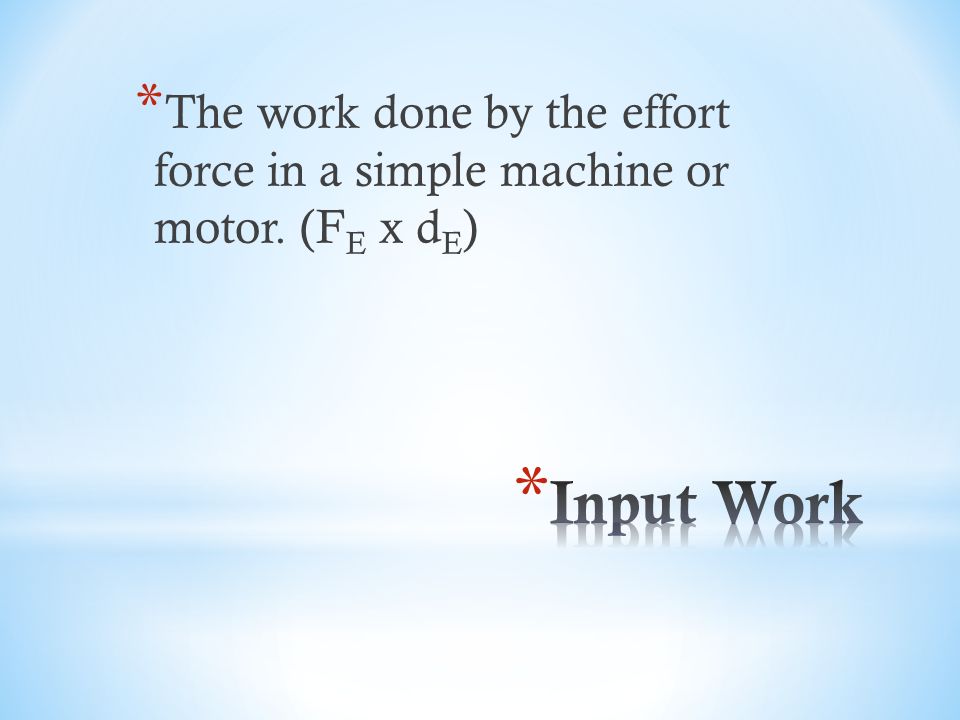

10 * The work done by the effort force in a simple machine or motor. (F E x d E )

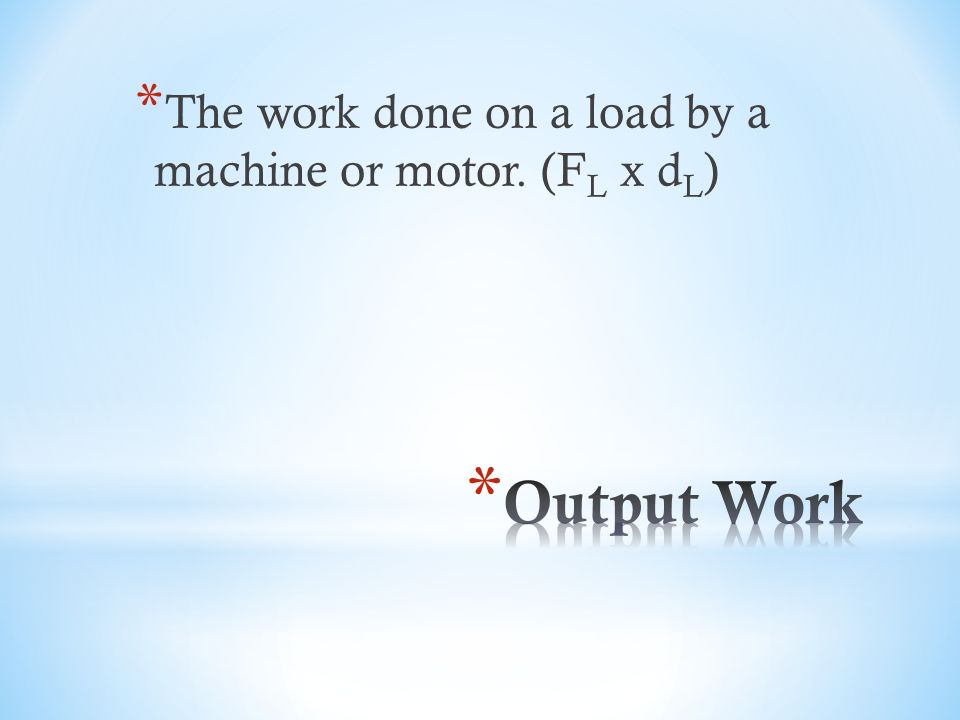

11 * The work done on a load by a machine or motor. (F L x d L )
