1. System Appliances Division Air Conditioning R&D Team
TRAIN MANUAL
- Vivace1 Inverter -
System Appliances Division
Air Conditioning R&D Team

2. Inverter Air Conditioner
Operation Equivalent to Load
: Changing the Capacity equivalent to Indoor Load.

3. Inverter Air Conditioner
Example )
Inverter AS12BPAN
Non Inverter AS12HPA

4. Inverter Air Conditioner
Example )
Inverter AS12BPAN
Non Inverter AS12HPA

5. Permanent Magnet Motor
Inverter Air Conditioner
The Type of Inverter
Type
Motor
Wave
Control
Method
Power
Efficiency
Noise
(sound)
Cost AC
Inverter
Induction
Sin
V/F
Constant
Normal △ ○
High DC
Burshless
DC motor
Permanent Magnet Motor
120deg
Rectangle
Sensorless PWM
Wide
Higher
180deg
Sensorless
Vector
Wider
Highest

6. Comparison of Inverter Line-Up
7K 9K 12K 18K 21K 24K 28K
SAMSUNG
Premium
Deluxe
Standard LG
Premium
Deluxe
Standard
Panasonic
Premium
Deluxe
Standard
Daikin
Premium
Deluxe
Standard

7. Indoor Unit : Vivace1 type
Moderato1 Inverter
9,12kBtu/hr
Indoor Unit : Vivace1 type
INDOOR
OUTDOOR
Moderato1
Inv.
AQV09VBAN
AQV09VBAX
AQV12VBAN
AQV12VBAX
AQV09VBAN
AQV12VBAN
4wire(E,L,N,C)
AC communication
4wire(E,L,N,C)
AC communication
For Europe
AQV09VBAX
AQV12VBAX
Outdoor Unit : WW type

8. The Feature of Product – View of the Unit

9. The Feature of Product – Remote Control

10. The Feature of Product

11. The Feature of Product – Good Morning Mode

12. The Feature of Product – Silence Mode

13. Product Specification
AQV09VBA
AQV12VBA
Indoor Unit
Outdoor Unit
Type
Wall-mounted
Performance
Capacity
Cooling
kW (Low / Std / Max)
0.99 / 2.5 / 3.5
0.99 / 3.50 / 4.20
Heating
0.85 / 3.5 / 5.0
0.85 / 4.00 / 5.50
Running
Frequency
Hz (Low / Std / Max)
20 / 46 / 70
20 / 71 / 93
20 / 67 / 95
20 / 77 / 102
Dehumidifying
ℓ/h
1.4
1.8
Air Volume
㎥/min (H/M/L)
8.6/8.1/7.6 28
8.9/8.3/7.6
9.5/8.9/8.3 27
10.0/9.4/8.8
Noise
dB (H/L)
41/25 51
43/25 53
Energy
Efficiency Ratio
W/W (Std)
4.10 [A Grade]
3.40 [A Grade]
4.10 [A Grade]
3.64 [A Grade]
Power
ph-V-Hz
1-220/240-50
Consumption
W (Low / Std / Max)
240 / 610 / 1030
240 / 1030 / 1450
210 / 853 / 1450
200 / 1100 / 1600
Operating
Current
A (Low / Std / Max)
1.5 / 3.0 / 5.1
1.5 / 4.8 / 6.8
1.3 / 4.5 /6.9
1.3 / 5.2 / 7.4
Power Factor
% (Low / Std / Max)
75 / 90 / 95
Power Cord
Length m 2
Number of Core Wire 3 A 10

14. Product Specification
AQV09VBA
AQV12VBA
Indoor Unit
Outdoor Unit
Type
Wall-mounted
Size
Outer Dimension
W x H x D mm
825 X 285 X 189
720 X 548 X 265
Weight (Net) kg
9.0
33.5
Refrigerant Pipe
Liquid
mm x L(m)
Φ6.35 x 5
Gas
Φ9.52 x 5
Max. Length m 15
Max. Height 8
Drain Hose
D x L(mm)
Φ18 x 550
Compressor
Rotary, G4C090LUBER
Motor
Hermetic
Rated Output
853W
Oil Type
FREOLα68ES-T
Heat Exchanger
2 Row 14 Step
2 Row 24 Step
Refrigerant Control Unit
EEV
Freezer Oil Capacity cc
320
Refrigerant to Change (R410A) g
900
Cooling Test Condition
Indoor Unit : DB27℃ WB 19℃
Outdoor Unit : DB35℃ WB 24℃
Heating Test Condition
Indoor Unit : DB20℃ WB 15℃
Outdoor Unit : DB7℃ WB 6℃
Operation
Condition Range
Cooling
Indoor
16℃ ~ 32℃
Outdoor
10℃ ~ 43℃
Heating
27℃ or less
-10℃ ~ 24℃

15. Accessory

16. Exploded View and Parts List (INDOOR)

17. Exploded View and Parts List (OUTDOOR)

18. Disassembly & Reassembly (INDOOR)

19. Disassembly & Reassembly (INDOOR)

20. Disassembly & Reassembly (OUTDOOR)

21. Disassembly & Reassembly (OUTDOOR)

22. Option Code

23. Refrigerating Cycle Diagram

24. Evaporator Cycle Diagram
9,12K

25. Condenser Cycle Diagram

26. Wiring Diagram

27. Communication System SYSTEM WIRE MAX LENGTH TERMINAL AC Serial 15m
* Power 3 wire (L,N,E)
Serial 1 wire
(common use of Power-N line )
L N cross-connection makes Communication Error.
15m
N L C
Cabinet
Earth
screw
From Indoor
- 27 -

28. Inverter Controller 9/12K BTU (AC) Figure 2 PCBs Terminal Error
Display
MAIN
Board
- 28 -

29. Inverter Controller (Block Diagram-INDOOR)

30. Inverter Controller PCB (INDOOR)

31. Inverter Controller (Block Diagram-OUTDOOR)

32. Inverter Controller PCB (OUTDOOR)

33. Block Diagram of Outdoor Unit Inverter Controller
Inverter Electronics
310Vdc
CONVERTER part
INVERTER part
230Vac
50Hz
0-310V
6600rpm max
Filter CAPACITOR
RECTIFIERS
RFI FILTER &
SURGE
SUPPLESSION
Reactor & PFC
SMPS
IPM
INVERTER & PFC
CONTROLLER
Sensorless
Rotor
Position
Detector
Compressor
BLDC
Motor
Cycle Controller
Temperature
Sensor
Fan
EEV
Communication
Driver
Power
Pulg
INDOOR
Unit
Block Diagram of Outdoor Unit Inverter Controller
- 33 -

34. Intelligent Temperature Control
Robust Fuzzy Control
Rapid Temperature Response
High Stability
High Reliability

35. Compressor Rotation Frequency
Start Control
Compressor Rotation Frequency
Start Frequency Case 3
Frequency
2nd Holding Time = 1minute
 Fuzzy Control
2nd Hold Frequency
 Fuzzy Control
Start Frequency Case 2
Fuzzy Control Interval = 1 minute
1st Hold Frequency
 Fuzzy Control
Start Frequency Case 1
1st Holding Time = 1minute
Time

36. Protection Control – Overload Protection
Indoor unit Heat Exchanger Temperature
T_Trip
T_Down
T_Hold
T_Up Release
Prevent to Raise Compressor Frequency
Compressor Frequency Down Region

37. Protection Control – Discharge Temperature Over Heat Protection

38. Protection Control – Over Current Protection
[A]
Current [ Ａ］ I_
trip I_
trip
I_D
own_Heat_10
I_down
2.0A
0.4 Ａ
Hz Down （ 1 Hz ／ 2 s ec ） Id ′
Hz Down （ 1 Hz ／ 2 s ec ）
I_down_cool_30
I_D
own_Heat_50
Hz Hold
I_down_cool_50
Hz Hold
Outdoor Temperature ３０ ５０ １０ ５０
Outdoor Temperature
[℃]
[℃]
Cooling Mode
Heating Mode

39. Protection Control – Freezing Evaporator Protection

40. Indoor Unit Display For Error Detecting

41. Outdoor LED Error Display

42. Outdoor LED Error Display

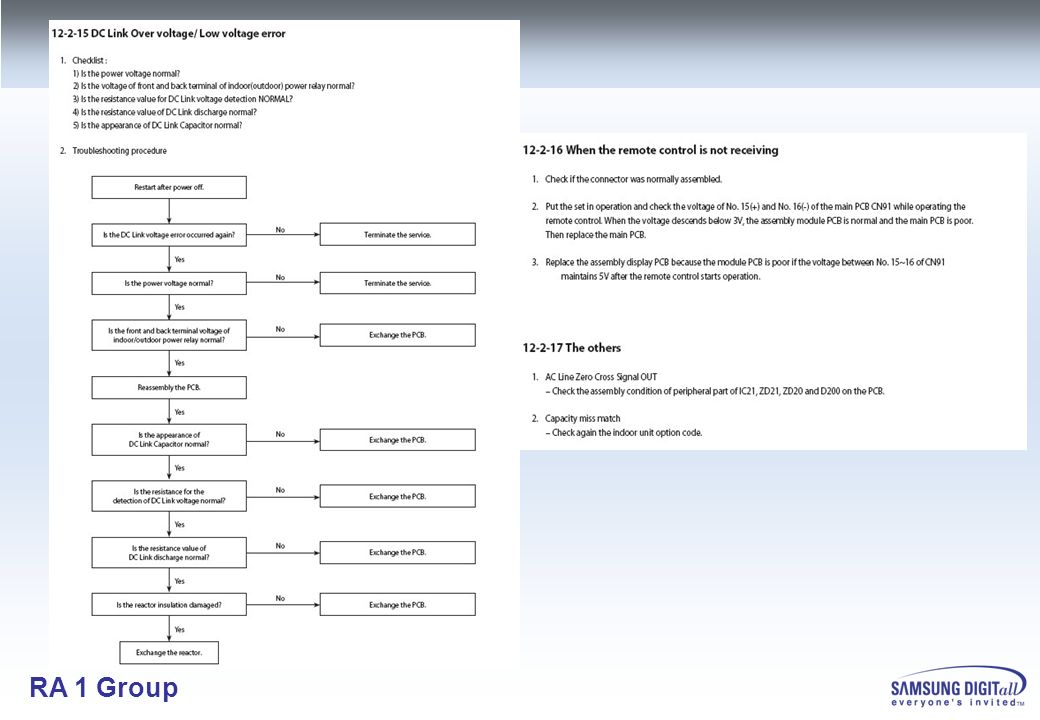

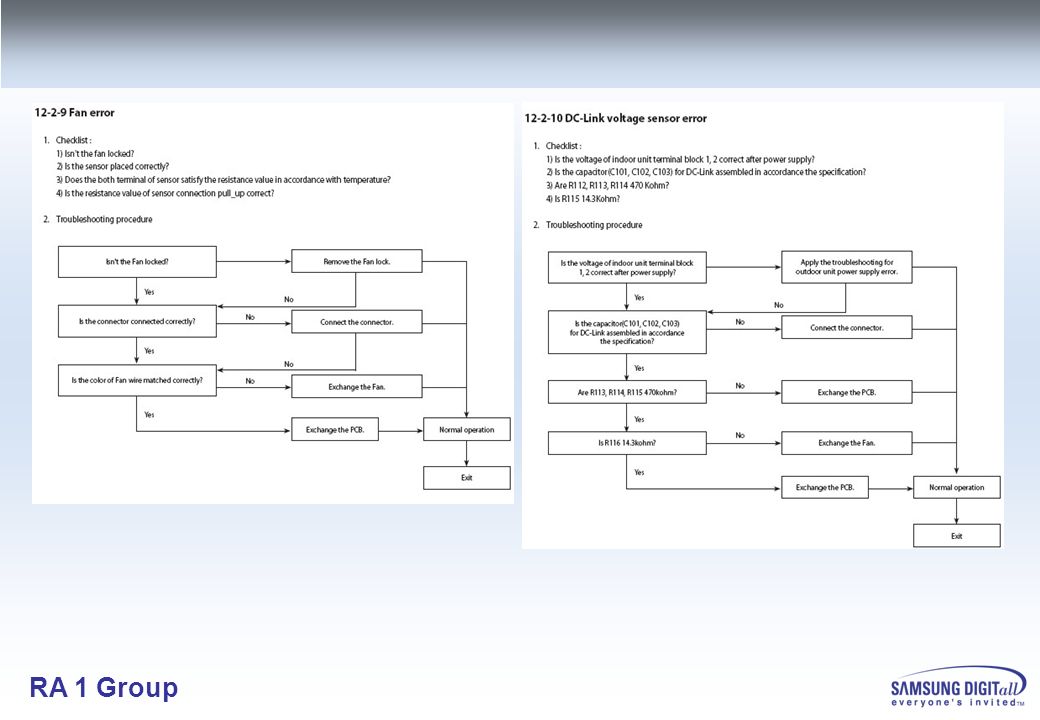

43. Troubleshooting

52. Wiring Diagram (INDOOR)

53. Wiring Diagram (OUTDOOR)

54. Correct temperature detection can control the air conditioner
Check Point In Service
1. Temperature sensor off from the holder
Correct temperature detection can control the air conditioner
2. To loosen screws makes controller trouble
,especially Heat-Sink part
- 54 -

55. 3. Always putting silicon grease
on the surface between Power semiconductor and heat-sink
Also putting insulation mica on non insulated power semiconductor.
4. Confirm POWER OFF and LED OFF
before Connecting / Dis-Connecting BLDC FAN socket.
Connecting / Dis-connecting of BLDC FAN SOCKET can make
Damage to both PCB assy and BLDC FAN MOTOR (9K/12K model).
5. Make sure to connect power wire tightly
to the terminal block screw and OUTLET (power plug).
This cause troubles like fire, reset trouble, etc.
- 55 -

56. 6. Make sure not to take of the seals stuck on Case Control
for making air flow through controller cool the heat-sink.
AIR FLOW
Into heatsink
7. KEEP CLEAR around air inlet of indoor unit.
Blocking air flow cause HIGH-LOAD CONDITION and error occurs
because of protecting inverter controller especially in heating
mode.
