1. 1 © 1999, Cisco Systems, Inc. www.cisco.com The Cisco VPN 3080 Concentrator 0844_04F9_c3 952875-01

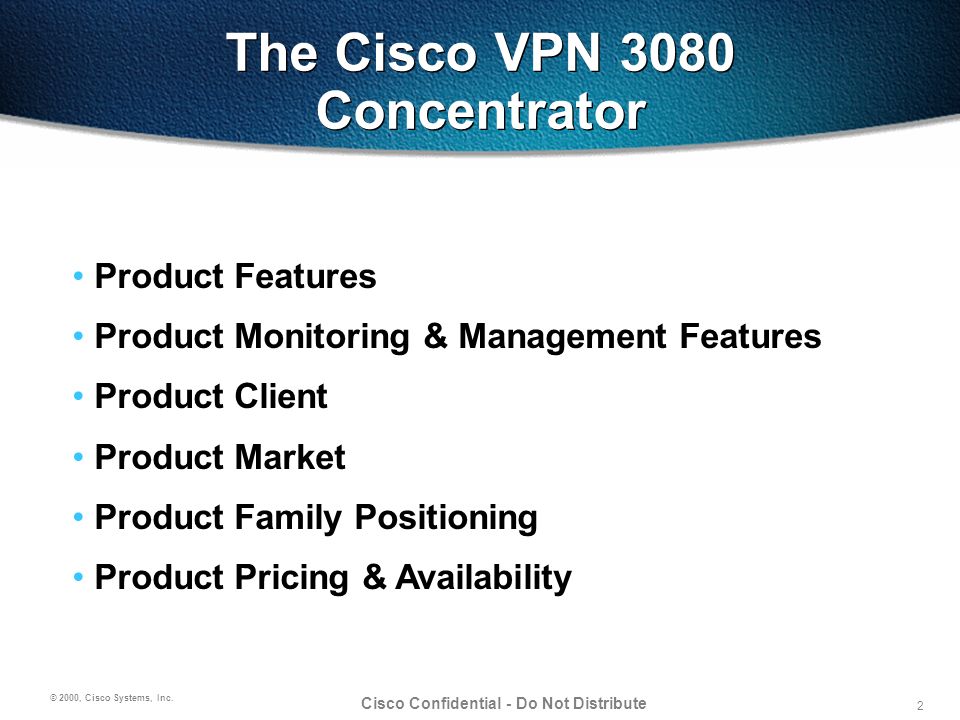

2. 2 © 2000, Cisco Systems, Inc. Cisco Confidential - Do Not Distribute The Cisco VPN 3080 Concentrator Product Features Product Monitoring & Management Features Product Client Product Market Product Family Positioning Product Pricing & Availability

3. 3 © 2000, Cisco Systems, Inc. Cisco Confidential - Do Not Distribute Cisco VPN 3080 Concentrator Features: The 3080 is a high-end fully redundant VPN Concentrator developed to meet the demanding requirements of large enterprise sites. Supports up to 10,000 Simultaneous Users 2U height and 19” Rack Mountable 100 Mbps 3DES Performance Hardware Encryption Unlimited Client Distribution

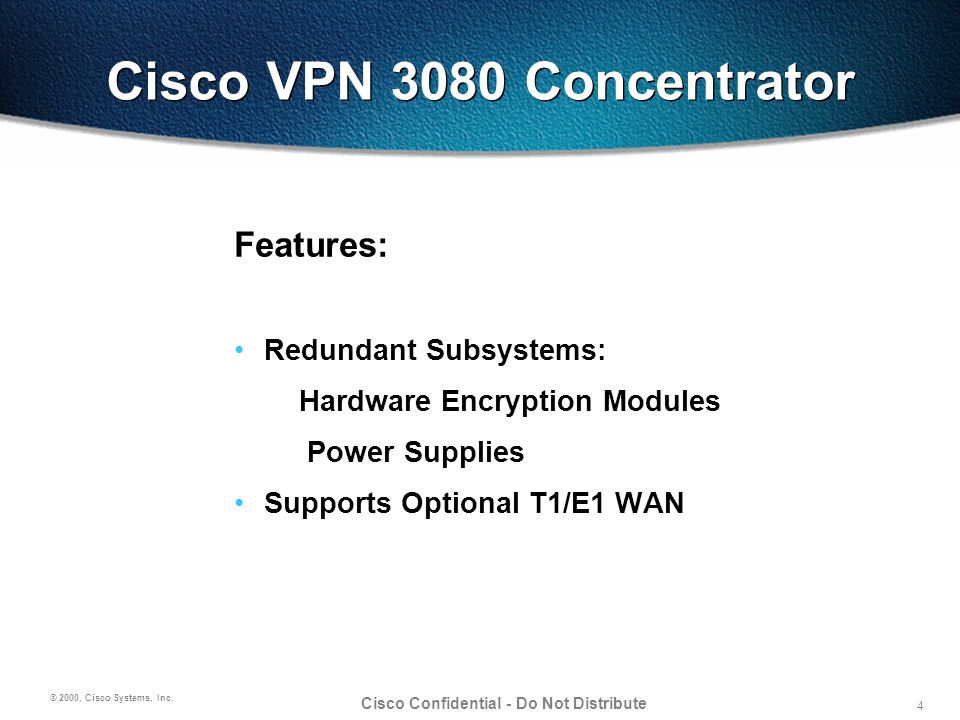

4. 4 © 2000, Cisco Systems, Inc. Cisco Confidential - Do Not Distribute Cisco VPN 3080 Concentrator Features: Redundant Subsystems: Hardware Encryption Modules Power Supplies Supports Optional T1/E1 WAN

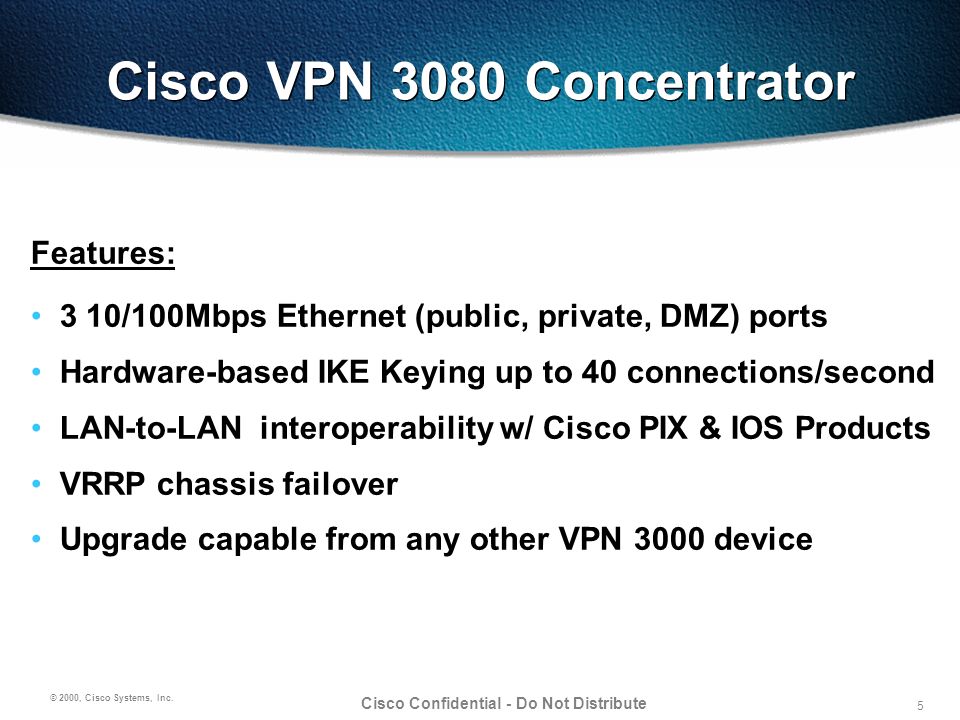

5. 5 © 2000, Cisco Systems, Inc. Cisco Confidential - Do Not Distribute Cisco VPN 3080 Concentrator Features: 3 10/100Mbps Ethernet (public, private, DMZ) ports Hardware-based IKE Keying up to 40 connections/second LAN-to-LAN interoperability w/ Cisco PIX & IOS Products VRRP chassis failover Upgrade capable from any other VPN 3000 device

6. 6 © 2000, Cisco Systems, Inc. Cisco Confidential - Do Not Distribute Cisco VPN 3080 Concentrator Monitoring/Management Features: Front Panel Displays (LEDs, CPU Performance) HTML interface Local Console Port/Secure Telnet Cisco VPN 3000 Monitor Application VPN 3000 Support in CiscoView Resource Manager Essentials (RME) support as of August 4, 2000

7. 7 © 2000, Cisco Systems, Inc. Cisco Confidential - Do Not Distribute Cisco VPN 3080 Concentrator Client Thin Client Design Single Click Installation Centralized Configuration & Policy Management Fully IPsec Compliant Customizable GUI For Windows 95 / 98 / NT Unlimited Distribution Features:

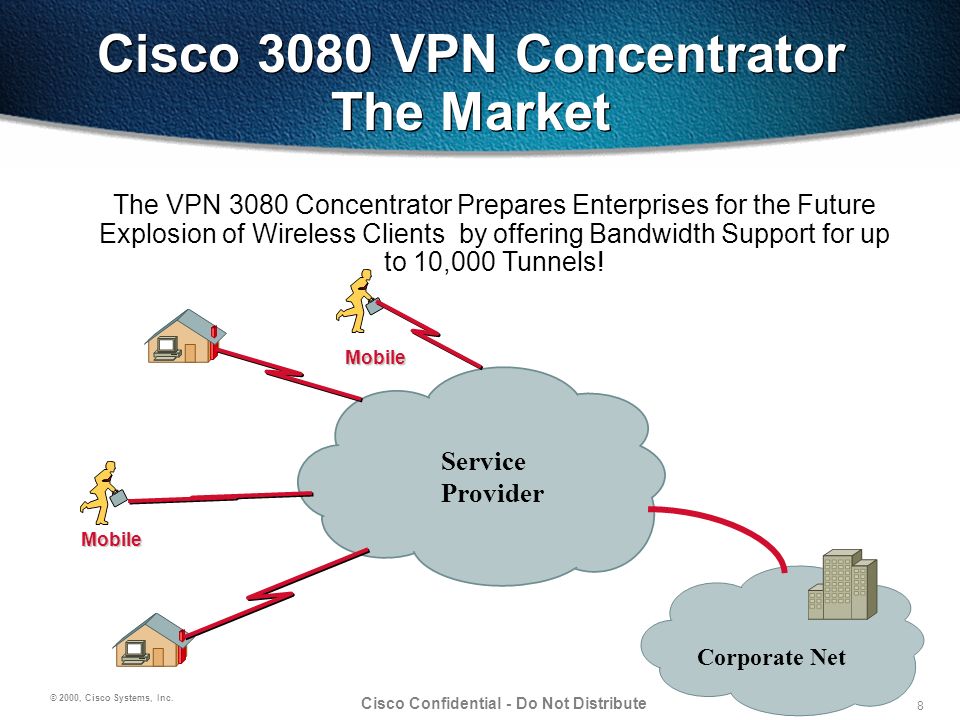

8. 8 © 2000, Cisco Systems, Inc. Cisco Confidential - Do Not Distribute Cisco 3080 VPN Concentrator The Market Corporate Net Service Provider The VPN 3080 Concentrator Prepares Enterprises for the Future Explosion of Wireless Clients by offering Bandwidth Support for up to 10,000 Tunnels! Mobile Mobile

9. 9 © 2000, Cisco Systems, Inc. Cisco Confidential - Do Not Distribute Policy-based, auto-configuration Cisco VPN 3080 Concentrator L3 & L4 packet filtering NAT transparency with IPsec Design flexibility via routing protocol support Internet Central Site POP DSL Cable Mobile Telecommuter Cisco 3080 VPN Concentrator

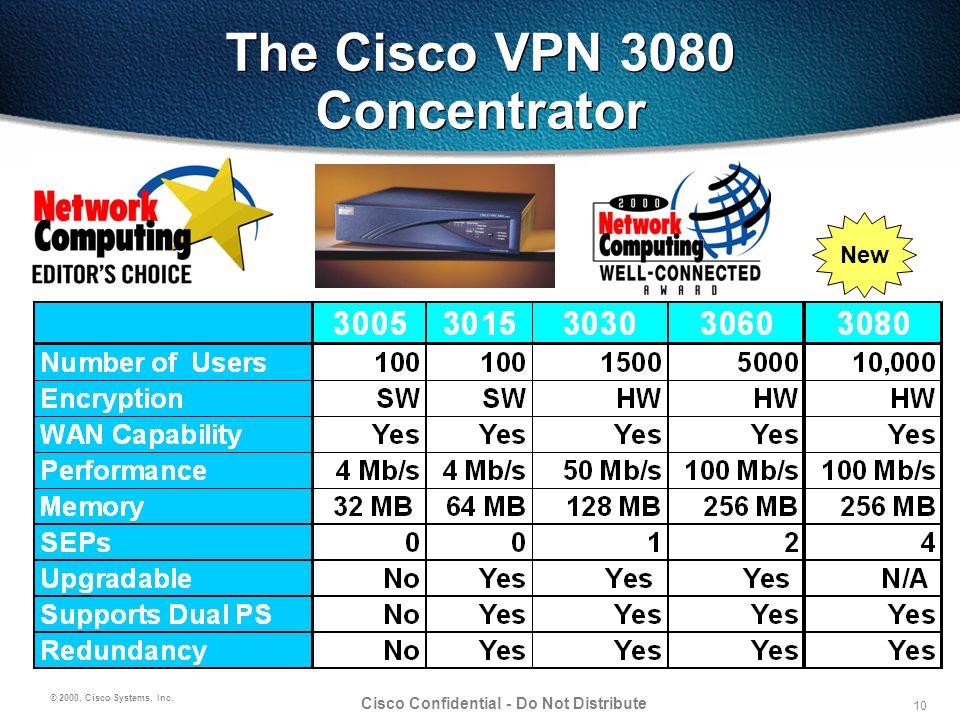

10. 10 © 2000, Cisco Systems, Inc. Cisco Confidential - Do Not Distribute New The Cisco VPN 3080 Concentrator

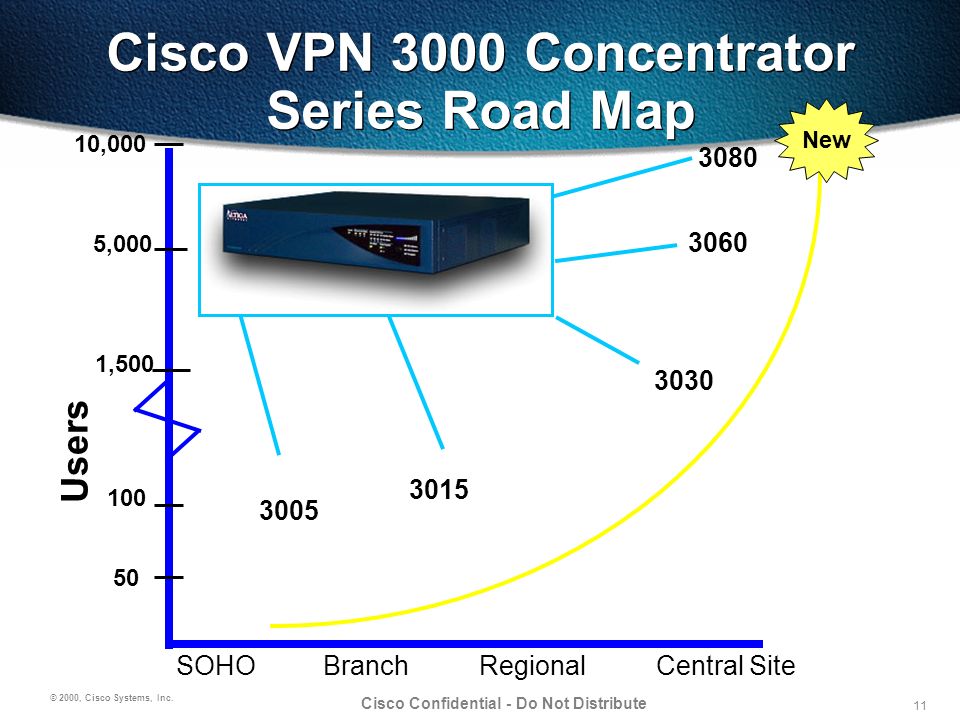

11. 11 © 2000, Cisco Systems, Inc. Cisco Confidential - Do Not Distribute SOHO Branch RegionalCentral Site 3030 3060 3015 10,000 5,000 1,500 100 50 Users 3005 3080 New Cisco VPN 3000 Concentrator Series Road Map

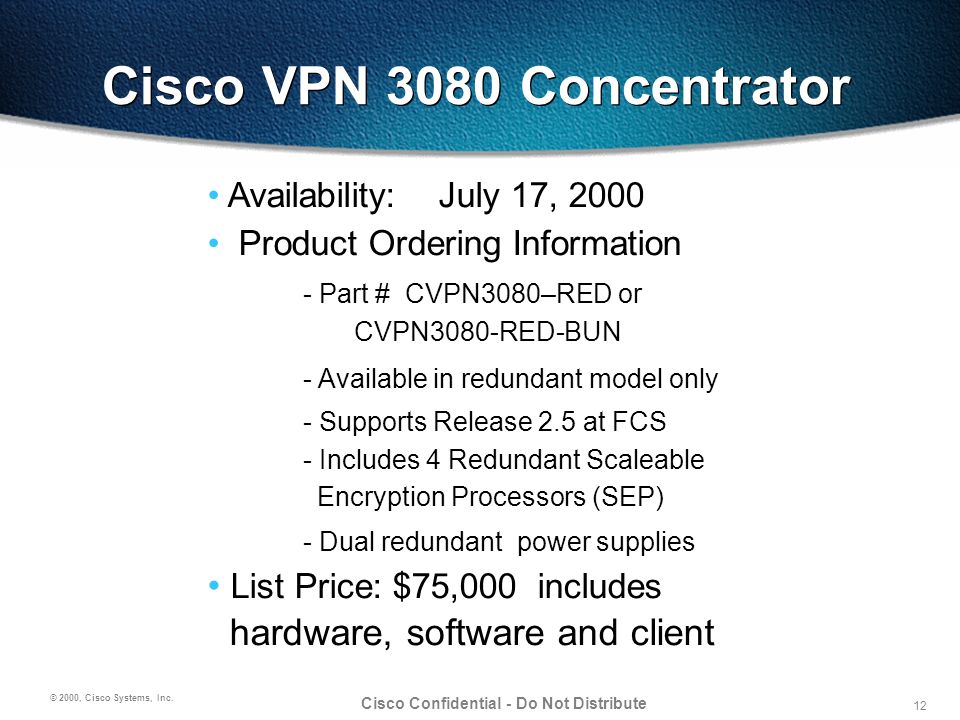

12. 12 © 2000, Cisco Systems, Inc. Cisco Confidential - Do Not Distribute Cisco VPN 3080 Concentrator Availability: July 17, 2000 Product Ordering Information - Part # CVPN3080–RED or CVPN3080-RED-BUN - Available in redundant model only - Supports Release 2.5 at FCS - Includes 4 Redundant Scaleable Encryption Processors (SEP) - Dual redundant power supplies List Price: $75,000 includes hardware, software and client
