1. T-76.4115/5115 Software Development Process Framework Jari Vanhanen

2. Contents T-76.4115 Software process framework Project management Requirements engineering Quality assurance Design & implementation Iterations

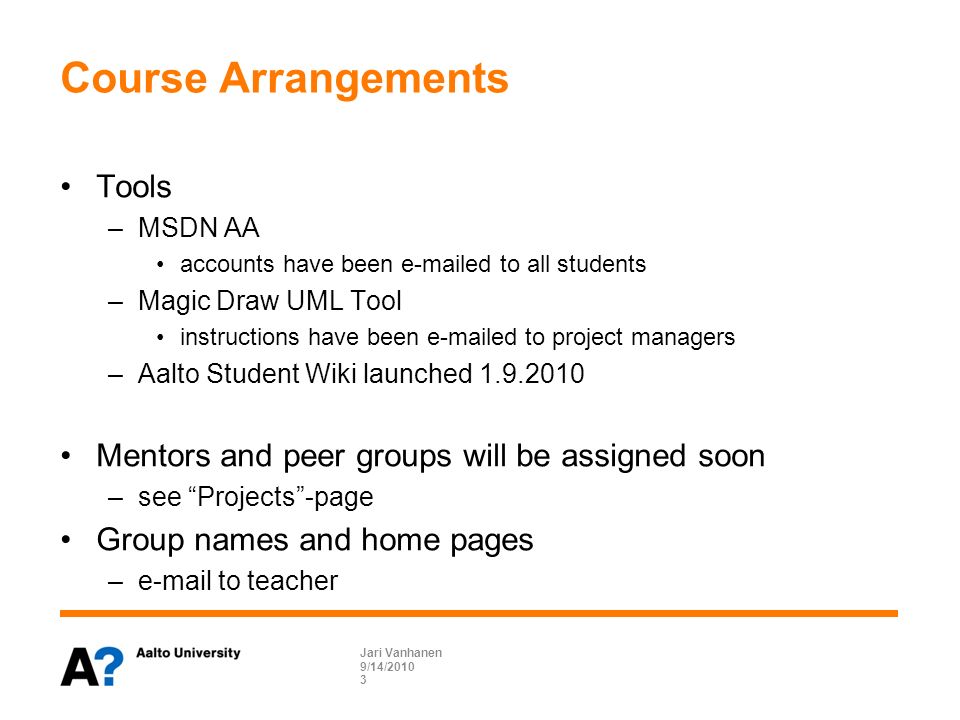

3. Course Arrangements Tools –MSDN AA accounts have been e-mailed to all students –Magic Draw UML Tool instructions have been e-mailed to project managers –Aalto Student Wiki launched 1.9.2010 Mentors and peer groups will be assigned soon –see “Projects”-page Group names and home pages –e-mail to teacher 9/14/2010 Jari Vanhanen 3

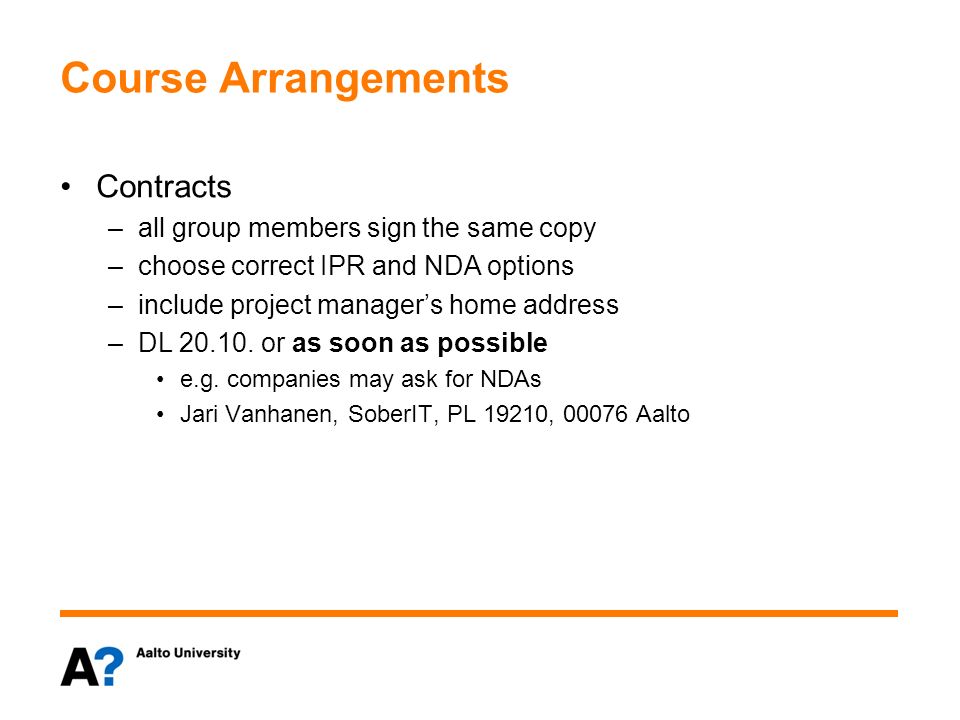

4. Course Arrangements Contracts –all group members sign the same copy –choose correct IPR and NDA options –include project manager’s home address –DL 20.10. or as soon as possible e.g. companies may ask for NDAs Jari Vanhanen, SoberIT, PL 19210, 00076 Aalto

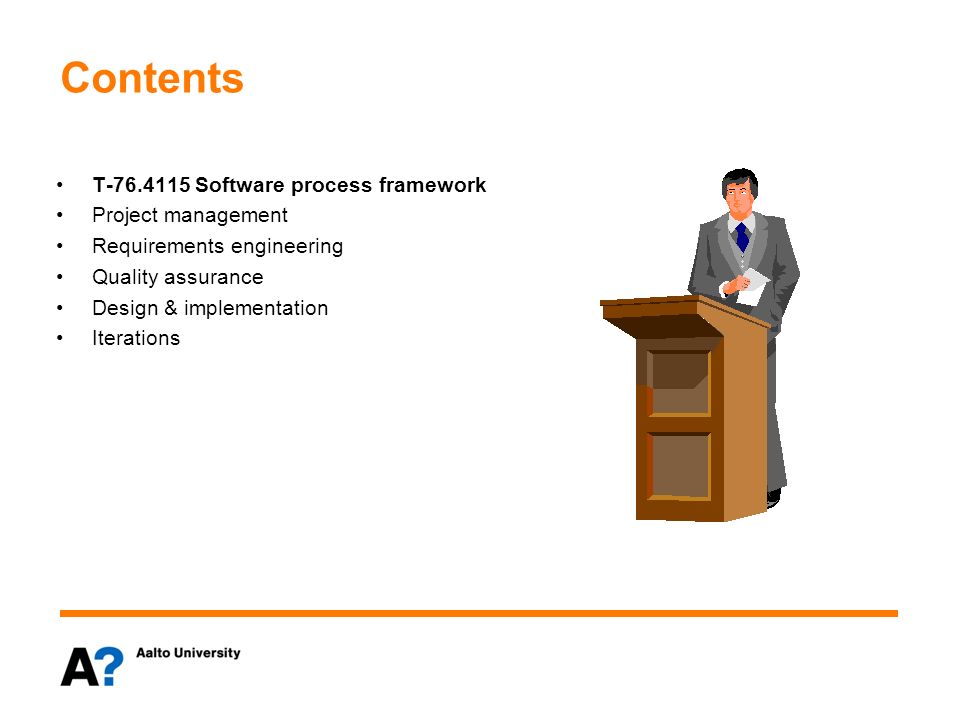

5. Contents T-76.4115 Software process framework Project management Requirements engineering Quality assurance Design & implementation Iterations

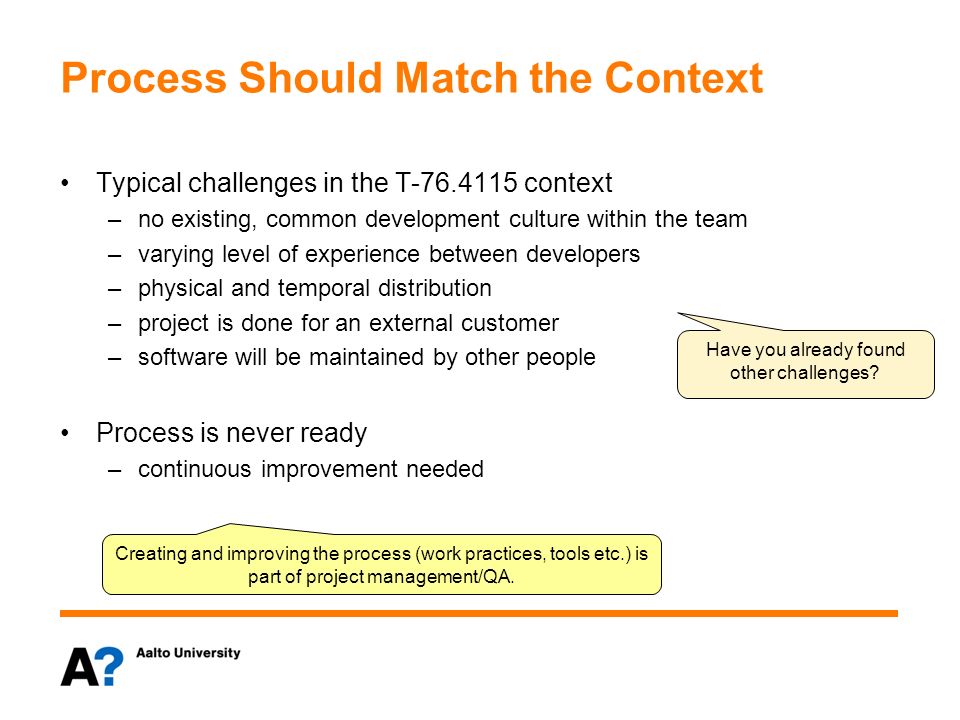

6. Process Should Match the Context Typical challenges in the T-76.4115 context –no existing, common development culture within the team –varying level of experience between developers –physical and temporal distribution –project is done for an external customer –software will be maintained by other people Process is never ready –continuous improvement needed Creating and improving the process (work practices, tools etc.) is part of project management/QA. Have you already found other challenges?

7. T-76.4115 Software Process Framework Helps you plan how to do the work Includes educational aspects –trying certain practices in a real context Enforces certain crucial/good work practices Allows lots of freedom (and responsibility) for customization Minimizing risks requires some “overhead”

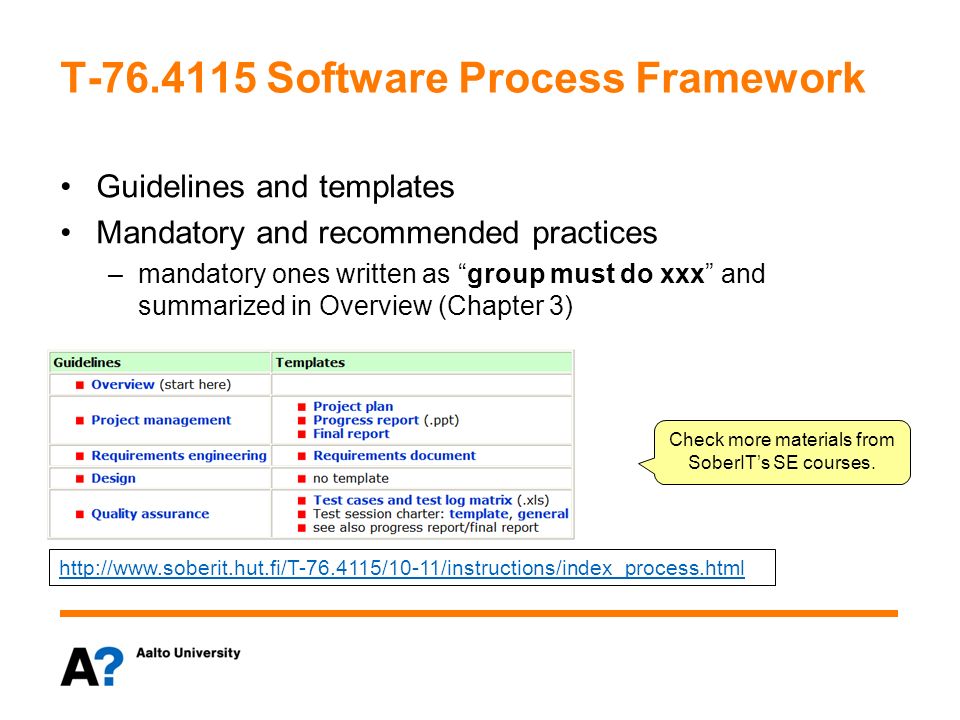

8. T-76.4115 Software Process Framework Guidelines and templates Mandatory and recommended practices –mandatory ones written as “group must do xxx” and summarized in Overview (Chapter 3) http://www.soberit.hut.fi/T-76.4115/10-11/instructions/index_process.html Check more materials from SoberIT’s SE courses.

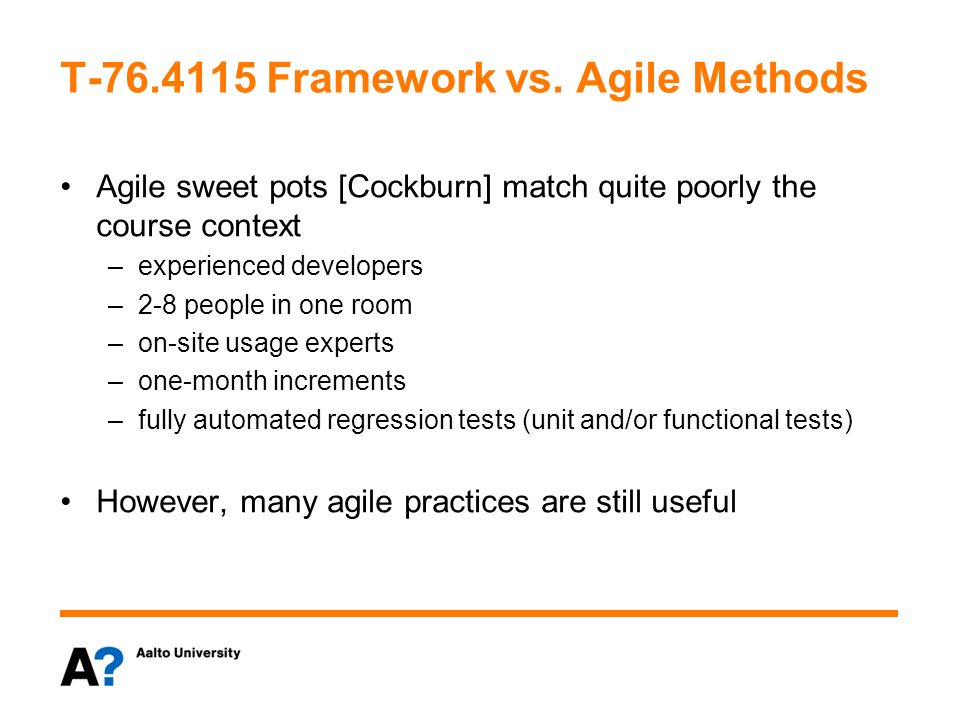

9. T-76.4115 Framework vs. Agile Methods Agile sweet pots [Cockburn] match quite poorly the course context –experienced developers –2-8 people in one room –on-site usage experts –one-month increments –fully automated regression tests (unit and/or functional tests) However, many agile practices are still useful

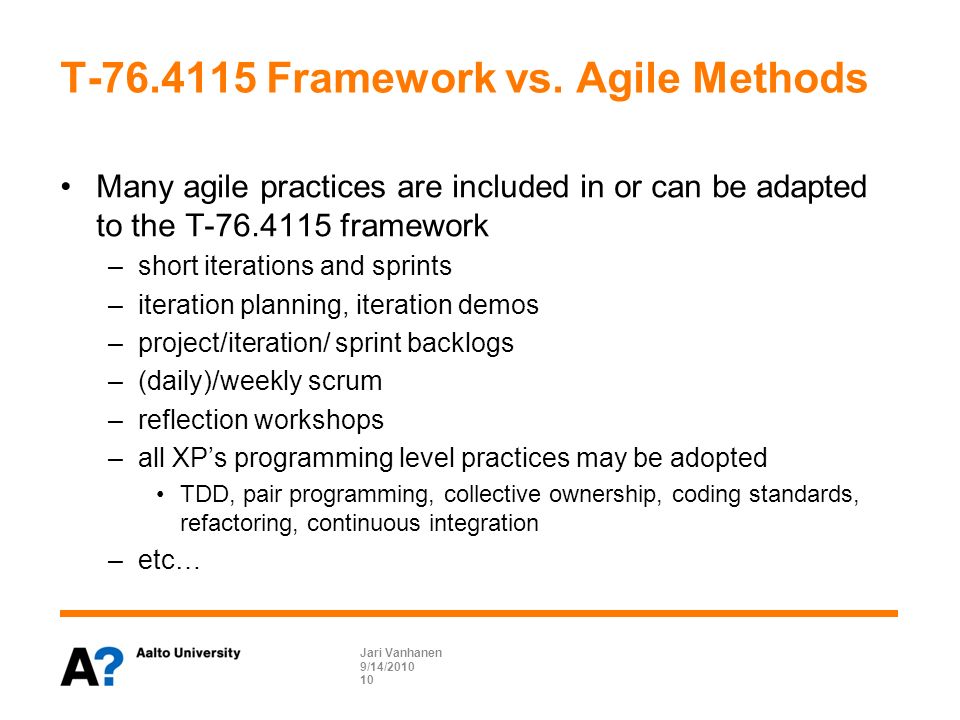

10. T-76.4115 Framework vs. Agile Methods Many agile practices are included in or can be adapted to the T-76.4115 framework –short iterations and sprints –iteration planning, iteration demos –project/iteration/ sprint backlogs –(daily)/weekly scrum –reflection workshops –all XP’s programming level practices may be adopted TDD, pair programming, collective ownership, coding standards, refactoring, continuous integration –etc… 9/14/2010 Jari Vanhanen 10

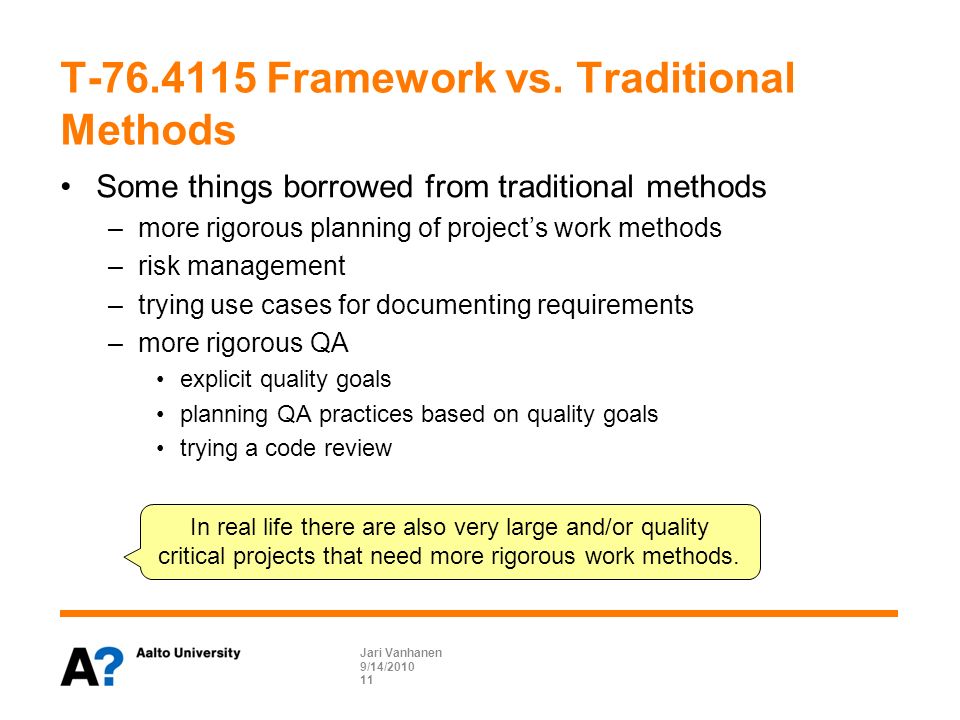

11. T-76.4115 Framework vs. Traditional Methods Some things borrowed from traditional methods –more rigorous planning of project’s work methods –risk management –trying use cases for documenting requirements –more rigorous QA explicit quality goals planning QA practices based on quality goals trying a code review 9/14/2010 Jari Vanhanen 11 In real life there are also very large and/or quality critical projects that need more rigorous work methods.

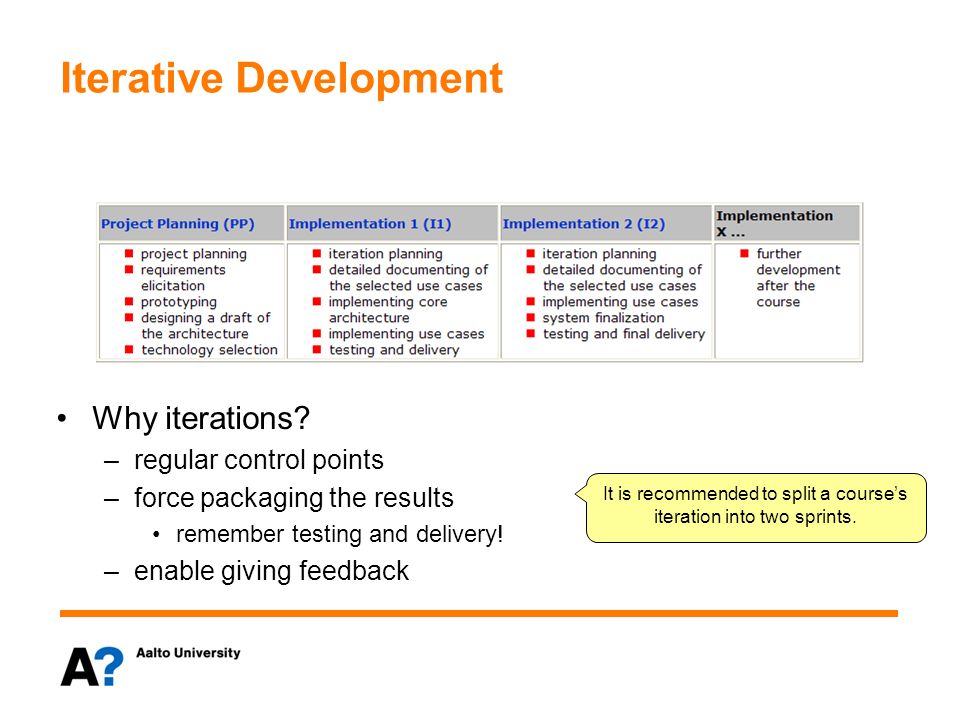

12. Iterative Development Why iterations? –regular control points –force packaging the results remember testing and delivery! –enable giving feedback It is recommended to split a course’s iteration into two sprints.

13. Software Process – Iterations 9/14/2010 13 Jari Vanhanen

14. Software Process – Iteration Planning Group and customer plan each iteration’s goals and deliverables –goals are higher level ideas of what is expected from the iteration –deliverables include software units and documents to be created/updated Customer selects and prioritizes iteration’s content based on –business importance –group’s effort allocation for the iteration –group’s rough effort estimates for implementing sw units –group’s estimates about architectural impact Group concretizes goals and deliverables into required tasks –re-planning, if task effort estimates and allocated resources differ largely 9/14/2010 Jari Vanhanen 14 Iteration planning meeting Deadline for the PP Iteration plan Mo 4.10. 13:00 by e-mail to customer, mentor and teacher

15. Software Process – Iteration Demo Arranged in the end of each iteration –tell impossible dates/times (8:00-19) to the teacher immediately –at SoberIT (Innopoli 2) Participants –at least the critical members of the student group –customer, mentor, teacher, Accenture Group presents project status and iteration’s results including sw demo –45 minutes including questions –slide set = progress report no need/time to present all content in detail Customer evaluates the work performed –private discussion about the given points with the mentor after the demo Tip! Combine the next iteration planning meeting to the iteration demo. 9/14/2010 15 Jari Vanhanen

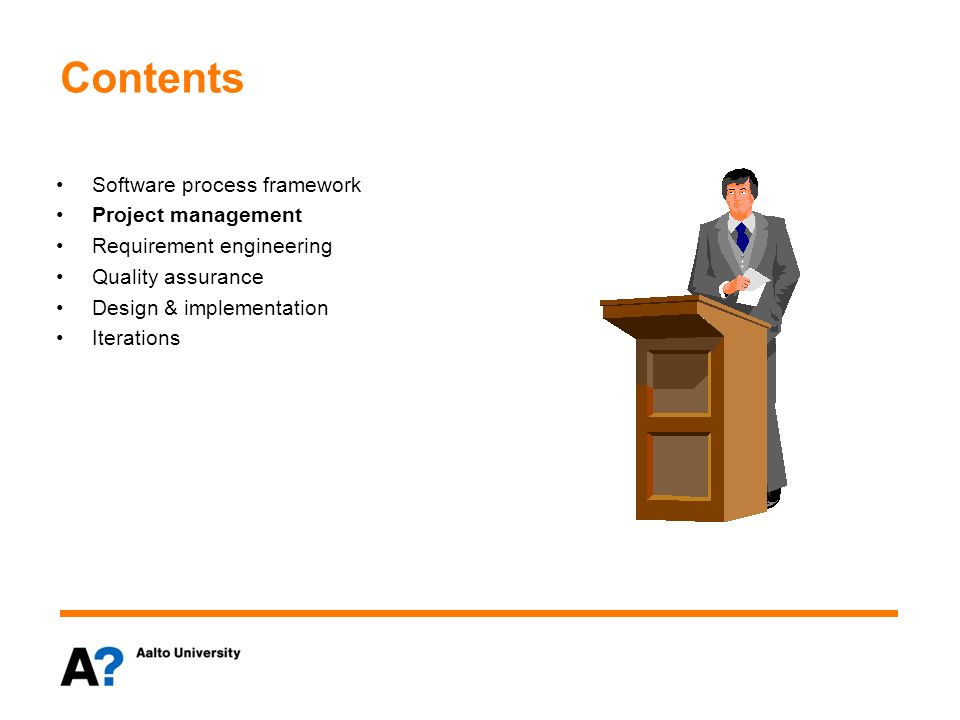

16. Contents Software process framework Project management Requirement engineering Quality assurance Design & implementation Iterations

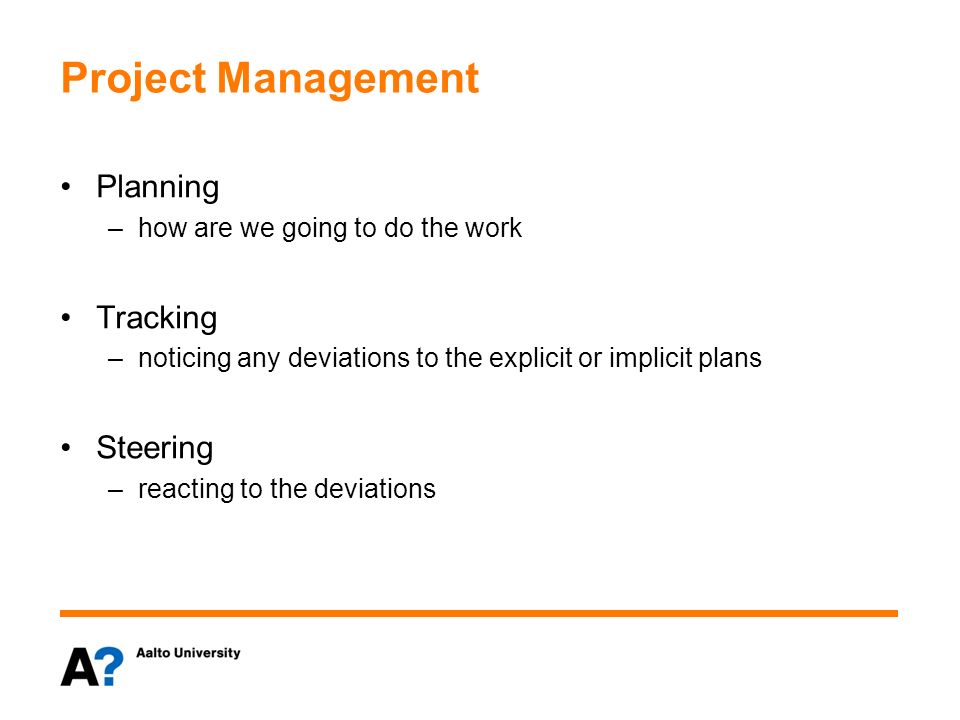

17. Project Management Planning –how are we going to do the work Tracking –noticing any deviations to the explicit or implicit plans Steering –reacting to the deviations

18. Content of T-76.4115 Project Plan 1. Introduction 2. Stakeholders and staffing 3. Goals 4. Resources 5. Work practices and tools 6. Phasing 7. Risk log planning is more important than documenting its results, but documenting is also needed in this kind of a project ”contract” with the customer basis for tracking and steering

19. Identify Stakeholders and Staffing External –customer representatives, mentor, 3 rd parties Internal –project group and its roles –sub groups? Show the relationships between the stakeholders –e.g. organizational chart Contact information –emails, phones, skype, web pages etc. You can rotate or change the assigned roles within the group.

20. Project Goals Defining goals –identify consider all stakeholders –resolve conflicts everyone’s commitment manage expectations –define verification criteria objective vs. subjective –prioritize Goals and priorities change –keep them up-to-date and document changes (and reasons) Project’s results will be evaluated against project’s goals Define personal learning goals separately!

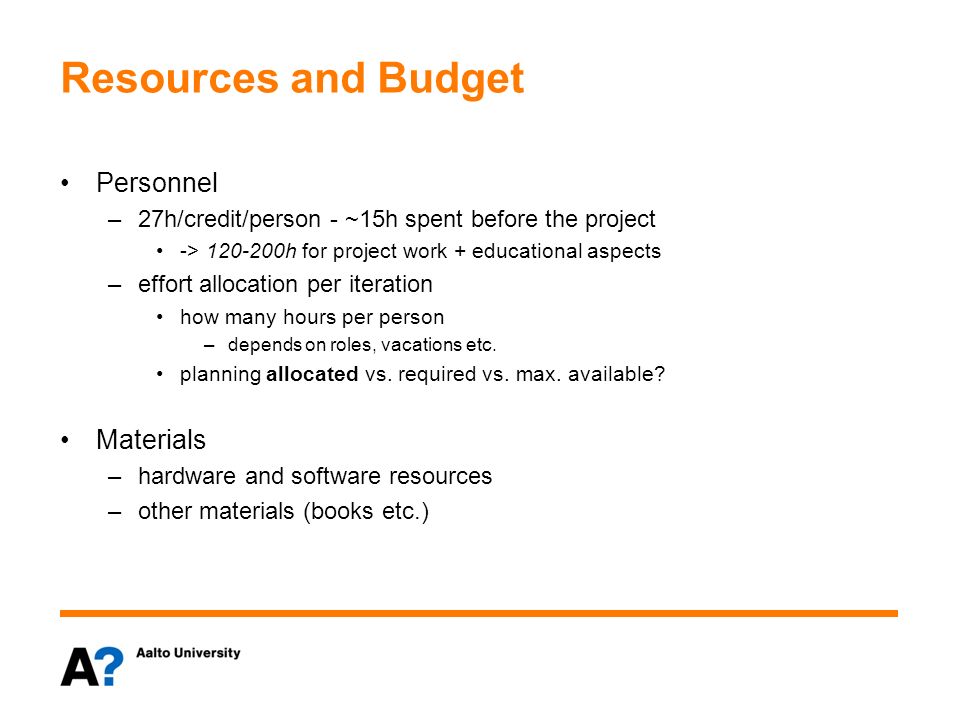

21. Resources and Budget Personnel –27h/credit/person - ~15h spent before the project -> 120-200h for project work + educational aspects –effort allocation per iteration how many hours per person –depends on roles, vacations etc. planning allocated vs. required vs. max. available? Materials –hardware and software resources –other materials (books etc.)

22. Work Practices and Tools Plan which practices and tools you will use and how –analyze the major challenges in the context of your project Document the practices shortly –all stakeholders need to know how work is done Continuous process improvement –reflection workshop in the end of iterations present action points in progress report –analyze practices in the final report Make sure the practices are deployed –and the usage is visible to the mentor Increasing visibility to mentor using low overhead approaches: build trust with the mentor show him work products, e.g. code review notes invite him to work sessions invite him to reflection workshops

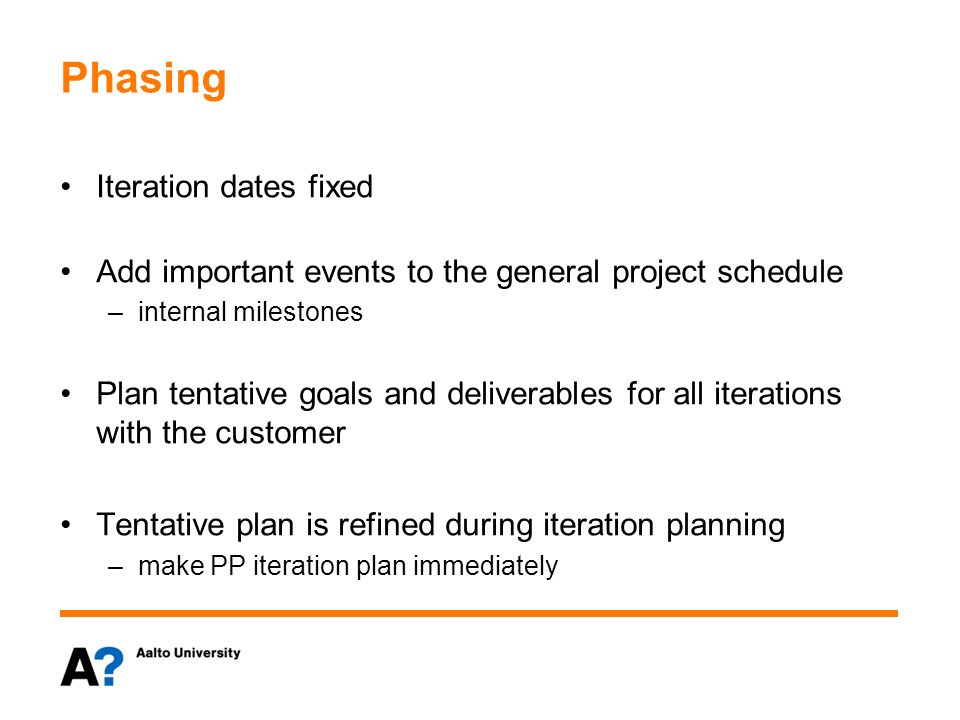

23. Phasing Iteration dates fixed Add important events to the general project schedule –internal milestones Plan tentative goals and deliverables for all iterations with the customer Tentative plan is refined during iteration planning –make PP iteration plan immediately

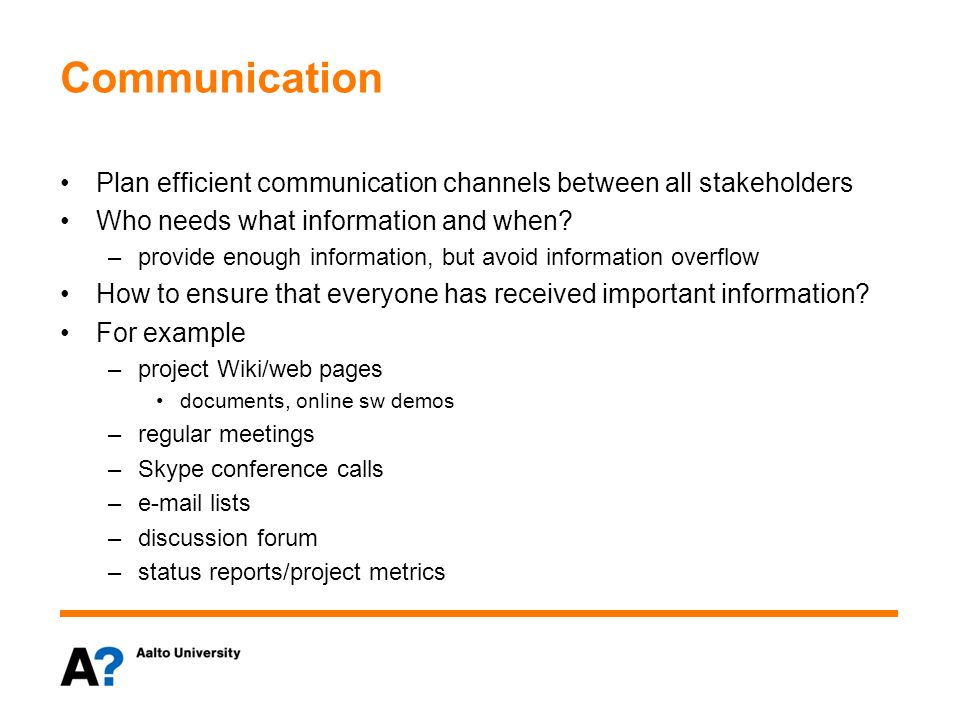

24. Communication Plan efficient communication channels between all stakeholders Who needs what information and when? –provide enough information, but avoid information overflow How to ensure that everyone has received important information? For example –project Wiki/web pages documents, online sw demos –regular meetings –Skype conference calls –e-mail lists –discussion forum –status reports/project metrics

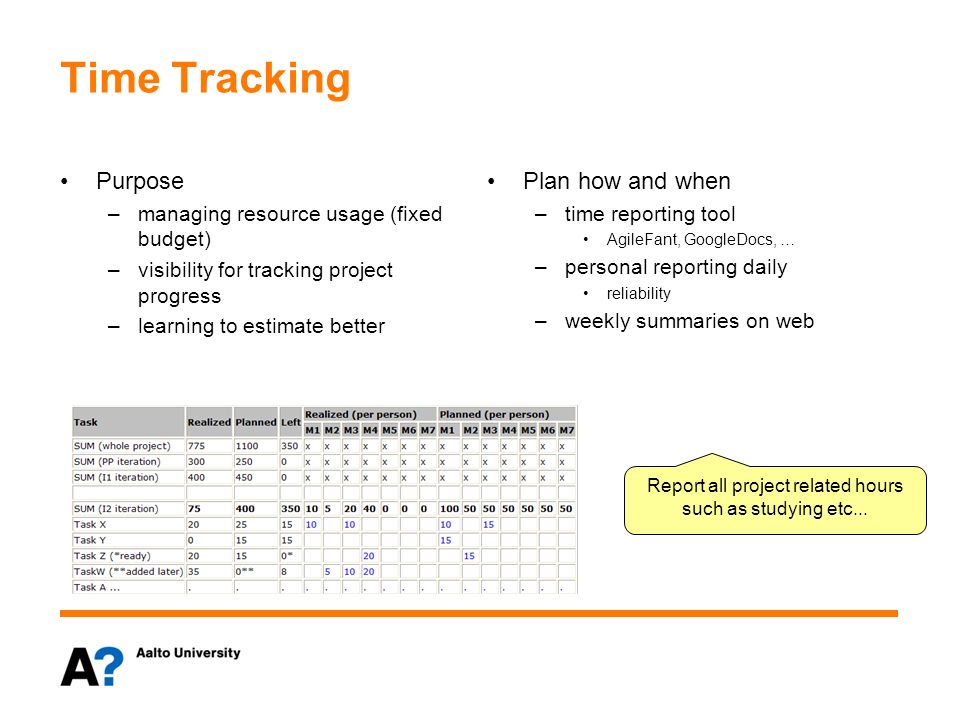

25. Time Tracking Purpose –managing resource usage (fixed budget) –visibility for tracking project progress –learning to estimate better Plan how and when –time reporting tool AgileFant, GoogleDocs, … –personal reporting daily reliability –weekly summaries on web Report all project related hours such as studying etc...

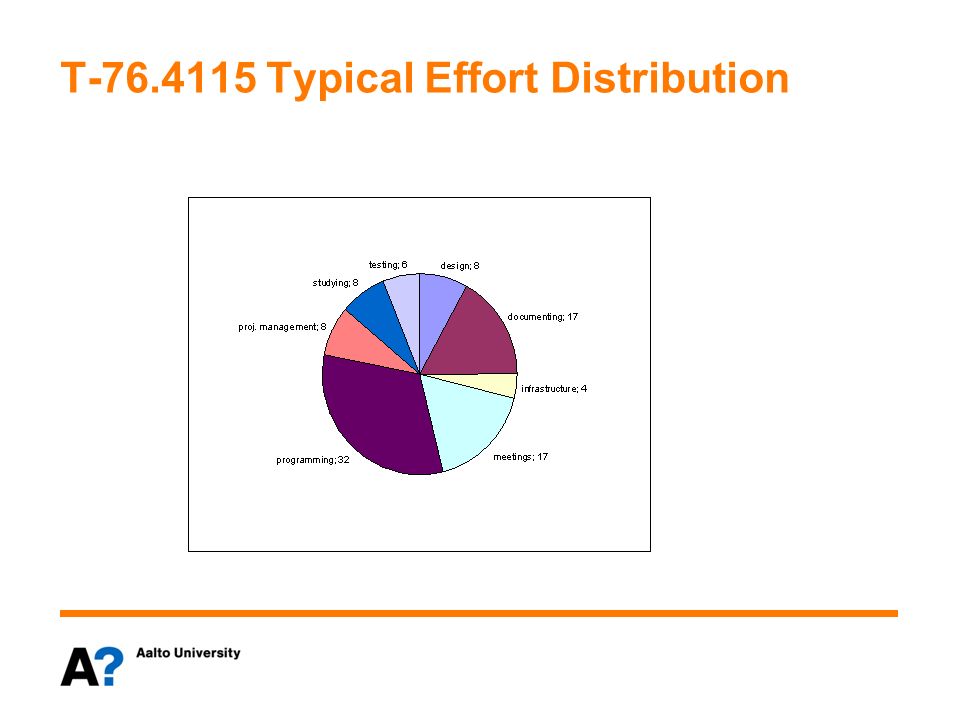

26. T-76.4115 Typical Effort Distribution

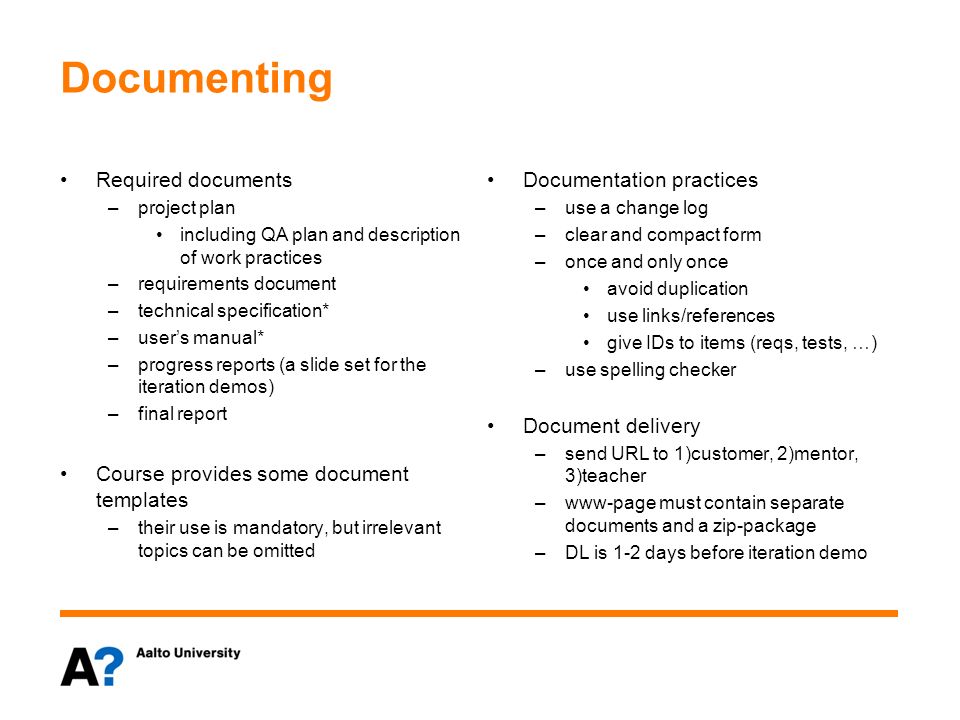

27. Documenting Required documents –project plan including QA plan and description of work practices –requirements document –technical specification* –user’s manual* –progress reports (a slide set for the iteration demos) –final report Course provides some document templates –their use is mandatory, but irrelevant topics can be omitted Documentation practices –use a change log –clear and compact form –once and only once avoid duplication use links/references give IDs to items (reqs, tests, …) –use spelling checker Document delivery –send URL to 1)customer, 2)mentor, 3)teacher –www-page must contain separate documents and a zip-package –DL is 1-2 days before iteration demo

28. Risk Management Risk identification –involve all stakeholders –use brainstorming and lists of typical risks Risk analyzing –for the most important risks analyze probability, severity effects controlling actions –document risks to the risk log Risk controlling –implement controlling actions to avoid or reduce risks Risk monitoring –check the risk situation and status of controlling actions –update the risk log in the end PP and I1 iterations

29. Project Management - Hints Arrange a project kick-off –get to know each other –find out about each other’s commitments and personal interests –discuss roles and responsibilities –good team spirit is crucial Arrange a weekly, co-located work session –at least for sub teams Start work immediately in the beginning of iterations –more calendar time to react to unexpected situations Test unfamiliar technologies and tools early to minimize risks Spy on others to get ideas –projects from previous years/this year –give a reference, if you copy some materials

30. Software Process – Project Management 9/14/2010 30 Jari Vanhanen

31. Contents Software process framework Project management Requirement engineering Quality assurance Design & implementation Iterations

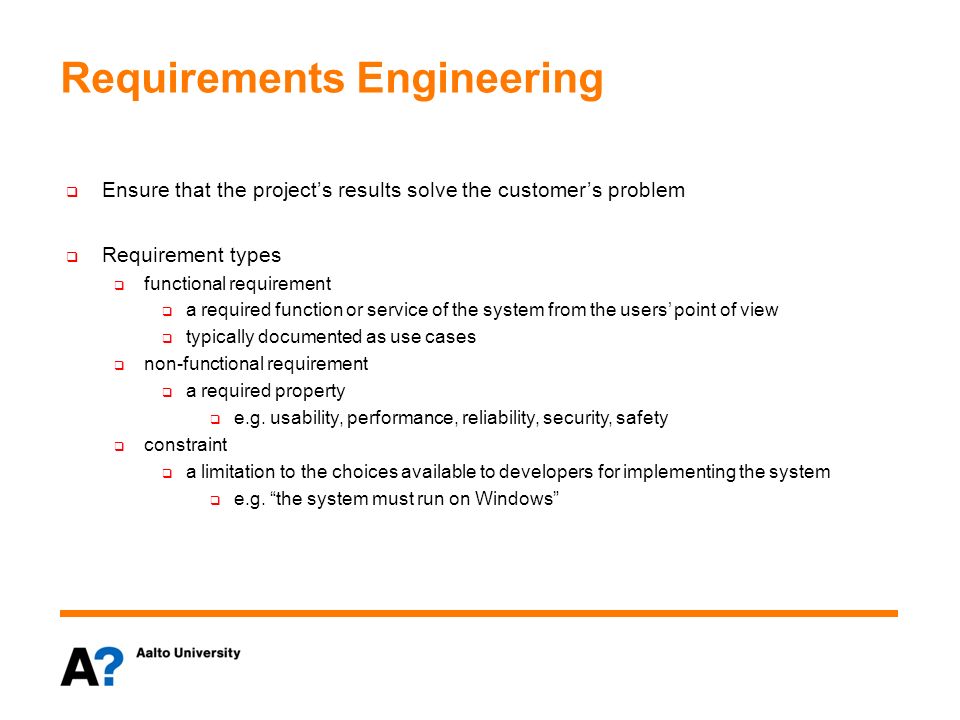

32. Requirements Engineering  Ensure that the project’s results solve the customer’s problem  Requirement types  functional requirement  a required function or service of the system from the users’ point of view  typically documented as use cases  non-functional requirement  a required property  e.g. usability, performance, reliability, security, safety  constraint  a limitation to the choices available to developers for implementing the system  e.g. “the system must run on Windows”

33. Elicitation Find out using any possible means: business goals main domain concepts user groups requirements (on high level) Analysis Analyze the gathered information. List identified requirements shortly. Estimate roughly: customer value, effort, architectural impact. Analysis Re-estimate the “most important” requirements. Iteration planning Choose iteration’s requirements. Representation Find out the details of iteration’s requirements. (Re-)Analysis Re-estimate required effort. Ensure realism of the plan. Validation Review iteration’s requirements. Get customer’s approval. Implementation, QA, Delivery Collect feedback from the customer. I1&I2 IterationsPP Iteration Change management, status tracking, tracing In practice many activities are parallel and iterative! Requirements Engineering

34. Other RE Activities Change management –requirements (refine, add, delete) –content of the iterations Status tracking –requirements’ statuses communicate project progress to the customer Tracing –showing relationships between requirements and other artifacts e.g. test cases are often derived from requirements

35. Software Process – Requirements Engineering 9/14/2010 35 Jari Vanhanen

36. Contents Software process framework Project management Requirement engineering Quality assurance Design & implementation Iterations

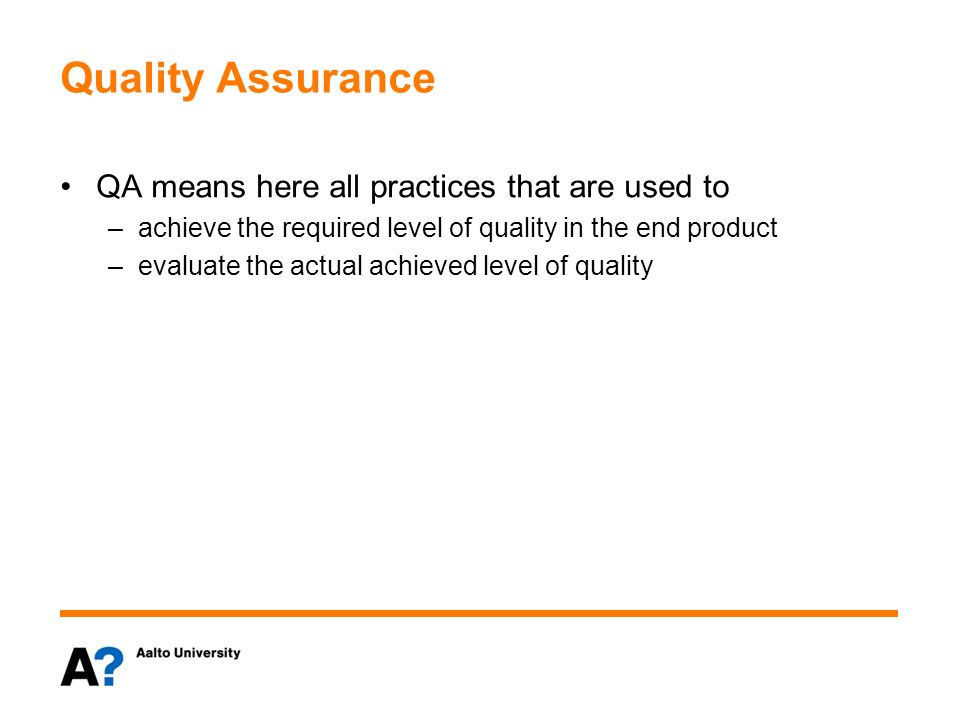

37. Quality Assurance QA means here all practices that are used to –achieve the required level of quality in the end product –evaluate the actual achieved level of quality

38. Planning QA Identify the most important quality goals –among non-functional requirements, implicit customer expectations, project goals and risks –for which parts of the system are the goals relevant Choose QA practices based on the quality goals –testing levels, test types, other QA practices –mandatory QA practices include test case based functional testing (50%), unit testing, coding standard, a code review Plan when the QA practices are performed –plan concrete QA tasks during iteration planning Plan what QA materials are needed –test cases, test data, test logs, defects reports, tools, guidelines Plan the utilization of QA information –for evaluation of quality status, for convincing the customer

39. Functional Testing Test case based (TCB) testing –pre-designed test cases based on requirements –must be used for at least 50% of the functional requirements Exploratory testing (ET) –not defined in advance –continually adjusted plans and re-focusing on the most promising risk areas –minimizes the time spent on documenting Managing ET - Session Based Test Management (SBTM) –45-120 minutes –test session charters –exploration log

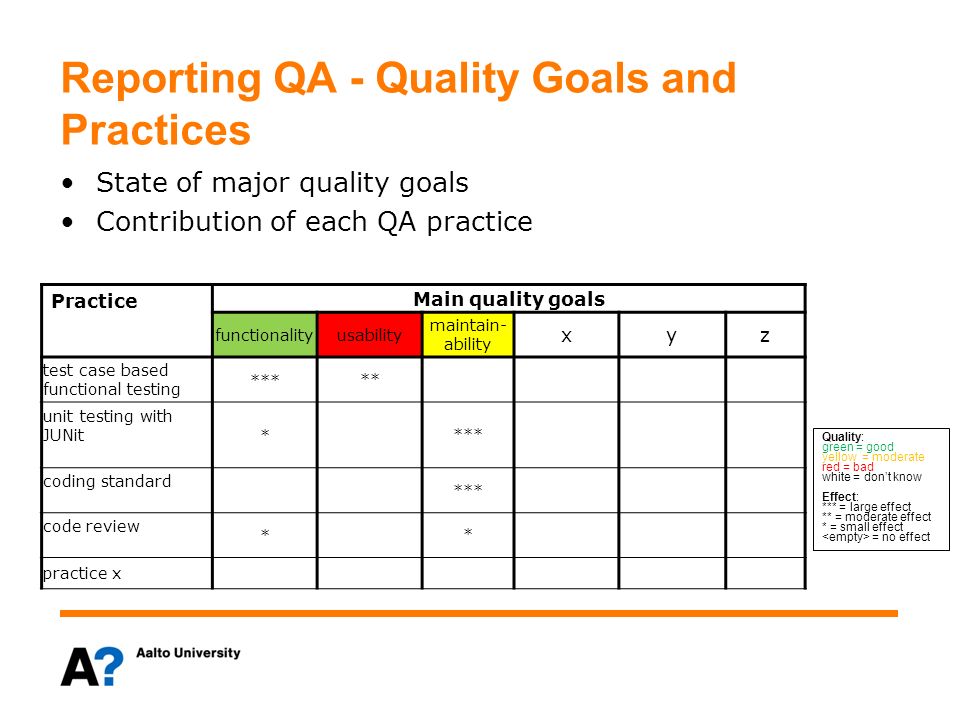

40. Reporting QA - Quality Goals and Practices State of major quality goals Contribution of each QA practice Practice Main quality goals functionalityusability maintain- ability xyz test case based functional testing ***** unit testing with JUNit**** coding standard *** code review ** practice x Quality: green = good yellow = moderate red = bad white = don’t know Effect: *** = large effect ** = moderate effect * = small effect = no effect

41. Reporting QA – Quality Status per Subsystem SubsystemQualityConfidenceComments File conversions 21 Only few minor defects found, very efficient implementation. GUI editor 0 Not started Encoder 02 Carefully tested, 2 critical bugs found during last test round, lots of small problems. Admin tools 12 Nothing serious yet Quality: 2 = good 1 = moderate 0 = bad = don’t know Confidence: 2 = high 1= moderate 0 = low Consider also other relevant quality metrics such as defect counts, code metrics...

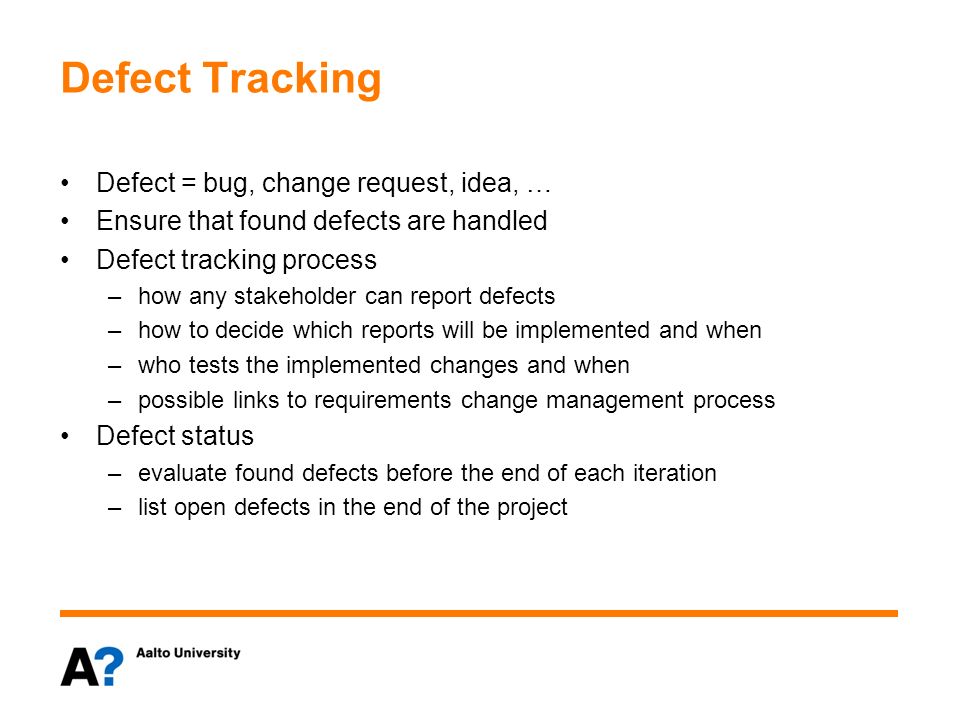

42. Defect Tracking Defect = bug, change request, idea, … Ensure that found defects are handled Defect tracking process –how any stakeholder can report defects –how to decide which reports will be implemented and when –who tests the implemented changes and when –possible links to requirements change management process Defect status –evaluate found defects before the end of each iteration –list open defects in the end of the project

43. Peer Testing Peer groups test each other’s systems in I2 –any additional collaboration is highly recommended At least 8 hours of testing effort Exploratory testing –give at least two test session charters Report findings –exploration log –defects, ideas, etc. –summary Evaluate the value of the testing done by the peer group

44. Software Process – Quality Assurance 9/14/2010 44 Jari Vanhanen

45. Contents Software process framework Project management Requirement engineering Quality assurance Design & implementation Iterations

46. Design Architecture design –identify architecturally significant requirements –create architecture description based on the most significant requirements at least functional and development views –validate architecture does it address the significant requirements Construction design –class diagrams –error handling –database schema definitions –… Documenting design –negotiate with the customer

47. Software Process – Design and Implementation 9/14/2010 47 Jari Vanhanen

48. Contents Software process framework Project management Requirement engineering Quality assurance Design & implementation Iterations

49. Iterations - Project Planning (PP) Iteration planning –work plan for the next ~3 weeks –customer in a minor role compared to later iterations Project planning –goals, resources, work practices Adoption of all relevant practices –communication –time tracking –requirements elicitation –… Requirements engineering –business goals, main domain concepts, user groups –list of requirements name & short description Initial drafts of the system architecture –select the implementation technologies –technology prototypes? Iteration demo –project plan and main requirements –project status

50. Iterations - Implementation 1 (I1) Iteration planning –architectural importance –business value QA plan RE, design, implement, QA, delivery Decide about technical documentation –level of detail, format, …

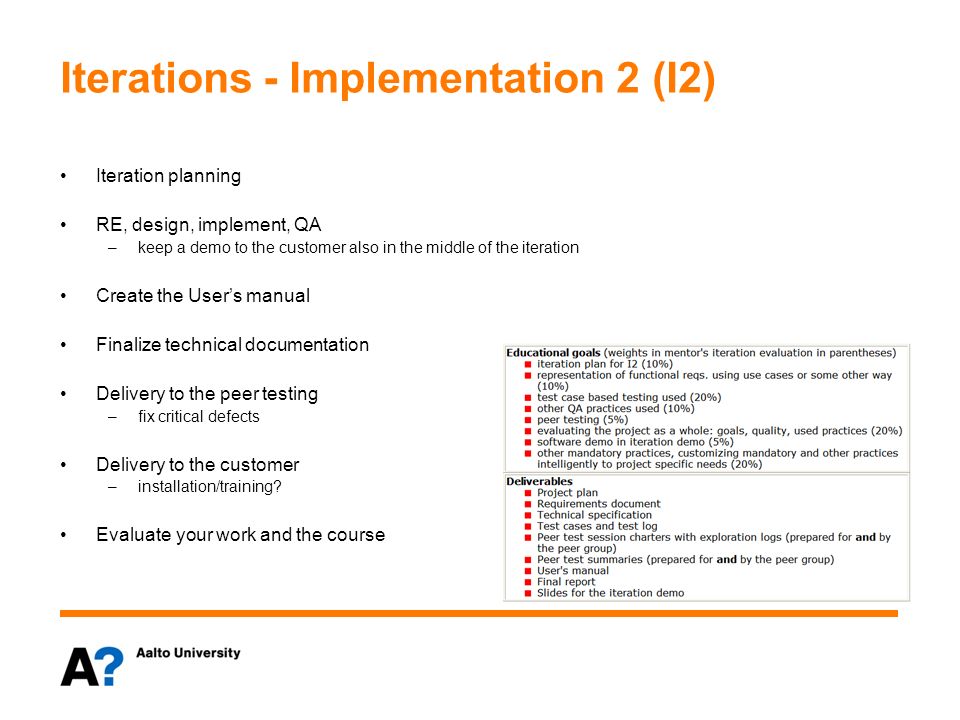

51. Iterations - Implementation 2 (I2) Iteration planning RE, design, implement, QA –keep a demo to the customer also in the middle of the iteration Create the User’s manual Finalize technical documentation Delivery to the peer testing –fix critical defects Delivery to the customer –installation/training? Evaluate your work and the course

52. Other Practices In addition to the practices discussed in the process framework you may use any other relevant practices See for example the Recommended practices -document –Heuristic evaluation –Usability tests –Design patterns –Pair programming –Refactoring –Automated unit tests –Test-driven development –Test automation on system test level –… http://www.soberit.hut.fi/T-76.4115/10-11http://www.soberit.hut.fi/T-76.4115/10-11/instructions/recommended_practices.html

53. Experience Exchange Sessions (EESs) Dates in the course schedule –first ones on Thursday 7.10. Send two proposals for discussion by previous day 13:00 –teacher prepares agenda for the session Discussion language is Finnish Two persons per group may participate Innopoli 2, SoberIT seminar hall

54. Next Steps Arrange the first meetings –with the whole group, customer, mentor Start project planning –roles and responsibilities –urgent work practices communication time tracking –iteration plan DL Mo 4.10. 13:00 Start requirements elicitation Sign the contract with Aalto
