1. sponsored by Bernd Bohne Sparda-Datenverarbeitung e.G. in a banking data center - from the past to the future SAG UG NA - Conference Philadelphia 10/2006

2. sponsored by Sparda-Datenverarbeitung eG

3. sponsored by Sparda-Datenverarbeitung eG oriented on the German market offers it‘s service to 28 Bank-Companies with 7900 Employees and a total Balance of 66.2 Bn. € 23,600,000 Accounts 5,000,000 Customers

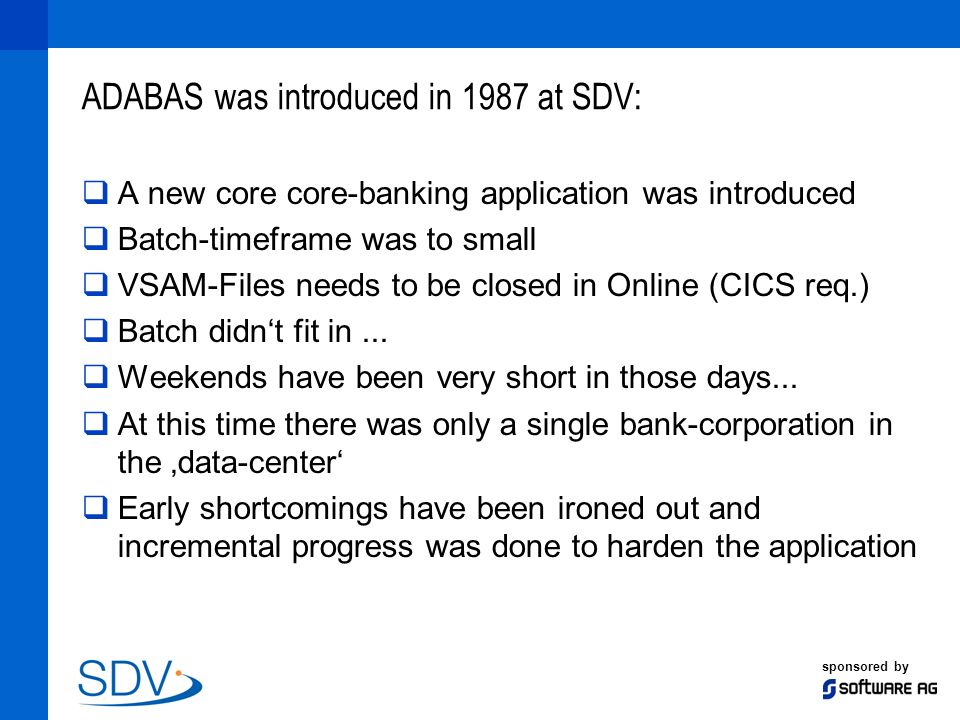

4. sponsored by ADABAS was introduced in 1987 at SDV:  A new core core-banking application was introduced  Batch-timeframe was to small  VSAM-Files needs to be closed in Online (CICS req.)  Batch didn‘t fit in...  Weekends have been very short in those days...  At this time there was only a single bank-corporation in the ‚data-center‘  Early shortcomings have been ironed out and incremental progress was done to harden the application

5. sponsored by The next years have been very busy...  The nagging question remains: How to deal with big bank companies?  Some of the tension disappears by implementing ADABAS.  Thought the core-banking application was VSAM based?  SAG offers a migration tool, called ADABAS VSAM bridge  via SVC-screening requests have been converted to ADABAS-calls

6. sponsored by ADABAS VSAM Bridge (AVB): CICS Batch SVC-Screening AVB Transparency Table VSAM-File ADABAS-File SVC 19 ‚open‘ & SVC 20 ‚close‘ at CICS-Startup PLT and CICS-Shut Down

7. sponsored by Results of this move in general?  Batch could run in parallel to CICS  Datamodel could remain unchanged  Restart informations could be used („ET-Data“)

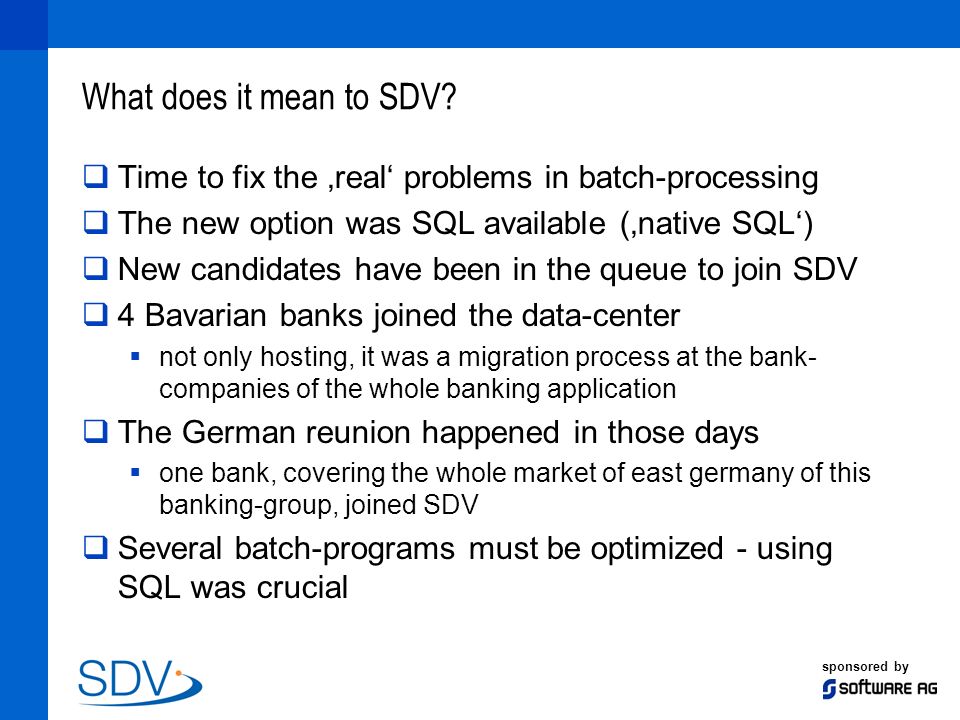

8. sponsored by What does it mean to SDV?  Time to fix the ‚real‘ problems in batch-processing  The new option was SQL available (‚native SQL‘)  New candidates have been in the queue to join SDV  4 Bavarian banks joined the data-center  not only hosting, it was a migration process at the bank- companies of the whole banking application  The German reunion happened in those days  one bank, covering the whole market of east germany of this banking-group, joined SDV  Several batch-programs must be optimized - using SQL was crucial

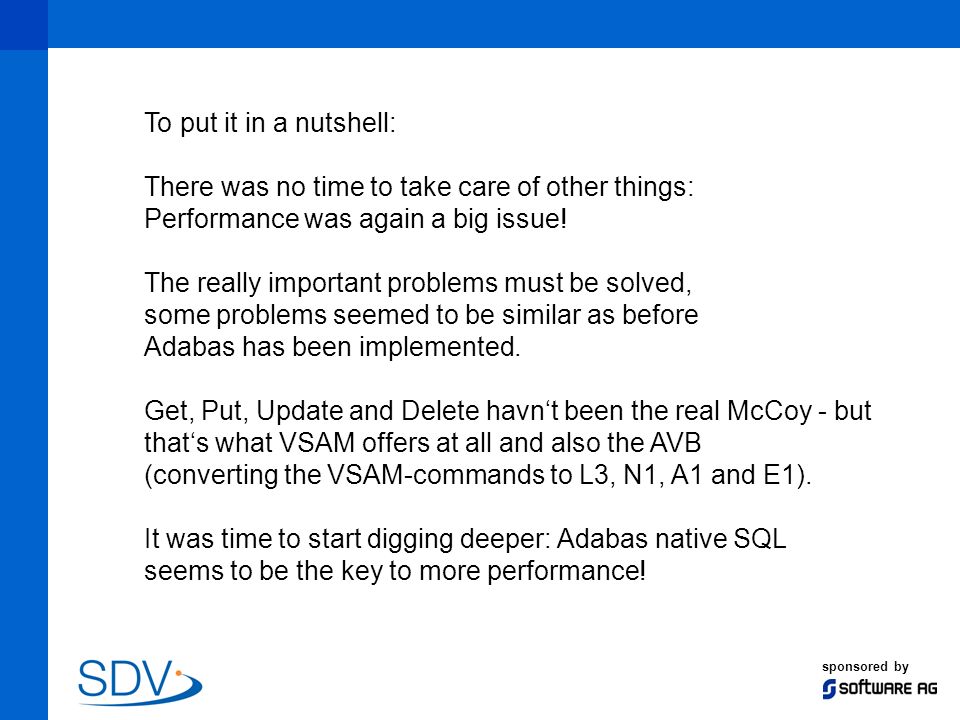

9. sponsored by To put it in a nutshell: There was no time to take care of other things: Performance was again a big issue! The really important problems must be solved, some problems seemed to be similar as before Adabas has been implemented. Get, Put, Update and Delete havn‘t been the real McCoy - but that‘s what VSAM offers at all and also the AVB (converting the VSAM-commands to L3, N1, A1 and E1). It was time to start digging deeper: Adabas native SQL seems to be the key to more performance!

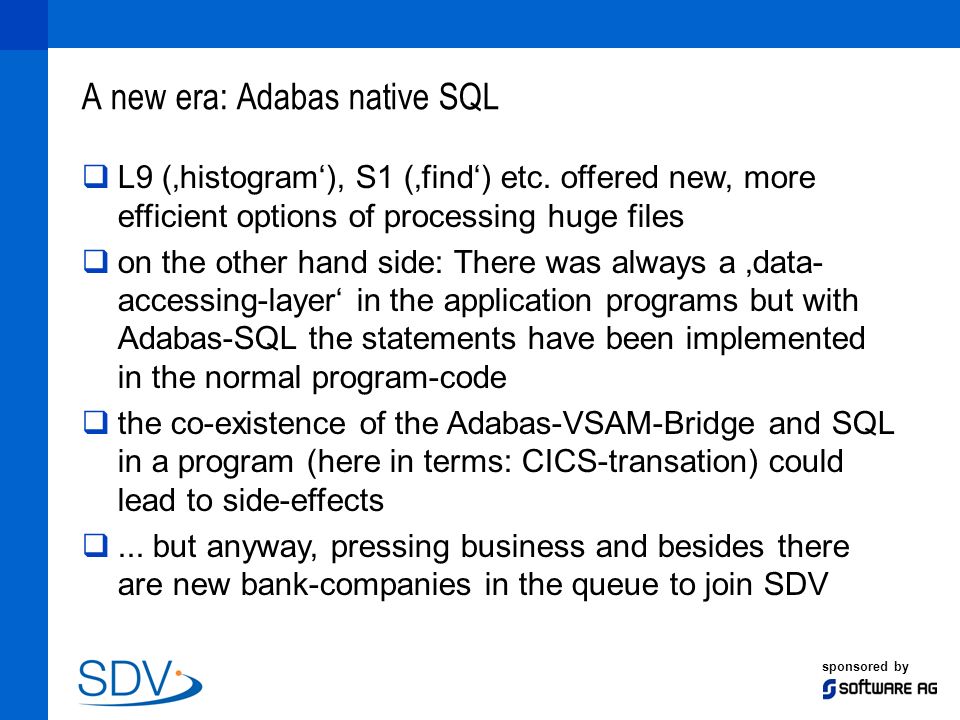

10. sponsored by A new era: Adabas native SQL  L9 (‚histogram‘), S1 (‚find‘) etc. offered new, more efficient options of processing huge files  on the other hand side: There was always a ‚data- accessing-layer‘ in the application programs but with Adabas-SQL the statements have been implemented in the normal program-code  the co-existence of the Adabas-VSAM-Bridge and SQL in a program (here in terms: CICS-transation) could lead to side-effects ... but anyway, pressing business and besides there are new bank-companies in the queue to join SDV

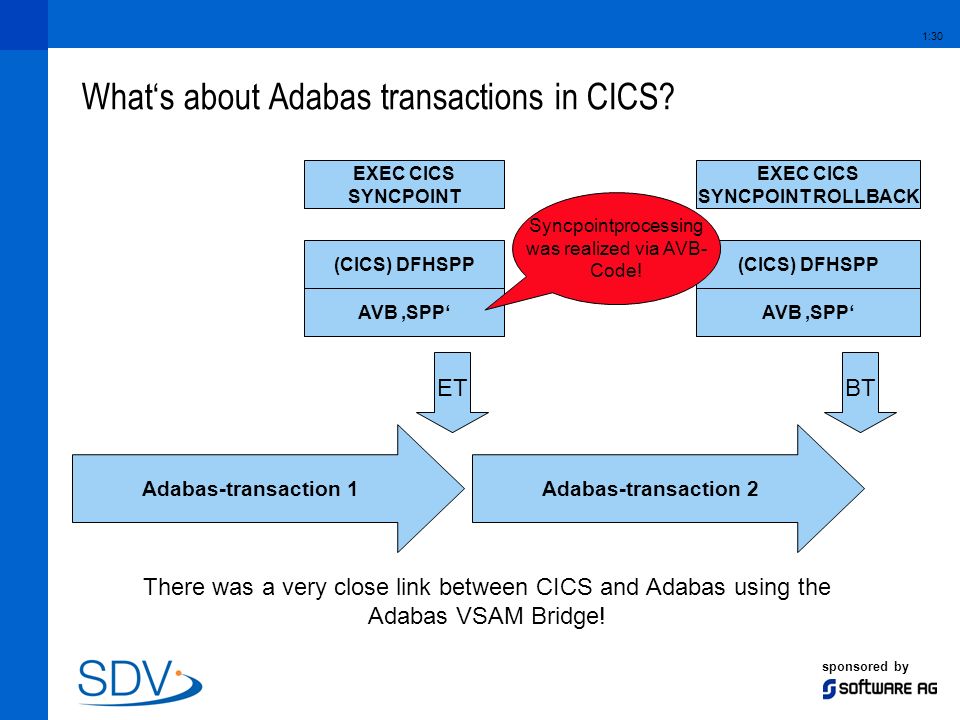

11. sponsored by What‘s about Adabas transactions in CICS? Adabas-transaction 1Adabas-transaction 2 EXEC CICS SYNCPOINT (CICS) DFHSPP AVB ‚SPP‘ ETBT EXEC CICS SYNCPOINT ROLLBACK (CICS) DFHSPP AVB ‚SPP‘ There was a very close link between CICS and Adabas using the Adabas VSAM Bridge! Syncpointprocessing was realized via AVB- Code! 1:30

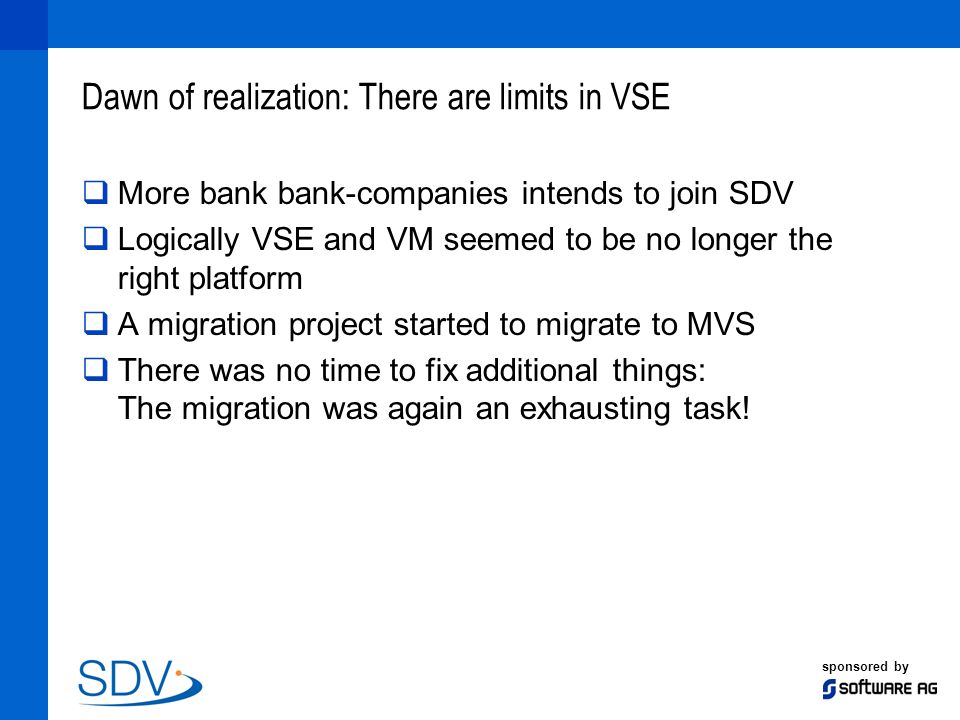

12. sponsored by Dawn of realization: There are limits in VSE  More bank bank-companies intends to join SDV  Logically VSE and VM seemed to be no longer the right platform  A migration project started to migrate to MVS  There was no time to fix additional things: The migration was again an exhausting task!

13. sponsored by The year of consolidation 1996...  After such a long period of time, there was the year of consolidation announced...!  This turned to be one of the most busiest years in history of the company:  2 bank-companies asked to join SDV - who wants to say no!  But anyway, there‘s still a light at the horizon: Let‘s do it next year!  A complete new banking-group decided in favour of SDV...

14. sponsored by Automatic Teller Machine technology requires to consolidate files: Bank A Bank B Bank C database A database B database C Each bank-company was from the infrastructure point sitting in it‘s own isolated environment! Advantage and disadvantage: Sharing no data!

15. sponsored by ? ? ? ATM technology requires to consolidate files... Bank A Bank B Bank C DB A DB B DB C ATM File Copy To copy every day specific files, does this really make sense?

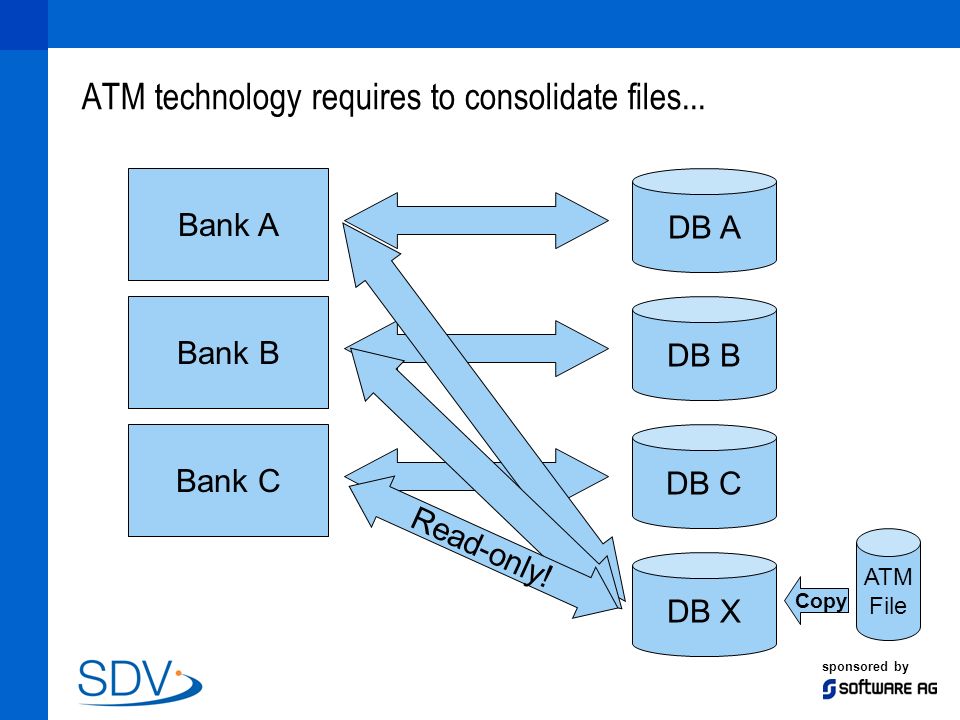

16. sponsored by ATM technology requires to consolidate files... Bank A Bank B Bank C DB A DB B DB C DB X Read-only! ATM File Copy

17. sponsored by By the way: ATM means 24 by 7 Project ‚Sysplex 2000‘  A 2nd Data Center was implemented  DASD mirroring (‚PPRC‘) established  Network-components like IP have been separated in 2 ‚Net-LPars‘ and two production LPars established  The whole System architecture was re-engineered  Only redundancy could meet the much higher requirements of our customers  Also at these days: The 1st gateways were established to the Internet.

18. sponsored by The ‚big picture‘: CICS Transaction Gateway CICS Bank A Internet Routing CICS CICS Bank BCICS Bank C DB ADB BDB CDB X WebSphere (Blades/Linux) A weak point: ‚Single point of failure‘

19. sponsored by A new ATM application was implemented:  ATM-front-end (CICS-/DB2-based) was implemented  DB2: Isolated in a ‚small‘ LPar after changing to WLC SW-Pricing (saved approx. 10k € per month)  This step was also necessary to bring DB2 with datasharing in an affordable cost-range  Front-end and core-banking-application have been linked via DPL

20. sponsored by And the application? The ‚MBS-new‘ project started!  Core banking application ‚modular banking system‘ was redesigned  Data access layer was new established (incl. native SQL)  Data access was in ‚server-modules‘ file-related established  XML-Interface was established  CICS-getmain-shared removed (CICSplex...!!!)  AVB removed (how do you synchronize?)  New requirement: Why is it not possible to update more than one database? (‚Modification-requests‘ have been rejected by user-exit at the link-interface‘).

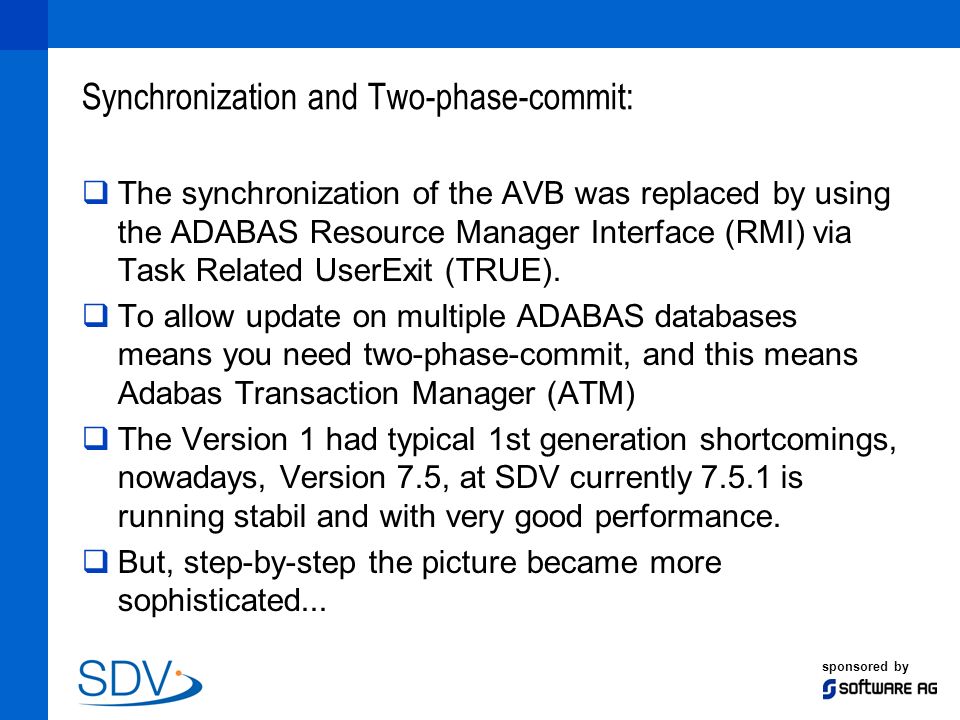

21. sponsored by Synchronization and Two-phase-commit:  The synchronization of the AVB was replaced by using the ADABAS Resource Manager Interface (RMI) via Task Related UserExit (TRUE).  To allow update on multiple ADABAS databases means you need two-phase-commit, and this means Adabas Transaction Manager (ATM)  The Version 1 had typical 1st generation shortcomings, nowadays, Version 7.5, at SDV currently 7.5.1 is running stabil and with very good performance.  But, step-by-step the picture became more sophisticated...

22. sponsored by Overview ADABAS, AFP/COR and ATM: Appl.-LPar P82 CICS 82 ADA 82 Appl.-LPar P96 CICS 96 ADA 96 AFP82 / COR*AFP96 / COR* N E T W O R K 82 N E T W O R K 96 PPRC Data Center 1 Data Center 2 *) Daemon-Mode XCF ATM: P582ATMATM: P596ATM 1:45

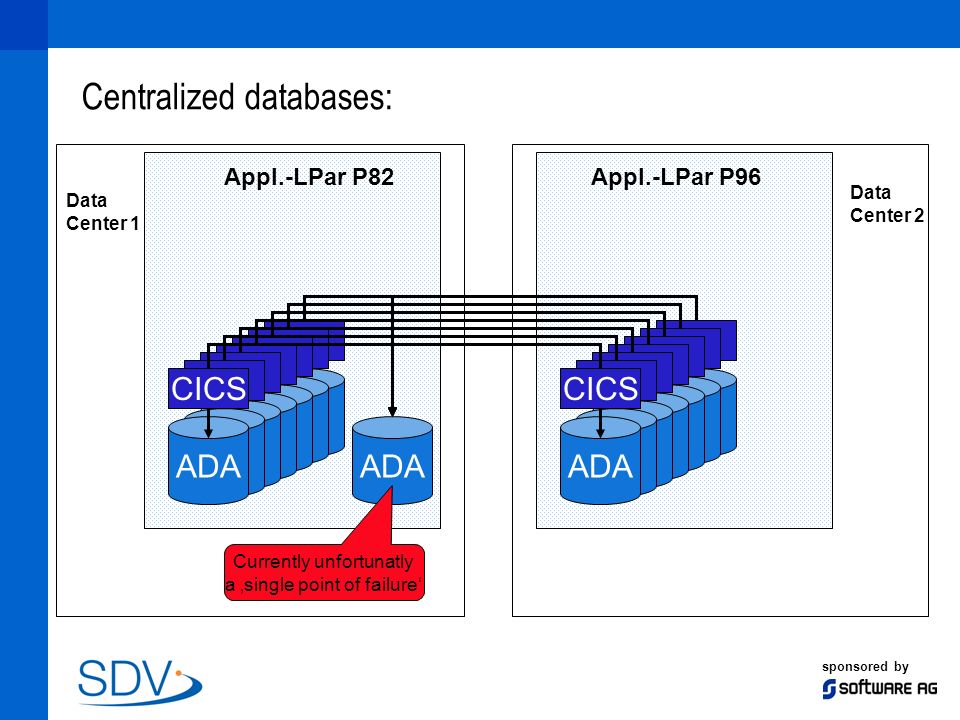

23. sponsored by Centralized databases: Appl.-LPar P82Appl.-LPar P96 Data Center 1 Data Center 2 ADA CICS ADA CICS ADA Currently unfortunatly a ‚single point of failure‘

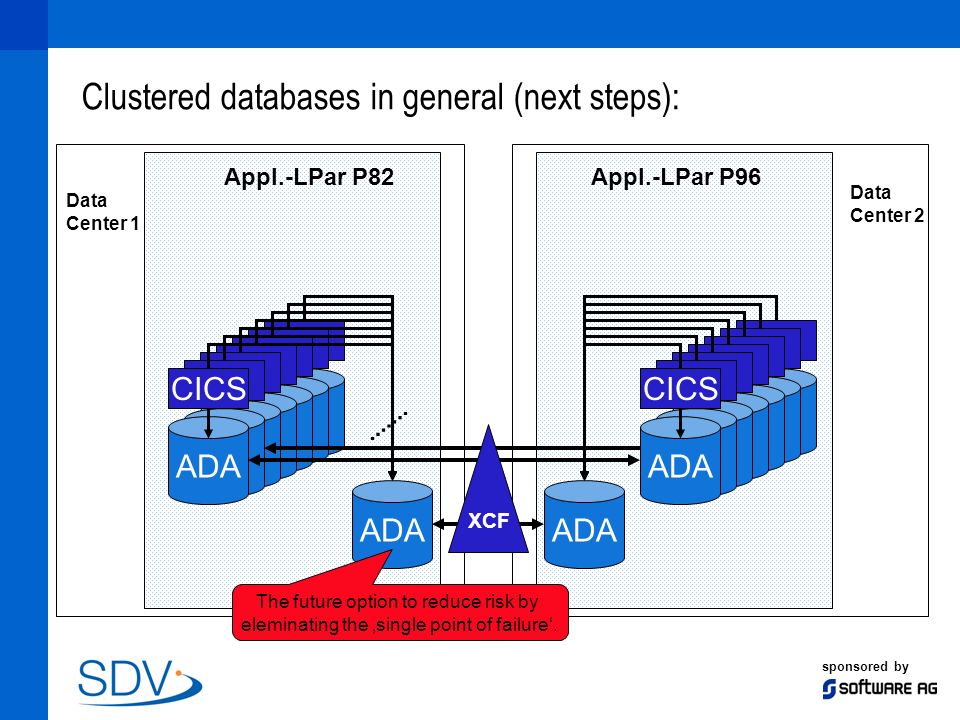

24. sponsored by Data Center 1 Data Center 2 Clustered databases in general (next steps): Appl.-LPar P82Appl.-LPar P96 ADA CICS ADA....... XCF The future option to reduce risk by eleminating the ‚single point of failure‘.

25. sponsored by Data Center 1 Data Center 2 Clustered databases in general and ATM (ATM751): Appl.-LPar P82Appl.-LPar P96 ADA CICS...... ADA ATM 82 ATM 96 A new ‚single point of failure‘ The ATM 751 is clearly a new single point of failure: There are two linked ATMs but each one is unique because it‘s ‚LPar-bound‘. XCF

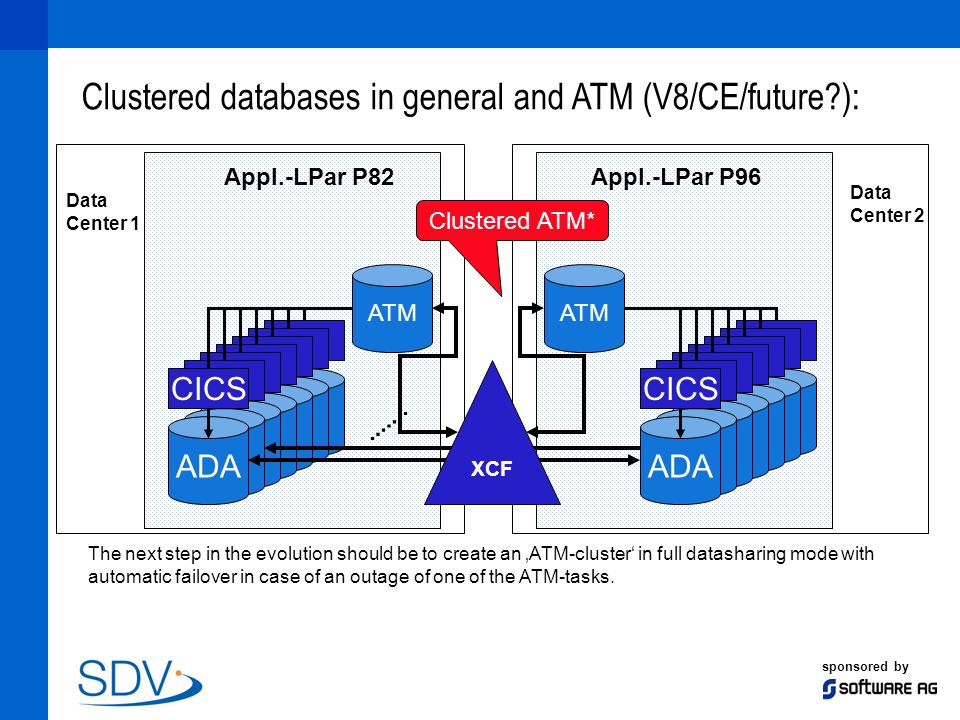

26. sponsored by Data Center 1 Data Center 2 Clustered databases in general and ATM (V8/CE/future?): Appl.-LPar P82Appl.-LPar P96 ADA CICS....... ADA ATM XCF Clustered ATM* The next step in the evolution should be to create an ‚ATM-cluster‘ in full datasharing mode with automatic failover in case of an outage of one of the ATM-tasks.

27. sponsored by Current Infrastructure (Mainframe)  2x z9 (IBM 2094-705) - each 64 GB  2x z890 (IBM 2086 / 2 Engines CF / each 16 GB)  Coupling Links (XCF): ISC-D (Card) and ISC-3 (Port)  2x HDS USP (USP600 & USP100, each partitioned)  2x HDS 9970 („MF only“)  DASD: Direct attached Ficon  OS: zOS 1.8 and zVM 5.2  CF: CC14  Tape: STK SL8500/9940B, STK 9310 („Powderhorn“)/ 9840 both at each DataCenter, Titanium 10,000 and FSC CentricStor

28. sponsored by Current Infrastructure XCF/Coupling Links: DataCenter 1 DataCenter 2 1.6 km ISC-D / ISC-3 (Fiber) (8x) (6x) IBM z9 IBM z890

29. sponsored by Level and Configuration ADABAS and Add On:  ADABAS:  ADA743 + LX08 (ATM)  ADABAS Fastpath:  AFP742 (Global Buffer at both DataCenter)  ADABAS Transaction Manager:  ATM751 (incl. CICS-RMI)  ADABAS System Coordinator  COR742 (Daemon Mode)

30. sponsored by XCF - Request Time (Hardware):  Started with „shared“ CPUs: 300 - 400 micSec.*  „dedicated“ CPUs: 20 - 80 micSec.*  Influence of ISC-D and ISC-3 (interface/port) *) Average ‚over-all‘, not ADABAS DS-specific - env. GRS Star, CICS TS 2.3, z/OS 1.6

31. sponsored by Our current Status (‚ADABAS datasharing‘):  Since end 06/2006 we have all ADABAS env. in test- sysplex in a datasharing configuration  We started with „minor-important“ environments in production in 07/2006 with ALS  If no further obstacles appear: We will finish in 2006 with the rollout in production, latest end 2nd quarter 2007  Currently we see no influence of ALS to AFP/COR, ATM (necessary configuration changes)

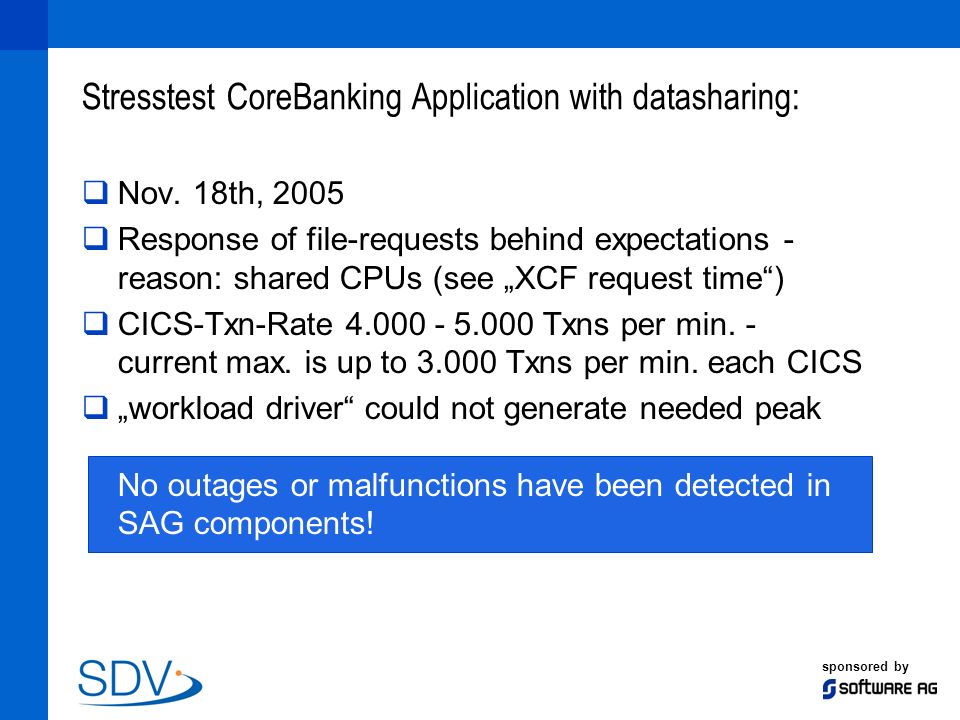

32. sponsored by Stresstest CoreBanking Application with datasharing:  Nov. 18th, 2005  Response of file-requests behind expectations - reason: shared CPUs (see „XCF request time“)  CICS-Txn-Rate 4.000 - 5.000 Txns per min. - current max. is up to 3.000 Txns per min. each CICS  „workload driver“ could not generate needed peak No outages or malfunctions have been detected in SAG components!

33. sponsored by Experiences with ADABAS Cluster Services:  „Frame-Work“  How to control two or more DBMS for one database („System Automation“)  You need more DASD-Space for the DBMS and PLog (2PC: Work-Part-4)  A minimum of 1 XCF is recommended (but: 2 XCF were in our case cheaper)  Technological backlevel of XCF is high likely (... or you modernize the „Application“-MF and XCF at the same time - costs/budget!?) 2:00

34. sponsored by Experiences with ADABAS Cluster Services:  ADABAS  dedicated XCF-CPUs are crucial for datasharing in general  really needed Storage in the XCF is currently not clear  Usage of the fastest available Coupling-Links recommended  Changed PLog-Processing (PLog-Merge, PLog-Merge DS)  detected several times specific changes (maintenance) ALS (currently several ADABAS LMODs in LX08-Load-Library)  Currently no common view for Review, AOS, ASF and CLog (in case of CLog: Merge necessary)

35. sponsored by Modernization of the Application: Core Banking Application XML- Interface Data Access Layer (SQL) Web- Services CICS Core Banking Application

36. sponsored by Data Center 1 Data Center 2 Modernization of the Application: Establish CICSplex ADA AOR/CICS...... ADA XCF ATM 82 ATM 96 Net.-LPar P94Net.-LPar P96 IP Appl.-LPar P82 TOR/CICS Appl.-LPar P96 TOR/CICSCPSM

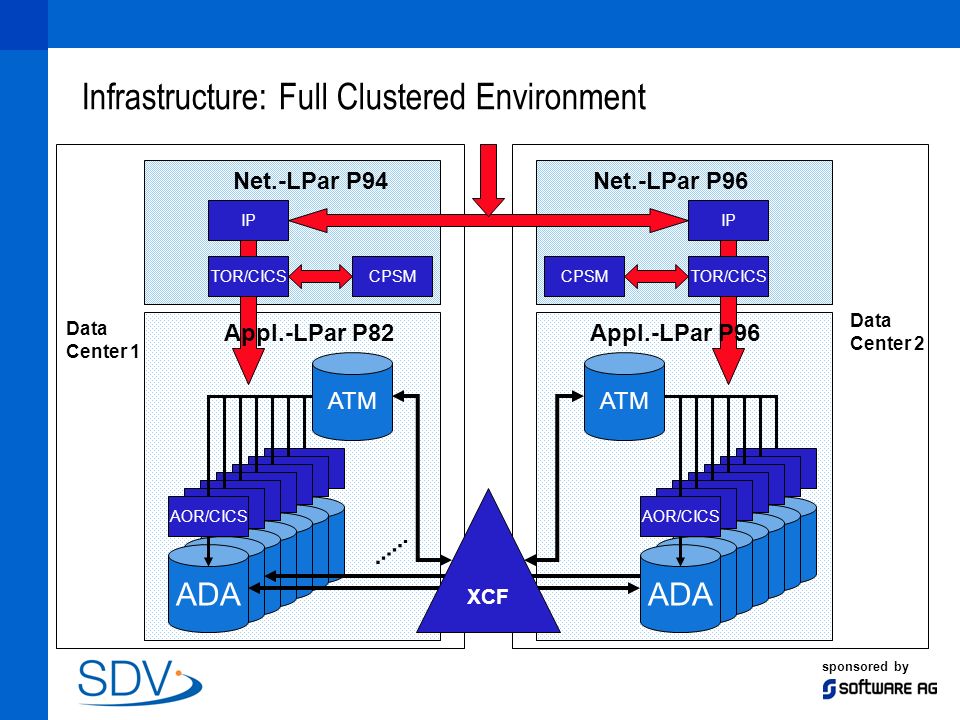

37. sponsored by Data Center 1 Data Center 2 Infrastructure: Full Clustered Environment ADA AOR/CICS...... ADA ATM Net.-LPar P94Net.-LPar P96 IP Appl.-LPar P82 TOR/CICS Appl.-LPar P96 TOR/CICSCPSM XCF

38. sponsored by CICSplex:  Remove application system affinities  Share common data outside CICS CICS File Owning Region or ‚shared database‘  Establish dynamic routing CPSM CICSplex System Manager including Workload Balancing

39. sponsored by Business Continuity: Freeze and Hiperswap (GDPS*): *)Geographically Dispersed Parallel Sysplex Data Center 1 Data Center 2 ADA AOR/CICS...... ADA ATM Net.-LPar P94Net.-LPar P96 IP Appl.-LPar P82 TOR/CICS Appl.-LPar P96 TOR/CICSCPSM XCF X X 1. Freeze (suspend I/Os) 2. Hiperswap (UCB Switch)

40. sponsored by WebSphere / CTG / CICS: WebSphere Portal Env.: Linux on Blade Env.: Linux on System z Env.: z/OS on System z Sniffing impossible: Connected via Hipersocket CTG (CICS Transaction Gateway) Routing CICS Application CICS

41. sponsored by Linux in a high availability environment  Started in 2004 to consolidate Linux Server on MF  OS: z/VM (currently z/VM 5.2)  Hosting  Tivoli Storage Manager (TSM)  Database Server (DB2 UDB and Oracle)  CICS Transaction Gateway  Currently 2 x 2 IFL* Systemautomation for Multiplatform (SAfMP) Contains Agent to plug z/VM including Linux in GDPS (Freeze/Hiperswap) 2:15

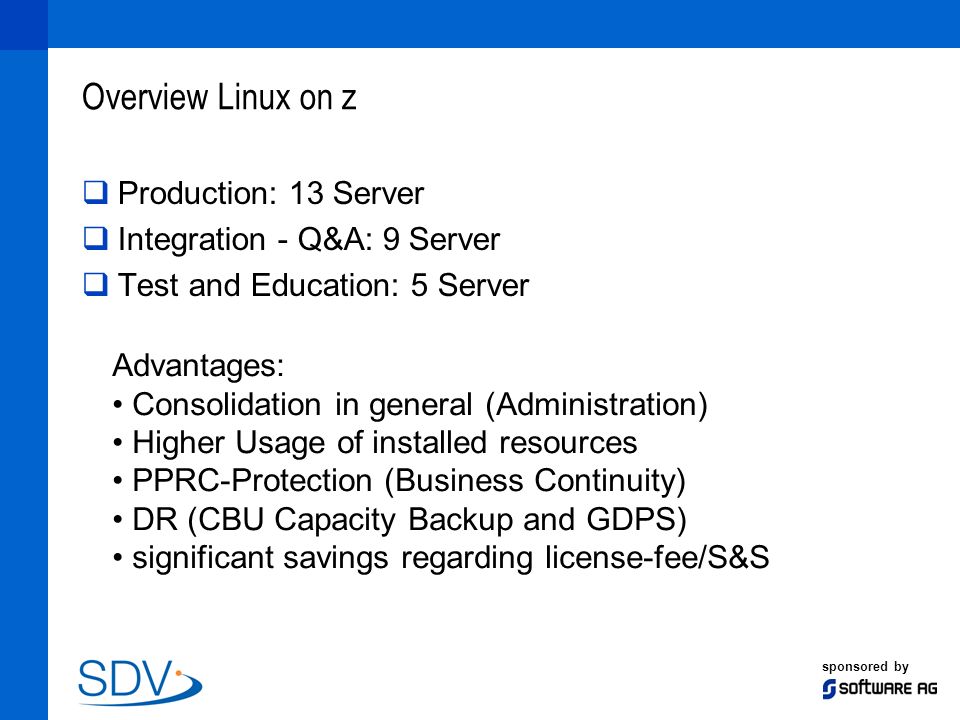

42. sponsored by Overview Linux on z  Production: 13 Server  Integration - Q&A: 9 Server  Test and Education: 5 Server Advantages: Consolidation in general (Administration) Higher Usage of installed resources PPRC-Protection (Business Continuity) DR (CBU Capacity Backup and GDPS) significant savings regarding license-fee/S&S

43. sponsored by Our Goal: As close as possible to 100 % Availability* Application DataDesaster Recovery CICSplex - dynamic Routing/ Processing (DTR) DatasharingFreeze & Hyperswap (GDPS) *) to deal with planned / unplanned outages and flexible workloadbalancing
