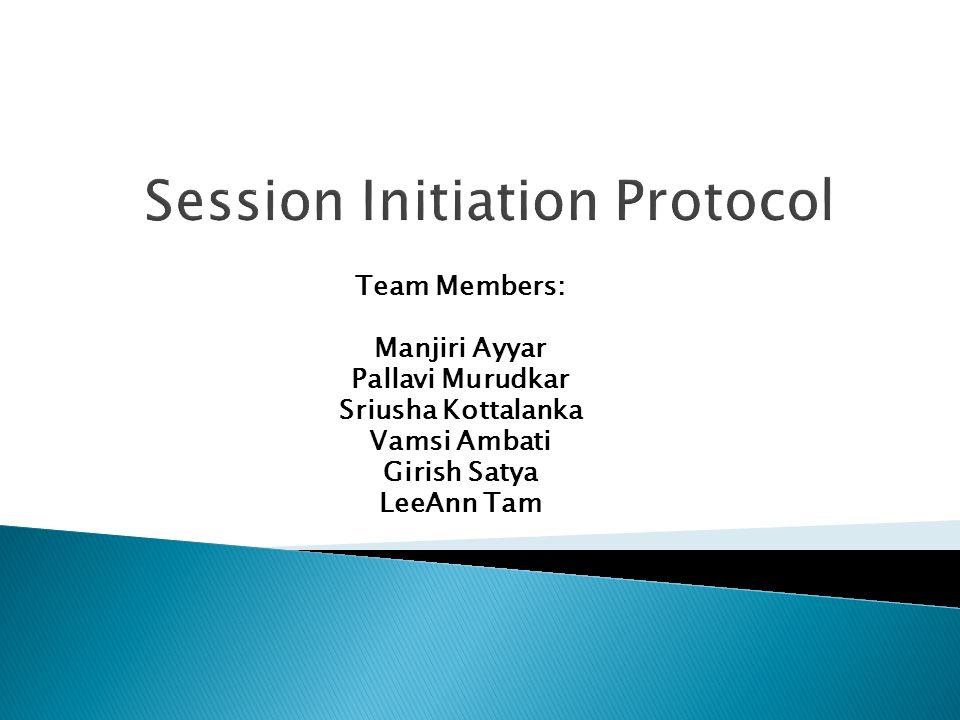

1. Session Initiation Protocol Team Members: Manjiri Ayyar Pallavi Murudkar Sriusha Kottalanka Vamsi Ambati Girish Satya LeeAnn Tam

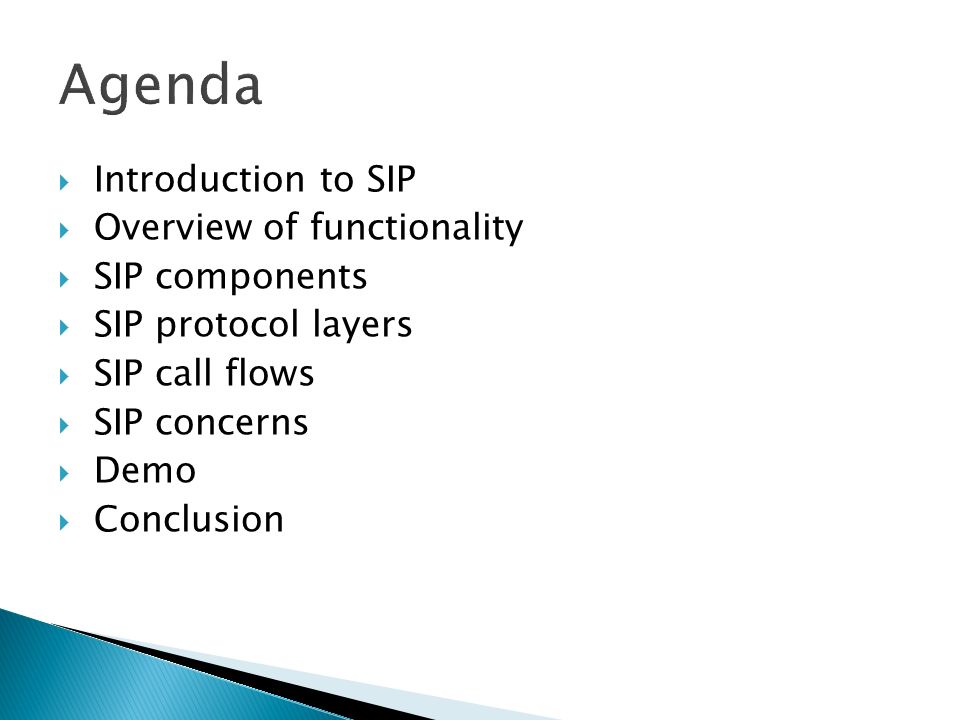

2.  Introduction to SIP  Overview of functionality  SIP components  SIP protocol layers  SIP call flows  SIP concerns  Demo  Conclusion

3. Session Initiation Protocol (SIP)  application layer signaling protocol  used to create, manage and terminate sessions in an IP based network. RFC : 3261

4. Circuit is fully established between the two devices before data is sent. Less efficient since much of the bandwidth is wasted.

5. No fixed path is established between devices Data broken into packets. Packets may take multiple paths to reach the destination device. More efficient.

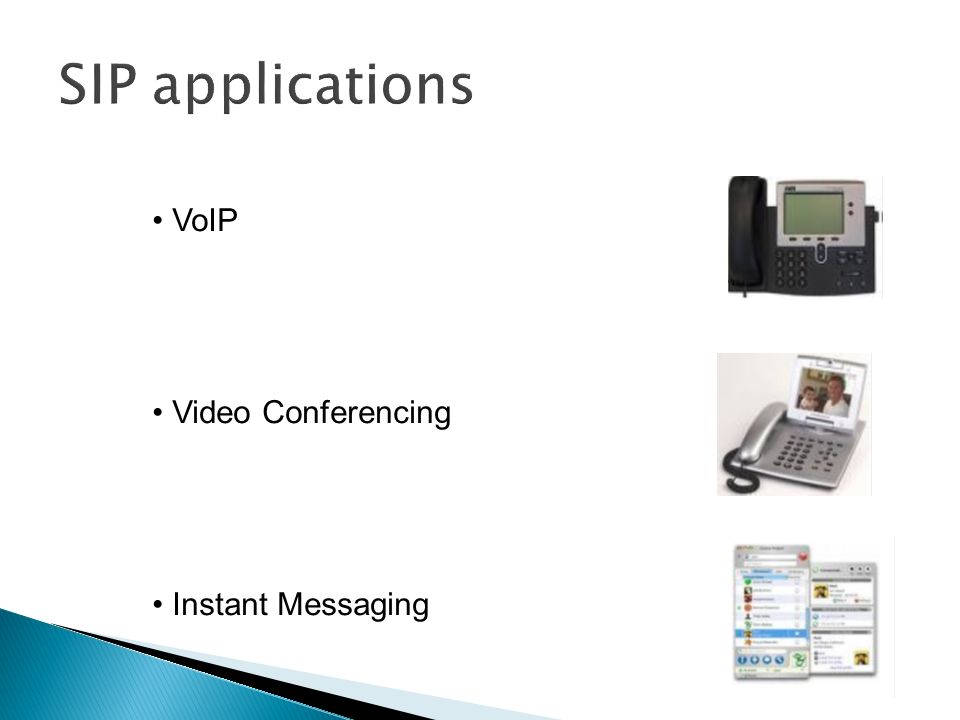

6. VoIP Video Conferencing Instant Messaging

7. A typical real-time multimedia session requires  Session management : Users may move from terminal to terminal with different capabilities. To set up communication session between two or more users, a signaling protocol is needed.  Media transport : RTP is used for transmitting real-time data like audio and video.  End-to-End delivery : Underlying IP layer which connects the whole world.

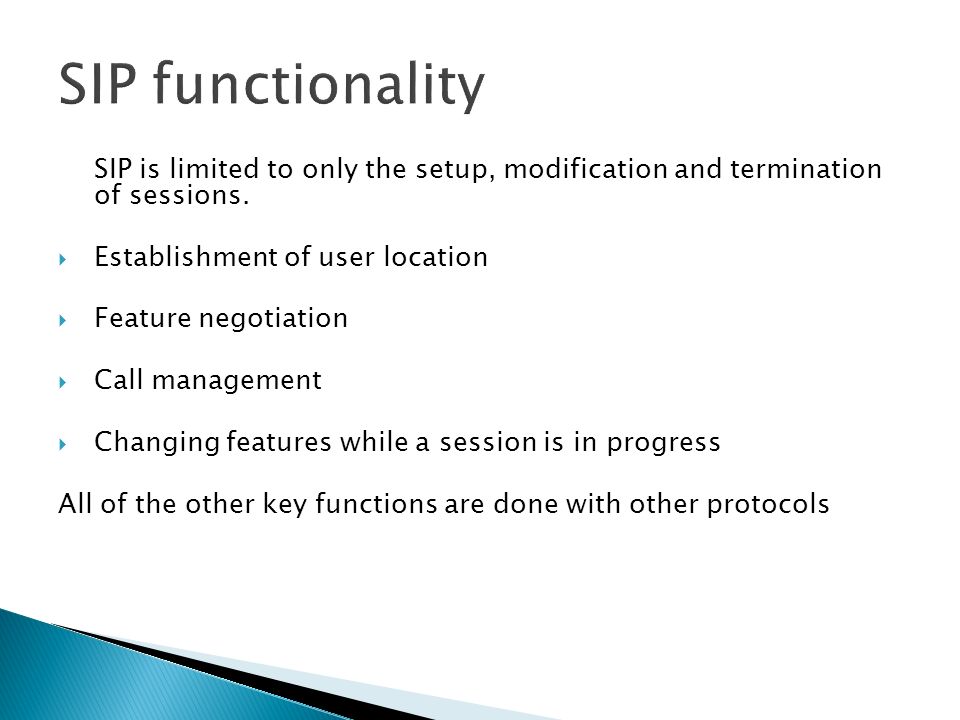

8. SIP is limited to only the setup, modification and termination of sessions.  Establishment of user location  Feature negotiation  Call management  Changing features while a session is in progress All of the other key functions are done with other protocols

9. The key components in a SIP network are  SIP Clients : SIP Phones (User-Agents)  SIP servers  SIP PSTN gateways  Application servers (such as media servers)

11. Application Transport Network Physical/Data Link Ethernet IP TCPUDP RTSP SIP SDPcodecs RTPDNS (SRV)

12. Transport Transaction Transaction User Syntax and Encoding

13. start-line *message-header CRLF [ message-body ] start-line = Request-Line / Status-Line

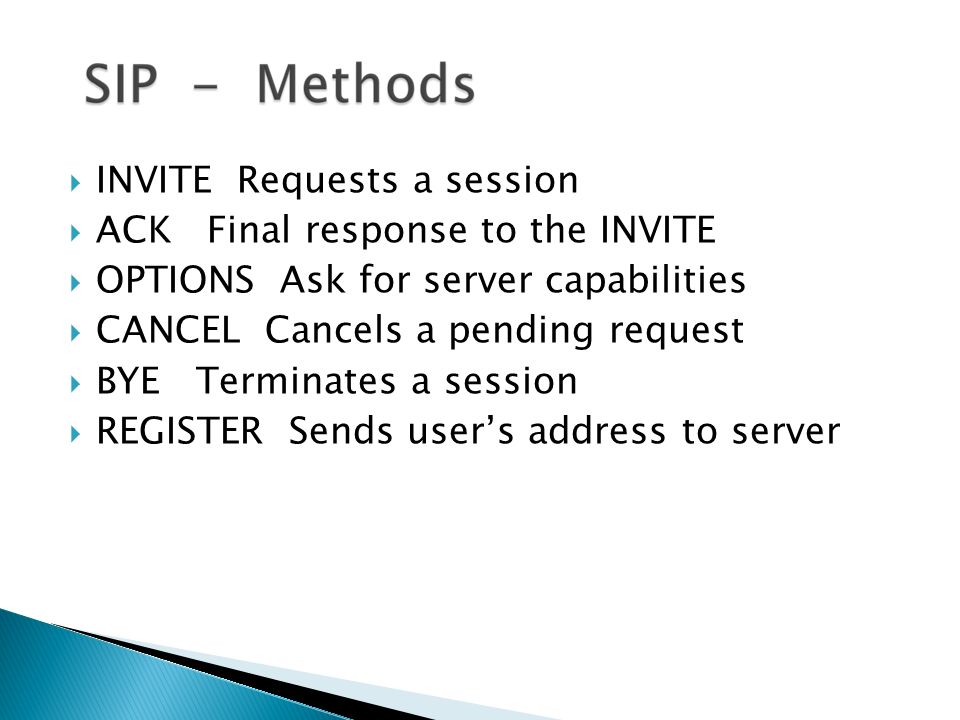

14.  INVITE Requests a session  ACK Final response to the INVITE  OPTIONS Ask for server capabilities  CANCEL Cancels a pending request  BYE Terminates a session  REGISTER Sends user’s address to server

15.  1XX Provisional 100 Trying  2XX Successful 200 OK  3XX Redirection 302 Moved Temporarily  4XX Client Error 404 Not Found  5XX Server Error 504 Server Time-out  6XX Global Failure 603 Decline

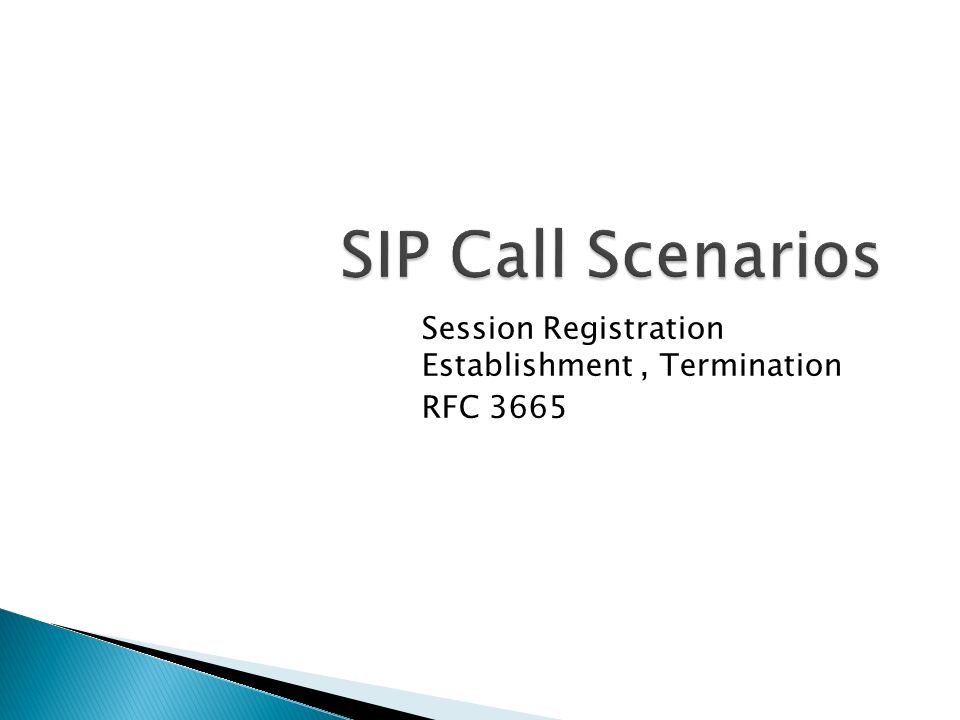

16. SIP Call Scenarios Session Registration Establishment, Termination RFC 3665

17. User ARegistrar ServerLocation Server Register sip:bob@lab.acme.com bob@lab.acme.com Contact 10.18.2.4 200 - OK Registration binds a particular device Contact URI with a SIP user Address of Record.

18. SIP call with Proxy Server Alice Host1.com proxy Host2.com proxy Bob Invite F1 Invite F2 Invite F4 100 Trying F5 100 Trying F3 180 Ringing F6 180 Trying F8 180 Trying F7 ACK F12 200 OK F9 200 OK F11 200 OK F10 Media Session Bye F13 200 OK F14

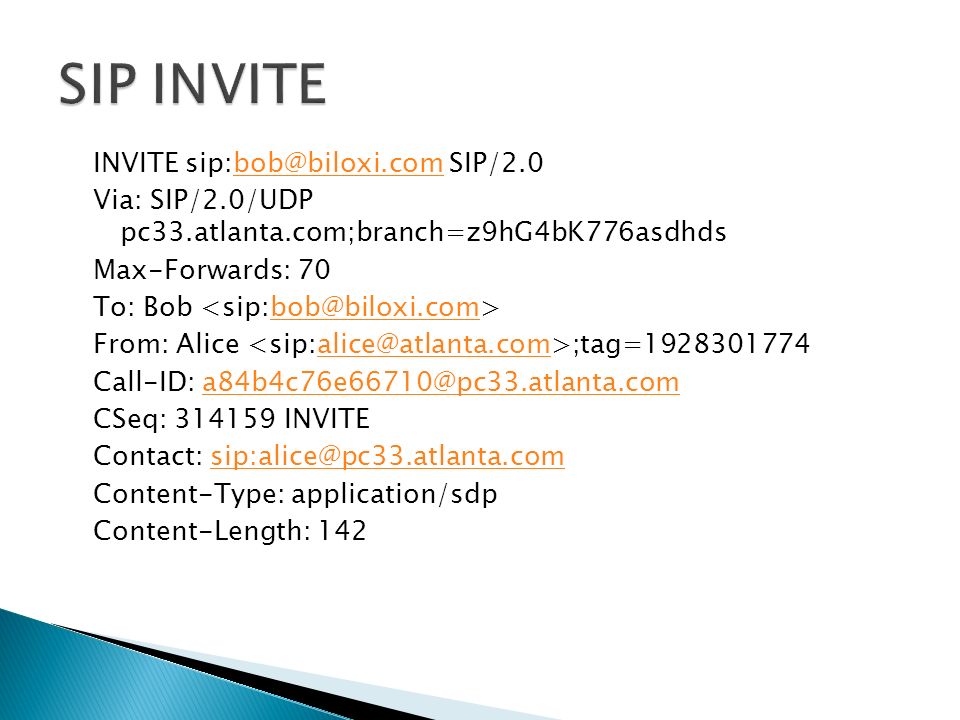

19. INVITE sip:bob@biloxi.com SIP/2.0bob@biloxi.com Via: SIP/2.0/UDP pc33.atlanta.com;branch=z9hG4bK776asdhds Max-Forwards: 70 To: Bob bob@biloxi.com From: Alice ;tag=1928301774alice@atlanta.com Call-ID: a84b4c76e66710@pc33.atlanta.coma84b4c76e66710@pc33.atlanta.com CSeq: 314159 INVITE Contact: sip:alice@pc33.atlanta.comsip:alice@pc33.atlanta.com Content-Type: application/sdp Content-Length: 142 SIP INVITE

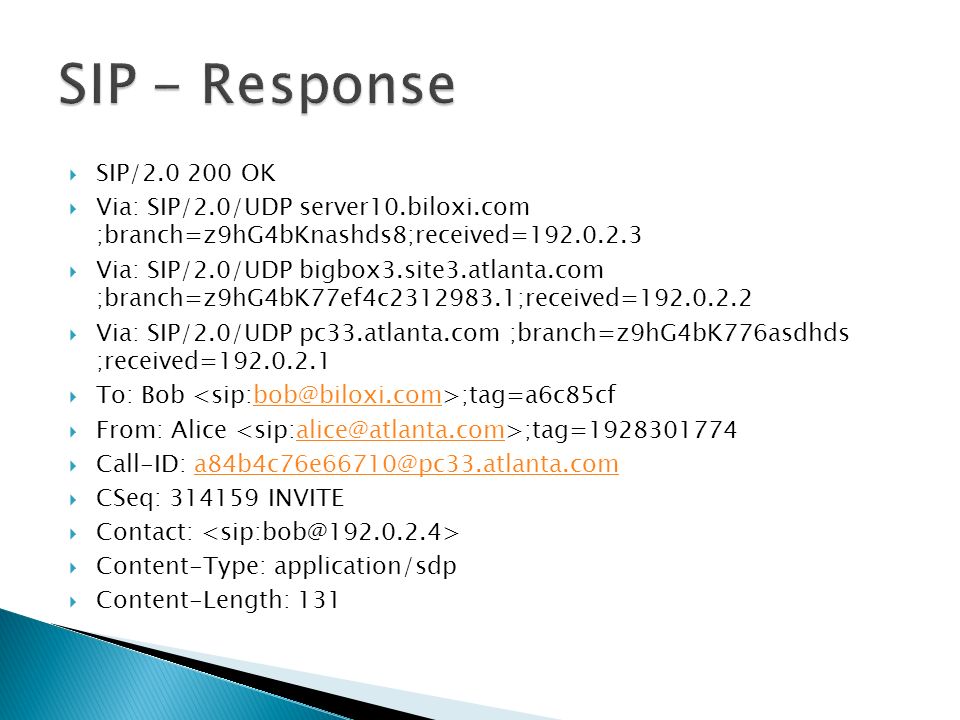

20.  SIP/2.0 200 OK  Via: SIP/2.0/UDP server10.biloxi.com ;branch=z9hG4bKnashds8;received=192.0.2.3  Via: SIP/2.0/UDP bigbox3.site3.atlanta.com ;branch=z9hG4bK77ef4c2312983.1;received=192.0.2.2  Via: SIP/2.0/UDP pc33.atlanta.com ;branch=z9hG4bK776asdhds ;received=192.0.2.1  To: Bob ;tag=a6c85cfbob@biloxi.com  From: Alice ;tag=1928301774alice@atlanta.com  Call-ID: a84b4c76e66710@pc33.atlanta.coma84b4c76e66710@pc33.atlanta.com  CSeq: 314159 INVITE  Contact:  Content-Type: application/sdp  Content-Length: 131 SIP - Response

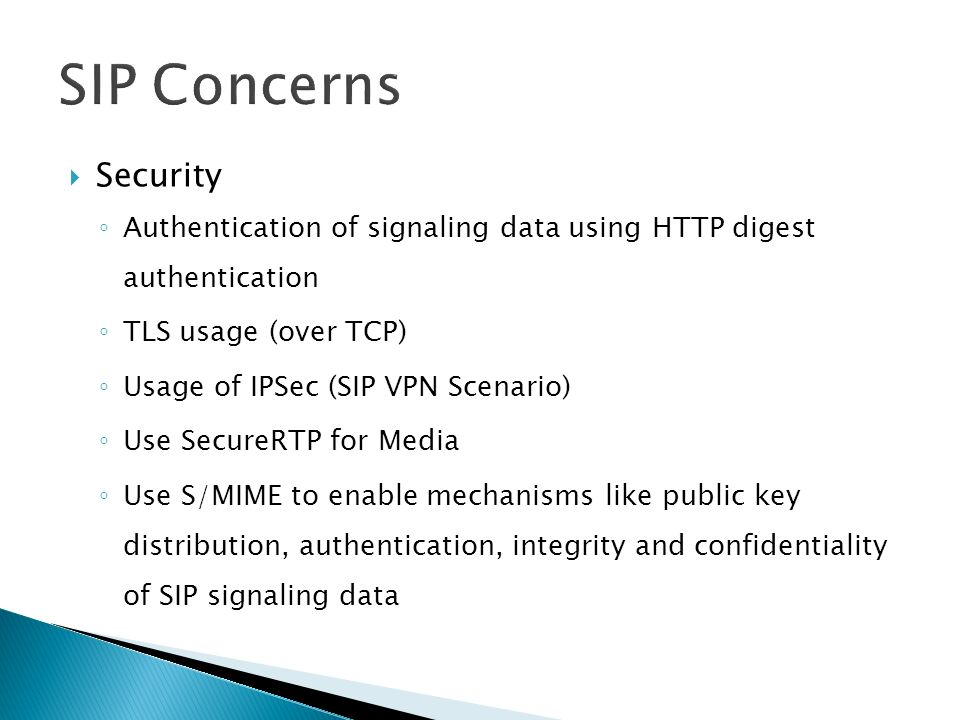

21.  Security ◦ Authentication of signaling data using HTTP digest authentication ◦ TLS usage (over TCP) ◦ Usage of IPSec (SIP VPN Scenario) ◦ Use SecureRTP for Media ◦ Use S/MIME to enable mechanisms like public key distribution, authentication, integrity and confidentiality of SIP signaling data

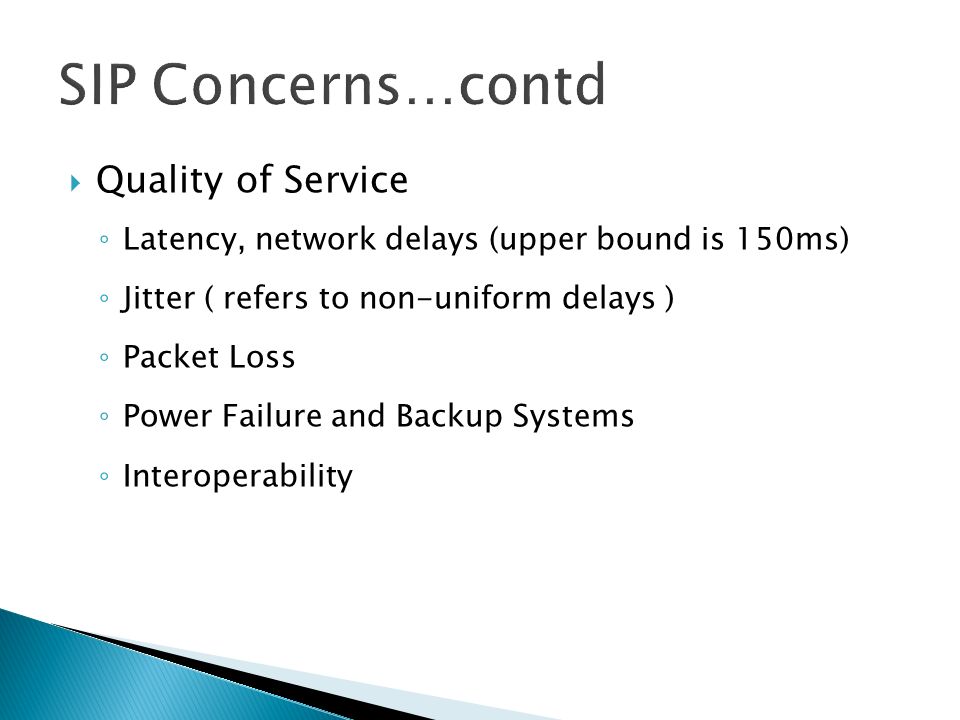

22.  Quality of Service ◦ Latency, network delays (upper bound is 150ms) ◦ Jitter ( refers to non-uniform delays ) ◦ Packet Loss ◦ Power Failure and Backup Systems ◦ Interoperability

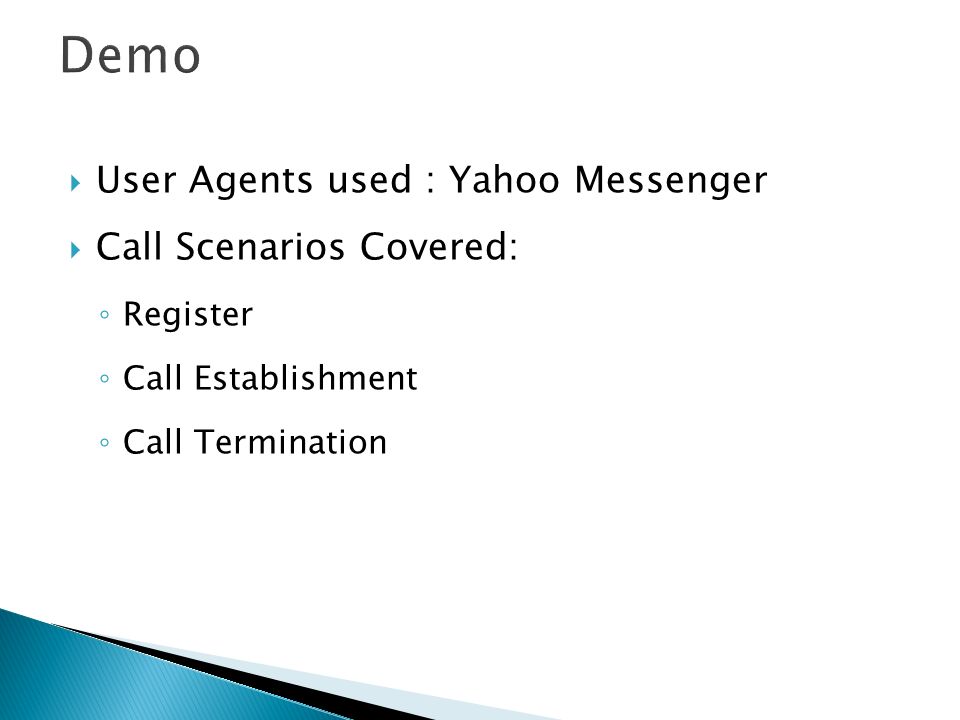

23.  User Agents used : Yahoo Messenger  Call Scenarios Covered: ◦ Register ◦ Call Establishment ◦ Call Termination
