1 States of Matter Chapter 13

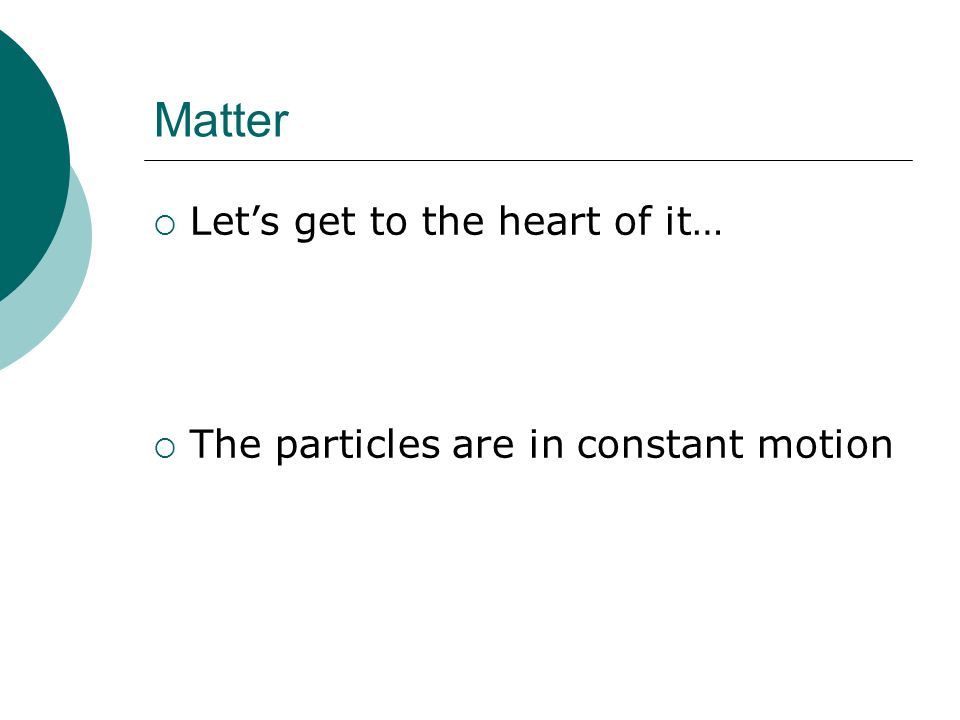

2 Matter  Let’s get to the heart of it…  The particles are in constant motion

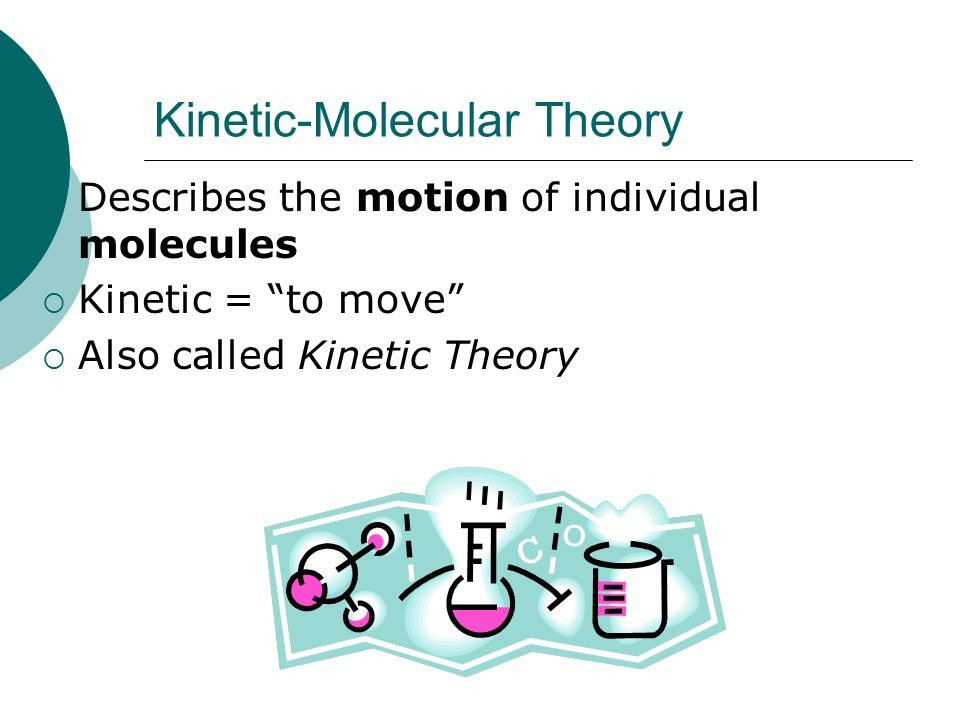

3 Kinetic-Molecular Theory  Describes the motion of individual molecules  Kinetic = “to move”  Also called Kinetic Theory

4 Forces of Attraction Affect on States of Matter  At room temperature (20 o C-25 o C, 68 o F-77 o F) all particles of matter have the same kinetic energykinetic energy  So why do we have different states of matter for these materials?  There are different strengths of INTERMOLECULAR FORCES

5 13.2 Forces of Attraction Intermolecular Forces What holds molecules together

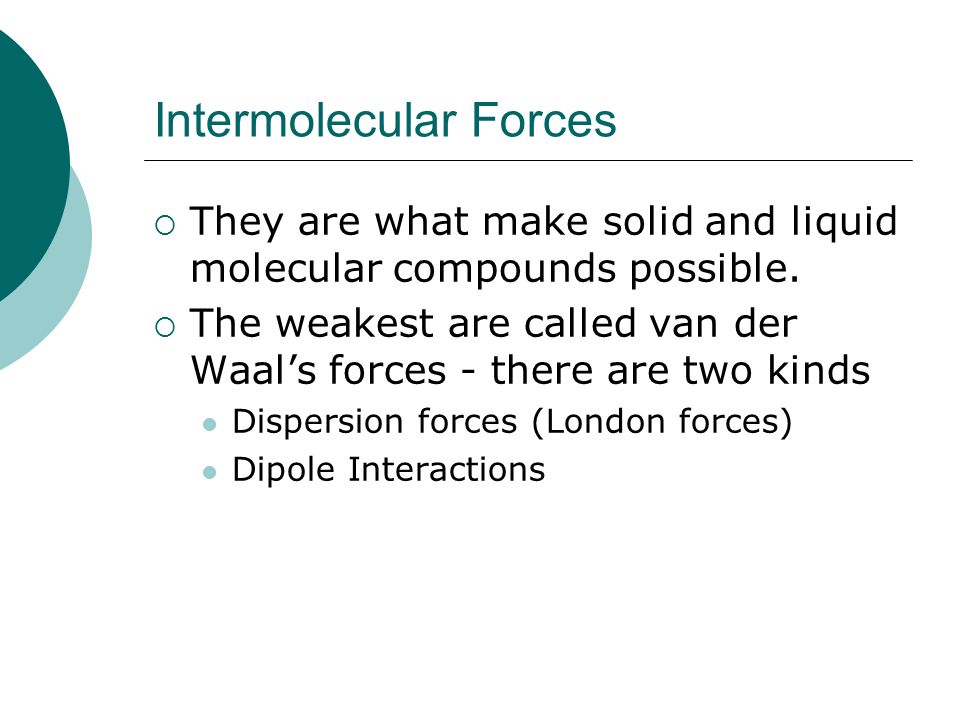

6 Intermolecular Forces  They are what make solid and liquid molecular compounds possible.  The weakest are called van der Waal’s forces - there are two kinds Dispersion forces (London forces) Dipole Interactions

7 Dispersion Force  Depends only on the number of electrons in the molecule  Bigger molecules more electrons  More electrons stronger forces  F 2 is a gas  Br 2 is a liquid  I 2 is a solid All are nonpolar but why are they different states of matter?

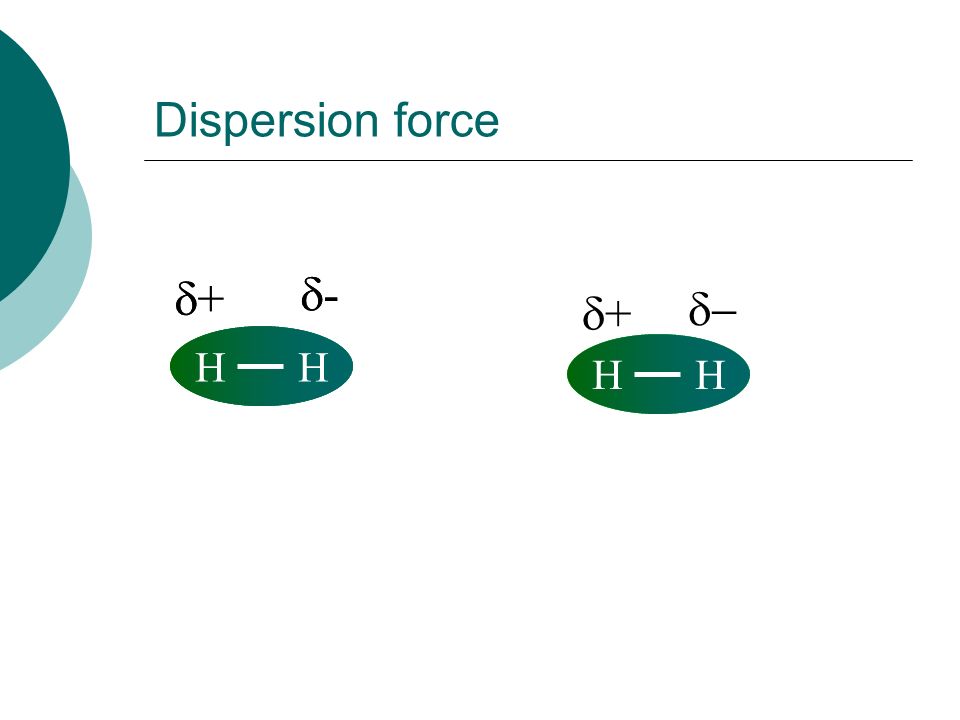

8 Dispersion force HH HH HH HH ++ -- HH HH ++ -- ++ 

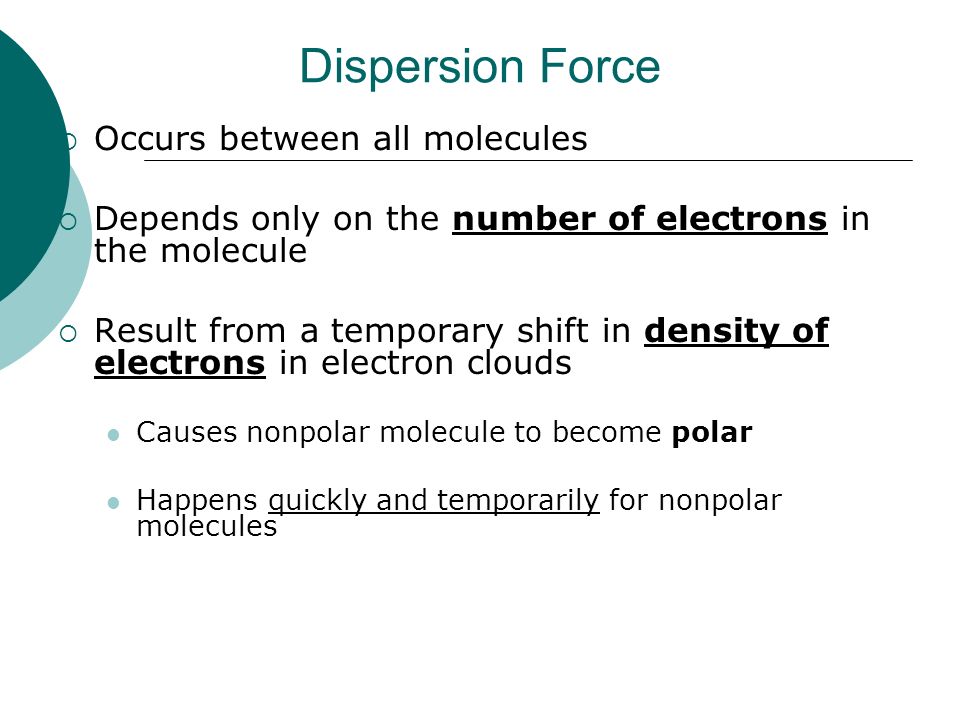

9 Dispersion Force  Occurs between all molecules  Depends only on the number of electrons in the molecule  Result from a temporary shift in density of electrons in electron clouds Causes nonpolar molecule to become polar Happens quickly and temporarily for nonpolar molecules

10 Dipole interactions  Occur when polar molecules are attracted to each other.  Slightly stronger than dispersion forces.  Opposites attract but not completely hooked like in ionic solids.

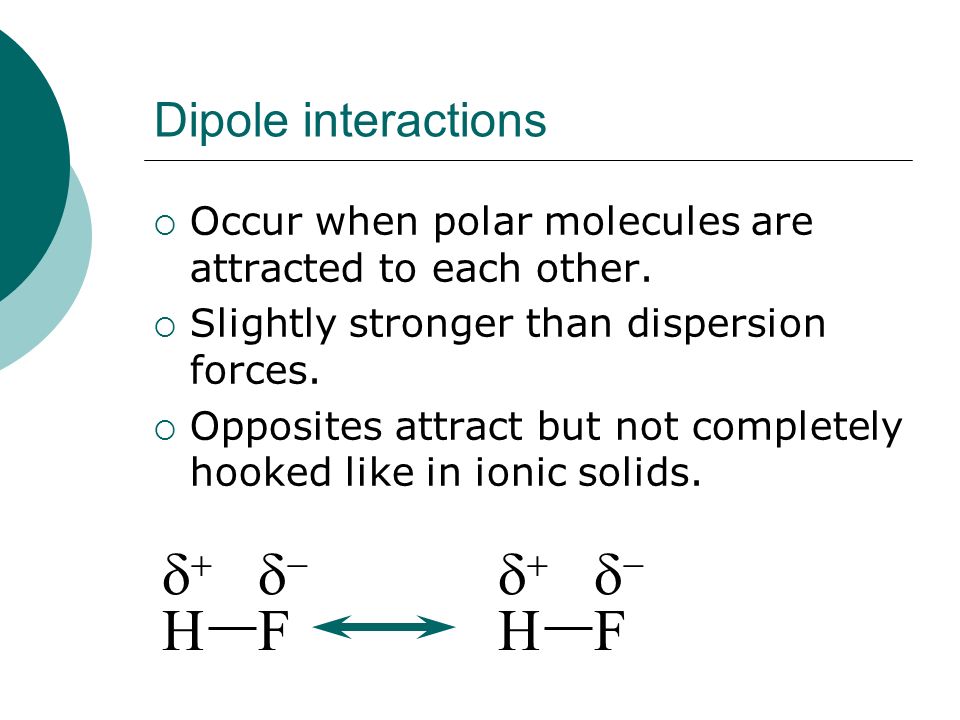

11 Dipole interactions  Occur when polar molecules are attracted to each other.  Slightly stronger than dispersion forces.  Opposites attract but not completely hooked like in ionic solids. HFHF  HFHF 

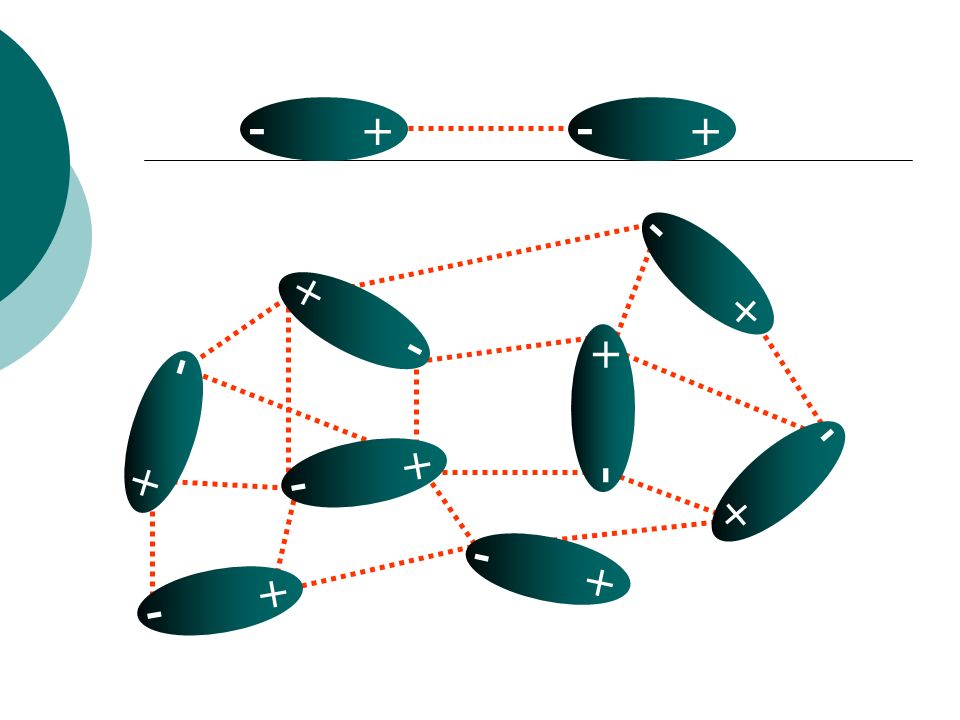

12 + - + - + - + - + - + - + - + - + - + -

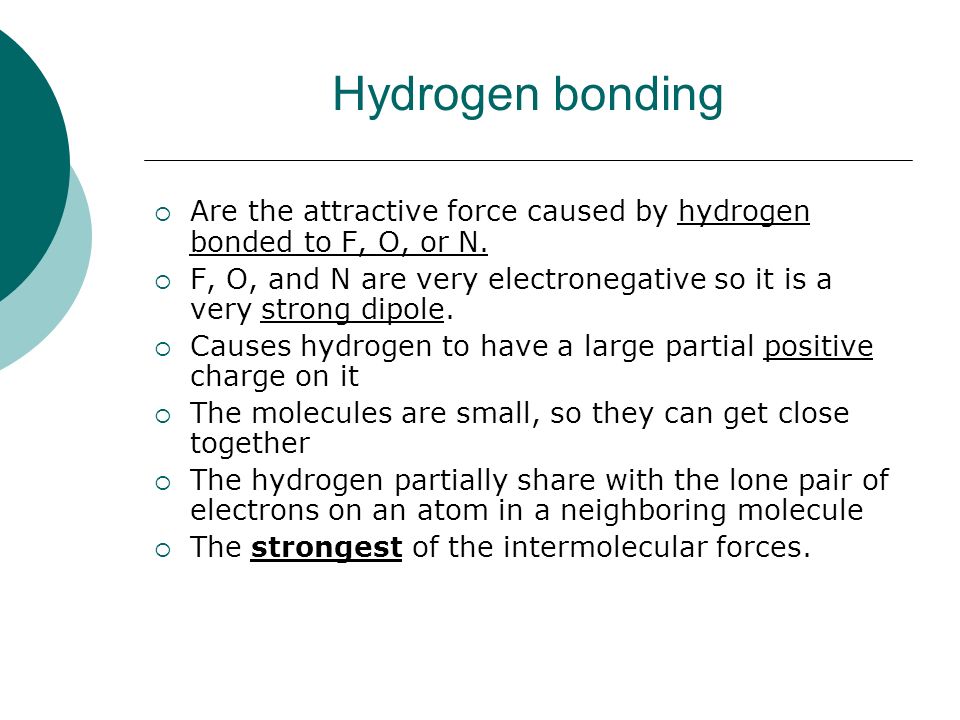

13 Hydrogen bonding  Are the attractive force caused by hydrogen bonded to F, O, or N.  F, O, and N are very electronegative so it is a very strong dipole.  Causes hydrogen to have a large partial positive charge on it  The molecules are small, so they can get close together  The hydrogen partially share with the lone pair of electrons on an atom in a neighboring molecule  The strongest of the intermolecular forces.

14 Hydrogen Bonding H H O ++ -- ++ H H O ++ -- ++

15 Hydrogen bonding H H O H H O H H O H H O H H O H H O H H O

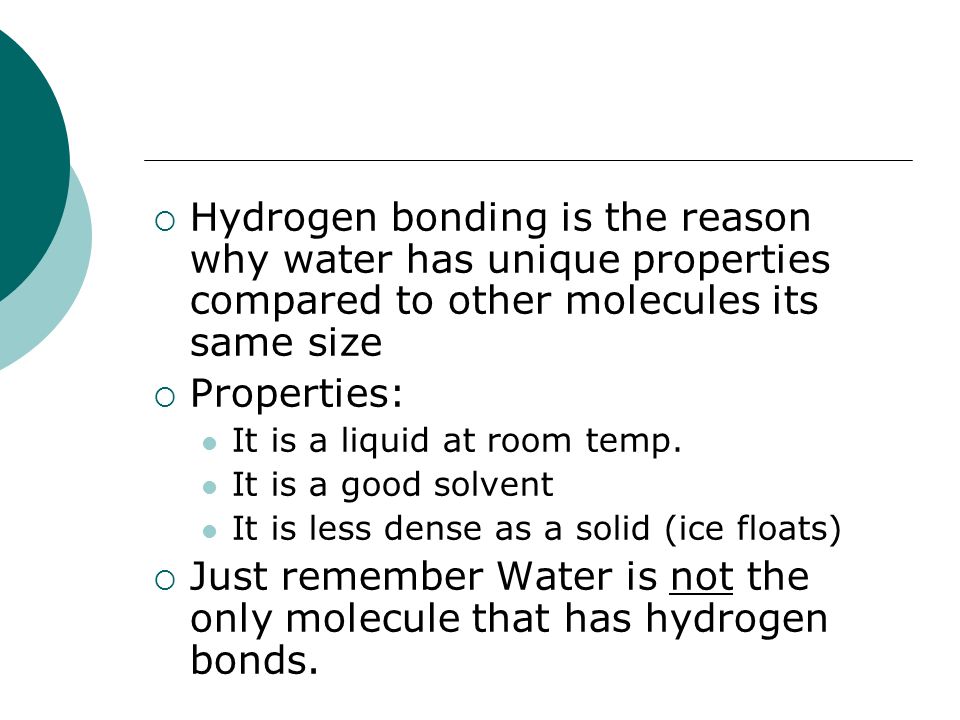

16  Hydrogen bonding is the reason why water has unique properties compared to other molecules its same size  Properties: It is a liquid at room temp. It is a good solvent It is less dense as a solid (ice floats)  Just remember Water is not the only molecule that has hydrogen bonds.

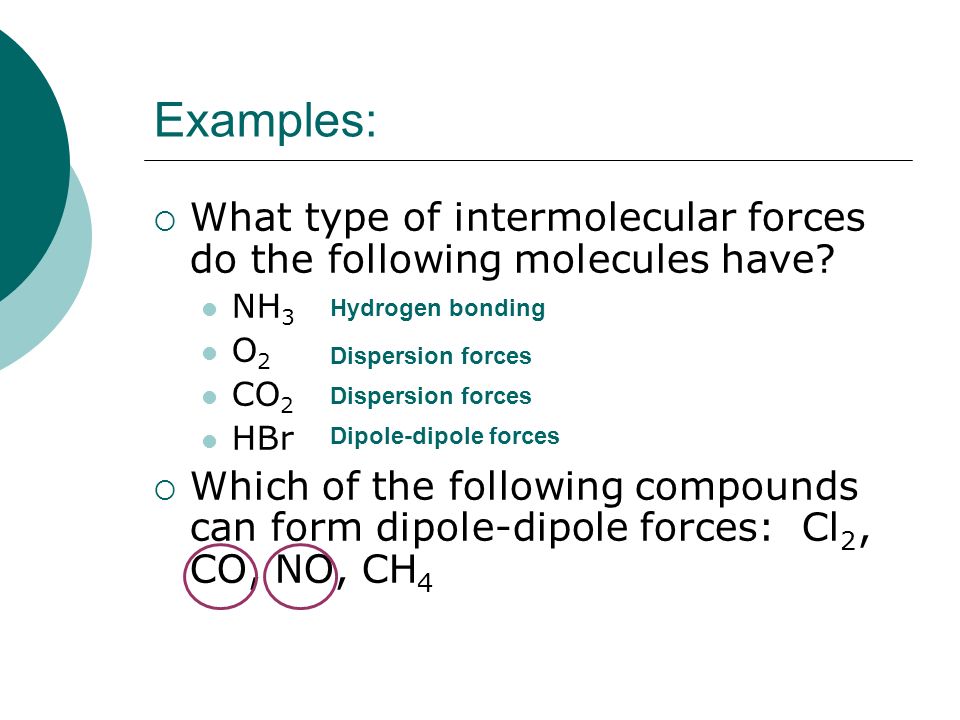

17 Examples:  What type of intermolecular forces do the following molecules have? NH 3 O 2 CO 2 HBr  Which of the following compounds can form dipole-dipole forces: Cl 2, CO, NO, CH 4 Hydrogen bonding Dispersion forces Dipole-dipole forces

18 13.4 Phase Changes  What is a phase? The distinct states of matter when they are in mixtures  How is this different from just states of matter?  Occur due to changes in temperature.

19 Phase changes that need energy  Melting  Heat of Fusion  Melting Point  KMT?

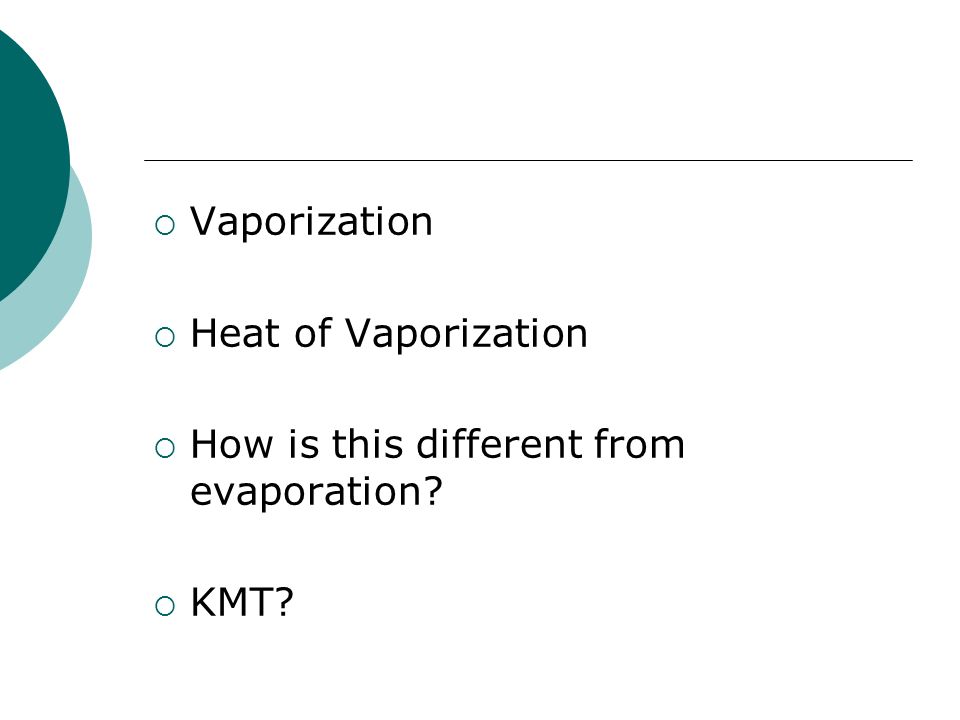

20  Vaporization  Heat of Vaporization  How is this different from evaporation?  KMT?

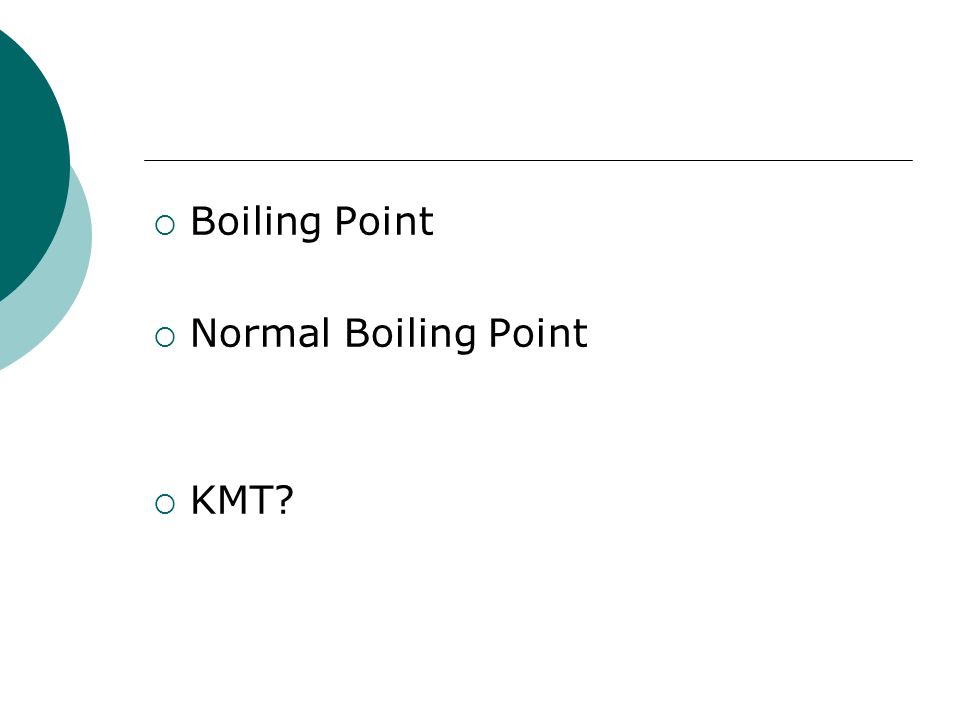

21  Boiling Point  Normal Boiling Point  KMT?

22  Sublimation –  Dry Ice  Ice in the Freezer  KMT?

23 Phase Changes that Release Energy  Condensation  What is this the reverse of?  KMT?

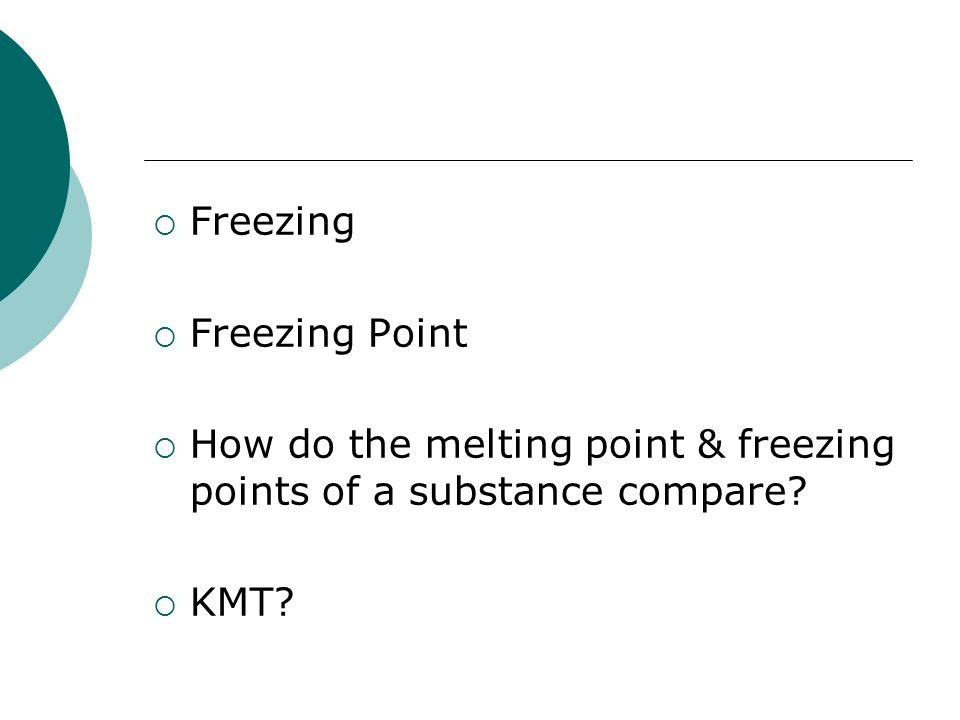

24  Freezing  Freezing Point  How do the melting point & freezing points of a substance compare?  KMT?

25  Deposition  What is this the reverse of?  KMT?

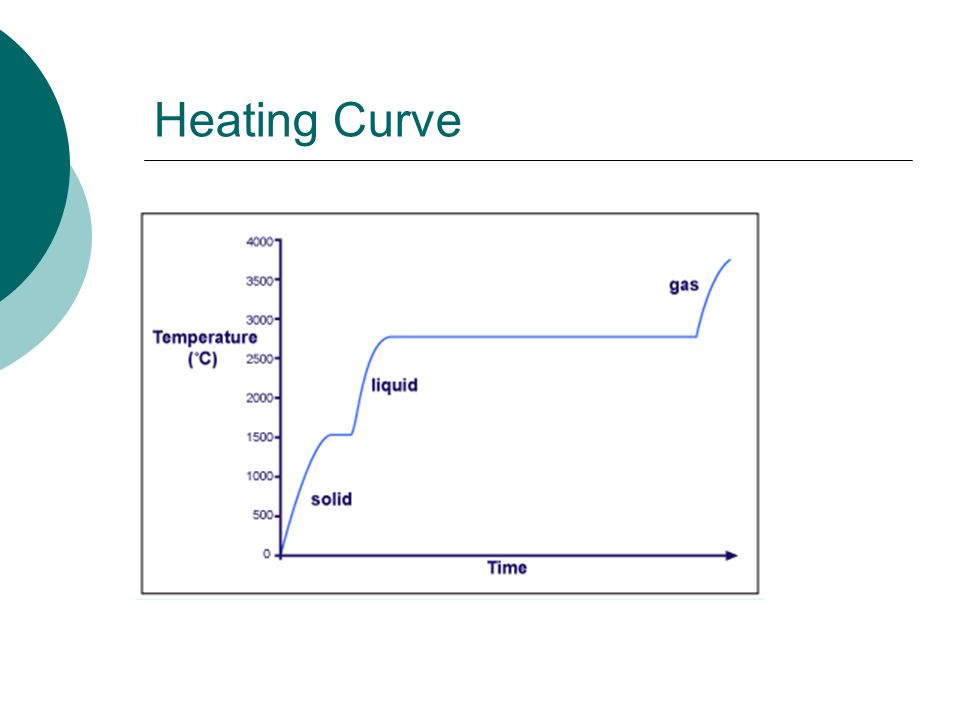

26 Heating Curve

27 Vapor Pressure Graphs

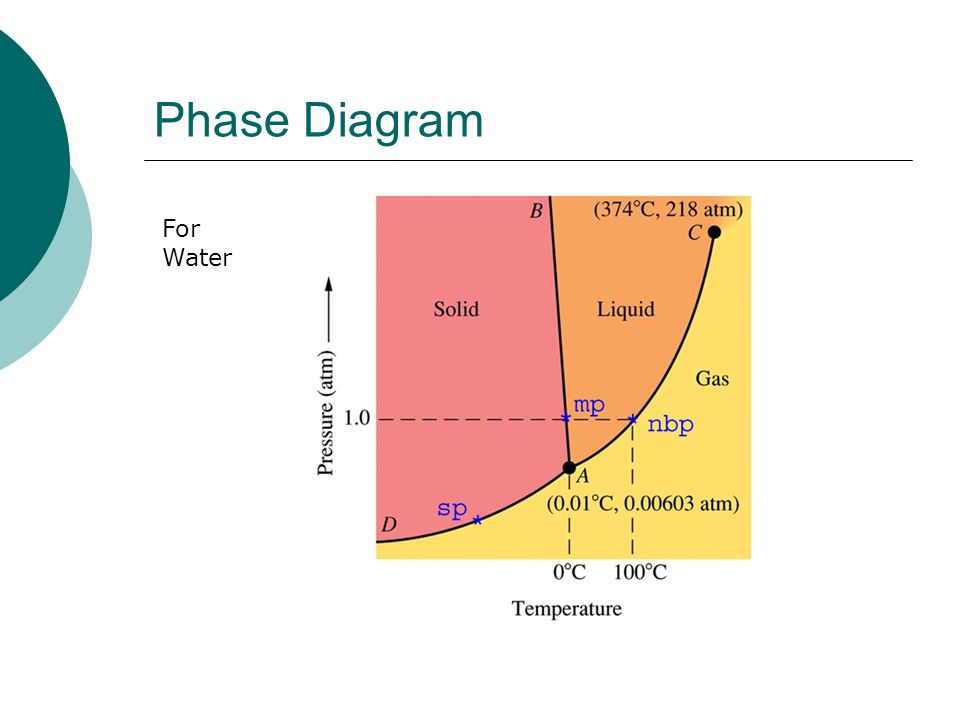

28 Phase Diagram For Water

29 Phase Diagram For CO 2

30 Video lesson  Water, a polar molecule, on YouTube: http://www.youtube.com/watch?v= DVCYlST6mYQ http://www.youtube.com/watch?v= DVCYlST6mYQ

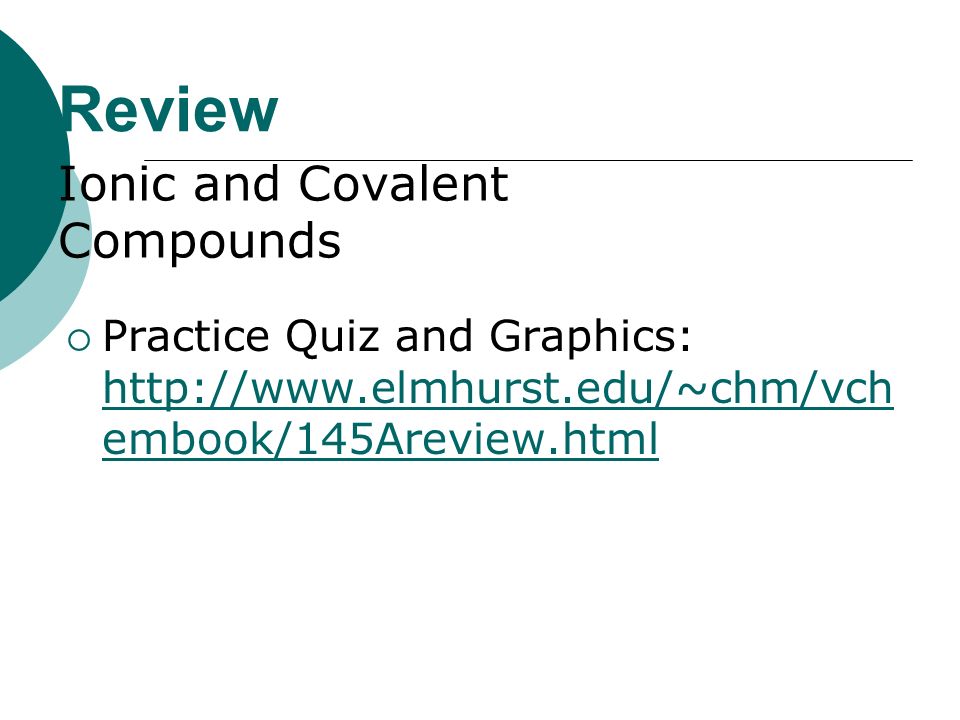

31 Review Ionic and Covalent Compounds  Practice Quiz and Graphics: http://www.elmhurst.edu/~chm/vch embook/145Areview.html http://www.elmhurst.edu/~chm/vch embook/145Areview.html

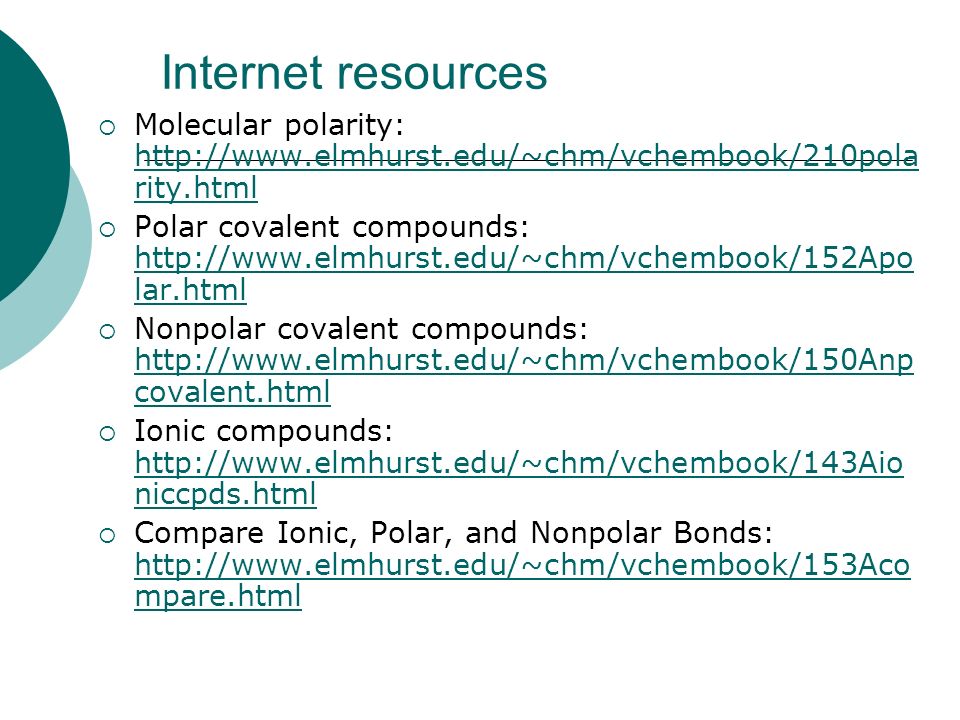

32 Internet resources  Molecular polarity: http://www.elmhurst.edu/~chm/vchembook/210pola rity.html http://www.elmhurst.edu/~chm/vchembook/210pola rity.html  Polar covalent compounds: http://www.elmhurst.edu/~chm/vchembook/152Apo lar.html http://www.elmhurst.edu/~chm/vchembook/152Apo lar.html  Nonpolar covalent compounds: http://www.elmhurst.edu/~chm/vchembook/150Anp covalent.html http://www.elmhurst.edu/~chm/vchembook/150Anp covalent.html  Ionic compounds: http://www.elmhurst.edu/~chm/vchembook/143Aio niccpds.html http://www.elmhurst.edu/~chm/vchembook/143Aio niccpds.html  Compare Ionic, Polar, and Nonpolar Bonds: http://www.elmhurst.edu/~chm/vchembook/153Aco mpare.html http://www.elmhurst.edu/~chm/vchembook/153Aco mpare.html

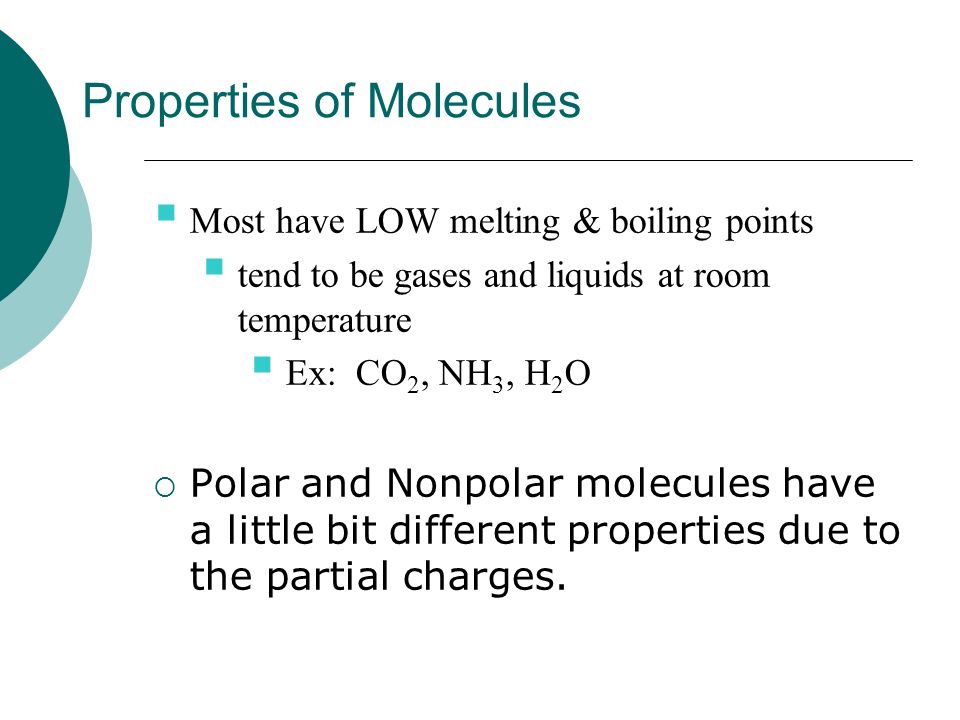

33 Properties of Molecules  Most have LOW melting & boiling points  tend to be gases and liquids at room temperature  Ex: CO 2, NH 3, H 2 O  Polar and Nonpolar molecules have a little bit different properties due to the partial charges.

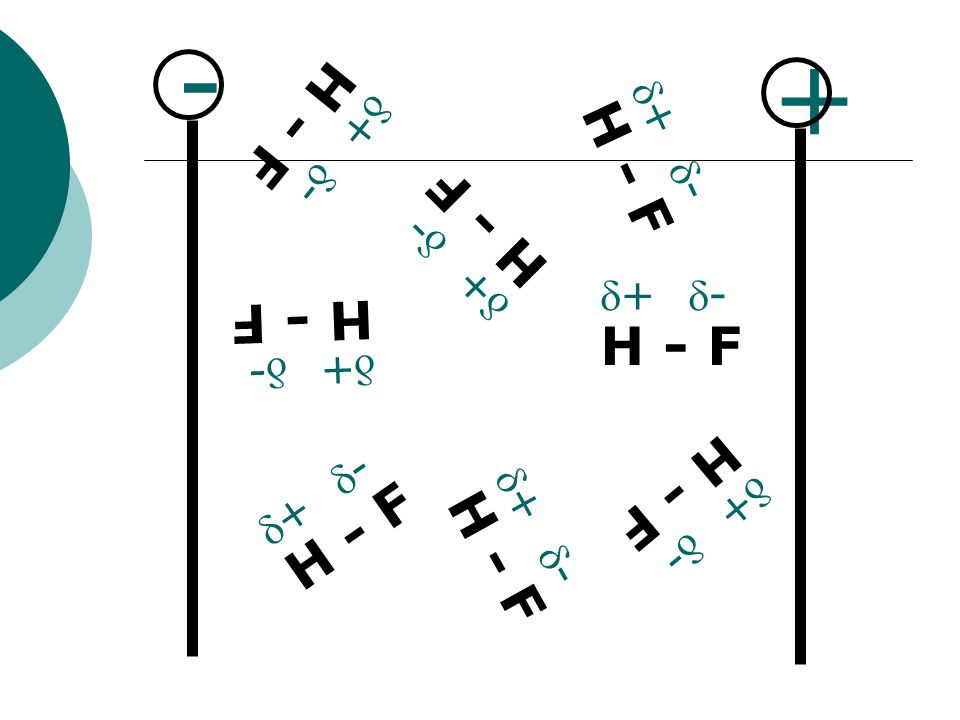

34 H - F ++-- ++ -- ++ -- ++ -- ++ -- ++ -- ++ -- ++ -- + -

35 Properties of Solid Molecules  Two kinds of crystals: Molecular solids – molecules held together by attractive forces  Ex: BI 3, Dry Ice, sugar Network solids- atoms held together by bonds  One big molecule (diamond, graphite)  High melting & boiling points, brittle, extremely hard

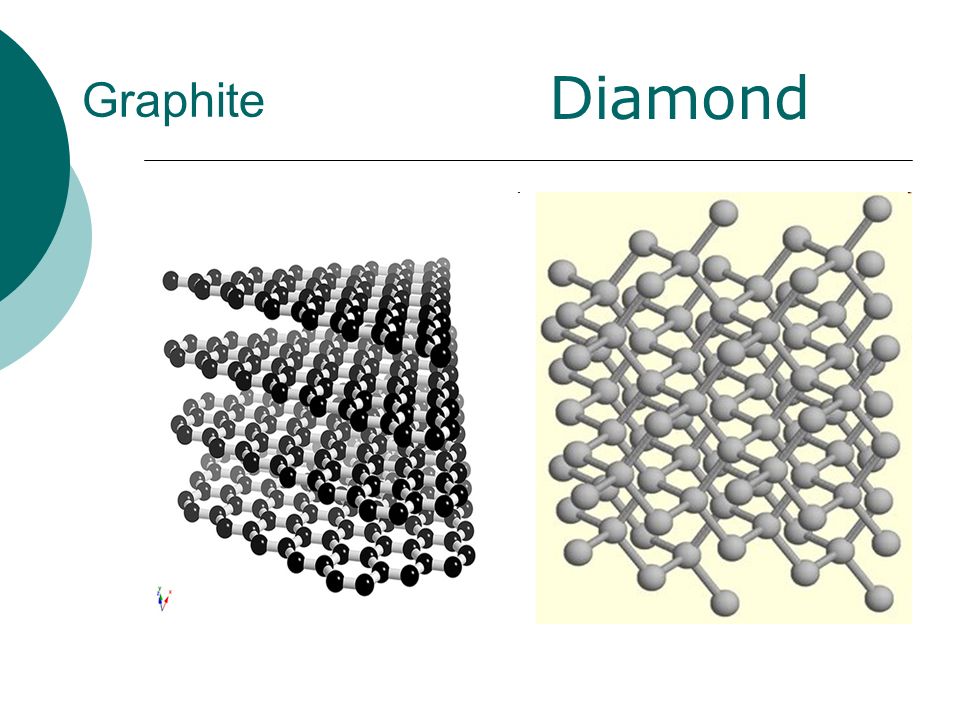

36 Graphite Diamond
