1. OSHA UPDATE Oklahoma City Area Office Fiscal Year 2013 Oct 1, 2012 to September 11, 2013

2. OSHA OKLAHOMA CITY AREA OFFICE 55 North Robinson, Suite 315 Oklahoma City, OK 73102 (405) 278-9560 www.osha.gov 1-800-321-OSHA

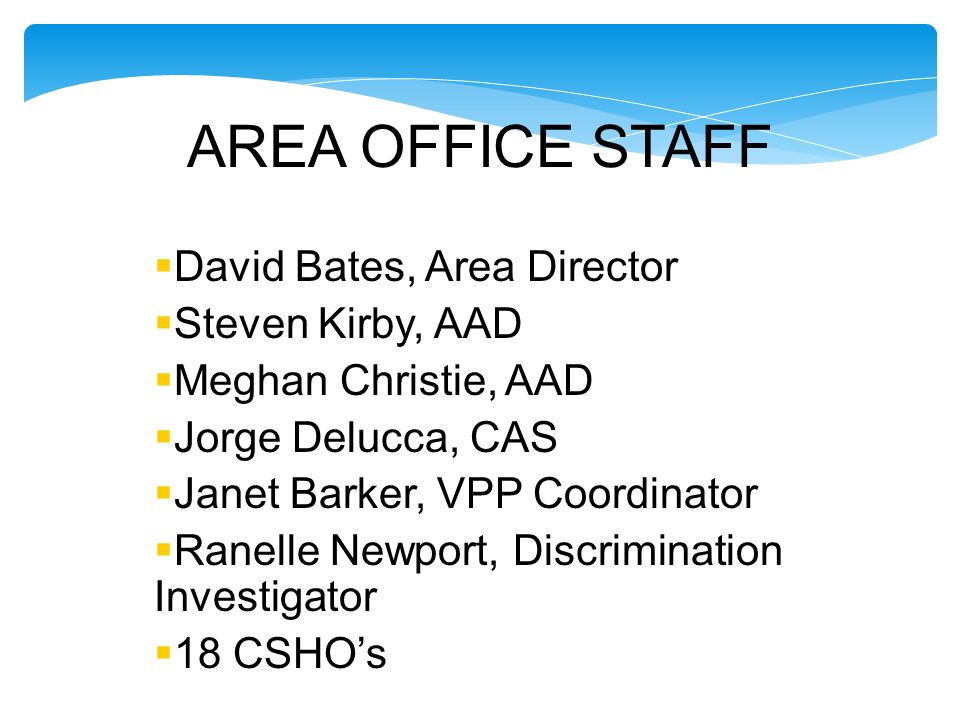

3. AREA OFFICE STAFF  David Bates, Area Director  Steven Kirby, AAD  Meghan Christie, AAD  Jorge Delucca, CAS  Janet Barker, VPP Coordinator  Ranelle Newport, Discrimination Investigator  18 CSHO’s

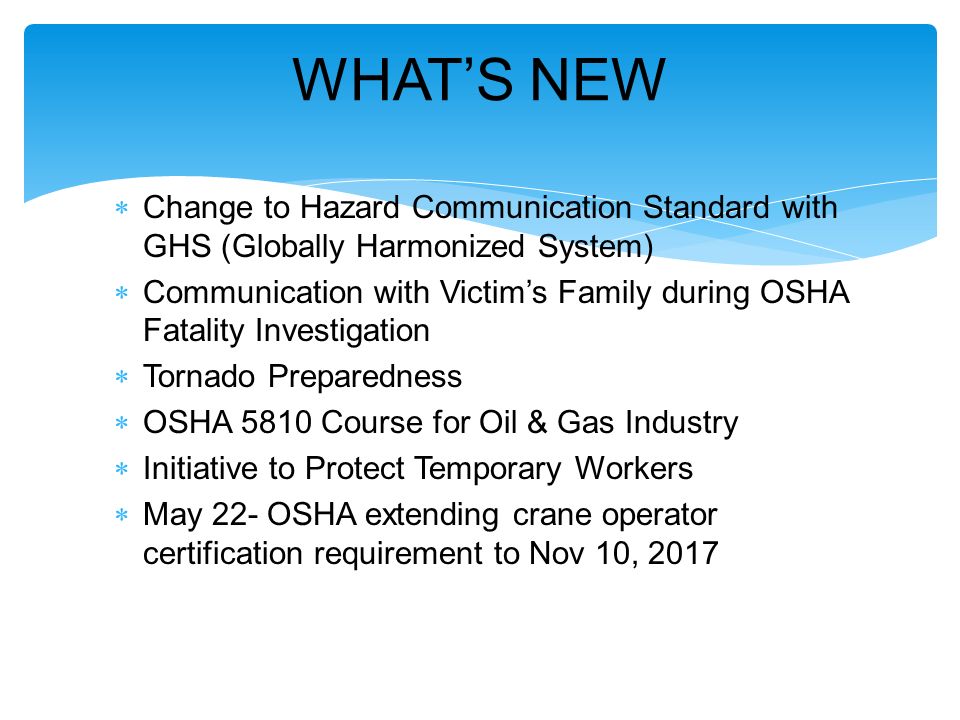

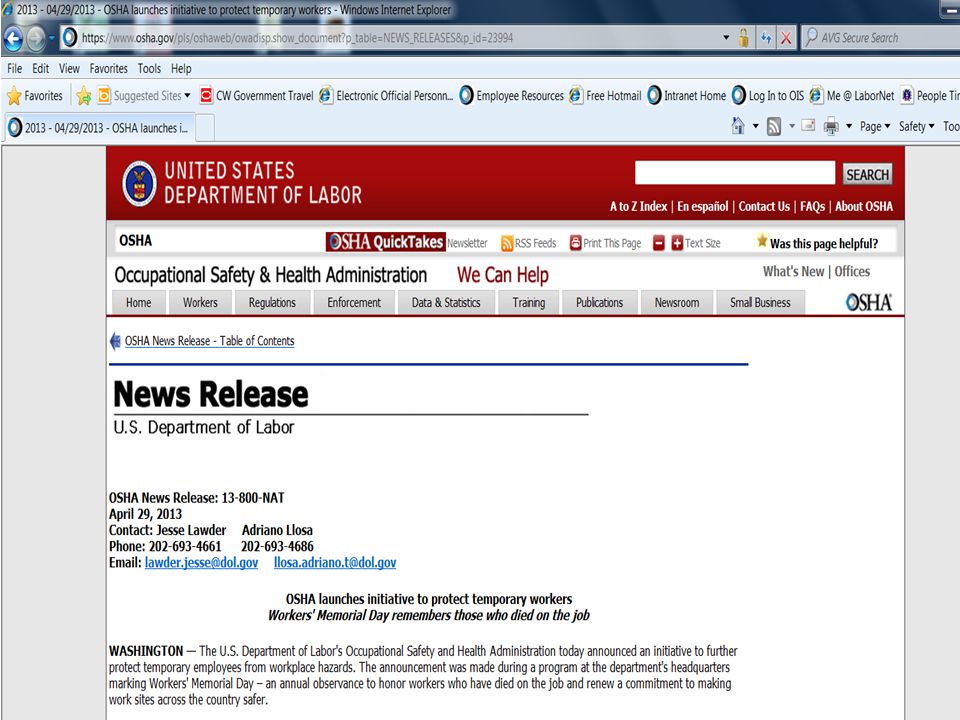

4.  Change to Hazard Communication Standard with GHS (Globally Harmonized System)  Communication with Victim’s Family during OSHA Fatality Investigation  Tornado Preparedness  OSHA 5810 Course for Oil & Gas Industry  Initiative to Protect Temporary Workers  May 22- OSHA extending crane operator certification requirement to Nov 10, 2017 WHAT’S NEW

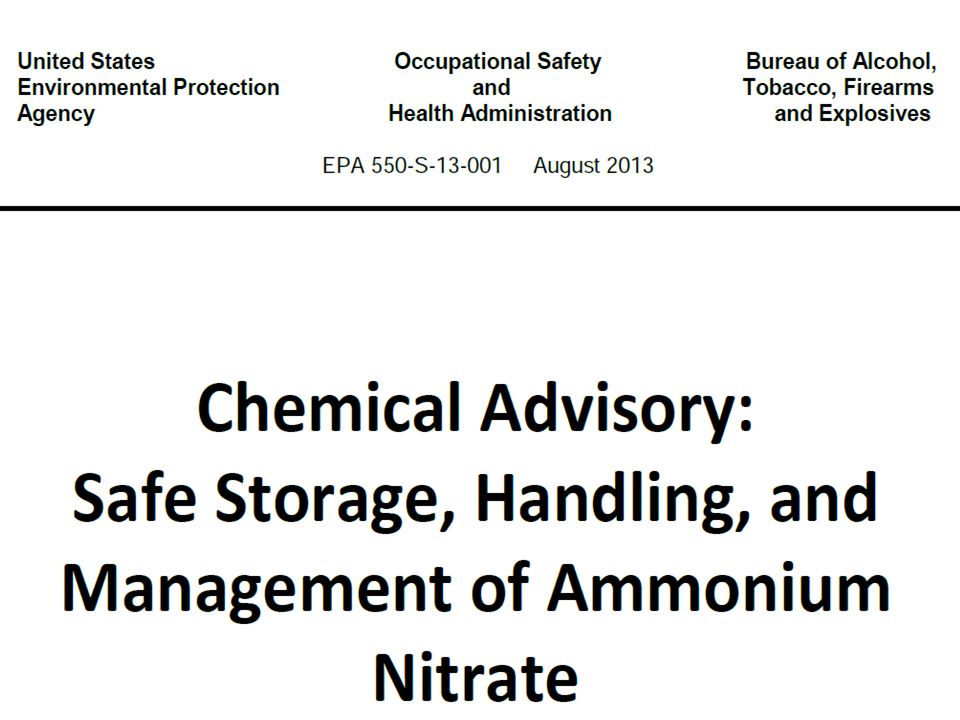

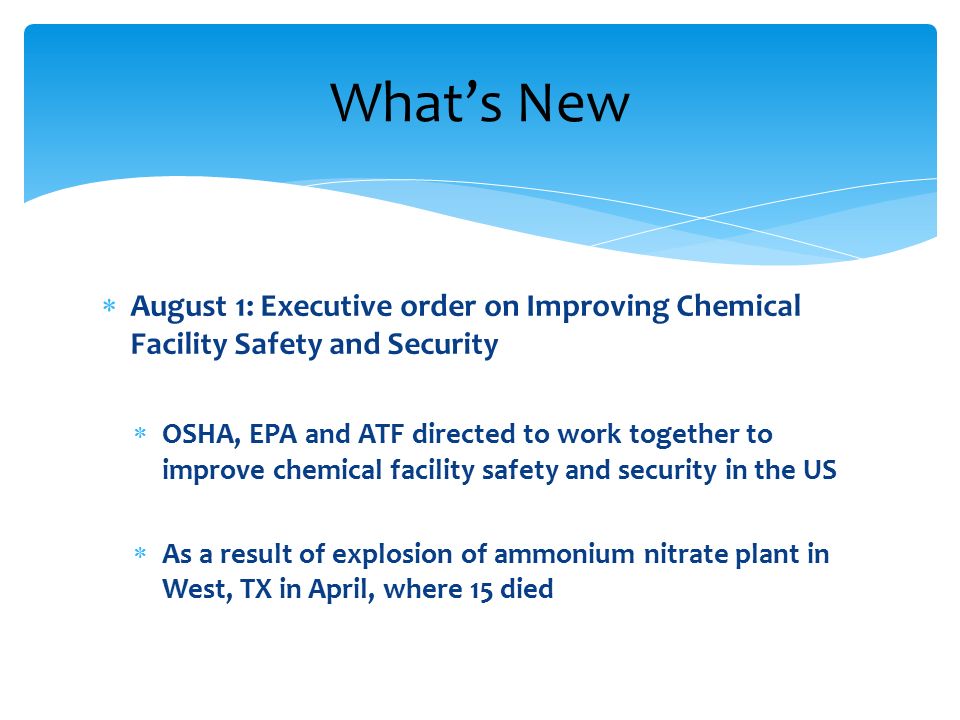

5.  August 1: Executive order on Improving Chemical Facility Safety and Security  OSHA, EPA and ATF directed to work together to improve chemical facility safety and security in the US  As a result of explosion of ammonium nitrate plant in West, TX in April, where 15 died What’s New

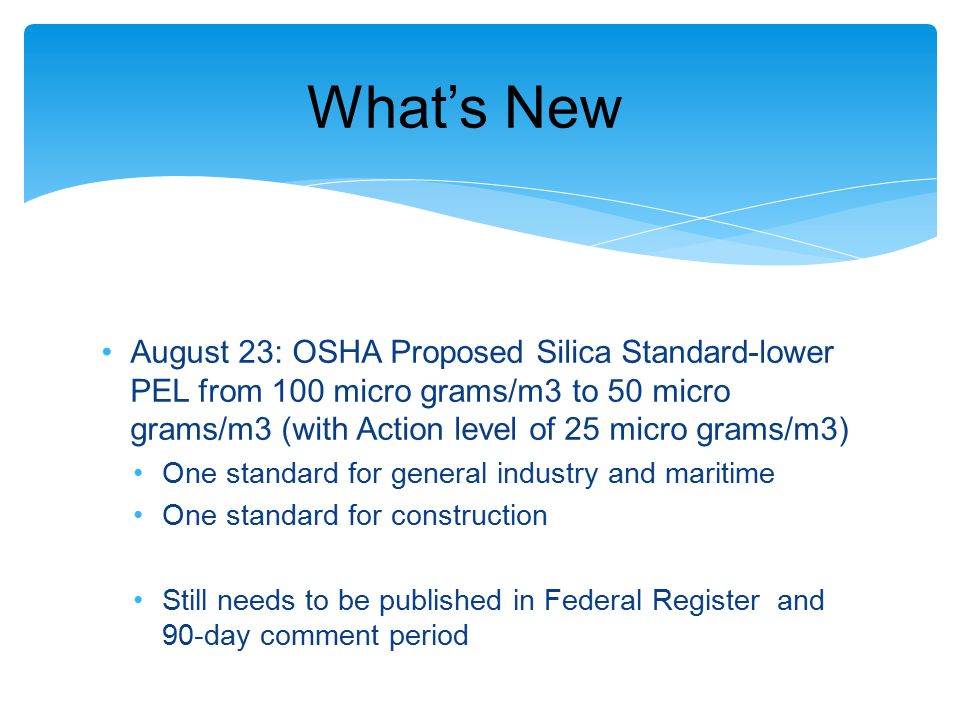

7. August 23: OSHA Proposed Silica Standard-lower PEL from 100 micro grams/m3 to 50 micro grams/m3 (with Action level of 25 micro grams/m3) One standard for general industry and maritime One standard for construction Still needs to be published in Federal Register and 90-day comment period What’s New

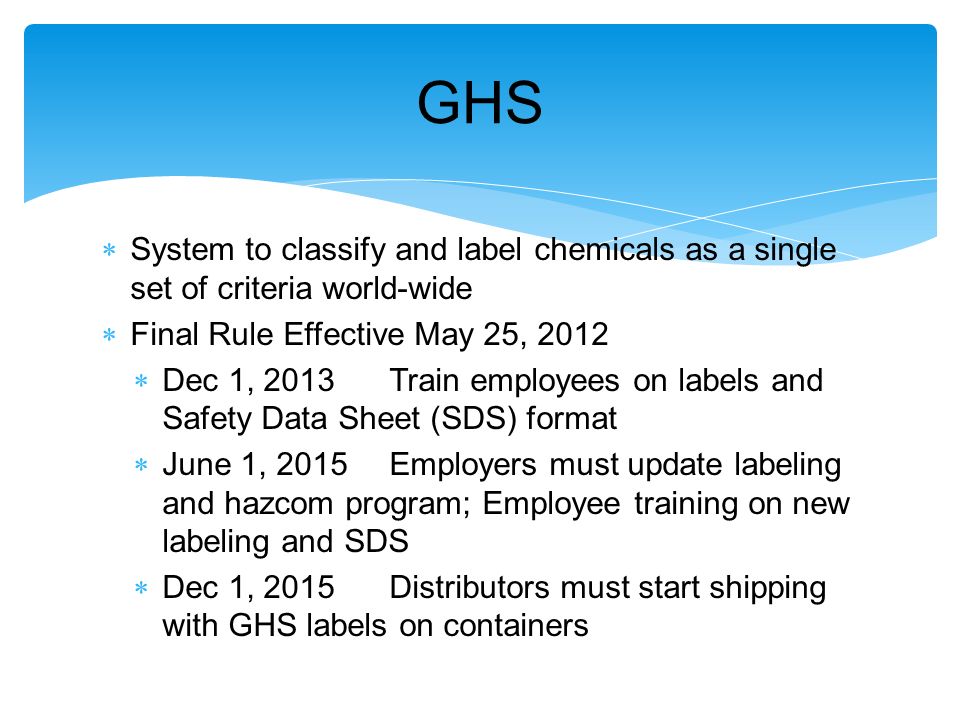

9.  System to classify and label chemicals as a single set of criteria world-wide  Final Rule Effective May 25, 2012  Dec 1, 2013Train employees on labels and Safety Data Sheet (SDS) format  June 1, 2015Employers must update labeling and hazcom program; Employee training on new labeling and SDS  Dec 1, 2015Distributors must start shipping with GHS labels on containers GHS

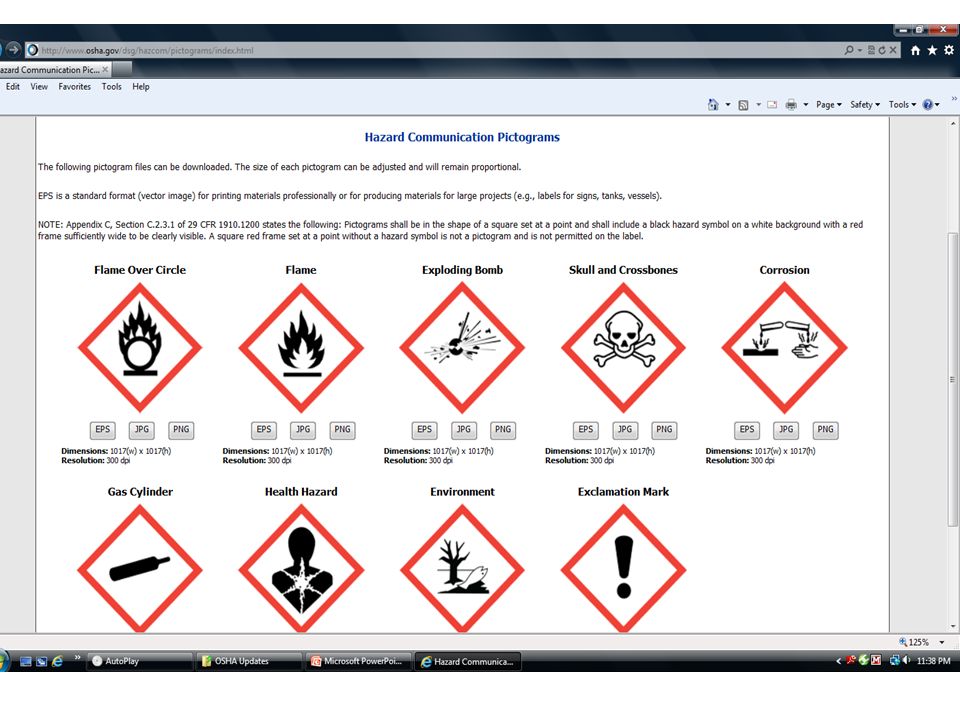

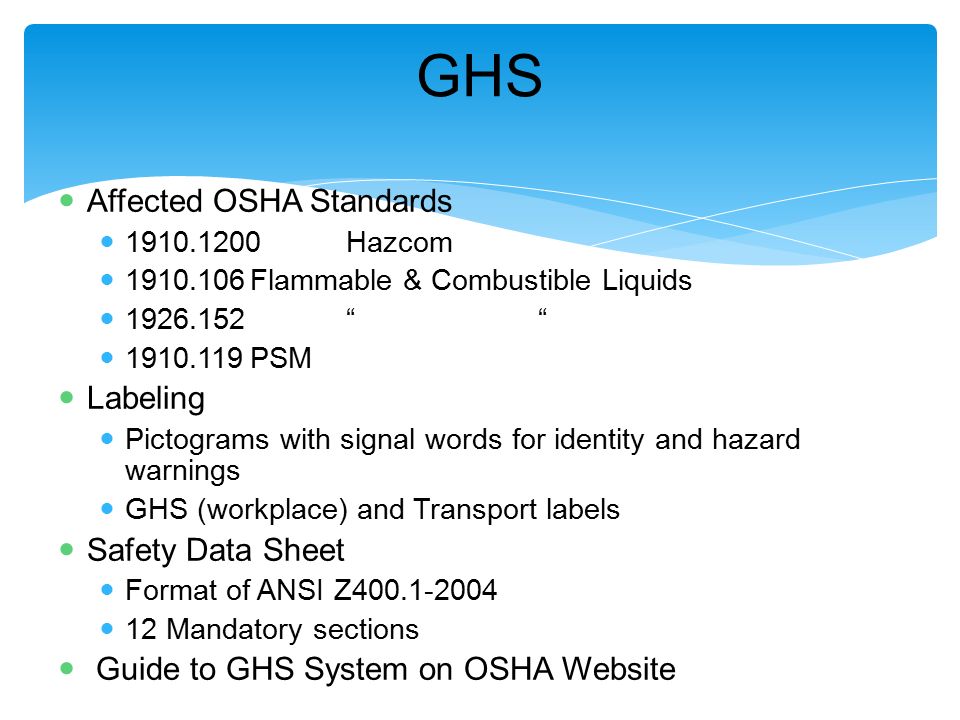

10. Affected OSHA Standards 1910.1200Hazcom 1910.106Flammable & Combustible Liquids 1926.152““ 1910.119PSM Labeling Pictograms with signal words for identity and hazard warnings GHS (workplace) and Transport labels Safety Data Sheet Format of ANSI Z400.1-2004 12 Mandatory sections Guide to GHS System on OSHA Website GHS

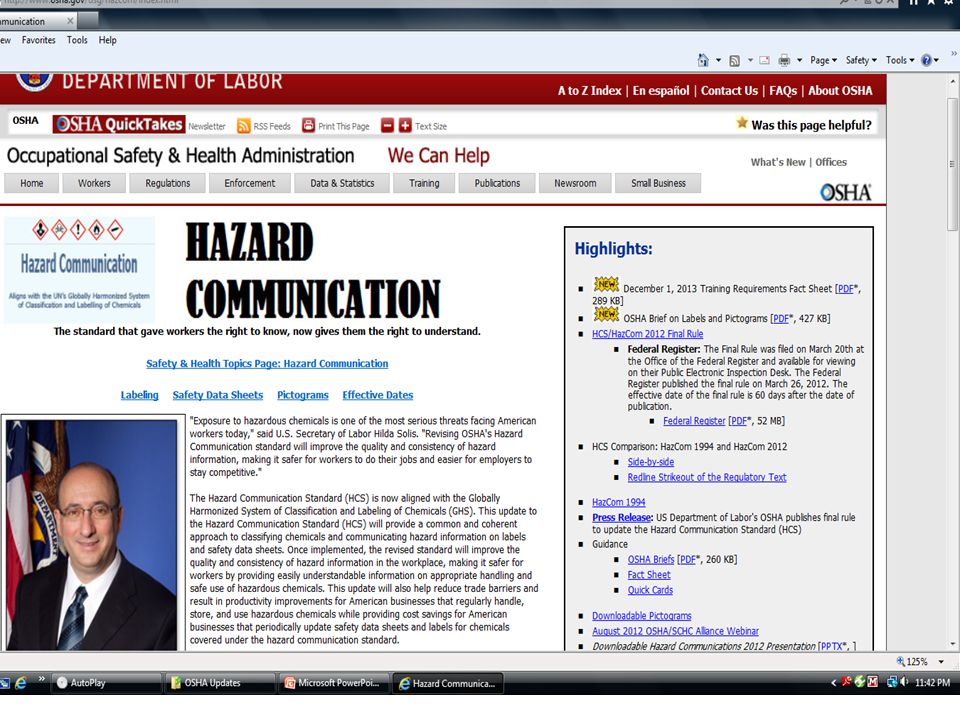

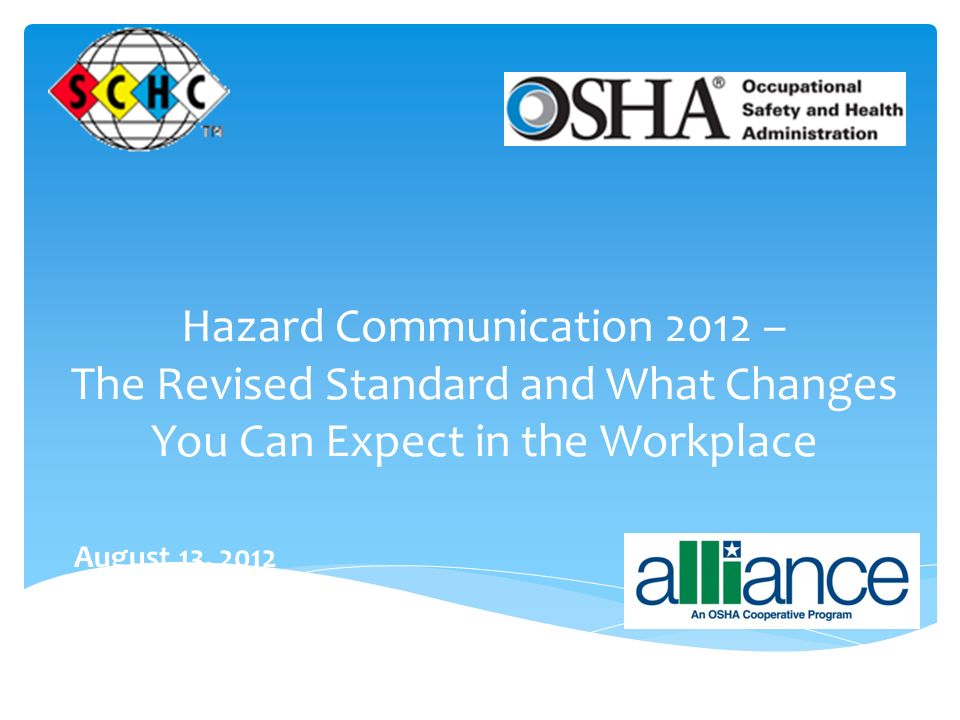

12. August 13, 2012 1:00-2:30 PM Hazard Communication 2012 – The Revised Standard and What Changes You Can Expect in the Workplace

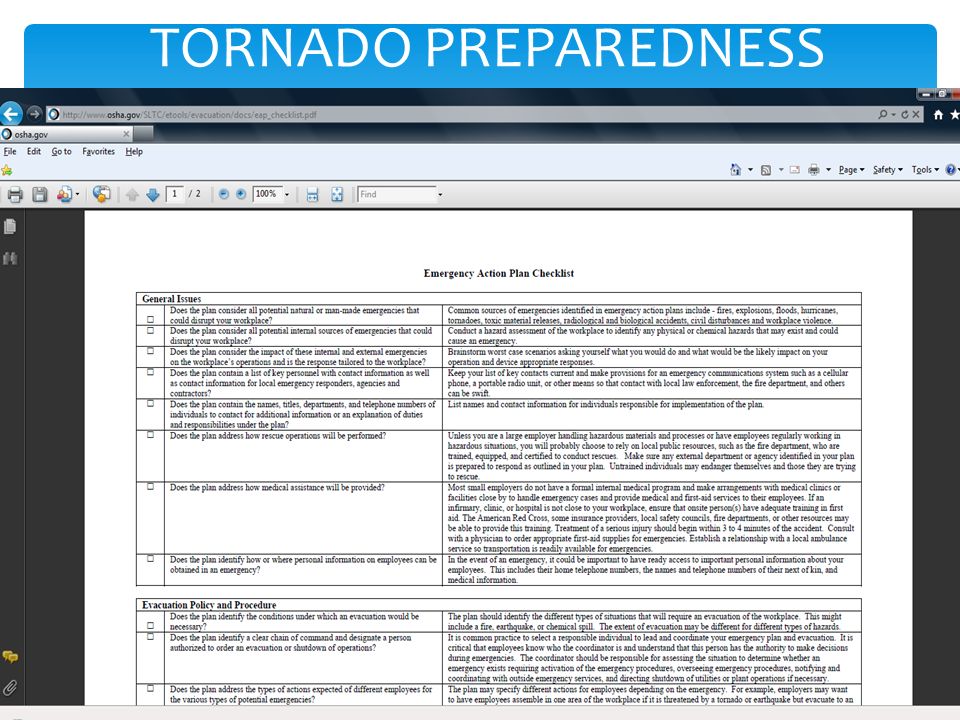

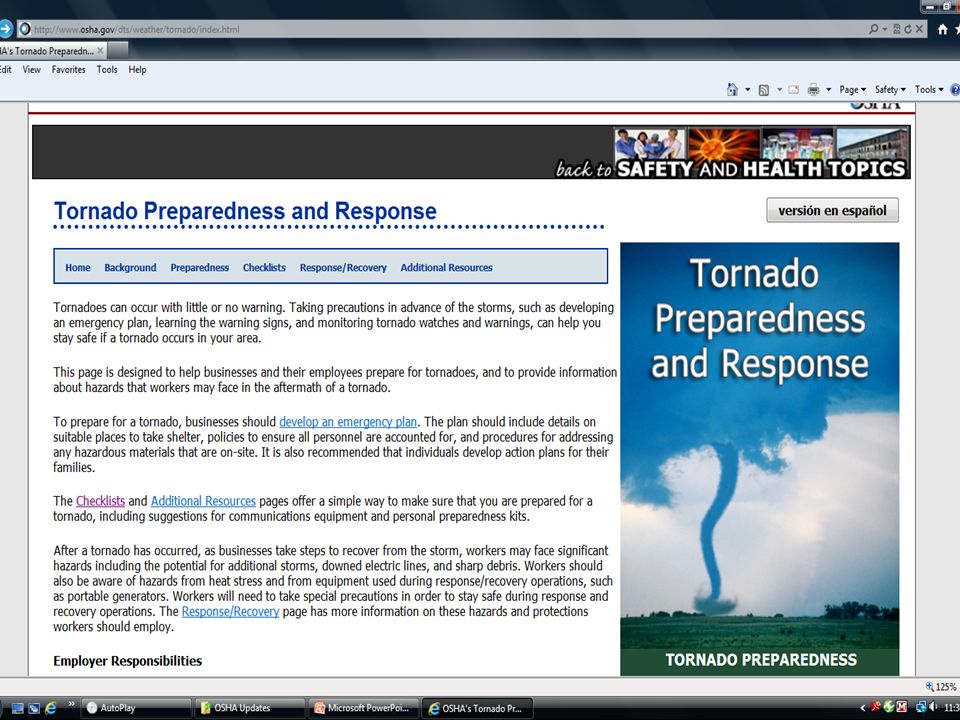

15. TORNADO PREPAREDNESS

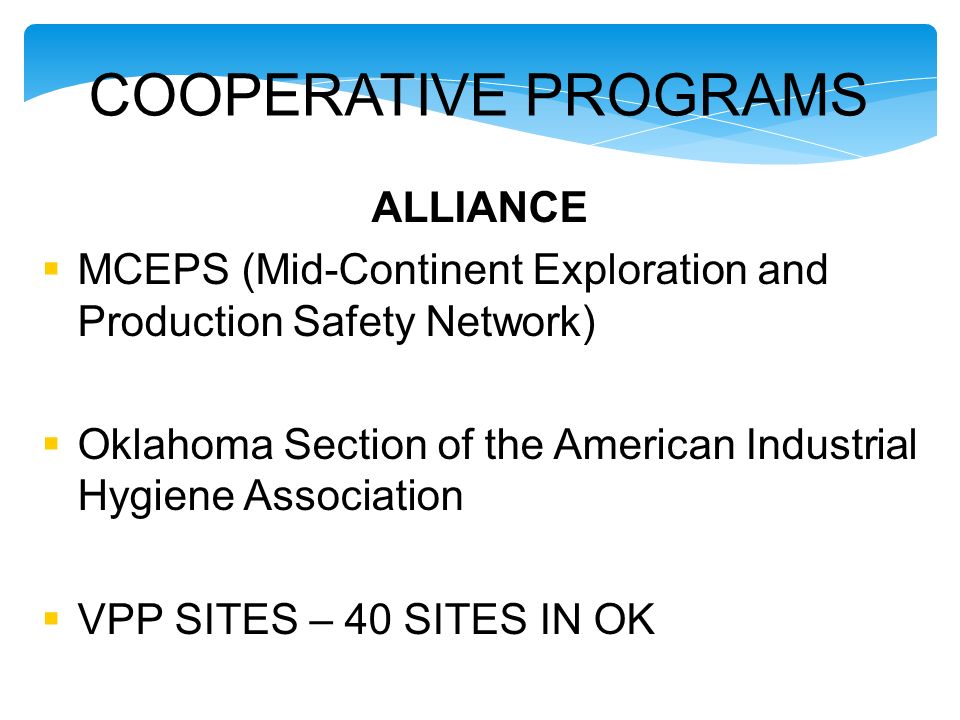

16. COOPERATIVE PROGRAMS ALLIANCE  MCEPS (Mid-Continent Exploration and Production Safety Network)  Oklahoma Section of the American Industrial Hygiene Association  VPP SITES – 40 SITES IN OK

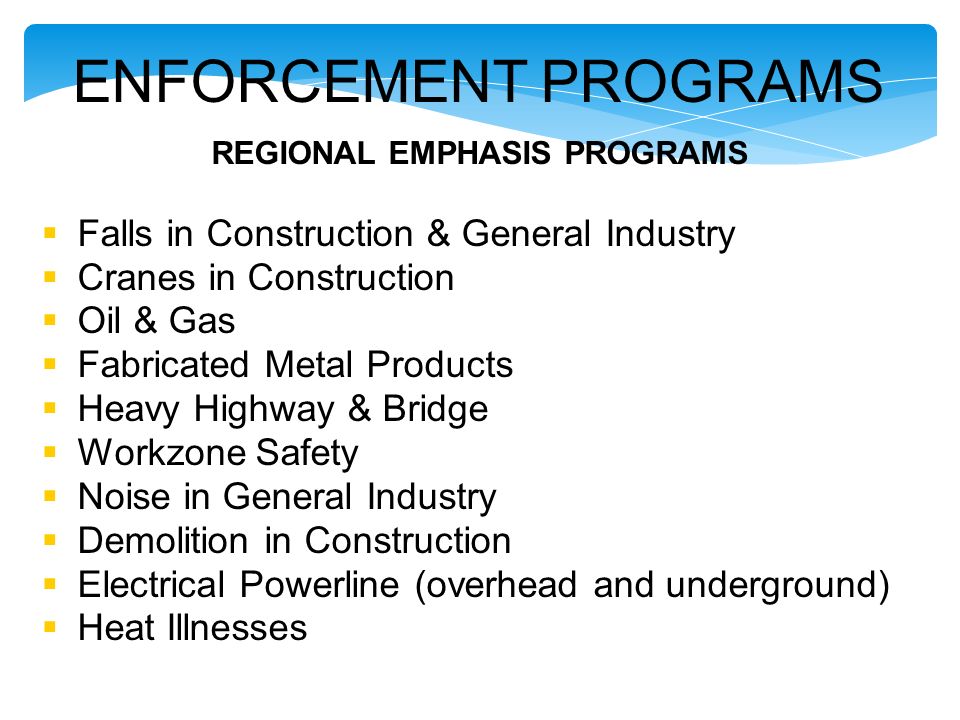

17. ENFORCEMENT PROGRAMS REGIONAL EMPHASIS PROGRAMS  Falls in Construction & General Industry  Cranes in Construction  Oil & Gas  Fabricated Metal Products  Heavy Highway & Bridge  Workzone Safety  Noise in General Industry  Demolition in Construction  Electrical Powerline (overhead and underground)  Heat Illnesses

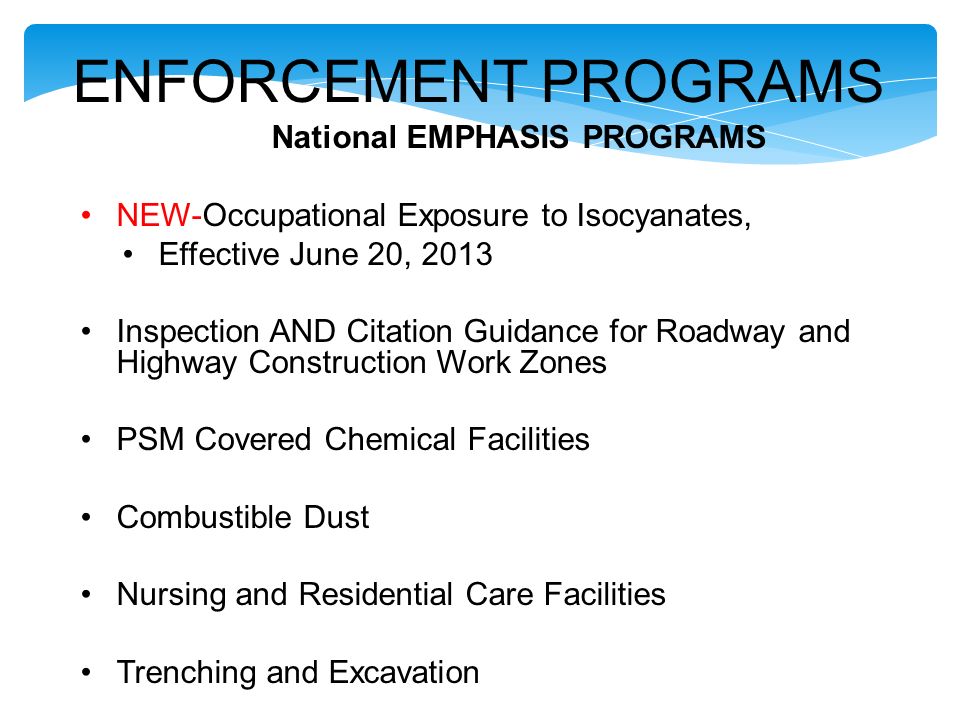

18. ENFORCEMENT PROGRAMS National EMPHASIS PROGRAMS NEW-Occupational Exposure to Isocyanates, Effective June 20, 2013 Inspection AND Citation Guidance for Roadway and Highway Construction Work Zones PSM Covered Chemical Facilities Combustible Dust Nursing and Residential Care Facilities Trenching and Excavation

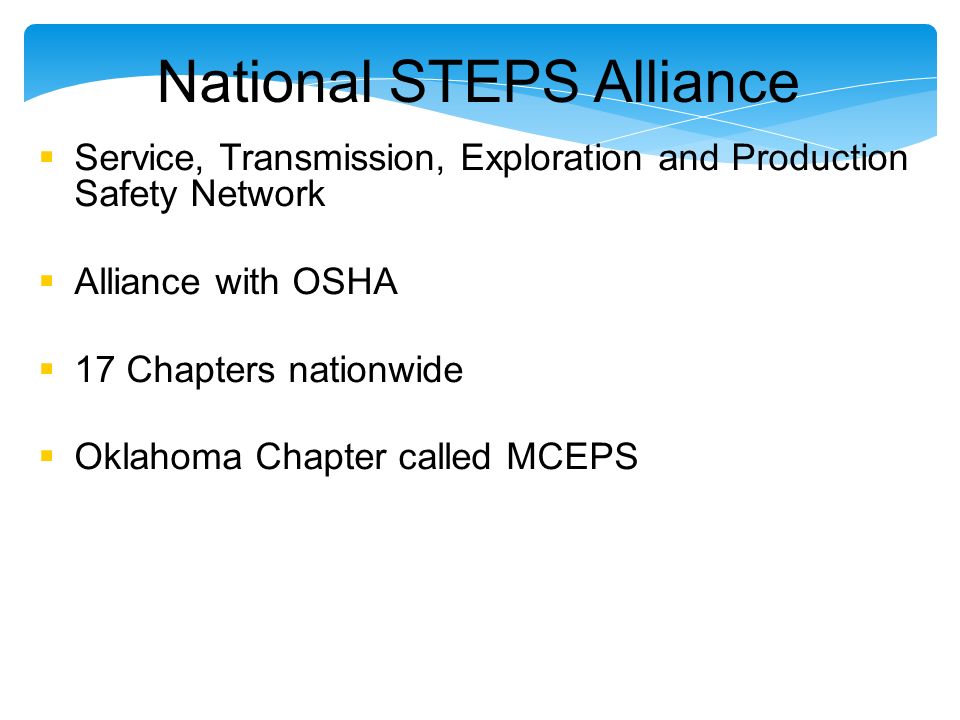

19. National STEPS Alliance  Service, Transmission, Exploration and Production Safety Network  Alliance with OSHA  17 Chapters nationwide  Oklahoma Chapter called MCEPS

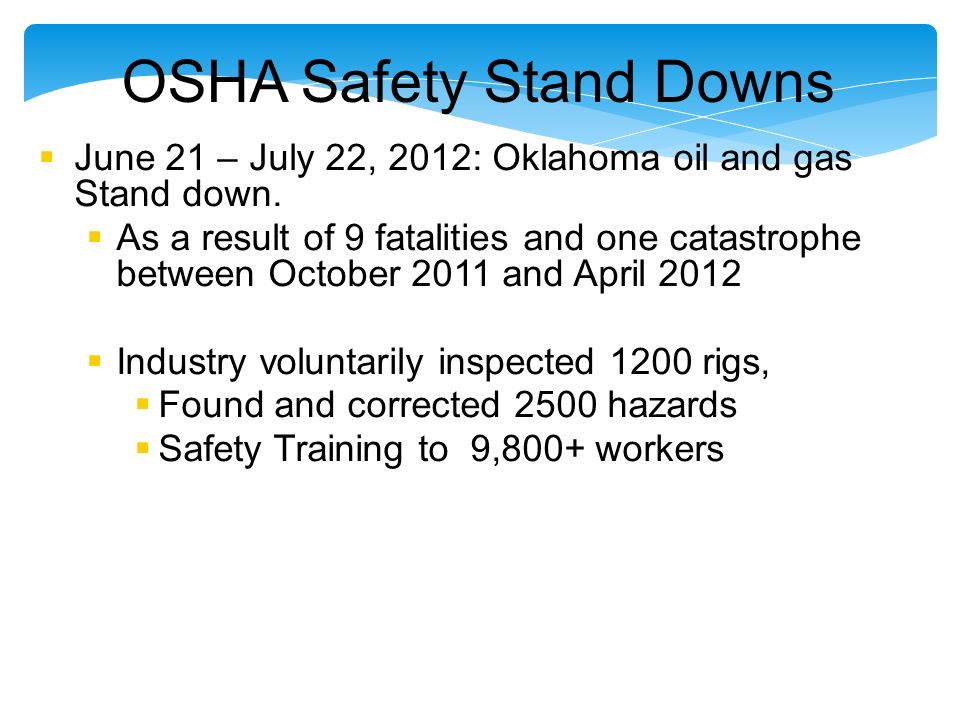

21. OSHA Safety Stand Downs  June 21 – July 22, 2012: Oklahoma oil and gas Stand down.  As a result of 9 fatalities and one catastrophe between October 2011 and April 2012  Industry voluntarily inspected 1200 rigs,  Found and corrected 2500 hazards  Safety Training to 9,800+ workers

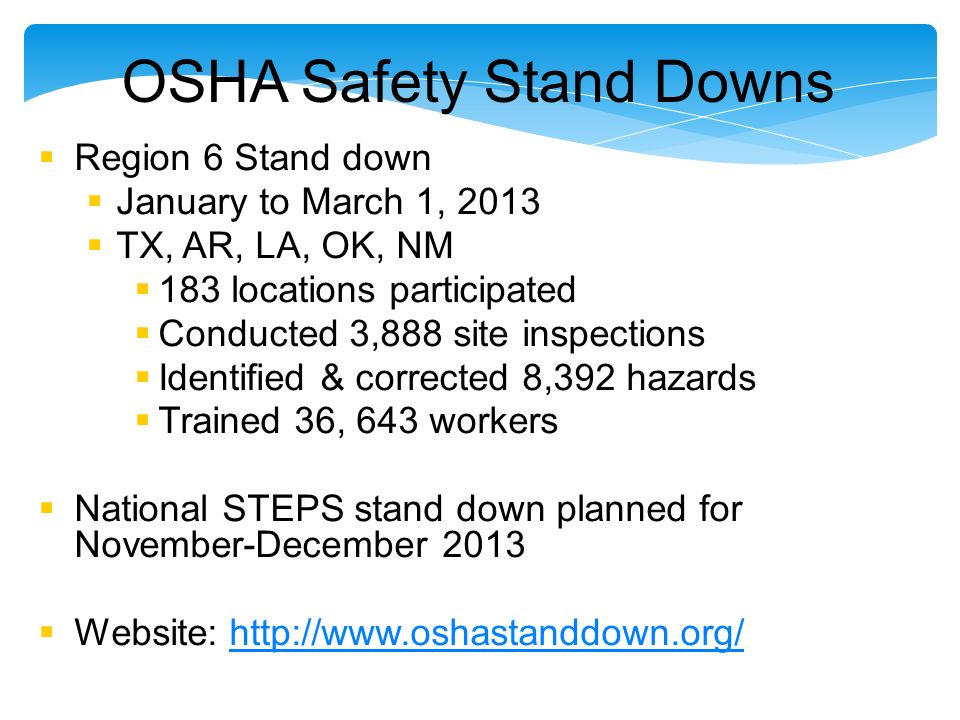

22. OSHA Safety Stand Downs  Region 6 Stand down  January to March 1, 2013  TX, AR, LA, OK, NM  183 locations participated  Conducted 3,888 site inspections  Identified & corrected 8,392 hazards  Trained 36, 643 workers  National STEPS stand down planned for November-December 2013  Website: http://www.oshastanddown.org/http://www.oshastanddown.org/

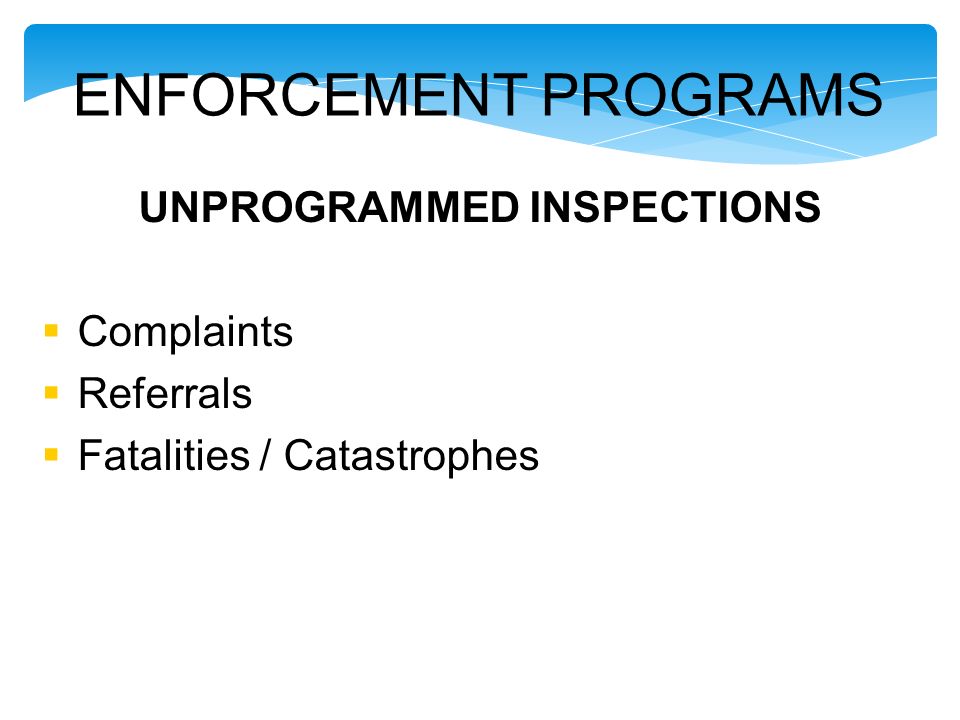

23. ENFORCEMENT PROGRAMS UNPROGRAMMED INSPECTIONS  Complaints  Referrals  Fatalities / Catastrophes

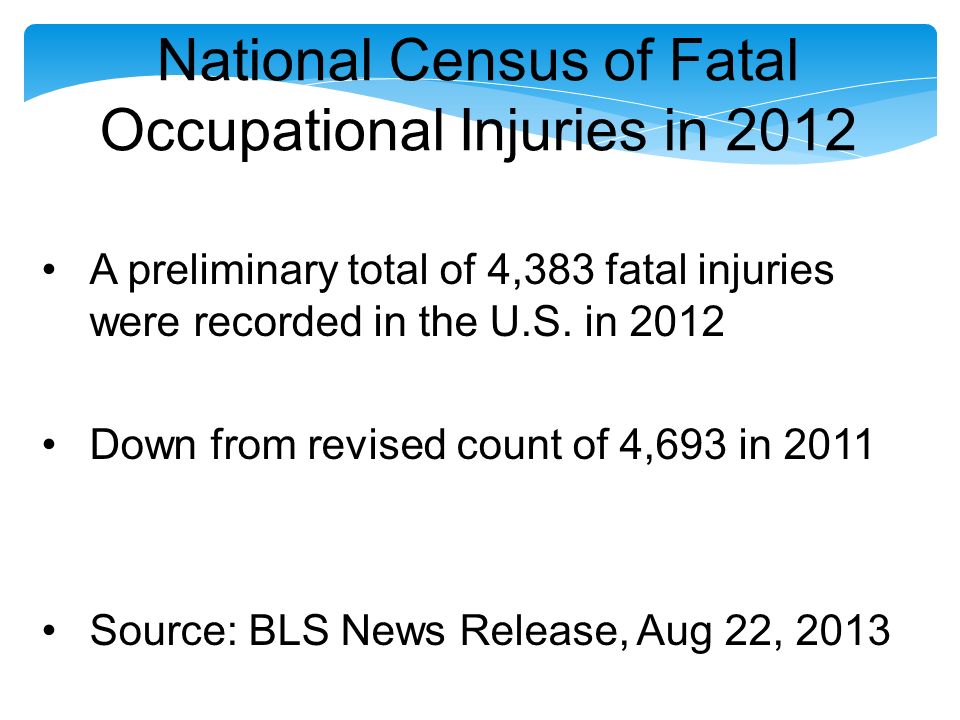

24. National Census of Fatal Occupational Injuries in 2012 A preliminary total of 4,383 fatal injuries were recorded in the U.S. in 2012 Down from revised count of 4,693 in 2011 Source: BLS News Release, Aug 22, 2013

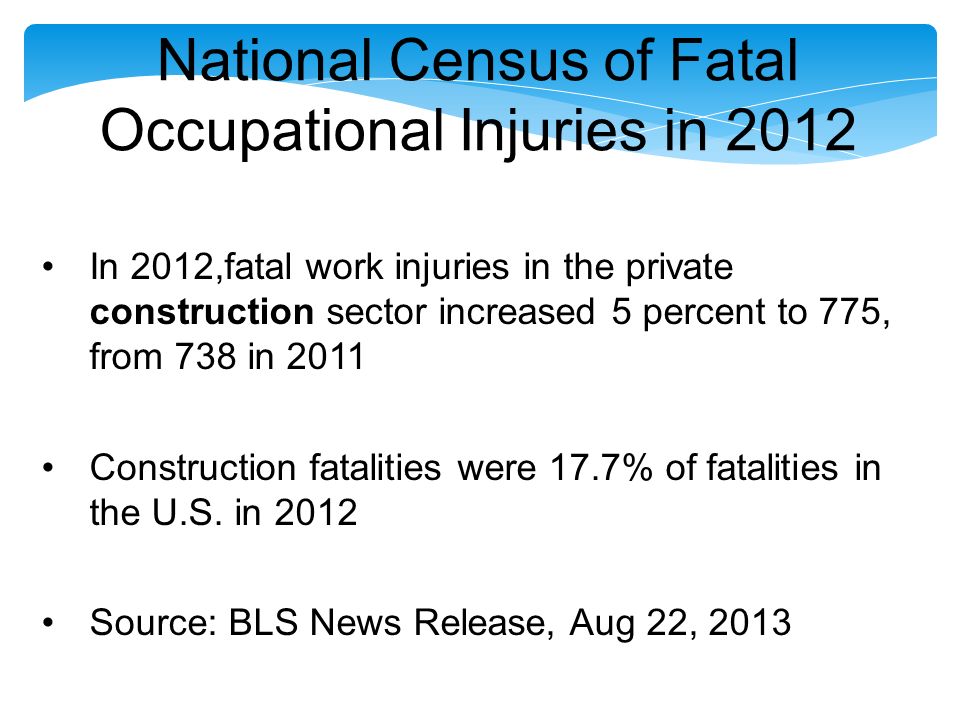

25. National Census of Fatal Occupational Injuries in 2012 In 2012,fatal work injuries in the private construction sector increased 5 percent to 775, from 738 in 2011 Construction fatalities were 17.7% of fatalities in the U.S. in 2012 Source: BLS News Release, Aug 22, 2013

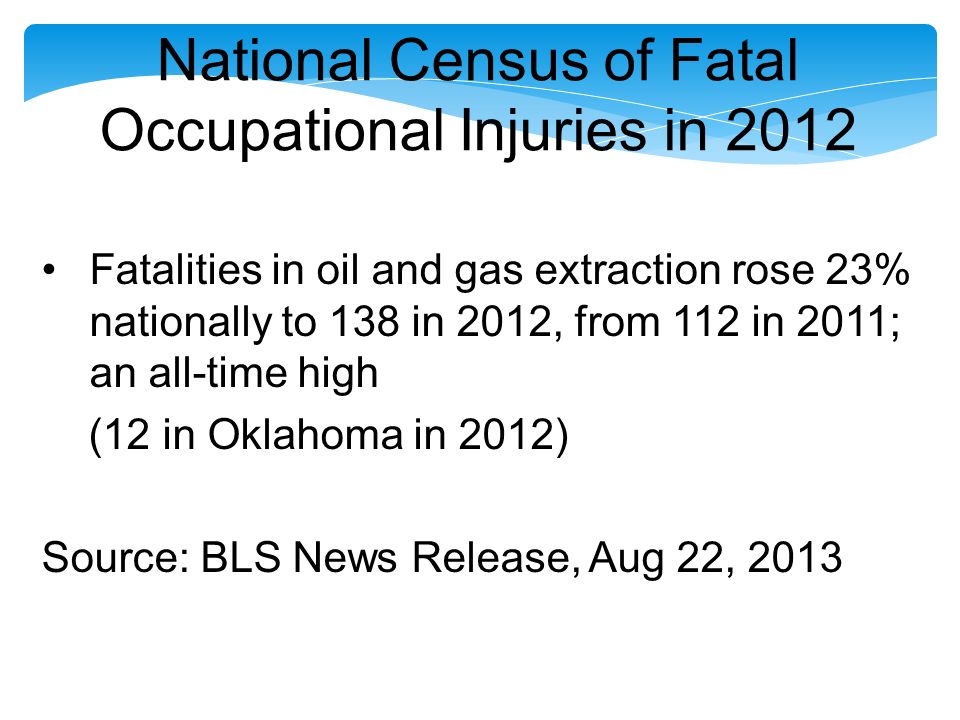

26. National Census of Fatal Occupational Injuries in 2012 Fatalities in oil and gas extraction rose 23% nationally to 138 in 2012, from 112 in 2011; an all-time high (12 in Oklahoma in 2012) Source: BLS News Release, Aug 22, 2013

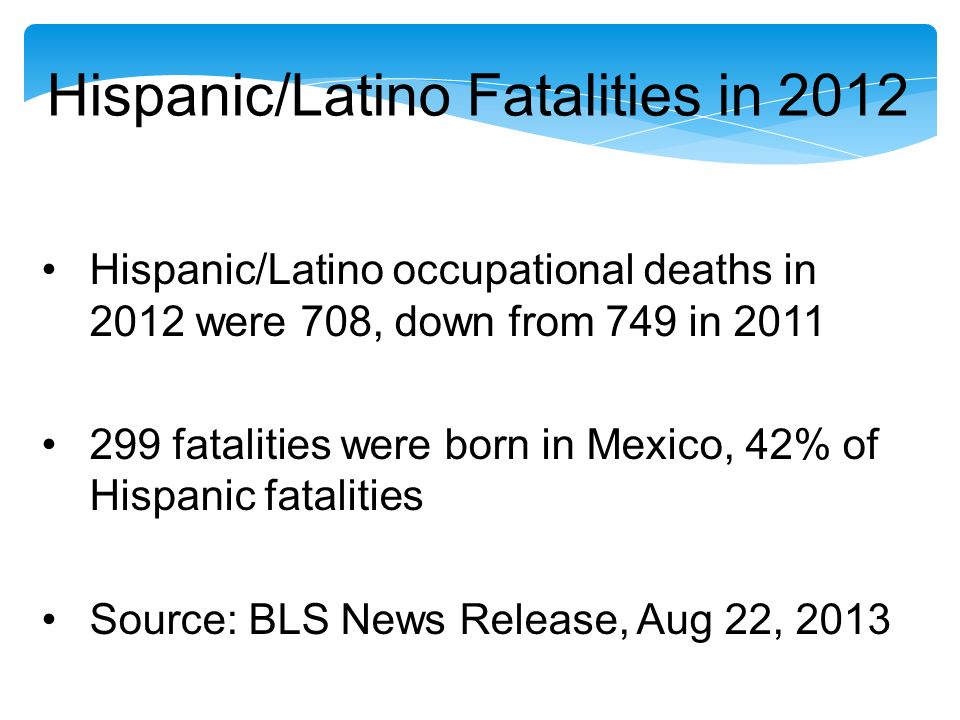

27. Hispanic/Latino Fatalities in 2012 Hispanic/Latino occupational deaths in 2012 were 708, down from 749 in 2011 299 fatalities were born in Mexico, 42% of Hispanic fatalities Source: BLS News Release, Aug 22, 2013

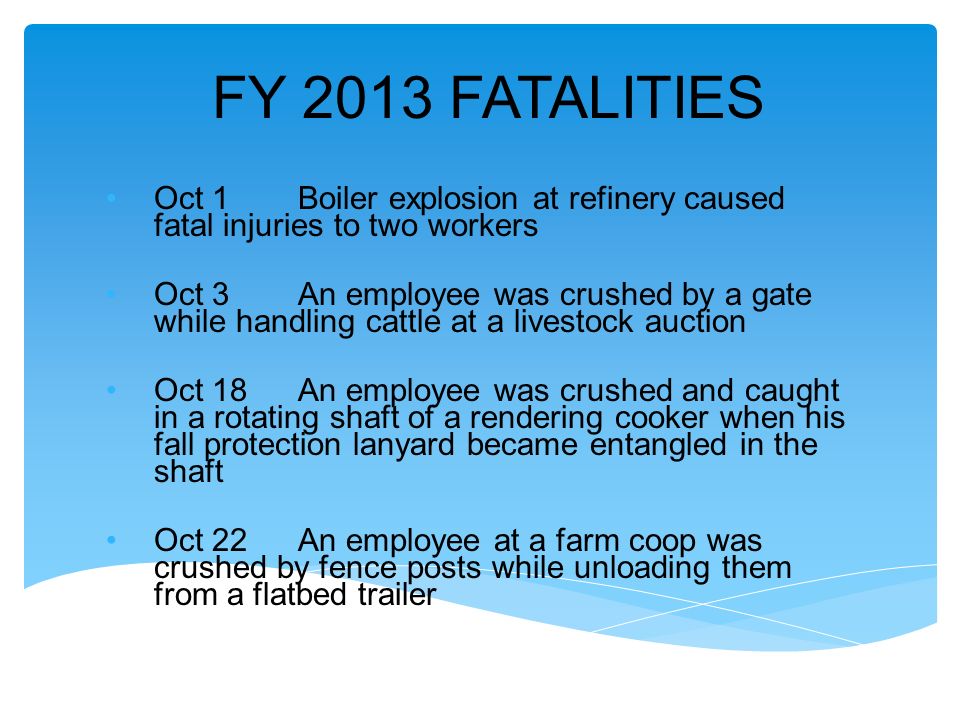

28. FY 2013 FATALITIES Oct 1Boiler explosion at refinery caused fatal injuries to two workers Oct 3An employee was crushed by a gate while handling cattle at a livestock auction Oct 18An employee was crushed and caught in a rotating shaft of a rendering cooker when his fall protection lanyard became entangled in the shaft Oct 22An employee at a farm coop was crushed by fence posts while unloading them from a flatbed trailer

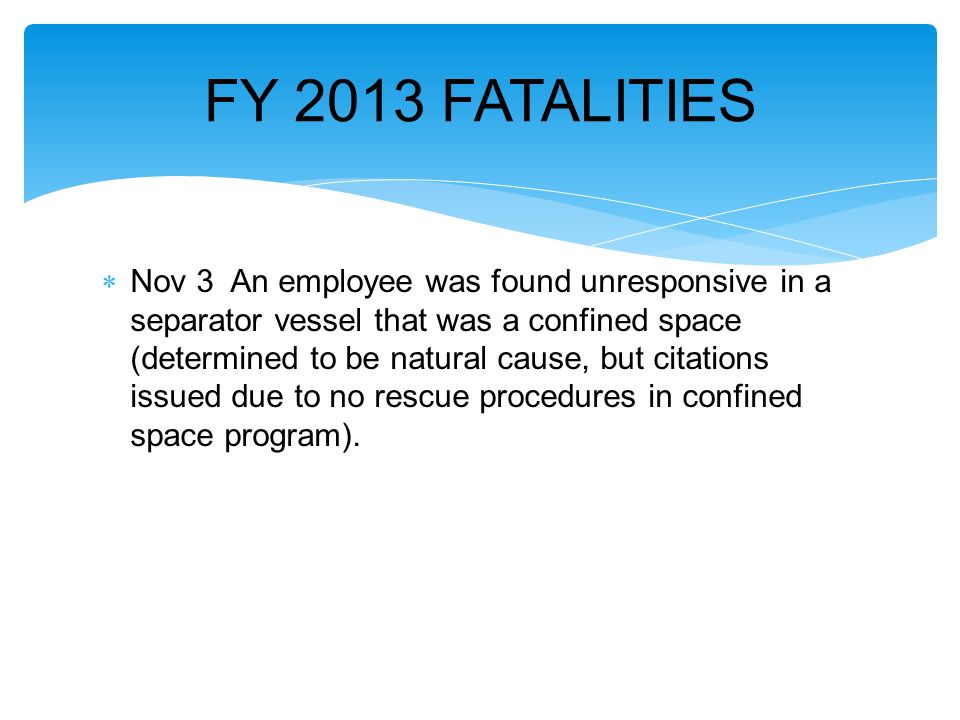

29.  Nov 3 An employee was found unresponsive in a separator vessel that was a confined space (determined to be natural cause, but citations issued due to no rescue procedures in confined space program). FY 2013 FATALITIES

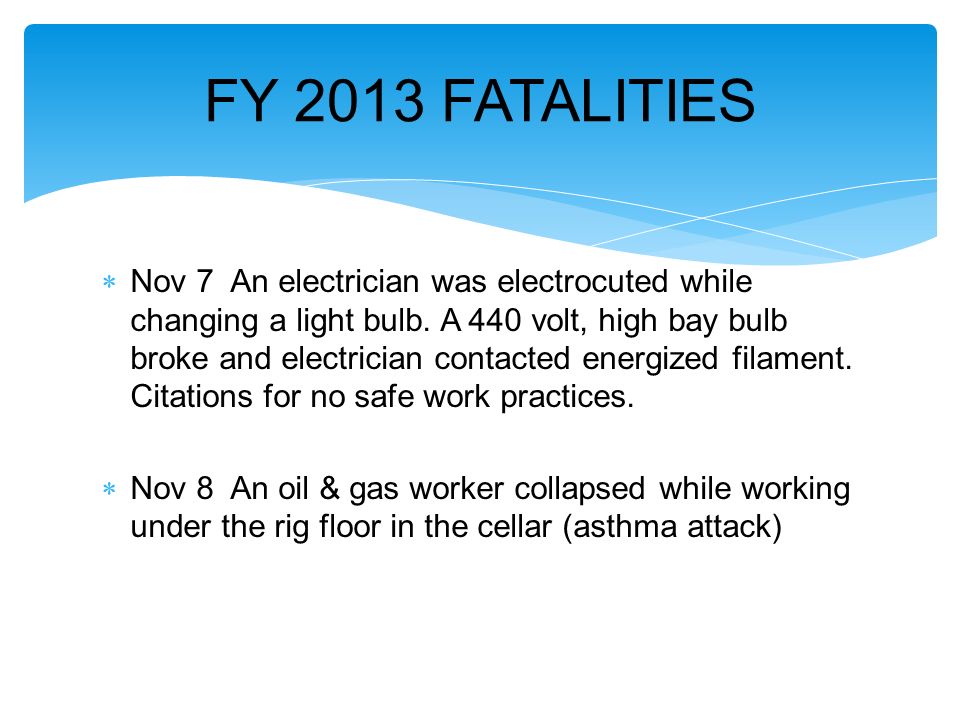

30.  Nov 7 An electrician was electrocuted while changing a light bulb. A 440 volt, high bay bulb broke and electrician contacted energized filament. Citations for no safe work practices.  Nov 8 An oil & gas worker collapsed while working under the rig floor in the cellar (asthma attack) FY 2013 FATALITIES

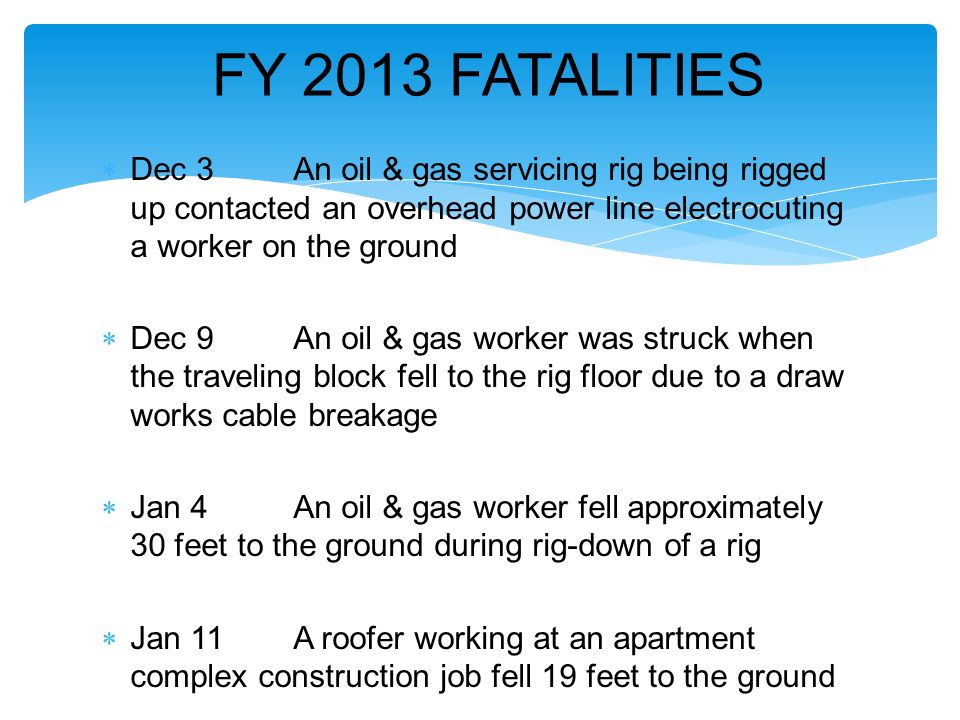

31.  Dec 3An oil & gas servicing rig being rigged up contacted an overhead power line electrocuting a worker on the ground  Dec 9An oil & gas worker was struck when the traveling block fell to the rig floor due to a draw works cable breakage  Jan 4An oil & gas worker fell approximately 30 feet to the ground during rig-down of a rig  Jan 11A roofer working at an apartment complex construction job fell 19 feet to the ground FY 2013 FATALITIES

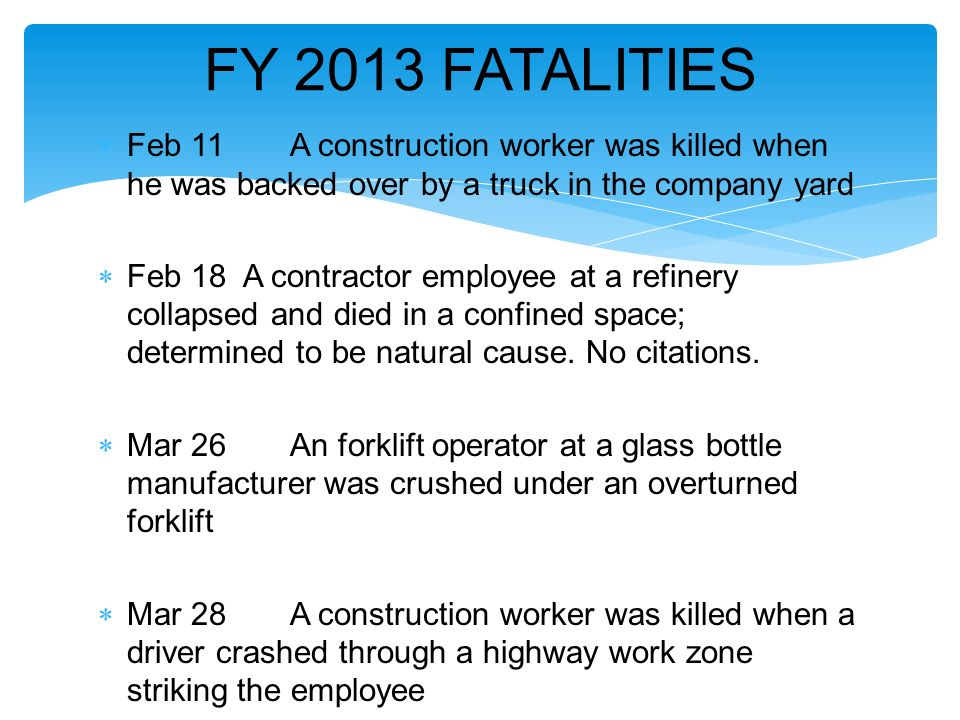

32.  Feb 11A construction worker was killed when he was backed over by a truck in the company yard  Feb 18 A contractor employee at a refinery collapsed and died in a confined space; determined to be natural cause. No citations.  Mar 26An forklift operator at a glass bottle manufacturer was crushed under an overturned forklift  Mar 28A construction worker was killed when a driver crashed through a highway work zone striking the employee FY 2013 FATALITIES

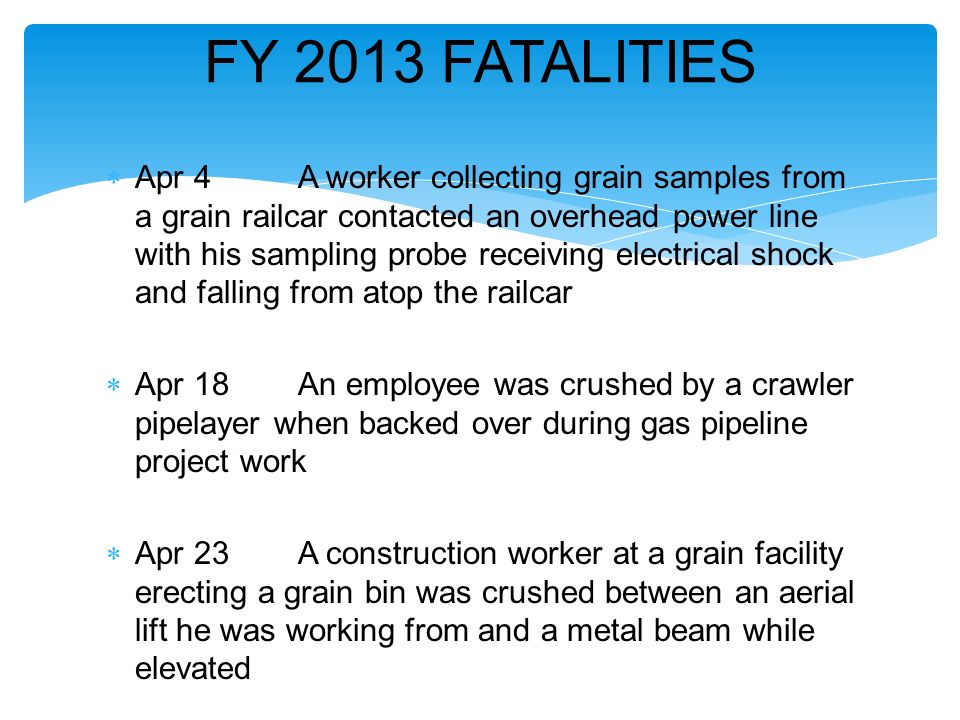

33.  Apr 4A worker collecting grain samples from a grain railcar contacted an overhead power line with his sampling probe receiving electrical shock and falling from atop the railcar  Apr 18An employee was crushed by a crawler pipelayer when backed over during gas pipeline project work  Apr 23A construction worker at a grain facility erecting a grain bin was crushed between an aerial lift he was working from and a metal beam while elevated FY 2013 FATALITIES

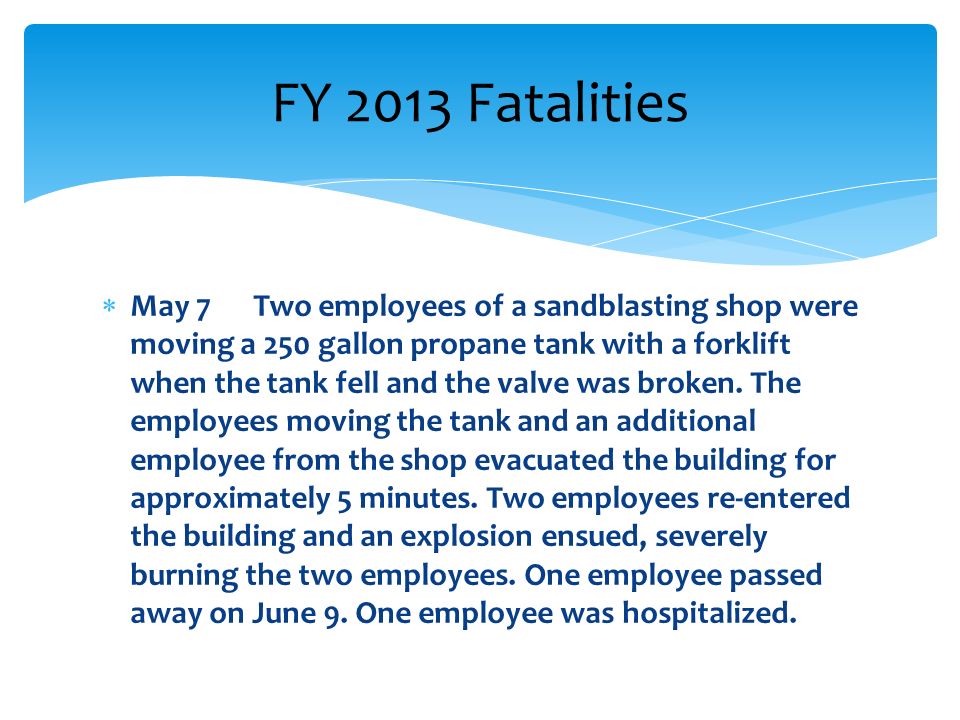

34.  May 7 Two employees of a sandblasting shop were moving a 250 gallon propane tank with a forklift when the tank fell and the valve was broken. The employees moving the tank and an additional employee from the shop evacuated the building for approximately 5 minutes. Two employees re-entered the building and an explosion ensued, severely burning the two employees. One employee passed away on June 9. One employee was hospitalized. FY 2013 Fatalities

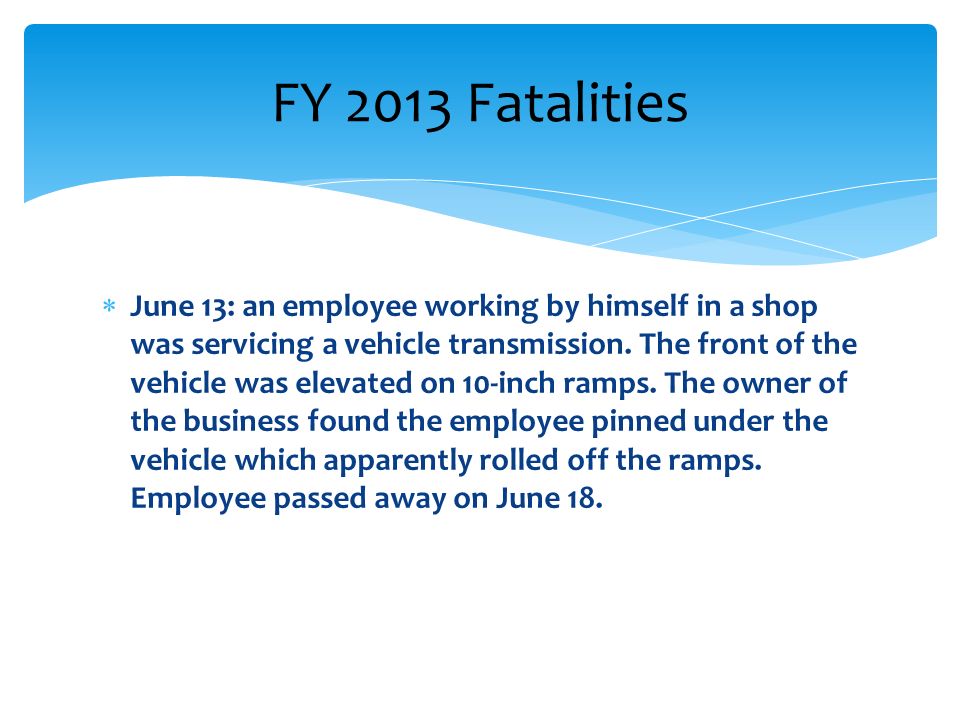

35.  June 13: an employee working by himself in a shop was servicing a vehicle transmission. The front of the vehicle was elevated on 10-inch ramps. The owner of the business found the employee pinned under the vehicle which apparently rolled off the ramps. Employee passed away on June 18. FY 2013 Fatalities

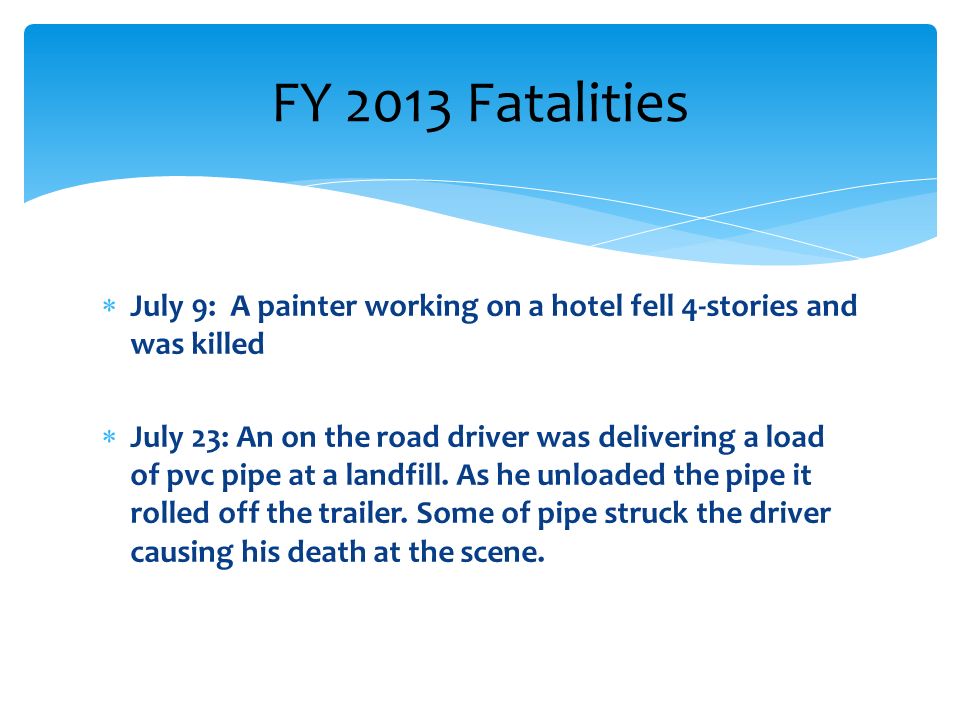

36.  July 9: A painter working on a hotel fell 4-stories and was killed  July 23: An on the road driver was delivering a load of pvc pipe at a landfill. As he unloaded the pipe it rolled off the trailer. Some of pipe struck the driver causing his death at the scene. FY 2013 Fatalities

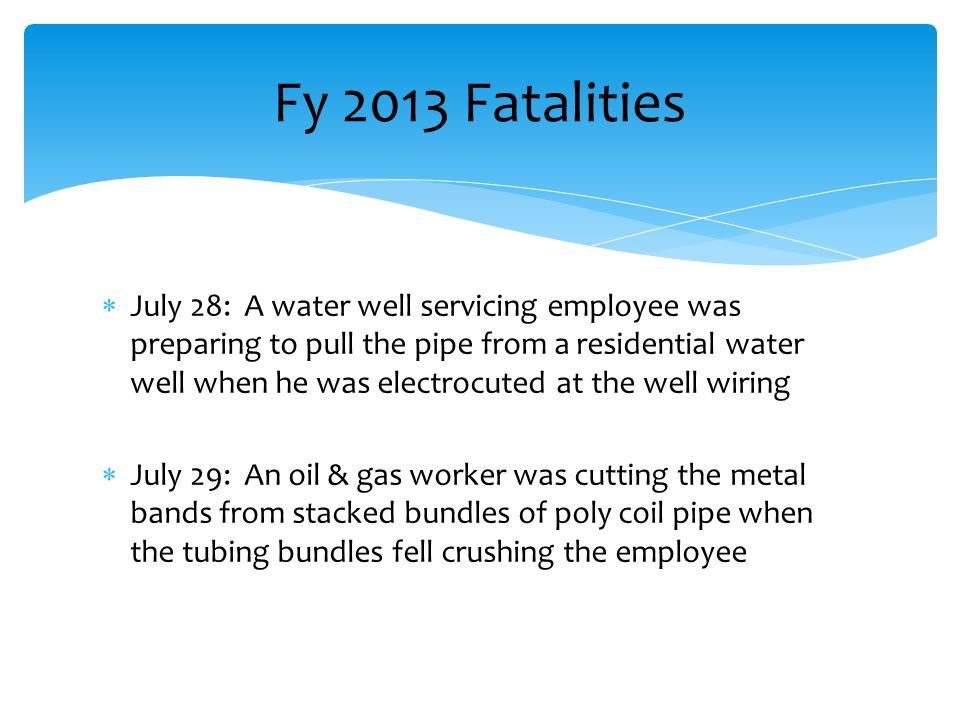

37.  July 28: A water well servicing employee was preparing to pull the pipe from a residential water well when he was electrocuted at the well wiring  July 29: An oil & gas worker was cutting the metal bands from stacked bundles of poly coil pipe when the tubing bundles fell crushing the employee Fy 2013 Fatalities

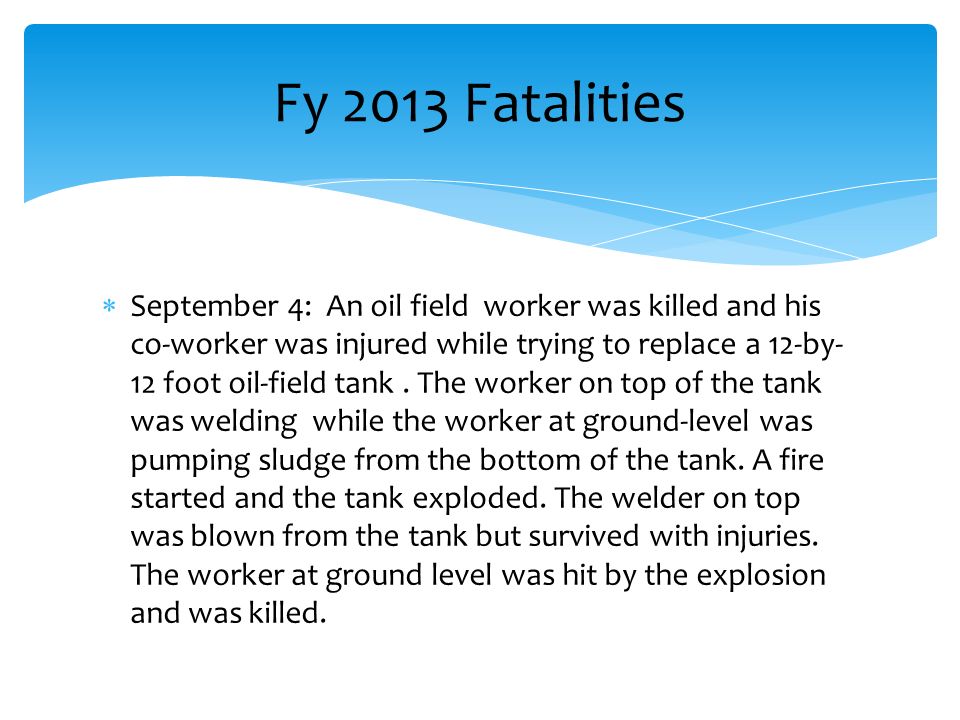

38.  September 4: An oil field worker was killed and his co-worker was injured while trying to replace a 12-by- 12 foot oil-field tank. The worker on top of the tank was welding while the worker at ground-level was pumping sludge from the bottom of the tank. A fire started and the tank exploded. The welder on top was blown from the tank but survived with injuries. The worker at ground level was hit by the explosion and was killed. Fy 2013 Fatalities

39.  September 9: At the University of Oklahoma in Norman, a construction worker fell from a scaffold 40 feet and was killed Fy 2013 Fatalities

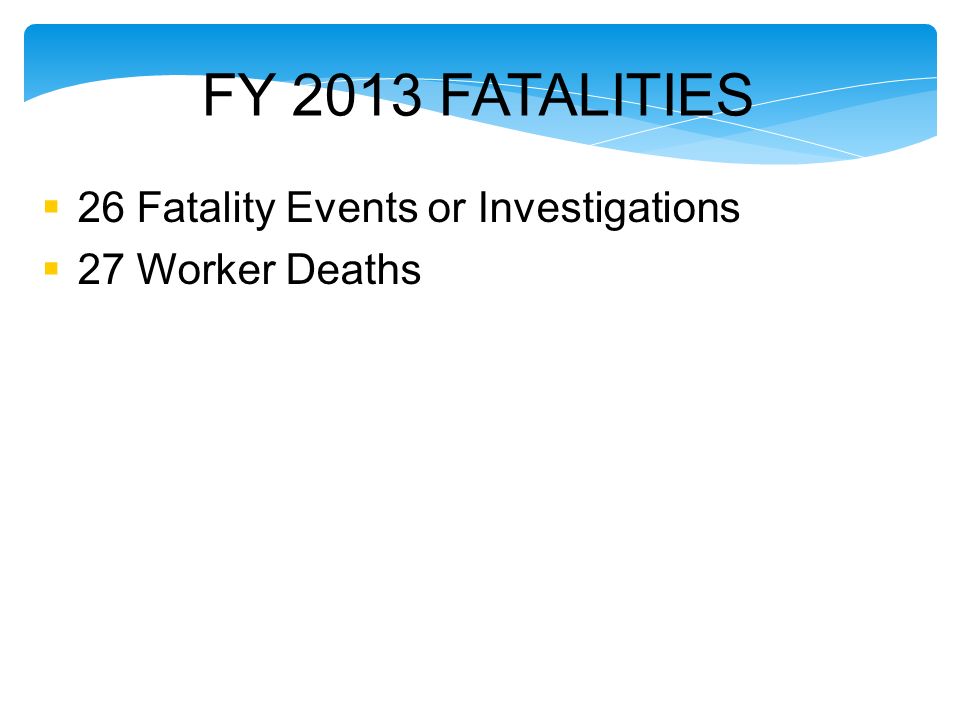

40. FY 2013 FATALITIES  26 Fatality Events or Investigations  27 Worker Deaths

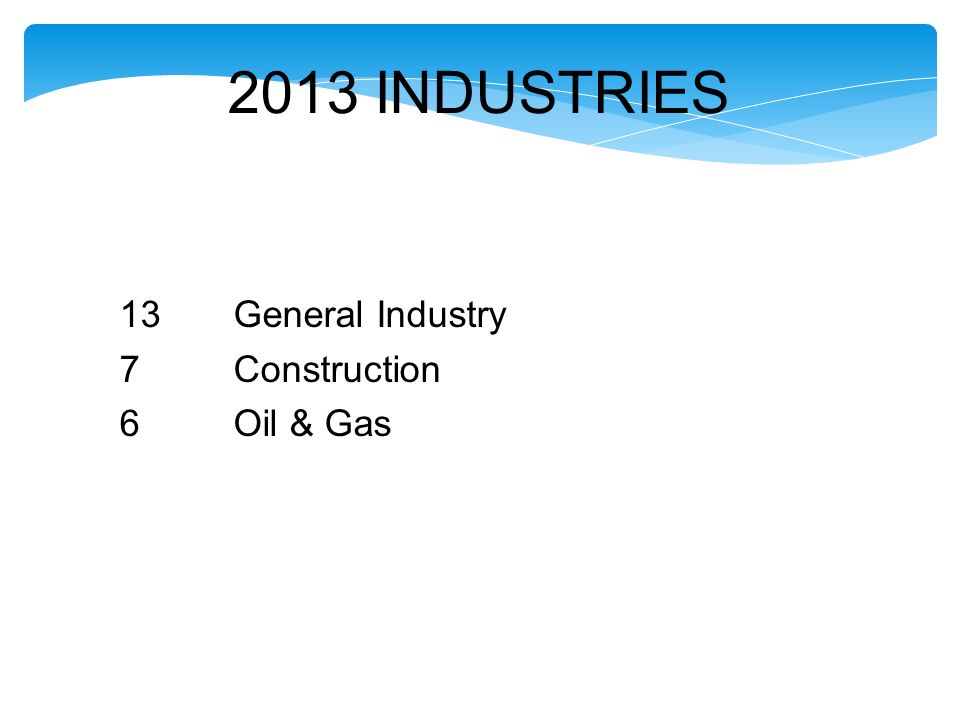

41. 2013 INDUSTRIES 13General Industry 7Construction 6Oil & Gas

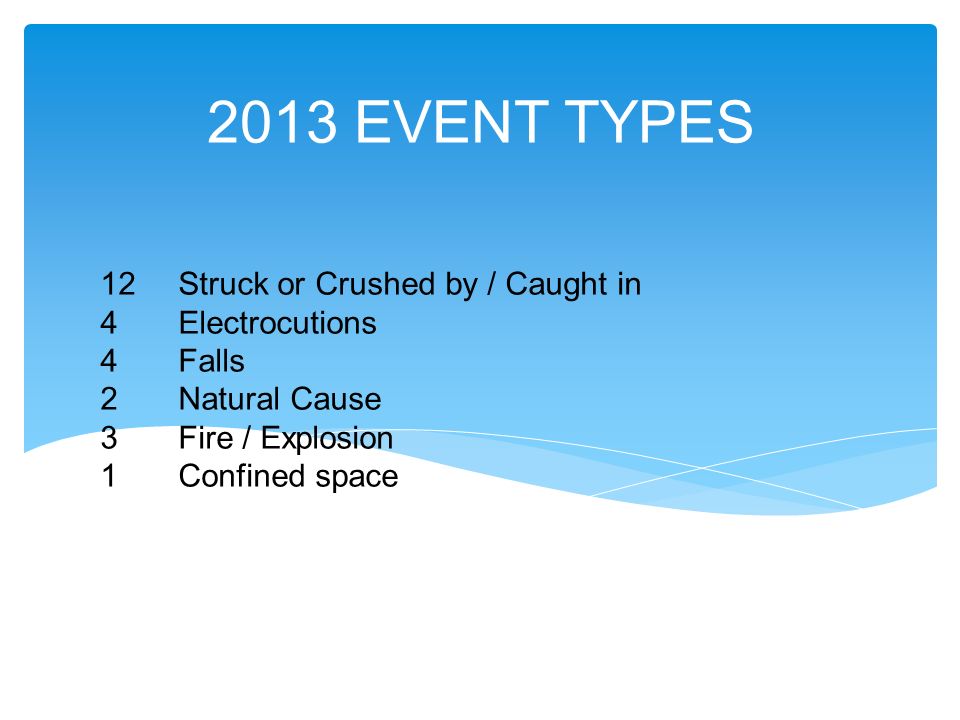

42. 12Struck or Crushed by / Caught in 4Electrocutions 4Falls 2Natural Cause 3Fire / Explosion 1 Confined space 2013 EVENT TYPES

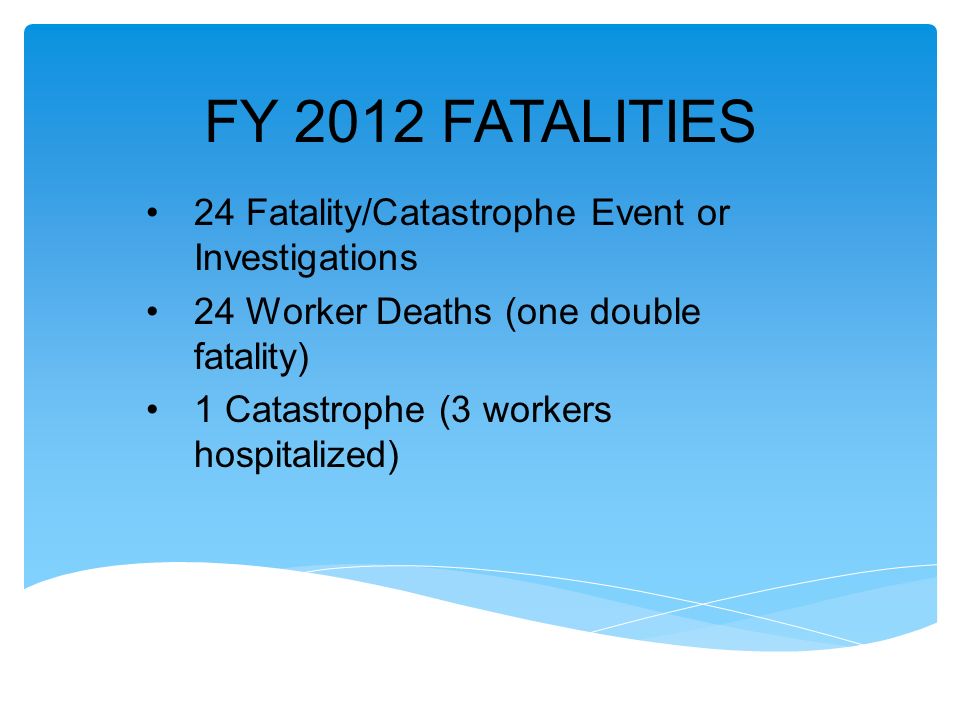

43. FY 2012 FATALITIES 24 Fatality/Catastrophe Event or Investigations 24 Worker Deaths (one double fatality) 1 Catastrophe (3 workers hospitalized)

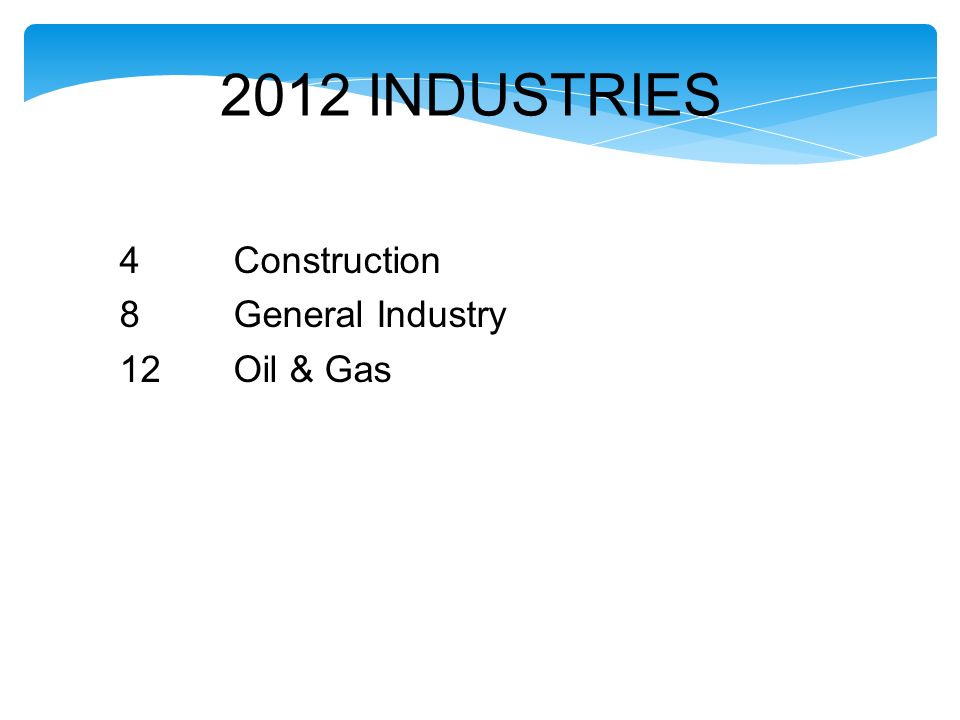

44. 2012 INDUSTRIES 4Construction 8General Industry 12Oil & Gas

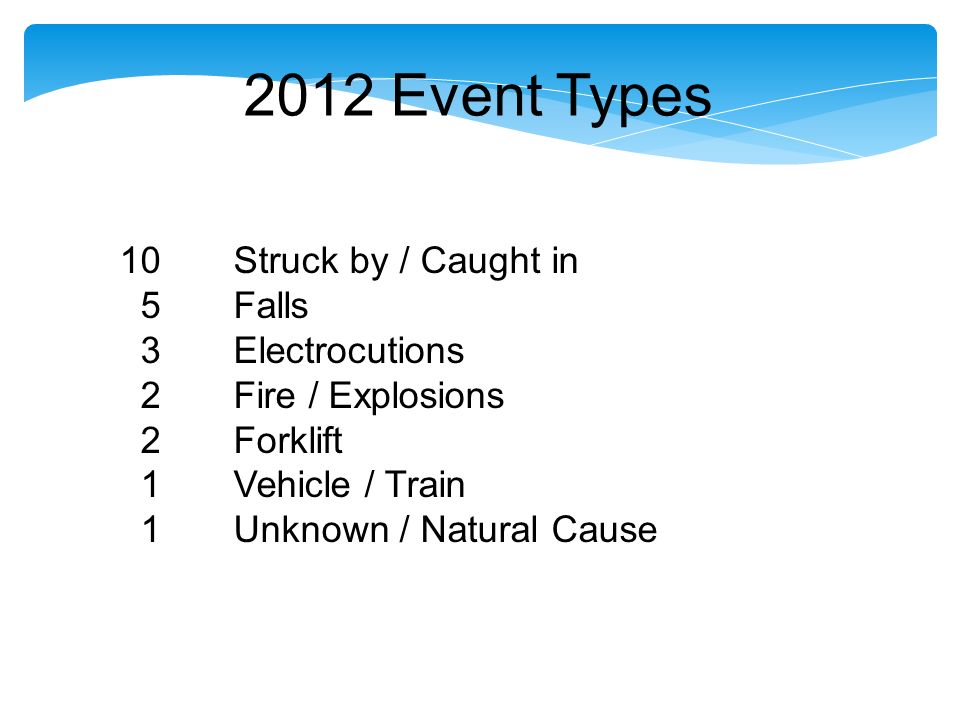

45. 2012 Event Types 10Struck by / Caught in 5Falls 3Electrocutions 2Fire / Explosions 2Forklift 1Vehicle / Train 1Unknown / Natural Cause

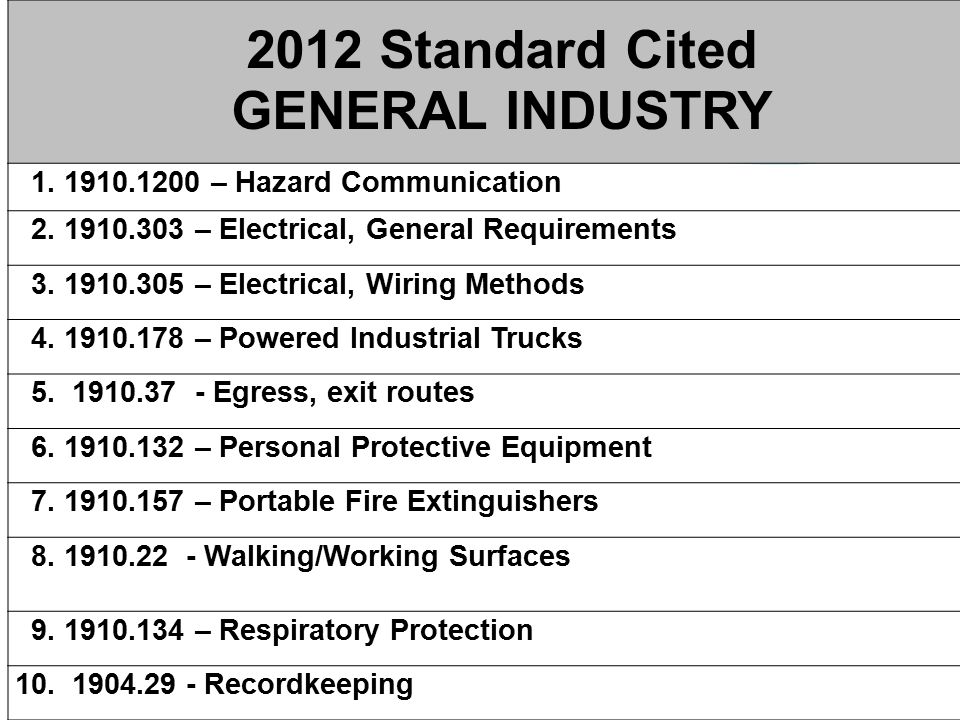

46. 2012 Standard Cited GENERAL INDUSTRY 1. 1910.1200 – Hazard Communication 2. 1910.303 – Electrical, General Requirements 3. 1910.305 – Electrical, Wiring Methods 4. 1910.178 – Powered Industrial Trucks 5. 1910.37 - Egress, exit routes 6. 1910.132 – Personal Protective Equipment 7. 1910.157 – Portable Fire Extinguishers 8. 1910.22 - Walking/Working Surfaces 9. 1910.134 – Respiratory Protection 10. 1904.29 - Recordkeeping

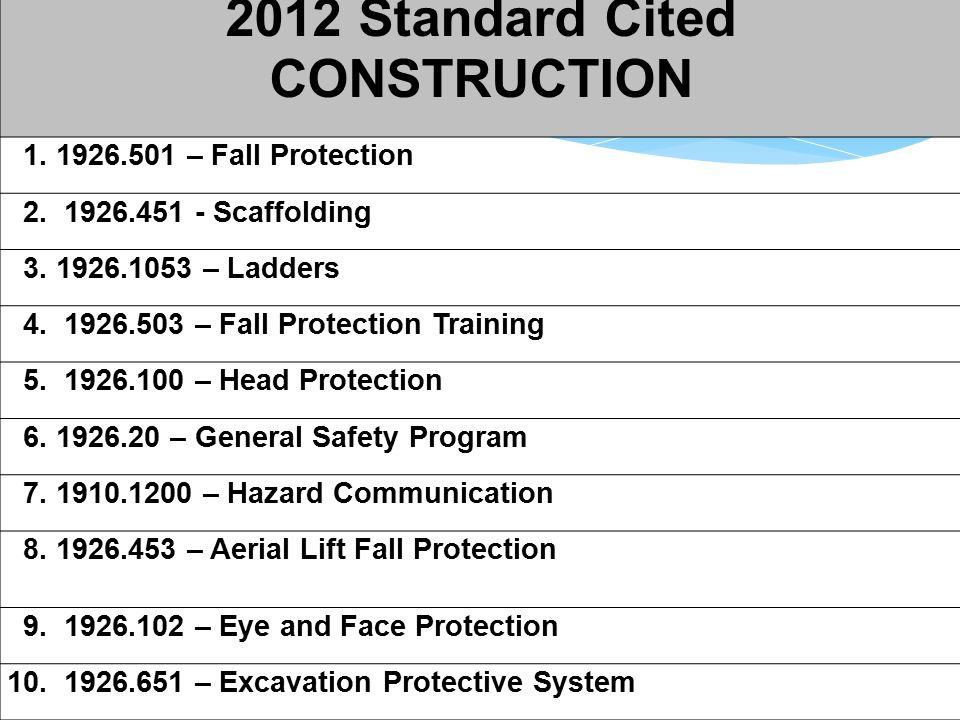

47. 2012 Standard Cited CONSTRUCTION 1. 1926.501 – Fall Protection 2. 1926.451 - Scaffolding 3. 1926.1053 – Ladders 4. 1926.503 – Fall Protection Training 5. 1926.100 – Head Protection 6. 1926.20 – General Safety Program 7. 1910.1200 – Hazard Communication 8. 1926.453 – Aerial Lift Fall Protection 9. 1926.102 – Eye and Face Protection 10. 1926.651 – Excavation Protective System

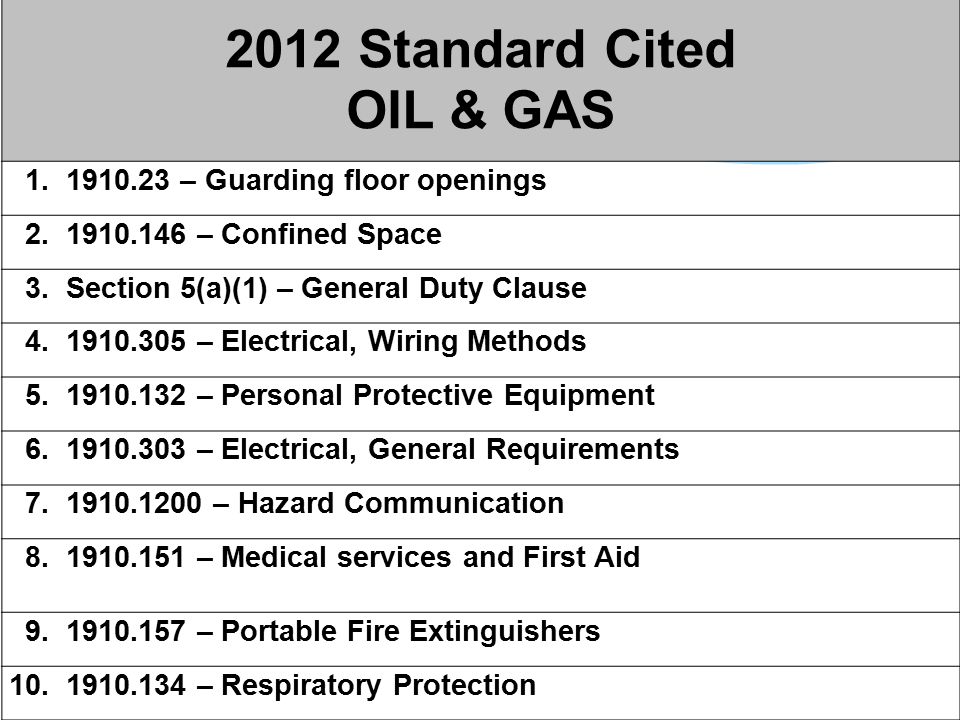

48. 2012 Standard Cited OIL & GAS 1. 1910.23 – Guarding floor openings 2. 1910.146 – Confined Space 3. Section 5(a)(1) – General Duty Clause 4. 1910.305 – Electrical, Wiring Methods 5. 1910.132 – Personal Protective Equipment 6. 1910.303 – Electrical, General Requirements 7. 1910.1200 – Hazard Communication 8. 1910.151 – Medical services and First Aid 9. 1910.157 – Portable Fire Extinguishers 10. 1910.134 – Respiratory Protection

49. THANK YOU
