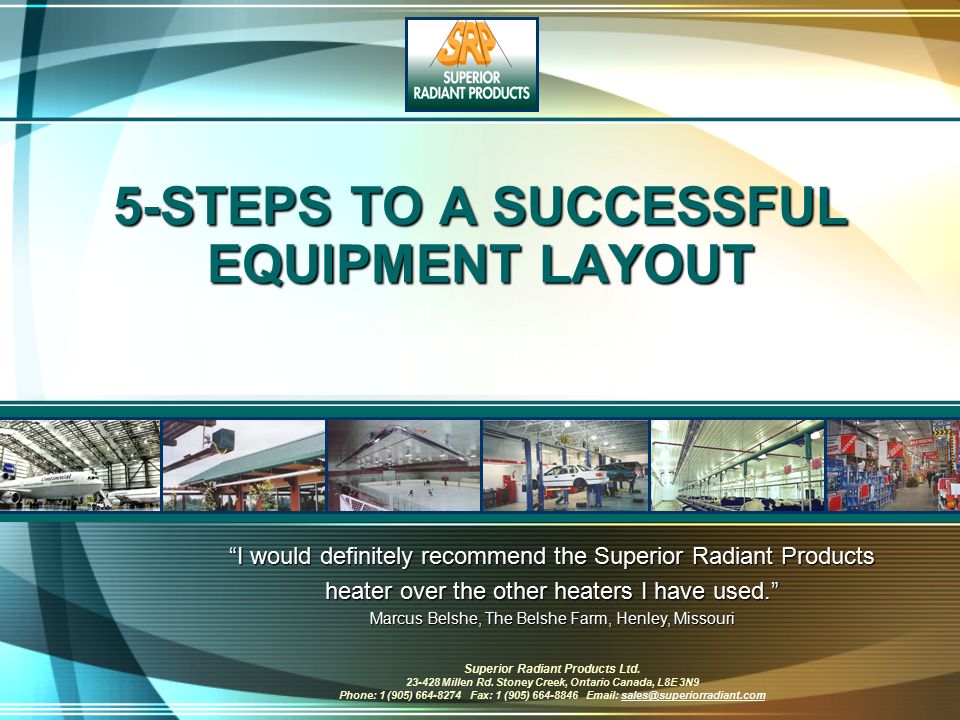

“I would definitely recommend the Superior Radiant Products heater over the other heaters I have used.” Marcus Belshe, The Belshe Farm, Henley, Missouri Superior Radiant Products Ltd. 23-428 Millen Rd. Stoney Creek, Ontario Canada, L8E 3N9 Phone: 1 (905) 664-8274 Fax: 1 (905) 664-8846 Email: sales@superiorradiant.comsales@superiorradiant.com 5-STEPS TO A SUCCESSFUL EQUIPMENT LAYOUT
2
HOMESTEP 1STEP 2STEP 3STEP 4STEP 5 5-Steps to a successful equipment layout Step 1: Review the building Step 2: Do the calculation for heat loss Step 3: Verify your conclusion Step 4: Choose your heater size Step 5: The layout
3
HOMESTEP 1STEP 2STEP 3STEP 4STEP 5 Step 1: Review the building What are the insulation values (R-values) of walls and ceiling? Where are the windows and doors located? What is the building height? Is the roof pitched, flat or round? Are there any cranes? Height of crane rails? Would heaters go above or below? Are there any exhaust fans? What is the cfm? Do any exhaust fans run all the time? Or only selected times? Are there makeup air units? What's their capacity? Is there storage racking? Where is it located? Will it interfere with installation or impact performance of the heater?
4
HOMESTEP 1STEP 2STEP 3STEP 4STEP 5 Heat Loss Factors R-Value: The thermal resistance of a barrier system. The R-value is the reciprocal of the U-value. The higher the R value, the less heat is transmitted throughout the material. U-Value: A measure of air-to-heat transmission (loss or gain) due to the thermal conductance and the difference in indoor and outdoor temperatures. As the U-value decreases, so does the amount of heat that is transferred through the material. The lower the U-value, the more restrictive the material is to heat transfer. Reciprocal of R-value. Degree Days: A unit of measure expressed as Heating Degree Days (HDD) and/or Cooling Degree Days (CDD). Derived from the variance between the average temperature during a given time period (month, season, year) and a reference point, usually 65 o F. (definition courtesy Silicon Valley Power)
5
HOMESTEP 1STEP 2STEP 3STEP 4STEP 5 Step 2: Do calculation for heat loss Please refer to Heat Calc program for details.
6
HOMESTEP 1STEP 2STEP 3STEP 4STEP 5 Step 3: Verify your conclusion Verify using BTUs per foot “rule of thumb” DEGREE DAYS (65 DEGREE BASE) 7000 6000 5000 4000 3000 2000 1000 0 8000 BTUs PER SQUARE FOOT 05152535455565
7
HOMESTEP 1STEP 2STEP 3STEP 4STEP 5 Comparisons of degree day selections EDMONTON COMMERCIAL BUILDING 60 to 70 BTUs per square foot TORONTO COMMERCIAL BUILDING 45 to 50 BTUs per square foot ATLANTA COMMERCIAL BUILDING 20 to 30 BTUs per square foot
8

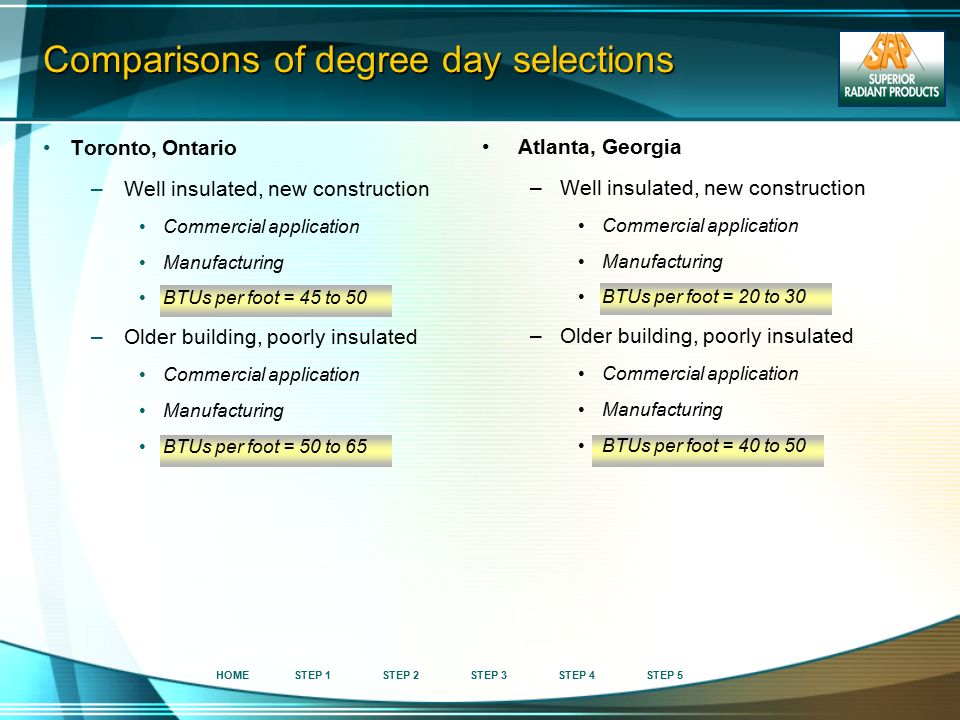

HOMESTEP 1STEP 2STEP 3STEP 4STEP 5 Comparisons of degree day selections Atlanta, Georgia –Well insulated, new construction Commercial application Manufacturing BTUs per foot = 20 to 30 –Older building, poorly insulated Commercial application Manufacturing BTUs per foot = 40 to 50 Toronto, Ontario –Well insulated, new construction Commercial application Manufacturing BTUs per foot = 45 to 50 –Older building, poorly insulated Commercial application Manufacturing BTUs per foot = 50 to 65
9
HOMESTEP 1STEP 2STEP 3STEP 4STEP 5 Step 4: Choose the heater size Determine the hanging height of the heater –Generally the higher the hanging height, the larger the burner you can use. For example, a 25ft ceiling could have a 220MBH heater, whereas a 16ft ceiling would only use a 100MBH. Larger may be too intense. –Cranes could affect heater choice. If you can hang them above the crane the normal rules apply; but if you have to hang them below the rails then you must adjust the height for comfort. –Consider the location of work stations and people movement through those areas. A large heater above a work station might overexpose occupants to heat. However, if people are constantly moving in and out of the work station, a larger heater may be suitable. = Number of Heaters Heater Size Heat Load Did You Know?
10
HOMESTEP 1STEP 2STEP 3STEP 4STEP 5 Examples of suggested mounting heights for a typical tube heater Heater Firing RateSuggested Minimum Installation Height (ft) (‘000 BTU/Hr)Space HeatingSpot Heating 40 or less8 - 108 41 to 609 - 129 61 to 8011 – 1511 81 to 10012 – 1612 101 to 12514 – 1814 126 to 15016 – 2316 151 to 17517 – 2518 176 to 200Over 2020 201 and greaterOver 2525
11
HOMESTEP 1STEP 2STEP 3STEP 4STEP 5 Special Situations Loading Docks: Loading docks should have slightly more heat than the normal load because of wind and door openings. Two-Stage Heaters work well to overcome sudden cold.
12
HOMESTEP 1STEP 2STEP 3STEP 4STEP 5 Special Situations Exterior Applications: Outdoor patios, golf driving ranges, porticos and driveway de-icing are best done with R-Series Heaters. Heaters are generally placed closer to the ground to get more direct radiant effect.
13
HOMESTEP 1STEP 2STEP 3STEP 4STEP 5 Special Situations Car Wash: The environment in a car wash can be very corrosive. Water absorbs infrared much more than air so more input of heat is needed. The UXR Heater is available with stainless steel options, including tube, coupler and hardware. This will stand up to a severe environment much better then a standard UXR.
14
HOMESTEP 1STEP 2STEP 3STEP 4STEP 5 Special Situations Low Ceilings: The award-winning L-Series is designed for low ceiling applications where more even radiant output is desired. Long hallways, covered patios and animal confinement are good applications. L-Series Heater WINNER “Most Innovative HVAC Product” CIPHEX West 2002
15
HOMESTEP 1STEP 2STEP 3STEP 4STEP 5 Premier-VS Vacuum Systems This award-winning system is suitable for many applications, especially: –Buildings with work stations where people operate in one place (i.e. packaging areas, assembly lines or airport baggage areas). –Large canvas structures where minimum vent penetration is allowed. Side wall venting is preferred with canvas roofs. This type of structure requires a lot of heat as well. –Underground garages and in-between floors where venting through the roof is impossible. –Facilities where the design / owner requires centralized controls –Facilities where the design / owner requests variable heater rates –Vacuum system safety control
16
HOMESTEP 1STEP 2STEP 3STEP 4STEP 5 Typical Premier-VS Layout
17
HOMESTEP 1STEP 2STEP 3STEP 4STEP 5 High Intensity Heaters High intensity heaters naturally vent into the building space. Always remember to: –Allow for mechanical ventilation. –Take mechanical ventilators into account in your heat loss calculation. High intensity heaters are used primarily for spot heating because: –A large degree of heat can be focused on a smaller area. –They are very effective for small work stations in large, drafty buildings or by overhead doors. Common Misconception: Very high ceilings require user to choose high intensity over low intensity. Low intensity radiant does not get to the floor. In fact, both send the same amount of energy to the floor. High intensity is concentrated so you feel it more than the tube heater which spreads it down the tube. Also you can see the high intensity working with the reddish glow where the tube heater has no glow at all. Did You Know?
18
HOMESTEP 1STEP 2STEP 3STEP 4STEP 5 Step 5: The layout A fundamental concept: –Low intensity heaters are hotter at the burner end (900 o F – 1,000 o F ) than the flue end (400 o F to 500 o F) Therefore, for best comfort and where suitable: –Place heater head to tail –Use U configuration –Place the “hot end” over the “cold spots” (i.e. at doors, or near cold walls)
19
HOMESTEP 1STEP 2STEP 3STEP 4STEP 5 Perimeter Heating When buildings have large areas relative to heat loss, a perimeter layout may be preferred. Put heat over the greatest heat loss area (i.e. exterior walls, doors, windows and loading docks). Place the heaters parallel to walls and doors, approximately the same distance away from the walls as the hanging height. Ux 150 40’ 50’ 150’ – 0” 100’ – 0” Common Vented 20’ – 11” 20’ – 3” 14’ x 12’
20
HOMESTEP 1STEP 2STEP 3STEP 4STEP 5 Conventional layout Place the burners near exterior walls but preferably not closer than their hanging heights unless side shields are used. The configuration may be: flue then burner, or flue pointing to common venting. 149’ – 2” 15’ – 7” Common Vented 12’ x 14’ Ux 100 79’ – 10” Common Vented Ux 100 Ux 125 15’ – 1” 10’ x 10’ 10’ 20’ 30’ 20’ 40’
21
HOMESTEP 1STEP 2STEP 3STEP 4STEP 5 Use of side shields Use of side shields are recommended: –Where heaters have to be placed closer to the wall than their hanging height or shelves allow. –Along walls where wall hanging brackets are used, such as patios. –In hockey arenas to reflect the heat back to the people, not at the ice. 45 degree angleSide shields Side shields reflect at least 15% more infrared energy to the floor compared to tilting the shield at a 45 o angle. Did You Know?
22
HOMESTEP 1STEP 2STEP 3STEP 4STEP 5 Venting Options In all cases, local codes apply for venting diameters and lengths. Ensure vent lengths described in the manual are maintained. –30’ maximum vent length –30’ maximum fresh air length –50’ combined
23
HOMESTEP 1STEP 2STEP 3STEP 4STEP 5 Common Venting Definition: When more than one heater is vented through a “common stack”, whether that stack vents through the roof or through the wall. Sizing of the vents is governed by local gas installation codes Always one thermostat per stack Generally, design for a maximum of two heaters per sidewall vent and a maximum of four heaters for rooftop venting.
24

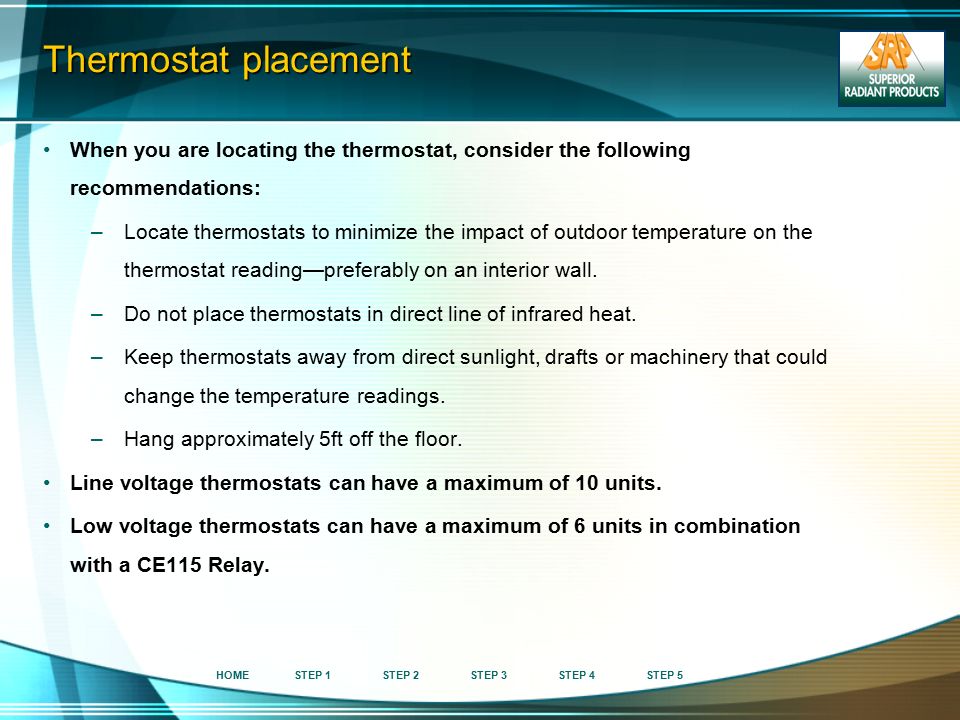

HOMESTEP 1STEP 2STEP 3STEP 4STEP 5 Thermostat placement When you are locating the thermostat, consider the following recommendations: –Locate thermostats to minimize the impact of outdoor temperature on the thermostat reading—preferably on an interior wall. –Do not place thermostats in direct line of infrared heat. –Keep thermostats away from direct sunlight, drafts or machinery that could change the temperature readings. –Hang approximately 5ft off the floor. Line voltage thermostats can have a maximum of 10 units. Low voltage thermostats can have a maximum of 6 units in combination with a CE115 Relay.
25
HOMESTEP 1STEP 2STEP 3STEP 4STEP 5Questions?
