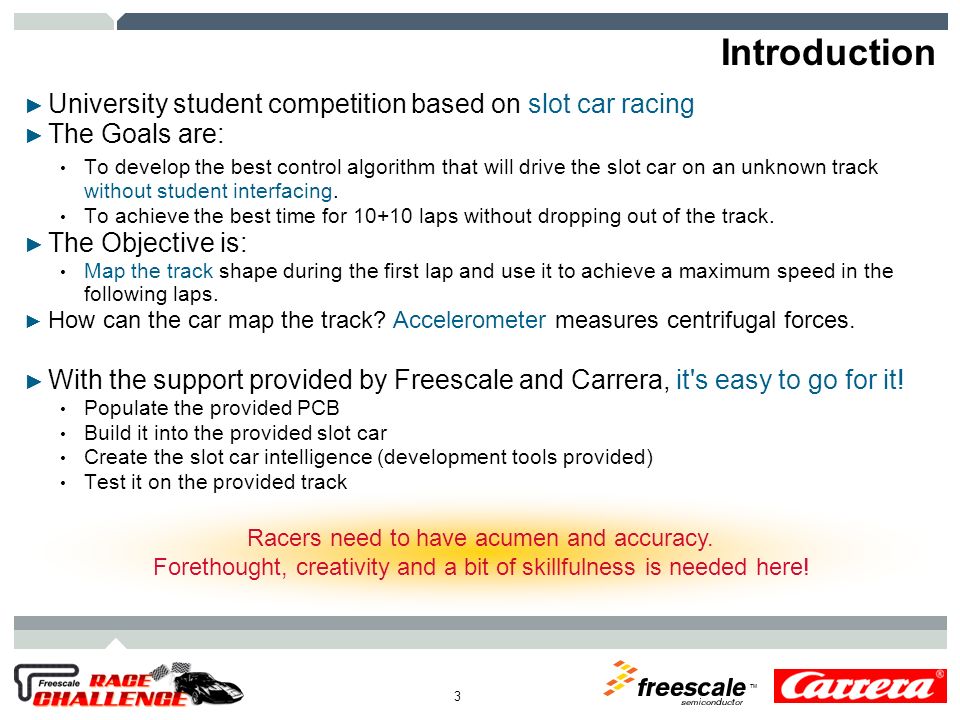

3. TM 3 Racers need to have acumen and accuracy. Forethought, creativity and a bit of skillfulness is needed here! Introduction ► University student competition based on slot car racing ► The Goals are: To develop the best control algorithm that will drive the slot car on an unknown track without student interfacing. To achieve the best time for 10+10 laps without dropping out of the track. ► The Objective is: Map the track shape during the first lap and use it to achieve a maximum speed in the following laps. ► How can the car map the track? Accelerometer measures centrifugal forces. ► With the support provided by Freescale and Carrera, it's easy to go for it! Populate the provided PCB Build it into the provided slot car Create the slot car intelligence (development tools provided) Test it on the provided track

4. TM 4 Organization ► Organizer: Freescale Semiconductor Romania and Freescale Semiconductor Czech ► Partner: Carrera (ConQuest entertainment a.s.) www.carrera-toys.com, www.autodrahy.cz ► Universities - local organizational support Polytechnic University of Bucharest (RO) – AC & ET Brno University of Technology (CZ) Technical University of Ostrava (CZ) University of Žilina (SK) Slovak University of Technology in Bratislava (SK) University of West Bohemia in Pilsen (CZ) Czech Technical University in Prague (CZ) TM

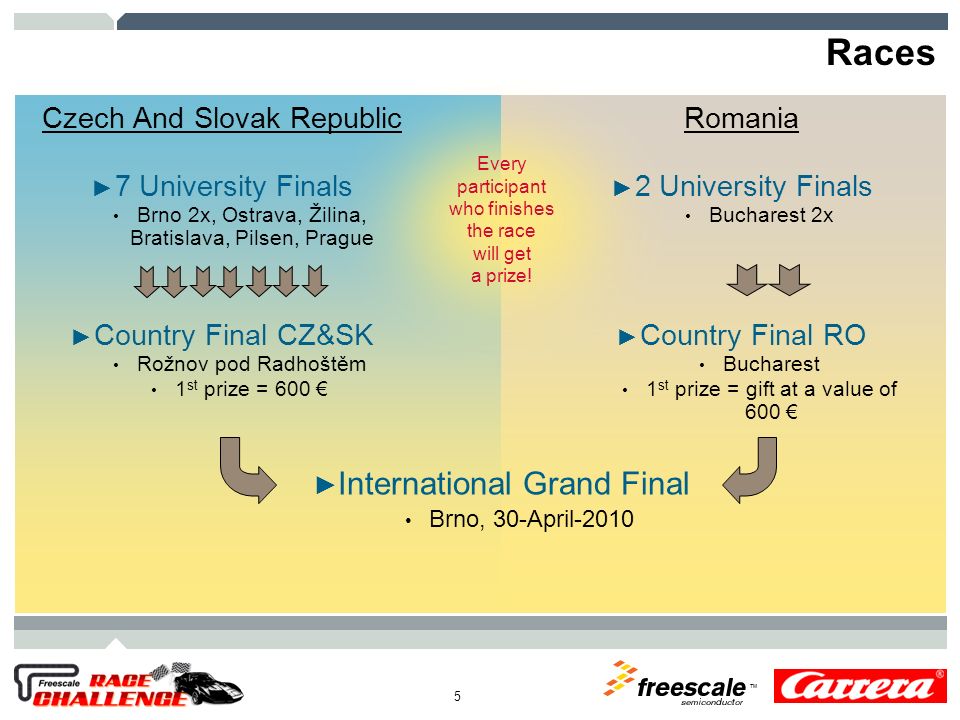

5. 5 Every participant who finishes the race will get a prize! Races Czech And Slovak Republic ► 7 University Finals Brno 2x, Ostrava, Žilina, Bratislava, Pilsen, Prague ► Country Final CZ&SK Rožnov pod Radhoštěm 1 st prize = 600 € Romania ► 2 University Finals Bucharest 2x ► Country Final RO Bucharest 1 st prize = gift at a value of 600 € ► International Grand Final Brno, 30-April-2010

6. TM 6 Development Phase Competition Timeline - Romania 20092010 International Grand FInal April 30, 2010, Brno Competition Announcement November, 2009 Registration November 16 to 27, 2009 Support Distribution Slot car Audi R8 PCB and ICs University tracks University Finals April 1, 2010 - Bucharest April 2, 2010 - Bucharest Country FInal April 9, 2010 Bucharest AprMayJunMarFebJanDecNovOct

7. TM 7 ► Participant package Slot car Audi R8 Unpopulated PCB Devices  Microcontroller MCF51JM64  Accelerometer MMA7361  H-Bridge MCZ33931  miniUSB connector  microSD card slot  crystal and other ICs On-line Resources  Development tools – Freescale CodeWarrior for MCU’s  Quick Start Guidelines  Example slot car embedded application – including SD card and FAT driver – under USB-bootloader framework  Datasheets  PCB files Support from Freescale and Carrera ► University package Slot car track pieces  15 straights  1 connecting section  2 1/4 straights  2 1/3 straights  2 line changes  14 curves 1/60  6 curves 2/30 Digital Lap&Time Counter Power supply

8. TM 8 FRC2010 – Slot Car Equipment ► Equip the standard slot car by electronics and control algorithm to make it a self-driving slot car ► Take benefits of: FRC2010 Participant Package Code Warrior Special Suit – free software development tools Quick Start on-line resources: trainings, software template, etc. Your creativity, skillfulness and enthusiasm!

9. TM 9 ► Every registered FRC2010 participant obtains: Slot car Carrera Audi R8 Unpopulated PCB Devices  Microcontroller MCF51JM64  Accelerometer MMA7361  H-Bridge MCZ33931  miniUSB connector  microSD card slot  8.000MHz Crystal  1A Bridge Rectifier DB106S  3.3V Linear Voltage Regulator NCP612 FRC2010 Participant Package

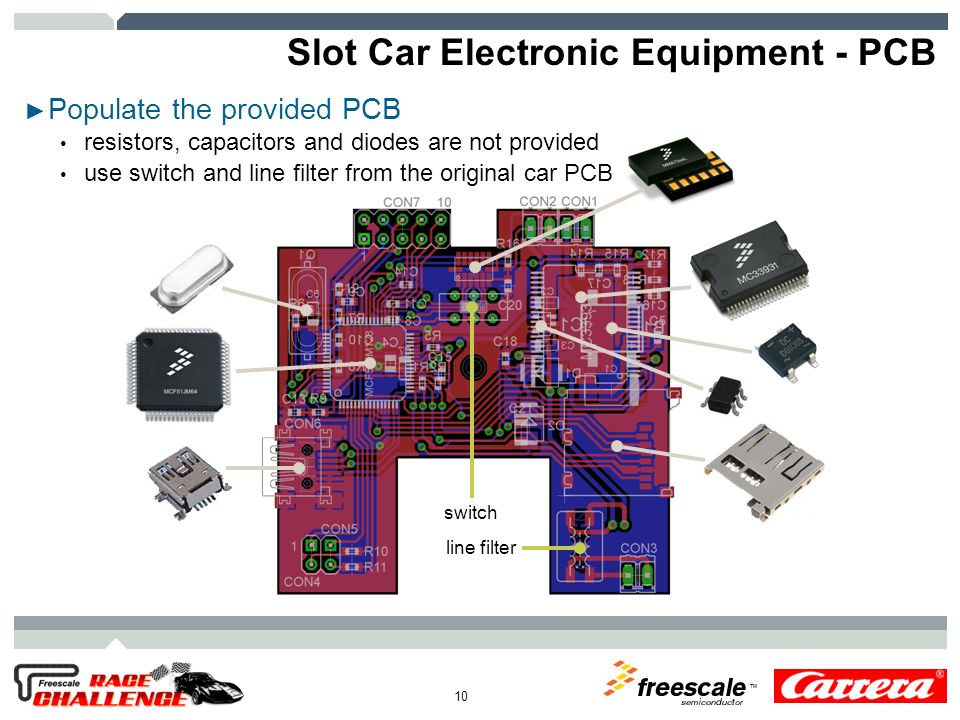

10. TM 10 ► Populate the provided PCB resistors, capacitors and diodes are not provided use switch and line filter from the original car PCB Slot Car Electronic Equipment - PCB switch line filter

11. TM 11 ► Build the PCB into the car use the position and fixture of the original PCB make holes for miniUSB connector and microSD card connect original LEDs, motor, power and external capacitor USB cable and microSD card are not provided Slot Car Electronic Equipment - Installation

12. TM 12 Slot Car Electronic Equipment – Schematic ► Equipped slot car features 3-axis acceleration measurement 4-quadrant DC motor control USB connection – primarily used by bootloader for flash programming microSD card slot – runtime data storage, transfer to PC 4 LEDs control using PWM changeover detection

13. TM 13 ► On-Line Resources Freescale Code Warrior for Microcontrollers Special Suit  http://www.freescale.com/webapp/sps/site/prod_summary.jsp?code=CW-MICROCONTROLLERS http://www.freescale.com/webapp/sps/site/prod_summary.jsp?code=CW-MICROCONTROLLERS Slot car embedded software template  link to be added – USB-bootloader framework – accelerometer driver – motor driver – SD card and FAT driver – LEDs driver – simple example application code Trainings  Slot-Car Development Quick Start Guidelines – link to be added  Introduction to CodeWarrior – http://www.freescale.com/webapp/sps/site/training_information.jsp?code=WBT_24571 http://www.freescale.com/webapp/sps/site/training_information.jsp?code=WBT_24571  Learn Programming with C – http://www.freescale.com/webapp/sps/site/training_information.jsp?code=TP_C_PROGRAMMING http://www.freescale.com/webapp/sps/site/training_information.jsp?code=TP_C_PROGRAMMING Datasheets  links to be added PCB files  link to be added Control Algorithm Development

14. TM 14 Competition Rules – Main Race ► Racing Rules All contestants place their cars into pits before the race. Each contestant races separately against time. The contestant called on takes his car from the pit and place it anywhere on the track. The time measurement is started on the first pass through the time counter and stopped after 10 laps. If the car drops out of the track the contestant can be put it back, to a position clearly before the drop-out point. Only one person of a team can do this. After the ride, the contestant places the car back to the pit and keeps away from pits. There are two race rounds and the sum of both race times will determine the final result. The slot car is placed to the right line of the track for the first round and to the left line for the 2 nd round. The starting order is random for the first round and a reverse order to the intermediate results is used for the second round. ► Track Properties The race track is unknown to the contestants until the race. The track can consist only from the following set of Carrera Evolution pieces (all or a subset):  15 straights  1 connecting section  2 1/4 straights  2 1/3 straights The track is powered by the original power supply 14.8V, 2x350mA (Carrera ID: 26724) The track does not include shoulders or guardrails ► Slot Car Properties The slot car Carrera Evolution Audi R8 original chassis, body, guide blade, motor and tires must be used. The traction magnets must be removed, no traction magnet is allowed. The slot car can be equipped by additional electronics, but only inside the body. The slot car weight is limited by a maximum of 125g. No remote control of the car is allowed. Only one switch allowing to choose between two modes of operation is allowed on the slot car.  2 line changes  13 curves 1/60  2 curves 1/30  6 curves 2/30

15. TM 15 Registration ► In Romania 1. Visit http://www.freescale.ro and fill the registration form 2. or Send the text registration form by email to ionut.cutas@freescale.com and ioana.neacsu@freescale.comionut.cutas@freescale.com ioana.neacsu@freescale.com Registration Form Name:..................... E-mail:.........@........... University:................. Year:..................... Specialization:............. Notes:
