2. © 2005, BDCOM WELCOME TO BDCOM Professional Network Technology  Chapter 1 BDCOM Company overview  Chapter 2 BDCOM switch products  Chapter 3 BDCOM Switch Training Agenda

3. © 2005, BDCOM Agenda  Chapter 1 BDCOM Company overview

4. © 2005, BDCOM BDCOM Overview  Company name ： Shanghai Baud Data Communication Co. Ltd. Shanghai Baud Data Communication Co. Ltd.  Headquarters ： Zhangjiang Hi-Tech Park, Pudong, Shanghai Zhangjiang Hi-Tech Park, Pudong, Shanghai  Established ： June, 1994  Registered capital ： RMB 50 million (US $6m)  Employees ： 600

5. © 2005, BDCOM Organisation Chart Directorate President AdministrationServicesMarketingManufacturingR&D

6. © 2005, BDCOM Human Resource Marketing & Service 35% R&D 41% Manufacturing 15% Administration 9%

7. © 2005, BDCOM Main Customers

8. © 2005, BDCOM Products Lines BDCOM router series BDCOM switch series BDCOM switch series BDCOM VoIP product series BDCOM VoIP product series BDCOM access product series BDCOM Security firewall series BDCOM EMS s/w series

9. © 2005, BDCOM Business Relationships  Forms of cooperation  OEM / ODM  Distributorship  Technical cooperation  More than 300 domestic SI agencies are using BDCOM products in their IT Projects  BDCOM brand name ranked among top 3 domestic middle/low- end router manufacturers.  Products sold to Europe, America, India, SE Asia, Middle East, etc.

10. © 2005, BDCOM Agenda  Chapter 2 BDCOM switch products

11. © 2005, BDCOM BDCOM Switches Selling Points  Excellent system design to ensure good performance  Support rich software features and multiple protocols  Multi-function and services  High security: VPN, ACL, firewall and 802.1x etc.  Reliability  Cisco Command easy to manage and troubleshoot  Expansibility  Competitive price, excellent cost-effectiveness

12. © 2005, BDCOM Case Study1: Broadband Carrier Reliability by VRRP L3 load balancing and router redundancy Single IP/MAC address for outside access S3224 s2524 Distribution s2524 S2226 Distribution Access S3224 S5308 S6508 BAS Giga link S2026 NMC DNS Server Mail Server VRRP ISP POP S2008 S2116 100-M link Internet Access Distribution

13. © 2005, BDCOM Broadband Carrier: Characteristics  BDCOM focuses on devices of the Access layer  These devices are needed in great quantity and ordered in lots  Most Access-layer devices are floor switches  Access-layer devices are simple and not expensive

14. © 2005, BDCOM Case Study2: Campus

15. © 2005, BDCOM Campus: Characteristics  Student apartments require many access points (switches) over a large area  Access switches need to support 802.1x accounting/authentication  Must provide gateway to both CERNET and Internet  Must provide tight security through logical separation of office and apartment networks  Large-scale, wide-spread, 3-layer networks with redundant core devices  IPv6 test site as required by the Dept. of Education

16. © 2005, BDCOM Case Study3: Government LAN

17. © 2005, BDCOM Government LAN: Characteristics  Densely located, usually in one building  Simple 2-layer (core and access) architecture  Uncomplicated applications requiring only L3 switching  Small scale, easy network management  Gigabit backbone  Access switches is capable of network management

18. © 2005, BDCOM Cast Study4: Financial Services

19. © 2005, BDCOM Financial Services: Characteristics  Core devices provided by Cisco  Most nodes require only one switch  VLAN used to separate transaction network and office network  Little network management requirement

20. © 2005, BDCOM Visualized Network Management Monitors in real time the status and topological structure of networks Node coloring shows changes in network/device status BDCOM BroadDirector manages all SNMP-enabled devices

21. © 2005, BDCOM BDCOM S2524 Switches BDCOM S2524

22. © 2005, BDCOM BDCOM S2524 Switches Features (1) Specification  20 ports 10/100/1000M TX  4 combo SFP Module  1 Console Port Rate 9600bps, RJ 45  AC power supply  Forwarding Mode - Store-and-forward  Support Jumbo Frame up to 12270

23. © 2005, BDCOM BDCOM S2524 Switches Features (2) Supported Standard  IEEE 802.1D Spanning Tree Protocol  IEEE 802.1p Class of Service  IEEE 802.1q tagged VLAN  IEEE 802.3x Flow control  IEEE 802.3ad Link aggregation  IEEE 802.1AB Link Layer Discovery Protocol

24. © 2005, BDCOM BDCOM S2524 Switches Features (3) Security  IEEE 802.1x port-based user authentication  Port Mirror, Port Security  Access Control List  Remote authentication through RADIUS  User privilege classification and password protection

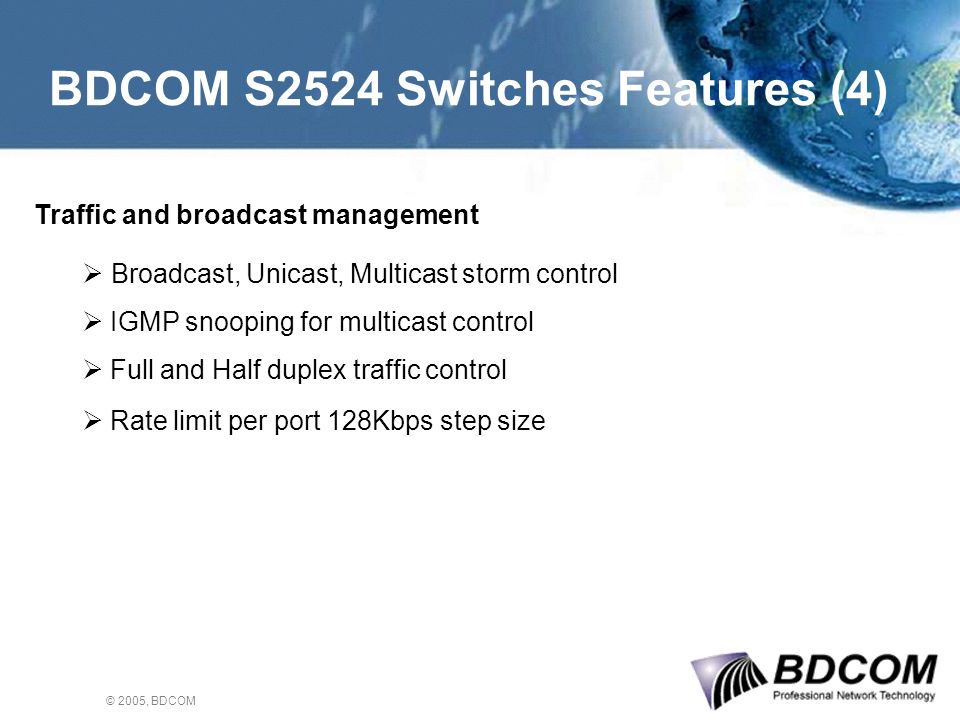

25. © 2005, BDCOM BDCOM S2524 Switches Features (4) Traffic and broadcast management  Broadcast, Unicast, Multicast storm control  IGMP snooping for multicast control  Full and Half duplex traffic control  Rate limit per port 128Kbps step size

26. © 2005, BDCOM BDCOM S2524 Switches Features (5) Maintenance  Adequate LED indication facilitates switch monitoring and failure tracing  Automatic negotiation between MDI and MDI-X, automatic recognition of straight-through and crossover cables  Management via console port, Telnet, Web, SNMP, etc.  Support BDCOM network management tools suite: Broad Director  Software upgrade through TFTP/Z-MODEM

27. © 2005, BDCOM Agenda  Chapter 3 BDCOM Switch Training

28. © 2005, BDCOM BDCOM Switch Training

29. © 2005, BDCOM © 2002, Cisco Systems, Inc. All rights reserved. 28 Basic Layer 2 Switching and Bridging Functions

30. © 2005, BDCOM Basic Layer2 Switch Content  1. Overview  2. Transmitting Frames  3. MAC Address Table  4. Broadcast and Multicast frame

31. © 2005, BDCOM –Address learning –Forward/filter decision –Loop avoidance Ethernet Switches and Bridges

32. © 2005, BDCOM Cut-Through Switch checks destination address and immediately begins forwarding frame. Fragment-Free Switch checks the first 64 bytes, then immediately begins forwarding frame. Store and Forward Complete frame is received and checked before forwarding. Transmitting Frames

33. © 2005, BDCOM MAC Address Table Initial MAC address table is empty.

34. © 2005, BDCOM Learning Addresses Station A sends a frame to station C. Switch caches the MAC address of station A to port E0 by learning the source address of data frames. The frame from station A to station C is flooded out to all ports except port E0 (unknown unicasts are flooded).

35. © 2005, BDCOM Learning Addresses (Cont.) Station D sends a frame to station C. Switch caches the MAC address of station D to port E3 by learning the source address of data frames. The frame from station D to station C is flooded out to all ports except port E3 (unknown unicasts are flooded).

36. © 2005, BDCOM Filtering Frames Station A sends a frame to station C. Destination is known; frame is not flooded.

37. © 2005, BDCOM Filtering Frames (Cont.) Station A sends a frame to station B. The switch has the address for station B in the MAC address table.

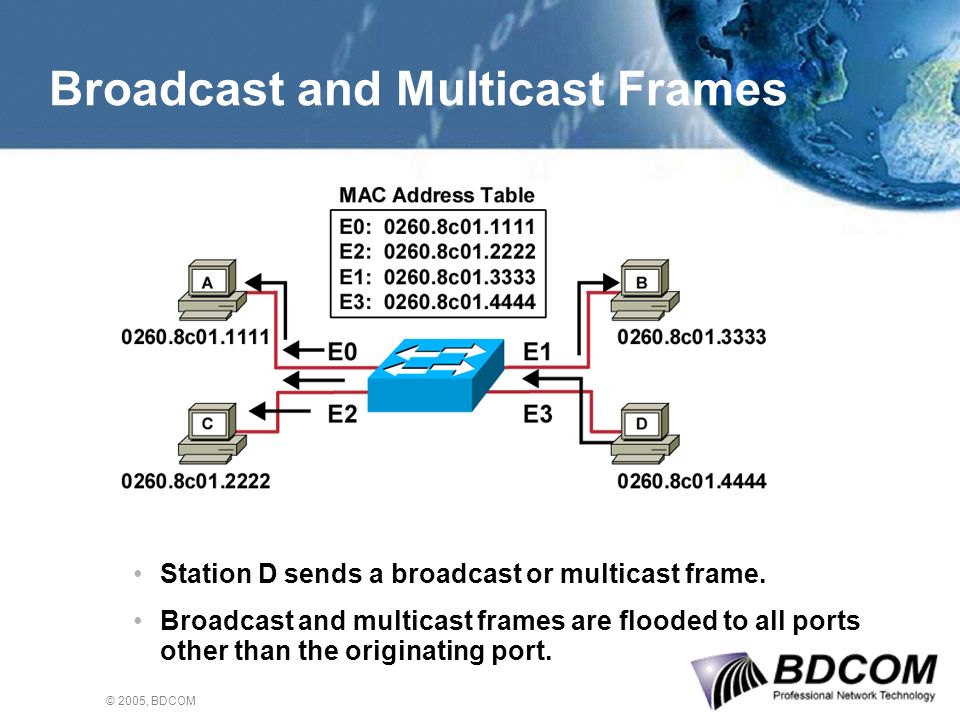

38. © 2005, BDCOM Station D sends a broadcast or multicast frame. Broadcast and multicast frames are flooded to all ports other than the originating port. Broadcast and Multicast Frames

39. © 2005, BDCOM © 2002, Cisco Systems, Inc. All rights reserved. 38 Redundant Topology Overview

40. © 2005, BDCOM Redundant Topology Content  1. Redundant Topology Overview  2. Broadcast Storms  3. Multiple Frame Copies  4. MAC Database Instability  5. Spanning Tree Protocol

41. © 2005, BDCOM –Redundant topology eliminates single points of failure. –Redundant topology causes broadcast storms, multiple frame copies, and MAC address table instability problems. Redundant Topology

42. © 2005, BDCOM Host X sends a broadcast. Switches continue to propagate broadcast traffic over and over. Broadcast Storms

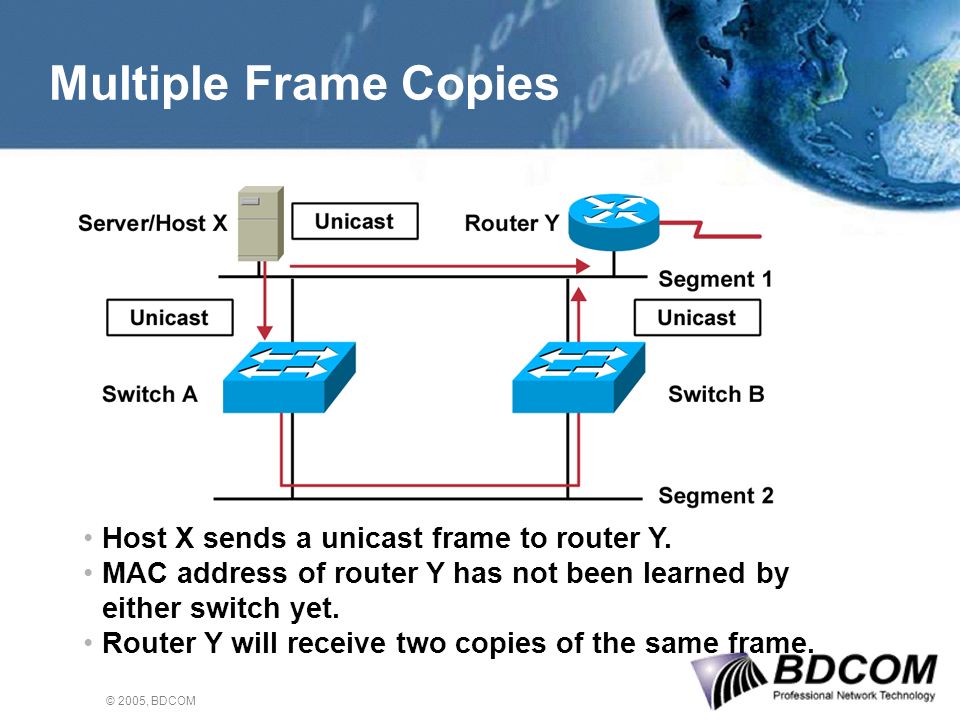

43. © 2005, BDCOM Host X sends a unicast frame to router Y. MAC address of router Y has not been learned by either switch yet. Router Y will receive two copies of the same frame. Multiple Frame Copies

44. © 2005, BDCOM Host X sends a unicast frame to router Y. MAC address of router Y has not been learned by either switch. Switches A and B learn the MAC address of host X on port 0. The frame to router Y is flooded. Switches A and B incorrectly learn the MAC address of Router Y on port 1. MAC Database Instability

45. © 2005, BDCOM © 2002, Cisco Systems, Inc. All rights reserved. 44 Spanning-Tree Protocol Overview

46. © 2005, BDCOM Provides a loop-free redundant network topology by placing certain ports in the blocking state. Spanning-Tree Protocol

47. © 2005, BDCOM One root bridge per network One root port per nonroot bridge One designated port per segment Nondesignated ports are unused Spanning-Tree Operation

48. © 2005, BDCOM Bpdu = Bridge Protocol Data Unit (default = sent every two seconds) Root bridge = Bridge with the lowest bridge ID Bridge ID = In the example, which switch has the lowest bridge ID? Spanning-Tree Protocol Root Bridge Selection

49. © 2005, BDCOM Spanning-tree transits each port through several different states: Spanning-Tree Port States

50. © 2005, BDCOM Spanning-Tree Port States (Cont.)

51. © 2005, BDCOM Spanning-Tree Path Cost

52. © 2005, BDCOM Spanning-Tree Example

53. © 2005, BDCOM © 2002, Cisco Systems, Inc. All rights reserved. 52 OAM 802.3ah Overview

54. © 2005, BDCOM OAM Overview Ethernet OAM protocol for monitoring and troubleshooting Metro Ethernet Networks which can implement on any full-duplex point-to-point

55. © 2005, BDCOM OAM Features Discovery  Identified the devices in the networks Link Monitoring  Detects and Indicates link fault Remote Failure  Indicates a loss of signal ( Link Fault ) and a loss of power ( Dying Gasp )

56. © 2005, BDCOM © 2002, Cisco Systems, Inc. All rights reserved. 55 VLAN Operation Overview

57. © 2005, BDCOM VLAN Operation Content  1. Segmentation  2. VLAN Overview  3. 802.1Q VLAN Trunk

58. © 2005, BDCOM Segmentation with LAN Switch A switch eliminates the impact of collision through micro-segmentation Low latency and high frame-forwarding rates at each interface port Works with existing 802.3 (CSMA/CD) compliant network interface cards and cabling

59. © 2005, BDCOM Segmentation with Routers More manageable, greater functionality, multiple active paths Broadcast domain Smaller broadcast

60. © 2005, BDCOM A VLAN = A Broadcast Domain = Logical Network (Subnet) VLAN Overview Segmentation Flexibility Security

61. © 2005, BDCOM Each logical VLAN is like a separate physical bridge. VLANs can span across multiple switches. Trunks carry traffic for multiple VLANs. Trunks use special encapsulation to distinguish between different VLANs. VLAN Operation

62. © 2005, BDCOM VLAN Membership Modes

63. © 2005, BDCOM 802.1Q VLAN Trunk

64. © 2005, BDCOM Importance of Native VLANs

65. © 2005, BDCOM © 2002, Cisco Systems, Inc. All rights reserved. 64 Configuring a BDCOM Switch

66. © 2005, BDCOM BDCOM Switch Content  1. Connect via Console use Hyper Terminal  2. Overview Switch mode.  3. Default Configuration  4. Configuration IP address, Gateway, Security Command  5. Upgrade IOS via TFTP

67. © 2005, BDCOM Console CLI Console port DB9 pin to COM port

68. © 2005, BDCOM How to set HyperTerminal?

69. © 2005, BDCOM How to set HyperTerminal?

70. © 2005, BDCOM How to set HyperTerminal?

71. © 2005, BDCOM System Boot Information System Bootstrap, Version 0.2.5, Serial No:S27060621 Copyright (c) 2005 by Shanghai Baud Data Communication Co., Ltd. BDCOM-S2524B RISC processor Current time: 1970-1-1 0:00:00 SDRAM Fast Test...............................PASS! Flash Fast Test...............................PASS! RTC Test......................................PASS! Switch Internal Loopback Test.................PASS! Loading Switch.bin...... Start Decompress Switch.bin ################################################ ############## Decompress 1660299 byte. Please wait system up... System startup OK Switch console 0 is now available

72. © 2005, BDCOM There are two main EXEC modes for entering commands. Software EXEC Mode

73. © 2005, BDCOM Software EXEC Mode

74. © 2005, BDCOM Overview of Switch Modes

75. © 2005, BDCOM All ports are on. All ports are in VLAN1. IP address: 0.0.0.0 Spanning tree: enabled RSTP Username & Password: none Console password: none BDCOM S2524 Default Configuration

76. © 2005, BDCOM Switch#sh run Building configuration... Current configuration: ! version 2.0.1K service timestamps log date service timestamps debug date ! spanning-tree mode rstp ! interface GigaEthernet0/1 ! interface GigaEthernet0/2 ! interface GigaEthernet0/3 ! Port Names on BDCOM S2524 Switches

77. © 2005, BDCOM Configuring the Switch IP Address Switch#conf Switch_config#interface vlan 10 Switch_config_v10#ip address 192.168.1.1 255.255.255.0 Switch_config_v10#exit Switch_config#int g0/1 Switch_config_g0/1#switchport pvid 10 Switch_config_g0/1#exit Switch_config#exit Switch# BDCOM S2524 1.Setup interface VLAN-id 2.Setup ip address 3.Assign vlan-id at interface

78. © 2005, BDCOM switch(config)# ip default-gateway {ip address} Configures the switch default gateway for the BDCOM s2524 switches Configuring the Switch Default Gateway Switch(config)#ip default-gateway 10.5.5.3

79. © 2005, BDCOM Showing the Switch IP Address BDCOM S2524 – Show IP address on interface VLAN Switch#sh interface vlan 10 VLAN10 is up, line protocol is down Hardware is EtherSVI, Address is 00e0.0f92.36c8(00e0.0f92.36c8) Interface address is 192.168.1.1/24 MTU 1500 bytes, BW 1000000 kbit, DLY 2000 usec Encapsulation ARPA ARP type: ARPA, ARP timeout 04:00:00 0 packets input, 0 bytes Received 0 broadcasts, 0 multicasts 0 input errors, 0 input discards 0 packets output, 0 bytes Transmited 0 broadcasts, 0 multicasts 0 output errors, 0 discards

80. © 2005, BDCOM Configuring the Switch Security Command S2224(config)#aaa authentication login default local S2224(config)#aaa authentication enable default enable S2224(config)#username bdcom password bdcom S2224(config)#enable password bdcom S2224(config)#service password-encryption Configure username & password, enable password for console and Telnet.

81. © 2005, BDCOM Upgrade Device System

82. © 2005, BDCOM 1.Set up IP address of TFTP server and Switch in the same network. 2.Ping Test Upgrade via TFTP

83. © 2005, BDCOM 3.Install and Open TFTP server program such as 3CDaemon Upgrade via TFTP

84. © 2005, BDCOM 4.Click “Configure TFTP Server” and select Directory keep IOS. Upgrade via TFTP

85. © 2005, BDCOM 5.Type command into Switch. Upgrade via TFTP Copy.bin file into router FLASH Switch#copy tftp flash --------------------- Copy.bin file into router FLASH File name in TFTP Server Source file name[]?Switch.bin -------------- File name in TFTP Server TFTP server IP address Remote-server ip address[]?192.168.1.2 ----- TFTP server IP address Keep the old file name Destination file name[Switch.bin]? --------- Keep the old file name################################################################################################################################################################################################################## TFTP:successfully receive 12028 blocks,6158179 bytes ----- Succeed upgrading ----- Succeed upgrading Switch#reboot ------------------------------- Reboot Switch

86. © 2005, BDCOM Basic Command  1. Configure Hostname and Description  2. Configure Duplex  3. Configure Speed  4. Show MAC Address table  5. Save and Clear NVRAM

87. © 2005, BDCOM Hostname and Description Hostname  Default hostname is “Switch”  Change hostname use “hostname” command. Switch#conf Switch_config#hostname CAT-PATTAYA CAT-PATTAYA_config# Description  Add description at port. CAT-PATTAYA_config_g0/1# CAT-PATTAYA_config_g0/1#description connect_DSLAM CAT-PATTAYA_config_g0/1#

88. © 2005, BDCOM Duplex Overview Half Duplex (CSMA/CD) Unidirectional data flow Higher potential for collision Hubs connectivity Full Duplex Point-to-point only Attached to dedicated switched port Requires full-duplex support on both ends Collision-free Collision detect circuit disabled

89. © 2005, BDCOM Setting Duplex Options BDCOM S2524 Switch_config#int g0/1 Switch_config_g0/1#duplex ? auto -- Enable AUTO duplex configuration full -- Force full duplex operation half -- Force half-duplex operation

90. © 2005, BDCOM Setting Speed Options BDCOM S2524 Switch_config#int g0/1 Switch_config_g0/1#speed ? 10 -- Force 10 Mbps operation 100 -- Force 100 Mbps operation 1000 -- Force 1000 Mbps operation auto -- Enable AUTO speed configuration

91. © 2005, BDCOM Showing Duplex and Speed Switch#sh int g0/1 GigaEthernet0/1 is down, line protocol is down Hardware is GigaEthernet-TX, address is 00e0.0f92.36c9 (bia 00e0.0f92.36c9) MTU 1500 bytes, BW 1000000 kbit, DLY 10 usec Encapsulation ARPA Half-duplex, 10Mb/s flow-control off 5 minute input rate 0 bits/sec, 0 packets/sec 5 minute output rate 0 bits/sec, 0 packets/sec Received 0 packets, 0 bytes 0 broadcasts, 0 multicasts 0 discard Transmited 0 packets, 0 bytes 0 broadcasts, 0 multicasts 0 discard

92. © 2005, BDCOM Show MAC Address Table Switch#sh mac address-table Mac Address Table ------------------------------------------ Vlan Mac Address Type Ports ---- ----------- ---- ----- 1 001f.3c9a.c7f5 DYNAMIC g0/1 1 0010.c6cd.53f3 DYNAMIC g0/2 1 001f.3c24.2a7b DYNAMIC g0/2 1 000e.9ba3.dc1c DYNAMIC g0/2 1 0012.3fbc.0b4f DYNAMIC g0/2 1 00e0.0f2c.3163 DYNAMIC g0/2 1 0004.ed42.66d7 DYNAMIC g0/2 1 0012.f04b.7ffe DYNAMIC g0/1 1 001f.3c24.5d37 DYNAMIC g0/1 1 00c0.9f85.3c33 DYNAMIC g0/1 1 0012.3fbc.19a5 DYNAMIC g0/2 Total Mac Addresses for this criterion: 11 Switch#sh mac address-table Mac Address Table ------------------------------------------ Vlan Mac Address Type Ports ---- ----------- ---- ----- 1 001f.3c9a.c7f5 DYNAMIC g0/1 1 0010.c6cd.53f3 DYNAMIC g0/2 1 001f.3c24.2a7b DYNAMIC g0/2 1 000e.9ba3.dc1c DYNAMIC g0/2 1 0012.3fbc.0b4f DYNAMIC g0/2 1 00e0.0f2c.3163 DYNAMIC g0/2 1 0004.ed42.66d7 DYNAMIC g0/2 1 0012.f04b.7ffe DYNAMIC g0/1 1 001f.3c24.5d37 DYNAMIC g0/1 1 00c0.9f85.3c33 DYNAMIC g0/1 1 0012.3fbc.19a5 DYNAMIC g0/2 Total Mac Addresses for this criterion: 11 BDCOM S2524

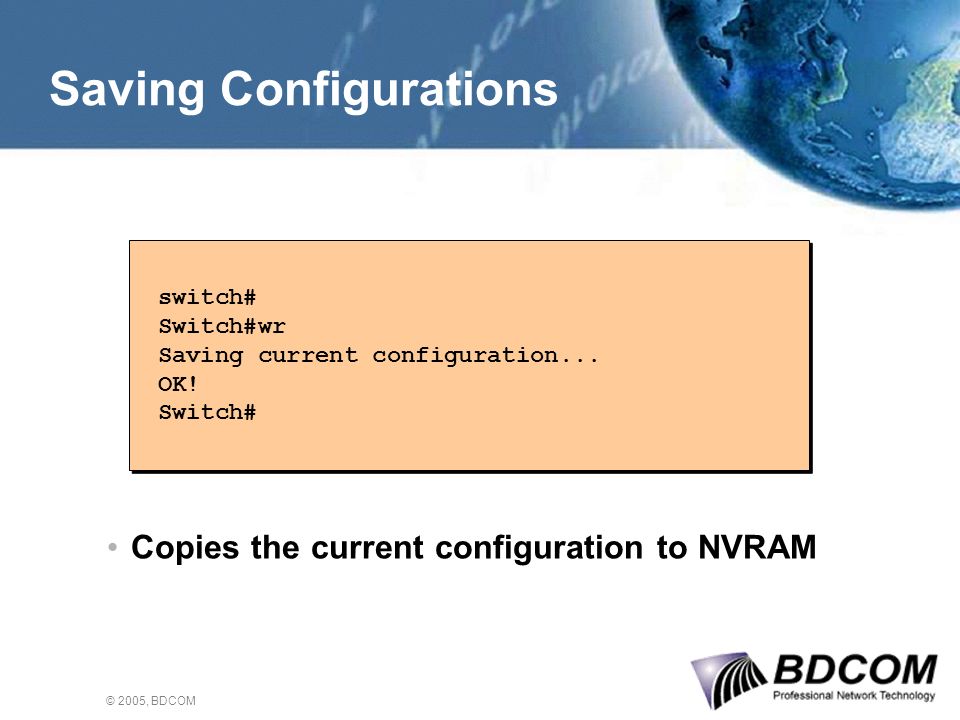

93. © 2005, BDCOM Saving Configurations switch# Switch#wr Saving current configuration... OK! Switch# switch# Switch#wr Saving current configuration... OK! Switch# Copies the current configuration to NVRAM

94. © 2005, BDCOM Resets the system configuration to factory defaults Clearing NVRAM Switch#delete this file will be erased,are you sure?(y/n)y Switch# Switch#delete this file will be erased,are you sure?(y/n)y Switch#

95. © 2005, BDCOM 94 Advance Configure

96. © 2005, BDCOM Advance Configure  1. MAC Address Security  2. VLAN and 802.1Q VLAN Trunk  3. Spanning Tree Configuration ( STP )  4. CAR Configuration  5. System MTU Configuration

97. © 2005, BDCOM Advance Configure Advance Confiugre  6. SNMP Configuration  7. LLDP Configuration  8. Port Aggregation Configure  9. 802.3ah Configure  10. Password Recovery

98. © 2005, BDCOM MAC Address Security  Reject or Accept MAC address at port. Switch#conf Switch_config#int g0/1 Switch_config_g0/1#switchport port-security mode static accept -- Accept mode reject -- Reject mode Switch#conf Switch_config#int g0/1 Switch_config_g0/1#switchport port-security mode static accept -- Accept mode reject -- Reject mode

99. © 2005, BDCOM MAC Address Security  Reject MAC address 00:0e:35:c2:14:8a connect at port G0/1. interface GigaEthernet0/4 switchport port-security static mac-address 0022.b061.917d switchport port-security mode static reject interface GigaEthernet0/4 switchport port-security static mac-address 0022.b061.917d switchport port-security mode static reject

100. © 2005, BDCOM VLAN Configuration Guidelines –VLAN1 is the factory default Ethernet VLAN. –By factory default, all ports on BDCOM switch are membership of VLAN1. –The BDCOM switch IP address is in the management VLAN (VLAN1 by default).

101. © 2005, BDCOM Adding a VLAN Switch#config Switch_config_#vlan 9 Switch_config_vlan9#name vlan9 BDCOM S2524

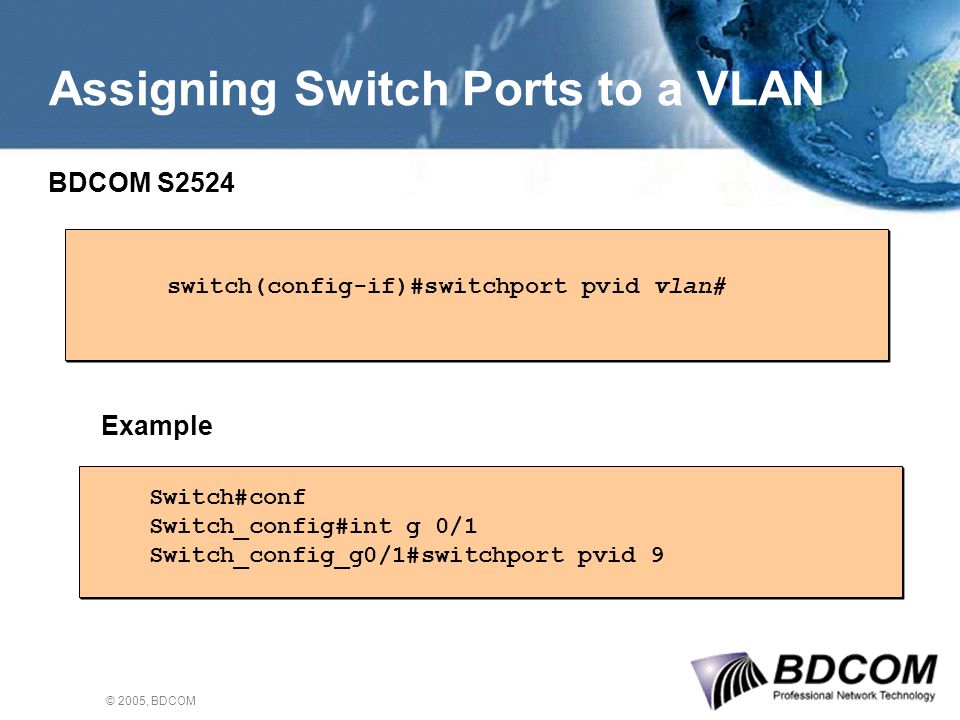

102. © 2005, BDCOM Assigning Switch Ports to a VLAN BDCOM S2524 switch(config-if)#switchport pvid vlan# Switch#conf Switch_config#int g 0/1 Switch_config_g0/1#switchport pvid 9 Example

103. © 2005, BDCOM Switch_config#show vlan VLAN Status Name Ports ---- ------- ---------------- --------------------- --------------- 1 Static Default G0/1, G0/2, G0/3, G0/4, G0/5 G0/6, G0/7, G0/8, G0/9, G0/10 G0/11, G0/12, G0/13, G0/14, G0/15 G0/16, G0/17, G0/18, G0/19, G0/20 G0/21, G0/22, G0/23, G0/24 9 Static vlan9 The show vlan command Verifying a VLAN

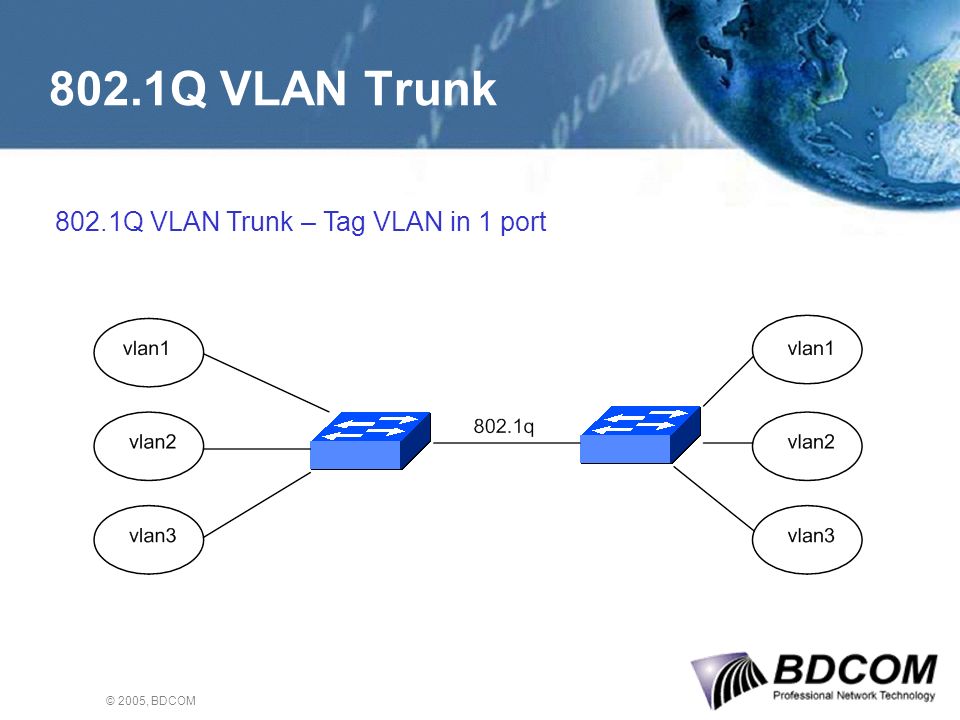

104. © 2005, BDCOM 802.1Q VLAN Trunk 802.1Q VLAN Trunk – Tag VLAN in 1 port

105. © 2005, BDCOM Configuring 802.1Q VLAN Trunk switch(config-if)#switchport mode trunk Configures the port as a VLAN trunk Switch_config#int g0/1 Switch_config_g0/1#switchport mode trunk Example

106. © 2005, BDCOM Troubleshooting Switched LANs

107. © 2005, BDCOM Problem: One Device Cannot Communicate with Another –Make sure the IP address, subnet mask, and VLAN membership of the switch interface is correct. –If the host is in the same subnet as the switch interface, make sure the switch interface and the switch port to which the host is connected are assigned to the same VLAN. –If the host is in a different subnet, make sure the default gateway on the switch is configured with the address of a router in the same subnet as the switch interface.

108. © 2005, BDCOM Problem: One Device Cannot Communicate with Another (Cont.) –If the port is in listening or learning mode, wait until the port is in forwarding mode and try to connect to the host again. –Make sure the speed and duplex settings on the host and the appropriate switch ports are correct. –If the connected device is an end station, enable spanning-tree PortFast, disable trunking, and disable chaneling on the port. –Make sure the switch is learning the MAC address of the host.

109. © 2005, BDCOM Problem: A Device Cannot Establish a Connection Across a Trunk Link –Make sure the trunking mode configured on both ends of the link is valid. The trunking mode should be on or desirable on one end and on, desirable, or auto on the other end. –Make sure the trunk encapsulation type configured on both ends of the link is valid. –On IEEE 802.1Q trunks, make sure the native VLAN is the same on both ends of the trunk.

110. © 2005, BDCOM Configuration Spanning Tree Protocol Switch#conf Switch_config#spanning-tree mode rstp Switch_config#spanning-tree rstp priority 32768 Example Switch_config#spanning-tree mode ? sstp -- Setup spanning-tree protocol sstp mode rstp -- Setup rapid spanning-tree protocol mode

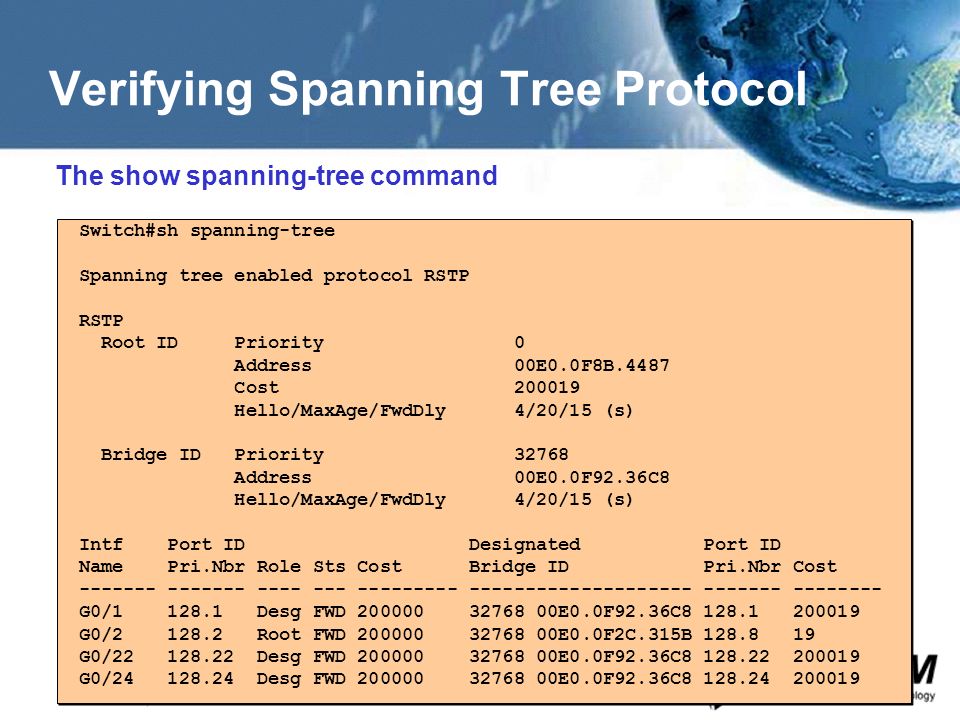

111. © 2005, BDCOM Switch#sh spanning-tree Spanning tree enabled protocol RSTP RSTP Root ID Priority 0 Address 00E0.0F8B.4487 Cost 200019 Hello/MaxAge/FwdDly 4/20/15 (s) Bridge ID Priority 32768 Address 00E0.0F92.36C8 Hello/MaxAge/FwdDly 4/20/15 (s) Intf Port ID Designated Port ID Name Pri.Nbr Role Sts Cost Bridge ID Pri.Nbr Cost ------- ------- ---- --- --------- -------------------- ------- -------- G0/1 128.1 Desg FWD 200000 32768 00E0.0F92.36C8 128.1 200019 G0/2 128.2 Root FWD 200000 32768 00E0.0F2C.315B 128.8 19 G0/22 128.22 Desg FWD 200000 32768 00E0.0F92.36C8 128.22 200019 G0/24 128.24 Desg FWD 200000 32768 00E0.0F92.36C8 128.24 200019 The show spanning-tree command Verifying Spanning Tree Protocol

112. © 2005, BDCOM CAR Configure CAR – Commit Access Rate  Limit bandwidth of switch port. Switch#conf Switch#int g0/1 Switch_config_g0/1#switchport rate-limit ? -- Configure Bandwidth(unit:128kbps) Switch#conf Switch#int g0/1 Switch_config_g0/1#switchport rate-limit ? -- Configure Bandwidth(unit:128kbps)

113. © 2005, BDCOM CAR Configure Example  Limit bandwidth 128Kbps Switch#conf Switch#int g0/1 Switch_config_g0/1#switchport rate-limit 1 ingress Switch_config_g0/1#switchport rate-limit 1 egress Switch#conf Switch#int g0/1 Switch_config_g0/1#switchport rate-limit 1 ingress Switch_config_g0/1#switchport rate-limit 1 egress

114. © 2005, BDCOM MTU Configure MTU – Maximum Transfer Unit  Configure MTU more than 1500 bytes Switch#conf Switch_config#system mtu ? MTU size in bytes Switch#conf Switch_config#system mtu ? MTU size in bytes

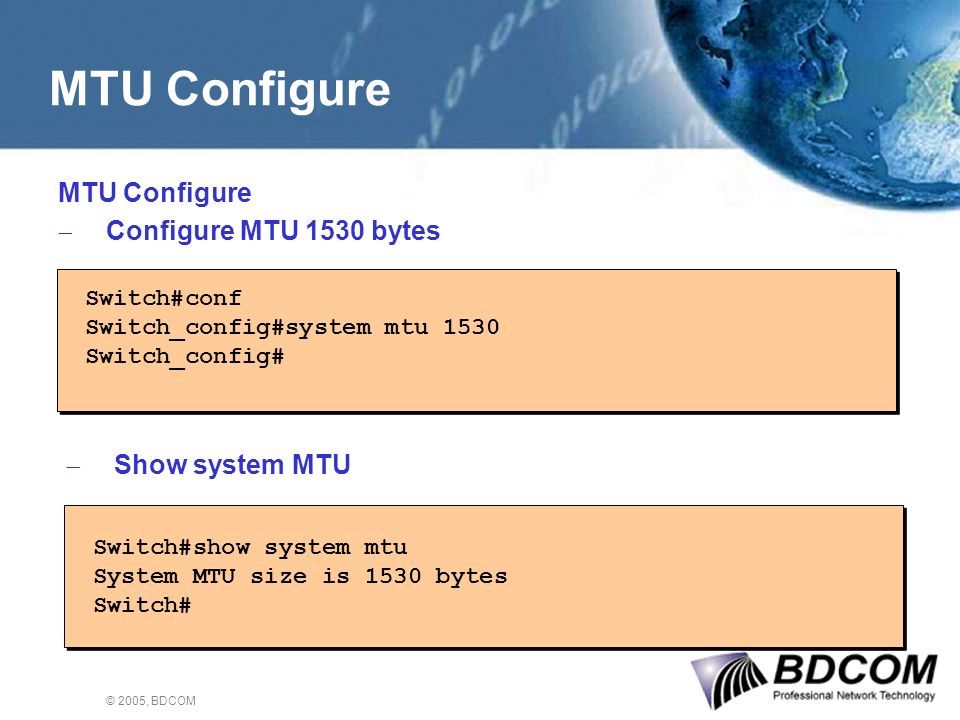

115. © 2005, BDCOM MTU Configure  Configure MTU 1530 bytes Switch#conf Switch_config#system mtu 1530 Switch_config# Switch#conf Switch_config#system mtu 1530 Switch_config#  Show system MTU Switch#show system mtu System MTU size is 1530 bytes Switch# Switch#show system mtu System MTU size is 1530 bytes Switch#

116. © 2005, BDCOM SNMP Configure SNMP– Simple Network Management Protocol  Configure SNMP community for use with SNMP software such as BroadDirector. Switch#conf Switch_config#snmp-server community ? WORD -- SNMP community string Switch#conf Switch_config#snmp-server community ? WORD -- SNMP community string

117. © 2005, BDCOM SNMP Configure SNMP– Simple Network Management Protocol  Configure SNMP community public and private Switch#conf Switch_config#snmp-server community public rw Switch_config#snmp-server community public ro Switch#conf Switch_config#snmp-server community public rw Switch_config#snmp-server community public ro

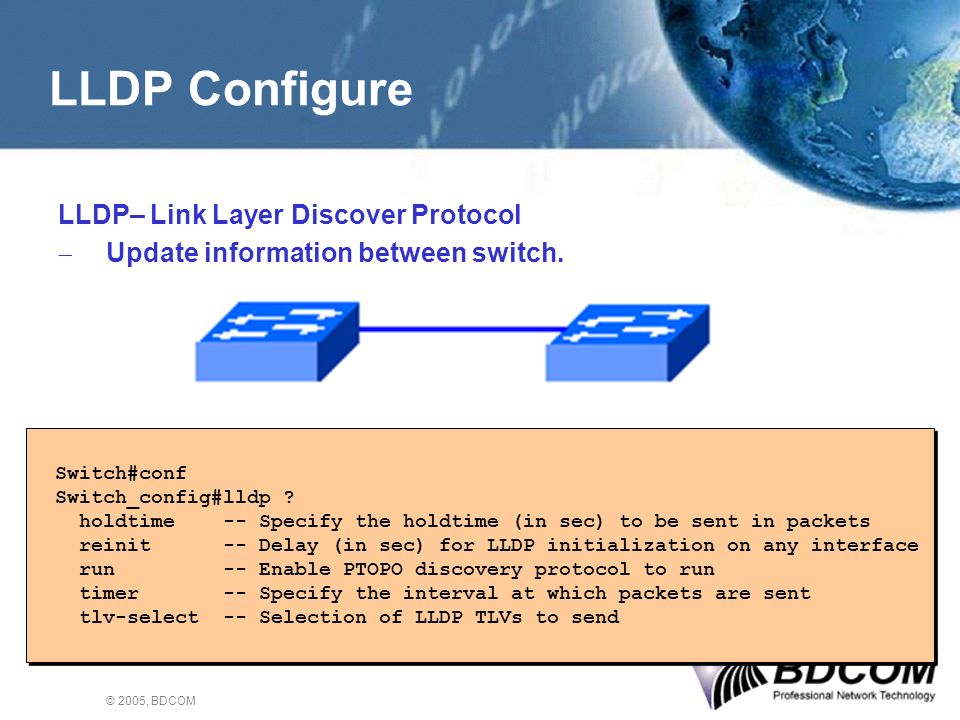

118. © 2005, BDCOM LLDP Configure LLDP– Link Layer Discover Protocol  Update information between switch. Switch#conf Switch_config#lldp ? holdtime -- Specify the holdtime (in sec) to be sent in packets reinit -- Delay (in sec) for LLDP initialization on any interface run -- Enable PTOPO discovery protocol to run timer -- Specify the interval at which packets are sent tlv-select -- Selection of LLDP TLVs to send Switch#conf Switch_config#lldp ? holdtime -- Specify the holdtime (in sec) to be sent in packets reinit -- Delay (in sec) for LLDP initialization on any interface run -- Enable PTOPO discovery protocol to run timer -- Specify the interval at which packets are sent tlv-select -- Selection of LLDP TLVs to send

119. © 2005, BDCOM LLDP Configure Show lldp neighbors Switch#show lldp neighbors Capability Codes: R - Router, T - Trans Bridge, B - Source Route Bridge S - Switch, H - Host, I - IGMP, r - Repeater Device-ID Local-Intf Hldtme Port-ID Platform Capability Switch Giga0/4 141 Giga0/8 BDCOM S2524, RISC S Switch#show lldp neighbors Capability Codes: R - Router, T - Trans Bridge, B - Source Route Bridge S - Switch, H - Host, I - IGMP, r - Repeater Device-ID Local-Intf Hldtme Port-ID Platform Capability Switch Giga0/4 141 Giga0/8 BDCOM S2524, RISC S

120. © 2005, BDCOM LLDP Configure Show lldp neighbors detail Switch#sh lldp neighbor detail Device ID: Switch Entry address(es): IP address: 192.168.2.51 Platform: BDCOM S2524, RISC processor, Capabilities: Switch Interface: GigaEthernet0/4, Port ID(outgoing port): GigaEthernet0/8 Holdtime : 142 sec Version : BDCOM(tm) S2524 Software, Version 2.0.1L Serial: S24001986, System Address: 00E00F2C315B Copyright by Shanghai Baud Data Communication CO. LTD. Compiled: 2006-3-6 14:7:40 by TAN-WORK advertisement version:2 Native VLAN: 1 Duplex: full(01) Switch#sh lldp neighbor detail Device ID: Switch Entry address(es): IP address: 192.168.2.51 Platform: BDCOM S2524, RISC processor, Capabilities: Switch Interface: GigaEthernet0/4, Port ID(outgoing port): GigaEthernet0/8 Holdtime : 142 sec Version : BDCOM(tm) S2524 Software, Version 2.0.1L Serial: S24001986, System Address: 00E00F2C315B Copyright by Shanghai Baud Data Communication CO. LTD. Compiled: 2006-3-6 14:7:40 by TAN-WORK advertisement version:2 Native VLAN: 1 Duplex: full(01)

121. © 2005, BDCOM Port Aggregation Configure Port Aggregation or Port trunking  Eliminate bottleneck between switch. Switch#conf Switch_config#int port-aggregator ? -- Port-aggregator interface number Switch_config#int g0/1 Switch_config_g0/1#aggregator-group ? -- aggregator group number Switch#conf Switch_config#int port-aggregator ? -- Port-aggregator interface number Switch_config#int g0/1 Switch_config_g0/1#aggregator-group ? -- aggregator group number

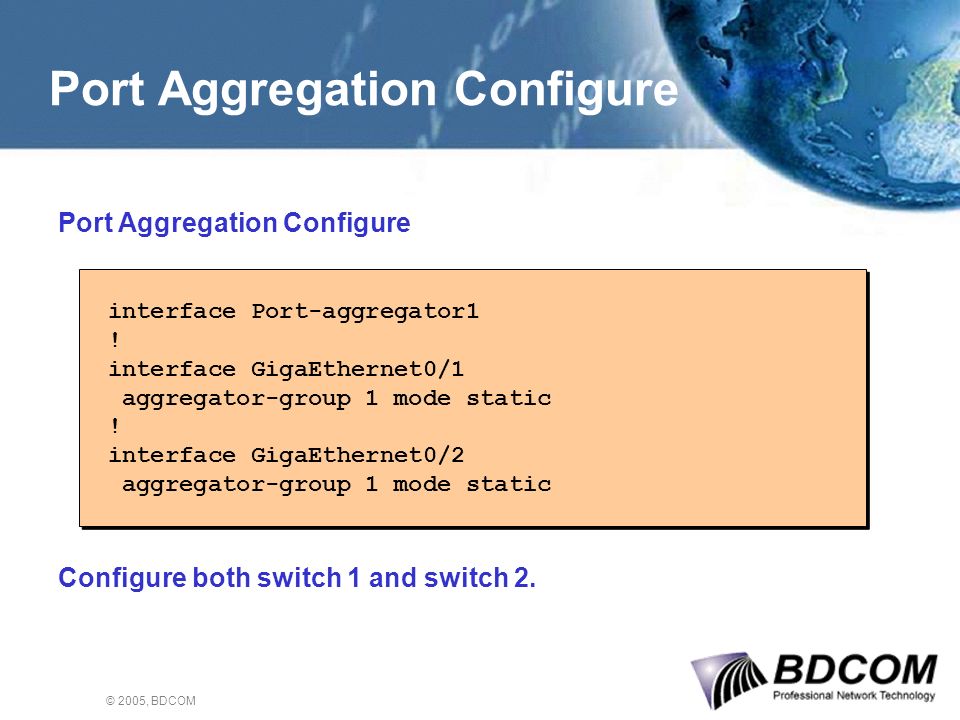

122. © 2005, BDCOM Port Aggregation Configure interface Port-aggregator1 ! interface GigaEthernet0/1 aggregator-group 1 mode static ! interface GigaEthernet0/2 aggregator-group 1 mode static interface Port-aggregator1 ! interface GigaEthernet0/1 aggregator-group 1 mode static ! interface GigaEthernet0/2 aggregator-group 1 mode static Configure both switch 1 and switch 2.

123. © 2005, BDCOM 802.3ah Configure 1. Discovery DUT1_config#interface gigaEthernet 0/1 DUT1_config_g0/1#ethernet oam DUT2_config#interface gigaEthernet 0/1 DUT2_config_g0/1#ethernet oam  Result ：  DUT1 and DUT2 will detect MAC address of each other by show ethernet oam discovery.

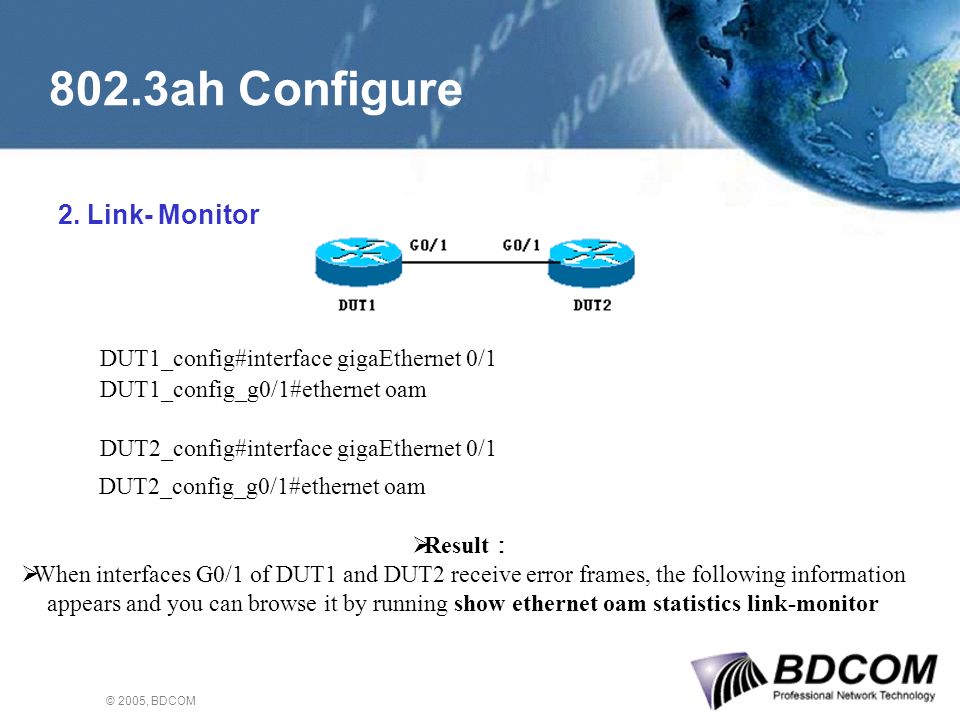

124. © 2005, BDCOM 802.3ah Configure 2. Link- Monitor DUT1_config#interface gigaEthernet 0/1 DUT1_config_g0/1#ethernet oam DUT2_config#interface gigaEthernet 0/1 DUT2_config_g0/1#ethernet oam  Result ：  When interfaces G0/1 of DUT1 and DUT2 receive error frames, the following information appears and you can browse it by running show ethernet oam statistics link-monitor

125. © 2005, BDCOM 802.3ah Configure 3. Remote - Failure DUT1_config#interface gigaEthernet 0/1 DUT1_config_g0/1#ethernet oam DUT2_config#interface gigaEthernet 0/1 DUT2_config_g0/1#ethernet oam  Result ：  When DUT1 power off Dying Gasp alarm display which browse it by running show ethernet oam statistics remote-failure interface GigaEthernet 0/1

126. © 2005, BDCOM Password Recovery  Go to monitor mode for check your username & password.  Reboot and pressing ctrl-p make switches go to monitor mode System Bootstrap, Version 0.2.5, Serial No:S27060621 Copyright (c) 1994-2005 by Shanghai Baud Data Communication Co., Ltd. BDCOM-S2524B RISC processor Current time: 1970-1-1 0:00:00 SDRAM Fast Test...............................PASS! Flash Fast Test...............................PASS! RTC Test......................................PASS! Switch Internal Loopback Test.................PASS! Welcome to S2524B Ethernet Switch monitor# System Bootstrap, Version 0.2.5, Serial No:S27060621 Copyright (c) 1994-2005 by Shanghai Baud Data Communication Co., Ltd. BDCOM-S2524B RISC processor Current time: 1970-1-1 0:00:00 SDRAM Fast Test...............................PASS! Flash Fast Test...............................PASS! RTC Test......................................PASS! Switch Internal Loopback Test.................PASS! Welcome to S2524B Ethernet Switch monitor#

127. © 2005, BDCOM Password Recovery  Type “show configuration” command. monitor#show configuration version 2.0.1N service timestamps log date service timestamps debug date ! spanning-tree mode rstp ! aaa authentication login default local aaa authentication enable default enable ! username admin password 0 admin enable password 0 admin level 15

128. © 2005, BDCOM Password Recovery  If your password was encryption. monitor#show configuration version 2.0.1N service timestamps log date service timestamps debug date ! spanning-tree mode rstp ! aaa authentication login default local aaa authentication enable default enable ! username admin password 7 101b433d384f enable password 7 101B433D384F level 15

129. © 2005, BDCOM Password Recovery  Save your configure before delete configure.

130. © 2005, BDCOM Password Recovery  Select directory for keep configure file.

131. © 2005, BDCOM Password Recovery  show configuration.

132. © 2005, BDCOM Password Recovery  Stop Capture Text.

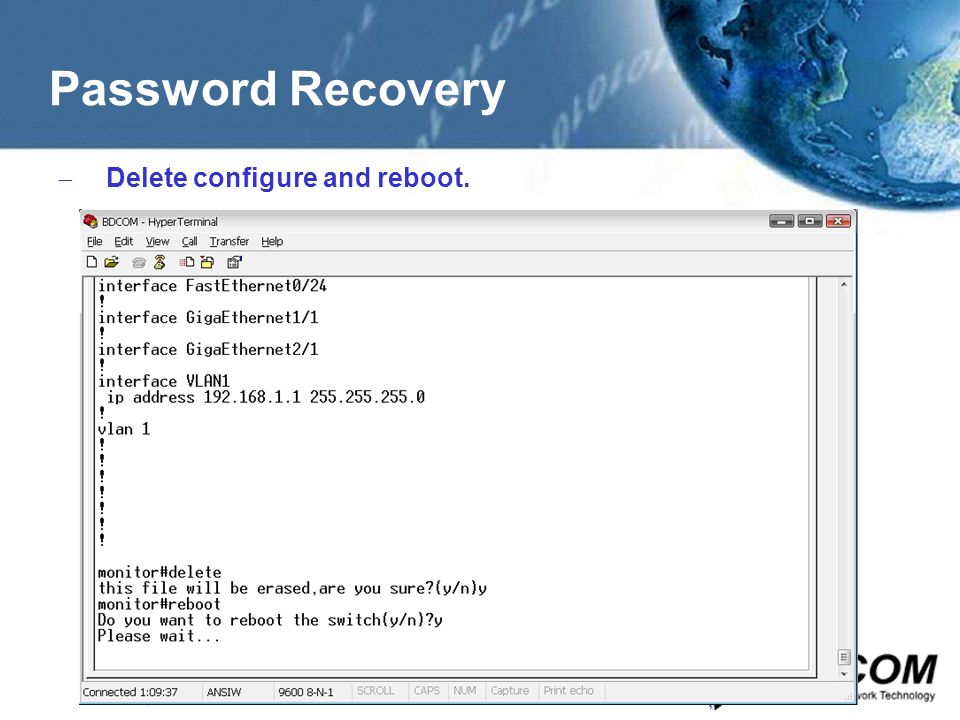

133. © 2005, BDCOM Password Recovery  Delete configure and reboot.

134. © 2005, BDCOM Question & Answer
