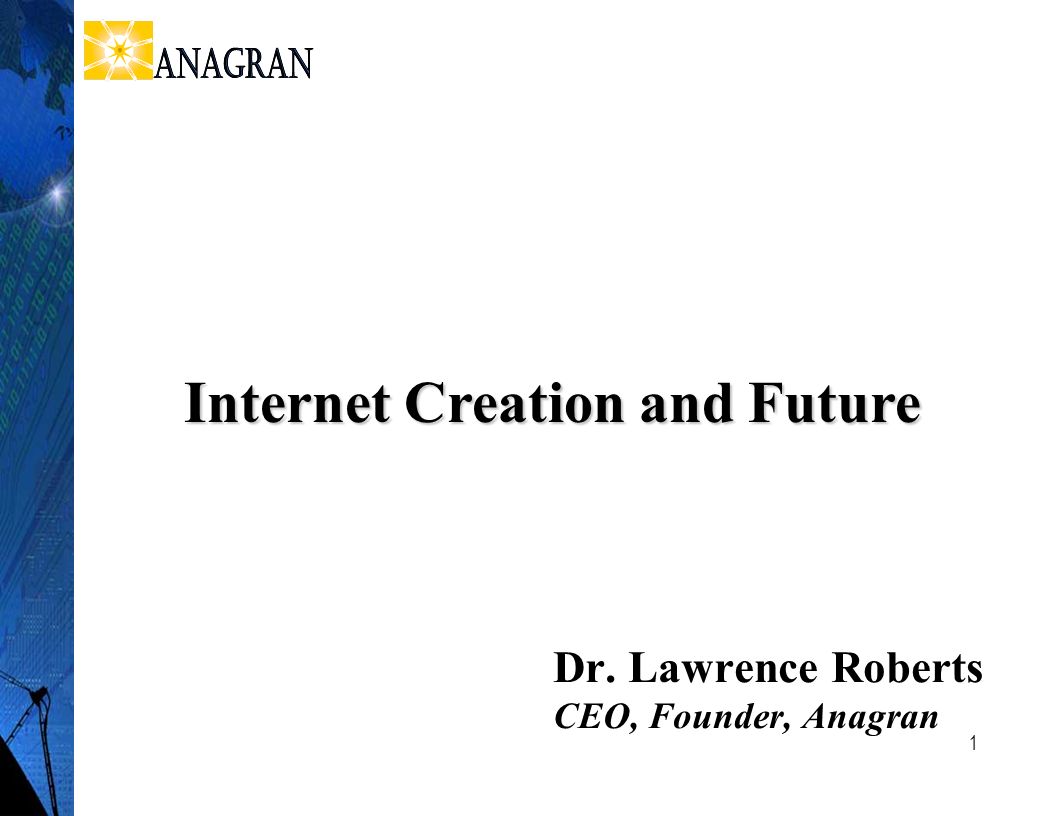

1. 1 Dr. Lawrence Roberts CEO, Founder, Anagran Internet Creation and Future

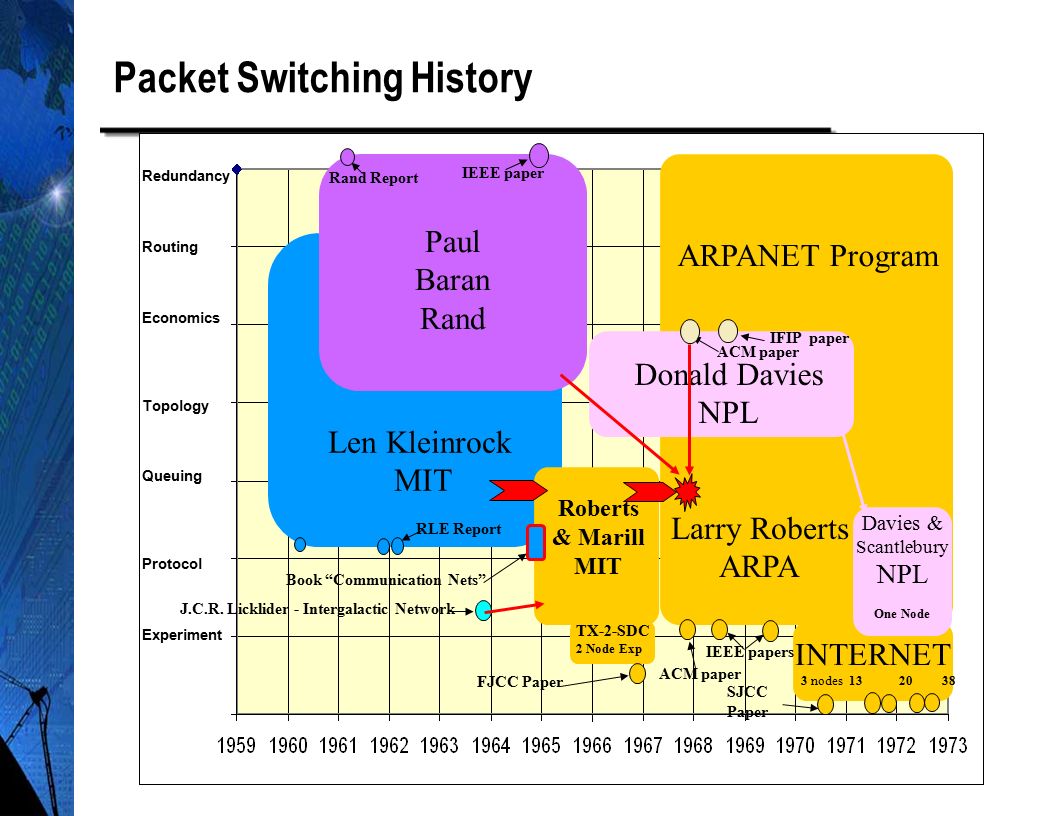

2. 2 Packet Switching History Redundancy Routing Economics Topology Queuing Protocol Experiment INTERNET 3 nodes 13 20 38 Len Kleinrock MIT Paul Baran Rand Roberts & Marill MIT TX-2-SDC 2 Node Exp Larry Roberts ARPA Davies & Scantlebury NPL One Node Book “Communication Nets” IEEE paper FJCC Paper J.C.R. Licklider - Intergalactic Network Donald Davies NPL ACM paper IFIP paper ACM paper SJCC Paper ARPANET Program RLE Report Rand Report IEEE papers

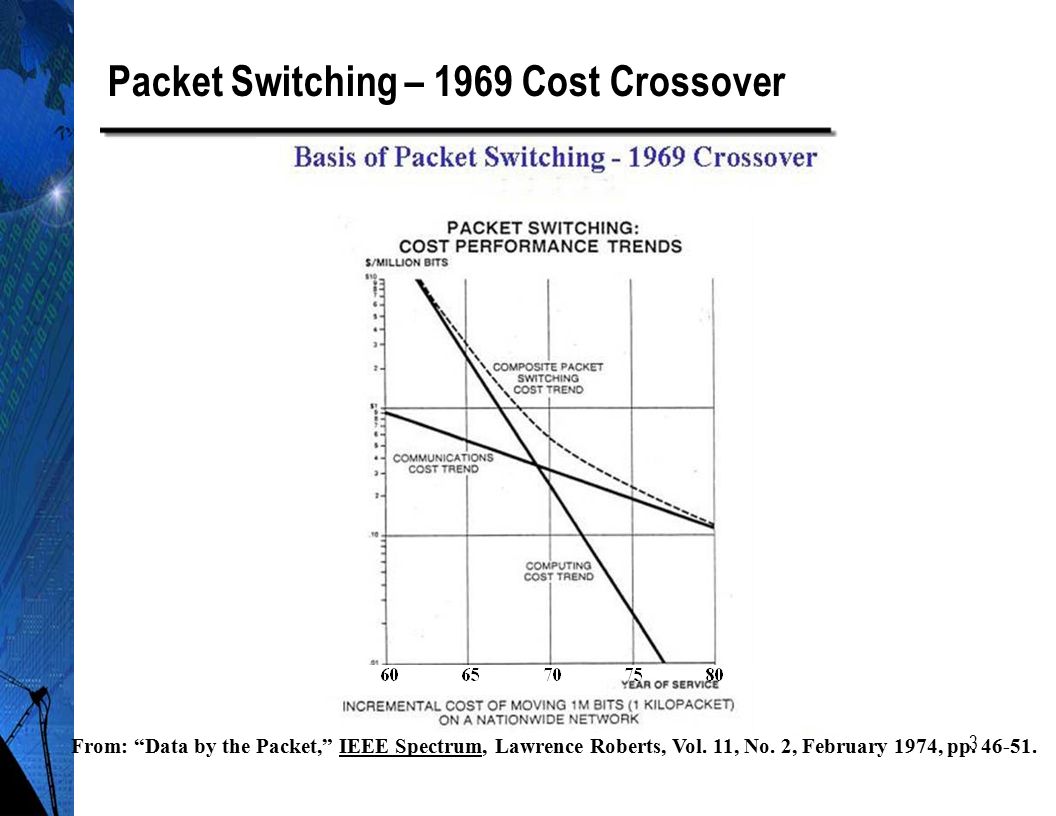

3. 3 From: “Data by the Packet,” IEEE Spectrum, Lawrence Roberts, Vol. 11, No. 2, February 1974, pp. 46-51. Packet Switching – 1969 Cost Crossover

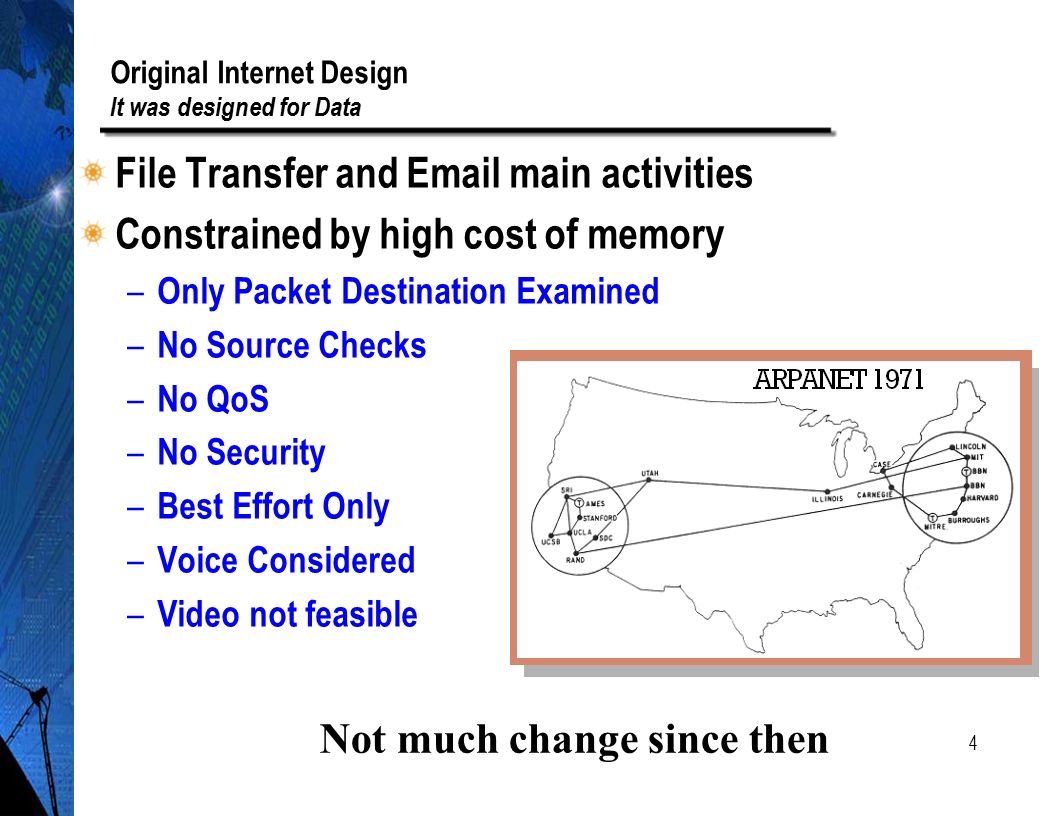

4. 4 Original Internet Design It was designed for Data File Transfer and Email main activities Constrained by high cost of memory – Only Packet Destination Examined – No Source Checks – No QoS – No Security – Best Effort Only – Voice Considered – Video not feasible Not much change since then

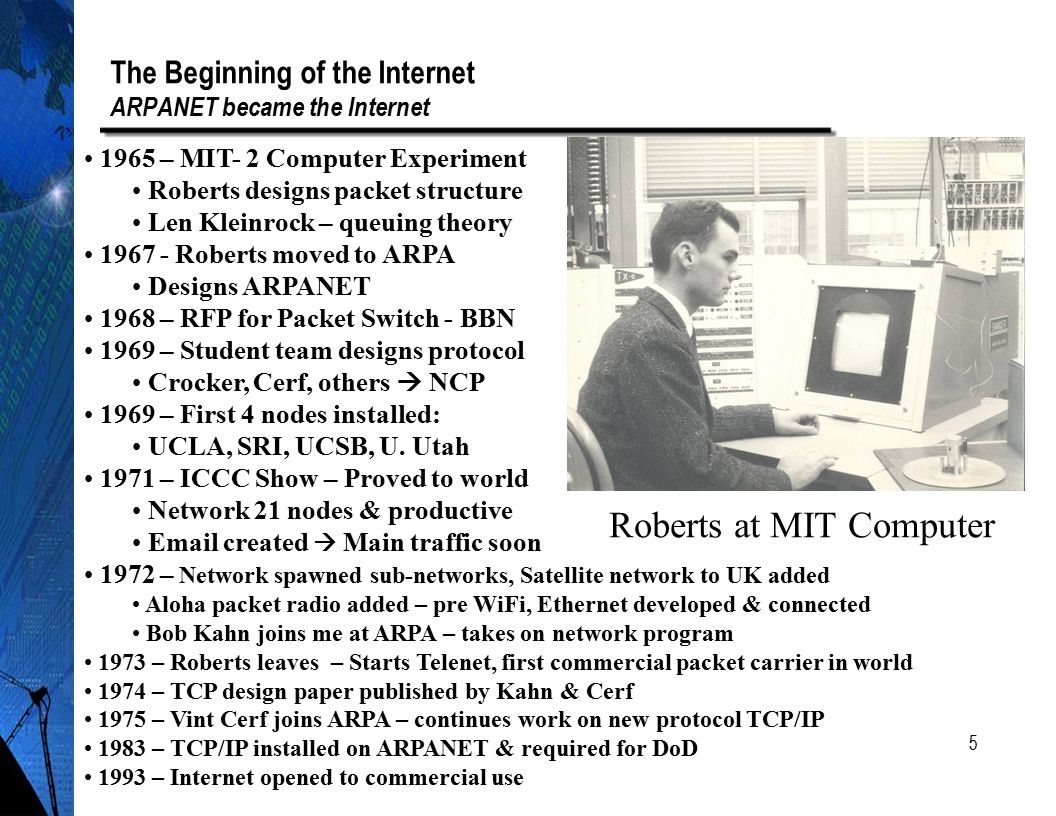

5. 5 The Beginning of the Internet ARPANET became the Internet 1965 – MIT- 2 Computer Experiment Roberts designs packet structure Len Kleinrock – queuing theory 1967 - Roberts moved to ARPA Designs ARPANET 1968 – RFP for Packet Switch - BBN 1969 – Student team designs protocol Crocker, Cerf, others  NCP 1969 – First 4 nodes installed: UCLA, SRI, UCSB, U. Utah 1971 – ICCC Show – Proved to world Network 21 nodes & productive Email created  Main traffic soon 1972 – Network spawned sub-networks, Satellite network to UK added Aloha packet radio added – pre WiFi, Ethernet developed & connected Bob Kahn joins me at ARPA – takes on network program 1973 – Roberts leaves – Starts Telenet, first commercial packet carrier in world 1974 – TCP design paper published by Kahn & Cerf 1975 – Vint Cerf joins ARPA – continues work on new protocol TCP/IP 1983 – TCP/IP installed on ARPANET & required for DoD 1993 – Internet opened to commercial use Roberts at MIT Computer

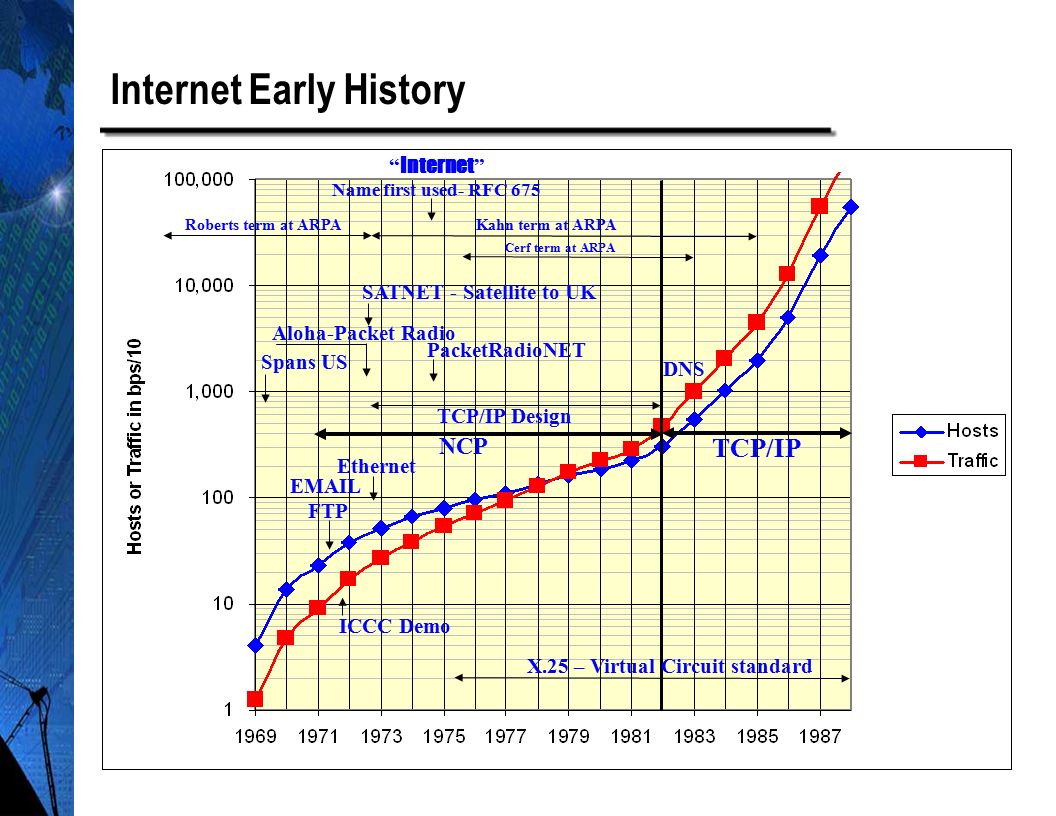

6. 6 Internet Early History TCP/IP NCP EMAIL FTP ICCC Demo Aloha-Packet Radio SATNET - Satellite to UK Spans US Ethernet DNS PacketRadioNET “ Internet ” Name first used- RFC 675 TCP/IP Design X.25 – Virtual Circuit standard Roberts term at ARPA Kahn term at ARPA Cerf term at ARPA

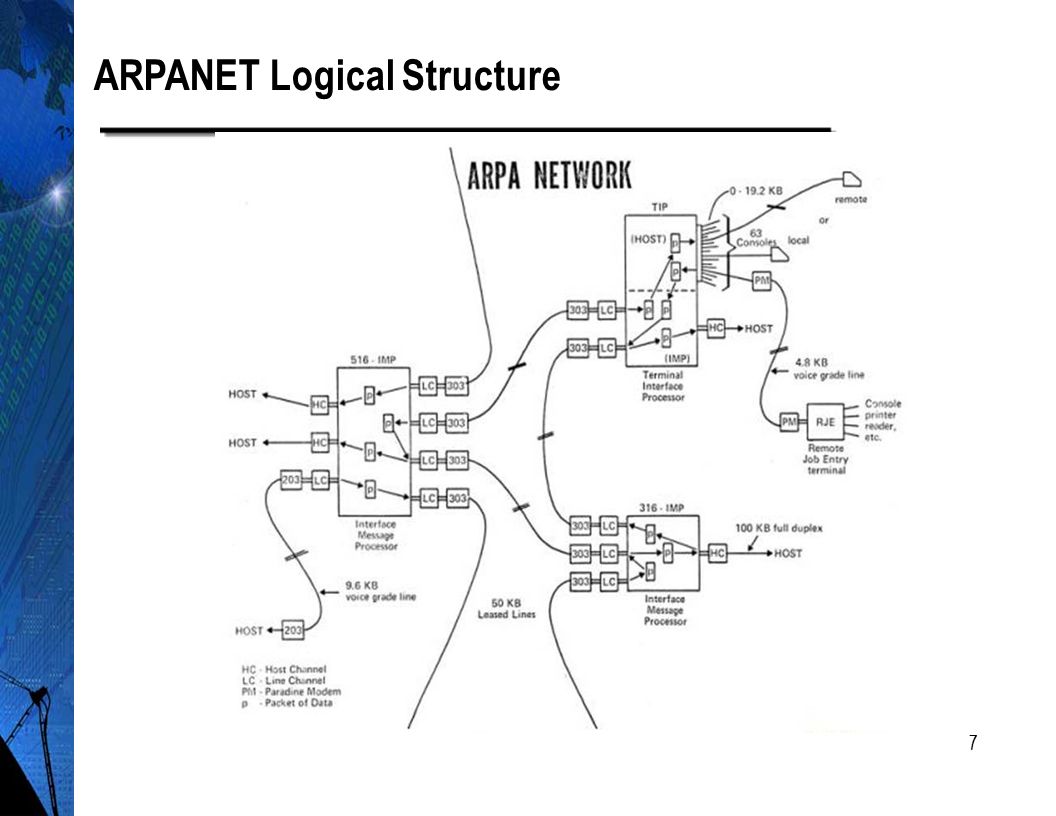

7. 7 ARPANET Logical Structure

8. 8 Internet Growth ARPANET July 1977

9. 9 NAE Draper Award Laureates Feb. 20 th, 2001 for creating the Internet Roberts Kahn Kleinrock Cerf

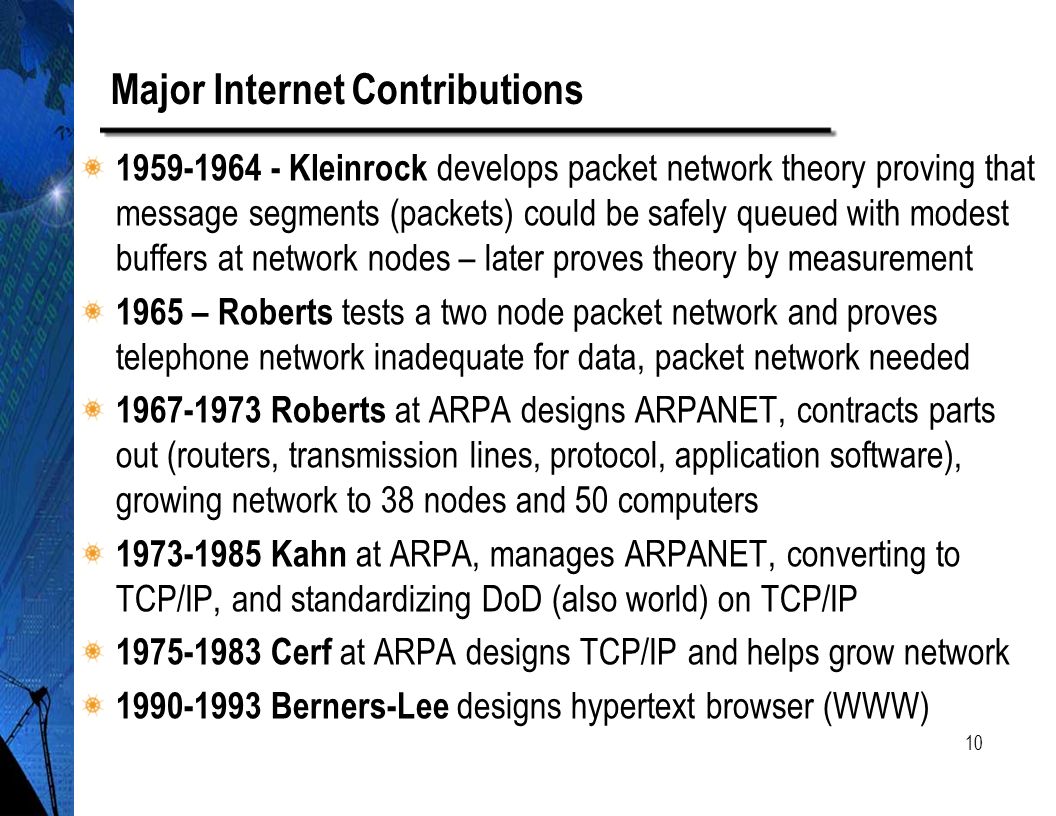

10. 10 Major Internet Contributions 1959-1964 - Kleinrock develops packet network theory proving that message segments (packets) could be safely queued with modest buffers at network nodes – later proves theory by measurement 1965 – Roberts tests a two node packet network and proves telephone network inadequate for data, packet network needed 1967-1973 Roberts at ARPA designs ARPANET, contracts parts out (routers, transmission lines, protocol, application software), growing network to 38 nodes and 50 computers 1973-1985 Kahn at ARPA, manages ARPANET, converting to TCP/IP, and standardizing DoD (also world) on TCP/IP 1975-1983 Cerf at ARPA designs TCP/IP and helps grow network 1990-1993 Berners-Lee designs hypertext browser (WWW)

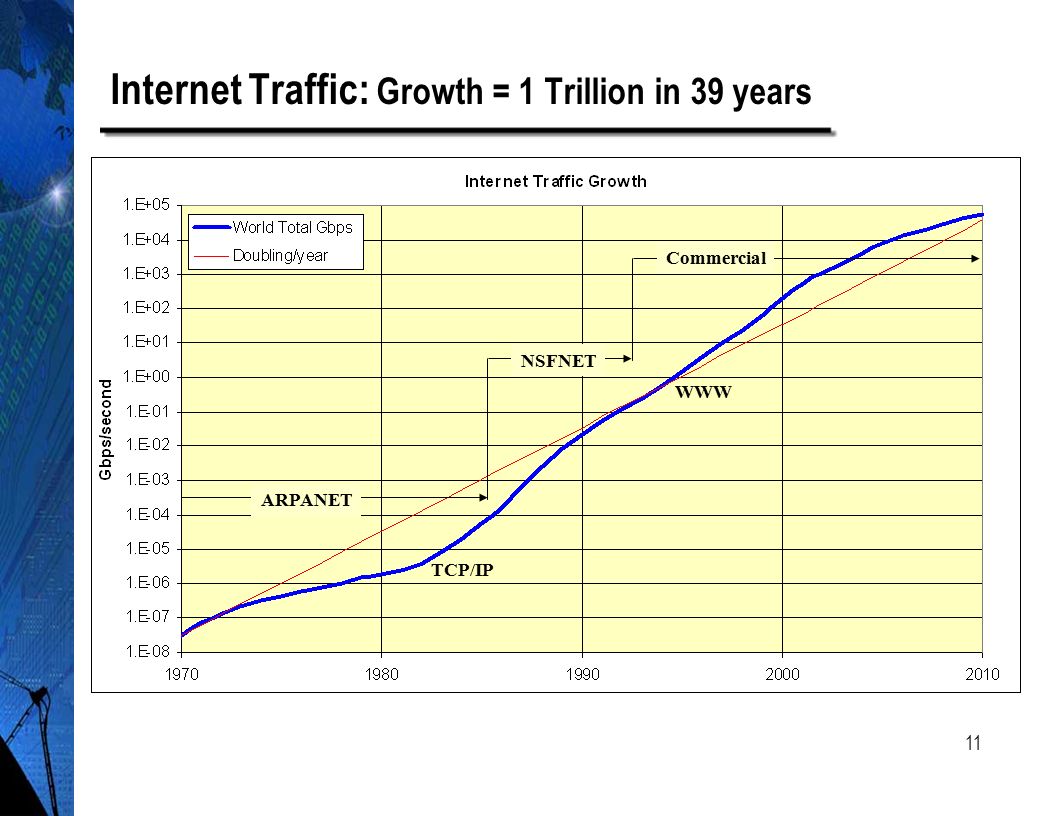

11. 11 Internet Traffic: Growth = 1 Trillion in 39 years Commercial NSFNET ARPANET TCP/IP WWW

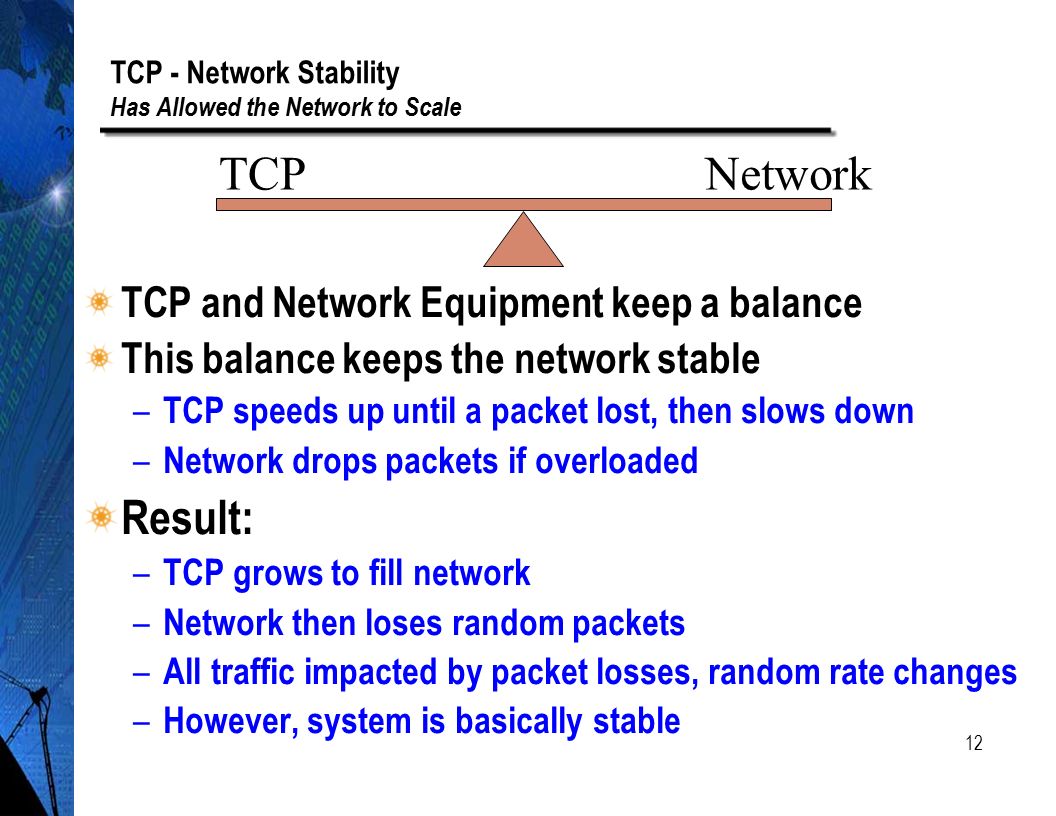

12. 12 TCP - Network Stability Has Allowed the Network to Scale TCP and Network Equipment keep a balance This balance keeps the network stable – TCP speeds up until a packet lost, then slows down – Network drops packets if overloaded Result: – TCP grows to fill network – Network then loses random packets – All traffic impacted by packet losses, random rate changes – However, system is basically stable TCPNetwork

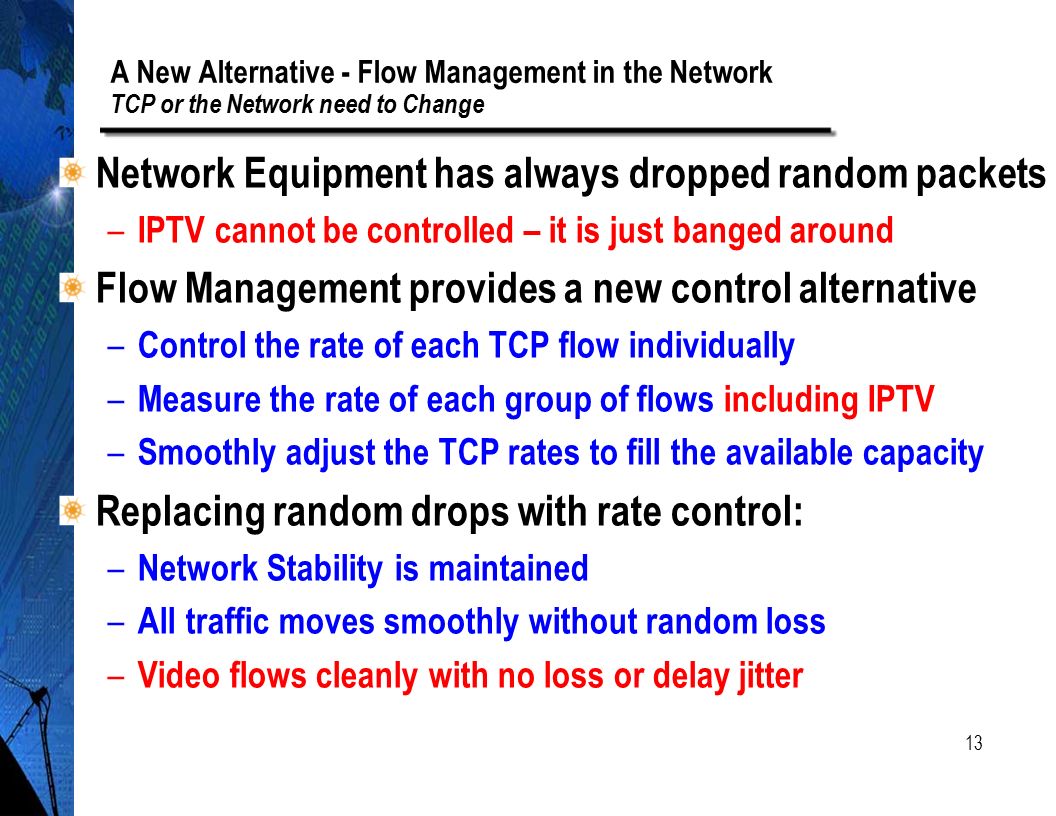

13. 13 A New Alternative - Flow Management in the Network TCP or the Network need to Change Network Equipment has always dropped random packets – IPTV cannot be controlled – it is just banged around Flow Management provides a new control alternative – Control the rate of each TCP flow individually – Measure the rate of each group of flows including IPTV – Smoothly adjust the TCP rates to fill the available capacity Replacing random drops with rate control: – Network Stability is maintained – All traffic moves smoothly without random loss – Video flows cleanly with no loss or delay jitter

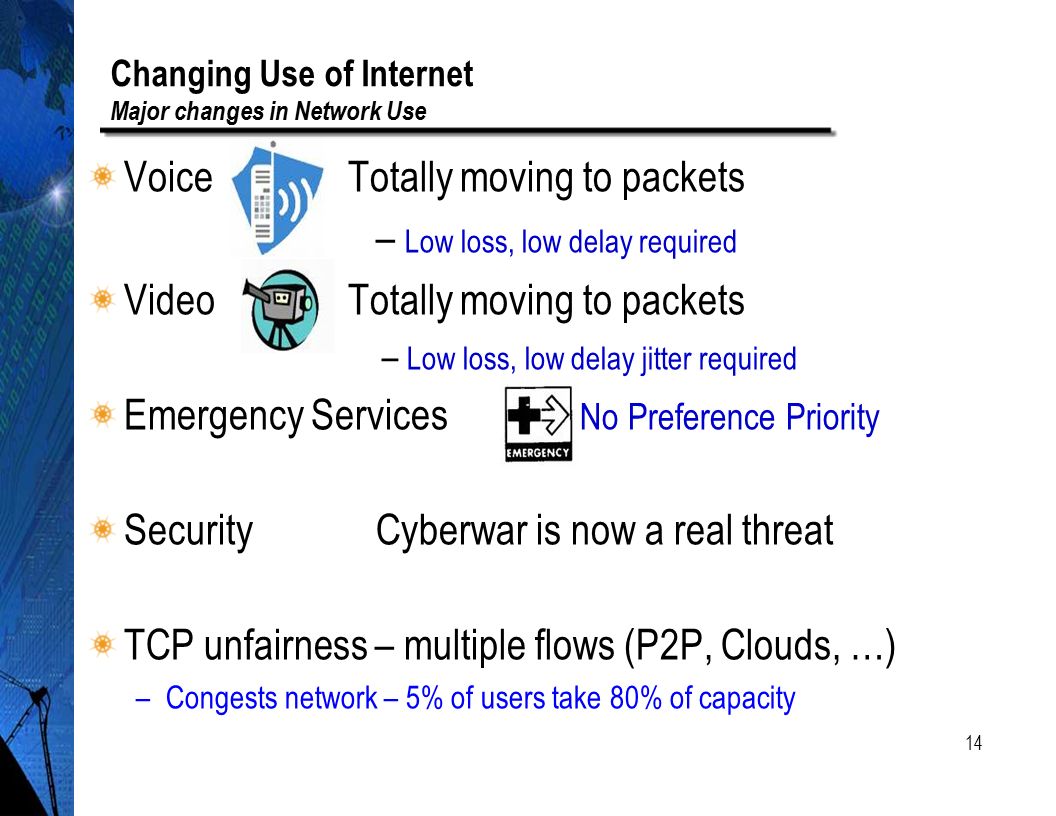

14. 14 Voice Totally moving to packets – Low loss, low delay required Video Totally moving to packets – Low loss, low delay jitter required Emergency Services No Preference Priority SecurityCyberwar is now a real threat TCP unfairness – multiple flows (P2P, Clouds, …) –Congests network – 5% of users take 80% of capacity Changing Use of Internet Major changes in Network Use

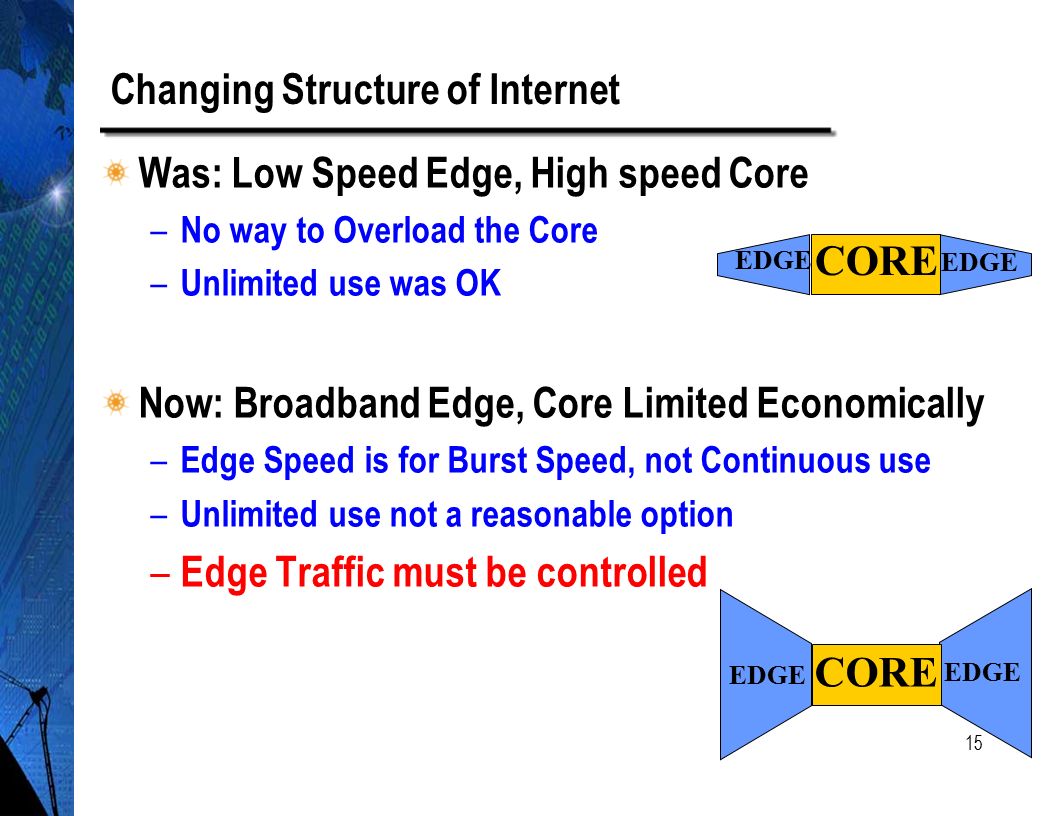

15. 15 Changing Structure of Internet Was: Low Speed Edge, High speed Core – No way to Overload the Core – Unlimited use was OK Now: Broadband Edge, Core Limited Economically – Edge Speed is for Burst Speed, not Continuous use – Unlimited use not a reasonable option – Edge Traffic must be controlled CORE EDGE CORE EDGE

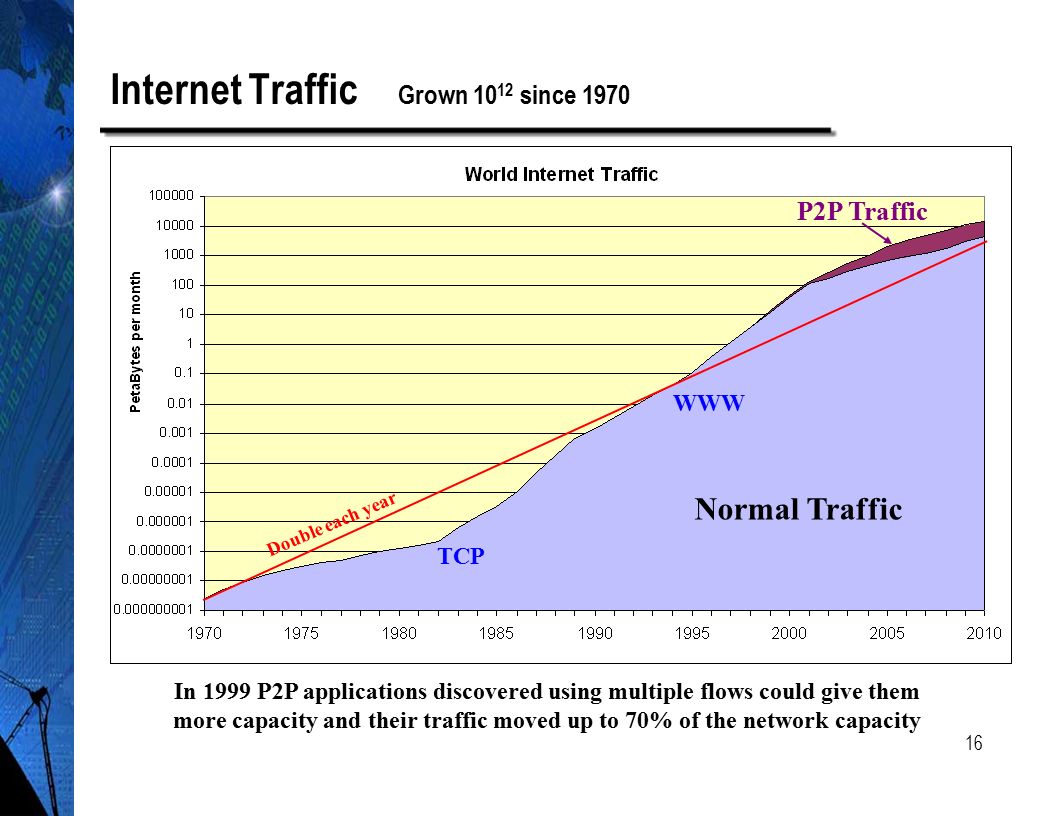

16. 16 Internet Traffic Grown 10 12 since 1970 In 1999 P2P applications discovered using multiple flows could give them more capacity and their traffic moved up to 70% of the network capacity TCP Double each year Normal Traffic P2P Traffic WWW

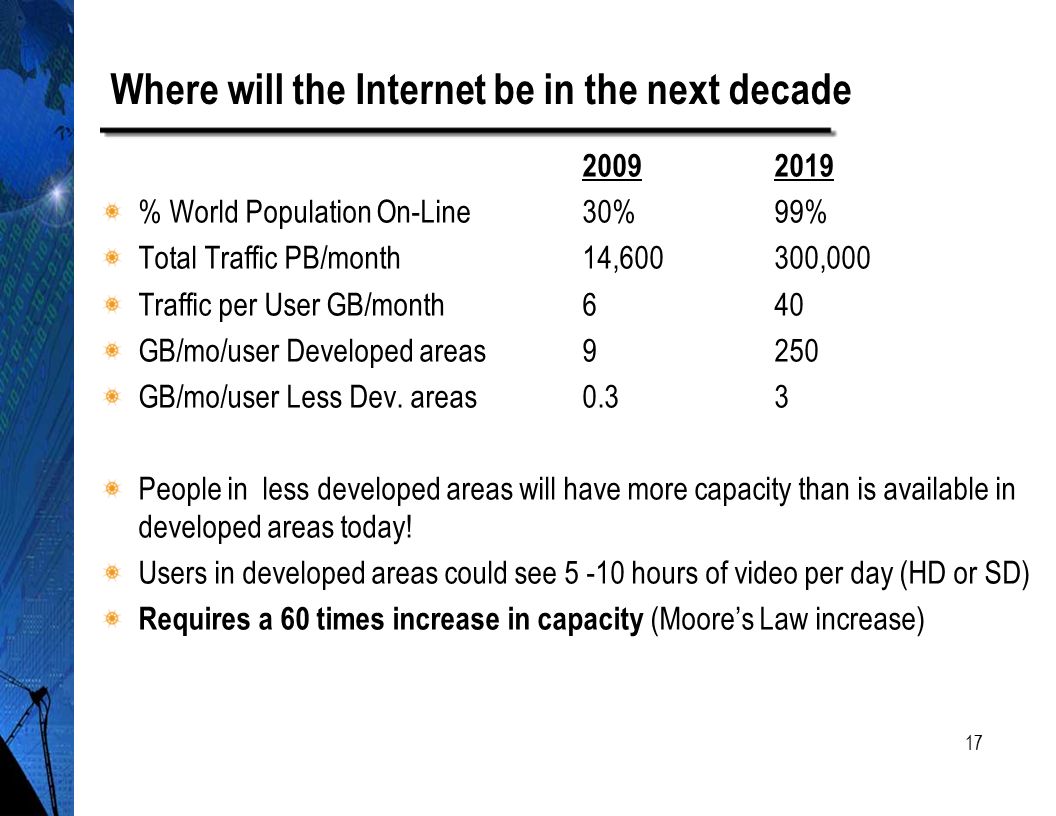

17. 17 Where will the Internet be in the next decade 20092019 % World Population On-Line30%99% Total Traffic PB/month14,600300,000 Traffic per User GB/month640 GB/mo/user Developed areas 9250 GB/mo/user Less Dev. areas0.33 People in less developed areas will have more capacity than is available in developed areas today! Users in developed areas could see 5 -10 hours of video per day (HD or SD) Requires a 60 times increase in capacity (Moore’s Law increase)

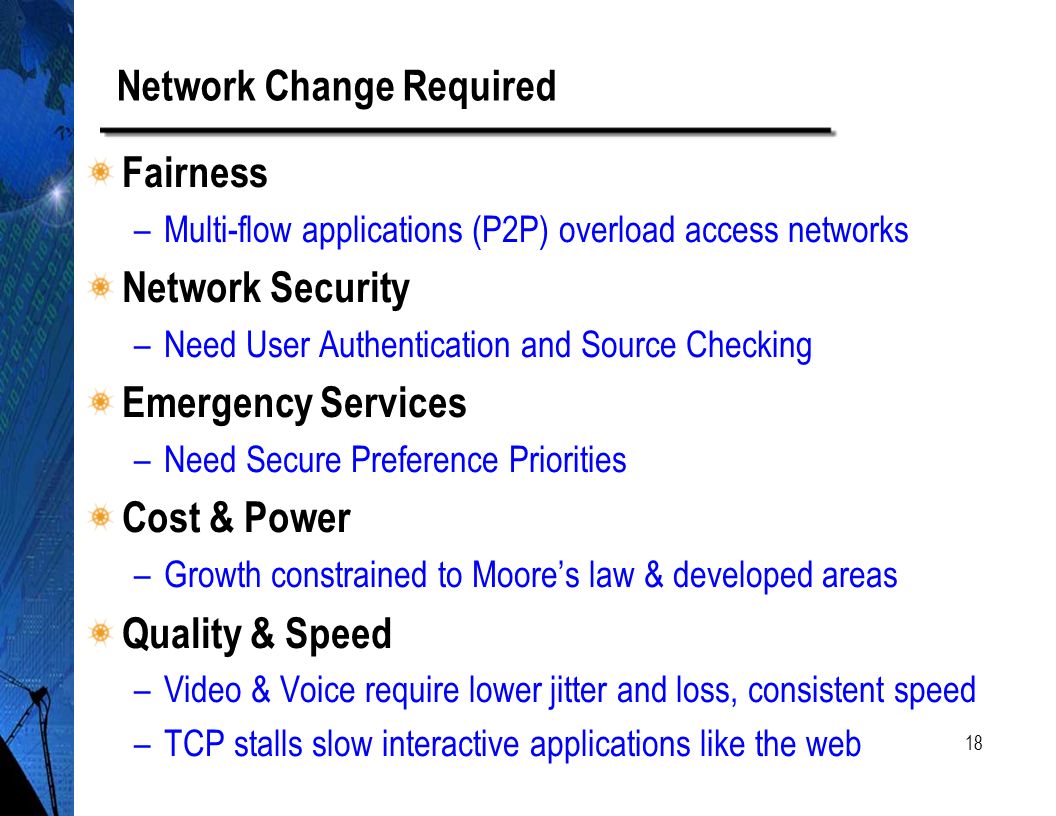

18. 18 Network Change Required Fairness –Multi-flow applications (P2P) overload access networks Network Security –Need User Authentication and Source Checking Emergency Services –Need Secure Preference Priorities Cost & Power –Growth constrained to Moore’s law & developed areas Quality & Speed –Video & Voice require lower jitter and loss, consistent speed –TCP stalls slow interactive applications like the web

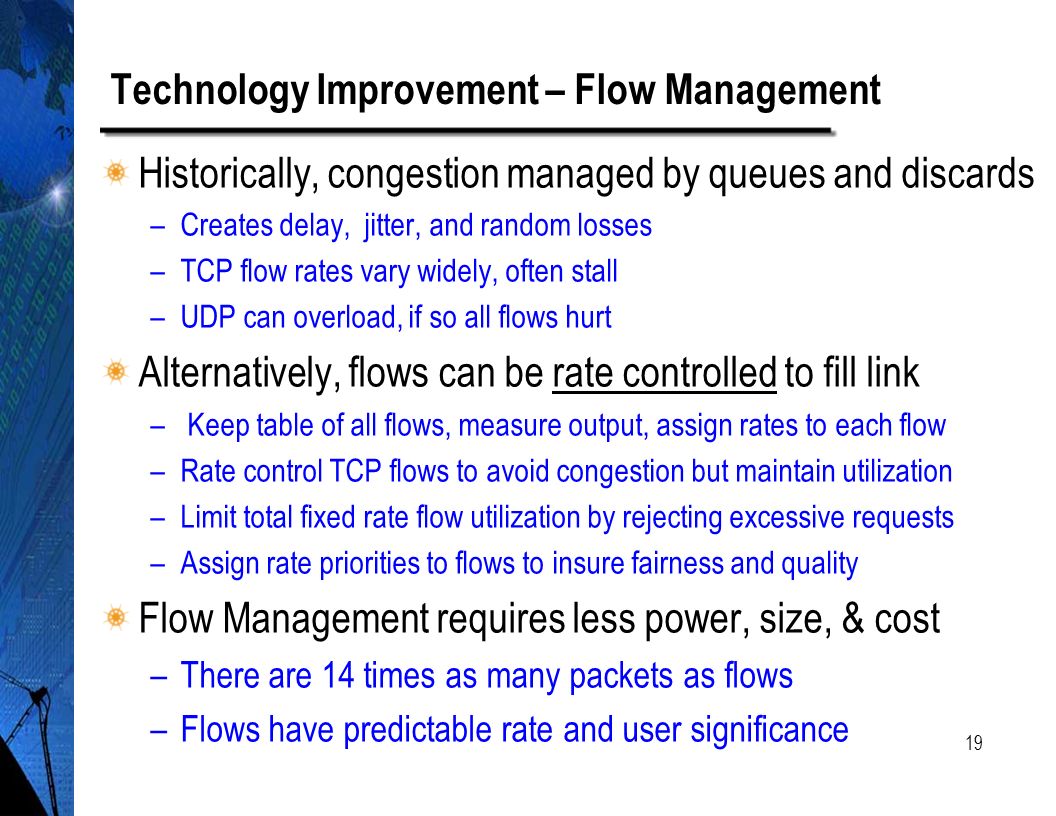

19. 19 Technology Improvement – Flow Management Historically, congestion managed by queues and discards –Creates delay, jitter, and random losses –TCP flow rates vary widely, often stall –UDP can overload, if so all flows hurt Alternatively, flows can be rate controlled to fill link – Keep table of all flows, measure output, assign rates to each flow –Rate control TCP flows to avoid congestion but maintain utilization –Limit total fixed rate flow utilization by rejecting excessive requests –Assign rate priorities to flows to insure fairness and quality Flow Management requires less power, size, & cost –There are 14 times as many packets as flows –Flows have predictable rate and user significance

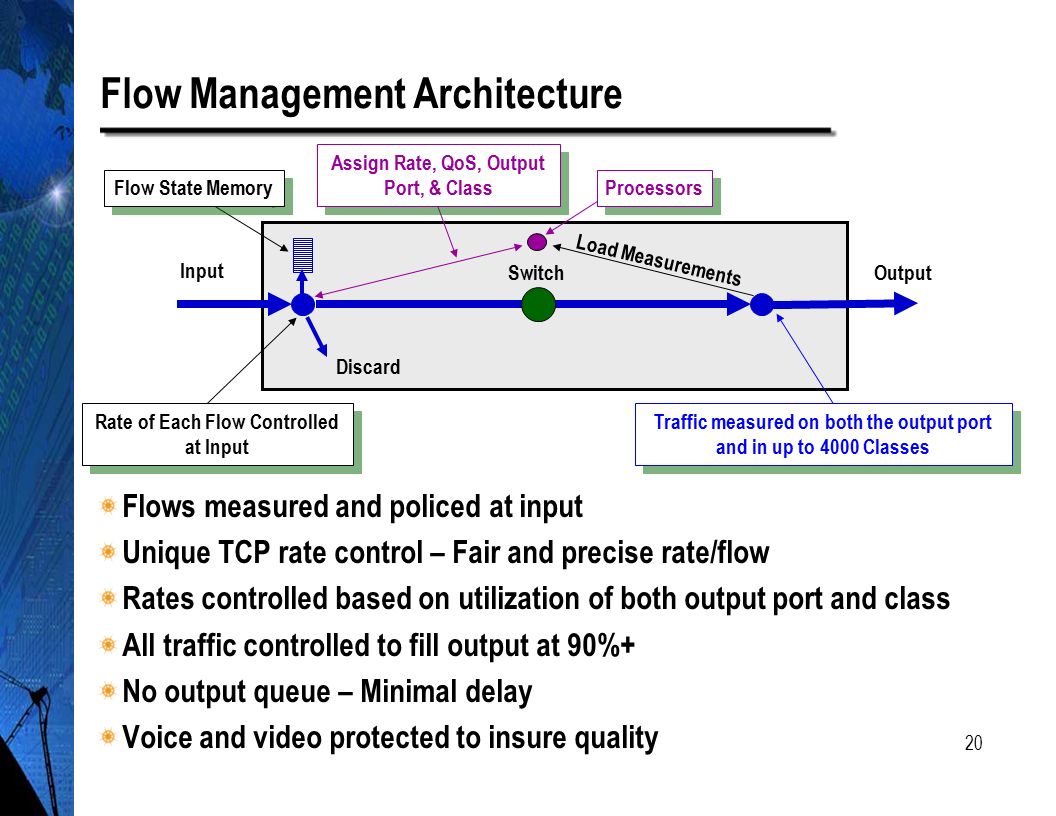

20. 20 Flow Management Architecture Input Output Discard Switch Load Measurements Flows measured and policed at input Unique TCP rate control – Fair and precise rate/flow Rates controlled based on utilization of both output port and class All traffic controlled to fill output at 90%+ No output queue – Minimal delay Voice and video protected to insure quality Assign Rate, QoS, Output Port, & Class Flow State Memory Processors Rate of Each Flow Controlled at Input Rate of Each Flow Controlled at Input Traffic measured on both the output port and in up to 4000 Classes

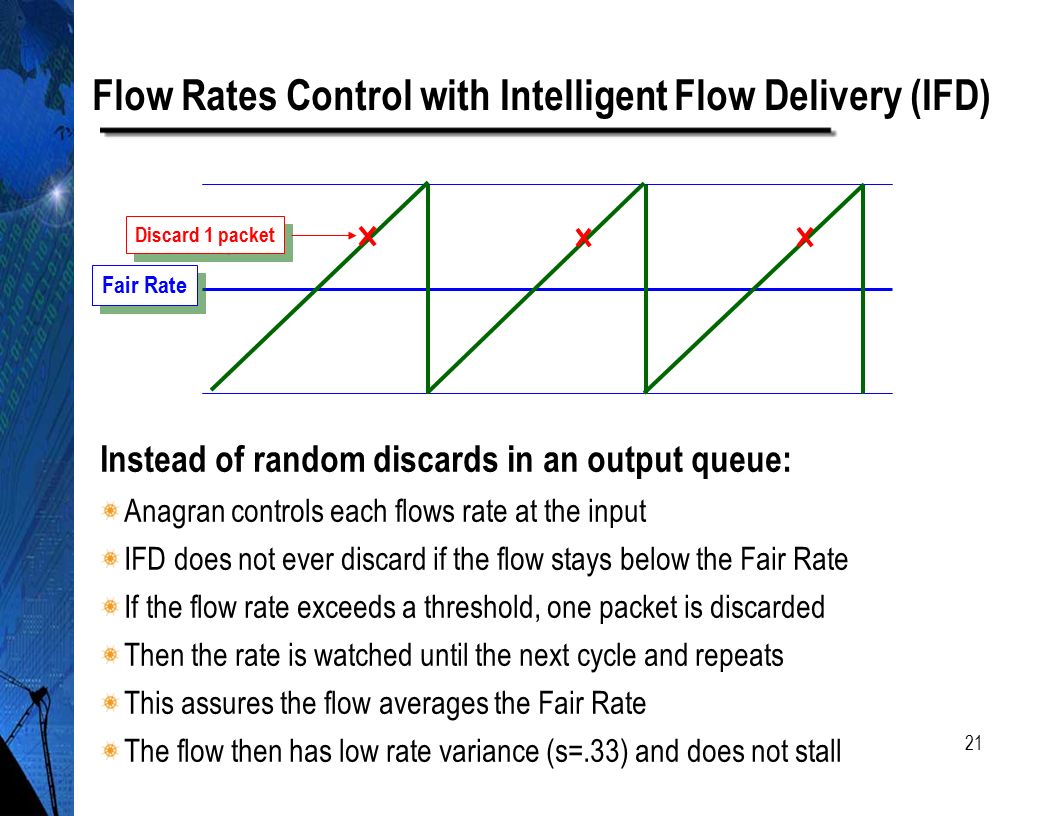

21. 21 Flow Rates Control with Intelligent Flow Delivery (IFD) Instead of random discards in an output queue: Anagran controls each flows rate at the input IFD does not ever discard if the flow stays below the Fair Rate If the flow rate exceeds a threshold, one packet is discarded Then the rate is watched until the next cycle and repeats This assures the flow averages the Fair Rate The flow then has low rate variance (s=.33) and does not stall Fair Rate Discard 1 packet

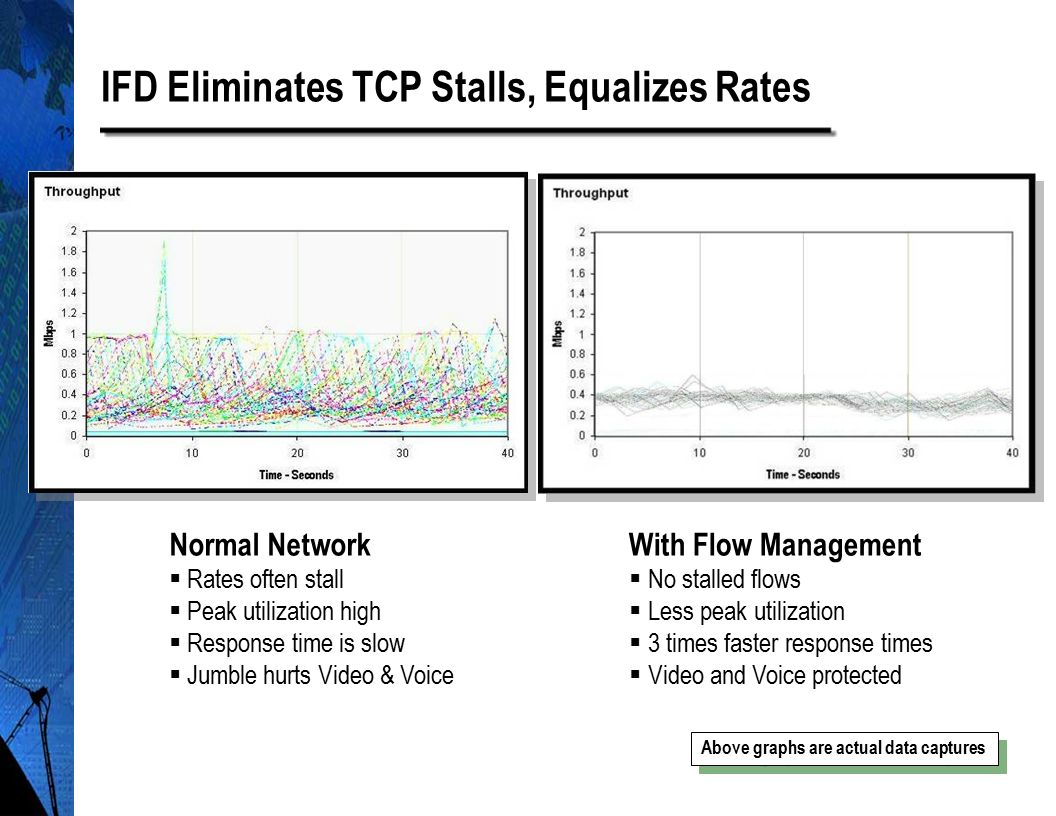

22. 22 IFD Eliminates TCP Stalls, Equalizes Rates With Flow Management  No stalled flows  Less peak utilization  3 times faster response times  Video and Voice protected Above graphs are actual data captures Normal Network  Rates often stall  Peak utilization high  Response time is slow  Jumble hurts Video & Voice

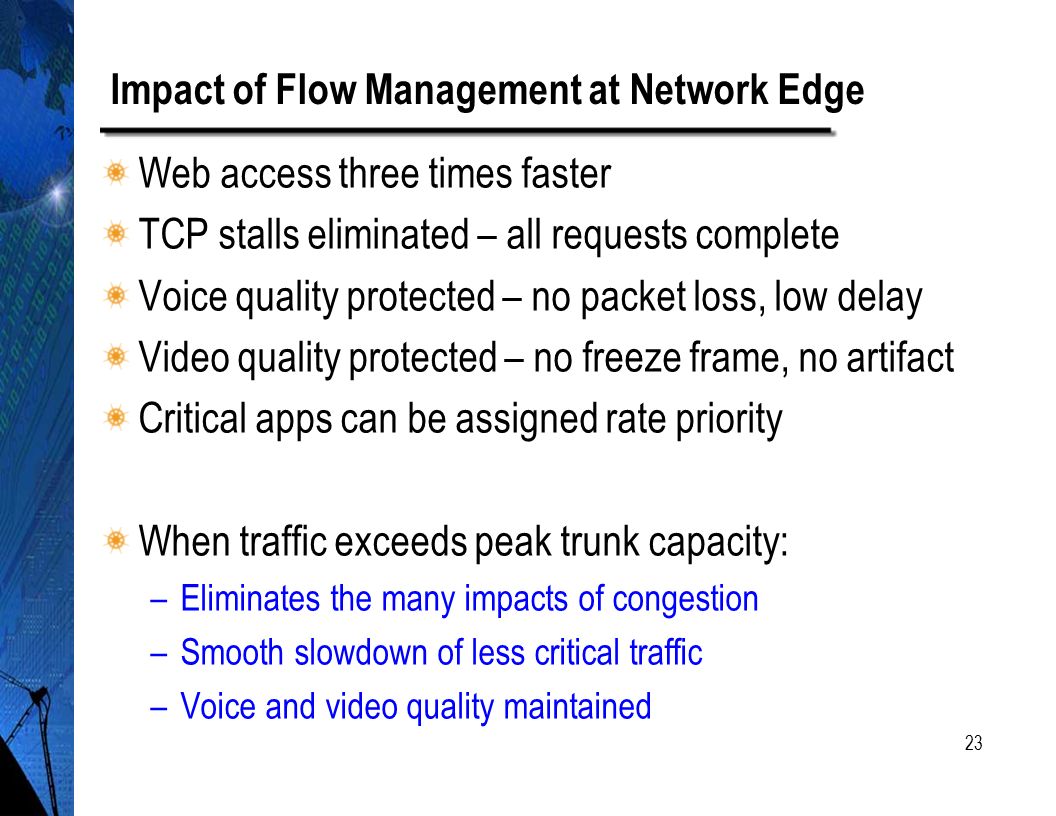

23. 23 Impact of Flow Management at Network Edge Web access three times faster TCP stalls eliminated – all requests complete Voice quality protected – no packet loss, low delay Video quality protected – no freeze frame, no artifact Critical apps can be assigned rate priority When traffic exceeds peak trunk capacity: –Eliminates the many impacts of congestion –Smooth slowdown of less critical traffic –Voice and video quality maintained

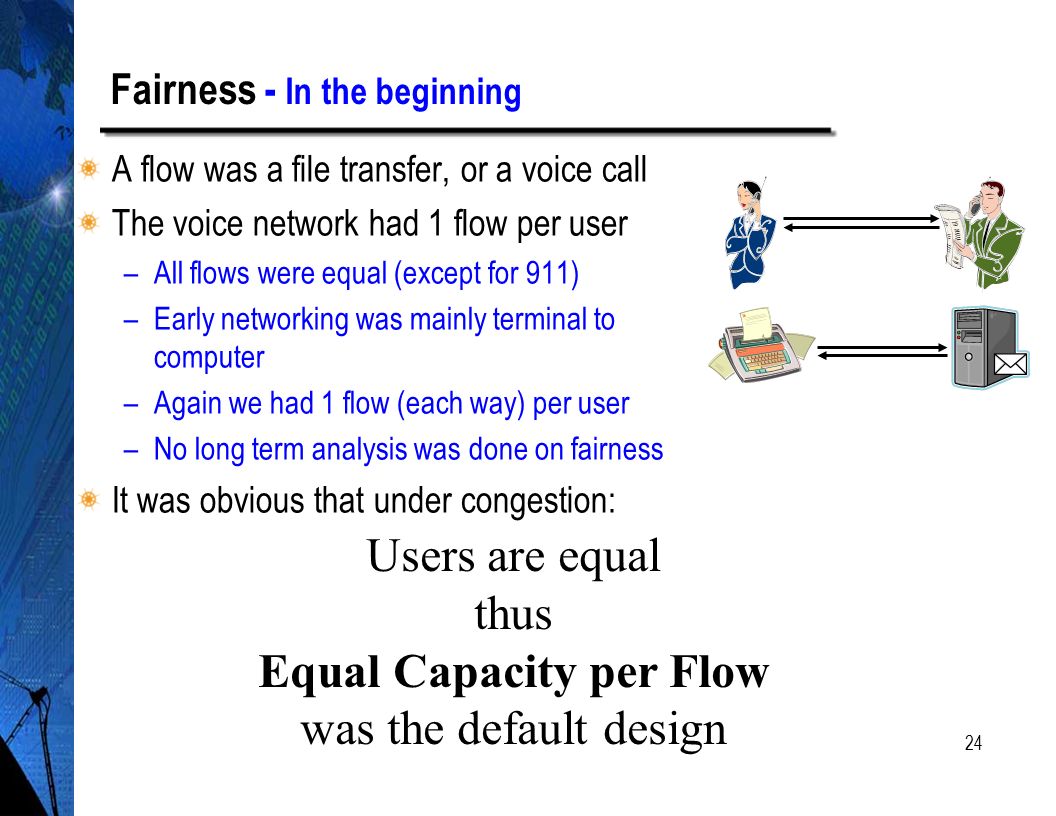

24. 24 Fairness - In the beginning A flow was a file transfer, or a voice call The voice network had 1 flow per user –All flows were equal (except for 911) –Early networking was mainly terminal to computer –Again we had 1 flow (each way) per user –No long term analysis was done on fairness It was obvious that under congestion: Users are equal thus Equal Capacity per Flow was the default design

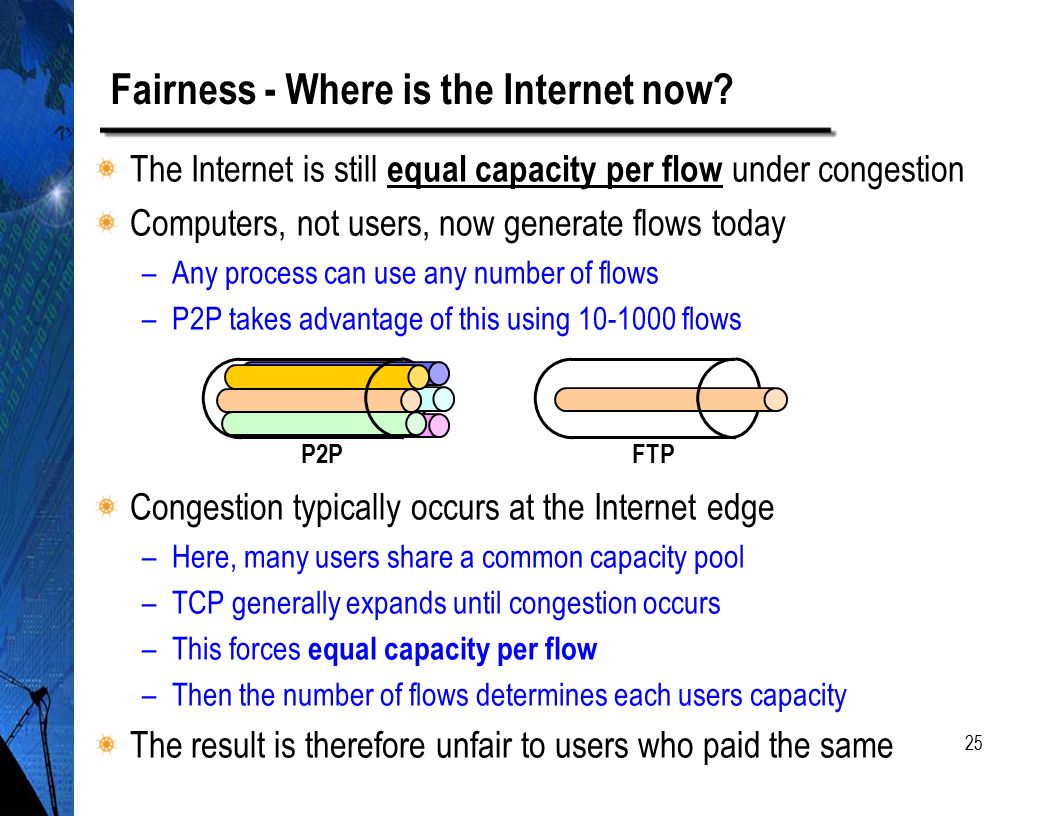

25. 25 Fairness - Where is the Internet now? The Internet is still equal capacity per flow under congestion Computers, not users, now generate flows today –Any process can use any number of flows –P2P takes advantage of this using 10-1000 flows Congestion typically occurs at the Internet edge –Here, many users share a common capacity pool –TCP generally expands until congestion occurs –This forces equal capacity per flow –Then the number of flows determines each users capacity The result is therefore unfair to users who paid the same P2PFTP

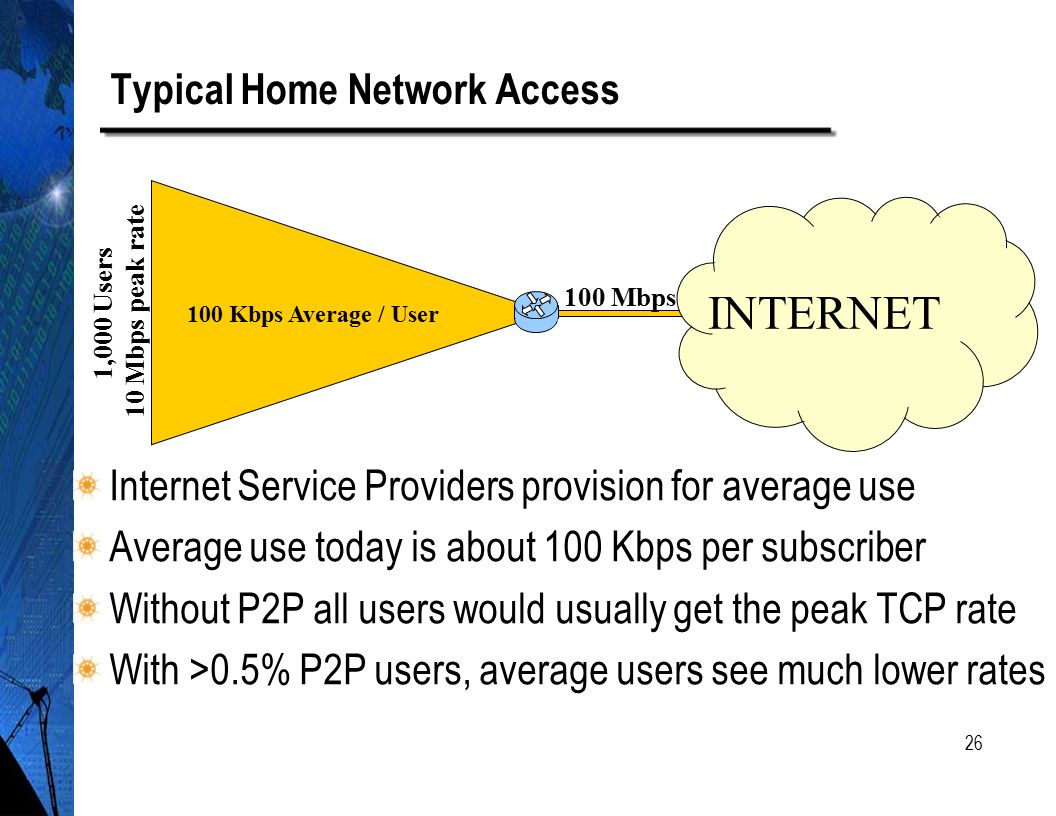

26. 26 Typical Home Network Access Internet Service Providers provision for average use Average use today is about 100 Kbps per subscriber Without P2P all users would usually get the peak TCP rate With >0.5% P2P users, average users see much lower rates 1,000 Users 10 Mbps peak rate 100 Mbps INTERNET 100 Kbps Average / User

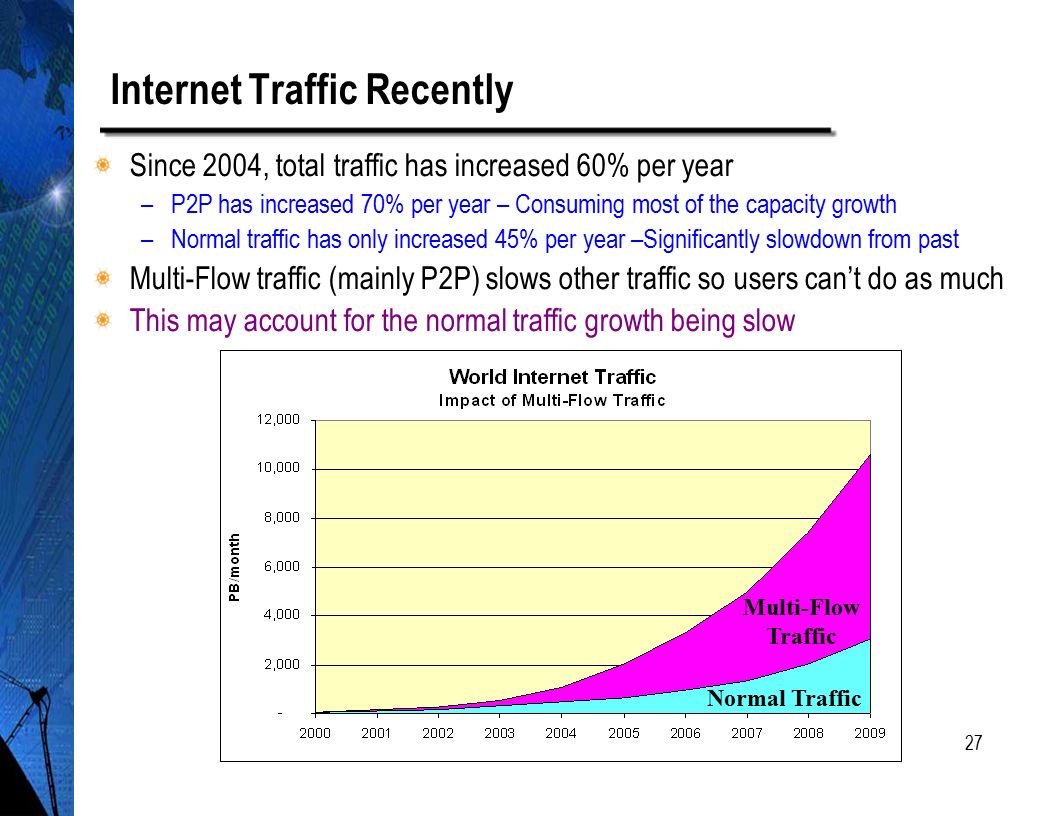

27. 27 Internet Traffic Recently Since 2004, total traffic has increased 60% per year –P2P has increased 70% per year – Consuming most of the capacity growth –Normal traffic has only increased 45% per year –Significantly slowdown from past Multi-Flow traffic (mainly P2P) slows other traffic so users can’t do as much This may account for the normal traffic growth being slow Multi-Flow Traffic Normal Traffic

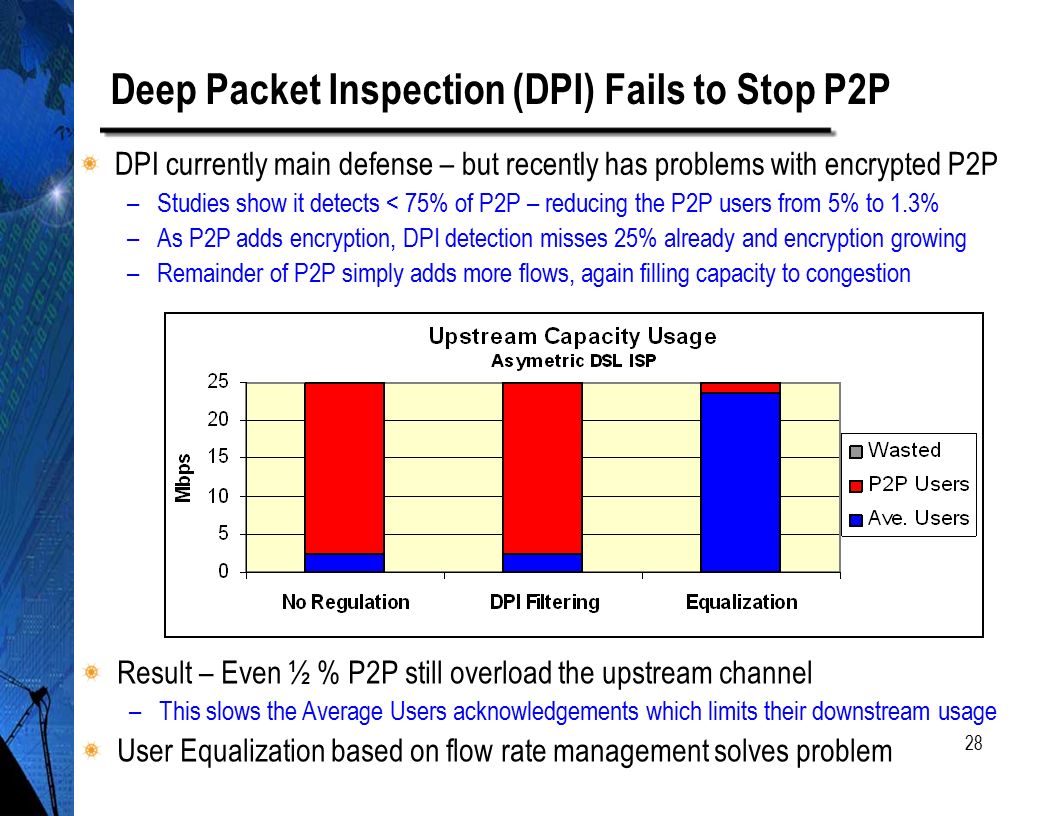

28. 28 Deep Packet Inspection (DPI) Fails to Stop P2P DPI currently main defense – but recently has problems with encrypted P2P –Studies show it detects < 75% of P2P – reducing the P2P users from 5% to 1.3% –As P2P adds encryption, DPI detection misses 25% already and encryption growing –Remainder of P2P simply adds more flows, again filling capacity to congestion Result – Even ½ % P2P still overload the upstream channel –This slows the Average Users acknowledgements which limits their downstream usage User Equalization based on flow rate management solves problem

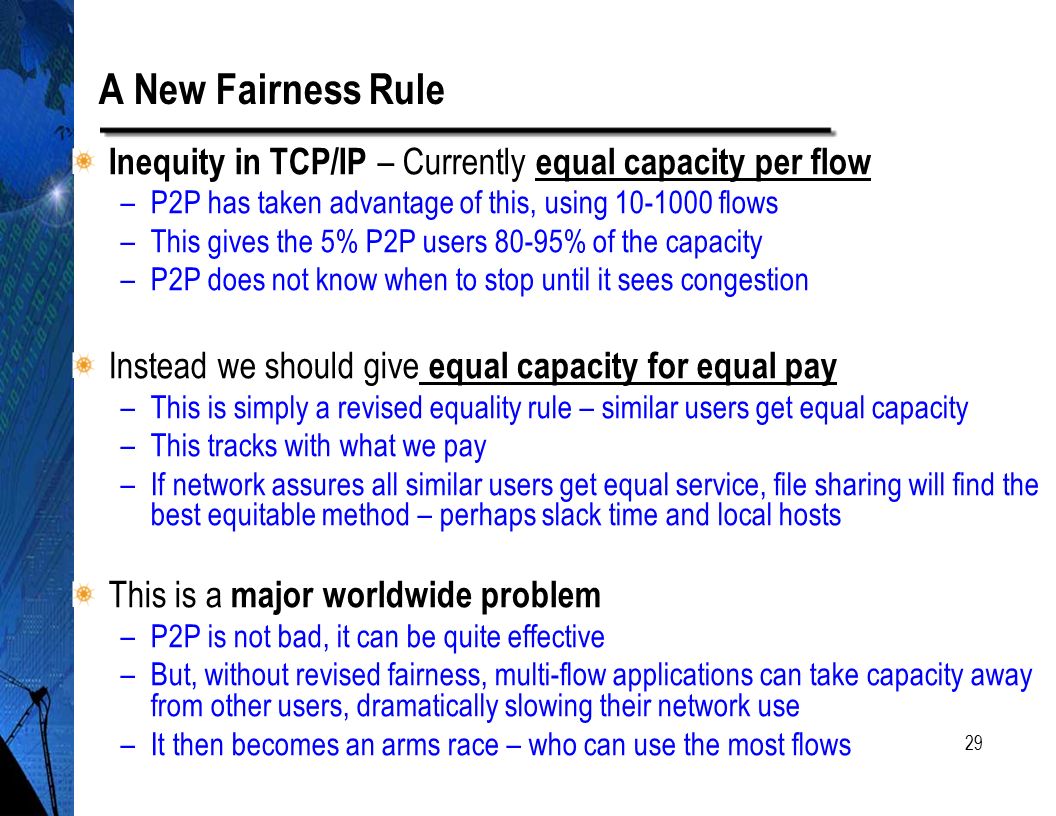

29. 29 A New Fairness Rule Inequity in TCP/IP – Currently equal capacity per flow –P2P has taken advantage of this, using 10-1000 flows –This gives the 5% P2P users 80-95% of the capacity –P2P does not know when to stop until it sees congestion Instead we should give equal capacity for equal pay –This is simply a revised equality rule – similar users get equal capacity –This tracks with what we pay –If network assures all similar users get equal service, file sharing will find the best equitable method – perhaps slack time and local hosts This is a major worldwide problem –P2P is not bad, it can be quite effective –But, without revised fairness, multi-flow applications can take capacity away from other users, dramatically slowing their network use –It then becomes an arms race – who can use the most flows

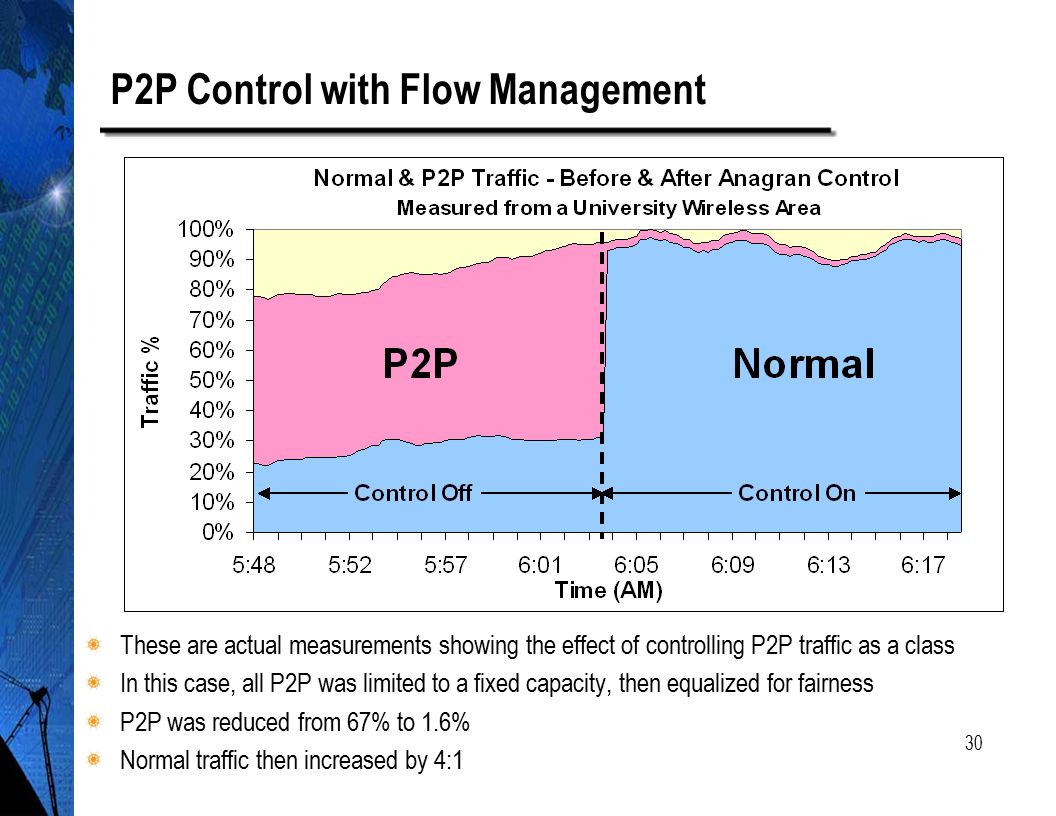

30. 30 P2P Control with Flow Management These are actual measurements showing the effect of controlling P2P traffic as a class In this case, all P2P was limited to a fixed capacity, then equalized for fairness P2P was reduced from 67% to 1.6% Normal traffic then increased by 4:1

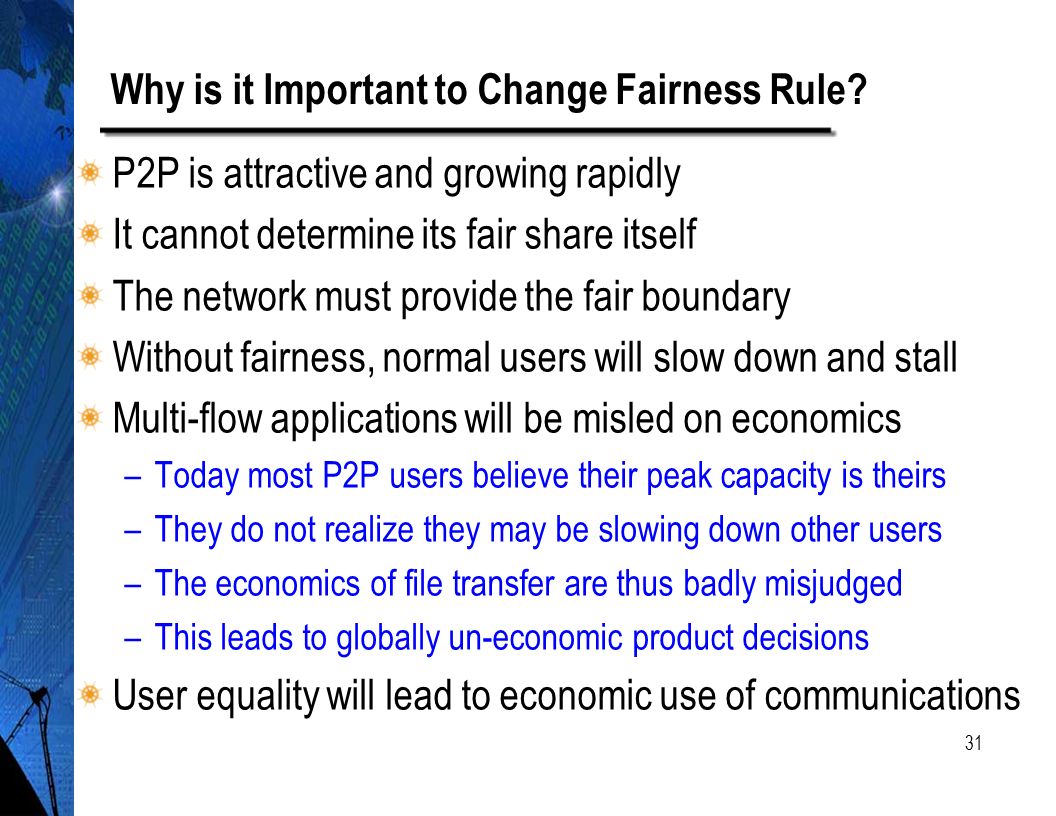

31. 31 Why is it Important to Change Fairness Rule? P2P is attractive and growing rapidly It cannot determine its fair share itself The network must provide the fair boundary Without fairness, normal users will slow down and stall Multi-flow applications will be misled on economics –Today most P2P users believe their peak capacity is theirs –They do not realize they may be slowing down other users –The economics of file transfer are thus badly misjudged –This leads to globally un-economic product decisions User equality will lead to economic use of communications

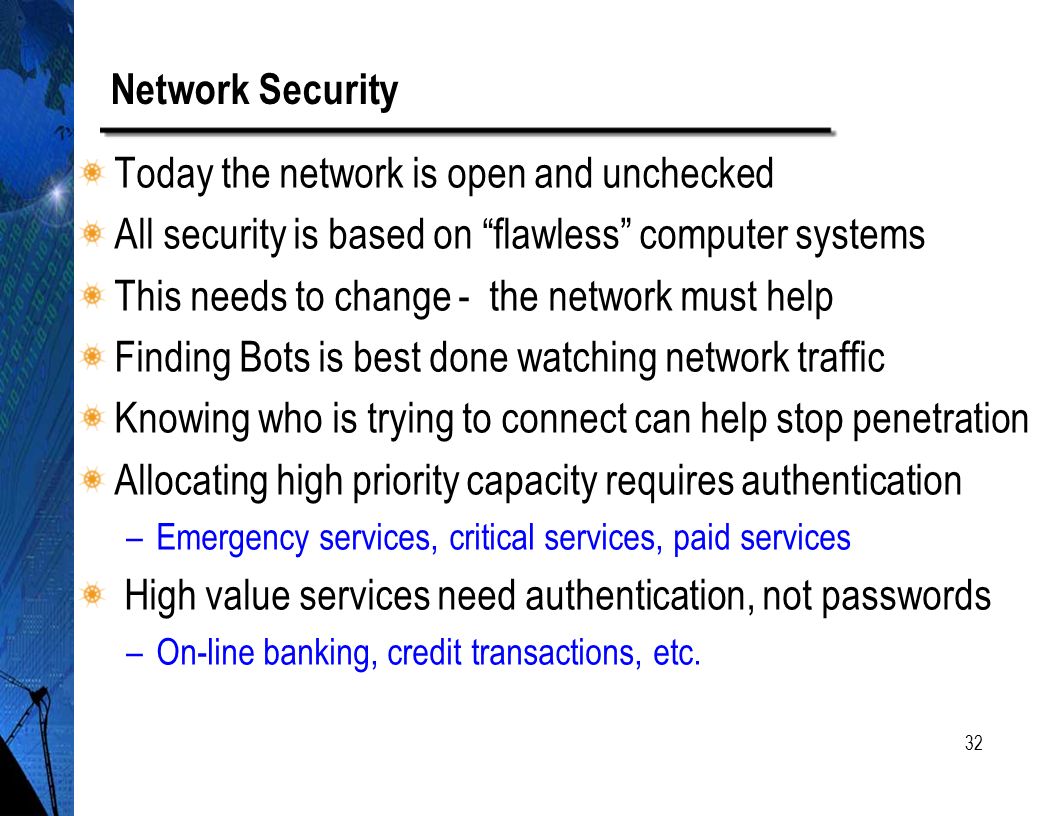

32. 32 Network Security Today the network is open and unchecked All security is based on “flawless” computer systems This needs to change - the network must help Finding Bots is best done watching network traffic Knowing who is trying to connect can help stop penetration Allocating high priority capacity requires authentication –Emergency services, critical services, paid services High value services need authentication, not passwords –On-line banking, credit transactions, etc.

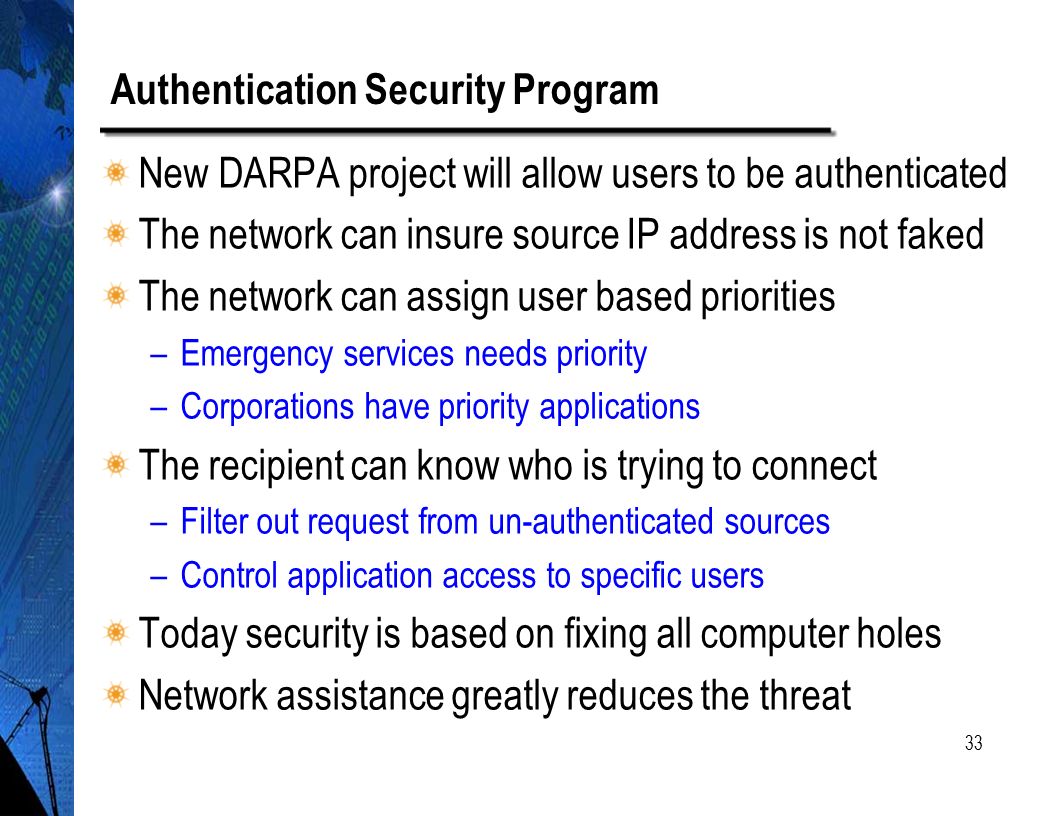

33. 33 Authentication Security Program New DARPA project will allow users to be authenticated The network can insure source IP address is not faked The network can assign user based priorities –Emergency services needs priority –Corporations have priority applications The recipient can know who is trying to connect –Filter out request from un-authenticated sources –Control application access to specific users Today security is based on fixing all computer holes Network assistance greatly reduces the threat

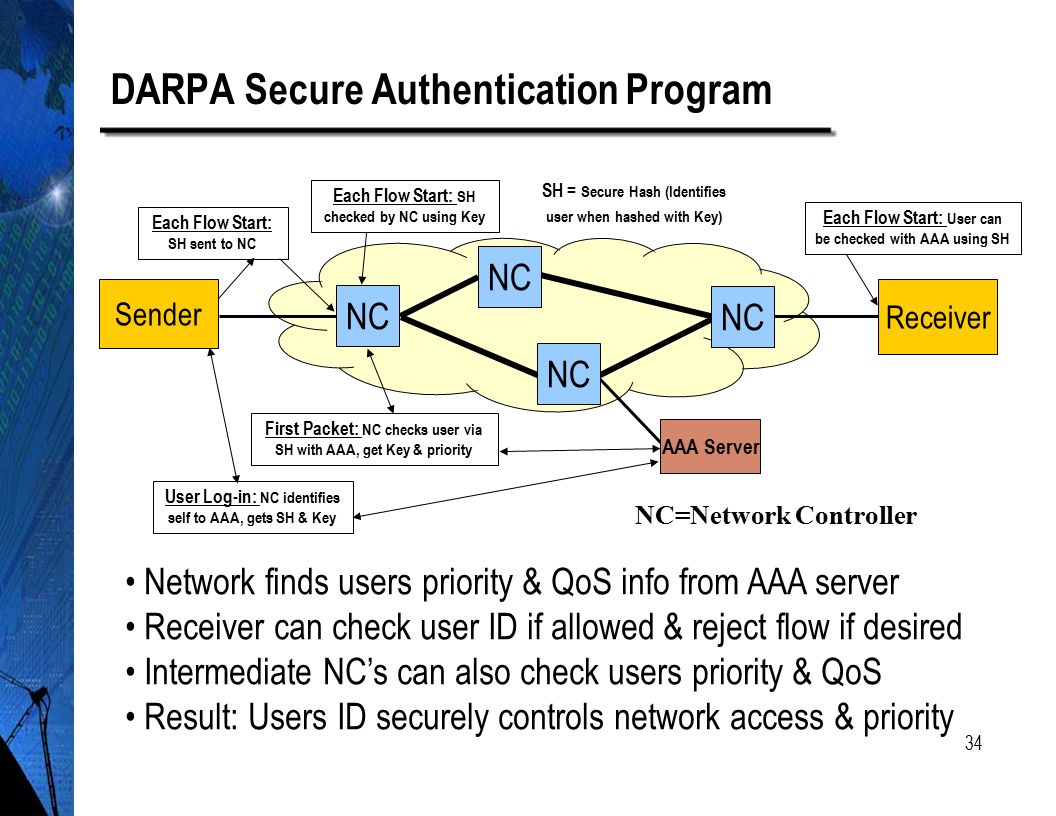

34. 34 DARPA Secure Authentication Program Sender Receiver NC AAA Server User Log-in: NC identifies self to AAA, gets SH & Key Each Flow Start: SH sent to NC First Packet: NC checks user via SH with AAA, get Key & priority Each Flow Start: SH checked by NC using Key SH = Secure Hash (Identifies user when hashed with Key) Each Flow Start: User can be checked with AAA using SH Network finds users priority & QoS info from AAA server Receiver can check user ID if allowed & reject flow if desired Intermediate NC’s can also check users priority & QoS Result: Users ID securely controls network access & priority NC=Network Controller

35. 35 The New Network Edge – Flow Management Flow Management at the ISP edge can: –Insure fairness – equal capacity for equal pay –Eliminate overload problems (TCP stalls and video artifact) –Insure voice works over wireless & WiFi –Add authentication security to network –Support rate controlled service levels per subscriber All these benefits at much lower cost & power vs. DP 40 Gbps capacity in 1 RU with Anagran

36. 36 Summary Today’s IP Networks need improvement Fairness is poor – 5% of users take 80% of capacity –The cause is the old rule of equal capacity per flow –This needs to change to equal capacity for equal pay Response time and QoS suffer from random discards –Web access suffers from unequal flow rates, TCP stalls –Video suffers from packet loss and TCP stalls –Voice suffers from packet loss and excessive delay Security could be improved if network did authentication –Avoid unknown users penetrating computers –Permit priority for emergency workers, critical apps Flow Management allows these improvements at lower cost
