1. Two’s Complement Number wheel for 4 bit numbers

2. Addition

3. Subtraction

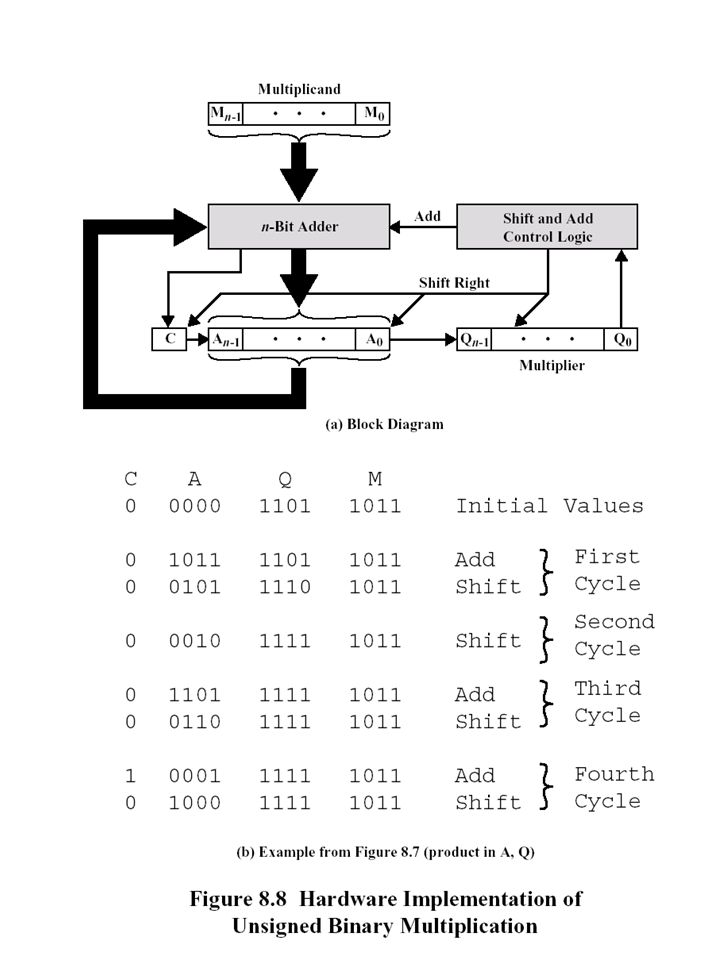

7. Booth’s Theory 
26-21
Looks for transitions from 0-1 (add) and 1-0 (minus)
Uses a “phoney” bit -1 (i.e. to the right of bit 0)
Assumes two’s complement signed numbers
extend bit width of unsigned numbers if necessary.

8. Booths Algorithm

9. Two’s complement multiplication examples

10. Division

11. CCS compiler w/ 2’s complement
#device PIC16F877 *=8 ADC=8
void main() {
signed int c;
c=-4; }
movlw 0x0
A movwf 0xA
goto MAIN
nop
MAIN clrf 0x4
F movlw 0x1F
andwf 0x3
FC movlw 0xFC
A movwf 0x21
sleep

12. Addition/Subtraction
#device PIC16F877 *=8 ADC=8
void main() {
signed int c;
signed int b;
c=-4;
b=c+2; }
movlw 0x0
A movwf 0xA
goto MAIN
nop
MAIN clrf 0x4
F movlw 0x1F
andwf 0x3
FC movlw 0xFC
A movwf 0x21
movlw 0x2
000A addwf 0x21,W
000B 00A movwf 0x22

13. incfsz resulthi,F ; if resulthi is 0 after the increment
; ... don't do the addition
addwf resultlo,F ; resultlo = resultlo + W
movwf resulthi ; resulthi = resulthi + W
decf R_hi,F ; do the decrement after
btfsc STATUS,C ; If no carry ...
subwf Q1_lo,W ; W = Q1_lo - Q2_lo
subwf Q1_hi,W ; W = Q1_hi - Q2_hi
Borrow subwf Q1_hi,W ; W = Q1_hi - Q2_hi
btfss STATUS,C ; need to borrow?
Addgood movf datalo,W ; W = datalo
movf datahi,W ; W = datahi
addwf resulthi,W
Subrgd movf Q2_lo,W
movf Q2_hi,W
goto Borrow
movwf R_lo
movwf R_hi
goto Done
Done return

14. Multiplication & Division
#device PIC16F877 *=8 ADC=8
void main() {
signed int c;
signed int b;
c=-6;
b=c*5;
b=c/3; }
goto vs. call?
MAIN clrf 0x4
F movlw 0x1F
andwf 0x3
FA movlw 0xFA
A movwf 0x21
movf 0x21,W
A movwf 0x23
006A movlw 0x5
006B 00A movwf 0x24
006C goto 0x4
006D movf 0x78,W
006E 00A movwf 0x22
006F movf 0x21,W
A movwf 0x23
movlw 0x3
A movwf 0x24
B goto 0x3B
movf 0x78,W
A movwf 0x22
sleep

15. rrf R_hi,F ; shift over for the next addition
Umul rrf M2,F ; rotate into carry to check bits
btfsc STATUS,C ; if carry set i.e. bit was 1
clrf R_hi ; Clear result location
movf M1,W ; initialize W with M1
decf cntr,F ; check the loop count
; No checks made for M1 or M2 equal to zero
movlw 0x ; setup loop count
addwf R_hi,F ; ... we add
; 8x8 unsigned multiply routine.
btfss STATUS,Z
rrf R_lo,F
clrf R_lo
movwf cntr
goto Umul
return

16. CCS Compiler Integer multiplication
Repeated addition
store result sign
convert both integers to unsigned
store one integer in W
For each bit in integer;
if set add W to the result
rotate result
if result sign is negative, convert the result

17. BCD Decimal: Facilitates easy conversion to/from human input
BCD: Each digit represented by an n-bit binary number
Packed BCD: 2 digits represented in a single byte 5 9

18. ASCII Visible Character Codes Control Codes
From:
ASCII
Visible Character Codes
Control Codes
Physical Communication Control
Logical Communication Control
Physical Device Control
Physical Device Format Effects
Code Extenders
Information Separators

19. Floating point arithmetic
SBE ; B is known

21. CCS compiler floating point numbers

22. CCS floating point example
#device PIC16F877 *=8 ADC=8
void main() {
float c;
c=1.25; }
movlw 0x0
A movwf 0xA
goto MAIN
nop
MAIN clrf 0x4
F movlw 0x1F
andwf 0x3
F movlw 0x7F
A movwf 0x21
movlw 0x20
000A 00A movwf 0x22
000B movlw 0x0
000C 00A movwf 0x23
000D 00A movwf 0x24
000E sleep

23. Should we use floating point with the PIC?
VERY LONG programs, which are processor intensive
try CCS assembler
float c=2.3;
c=2.3;
c=2.3*1.25;
Possible Alternatives
lookup tables
fixed point representation (factored arithmetic)
See:

24. Memory Wars
Bit Numbering
Bit Ordering
Data Alignment
End-ian-ness

25. Changing bit-widths 2’s complement BCD ASCII Floating point
extend/reduce the sign bit
BCD
fill with 0’s at front
ASCII
defined as 7-bit
Floating point
fill significand (mantissa) at end
add the change in offset to exponent

26. Assembler Programming Directives, Good Practice
LIST p=<target microcontroller>
#include <file>
predefined constants for target microcontroller
<const> EQU <value>
define own constants (can be used for the addresses of variables)
Labels in the first column
nop at address 0x00 (ICD)
goto at address 0x01 (Interrupts)
ORG <addr>
next code line appears at this address
BANKSEL <addr>
switch banks to that for the specified address
sleep at the end of the main routine
Be careful that main code does not “accidentally” run into subroutine code and vice versa
END -- end of the code

27. Table Creation/Lookup
table addwf PCL, F ; add W and store in PCL
retlw B' ' ; return 1 in W if W = 1
retlw B' ' ; return 3 in W if W = 2
retlw B' ' ; return 6 in W if W = 3
retlw B' ' ; return 2 in W if W = 4
end
DT “Bat”,0
retlw A’B’
retlw A’a’
retlw A’t’
retlw 0

28. Table Creation/Lookup
BSF STATUS, RP1 ;
BCF STATUS, RP0 ;Bank 2
MOVF ADDR, W ;Write address
MOVWF EEADR ;to read from
BSF STATUS, RP0 ;Bank 3
BCF EECON1, EEPGD ;Point to Data memory
BSF EECON1, RD ;Start read operation
MOVF EEDATA, W ;W = EEDATA
DE (8-bit data in the EEPROM memory)
ORG 0x02100
DE “Bat”,0

29. Table Creation/Lookup
BSF STATUS, RP1 ;
BCF STATUS, RP0 ;Bank 2
MOVF ADDRL, W ;Write the
MOVWF EEADR ;address bytes
MOVF ADDRH,W ;for the desired
MOVWF EEADRH ;address to read
BSF STATUS, RP0 ;Bank 3
BSF EECON1, EEPGD ;Point to Program memory
BSF EECON1, RD ;Start read operation
NOP ;Required two NOPs
NOP ;
MOVF EEDATA, W ;DATAL = EEDATA
MOVWF DATAL ;
MOVF EEDATH,W ;DATAH = EEDATH
MOVWF DATAH ;
DA (14-bit data in the program memory)
ASCII strings packed two chars to a word
DA "abcdef"
will put 30E2 31E4 32E into program memory
DA 0xFFFF
will put 0x3FFF into program memory

30. Page IV-6, Q.1 Original Code: 1 case: 2+8+2 216-1 cases: 2+9+2
Avg. Cycles: 9
Max. Cycles: 9
Modified Code:
Remove 1 line
Swap 2 lines
216-1 cases: 2+7+2
Avg. Cycles: 7
Max. Cycles: 8
movf countl,F
btfsc STATUS,Z
decf counth,F
decf countl,F
movf countl,F
movf count,F
goto Bz
goto Nbz
Redundant s

31. Page IV-6, Q.1 Tutorial Group Solution
Subtraction of 1 can never result
in both a borrow and a zero result
i.e. if the carry flag is clear,
the zero flag is never set.
Early Exit
C, Z 256 cases: 2+5+2
C, Z 256*254 cases: 2+5+2
Remaining C, Z
255 cases 2+8+2
1 case: 2+9+2
Avg. Cycles: 5
Max. Cycles: 9
movlw 1
subwf countl,F
btfss STATUS,C
decfsz counth,F
btfss STATUS,Z
goto Nbz
movf counth,W
btfss STATUS,Z
goto Bz

32. Tutorial Group page IV-6 Q. 6
To divide an x-bit dividend by a q-bit divisor using Booth’s like division
make an (q+x) bit number for the q-bit remainder and x-bit quotient
initialise the uppermost q-bits with the sign bit of the dividend, and the lower x-bits with the dividend
Loop for x times:
arithmetic left shift the (q+x) bit number
if the sign is the same as(different from) the divisor
subtract(add) the divisor from(to) the uppermost q bits
if the result sign is different from the original sign; undo
if the result sign is the same as the original sign OR the whole (q+x) number is 0; set the LSB of the (q+x) bit number to 1
Remainder is top q-bits. If the divisor and dividend signs are same (different), the answer is the (complement of ) bottom x-bits
