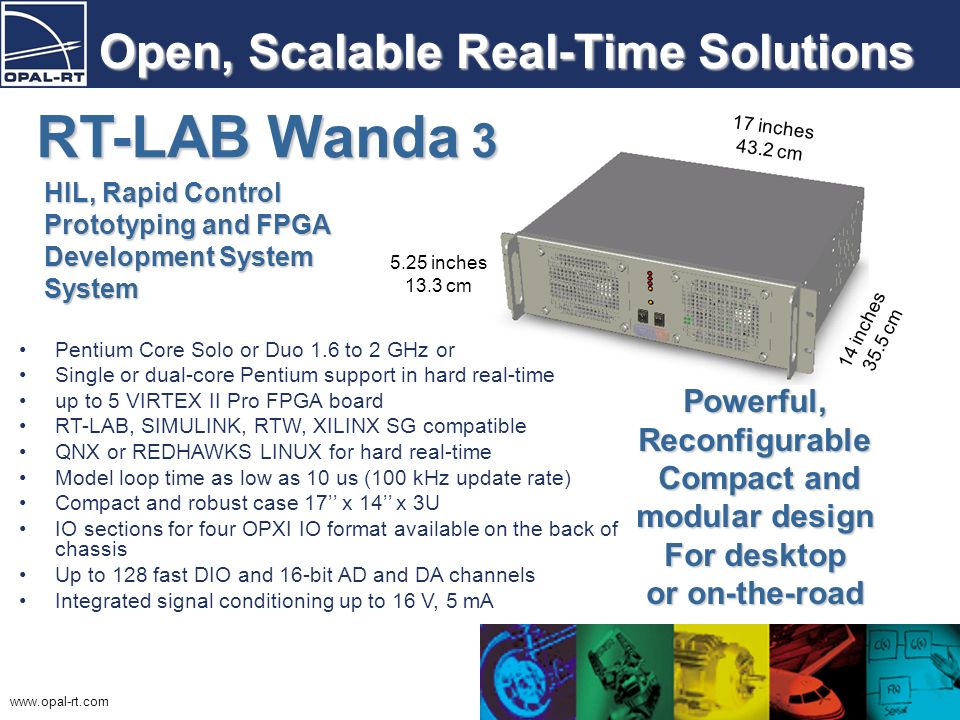

1. www.opal-rt.com Open, Scalable Real-Time Solutions Pentium Core Solo or Duo 1.6 to 2 GHz or Single or dual-core Pentium support in hard real-time up to 5 VIRTEX II Pro FPGA board RT-LAB, SIMULINK, RTW, XILINX SG compatible QNX or REDHAWKS LINUX for hard real-time Model loop time as low as 10 us (100 kHz update rate) Compact and robust case 17’’ x 14’’ x 3U IO sections for four OPXI IO format available on the back of chassis Up to 128 fast DIO and 16-bit AD and DA channels Integrated signal conditioning up to 16 V, 5 mA HIL, Rapid Control Prototyping and FPGA Development System System RT-LAB Wanda 3 Powerful, Reconfigurable Compactand modular design For desktop or on-the-road Powerful, Reconfigurable Compact and modular design For desktop or on-the-road 14 inches 35.5 cm 5.25 inches 13.3 cm 17 inches 43.2 cm

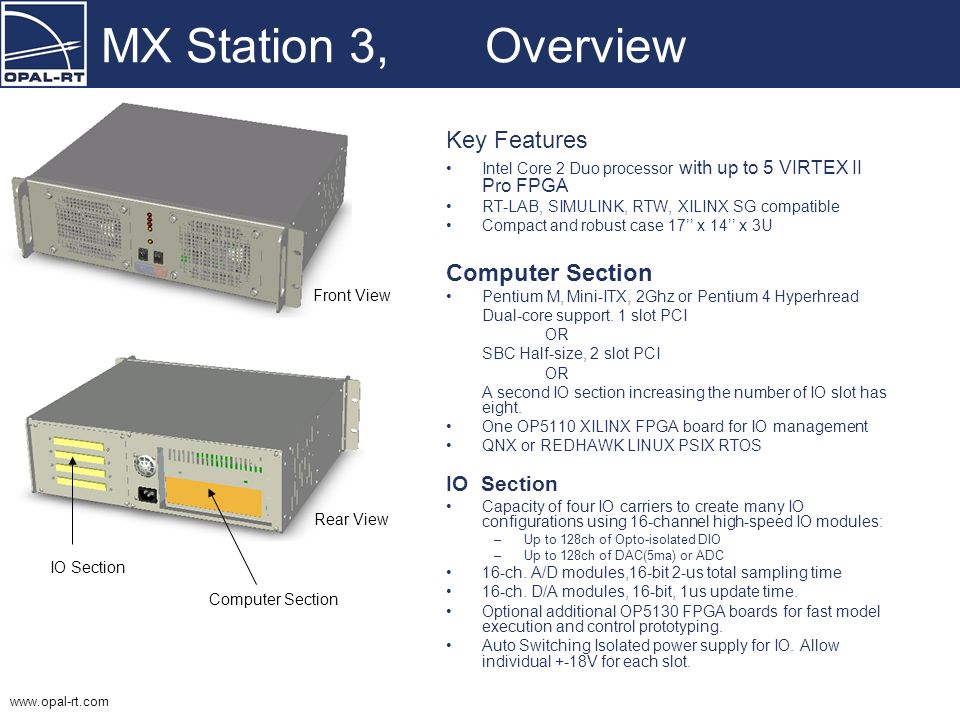

2. www.opal-rt.com MX Station 3,Overview Key Features Intel Core 2 Duo processor with up to 5 VIRTEX II Pro FPGA RT-LAB, SIMULINK, RTW, XILINX SG compatible Compact and robust case 17’’ x 14’’ x 3U Computer Section Pentium M, Mini-ITX, 2Ghz or Pentium 4 Hyperhread Dual-core support. 1 slot PCI OR SBC Half-size, 2 slot PCI OR A second IO section increasing the number of IO slot has eight. One OP5110 XILINX FPGA board for IO management QNX or REDHAWK LINUX PSIX RTOS IO Section Capacity of four IO carriers to create many IO configurations using 16-channel high-speed IO modules: –Up to 128ch of Opto-isolated DIO –Up to 128ch of DAC(5ma) or ADC 16-ch. A/D modules,16-bit 2-us total sampling time 16-ch. D/A modules, 16-bit, 1us update time. Optional additional OP5130 FPGA boards for fast model execution and control prototyping. Auto Switching Isolated power supply for IO. Allow individual +-18V for each slot. Front View Rear View Computer Section IO Section

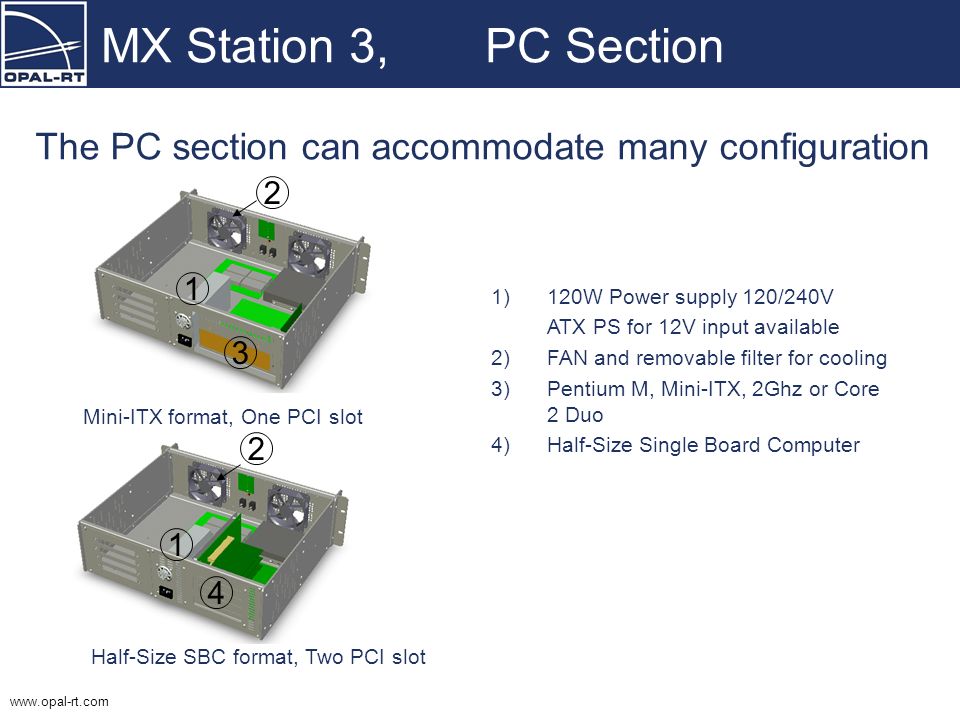

3. www.opal-rt.com MX Station 3, PC Section The PC section can accommodate many configuration Mini-ITX format, One PCI slot Half-Size SBC format, Two PCI slot 1)120W Power supply 120/240V ATX PS for 12V input available 2)FAN and removable filter for cooling 3)Pentium M, Mini-ITX, 2Ghz or Core 2 Duo 4)Half-Size Single Board Computer 1 2 4 3 1 2

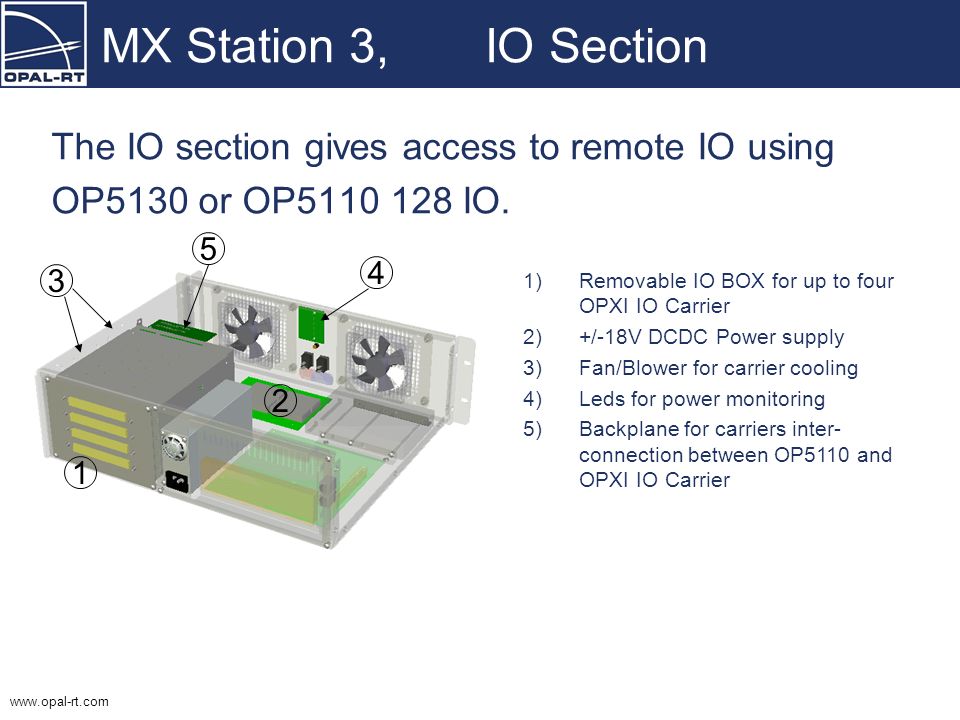

4. www.opal-rt.com MX Station 3, IO Section The IO section gives access to remote IO using OP5130 or OP5110 128 IO. 1)Removable IO BOX for up to four OPXI IO Carrier 2)+/-18V DCDC Power supply 3)Fan/Blower for carrier cooling 4)Leds for power monitoring 5)Backplane for carriers inter- connection between OP5110 and OPXI IO Carrier 1 2 3 4 5

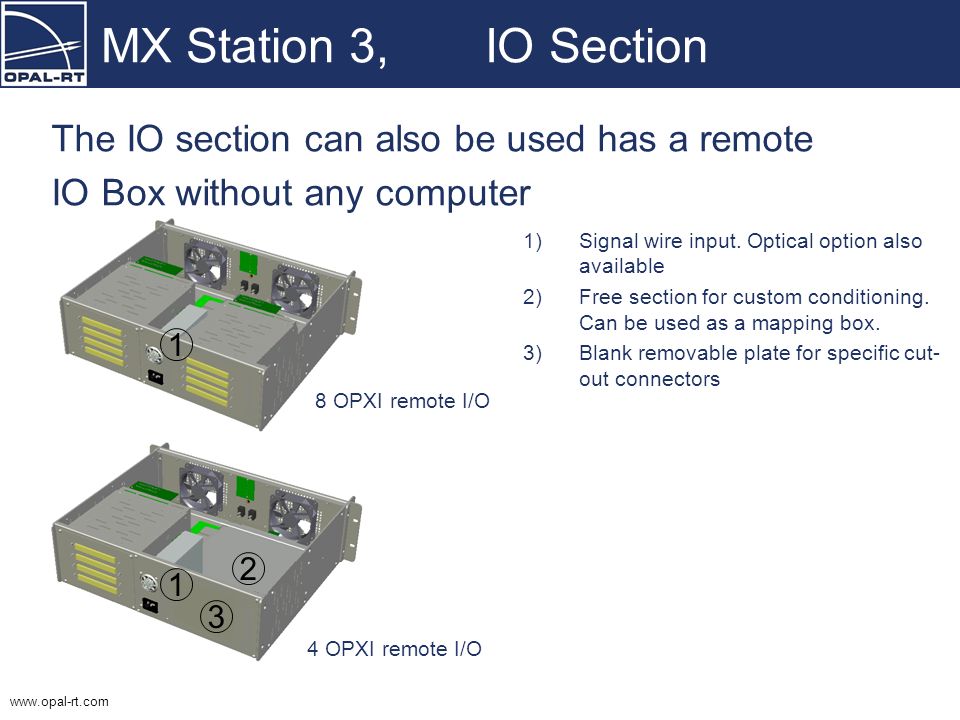

5. www.opal-rt.com MX Station 3, IO Section 8 OPXI remote I/O 4 OPXI remote I/O The IO section can also be used has a remote IO Box without any computer 1)Signal wire input. Optical option also available 2)Free section for custom conditioning. Can be used as a mapping box. 3)Blank removable plate for specific cut- out connectors 1 1 3 2
