» Ionic Bond: When an atom donates electrons to another atom.

Similar presentations


Presentation on theme: "» Ionic Bond: When an atom donates electrons to another atom."— Presentation transcript:

1

2 » Ionic Bond: When an atom donates electrons to another atom

3

4

5

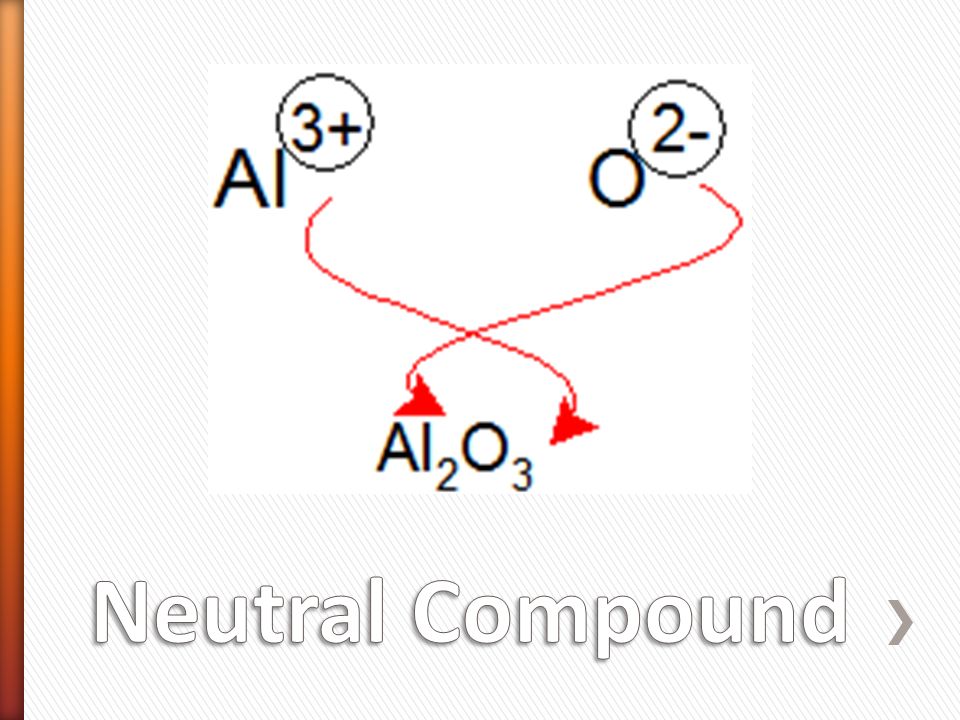

6 » The charge must be neutral for these compounds

7

8

9

10 » 1. Sodium + Bromine » 2. Magnesium + Nitrogen » 3. Calcium + Sulfur » 4. Calcium + Chlorine » 5. Aluminum + Fluorine NaBr Mg 3 N 2 CaS CaCl 2 AlF 3

11 » 1. Potassium + Fluorine » 2. Magnesium + Iodine » 3. Sodium + Oxygen » 4. Sodium + Chlorine » 5. Magnesium + Oxygen » 6. Aluminum + Chlorine KF MgI 2 Na 2 O NaCl MgO AlCl 3

12 Name Metal Name Non-Metal Name Non-Metal Drop ending and add -ide

13 NaCl Sodium Chlorine Sodium Chloride

14 » 1. Sodium + Bromine » 2. Magnesium + Nitrogen » 3. Calcium + Sulfur » 4. Calcium + Chlorine » 5. Aluminum + Fluorine NaBr Mg 3 N 2 CaS CaCl 2 AlF 3 Sodium Bromide Magnesium Nitride Calcium Sulfide Calcium Chloride Aluminum Fluoride

15 KF MgI 2 Na 2 O NaCl MgO AlCl 3 Potassium Fluoride Magnesium Iodide Sodium Oxide Sodium Chloride Magnesium Oxide Aluminum Chloride

16 » Calcium + Sulfur » Cesium + Iodine » Calcium Iodide » Aluminum Nitride » Lithium Phosphide » Indium + Oxygen » Strontium Iodide » Rubidium + Bromine

17 » KCl » LiF » CaBr 2 » BaF 2 » Fr 3 S »K3P»K3P » BeBr 2 » NaCl Potassium Chloride Lithium Fluoride Calcium Bromide Barium Fluoride Francium Sulfide Potassium Phosphide Beryllium Bromide Sodium Chloride

18

19 » Transition Metals have varying valence electrons » Exceptions: » Ag is always 1+ » Zn is always 2+ » Cd is always 2+

20

21 » ZnCl 2 » FeP » MnBr 2 » CuF 2 » MnO 2 » PbO » SnS 2 » Fe 2 O 2 3 2 2 4 2 4 1

22 Name Metal Label Charge Using Roman Numerals Drop ending and add -ide Name Non- Metal

23 12 34 5 6 78

24 » Name: ZnCl 2 ˃Zinc (II) Chloride

25 » Copper (I) Chloride » Manganese (III) Sulfide » Tin (IV) Oxide » Gallium (III) Nitride » Chromium (III) Sulfide » Lead (II) Fluoride CuCl Mn 2 S 3 SnO 2 GaN Cr 2 S 3 PbF 2

26 » Cu 3 N 2 » Fe 2 S 3 » ZnCl 2 » AgCl » Cd 3 N 2 » MnO 2 » NiS Copper (II) Nitride Iron (III) Sulfide Zinc (II) Chloride Silver (I) Chloride Cadmium (II) Nitride Manganese (IV) Oxide Nickel (II) Sulfide

27

28

29 » Sulfate » Sulfite » Carbonate » Nitrate » Bicarbonate » Nitrite » Phosphate » Hydroxide » Ammonium » Acetate

30

31

32 Name Metal Label Charge if Necessary Name Polyatomic

33 » CuSO 3 ˃Copper (II) Sulfite

34 » Ag 2 SO 4 » MgCO 3 » Zn 2 SO 4 » Mg(OH) 2 » Nb(NO 3 ) 2 » NaC 2 H 3 O 2 silver (I) sulfate magnesium carbonate zinc (I) sulfate magnesium hydroxide niobium (II) nitrate sodium acetate

35 » aluminum and sulfate » ammonium and sulfur » barium and hydroxide » magnesium and phosphate » lead(IV) and sulfite » strontium and carbonate » zinc(II) and phosphate » ammonium and oxygen » calcium and nitrate » tungsten(II) and sulfate

36 Standard Charge Metal with Multiple Charge Polyatomic Ion Non-metal Name Non-Metal Drop Ending Add -ide Polyatomic Ion Name Ion

37

38 » Form Crystals » High melting and boiling points » Hard and brittle » Conduct electricity when dissolved

39

40

41

42

43

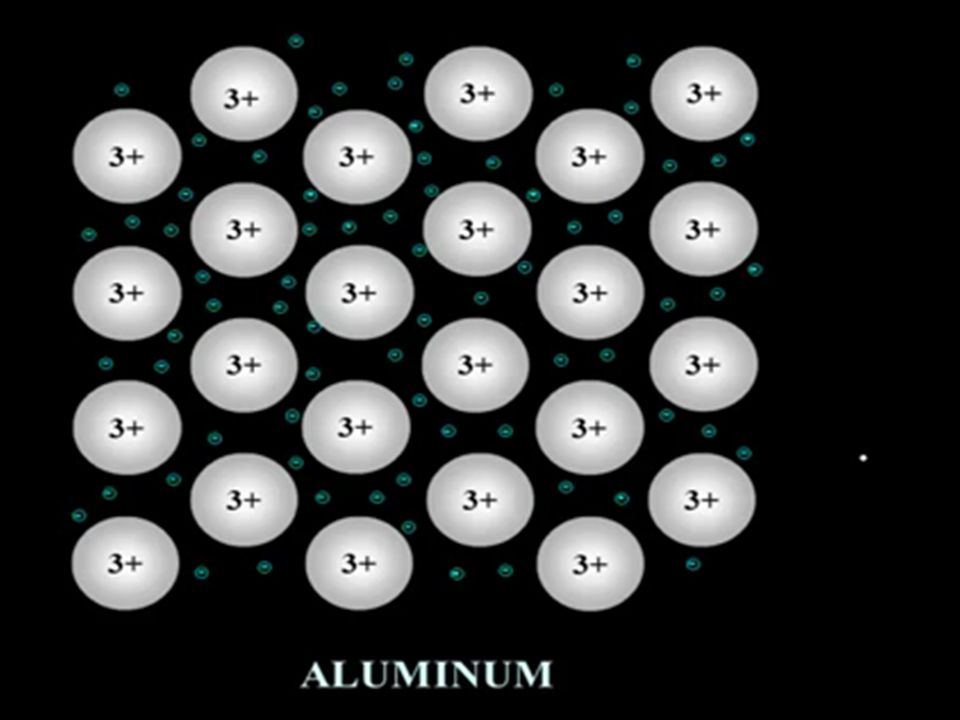

44 Metals are not ionic but DO share many properties with ionic compounds.

45 IonicMetallic Conductor of ElectricityDissolvedX MalleableX BrittleX LustrousX High Melting PointXSome Low Boiling Point DuctileX Poor Conductor of HeatSolid
