Presentation on theme: "What’s current with the ocean? Catch my drift?. Currents move water from place to place."— Presentation transcript:

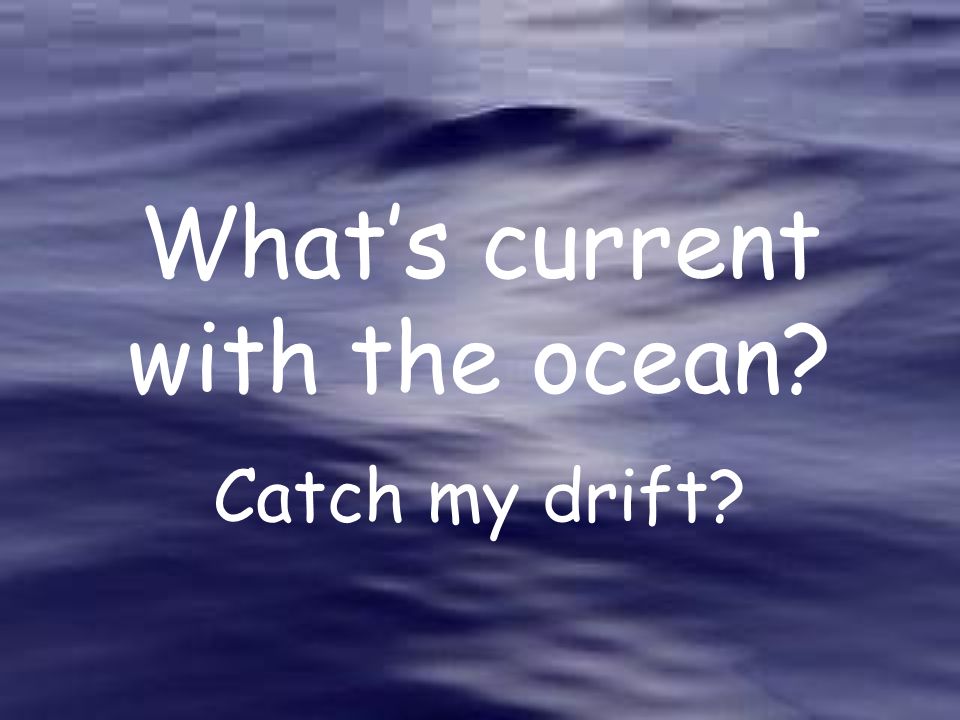

1 What’s current with the ocean? Catch my drift?

2 Currents move water from place to place

3 There are 2 kinds of currents…

4 First kind of current: 1.Surface currents : move on or near surface of ocean Friction between wind blown air and the water surface causes the water to move Controlled by wind belts, earth’s rotational effect and location of continents

5 What direction do most currents NORTH of the equator move?

6 CLOCKWISE!

7 What direction do most currents SOUTH of the equator move?

8 COUNTERCLOCKWISE!

9 Western side of ocean has warm currents traveling from equator Eastern side of ocean has cool currents moving toward equator

10 Examples of warm water currents: Gulf Stream Brazil Examples of cold water currents: California current Canary current

11 Upwelling the rise of cold water from deeper layers to replace warmer surface water. brings greater concentrations of dissolved nutrients, such as nitrates and phosphates, to the ocean surface.

12

13 Second kind of current: 2. Deep density currents : cold, dense currents that flow very slowly beneath surface of ocean occurs when denser seawater moves towards an area of less dense seawater

14 In the deep ocean, denser water around the Poles sinks and travels along the ocean floor toward the equator. At the same time, less dense water at the equator rises and moves towards the poles along the surface. These two events form a continuous cycle that circulate ocean water.

15 Waves Kelly Slater

16 Wave Generating forces WIND TIDES Sometimes Earthquakes

17

18 Wavelength Distance from one crest to another

19 Wave Height Difference between crest to trough

20 Period: The time it takes one wavelength to pass a given point

21 Formula Speed= wavelength period

22 Test your knowledge… What is the speed of a wave 24 meters long with a period of 4 seconds?

23 Applying the formula Speed = 24 meters= 6 meters/sec 4 sec

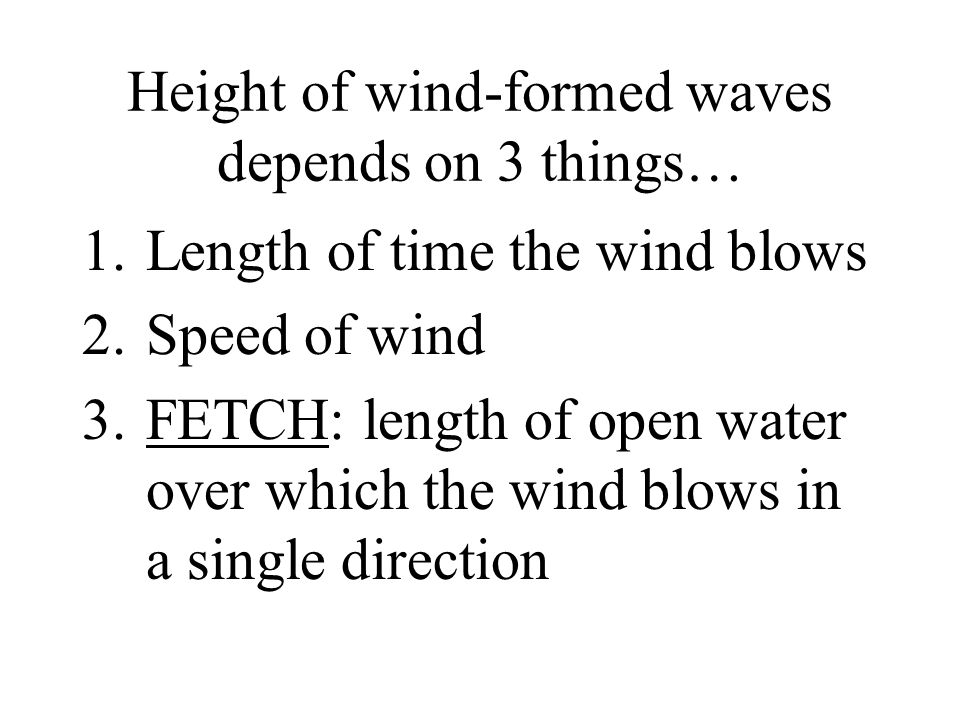

24 Height of wind-formed waves depends on 3 things… 1.Length of time the wind blows 2.Speed of wind 3.FETCH: length of open water over which the wind blows in a single direction

25 Swells Group of long, rolling waves all about the same size Come at regular intervals

26

27

28 As waves approach shore, the water is so shallow that they touch bottom. This happens at a depth of one-half the wavelength. As the wave scrapes bottom, the lower part of wave slows down and upper par moves ahead. The crest falls over and breaks onto the beach.

29 Breaking Waves

30 MAVERICKS

31 Waves and the shore: Breakers – foamy mass of water that washes onto shore Undertow Long shore current Tsunamis Rip current – strong surface currents that flow away from the beach; hazard to swimmers
