COS 397 Computer Graphics Svetla Boytcheva AUBG, Spring 2013
2
Lecture 1 Coordinate Systems
3
9/2/2015 Outline Course Organization Introduction Image Formation Vector vs. Raster Graphics Graphics Formats Coordinate Systems
4
Course Organization Lectures - Tuesday Practical Sessions - Friday Course Materials –dotLRN Assignments –Course Projects –Homework Assignments (4) –Quizzes (4) –MidTerm Exam –Final Exam 9/2/2015
5
Course Materials dotLRN Used resources: –“Fundamentals of Computer Graphics” by Peter Shirley, Michael Ashikhmin and Steve Marschner, Publisher: A K Peters; 3rd Revised edition – “Interactive Computer Graphics: A Top-Down Approach Using OpenGL” by Edward Ange, Publisher: Addison Wesley; 5th edition –"Computer Graphics with Open GL" by Donald D. Hearn, M. Pauline Baker and Warren Carithers. Publisher: Prentice Hall; 4th edition –"Interactive Computer Graphics: A Top-Down Approach with Shader-Based OpenGL" by Edward Angel and Dave Shreiner.Publisher: Addison-Wesley; 6th edition –“OpenGL Programming Guide: The Official Guide to Learning OpenGL, Versions 3.0 and 3.1” (7th Edition) by Dave Shreiner 9/2/2015
6
Software C++ Programming Language Code Blocks –http://www.codeblocks.org/http://www.codeblocks.org/ http://www.codeblocks.org/downloads/binaries Multiplatform IDE, GNU GCC Compiler, Debugger – Windows 2000/XP/Vista/7//8 codeblocks-12.11mingw-setup.exe – Linux 32-bit – Linux 64-bit – Mac OS X Free OpenGL Library –Java –C++ –Objective C, C# 9/2/2015
7
OpenGL What is OpenGL? –Provides lower-level graphics API (Application Programming Interface) Programming Languages –Java –C++ –Objective C, C# Versions –OpenGL 3.0 –Mac only supports 3.2 –We will need minimal functionality provided by OpenGL 2.0 9/2/2015
8

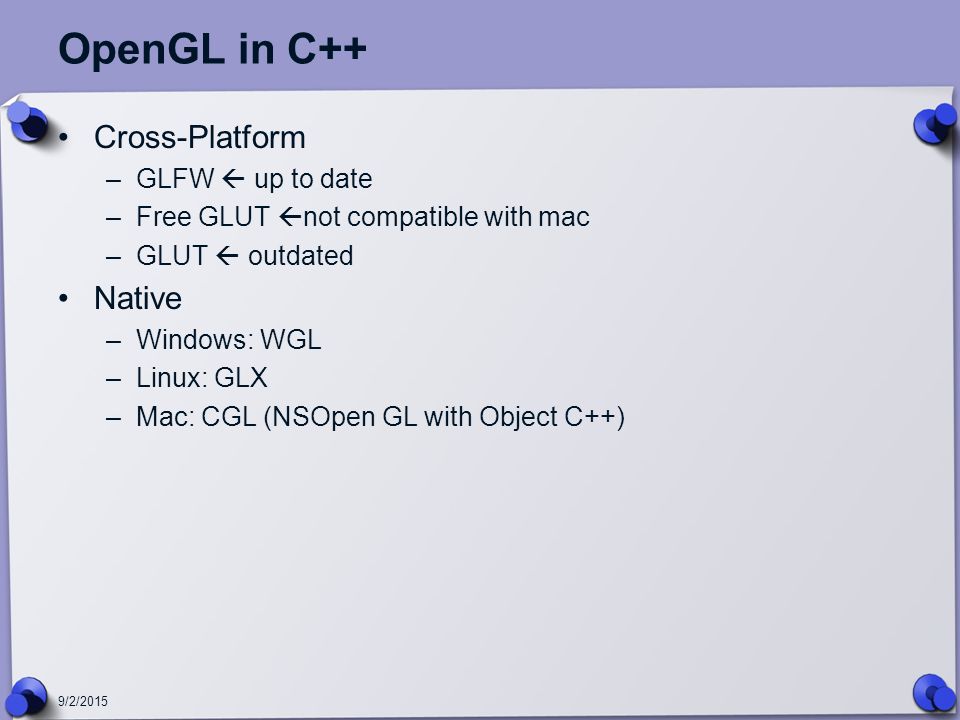

OpenGL in C++ Cross-Platform –GLFW up to date –Free GLUT not compatible with mac –GLUT outdated Native –Windows: WGL –Linux: GLX –Mac: CGL (NSOpen GL with Object C++) 9/2/2015
9
OpenGL in Java Java OpneGL (JOGL) –Fits wit SWING /ATW libraries –More complex –Last stable version is obsolete Lightweight Java Game Library (LWJGL) –Minimalistic and easy to use –Stable and well maintained 9/2/2015
10
GLFW Minimalistic and easy to use Stable and well maintained Download: –http://www.glfw.org/http://www.glfw.org/ –Version 2.7.7 –Binary archive for 32-bit Windows Rename folder “lib-mingw” to “lib” More about settings – next class 9/2/2015
11

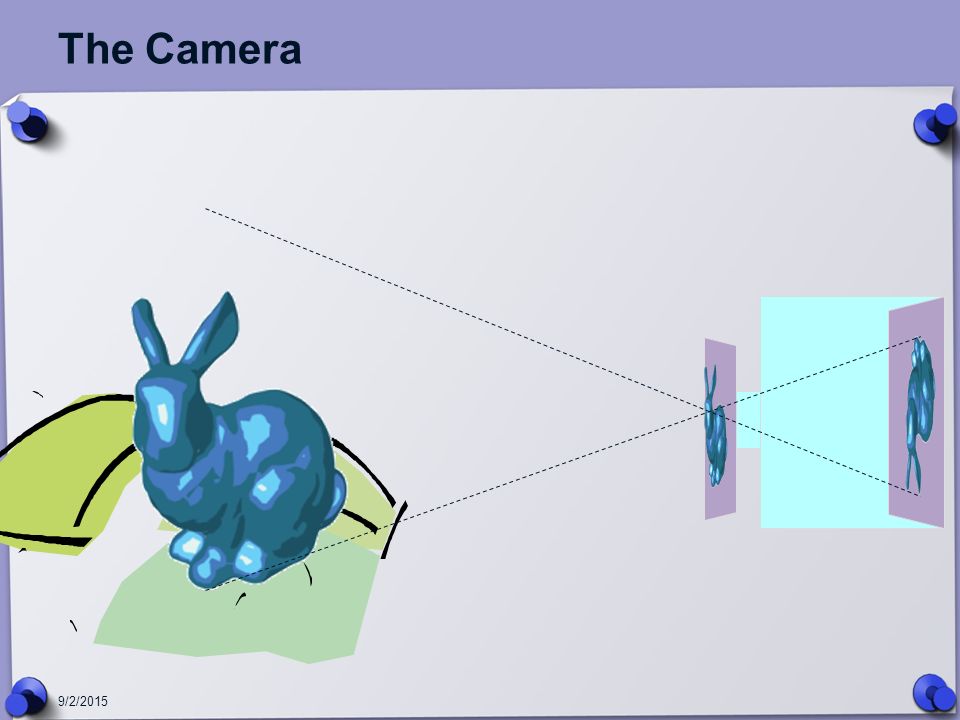

The Camera 9/2/2015
12
The Image Plane 9/2/2015
13
Polygonal Models 9/2/2015
14
Pixel Discretization 9/2/2015
15
Color Scheme RGB –Red –Green –Blue CMYK –C yan –M agenta –Y ellow –Black 9/2/2015
16
RGB Yellow (255,255,0) Green (0,255,0) Cyan (0,255,255) Blue (0,255,0) Magenta (255,0,255) Red (255,0,0) Red (255,0,0)
23
Raster Rendering For each polygon: Compute illumination Project to image plane Fill in pixels For each polygon: Compute illumination Project to image plane Fill in pixels 9/2/2015
24
Vector v. Raster Graphics Vector Graphics Plotters, laser displays “Clip art,” illustrations PostScript, PDF, SVG Low memory (display list) Easy to draw line Solid/gradient/texture fills Raster Graphics TV’s, monitors, phones Photographs GIF, JPG, etc. High memory (frame buffer) Hard to draw line Arbitrary fills 9/2/2015
25
Graphics Vector –smooth continuous primitives Raster –Discrete primitives (usually in grid) Advantages Disadvantages 9/2/2015
26
痙攣 Example Spasm, convulsion (jap. Keiren) 9/2/2015
27
Vector After Scaling 9/2/2015
28
Raster After Scaling 9/2/2015
29
Vector Graphics Advantages –Zoom Precision –Ideal for graphics and text Disadvantages –Not suitable for compound objects with many details/parts –Nightmare for photorealistic images 9/2/2015
30
Raster Graphics Advantages –Do not depend on the amount of content –Ideal for photorealistic images Disadvantages –Problem with oblique lines –Rough result in scaling –Inconvenient for graphics and text 9/2/2015
31
Rasterization Vector Data transformation to Raster Data –Before the output to the raster device –Rasterization should be made as later as possible in graphics processing Rule –Every image that you can see on PC or mobile device display is raster graphics
32
Vectorization Raster Data transformation to Vector Data –In case we need vector processing (for example, image recognition, edges …) –Heavy algorithms (time, efforts, resources consuming), sometimes bad and unusable results –Vectorization is applied only if there is not available alternative solution
33
Vector – Raster Transformation Raster Data Vector Device Vector Data Raster Device Vector processing Raster processing rasterizationrasterization rasterizationrasterization 9/2/2015
34

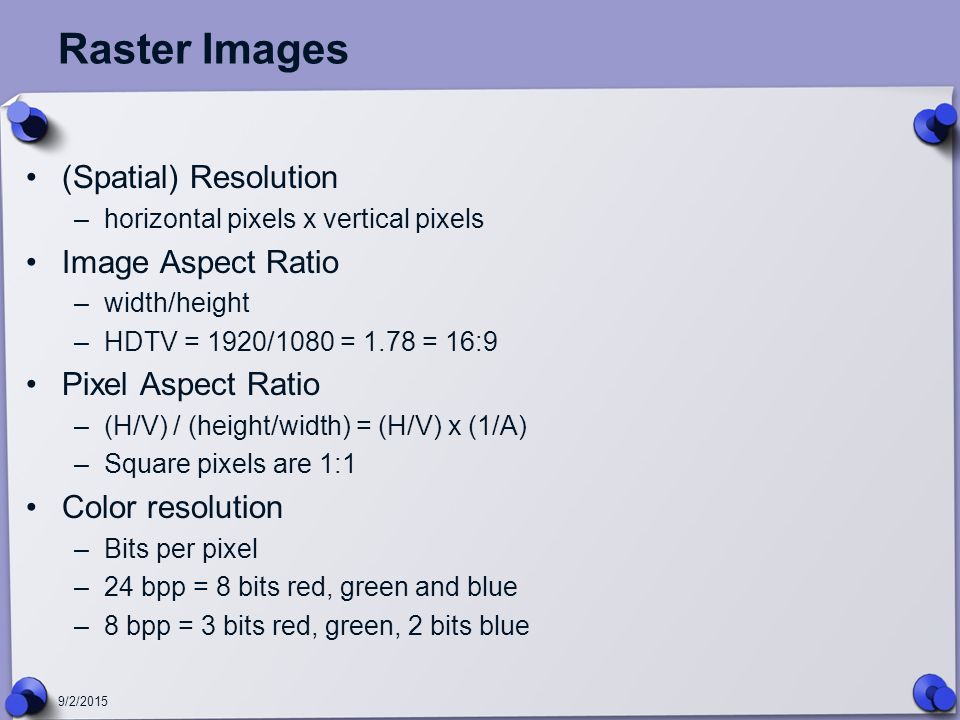

Raster Images (Spatial) Resolution –horizontal pixels x vertical pixels Image Aspect Ratio –width/height –HDTV = 1920/1080 = 1.78 = 16:9 Pixel Aspect Ratio –(H/V) / (height/width) = (H/V) x (1/A) –Square pixels are 1:1 Color resolution –Bits per pixel –24 bpp = 8 bits red, green and blue –8 bpp = 3 bits red, green, 2 bits blue 9/2/2015
35
Image File Formats FormatFidelityComplexityUse BMP UncompressedSimple, MicrosoftEasy to process, windows icons PPM UncompressedSimple, open, dated Easy to process, unix icons GIF Compressed Lossless (LZW) Only 256 colorsCharts, graphs, diagrams, text JPG (Exif) Compressed Lossy (DCT) Blocky, edges ringPhotographs TIFF Compressed Lossless (LZW) Flexible but complex structure Fax, scanning, artwork PNG Compressed Lossless (zlib) Flexible but complex structure Distributing images SVG UncompressedFlexibleVector/Line Art 9/2/2015
36
Color Palettes Store all RGB colors used in any image pixel in a table Store index to color in each pixel to compress data size 97 97 217 255 153 0 97 97 217 255 153 0 97 97 217 255 153 0 97 97 217 255 153 0 97 97 217 255 153 0 97 97 217 255 153 0 97 97 217 255 153 0 97 97 217 or= 00000 01110 00100 00100 00100 01110 00000 1= 0= where: 9/2/2015
37
Viewing 9/2/2015 3D Geometric Models 3D Lighting Information 3D Animation Definition Rendering Texture Information Image Storage and Display
38
Coordinate systems Cartesian Polar Spheric 9/2/2015
39
Cartesian coordinate system (x, y, z) – 3D Point position (x, y) – 2D Point position 9/2/2015
40
3-D Coordinates Points represented by 4-vectors Need to decide orientation of coordinate axes y z x x z y Right Handed Coord. Sys. Left Handed Coord. Sys. x y +z (rhc) +z (lhc) 9/2/2015
41
Algorithm “for dummies” Point all the axises –Turn hands until they guess –With which hand do, this is the system X X Z Z Y Y Снимка: FreeDigitalPhotos.net 9/2/2015
42
What is the orientation of is this system? Z Y X 9/2/2015
43
2-D Points Represents points and vertices as column vectors: (-1,-1) (1,1) 9/2/2015
44
2-D Points Represents points and vertices as column vectors: Transform polygonal object by transforming its vertices (-1,-1) (1,1) 9/2/2015
45
α r P O y x X Y Polar coordinate system 9/2/2015
46
2-D Rotation Pick a point (x,y) Assume polar coords x = r cos , y = r sin
47

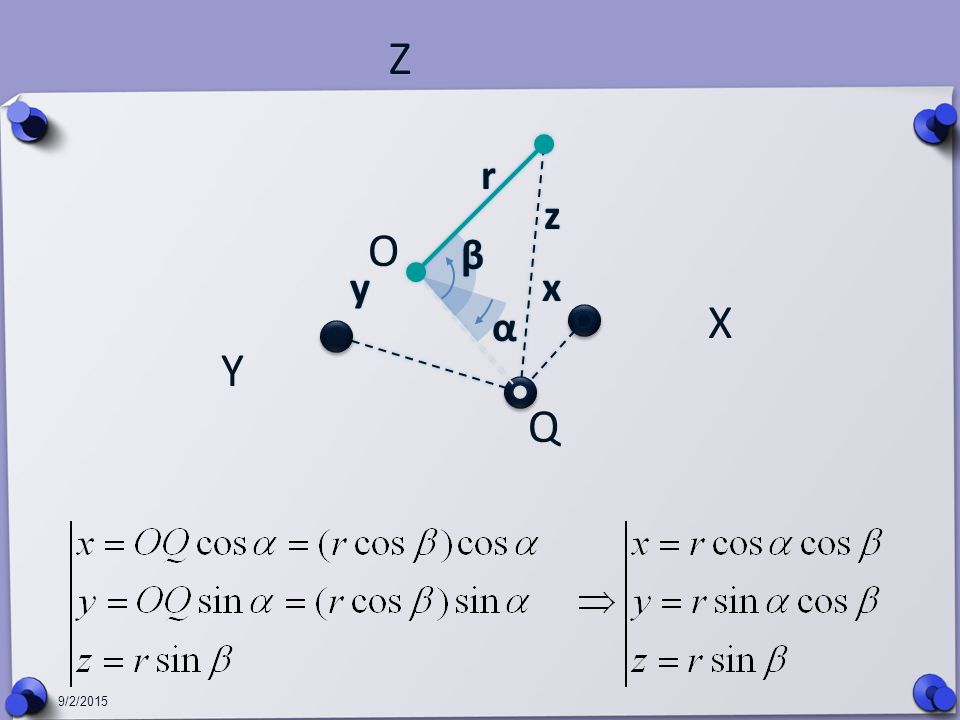

Spherical Coordinate System 9/2/2015 P
48
α r O yx β z Q Y Z X
49
Other Coordinate Systems 9/2/2015
50
Demo Code Blocs + GLFW project 9/2/2015
51
Readings –Polar coordinates http://scidiv.bellevuecollege.edu/dh/ccal/CC9.1.pdf http://scidiv.bellevuecollege.edu/dh/ccal/CC9.1.pdf –Spherical Coordinates http://mathworld.wolfram.com/SphericalCoordinates.html http://mathworld.wolfram.com/SphericalCoordinates.html 9/2/2015
52
Questions? 9/2/2015
