1. Digital Content Integration January 2008

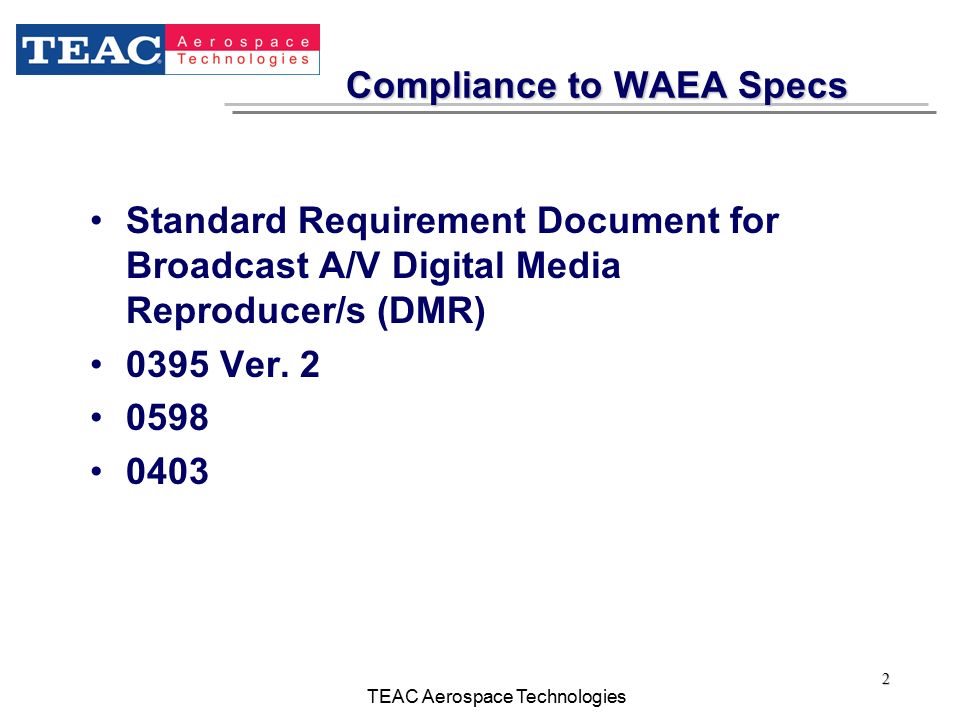

2. 2 TEAC Aerospace Technologies Compliance to WAEA Specs Standard Requirement Document for Broadcast A/V Digital Media Reproducer/s (DMR) 0395 Ver. 2 0598 0403

3. 3 TEAC Aerospace Technologies Apples to Others

4. 4 TEAC Aerospace Technologies Digital Content Preparation Most encoded MPEG 1 & MPEG 2 content can be used without re-encoding. Language streams can be provided in the original order, no special audio mux is required. Meta Data creation tool identifies the content, length, type and language tracks. Content requiring early window security is encrypted by the lab (RSA Triple DES) and sent to the integrator.

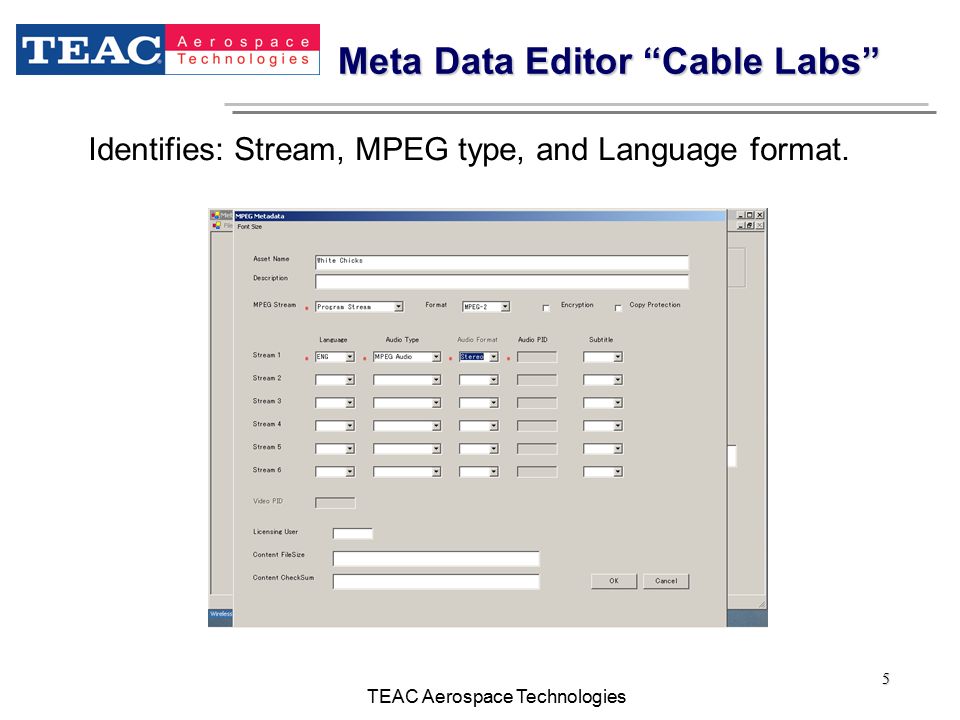

5. 5 TEAC Aerospace Technologies Meta Data Editor “Cable Labs” Identifies: Stream, MPEG type, and Language format.

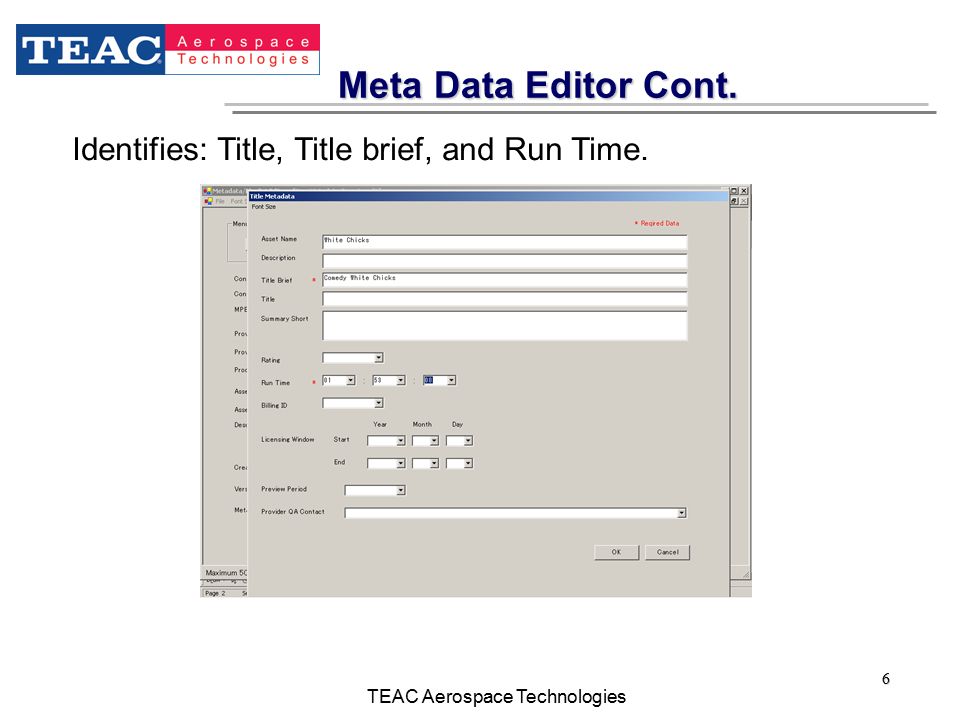

6. 6 TEAC Aerospace Technologies Meta Data Editor Cont. Identifies: Title, Title brief, and Run Time.

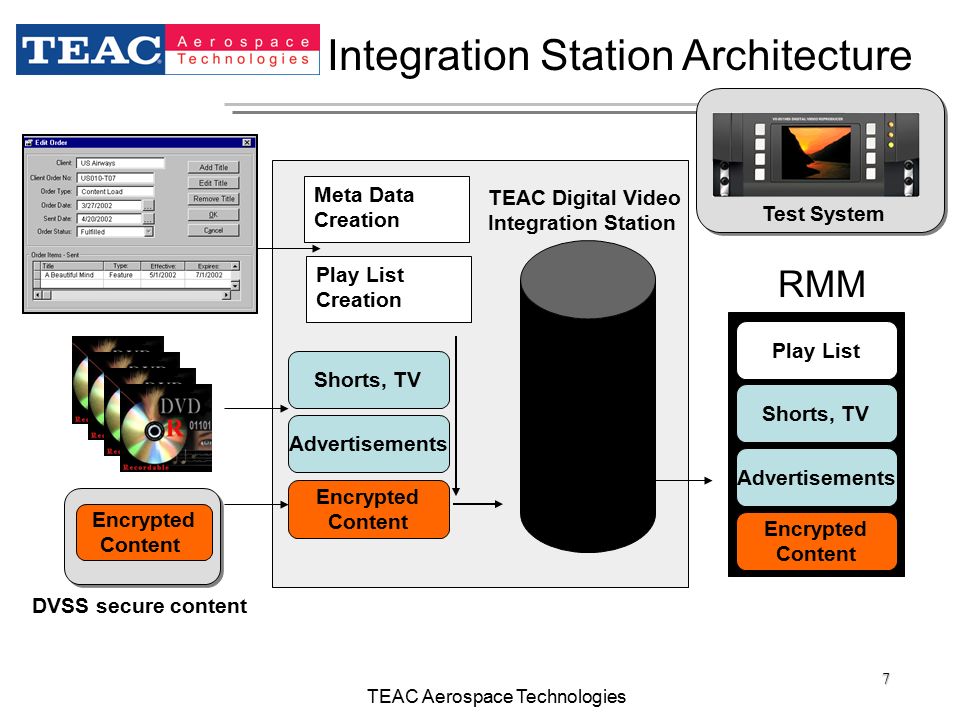

7. 7 TEAC Aerospace Technologies Integration Station Architecture TEAC Digital Video Integration Station DVSS secure content Meta Data Creation Encrypted Content Play List Creation Test System Assembled Digital Video Program Content With Encrypted Video Files RMM Shorts, TV Advertisements Encrypted Content Shorts, TV Advertisements Encrypted Content Play List

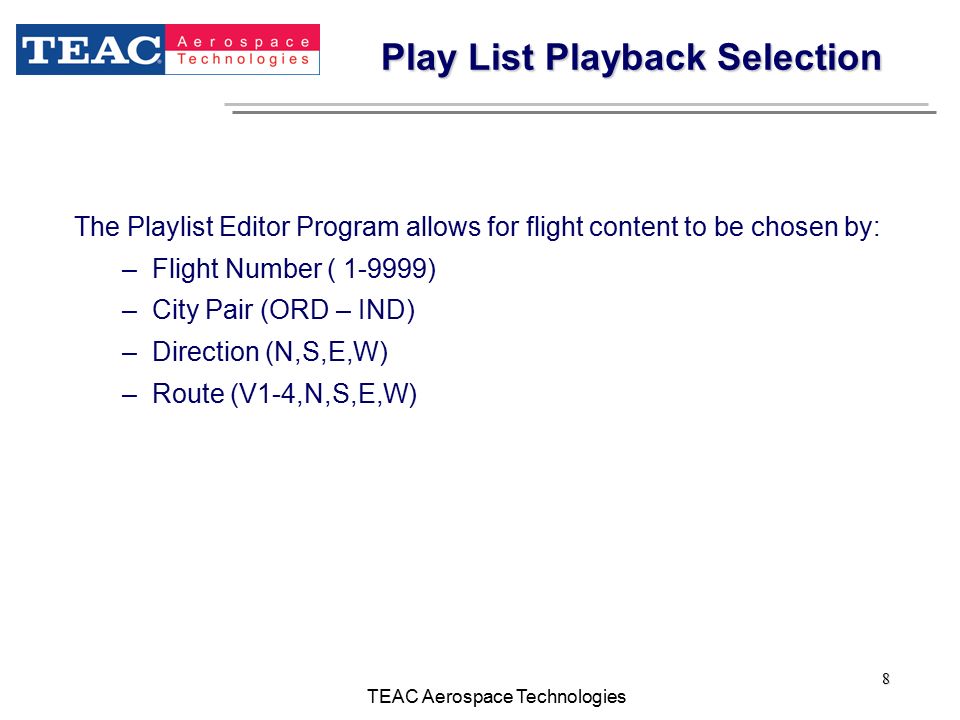

8. 8 TEAC Aerospace Technologies Play List Playback Selection The Playlist Editor Program allows for flight content to be chosen by: –Flight Number ( 1-9999) –City Pair (ORD – IND) –Direction (N,S,E,W) –Route (V1-4,N,S,E,W)

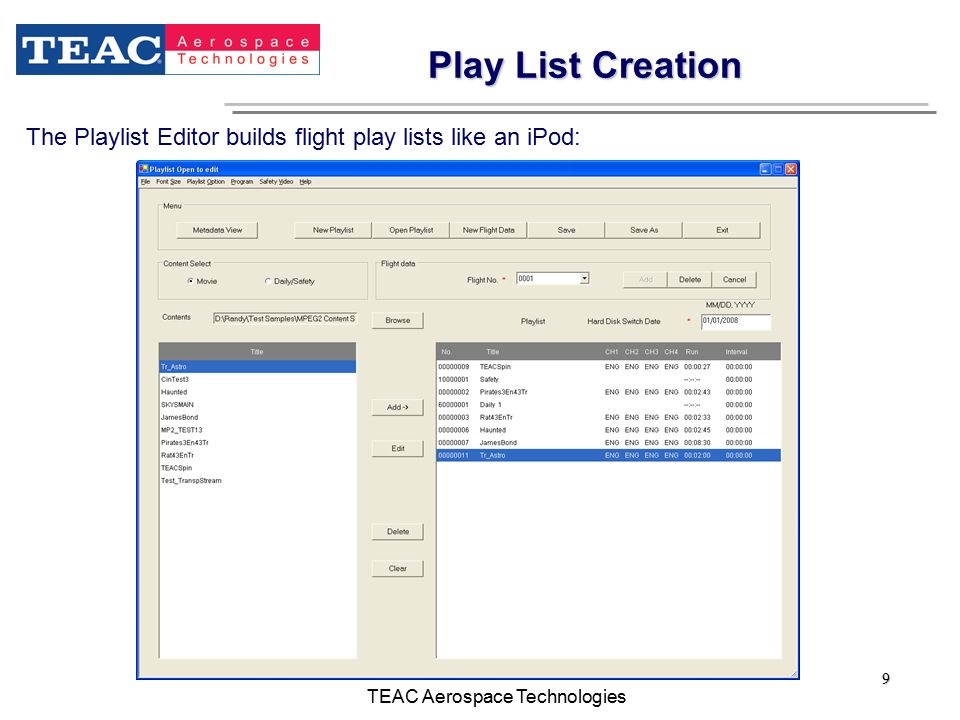

9. 9 TEAC Aerospace Technologies Play List Creation The Playlist Editor builds flight play lists like an iPod:

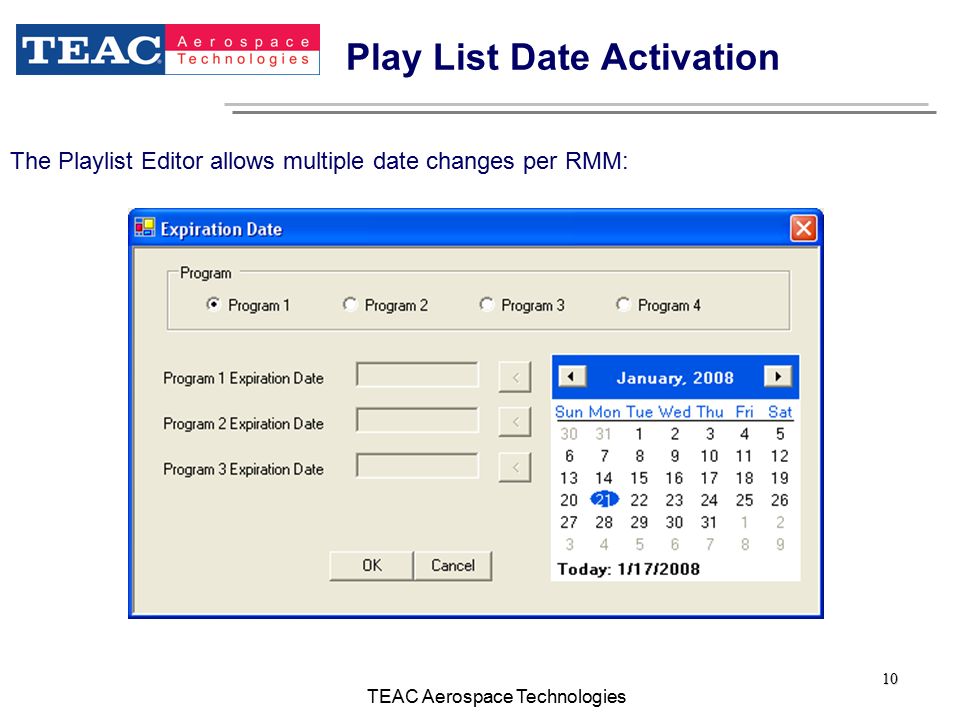

10. 10 TEAC Aerospace Technologies Play List Date Activation The Playlist Editor allows multiple date changes per RMM:

11. 11 TEAC Aerospace Technologies Content Loading / Media Loader RMM inserted into VE-801HDi for content download

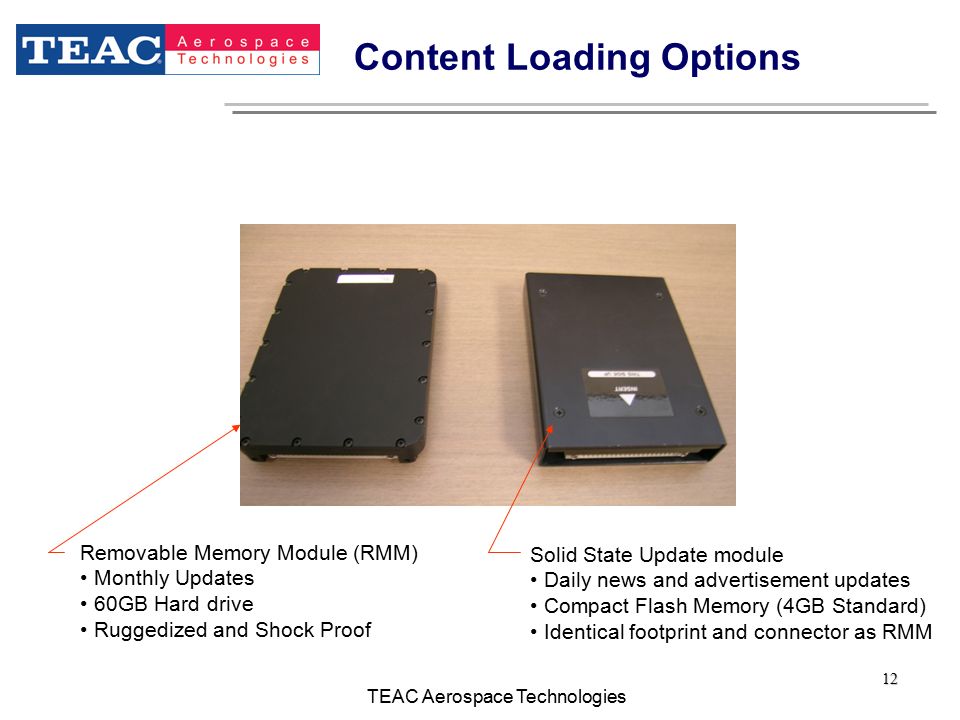

12. 12 TEAC Aerospace Technologies Content Loading Options Removable Memory Module (RMM) Monthly Updates 60GB Hard drive Ruggedized and Shock Proof Solid State Update module Daily news and advertisement updates Compact Flash Memory (4GB Standard) Identical footprint and connector as RMM

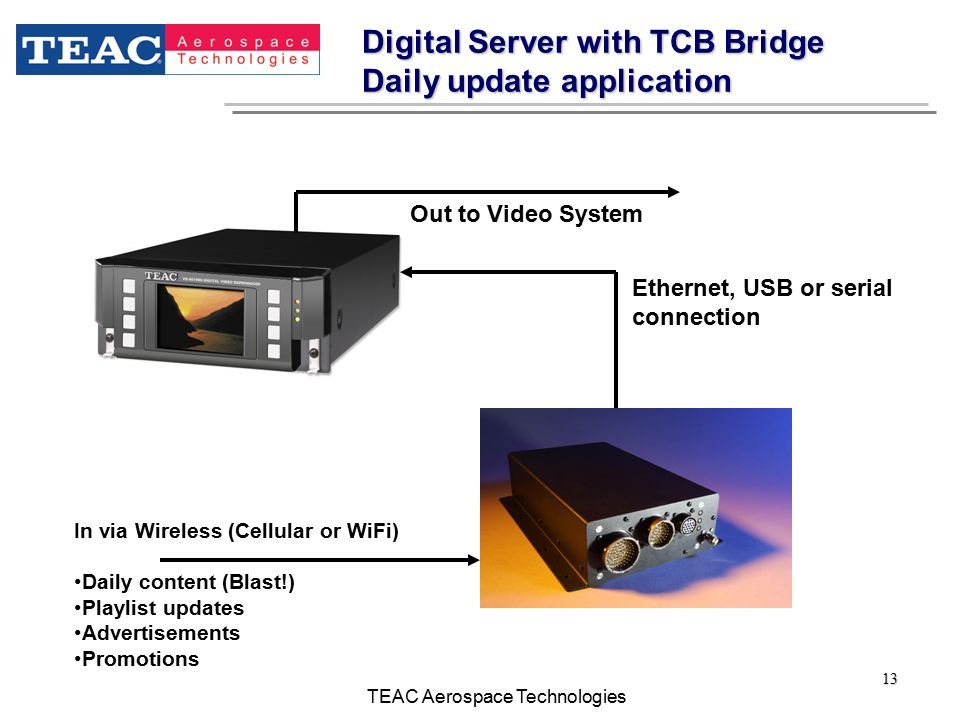

13. 13 TEAC Aerospace Technologies Digital Server with TCB Bridge Daily update application Out to Video System In via Wireless (Cellular or WiFi) Daily content (Blast!) Playlist updates Advertisements Promotions Ethernet, USB or serial connection

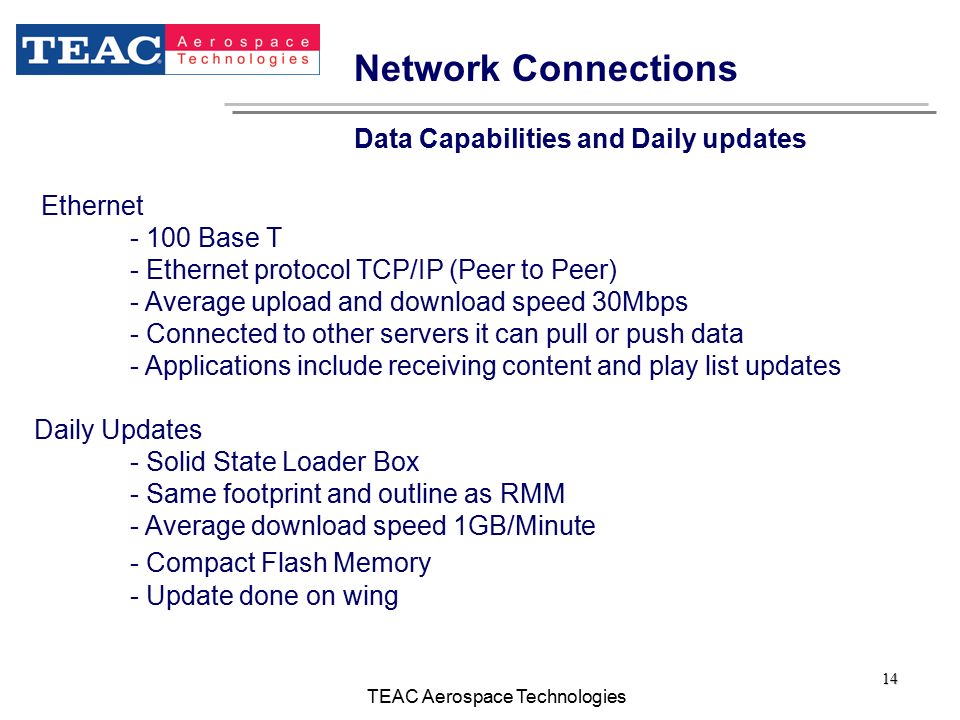

14. 14 TEAC Aerospace Technologies Network Connections Data Capabilities and Daily updates Ethernet - 100 Base T - Ethernet protocol TCP/IP (Peer to Peer) - Average upload and download speed 30Mbps - Connected to other servers it can pull or push data - Applications include receiving content and play list updates Daily Updates - Solid State Loader Box - Same footprint and outline as RMM - Average download speed 1GB/Minute - Compact Flash Memory - Update done on wing

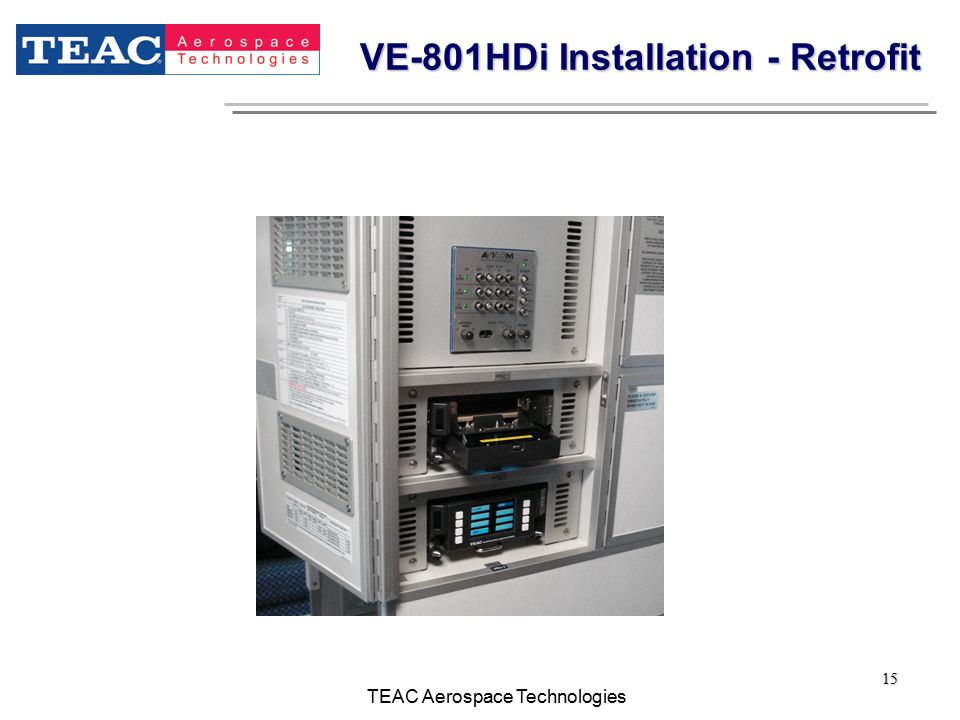

15. 15 TEAC Aerospace Technologies VE-801HDi Installation - Retrofit

16. 16 TEAC Aerospace Technologies Content Integration Station Stand alone PC with: RMM Docking Slot Playlist Editor Software DVD Drive Two 250 GB Hard Drives
