1. Quantum thermodynamics view on the Gibbs paradox and work fluctuations Theo M. Nieuwenhuizen University of Amsterdam Oldenburg 26-10-2006

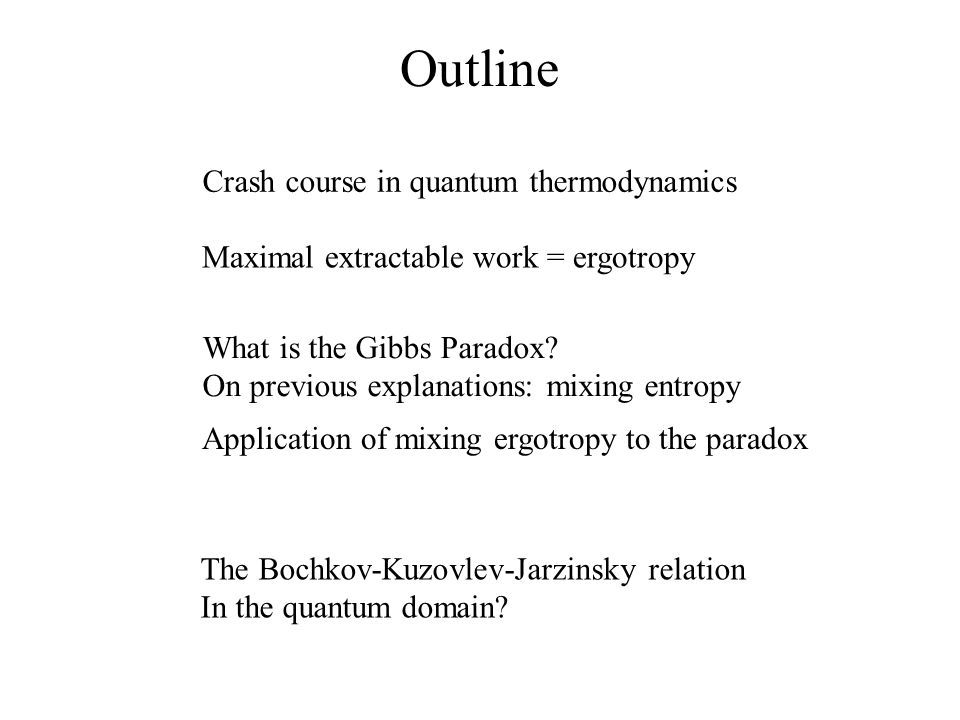

2. Outline Crash course in quantum thermodynamics Maximal extractable work = ergotropy Application of mixing ergotropy to the paradox What is the Gibbs Paradox? On previous explanations: mixing entropy The Bochkov-Kuzovlev-Jarzinsky relation In the quantum domain?

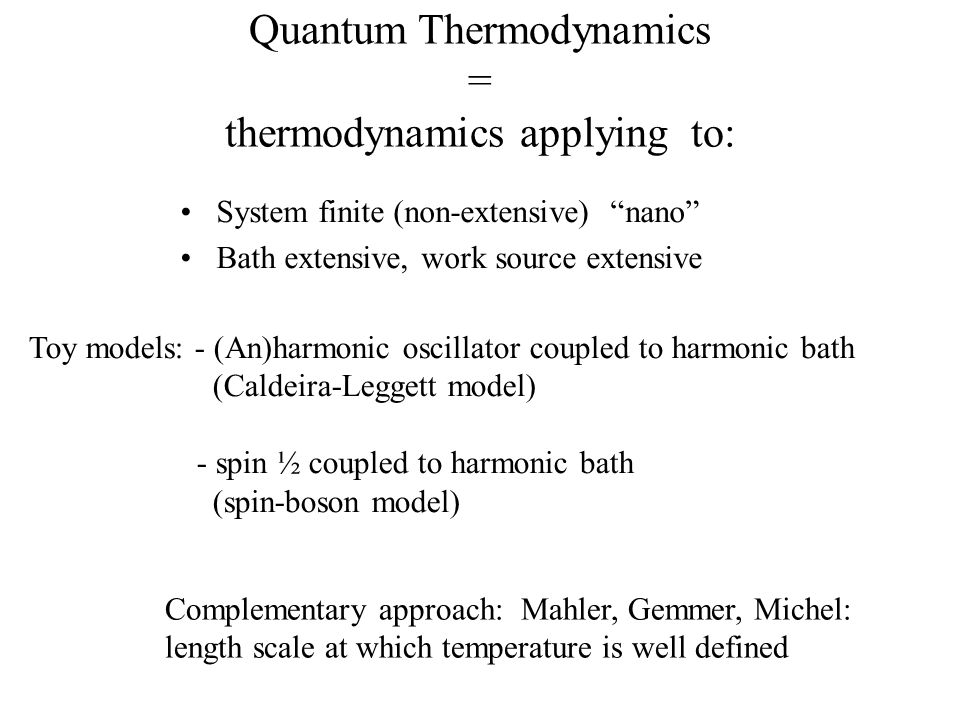

3. Quantum Thermodynamics = thermodynamics applying to: System finite (non-extensive) “nano” Bath extensive, work source extensive Toy models: - (An)harmonic oscillator coupled to harmonic bath (Caldeira-Leggett model) - spin ½ coupled to harmonic bath (spin-boson model) Complementary approach: Mahler, Gemmer, Michel: length scale at which temperature is well defined

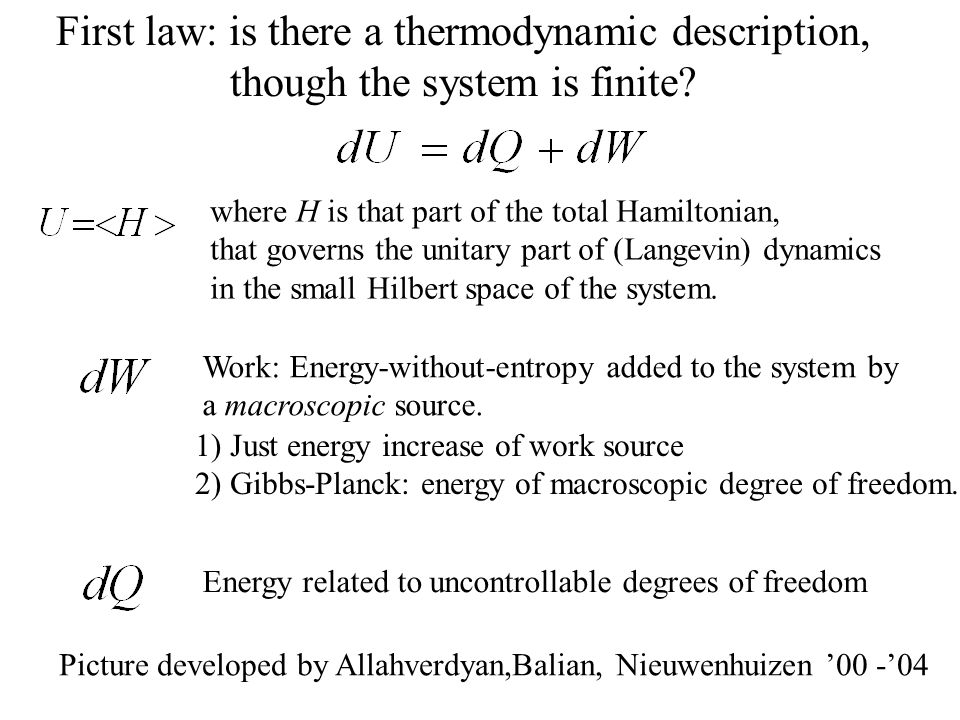

4. First law: is there a thermodynamic description, though the system is finite? where H is that part of the total Hamiltonian, that governs the unitary part of (Langevin) dynamics in the small Hilbert space of the system. Work: Energy-without-entropy added to the system by a macroscopic source. Energy related to uncontrollable degrees of freedom 1) Just energy increase of work source 2) Gibbs-Planck: energy of macroscopic degree of freedom. Picture developed by Allahverdyan,Balian, Nieuwenhuizen ’00 -’04

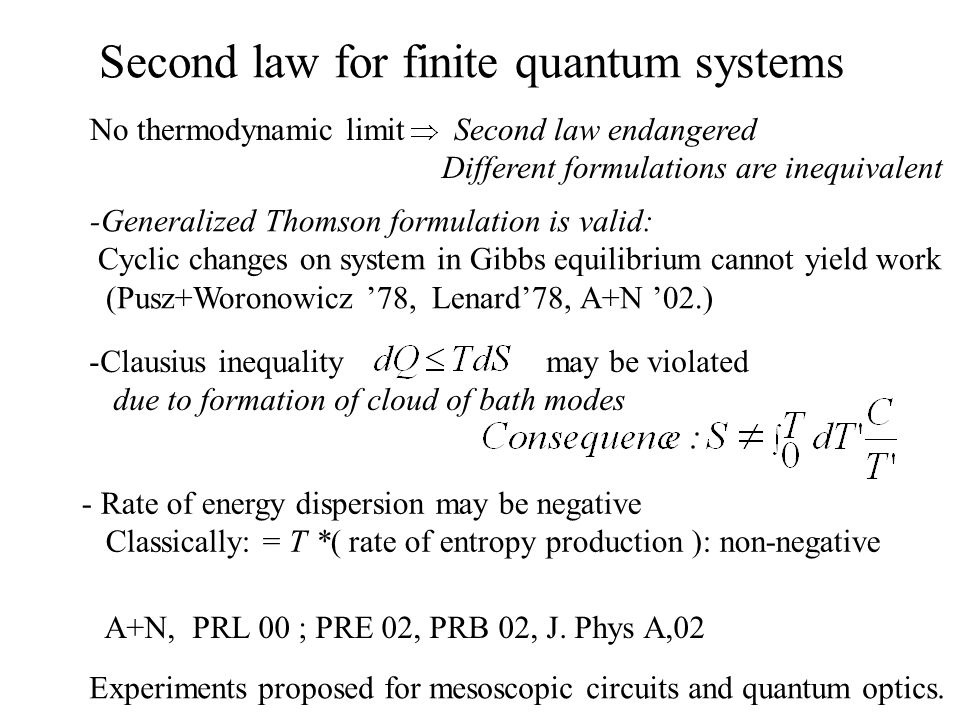

5. Second law for finite quantum systems No thermodynamic limit Second law endangered Different formulations are inequivalent -Generalized Thomson formulation is valid: Cyclic changes on system in Gibbs equilibrium cannot yield work (Pusz+Woronowicz ’78, Lenard’78, A+N ’02.) -Clausius inequality may be violated due to formation of cloud of bath modes - Rate of energy dispersion may be negative Classically: = T *( rate of entropy production ): non-negative Experiments proposed for mesoscopic circuits and quantum optics. A+N, PRL 00 ; PRE 02, PRB 02, J. Phys A,02

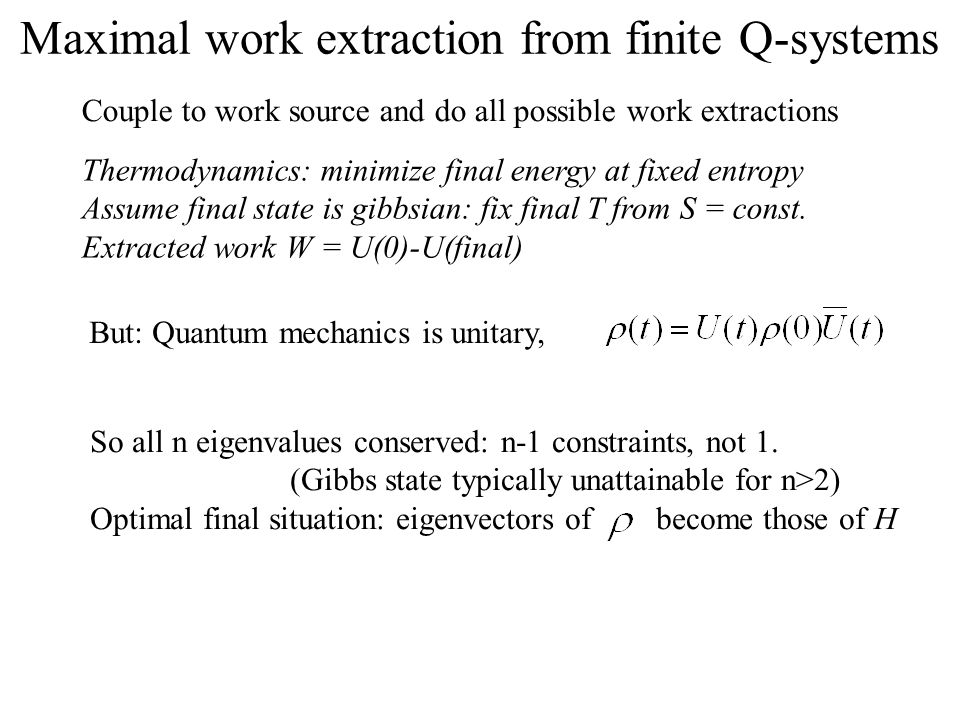

6. Maximal work extraction from finite Q-systems Thermodynamics: minimize final energy at fixed entropy Assume final state is gibbsian: fix final T from S = const. Extracted work W = U(0)-U(final) But: Quantum mechanics is unitary, So all n eigenvalues conserved: n-1 constraints, not 1. (Gibbs state typically unattainable for n>2) Optimal final situation: eigenvectors of become those of H Couple to work source and do all possible work extractions

7. Maximal work = ergotropy Lowest final energy: highest occupation in ground state, one-but-highest in first excited state, etc (ordering ) Maximal work “ergotropy” Allahverdyan, Balian, Nieuwenhuizen, EPL 03.

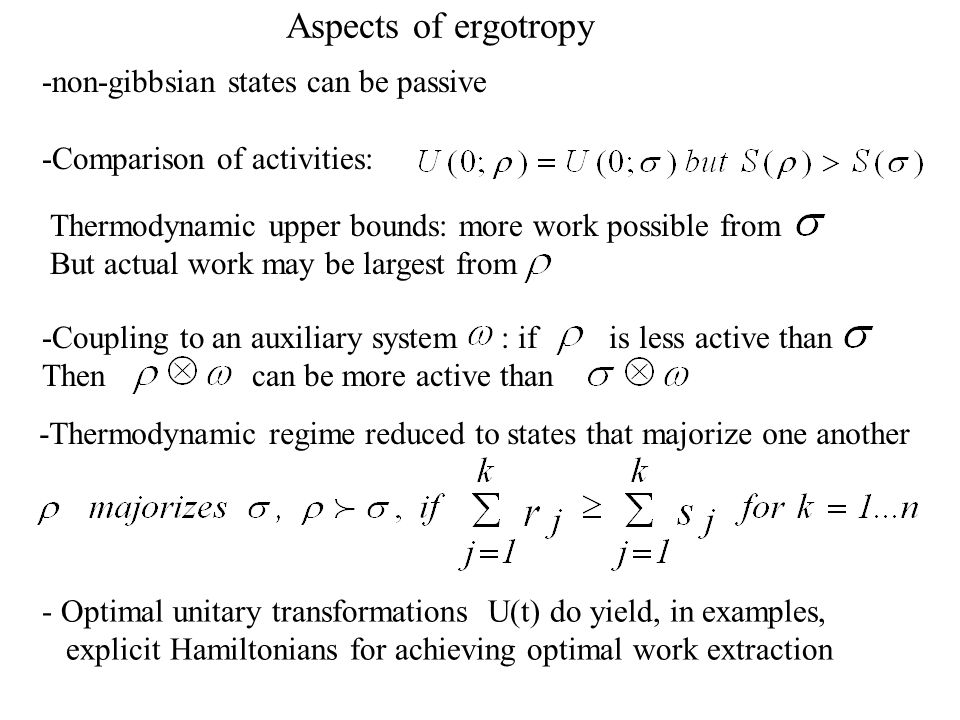

8. Aspects of ergotropy - Optimal unitary transformations U(t) do yield, in examples, explicit Hamiltonians for achieving optimal work extraction -non-gibbsian states can be passive -Comparison of activities: Thermodynamic upper bounds: more work possible from But actual work may be largest from -Coupling to an auxiliary system : if is less active than Then can be more active than -Thermodynamic regime reduced to states that majorize one another

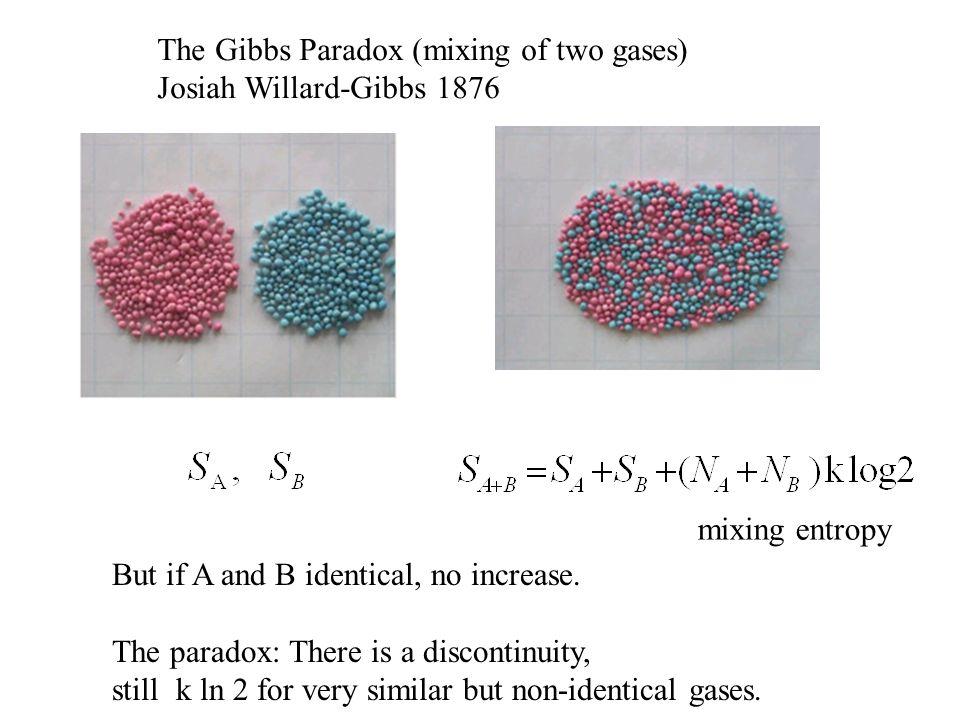

9. The Gibbs Paradox (mixing of two gases) Josiah Willard-Gibbs 1876 But if A and B identical, no increase. The paradox: There is a discontinuity, still k ln 2 for very similar but non-identical gases. mixing entropy

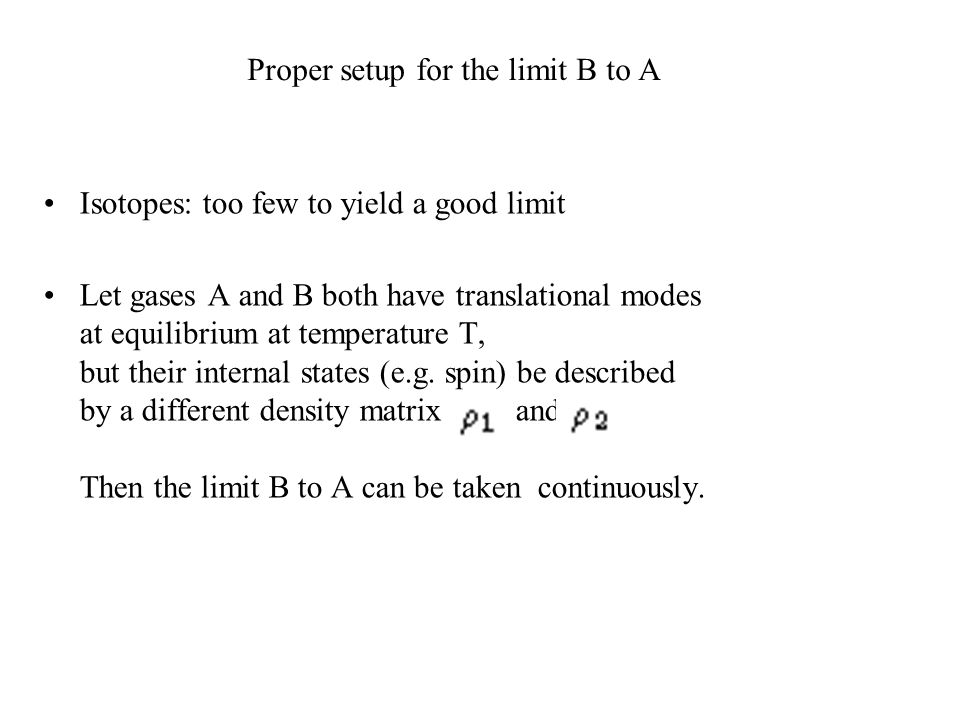

10. Proper setup for the limit B to A Isotopes: too few to yield a good limit Let gases A and B both have translational modes at equilibrium at temperature T, but their internal states (e.g. spin) be described by a different density matrix and Then the limit B to A can be taken continuously.

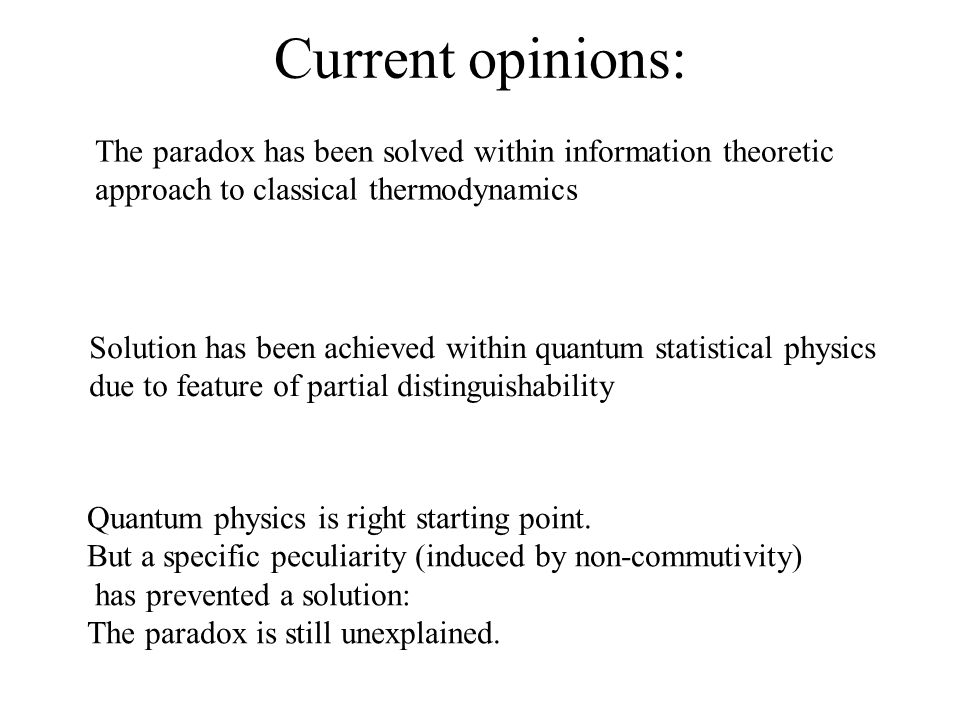

11. Current opinions: The paradox has been solved within information theoretic approach to classical thermodynamics Solution has been achieved within quantum statistical physics due to feature of partial distinguishability Quantum physics is right starting point. But a specific peculiarity (induced by non-commutivity) has prevented a solution: The paradox is still unexplained.

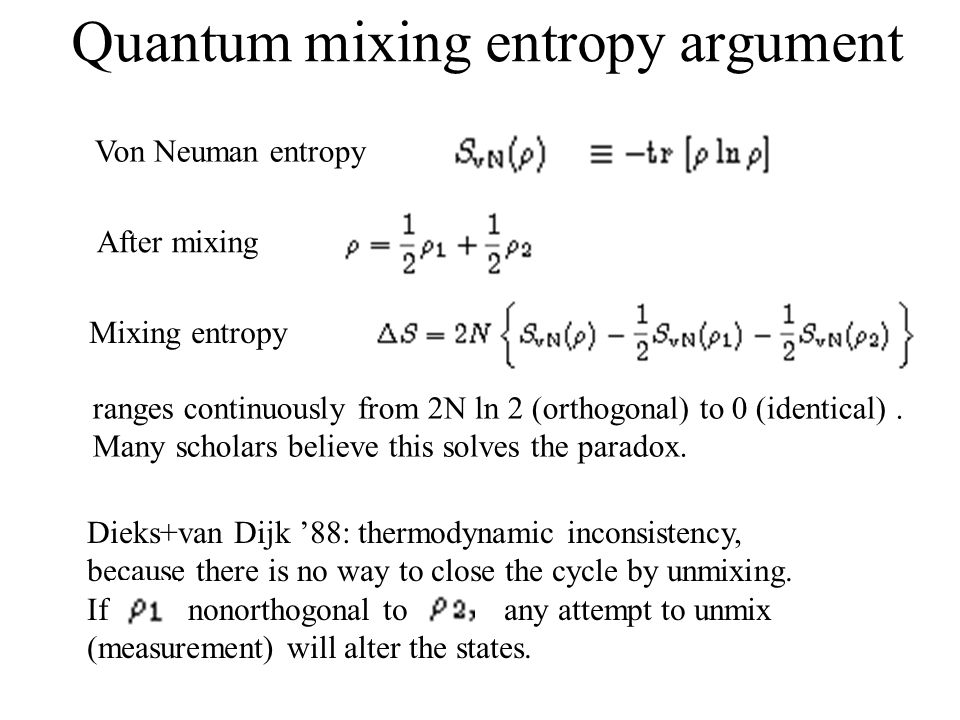

12. Quantum mixing entropy argument ranges continuously from 2N ln 2 (orthogonal) to 0 (identical). Many scholars believe this solves the paradox. Von Neuman entropy After mixing Mixing entropy Dieks+van Dijk ’88: thermodynamic inconsistency, because there is no way to close the cycle by unmixing. If nonorthogonal to any attempt to unmix (measurement) will alter the states.

13. Another objection: lack of operationality There is something unsatisfactory with entropy itself. It is non-unique. Its definition depends on the formulation of the second law. To be operatinal, the Gibbs paradox should be formulated in terms of work. Classically:.. Also in quantum situation?? The employed notion of ``difference between gases’’ does not have a clear operational meaning. If the above explanation would hold, there could be situations where a measurement would not expose a difference between the gasses. So in practice the ``solution’’ would depend on the quality of the apparatus.

14. Resolution of Gibbs paradox Formulate problem in terms of work: mixing ergotropy = [maximal extractable work before mixing] – [max. extractable work after mixing] Consequence: limit B to A implies vanishing mixing ergotropy. Paradox explained. Operationality: difference between A and B depends on apparatus: extracted work need not be maximal More mixing does not imply more work, and vice versa. Counterexamples given in A+N, PRE 06.

15. Classical work fluctuation relations Hamiltonian changed in time. Work in trajectory starting with (x,p) : Initial Gibbs state: Bochkov + Kozovlev, 1977: cyclic change Trajectories with negative work must exist

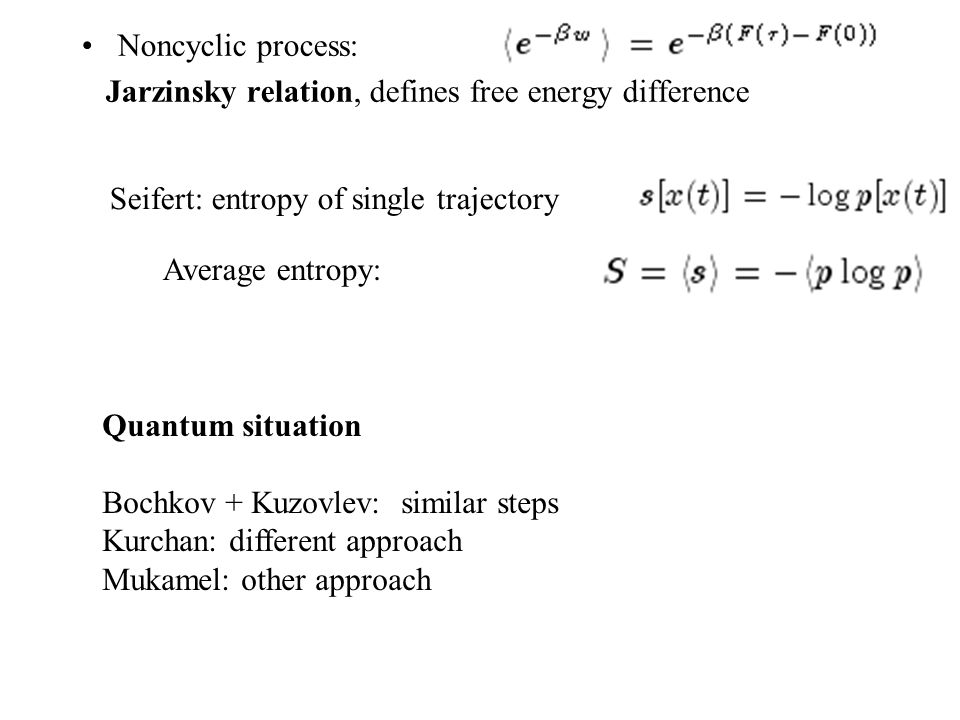

16. Noncyclic process: Jarzinsky relation, defines free energy difference Seifert: entropy of single trajectory Average entropy: Quantum situation Bochkov + Kuzovlev: similar steps Kurchan: different approach Mukamel: other approach

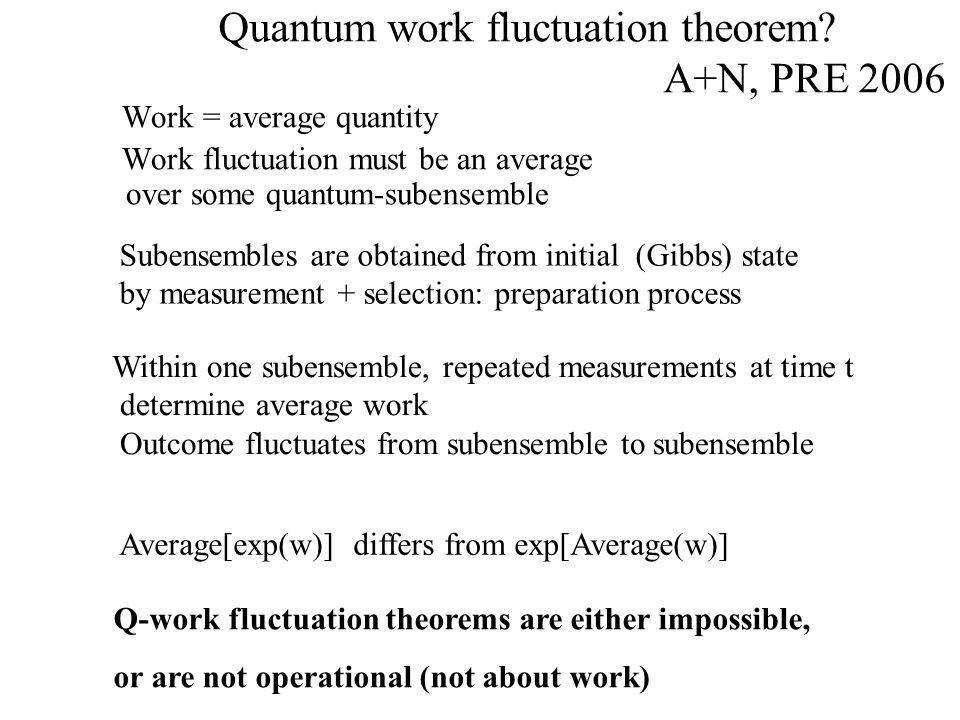

17. Quantum work fluctuation theorem? A+N, PRE 2006 Work = average quantity Work fluctuation must be an average over some quantum-subensemble Average[exp(w)] differs from exp[Average(w)] Q-work fluctuation theorems are either impossible, or are not operational (not about work) Subensembles are obtained from initial (Gibbs) state by measurement + selection: preparation process Within one subensemble, repeated measurements at time t determine average work Outcome fluctuates from subensemble to subensemble

18. Summary Explanation Gibbs paradox by formulation in terms of work Mixing ergotropy = loss of maximal extractable work due to mixing Operational definition: less work from less good apparatus Q-thermodynamics describes thermo of small (nano) systems First law holds, various formulations of second law broken Formulation of Q-work fluctuation theorem runs into principle difficulties Q-theorems that have been derived, are non-operational

19. Are adiabatic processes always optimal? One of the formulations of the second law: Adiabatic thermally isolated processes done on an equilibrium system are optimal (cost least work or yield most work) In finite Q-systems: Work larger or equal to free energy difference But adiabatic work is not free energy difference. A+N, PRE 2003: -No level crossing : adiabatic theorem holds -Level crossing: solve using adiabatic perturbation theory. Diabatic processes are less costly than adiabatic. Work = new tool to test level crossing. Level crossing possible if two or more parameters are changed. Review expts on level crossing: Yarkony, Rev Mod Phys 1996
