1. KLN 94 Introduction & Page Summary

2. KLN Schematic

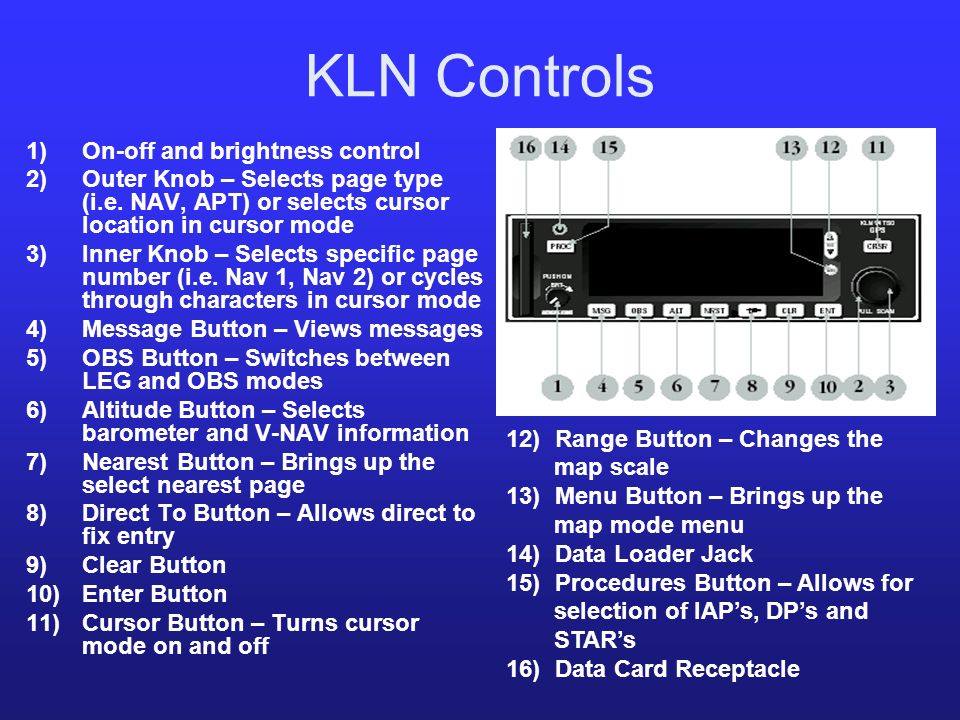

3. KLN Controls 1)On-off and brightness control 2)Outer Knob – Selects page type (i.e. NAV, APT) or selects cursor location in cursor mode 3)Inner Knob – Selects specific page number (i.e. Nav 1, Nav 2) or cycles through characters in cursor mode 4)Message Button – Views messages 5)OBS Button – Switches between LEG and OBS modes 6)Altitude Button – Selects barometer and V-NAV information 7)Nearest Button – Brings up the select nearest page 8)Direct To Button – Allows direct to fix entry 9)Clear Button 10)Enter Button 11)Cursor Button – Turns cursor mode on and off 12) Range Button – Changes the map scale 13) Menu Button – Brings up the map mode menu 14) Data Loader Jack 15) Procedures Button – Allows for selection of IAP’s, DP’s and STAR’s 16) Data Card Receptacle

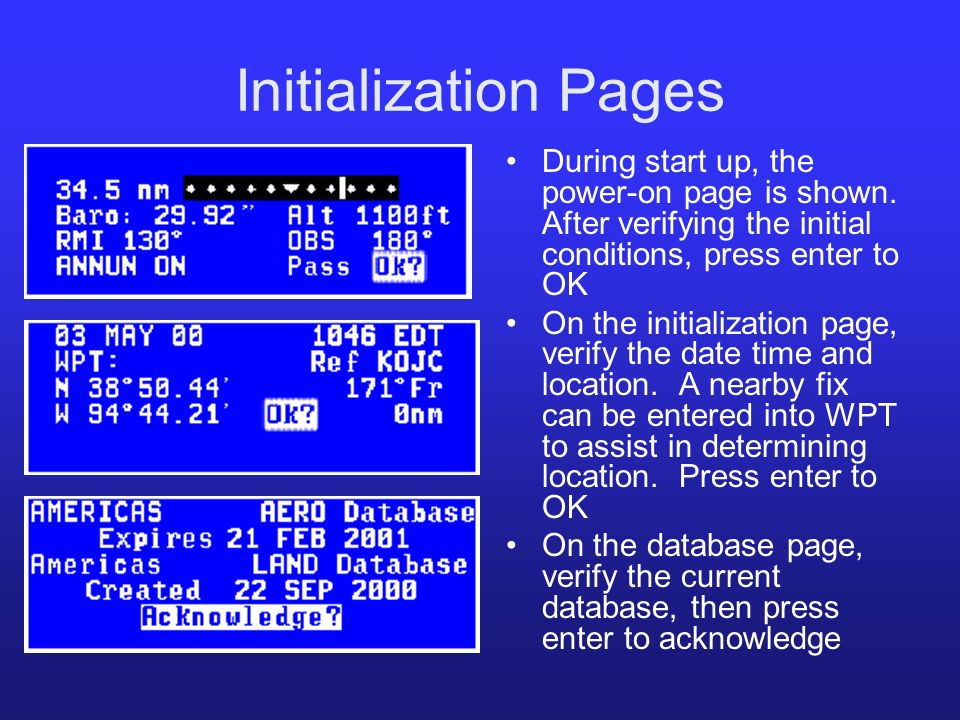

4. Initialization Pages During start up, the power-on page is shown. After verifying the initial conditions, press enter to OK On the initialization page, verify the date time and location. A nearby fix can be entered into WPT to assist in determining location. Press enter to OK On the database page, verify the current database, then press enter to acknowledge

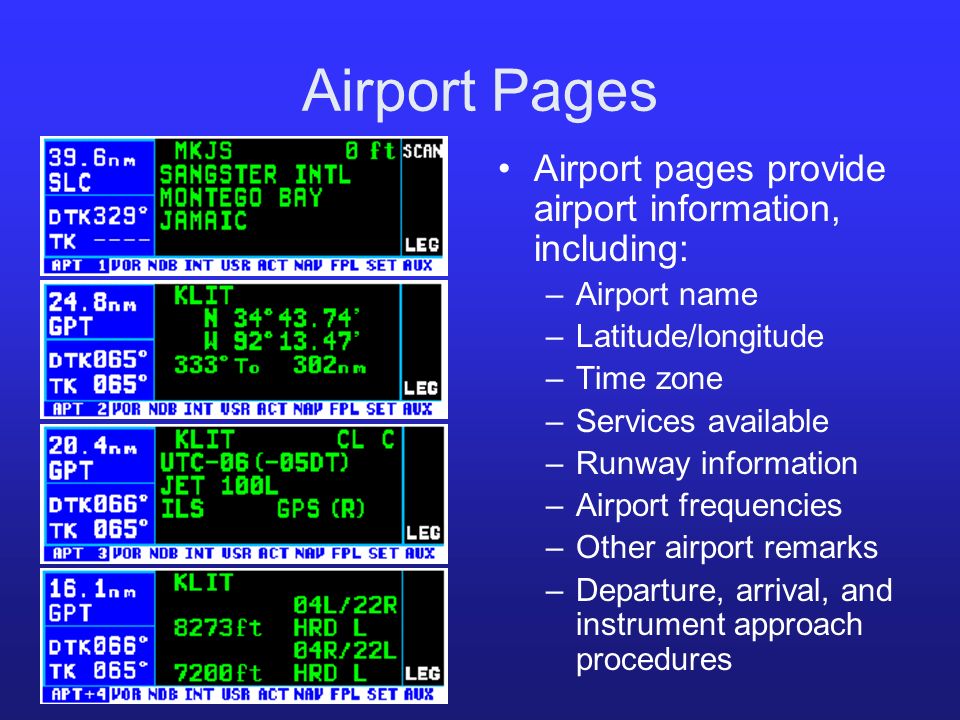

5. Airport Pages Airport pages provide airport information, including: –Airport name –Latitude/longitude –Time zone –Services available –Runway information –Airport frequencies –Other airport remarks –Departure, arrival, and instrument approach procedures

6. Airport Pages (con’t) Airport pages provide airport information, including: –Airport name –Latitude/longitude –Time zone –Services available –Runway information –Airport frequencies –Other airport remarks –Departure, arrival, and instrument approach procedures

7. VOR / NDB / INT Pages VOR, NDB, Intersection pages provide information about navigation fixes Information provided includes: –Latitude/longitude –Bearing/distance –Magnetic variation (VORs) –Radial/distance (intersections)

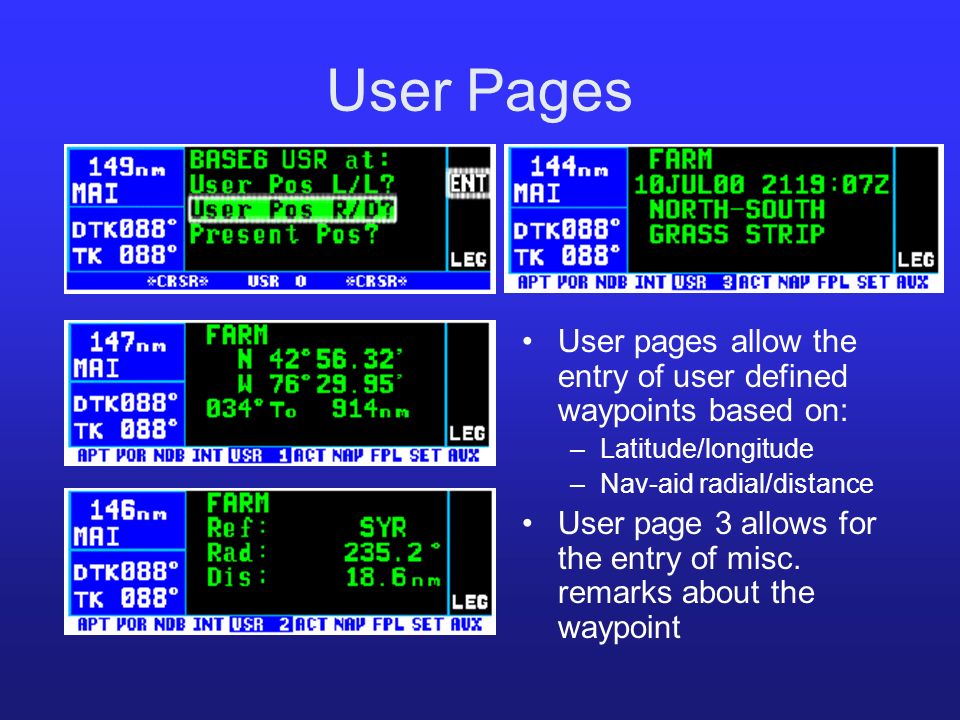

8. User Pages User pages allow the entry of user defined waypoints based on: –Latitude/longitude –Nav-aid radial/distance User page 3 allows for the entry of misc. remarks about the waypoint

9. Nav Pages Navigation pages provide: –CDI, OBS & course displacement –Time, distance & ETA –Latitude/longitude –Map display

10. Nearest Pages The nearest function brings up a menu that allows selection of the nearest: –Airport –Nav-aid –Intersection –Waypoint –Special use airspace –Center and FSS frequencies

11. Procedure Pages Pressing the procedure button brings up the procedure 1 page, which allows the selection of departure, arrival, and instrument approach procedures Selecting the procedure type brings up an airport menu that allows selection of the airport Selecting the airport brings up a menu of approach procedures for that airport

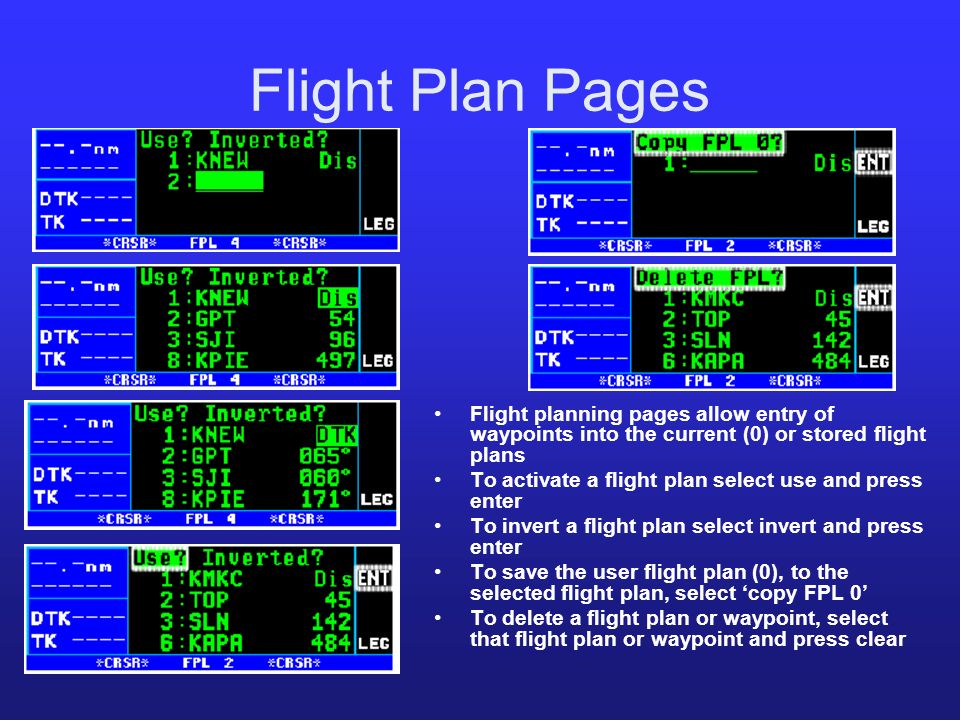

12. Flight Plan Pages Flight planning pages allow entry of waypoints into the current (0) or stored flight plans To activate a flight plan select use and press enter To invert a flight plan select invert and press enter To save the user flight plan (0), to the selected flight plan, select ‘copy FPL 0’ To delete a flight plan or waypoint, select that flight plan or waypoint and press clear

13. Altitude Pages The altitude 1 page allows entry of the current altimeter setting, minimum safe altitude (Jeppeson grid mora), & enroute safe altitude The altitude 2 page allows entry of crossing restrictions, groundspeed, and planning descent rate for descent planning purposes (VNAV)

14. Setup Pages Setup pages allow setup of various criteria including: –Time zone –Nearest airport criteria –Special use airspace alert –Map data –Low voltage warning –Altitude Alert –Radio ‘quick tune’ function

15. Setup Pages (con’t) Setup pages allow setup of various criteria including: –Time zone –Nearest airport criteria –Special use airspace alert –Map data –Low voltage warning –Altitude Alert –Radio ‘quick tune’ function

16. Aux Pages Aux pages provide general information such as: –GPS status –RAIM –Trip planning information –Alarm settings –Pressure & density altitude –True airspeed –Wind info –Waypoint info –Air data info

17. Aux Pages (con’t) Aux pages provide general information such as: –GPS status –RAIM –Trip planning information –Alarm settings –Pressure & density altitude –True airspeed –Wind info –Waypoint info –Air data info
