1. Oracle Database 10g Automation Features Dallas Oracle Users Group - Oct. 2005 Arun Kumar R. Cingular Wireless

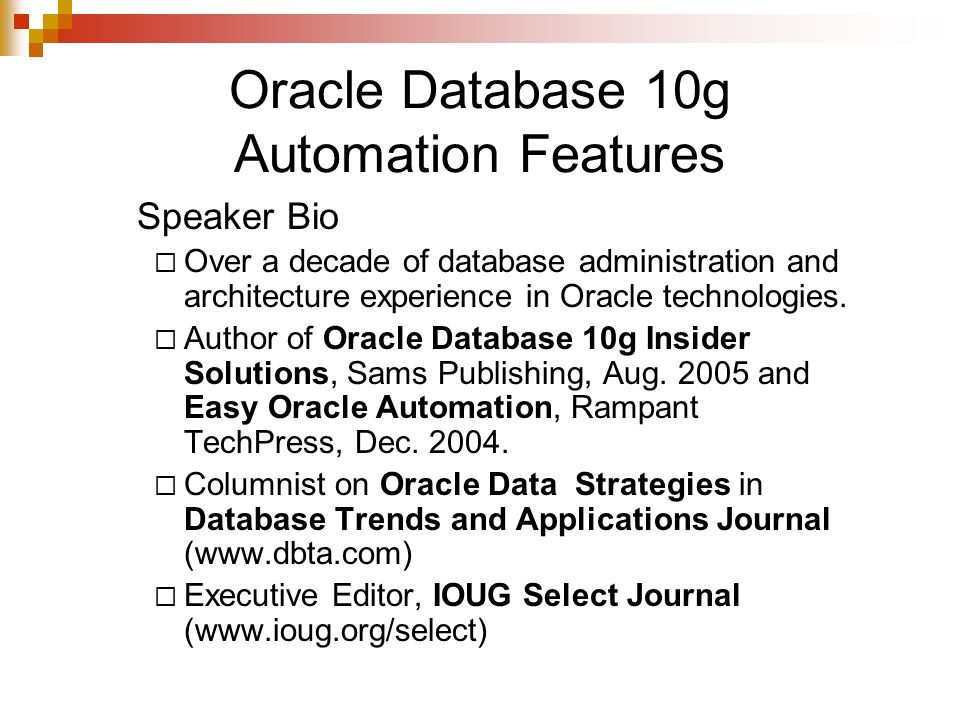

2. Oracle Database 10g Automation Features Speaker Bio  Over a decade of database administration and architecture experience in Oracle technologies.  Author of Oracle Database 10g Insider Solutions, Sams Publishing, Aug. 2005 and Easy Oracle Automation, Rampant TechPress, Dec. 2004.  Columnist on Oracle Data Strategies in Database Trends and Applications Journal (www.dbta.com)  Executive Editor, IOUG Select Journal (www.ioug.org/select)

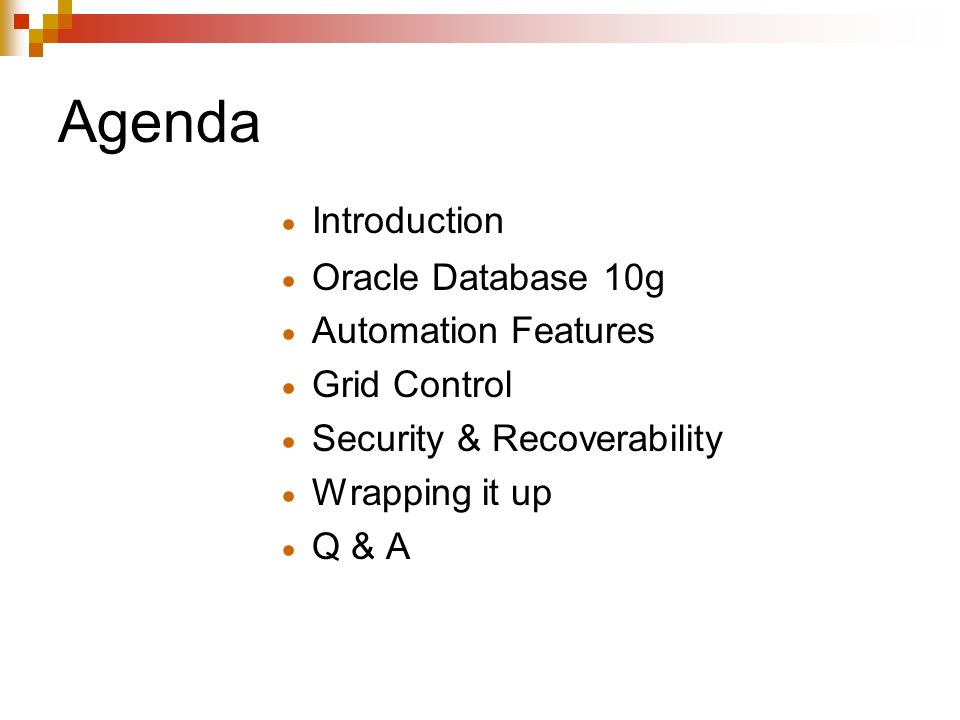

3. Agenda  Introduction  Oracle Database 10g  Automation Features  Grid Control  Security & Recoverability  Wrapping it up  Q & A

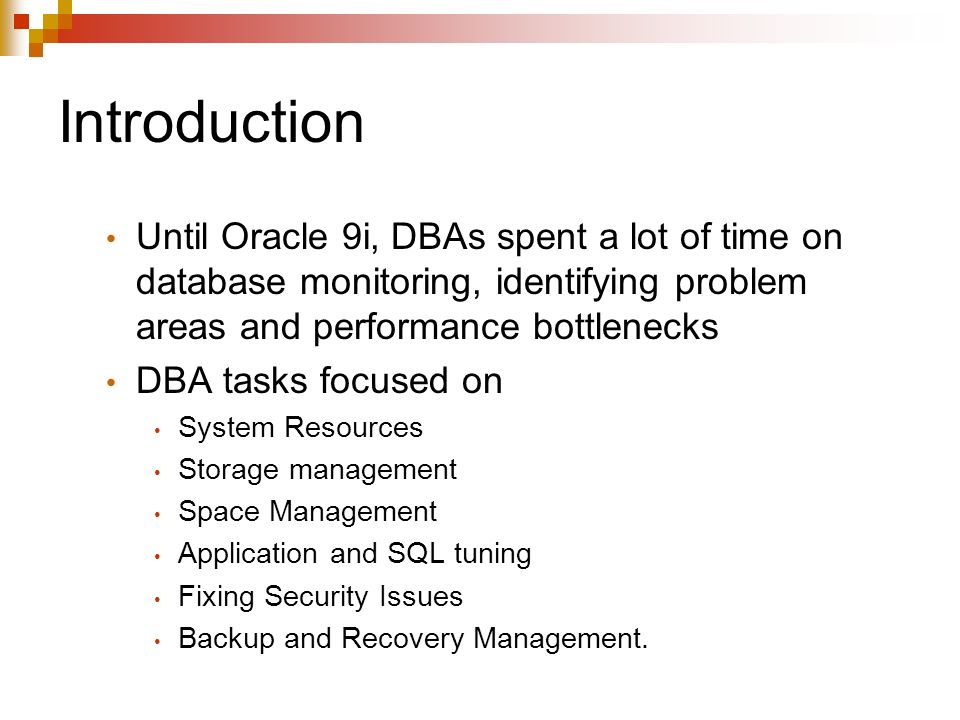

4. Introduction Until Oracle 9i, DBAs spent a lot of time on database monitoring, identifying problem areas and performance bottlenecks DBA tasks focused on System Resources Storage management Space Management Application and SQL tuning Fixing Security Issues Backup and Recovery Management.

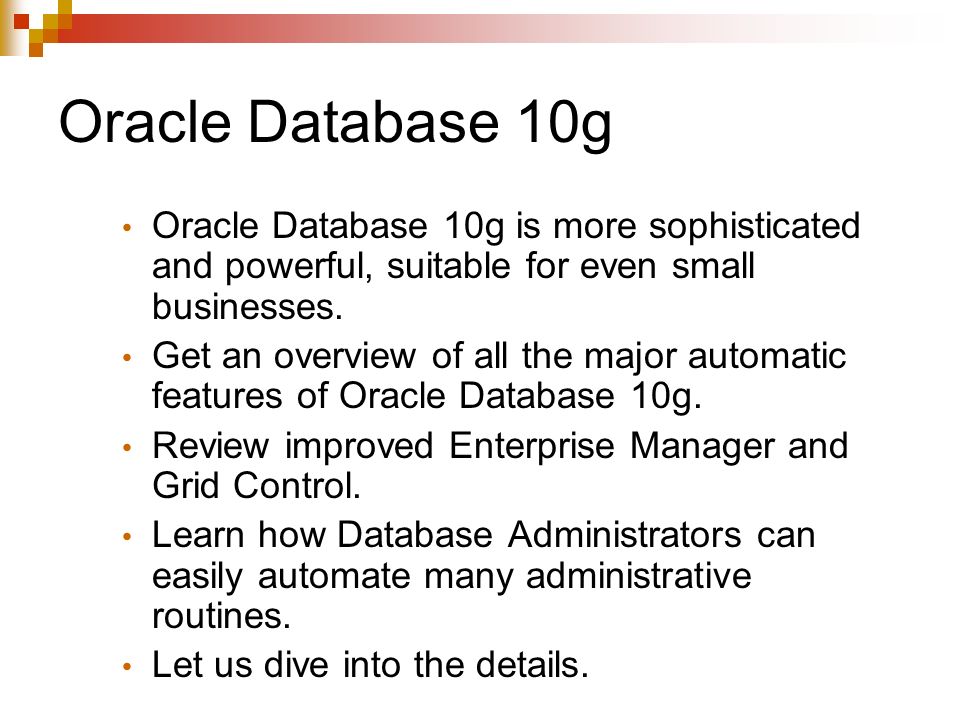

5. Oracle Database 10g Oracle Database 10g is more sophisticated and powerful, suitable for even small businesses. Get an overview of all the major automatic features of Oracle Database 10g. Review improved Enterprise Manager and Grid Control. Learn how Database Administrators can easily automate many administrative routines. Let us dive into the details.

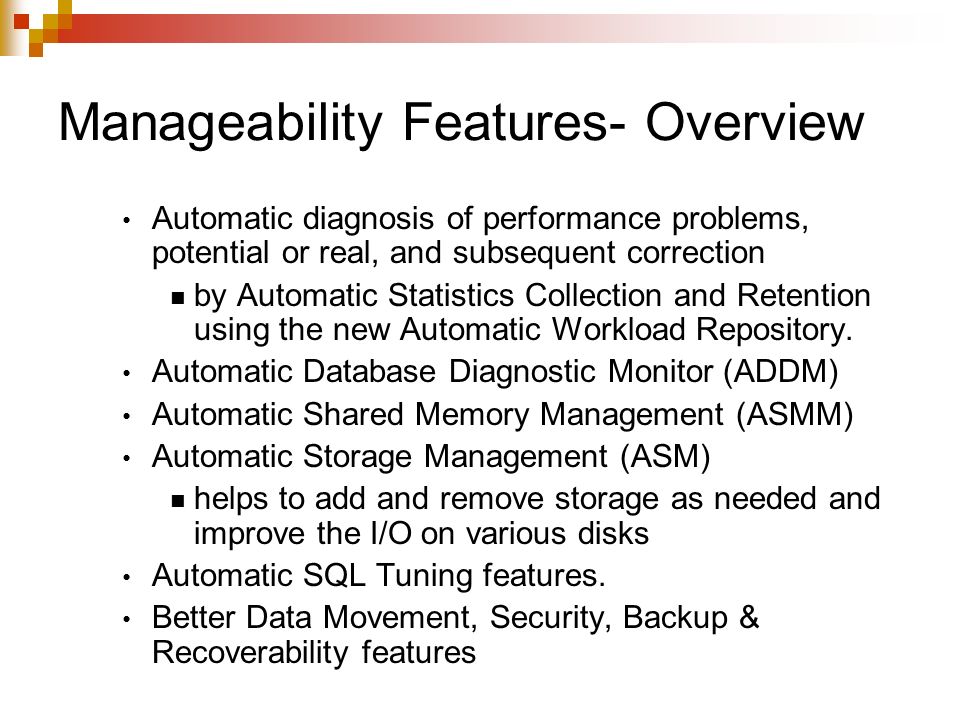

6. Manageability Features- Overview Automatic diagnosis of performance problems, potential or real, and subsequent correction by Automatic Statistics Collection and Retention using the new Automatic Workload Repository. Automatic Database Diagnostic Monitor (ADDM) Automatic Shared Memory Management (ASMM) Automatic Storage Management (ASM) helps to add and remove storage as needed and improve the I/O on various disks Automatic SQL Tuning features. Better Data Movement, Security, Backup & Recoverability features

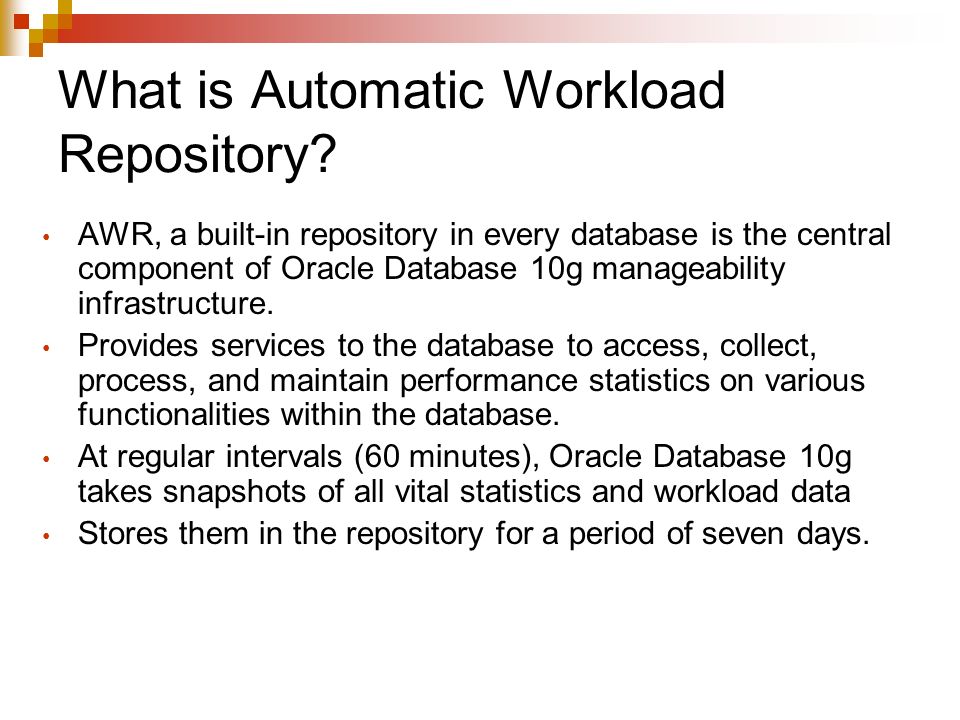

7. What is Automatic Workload Repository? AWR, a built-in repository in every database is the central component of Oracle Database 10g manageability infrastructure. Provides services to the database to access, collect, process, and maintain performance statistics on various functionalities within the database. At regular intervals (60 minutes), Oracle Database 10g takes snapshots of all vital statistics and workload data Stores them in the repository for a period of seven days.

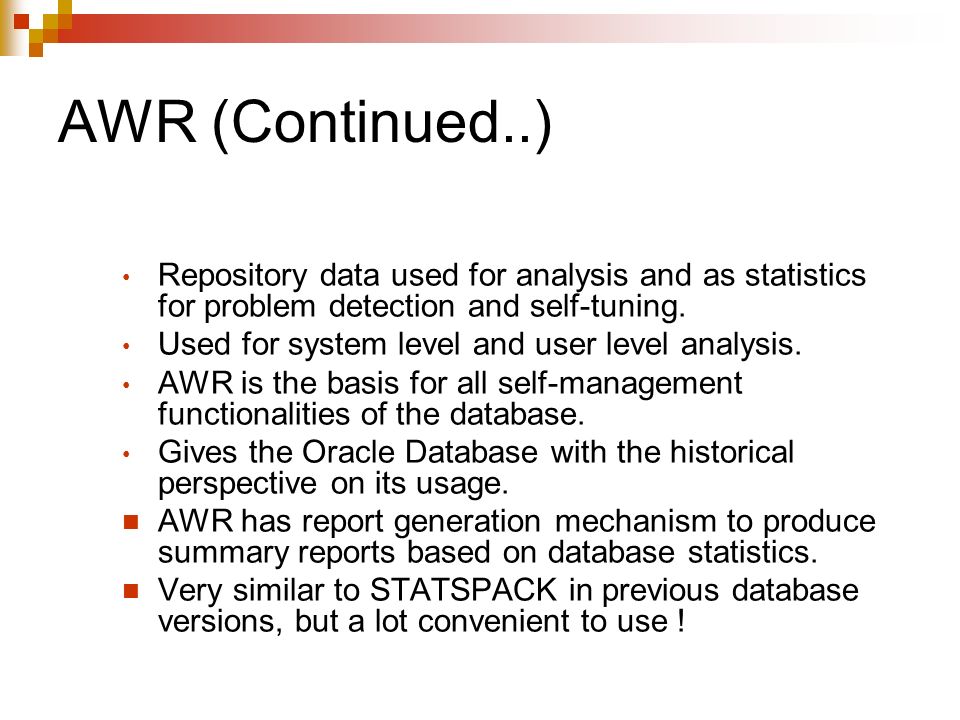

8. AWR (Continued..) Repository data used for analysis and as statistics for problem detection and self-tuning. Used for system level and user level analysis. AWR is the basis for all self-management functionalities of the database. Gives the Oracle Database with the historical perspective on its usage. AWR has report generation mechanism to produce summary reports based on database statistics. Very similar to STATSPACK in previous database versions, but a lot convenient to use !

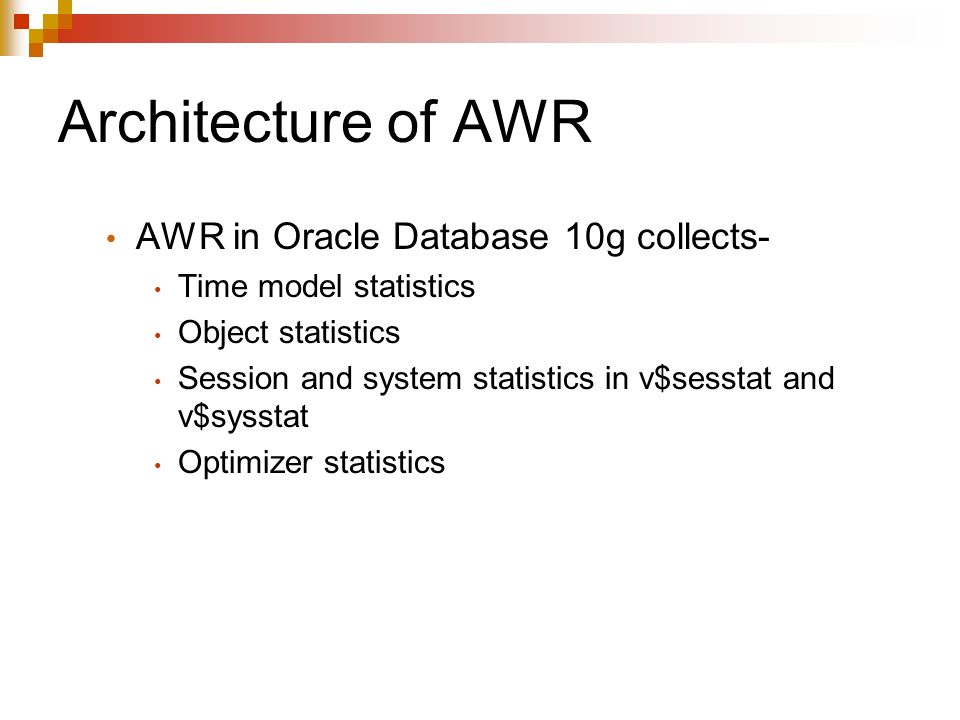

9. Architecture of AWR AWR in Oracle Database 10g collects- Time model statistics Object statistics Session and system statistics in v$sesstat and v$sysstat Optimizer statistics

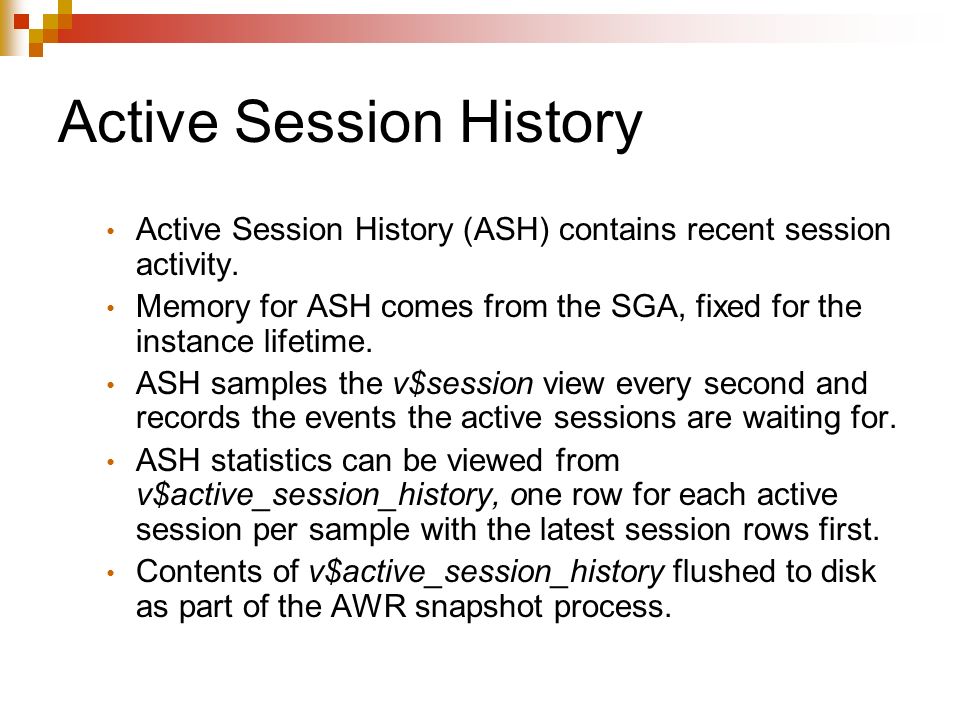

10. Active Session History Active Session History (ASH) contains recent session activity. Memory for ASH comes from the SGA, fixed for the instance lifetime. ASH samples the v$session view every second and records the events the active sessions are waiting for. ASH statistics can be viewed from v$active_session_history, one row for each active session per sample with the latest session rows first. Contents of v$active_session_history flushed to disk as part of the AWR snapshot process.

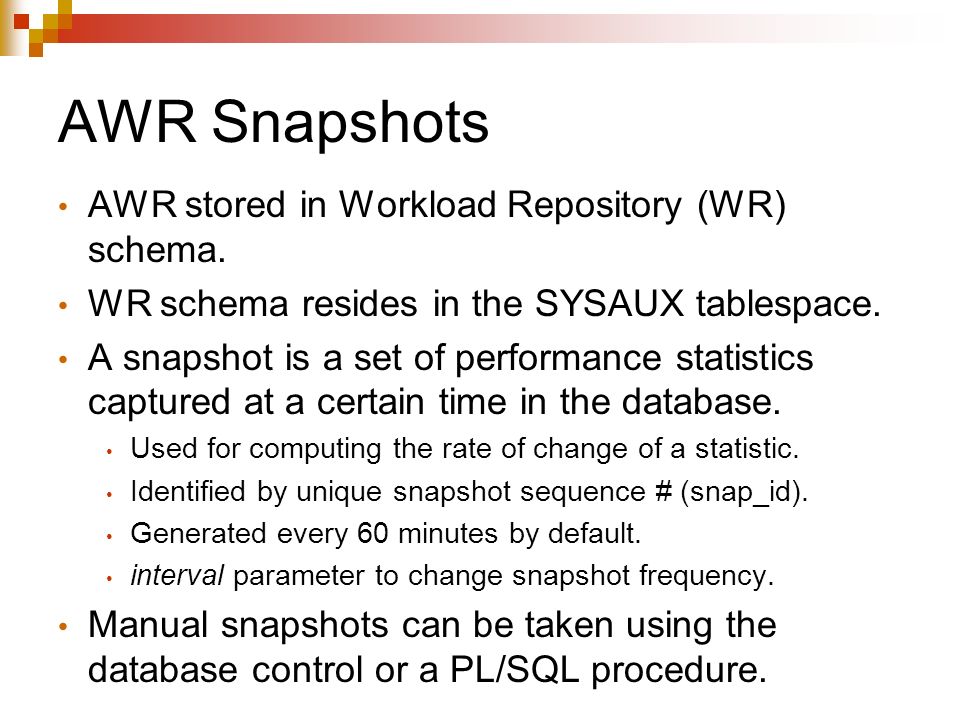

11. AWR Snapshots AWR stored in Workload Repository (WR) schema. WR schema resides in the SYSAUX tablespace. A snapshot is a set of performance statistics captured at a certain time in the database. Used for computing the rate of change of a statistic. Identified by unique snapshot sequence # (snap_id). Generated every 60 minutes by default. interval parameter to change snapshot frequency. Manual snapshots can be taken using the database control or a PL/SQL procedure.

12. Metrics and Thresholds Metrics are a set of statistics for certain system attributes. Calculated and stored by the Automatic Workload Repository (AWR). Results displayed in Enterprise Manager through the All Metrics page under Related Links on the Database Home page. Thresholds are the boundary values against which the metric values are compared.

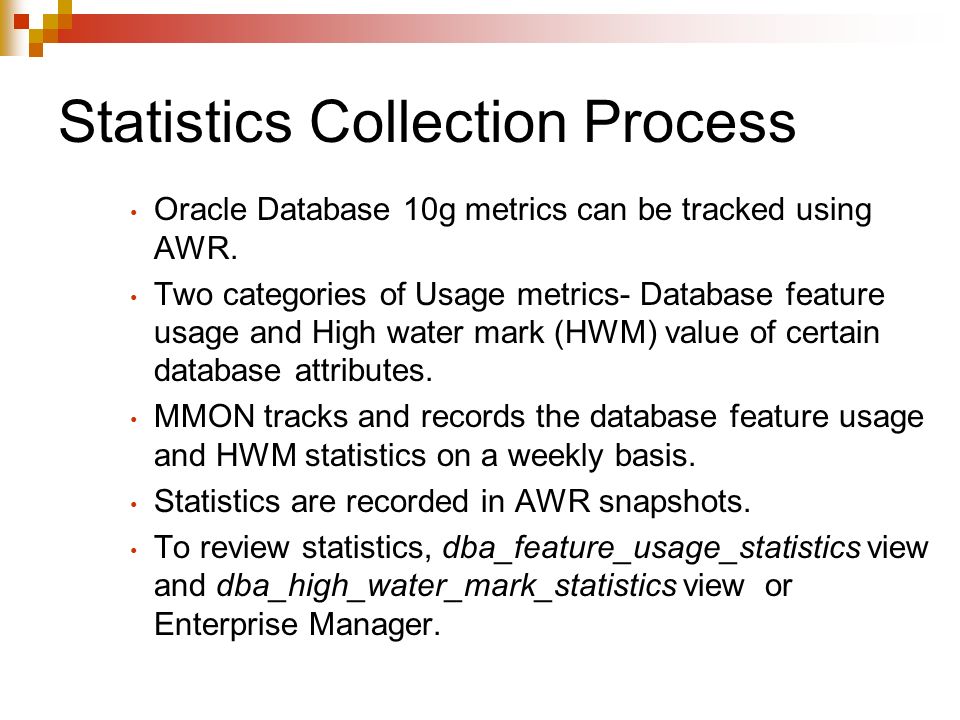

13. Statistics Collection Process Oracle Database 10g metrics can be tracked using AWR. Two categories of Usage metrics- Database feature usage and High water mark (HWM) value of certain database attributes. MMON tracks and records the database feature usage and HWM statistics on a weekly basis. Statistics are recorded in AWR snapshots. To review statistics, dba_feature_usage_statistics view and dba_high_water_mark_statistics view or Enterprise Manager.

14. How to use AWR reports? AWR reports are generated using awrrpt.sql, awrrpti.sql, awrddrpt.sql, and awrddrpi.sql in $ORACLE_HOME/rdbms/admin directory. Reports as html pages or text reports.  awrrpt.sql - all available AWR snapshots.  awrrpti.sql - statistics for a range of snapshot ids on a specified database and instance  awrddrpt.sql - statistics of a particular SQL statement for a range of snapshot ids.  awrddrpi.sql - statistics of a SQL statement for a range of snapshot ids on a specified database and instance.

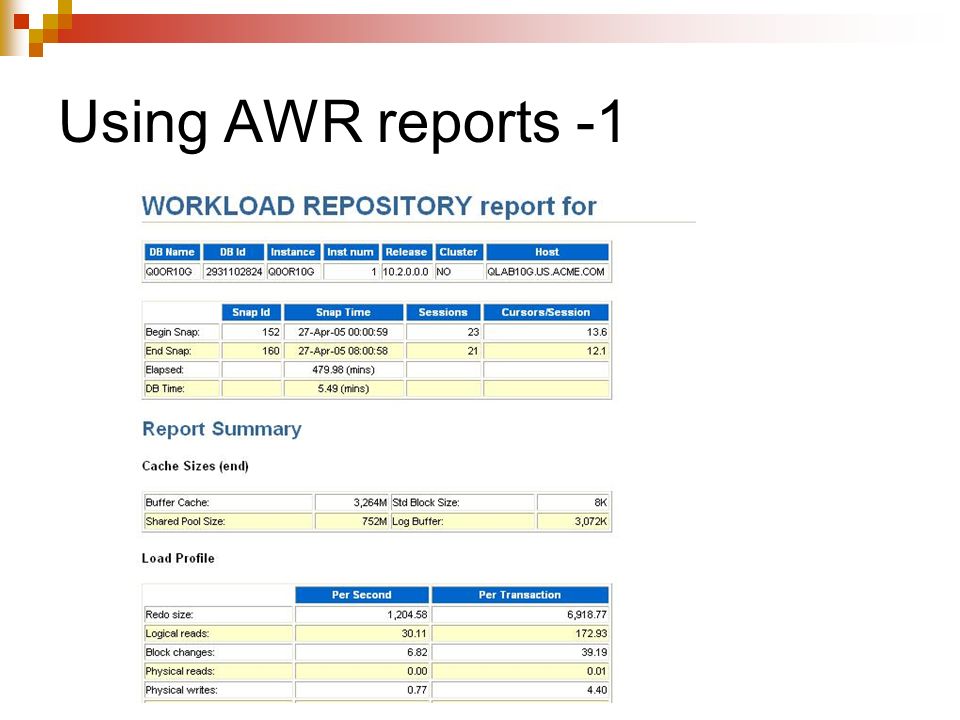

15. Using AWR reports -1

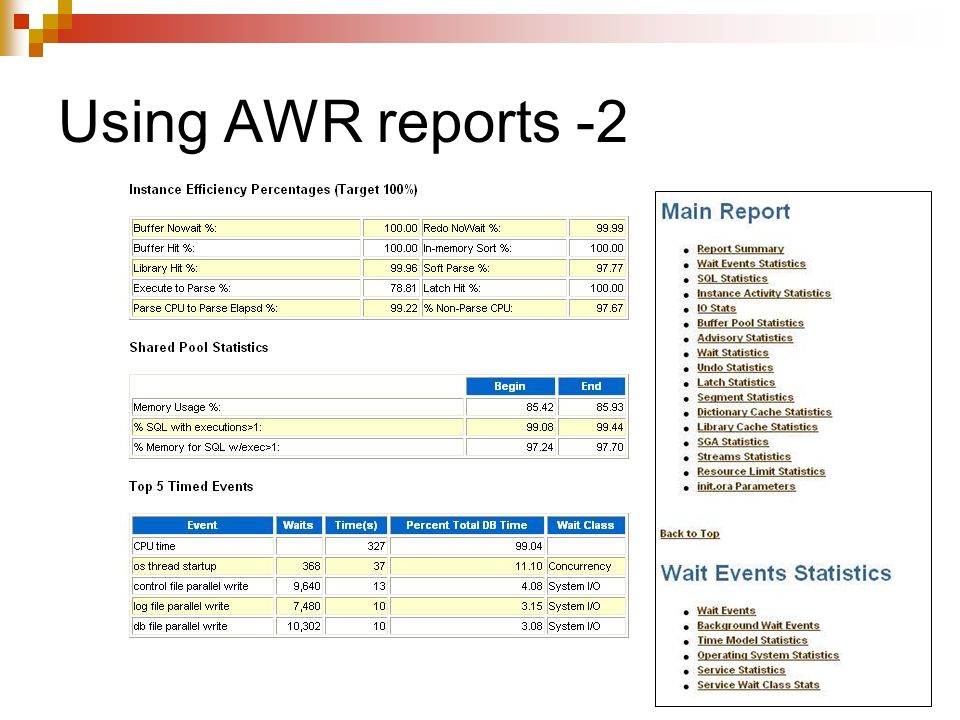

16. Using AWR reports -2

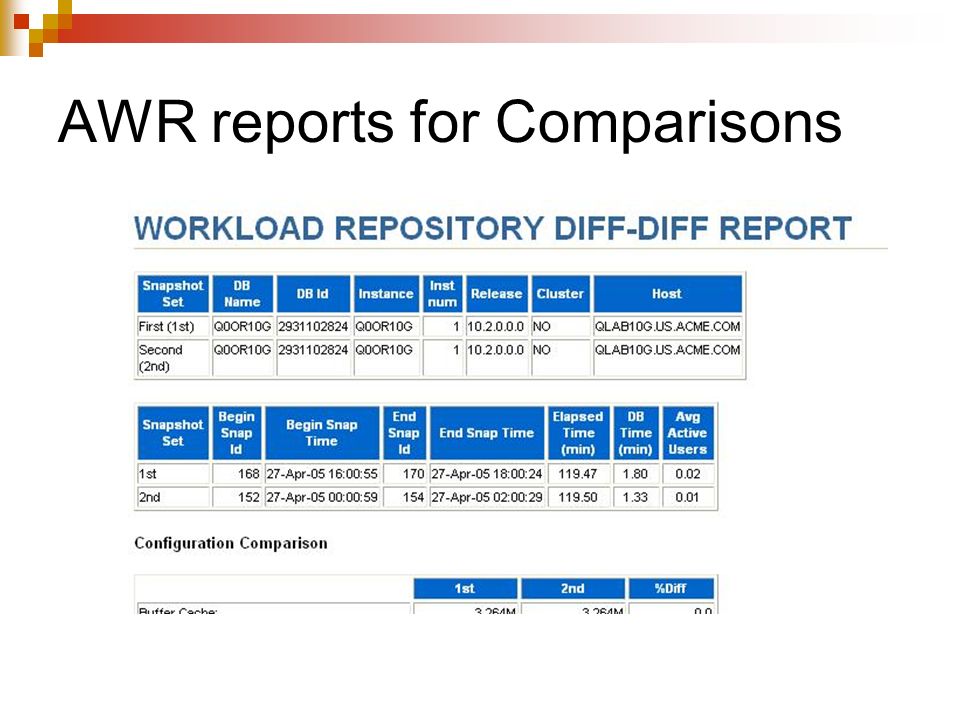

17. AWR reports for Comparisons

18. Advisory Framework Oracle Database 10g has server components called advisors to provide feedback about resource utilization and performance.  Automatic Database Diagnostic Monitor (ADDM)  SQL Tuning Advisor, SQL Access Advisor  SGA Advisor, PGA Advisor  Buffer Cache Advisor, Library Cache Advisor  Segment Advisor  Undo Advisor

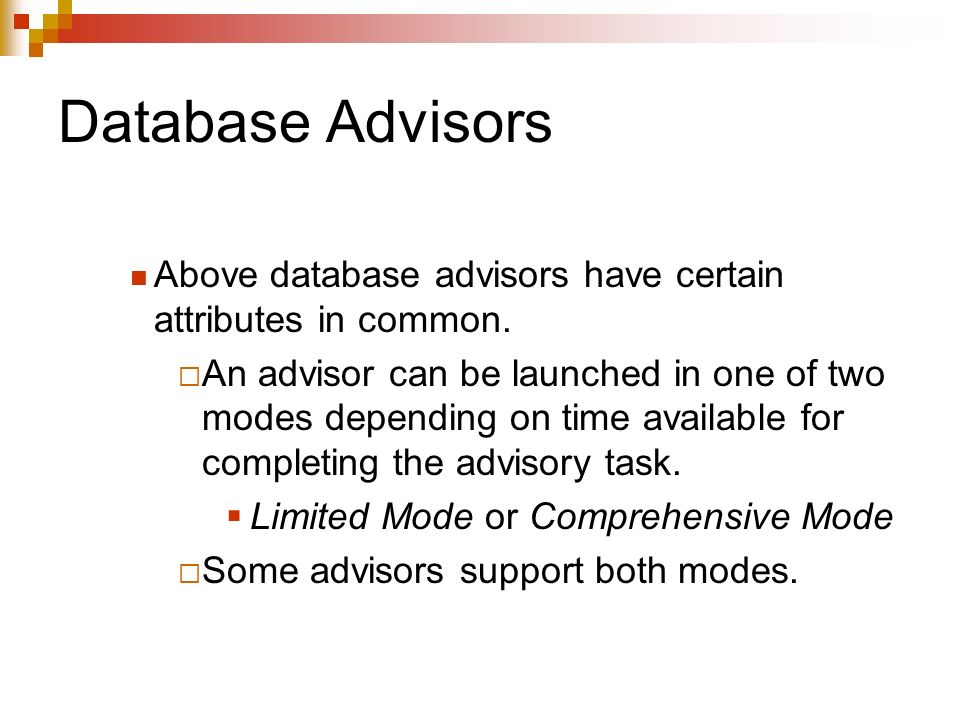

19. Database Advisors Above database advisors have certain attributes in common.  An advisor can be launched in one of two modes depending on time available for completing the advisory task.  Limited Mode or Comprehensive Mode  Some advisors support both modes.

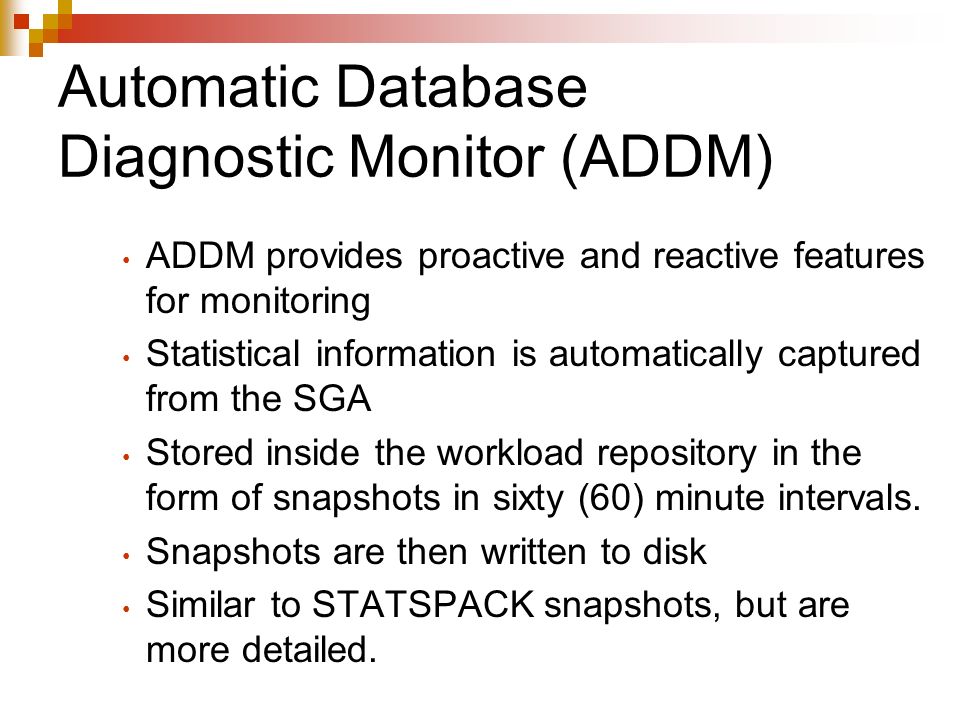

20. Automatic Database Diagnostic Monitor (ADDM) ADDM provides proactive and reactive features for monitoring Statistical information is automatically captured from the SGA Stored inside the workload repository in the form of snapshots in sixty (60) minute intervals. Snapshots are then written to disk Similar to STATSPACK snapshots, but are more detailed.

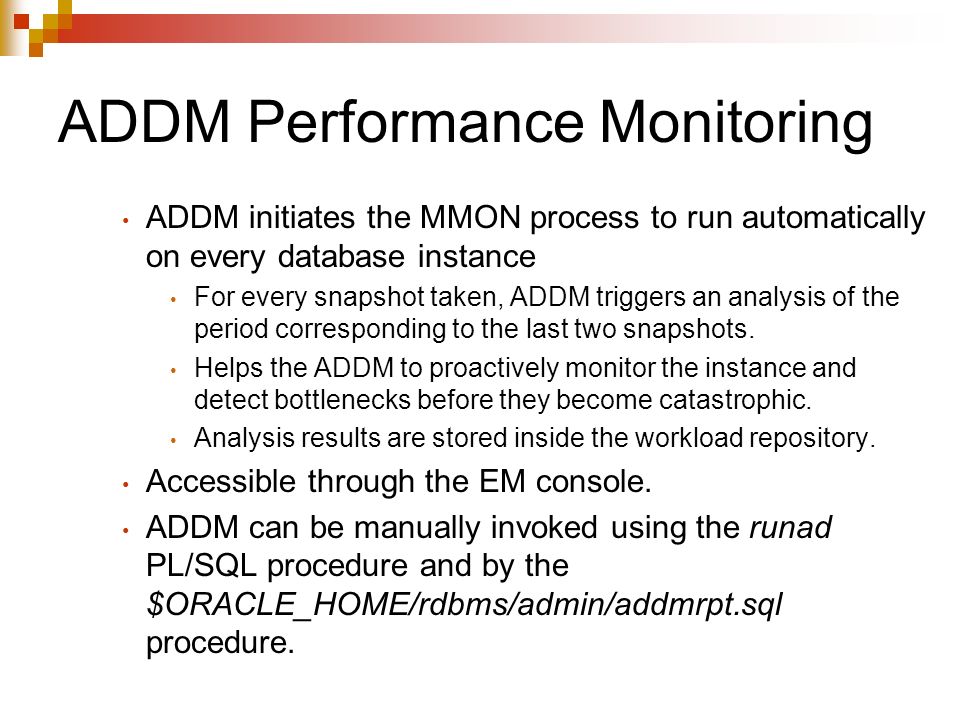

21. ADDM Performance Monitoring ADDM initiates the MMON process to run automatically on every database instance For every snapshot taken, ADDM triggers an analysis of the period corresponding to the last two snapshots. Helps the ADDM to proactively monitor the instance and detect bottlenecks before they become catastrophic. Analysis results are stored inside the workload repository. Accessible through the EM console. ADDM can be manually invoked using the runad PL/SQL procedure and by the $ORACLE_HOME/rdbms/admin/addmrpt.sql procedure.

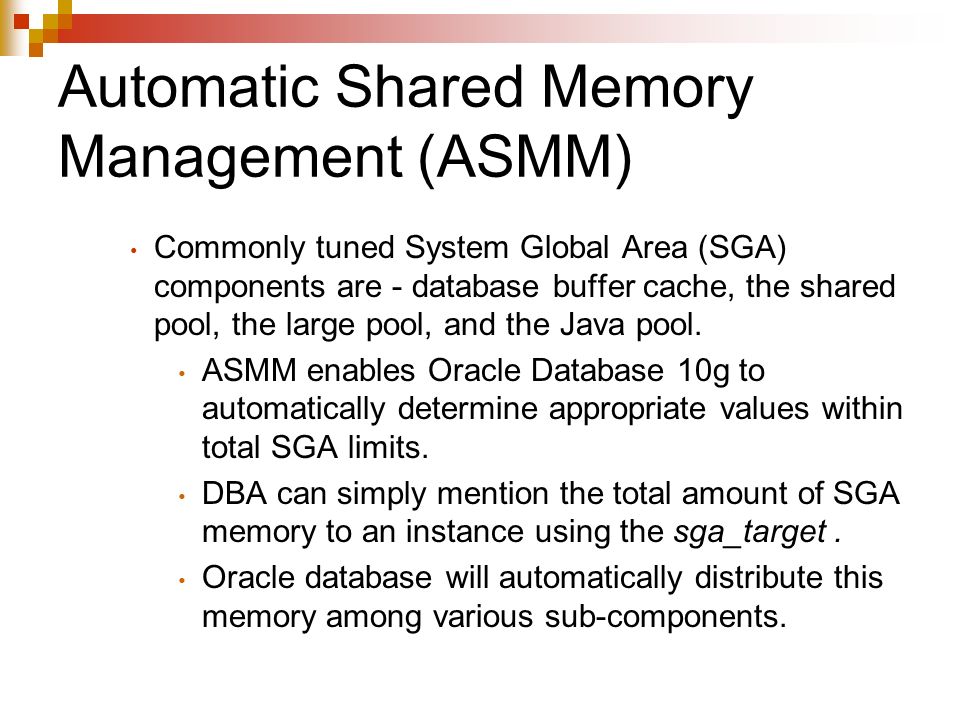

22. Automatic Shared Memory Management (ASMM) Commonly tuned System Global Area (SGA) components are - database buffer cache, the shared pool, the large pool, and the Java pool. ASMM enables Oracle Database 10g to automatically determine appropriate values within total SGA limits. DBA can simply mention the total amount of SGA memory to an instance using the sga_target. Oracle database will automatically distribute this memory among various sub-components.

23. How does ASMM work? With Automatic SGA memory management enabled, the sizes of different components are flexible to resize to the needs of the workload without additional intervention. The internal tuning algorithm monitors the workload performance & increases the shared pool as needed to reduce the number of parses. ASMM uses a new Memory Manager (MMAN) background process. Coordinates the sizing of the memory components, acts as a memory broker. Tracks all memory components & pending resize operations.

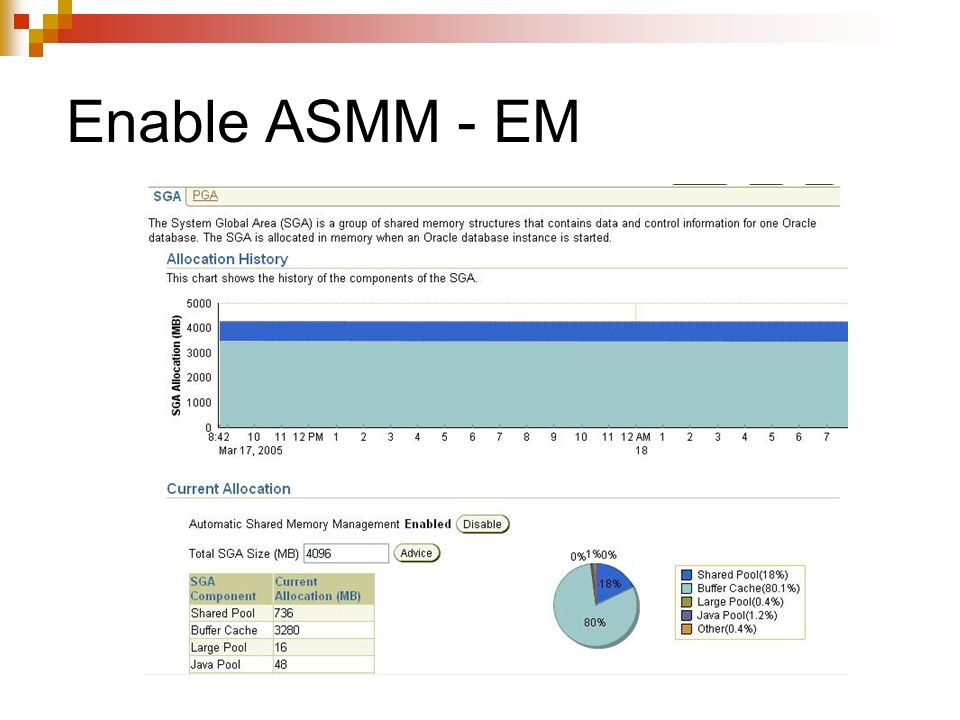

24. Enable ASMM - EM

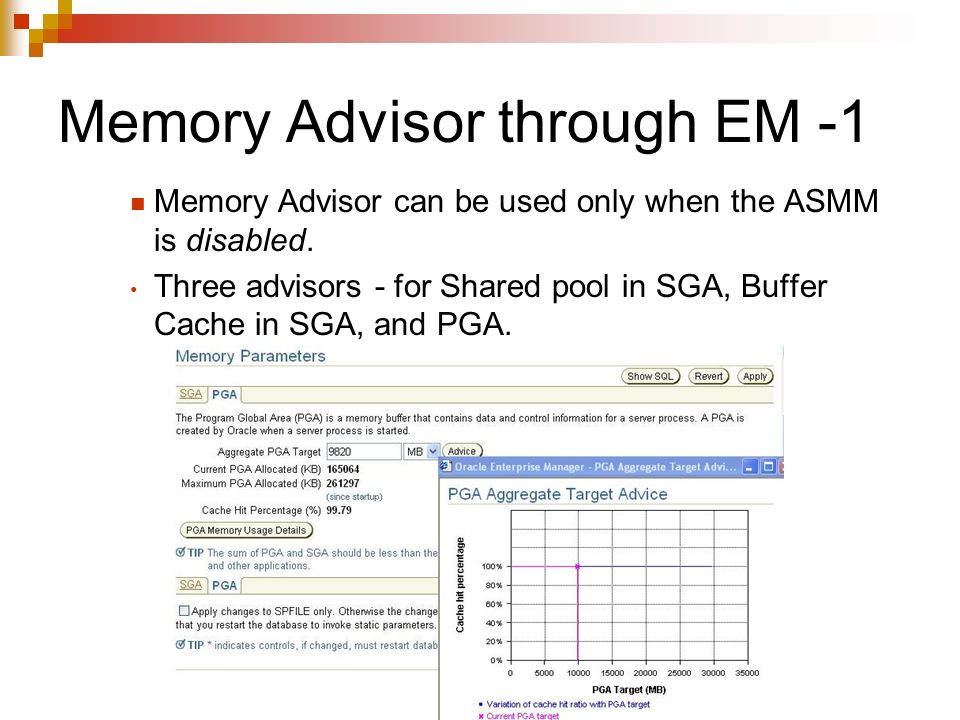

25. Memory Advisor through EM -1 Memory Advisor can be used only when the ASMM is disabled. Three advisors - for Shared pool in SGA, Buffer Cache in SGA, and PGA.

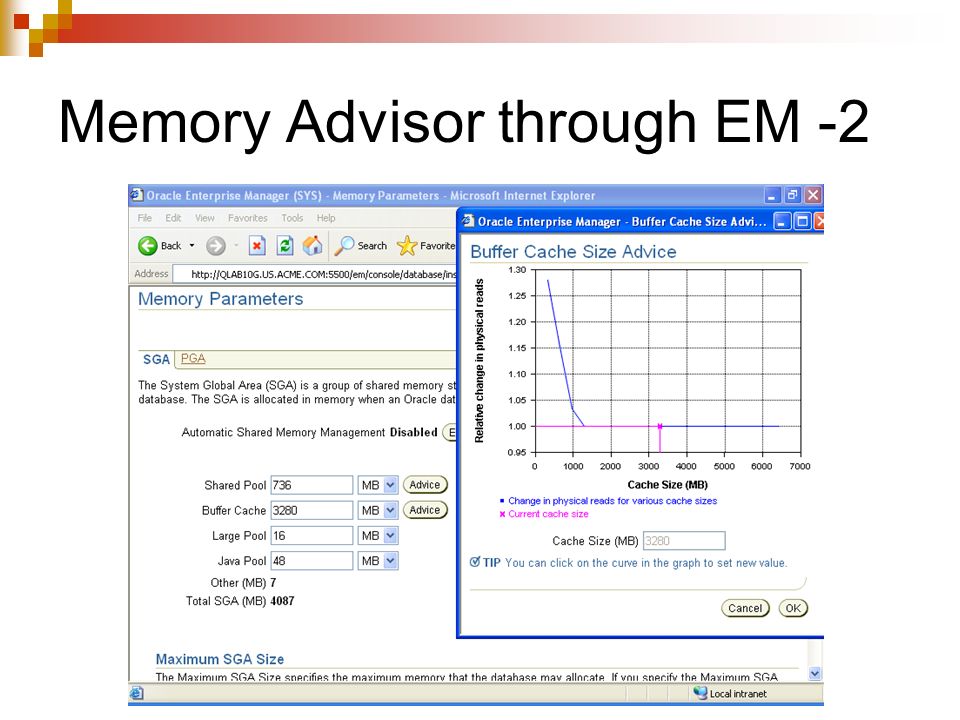

26. Memory Advisor through EM -2

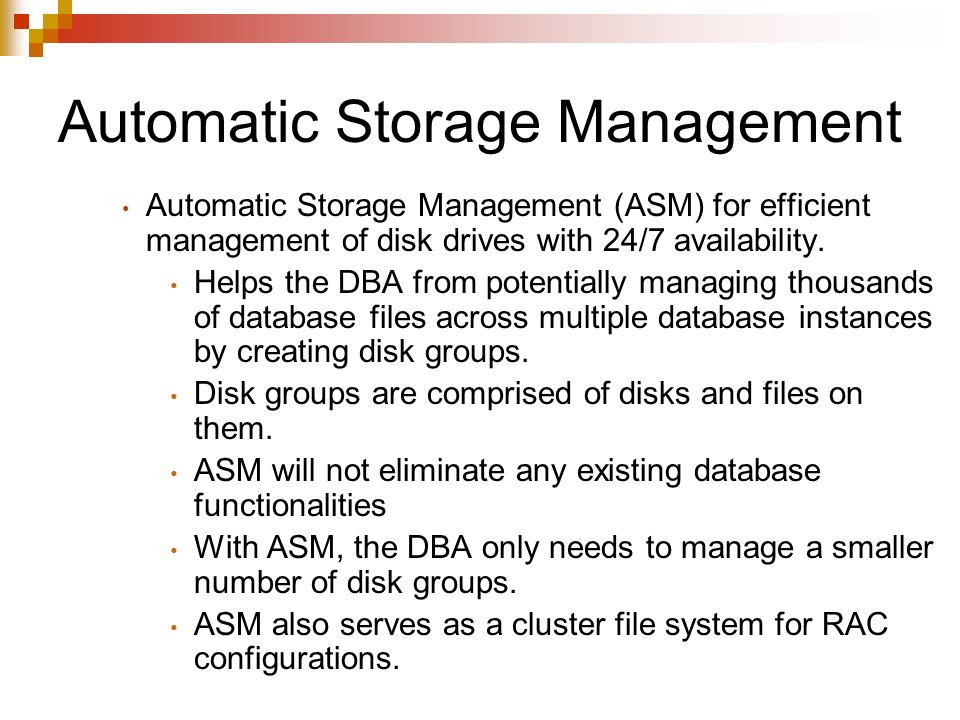

27. Automatic Storage Management Automatic Storage Management (ASM) for efficient management of disk drives with 24/7 availability. Helps the DBA from potentially managing thousands of database files across multiple database instances by creating disk groups. Disk groups are comprised of disks and files on them. ASM will not eliminate any existing database functionalities With ASM, the DBA only needs to manage a smaller number of disk groups. ASM also serves as a cluster file system for RAC configurations.

28. ASM Advantages In a nutshell, we can have a mixture of ASM files; Oracle managed files and manually managed files Existing files can be migrated to ASM if needed. ASM prevents accidental file deletion by eliminating the file system interface. Provides raw disk I/O performance for all files, striping them across multiple storage arrays. Reduces the cost of managing storage with a clustered volume manager and integrated file system functionality.

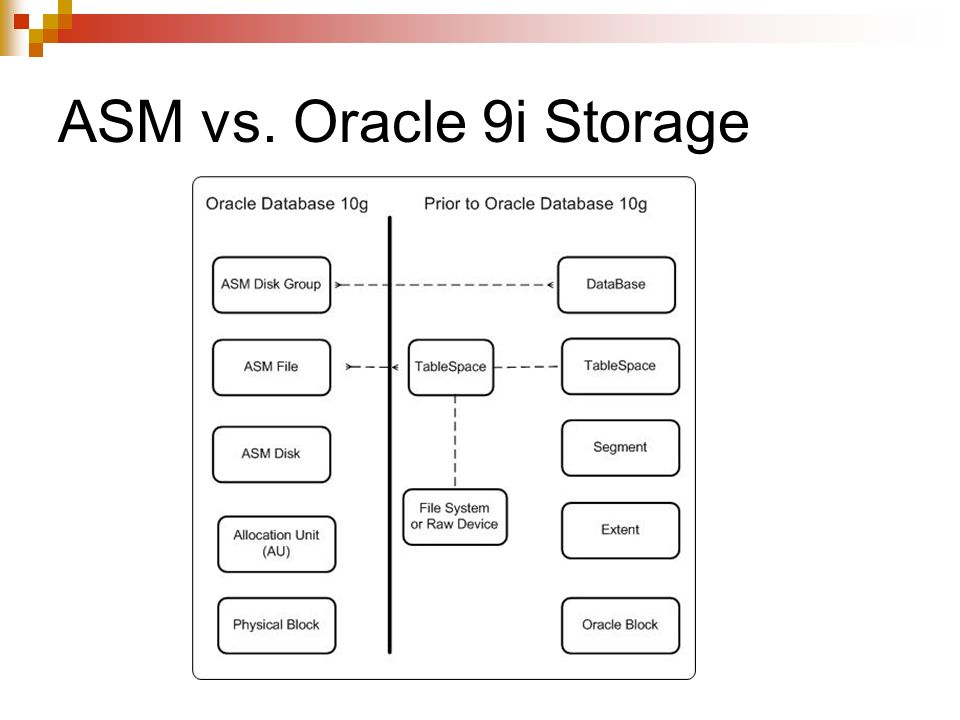

29. ASM vs. Oracle 9i Storage

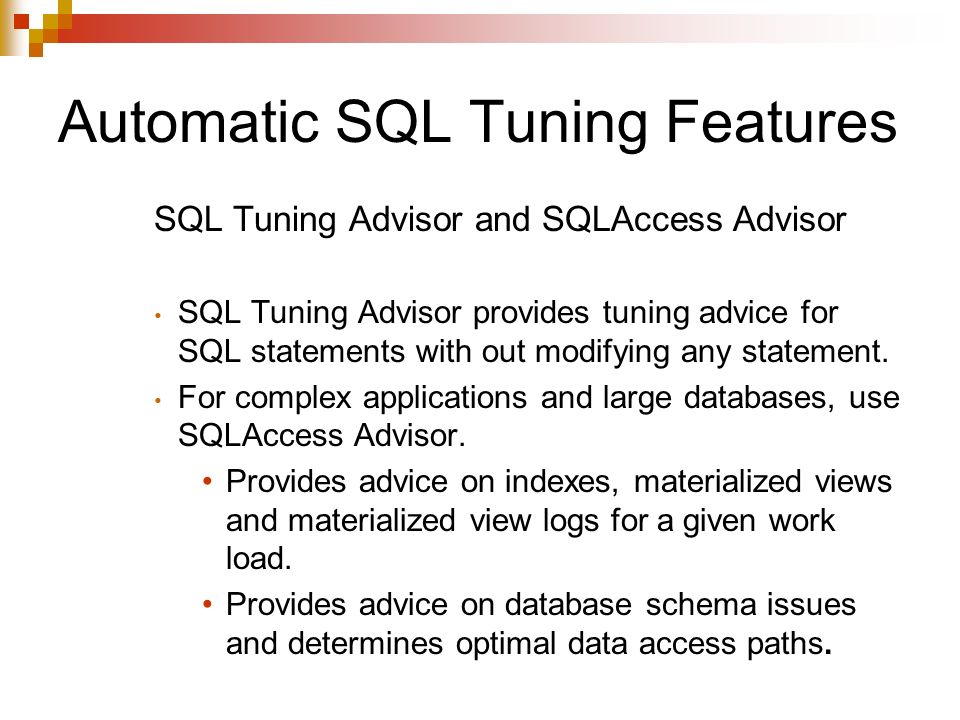

30. Automatic SQL Tuning Features SQL Tuning Advisor and SQLAccess Advisor SQL Tuning Advisor provides tuning advice for SQL statements with out modifying any statement. For complex applications and large databases, use SQLAccess Advisor. Provides advice on indexes, materialized views and materialized view logs for a given work load. Provides advice on database schema issues and determines optimal data access paths.

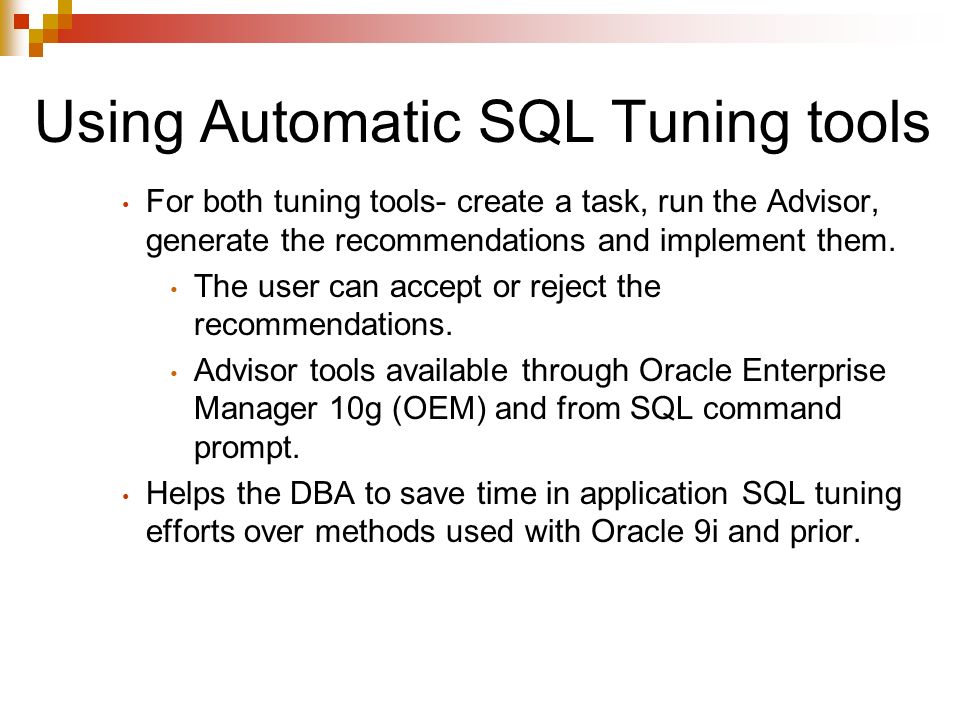

31. Using Automatic SQL Tuning tools For both tuning tools- create a task, run the Advisor, generate the recommendations and implement them. The user can accept or reject the recommendations. Advisor tools available through Oracle Enterprise Manager 10g (OEM) and from SQL command prompt. Helps the DBA to save time in application SQL tuning efforts over methods used with Oracle 9i and prior.

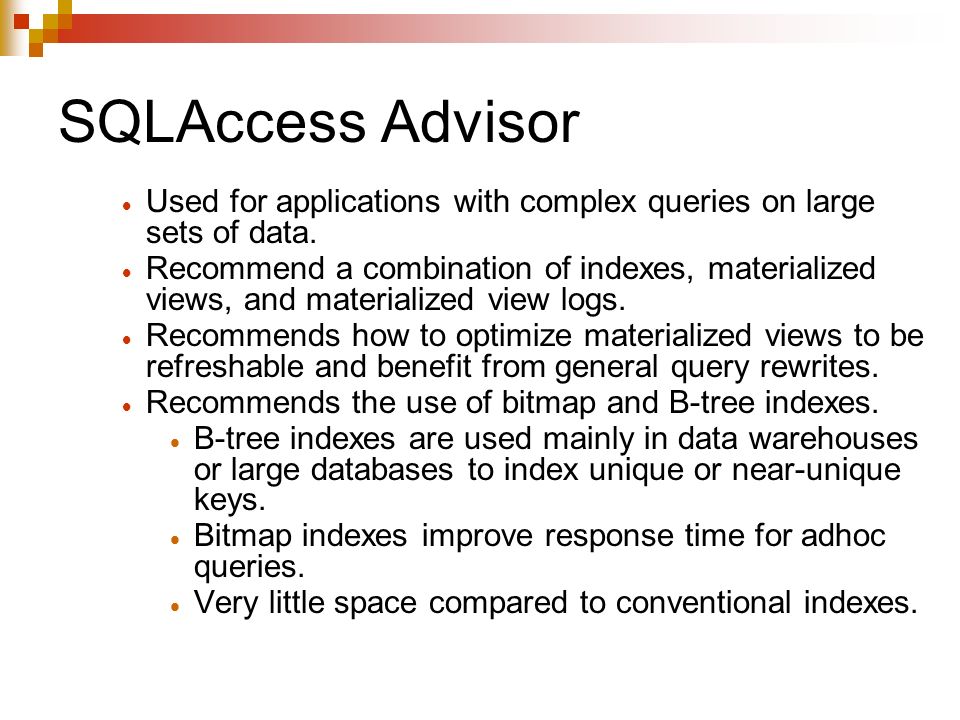

32. SQLAccess Advisor  Used for applications with complex queries on large sets of data.  Recommend a combination of indexes, materialized views, and materialized view logs.  Recommends how to optimize materialized views to be refreshable and benefit from general query rewrites.  Recommends the use of bitmap and B-tree indexes.  B-tree indexes are used mainly in data warehouses or large databases to index unique or near-unique keys.  Bitmap indexes improve response time for adhoc queries.  Very little space compared to conventional indexes.

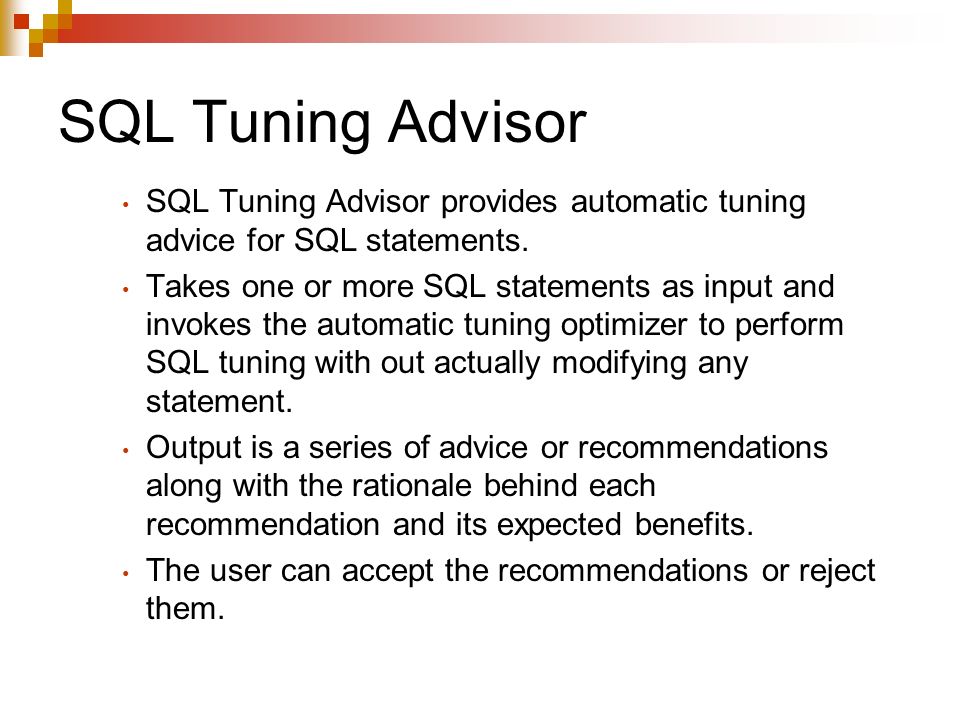

33. SQL Tuning Advisor SQL Tuning Advisor provides automatic tuning advice for SQL statements. Takes one or more SQL statements as input and invokes the automatic tuning optimizer to perform SQL tuning with out actually modifying any statement. Output is a series of advice or recommendations along with the rationale behind each recommendation and its expected benefits. The user can accept the recommendations or reject them.

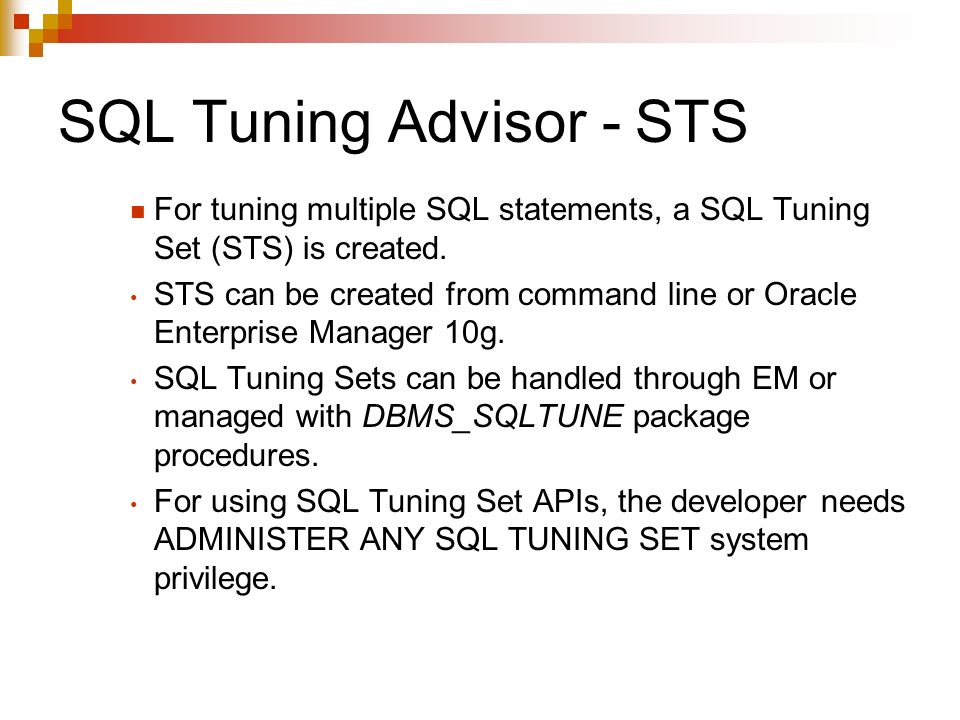

34. SQL Tuning Advisor - STS For tuning multiple SQL statements, a SQL Tuning Set (STS) is created. STS can be created from command line or Oracle Enterprise Manager 10g. SQL Tuning Sets can be handled through EM or managed with DBMS_SQLTUNE package procedures. For using SQL Tuning Set APIs, the developer needs ADMINISTER ANY SQL TUNING SET system privilege.

35. Controlling a Tuning Task Control the scope and duration of a tuning task Scope of the task -limited or comprehensive. With the limited option, the SQL Tuning Advisor produces recommendations based on analysis of statistics, access paths, and SQL structure. SQL Profile recommendations are not generated. With comprehensive option, the SQL Tuning Advisor does everything under limited scope and SQL profiling. User can also set the time limit of a tuning task (default value 30 minutes).

36. Deploying SQL Tuning Advisor

37. SQL Tuning Advisor from EM In EM, using Advisor Central- SQL Tuning Advisor link. DBMS_SQLTUNE package by anyone with DBA role and ADVISOR privilege.

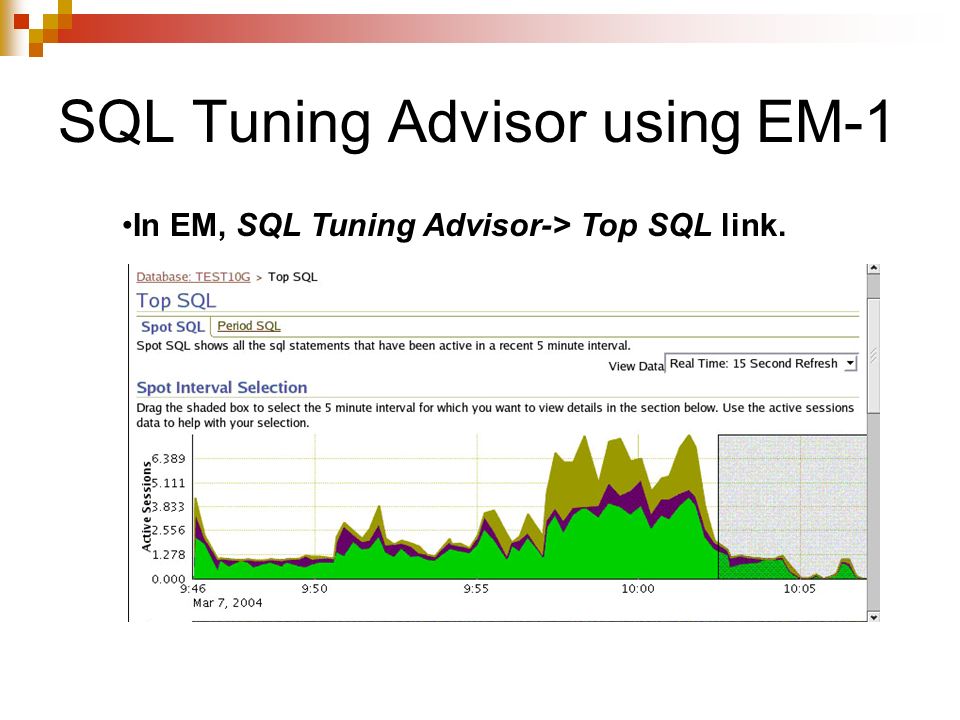

38. SQL Tuning Advisor using EM-1 In EM, SQL Tuning Advisor-> Top SQL link.

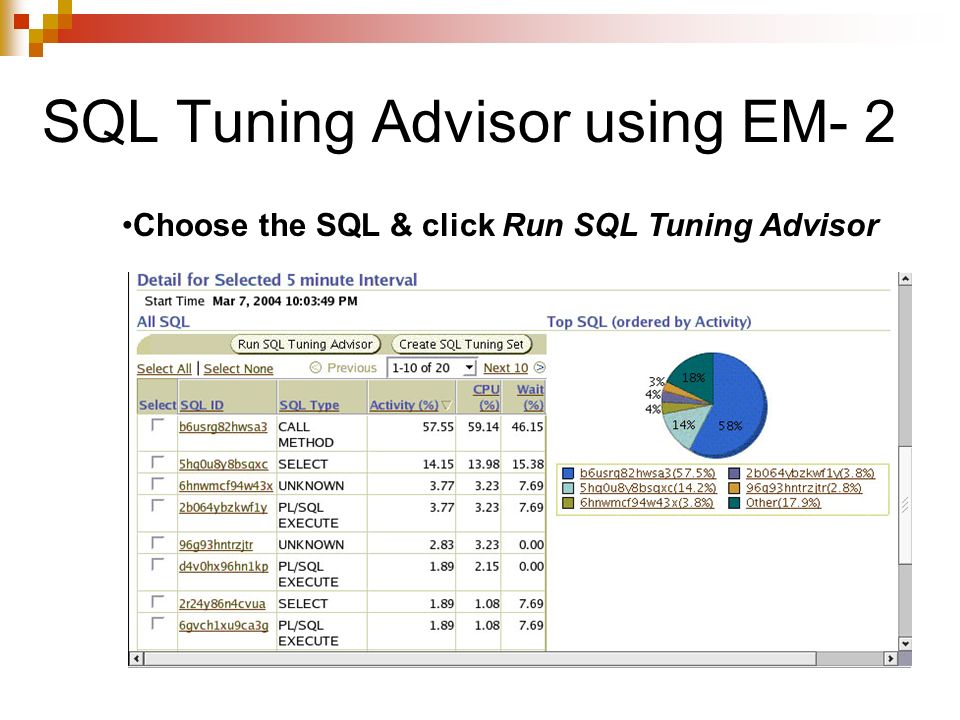

39. SQL Tuning Advisor using EM- 2 Choose the SQL & click Run SQL Tuning Advisor

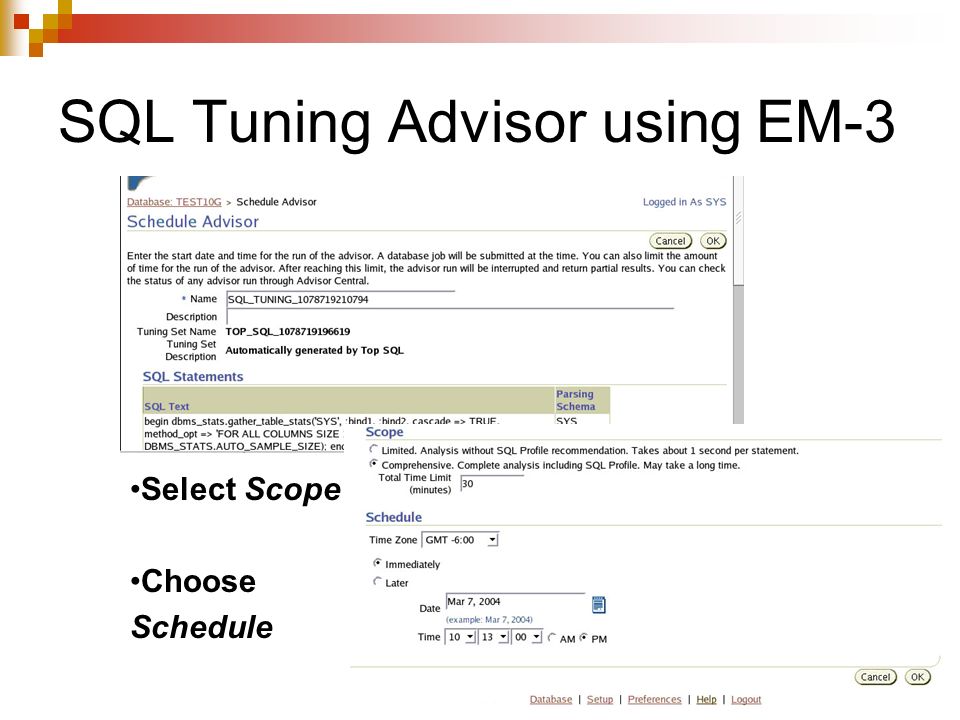

40. SQL Tuning Advisor using EM-3 Select Scope Choose Schedule

41. SQL Tuning Advisor using EM-4 When the SQL Tuning task’s status is COMPLETED, select the task and click View Recommendations.

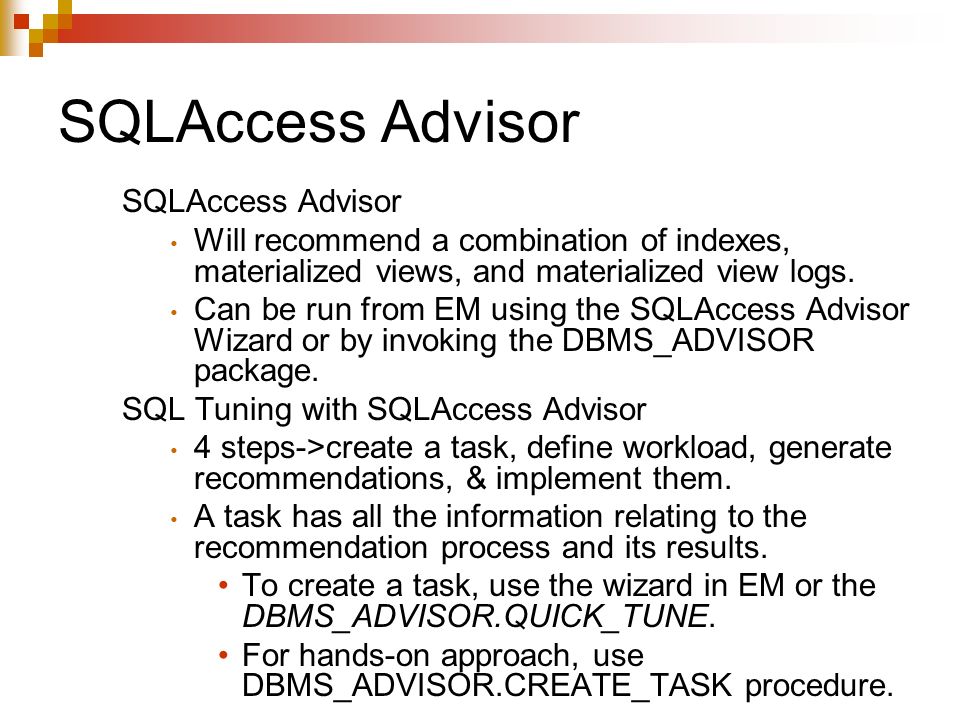

42. SQLAccess Advisor Will recommend a combination of indexes, materialized views, and materialized view logs. Can be run from EM using the SQLAccess Advisor Wizard or by invoking the DBMS_ADVISOR package. SQL Tuning with SQLAccess Advisor 4 steps->create a task, define workload, generate recommendations, & implement them. A task has all the information relating to the recommendation process and its results. To create a task, use the wizard in EM or the DBMS_ADVISOR.QUICK_TUNE. For hands-on approach, use DBMS_ADVISOR.CREATE_TASK procedure.

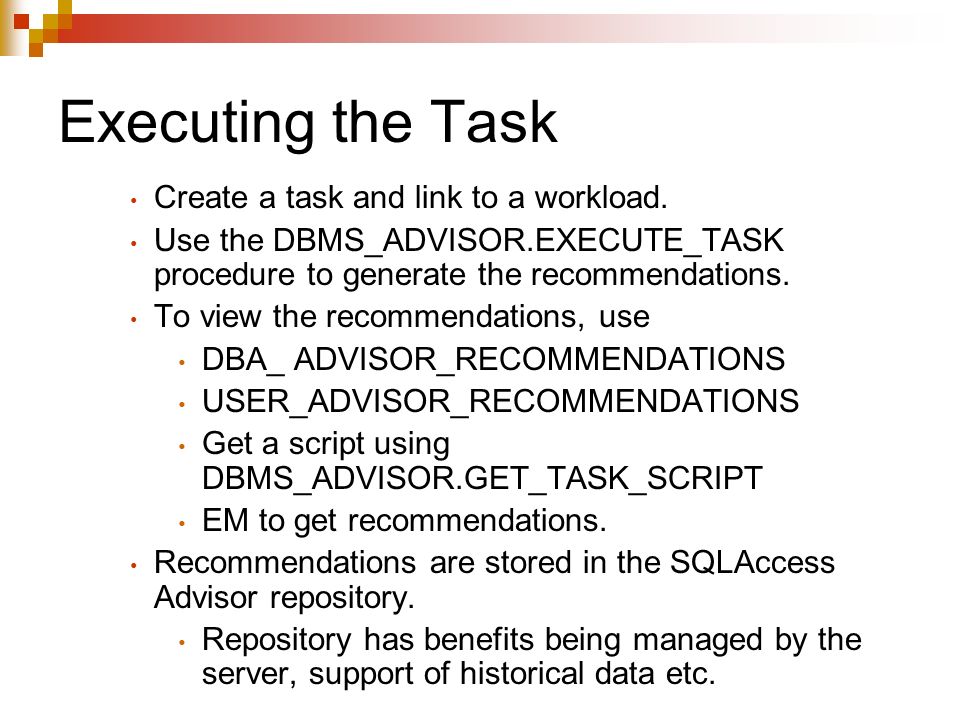

43. Executing the Task Create a task and link to a workload. Use the DBMS_ADVISOR.EXECUTE_TASK procedure to generate the recommendations. To view the recommendations, use DBA_ ADVISOR_RECOMMENDATIONS USER_ADVISOR_RECOMMENDATIONS Get a script using DBMS_ADVISOR.GET_TASK_SCRIPT EM to get recommendations. Recommendations are stored in the SQLAccess Advisor repository. Repository has benefits being managed by the server, support of historical data etc.

44. Implementing SQLAccess Advisor Recommendations SQL Access Advisor creates a set of recommendations. Lets the user decide whether to implement all of its recommendations, or some, or none. In EM - Select the required recommendations. You are given a choice on how to implement the recommendations. Schedule a job in the EM to execute the script and implement the recommendations. For do-it-yourself DBAs SQLAccess Advisor generates a SQL script to be used any time. DBA can edit SQL, naming conventions etc.

45. Advisor Task Implementation-EM-1

46. Advisor Task Implementation-EM-2

47. Advisor Task Implementation-EM-3

48. Advisor Task Implementation-EM-4

49. Deploying SQLAccess Advisor

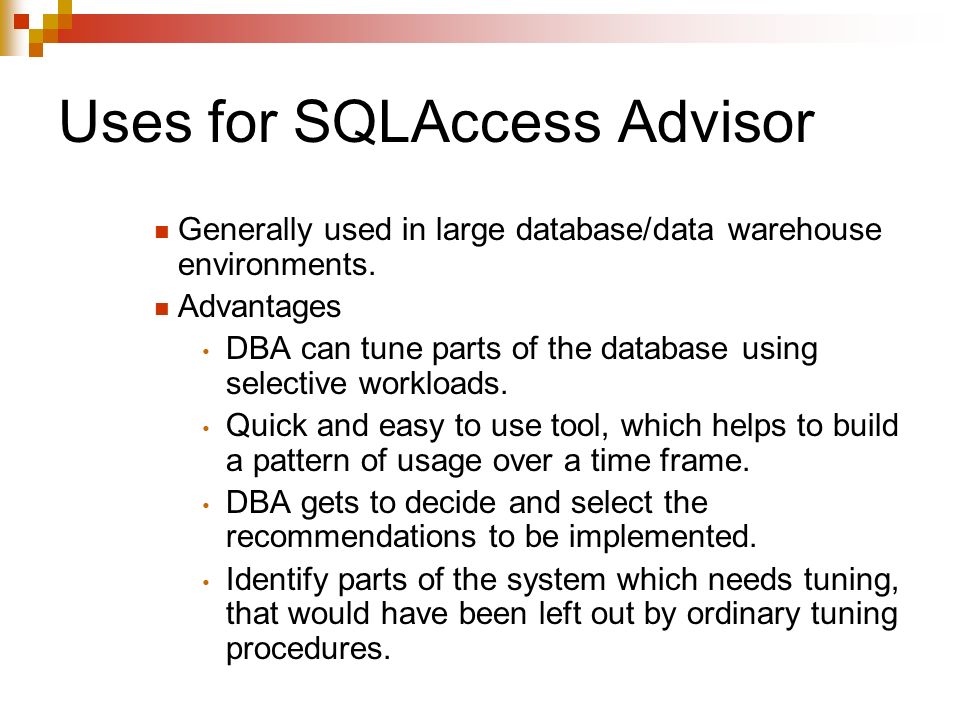

50. Uses for SQLAccess Advisor Generally used in large database/data warehouse environments. Advantages DBA can tune parts of the database using selective workloads. Quick and easy to use tool, which helps to build a pattern of usage over a time frame. DBA gets to decide and select the recommendations to be implemented. Identify parts of the system which needs tuning, that would have been left out by ordinary tuning procedures.

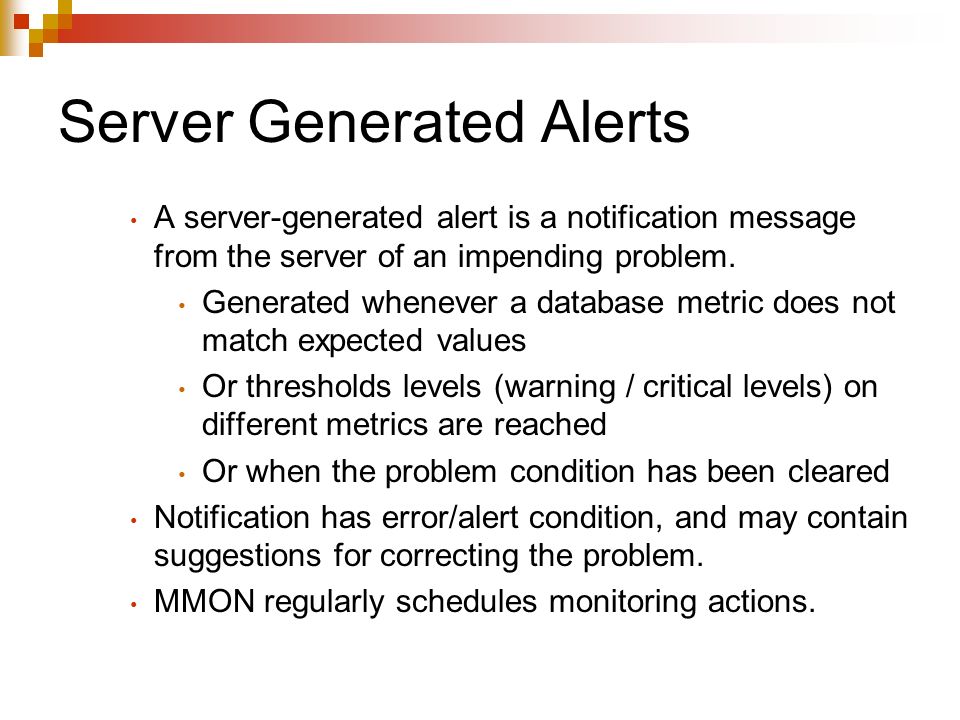

51. Server Generated Alerts A server-generated alert is a notification message from the server of an impending problem. Generated whenever a database metric does not match expected values Or thresholds levels (warning / critical levels) on different metrics are reached Or when the problem condition has been cleared Notification has error/alert condition, and may contain suggestions for correcting the problem. MMON regularly schedules monitoring actions.

52. Server Generated Alerts Threshold levels can be internally set, customer defined, or customer altered from preset values. Threshold alerts (stateful alerts) automatically cleared on fixing the alert condition. Stateful alerts stored in dba_outstanding_alerts and moved to dba_alert_history when cleared. EM can be customized to send these messages to pager or email addresses. A message about the alert written to Oracle Database alert log.

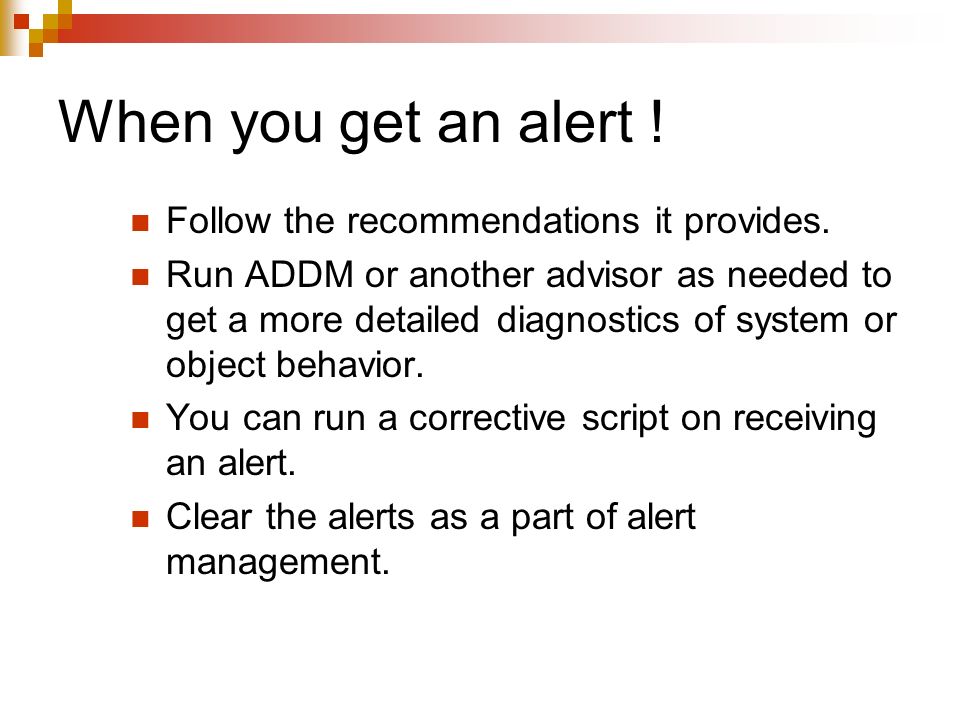

53. When you get an alert ! Follow the recommendations it provides. Run ADDM or another advisor as needed to get a more detailed diagnostics of system or object behavior. You can run a corrective script on receiving an alert. Clear the alerts as a part of alert management.

54. Alerts Management Using EM Alerts can be managed using Oracle Enterprise Manager console. EM can be invoked from a Web browser, from client installation or from the database server itself. Using EM, you can schedule different monitoring jobs to be run on the database or have the database send you an alert for the specified events.

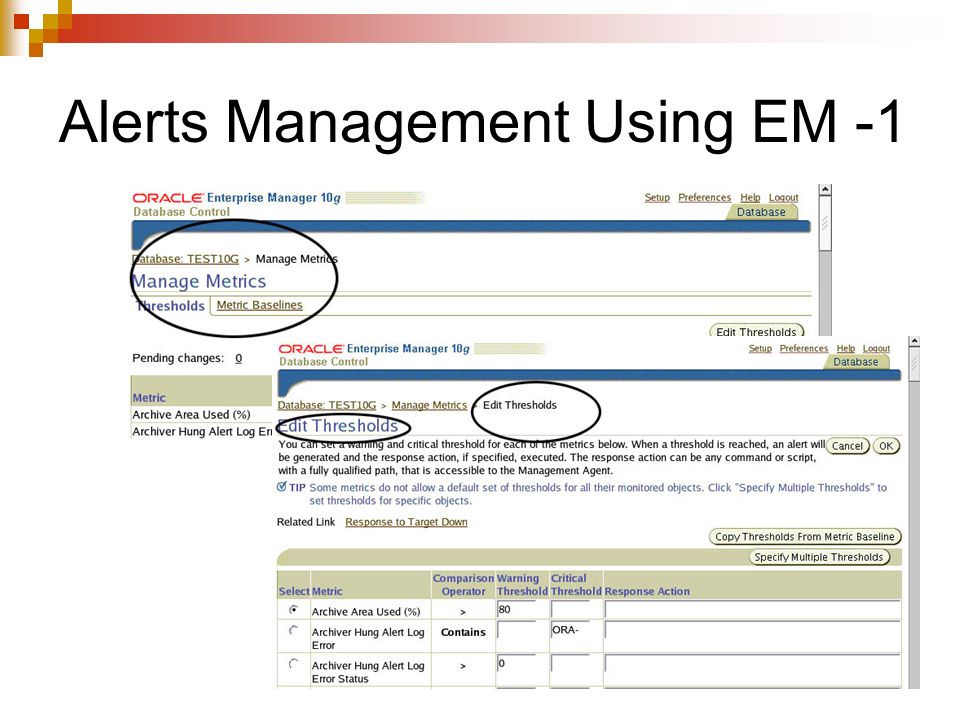

55. Alerts Management Using EM -1

56. Alerts Management Using EM -2

57. Alerts Management Using EM -3

58. Alerts Management Using EM -4

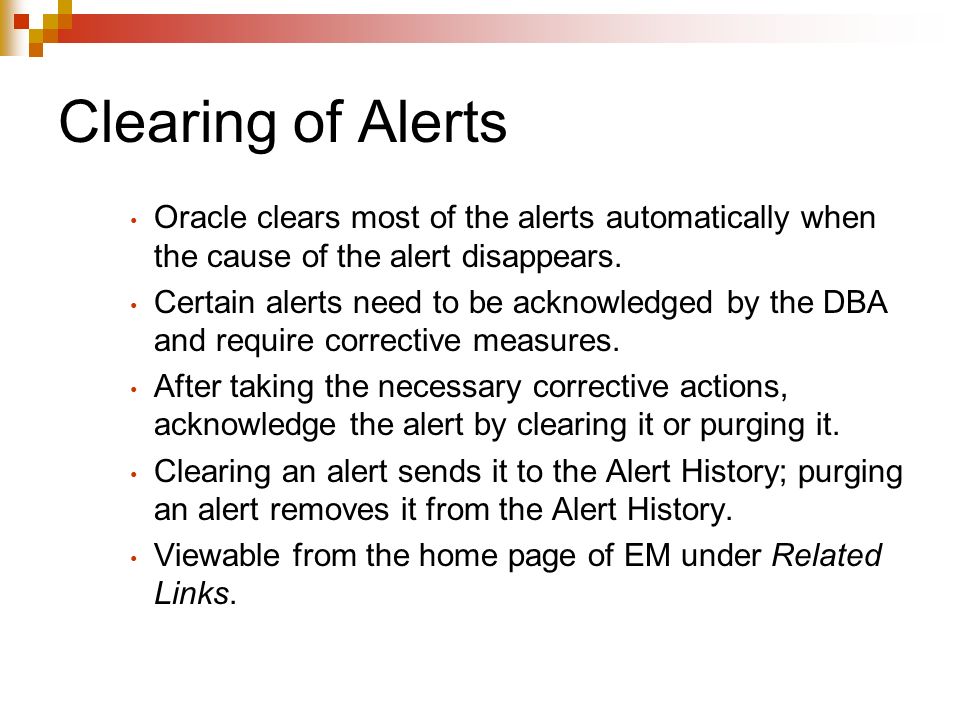

59. Clearing of Alerts Oracle clears most of the alerts automatically when the cause of the alert disappears. Certain alerts need to be acknowledged by the DBA and require corrective measures. After taking the necessary corrective actions, acknowledge the alert by clearing it or purging it. Clearing an alert sends it to the Alert History; purging an alert removes it from the Alert History. Viewable from the home page of EM under Related Links.

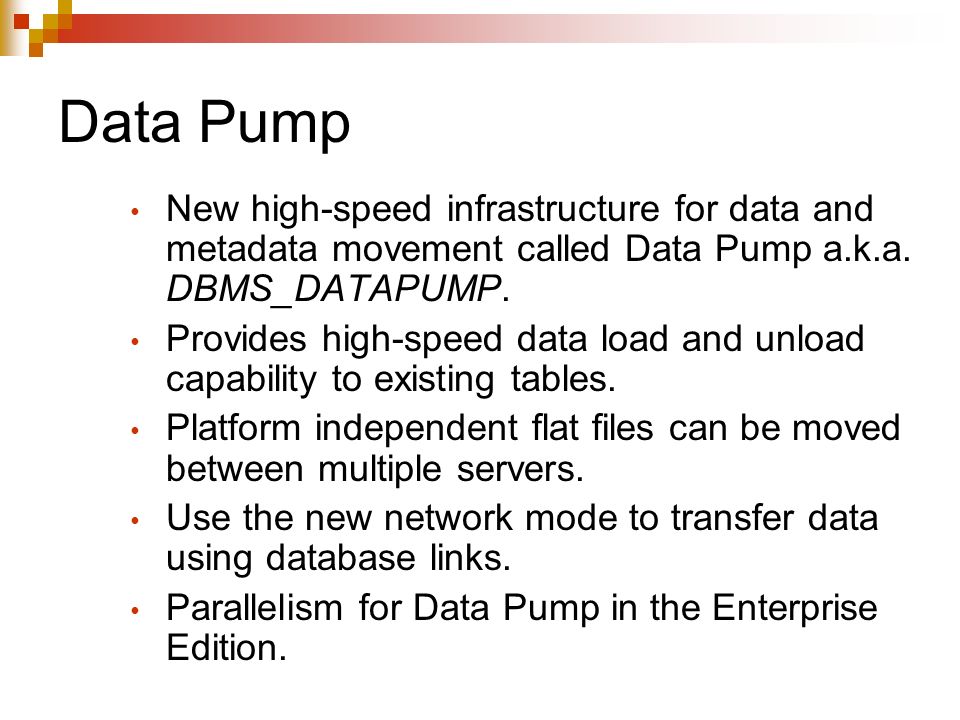

60. Data Pump New high-speed infrastructure for data and metadata movement called Data Pump a.k.a. DBMS_DATAPUMP. Provides high-speed data load and unload capability to existing tables. Platform independent flat files can be moved between multiple servers. Use the new network mode to transfer data using database links. Parallelism for Data Pump in the Enterprise Edition.

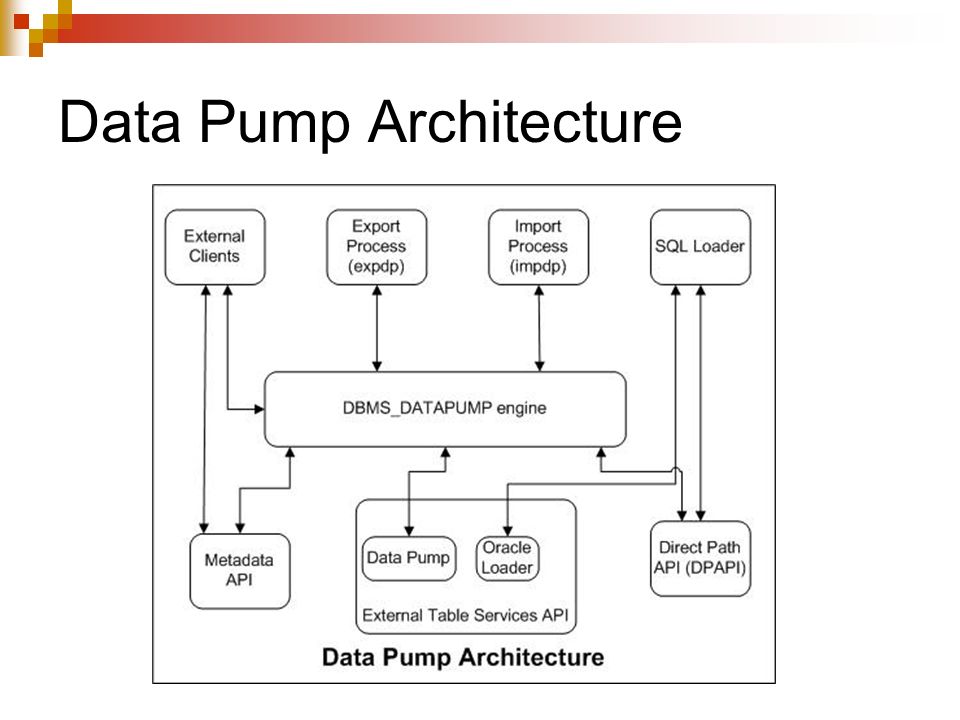

61. Data Pump Architecture

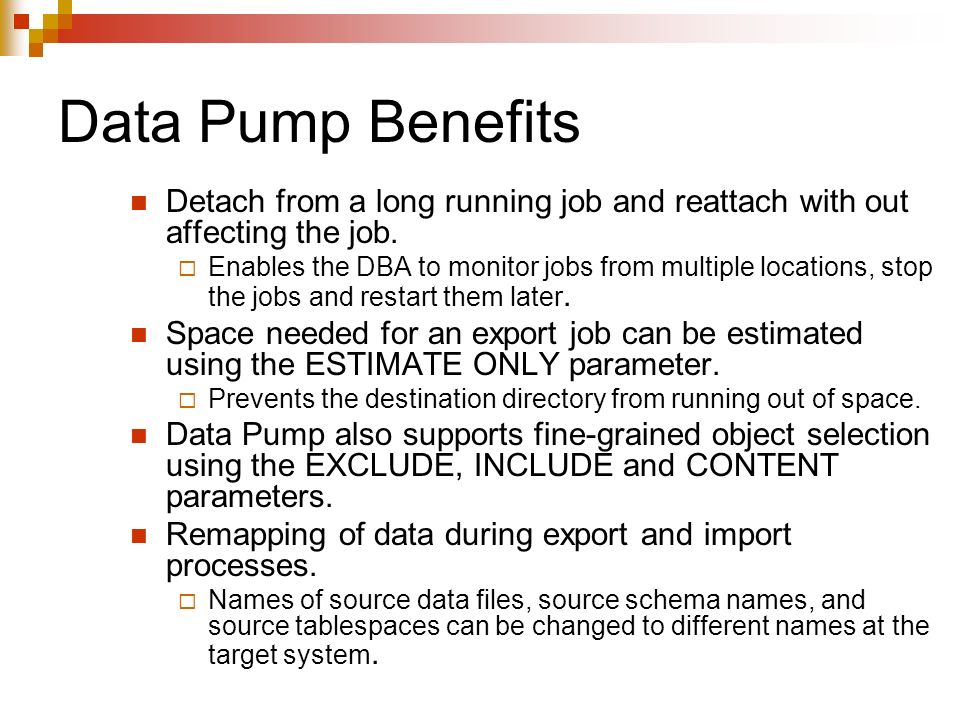

62. Data Pump Benefits Detach from a long running job and reattach with out affecting the job.  Enables the DBA to monitor jobs from multiple locations, stop the jobs and restart them later. Space needed for an export job can be estimated using the ESTIMATE ONLY parameter.  Prevents the destination directory from running out of space. Data Pump also supports fine-grained object selection using the EXCLUDE, INCLUDE and CONTENT parameters. Remapping of data during export and import processes.  Names of source data files, source schema names, and source tablespaces can be changed to different names at the target system.

63. Grid Control A web-based system for managing Oracle products, host systems, and applications. Unified console for monitoring distributed application servers. Application server administrators can use Grid Control to  Check the status and performance of servers.  Manage system and software configurations.  Manage application servers, and availability of applications.

64. Grid Control & Schematic

65. Security Features - Overview Oracle Security features include  Virtual Private Database (VPD)  Fine Grained Auditing (FGA)  Database encryption/decryption  Oracle Label Security & Oracle Identity Management Oracle Advanced Security in Oracle Database 10g Release 2. Combination of network encryption, database encryption and strong authentication

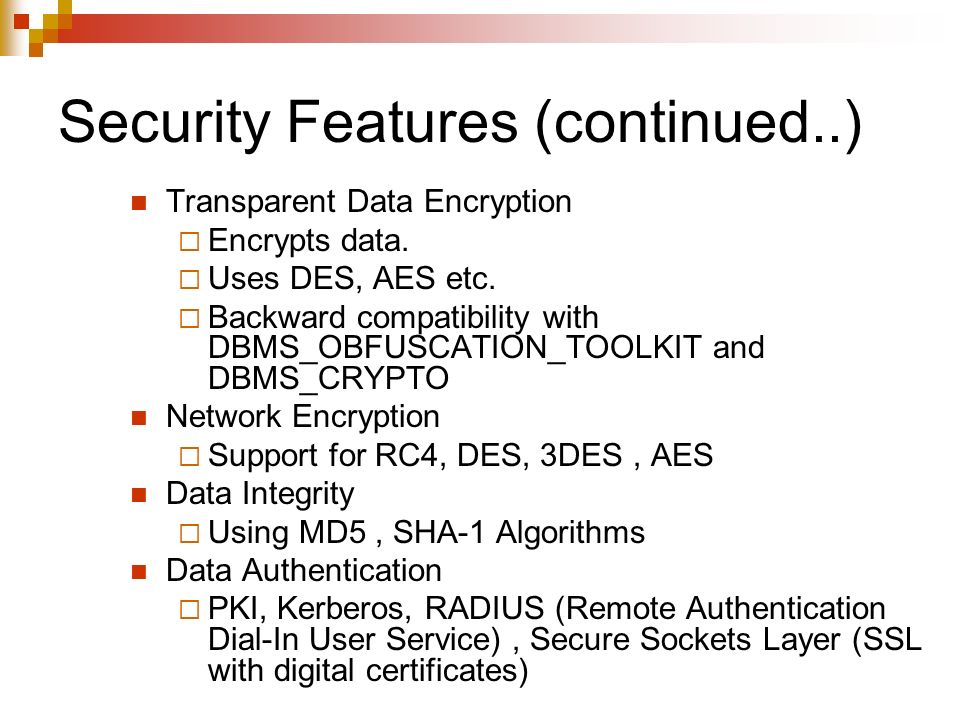

66. Security Features (continued..) Transparent Data Encryption  Encrypts data.  Uses DES, AES etc.  Backward compatibility with DBMS_OBFUSCATION_TOOLKIT and DBMS_CRYPTO Network Encryption  Support for RC4, DES, 3DES, AES Data Integrity  Using MD5, SHA-1 Algorithms Data Authentication  PKI, Kerberos, RADIUS (Remote Authentication Dial-In User Service), Secure Sockets Layer (SSL with digital certificates)

67. Recoverability Features Flashback features for quick and efficient recovery from human errors  Flashback Query, Flashback Versions Query – row level  Flashback Transaction Query – transaction level  Flashback Drop, Flashback Table – table level  Flashback Database – database level  Restore Points to guarantee database can be recovered to any pre-set point in time

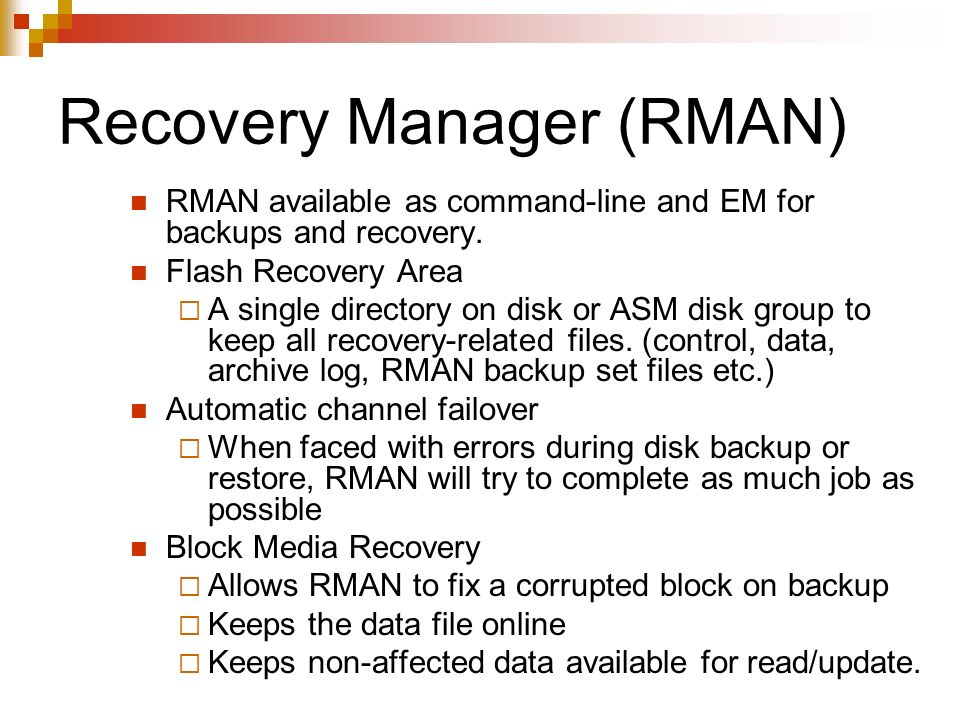

68. Recovery Manager (RMAN) RMAN available as command-line and EM for backups and recovery. Flash Recovery Area  A single directory on disk or ASM disk group to keep all recovery-related files. (control, data, archive log, RMAN backup set files etc.) Automatic channel failover  When faced with errors during disk backup or restore, RMAN will try to complete as much job as possible Block Media Recovery  Allows RMAN to fix a corrupted block on backup  Keeps the data file online  Keeps non-affected data available for read/update.

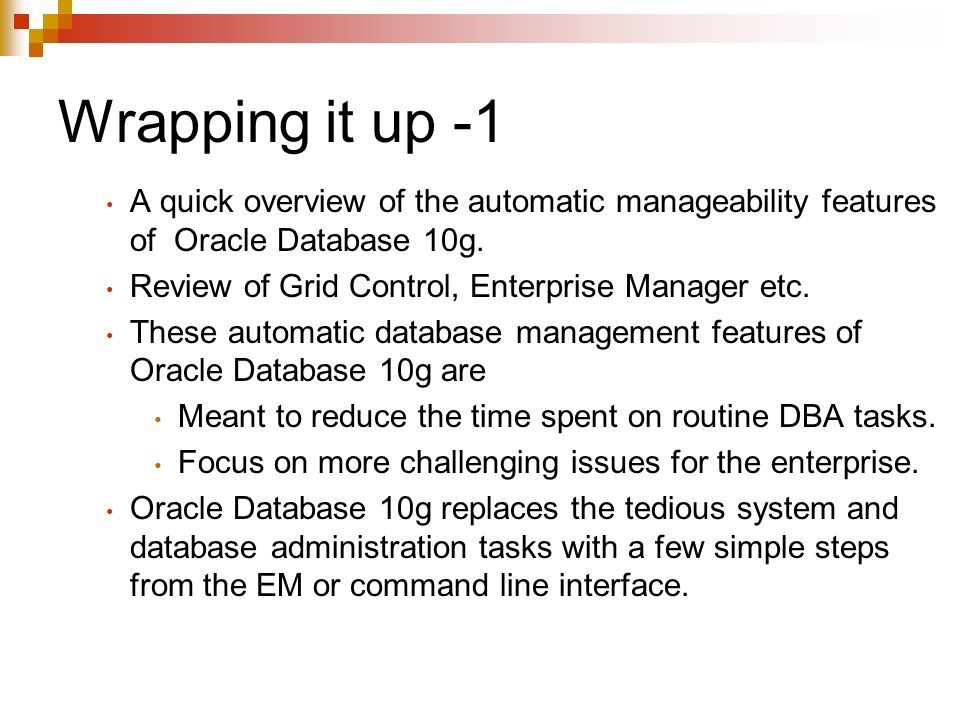

69. Wrapping it up -1 A quick overview of the automatic manageability features of Oracle Database 10g. Review of Grid Control, Enterprise Manager etc. These automatic database management features of Oracle Database 10g are Meant to reduce the time spent on routine DBA tasks. Focus on more challenging issues for the enterprise. Oracle Database 10g replaces the tedious system and database administration tasks with a few simple steps from the EM or command line interface.

70. Wrapping it up -2 Use the security features of Oracle Database 10g along with proper planning to make your databases compliant with regulatory requirements. Improved recoverability features with Flashback and RMAN. Detailed explanation given in Oracle Documentations, related Oracle Database 10g books, and references given here.

71. Better Life with Oracle 10g Manageability features  Improve the performance of mission critical applications  Manage more databases and applications  Be more valuable to the organization  Get more sleeping time.  For your business, it will result in  Fewer failures & Faster response times  Lower development cost  By judicious utilization of automatic management features of Oracle Database 10g, a DBA can drastically reduce the time spent on routine administrative tasks.

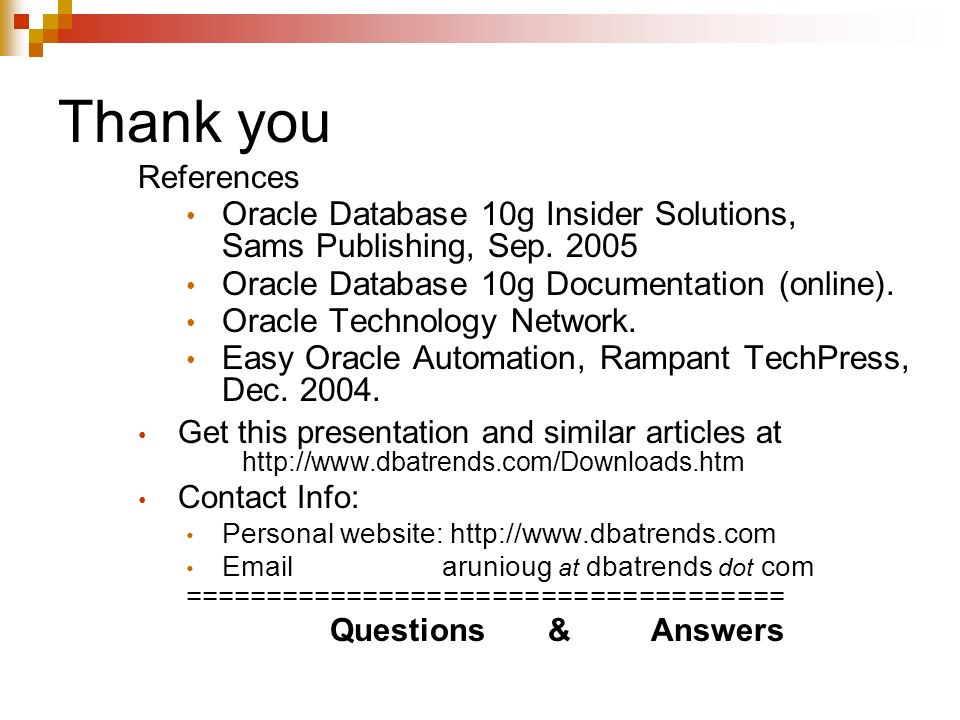

72. Thank you References Oracle Database 10g Insider Solutions, Sams Publishing, Sep. 2005 Oracle Database 10g Documentation (online). Oracle Technology Network. Easy Oracle Automation, Rampant TechPress, Dec. 2004. Get this presentation and similar articles at http://www.dbatrends.com/Downloads.htm Contact Info: Personal website: http://www.dbatrends.com Email arunioug at dbatrends dot com ===================================== Questions & Answers
