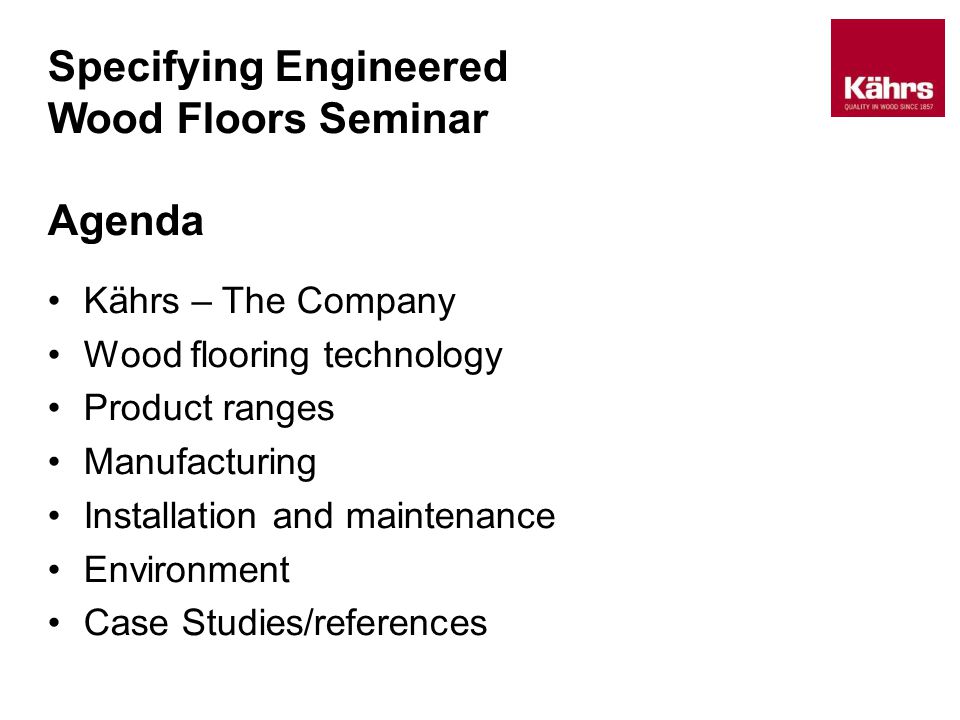

1. Specifying Engineered Wood Floors Seminar Agenda Kährs – The Company Wood flooring technology Product ranges Manufacturing Installation and maintenance Environment Case Studies/references

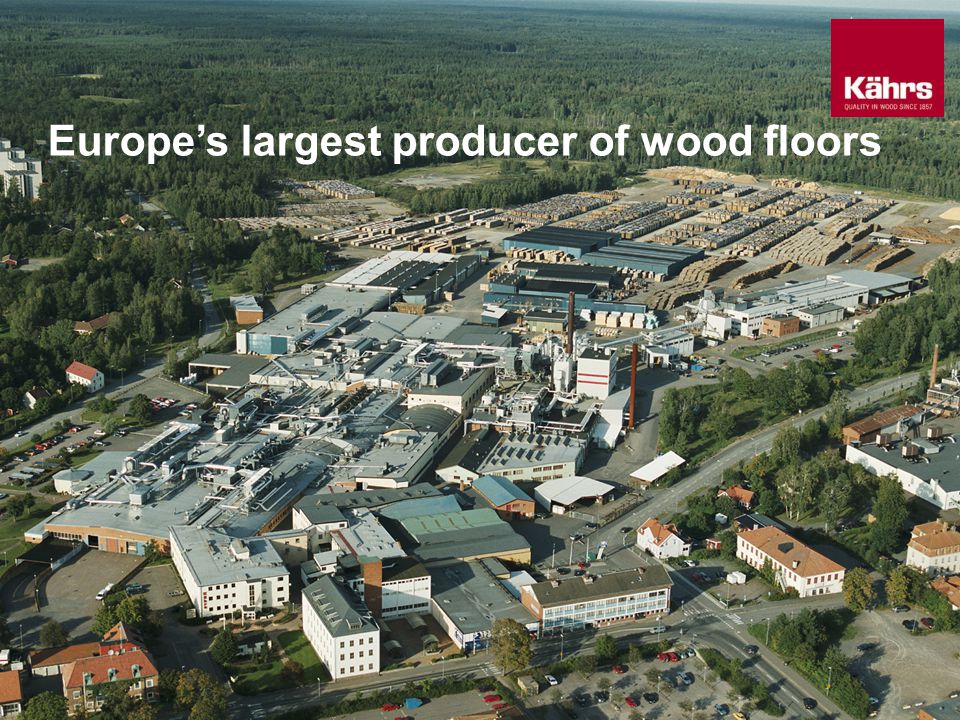

2. Europe’s largest producer of wood floors

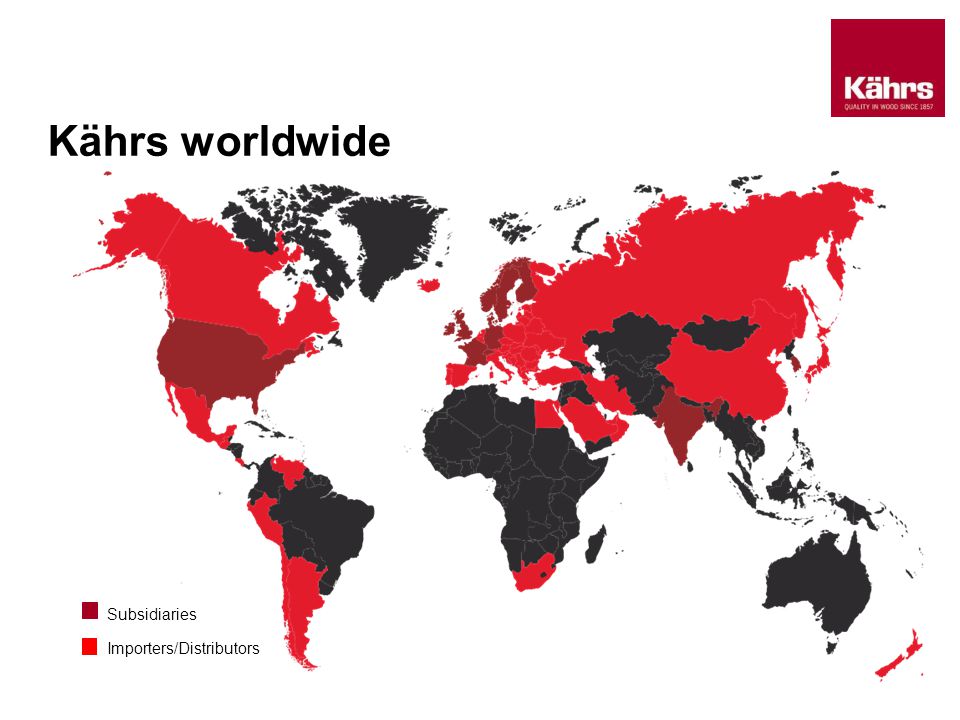

3. Kährs worldwide Subsidiaries Importers/Distributors

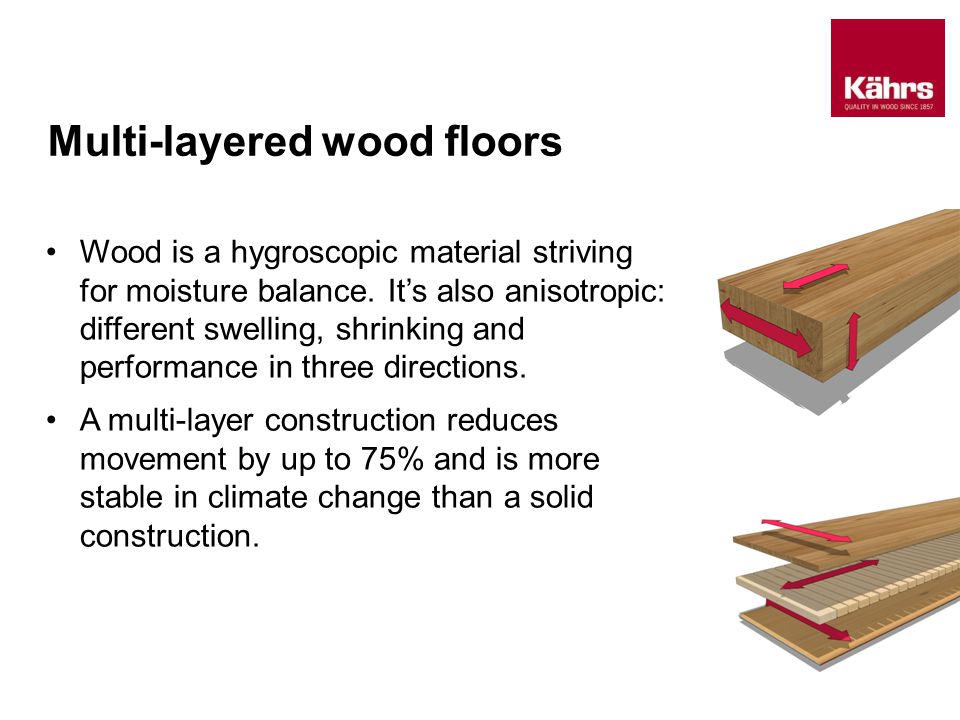

4. Wood is a hygroscopic material striving for moisture balance. It’s also anisotropic: different swelling, shrinking and performance in three directions. A multi-layer construction reduces movement by up to 75% and is more stable in climate change than a solid construction. Multi-layered wood floors

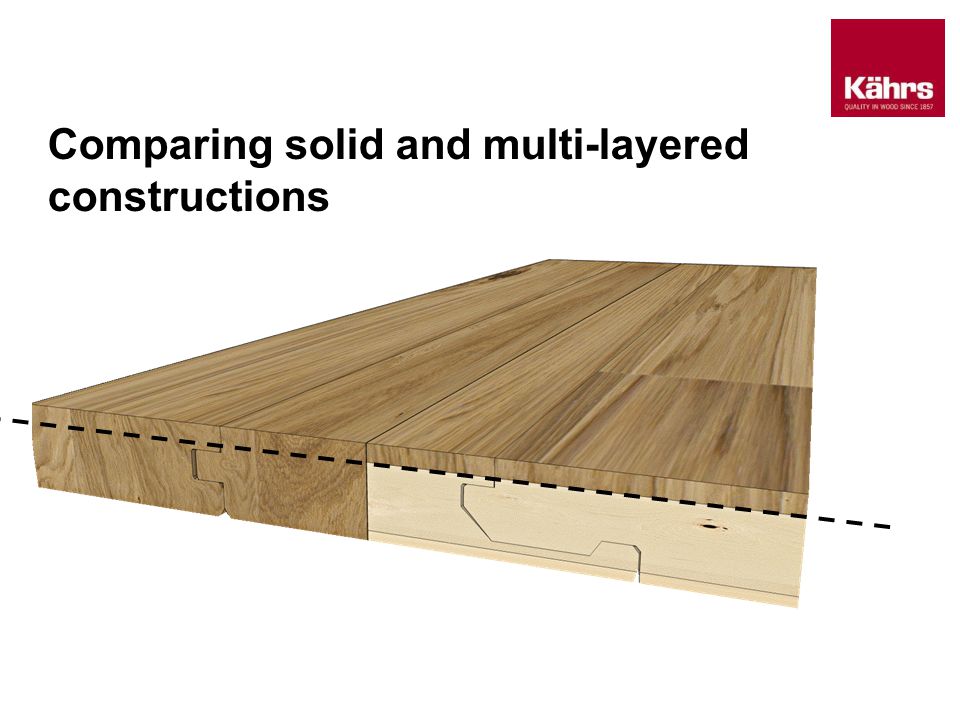

5. Comparing solid and multi-layered constructions

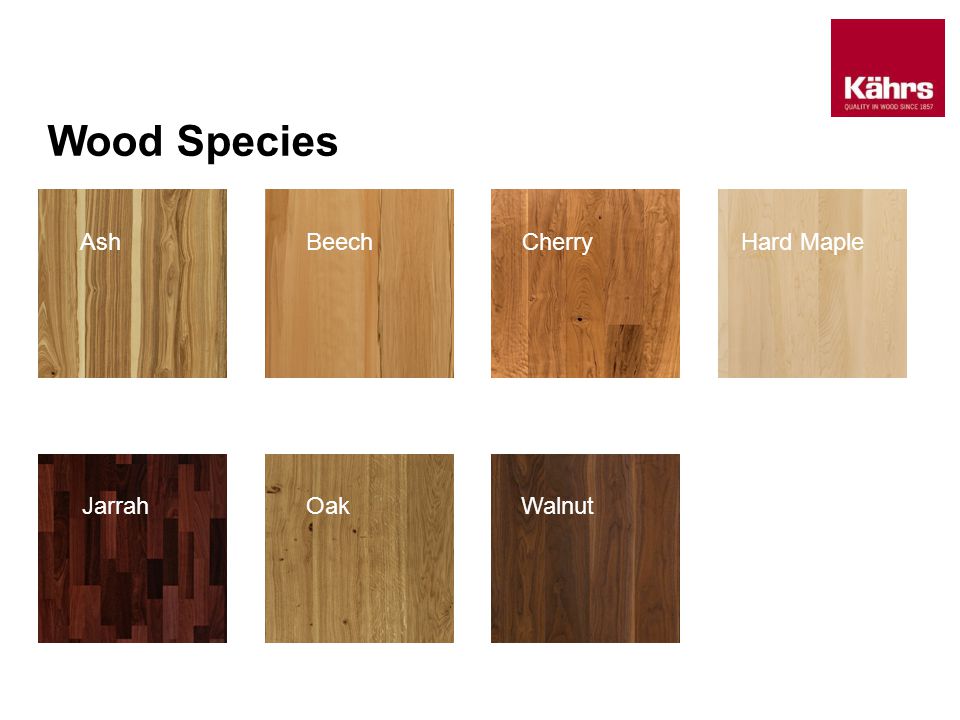

6. Wood Species AshBeechHard Maple Jarrah Cherry OakWalnut

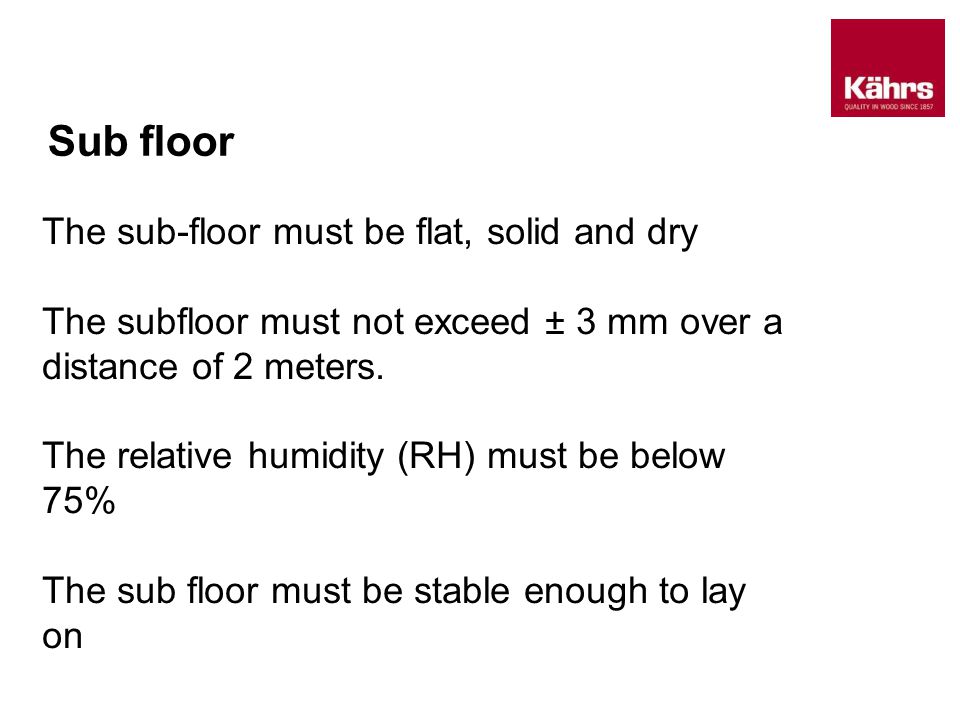

7. The sub-floor must be flat, solid and dry The subfloor must not exceed ± 3 mm over a distance of 2 meters. The relative humidity (RH) must be below 75% The sub floor must be stable enough to lay on Sub floor

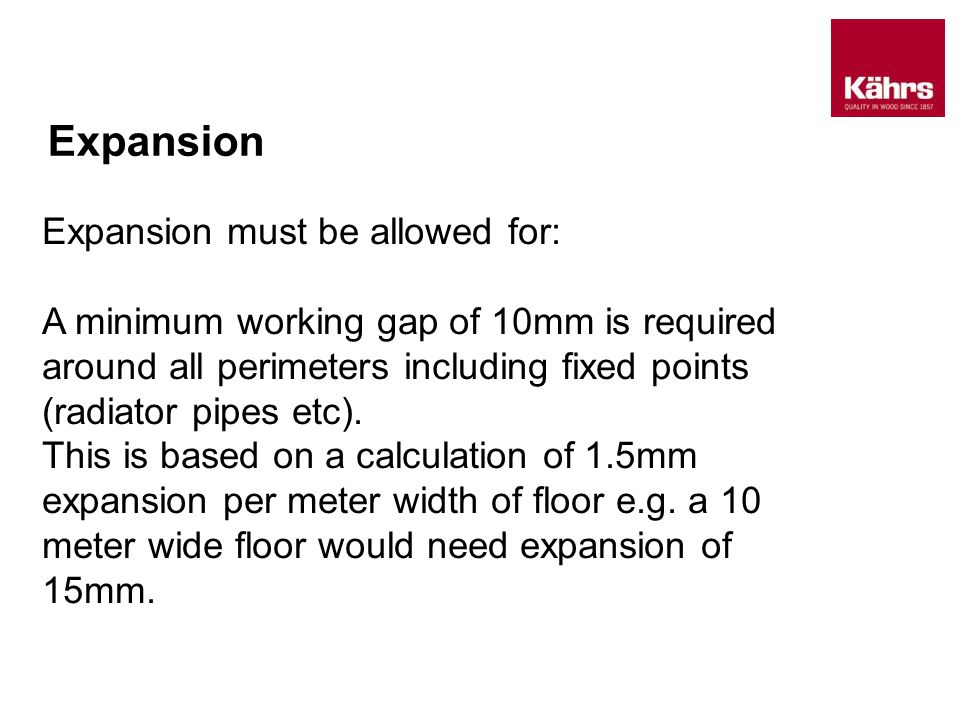

8. Expansion must be allowed for: A minimum working gap of 10mm is required around all perimeters including fixed points (radiator pipes etc). This is based on a calculation of 1.5mm expansion per meter width of floor e.g. a 10 meter wide floor would need expansion of 15mm. Expansion

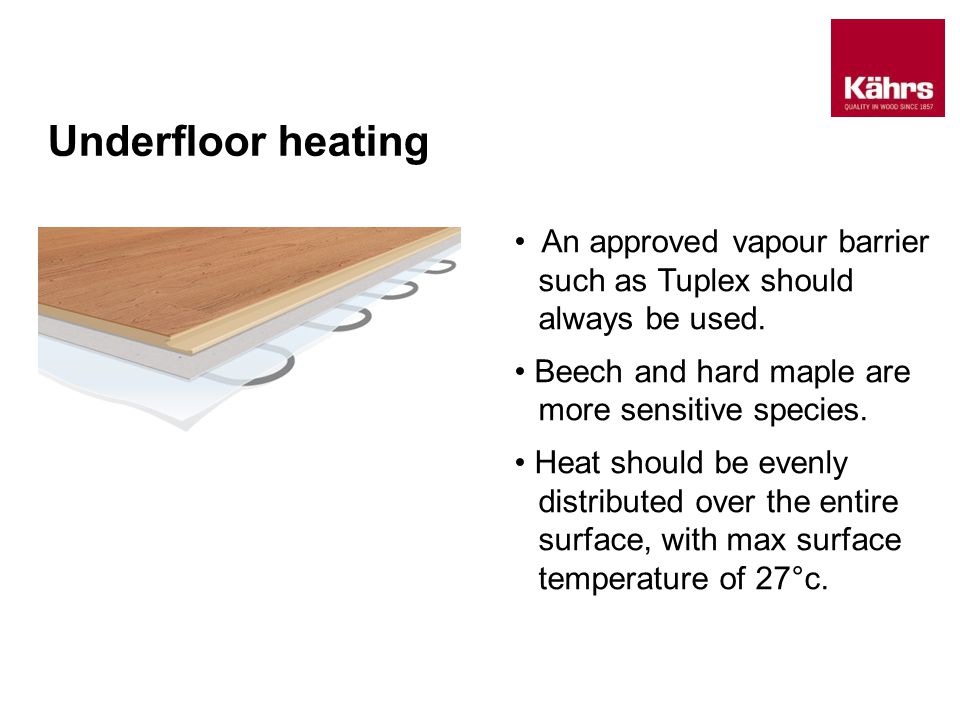

9. An approved vapour barrier such as Tuplex should always be used. Beech and hard maple are more sensitive species. Heat should be evenly distributed over the entire surface, with max surface temperature of 27°c. Underfloor heating

10. Satin lacquerNature oil Matt lacquer Surface finishes

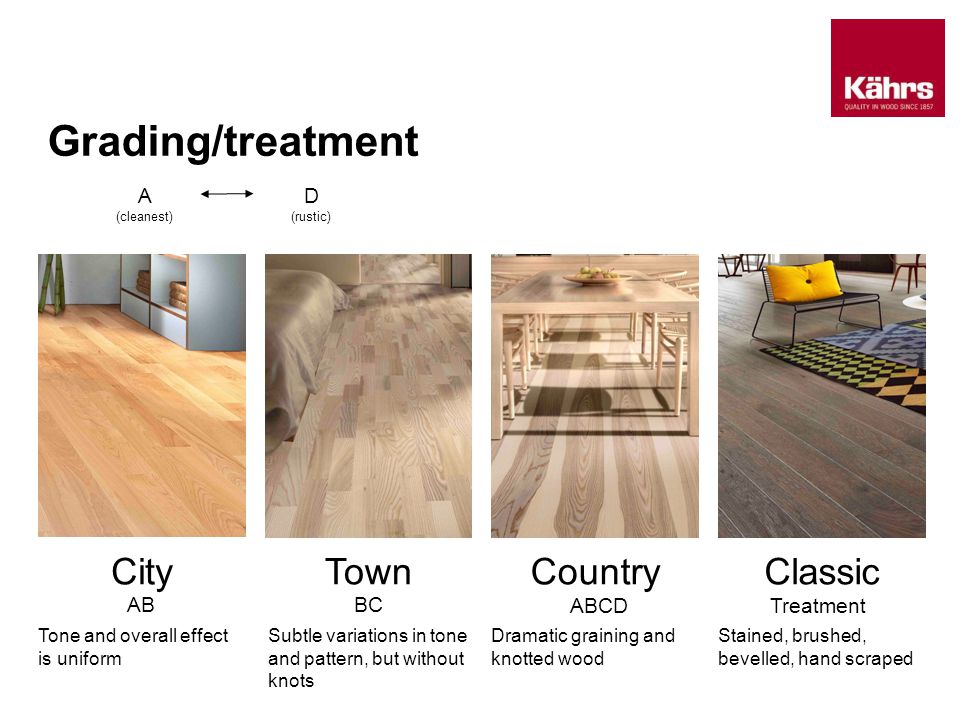

11. City Tone and overall effect is uniform Subtle variations in tone and pattern, but without knots Dramatic graining and knotted wood TownCountry ABBC ABCD Grading/treatment Classic Stained, brushed, bevelled, hand scraped A (cleanest) D (rustic) Treatment

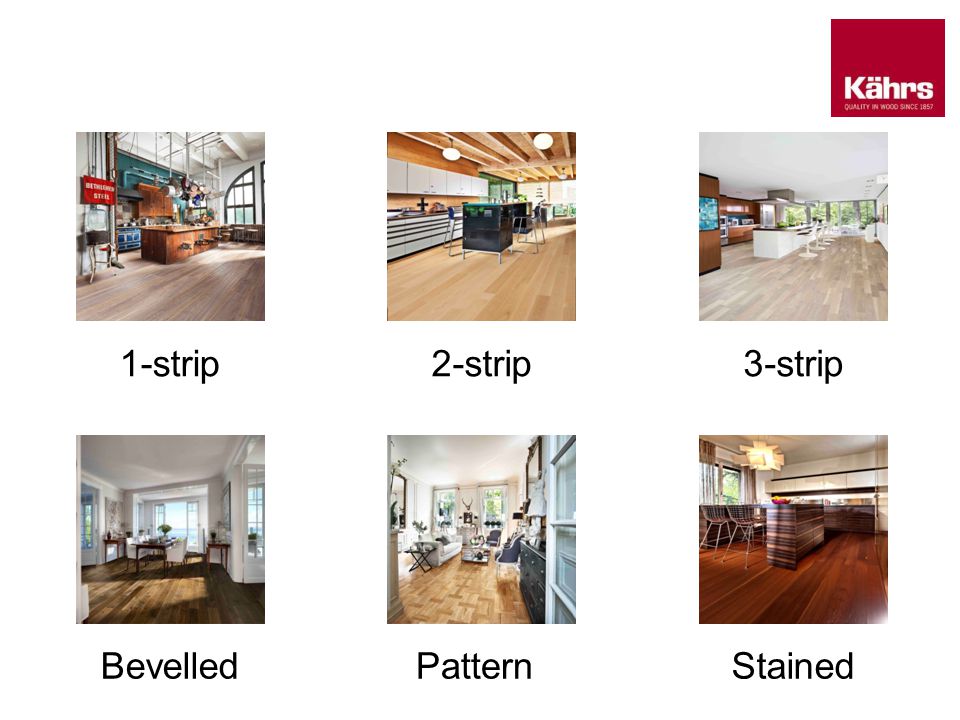

12. Beveled e 2-strip 1-strip3-strip2-strip BevelledPatternStained

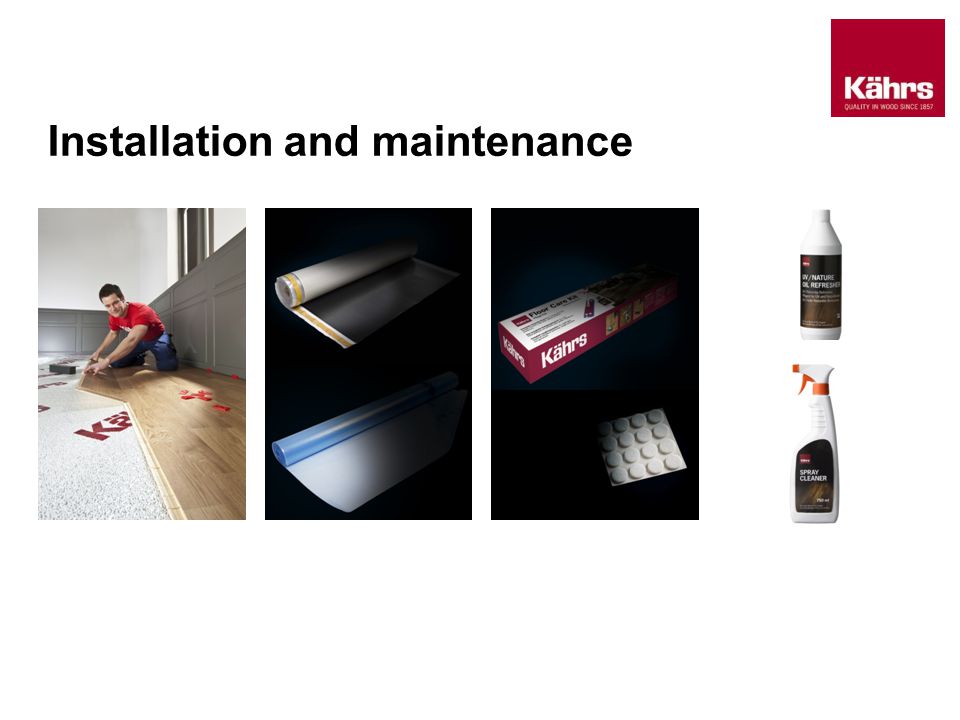

13. Installation and maintenance

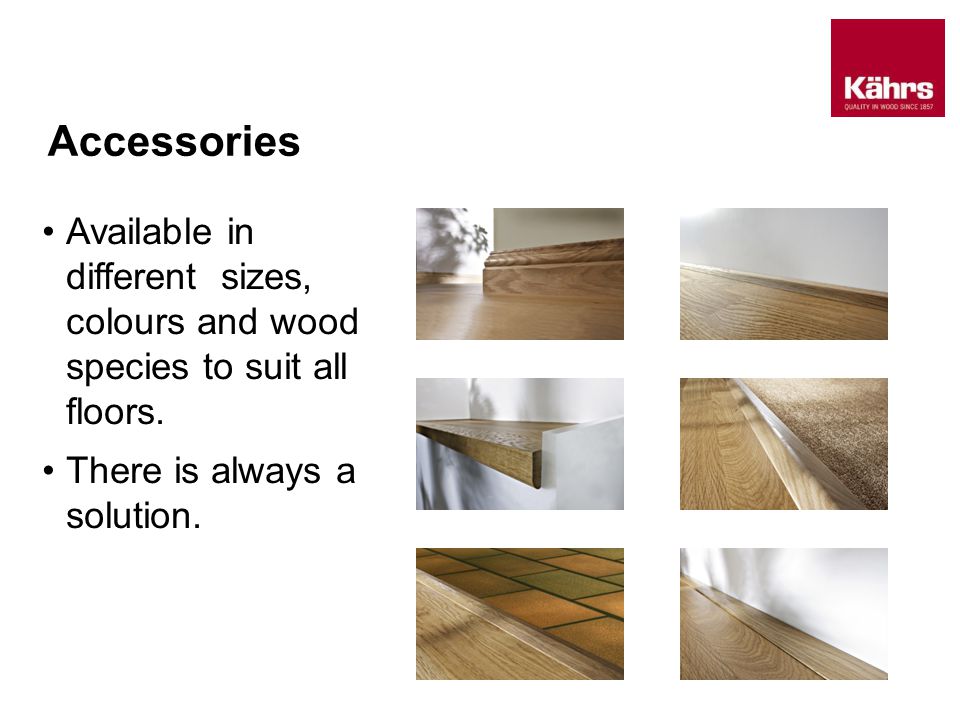

14. Available in different sizes, colours and wood species to suit all floors. There is always a solution. Accessories

15. Renewable Unlike plastics and other material, wooden floors are 100% biodegradable and can be returned to nature.

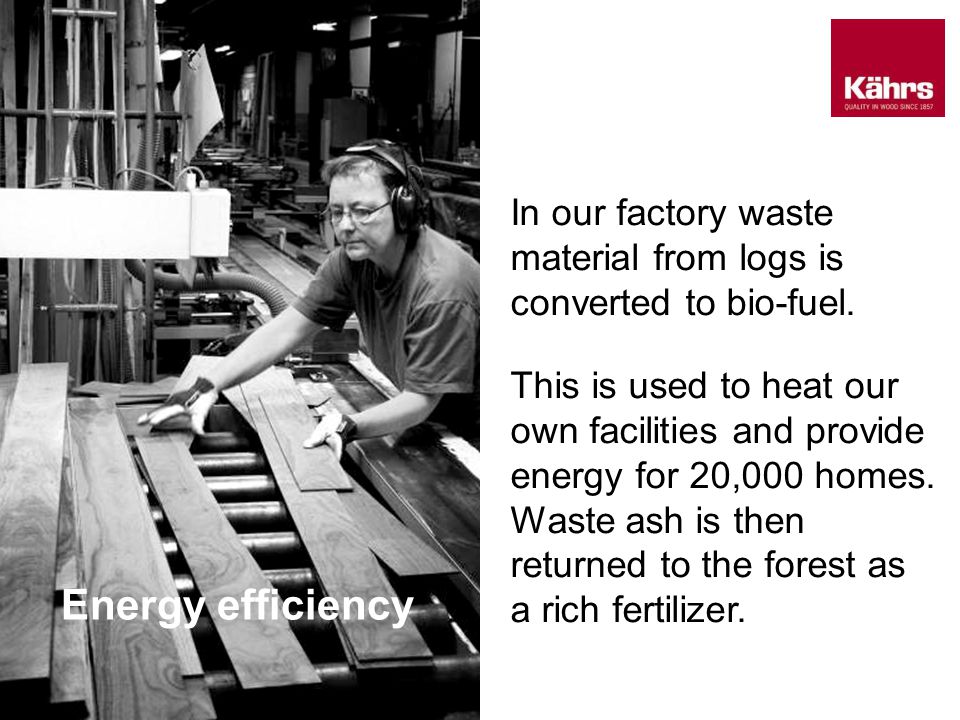

16. Energy efficiency In our factory waste material from logs is converted to bio-fuel. This is used to heat our own facilities and provide energy for 20,000 homes. Waste ash is then returned to the forest as a rich fertilizer.

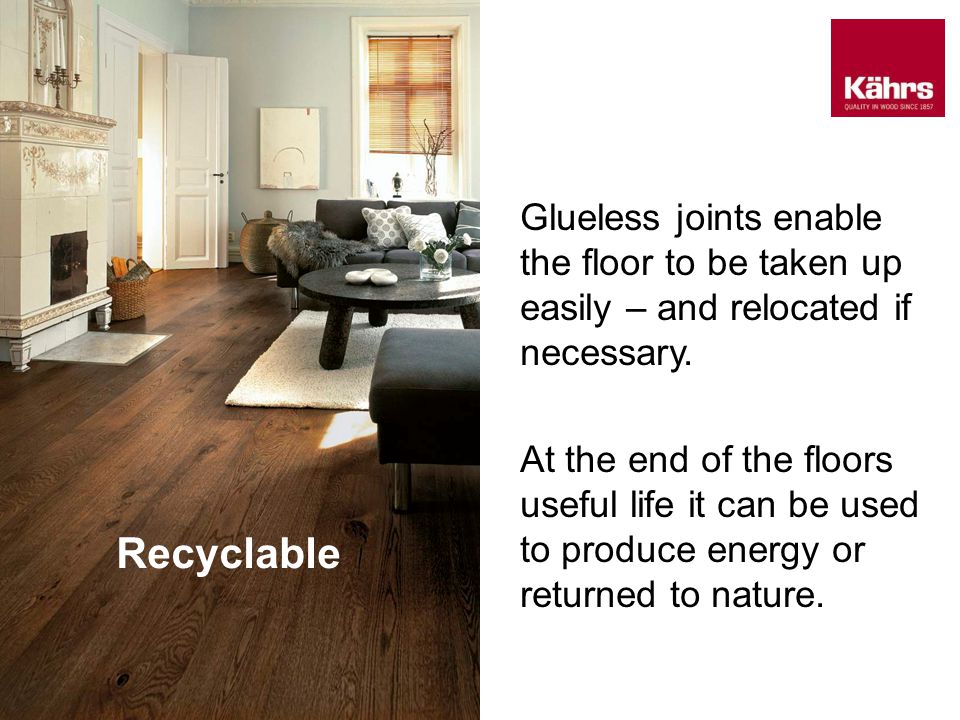

17. Recyclable Glueless joints enable the floor to be taken up easily – and relocated if necessary. At the end of the floors useful life it can be used to produce energy or returned to nature.

18. Glueless Glueless joints are better for the environment.

19. Replantation Five trees are replanted for every tree harvested.

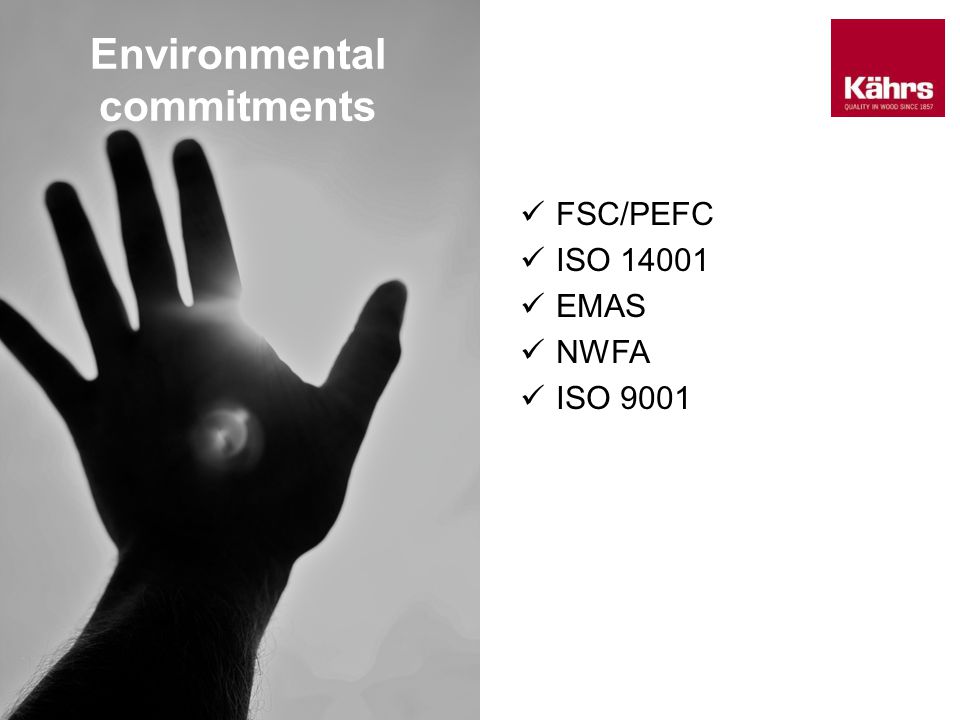

20. Environmental commitments FSC/PEFC ISO 14001 EMAS NWFA ISO 9001

21. Controlled suppliers A good manufacturer will only use suppliers who hold an FSC or PEFC certificate - or who in some other way demonstrate that they operate environmentally aware timber procurement.

22. The smartest solution turned out to be green Renewable Resource efficient Solvent-free finish Recyclable Long-life Glueless Water-based stains Low emissions

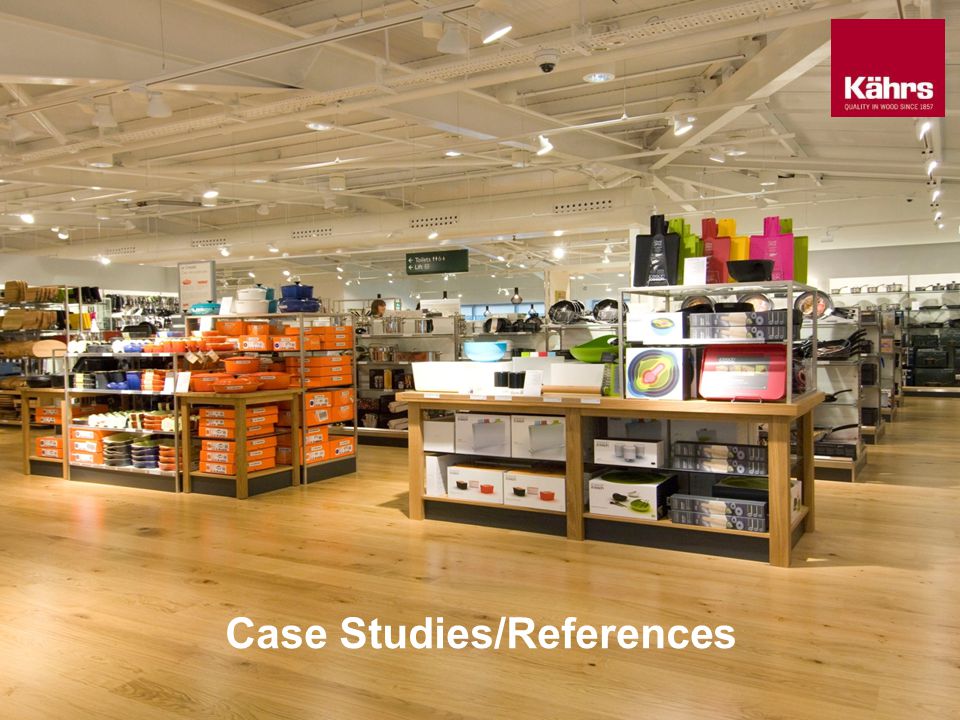

23. Case Studies/References

24. Hospitality - Gleneagles Hotel Location: Architect: Main Contractor: Floor Contractor: Product: Area installed Residential - Haddon Lake House Location: Architect: Product: Ventnor, Isle of Wight Simon Clark White Oak Plank Gleneagles, Scotland Sedley Place ROK GL Floors Rustic Walnut Plank 475 sq meters

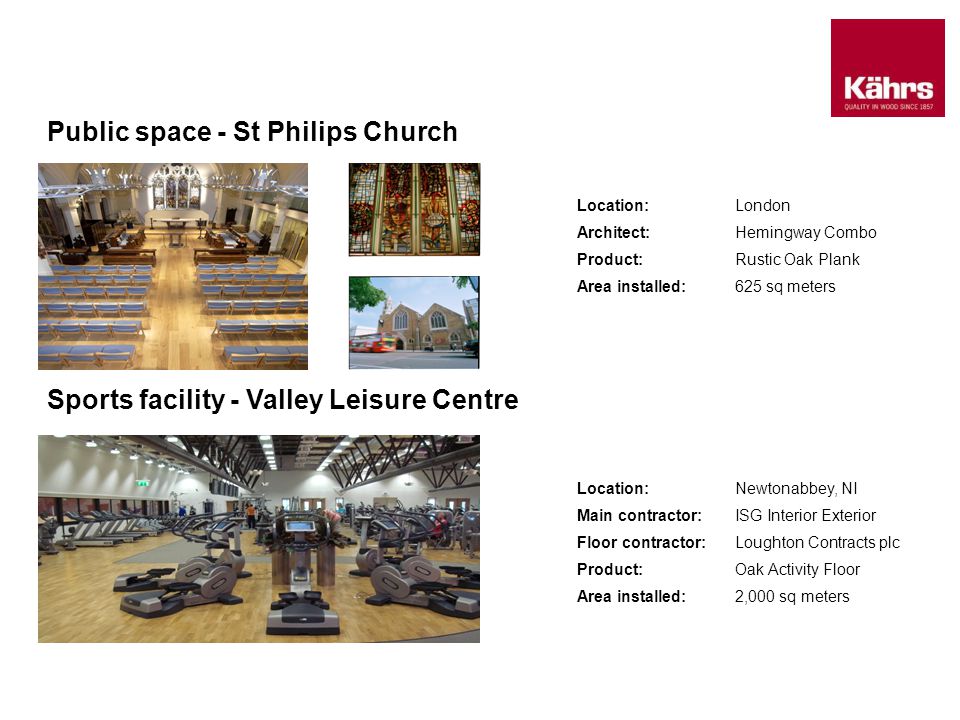

25. Public space - St Philips Church Location: Architect: Product: Area installed: Location: Main contractor: Floor contractor: Product: Area installed: Sports facility - Valley Leisure Centre London Hemingway Combo Rustic Oak Plank 625 sq meters Newtonabbey, NI ISG Interior Exterior Loughton Contracts plc Oak Activity Floor 2,000 sq meters

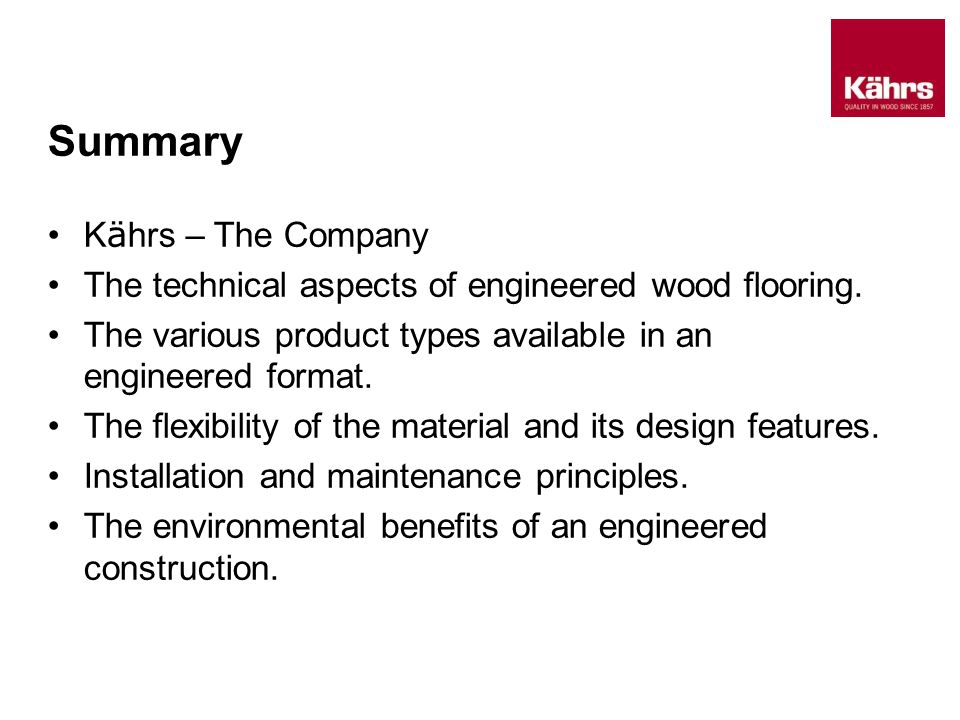

26. Summary K ä hrs – The Company The technical aspects of engineered wood flooring. The various product types available in an engineered format. The flexibility of the material and its design features. Installation and maintenance principles. The environmental benefits of an engineered construction.

27. Nothing but wood since 1857 Tel: 02392 453 045 E-Mail: paul.heatley@kahrs.compaul.heatley@kahrs.com www.kahrs.co.uk www.kahrsprofessional.com
