1. Video
Digital Video is composed of a series of bitmap graphics, each one called a frame
Powerful communication media: video with sound more convincing than a scrolling text filed with the same speech.
Before you decide to add video to your project it is important to have understanding of the medium, its limitation and cost.
The cost of video
Filming costs
Processing / editing costs
Data budget costs
Cognitive costs

2. Digital or analogue
Professional digital equipment is no longer expensive.
Digital filming is becoming common for low budget and multimedia projects.
Digital camcorder directly connected to computer brings the power of video editing to every day users.

3. The Video Process
When light reflected from an object passes through a video camera, that light is converted to an electronic signal by one or more Charge Coupled Devices (CCD).
CCD output is processed, by camera, into RGB signals, and combined with a synchronization pulse.
Types of video signal
– RGB preferred: three separate signals, one for each of R, G, & B.
– Component Video: two separate signals one for
chroma (color information) and one for brightness.
– Composite Video - single signal containing all
information.

4. Analogue Video
Video signal (RGB, Component or Composite) is written to magnetic tape.
Audio track at top of tape (one or two channels).
Video track in the middle of the tape.
Control track at bottom of tape - contains
synchronization pulses.

5. Broadcast Standards
NTSC
PAL
SECAM
HDTV

6. NTSC Standard National Television Standards Committee (1952)
US & Far East
A single frame of video is made up of 525 scan lines
30 frames per second (each frame takes 1/30 of a second
Interlaced: lines are drawn in two passes (odd/even) each at rate of 60Hz

7. PAL Standard
Phase Alternate Line (PAL) is an integrated method of adding color to B&W television signal.
UK, most of Europe, Australia & South Africa
625 scan lines
25 frames per second
Interlaced at 50Hz

8. SECAM Standard Sequential Color and Memory France & Russia
625 scan lines (as PAL)
25 frames per second (as PAL)
Interlaced at 50Hz (as PAL)
Color model completely different from PAL

9. HDTV (High Definition Television)
Six separate HDTV “standards” in two
categories:
1920x1080 at (24, 30, and 60 fps). Interlaced & most favored by broadcasting industry
1280x720 progressive-scan at 24, 30, and 60 fps

10. Conversion between analogue formats
PAL / SECAM conversion is fairly easy
(i.e. cheap)
PAL & SECAM / NTSC conversion is much more complex (i.e. expensive)
Low quality conversion is now cheap
& dual standard equipment exists
High quality conversion remains expensive

11. Why HDTV? Higher-resolution picture Wider picture
Digital surround sound.
Additional data
Easy to interface with computers

12. Video Color Models
Computers use RGB component video and their colors are purer and more accurate than those seen on TV.
NTSC, PAL & SECAM use different colors models and limited palette. Thus graphic images created on computers may display differently when transformed into any of the TV systems.
Not all RGB colors are available on conventional TV sets.
So if the MM project is to be delivered to playstation, it may not play back. In this case use colors to meet NTSC color.

13. Digital Video Source
Film as digital video using FireWire standard cable.
Film as analogue and then digitized it. To accomplish that a video capturing board is needed.
– Wildly variable in price and quality

14. What kinds of Digital Videos?
Classified by its platform or application (how it will be delivered)
Desktop video (DTV)
Videos constructed and displayed using a personal computer
Web-based video
Incorporated in Web pages and accessed with a browser
DVD-video
A DVD format used for commercial DVDs that contain feature-length films.
PDA video
Small-format video designed to be viewed on a PDA or cell phone screen

15. Digital Video Playback
Playback Software
Microsoft Video for Windows
– Framework for video playback
– Audio Video Interleave (AVI)
Apple Quicktime
– Framework for all time-based media
– Movie files (MOV)
– Bundled with MacOS
– Quicktime for Windows

16. Video Compression I Video compression is always lossy.
Multi-way trade-off
– File size / transfer rate (bandwidth)
– Frame rate (typically 15fps for multimedia)
– Image quality
– Frame size
Different codecs have differing strengths and weaknesses.

17. Video Compression II
discards “repetitive” or “redundant” data; may not be noticeable to the eye
results in a compression ratio as large as 200:1 in some cases
Greater ratio, poorer the decompressed image
applied to video because quality loss not noticeable in moving images
Applied to Internet streaming
Applied to .jpg and .mpeg formats

18. Spatial Compression vs. Temporal Compression
Compress each frame individually
Uses the same techniques as JPG compression
Codecs that do spatial compression are: Animation, PlanarRGB
Temporal
Just save info on selected frames (called keyframes)
All other frames just save the differences from the previous keyframe
Good when the difference between current frame and keyframe is small

19. Compression Codecs
Framework (V4W or Quicktime) does not contain compression software.
Compression software using a specific algorithm is called a codec (coder/decoder).
Examples of Codecs:
Indeo
MPEG

20. Indeo Algorithms developed for DVI - Intel i750 chipset
Indeo - implemented in software
Two levels of compression
– PLV (Production Level Video)
– RTV (Real Time Video)
Typical compression ratio of 160:1

21. MPEG Moving Picture Expert Group Established by ISO in 1988
Defined standards are used in
– Digital television
– Video phones
– Consumer electronics
– Digital cinema
– Video games

22. MPEG1 The original MPEG standard
Objective - deliver video and audio from CD-ROM with comparable quality to VHS tape and CD audio.
Encodes an audiovisual signal in about 1.5 Mbps
Images are progressively scanned
Standard is in five parts
– 1. Systems
– 2. Video
– 3. Audio
– 4. Conformance testing
– 5. C implementation (encoding and decoding)

23. Applications of MPEG 1 Consumer Devices Multimedia / CD ROM
Internet Video.
Compression is cheap
Video CD - production is extremely cheap
Audio only devices (MP3 players)
Internet audio

24. MPEG 2 Dates from 1990, a completely different standard from MPEG 1.
Objective - deliver video and audio at comparable quality to broadcast composite video at roughly 4 times the typical MPEG 1 bit rate.
Improvements over MPEG 1
– Higher resolution
– Higher image quality
– Supports interlaced video formats
– Multiresolution scalability
– Multiple sound track features
Encryption and metadata capabilities

25. Applications of MPEG 2 Digital Satellite TV Digital Cable TV DVD
Some multimedia (usually where very high quality is essential)

26. MPEG 4
MPEG 4 is capable of encoding digital video objects of any shape
Thus the screen can consist of many different video objects.
For example different “people” can stay together around a table
2D images can be represented in 3D space.

27. MPEG 4 MPEG 4 has the following capabilities:
Encode natural or synthetic images.
Real-time or non real-time.
Streams from different sources can be combined
Contains the possibility of interaction with objects.
Hyperlinking, and uploading and downloading of data
Readily adjusts delivery to available bandwidth
Microsoft and Apple are implementing it in their core technologies (ie Windows media services and Quicktime)

28. MPEG-7 Multimedia content description interface
Aimed at addressing issues of content retrieval
Intended primarily for digital libraries
Object based (as MPEG-4)
Supported data:
Still images
3D models
Sampled audio
Speech
Video
Composition information (combinations of the above)
Data representation
Binary objects, XML or both

29. MPEG-21 Designed to manage digital media resources
Digital item declaration
Digital item identification and description
Content management and usage
Intellectual property management and protection
Terminals and networks
Content representation
Event reporting

30. Creating Digital Video30

31. Ready to Make a Video I 31 Pre-Production Stage:
Planning the video and gathering any resources you might need
Length of final video
Music or sounds, script or storyboard 
Camcorder type and medium and format of final video 31

32. Ready to Make a Video II 32 Production Stage:
Camera work and sound recording
The potential for a good shot is better if you understand how to use the technical controls on your camera, i.e. resolution, capturing action shots vs. stills, night time vs. daytime shots. All of these shots require certain settings on your camera to get the best quality. 32

33. Ready to Make a Video III
Post-Production:
Downloading from camcorder to computer
Editing and/or encoding the finished video.
Removing unwanted footage
Arranging desired footage in the correct order
Adding music, titles, transitions and possibly other effects
Converting (encoding) into the correct format(s) 33

34. Ready to Make a Video IV 34 Capture Video Edit Digital Video
Assumption that you have caught your video on a camcorder
Post-Production Stage
Capture Video
Download video from camcorder to computer
Edit Digital Video
(using Computer, Digital Video software ex. Adobe Premiere, Avid)
Edit it
Add all kinds of cool titles
Filters, transitions
Superimpose clips
Synchronize audio with video
Authoring software: create menus and interactivity
Output Video
Output to different file formats
Back out to tape, the Web, CD, DVD 34

35. Ready to Make a Video – Post Production
Let’s take a closer look!
Edit Digital Video
(using Computer, Digital Video software ex. Adobe Premiere, Avid)
Edit it
Add all kinds of cool titles
Filters, transitions
Superimpose clips
Synchronize audio with video
Authoring software: create menus and interactivity
Capture Video
Download video from camcorder to computer
Output Video
Output to different file formats
Back out to tape, the Web, CD, DVD 35

36. Capturing Video – Download video from camcorder to computer
To use video in a multimedia application, it must be in digital form
So how do you get a camcorder video into digitized form?
Video card
_____________
____________ 36

37. Capturing Video 37 Five factors to consider when making a video
(4) Computer: Download video to edit
Source Device: Camcorders and digital video cameras can be used to capture full- motion images. (Analog versus Digital)
(3) Connecting method
(2) Video Capture Device
Video Capture Card needed (if using analog camcorder from analog to digital)
No need if source device outputs a digital signal (such as Firewire or USB)
(5) Software: Capturing, Editing, Outputting 37

38. Analog Digital 38 Capturing Video –Video Capture Device
Analog Camcorder: Need Video capturing card
Digital Camcorder :  Firewire connection
Analog
Digital
Video
S video (better quality)
Yellow RCA
Audio
Firewire 38

39. Firewire vs. USB  The Back Story
Firewire 400 created by Apple
Apple wanted to charge 1 dollar for every machine that was going to use it, this caused most PC manufacturers to decide against it, in favour of USB 1.1.
Transmitted originally at 400Mbps
Peer to Peer Technology (can daisy chain one camcorder to another WITHOUT a computer)
USB 1.1. could transmit at 12Mbps
Used for mice, keyboards, printers, too slow for video
USB 2.0 came along, backward compatible, transmitted at 480Mbps (could beat with Firewire400 and do video)
Master/Slave technology (need to connect to a computer)
Currently, we have Firewire 800, transmits at 800 Mbps, at some point in the future, they expect new Firewire will transmit at 3.2 Gbps! 39

40. 40 Controlling the Transfer Process
Video Capture software should have the following features:
Start and stop the transfer
Select a file format for storing your video footage
Specify file name for each video clip
Video capture software is supplied with video editing software and with video capture devices
TIP: Videos are easier to edit if you divide them into several files, each containing a one or two minute video clip. 40

41. Editing Digital Video 41 Capture Video Edit Digital Video Output Video
(using video capture card)
from camcorder to computer
Edit Digital Video
(using Computer, Digital Video software ex. Adobe Premiere, Avid)
Edit it
Add all kinds of cool titles
Filters, transitions and FX
Superimpose clips
Synchronize audio with video
Output in different file formats
Output Video
(back out to tape, the Web, CD, DVD) 41

42. Arrange video clips on time line Add all kinds of cool titles
Video Editing Software I
Arrange video clips on time line
Add all kinds of cool titles
Filters, transitions
Superimpose clips
Synchronize audio with video
Output in different file formats

43. Video Editing Software II

44. Output Video Capture Video Edit Digital Video Output Video Challenge:
(using video capture card )
from camcorder to computer
Edit Digital Video
(using Computer, Digital Video software ex. Adobe Premiere, Avid)
Edit it
Add all kinds of cool titles
Filters, transitions and FX
Superimpose clips
Synchronize audio with video
Output in different file formats
Output Video
(back out to tape, the Web, CD, DVD)
Challenge:
Efficient Delivery via Web

45. Output Video Why do we need codecs?
Speed up downloads times smaller than uncompressed video files.
Without codecs, downloads would take 3-5x longer than they do now
There are different codecs
codecs for audio and video compression, for streaming media over the Internet, videoconferencing, playing mp3's, speech, or screen capture
The codec used to compress is the one needed to view
Two widely used media players:
Apple’s QuickTime (QuickTime for Windows)
MS Windows Media Player (uses AVI or WMV format )
Most media players including these will play videos produced with a variety of codecs

46. Which file type? Answer the following 3 questions:
Is the video for the web, or for DVD, or if it is an older CD Rom, how fast is the playback?
Who is my audience?
Will they have a Mac or a Windows machine? Perhaps both, then you need a cross platform format.
How will they watch it, on a computer, how old is the computer, on a DVD player?
Will I be editing the video again later on? Maybe I don’t want to lose any data?

47. Video Files File Type Also known as: Originally created by More Info
Platforms
.mov
QuickTime movie
Apple
Also for audio
Supports MIDI
Streaming with QuickTime Streaming Server
Can watch video as it is downloaded
Codecs Animation, Sorenson Video, H.264, PlanarRGB, Cinepak
Apple QuickTime player available for Mac and Windows
.avi
Audio Video Interleave
Intel
Codecs Microsoft RLE, Intel Indeo Video, Cinepak
Mostly windows but Apple QuickTime player can play avi files
.rm
Real Video
Real Systems
High compression
Pick compression based on connection speed
Can stream with Real Server
Need for speed often compromises quality
Cross platform
Need Real Player
.wmv
Windows Media
Microsoft
Good compression
Used with Windows Media Player
.mpg
.mpeg
MPEG
Motion Picture Experts Group
mpeg-1 VCD,
mpeg-2 DVD,
mpeg-4hand held devices (heavily compressed
Cross Platform
.flv
Flash Video
Adobe
Progressive download from webserver
Can be streamed with adobe Flash Media Server
Codecs Sorenson Spark, On2 VP6 (can have transparent video), H.264
Need Flash Player to play a SWF file that holds the flv file

48. Exploring Video for the Web
Challenge: Transfer rate
File Size
File Type
Challenge: Format

49. Video Transfer for the Web
2 types of Video Transfer
HTTP
Hypertext Transfer Protocol
RTSP
Real-Time Streaming Protocol
Played directly from the server to the user’s computer in a process called “streaming”.
RTSP allows the user to perform tasks such as pause and play
Download the Video from the host (server) to the user’s computer in its digital form

50. Video Transfer for the Web
HTTP
RTSP
Downloads the entire video to user computer
User must wait for the download process to end
Video can be played repeatedly and copied if necessary
Process called streaming
File played directly from server – thus some delay
Video is broadcast to user and after displayed, discarded

51. The principle of streaming
small buffer space is created on the user's computer
data starts downloading into it.
as soon as the buffer is full (usually just a matter of seconds), the file starts to play

52. The principle of streaming

53. Advantages of Streaming
What are the advantages of streaming over downloading?
Does not take up your Memory: Media files, which tend to be large, are not saved to your hard drive where they would take up disk space.
Little Time: You don't have to wait long for the files to start playing.
Deliver in an effective way: Long programs, such as an entire class session, can be delivered over the web much more effectively.
Live broadcasting : Audio and video programs can be delivered live and archived simultaneously.

54. Advantages of downloadable media files
Why would one ever want to use downloadable media files?
Readily available independent of server: Since a downloaded file is saved to your hard drive, it's available for later use, independent of the server.
Higher Image quality:
Downloadable media can provide higher image quality.
Streamed files are highly compressed so that they can be delivered efficiently. With compression comes loss of image detail.
Step through frame-by-frame. One can quickly jump to any part of the audio or video track that one wants.

55. Video for the Web RTSP – “Streaming” (also known as Webcasting)
Streaming requires a program to display streaming video
Leading programs:
Real Networks – Real Player
Microsoft - Windows Media Player
Apple – QuickTime Player
All 3 players work with popular video formats such as AVI, MPEG
Webcasting of video events in real time such as concerts, conference speakers.
Streaming is either On-Demand or Live. On demand are stored on the server for a long time and streamed based on a user request. Live would be used for a sporting event, election results, etc.

56. How does Streaming Work?
Streaming is the process of taking a large audio or video file and transmitting small, continuous amounts of that file over a network. “STEADY and CONTINUOUS “ – File remains on server
Web server delivers pages to Web browsers over the Internet
RealServer serves media clips to clients. It allows users to stream, rather than download, the media clips.
Different Servers support different media formats

57. How does Streaming Work?
CONTINUOUS

58. What if dealing with Large files!! What happens? Two methods:
Progressive download. A click begins the download, but after some portion had been downloaded, the movie would start to play
How is it Done?
The player (e.g., Windows Media Player) calculates the speed of the download, and guesses when to start playing the portion it has.
The plan is to start late enough that the whole movie will be downloaded by the time you finish watching it.
2. True Streaming:
File is NOT downloaded. Media begins to play as soon as it gets the packet
Advantages:
Fastest but requires that the server be set up to serve streaming media
Reduces waiting time required of the user
Drawback: Congestion on the net may cause the media to pause, if the downloading process can't keep up with the playback process.

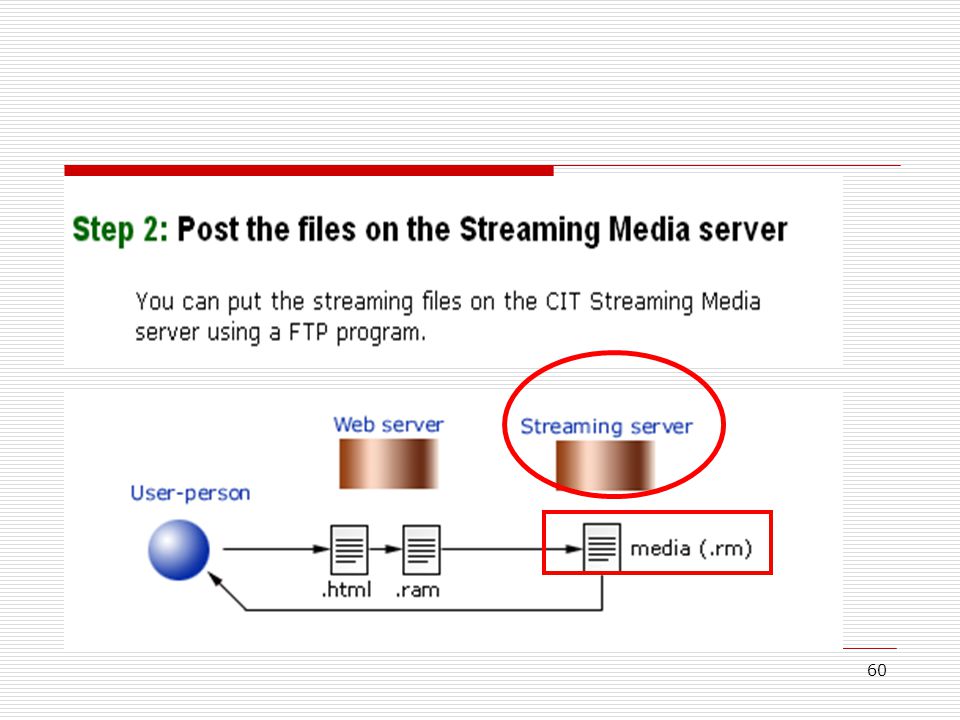

59. Streaming Process:

61. Streaming -- HTML webpage links to a ________
which _______________________
Points to Ram file (.ram) launches the RealPlayer and links to the clip
Syntax for a RamGen link:

62. Video for Multimedia Applications
What should you consider when using video in Multimedia Applications?
Source:
Quality is tied to color resolutions, frames/sec, compression format
The higher the quality of the original video, the better the digitized version
Appropriateness:
Due to large video file sizes, poor quality of video clips, perhaps consider using animations or even still images instead of video
Playback Systems:
Web-based video may require browser plug-ins that the developer could make available through the application
User Control:
Provide the user with control options to start the video, jump to a section of the video, pause, stop, volume control.

63. YouTube YouTube has changed many lives YouTube Video Awards:
Most Creative - Here It Goes Again OK Go
Best Comedy - Smosh Short 2: Stranded Smosh
Best Commentary - Hotness Prevails / Worst Video Ever thewinekone
Best Series - Ask A Ninja digtalfilmmaker
Best Music Video - Say It's Possible Terra Naomi
Most Inspirational - Free Hugs Campaign PeaceOnEarth123
Most Adorable - Kiwi Madyeti47
