1. © 2012 Autodesk M5935-V Integrating SAP® with AutoCAD® Bill Svokos CIDEON consultant SAP PLM

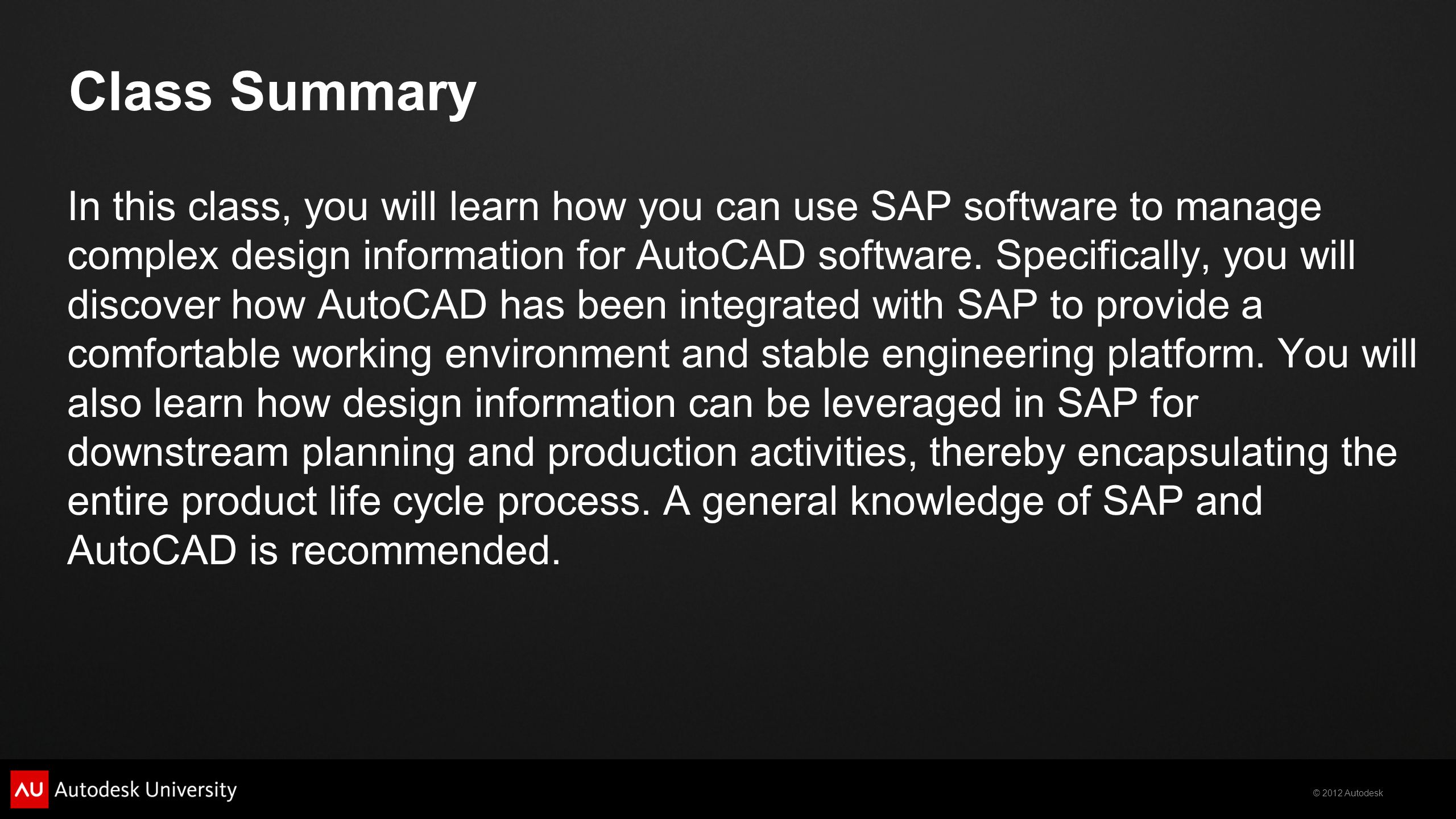

2. © 2012 Autodesk Class Summary In this class, you will learn how you can use SAP software to manage complex design information for AutoCAD software. Specifically, you will discover how AutoCAD has been integrated with SAP to provide a comfortable working environment and stable engineering platform. You will also learn how design information can be leveraged in SAP for downstream planning and production activities, thereby encapsulating the entire product life cycle process. A general knowledge of SAP and AutoCAD is recommended.

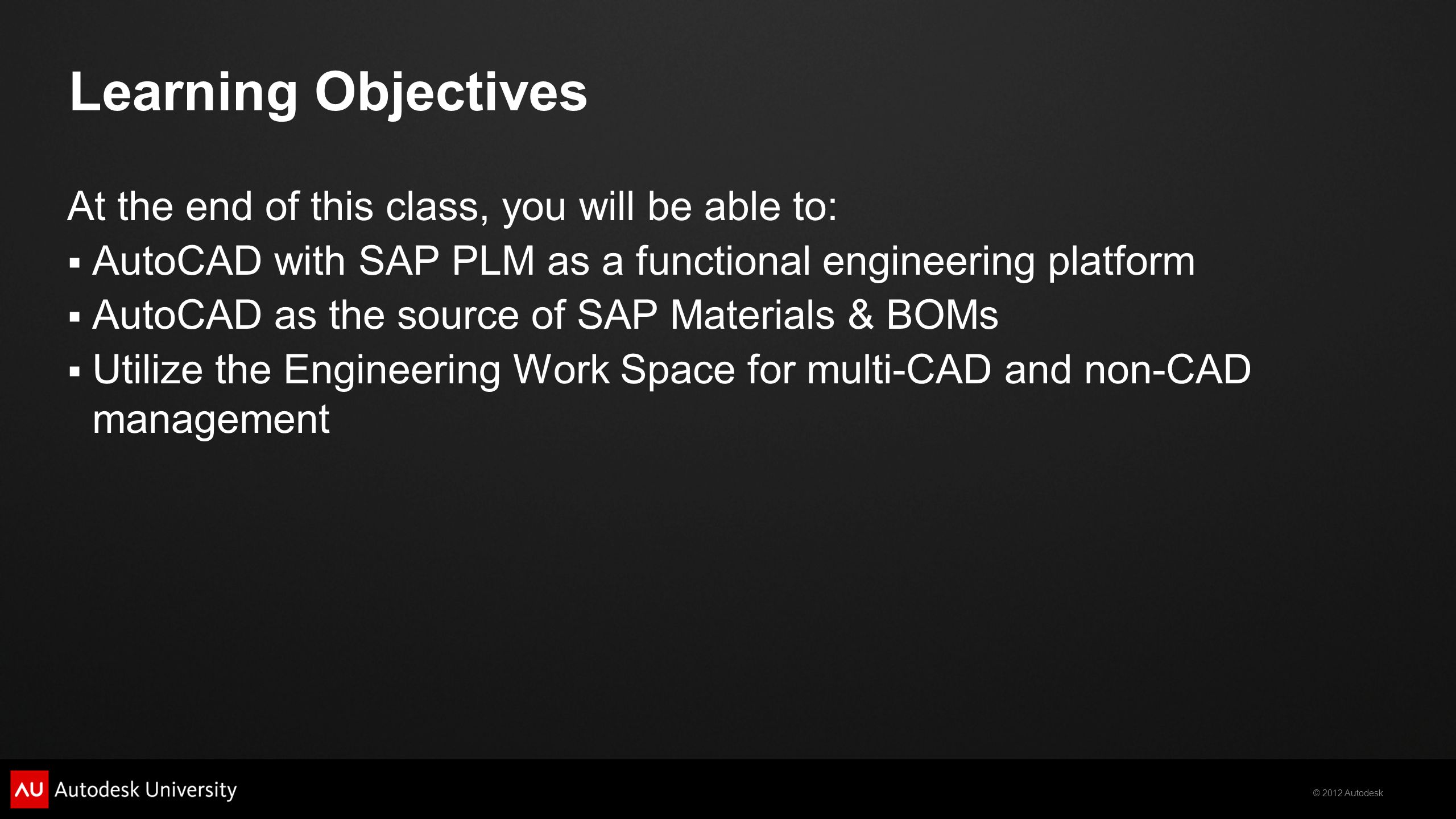

3. © 2012 Autodesk Learning Objectives At the end of this class, you will be able to:  AutoCAD with SAP PLM as a functional engineering platform  AutoCAD as the source of SAP Materials & BOMs  Utilize the Engineering Work Space for multi-CAD and non-CAD management

4. © 2012 Autodesk Brief overview of CIDEON

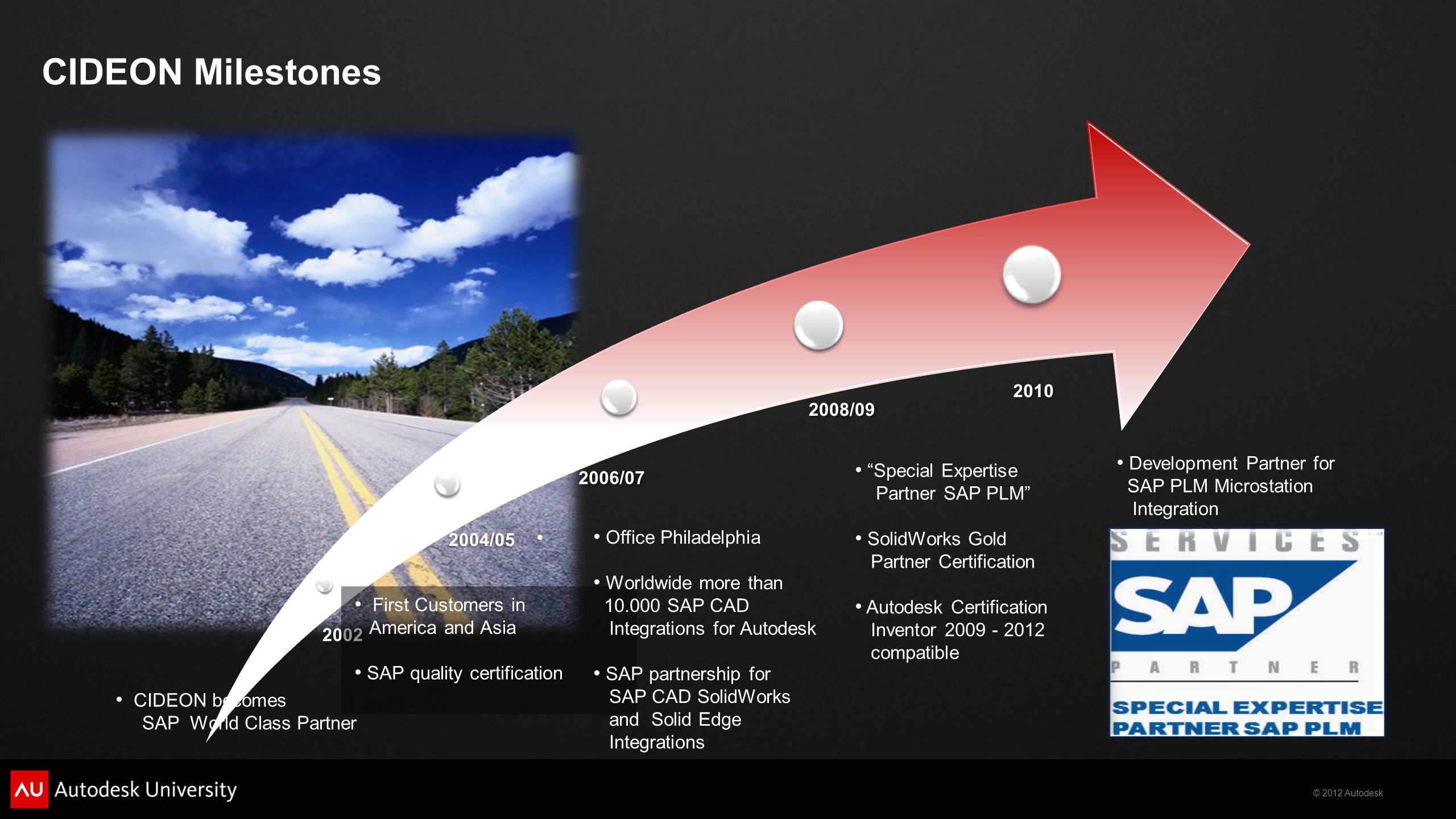

5. © 2012 Autodesk 2002 2004/05 2006/07 2008/09 2010 CIDEON Milestones “Special Expertise Partner SAP PLM” SolidWorks Gold Partner Certification Autodesk Certification Inventor 2009 - 2012 compatible First Customers in America and Asia SAP quality certification Office Philadelphia Worldwide more than 10.000 SAP CAD Integrations for Autodesk SAP partnership for SAP CAD SolidWorks and Solid Edge Integrations Development Partner for SAP PLM Microstation Integration CIDEON becomes SAP World Class Partner

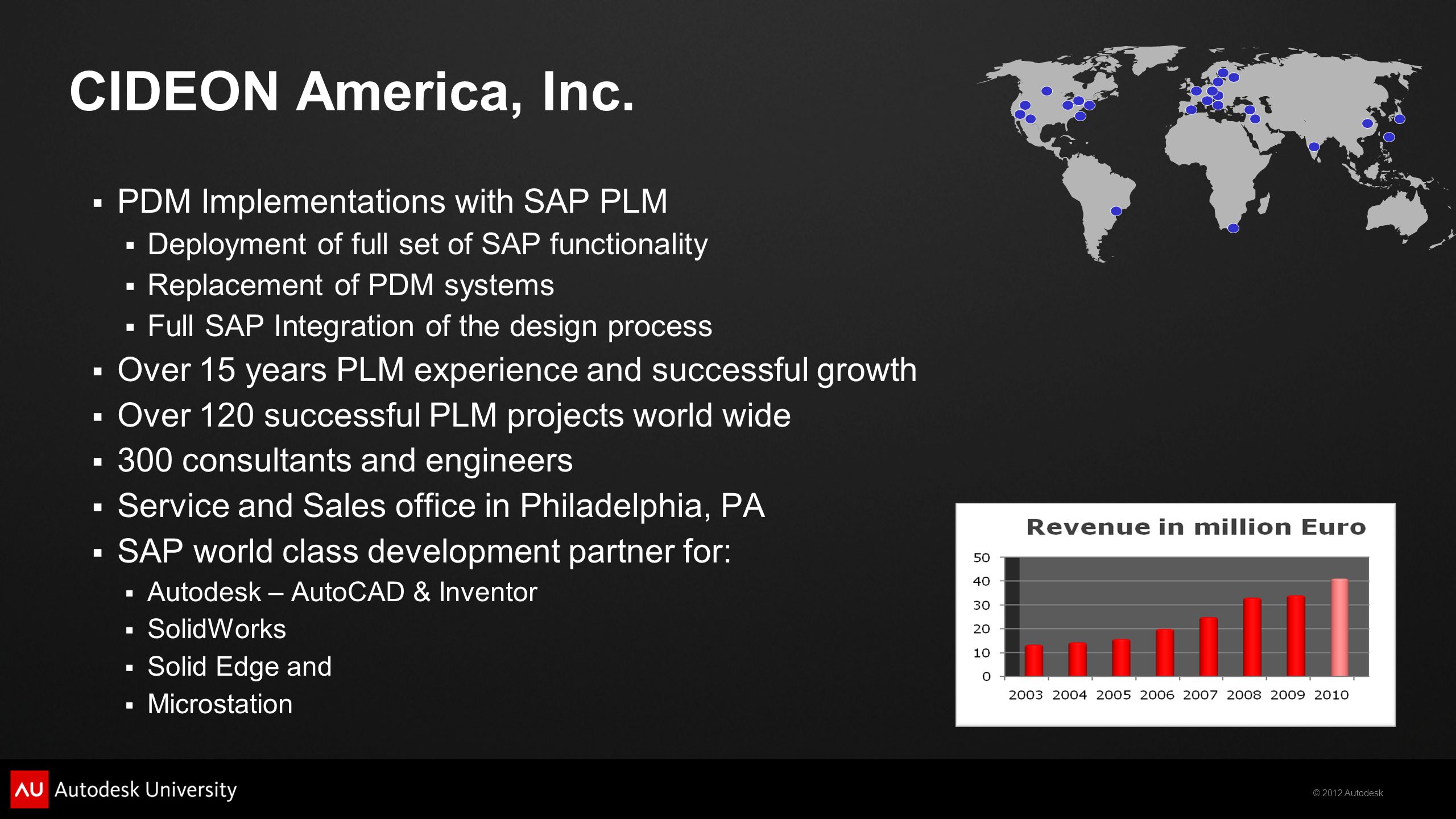

6. © 2012 Autodesk CIDEON America, Inc.  PDM Implementations with SAP PLM  Deployment of full set of SAP functionality  Replacement of PDM systems  Full SAP Integration of the design process  Over 15 years PLM experience and successful growth  Over 120 successful PLM projects world wide  300 consultants and engineers  Service and Sales office in Philadelphia, PA  SAP world class development partner for:  Autodesk – AutoCAD & Inventor  SolidWorks  Solid Edge and  Microstation

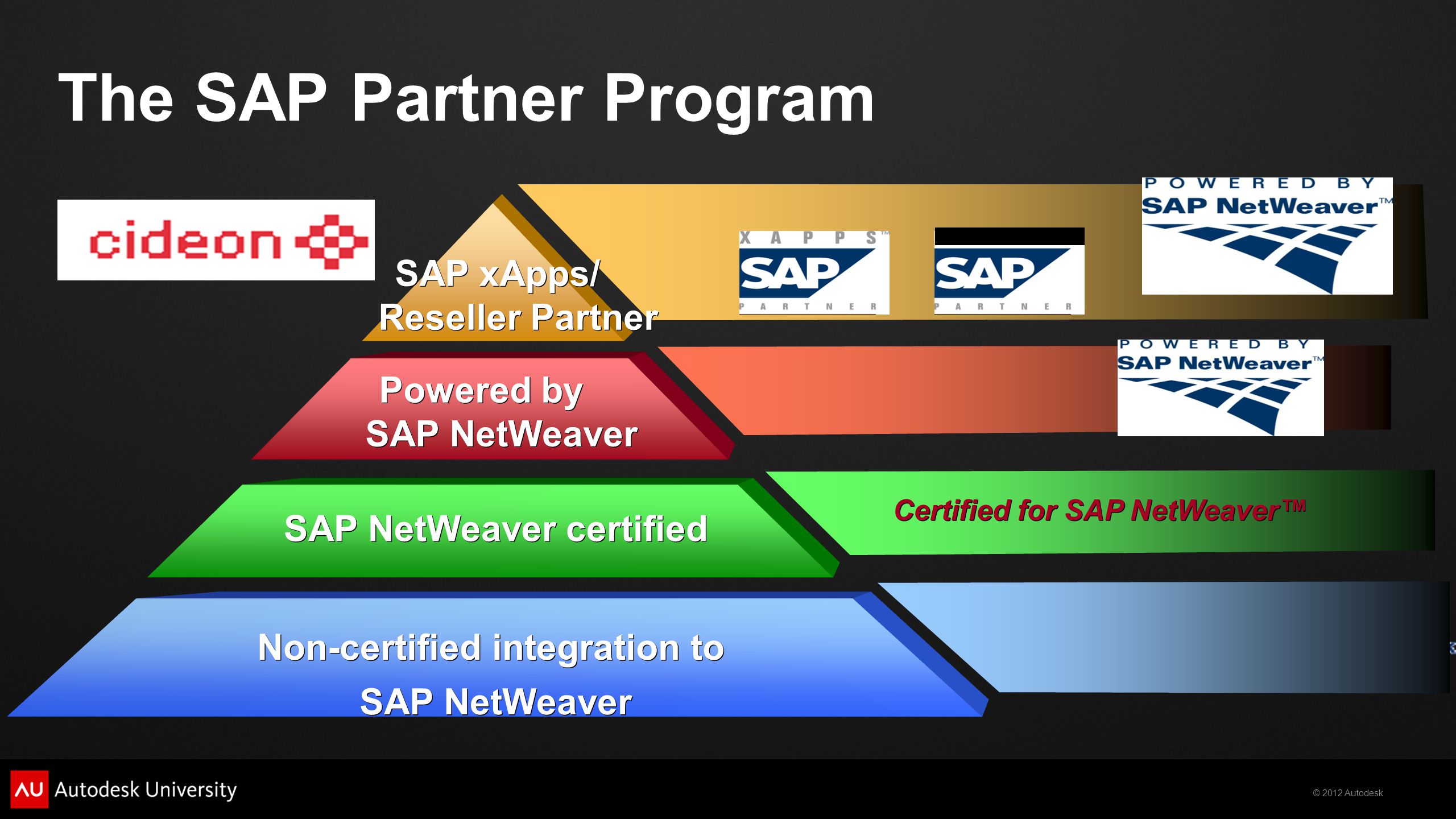

7. © 2012 Autodesk The SAP Partner Program SAP xApps/ Reseller Partner Powered by SAP NetWeaver SAP NetWeaver certified Non-certified integration to SAP NetWeaver Non-certified integration to SAP NetWeaver Certified for SAP NetWeaver™ R E S E L L E R

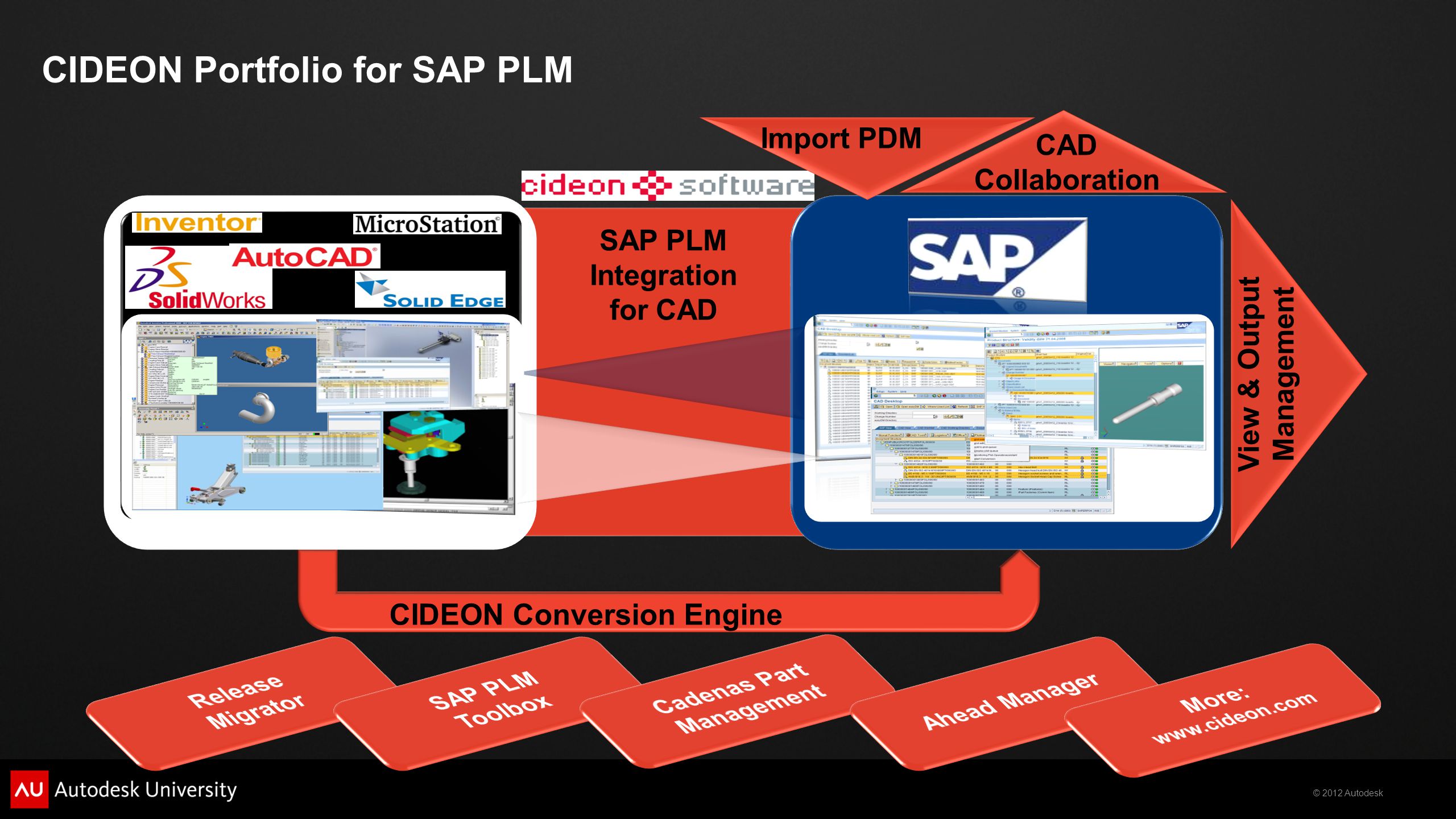

8. © 2012 Autodesk CIDEON Portfolio for SAP PLM CIDEON Conversion Engine SAP PLM Integration for CAD Import PDM CAD Collaboration View & Output Management

9. © 2012 Autodesk Worldwide References

10. © 2012 Autodesk North American References

11. © 2012 Autodesk Purpose Slide 11 Demonstrate and establish the value of implementing integration for AutoCAD and SAP

12. © 2012 Autodesk Benefits Slide 12 Direct integration of SAP into AutoCAD Permanent & consistent CAD, engineering, & PLM data Complete PLM solution for AutoCAD

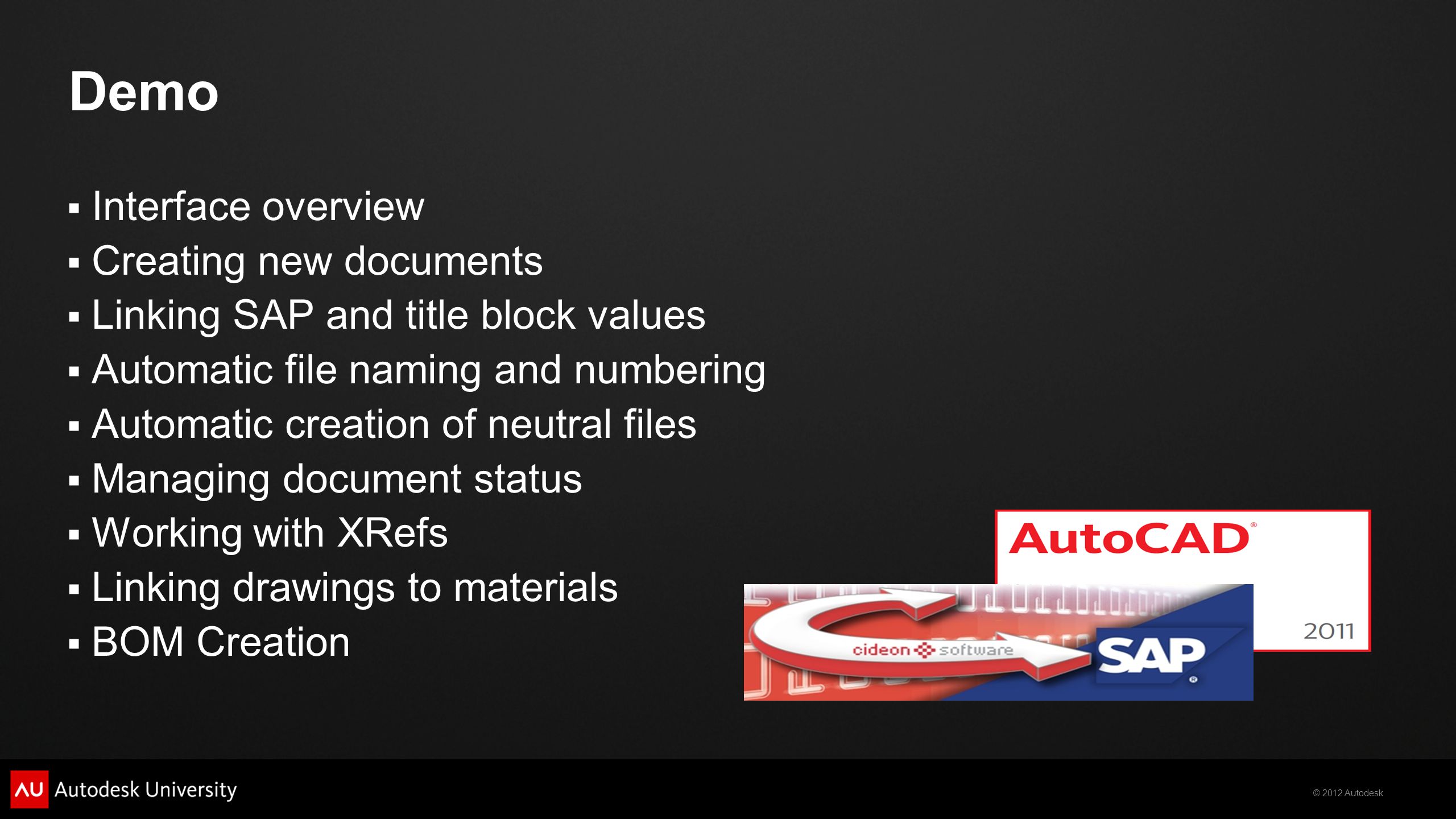

13. © 2012 Autodesk  Interface overview  Creating new documents  Linking SAP and title block values  Automatic file naming and numbering  Automatic creation of neutral files  Managing document status  Working with XRefs  Linking drawings to materials  BOM Creation Demo

14. © 2012 Autodesk Interface overview SAP Commands SAP Logon SAP Search

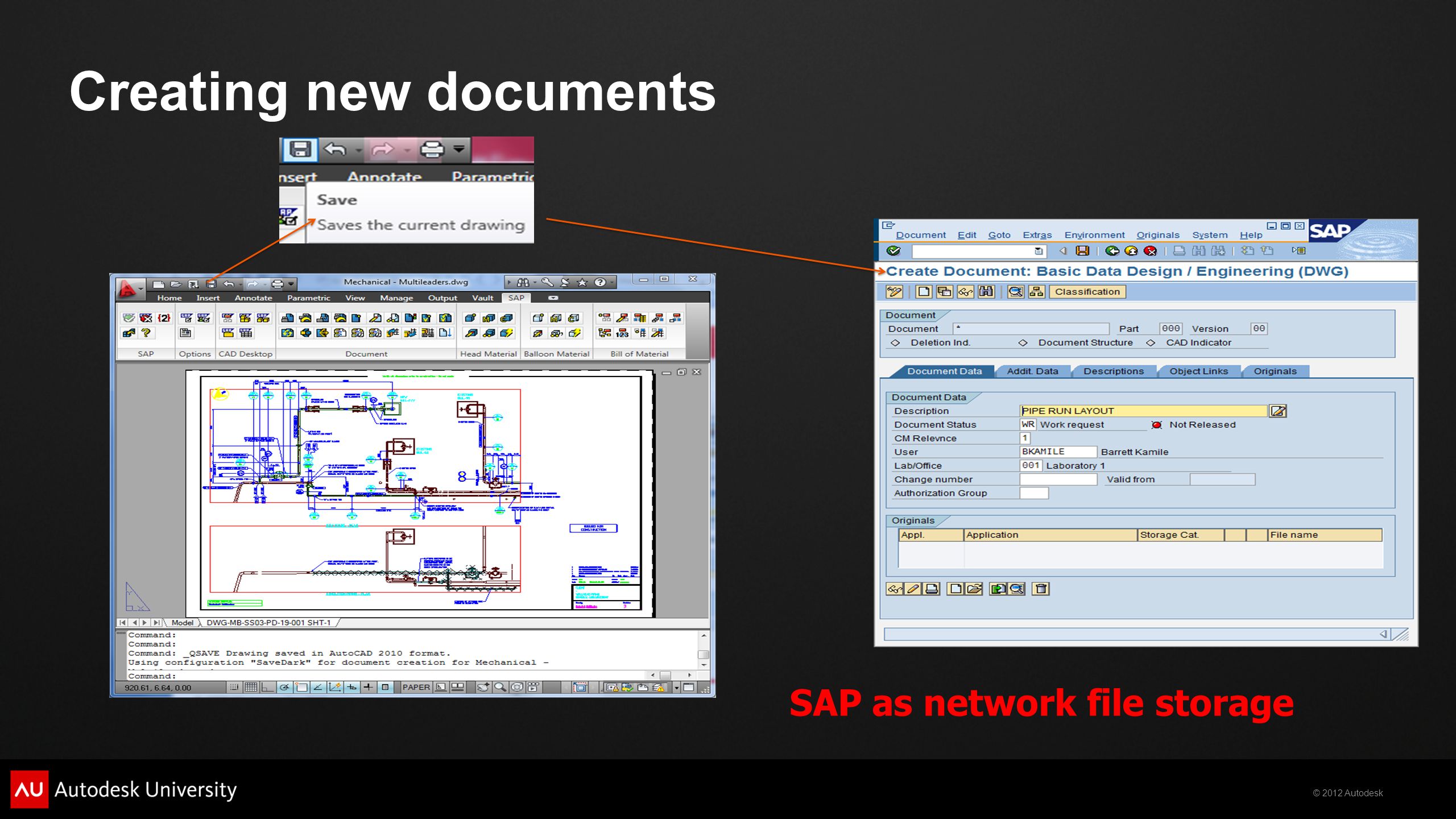

15. © 2012 Autodesk Creating new documents SAP as network file storage

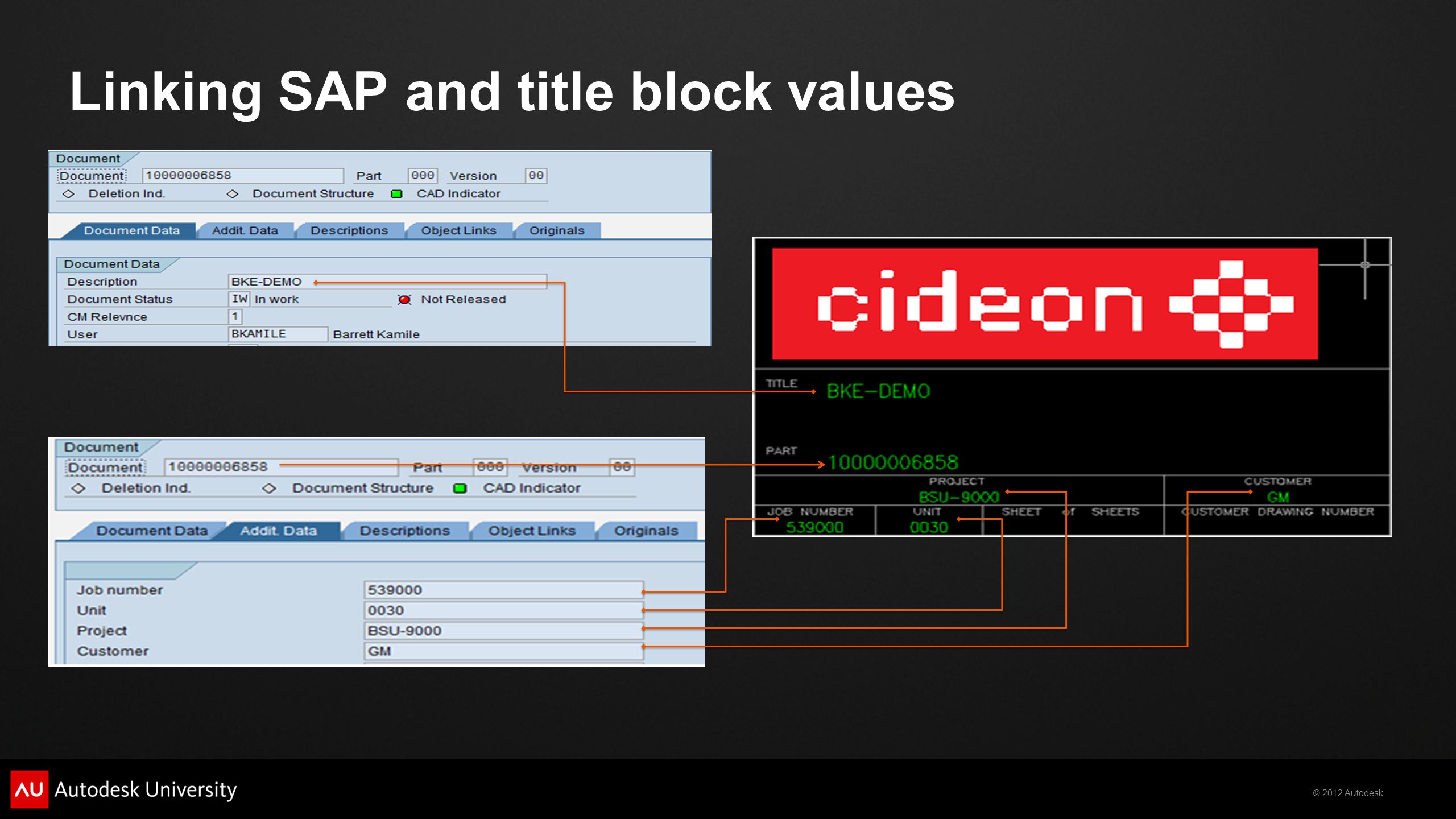

16. © 2012 Autodesk Linking SAP and title block values

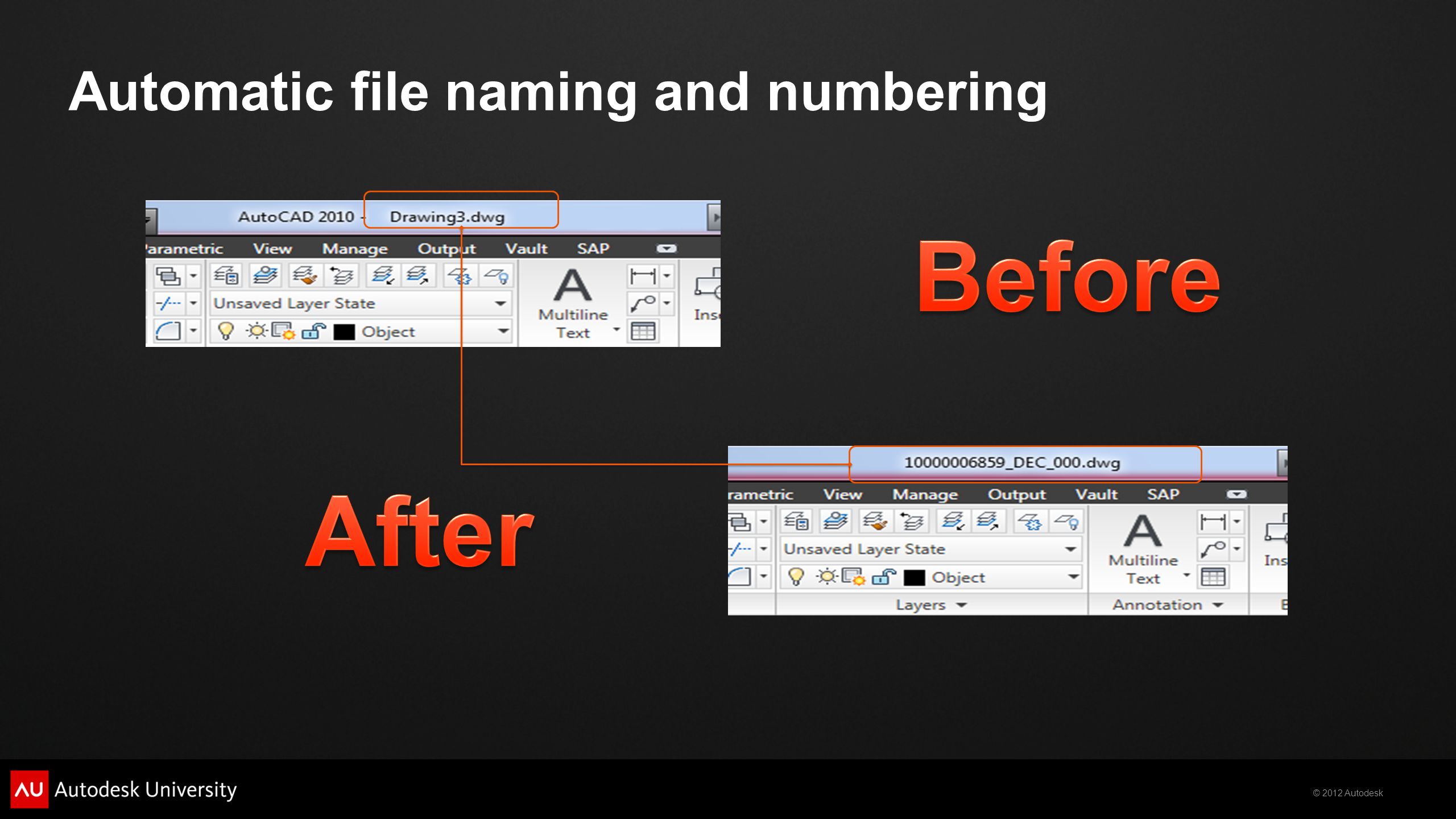

17. © 2012 Autodesk Automatic file naming and numbering

18. © 2012 Autodesk Automatic creation of neutral files

19. © 2012 Autodesk Managing document status

20. © 2012 Autodesk Working with XRefs

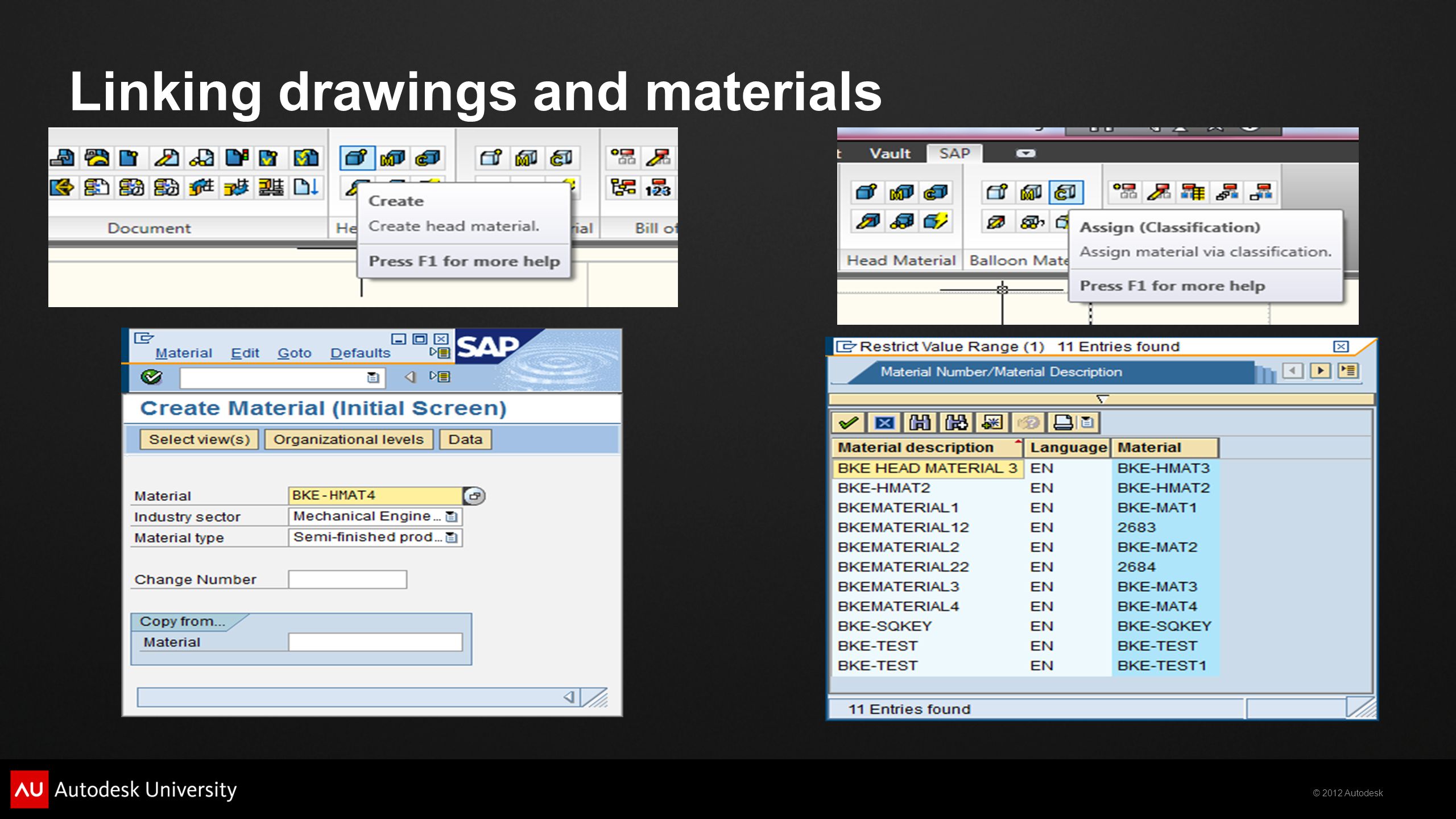

21. © 2012 Autodesk Linking drawings and materials

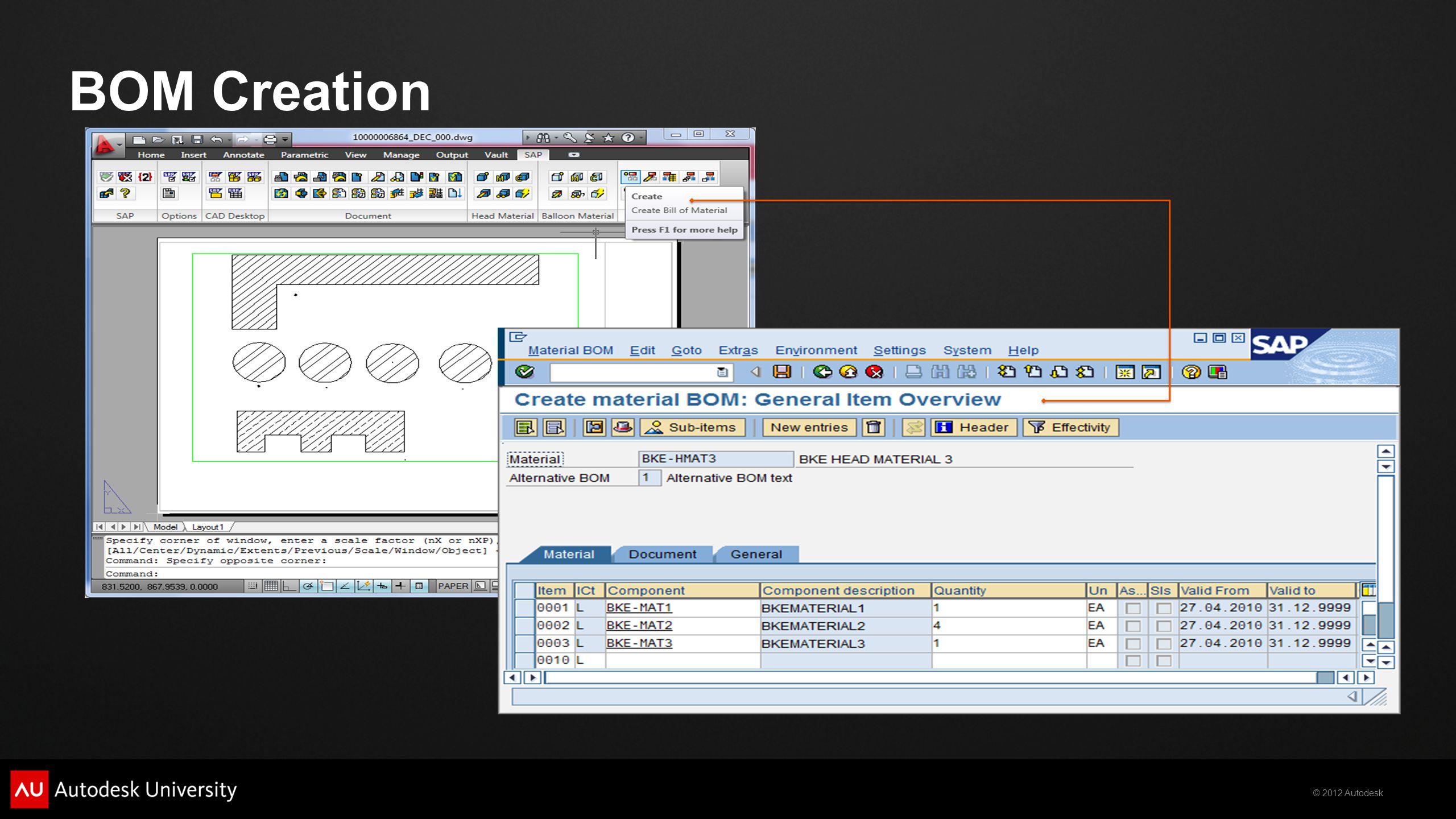

22. © 2012 Autodesk BOM Creation

23. © 2012 Autodesk  Interface overview  Creating new documents  Linking SAP and title block values  Automatic file naming and numbering  Automatic creation of neutral files  Managing document status  Working with XRefs  Linking drawings to materials  BOM Creation Demo review

24. © 2012 Autodesk Engineering Work Space

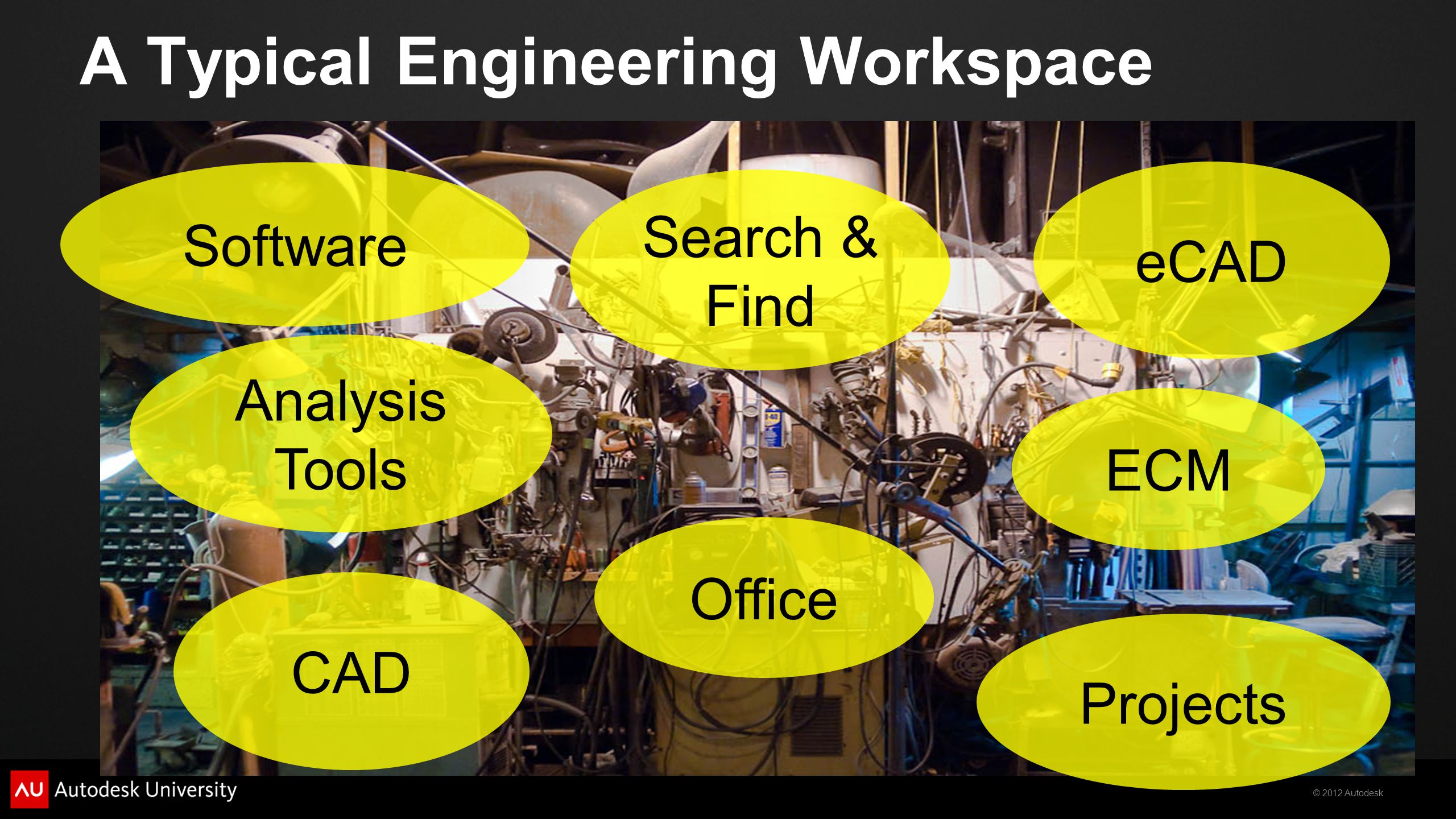

25. © 2012 Autodesk 25 A Typical Engineering Workspace CAD Analysis Tools Office Projects ECM Search & Find eCAD Software

26. © 2012 Autodesk Lab Preview Our answer …

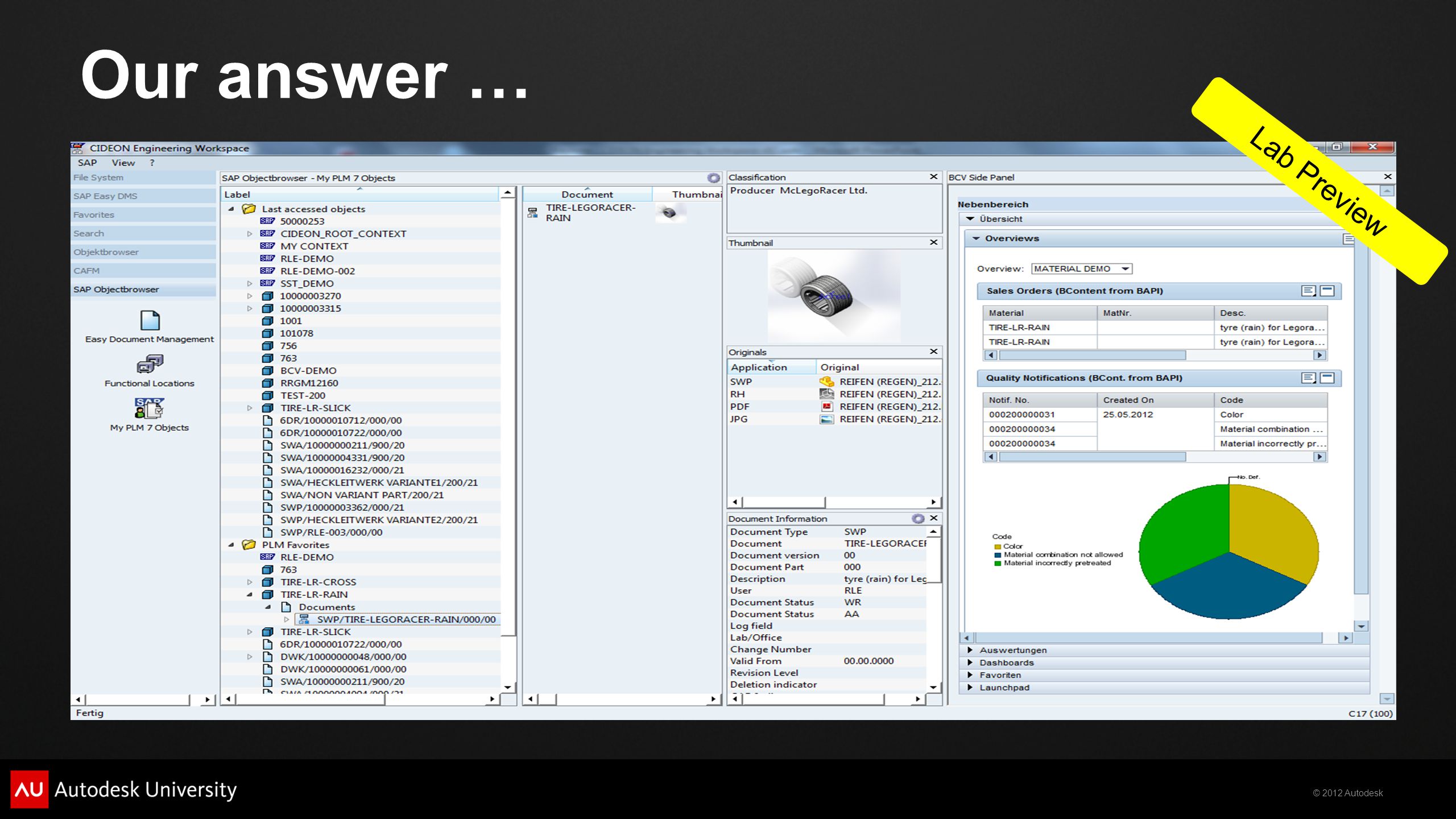

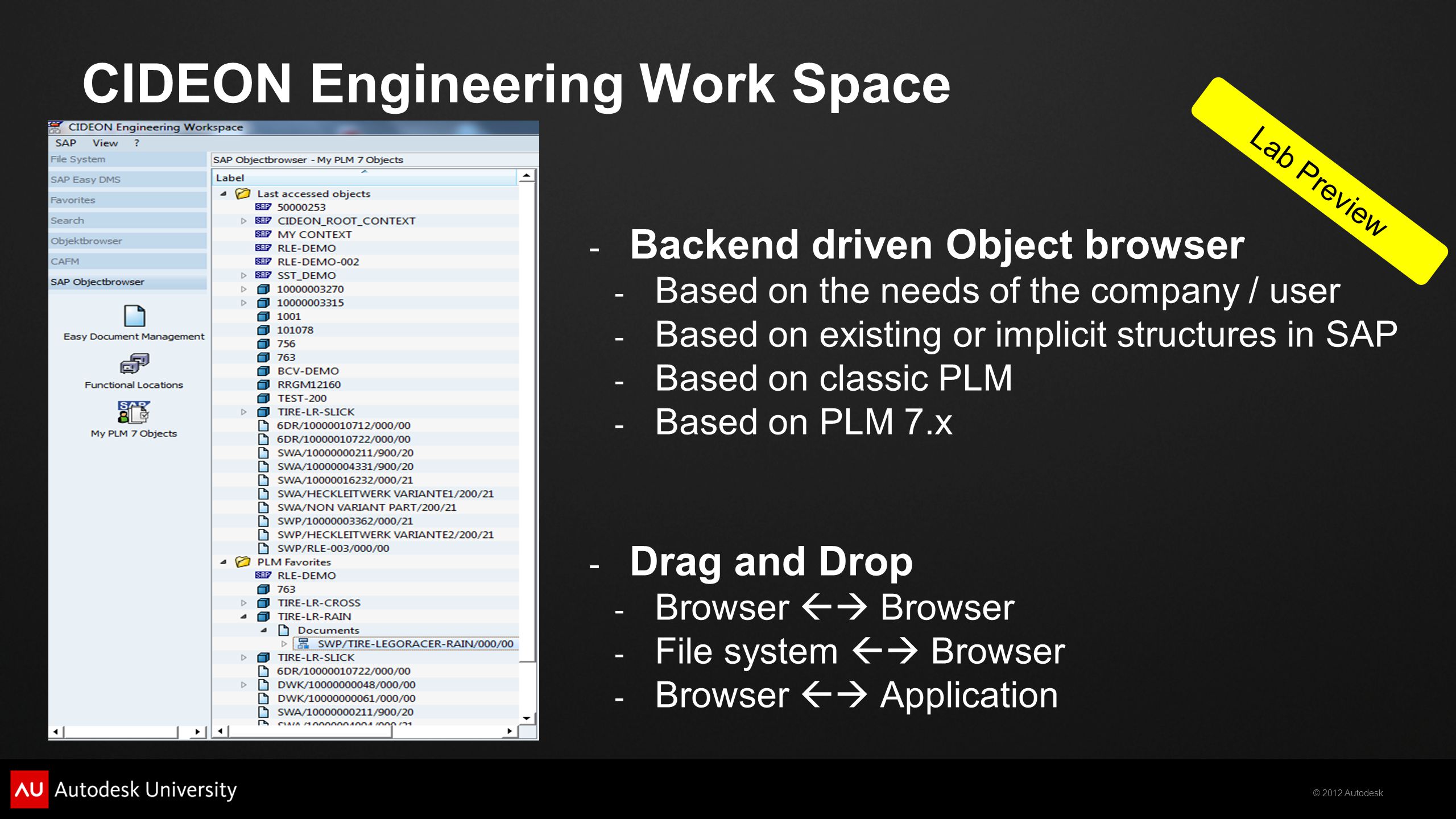

27. © 2012 Autodesk CIDEON Engineering Work Space - Backend driven Object browser - Based on the needs of the company / user - Based on existing or implicit structures in SAP - Based on classic PLM - Based on PLM 7.x - Drag and Drop - Browser  Browser - File system  Browser - Browser  Application Lab Preview

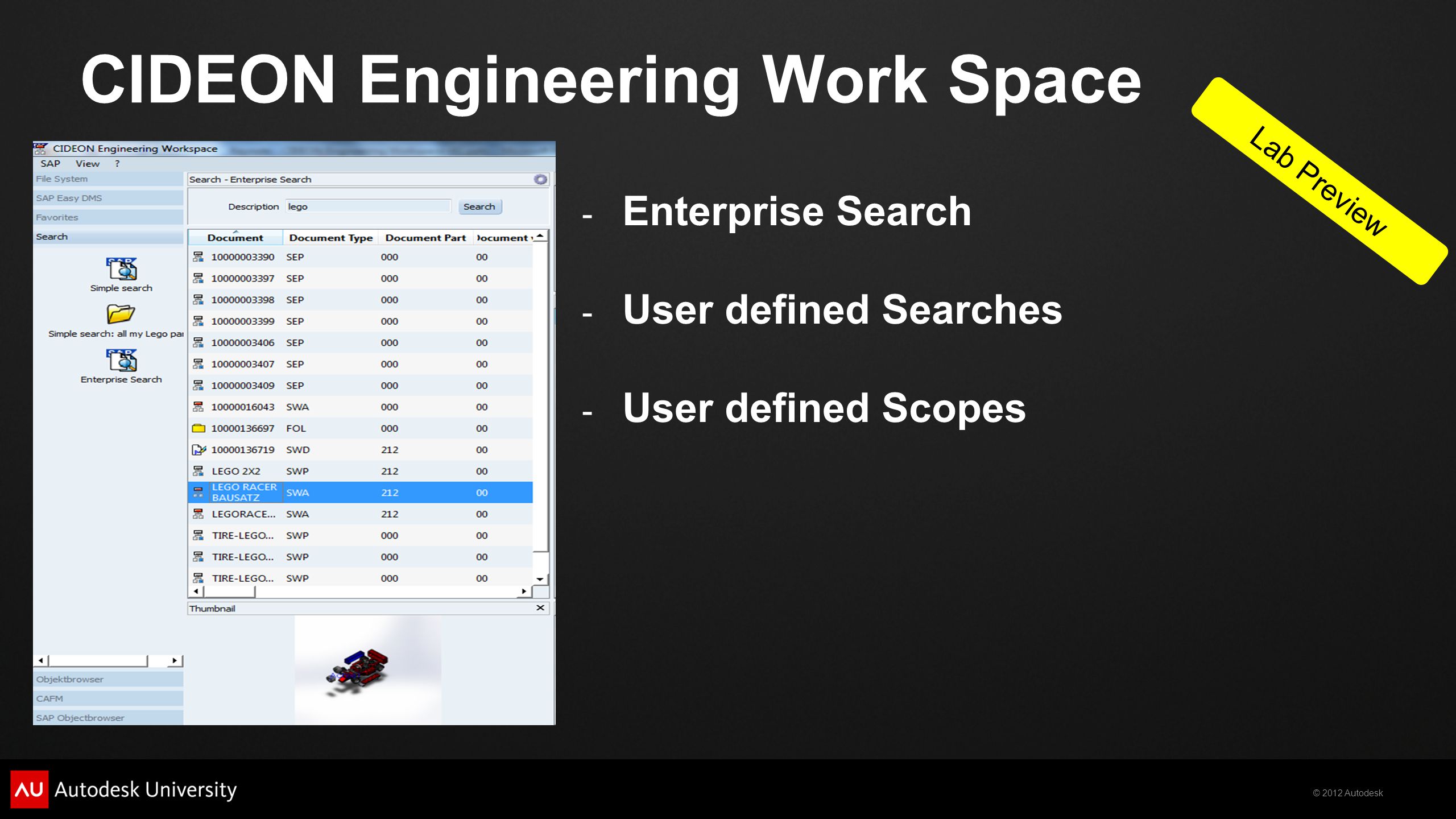

28. © 2012 Autodesk CIDEON Engineering Work Space - Enterprise Search - User defined Searches - User defined Scopes Lab Preview

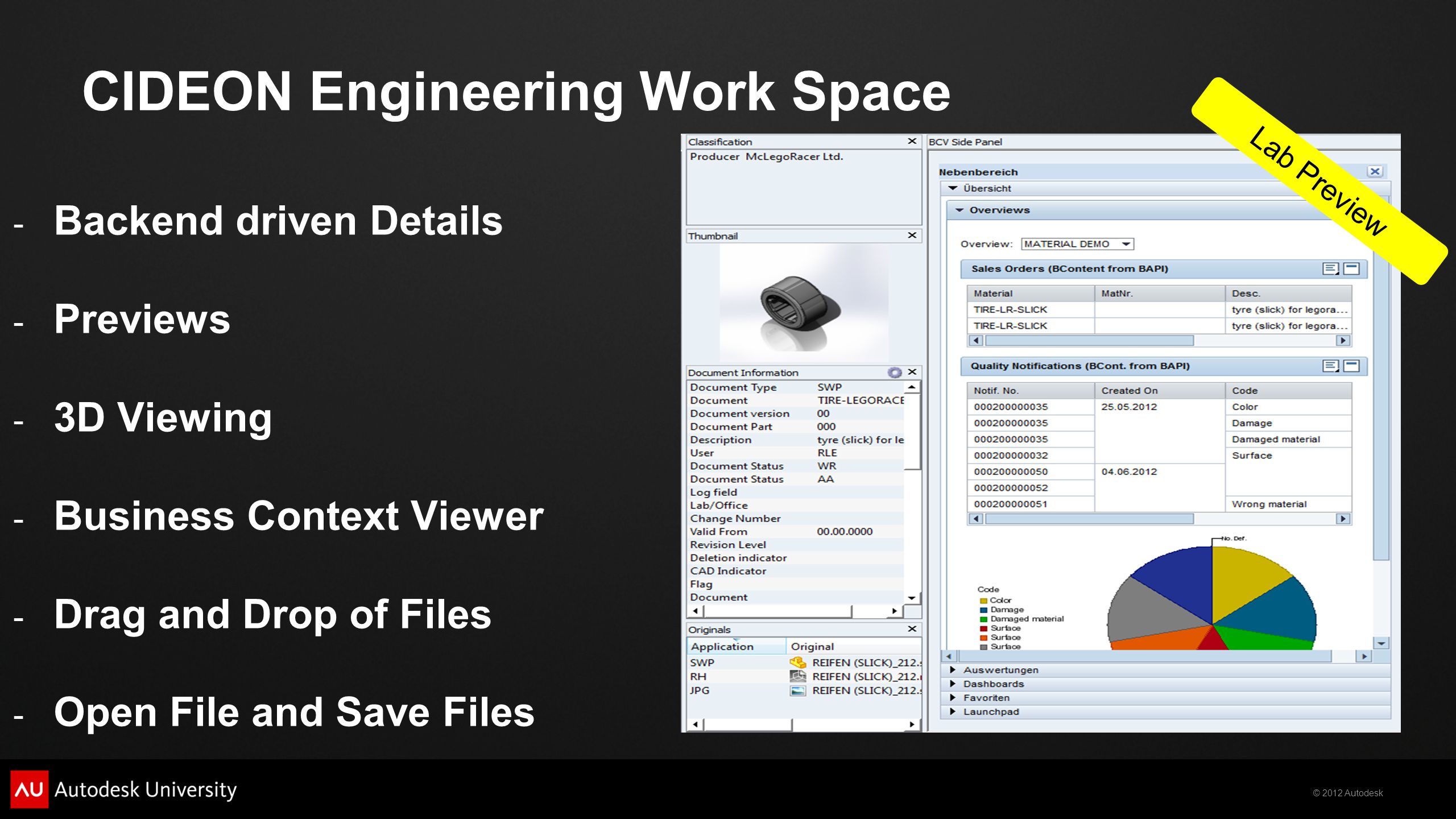

29. © 2012 Autodesk CIDEON Engineering Work Space - Backend driven Details - Previews - 3D Viewing - Business Context Viewer - Drag and Drop of Files - Open File and Save Files Lab Preview

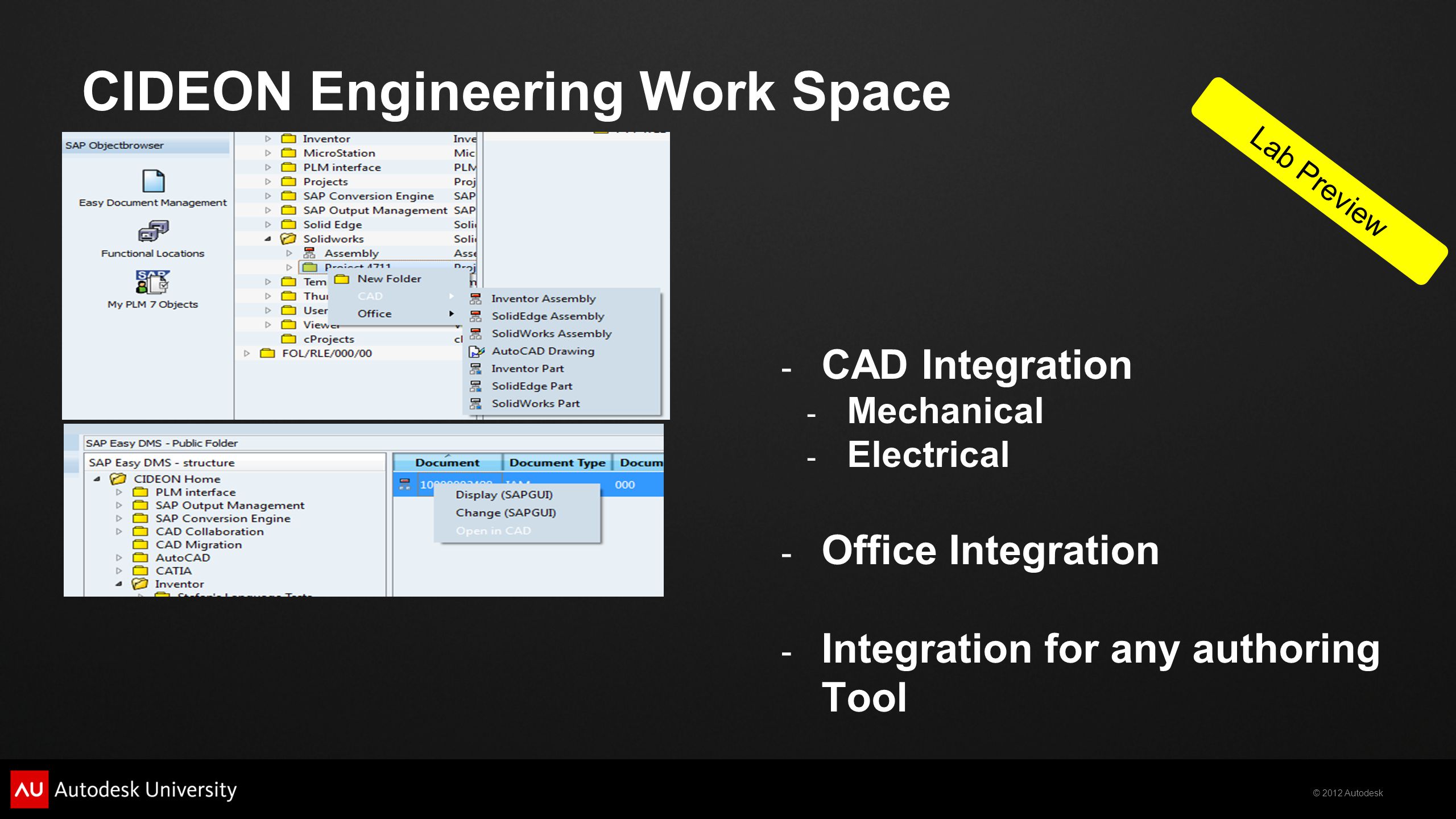

30. © 2012 Autodesk CIDEON Engineering Work Space - CAD Integration - Mechanical - Electrical - Office Integration - Integration for any authoring Tool Lab Preview

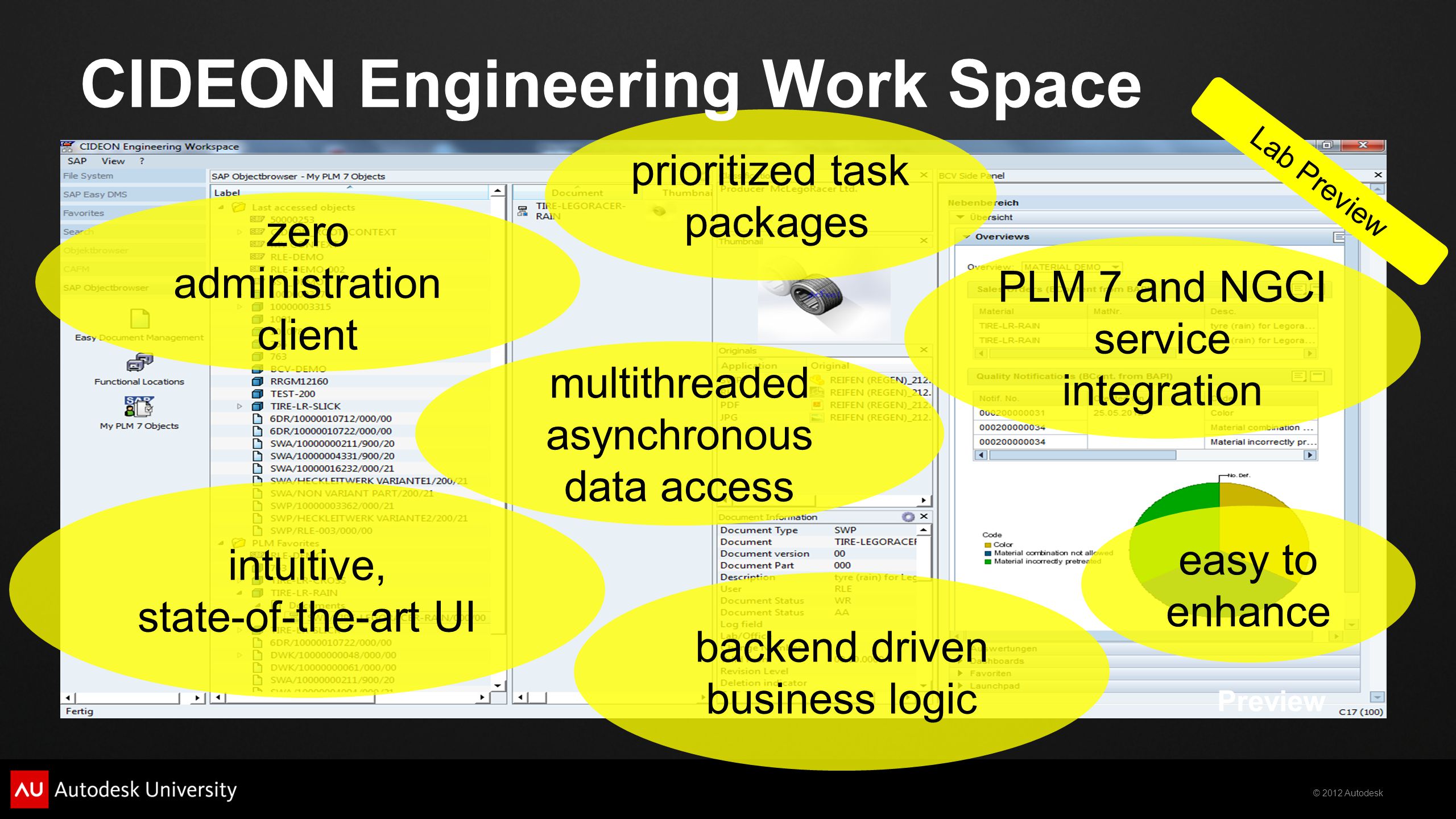

31. © 2012 Autodesk Lab Preview prioritized task packages intuitive, state-of-the-art UI multithreaded asynchronous data access zero administration client backend driven business logic easy to enhance PLM 7 and NGCI service integration Preview CIDEON Engineering Work Space

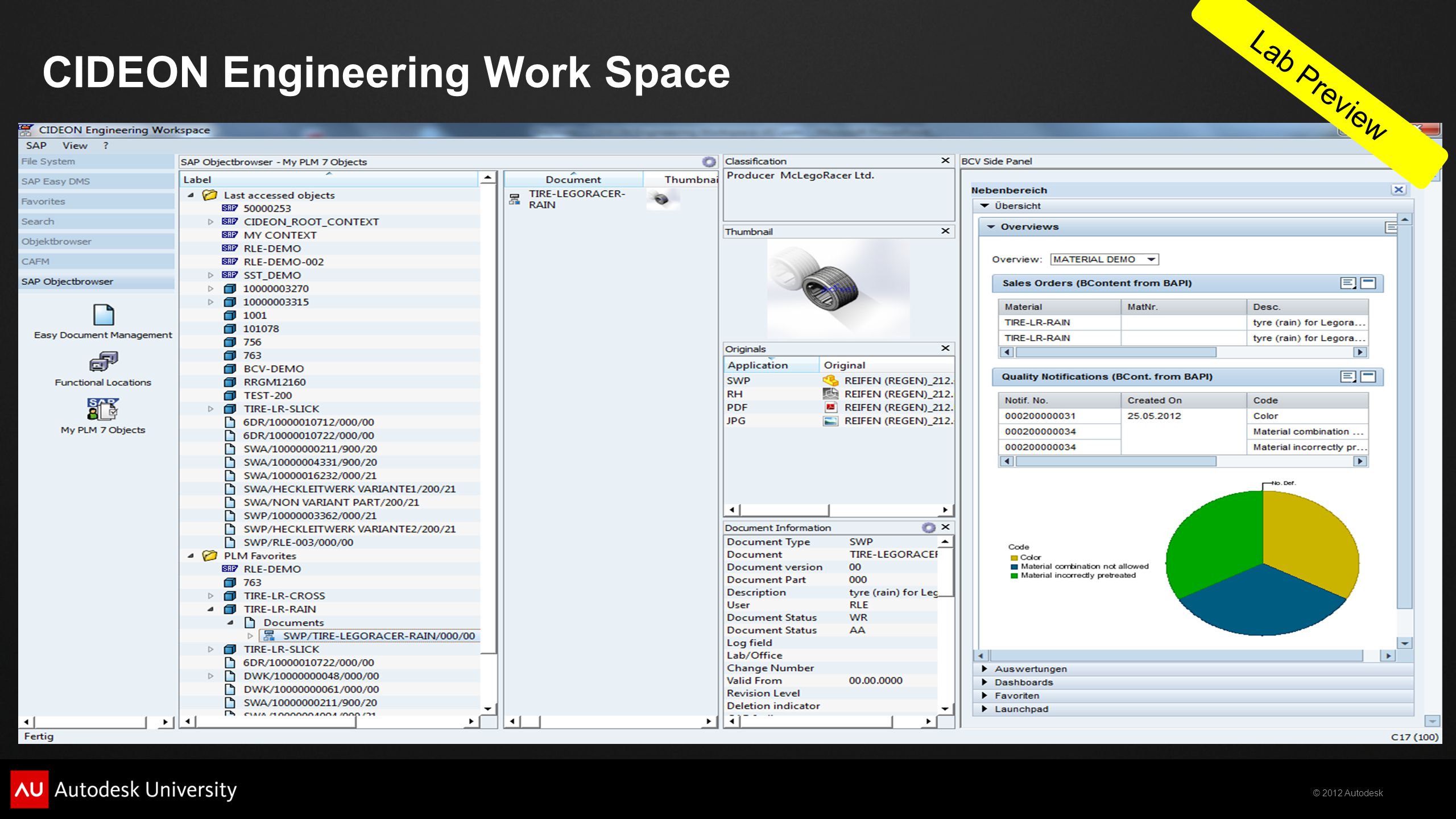

32. © 2012 Autodesk Lab Preview CIDEON Engineering Work Space

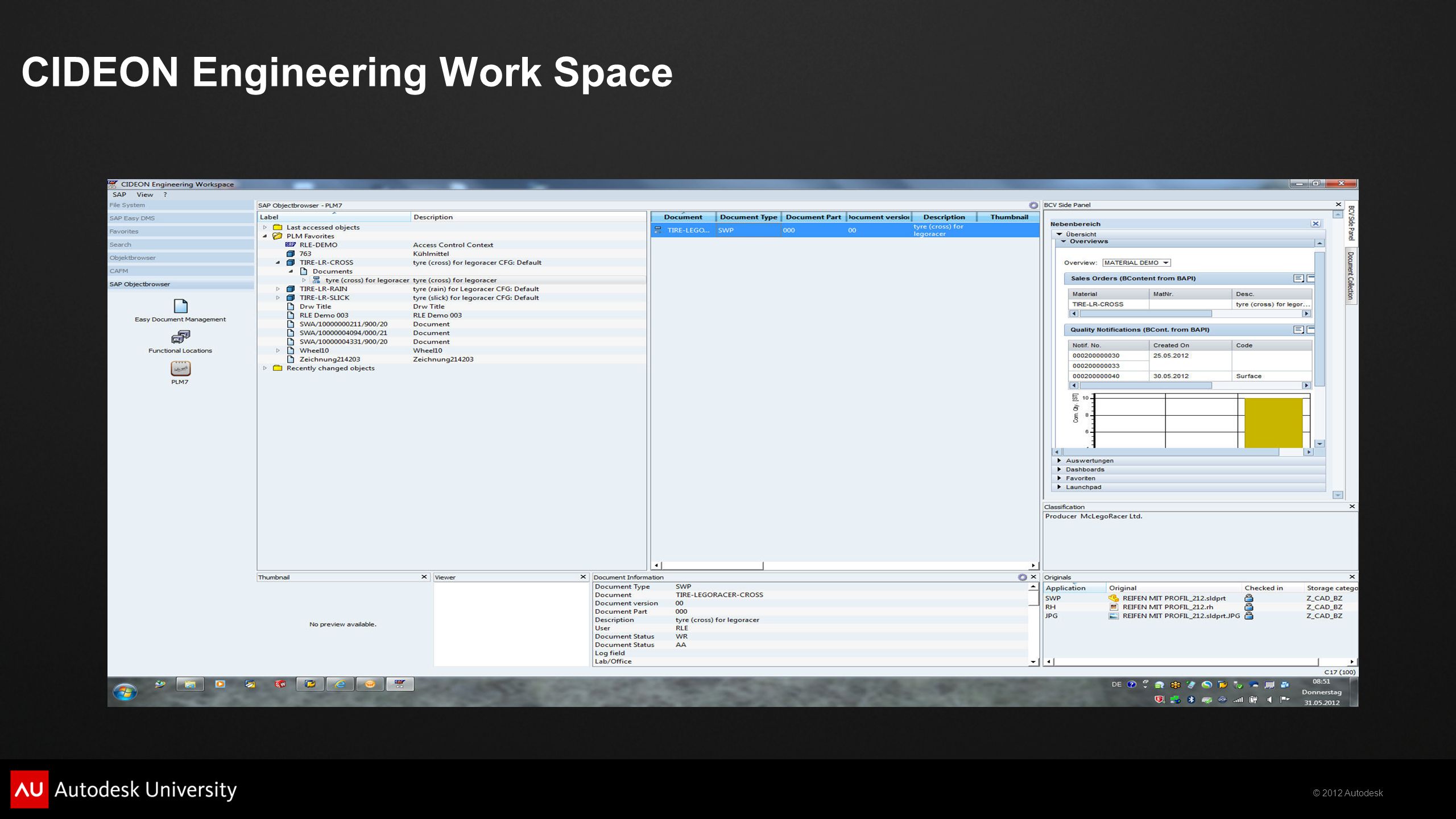

33. © 2012 Autodesk CIDEON Engineering Work Space

34. © 2012 Autodesk Section Title Goes Here

35. © 2012 Autodesk  Questions?  Wrap up Contact:Bill Svokos CIDEON America, Inc. Bill.Svokos@CIDEON.com +1.484.532.7800 Wrap up / Next steps Slide 35
