1. 1 / 12 PLANET MIMO Solution WMRT-414 / WML-3565 / WML-8315

2. 2 / 12 Presentation Outline MIMO Overview MIMO Family Product Features Application Comparison

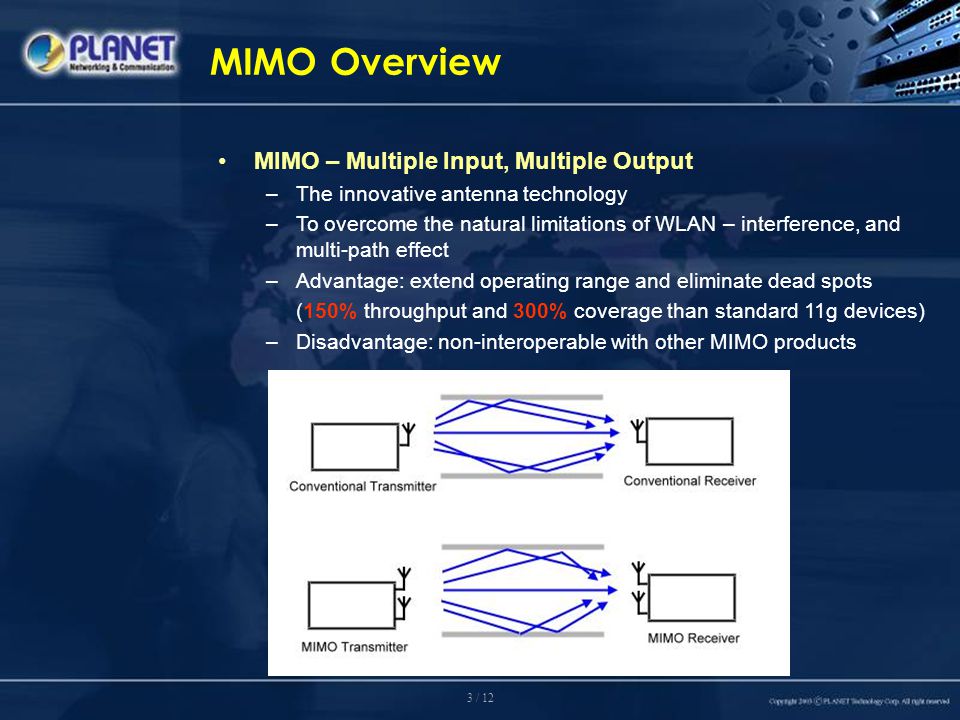

3. 3 / 12 MIMO Overview MIMO – Multiple Input, Multiple Output –The innovative antenna technology –To overcome the natural limitations of WLAN – interference, and multi-path effect –Advantage: extend operating range and eliminate dead spots (150% throughput and 300% coverage than standard 11g devices) –Disadvantage: non-interoperable with other MIMO products

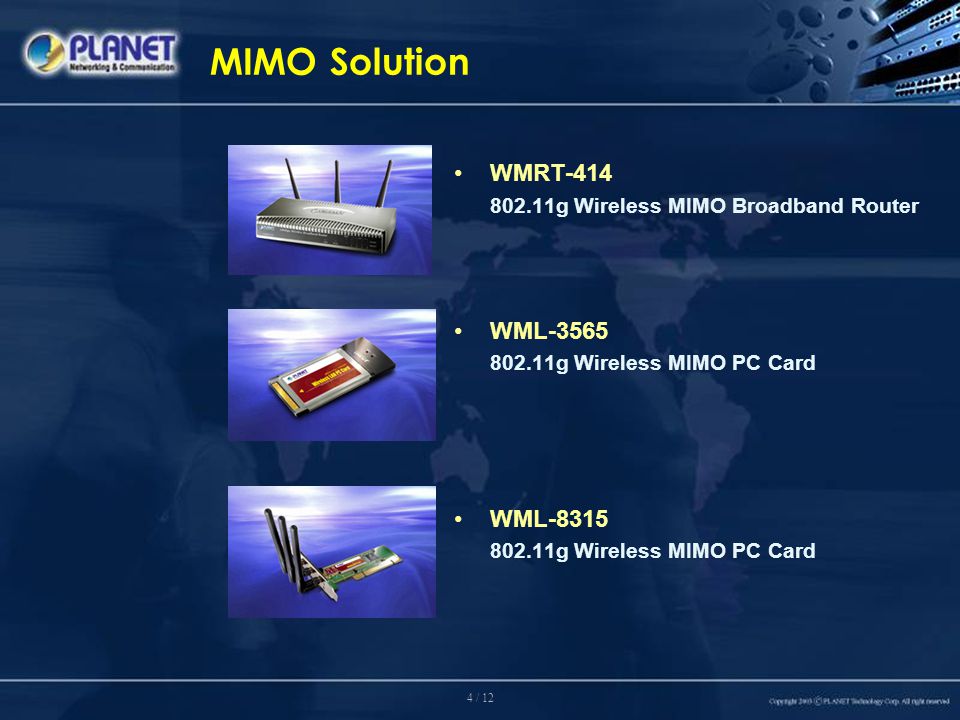

4. 4 / 12 MIMO Solution WMRT-414 802.11g Wireless MIMO Broadband Router WML-3565 802.11g Wireless MIMO PC Card WML-8315 802.11g Wireless MIMO PC Card

5. 5 / 12 Features Turbo mode enhanced To deliver the better throughput in the same period Throughput rate (Mbps) TxRx Standard 11g products23.925.4 PLANET MIMO products with Turbo mode 35.2 (about 150%) 32.1 (about 130%)

6. 6 / 12 Features WMM (WiFi Multi-Media) support In order to meet the multi-media data bandwidth requirement Example of effect of WMM on a video stream Total 24Mbps usage in the beginning New application coming (green line) Video steam dropped without WMM (red line)

7. 7 / 12 Features WPA2 Level Security

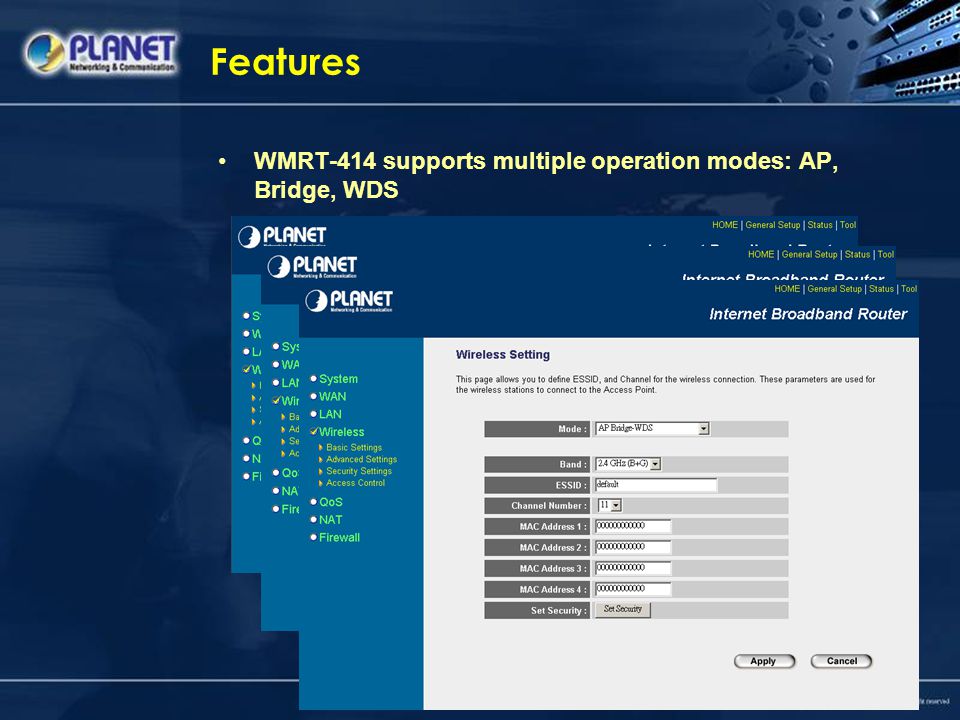

8. 8 / 12 Features WMRT-414 supports multiple operation modes: AP, Bridge, WDS

9. 9 / 12 Features QoS support User can create self-defined QoS rules to reserve bandwidth for special applications

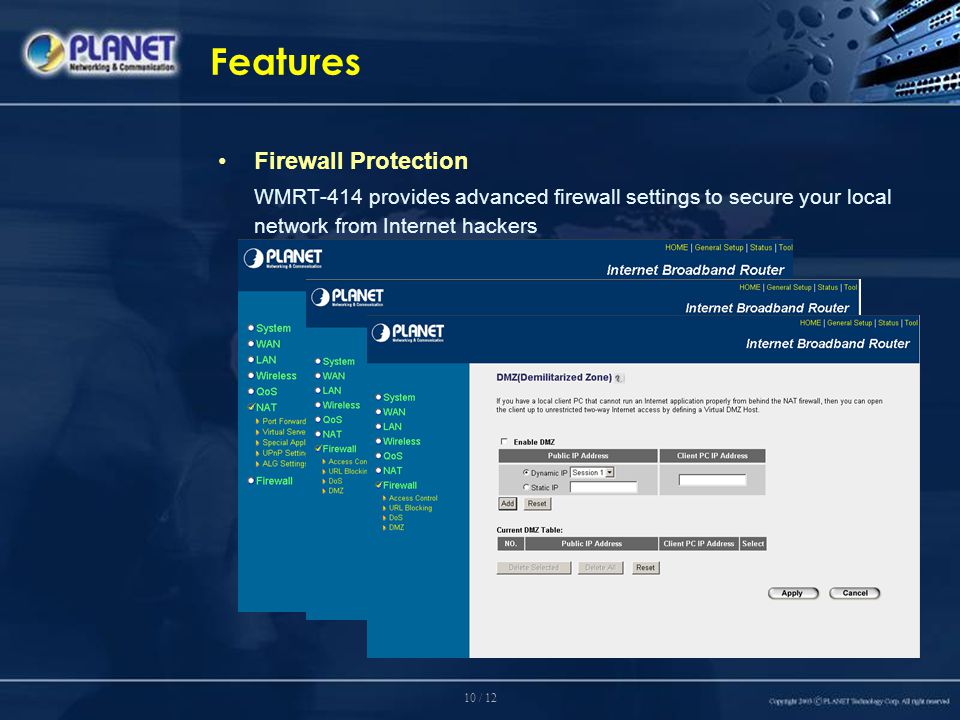

10. 10 / 12 Features Firewall Protection WMRT-414 provides advanced firewall settings to secure your local network from Internet hackers

11. 11 / 12 Application More reliable WLAN with less dead spots Ordinary 11g router WMRT-414 300% coverage 150% throughput

12. 12 / 12 www.planet.com.tw Pioneer of IP Innovation
