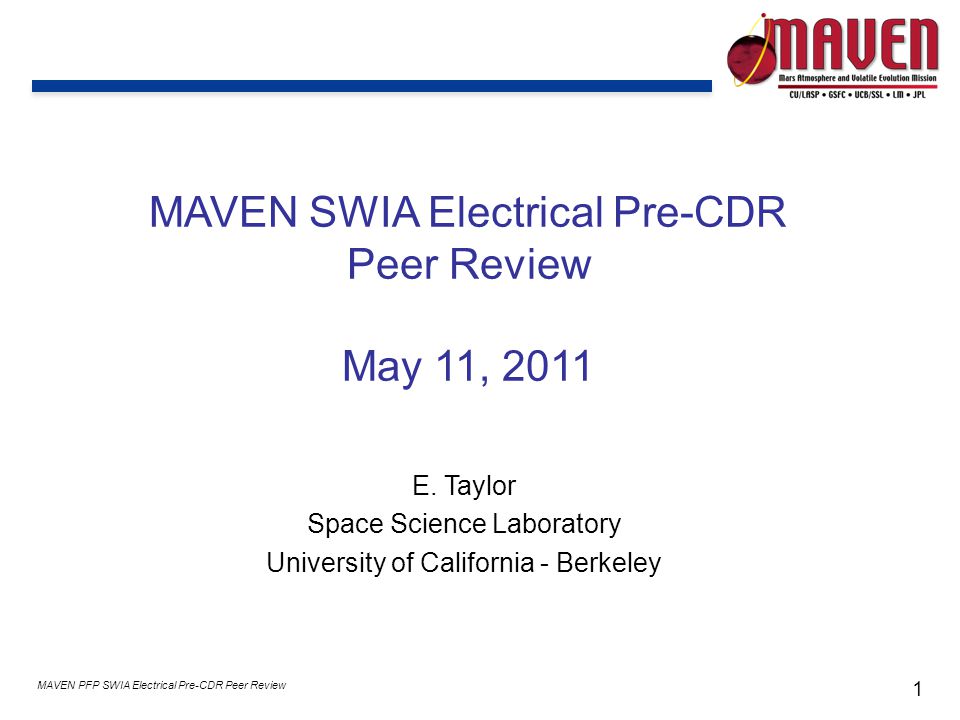

1. 1 MAVEN PFP SWIA Electrical Pre-CDR Peer Review MAVEN SWIA Electrical Pre-CDR Peer Review May 11, 2011 E. Taylor Space Science Laboratory University of California - Berkeley

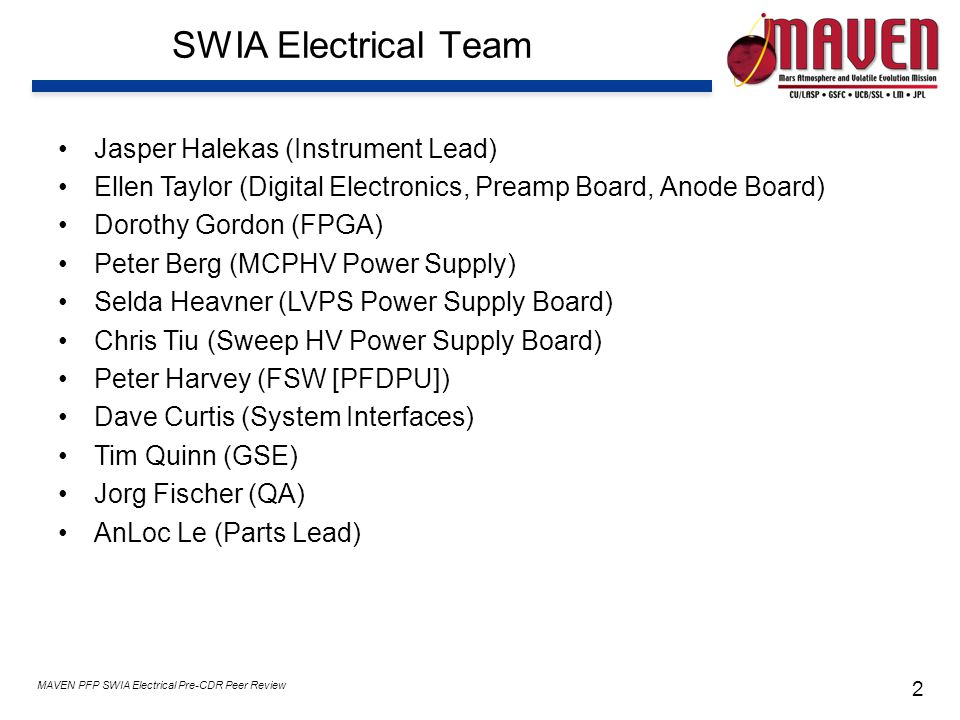

2. 2 MAVEN PFP SWIA Electrical Pre-CDR Peer Review SWIA Electrical Team Jasper Halekas (Instrument Lead) Ellen Taylor (Digital Electronics, Preamp Board, Anode Board) Dorothy Gordon (FPGA) Peter Berg (MCPHV Power Supply) Selda Heavner (LVPS Power Supply Board) Chris Tiu (Sweep HV Power Supply Board) Peter Harvey (FSW [PFDPU]) Dave Curtis (System Interfaces) Tim Quinn (GSE) Jorg Fischer (QA) AnLoc Le (Parts Lead)

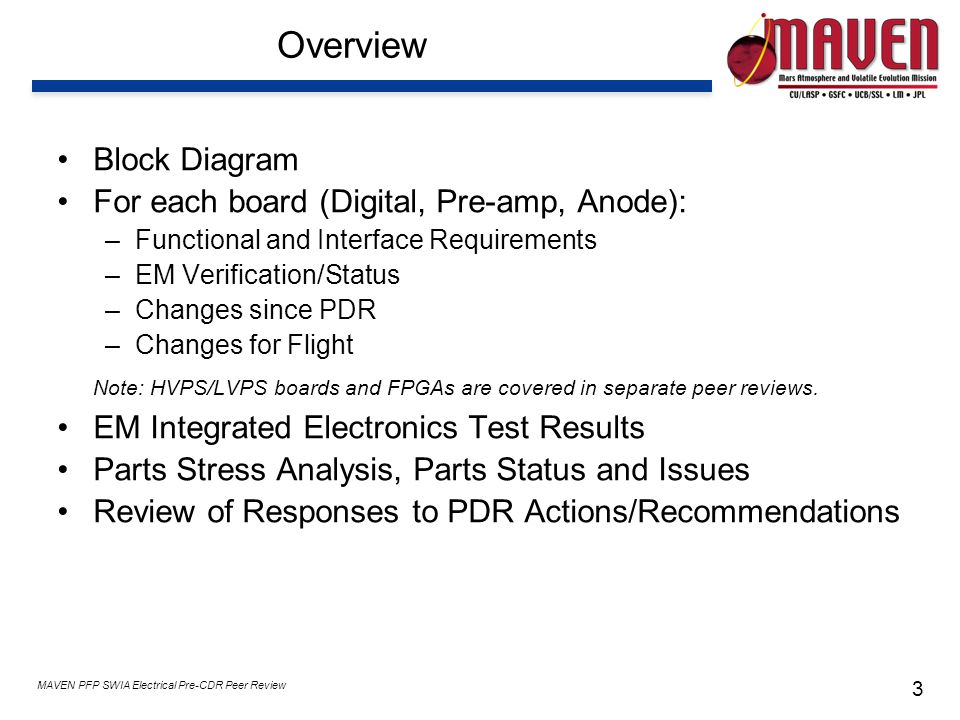

3. 3 MAVEN PFP SWIA Electrical Pre-CDR Peer Review Overview Block Diagram For each board (Digital, Pre-amp, Anode): –Functional and Interface Requirements –EM Verification/Status –Changes since PDR –Changes for Flight Note: HVPS/LVPS boards and FPGAs are covered in separate peer reviews. EM Integrated Electronics Test Results Parts Stress Analysis, Parts Status and Issues Review of Responses to PDR Actions/Recommendations

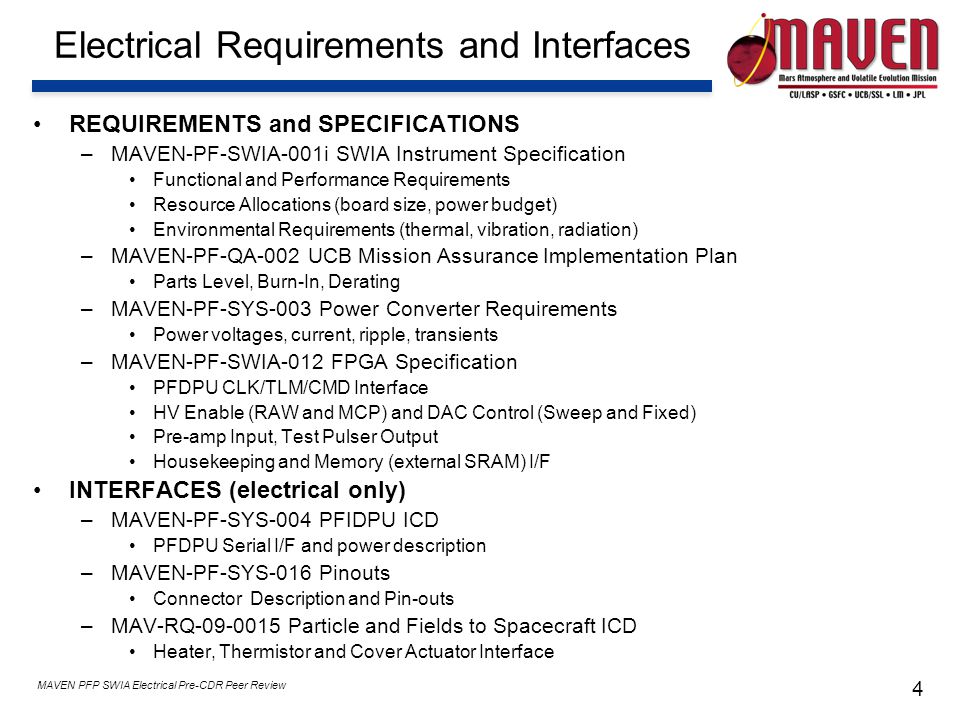

4. 4 MAVEN PFP SWIA Electrical Pre-CDR Peer Review Electrical Requirements and Interfaces REQUIREMENTS and SPECIFICATIONS –MAVEN-PF-SWIA-001i SWIA Instrument Specification Functional and Performance Requirements Resource Allocations (board size, power budget) Environmental Requirements (thermal, vibration, radiation) –MAVEN-PF-QA-002 UCB Mission Assurance Implementation Plan Parts Level, Burn-In, Derating –MAVEN-PF-SYS-003 Power Converter Requirements Power voltages, current, ripple, transients –MAVEN-PF-SWIA-012 FPGA Specification PFDPU CLK/TLM/CMD Interface HV Enable (RAW and MCP) and DAC Control (Sweep and Fixed) Pre-amp Input, Test Pulser Output Housekeeping and Memory (external SRAM) I/F INTERFACES (electrical only) –MAVEN-PF-SYS-004 PFIDPU ICD PFDPU Serial I/F and power description –MAVEN-PF-SYS-016 Pinouts Connector Description and Pin-outs –MAV-RQ-09-0015 Particle and Fields to Spacecraft ICD Heater, Thermistor and Cover Actuator Interface

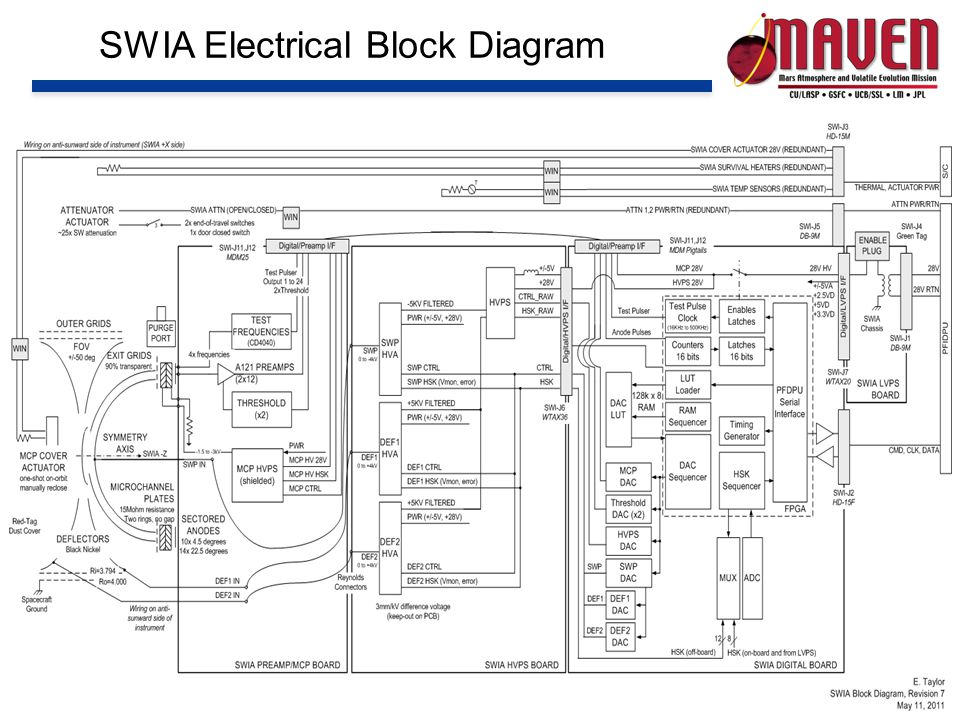

5. 5 MAVEN PFP SWIA Electrical Pre-CDR Peer Review SWIA Electrical Block Diagram

6. 6 MAVEN PFP SWIA Electrical Pre-CDR Peer Review SWIA Interconnect (Requirements) Modular design for easy board-to-board assembly/disassembly (SWIA-017) Connectors organized to minimize signal paths across and between boards (SWIA- 024, -027) HV routed safely from lower boards to deflectors and MCP through coax cables (SWIA-019) Airborn WTAX stackable board-to-board connectors used when possible (SWIA-025) Signal connectors between Anode-Preamp are Hypertronics KA-17 (SWIA-025) Survival heaters and thermistors are redundantly controlled by the spacecraft (SWIA-010, -011), routed through connector and winchesters Wiring to deflectors, actuator signals, etc. routes along housing on the anti-sunward side (+X), opposite the solar wind direction (SWIA-122, -123) TO PFIDPU

7. 7 MAVEN PFP SWIA Electrical Pre-CDR Peer Review SWIA Interconnect Changes since PDR Only very minor changes since PDR HVPS Enable Plug moved from Digital Board to LVPS Board (easier mechanical access) Attenuator signal comes into separate connector (SWI-J4) on the SWIA “dog- house” instead of being routed through Digital Board connector TO PFIDPU PDR Revision (MAVEN-PF-SWI-SCH-005 rev 4)

8. 8 MAVEN PFP SWIA Electrical Pre-CDR Peer Review SWIA Interconnect EM Verification Bare boards have been fully integrated and fit-checked in mechanical chassis Basic stack-up assembly/disassembly verified Minor issue with digital board-to-shield clearance. 2 parts on the bottom of board do not meet minimum dynamic clearance requirements. May require custom stand-off between board and shield. Next step is to integrate loaded boards, check grounding scheme and noise environment (part of SWIA calibration)

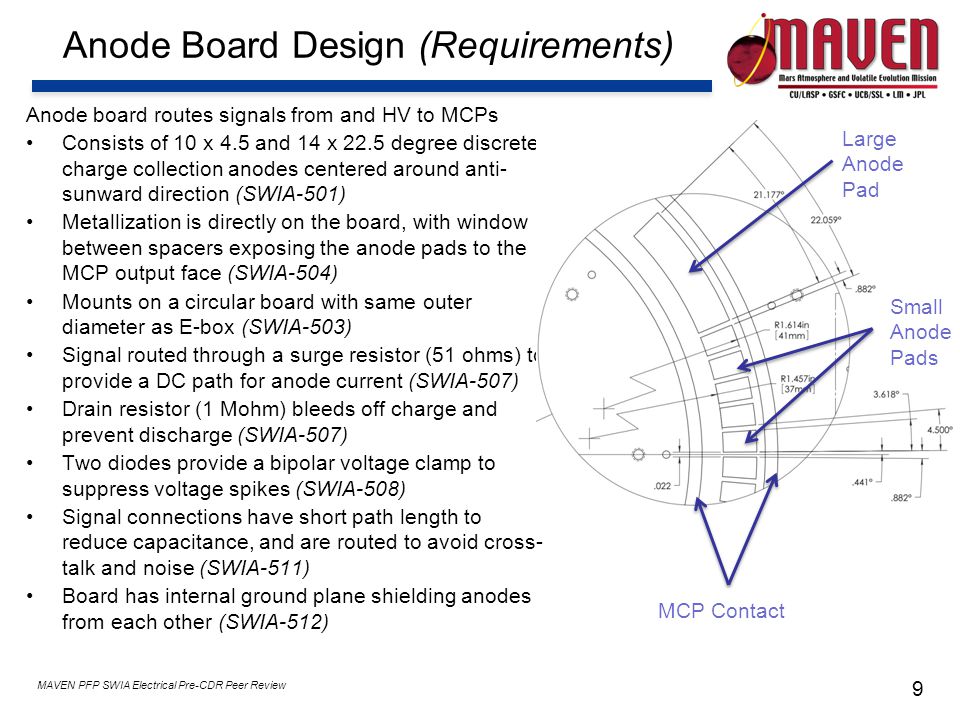

9. 9 MAVEN PFP SWIA Electrical Pre-CDR Peer Review Anode Board Design (Requirements) Anode board routes signals from and HV to MCPs Consists of 10 x 4.5 and 14 x 22.5 degree discrete charge collection anodes centered around anti- sunward direction (SWIA-501) Metallization is directly on the board, with window between spacers exposing the anode pads to the MCP output face (SWIA-504) Mounts on a circular board with same outer diameter as E-box (SWIA-503) Signal routed through a surge resistor (51 ohms) to provide a DC path for anode current (SWIA-507) Drain resistor (1 Mohm) bleeds off charge and prevent discharge (SWIA-507) Two diodes provide a bipolar voltage clamp to suppress voltage spikes (SWIA-508) Signal connections have short path length to reduce capacitance, and are routed to avoid cross- talk and noise (SWIA-511) Board has internal ground plane shielding anodes from each other (SWIA-512) MCP Contact Large Anode Pad Small Anode Pads

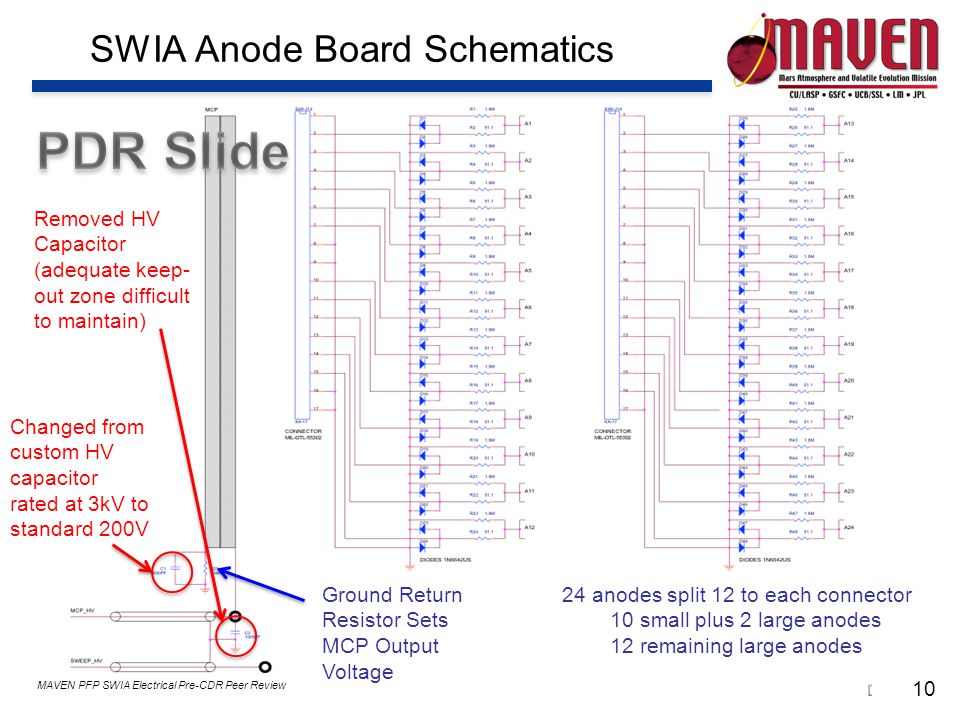

10. 10 MAVEN PFP SWIA Electrical Pre-CDR Peer Review SWIA Anode Board Schematics Ground Return Resistor Sets MCP Output Voltage 24 anodes split 12 to each connector 10 small plus 2 large anodes 12 remaining large anodes Removed HV Capacitor (adequate keep- out zone difficult to maintain) Changed from custom HV capacitor rated at 3kV to standard 200V

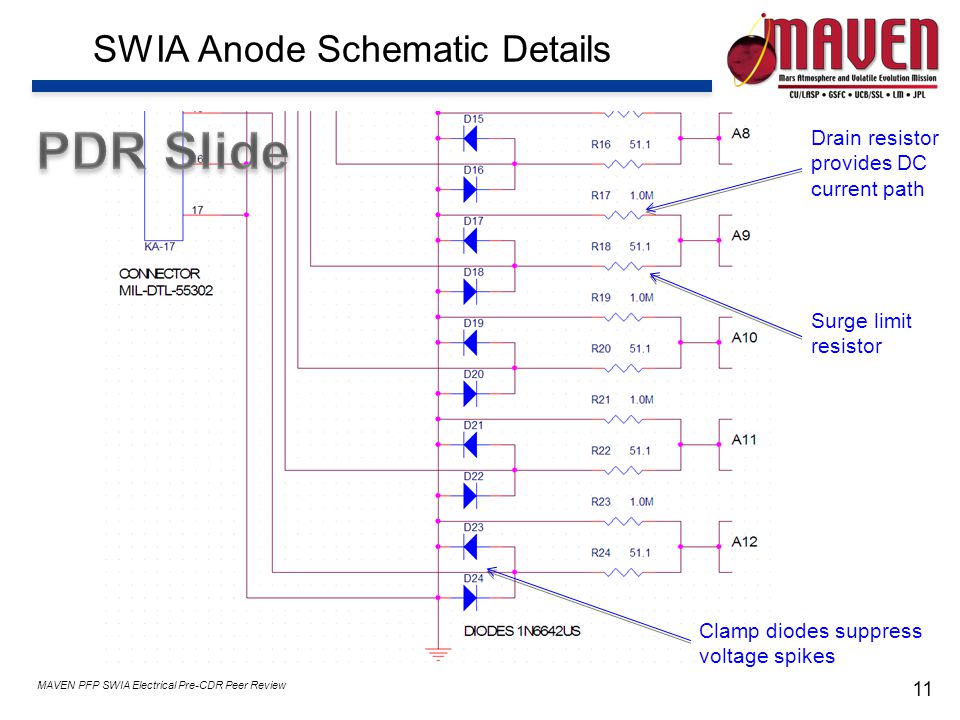

11. 11 MAVEN PFP SWIA Electrical Pre-CDR Peer Review SWIA Anode Schematic Details Drain resistor provides DC current path Surge limit resistor Clamp diodes suppress voltage spikes

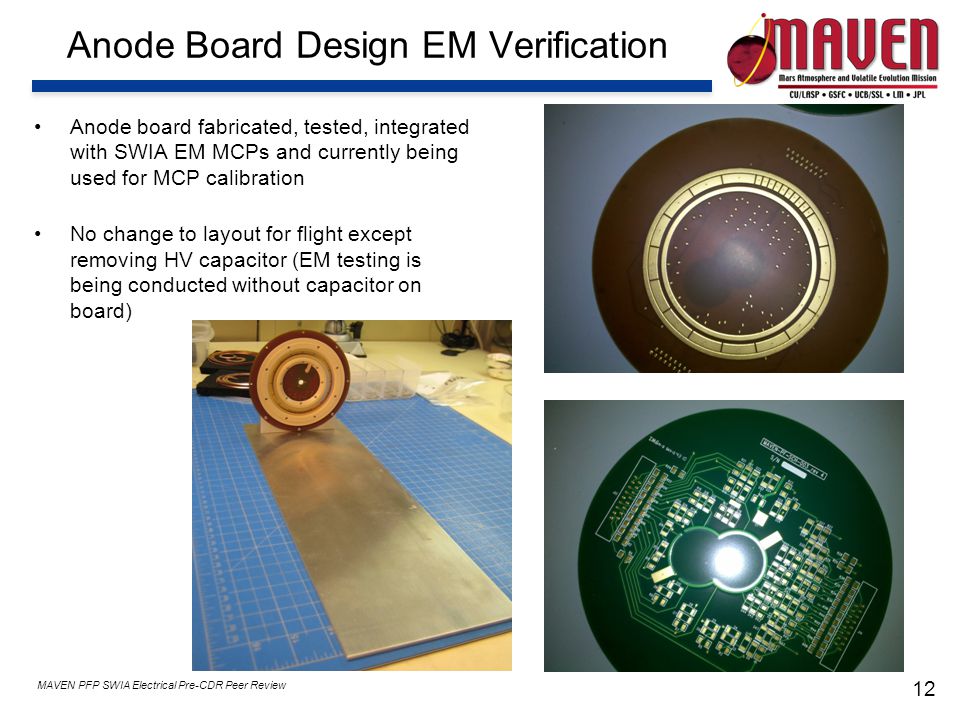

12. 12 MAVEN PFP SWIA Electrical Pre-CDR Peer Review Anode Board Design EM Verification Anode board fabricated, tested, integrated with SWIA EM MCPs and currently being used for MCP calibration No change to layout for flight except removing HV capacitor (EM testing is being conducted without capacitor on board)

13. 13 MAVEN PFP SWIA Electrical Pre-CDR Peer Review Digital Board Design (Requirements) Command/Data Interface to PFDPU (SWIA-912) Accumulate counts from each of the 24 anodes (SWIA-909) Bin data and generate data products for transfer to PFDPU (SWIA-907) Enable HVPS and control MCP high voltage (SWIA-916) Control voltage sweeps for analyzer inner hemisphere and deflectors (SWIA-902) Provide programmable threshold for anode pulse amplifiers (SWIA-911) SRAM for storing lookup tables and accumulators (SWIA-918) Generate test pulses (SWIA-908) Control ADC and MUX to read instrument housekeeping monitors (SWIA-910) Note: Digital board does not control heaters (S/C), cover actuators (S/C), or attenuators (PFDPU)

14. 14 MAVEN PFP SWIA Electrical Pre-CDR Peer Review SWIA Digital Board Interfaces FPGA Interface –SWIA-012B FPGA Specification Power on Reset PFIDPU CLK/TLM/CMD HV Enable (RAW and MCP) DAC control (Sweep and Fixed) Test Pulser Output, Anode Input Housekeeping I/F Memory I/F (external SRAM) PFDPU Interface –SYS-004B PFDPU ICD, Serial I/F –SYS-013E Harness, J2 Pin-out LVPS Board Interface –SYS-003C Power Converter Req. HVPS Board Interface –RAW, SWEEP, DEF1/2 power, control and housekeeping Pre-amp/MCP Board Interface –MCP power/control/hsk, test pulser, anode pulses

15. 15 MAVEN PFP SWIA Electrical Pre-CDR Peer Review SWIA Digital Schematics (FPGA) Pre-amp Inputs 5V to 3.3V Translators Power-on Reset 128K x 8 SRAM HSK I/F DAC I/F Test and Spares Decoupling Caps Test Pulse HV Enable PFDPU I/F

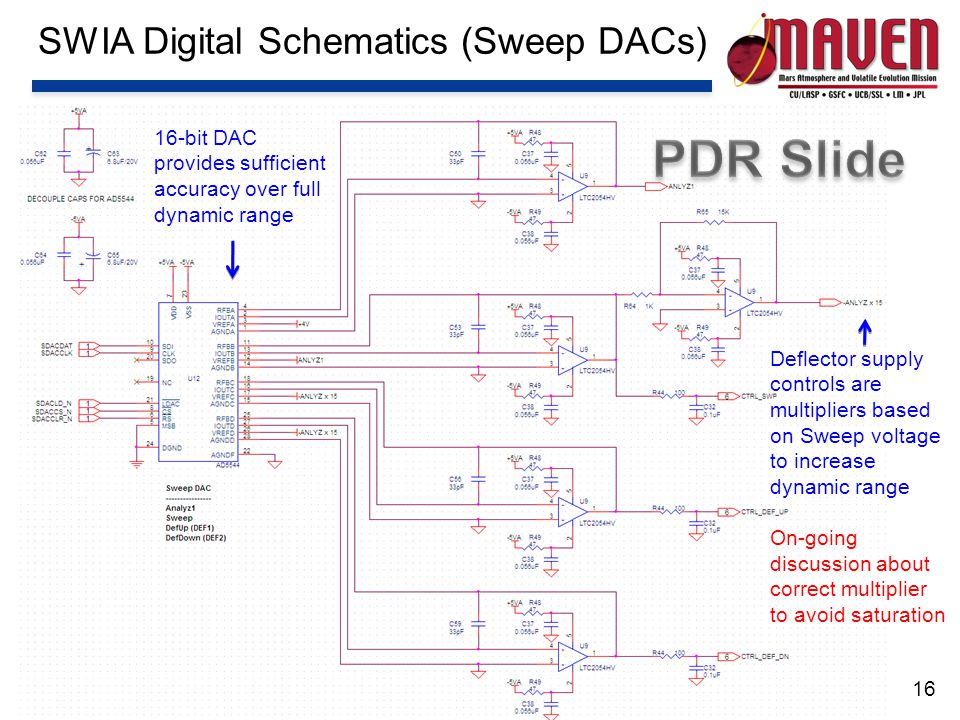

16. 16 MAVEN PFP SWIA Electrical Pre-CDR Peer Review SWIA Digital Schematics (Sweep DACs) Deflector supply controls are multipliers based on Sweep voltage to increase dynamic range On-going discussion about correct multiplier to avoid saturation 16-bit DAC provides sufficient accuracy over full dynamic range

17. 17 MAVEN PFP SWIA Electrical Pre-CDR Peer Review Digital Board Verification Digital Board Test per MAVEN-SWI-PROC-001a verifies: TLM/CMD connectivity with MISG Power distribution to test points Power consumption by service Power generation (+/-4V reference voltage for DACs) Polarity on all polarized capacitors Analog (raw and converted) and digital housekeeping Test pulser generation and frequency High voltage allow, arm, enable Fixed DAC control (MCP and Threshold) Sweep DAC control (Sweep Raw, Deflector 1 and 2) in diagnostic mode Sweep DAC control by LUT Anode Count Products (message receipt) Soft Reset

18. 18 MAVEN PFP SWIA Electrical Pre-CDR Peer Review FPGA Design and Test SWIA FPGA is RTSX72SU-CQ208E Heritage: STEREO SWEA (SIF FPGA) implemented in RTSX32S System Clock = 1MHz – (CMDCLK received from DCB) Estimated Power –75mW (28mA on 2.5V; 1.5mA on 3.3V) typical –80mW (30mA on 2.5V; 1.8mA on 3.3V) at 70C Utilization Estimate –75% (SWIA is worstcase) modules; ~100 I/Os TEST VERIFICATION: REV 0 initially tested on board REV 1 fixed polarity on housekeeping enable Pending REV 2 version: –Fix LUT Write problem (missing one pointer bit for BUF1) –Fix P2 Product Symmetry (telemetry readout) –Fix P2 Product Bounding problem (EUPPER/LOWER, DUPPER/LOWER) –Add memory test mode –Add LUT checksum module

19. 19 MAVEN PFP SWIA Electrical Pre-CDR Peer Review FPGA Block Diagram (module verification) verified Pending Rev 2

20. 20 MAVEN PFP SWIA Electrical Pre-CDR Peer Review FPGA Data Product Verification Pseudo Data Products 3-d Sky Plot Energy Spectra SWIA Product Generation Options (selectively enabled/disabled) –P0: Raw Counts Outputs 24 16-bit counter values every 4 accumulation intervals (message generated every ~7ms) –P1: Counts Accumulated over Anodes, Deflector Step (Acc. Interval) and Energy 10 NFOV Anodes summed into 2 bins => 16 Anode Counts 16 Anode Counts are integrated over two Energy Steps Outputs one 64 word message every other Energy Step (~83ms) –P2: Peak Energy Capture Operates like a logic analyzer – storing a buffer and telemetering a programmable window around the peak All Data Products Verified

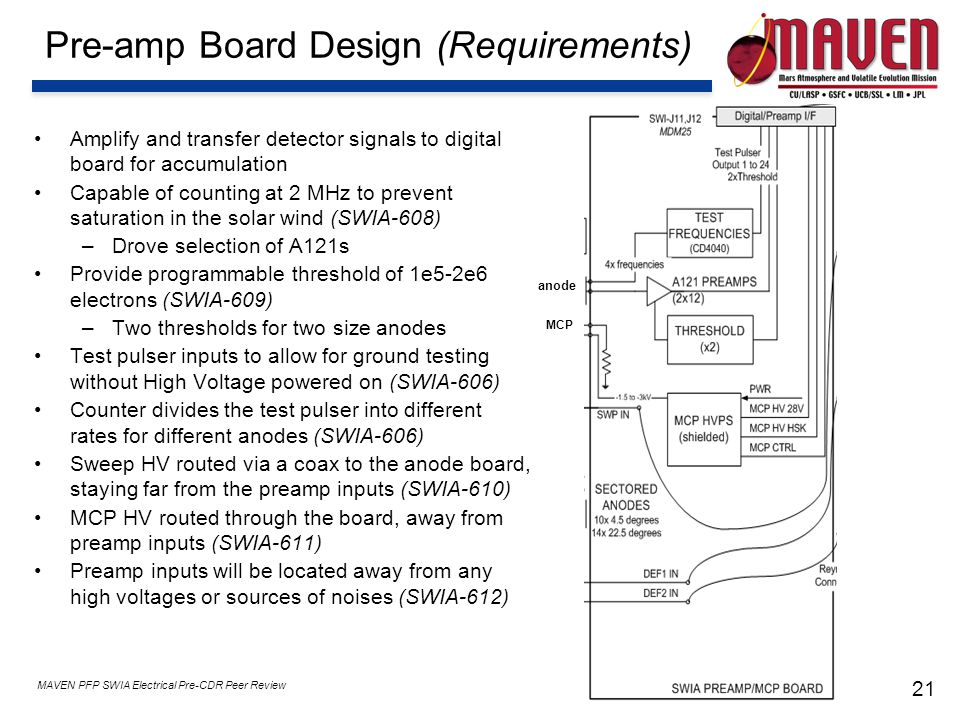

21. 21 MAVEN PFP SWIA Electrical Pre-CDR Peer Review Pre-amp Board Design (Requirements) Amplify and transfer detector signals to digital board for accumulation Capable of counting at 2 MHz to prevent saturation in the solar wind (SWIA-608) –Drove selection of A121s Provide programmable threshold of 1e5-2e6 electrons (SWIA-609) –Two thresholds for two size anodes Test pulser inputs to allow for ground testing without High Voltage powered on (SWIA-606) Counter divides the test pulser into different rates for different anodes (SWIA-606) Sweep HV routed via a coax to the anode board, staying far from the preamp inputs (SWIA-610) MCP HV routed through the board, away from preamp inputs (SWIA-611) Preamp inputs will be located away from any high voltages or sources of noises (SWIA-612) anode MCP

22. 22 MAVEN PFP SWIA Electrical Pre-CDR Peer Review SWIA Preamp Schematics Test Pulse Divider Caps for noise suppression Connector from Anode Connector to Digital

23. 23 MAVEN PFP SWIA Electrical Pre-CDR Peer Review SWIA Preamp Schematic Details Test Pulse Input Capacitively Coupled Preamp Input AC-Coupled Threshold Adjust Dead Time Set to 100 ns Pulse Width Set to 50 ns 5V Digital Output Resistor values for dead time and pulse width still needs to be finalized for flight

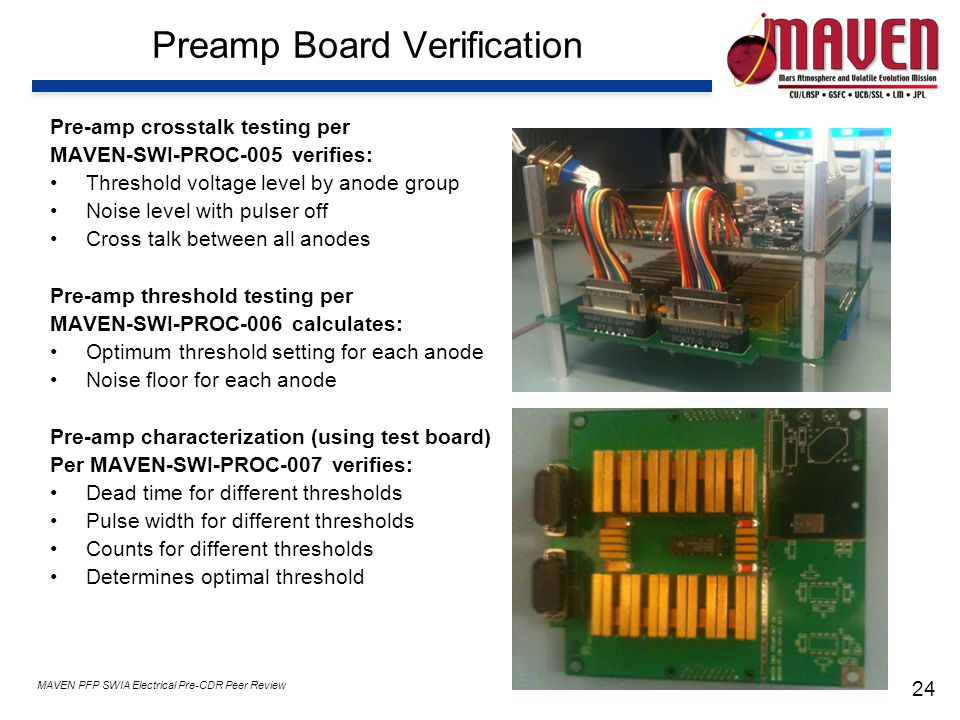

24. 24 MAVEN PFP SWIA Electrical Pre-CDR Peer Review Preamp Board Verification Pre-amp crosstalk testing per MAVEN-SWI-PROC-005 verifies: Threshold voltage level by anode group Noise level with pulser off Cross talk between all anodes Pre-amp threshold testing per MAVEN-SWI-PROC-006 calculates: Optimum threshold setting for each anode Noise floor for each anode Pre-amp characterization (using test board) Per MAVEN-SWI-PROC-007 verifies: Dead time for different thresholds Pulse width for different thresholds Counts for different thresholds Determines optimal threshold

25. 25 MAVEN PFP SWIA Electrical Pre-CDR Peer Review Integrated DCB/Preamp Test Set-up Digital Board and Pre-amp boards integrated and tested

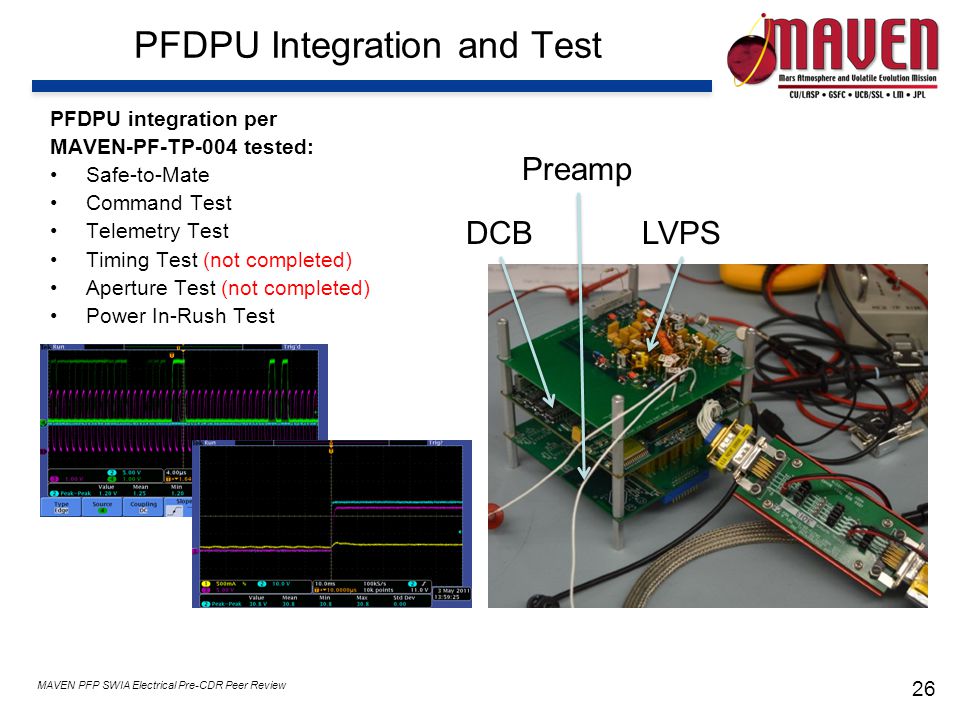

26. 26 MAVEN PFP SWIA Electrical Pre-CDR Peer Review PFDPU Integration and Test PFDPU integration per MAVEN-PF-TP-004 tested: Safe-to-Mate Command Test Telemetry Test Timing Test (not completed) Aperture Test (not completed) Power In-Rush Test LVPSDCB Preamp

27. 27 MAVEN PFP SWIA Electrical Pre-CDR Peer Review Voltage Temperature Margin (VTM) Test Voltage Temperature Margin Test per MAVEN-SWI-PROC-004: Completed on the integrated SWIA Digital and Pre-amp ETU Boards in a thermal chamber (Tenny ID 9009, Silver RM 180) Operating voltages (+5VA, -5VA, 5VD, +3.3VD, and +2.5VD) are varied by +/-10% Voltage margin test at room temp, maximum cold (-45C = Limit -15C), and maximum hot (+65C = Limit +15C) temperatures Two issues noticed during this test: Analog HSK not completely linear. Tracked this down to a solder bridge at the Actel Socket between HSKDAT8 and HSKDAT9. Fixed and re-test shows Analog HSK very well behaved for nominal voltages +/-10%. Noticed 7-second “in-rush” current (additional 10-15mA current on +5VA line). Tracked this down to the time it takes the FPGA to set the thresholds to ½ scale on power up. Thresholds are 0.0V for 7 seconds and then get set to ~1/2 scale (~2V) by the FPGA. At zero threshold the preamps will count any noise and draw up to a few mA extra apiece. No change required.

28. 28 MAVEN PFP SWIA Electrical Pre-CDR Peer Review Electronic Parts Electronic Part Status: –Flight BOMs provided to Parts Engineer –Active parts provided by GSFC –With very little exception, flight active parts being used on EM –Issue with lead time on HV capacitor on anode board resolved. Part removed from design with no impact. Electronic Part Stress Analysis, using GSFC spreadsheet: –All capacitors meet 50% derating guidelines at maximum voltage –CDR capacitors are rated at 50V, which does not meet the requirement to use 100V rating for low voltage applications, requires additional part lot testing –All resistors meet derating guidelines, no changes required –All microcircuits meet derating guidelines –Have not completed spreadsheets for diodes, connectors, transistors Need to verify FETs (2N7389) are being used in safe operation region per request from GSFC Parts Control Board

29. 29 MAVEN PFP SWIA Electrical Pre-CDR Peer Review SWIA Power Budget Measured: ~ 55mW ETU FPGA only 8mA on 2.5V (20mW). Flight FPGA power will be ~ 3x this. Calculated power using RT54SX72 power calculator for expected utilization is 75mW Overall digital board power may come down slightly Measured: ~ 500mW, depends on counts 96mA @ 5VA no counts 125mA @ 5VA full counting

30. 30 MAVEN PFP SWIA Electrical Pre-CDR Peer Review Digital Board PDR Peer RFAs (Back-up) PDR Schematics went through very detailed design review Very little change from PDR Schematics to EM layout and build (all changes documented in detailed revision logs) Very little change from EM unit to FM unit
