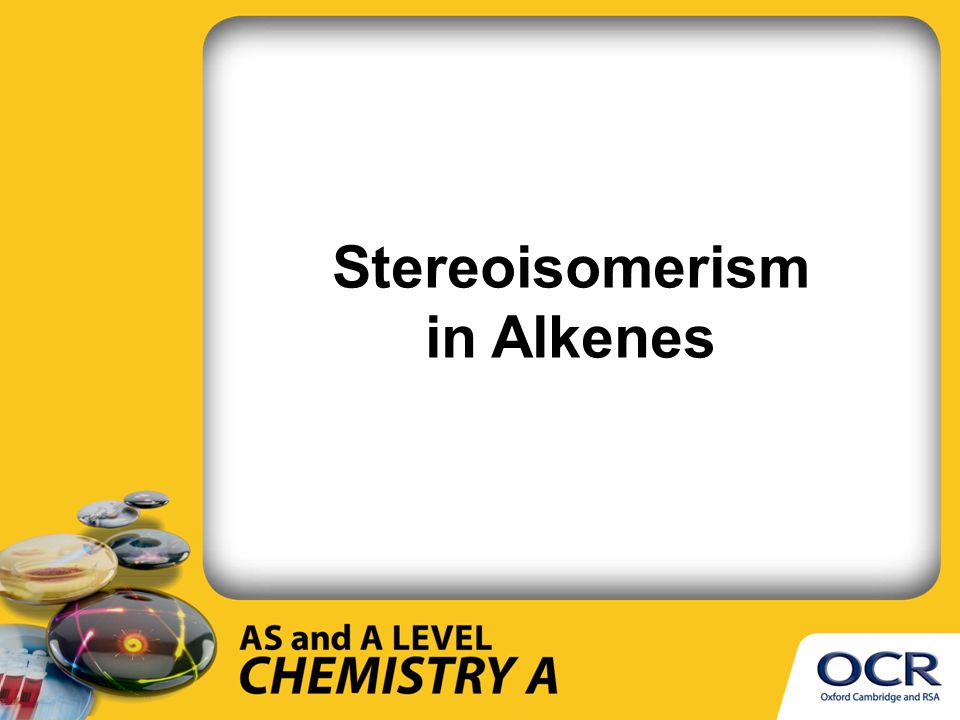

1. Stereoisomerism in Alkenes

2. What you need to know Explanation of the terms: stereoisomers (compounds with the same structural formula but with a different arrangement in space) E/Z isomerism (an example of stereoisomerism, in terms of restricted rotation about a double bond and the requirement for two different groups to be attached to each carbon atom of the C=C group) cis–trans isomerism (a special case of E/Z isomerism in which two of the substituent groups attached to each carbon atom of the C=C group are the same) Use of Cahn–Ingold–Prelog (CIP) priority rules to identify the E and Z stereoisomers determination of possible E/Z or cis–trans stereoisomers of an organic molecule, given its structural formula.

3. Structural and stereoisomerism Using molecular models (or computer modelling software), make models of butane C 4 H 10 and its isomer. These isomers are structural isomers – the atoms are arranged differently.

4. Stereoisomers Now make models of dichloroethene C 2 H 2 Cl 2 and its isomers. You should get 3 isomers. You should have 1,1 dichloroethene, and two different versions of 1,2 dichloroethene.

5. 1,1 dichloroethene1,2 dichloroethene E isomer 1,2 dichloroethene Z isomer 1,1 dichloroethene is a structural isomer of 1,2 dichloroethene. The two isomers of 1,2 dichloroethene are called stereoisomers – the atoms are bonded in the same way to each other, but the arrangement of atoms around the double bond is different. 1,2 dichloroethene has isomers because rotation of the double bond is not possible.

6. Activity 2 Test 1 1.Which of these alkenes shows stereoisomerism? –H 2 C=CBr 2 –CH 3 CH=CHCH 3 –CH 3 CH=C(CH 3 ) 2 –CHBr=CHBr –CHCl=CH 2 2.What simple rule enables us to decide if an alkene does not show stereoisomerism? 3.Draw diagrams to show the E and Z isomers of those alkenes that do show stereoisomerism

7. Stereoisomerism is shown by CH 3 CH=CHCH 3 CHBr=CHBr E isomers Z isomers If one of the carbons has 2 identical groups (eg =CH 2 ) then stereoisomerism cannot happen.

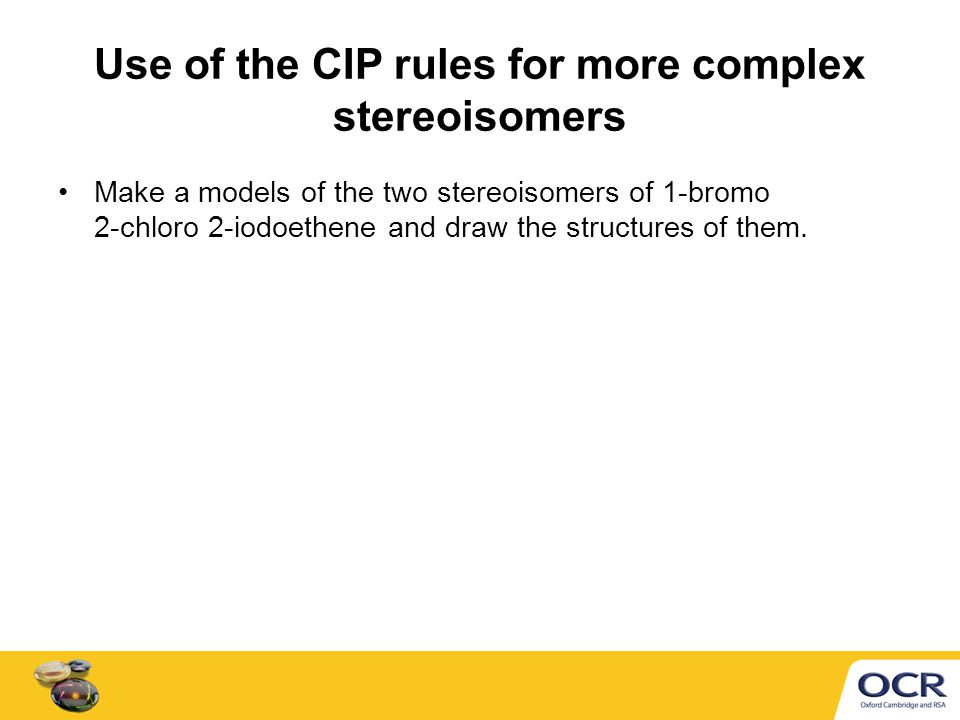

8. Use of the CIP rules for more complex stereoisomers Make a models of the two stereoisomers of 1-bromo 2-chloro 2-iodoethene and draw the structures of them.

9. CIP rules 1.Compare the atomic number (Z) of the atoms directly attached to the stereocentre (double bond); the group having the atom of higher atomic number receives higher priority. 2.If there is a tie, we must consider the atoms at distance 2 from the stereocentre—as a list is made for each group of the atoms bonded to the one directly attached to the stereocentre. Each list is arranged in order of decreasing atomic number. Then the lists are compared atom by atom; at the earliest difference, the group containing the atom of higher atomic number receives higher priority.

10. Answer Priority 1I 2Br 3Cl 4H I and Br have the greatest formula masses, and are on separate carbon atoms so determine the name. Z isomer E isomer

11. Take it further Identify whether these compounds show stereoisomerism, and draw diagrams to show the E and Z isomers of these compounds –3-chloro-oct-3-ene –3-methylhept-3-ene –2 chloro, 3 ethylhex-2-ene

12. They all show stereoisomerism E stereoisomers Z stereoisomers
