Presentation on theme: "DESIGNED BY Pan Entertainment. 2 OutLine What’s Tunnel broker? Start the IPV6 service."— Presentation transcript:

1 DESIGNED BY Pan Entertainment

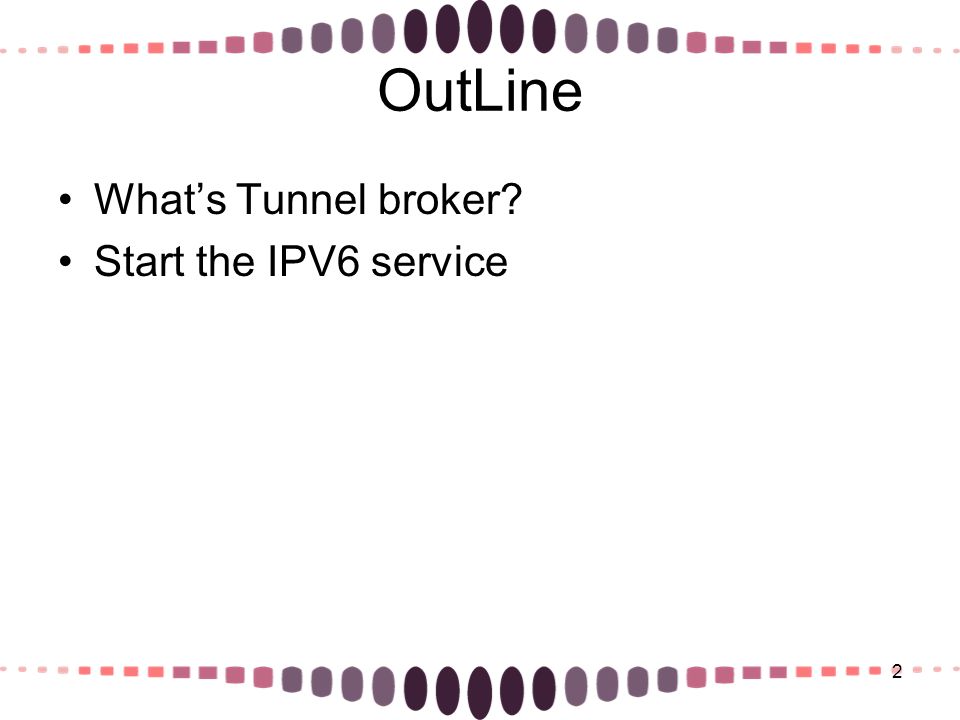

2 2 OutLine What’s Tunnel broker? Start the IPV6 service

3 3 Tunnel Broker (1) IPv4 / IPv6 Tunnel Mechanism

4 4 Tunnel Broker (2) IPv4 / IPv6 Tunnel Mechanism Configured Tunnel 6-4 Tunnel Tunnel broker Defined in RFC3053 Client must support Dual-stack schemes

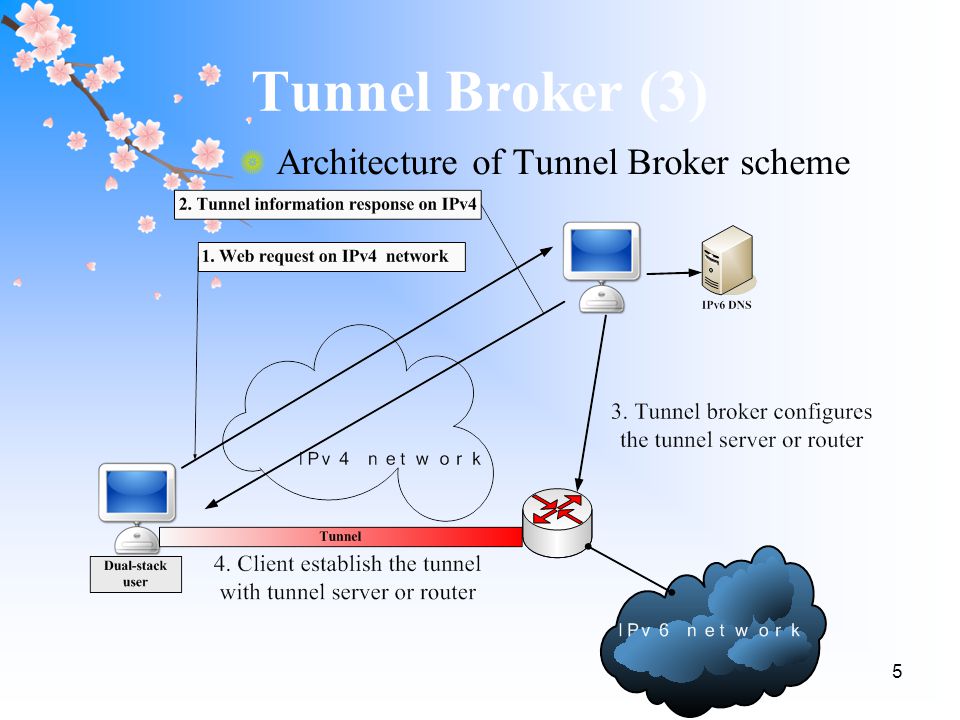

5 5 Tunnel Broker (3) Architecture of Tunnel Broker scheme

6 6 Enable IPv6 service on your windows > ipv6 install & ipconfig

7 7 Create your account NOW ! ! http://tb2.ipv6.ascc.net/

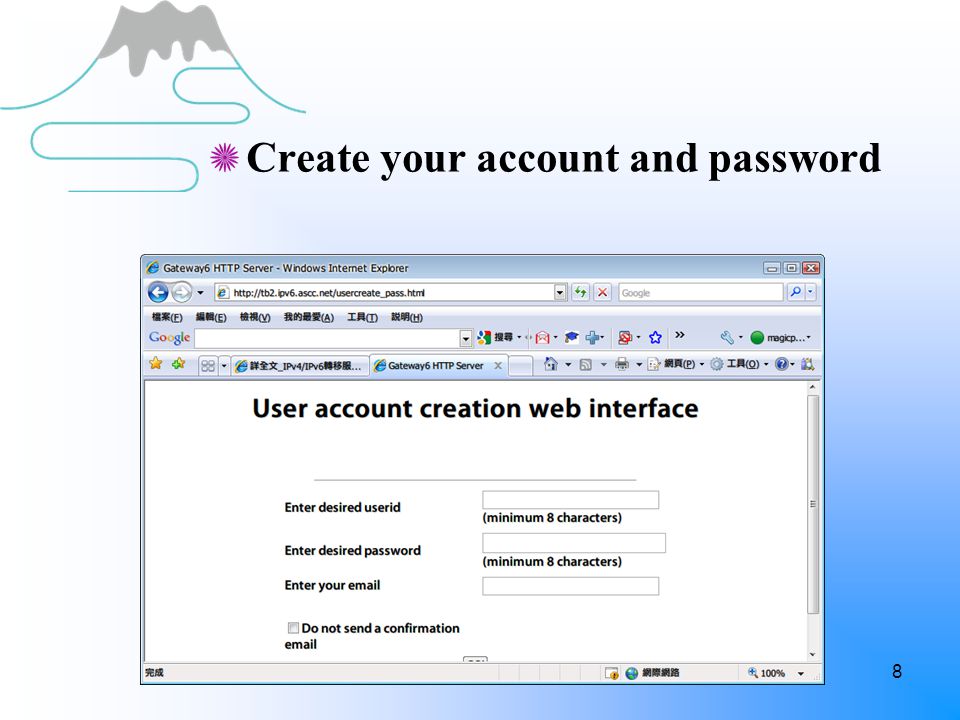

8 8 Create your account and password

9 9 Download the Tunnel Setup Protocol Client for IPv6 tunnel (gateway6 client version 6.0) http://go6.net/4105/download.asp Fast

10 10 Install Gateway6 client

11 11 Run Hexago Gateway6 client utility tb2.ipv6.ascc.net Your account and password

12 12 Advanced setting Tunnel Mode : IPv6-in-IPv4 Tunnel(NAT Traversal) Tunnel Authentication Method : Digest MD5

13 13 Connect & Enjoy IPv6 service

14 14 Connect & Enjoy IPv6 service

15 15 Connect & Enjoy IPv6 service

16 16 Free IPv6 service (HINET) (http://ipv6.taco.hinet.net/taco_ipv6/index.jsp)

17 17 Reference http://newsletter.ascc.sinica.edu.tw/news/read_news.p hp?nid=1143 ( 中研院 Tunnel broker service) http://www.ipv6.hinet.net/installGuide.htm ( 中華電信 Tunnel broker service) http://www.gogo6.com/4105/gogo6-takeover.asp http://www.gogo6.com/4105/gogo6-takeover.asp (Hexago official website) http://www.kame.net/http://www.kame.net/ (IPv6 service tester) IPv6 新世代網際網路協定暨整合技術 ( 旗標 )
