1. Membrane structure Describe the structure of a phospholipid bilayer Analyse models of membrane structures Describe the falsification of the Davson-Danielli model Describe how membrane proteins are diverse Draw the fluid mosaic model of membrane structure Explain the role of cholesterol in membranes

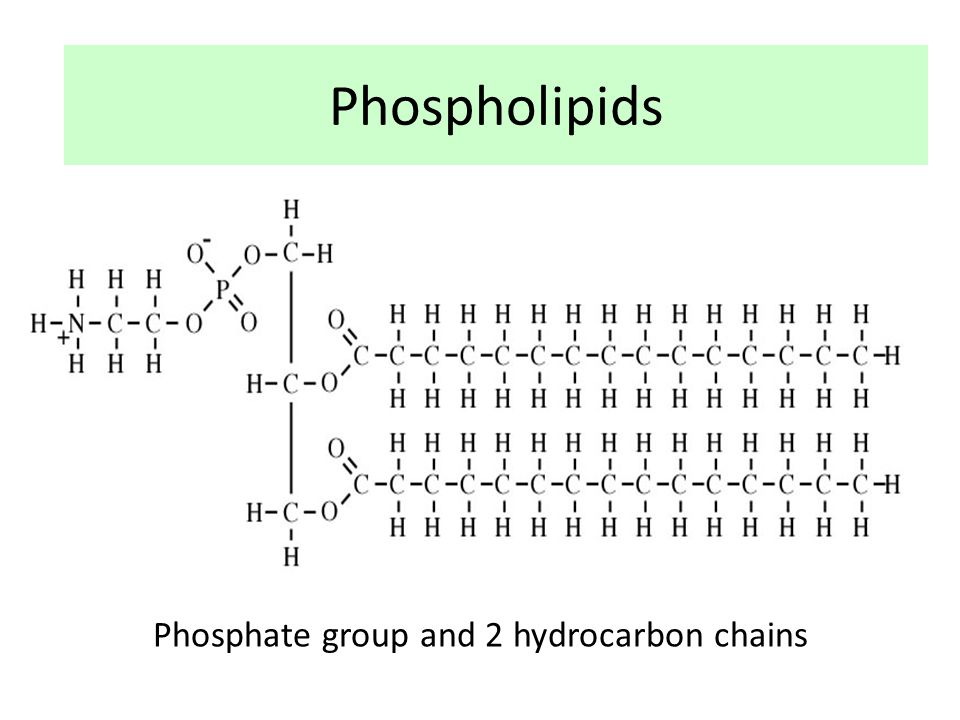

2. Phosphate group and 2 hydrocarbon chains Phospholipids

3. Phospholipids are AMPHIPATHIC Part of the molecule is hydrophilic Part of the molecule is hydrophobic

4. Phosphate group and 2 hydrocarbon chains Draw and label your own! Drawing phospholipids

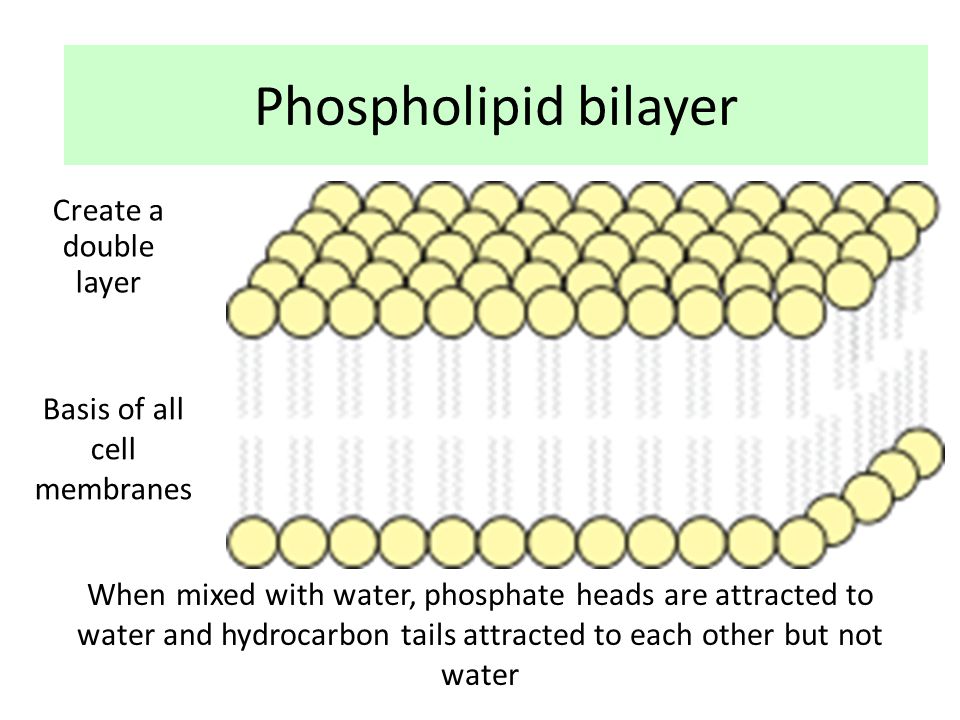

5. When mixed with water, phosphate heads are attracted to water and hydrocarbon tails attracted to each other but not water Phospholipid bilayer Create a double layer Basis of all cell membranes

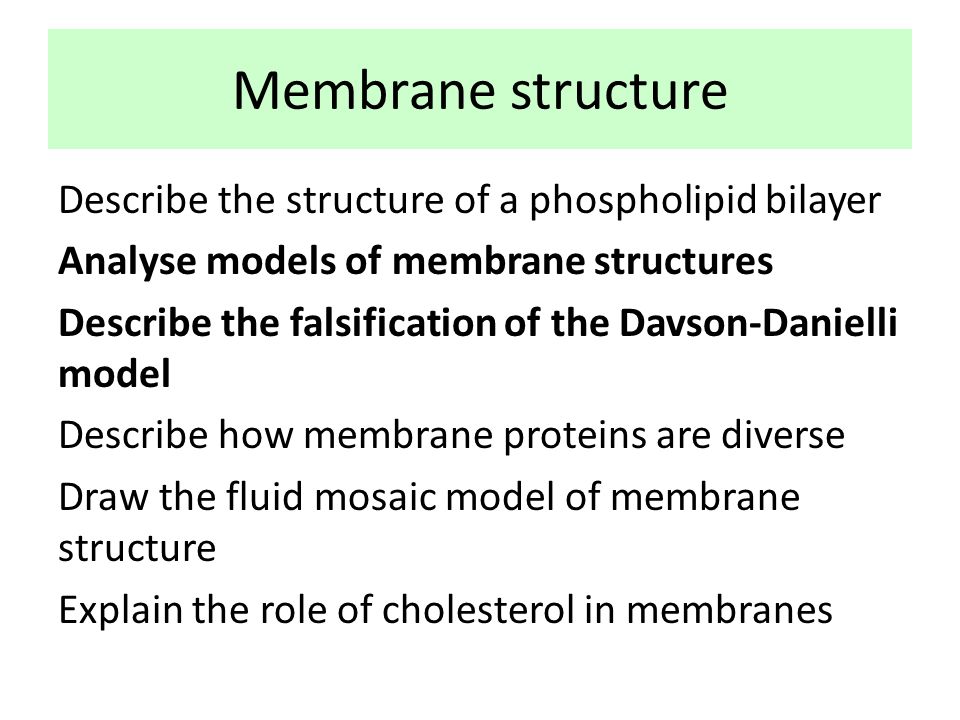

6. Membrane structure Describe the structure of a phospholipid bilayer Analyse models of membrane structures Describe the falsification of the Davson-Danielli model Describe how membrane proteins are diverse Draw the fluid mosaic model of membrane structure Explain the role of cholesterol in membranes

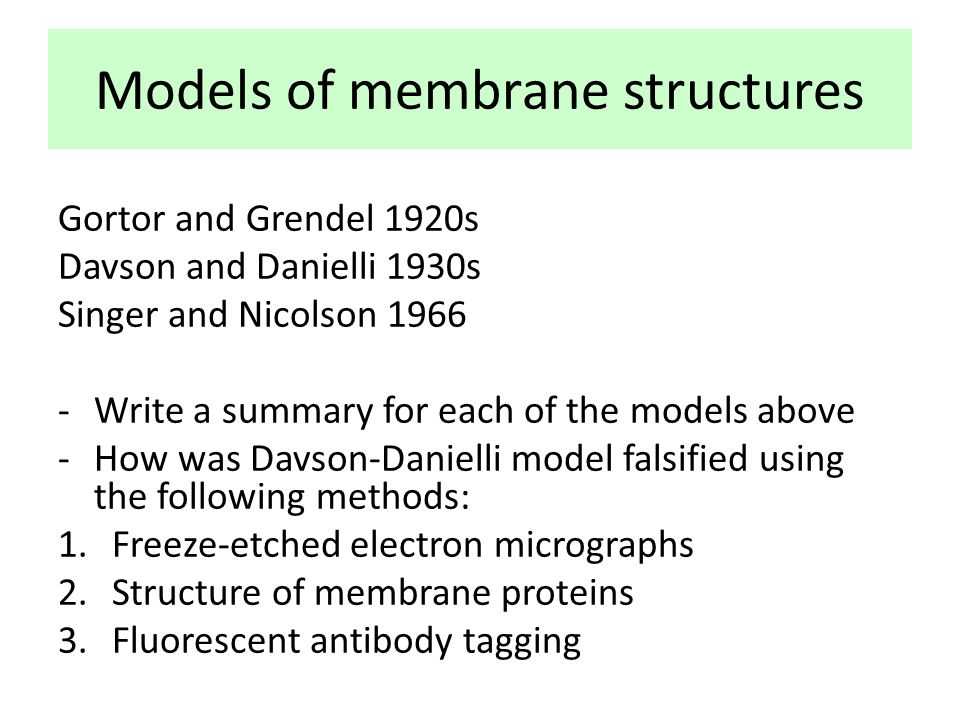

7. Models of membrane structures Gortor and Grendel 1920s Davson and Danielli 1930s Singer and Nicolson 1966 -Write a summary for each of the models above -How was Davson-Danielli model falsified using the following methods: 1.Freeze-etched electron micrographs 2.Structure of membrane proteins 3.Fluorescent antibody tagging

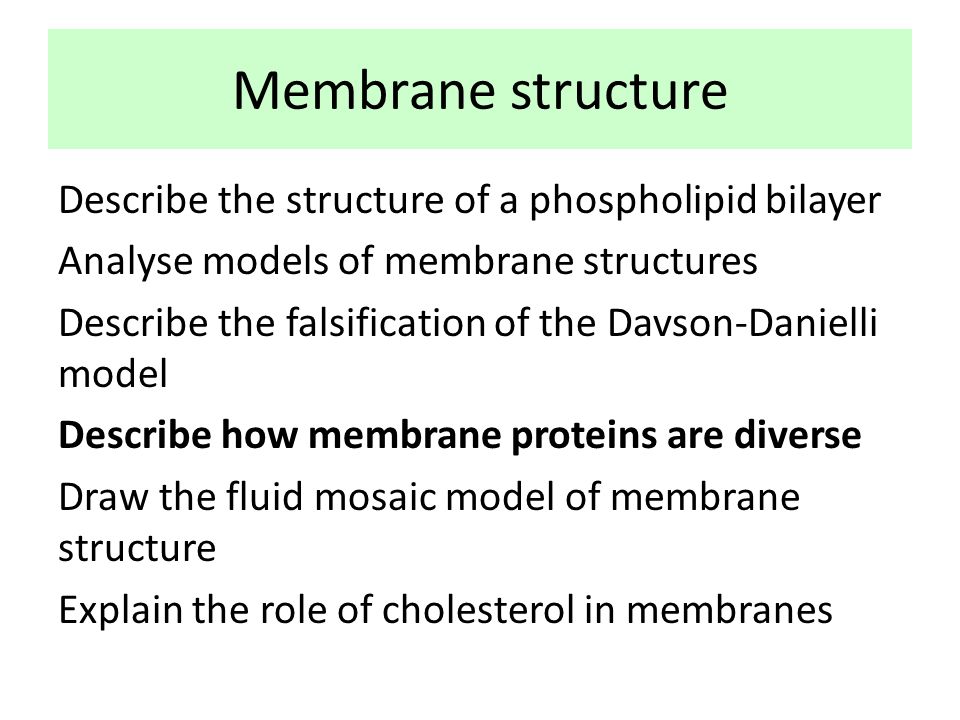

8. Membrane structure Describe the structure of a phospholipid bilayer Analyse models of membrane structures Describe the falsification of the Davson-Danielli model Describe how membrane proteins are diverse Draw the fluid mosaic model of membrane structure Explain the role of cholesterol in membranes

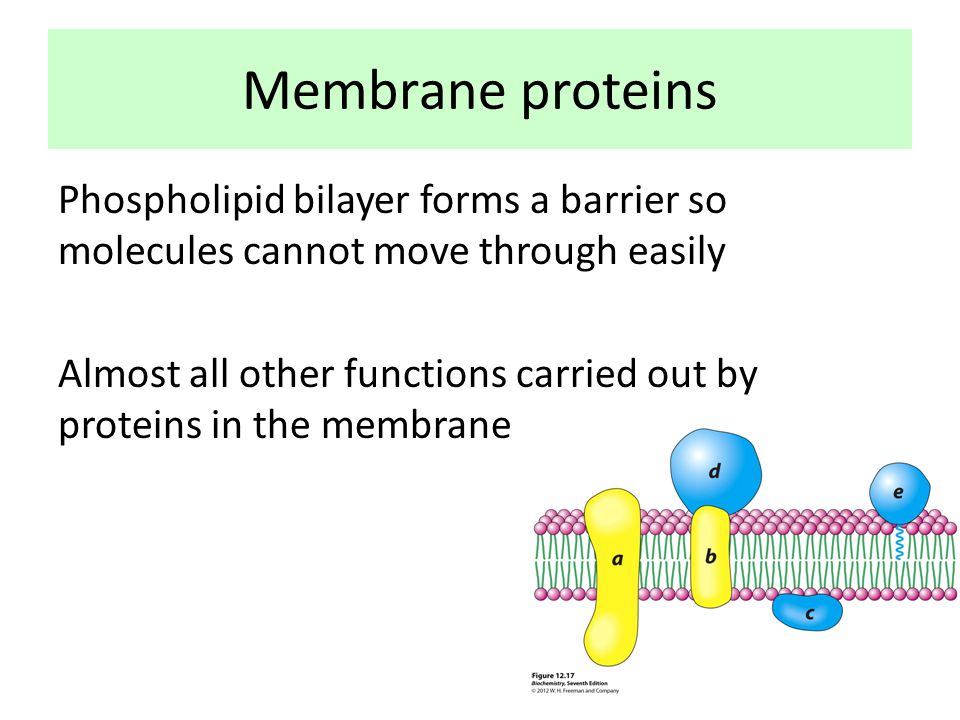

9. Membrane proteins Phospholipid bilayer forms a barrier so molecules cannot move through easily Almost all other functions carried out by proteins in the membrane

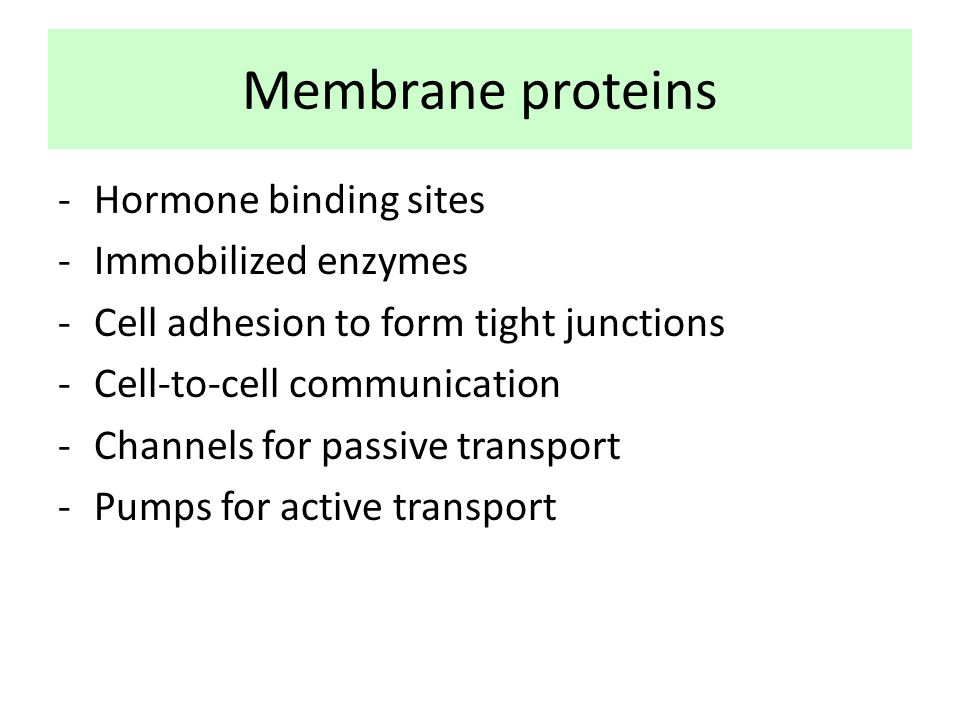

10. Membrane proteins -Hormone binding sites -Immobilized enzymes -Cell adhesion to form tight junctions -Cell-to-cell communication -Channels for passive transport -Pumps for active transport

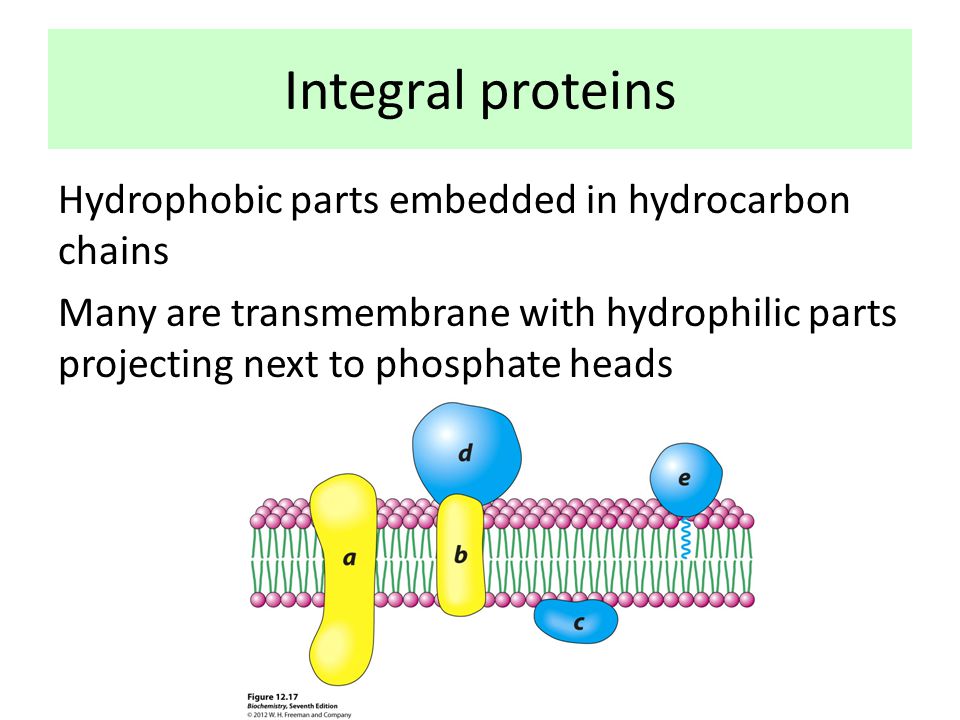

11. Integral proteins Hydrophobic parts embedded in hydrocarbon chains Many are transmembrane with hydrophilic parts projecting next to phosphate heads

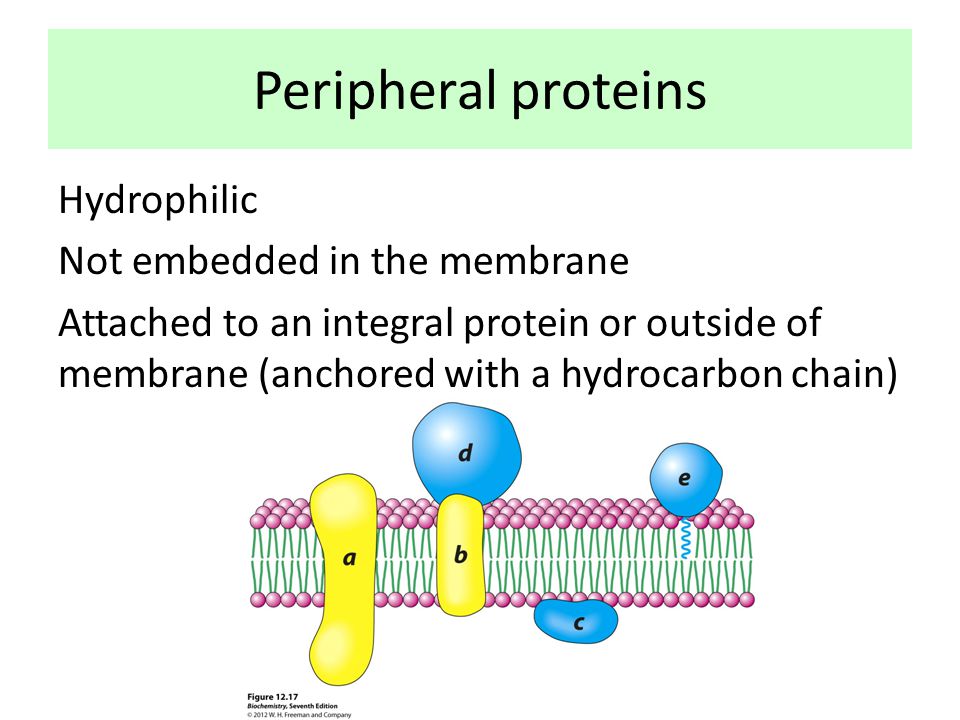

12. Peripheral proteins Hydrophilic Not embedded in the membrane Attached to an integral protein or outside of membrane (anchored with a hydrocarbon chain)

13. Membrane structure Describe the structure of a phospholipid bilayer Analyse models of membrane structures Describe the falsification of the Davson-Danielli model Describe how membrane proteins are diverse Draw the fluid mosaic model of membrane structure Explain the role of cholesterol in membranes

14. Fluid mosaic model Draw your own fluid mosaic model Include -Phospholipid bilayer -Integral proteins -Peripheral proteins -Cholesterol Take your time Do in 2D not 3D Page 31 has a good simple version

15. Membrane structure Describe the structure of a phospholipid bilayer Analyse models of membrane structures Describe the falsification of the Davson-Danielli model Describe how membrane proteins are diverse Draw the fluid mosaic model of membrane structure Explain the role of cholesterol in membranes

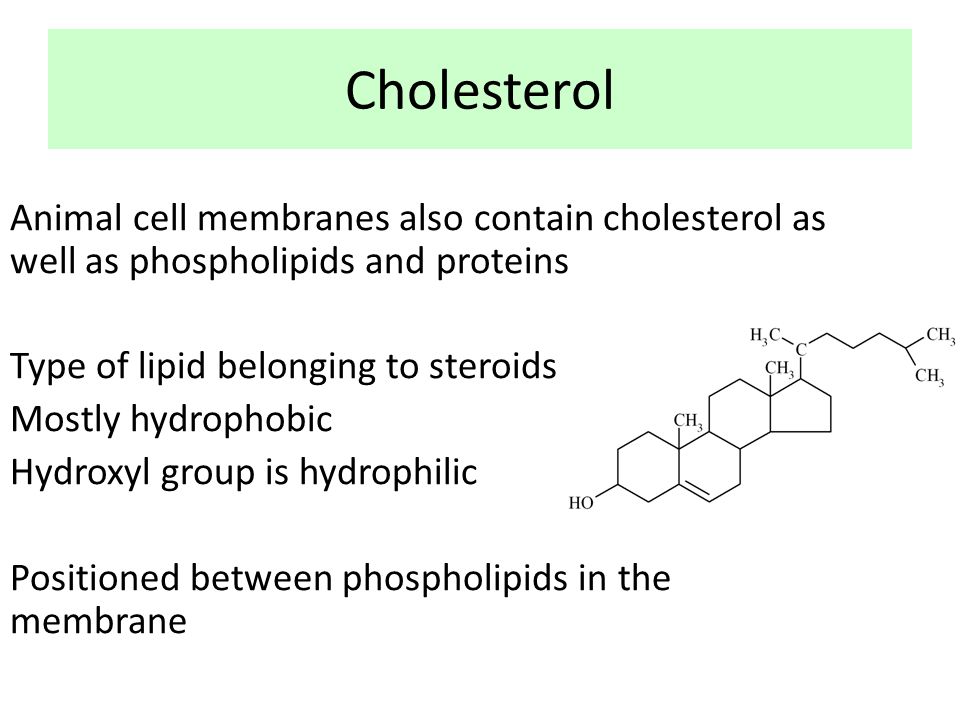

16. Cholesterol Animal cell membranes also contain cholesterol as well as phospholipids and proteins Type of lipid belonging to steroids Mostly hydrophobic Hydroxyl group is hydrophilic Positioned between phospholipids in the membrane

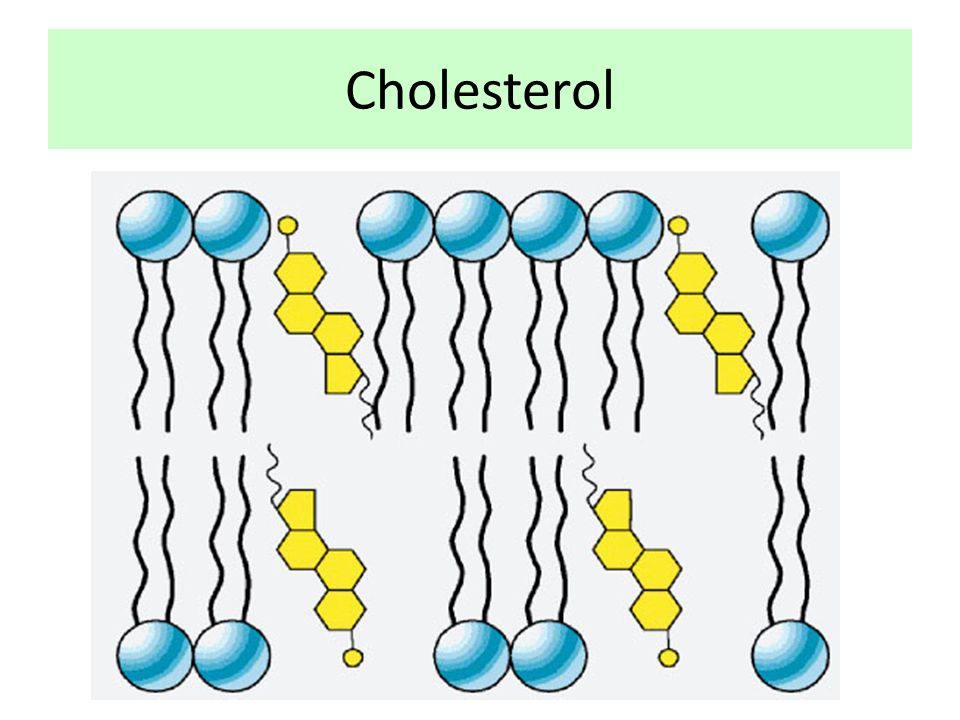

17. Cholesterol

18. Role of cholesterol Find out the function of cholesterol in the membrane Where is there more cholesterol in membranes?
