1. © 2009 Pearson Education, Upper Saddle River, NJ 07458. All Rights ReservedFloyd, Digital Fundamentals, 10 th ed Digital Fundamentals Tenth Edition Floyd © 2008 Pearson Education Chapter 1

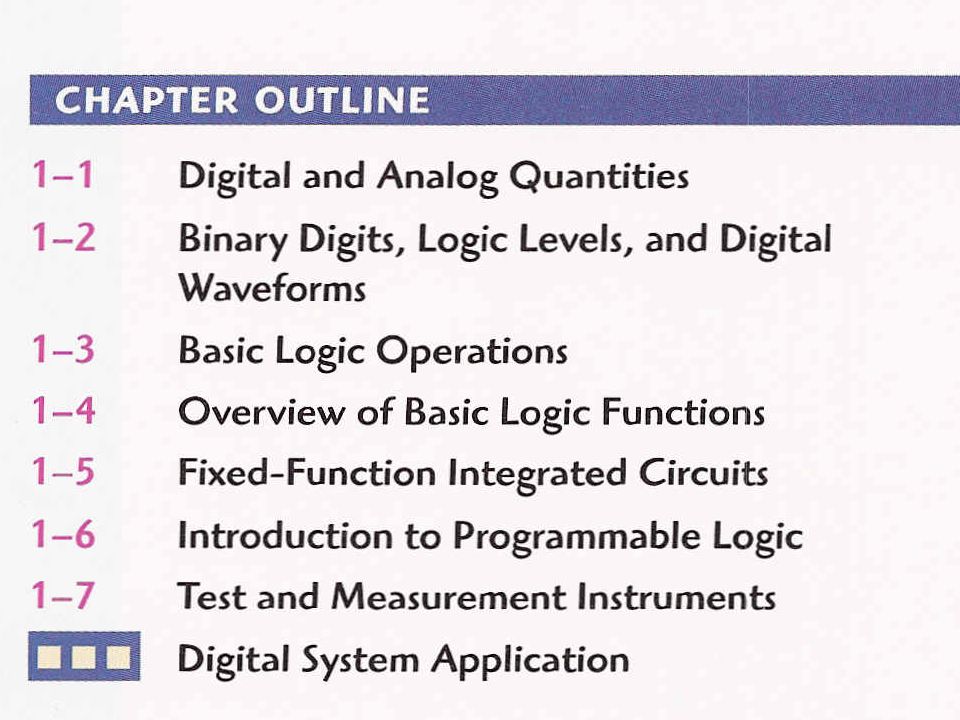

2. © 2009 Pearson Education, Upper Saddle River, NJ 07458. All Rights ReservedFloyd, Digital Fundamentals, 10 th ed

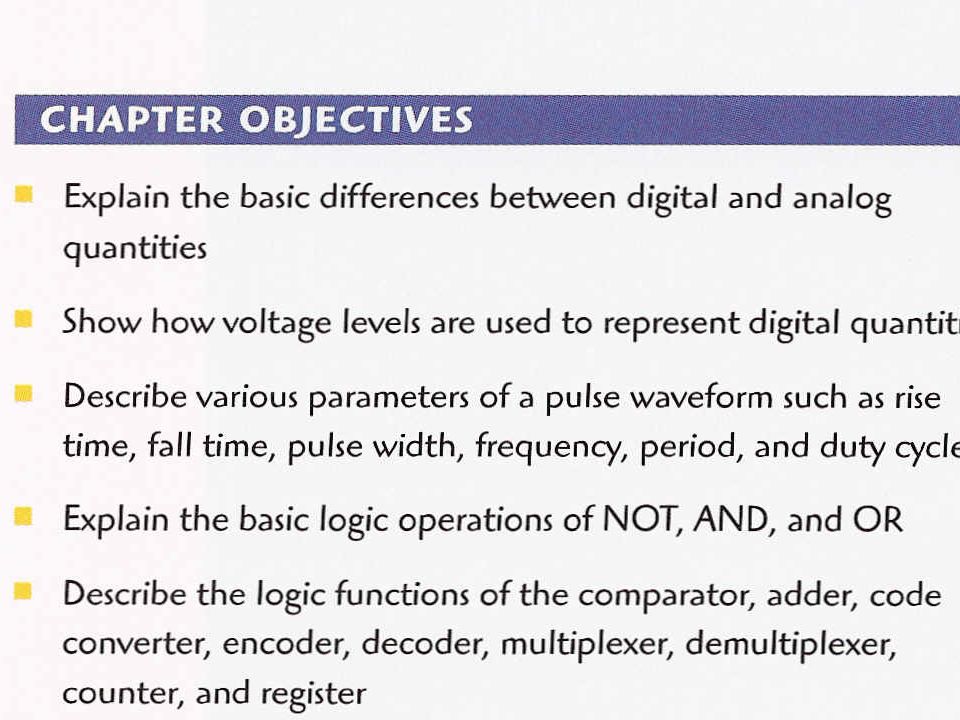

3. © 2009 Pearson Education, Upper Saddle River, NJ 07458. All Rights ReservedFloyd, Digital Fundamentals, 10 th ed

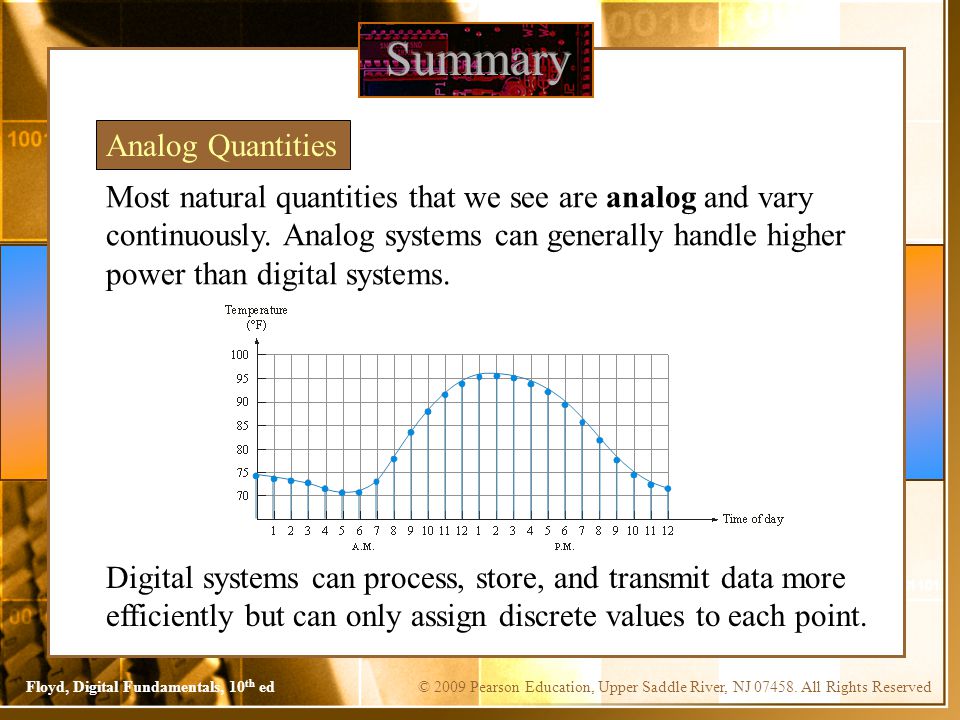

4. © 2009 Pearson Education, Upper Saddle River, NJ 07458. All Rights ReservedFloyd, Digital Fundamentals, 10 th ed Most natural quantities that we see are analog and vary continuously. Analog systems can generally handle higher power than digital systems. Digital systems can process, store, and transmit data more efficiently but can only assign discrete values to each point. Analog Quantities

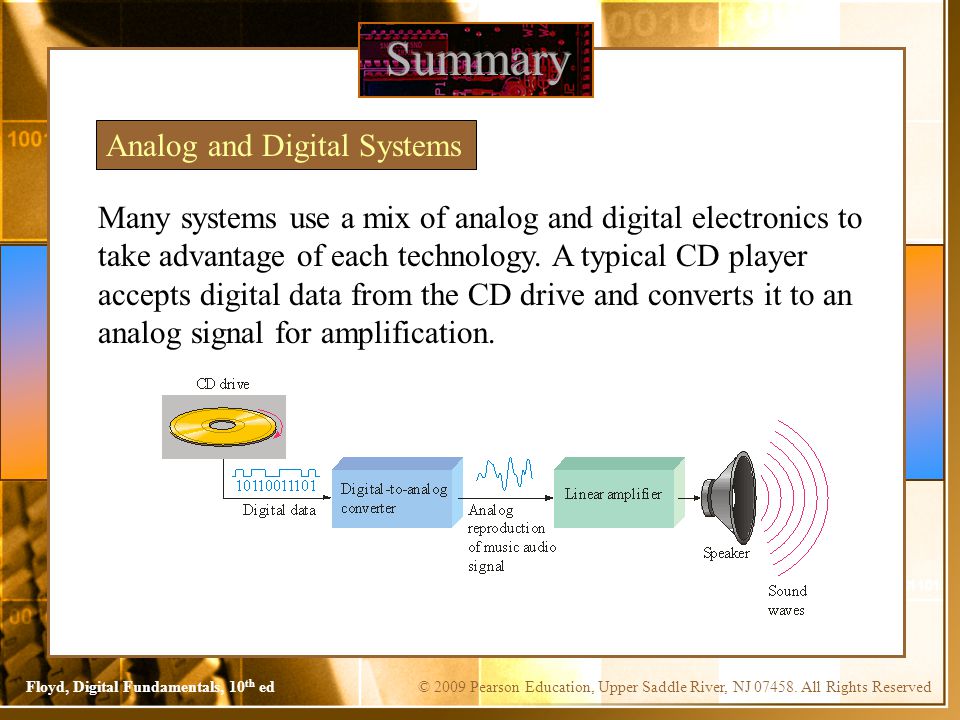

5. © 2009 Pearson Education, Upper Saddle River, NJ 07458. All Rights ReservedFloyd, Digital Fundamentals, 10 th ed Many systems use a mix of analog and digital electronics to take advantage of each technology. A typical CD player accepts digital data from the CD drive and converts it to an analog signal for amplification. Analog and Digital Systems

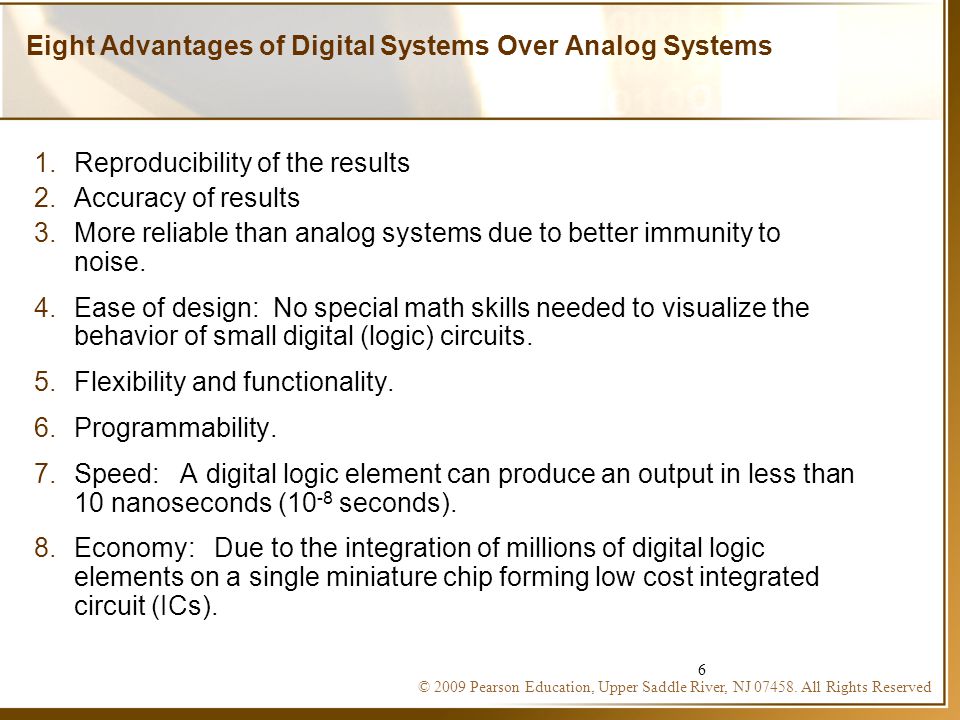

6. © 2009 Pearson Education, Upper Saddle River, NJ 07458. All Rights ReservedFloyd, Digital Fundamentals, 10 th ed 6 Eight Advantages of Digital Systems Over Analog Systems 1.Reproducibility of the results 2.Accuracy of results 3.More reliable than analog systems due to better immunity to noise. 4.Ease of design: No special math skills needed to visualize the behavior of small digital (logic) circuits. 5.Flexibility and functionality. 6.Programmability. 7.Speed: A digital logic element can produce an output in less than 10 nanoseconds (10 -8 seconds). 8.Economy: Due to the integration of millions of digital logic elements on a single miniature chip forming low cost integrated circuit (ICs).

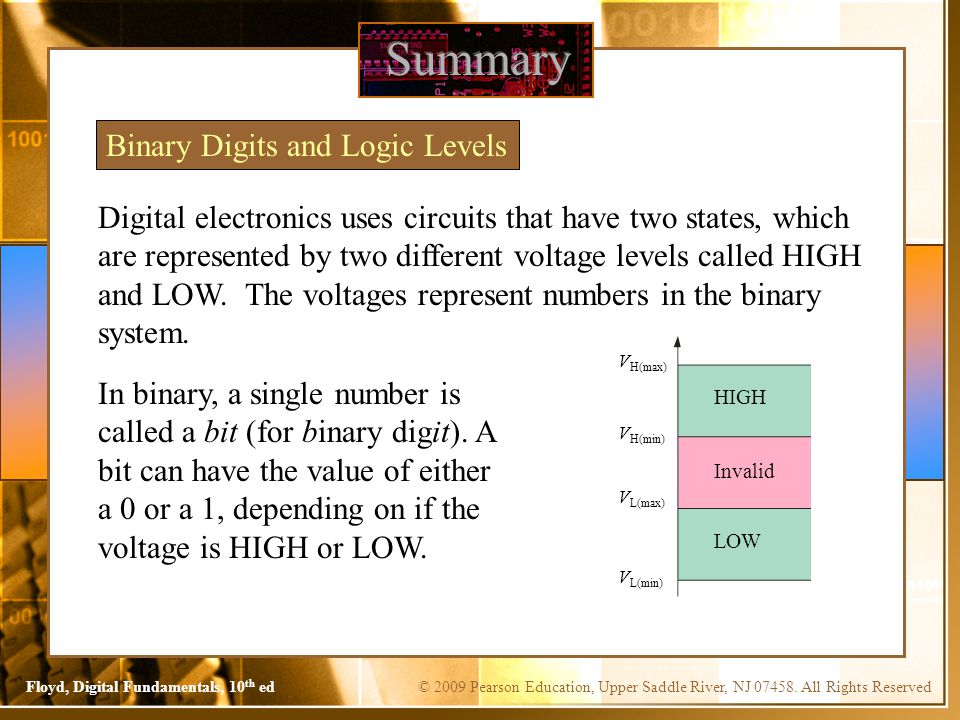

7. © 2009 Pearson Education, Upper Saddle River, NJ 07458. All Rights ReservedFloyd, Digital Fundamentals, 10 th ed Digital electronics uses circuits that have two states, which are represented by two different voltage levels called HIGH and LOW. The voltages represent numbers in the binary system. Binary Digits and Logic Levels In binary, a single number is called a bit (for binary digit). A bit can have the value of either a 0 or a 1, depending on if the voltage is HIGH or LOW. HIGH LOW V H(max) V H(min) V L(max) V L(min) Invalid

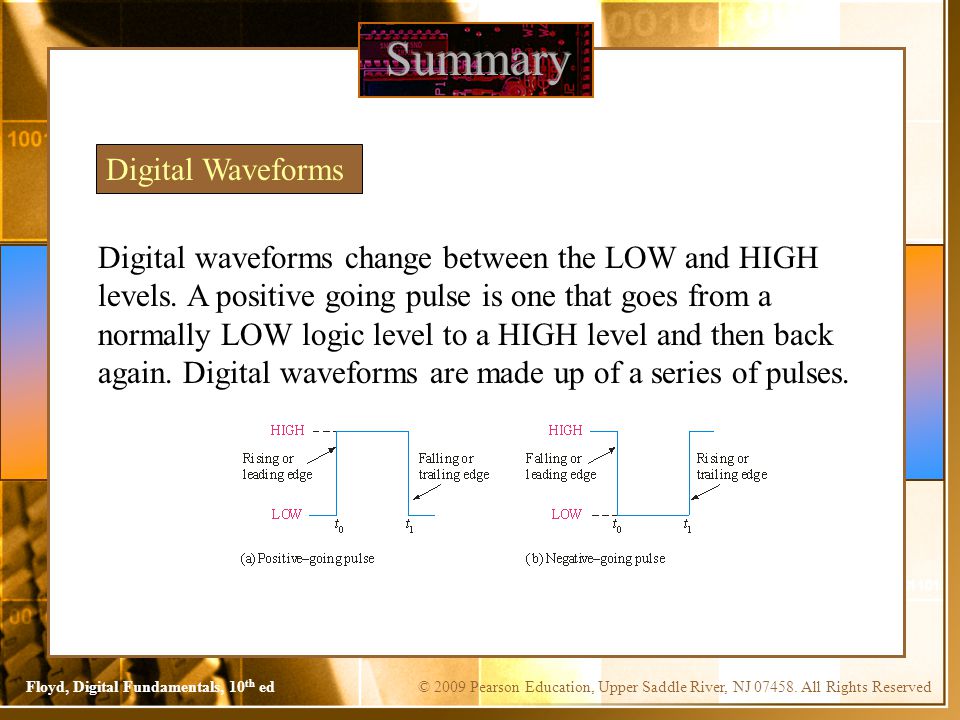

8. © 2009 Pearson Education, Upper Saddle River, NJ 07458. All Rights ReservedFloyd, Digital Fundamentals, 10 th ed Digital waveforms change between the LOW and HIGH levels. A positive going pulse is one that goes from a normally LOW logic level to a HIGH level and then back again. Digital waveforms are made up of a series of pulses. Digital Waveforms

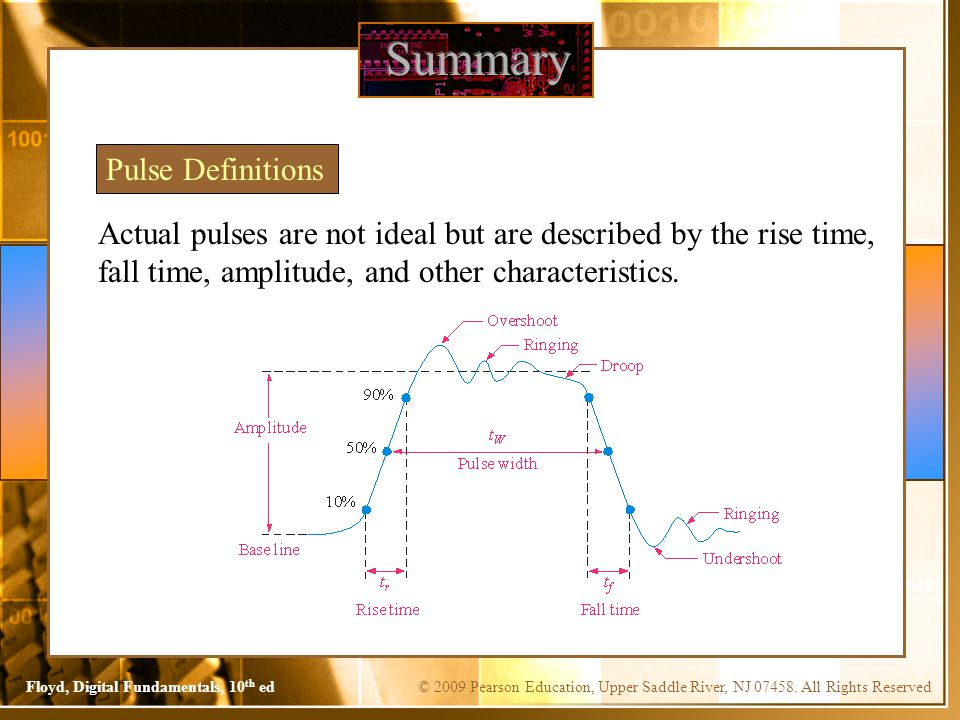

9. © 2009 Pearson Education, Upper Saddle River, NJ 07458. All Rights ReservedFloyd, Digital Fundamentals, 10 th ed Actual pulses are not ideal but are described by the rise time, fall time, amplitude, and other characteristics. Pulse Definitions

10. © 2009 Pearson Education, Upper Saddle River, NJ 07458. All Rights ReservedFloyd, Digital Fundamentals, 10 th ed Periodic pulse waveforms are composed of pulses that repeats in a fixed interval called the period. The frequency is the rate it repeats and is measured in hertz. Periodic Pulse Waveforms The clock is a basic timing signal that is an example of a periodic wave. What is the period of a repetitive wave if f = 3.2 GHz? 313 ps

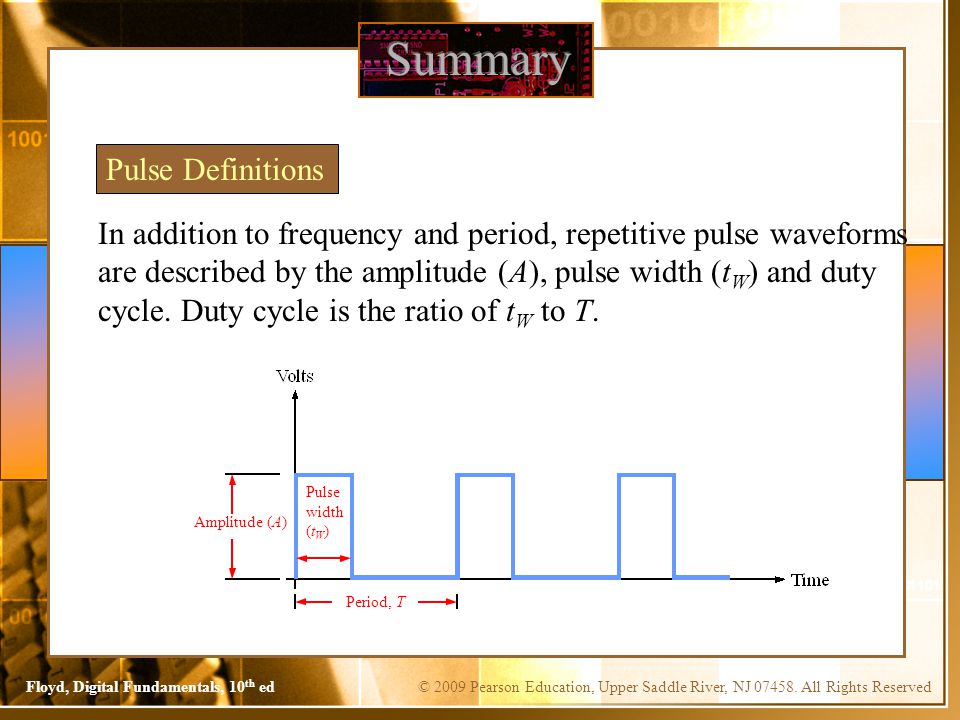

11. © 2009 Pearson Education, Upper Saddle River, NJ 07458. All Rights ReservedFloyd, Digital Fundamentals, 10 th ed Pulse Definitions In addition to frequency and period, repetitive pulse waveforms are described by the amplitude (A), pulse width (t W ) and duty cycle. Duty cycle is the ratio of t W to T. Amplitude (A) Pulse width (t W ) Period, T

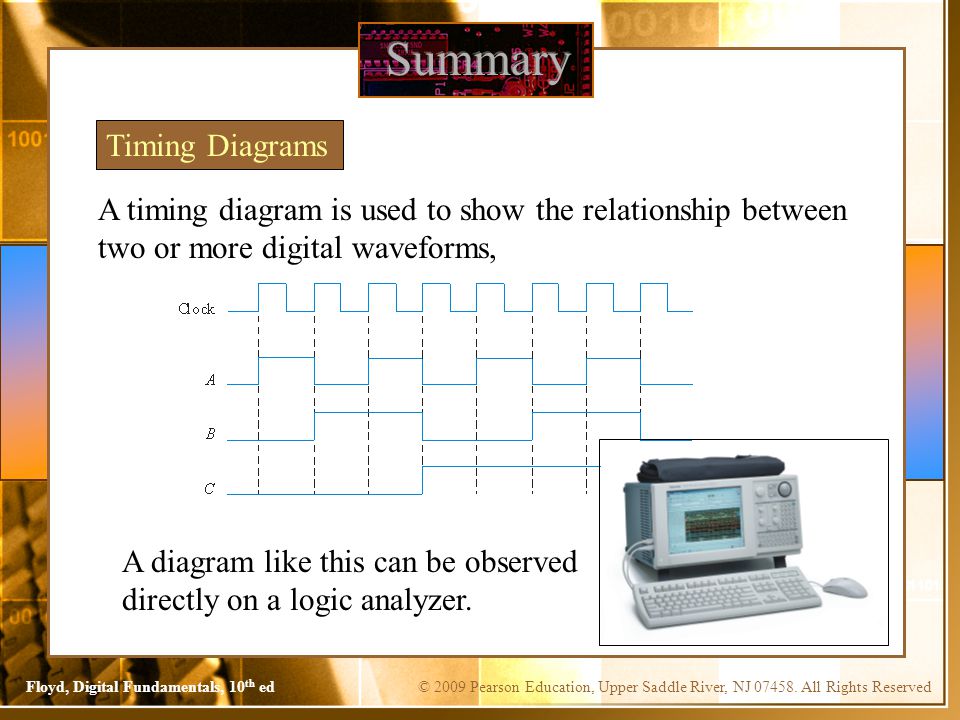

12. © 2009 Pearson Education, Upper Saddle River, NJ 07458. All Rights ReservedFloyd, Digital Fundamentals, 10 th ed A timing diagram is used to show the relationship between two or more digital waveforms, Timing Diagrams A diagram like this can be observed directly on a logic analyzer.

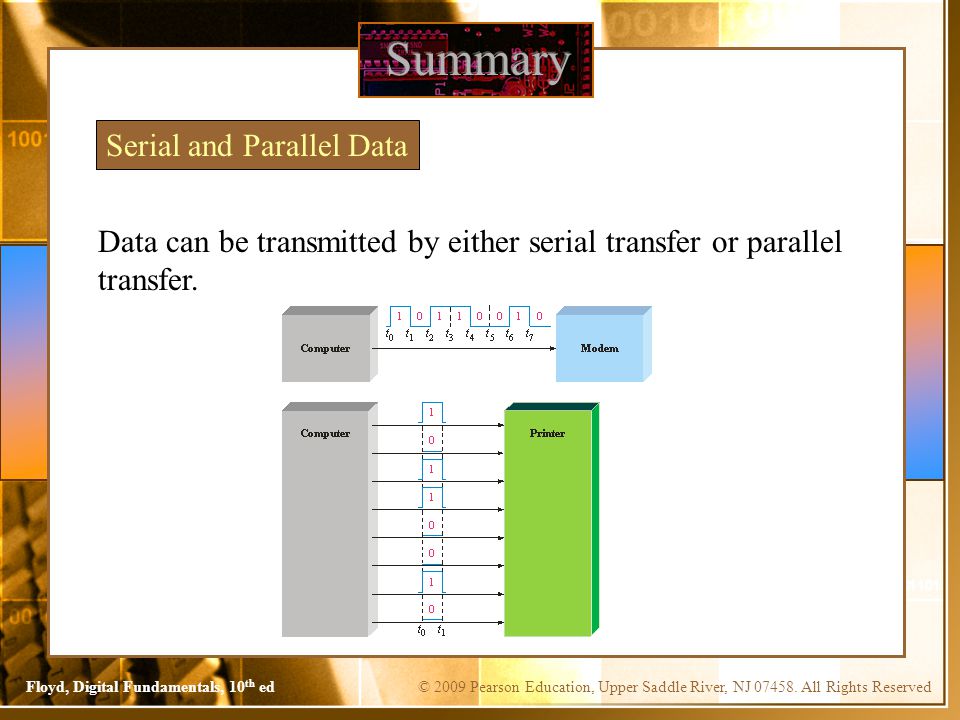

13. © 2009 Pearson Education, Upper Saddle River, NJ 07458. All Rights ReservedFloyd, Digital Fundamentals, 10 th ed Data can be transmitted by either serial transfer or parallel transfer. Serial and Parallel Data

14. © 2009 Pearson Education, Upper Saddle River, NJ 07458. All Rights ReservedFloyd, Digital Fundamentals, 10 th ed Basic Logic Functions True only if all input conditions are true. True only if one or more input conditions are true. Indicates the opposite condition.

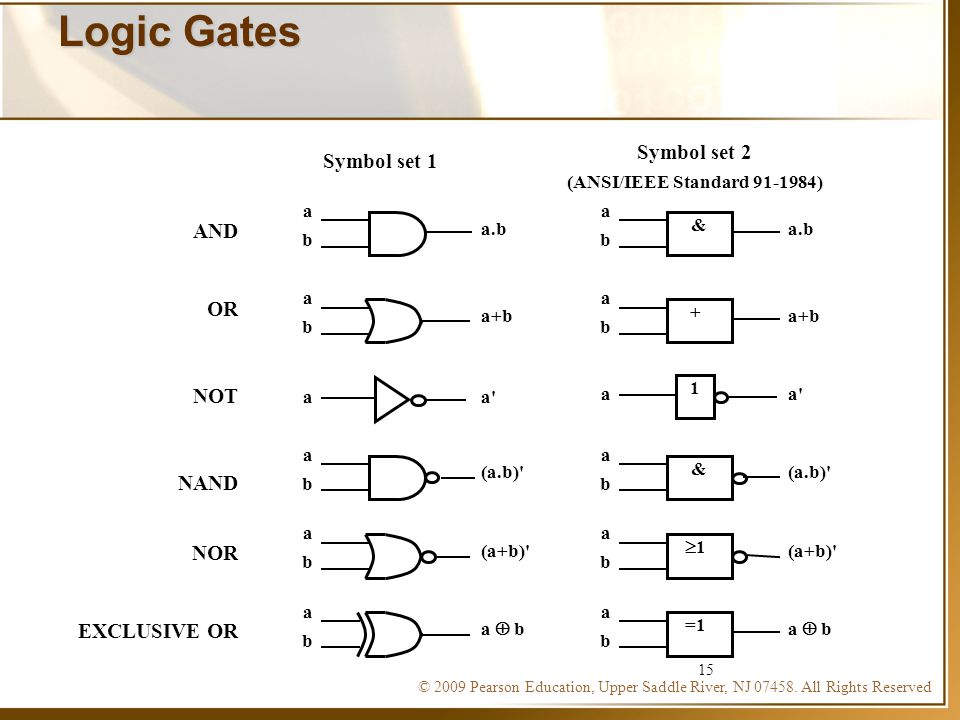

15. © 2009 Pearson Education, Upper Saddle River, NJ 07458. All Rights ReservedFloyd, Digital Fundamentals, 10 th ed 15 Logic Gates EXCLUSIVE OR abab a.b abab a+b aa' abab (a+b)' abab (a.b)' abab a  b abab a.b & abab a+b + AND aa' 1 abab (a.b)' & abab (a+b)' 11 abab a  b =1 OR NOT NAND NOR Symbol set 1 Symbol set 2 (ANSI/IEEE Standard 91-1984)

16. © 2009 Pearson Education, Upper Saddle River, NJ 07458. All Rights ReservedFloyd, Digital Fundamentals, 10 th ed Henry Hexmoor 16 Truth Tables Provide a listing of every possible combination of values of binary inputs to a digital circuit and the corresponding outputs. Example (2 inputs, 2 outputs): Digital circuit inputs outputs x y inputs outputs x + y x. y Truth table

17. © 2009 Pearson Education, Upper Saddle River, NJ 07458. All Rights ReservedFloyd, Digital Fundamentals, 10 th ed 17 Logic Gates: The AND Gate ABAB A.B Truth table 1234567 8910 11 12 1314 Ground Vcc Top View of a TTL 74LS family 74LS08 Quad 2-input AND Gate IC Package The AND Gate

18. © 2009 Pearson Education, Upper Saddle River, NJ 07458. All Rights ReservedFloyd, Digital Fundamentals, 10 th ed 18 Logic Gates: The OR Gate ABAB A+B The OR Gate Truth table Top View of a TTL 74LS family 74LS08 Quad 2-input OR Gate IC Package

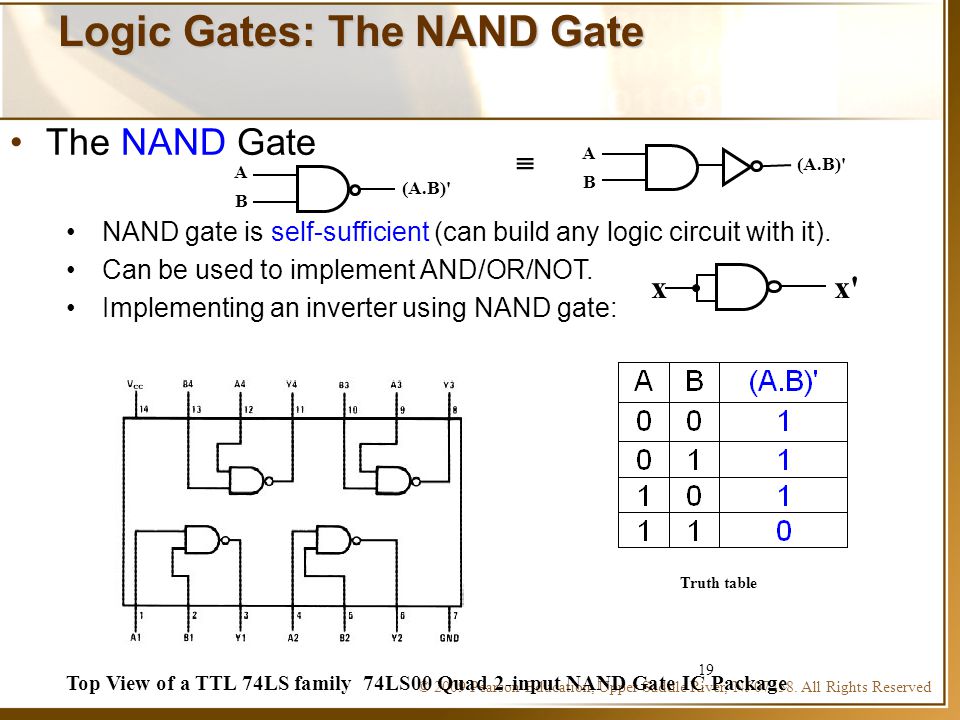

19. © 2009 Pearson Education, Upper Saddle River, NJ 07458. All Rights ReservedFloyd, Digital Fundamentals, 10 th ed 19 Logic Gates: The NAND Gate The NAND Gate ABAB (A.B)' ABAB  Truth table Top View of a TTL 74LS family 74LS00 Quad 2-input NAND Gate IC Package NAND gate is self-sufficient (can build any logic circuit with it). Can be used to implement AND/OR/NOT. Implementing an inverter using NAND gate: xx'

20. © 2009 Pearson Education, Upper Saddle River, NJ 07458. All Rights ReservedFloyd, Digital Fundamentals, 10 th ed Henry Hexmoor 20 Logic Gates: The NOR Gate The NOR Gate  ABAB (A+B)' ABAB Truth table Top View of a TTL 74LS family 74LS02 Quad 2-input NOR Gate IC Package NOR gate is also self-sufficient (can build any logic circuit with it). Can be used to implement AND/OR/NOT. Implementing an inverter using NOR gate: xx'

21. © 2009 Pearson Education, Upper Saddle River, NJ 07458. All Rights ReservedFloyd, Digital Fundamentals, 10 th ed Henry Hexmoor 21 Logic Gates: The XOR Gate 1234567 89101112 1314 Ground Vcc The XOR Gate ABAB A  B Truth table Top View of a TTL 74LS family 74LS86 Quad 2-input XOR Gate IC Package

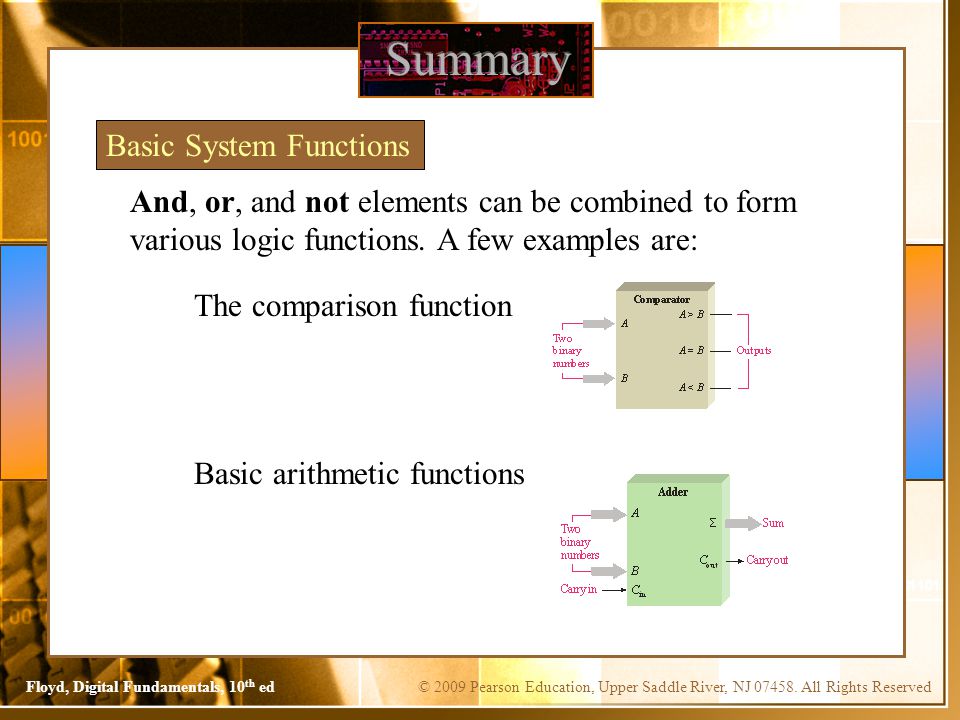

22. © 2009 Pearson Education, Upper Saddle River, NJ 07458. All Rights ReservedFloyd, Digital Fundamentals, 10 th ed Basic System Functions And, or, and not elements can be combined to form various logic functions. A few examples are: The comparison function Basic arithmetic functions

23. © 2009 Pearson Education, Upper Saddle River, NJ 07458. All Rights ReservedFloyd, Digital Fundamentals, 10 th ed Basic System Functions The encoding function The decoding function

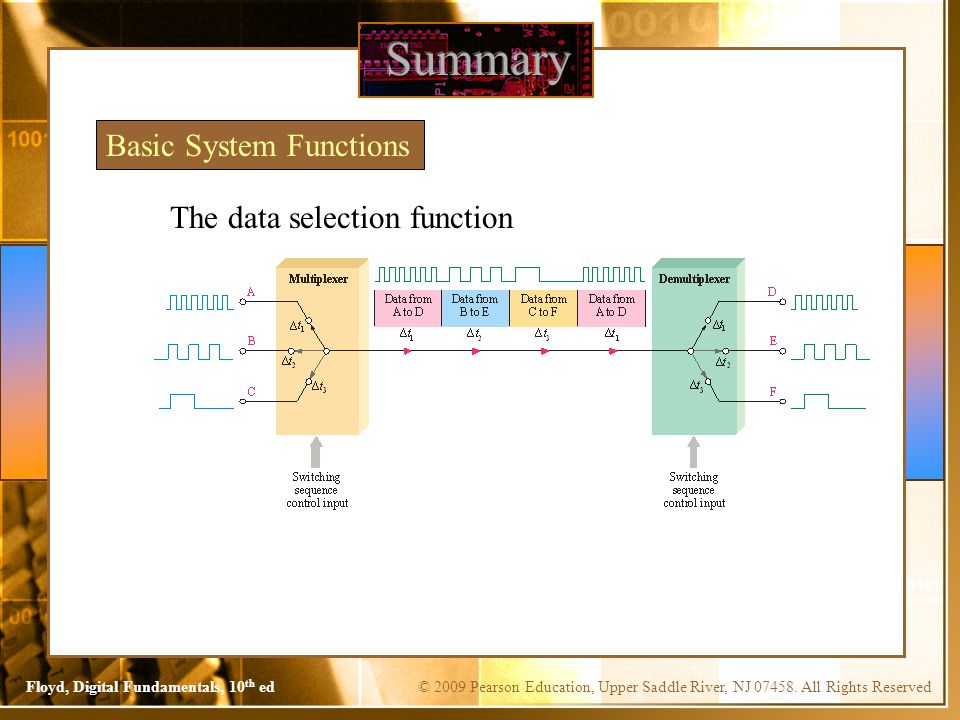

24. © 2009 Pearson Education, Upper Saddle River, NJ 07458. All Rights ReservedFloyd, Digital Fundamentals, 10 th ed Basic System Functions The data selection function

25. © 2009 Pearson Education, Upper Saddle River, NJ 07458. All Rights ReservedFloyd, Digital Fundamentals, 10 th ed Basic System Functions The counting function …and other functions such as code conversion and storage. Input pulses 1 CounterParallel output lines Binary code for 1 Binary code for 2 Binary code for 3 Binary code for 4 Binary code for 5 Sequence of binary codes that represent the number of input pulses counted. 2345

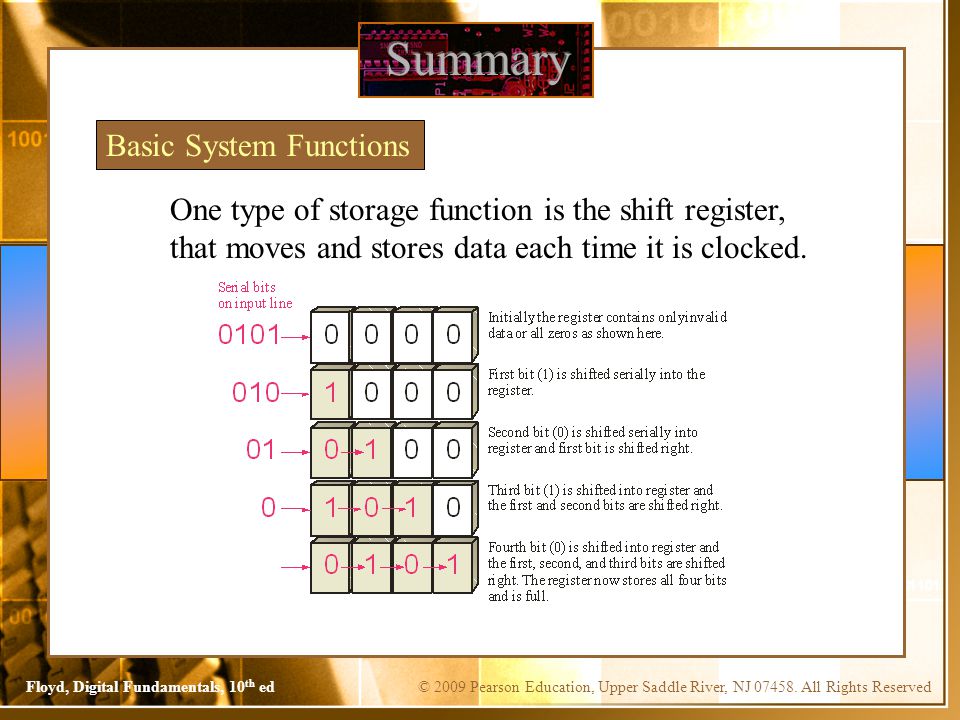

26. © 2009 Pearson Education, Upper Saddle River, NJ 07458. All Rights ReservedFloyd, Digital Fundamentals, 10 th ed Basic System Functions One type of storage function is the shift register, that moves and stores data each time it is clocked.

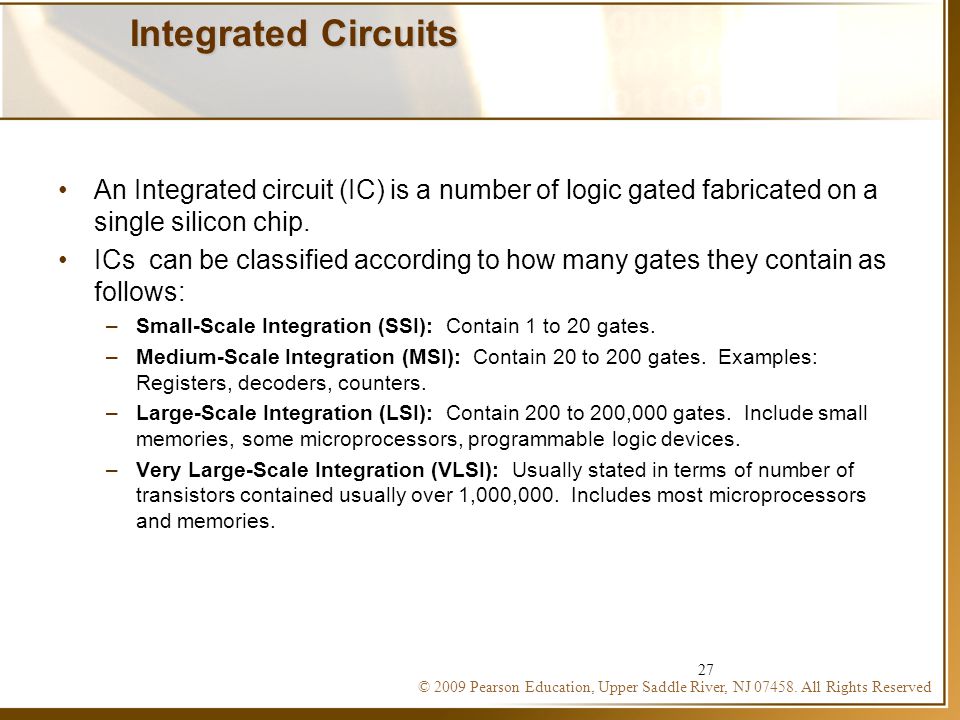

27. © 2009 Pearson Education, Upper Saddle River, NJ 07458. All Rights ReservedFloyd, Digital Fundamentals, 10 th ed 27 Integrated Circuits An Integrated circuit (IC) is a number of logic gated fabricated on a single silicon chip. ICs can be classified according to how many gates they contain as follows: –Small-Scale Integration (SSI): Contain 1 to 20 gates. –Medium-Scale Integration (MSI): Contain 20 to 200 gates. Examples: Registers, decoders, counters. –Large-Scale Integration (LSI): Contain 200 to 200,000 gates. Include small memories, some microprocessors, programmable logic devices. –Very Large-Scale Integration (VLSI): Usually stated in terms of number of transistors contained usually over 1,000,000. Includes most microprocessors and memories.

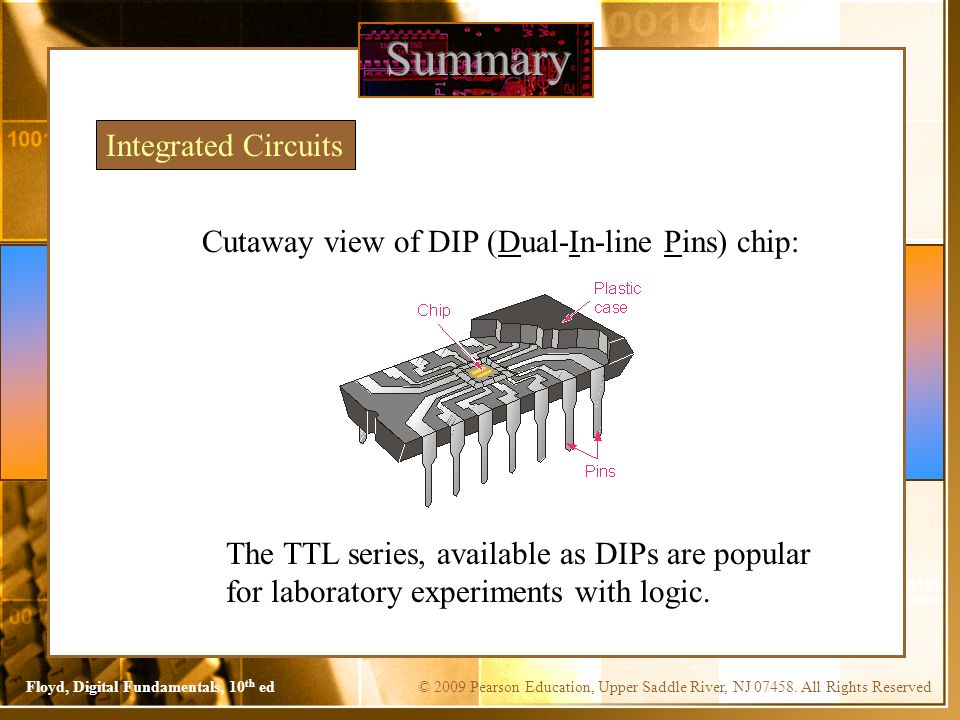

28. © 2009 Pearson Education, Upper Saddle River, NJ 07458. All Rights ReservedFloyd, Digital Fundamentals, 10 th ed Integrated Circuits Cutaway view of DIP (Dual-In-line Pins) chip: The TTL series, available as DIPs are popular for laboratory experiments with logic.

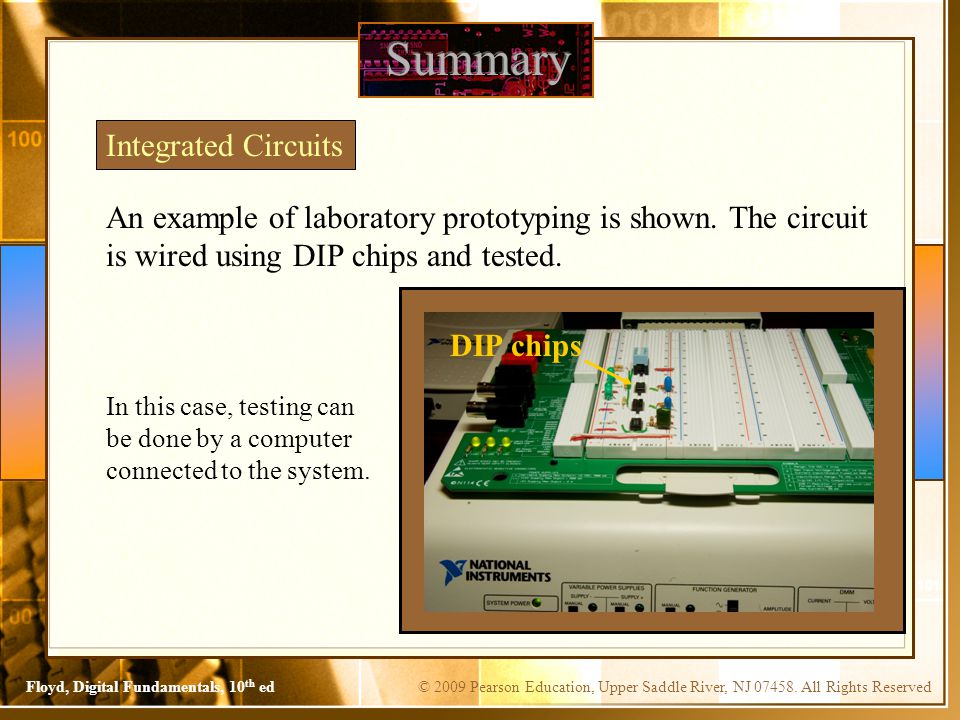

29. © 2009 Pearson Education, Upper Saddle River, NJ 07458. All Rights ReservedFloyd, Digital Fundamentals, 10 th ed An example of laboratory prototyping is shown. The circuit is wired using DIP chips and tested. Integrated Circuits In this case, testing can be done by a computer connected to the system. DIP chips

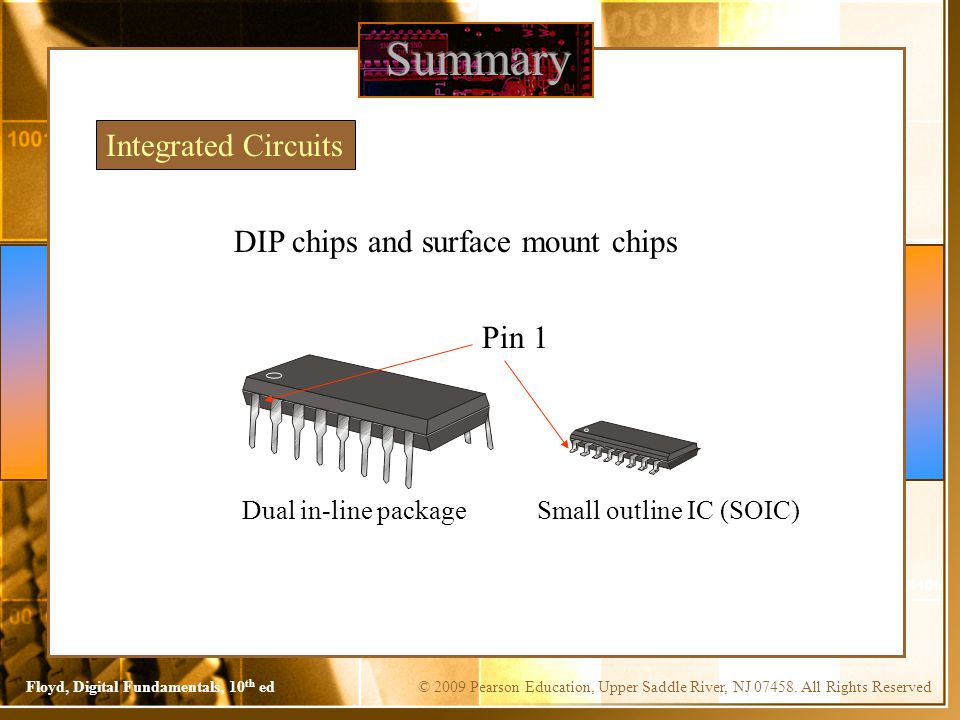

30. © 2009 Pearson Education, Upper Saddle River, NJ 07458. All Rights ReservedFloyd, Digital Fundamentals, 10 th ed Integrated Circuits DIP chips and surface mount chips Pin 1 Dual in-line package Small outline IC (SOIC)

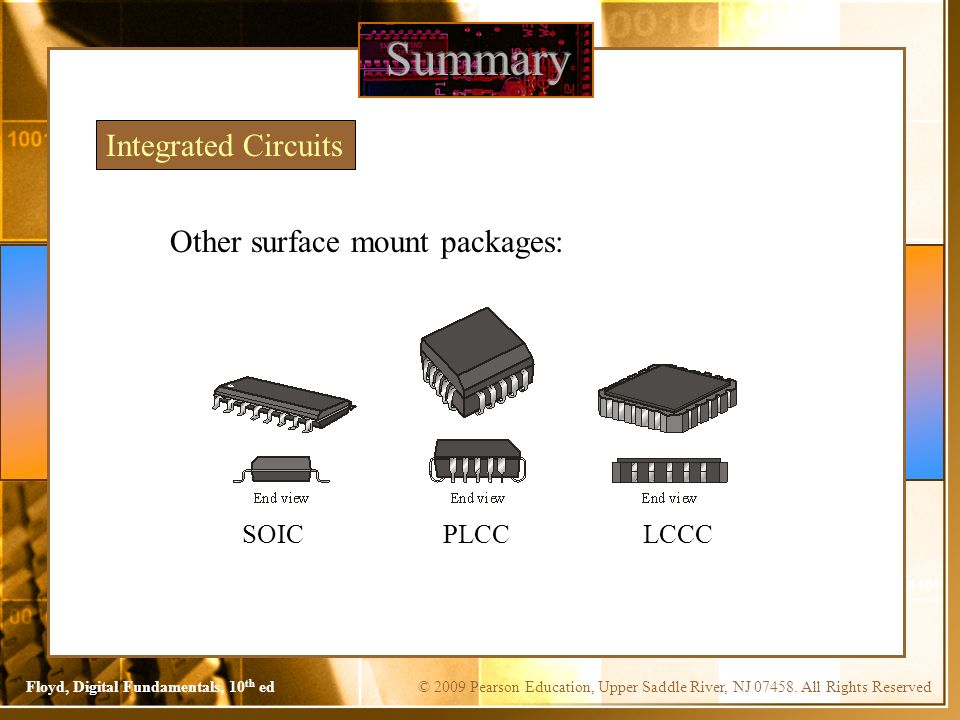

31. © 2009 Pearson Education, Upper Saddle River, NJ 07458. All Rights ReservedFloyd, Digital Fundamentals, 10 th ed Integrated Circuits Other surface mount packages: SOIC PLCC LCCC

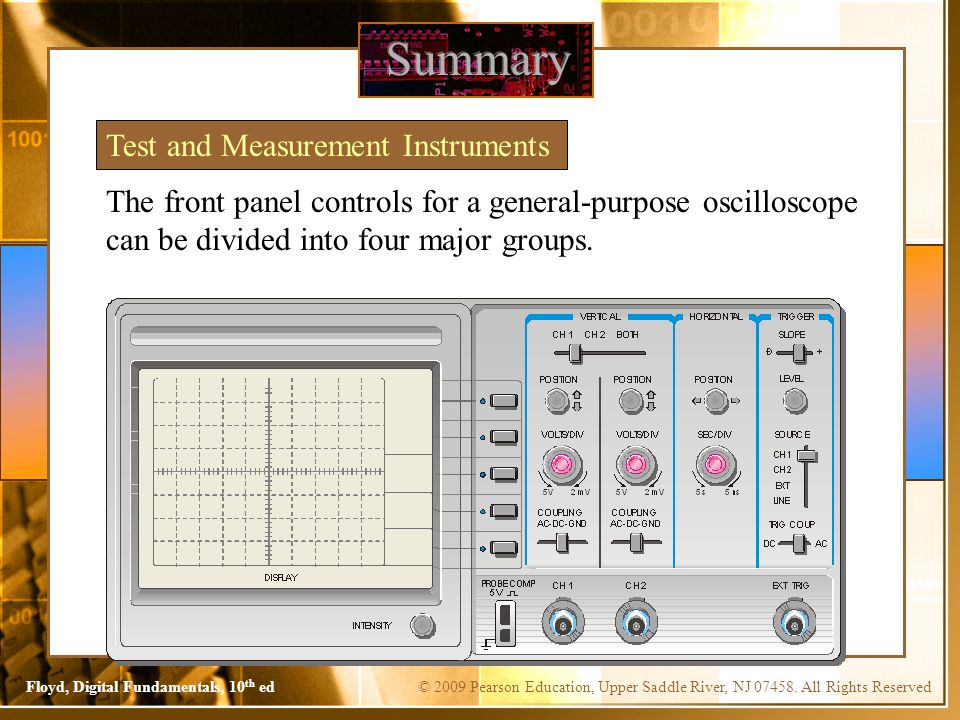

32. © 2009 Pearson Education, Upper Saddle River, NJ 07458. All Rights ReservedFloyd, Digital Fundamentals, 10 th ed Test and Measurement Instruments The front panel controls for a general-purpose oscilloscope can be divided into four major groups.

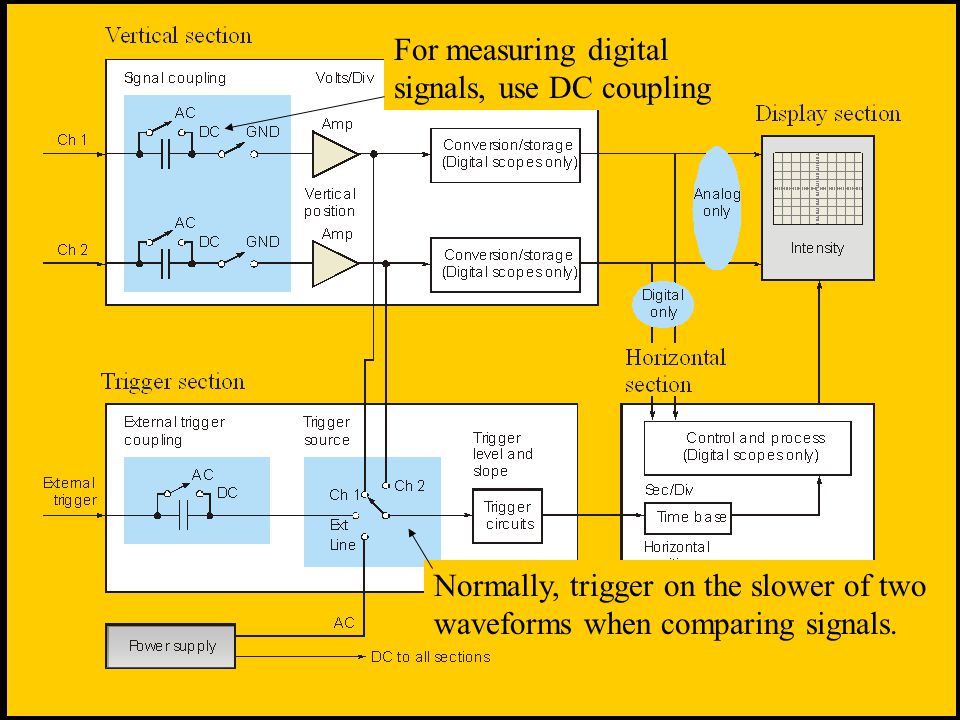

33. © 2009 Pearson Education, Upper Saddle River, NJ 07458. All Rights ReservedFloyd, Digital Fundamentals, 10 th ed Test and Measurement Instruments For measuring digital signals, use DC coupling Normally, trigger on the slower of two waveforms when comparing signals.

34. © 2009 Pearson Education, Upper Saddle River, NJ 07458. All Rights ReservedFloyd, Digital Fundamentals, 10 th ed Test and Measurement Instruments The logic analyzer can display multiple channels of digital information or show data in tabular form.

35. © 2009 Pearson Education, Upper Saddle River, NJ 07458. All Rights ReservedFloyd, Digital Fundamentals, 10 th ed Test and Measurement Instruments 0.01 V The DMM can make three basic electrical measurements. Voltage Resistance Current In digital work, DMMs are useful for checking power supply voltages, verifying resistors, testing continuity, and occasionally making other measurements.

36. © 2009 Pearson Education, Upper Saddle River, NJ 07458. All Rights ReservedFloyd, Digital Fundamentals, 10 th ed Programmable Logic Programmable logic devices (PLDs) are an alternative to fixed function devices. The logic can be programmed for a specific purpose. In general, they cost less and use less board space that fixed function devices. A PAL device is a form of PLD that uses a combination of a programmable AND array and a fixed OR array:

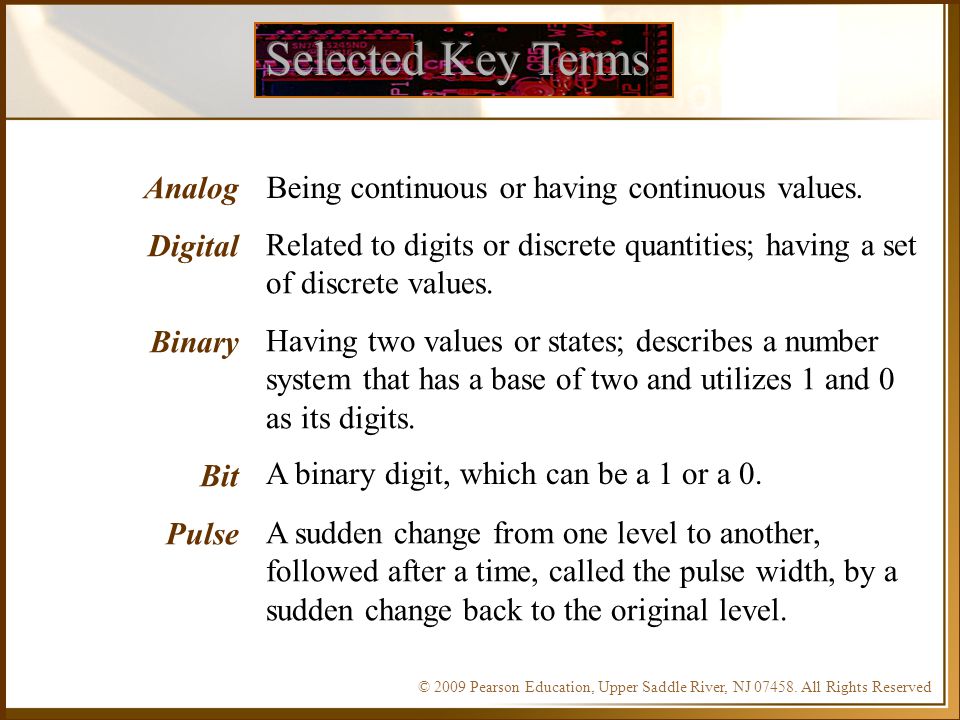

37. © 2009 Pearson Education, Upper Saddle River, NJ 07458. All Rights ReservedFloyd, Digital Fundamentals, 10 th ed Analog Digital Binary Bit Pulse Being continuous or having continuous values. Related to digits or discrete quantities; having a set of discrete values. Having two values or states; describes a number system that has a base of two and utilizes 1 and 0 as its digits. A binary digit, which can be a 1 or a 0. A sudden change from one level to another, followed after a time, called the pulse width, by a sudden change back to the original level.

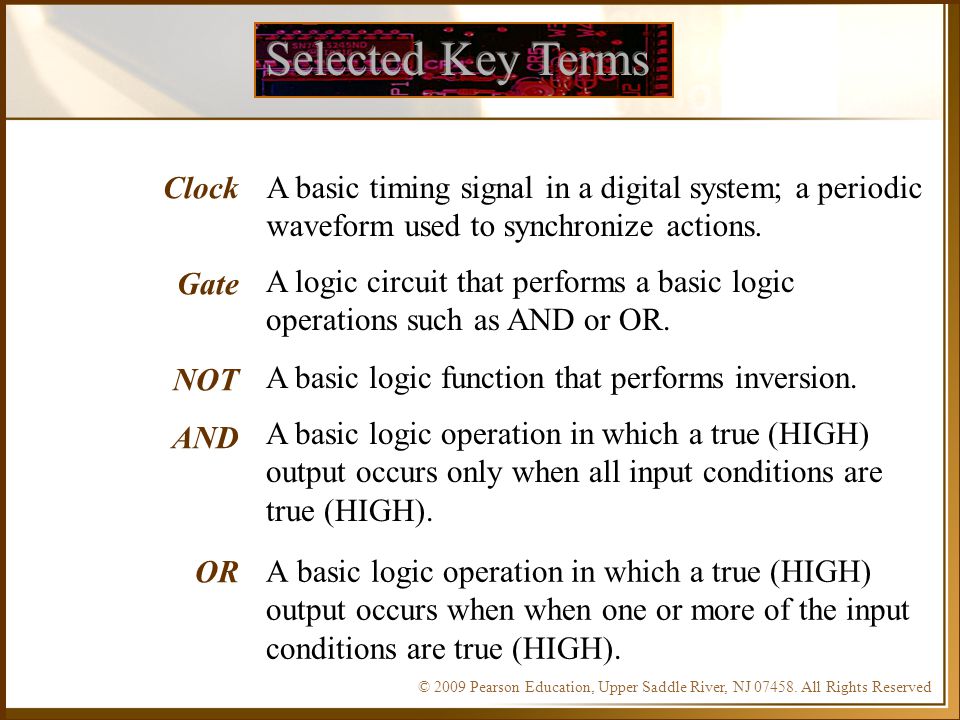

38. © 2009 Pearson Education, Upper Saddle River, NJ 07458. All Rights ReservedFloyd, Digital Fundamentals, 10 th ed Clock Gate NOT AND OR A basic timing signal in a digital system; a periodic waveform used to synchronize actions. A logic circuit that performs a basic logic operations such as AND or OR. A basic logic function that performs inversion. A basic logic operation in which a true (HIGH) output occurs only when all input conditions are true (HIGH). A basic logic operation in which a true (HIGH) output occurs when when one or more of the input conditions are true (HIGH).

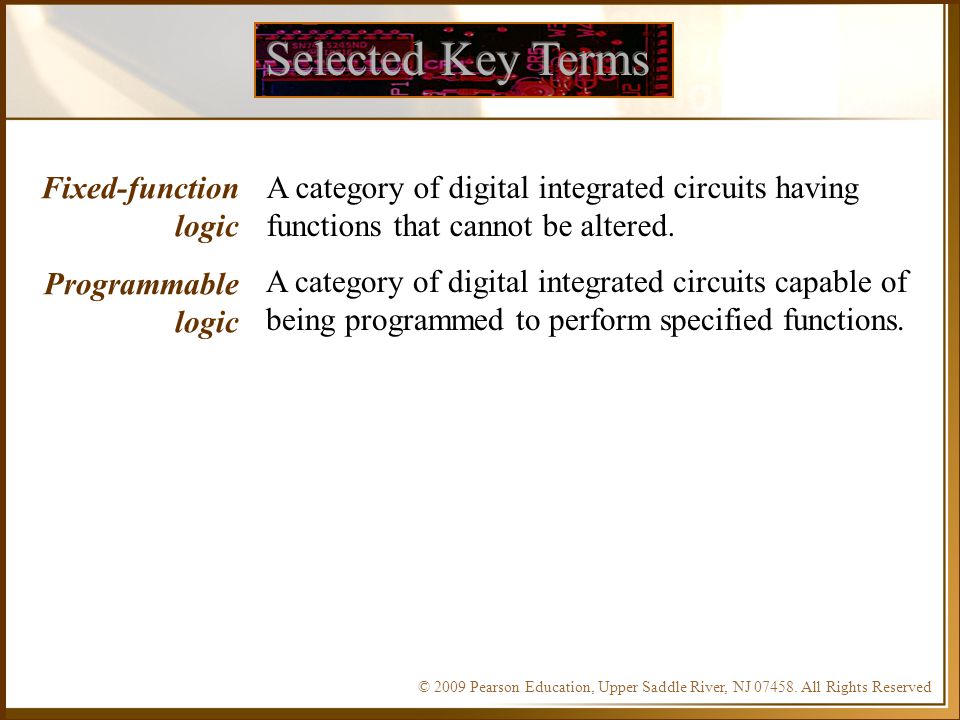

39. © 2009 Pearson Education, Upper Saddle River, NJ 07458. All Rights ReservedFloyd, Digital Fundamentals, 10 th ed Fixed-function logic Programmable logic A category of digital integrated circuits having functions that cannot be altered. A category of digital integrated circuits capable of being programmed to perform specified functions.

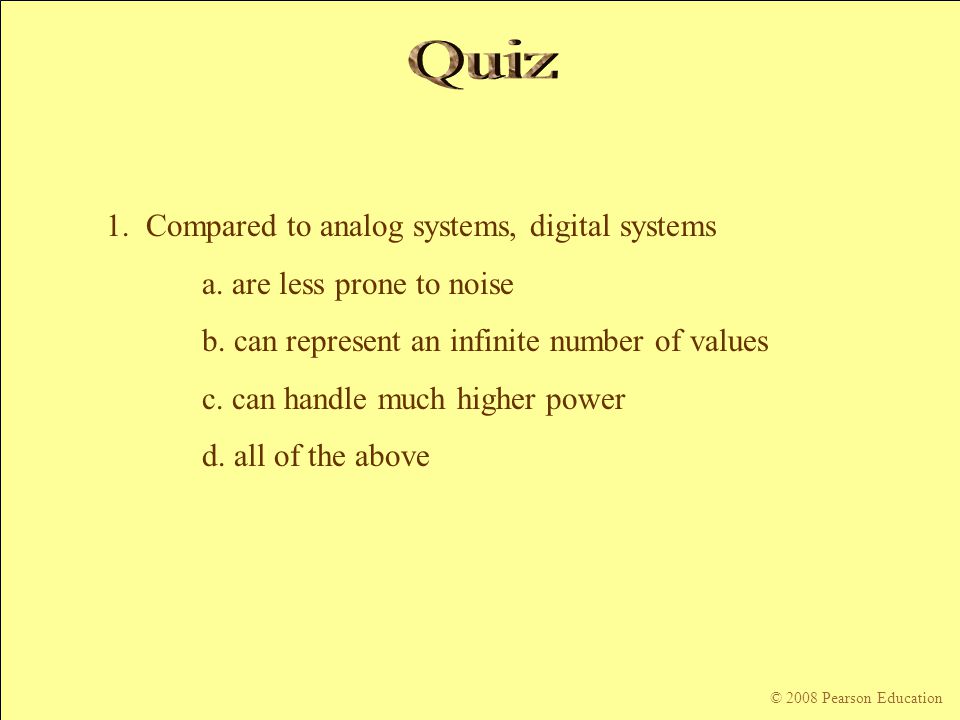

40. © 2009 Pearson Education, Upper Saddle River, NJ 07458. All Rights ReservedFloyd, Digital Fundamentals, 10 th ed 1. Compared to analog systems, digital systems a. are less prone to noise b. can represent an infinite number of values c. can handle much higher power d. all of the above © 2008 Pearson Education

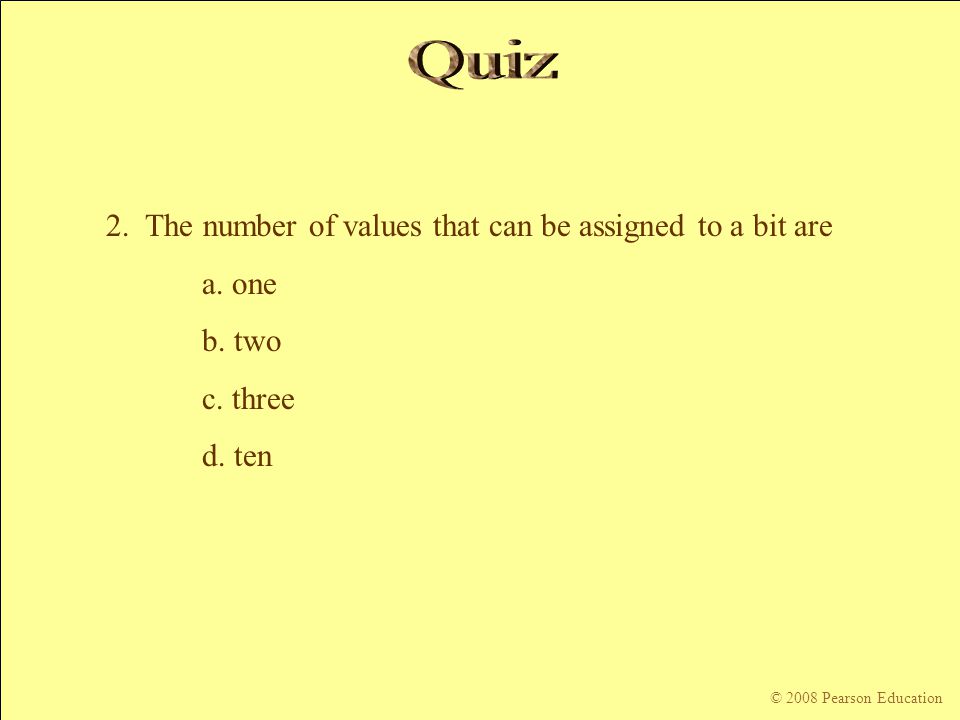

41. © 2009 Pearson Education, Upper Saddle River, NJ 07458. All Rights ReservedFloyd, Digital Fundamentals, 10 th ed 2. The number of values that can be assigned to a bit are a. one b. two c. three d. ten © 2008 Pearson Education

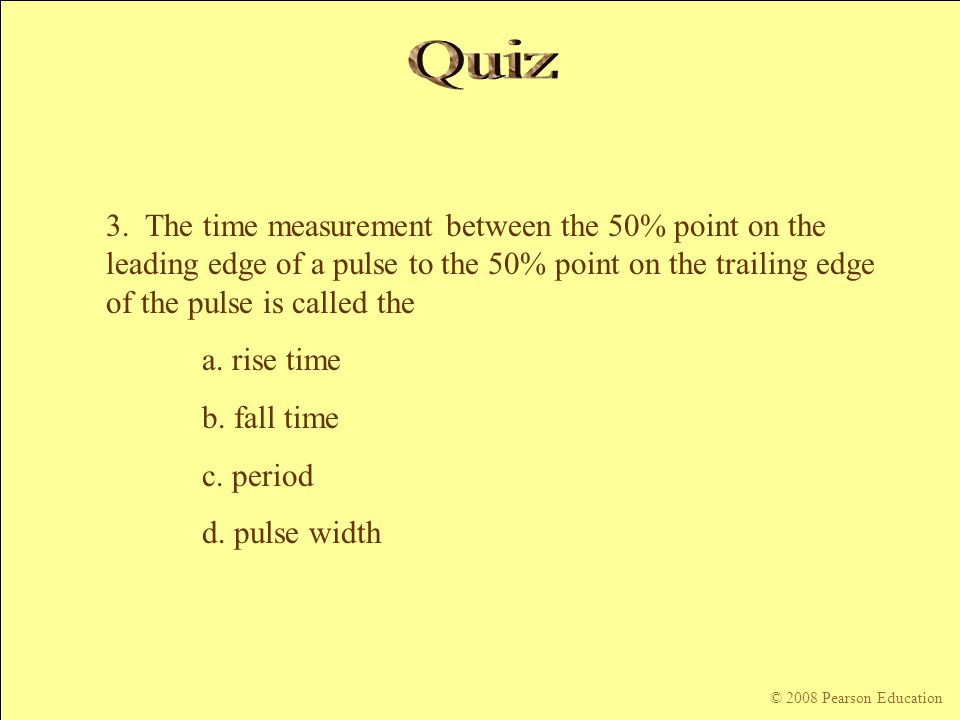

42. © 2009 Pearson Education, Upper Saddle River, NJ 07458. All Rights ReservedFloyd, Digital Fundamentals, 10 th ed 3. The time measurement between the 50% point on the leading edge of a pulse to the 50% point on the trailing edge of the pulse is called the a. rise time b. fall time c. period d. pulse width © 2008 Pearson Education

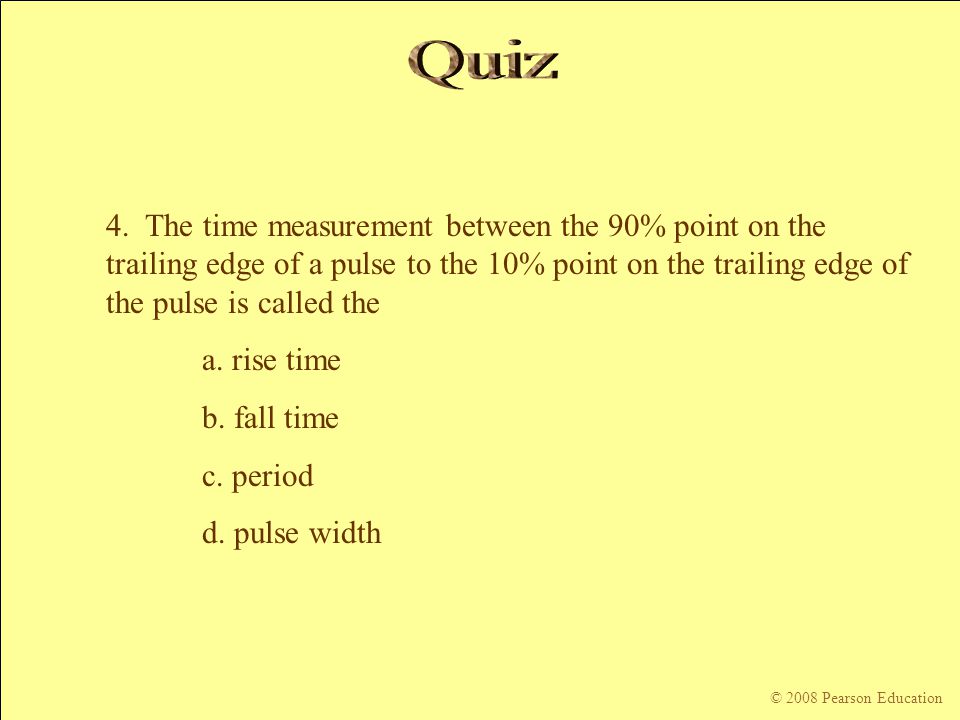

43. © 2009 Pearson Education, Upper Saddle River, NJ 07458. All Rights ReservedFloyd, Digital Fundamentals, 10 th ed 4. The time measurement between the 90% point on the trailing edge of a pulse to the 10% point on the trailing edge of the pulse is called the a. rise time b. fall time c. period d. pulse width © 2008 Pearson Education

44. © 2009 Pearson Education, Upper Saddle River, NJ 07458. All Rights ReservedFloyd, Digital Fundamentals, 10 th ed 5. The reciprocal of the frequency of a clock signal is the a. rise time b. fall time c. period d. pulse width © 2008 Pearson Education

45. © 2009 Pearson Education, Upper Saddle River, NJ 07458. All Rights ReservedFloyd, Digital Fundamentals, 10 th ed 6. If the period of a clock signal is 500 ps, the frequency is a. 20 MHz b. 200 MHz c. 2 GHz d. 20 GHz © 2008 Pearson Education

46. © 2009 Pearson Education, Upper Saddle River, NJ 07458. All Rights ReservedFloyd, Digital Fundamentals, 10 th ed 7. AND, OR, and NOT gates can be used to form a. storage devices b. comparators c. data selectors d. all of the above © 2008 Pearson Education

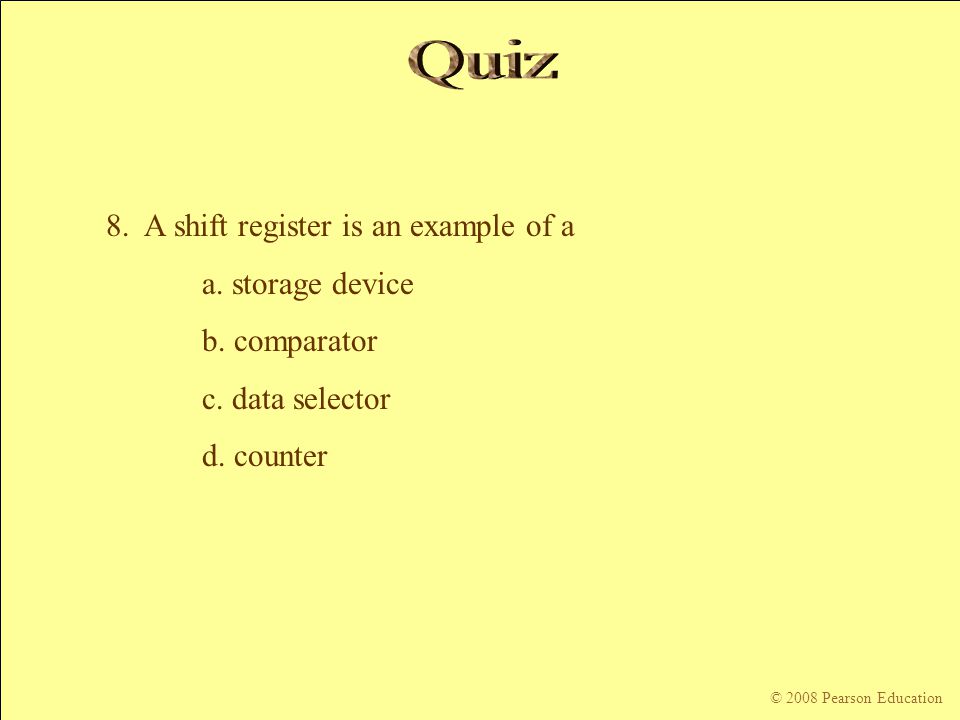

47. © 2009 Pearson Education, Upper Saddle River, NJ 07458. All Rights ReservedFloyd, Digital Fundamentals, 10 th ed 8. A shift register is an example of a a. storage device b. comparator c. data selector d. counter © 2008 Pearson Education

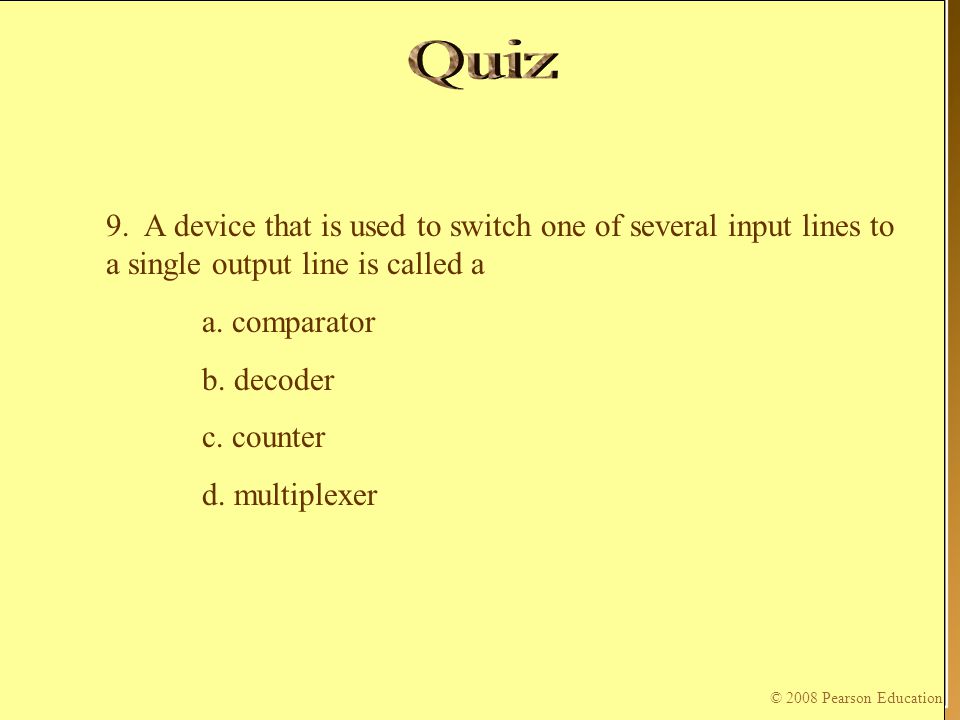

48. © 2009 Pearson Education, Upper Saddle River, NJ 07458. All Rights ReservedFloyd, Digital Fundamentals, 10 th ed 9. A device that is used to switch one of several input lines to a single output line is called a a. comparator b. decoder c. counter d. multiplexer © 2008 Pearson Education

49. © 2009 Pearson Education, Upper Saddle River, NJ 07458. All Rights ReservedFloyd, Digital Fundamentals, 10 th ed 10. For most digital work, an oscilloscope should be coupled to the signal using a. ac coupling b. dc coupling c. GND coupling d. none of the above © 2008 Pearson Education

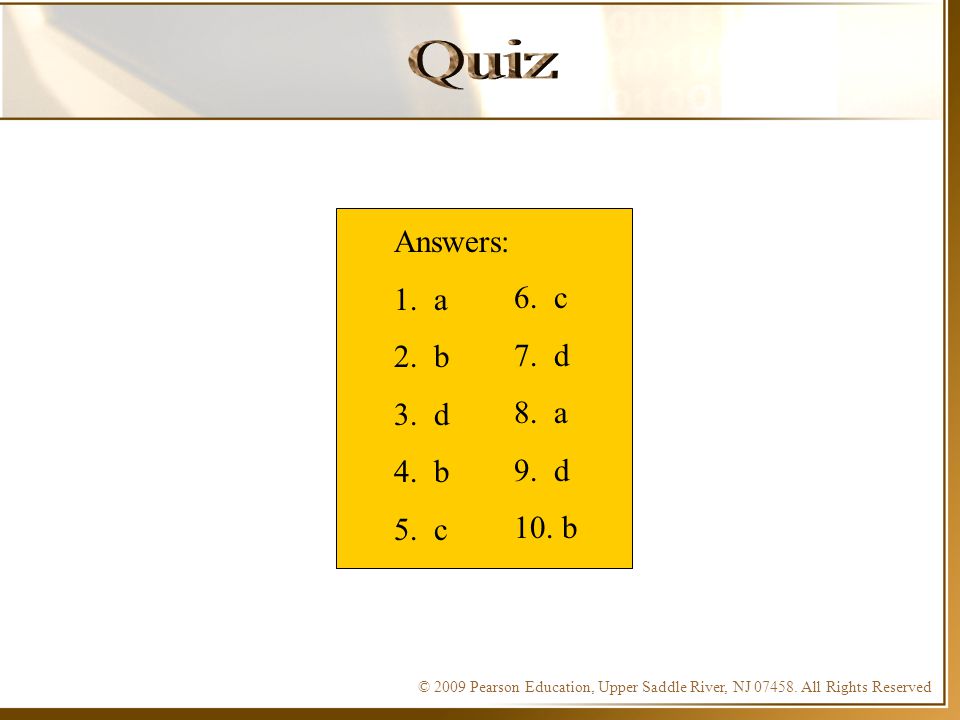

50. © 2009 Pearson Education, Upper Saddle River, NJ 07458. All Rights ReservedFloyd, Digital Fundamentals, 10 th ed Answers: 1. a 2. b 3. d 4. b 5. c 6. c 7. d 8. a 9. d 10. b
