Resin Infusion under Flexible Tooling (RIFT)

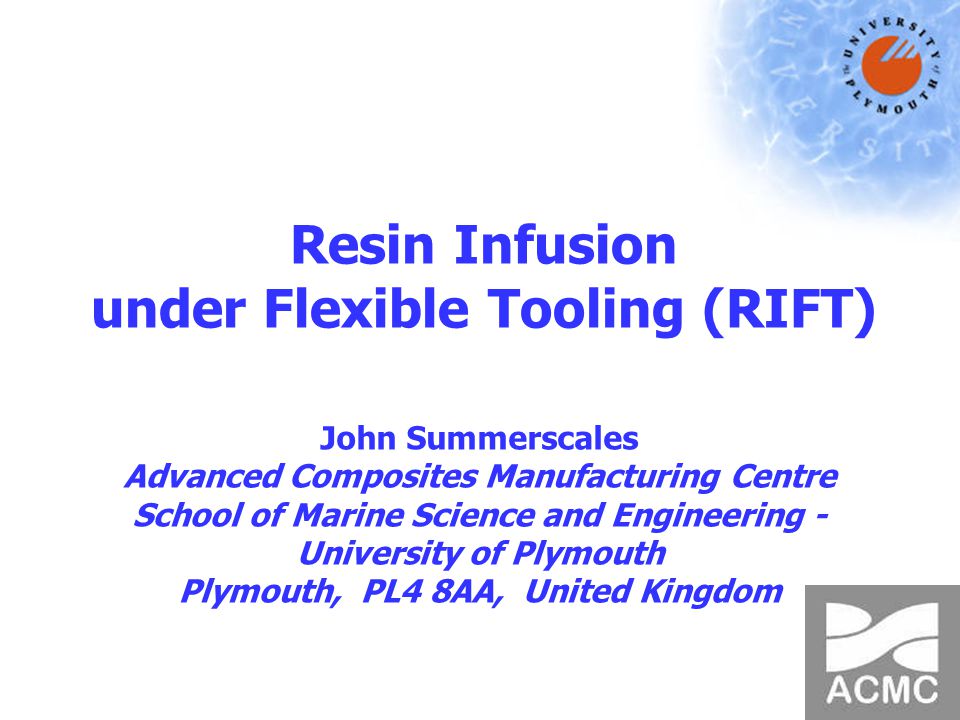

John Summerscales Advanced Composites Manufacturing Centre School of Marine Science and Engineering - University of Plymouth Plymouth, PL4 8AA, United Kingdom
2
Outline of presentation
other manufacturing processes four variants on resin infusion advantages and disadvantages applications using the process notional cost comparisons brief summary
3
Manufacturing processes
spray hand lamination hot press Resin Transfer Moulding (RTM) Resin Infusion under Flexible Tooling (RIFT) vacuum bagging and autoclave cure filament winding pultrusion
4
Manufacturing processes
Resin transfer moulding (RTM) long-range flow of resin into a dry fibre pack preloaded into a defined mould cavity. Resin infusion (RIFT) A range of intermediate techniques Vacuum bagging and autoclave cure wet resin or prepreg lamination followed by bagging and cure under pressure
5
Change from hand lay-up ?
Increased consolidation pressure 1 atmosphere = full vacuum = 105 N/m2 (10 tonnes/m2) Occupational Exposure Levels Germany/Sweden 20 ppm France/Spain 50 ppm United Kingdom 100 ppm EU harmonisation via SPA recommendation for end 2013 Pollution Prevention and Control Act 1999 styrene has an odour threshold of ppm i.e 630 µg/m3
6
Why resin infusion ? Resin transfer moulding (RTM)
as mouldings increase in size, mould clamping forces become excessive Vacuum bagging and autoclave cure premium price for pre-impregnation of reinforcements long cycle times capital cost of equipment
7
Resin infusion Muskat patent application, 1945
the fibrous base to be impregnated … preferably in a substantially dry state drive the resin into the base to impregnate it one tube being connected to a source of resin and the other to a vacuum pump complementary moulds appear to be free to move together under vacuum process introduced to UK by Scott Bader in 1946
8
“Acronym” anarchy ! CIRTM: co-injection RTM
Crystic VI: vacuum infusion (Scott Bader) DRDF: double RIFT diaphragm forming (University of Warwick) LRI: liquid resin infusion MVI modified vacuum infusion (Airbus) * Quickstep * use of liquids for enhanced heat transfer in infusion RFI: resin film infusion RIFT: resin infusion under flexible tooling (ACMC Plymouth) RIRM: resin injection recirculation moulding SCRIMP Seeman Composites Resin Infusion Molding Process (TPI) VAIM: vacuum-assisted injection moulding VAP vacuum assisted processing (patented by EADS) VARI: vacuum assisted resin injection system (Lotus Cars) VARIM: vacuum assisted resin injection moulding V(A)RTM: vacuum (-assisted) resin transfer moulding VIM: vacuum infusion moulding. VIMP: vacuum infusion moulding process VM/RTM Light: a hybrid RIFT/RTM (Plastech) VIP: vacuum infusion process
9
Resin infusion RTM with one tool face replaced by a flexible film or a light splash tool flow of resin results only from vacuum and gravity effects mould cavity varies with local pressure thickness of the part depends on pressure history
10
Resin Infusion under Flexible Tooling (RIFT 1 of 4)
Basic RIFT process: resin flows in the plane of the fabric between the mould and the bag slow process due to limited pressure gradient Only good for low fibre volume fraction/high loft fabrics reinforcement with flow enhancement tows Resin feed Vacuum KEY Reinforcement
11
RIFT 1: slow flow in the process
Special fabrics Commercial process needs flow-enhancing tows, e.g. Brochier Injectex Carbon fabrics from Carr Reinforcements Glass fabrics experimental programme with Interglas-Technologies
12
Potential advantages
Process use most resin systems. use most forms of reinforcement fabrics. large structural components can be fabricated. relatively low tooling costs for high-performance components. better than wet-laid components with little modification of tooling. heavy fabrics more easily wetted than by hand lamination. lower material costs than for prepreg and vacuum bagging.
13
Potential advantages
Performance higher fibre volume fraction gives improved mechanical performance. minimal void content relative to hand lamination. more uniform microstructure than hand lay-up. cored structures can be produced in a single flow process. hand-lamination resin infusion
14
Disadvantages Process
complex process requires different skills to hand-lamination. emphasis on preparation, not on the actual moulding process. sensitive to leaks (air paths) in the mould tool and the bag. quality control of the resin mixing is "in-house". slow resin flow through densely packed fibre uneven flow could result in unimpregnated areas/scrap parts. not easily implemented for honeycomb core laminates.
15
Disadvantages Performance only one moulded surface
low resin viscosity means lower thermal and mechanical properties. thinner components have lower structural moduli laminate thickness dependent on flow history (next slide) licensing costs where aspects of the process patented in the USA
16
Fabric compressibility in RIFT
A B C 2.2 mm 2.0 mm 1.8 mm Time (s) nine layers of plain weave E-glass/UPE resin compression by vacuum lubrication by resin front at A relaxation as pressure gradient falls resin inlet closed at C
17
Comparison of HL and RI resins
SP resin systems hand lamination infusion Ampreg 20 Prime 20 Property Units Viscosity mPa.s Tg (50C post-cure) °C Tensile strength MPa
18
RIFT vacuum forming Known as
DRDF: Double RIFT Diaphragm Forming, or RIDFT: Resin Infusion between Double Flexible Tooling dry fabric is placed between two elastomeric membranes; resin is infused into the fabric; the ‘sandwich’ is vacuum-formed over the mould shape.
19
RIFT vacuum forming NB: an alternative RIFT I route to complex shapes
RIDFT image from JR Thagard, PhD thesis, Florida State University, 2003.
20
RIFT with flow medium RIFT 2 of 4
A high permeability fabric allows resin to flood one surface followed by through-thickness flow commonly referred to as either: V(A)RTM Vacuum (assisted) resin transfer moulding SCRIMPTM Seeman Composites Resin Infusion Manufacturing Process patented in the USA but prior-art exists in Europe Resin feed Vacuum KEY Flow medium Reinforcement
21
EADS VAP® process Membrane = Gore Composite Manufacturing Membrane (GCM) Image reproduced with permission from EADS
22
2m diameter CFRP sonar dome
non-crimp carbon fibre fabric monolithic composite from 9 mm to 50 mm thick, Vf = 60%, Vv = negligible
23
CFRP catamaran forward beam 60v/o NCF (6000 x 300 x 50 mm)
Manufactured by Julian Spooner Channel section to form box with a second joggled moulding - integral top hat supports Web: 600gsm triax / 9mm balsa / 600gsm carbon triax Flanges: 600gsm triax / 4mm UD / 600gsm triax Sicomin SR8100 resin system Layup: 7 man hours, Infusion: 25 minutes, 20ºC / 20mB Postcure: 50ºC
24
Manufactured by the SCRIMPTM process
J-boats Poma-Otis mass transit Images from Reitnouer flat bed trailer NABI 30-foot bus
25
Benefits of SCRIMPTM Vosper Thornycroft state:
resin infusion into tows is independent of fabric weight. reduced costs and greater efficiency in production: fewer layers of heavier fabric compared to 35 separate plies of 800 gsm woven roving glass used in hand lamination. reduced component weight (up to 72% fibre by weight). void content down from 5% by HL to <1% by SCRIMPTM. increased laminate strength due to the higher fibre fraction and reduced void content. reduced styrene emissions and waste resin.
26
The NEG-Micon 40 m radius AL40 carbon-wood epoxy wind turbine blade
Resin infusion manufacturing process developed with ACMC
27
Advanced Composite Armoured Vehicle Platform (ACAVP)
demonstrator manufactured by “VARTM” reinforcement is quasi-isotropic non-crimp E-glass fabric bare hull weight is around 6000 kg Image from
28
Civil engineering structures
DML Composites rehabilitate fractured structures for London Underground
29
CFRP infusion vs welded steel repair
London underground ~£40K/day lost revenue for closing the line between two stations Offshore exploration and exploitation ~£500K/day of crude oil through small platform need to drain down before hot work (welding)!
30
Resin Film Infusion (RFI) RIFT 3 of 4
B-stage “prepreg” resin film without fibres interleaved with reinforcement or grouped film layers in dry laminate unlike prepreg, there are air channels within the bagged laminate Vacuum KEY Resin film Reinforcement
31
RFI (RIFT 3) for aerospace

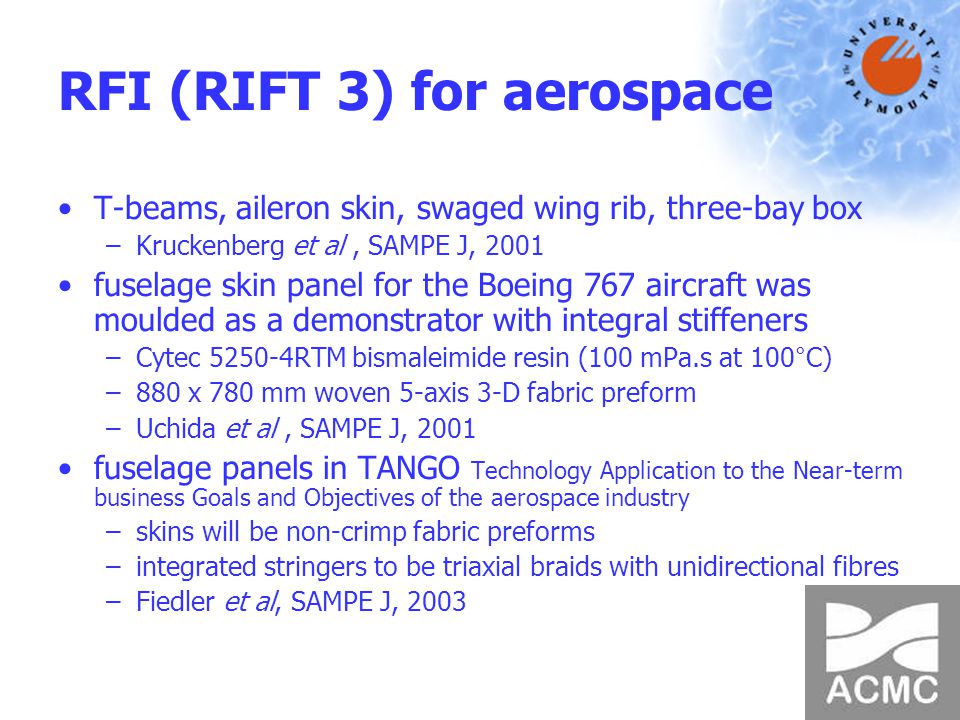

T-beams, aileron skin, swaged wing rib, three-bay box Kruckenberg et al , SAMPE J, 2001 fuselage skin panel for the Boeing 767 aircraft was moulded as a demonstrator with integral stiffeners Cytec RTM bismaleimide resin (100 mPa.s at 100°C) 880 x 780 mm woven 5-axis 3-D fabric preform Uchida et al , SAMPE J, 2001 fuselage panels in TANGO Technology Application to the Near-term business Goals and Objectives of the aerospace industry skins will be non-crimp fabric preforms integrated stringers to be triaxial braids with unidirectional fibres Fiedler et al, SAMPE J, 2003
32
“Semi-preg” infusion RIFT 4 of 4
fabric partially pre-impregnated with resin Commercial systems include Cytec Carboform resin impregnated random mat between the two fabric layers Hexcel Composites HexFITTM film of prepreg resin combined with dry reinforcements SP Systems SPRINT®: SP Resin Infusion New Technology resin between two fabric layers Umeco (ACG) ZPREG resin stripes on one side of fabric Vacuum KEY Resin stripes Reinforcement
33
Comparisons ( debateable! )
In-plane Flow medium RFI Semi-preg Material costs Consumables Process time Quality £€$ £€$ £€$ £€$ £€$ £€$ £€$ £€$
34
Summary reviewed the four major variants of the Resin Infusion under Flexible Tooling process. considered the application of these techniques to the manufacture of large composite structures. recommend this route for the manufacture of large composite structures.
35
ACKNOWLEDGEMENTS Higher Education Funding Council of England (HEFCE) Development of Research for funding early research into resin infusion Christopher Williams and Jim Craen for their respective contributions to the project. David Cripps at SP Systems Limited for most helpful discussions of an earlier version of this paper. Paul Hill at DML Composites for permission to use his Figure. Use of trade names/trade marks in the text of this chapter does not imply endorsement by the authors of any specific product. Such descriptions are provided simply in the interest of traceability.
36
Publication The content this presentation has been refereed and is published as John Summerscales and TJ Searle Low pressure (vacuum infusion) techniques for moulding large composite structures in Proceedings of the Institution of Mechanical Engineers Part L - Journal of Materials: Design and Applications, February 2005, L219(1),
37
Based on earlier PowerPoint
previously presented at: Universiti Putra Malaysia, Bangi, Sept 2004 Imperial College London, Dec 2004 SAMPE out-of-autoclave symposium, Feb 2005 Forum for Plastkompositter – Norway, Nov 2005 Composite Innovations – Barcelona, Oct 2007 ICMAC – Belfast, March 2009 RINA – London, February 2010 SWCG – Plymouth, September 2012.
38
.. to contact me Dr John Summerscales jsummerscales@plymouth.ac.uk
School of Engineering Reynolds Building RYB University of Plymouth Devon PL4 8AA England
