1. Introducing Dream Report Win Worrall Applications and Development Engineer

2. Reporting for Automation Common Problems – Costly – Resource intensive – Requires IT, programming skills Challenges – Accessing real-time plant floor information – Accessing various archives – Connecting to different data sources Dream Report is the solution!

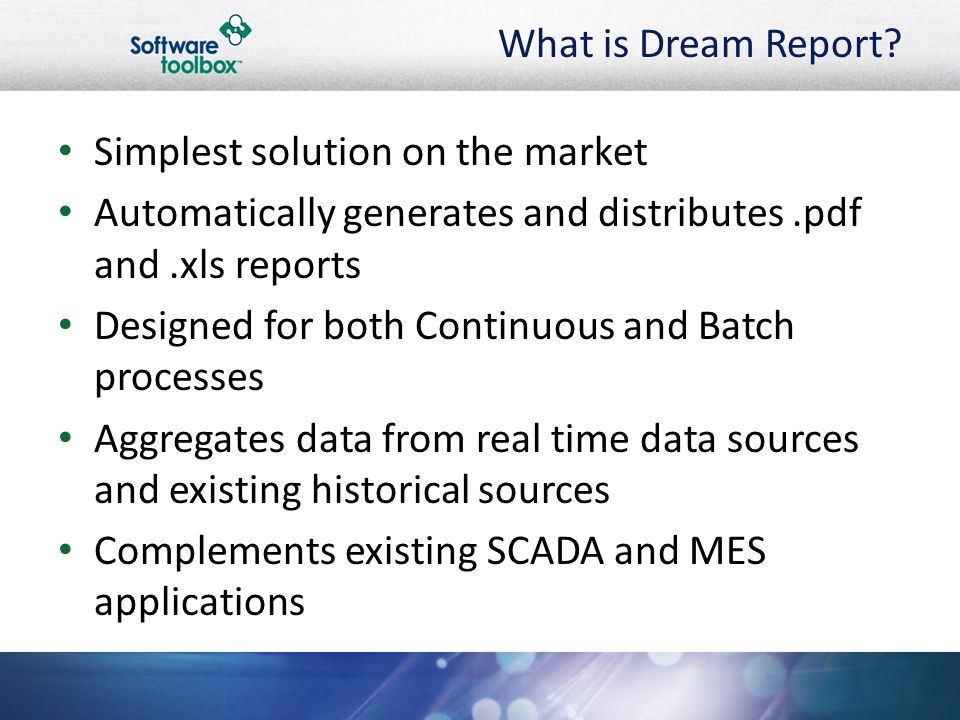

3. What is Dream Report? Simplest solution on the market Automatically generates and distributes.pdf and.xls reports Designed for both Continuous and Batch processes Aggregates data from real time data sources and existing historical sources Complements existing SCADA and MES applications

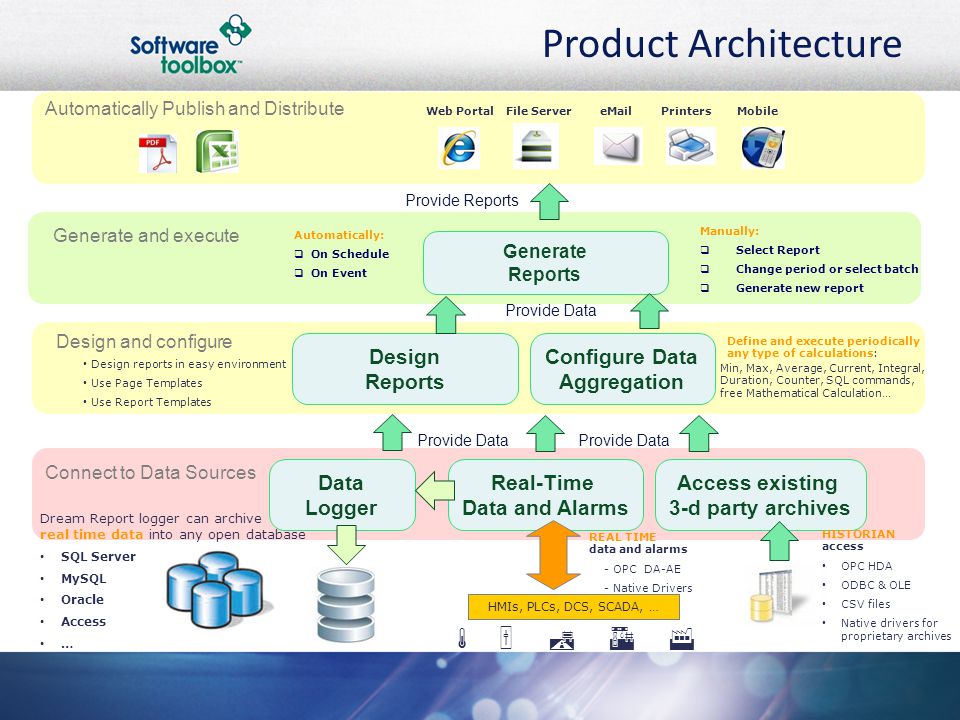

4. Product Architecture Automatically Publish and Distribute Generate and execute Design and configure Data Logger Real-Time Data and Alarms Access existing 3-d party archives Design Reports Configure Data Aggregation Generate Reports HMIs, PLCs, DCS, SCADA, …  Web PortalFile ServereMailPrintersMobile Connect to Data Sources HISTORIAN access OPC HDA ODBC & OLE CSV files Native drivers for proprietary archives REAL TIME data and alarms - OPC DA-AE - Native Drivers Dream Report logger can archive real time data into any open database SQL Server MySQL Oracle Access … Provide Data Provide Reports Design reports in easy environment Use Page Templates Use Report Templates Define and execute periodically any type of calculations: Min, Max, Average, Current, Integral, Duration, Counter, SQL commands, free Mathematical Calculation… Automatically:  On Schedule  On Event Manually:  Select Report  Change period or select batch  Generate new report

5. Works With? Supports direct connection to existing OPC data sources – OPC DA, OPC HDA, OPC A&E Can be connected to one or multiple ODBC databases – SQL Server, Oracle, MS Access, etc Built-in custom drivers for connecting to a variety of historians – Ex. iFix/Proficy, Emerson, Pi, etc.

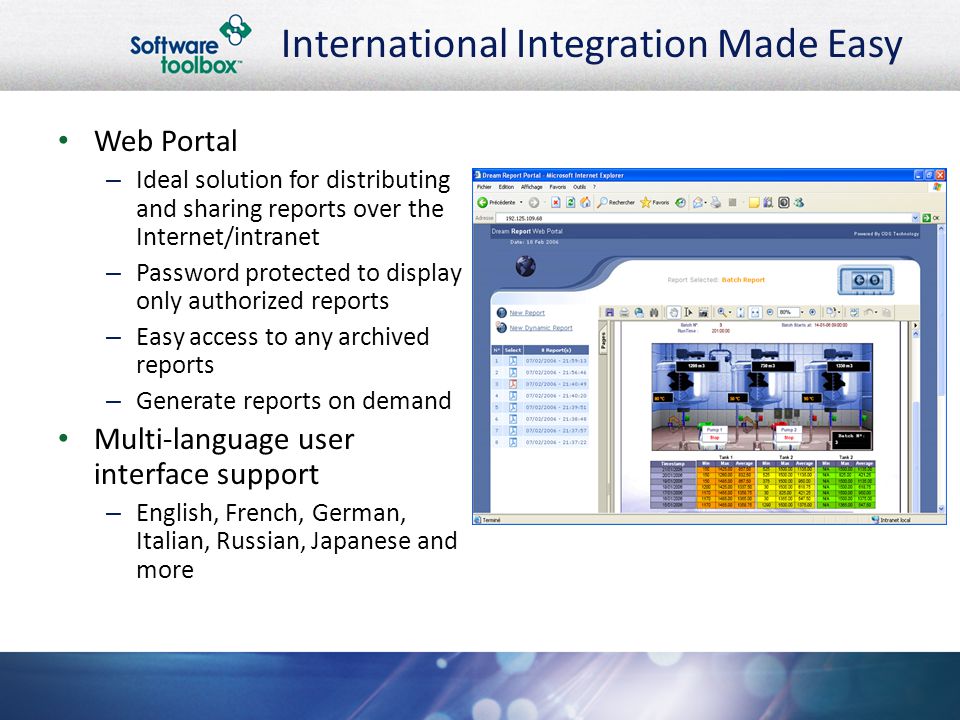

6. International Integration Made Easy Web Portal – Ideal solution for distributing and sharing reports over the Internet/intranet – Password protected to display only authorized reports – Easy access to any archived reports – Generate reports on demand Multi-language user interface support – English, French, German, Italian, Russian, Japanese and more

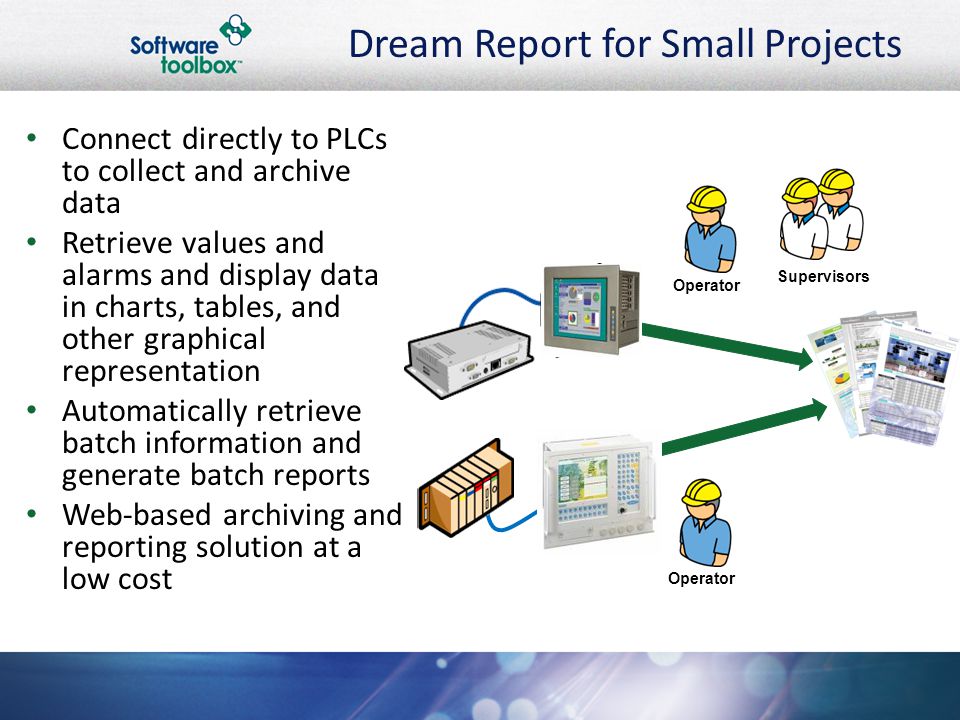

7. Dream Report for Small Projects Connect directly to PLCs to collect and archive data Retrieve values and alarms and display data in charts, tables, and other graphical representation Automatically retrieve batch information and generate batch reports Web-based archiving and reporting solution at a low cost Operator Supervisors

8. Retrieve data from different vendors Retrieve data from plant database or other 3 rd party historians Run complex consolidated reports Automatic publishing and distribution of reports inside organization (email, file servers, etc) Dream Report for Complex Projects Operator Historian Production Database Process Engineering Quality Assurance HMI, SCADA Stations Recorders Controllers

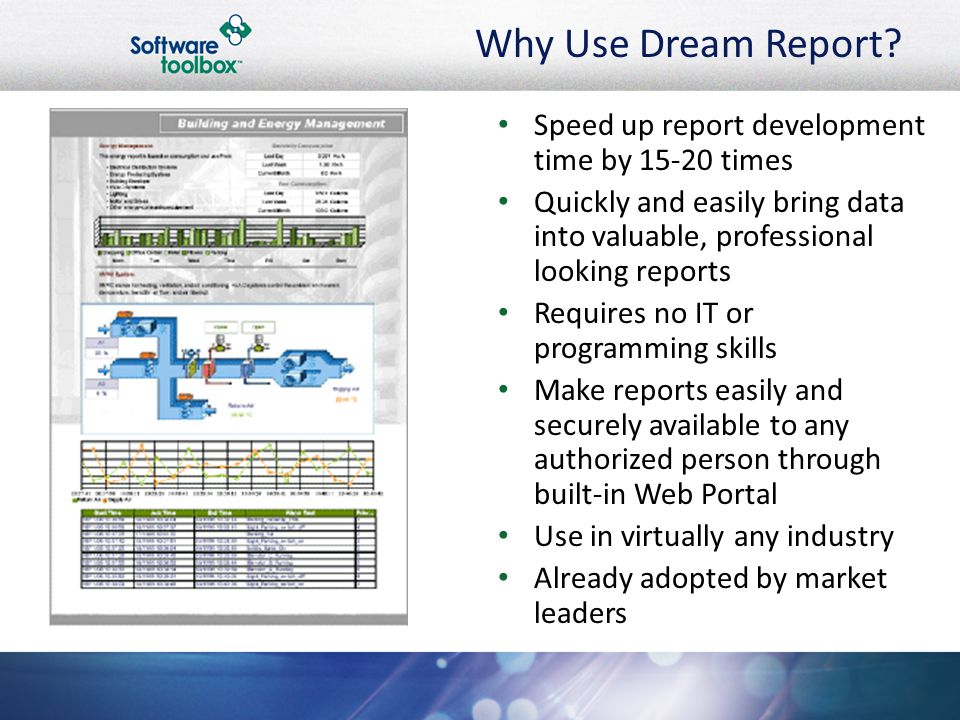

9. Why Use Dream Report? Speed up report development time by 15-20 times Quickly and easily bring data into valuable, professional looking reports Requires no IT or programming skills Make reports easily and securely available to any authorized person through built-in Web Portal Use in virtually any industry Already adopted by market leaders

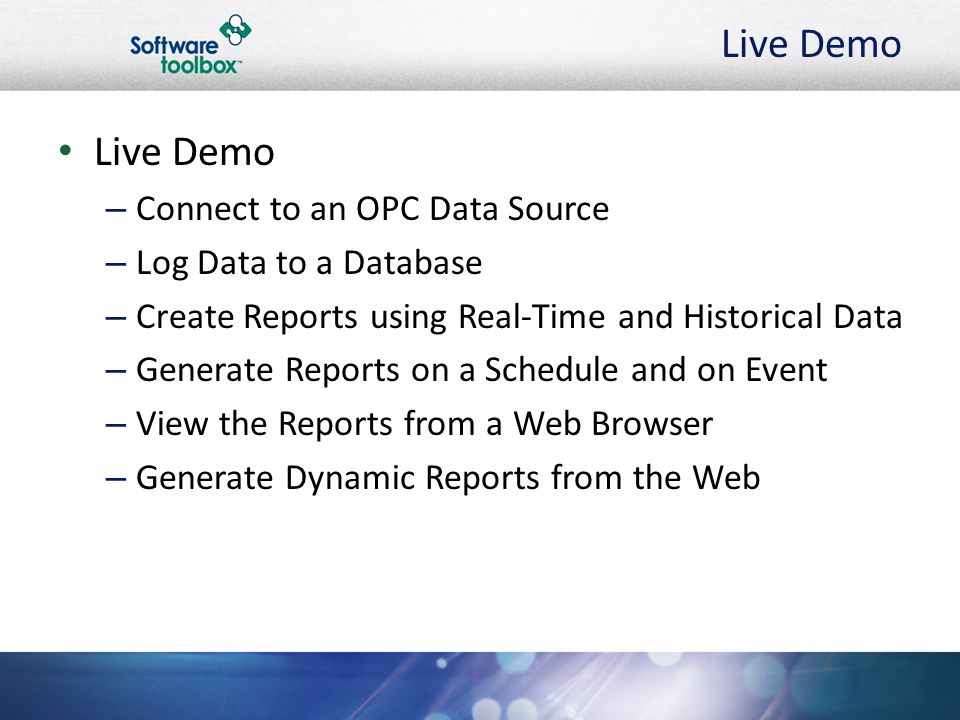

10. Live Demo – Connect to an OPC Data Source – Log Data to a Database – Create Reports using Real-Time and Historical Data – Generate Reports on a Schedule and on Event – View the Reports from a Web Browser – Generate Dynamic Reports from the Web

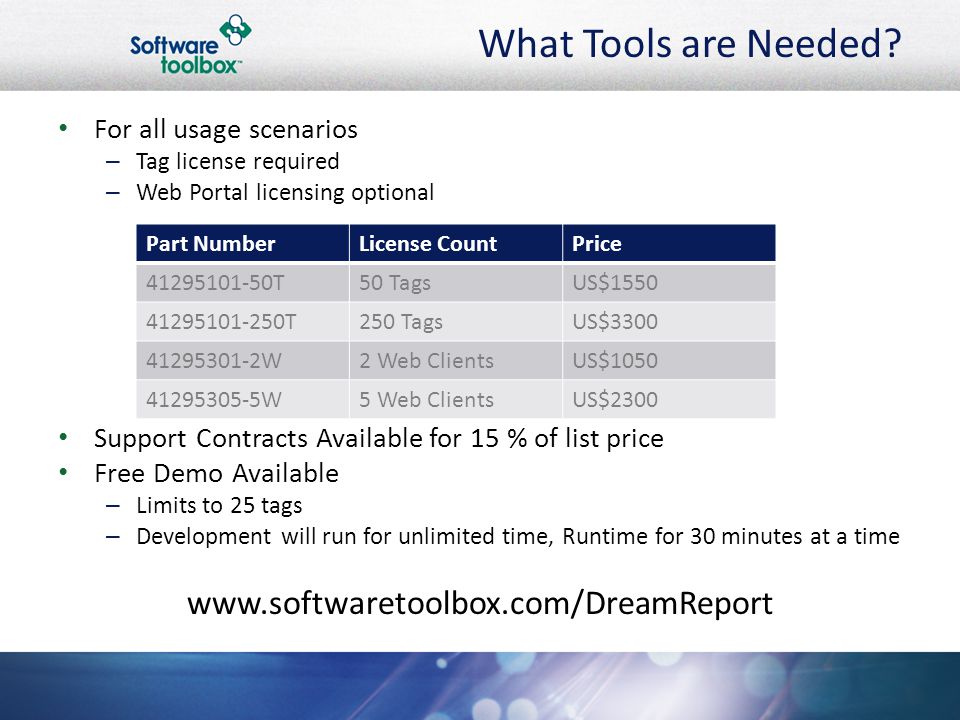

13. What Tools are Needed? For all usage scenarios – Tag license required – Web Portal licensing optional Support Contracts Available for 15 % of list price Free Demo Available – Limits to 25 tags – Development will run for unlimited time, Runtime for 30 minutes at a time www.softwaretoolbox.com/DreamReport Part NumberLicense CountPrice 41295101-50T50 TagsUS$1550 41295101-250T250 TagsUS$3300 41295301-2W2 Web ClientsUS$1050 41295305-5W5 Web ClientsUS$2300

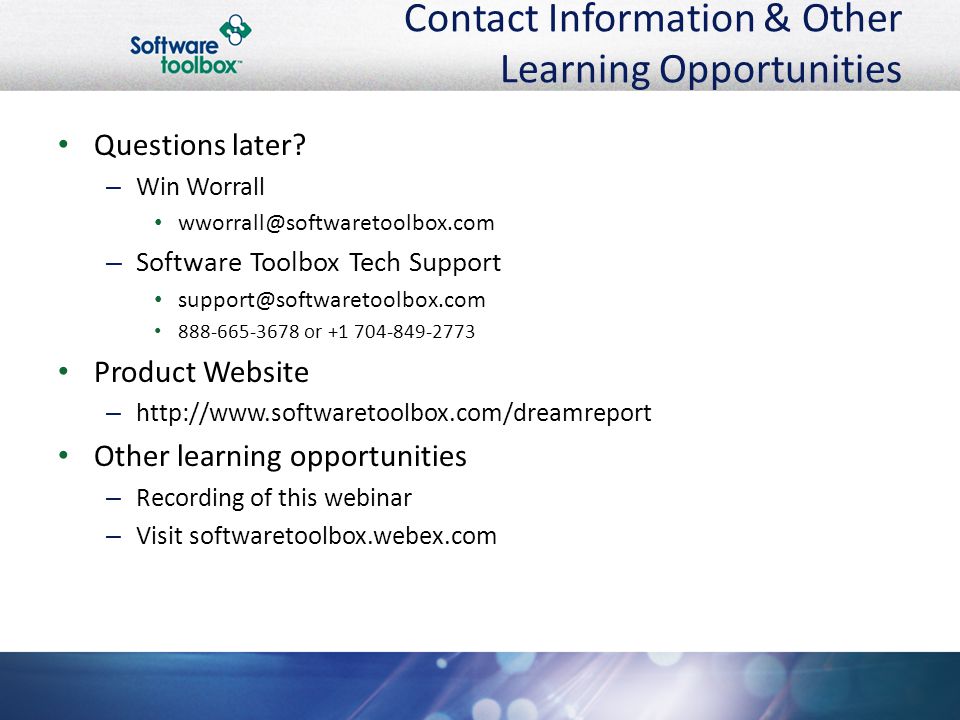

14. Contact Information & Other Learning Opportunities Questions later? – Win Worrall wworrall@softwaretoolbox.com – Software Toolbox Tech Support support@softwaretoolbox.com 888-665-3678 or +1 704-849-2773 Product Website – http://www.softwaretoolbox.com/dreamreport Other learning opportunities – Recording of this webinar – Visit softwaretoolbox.webex.com
