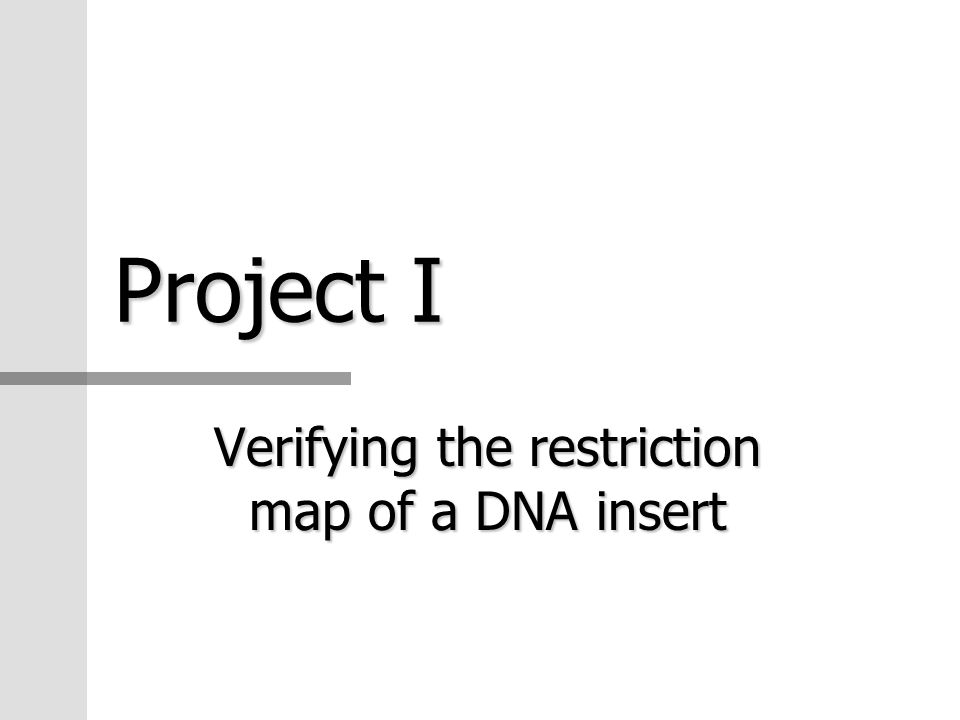

1. Project I Verifying the restriction map of a DNA insert

2. Objectives  Find out which gene you have (Bioinfo)  Generate a theoretical map (Bioinfo)  Verify map experimentally  Determine orientation

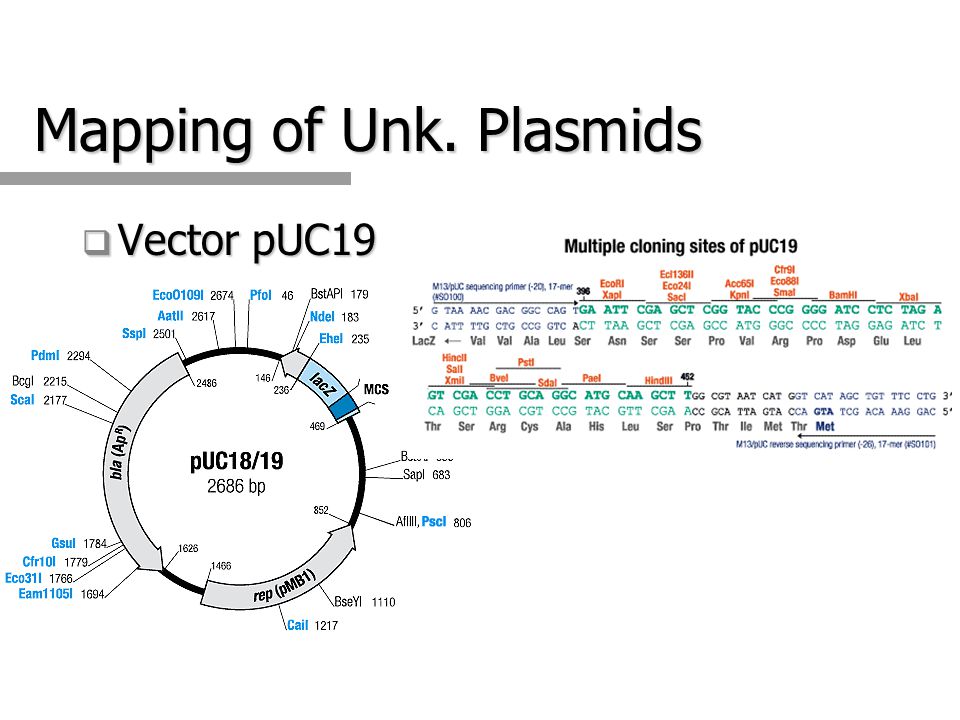

3. Mapping of Unk. Plasmids  Vector pUC19

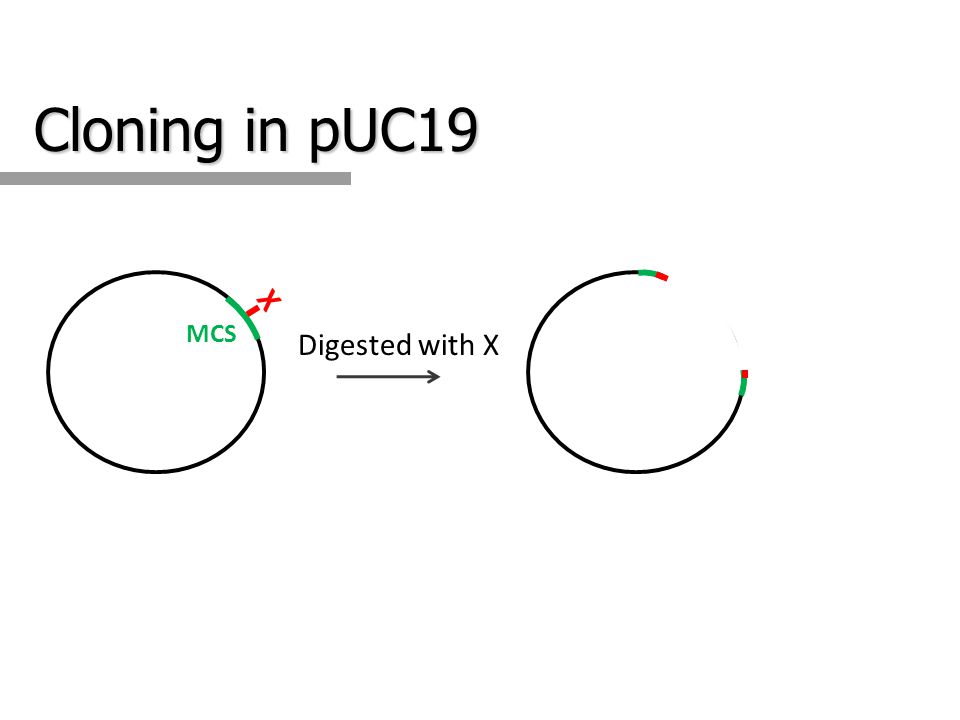

4. Cloning in pUC19 X MCS Digested with X

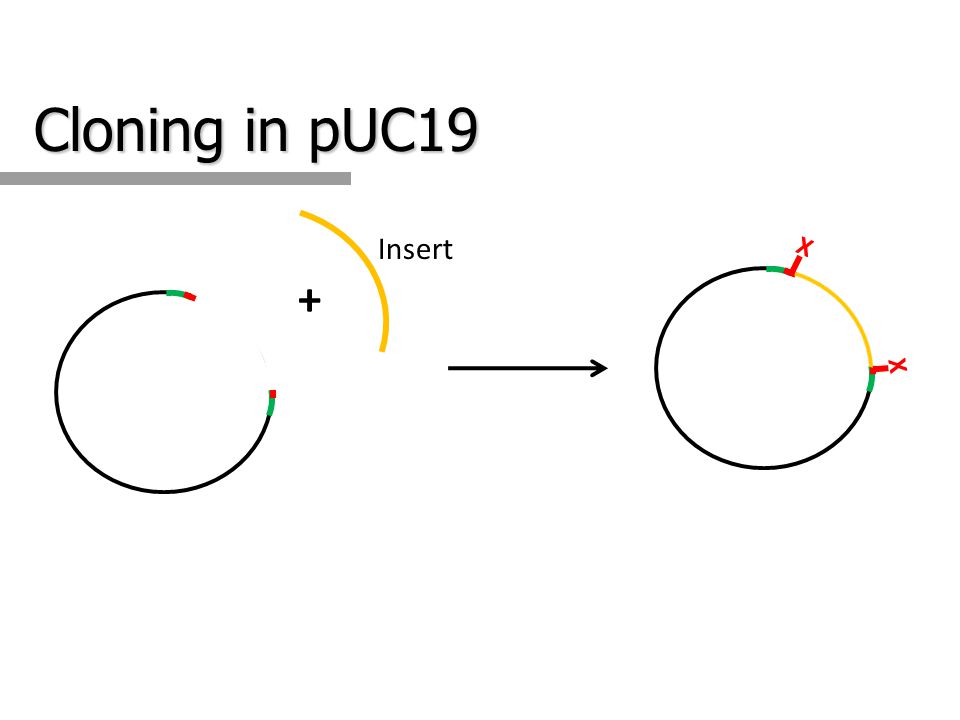

5. Cloning in pUC19 X X + Insert

6. Determining Insertion Site Cut with X X X + Insert

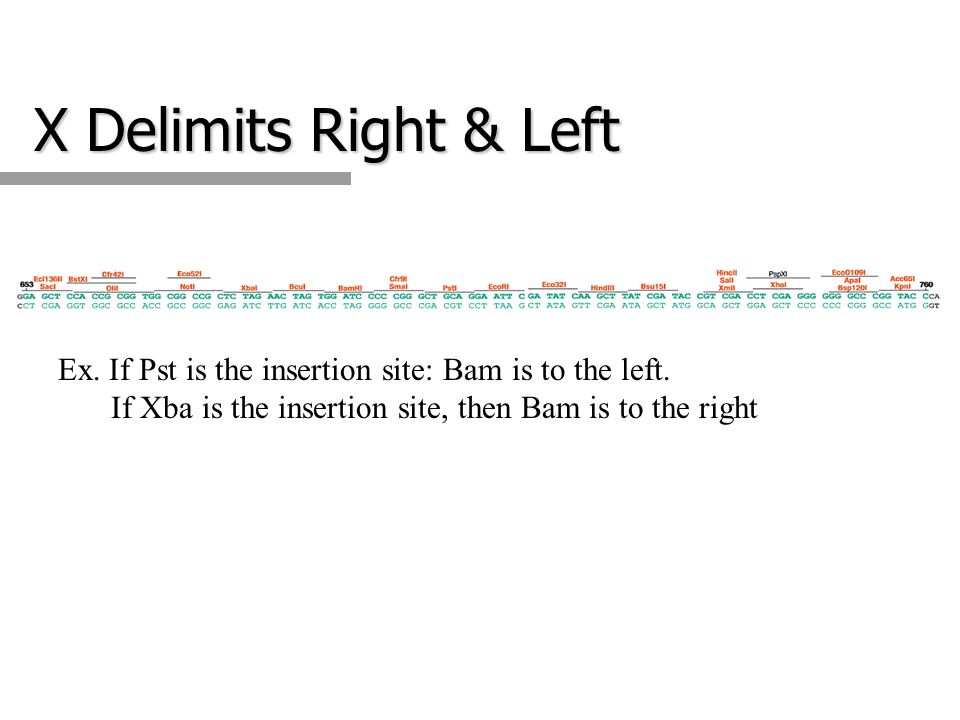

7. X Delimits Right & Left Ex. If Pst is the insertion site: Bam is to the left. If Xba is the insertion site, then Bam is to the right

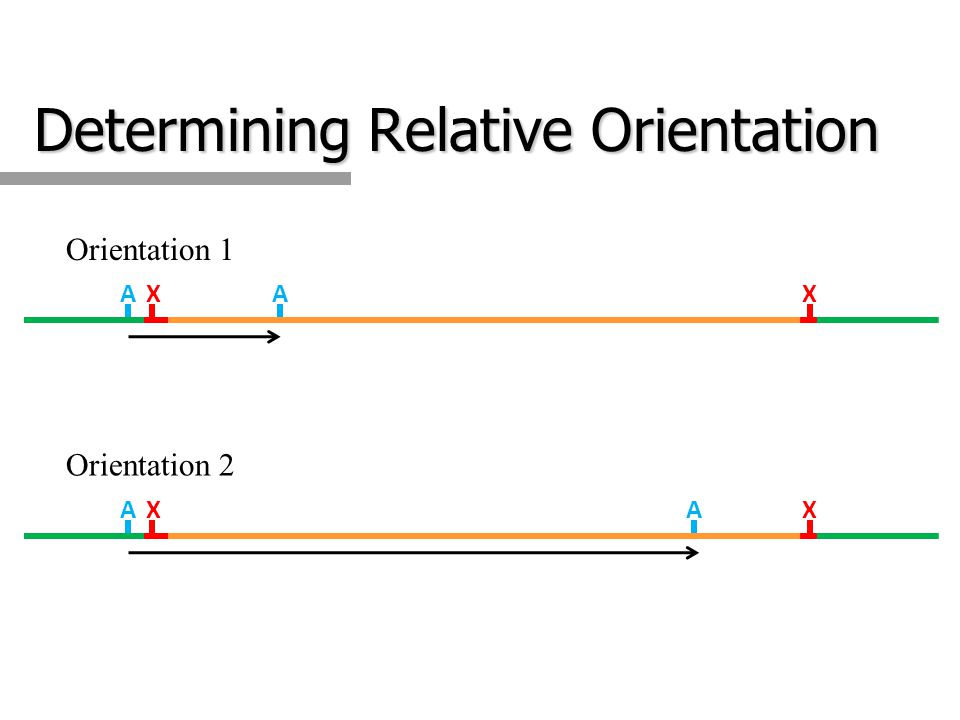

8. Determining Relative Orientation XXAA XXAA Orientation 1 Orientation 2

9. Project II Site directed mutagenesis of LacZ

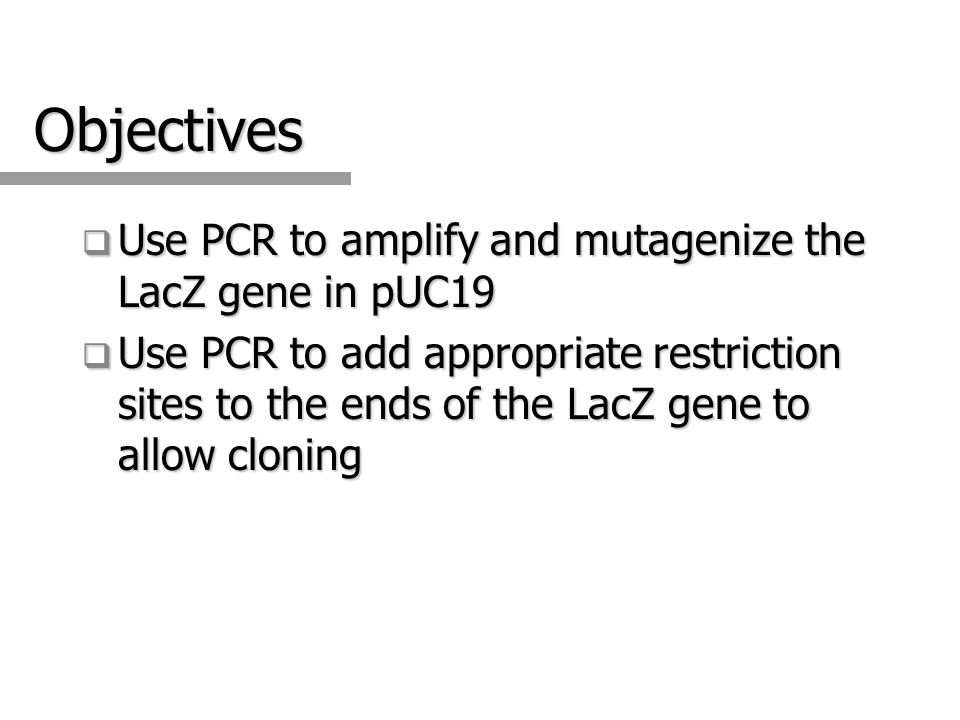

10. Objectives  Use PCR to amplify and mutagenize the LacZ gene in pUC19  Use PCR to add appropriate restriction sites to the ends of the LacZ gene to allow cloning

11. DNA Replication & Amplification The Polymerase Chain Reaction

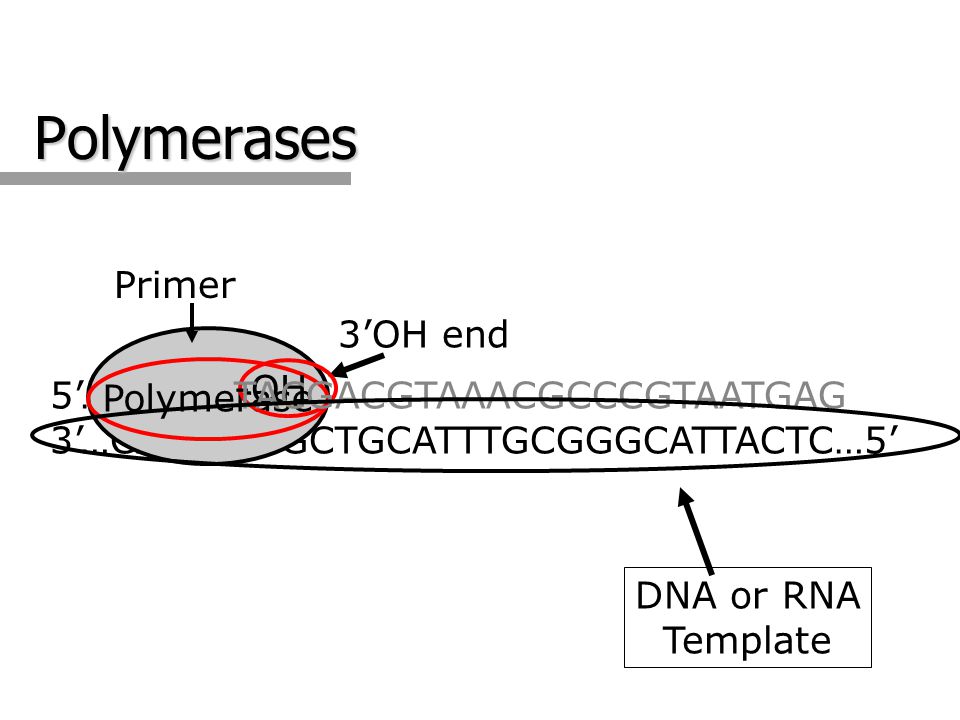

12. Polymerases 5’…GTACT 3’…CATGAATGCTGCATTTGCGGGCATTACTC…5’ Polymerase Primer -OH 3’OH end TACGACGTAAACGCCCGTAATGAG DNA or RNA Template

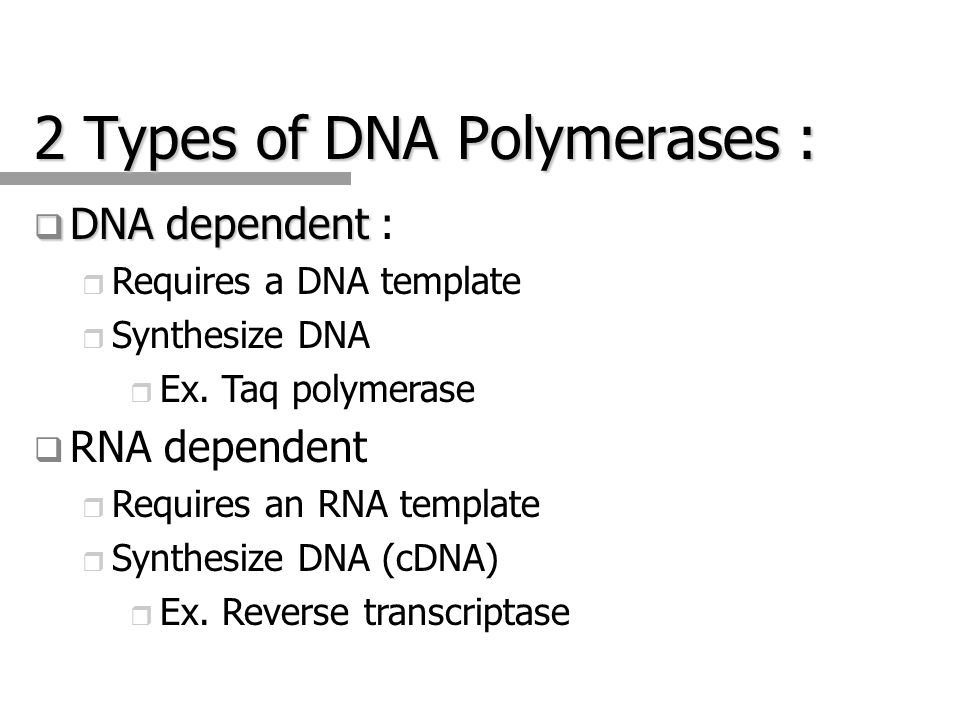

13. 2 Types of DNA Polymerases :  DNA dependent  DNA dependent :  Requires a DNA template  Synthesize DNA  Ex. Taq polymerase  RNA dependent  Requires an RNA template  Synthesize DNA (cDNA)  Ex. Reverse transcriptase

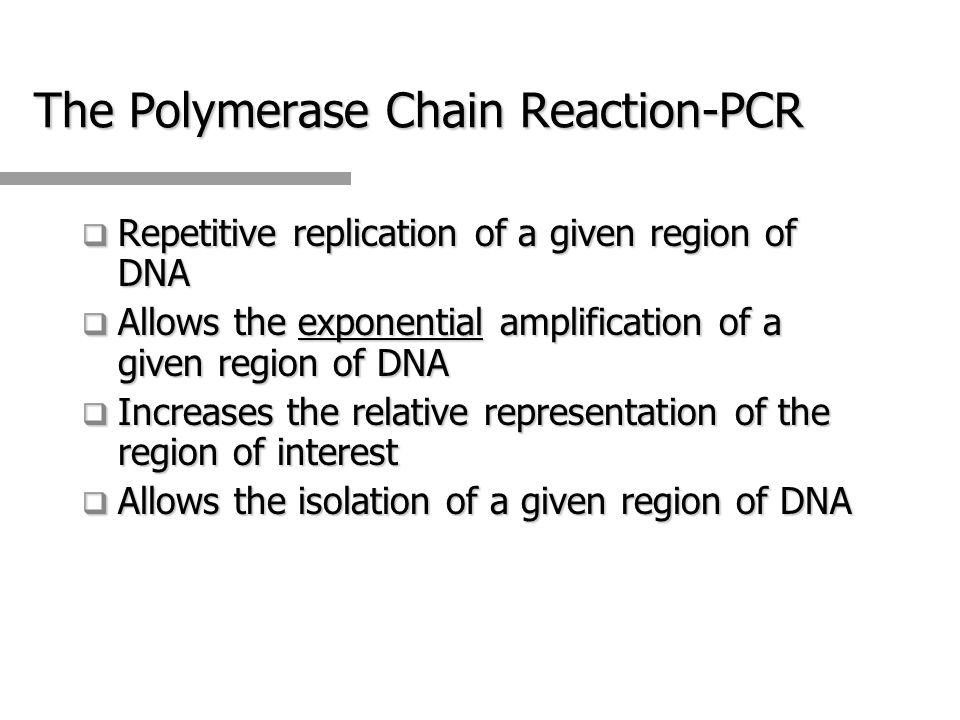

14. 14 The Polymerase Chain Reaction-PCR  Repetitive replication of a given region of DNA  Allows the exponential amplification of a given region of DNA  Increases the relative representation of the region of interest  Allows the isolation of a given region of DNA

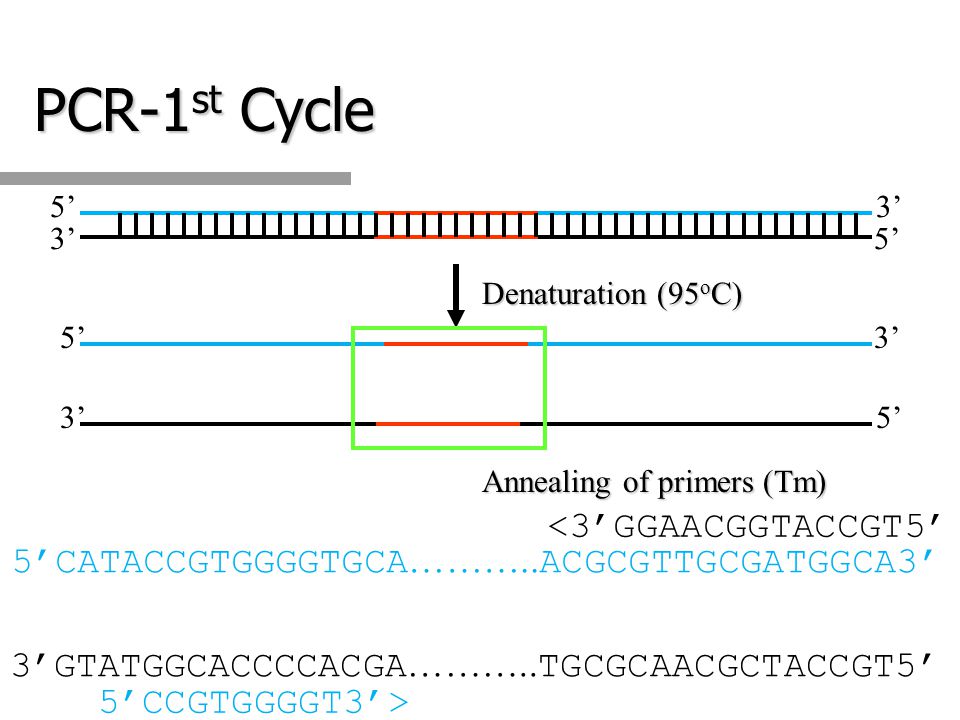

15. PCR-1 st Cycle 5’ 3’ 5’ Denaturation (95 o C) Annealing of primers (Tm) 5’CATACCGTGGGGTGCA ……….. ACGCGTTGCGATGGCA3’ 3’GTATGGCACCCCACGA ……….. TGCGCAACGCTACCGT5’ 5’CCGTGGGGT3’> <3’GGAACGGTACCGT5’

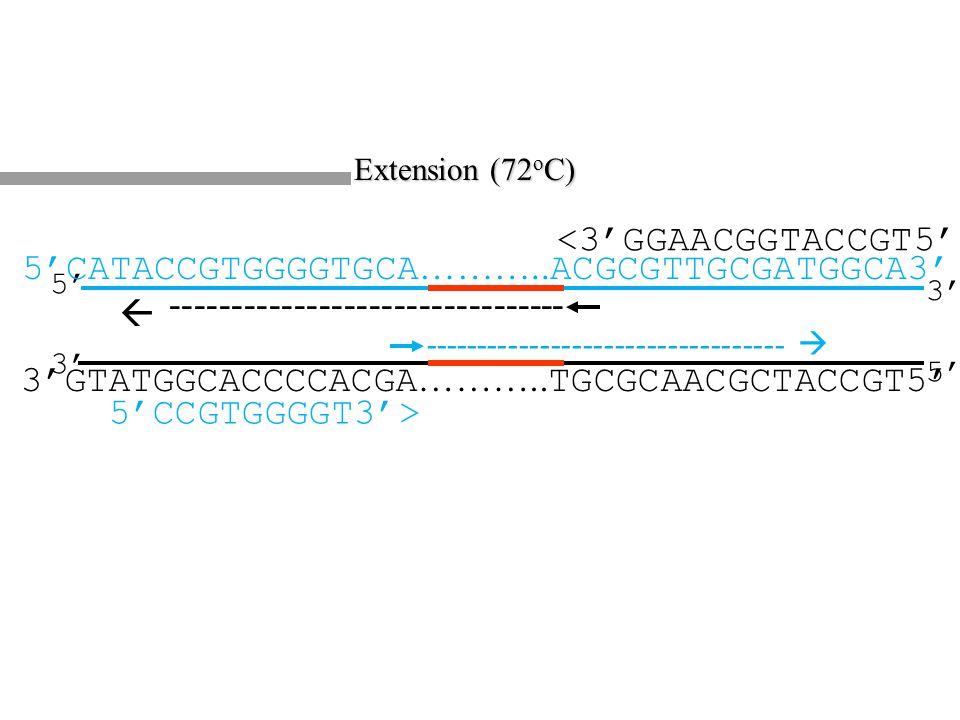

16. 16 ----------------------------------  --------------------------------  Extension (72 o C) 3’ 5’ 5’CATACCGTGGGGTGCA ……….. ACGCGTTGCGATGGCA3’ 3’GTATGGCACCCCACGA ……….. TGCGCAACGCTACCGT5’ 5’CCGTGGGGT3’> <3’GGAACGGTACCGT5’

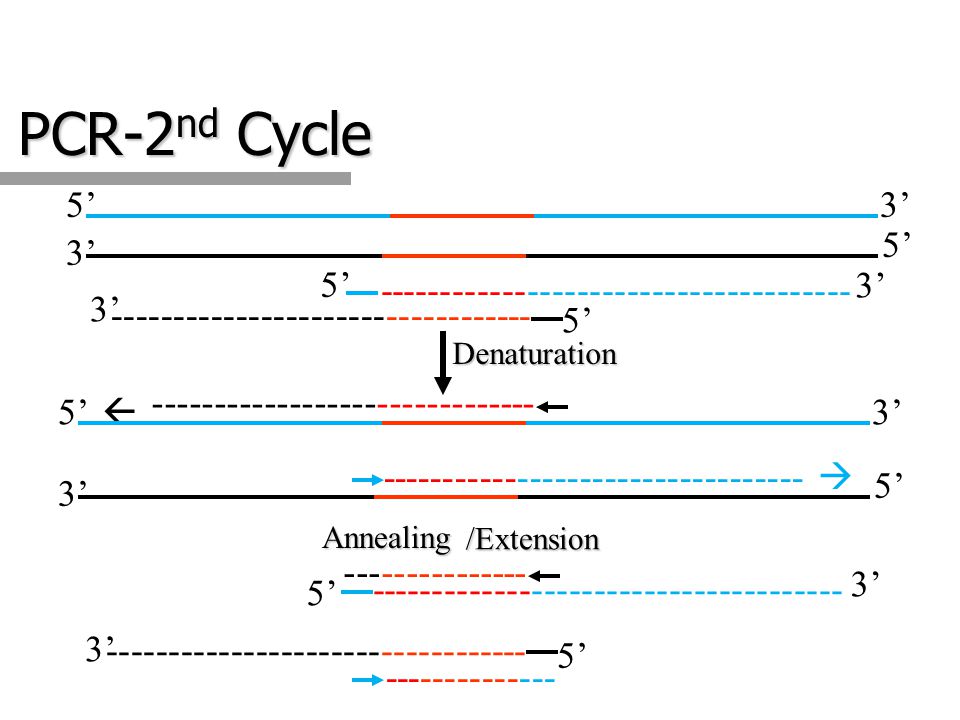

17. PCR-2 nd Cycle 3’5’ 3’ 5’ ---------------------------------- -------------------------------------- 5’ 3’ 5’ 3’ Annealing -------------- ----------------------------------  -------------------------------  5’ 3’ 5’ ---------------------------------- -------------------------------------- 5’ Denaturation --------------- /Extension

18. PCR-Subsequent Cycles -------------------- ------------------- Only this template is amplified exponentially: 2 n times ------------------------ 32 times total

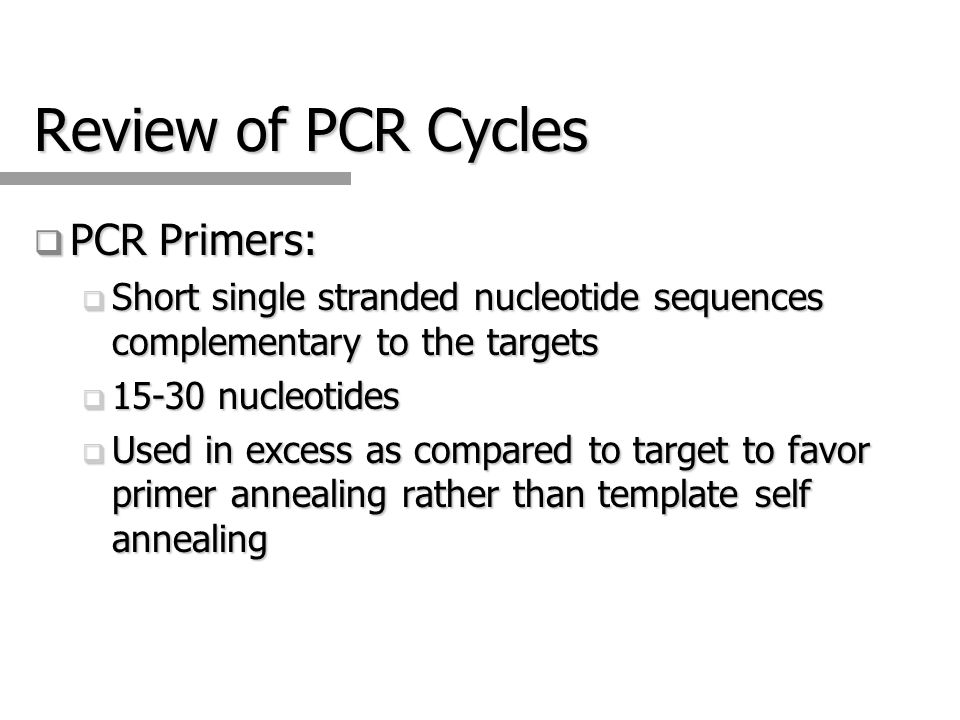

19. Review of PCR Cycles  PCR Primers:  Short single stranded nucleotide sequences complementary to the targets  15-30 nucleotides  Used in excess as compared to target to favor primer annealing rather than template self annealing

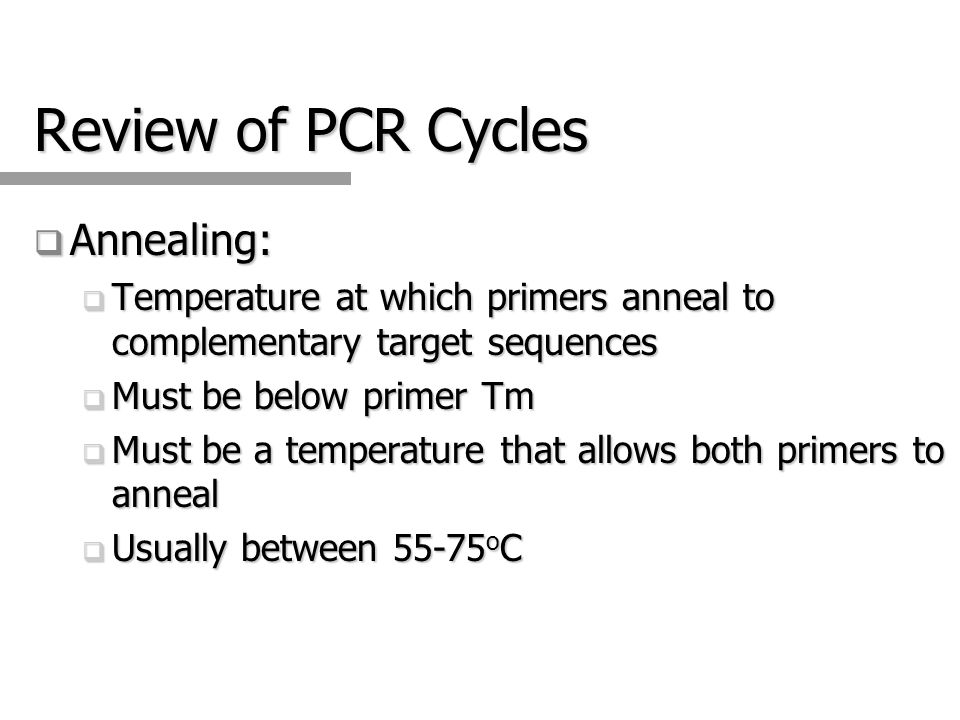

20. Review of PCR Cycles  Annealing:  Temperature at which primers anneal to complementary target sequences  Must be below primer Tm  Must be a temperature that allows both primers to anneal  Usually between 55-75 o C

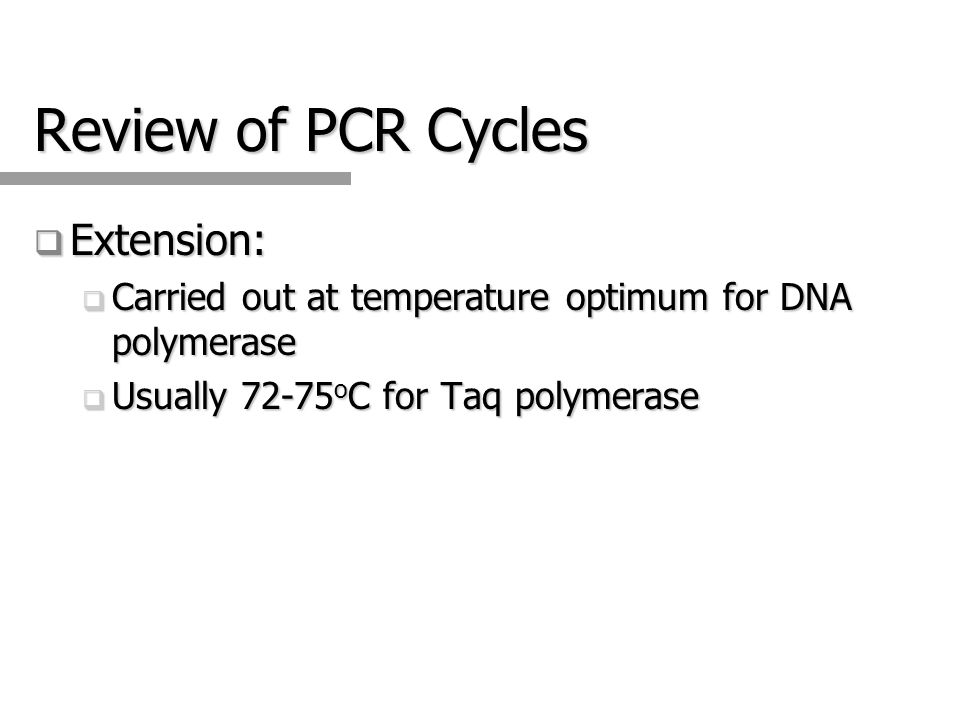

21. Review of PCR Cycles  Extension:  Carried out at temperature optimum for DNA polymerase  Usually 72-75 o C for Taq polymerase

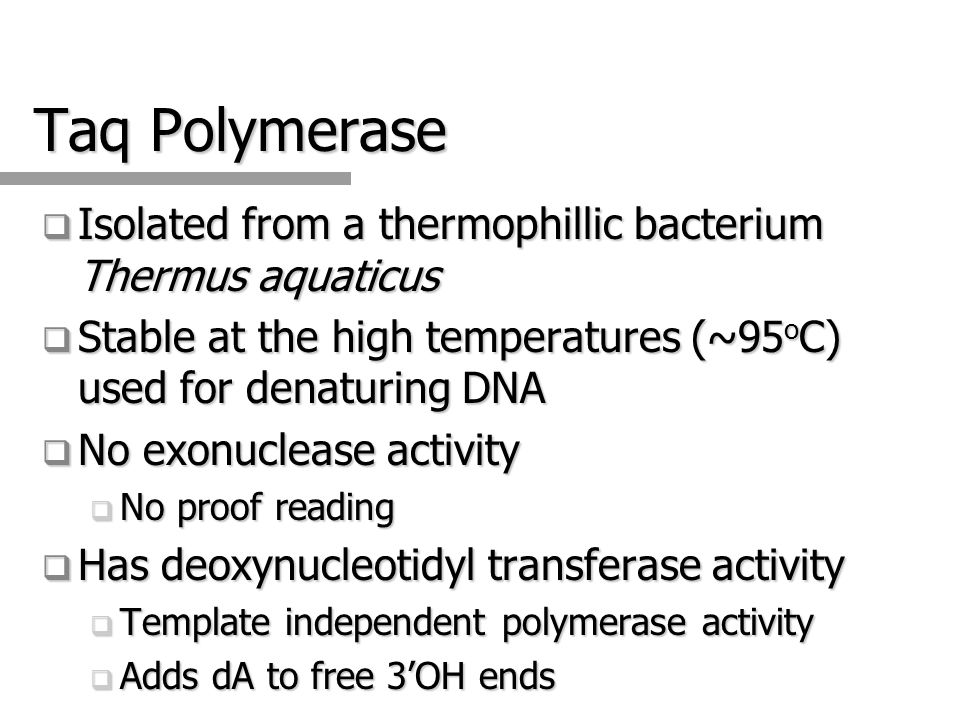

22. Taq Polymerase  Isolated from a thermophillic bacterium Thermus aquaticus  Stable at the high temperatures (~95 o C) used for denaturing DNA  No exonuclease activity  No proof reading  Has deoxynucleotidyl transferase activity  Template independent polymerase activity  Adds dA to free 3’OH ends

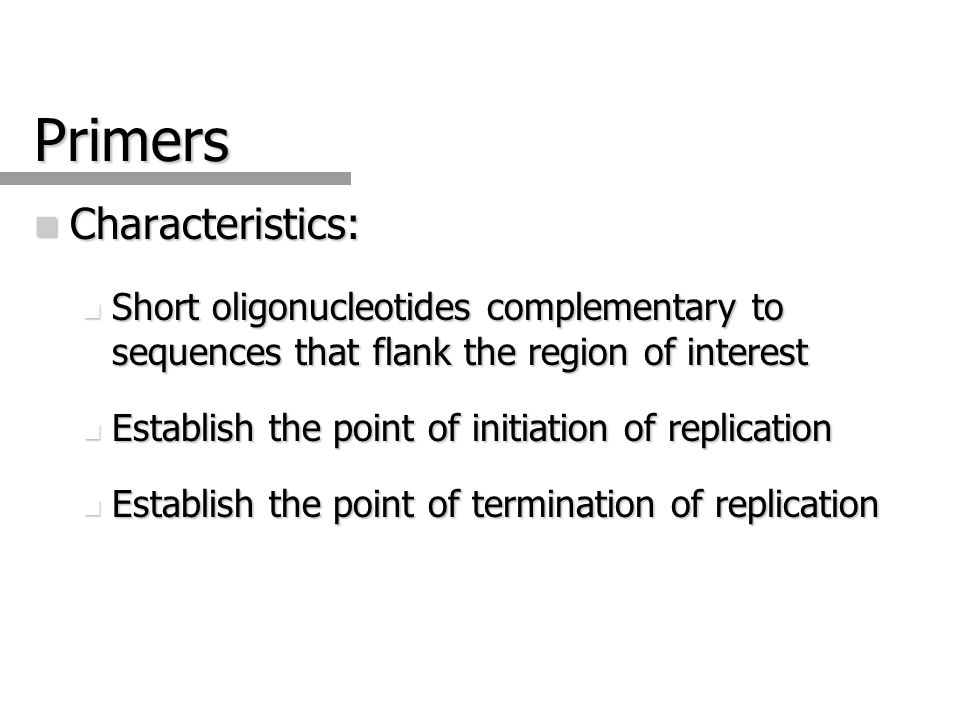

23. 23 Primers Characteristics: Characteristics: Short oligonucleotides complementary to sequences that flank the region of interest Short oligonucleotides complementary to sequences that flank the region of interest Establish the point of initiation of replication Establish the point of initiation of replication Establish the point of termination of replication Establish the point of termination of replication

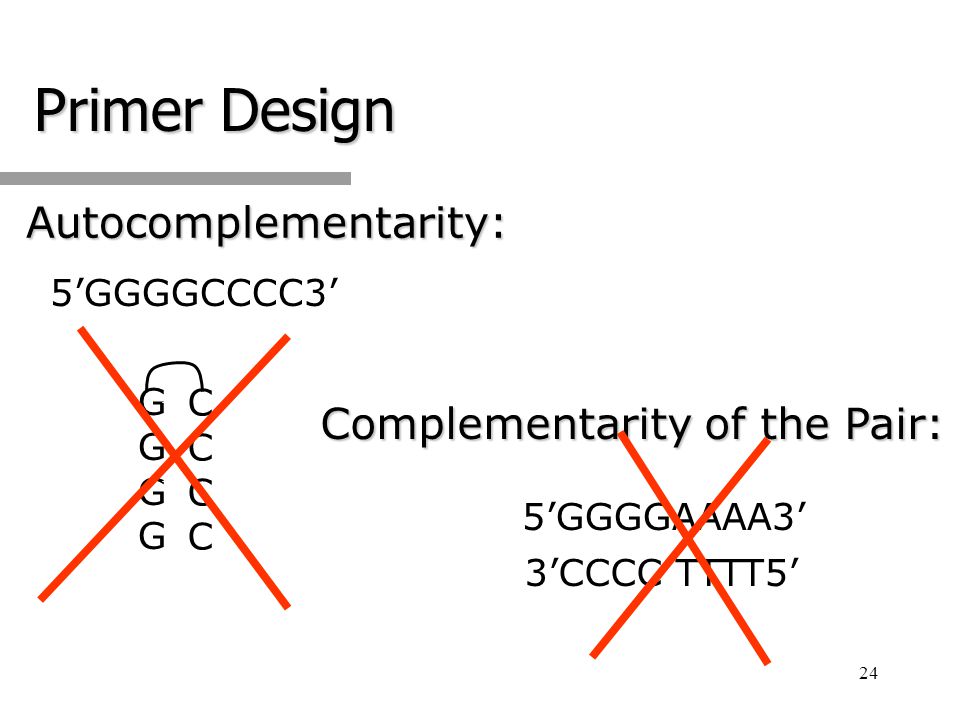

24. 24 Primer Design Autocomplementarity: 5’GGGGCCCC3’ GGGGGGGG CCCCCCCC Complementarity of the Pair: 5’GGGGAAAA3’ 3’CCCC TTTT5’

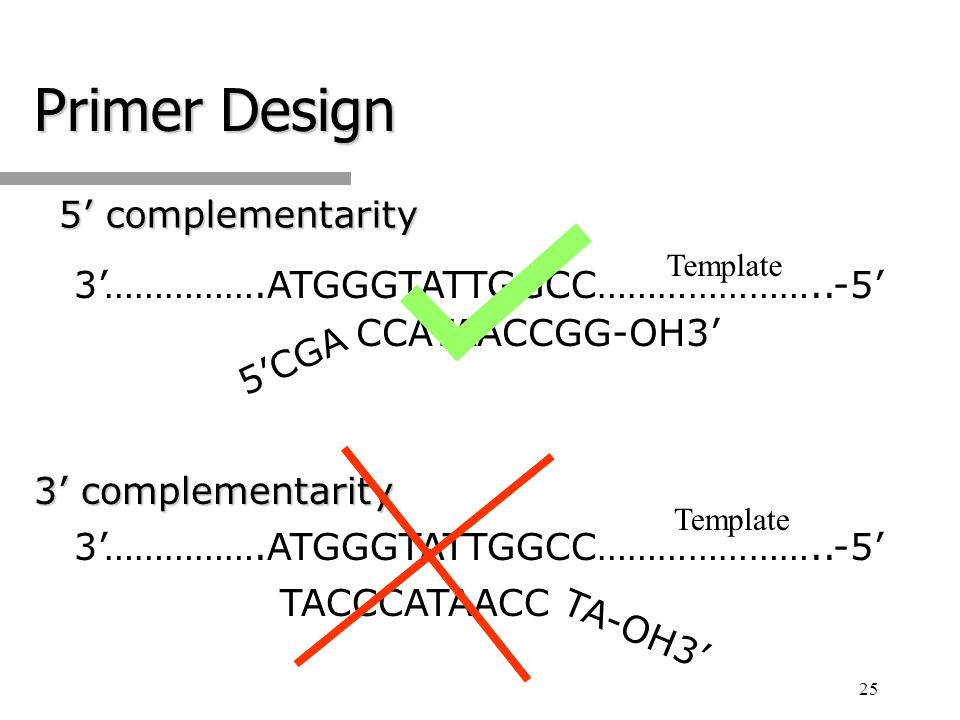

25. 25 Primer Design 5’ complementarity 3’…………….ATGGGTATTGGCC…………………..-5’ Template CCATAACCGG-OH3’ 5’CGA 3’ complementarity 3’…………….ATGGGTATTGGCC…………………..-5’ Template TACCCATAACC TA-OH3’

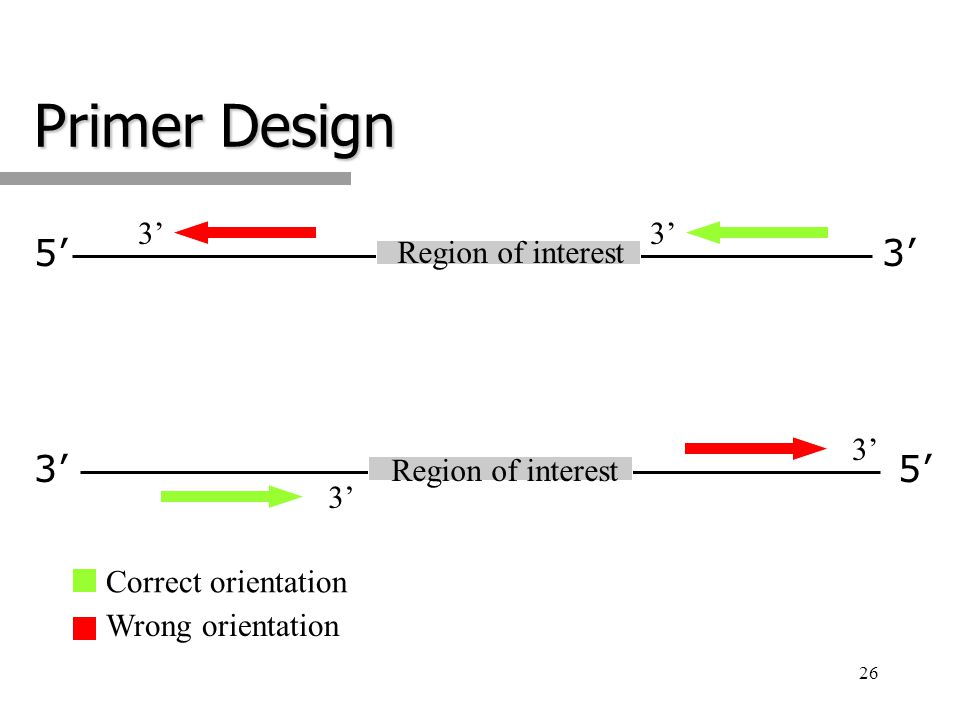

26. 26 Primer Design 5’ 3’ Region of interest 3’ Correct orientation Wrong orientation

27. 27 Problem You wish to amplify the sequence represented by the box. Which primer pair represent the correct orientation to accomplish this? You wish to amplify the sequence represented by the box. Which primer pair represent the correct orientation to accomplish this? 5’-AAAAAAAAAAAA GGGGGGGGGGGGG-3’ 1- AAAAAA 2- TTTTTT 3- GGGGGG 4- CCCCCC

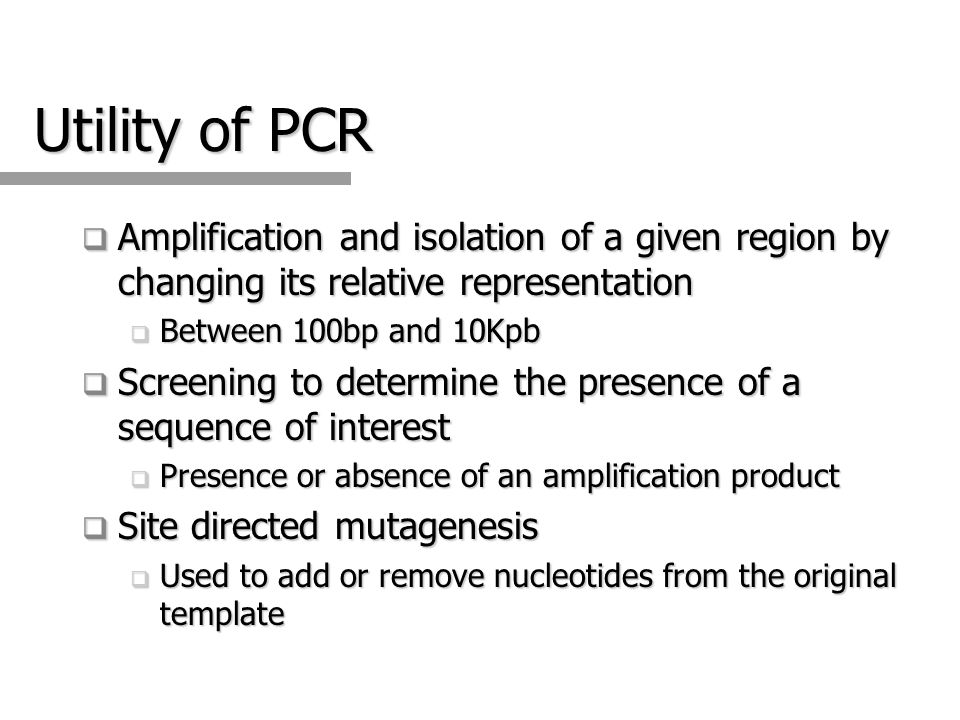

28. 28 Utility of PCR  Amplification and isolation of a given region by changing its relative representation  Between 100bp and 10Kpb  Screening to determine the presence of a sequence of interest  Presence or absence of an amplification product  Site directed mutagenesis  Used to add or remove nucleotides from the original template
