1. KOBIL eBanking authentication experiences with a Turkish Bank Markus Tak, Product Manager

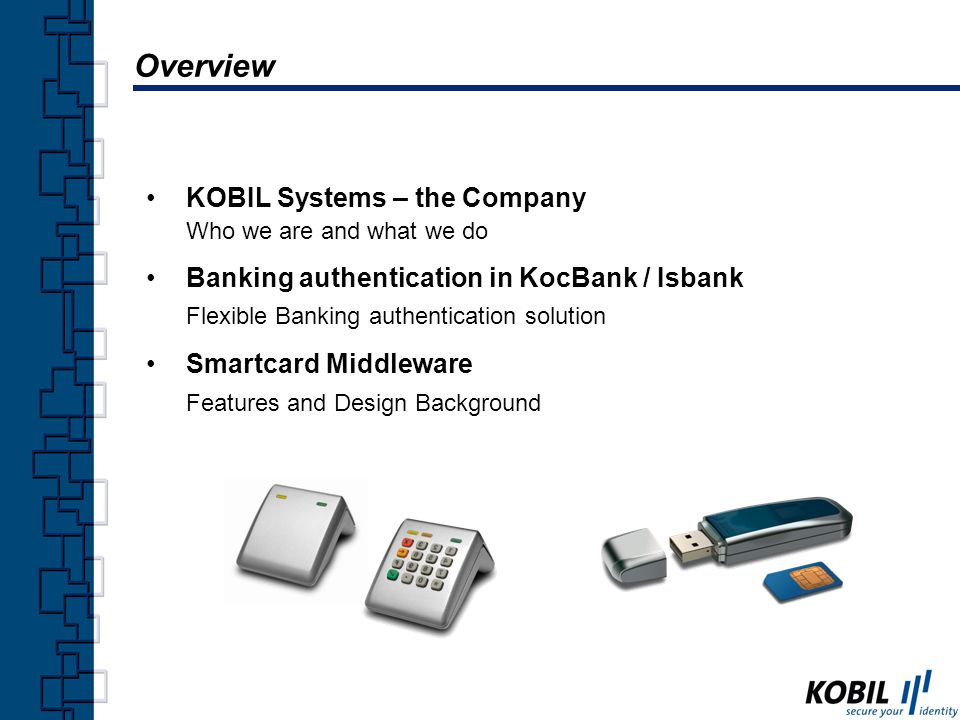

2. Overview KOBIL Systems – the Company Who we are and what we do Banking authentication in KocBank / Isbank Flexible Banking authentication solution Smartcard Middleware Features and Design Background

3. KOBIL Systems – the Company Founded in 1986 Headquaters in Worms / Germany 45 minutes from Frankfurt 65 Employees 35% of staff working in R&D Cooperation with cryptographic research institutes All Products „Made in Germany“ Production Sites in Europe und Asia Certified Company according to DIN EN ISO 9001: 2000

4. KOBIL SecOVID Strong Authentication based on One Time Passwords (OTP) Product Philosophy

5. KOBIL Smart Key Certificate- and Smartcard- based Authentication and Data Security Product Philosophy

6. Smart Card Terminals Classes 1 - 4 Product Philosophy

7. KOBIL mIDentity Mobile Identity Mobile Data Safe Mobile Office Product Philosophy

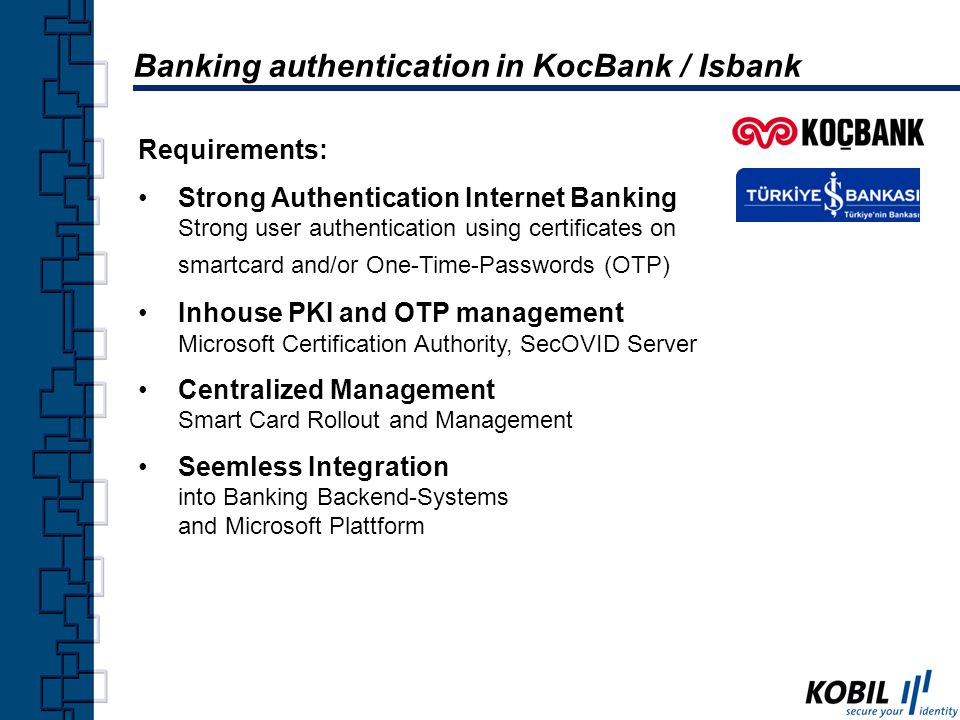

8. Banking authentication in KocBank / Isbank Requirements: Strong Authentication Internet Banking Strong user authentication using certificates on smartcard and/or One-Time-Passwords (OTP) Inhouse PKI and OTP management Microsoft Certification Authority, SecOVID Server Centralized Management Smart Card Rollout and Management Seemless Integration into Banking Backend-Systems and Microsoft Plattform

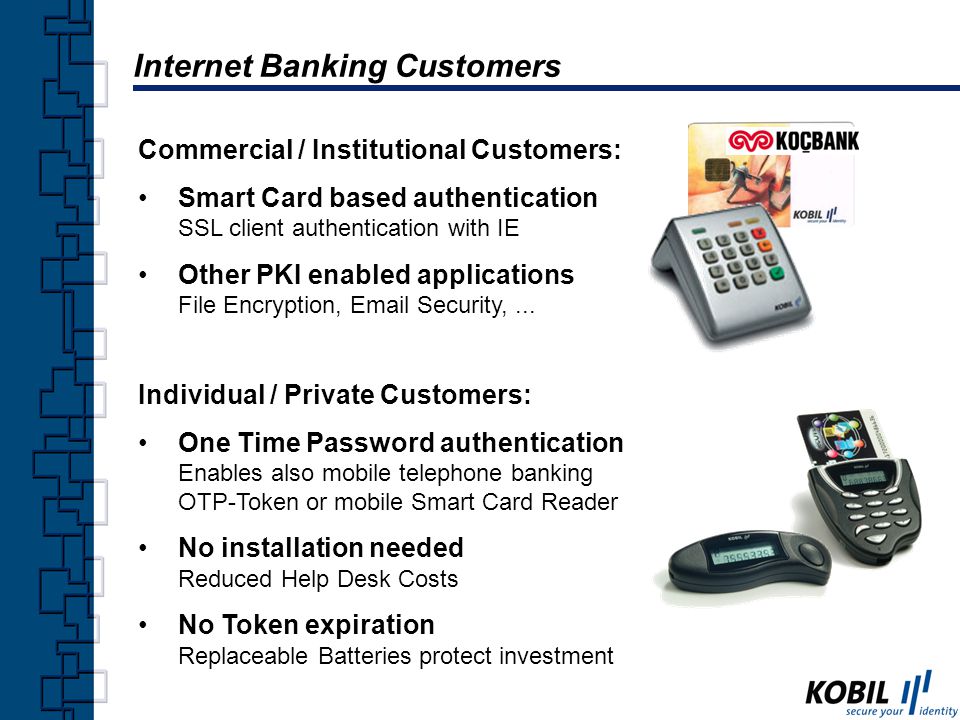

9. Internet Banking Customers Commercial / Institutional Customers: Smart Card based authentication SSL client authentication with IE Other PKI enabled applications File Encryption, Email Security,... Individual / Private Customers: One Time Password authentication Enables also mobile telephone banking OTP-Token or mobile Smart Card Reader No installation needed Reduced Help Desk Costs No Token expiration Replaceable Batteries protect investment

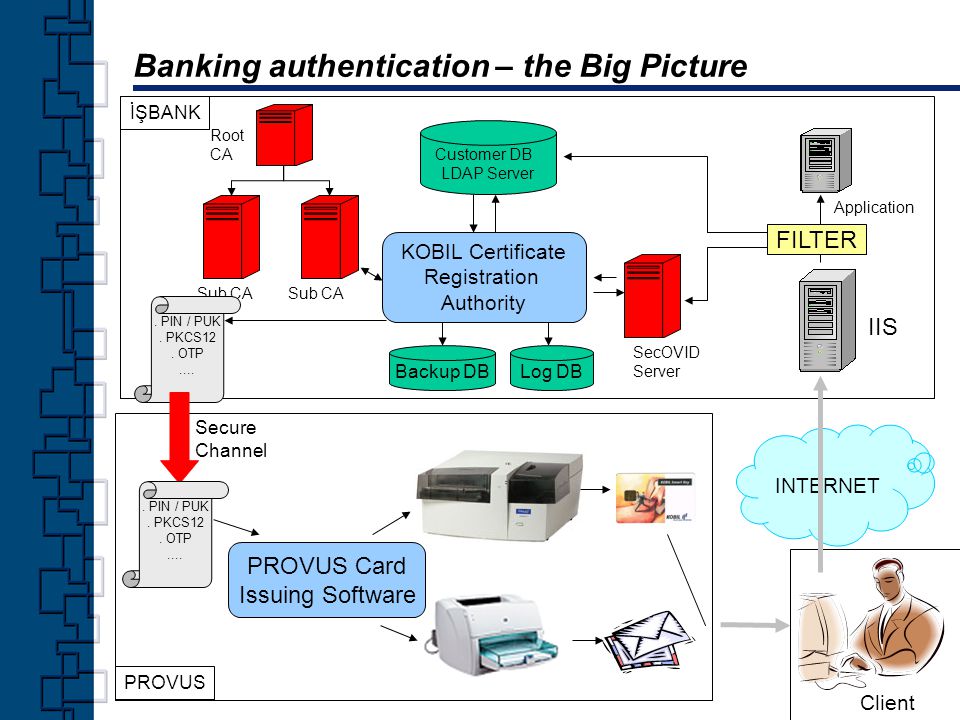

10. İŞBANK PROVUS Client INTERNET IIS Root CA Sub CA Customer DB LDAP Server FILTER Application. PIN / PUK. PKCS12. OTP.... KOBIL Certificate Registration Authority Backup DB. PIN / PUK. PKCS12. OTP.... PROVUS Card Issuing Software Log DB SecOVID Server Secure Channel Banking authentication – the Big Picture

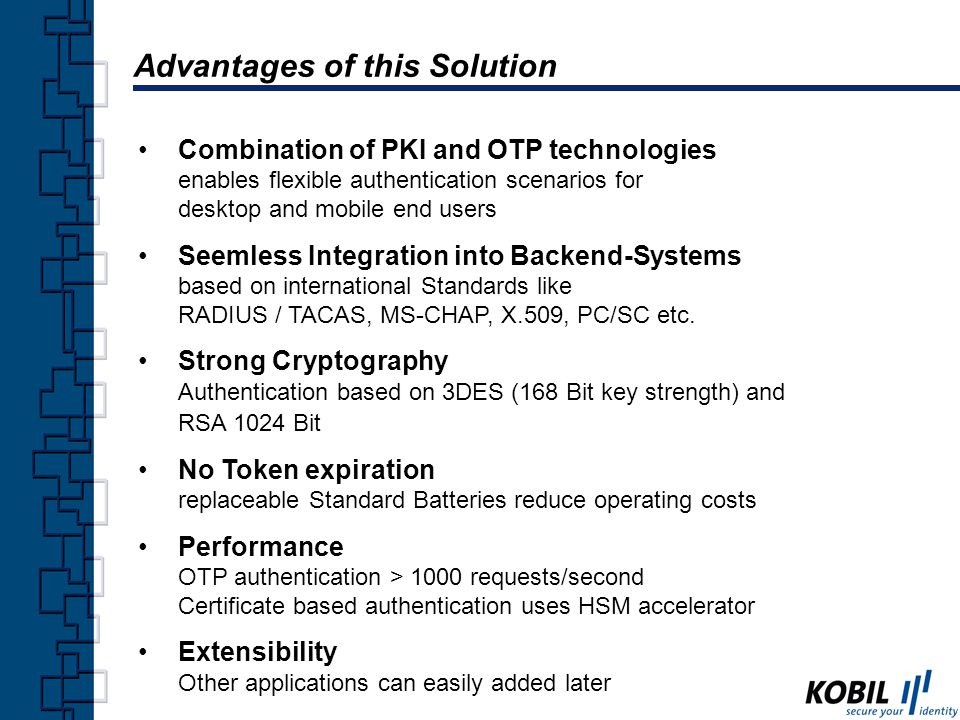

11. Advantages of this Solution Combination of PKI and OTP technologies enables flexible authentication scenarios for desktop and mobile end users Seemless Integration into Backend-Systems based on international Standards like RADIUS / TACAS, MS-CHAP, X.509, PC/SC etc. Strong Cryptography Authentication based on 3DES (168 Bit key strength) and RSA 1024 Bit No Token expiration replaceable Standard Batteries reduce operating costs Performance OTP authentication > 1000 requests/second Certificate based authentication uses HSM accelerator Extensibility Other applications can easily added later

12. Enabling Smart Cards to be used for PKI-based applications: Electronic Signatures for e-mails and files Integrity protection against unauthorized data modification Proof of authorship („who is the originator of this email?“) Encryption for e-mails, files and hard disk (Container) Confidential data are kept secret, access only with appropriate smart card (Private Key) and PIN code Windows Smart Card Logon Strong two-factor Authentication (Possesion and Knowledge) Also for Terminal Servers and Remote Desktop applications SAP R/3 Security Authentication, Session Encryption and Message Integrity for SAPGui / SAPServer, often running on Terminal Servers VPN-Authentification in Intranet & Extranet Sensitive data are protected even if transferred over public networks Smart Card Middleware

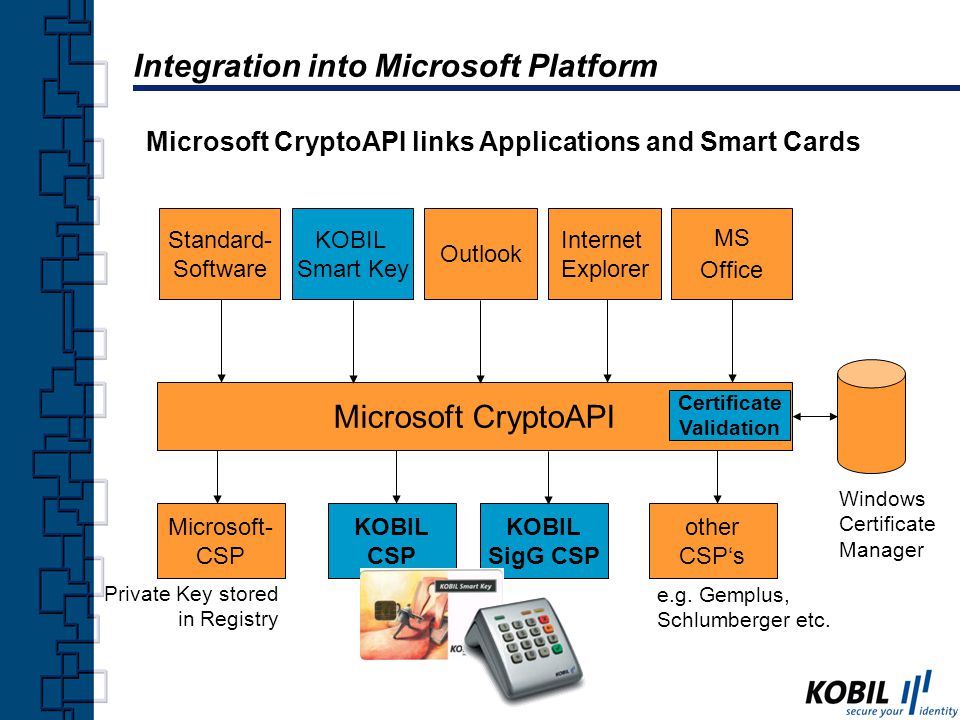

13. KOBIL SigG CSP Microsoft- CSP Microsoft CryptoAPI Standard- Software Outlook Internet Explorer MS Office Windows Certificate Manager KOBIL CSP other CSP‘s KOBIL Smart Key Private Key stored in Registry e.g. Gemplus, Schlumberger etc. Certificate Validation Integration into Microsoft Platform Microsoft CryptoAPI links Applications and Smart Cards

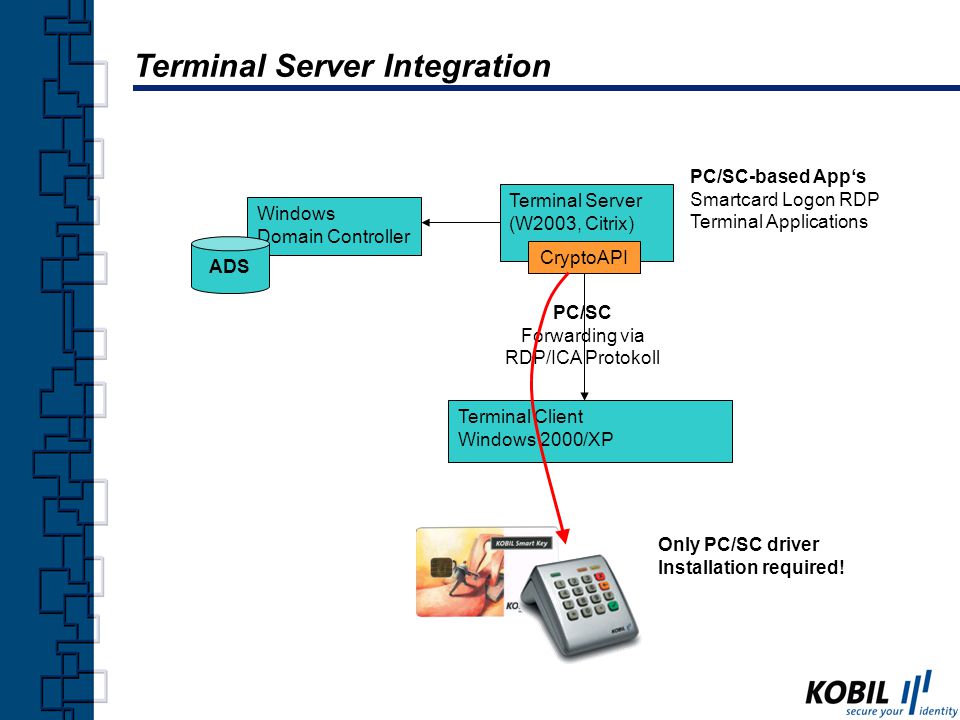

14. Terminal Server Integration Windows Domain Controller Terminal Server (W2003, Citrix) ADS Terminal Client Windows 2000/XP PC/SC Forwarding via RDP/ICA Protokoll PC/SC-based App‘s Smartcard Logon RDP Terminal Applications Only PC/SC driver Installation required! CryptoAPI

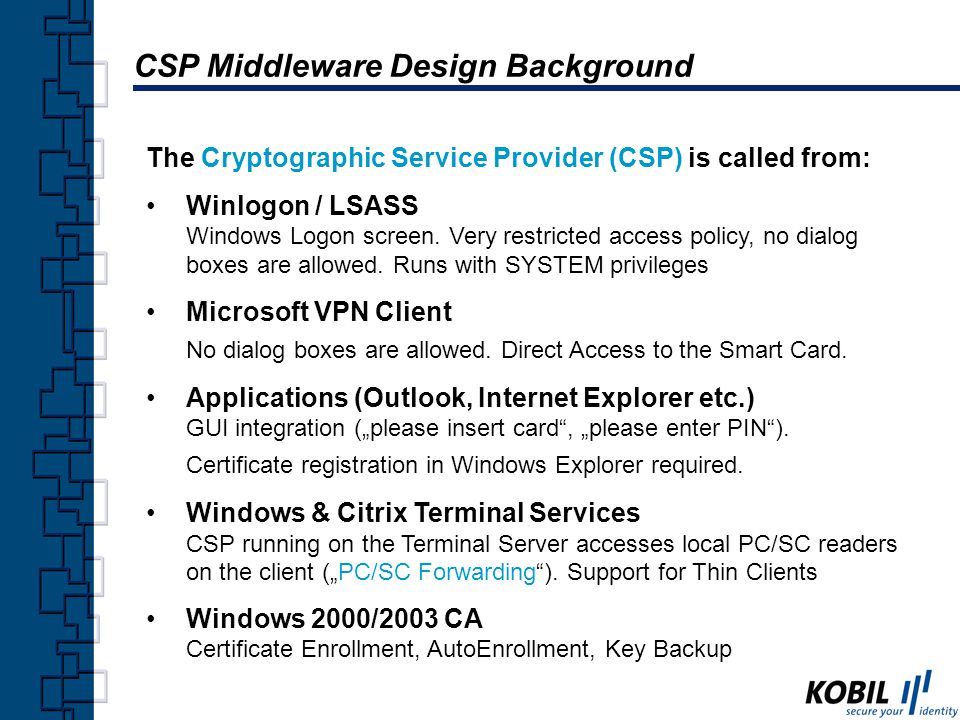

15. The Cryptographic Service Provider (CSP) is called from: Winlogon / LSASS Windows Logon screen. Very restricted access policy, no dialog boxes are allowed. Runs with SYSTEM privileges Microsoft VPN Client No dialog boxes are allowed. Direct Access to the Smart Card. Applications (Outlook, Internet Explorer etc.) GUI integration („please insert card“, „please enter PIN“). Certificate registration in Windows Explorer required. Windows & Citrix Terminal Services CSP running on the Terminal Server accesses local PC/SC readers on the client („PC/SC Forwarding“). Support for Thin Clients Windows 2000/2003 CA Certificate Enrollment, AutoEnrollment, Key Backup CSP Middleware Design Background

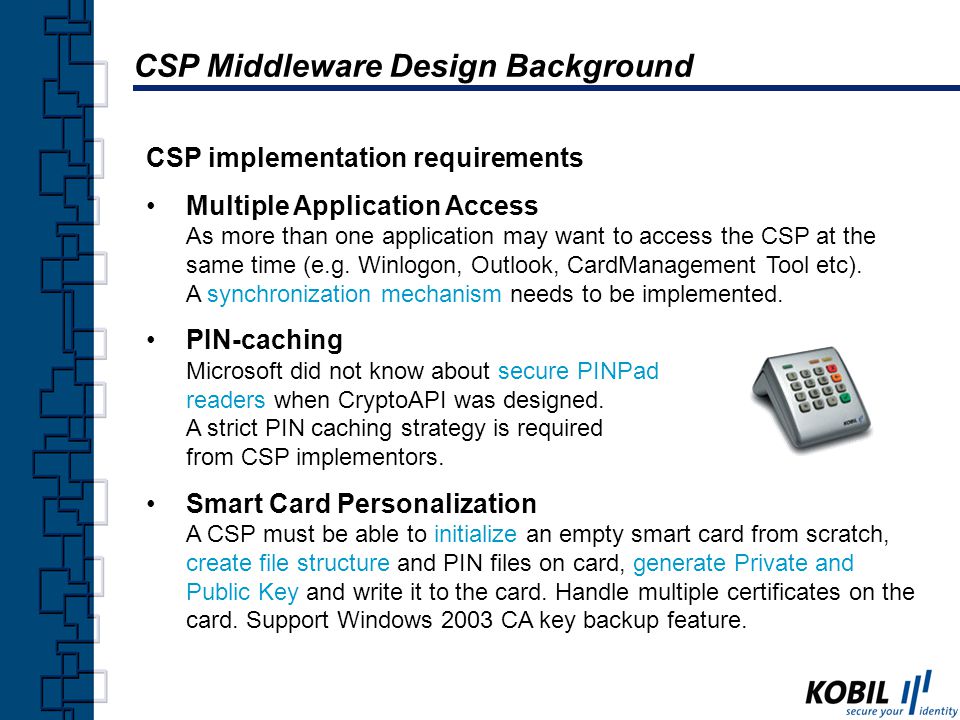

16. CSP implementation requirements Multiple Application Access As more than one application may want to access the CSP at the same time (e.g. Winlogon, Outlook, CardManagement Tool etc). A synchronization mechanism needs to be implemented. PIN-caching Microsoft did not know about secure PINPad readers when CryptoAPI was designed. A strict PIN caching strategy is required from CSP implementors. Smart Card Personalization A CSP must be able to initialize an empty smart card from scratch, create file structure and PIN files on card, generate Private and Public Key and write it to the card. Handle multiple certificates on the card. Support Windows 2003 CA key backup feature. CSP Middleware Design Background

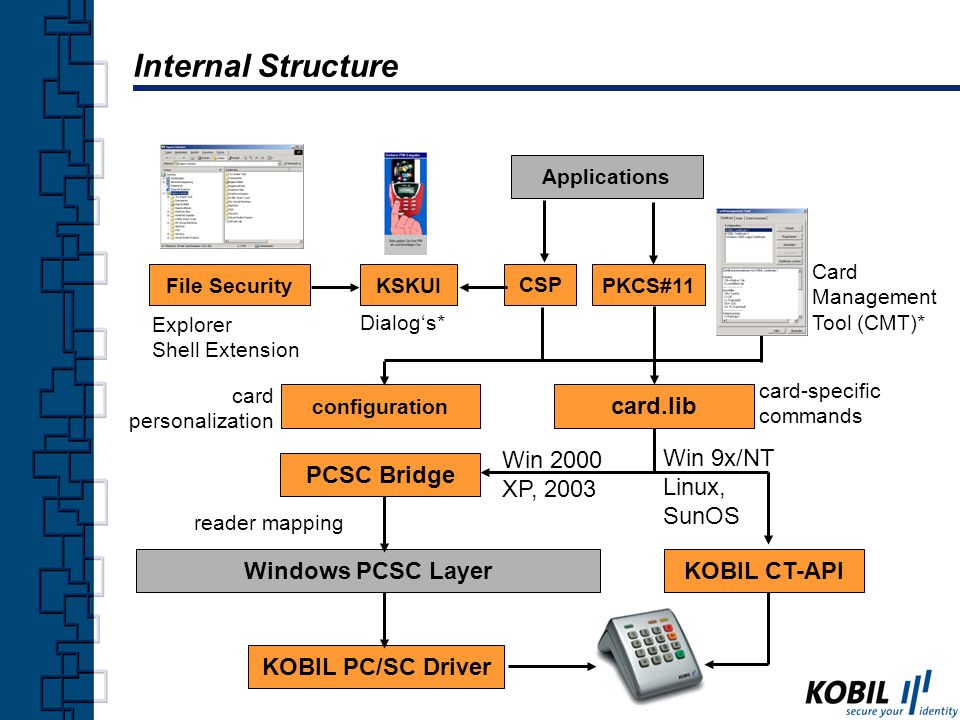

17. Windows PCSC Layer KOBIL PC/SC Driver KOBIL CT-API PCSC Bridge card.lib Win 2000 XP, 2003 Win 9x/NT Linux, SunOS reader mapping card-specific commands Card Management Tool (CMT)* CSP KSKUIFile Security Dialog‘s* Explorer Shell Extension PKCS#11 Applications configuration card personalization Internal Structure

18. Development of a certified CSP for qualified Signatures Cooperation with KOBIL, Datev and Microsoft Allowing Standard Applications to use qualified Signatures based on Microsoft CryptoAPI. Easy and fast integration for individual applications Seperate CSP Module Only for signatures, being evaluated according to CC EAL 3+ as required for qualified accredited signatures by German Federal Office for Information Security (BSI) Available for a big variety of e-ID signature cards Deutsche Telekom PKS, ZKA Seccos, Datev, Signtrust,... Further cards can easily be added Certificate online validation Using OCSP standard through CryptoAPI Qualified Signatures using CryptoAPI

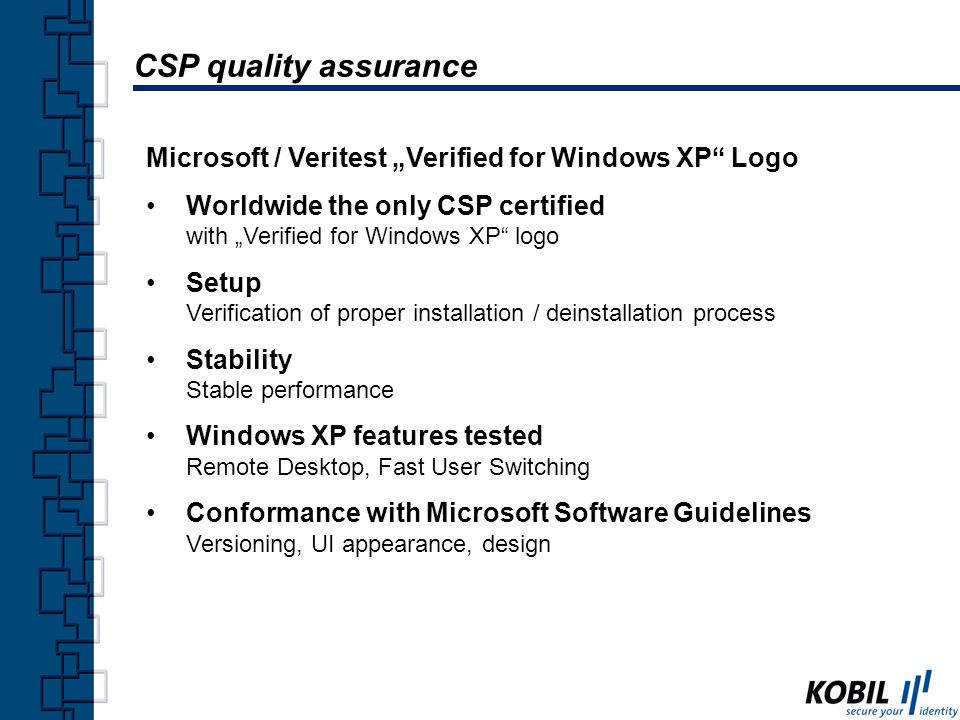

19. CSP quality assurance Microsoft / Veritest „Verified for Windows XP“ Logo Worldwide the only CSP certified with „Verified for Windows XP“ logo Setup Verification of proper installation / deinstallation process Stability Stable performance Windows XP features tested Remote Desktop, Fast User Switching Conformance with Microsoft Software Guidelines Versioning, UI appearance, design
