1. THIRD GENERATION IMAGE SENSORS: OPPORTUNITIES AND CHALLENGES Orit Skorka and Dileepan Joseph University of Alberta Edmonton, AB, Canada Electrochemical Society Meeting, 2012 Seattle, WA, USA

2. Outline 2  Introduction  CCD and CMOS Sensors  VI-CMOS Image Sensors  Opportunities and Challenges  Conclusion

3. Introduction 3

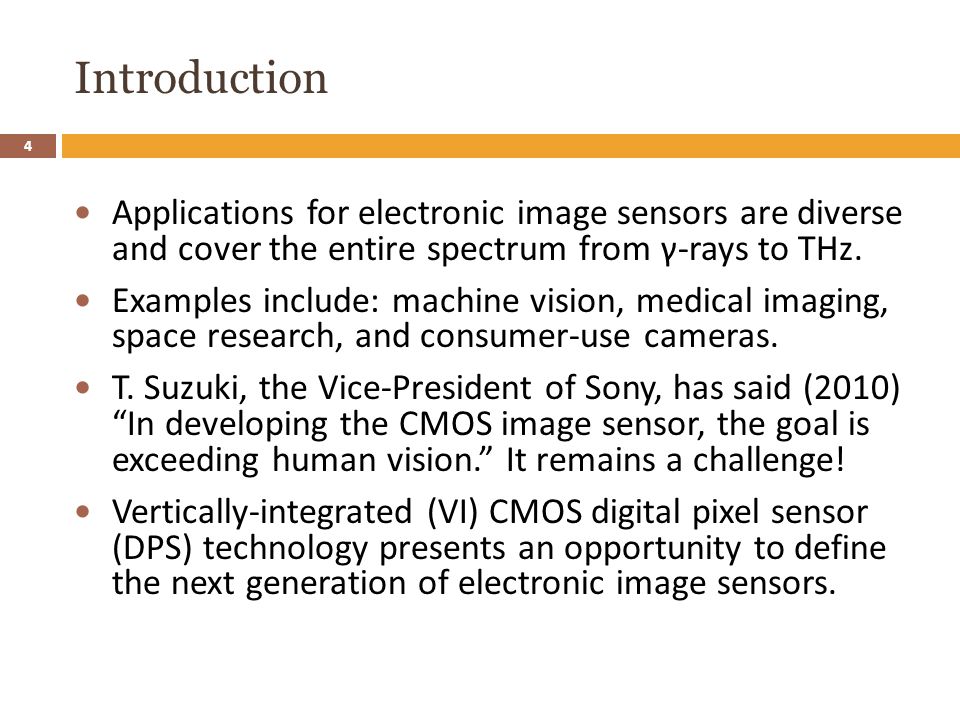

4. 4 Applications for electronic image sensors are diverse and cover the entire spectrum from γ-rays to THz. Examples include: machine vision, medical imaging, space research, and consumer-use cameras. T. Suzuki, the Vice-President of Sony, has said (2010) “In developing the CMOS image sensor, the goal is exceeding human vision.” It remains a challenge! Vertically-integrated (VI) CMOS digital pixel sensor (DPS) technology presents an opportunity to define the next generation of electronic image sensors.

5. CCD and CMOS Sensors 5

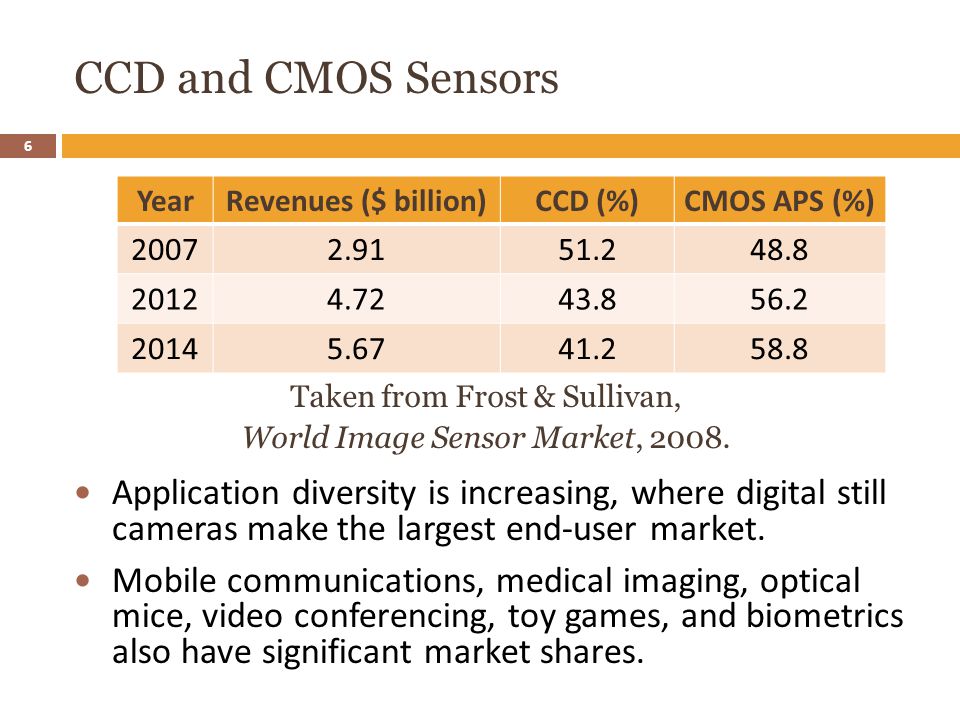

6. 6 Taken from Frost & Sullivan, World Image Sensor Market, 2008. YearRevenues ($ billion)CCD (%)CMOS APS (%) 20072.9151.248.8 20124.7243.856.2 20145.6741.258.8 Application diversity is increasing, where digital still cameras make the largest end-user market. Mobile communications, medical imaging, optical mice, video conferencing, toy games, and biometrics also have significant market shares.

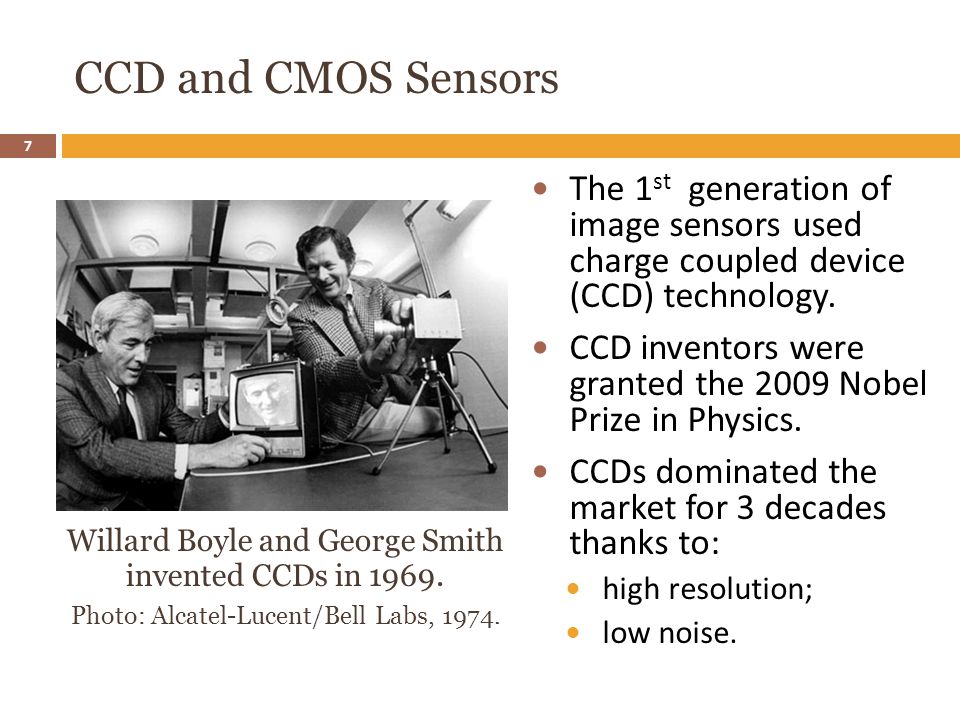

7. CCD and CMOS Sensors 7 The 1 st generation of image sensors used charge coupled device (CCD) technology. CCD inventors were granted the 2009 Nobel Prize in Physics. CCDs dominated the market for 3 decades thanks to: high resolution; low noise. Willard Boyle and George Smith invented CCDs in 1969. Photo: Alcatel-Lucent/Bell Labs, 1974.

8. CCD and CMOS Sensors 8 Eric Fossum invented the CMOS APS in 1994. Photo: Amy Etra/BusinessWeek, 2011. 2 nd generation image sensors used CMOS active pixel sensor (APS) technology. It was developed at NASA’s Jet Propulsion Laboratory. Dominated low-power imaging thanks to: On-chip integration with CMOS devices; Simple supply system.

9. VI-CMOS Image Sensors 9

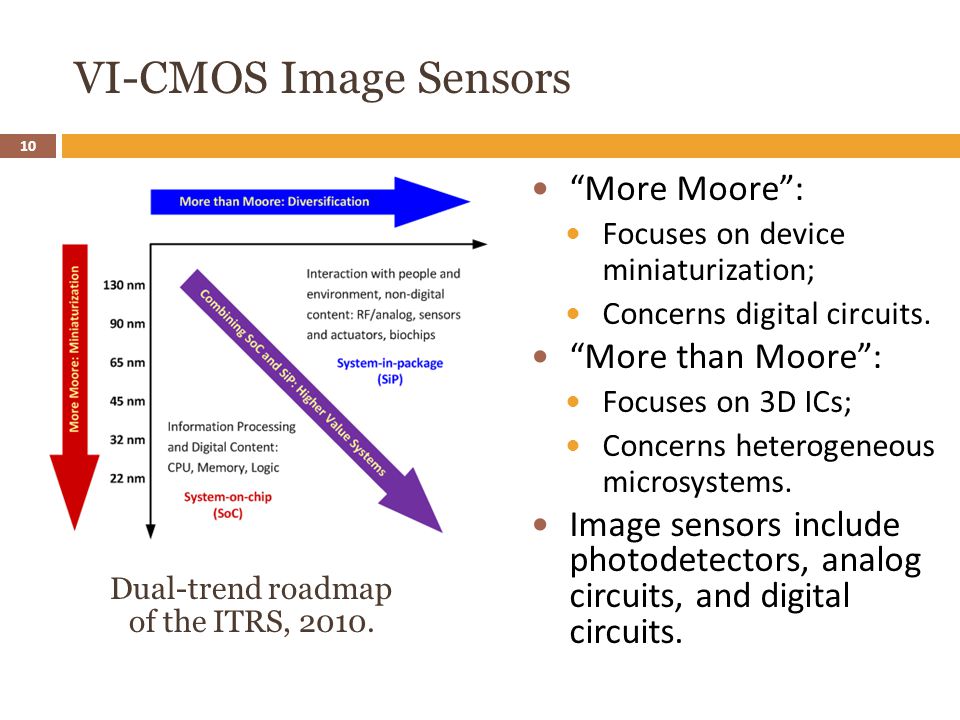

10. 10 Dual-trend roadmap of the ITRS, 2010. “More Moore”: Focuses on device miniaturization; Concerns digital circuits. “More than Moore”: Focuses on 3D ICs; Concerns heterogeneous microsystems. Image sensors include photodetectors, analog circuits, and digital circuits.

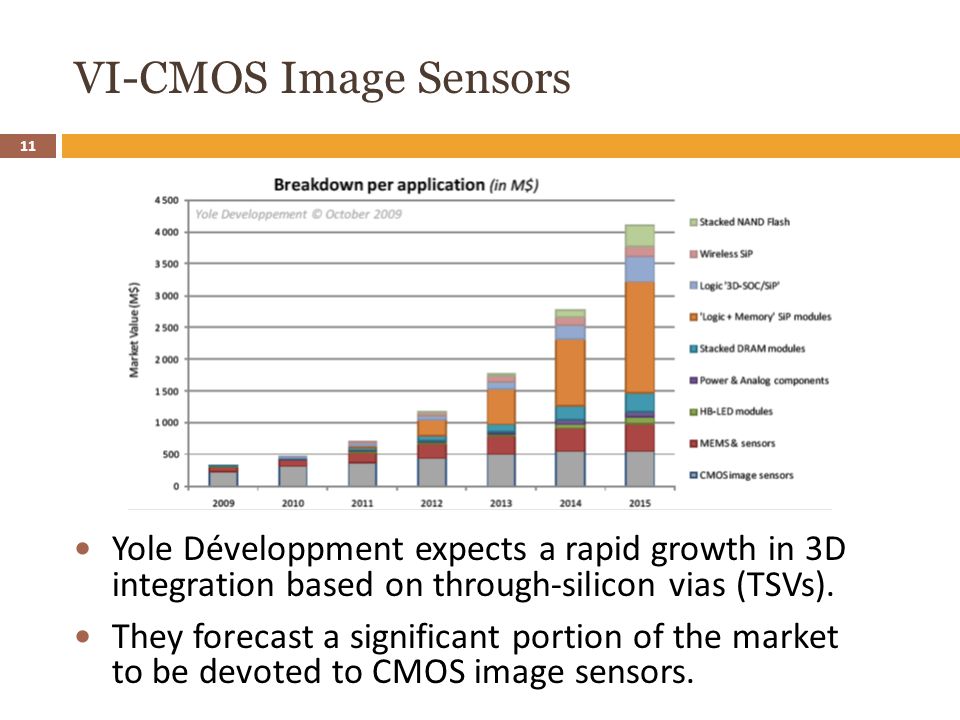

11. VI-CMOS Image Sensors 11 Yole Développment expects a rapid growth in 3D integration based on through-silicon vias (TSVs). They forecast a significant portion of the market to be devoted to CMOS image sensors.

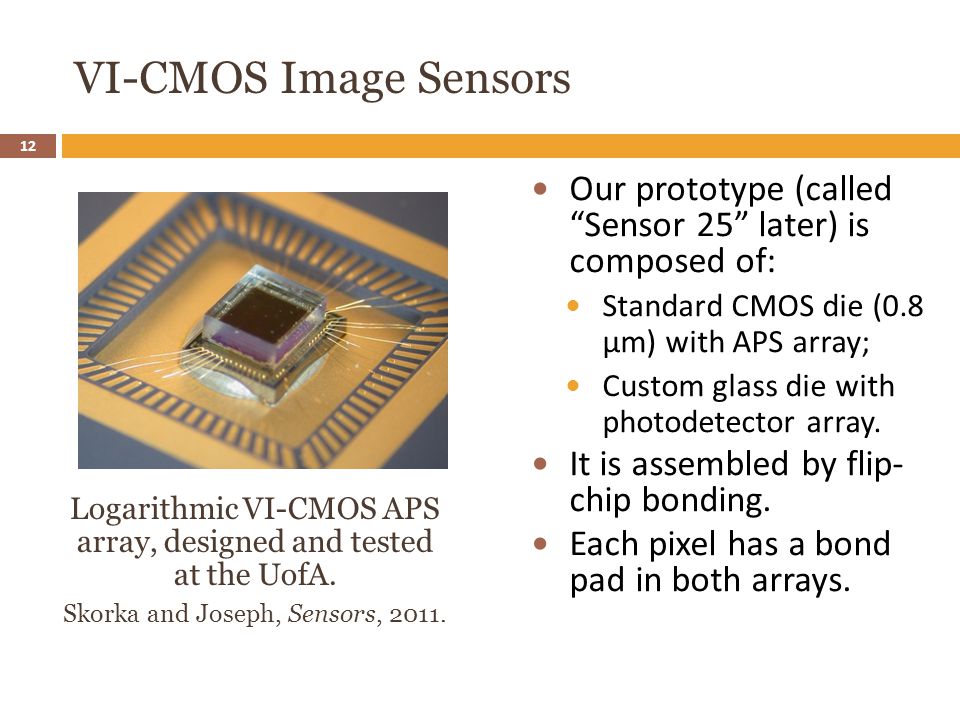

12. VI-CMOS Image Sensors 12 Logarithmic VI-CMOS APS array, designed and tested at the UofA. Skorka and Joseph, Sensors, 2011. Our prototype (called “Sensor 25” later) is composed of: Standard CMOS die (0.8 μm) with APS array; Custom glass die with photodetector array. It is assembled by flip- chip bonding. Each pixel has a bond pad in both arrays.

13. Opportunities and Challenges 13

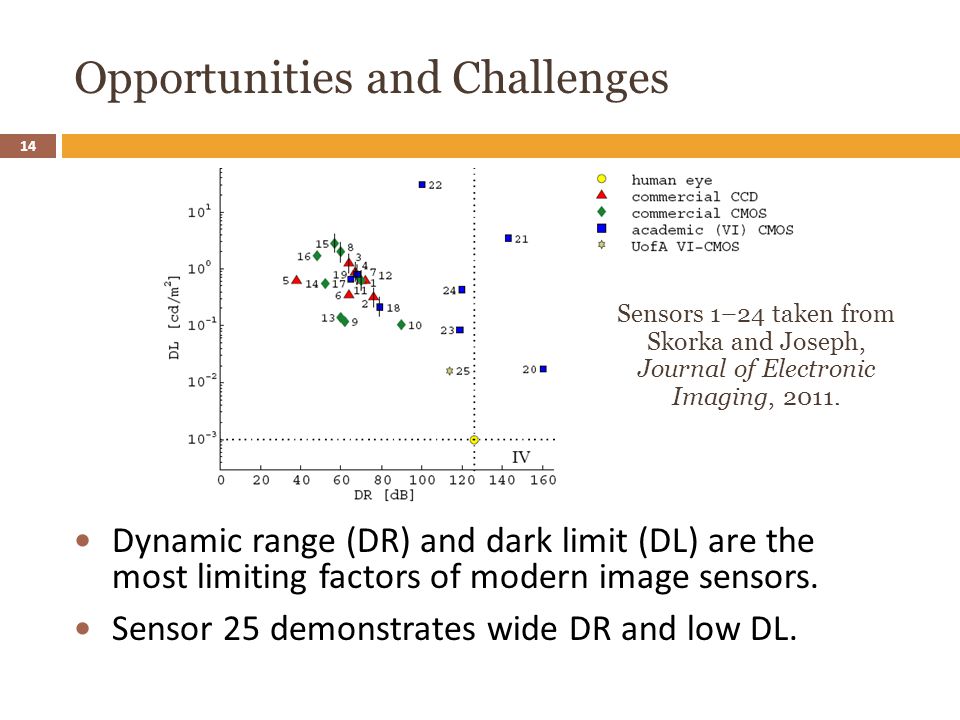

14. Opportunities and Challenges 14 Dynamic range (DR) and dark limit (DL) are the most limiting factors of modern image sensors. Sensor 25 demonstrates wide DR and low DL. Sensors 1–24 taken from Skorka and Joseph, Journal of Electronic Imaging, 2011.

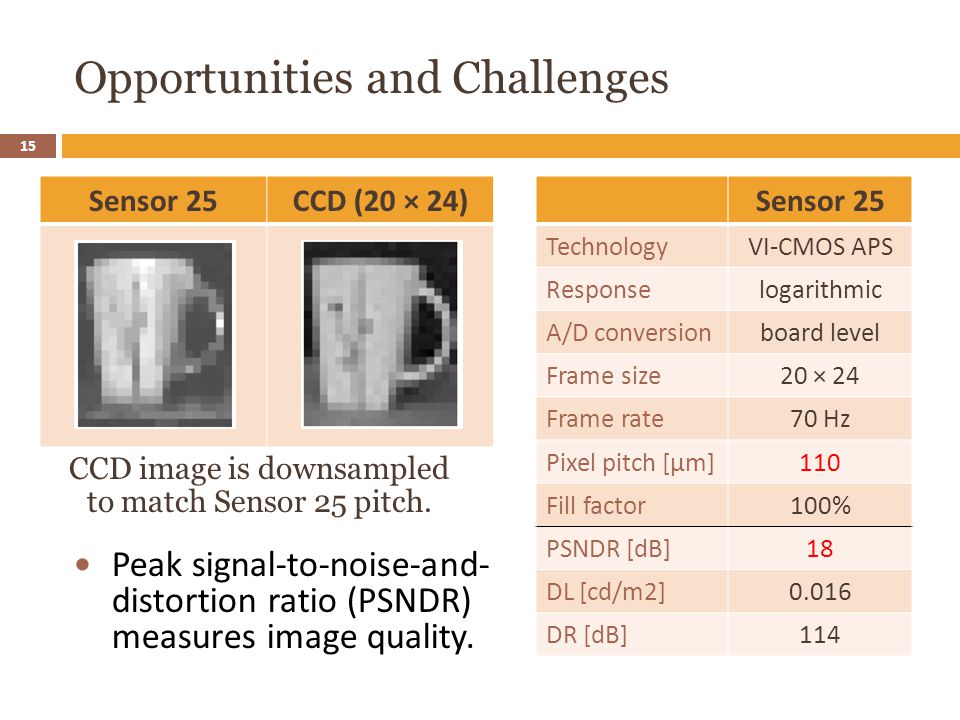

15. Opportunities and Challenges 15 Sensor 25CCD (20 × 24) Sensor 25 TechnologyVI-CMOS APS Responselogarithmic A/D conversionboard level Frame size20 × 24 Frame rate70 Hz Pixel pitch [µm]110 Fill factor100% PSNDR [dB]18 DL [cd/m2]0.016 DR [dB]114 CCD image is downsampled to match Sensor 25 pitch. Peak signal-to-noise-and- distortion ratio (PSNDR) measures image quality.

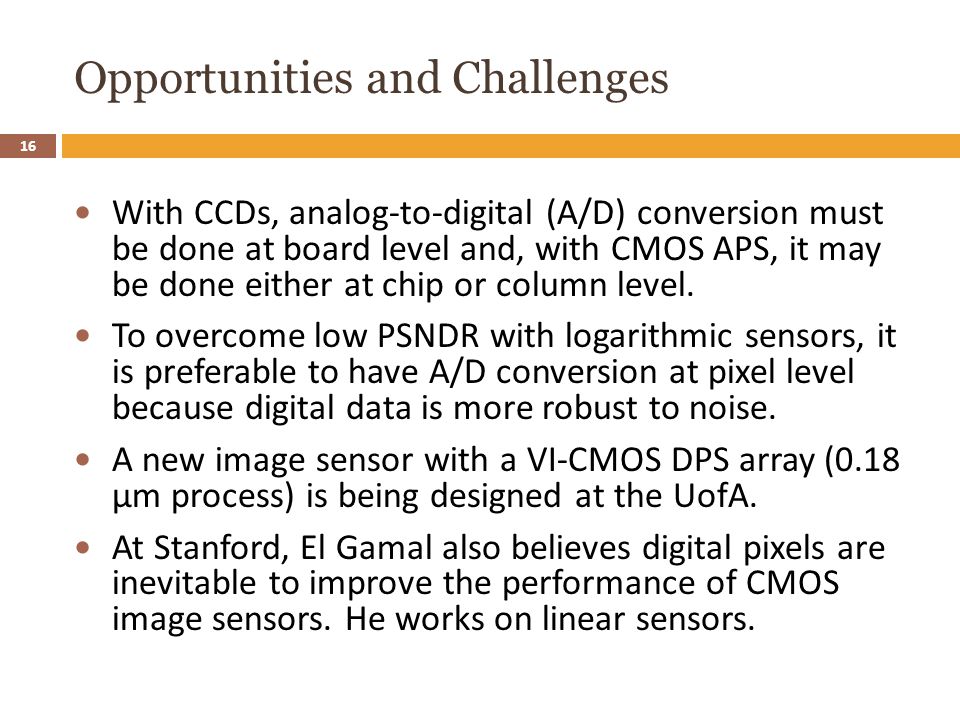

16. Opportunities and Challenges 16 With CCDs, analog-to-digital (A/D) conversion must be done at board level and, with CMOS APS, it may be done either at chip or column level. To overcome low PSNDR with logarithmic sensors, it is preferable to have A/D conversion at pixel level because digital data is more robust to noise. A new image sensor with a VI-CMOS DPS array (0.18 μm process) is being designed at the UofA. At Stanford, El Gamal also believes digital pixels are inevitable to improve the performance of CMOS image sensors. He works on linear sensors.

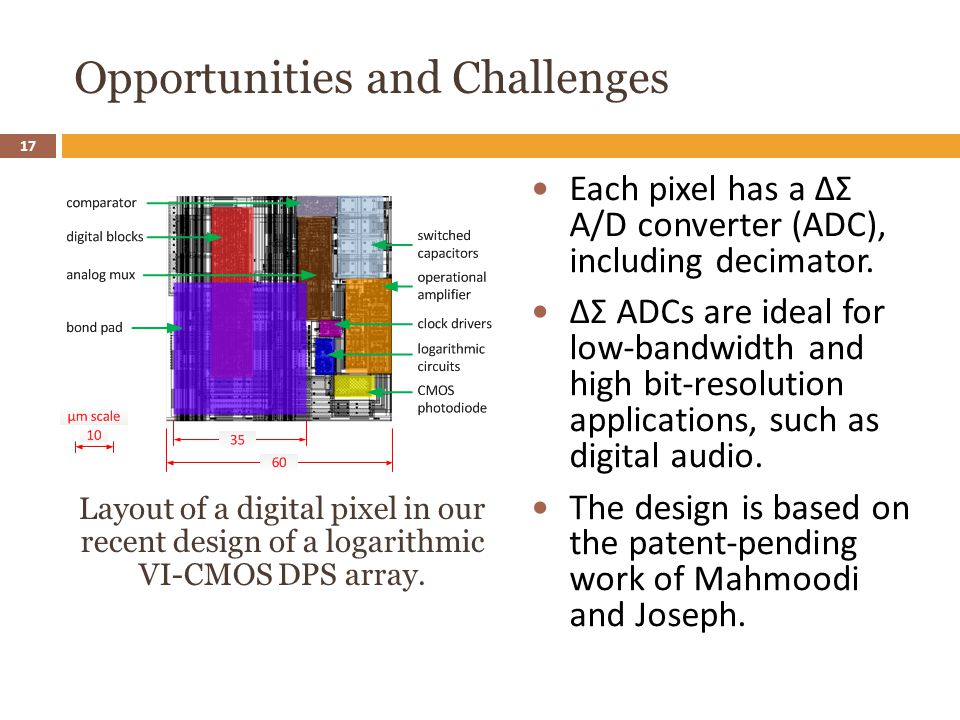

17. Opportunities and Challenges 17 Each pixel has a ΔΣ A/D converter (ADC), including decimator. ΔΣ ADCs are ideal for low-bandwidth and high bit-resolution applications, such as digital audio. The design is based on the patent-pending work of Mahmoodi and Joseph. Layout of a digital pixel in our recent design of a logarithmic VI-CMOS DPS array.

18. Opportunities and Challenges 18 Though still too large for optical imaging, pixel size is competitive for lens-less imaging, as with medical X-rays. Using lower dose, VI- CMOS DPS technology may enable video rate X-ray imaging of soft and dense tissues simultaneously, given further research. Response of the in- pixel ΔΣ ADC.

19. Conclusion 19

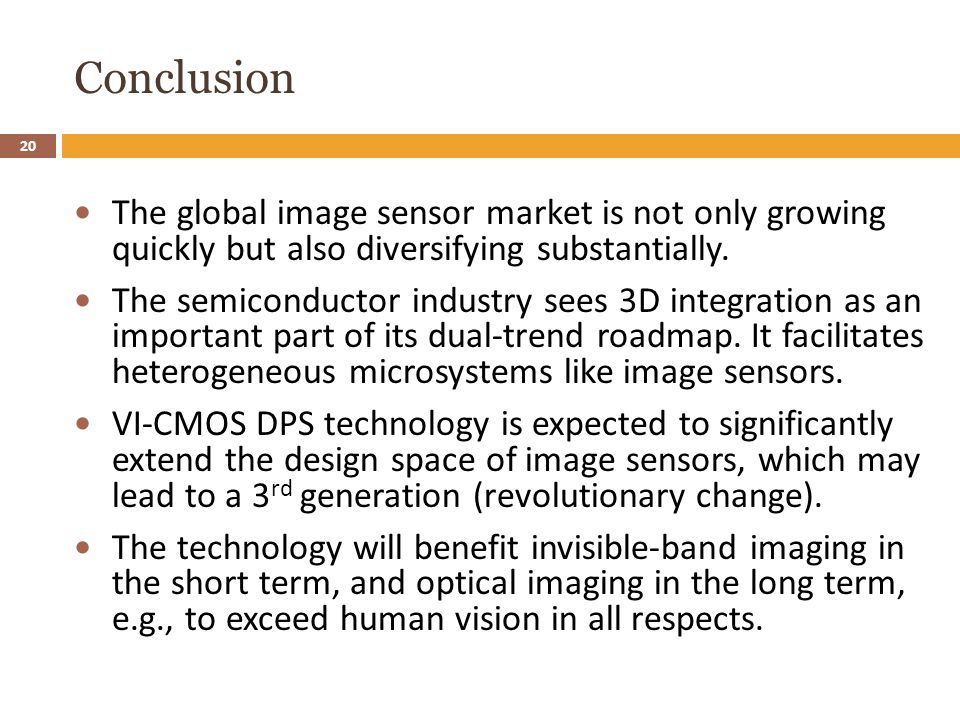

20. Conclusion 20 The global image sensor market is not only growing quickly but also diversifying substantially. The semiconductor industry sees 3D integration as an important part of its dual-trend roadmap. It facilitates heterogeneous microsystems like image sensors. VI-CMOS DPS technology is expected to significantly extend the design space of image sensors, which may lead to a 3 rd generation (revolutionary change). The technology will benefit invisible-band imaging in the short term, and optical imaging in the long term, e.g., to exceed human vision in all respects.

21. Acknowledgements 21 We are grateful to our longtime sponsors: NSERC; Alberta Innovates – Technology Futures; CMC Microsystems; TEC Edmonton. We also thank Dr. Mark Alexiuk and IMRIS. Left to right: Orit Skorka, Jing Li, and Dileepan Joseph at the UofA, 2011.
