1. Fermentation Vessel Automation Team Members: Andrew Arndt Adam Daters Brad DeSerano Austin Striegel SD Team: Dec06-07 December 12, 2006 Client: Stephanie Loveland Department of Chemical and Biological Engineering Advisor: Dr. Degang Chen

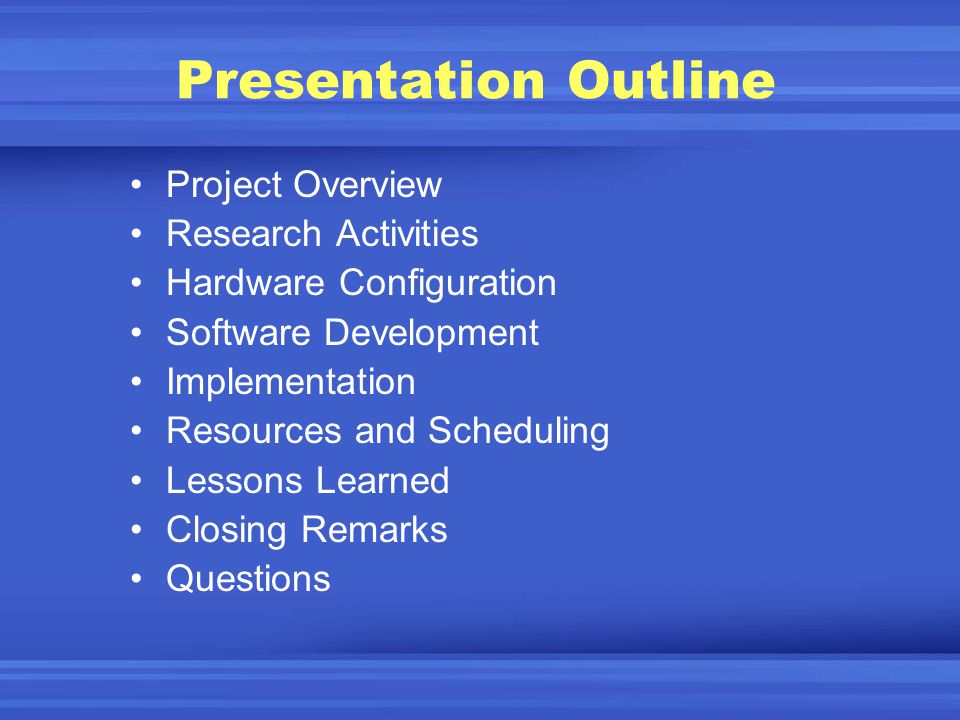

2. Presentation Outline Project Overview Research Activities Hardware Configuration Software Development Implementation Resources and Scheduling Lessons Learned Closing Remarks Questions

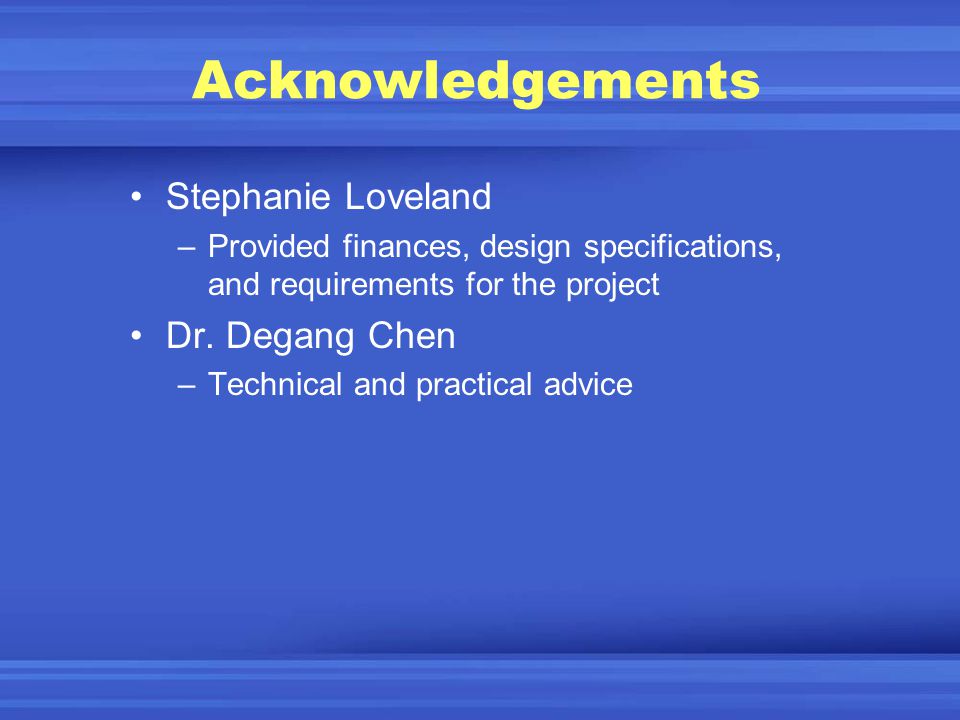

3. Acknowledgements Stephanie Loveland –Provided finances, design specifications, and requirements for the project Dr. Degang Chen –Technical and practical advice

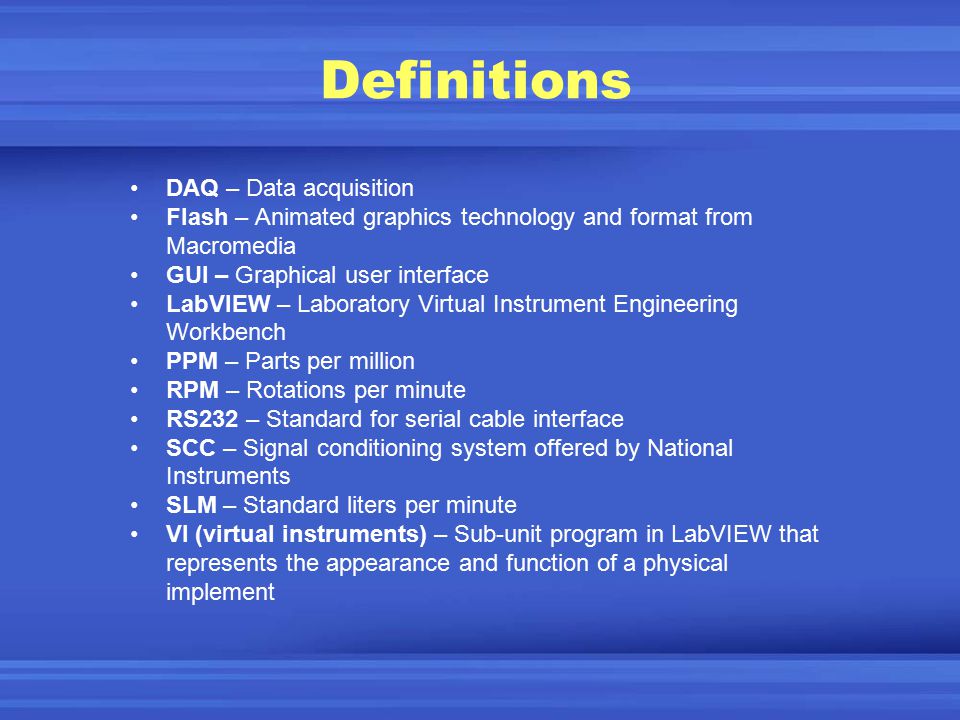

4. Definitions DAQ – Data acquisition Flash – Animated graphics technology and format from Macromedia GUI – Graphical user interface LabVIEW – Laboratory Virtual Instrument Engineering Workbench PPM – Parts per million RPM – Rotations per minute RS232 – Standard for serial cable interface SCC – Signal conditioning system offered by National Instruments SLM – Standard liters per minute VI (virtual instruments) – Sub-unit program in LabVIEW that represents the appearance and function of a physical implement

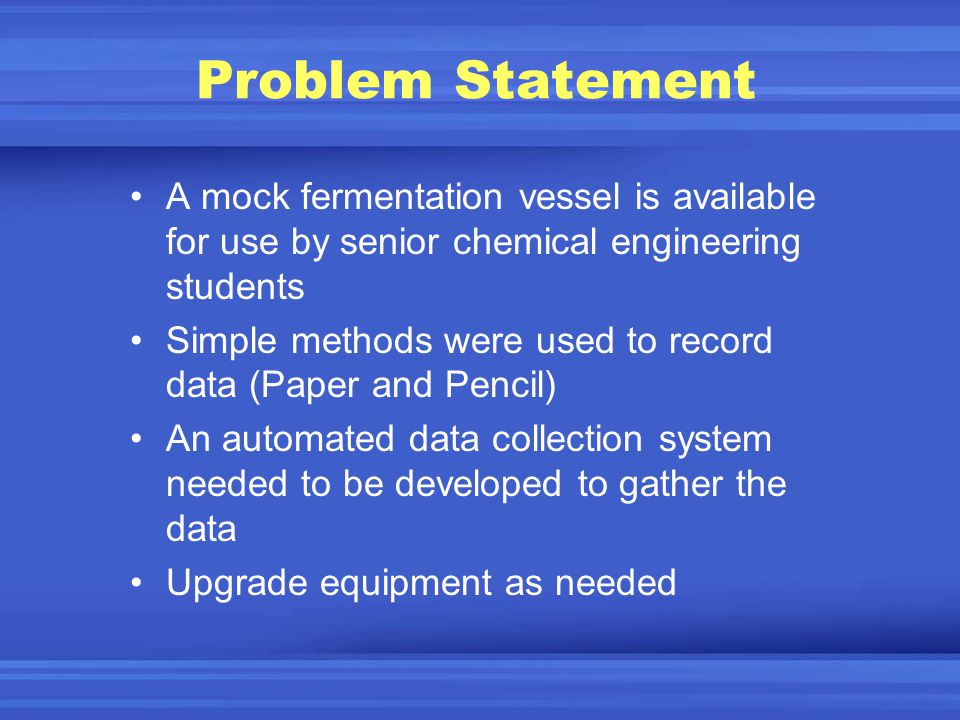

5. Problem Statement A mock fermentation vessel is available for use by senior chemical engineering students Simple methods were used to record data (Paper and Pencil) An automated data collection system needed to be developed to gather the data Upgrade equipment as needed

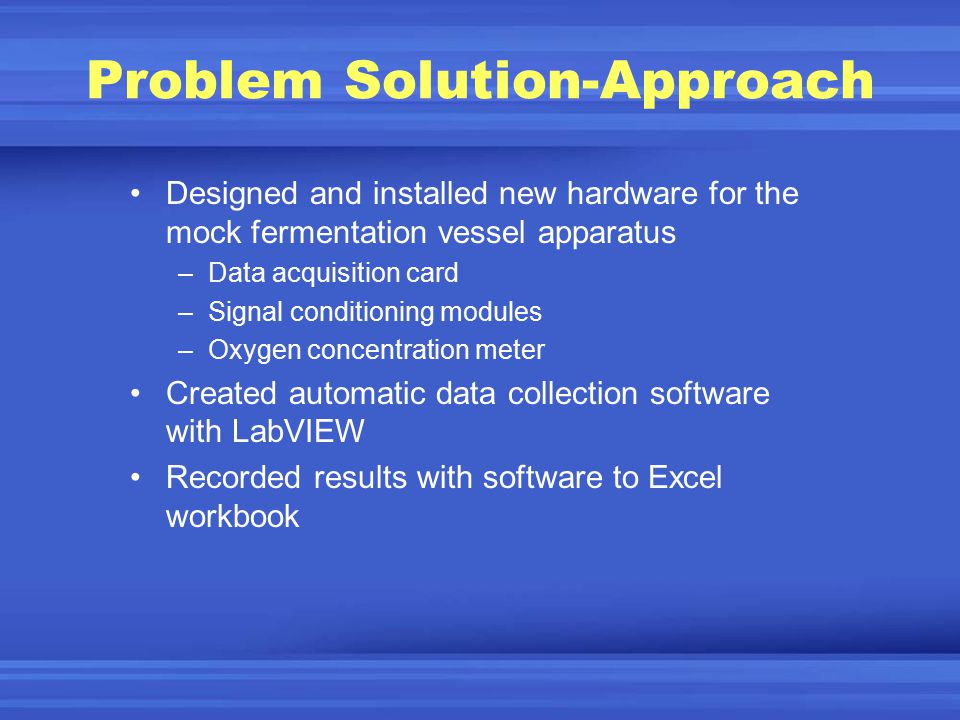

6. Problem Solution-Approach Designed and installed new hardware for the mock fermentation vessel apparatus –Data acquisition card –Signal conditioning modules –Oxygen concentration meter Created automatic data collection software with LabVIEW Recorded results with software to Excel workbook

7. Problem Solution-Approach Equipment Data Recorded

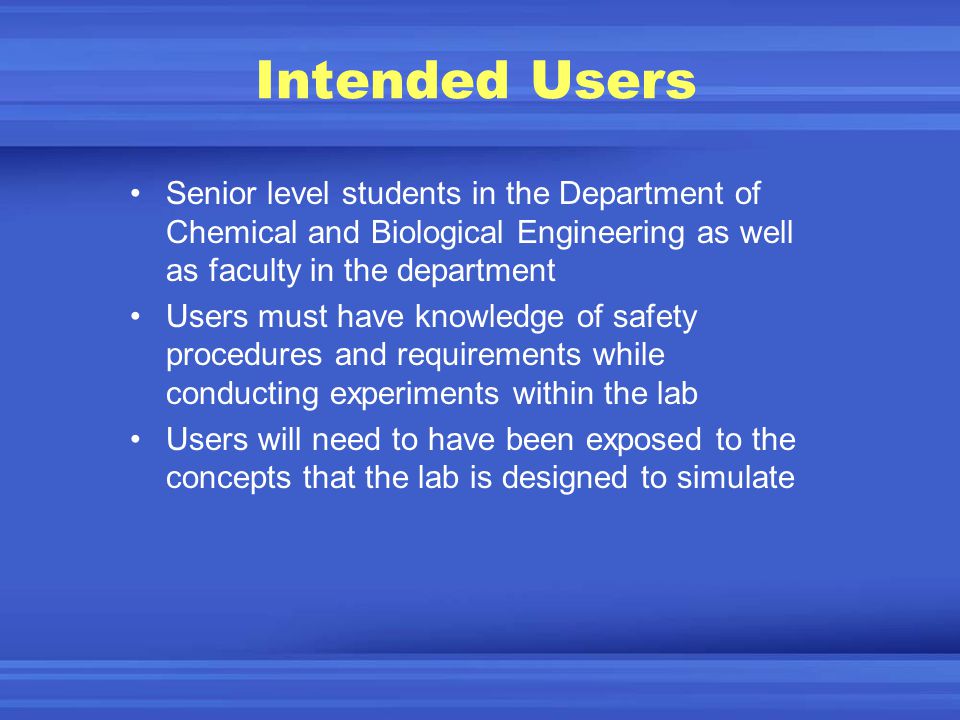

8. Intended Users Senior level students in the Department of Chemical and Biological Engineering as well as faculty in the department Users must have knowledge of safety procedures and requirements while conducting experiments within the lab Users will need to have been exposed to the concepts that the lab is designed to simulate

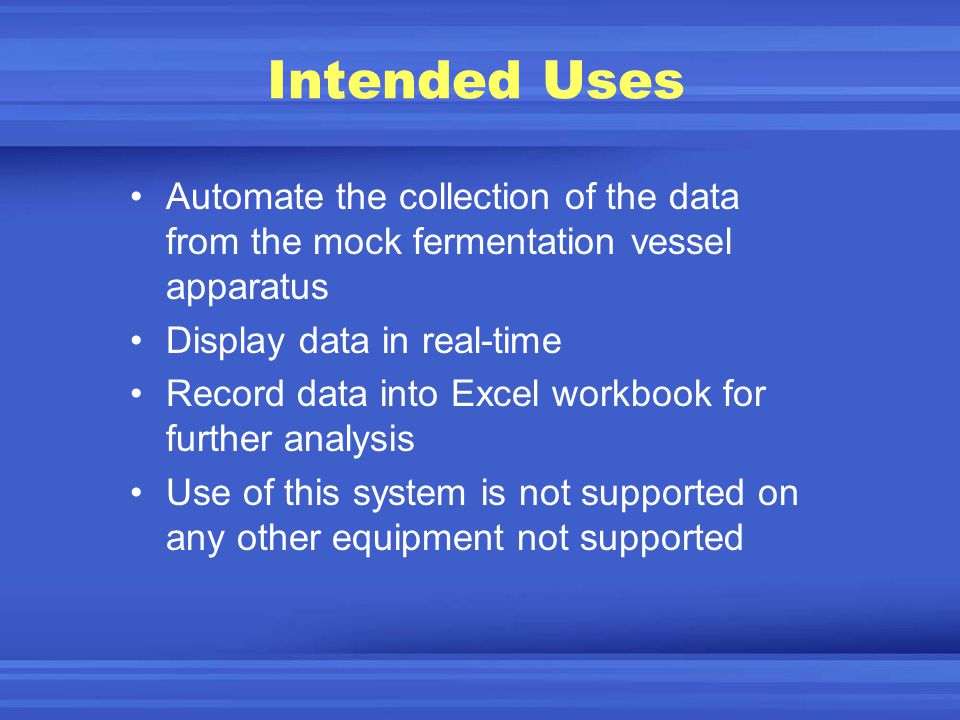

9. Intended Uses Automate the collection of the data from the mock fermentation vessel apparatus Display data in real-time Record data into Excel workbook for further analysis Use of this system is not supported on any other equipment not supported

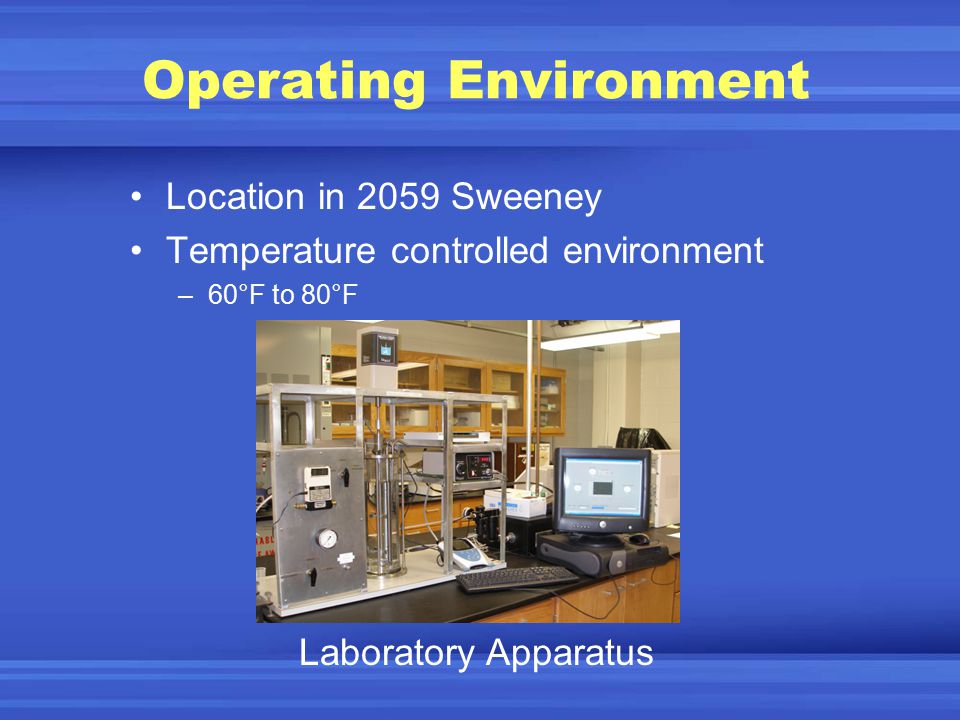

10. Operating Environment Location in 2059 Sweeney Temperature controlled environment –60°F to 80°F Laboratory Apparatus

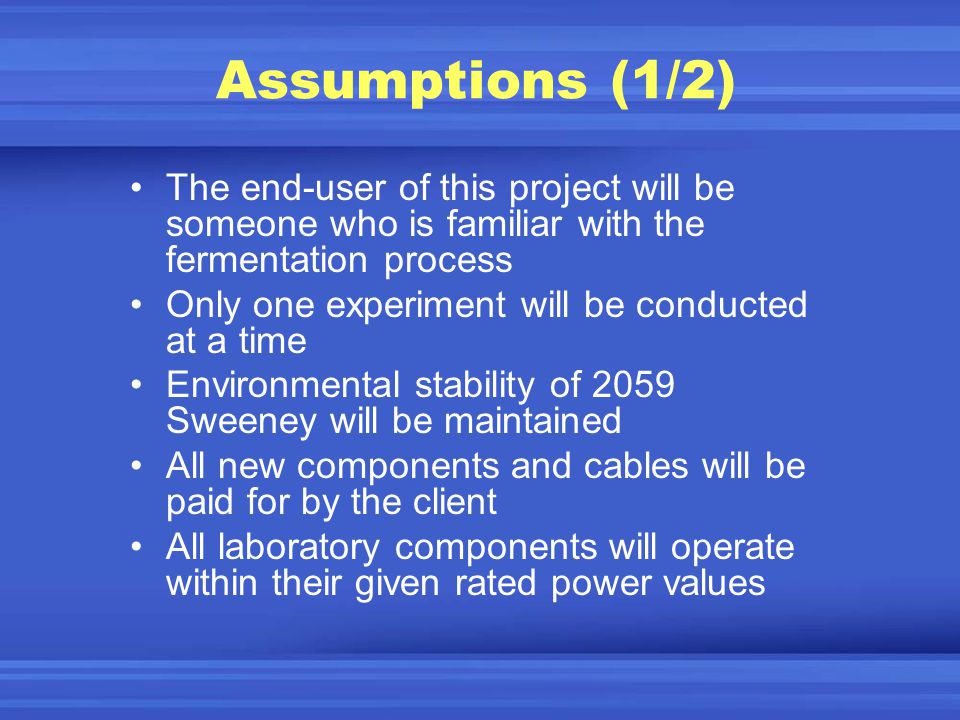

11. Assumptions (1/2) The end-user of this project will be someone who is familiar with the fermentation process Only one experiment will be conducted at a time Environmental stability of 2059 Sweeney will be maintained All new components and cables will be paid for by the client All laboratory components will operate within their given rated power values

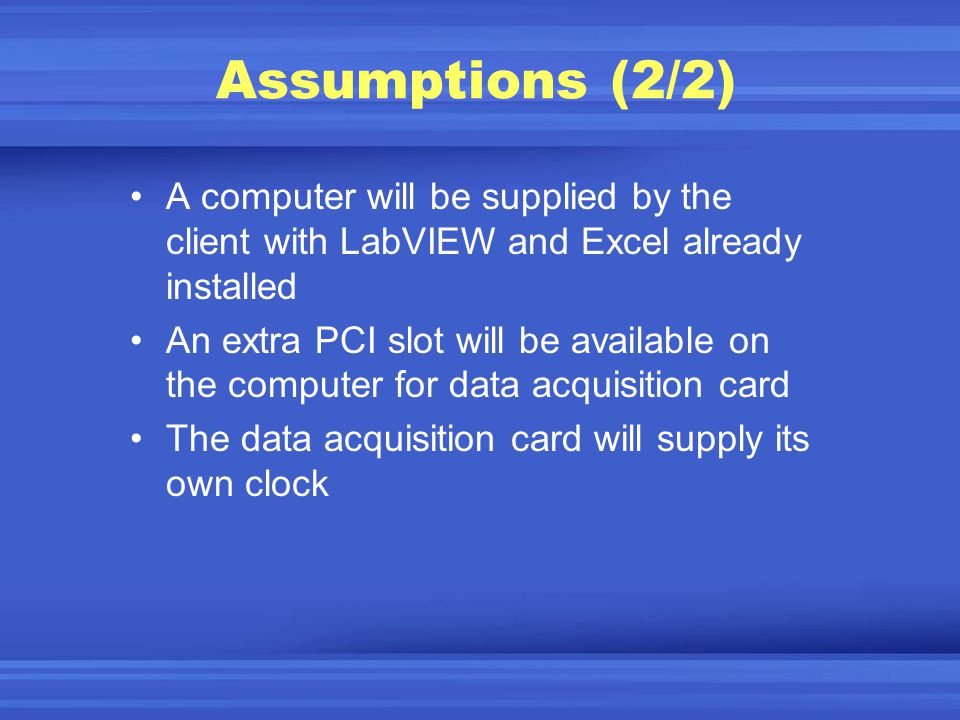

12. Assumptions (2/2) A computer will be supplied by the client with LabVIEW and Excel already installed An extra PCI slot will be available on the computer for data acquisition card The data acquisition card will supply its own clock

13. Limitations (1/2) File format type is in Excel format Software shall be written using LabVIEW One sample every five second must be recorded from each specified device Maximum flow rate for the air/nitrogen must be less than 6 SLM Motor speed must be kept less than 800 RPM Safety glasses must be worn at all times when working in 2059 Sweeney

14. Limitations (2/2) No more than 4 significant digits stored upon measurement The voltage signals from the stirrer motor control must be electrically isolated The oxygen concentration meter must read from 0 to 9.5 PPM dissolved oxygen The oxygen concentration meter must be a benchtop unit

15. A fully automated and integrated data collection system A graphical user interface (GUI) designed in LabVIEW Instruction manual and documentation for the data collection system End Product and Deliverables

16. Present Accomplishments Purchased and installed all hardware for automated data collection Collected data from each piece of lab equipment Tested functionality of software as a team Tested functionality of software with intended users, received feedback Delivered completed software with software feedback implemented

17. Future Required Activities Review user manual with client Review programmer’s manual with client

18. Technology Considerations (1/4) Data Acquisition Board Signal Conditioning Oxygen Concentration Meter

19. Data Acquisition Board Technology Considerations (2/4) USB DAQ Inexpensive and Easy Connection No Signal Conditioning Capability PXI DAQ System High Resolution/High Sampling Rate High Cost Signal Conditioning Capability PCI DAQ Board Moderate Resolution & Sampling Rate Moderate Cost Signal Conditioning Capability Technology Selected: PCI DAQ Board

20. Technology Considerations (3/4) Signal Conditioning No Signal Conditioning Less Cost Unable to interface directly with DAQ board Signal Conditioning Isolation requirements met for Stirrer Motor Control Easy interface with DAQ board Extra cost of Signal Conditioning Carrier Box Technology Selected: Signal Conditioning

21. Technology Considerations (4/4) Oxygen Concentration Meter Omega DOB-930 100 data point logging RS232 Interface Limited support and availability Thermo Electron Orion 3-Star 200 data point logging RS232 Interface 3-year Extended Warranty and availability up to 5 years Technology Selected: Thermo Electron Orion 3-Star

22. Detailed Design (1/8) Hardware Data Flow Configuration

23. Detailed Design (2/8) Oxygen Concentration Meter and Interface Thermo Electron Orion 3-Star Full Scale Measurement of Dissolved Oxygen (0-9.5 PPM) Interface Onboard RS232 Connection port for data acquisition Meter is configured to transfer data every 5 seconds to the PC Data is acquired using the onboard COM port of the computer supplied

24. Detailed Design (3/8) Mass Gas Flow Meter and Interface Omega FMA-5610 Full Scale Measurement of Gas Flow from 0 to 10 SLM Analog 0-5V Output Signal Interface 9-Pin D Connector: Pins 2-3 voltage output SCC-AI04 is used to isolate and condition the 0-5V signal SCC Module is plugged into the SCC Carrier for interface with the DAQ board

25. Detailed Design (4/8) Signal Conditioning Carrier Unit SCC Carrier SC-2345 Direct Cabling to the M-Series DAQ Board Housing for up to 20 SCC Modules Powered by DAQ Board with 5V Signal Interface Connects to the DAQ board via a 68 pin shielded connector cable

26. Detailed Design (5/8) Stirrer Motor Control and Interface Glas-Col GKH-Stir Tester Two analog voltage outputs (0-5V) Operates with a floating ground at 70-90V 60V fast transient spikes on voltage lines Interface 4 pin terminal connection (Differential Voltage) SCC-AI04 is used to isolate the analog input up to 300V Voltages are measured differentially to protect against transient spikes SCC Module is plugged into the SCC Carrier to interface with the DAQ board

27. Detailed Design (6/8) Data Acquisition Card NI PCI-6221 M-Series DAQ Board 16 Analog Inputs, 2 Analog Outputs, 24 Digital I/O Lines, 2 Counters/Timers 16 Bit Resolution – Accuracy of 70μV Sampling Rate: 250 kilo-samples/sec Interface Connects with the Signal Conditioning Carrier via the 68 pin shielded cable Supplies internal clock for data acquisition of signals 6 Channels of analog inputs are used for acquiring mass gas flow, torque, and speed Automatic VI’s in LabVIEW define the operation of the DAQ card

28. Detailed Design (7/8) Software Design and Implementation

29. Detailed Design (8/8) Software Interface

30. Implementation Activities Determined scaling of devices for proper measurement Determined proper connection for obtaining stirrer motor control data –No documentation –Contacted manufacturer and obtained more information –Used multimeter to determine correct wiring Added multiple tab data writing after obtaining beta testing feedback

31. Testing Activities Team Testing –Individual unit testing –Overall GUI functionality testing Beta Testing –Student testing with actual laboratory experiments –Four groups of students tested –Surveys filled out by each group –Changes applied from feedback: Experiment data on a new worksheet in an Excel file

32. Resources Personnel Hours

33. Resources Other Resources Oxygen Concentration Meter$1500 Data Acquisition Unit$400 Signal Conditioning Unit$700 Cables$130 Project poster$20 Total$2750

34. Resources Financial Resources Labor Costs$9156 Other Resources$2750 Total $11906

35. Schedule

36. Project Evaluation (1/2) Technology Research and Selection –100% Completed Design –100% Completed Implementation –100% Completed Testing –100% Completed Documentation –100% Completed

37. Project Evaluation (2/2) Legend: Greatly Exceeded (1.1) – Minimum expectations were met with the addition of several extra features Exceeded (1.0) – Minimum expectations were met with the addition of one or more extra features Fully Met (0.9) – Minimum expectation were met Partially Met (0.5) - Some of the minimum expectations were met Not Met (0.0) – None of the minimum expectations were met With a score above 90%, the project has fully met and exceeded all expectations Making the project a complete success

38. Commercialization Project was not designed to be commercialized With small software changes the system would be extendable to collect data from similar or newer equipment

39. Future Recommendations Total automation of the system via computer controlled laboratory equipment –Current system would allow for computer control following software changes –Dependent upon client preference

40. Lessons Learned (1/4) Client relationship Time management –Project completed earlier than expected –Beta testing occurred early, allowed for more changes Advisor Advice Successes

41. Incorrect SCC module purchased initially Stirrer motor control pin out Lessons Learned (2/4) Setbacks

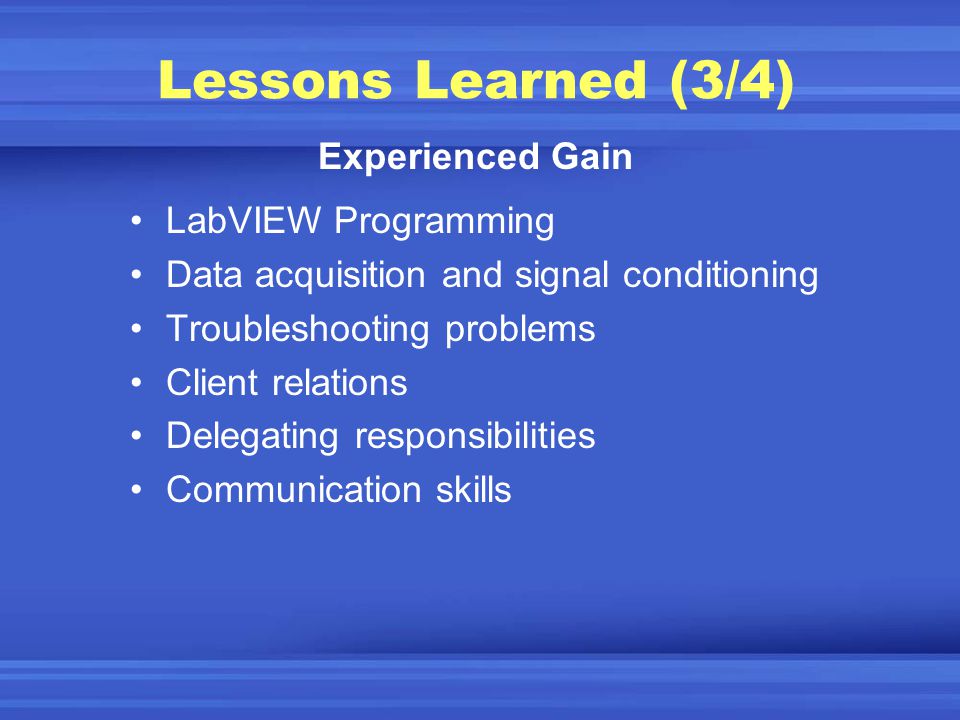

42. LabVIEW Programming Data acquisition and signal conditioning Troubleshooting problems Client relations Delegating responsibilities Communication skills Lessons Learned (3/4) Experienced Gain

43. More research into each piece of equipment Obtain better LabVIEW reference Lessons Learned (4/4) What we would do differently

44. Risk and Risk Management Equipment damage –Broken vessel overcome by team –Replacement ordered by client Wrong module purchase –Initial mass gas flow module wrong input –Used stirrer motor control module during development Team member loss –No team member lost during duration of project Human injury –Standard safety procedures are followed by team while working in Sweeney lab

45. Closing Remarks Students collected by pencil and paper data from each laboratory equipment every 10-15 seconds An automatic data collection system was successfully created using data acquisition and LabVIEW software Users can view real-time data, and do further analysis with electronically saved data

46. Demonstration

47. Questions?
