1. Testing the.NET Message Sample SilkPerformer 2009

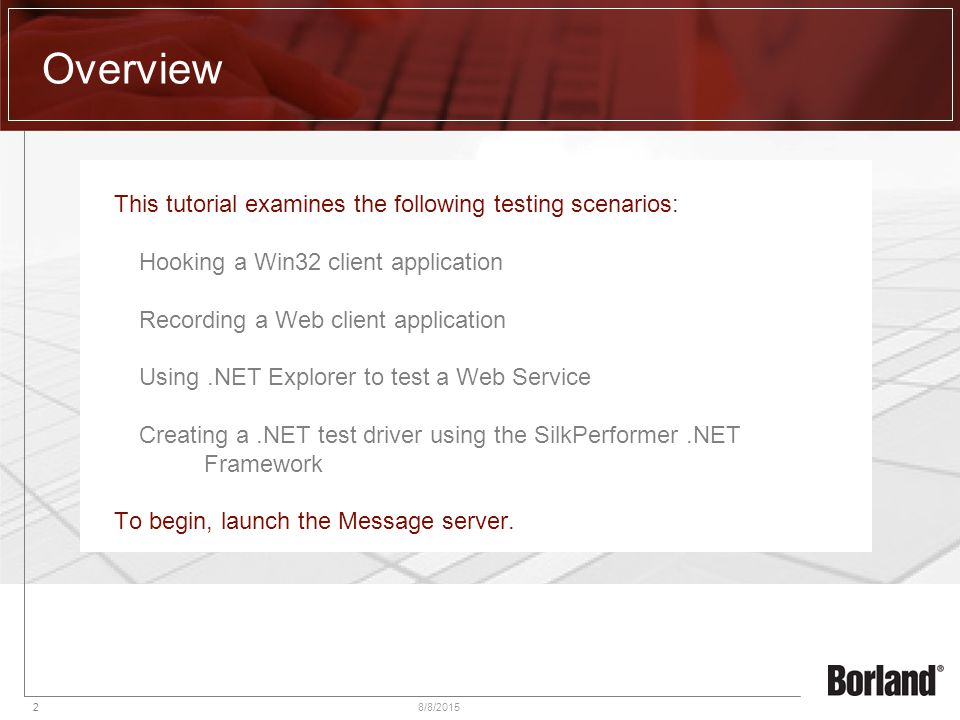

2. 28/8/2015 Overview This tutorial examines the following testing scenarios: Hooking a Win32 client application Recording a Web client application Using.NET Explorer to test a Web Service Creating a.NET test driver using the SilkPerformer.NET Framework To begin, launch the Message server.

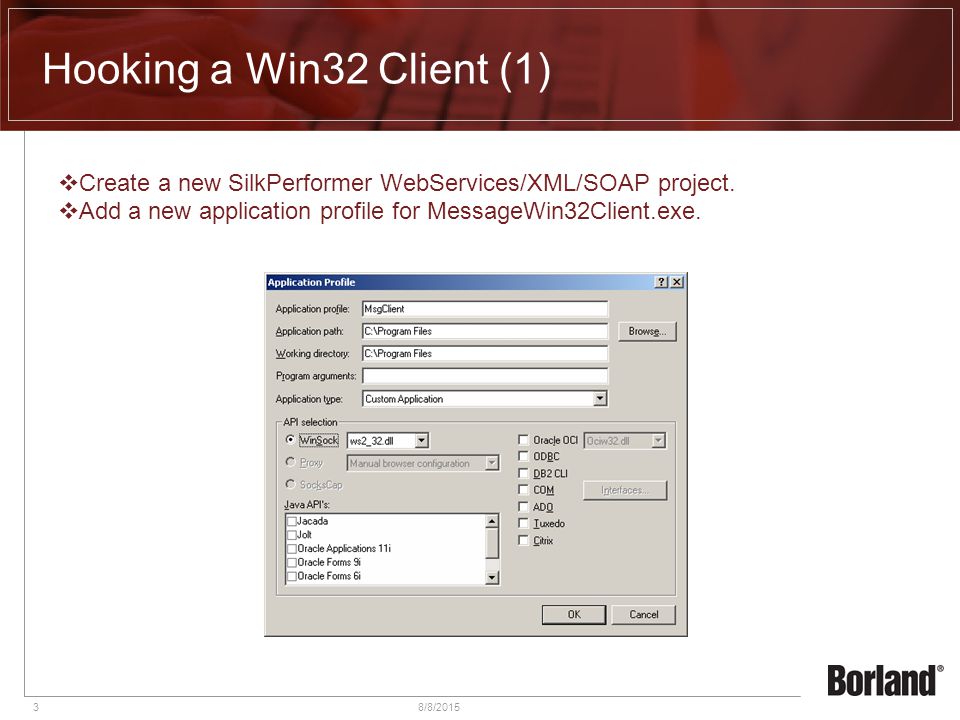

3. 38/8/2015 Hooking a Win32 Client (1)  Create a new SilkPerformer WebServices/XML/SOAP project.  Add a new application profile for MessageWin32Client.exe.

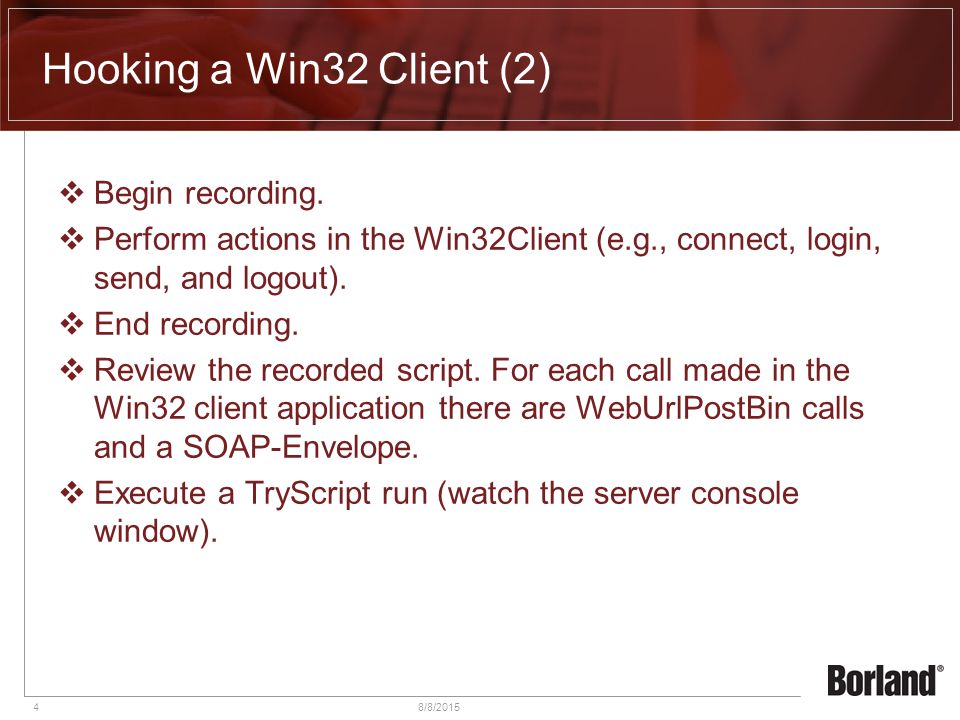

4. 48/8/2015 Hooking a Win32 Client (2)  Begin recording.  Perform actions in the Win32Client (e.g., connect, login, send, and logout).  End recording.  Review the recorded script. For each call made in the Win32 client application there are WebUrlPostBin calls and a SOAP-Envelope.  Execute a TryScript run (watch the server console window).

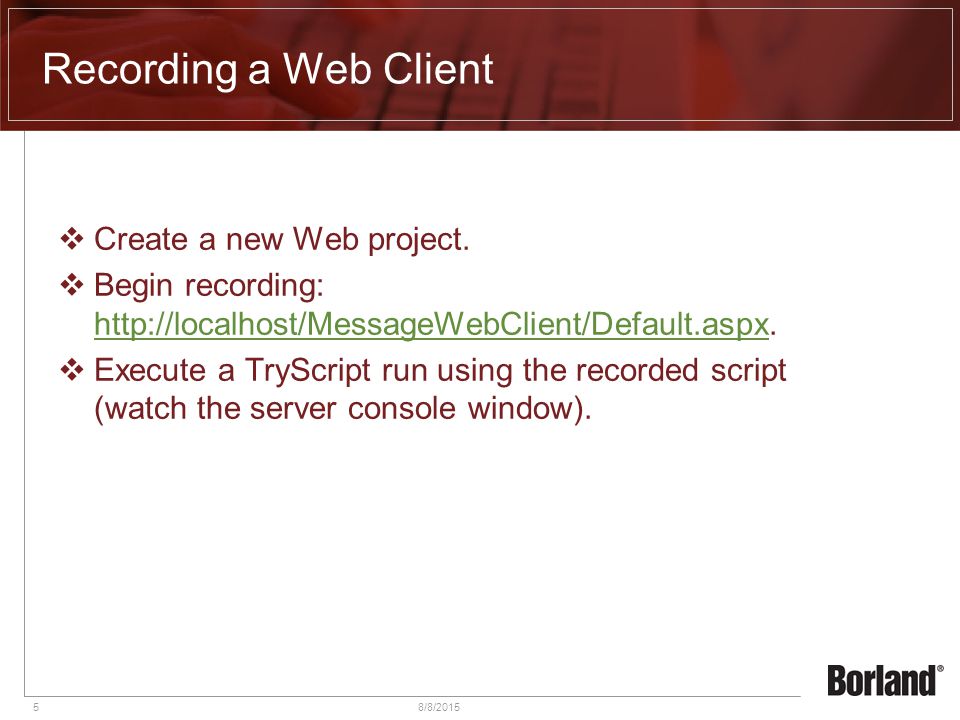

5. 58/8/2015 Recording a Web Client  Create a new Web project.  Begin recording: http://localhost/MessageWebClient/Default.aspx. http://localhost/MessageWebClient/Default.aspx  Execute a TryScript run using the recorded script (watch the server console window).

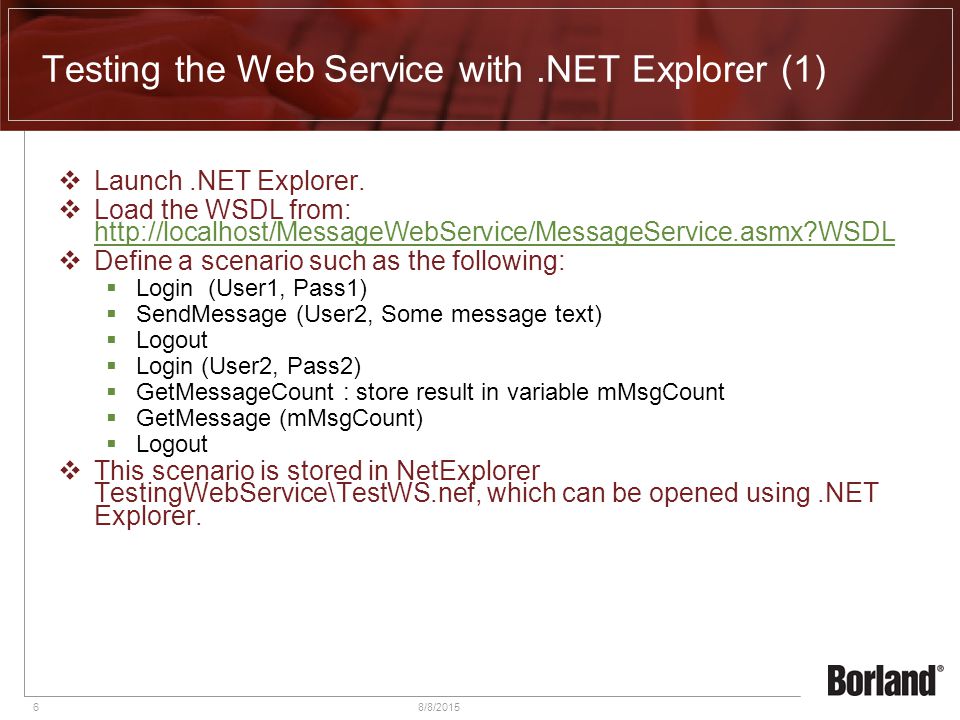

6. 68/8/2015 Testing the Web Service with.NET Explorer (1)  Launch.NET Explorer.  Load the WSDL from: http://localhost/MessageWebService/MessageService.asmx?WSDL http://localhost/MessageWebService/MessageService.asmx?WSDL  Define a scenario such as the following:  Login (User1, Pass1)  SendMessage (User2, Some message text)  Logout  Login (User2, Pass2)  GetMessageCount : store result in variable mMsgCount  GetMessage (mMsgCount)  Logout  This scenario is stored in NetExplorer TestingWebService\TestWS.nef, which can be opened using.NET Explorer.

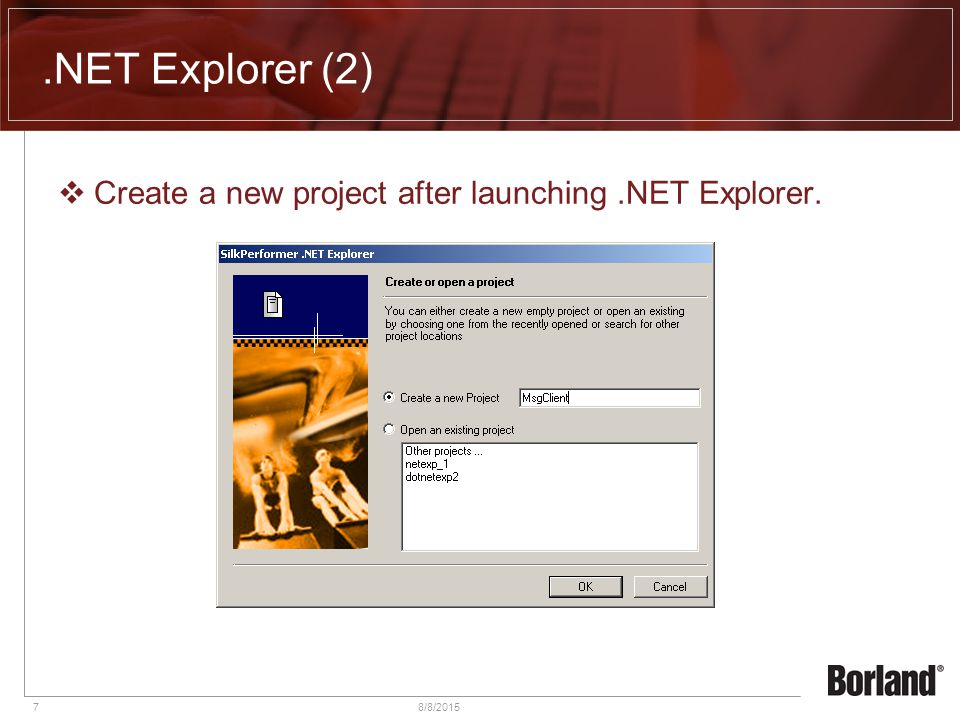

7. 78/8/2015.NET Explorer (2)  Create a new project after launching.NET Explorer.

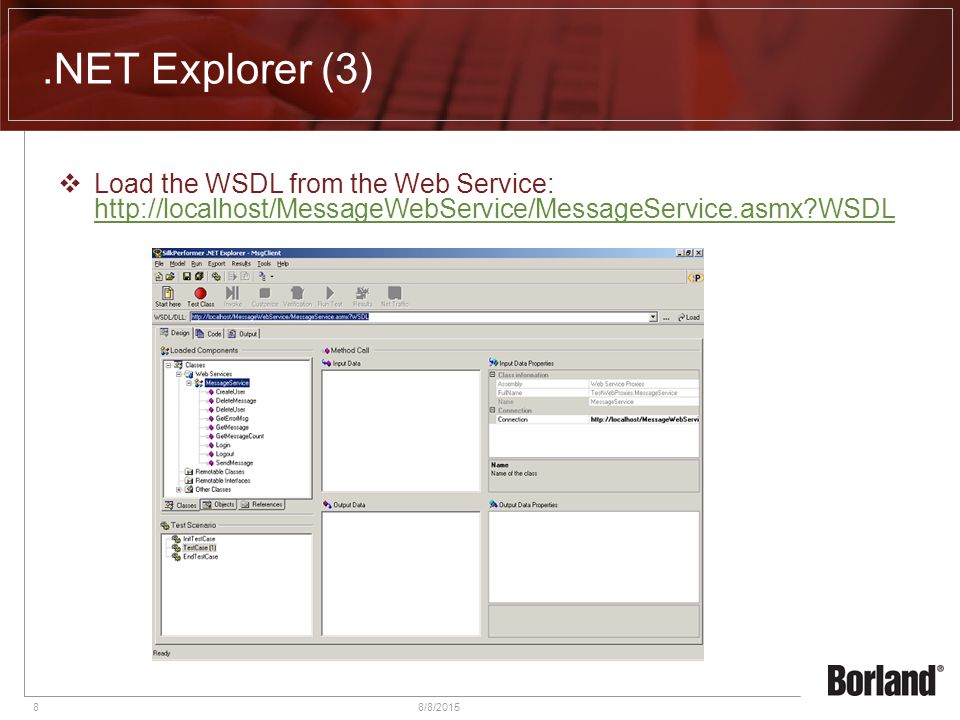

8. 88/8/2015.NET Explorer (3)  Load the WSDL from the Web Service: http://localhost/MessageWebService/MessageService.asmx?WSDL http://localhost/MessageWebService/MessageService.asmx?WSDL

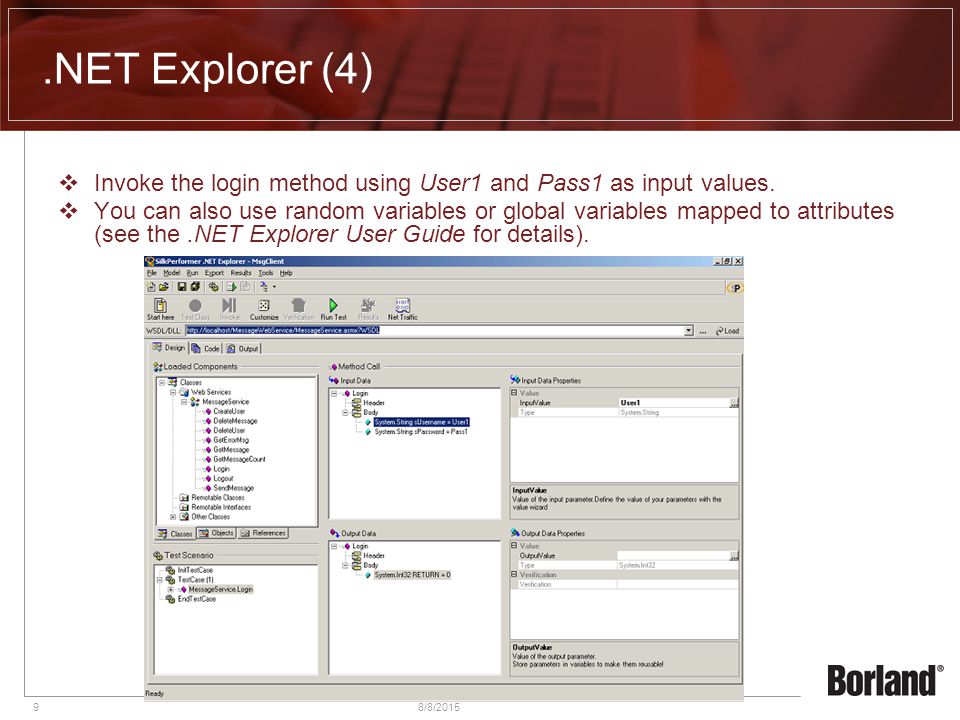

9. 98/8/2015.NET Explorer (4)  Invoke the login method using User1 and Pass1 as input values.  You can also use random variables or global variables mapped to attributes (see the.NET Explorer User Guide for details).

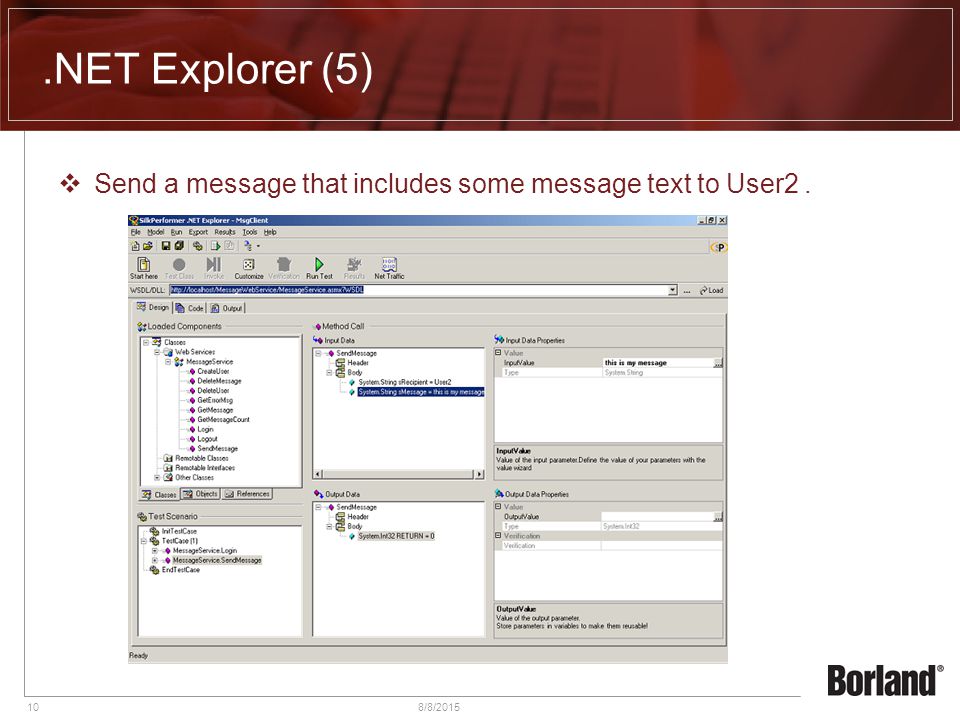

10. 108/8/2015.NET Explorer (5)  Send a message that includes some message text to User2.

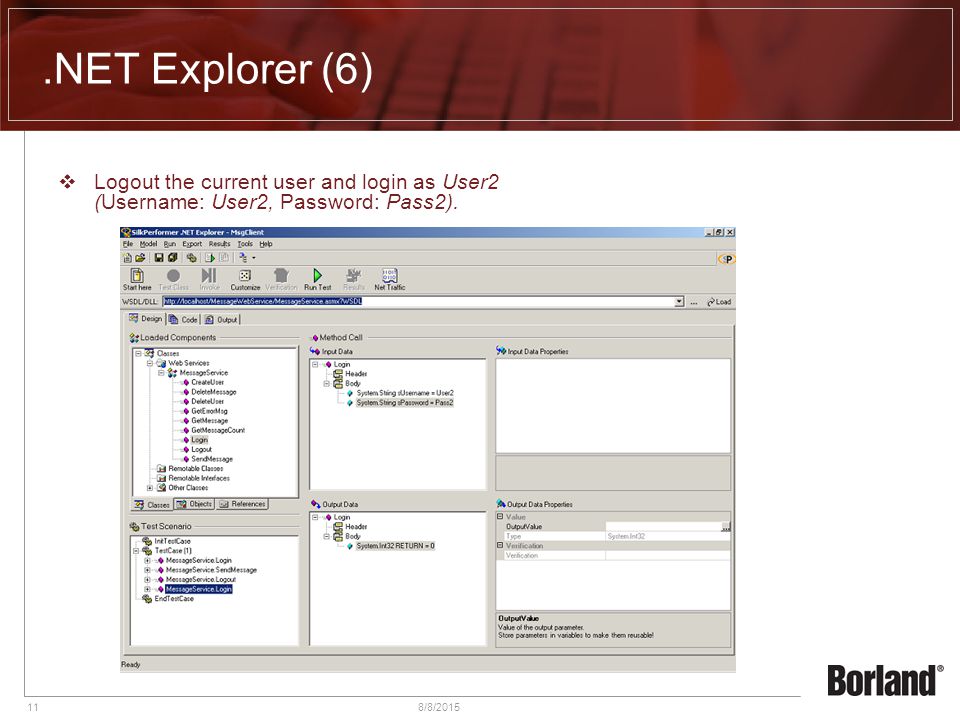

11. 118/8/2015.NET Explorer (6)  Logout the current user and login as User2 (Username: User2, Password: Pass2).

12. 128/8/2015.NET Explorer (7)  Invoke GetMessageCount and store the result in a variable called mCount.

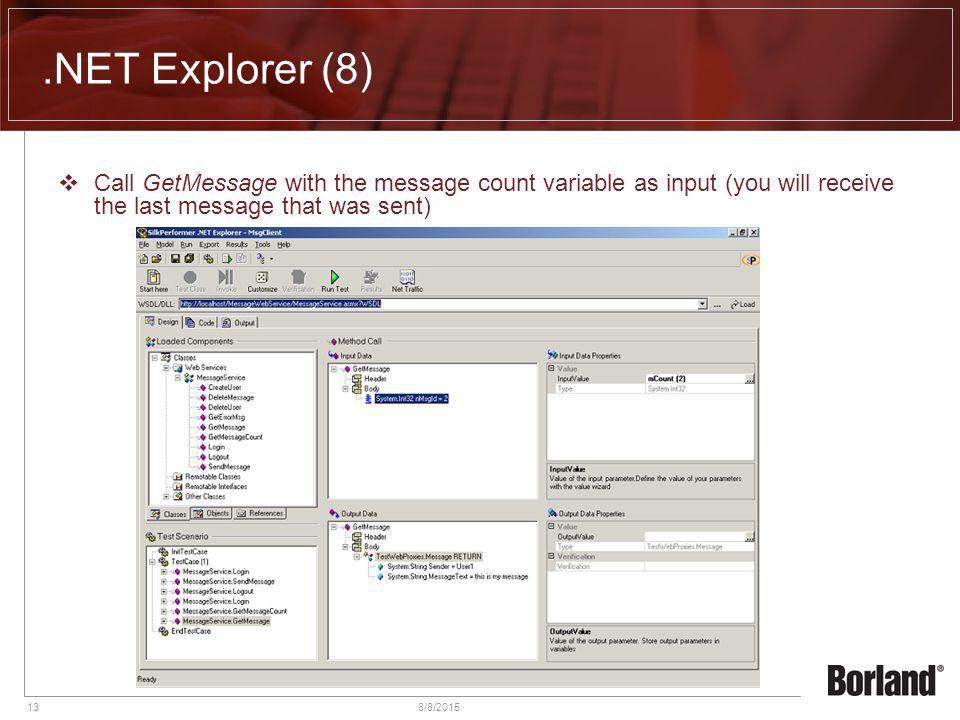

13. 138/8/2015.NET Explorer (8)  Call GetMessage with the message count variable as input (you will receive the last message that was sent)

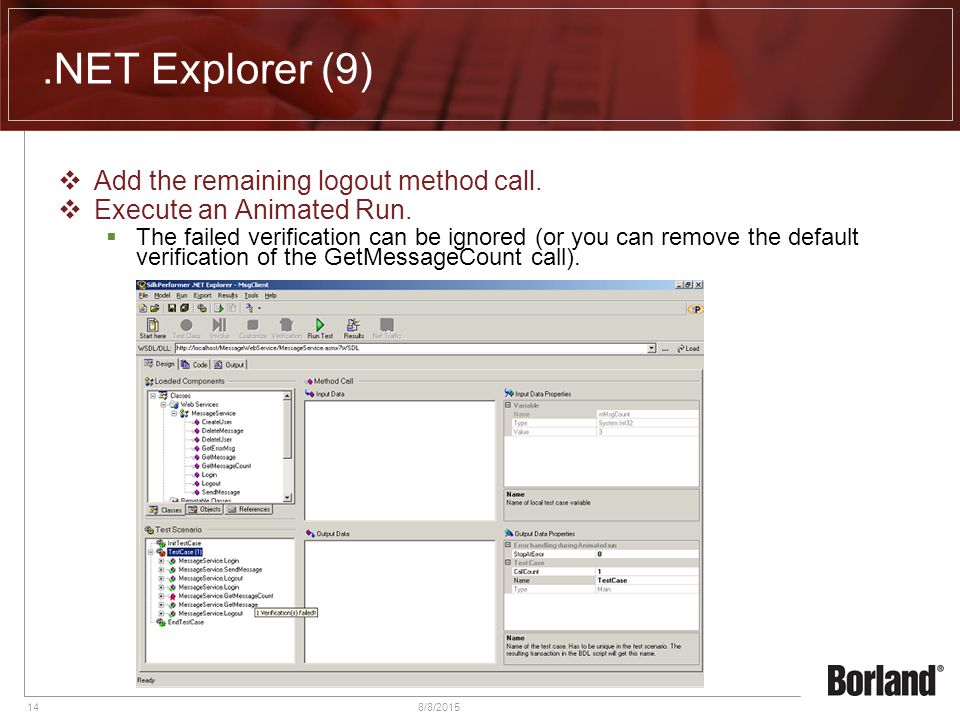

14. 148/8/2015.NET Explorer (9)  Add the remaining logout method call.  Execute an Animated Run.  The failed verification can be ignored (or you can remove the default verification of the GetMessageCount call).

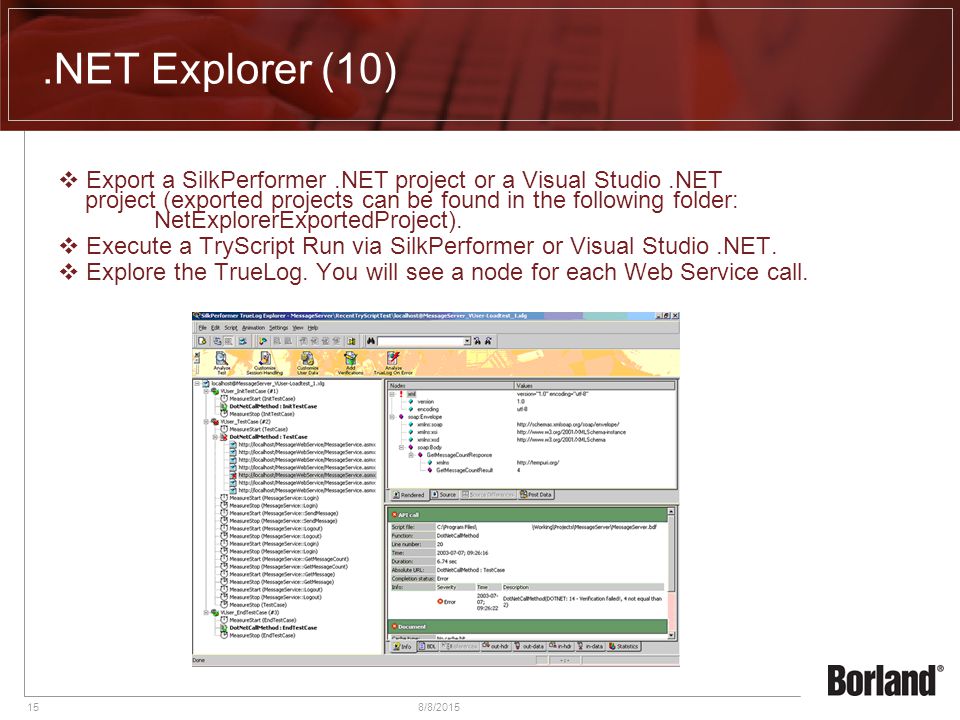

15. 158/8/2015.NET Explorer (10)  Export a SilkPerformer.NET project or a Visual Studio.NET project (exported projects can be found in the following folder: NetExplorerExportedProject).  Execute a TryScript Run via SilkPerformer or Visual Studio.NET.  Explore the TrueLog. You will see a node for each Web Service call.

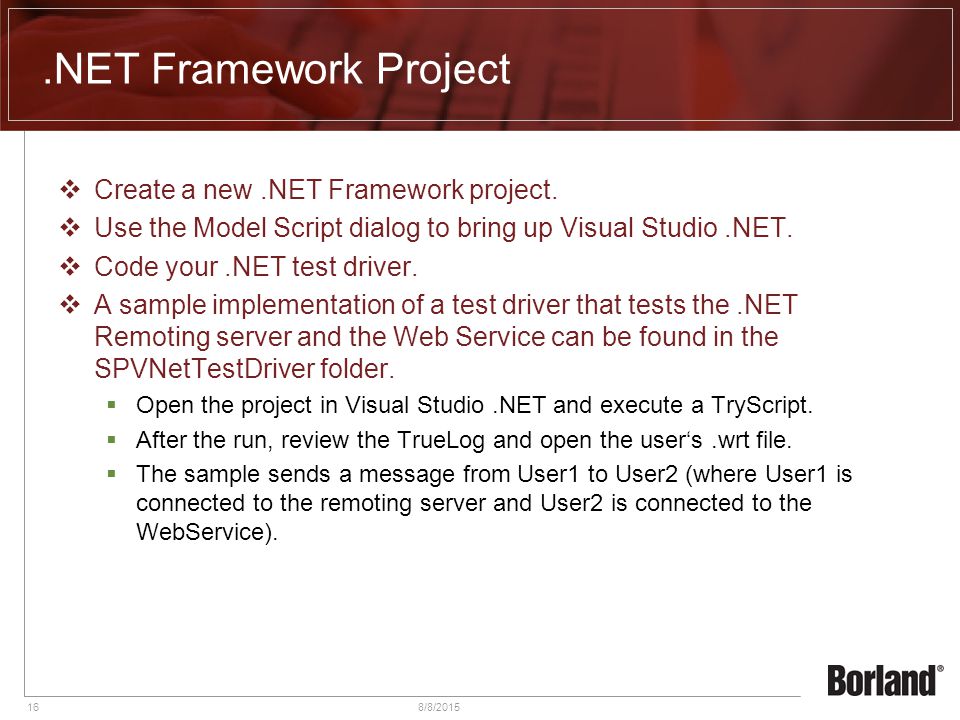

16. 168/8/2015.NET Framework Project  Create a new.NET Framework project.  Use the Model Script dialog to bring up Visual Studio.NET.  Code your.NET test driver.  A sample implementation of a test driver that tests the.NET Remoting server and the Web Service can be found in the SPVNetTestDriver folder.  Open the project in Visual Studio.NET and execute a TryScript.  After the run, review the TrueLog and open the user‘s.wrt file.  The sample sends a message from User1 to User2 (where User1 is connected to the remoting server and User2 is connected to the WebService).
