1. Risk Management & Business Continuity Management
Ir. Paul Olivier
Group manager Vinçotte Certification
Faculty Antwerp Management School

2. The standards
ISO 31000: 2009 Risk management-Principles and guidelines.
ISO 31010: Risk management- Risk assessment guidelines

3. Part 1
ISO 31000
Risk Management
RA process & RM system

4. ISO 31000: Introduction RM enables the organization to:
Increase the likelyhood of achieving objectives
Improve the identification of opportunities and threats
Improve governance
Improve stakeholder confidence and trust
Improve loss prevention and incident management
Improve organizational resilience

5. ISO 31000 Risk management The 5 chapters
Scope
Definitions
Principles
The system of risk management (organizational framework)
The risk management process

6. ISO 31000: Definitions 1 see ISO Guide 73:2009
Risk = uncertainty on objectives, is a combination of likelihood(*) and consequence of an event
Risk assessment = the overall process of risk identification, risk analysis and risk evaluation
Risk attitude = organization’s approach to assess and pursue, retain, take or turn away from risk
(*) likelihood: chance of something happening, probability is interpreted as a mathematical term

7. ISO 31000: Definitions 2 see ISO Guide 73:2009
Risk treatment = process to modify risks (avoid, remove, change likelihood, change consequence, share risk wiht other parties, retain
Residual risk = risk remaining after treatment
Risk management coordinates activities to direct and control an organization with regard to risk

8. ISO 31000 Risk management Chapter 4: RM System
How to insert RM in your organization?
Chapter 5:
RM Process
What process steps does RM contains?
Chapter 3: Principles

9. Part 1.1: ISO 31000: Risk Assessment Process

10. ISO 31000: RA Process 1. Risk identification
Establish a comprehensive (exhaustive?) list of risks that may create, enhance, prevent, degrade, accelerate or delay the achievement of goals
Create the Risk Register
Consider the interdependence of different risks and their sources

11. 2. Understanding the organization and its context
External
The social, cultural, political, legal, regulatory, financial, technological, economical, natural and competitive environment, whether international, national, regional or local
Key drivers and trends having impact on organization objectives
Relationships with, preceptions and values of external stakeholders
Internal
Governance, policies, objectives, capabilities, knowledge, processes, information, culture, models, contractual relationships,...

12. Ferma risk management norm 2003
(Federation of european risk management associations)

15. Risk register: List of hazards n° 5061/2005 EZU Strategic risks
Current business
Dependencies on customer
Dependencies on suppliers
Change in attitudes, needs of customer
Unavailability of resources (raw material,..)
Future business
Product specifications ( inadequate perfomance caracteristics)
Product development (development phases inadequate)
Environmental changes
Modifications in laws & regulations
Political change (instability of government)
Modifications of individual rights
Acquisitons
Cultural affinity
Information & mgt tools
Financial burdens (lawsuits, insurance contracts, pension schemes,..)
Image and brand
Brand loses emotion
Human rights problem
Ecological problem

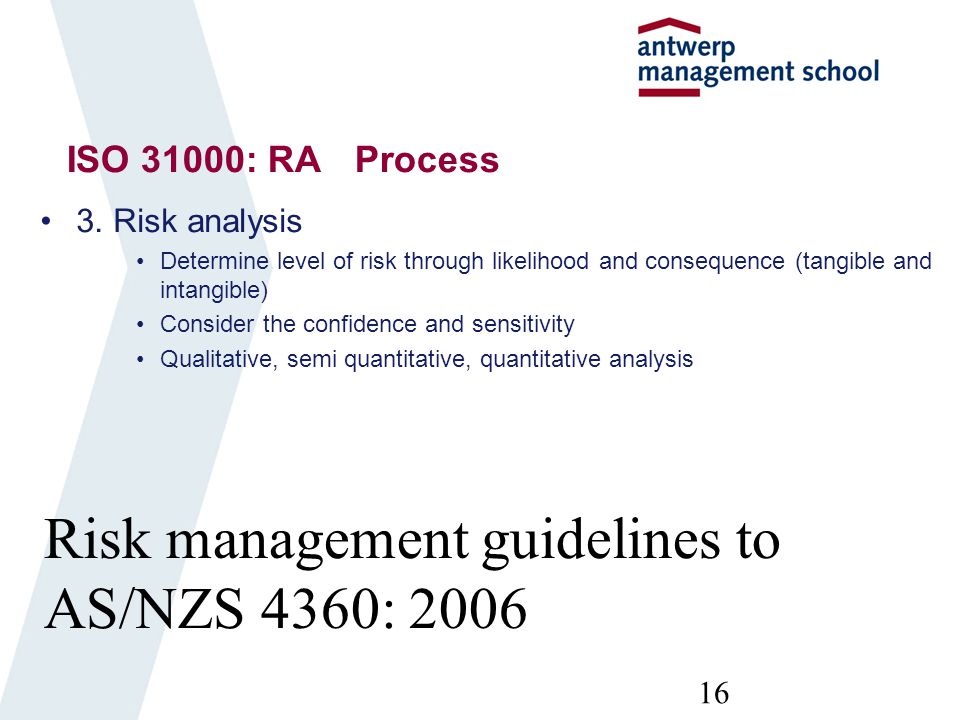

16. Risk management guidelines to AS/NZS 4360: 2006
ISO 31000: RA Process
3. Risk analysis
Determine level of risk through likelihood and consequence (tangible and intangible)
Consider the confidence and sensitivity

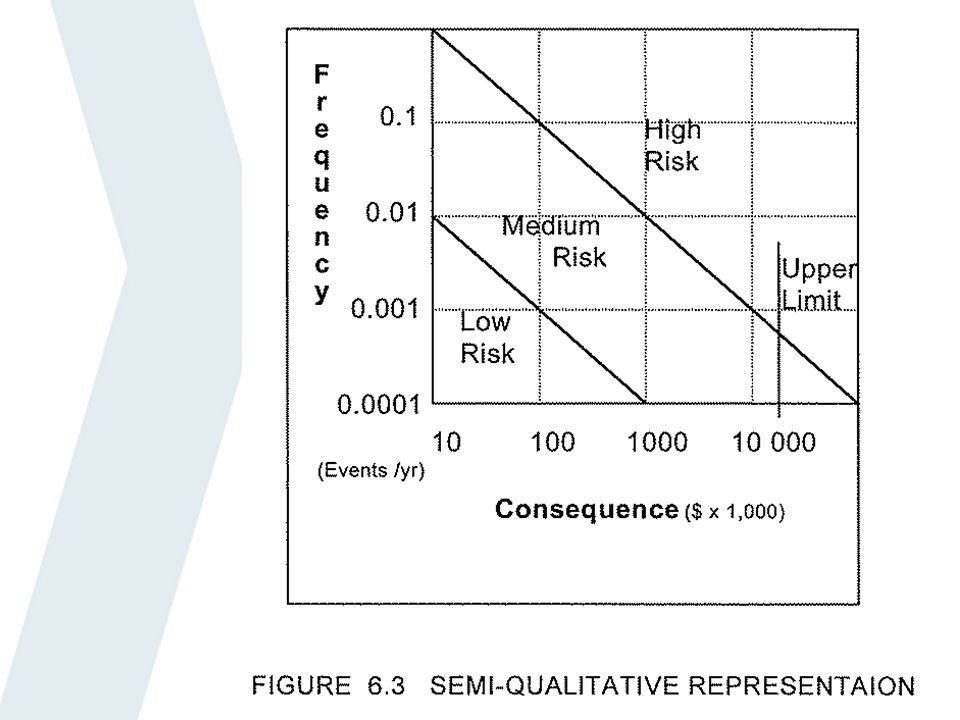

Qualitative, semi quantitative, quantitative analysis
Risk management guidelines to AS/NZS 4360: 2006

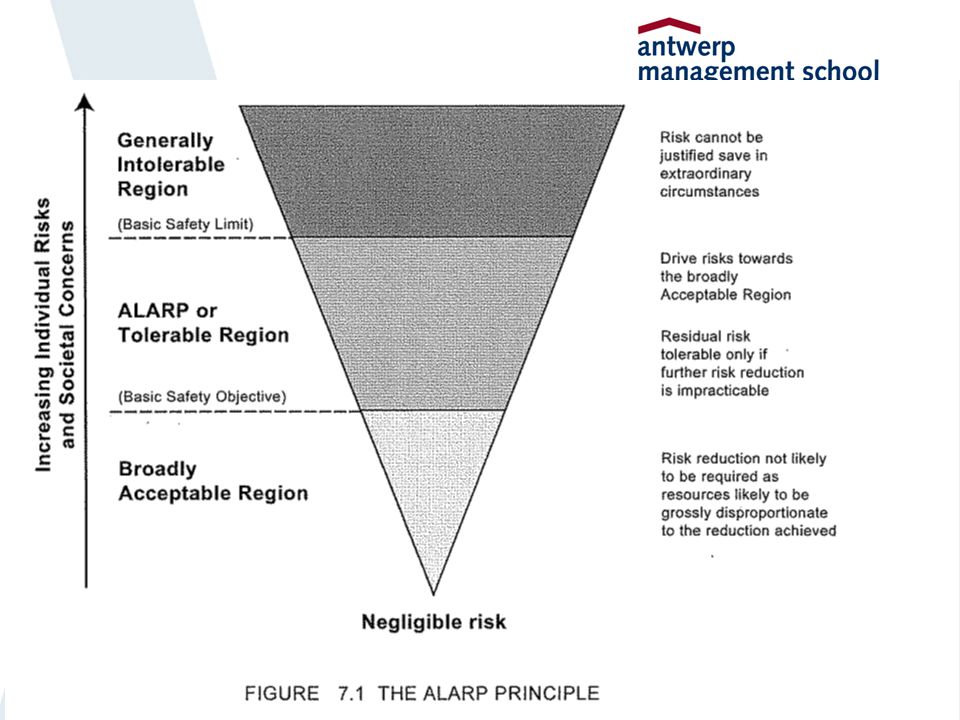

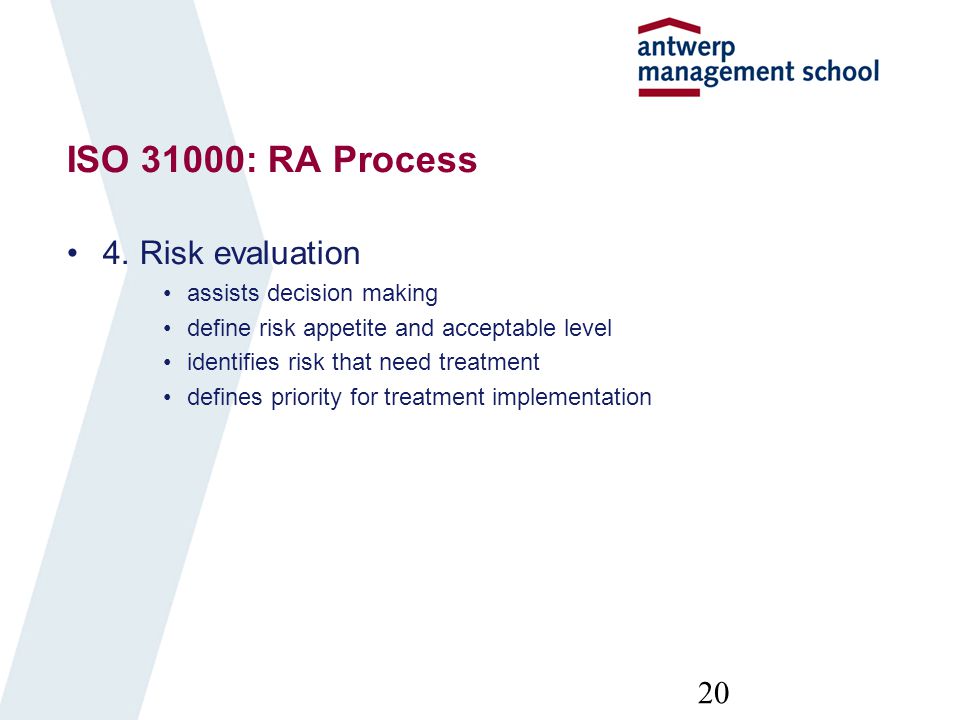

20. ISO 31000: RA Process 4. Risk evaluation assists decision making
define risk appetite and acceptable level
identifies risk that need treatment
defines priority for treatment implementation

26. ISO 31000: RA Process 5. Risk treatment (cyclical process)
Generate controls and decide whether residual risks are tolerable, if not generate new controls
Risk treatment options
Retain risk by informed decision
Avoid risk by not starting the activity
Reduce risk by:
Removing risk source
Reducing consequence
Reducing likelihood
Share or transfer risk

27. Part 1.2: ISO 31000: RM System (Framework)

28. 4.3.2. Establishing the RM policy
ISO 31000: RM Framework
Establishing the RM policy
State the RM rationale (RAM) and define the acceptance levels in probability and consequence (risk appetite).
Accountability
Define risk manager and risk owners
Integration into organizational processes
Insert the notion risk in all decision processes
Resources
Information and knowledge mgt systems
Internal communication and reporting
External communication and reporting

29. Business Continuity Management
Part 2
BS 25999
Business Continuity Management
BC process & BC system

30. The standards
BS : Business continuity management-Part 1: Code of practice
BS :2007: Business continuity management-Part 2 : Specifications

31. BS 25999-2: 2007 BCM The 6 chapters Scope Terms & definitions
Planning the business continuity management system (PLAN)
Implementing and operating the BCMS (DO)
Monitoring and reviewing the BCMS (CHECK)
Maintaining and improving the BCMS (ACT)

32. BCM safeguards interests of stakeholders, brand, business
BS 25999: Scope
More interdependancies in the supply chain
BCM safeguards interests of stakeholders, brand, business
BCM builds resilience for effective response
Certification possible

33. BS 25999: Definitions
BCMS = system which provides resilience and the capability for effective response to safeguard the interests of key stakeholders, reputation, brand and value creating acitivities
BIA = business impact analysis, process of analysing business functions and the effect that business disruption might have upon them
IMP = incident management plan, plan of action during the incident
BCP = business continuity plan, procedures for use in an incident to enable the organization to continue to deliver its critical activities at an acceptable predefined level

34. BCM & incident preparednessRM
BCM

35. Part 2.1 BS 25999: BCMS Process

36. BS 25999 : BCM Process 1. Understanding the organization
RA (Risk Assessment) (4.1.2)
Understand the threats and vulnerabilities
Identify the threats that become an incident and causes business disruption
Establish the likelihood of a disruption
Choose appropriate risk treatments in accordance to its level of risk acceptance

37. BS 25999 : BCM Process 1. Understanding the organization
BIA (Business Impact Analysis) (4.1.1)
Define critical processes, services, products, installations, premisses, persons, customers, supliers, supply sources for survival of the business
Determine the impact of any disruption of the business,
Establish MTPoD (maximum tolerable period of disruption)
Estblish minimum level of business reponse
Identify all dependencies with suppliers and outsource partners
Set RTO (recovery time objectives)

43. BS 25999 : BCM Process 2. Develop response IMP (incident management plans)
Identify lines of communications
Define roles and responsibilities during and after the incident (who and how to start IMP and who and how to stop IMP)
Crisis command center (and alternatives) with access to TV, GSM, critical docs, press, internet
Details of key stakeholders, emergency services, employees and relatives
Media response organization
Technical response (what actions ifo time), prevention of further loss
Crisis log of the incident

44. BS 25999 : BCM Process 3. Determine strategy BCP (business continuity plans)
Premisses: forsee alternative locations, work from home, rent new premisses, go to low wage countries
People: introduce extra shifts in other production locations
Technology: emergency replacement of installations or spares, outsource, split production, geographical spread, upgrade to new technology
Information: go to external IT site, convert to PC network, go to call centers, use gsm network or smart phones, back up or critical docs,
Suppliers: extra storage, supplier with JIT contract to fulfill key customer’s contract
Other stakeholders: forsee crisis communication, psychologic assistance
Civil emergencies: contacts with civil protection, emergency services

45. BS 25999 : BCM Process 4. Exercise, maintain and review
Exercise programme approved by top mgt
Post exercise review, written report on exercise
Exercises (document check, technical functionality test, theoretical exercise or dry test, practical test)

46. Part 2.2. BS 25999: BCM System (Framework)

47. BS 25999: Framework Chapt 3: Planning BCMS
3.2. establish and manage system
Define objectives of BCMS
Establish BCM policy
Provide resources
Ensure competency of personnel
3.3. Embed BCM in the organization’s culture
3.4. Provide documentation & records

48. BS 25999 Framework Chapt. 4: Implementing & operating BCM process
4.1. Understanding the organization (BIA & RA)
4.2. Determining the business continuity strategy
4.3. Developing and implementing a BCM response
4.4. Exercising, maintaining and reviewing BCM arrangements

49. BS 25999: Framework Chapt. 5: Monitoring & reviewing the BCMS
5.1. Internal audit
5.2. Management review
Review after significant changes
Post exercise review, written report on exercise

50. BS 25999 Framework Chapt. 6: Maintaining & improving the BCMS
6.1. Preventive and corrective actions
6.2. Continual improvement

51. Part 2.3. Certificatie criteria BCM proces
Risk Register
Risk Map

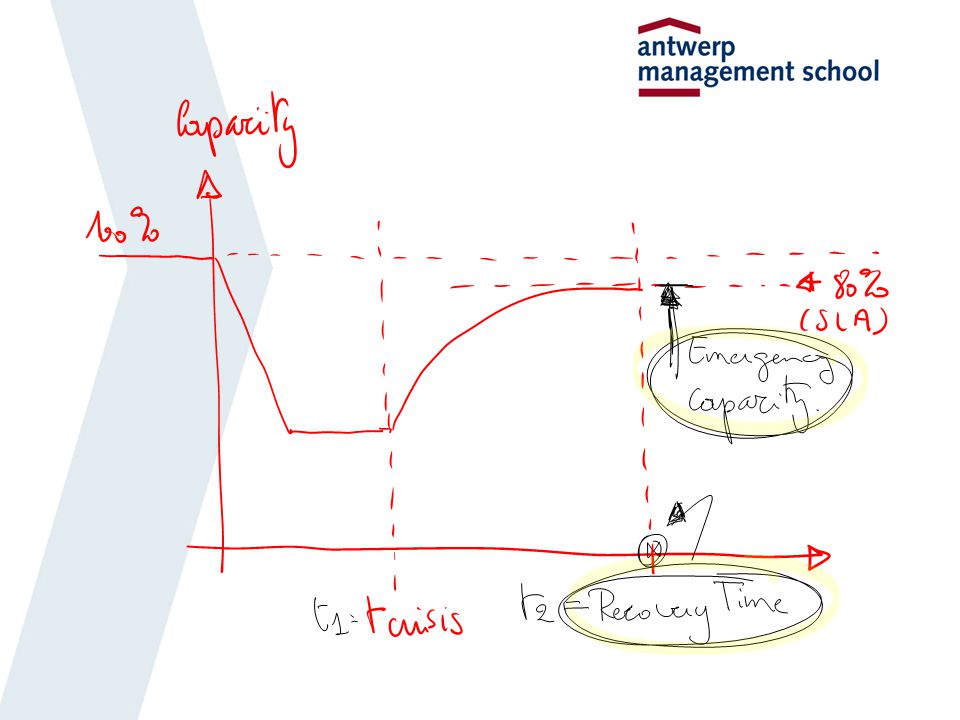

BCM curve

52. Certificatie criteria BCM proces
Risk Register
Risk Map
BCM curve

53. Certificatie criteria BCM proces
Risk Register
Risk Map
BCM curve

54. Certificatie criteria BCM System
PLAN
Policy
RM mgr & jobdescription DO
Implement RM proces (new decisions, changes)
RM communication (reporting)
RM training
CHECK
RM audit
ACT
RM mgt review

55. Part 3
PAS 55-1
Asset Management
AM process & AM system

56. The standards PAS 55-1:2008 Asset management
Part 1: Specification for the optimized management of physical assets

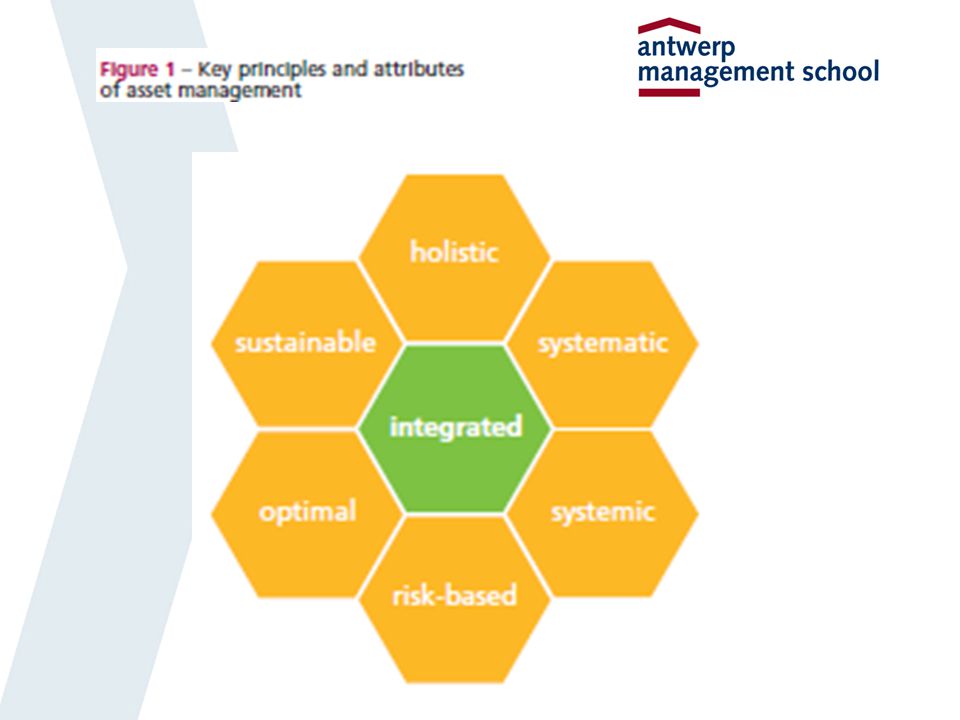

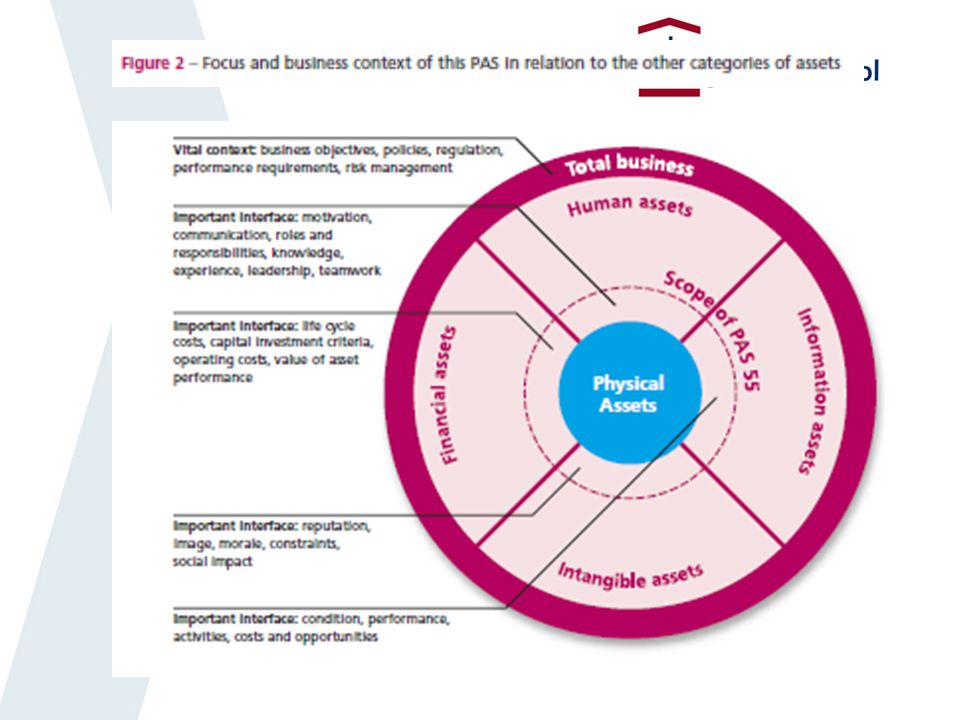

57. Introduction
PAS is specifically intended to cover the life cycle management of the assets and, in particular, the assets that are core to an organization’s purpose, such as utility networks, power stations, railway or road systems, oil and gas installations, manufacturing and process plants, buildings and airports
optimize the combination of assets in accordance with their life cycle, criticalities, condition, performance and chosen risk profile of the organization

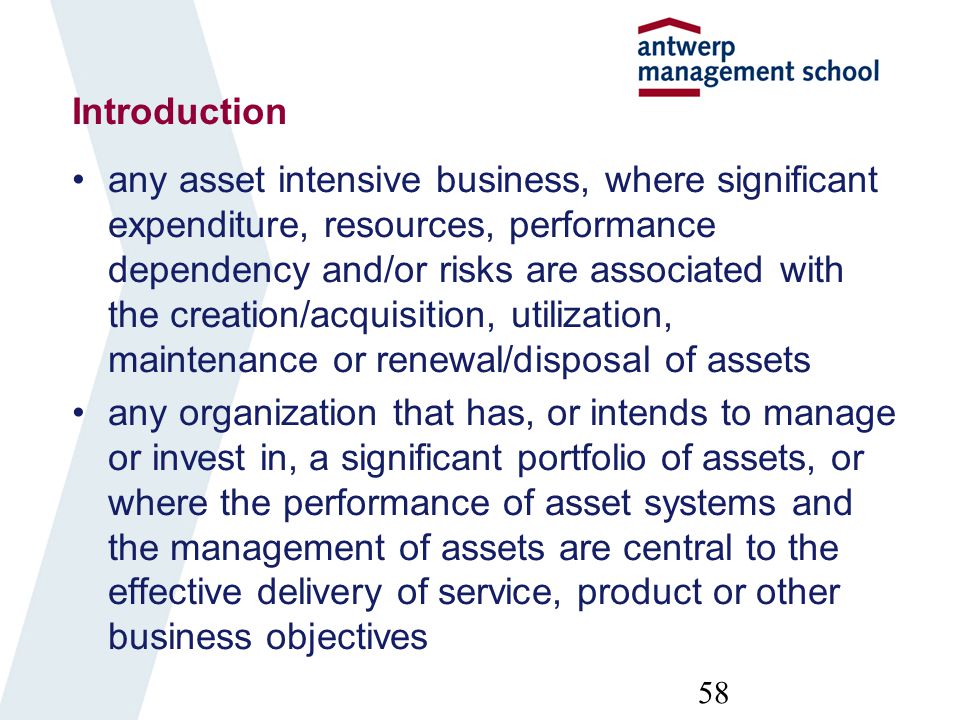

58. Introduction
any asset intensive business, where significant expenditure, resources, performance dependency and/or risks are associated with the creation/acquisition, utilization, maintenance or renewal/disposal of assets
any organization that has, or intends to manage or invest in, a significant portfolio of assets, or where the performance of asset systems and the management of assets are central to the effective delivery of service, product or other business objectives
