1. Deep neck space infections

2. fascial compartments of the neck
Superficial cervical fascia
Deep cervical fascia
superficial, middle, and deep layers.
The superficial (investing) layer of the deep cervical fascia invests the sternocleidomastoid, trapezius, strap muscles, parotid and submandibular
The middle (visceral) layer surrounds the thyroid gland, esophagus and trachea.
The deep layer of the deep cervical fascia splits into prevertebral and alar layers. The prevertebral layer lies immediately adjacent to the vertebral bodies .
All contribute to the carotid sheath so that infection of any layer may spread directly to involve the great vessels of the neck, which have direct communication to the chest.

3. catastrophy Carotid artery rupture has a 20-40% mortality rate.
Jugular vein thrombosis had a mortality rate of 60% prior to the use of antibiotics. Identifying this complication is essential. Osteomyelitis and vertebral erosion can cause subluxation and subsequent spinal cord injury. In older children and adults, the disease spreads directly into the fascial planes and is a more deadly
Mediastinitis has a 40-50% mortality rate secondary to sepsis. Acute necrotizing mediastinitis and purulent pericarditis with tamponade also can be fatal.

4. Anatomic Considerations
The most common sources of life-threatening soft tissue infections of the head and neck are the dentition and tonsils.
Most infections are polymicrobial and the responsible bacteria are often normal flora (Bacteroides, Peptostreptococcus, Actimomyces, Fusobacterium etc). that become virulent and invasive when normal barriers are broken (ie. tonsillitis, dental abscess, trauma).
Obligate anaerobes frequently outnumber the anaerobes.

5. iatrogenic
Deep space infections can be secondary to instrumentation of the upper respiratory tract.
Laryngoscopy
Endoscopy
Feeding tube insertion
Endotracheal intubation
Head and neck surgery
Dental procedures
Injections

6. parapharyngeal space
This space (also called the lateral pharyngeal space or pharyngomaxillary space) occupies a critical area in the neck, as it communicates with all other fascial spaces. It sits as an inverted cone with its base at the base of skull and apex at the hyoid bone.
It can be divided into anterior (prestyloid) and posterior (retrostyloid) compartments by the styloid process. The anterior compartment contains only fat, lymph nodes and muscle. The posterior compartment contains the carotid and internal jugular vessels, as well as cranial nerves IX through XII.

7. Parapharyngeal space Laterally parotid gland,parotid fascia,
medial pterygoid,mandible
Medially pharynx separated by sup.cons
Posteriorly communicates with retropharyngeal space
Superiorly base of skull,
Inferiorly sub mandibular gland fascia

8. Parapharyngeal space infection/abscess
It can spread from
Tonsillitis ,post tonsillectomy 60%
Dental infections lower last molars 35 %
Trauma
Communication with peritonsillar,retropharyngeal or submandibular space

9. causes Tonsillitis Peritonsillar abscess Dental infections
Mastoiditis rarely via petrous apex,digastric muscle sheath
Pharyngeal F.B

10. Clinical features Pain throat,difficult swallowing
Trismus , spasm of pterygoids
Pyrexia,malaise,
Painful external swelling in neck at the posterior part of middle third of sternomastoid
Swelling in retromolar region
Tonsil pushed medially
Last cranial nerves palsies
Parotid pushed laterally

11. CT scanning is the imaging modality of choice and is helpful in confirming which compartments are involved.

12. Treatment Systemic antibiotic
In complicated cases such as septic jugular vein thrombosis, several weeks of intravenous antibiotics may be required.
Incision and drainage
Vertical incision at the ant.border of scm
tracheostomy

13. Complications Acute laryngeal oedema
Septecimia and ijv thrombophelibitis
Mediastinitis
Spread to other spaces of neck

14. Retropharyngeal space
Lies between prevertebral and buccopharyngeal fascia
Extending from skull base to tracheal bifurcation
Continous below with sup.mediastinum and laterally with parapharyngeal space

15. Retropharyngeal space infection/abscess
Acute
in infants more than 50% due to lymphadinitis secondary to URTI
high grade temp
sore throat
head extension and neck stiffness
respiratory & feeding problems

16. Retropharyngeal space infection/abscess
Croupy cough
Muffled voice
Cervical lymphadenopathy
Smooth swelling on one side of post.ph.wall with airway impairement
May obstruct post.nares
May push the palate down
Infant spine short and larynx high

17. Causes:
predisposing infections pharyngitis, tonsillitis, otitis, adenitis, sinusitis, and nasal, salivary, and dental infections.
from contiguous spaces, such as the parapharyngeal space (eg, abscesses), submandibular space (eg, Ludwig angina), or prevertebral space (eg, osteomyelitis, diskitis).
secondary to penetrating trauma.
Running and falling down after putting something in their mouths (eg, toy, stick, popsicle, lollipop, toothbrush) is not unusual in children. Because parents may be unaware of these predisposing events

18. Age Almost exclusively a pediatric diagnosis.
Most incidents occur in children aged 6 months to 6 years, with a mean age of 3-4 years. Other deep neck abscesses (eg, parapharyngeal, peritonsillar) are observed more frequently in adults and older children.

19. Physical As many as 30% of patients have this mass
Most patients are febrile. Some appear toxic and irritable.
Cervical lymphadenopathy, usually unilateral, most common
decreased or painful range of motion of their necks or jaws.
A neck mass or tenderness may be appreciated.
may present with a muffled "hot potato" voice (ie, dysphonia) or with a voice that sounds like a duck quack (ie, cri du canard).
may be able to appreciate a mass in the posterior pharyngeal wall.
As many as 30% of patients have this mass
This is not midline,.
"Tracheal rock sign" elicits pain

20. Physical
Patients in respiratory distress or those who present with stridor or drooling have potential airway compromise.
These patients prefer to lie supine with their necks extended, maximizing their airway patency..
Address vascular complications in the physical examination.
Jugular vein thrombophlebitis may manifest as tender induration at the anterior sternocleidomastoid border, vocal cord paralysis, or sepsis of an unknown source.
Carotid artery rupture can be heralded by sentinel bleeding from the ear, nose, or mouth.

21. In Adults
Likely to be due to tuberculous infection of the cervical spine
Slow onset
Pharyngeal discomfort,some dysphagia
Cervical spine radiography
Look for associated infections

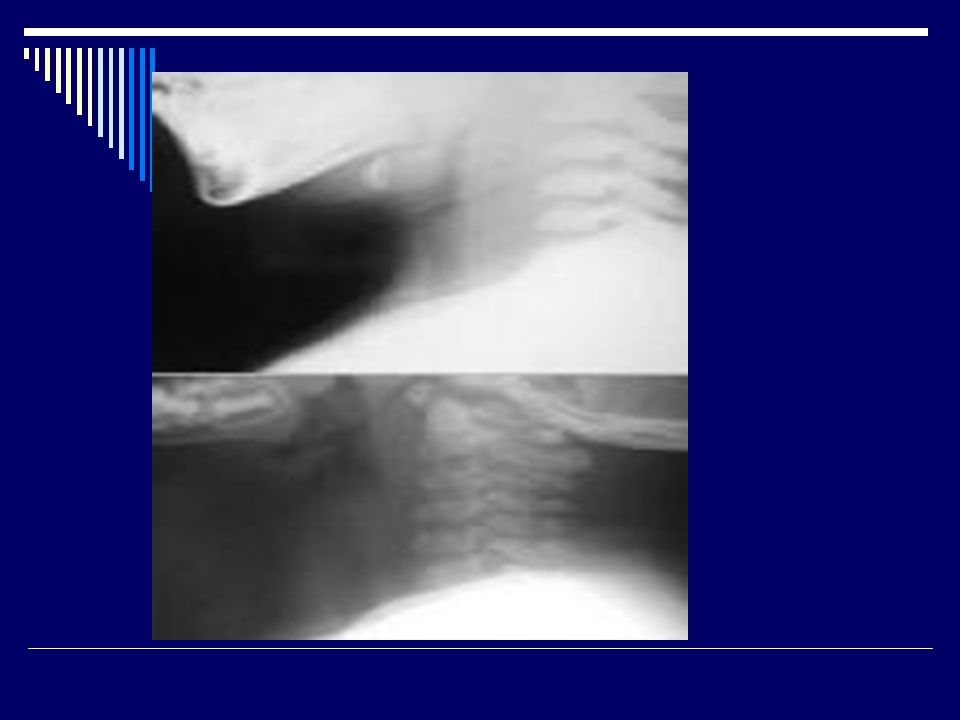

23. Imaging Studies A lateral soft tissue neck x-ray is helpful .
An abscess occupies the soft tissue space, which can be observed between the radiolucent airway (ie, pharynx, trachea) and the spine.
Widening of these soft tissues is pathologic until proven otherwise.

25. Ultrasound
An imaging modality that is gaining popularity. It is safer than CT scan, since it is portable and does not use radiation. Ultrasound is also less traumatic to children, requiring less frequent use of sedation.

26. CT scanning is currently the imaging modality of choice..
can be used to determine the presence of an abscess and help distinguish it from cellulitis (an abscess has a central area of lucency). also can assist in determining the location of the abscess, extent of abscess spread, and presence of any complications.
CT scan can be more than 90% sensitive.

29. MRI
produces superior images , used when the abscess has spread to the CNS.
this requires a period of time when the patient is in an unmonitored setting. Children usually require sedation for this test, which is also dangerous in any patient with a potentially unstable airway.

30. Needle aspiration of a suspected abscess
Aspiration can help determine the presence of an abscess and help distinguish it from cellulitis. It can be diagnostic and therapeutic.
An intraoral route usually is indicated, except when an abscess is isolated lateral to the carotid sheath. In this case, an external approach can be used. CT scan or ultrasound can help guide the aspiration. With an abscess involving multiple spaces, perform needle aspiration with an open external approach.

31. Complications of retropharyngeal abscesses
are secondary to mass effect,
rupture of the abscess, or
spread of infection.
Rupture of the abscess can cause aspiration of pus, resulting in asphyxiation or pneumonia.. Spread of the infection to the mediastinum can result in mediastinitis, purulent pericarditis ,etc. Spread of the infection laterally can involve the carotid sheath and cause jugular vein thrombosis or carotid artery rupture. Posterior spread of infection can result in osteomyelitis and erosion of the spinal column, causing subluxation and spinal injury. It can evolve into necrotizing fasciitis, sepsis, and death

32. Treatment Incision and drainage Limitation of GA
Infant wrapped and held upright
Abscess incised with a gaurded knife
Sinus forceps plunged into it and open
Copious flow of pus
Baby face turned down to allow escape
Immediate relief
Antibiotics

33. Treatment
Incision and drainage over the post.border of scm vertical incision
Abscess is sought for by dissection between the carotid sheath and the prevertebral muscles and is drained from the neck
Tracheostomy
Anti TB regimes

34. Submandibular Space
The submandibular space extends from the hyoid bone to the mucosa of the floor of the mouth. It is bound anteriorly and laterally by the mandible and inferiorly by the superficial layer of the deep cervical fascia.
The mylohyoid muscle acts as a sling across the mandible and divides the submandibular space into sublingual and submylohyoid spaces.

35. Ludwig angina
The infection of this space was described by Ludwig in 1836.
He described a gangrenous infection of the neck with woody cellulitis without suppuration and insidious asphyxiation
Cellulitis involving fascial spaces between muscles and other structures of the posterior floor of the mouth that can compromise the airway.

36. Clinical presentation
Most patients are young, healthy adults with an odontogenic infection. Usually present with mouth pain, dysphagia, drooling and stiff neck. In the case of Ludwigs angina, massive tongue and floor of mouth edema can rapidly lead to posterior and superior displacement of the tongue as well as anterior displacement out the mouth. The patient often maintains the neck in an extended position and may have a muffled or "hot potato" voice. The neck shows a characteristic erythematous woody swelling but fluctuance is usually absent.

37. Asphyxia
The most common cause of death in Ludwigs angina is asphyxia. Airway control is the first priority of treatment, followed by intravenous antibiotics and timely surgical drainage.
Tracheotomy is still the most widely used method of airway control but some authors feel the risk of aspiration pneumonia Cricothyroidotomy is usually not a good option with in patients with massive neck edema.

38. Treatment
Closely monitor patients with airway compromise and do not allow these patients to leave the acute care area.
Sedation and paralytics can relax airway muscles, leading to complete obstruction.
Endotracheal intubation is dangerous unless performed under direct visualization. consider fiberoptic intubation or a surgical airway (eg, cricothyroidotomy, tracheotomy

39. Antibiotic therapy
Broad-spectrum coverage is indicated. Clindamycin is first-line treatment,initiated alone or in combination with cefoxitin or a beta-lactamase–resistant penicillin, such as ticarcillin/clavulanate, piperacillin/tazobactam, or ampicillin/sulbactam.
Patients with cellulitis can be treated with parenteral antibiotics alone. Closely observe these patients for development of an abscess.

40. Surgical Care:
Surgical airway control may be necessary in patients whose airways are difficult to visualize or are obstructed completely. Depending on the age of the patient and the experience of the physician, perform needle cricothyroidostomy or cricothyroidotomy only if the child cannot be transported to the operating room safely or quickly. Alternatively perform a tracheotomy.

41. Pharyngeal Pouches Acquired
protrusion of mucosa through the muscle layers of the wall of an organ
Congenital
covered by all the muscle layers of the
e.g Meckels diverticulum

42. Pharyngeal pouch

43. three inherent areas of weakness
inferior border of the cricopharyngea with the superior oblique fibers of the esophagus. This is referred to as Laimer's triangle.
A second inherent weak point is between the oblique and the transverse fibers of the cricopharyngeus muscle: this is referred to as the Killian-Jamieson area, where lateral or Killian-Jamieson diverticula can form.
Then, finally, the most significant area is the Killian's triangle, which is formed by the inferior-most fibers of the inferior constrictor muscle with the superior border of the cricopharyngea, and this is thought to be where the Zenker's diverticulum develops.

44. theories
One of the primary theories is pharyngoesophageal incoordination , an incoordination between the opening of the cricopharyngeus and the peristaltic contractions propagating the bolus through the hypopharynx.
Another theory of the development of Zenker's is that of cricopharyngeal spasm, and that likely in response to stimulation by reflux - the cricopharyngeus muscle simply spasms down.

45. Zenker's diverticulum
1877 .the German pathologist, Zenker, described that traction diverticulum is formed due to external traction on the wall of the digestive tract resulting in the pouch formation, whereas the pulsion diverticulum is formed because of an imbalance of intraluminal force combined with the strength of the digestive tract wall. Foregut diverticula can also be classified based on their anatomic location, one of which is the midesophageal diverticulum, another described as the epiphrenic diverticulum. There are small transitory diverticula which appear throughout the swallowing cycle and then disappear; and then, of course, the hypopharyngeal diverticulum or Zenker's diverticulum.

46. Zenker's
It is typically in the seventh and eighth decades. It is predominantly in males . Now the incidence varies depending on the region that you are in. In the United Kingdom, which has the highest incidence, it is about 2:100,000 people per year.

47. Clinical features
Commonest symptoms are dysphagia, regurgitation and cough
Recurrent aspiration can result in pulmonary complications
A carcinoma can develop within the pouch
Clinical signs are often absent
A cervical lump may be present that gurgles on palpation

48. Zenker's present with dysphagia, between 80% and 90%.
regurgitation of undigested food.
The combination of regurgitation of undigested food with cervical borborygmi is almost pathognomonic of Zenker's diverticulum.
30 to 40% will present with aspiration and a chronic cough,
and up to 15% of these total patients will actually have episodes of aspiration pneumonia

49. diagnostic evaluation
consists of primarily the barium swallow, which shows, as in our patient, a posterior pharyngeal diverticulum with pooling of contrast. The swallow can also offer other clues.

50. Treatment Diverticulectomy Dohlman's procedure
Depends on size of pouch and age of patient
Options include:
Diverticulectomy
Dohlman's procedure

51. Diverticulectomy Recurrent laryngeal nerve palsy Cervical emphysema
Fascia at anterior border of sternomastoid is divided
Pouch is identified anterior to prevertebral fascia
Pouch is then excised an defect closed
Cricopharyngeal myotomy is performed to prevent recurrence
Patient should be feed via a nasogastric tube for a week postoperatively
Complications include:
Recurrent laryngeal nerve palsy
Cervical emphysema
Mediastinitis
Cutaneous fistula

52. endoscopic diverticulectomy
reintroduced in 1960 by Dohlman with no more mortality and only a 7% recurrence rate.
In 1993, Collard introduced the next major breakthrough in using the endoscopic GIA staple-assisted diverticulectomy.
Other methods that have been used are KTP lasers, CO 2 lasers, and flexible endoscopy with electrocautery.

53. Dohlman's procedure Is an endoscopic procedure
A double-lipped oesophagoscope is used
Wall between the diverticulum and oesophageal wall is exposed
Hypopharyngeal bar divided with diathermy or laser
Minimally invasive techniques allow:
Shorter duration of anaesthesia
More rapid resumption of oral intake
Shorter hospital stay
Quicker recovery

54. thanks
