1. All content in this presentation is protected – © 2010 Pelco Pelco Video Management Solutions Experience the Power of Choice

2. Pelco by Schneider Electric– Name – Date

3. Pelco by Schneider Electric– Name – Date Pelco VMS Solutions… ●Broad head-end offering – Easy/Cost-effective, Mainstream, Mission- Critical ●End-to-end offering capture, record, manage, display ●Open architecture - Pelco API and ONVIF

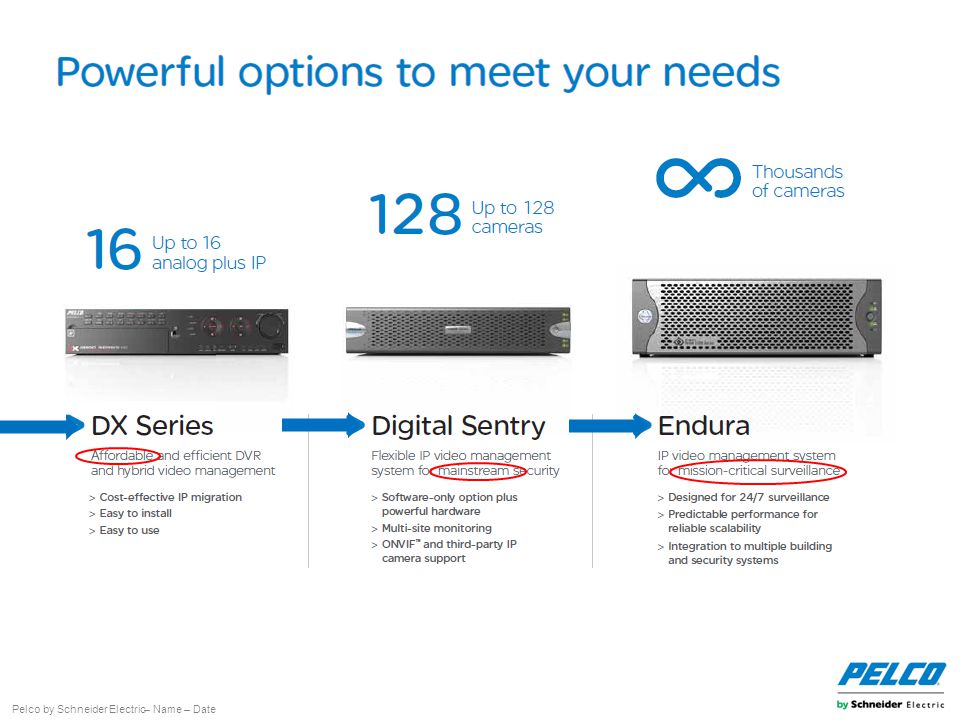

4. Pelco by Schneider Electric– Name – Date

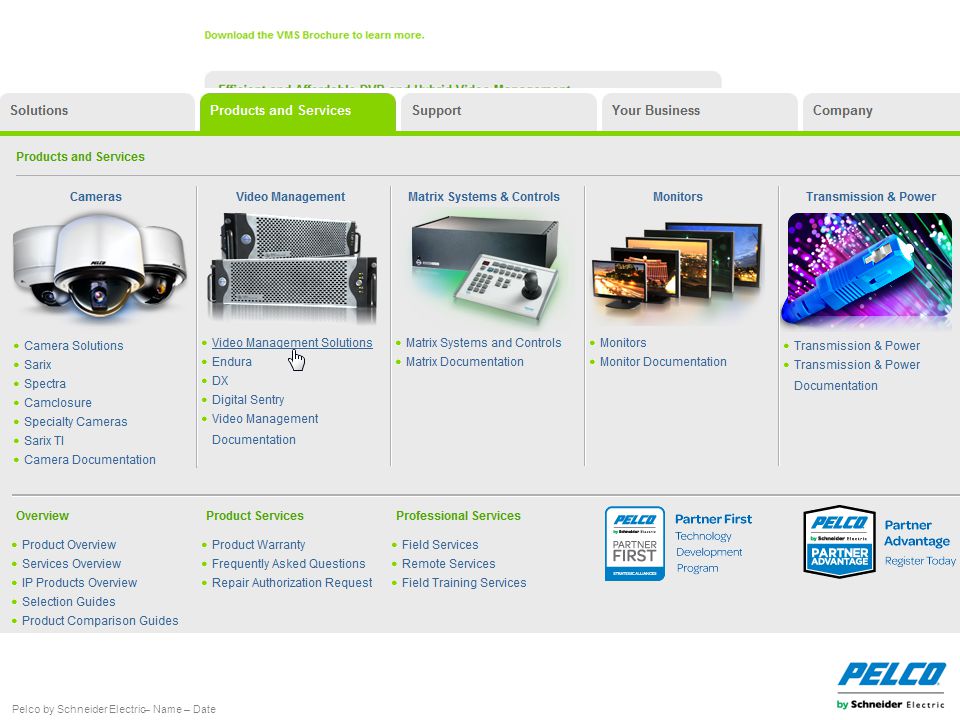

5. Pelco by Schneider Electric– Name – Date

6. Pelco by Schneider Electric– Name – Date

7. Pelco by Schneider Electric– Name – Date What is Digital Sentry? ●DS NVs VMS software ●DSSRV High-Powered Network Video Recorder ●Flexible Hybrid Capability

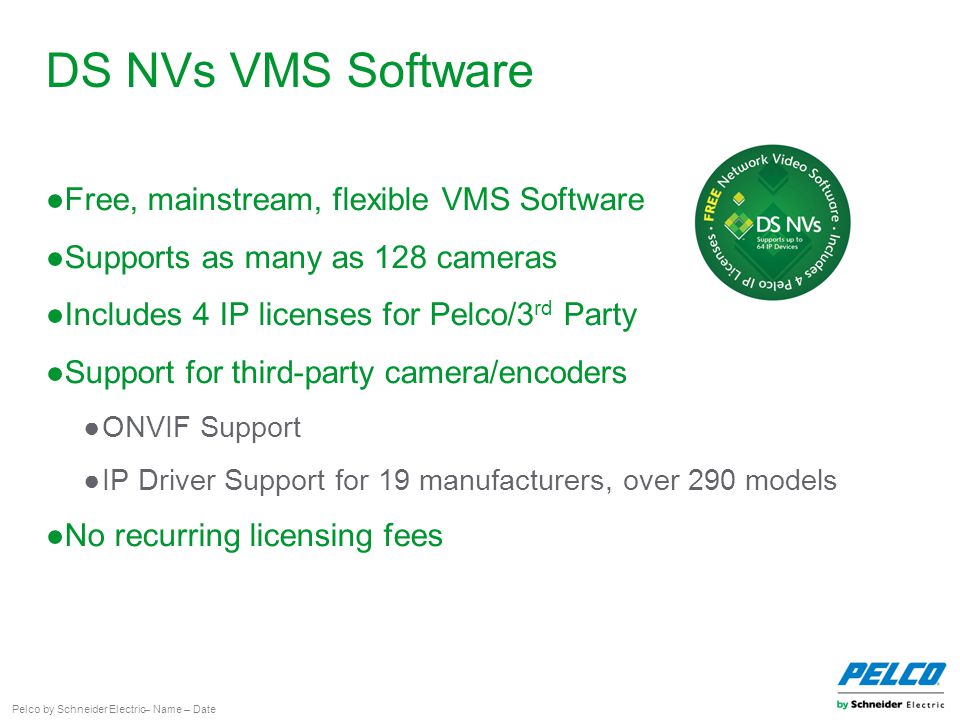

8. Pelco by Schneider Electric– Name – Date DS NVs VMS Software ●Free, mainstream, flexible VMS Software ●Supports as many as 128 cameras ●Includes 4 IP licenses for Pelco/3 rd Party ●Support for third-party camera/encoders ●ONVIF Support ●IP Driver Support for 19 manufacturers, over 290 models ●No recurring licensing fees

9. Pelco by Schneider Electric– Name – Date ●Wizard-based software installer: ●Takes10 – 15 minutes to install ●Provides auto discovery of Pelco and IP cameras ●Basic camera, audio, motion settings DS NVs VMS Software

10. Pelco by Schneider Electric– Name – Date ●ControlPoint, Windows Remote Client ●Operation of DS and DX Systems ●Pelco Mobile ●DS/Sarix – available today ●Endura – target date July ●Platforms – iOS 5.x, Android 3.x ●Features: View live video from Digital Sentry Systems View live video directly from Sarix Cameras Control PTZ cameras on DS Save favorites for easy navigation Online help function ●Future – Web-based client DS NVs Client Access

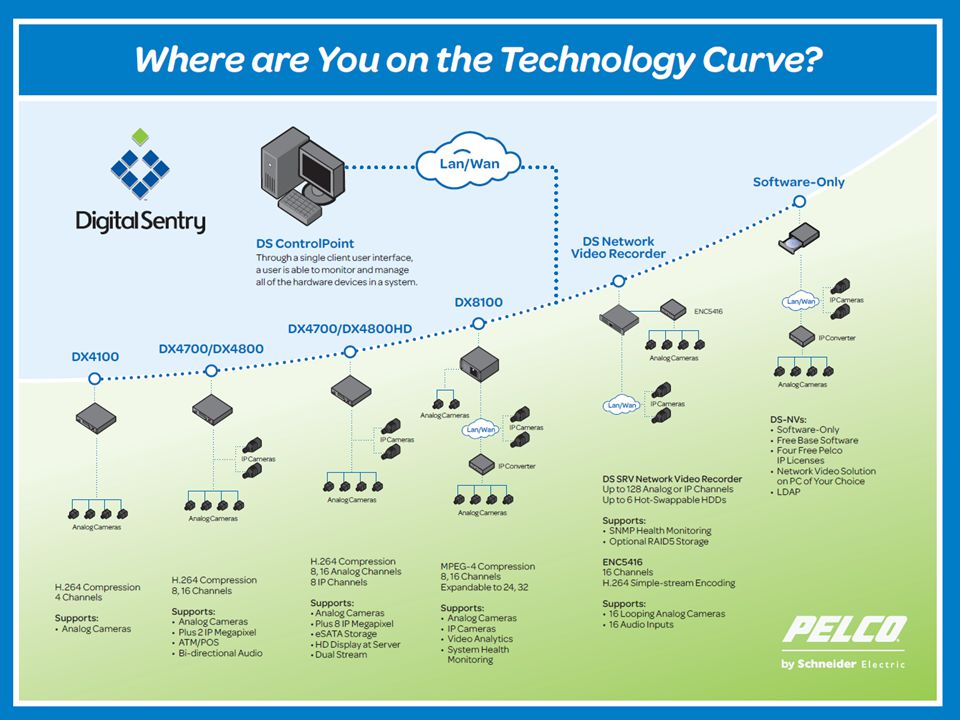

11. Pelco by Schneider Electric– Name – Date

12. Pelco by Schneider Electric– Name – Date ●Abandoned Object ●Adaptive Motion ●Auto Tracking (on Spectra HD only ) ●Camera Sabotage ●Directional Motion ●Loitering Detection ●Object Counting ●Object Removal ●Stopped Vehicle detection Pelco Analytics

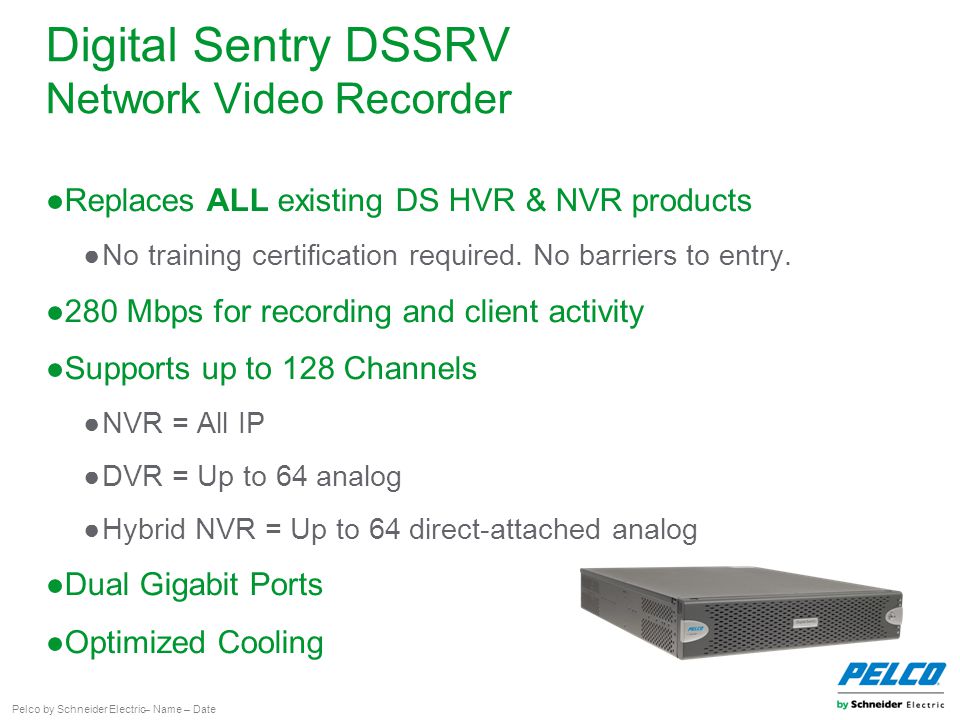

13. Pelco by Schneider Electric– Name – Date Digital Sentry DSSRV Network Video Recorder ●Replaces ALL existing DS HVR & NVR products ●No training certification required. No barriers to entry. ●280 Mbps for recording and client activity ●Supports up to 128 Channels ●NVR = All IP ●DVR = Up to 64 analog ●Hybrid NVR = Up to 64 direct-attached analog ●Dual Gigabit Ports ●Optimized Cooling

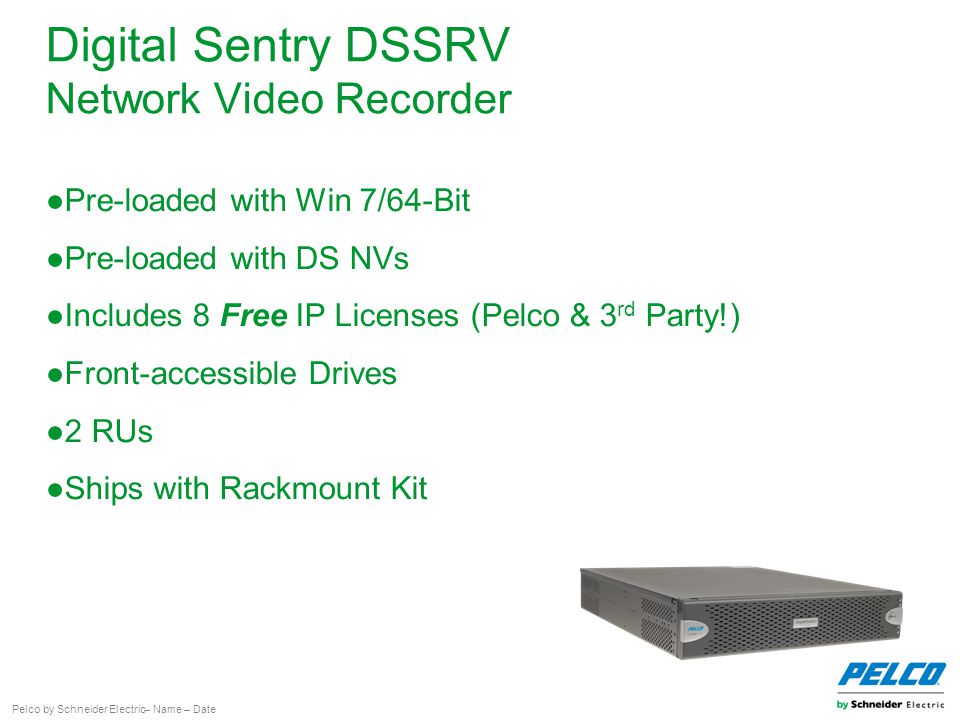

14. Pelco by Schneider Electric– Name – Date Digital Sentry DSSRV Network Video Recorder ●Pre-loaded with Win 7/64-Bit ●Pre-loaded with DS NVs ●Includes 8 Free IP Licenses (Pelco & 3 rd Party!) ●Front-accessible Drives ●2 RUs ●Ships with Rackmount Kit

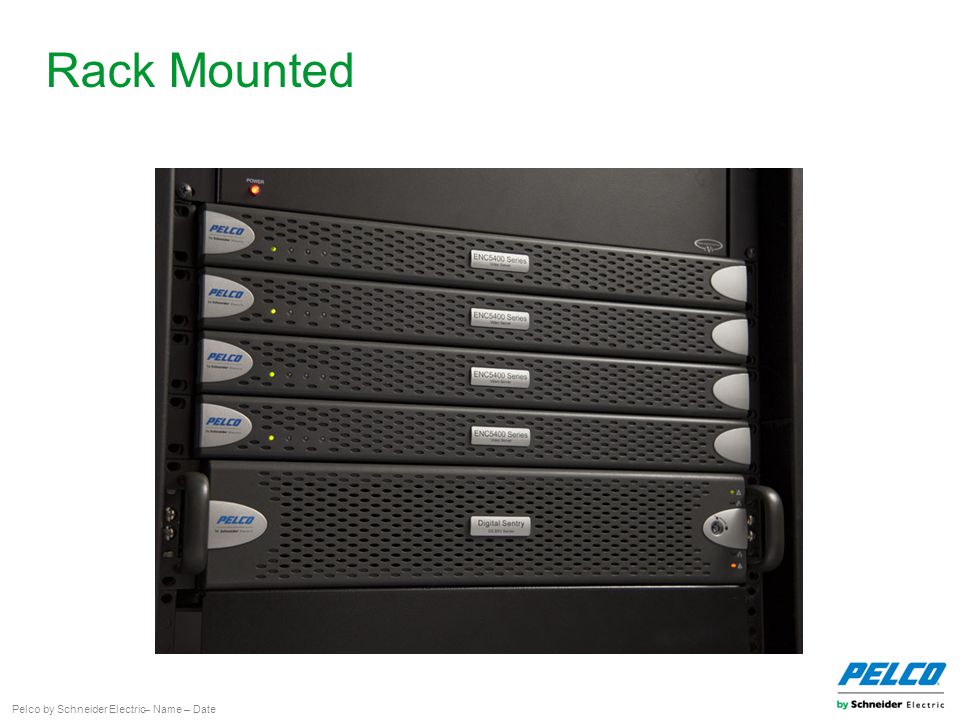

15. Pelco by Schneider Electric– Name – Date Rack Mounted

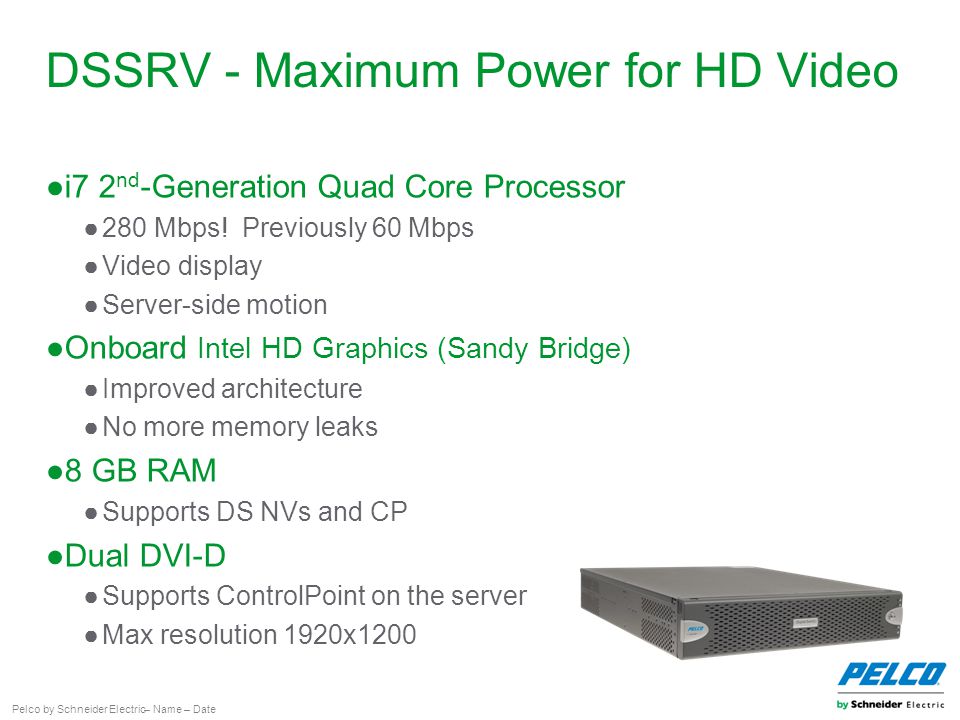

16. Pelco by Schneider Electric– Name – Date DSSRV - Maximum Power for HD Video ●i7 2 nd -Generation Quad Core Processor ●280 Mbps! Previously 60 Mbps ●Video display ●Server-side motion ●Onboard Intel HD Graphics (Sandy Bridge) ●Improved architecture ●No more memory leaks ●8 GB RAM ●Supports DS NVs and CP ●Dual DVI-D ●Supports ControlPoint on the server ●Max resolution 1920x1200

17. Pelco by Schneider Electric– Name – Date DSSRV - Maximum Power for HD Video ●High-Capacity, High-Performance ●500 GB or ●6 Drive Bays x 3 TB enterprise drives 3, 6, 9, 12, 15, 18 TB Models (to 12 TB for ODD Models) ●Internal ●RAID 5 with optional RAID5 controller, hot swappable drives ●Non RAID5 = 37 Mbps; RAID5 = 34 – 37 Mbps write time ●Minimum RAID5 configuration = 9 TB (one drive for parity) ●External ●DS-SRV-SCSI supports optional DX8100HDDI, to 24 TB ●NAS supported ●Export Media ●Optional DVD ●5 USB Ports (2, 3.0, 3, 2.0)

18. Pelco by Schneider Electric– Name – Date Digital Sentry – Flexible Analog / Hybrid Capability ●ENC5416, H.264 Analog Encoder ●Exclusively for DS SRV ●Field installable ●16 Channels per Encoder ●16 Looping, Auto-terminated Outputs ●Maximum 4 Encoders, 64 Analog Channels per Server ●30/25 (NTSC/PAL) at D1 Per Channel ●Per Encoder ●16 Alarm inputs / 4 Relays out ●16 Audio inputs

19. Pelco by Schneider Electric– Name – Date ●ENC5400- capture card ●ENC5400-2PORT – supports up to two ENC5416s ●ENC5400-4PORT – supports up to four ENC5416s ●No upgrades available from -2PORT ●Direct-attached to server via supplied cables ●PTZ Support ●Pelco P&D Supported ●RS422/485 ●3 rd Party PTZ ●Ideal for DVR replacements ●Pelco and 3 rd Party Network Encoders Also Supported The New Digital Sentry Analog / Hybrid Capability

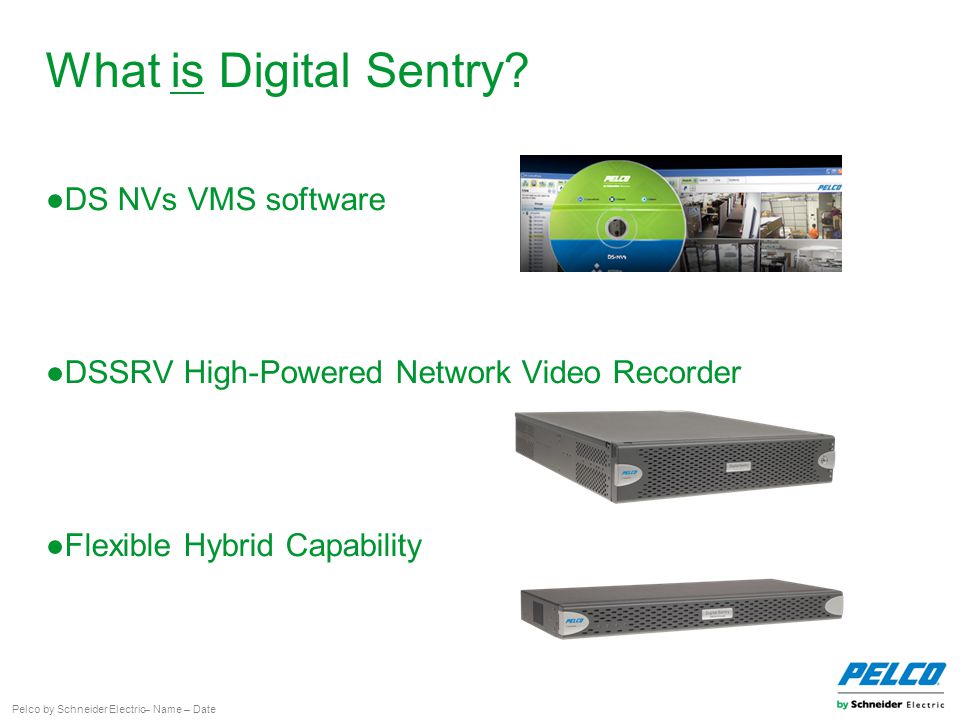

20. Pelco by Schneider Electric– Name – Date What is Digital Sentry? ●DS NVs VMS software ●DSSRV High-Powered Network Video Recorder ●Flexible Hybrid Capability

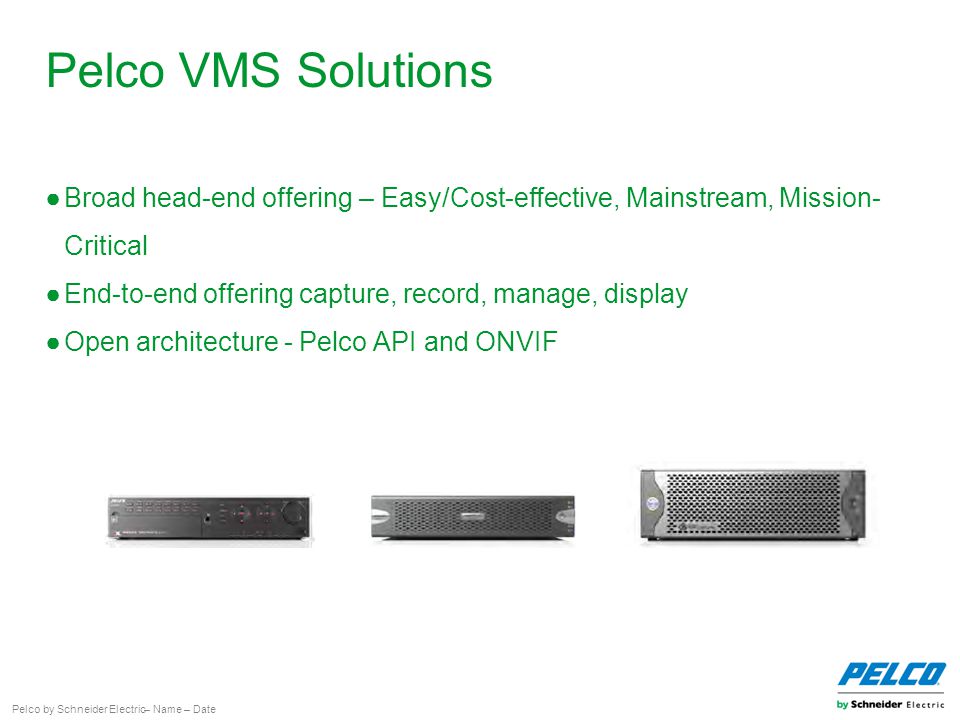

21. Pelco by Schneider Electric– Name – Date Pelco VMS Solutions ●Broad head-end offering – Easy/Cost-effective, Mainstream, Mission- Critical ●End-to-end offering capture, record, manage, display ●Open architecture - Pelco API and ONVIF

22. Pelco by Schneider Electric– Name – Date Literature #: 998-6647_US
