1. 3G MOBILE TECHNOLOGIES UMTS MEHMET ALİ GÖKGÖZ ERDEM SUNAR 17 December 2010

2. A janda 1. MOBILE TECHNOLOGIES EVOLATION 2. WIDEBAND CDMA 3. 3G NETWORK AND MANAGEMENT 4. 3G MARKET ON THE WORLD 5. MOBILE TECHNOLOGIES ROADMAP

3. All Rights Reserved © Alcatel-Lucent 2009 3 | 3G Mobile Technologies| December 2010 MOBILE TECHNOLOGIES EVOLATION 1

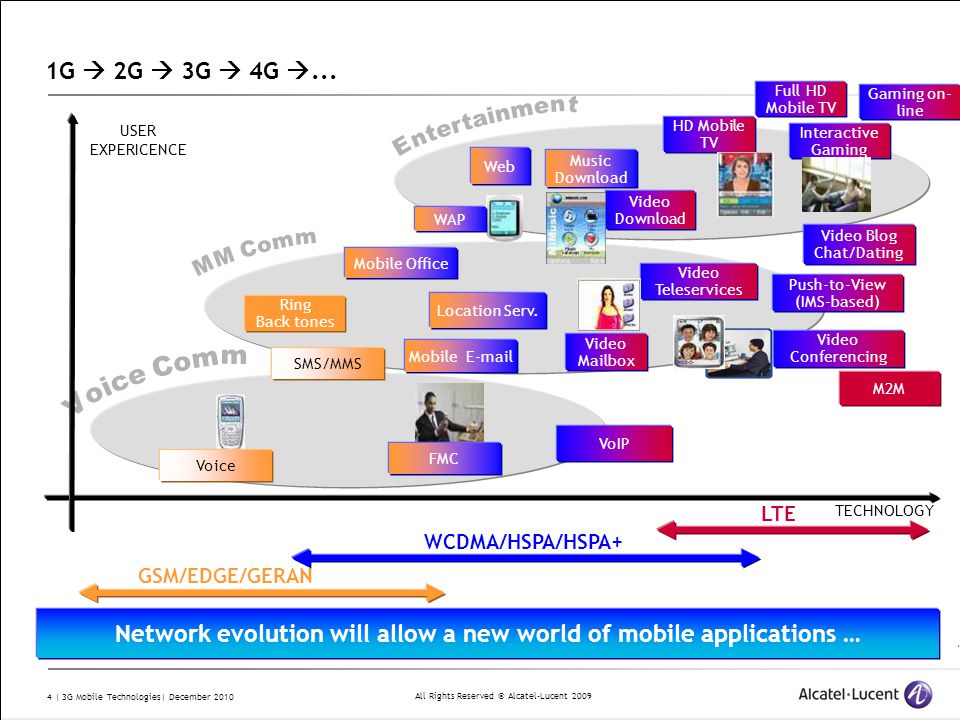

4. All Rights Reserved © Alcatel-Lucent 2009 4 | 3G Mobile Technologies| December 2010 1G  2G  3G  4G ... Network evolution will allow a new world of mobile applications … GSM/EDGE/GERAN WCDMA/HSPA/HSPA+ LTE TECHNOLOGY Ring Back tones Video Conferencing HD Mobile TV Interactive Gaming Video Teleservices Video Mailbox Web Video Download Music Download Location Serv. Mobile E-mail Mobile Office WAP Video Blog Chat/Dating VoIP Push-to-View (IMS-based) FMC Voice SMS/MMS USER EXPERICENCE Full HD Mobile TV Gaming on- line M2M

5. All Rights Reserved © Alcatel-Lucent 2009 5 | 3G Mobile Technologies| December 2010 MOBILE TECHNOLOGIES EVOLATION GSM- 2GGPRS- 2.5GEDGE- 2.75GUMTS-3GHSDPA- 3.5G HSUPA-3.75G GLOBAL SYSTEM FOR MOBILE GENERAL PACKET RADIO SERVICE ENHANCED DATA RATES FOR GSM EVOLUTION UNIVERSAL MOBILE TELECOMMU NICATION SYSTEM HIGH SPEED DOWNLINK PACKET ACCESS HIGH SPEED UPLINK PACKET ACCESS NETWORK TYPE CIRCUIT SWITCHED CIRCUIT SWITCHED & PACKET SWITCHED DATA RATE 22.8 kbps115 kbps384 kbps 1.92 Mbps(DL) 960 kbps(UL) 14.4 Mbps(DL)5.6 Mbps(UL) FREQUENCY BAND 800-900Mhz &1800-1900 Mhz 1900-2000MHz & 2100-2200MHz MODULATION TYPE 2PSK8PSK4PSK16QAM 4PSK ACCESS METHOD TDMA(TIME DIVISION MULTIPLE ACCESS) FDMA(FREQUENCY DIVISION MULTIPLE ACCESS) WCDMA(WIDEBAND CODE DIVISION MULTIPLE ACCESS)

6. All Rights Reserved © Alcatel-Lucent 2009 6 | 3G Mobile Technologies| December 2010 WIDEBAND CDMA 2

7. All Rights Reserved © Alcatel-Lucent 2009 7 | 3G Mobile Technologies| December 2010 WIDEBAND CODE DIVISION MULTIPLEXING ACCESS

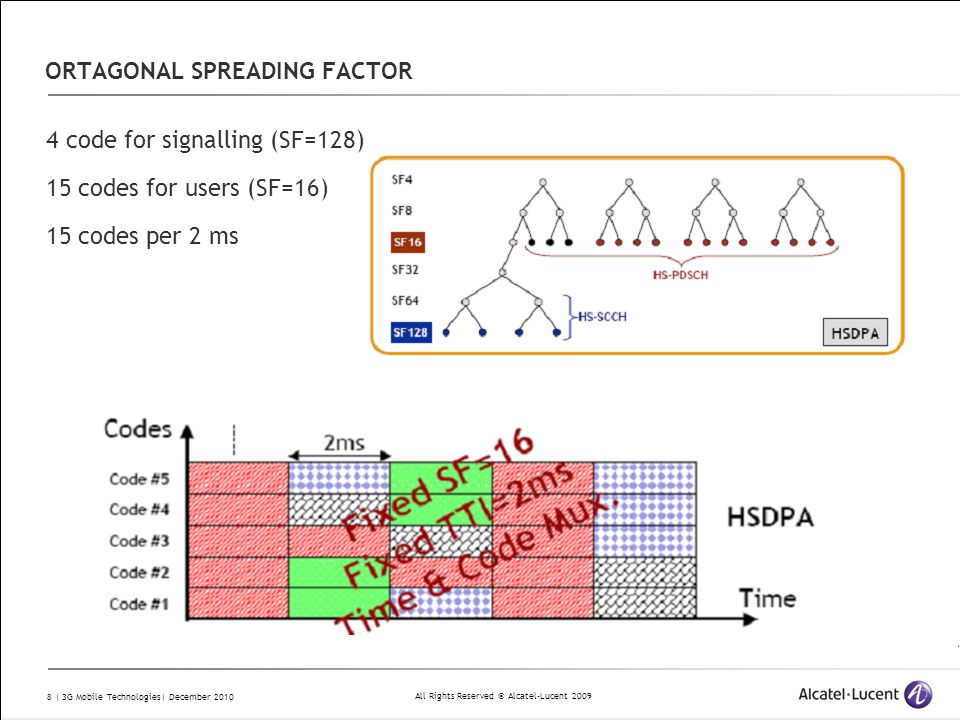

8. All Rights Reserved © Alcatel-Lucent 2009 8 | 3G Mobile Technologies| December 2010 ORTAGONAL SPREADING FACTOR 4 code for signalling (SF=128) 15 codes for users (SF=16) 15 codes per 2 ms

9. All Rights Reserved © Alcatel-Lucent 2009 9 | 3G Mobile Technologies| December 2010 SCRAMBLING CODE & ORTAGONAL SPREADING FACTOR SIGNAL SEND UNDER NOISE LEVEL

10. All Rights Reserved © Alcatel-Lucent 2009 10 | 3G Mobile Technologies| December 2010 3G NETWORK AND MANAGEMENT 3

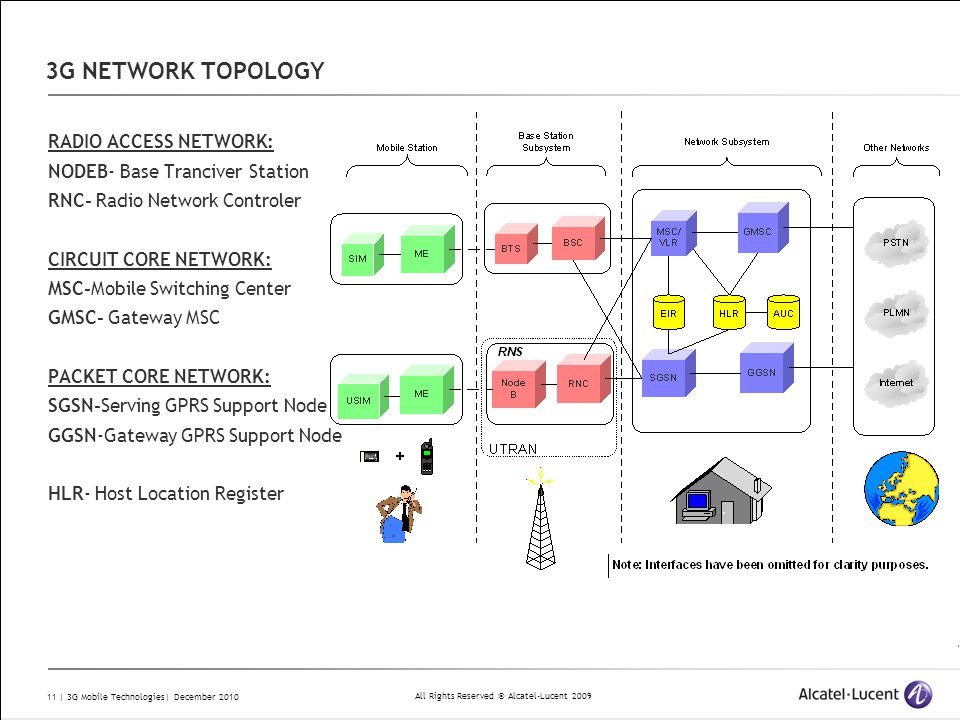

11. All Rights Reserved © Alcatel-Lucent 2009 11 | 3G Mobile Technologies| December 2010 3G NETWORK TOPOLOGY RADIO ACCESS NETWORK: NODEB- Base Tranciver Station RNC- Radio Network Controler CIRCUIT CORE NETWORK: MSC-Mobile Switching Center GMSC- Gateway MSC PACKET CORE NETWORK: SGSN-Serving GPRS Support Node GGSN-Gateway GPRS Support Node HLR- Host Location Register

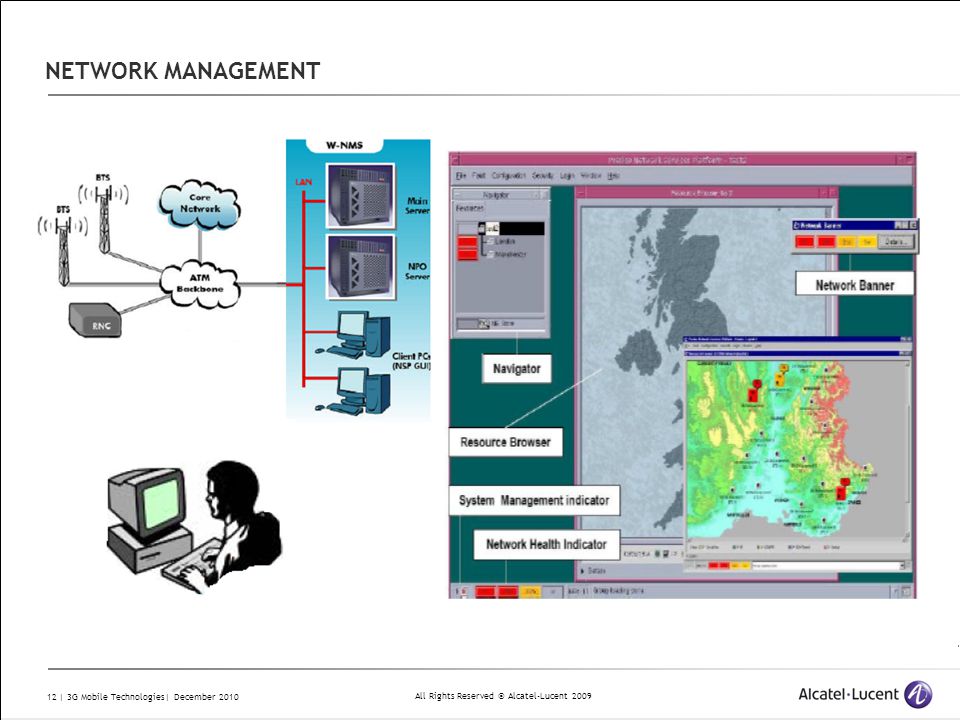

12. All Rights Reserved © Alcatel-Lucent 2009 12 | 3G Mobile Technologies| December 2010 NETWORK MANAGEMENT

13. All Rights Reserved © Alcatel-Lucent 2009 13 | 3G Mobile Technologies| December 2010 3G MARKET ON THE WORLD 4

14. All Rights Reserved © Alcatel-Lucent 2009 14 | 3G Mobile Technologies| December 2010 MOBILE USERS ACTIVE MOBILE DATA USERS PER APPLICATION (M) Information Service 86% 200 400 600 800 1 000 1 200 1 400 2006200720082009201020112012 MMS Email Ringtones Graphics /images Games Information Service Music Video Mobile data users growth rate between 2008-2012 Video 194% E-Mail 83% Games 95% MMS 99% Graphics/Images77% Music 136% Ringtones 62%

15. All Rights Reserved © Alcatel-Lucent 2009 15 | 3G Mobile Technologies| December 2010 THE WORLD MARKET GSM/W-CDMA DEVICES W-CDMA: 939 handsets in market HSDPA: 422 models in market HSUPA: 12 models in market GPRS: 3428 models in market EDGE: 921 models in market 120 WCDMA models support WIFI 21 WCDMA models support VoIP 254 W-CDMA networks launched in +110 countries 237 operators launched HSDPA 66 operators launched HSUPA

16. All Rights Reserved © Alcatel-Lucent 2009 16 | 3G Mobile Technologies| December 2010 ALCATEL-LUCENT W-CDMA REFERENCES +50 Deployed Networks in 37 countries Serving +50% of HSPA connections worldwide Ovum Q4 2008 Group South Korea USA MAG Grou p Etisalat 2G/3G Operators Canada – Qatar India BSNL South Africa Nigeria Etisalat Indonesia France Qatar India BSNL Uganda Telecom MAG Grou p South Africa Mozambique New Zealand France Malaysia China Unicom 7 Major New contracts in the last 6 months ! With Major WCDMA Groups - Operators worldwide China Unicom China

17. All Rights Reserved © Alcatel-Lucent 2009 17 | 3G Mobile Technologies| December 2010 Brunei – Scan France – Bouygues Telecom UK (Isle of Man) – Mobile Operator UK (Guernsey) – Mobile Operator New Zealand – TNZ Slovakia – Mobile Operator Sudan – Mobile Operator UK – Mobile Operator France (Réunion) – Mobile Operator Not publicly disclosed Reference Publicly disclosed Reference Reference added in the last 2 months TD-SCDMA Contract Cambodia – CamGSM Malaysia – CelcomS. Korea – SKT S. Korea – KTF Mozambique - mcel Nigeria - Globacom Cyprus - MTNBulgaria - MobitelAustria - Mobilkom Slovenia - Simobil UK (Jersey) – Mobile Operator USA – At&t Malta – Mobile Operator Monaco – Mobile Operator Serbia – Mobile Operator Uganda – Uganda Telecom Aruba – Mobile Operator French Polynesia – Tikiphone (Vini) Uruguay - Antel India – BSNL Italy - Vodafone Portugal - Vodafone UK - Vodafone France - SFRFrance - Orange ALCATEL-LUCENT W-CDMA REFERENCES China – China Mobile (TD-SCDMA) Qatar - Vodafone EMTS Etisalat - Nigeria South Africa - Vodacom Indonesia New Win Globalive Orascom Group Canada New Win

18. All Rights Reserved © Alcatel-Lucent 2009 18 | 3G Mobile Technologies| December 2010 MOBILE TECHNOLOGIES ROADMAP 5

19. All Rights Reserved © Alcatel-Lucent 2009 19 | 3G Mobile Technologies| December 2010 FEMTO CELL CN CS/PS Femtocell GW RNC Macro Tariff Home Tariff femtocell Macro 20 TO 50 METRES COVERAGE SUPPORTS 4 SIMULTANEOUS USERS TX POWER 20MW SUPPORT 3GPP STANDARD HANDSET PLUG & PLAY SELF OPTIMISATION

20. All Rights Reserved © Alcatel-Lucent 2009 20 | 3G Mobile Technologies| December 2010 TOWARDS HSPA+ TO FURTHER BOOST DATA OFFERING Make the Best out of W-CDMA Network with a simple SW upgrade High Peak Throughput Experience

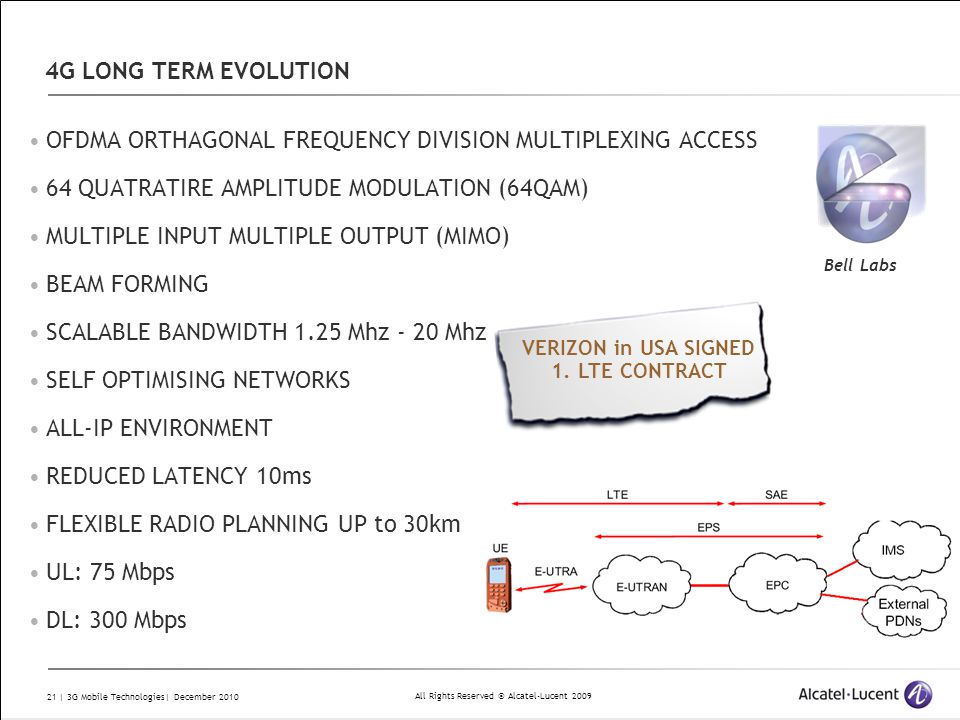

21. All Rights Reserved © Alcatel-Lucent 2009 21 | 3G Mobile Technologies| December 2010 4G LONG TERM EVOLUTION OFDMA ORTHAGONAL FREQUENCY DIVISION MULTIPLEXING ACCESS 64 QUATRATIRE AMPLITUDE MODULATION (64QAM) MULTIPLE INPUT MULTIPLE OUTPUT (MIMO) BEAM FORMING SCALABLE BANDWIDTH 1.25 Mhz - 20 Mhz SELF OPTIMISING NETWORKS ALL-IP ENVIRONMENT REDUCED LATENCY 10ms FLEXIBLE RADIO PLANNING UP to 30km UL: 75 Mbps DL: 300 Mbps VERIZON in USA SIGNED 1. LTE CONTRACT Bell Labs
