1. WWW.PROFIBUS.COM Introduction to Profibus Michael Bryant Executive Director Profibus Trade Organization CPAC Workshop - Seattle May 6, 2004

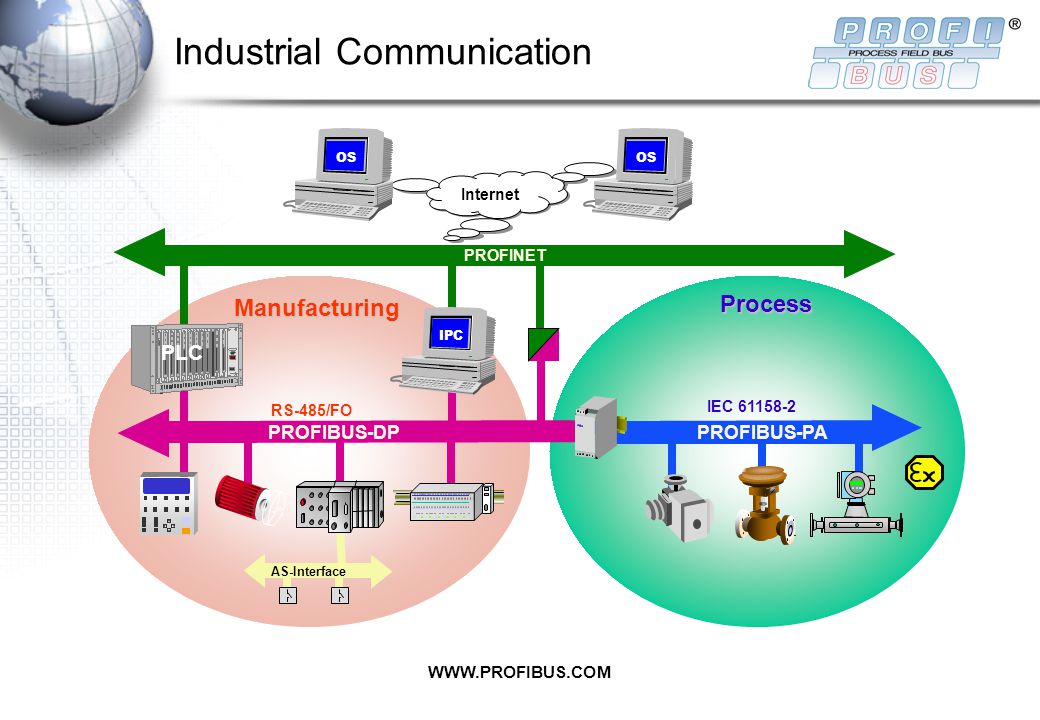

2. WWW.PROFIBUS.COM PROFIBUS-PA PROFINET IEC 61158-2 RS-485/FO Manufacturing Process Internet OS AS-Interface PROFIBUS-DP OS Industrial Communication PLC IPC

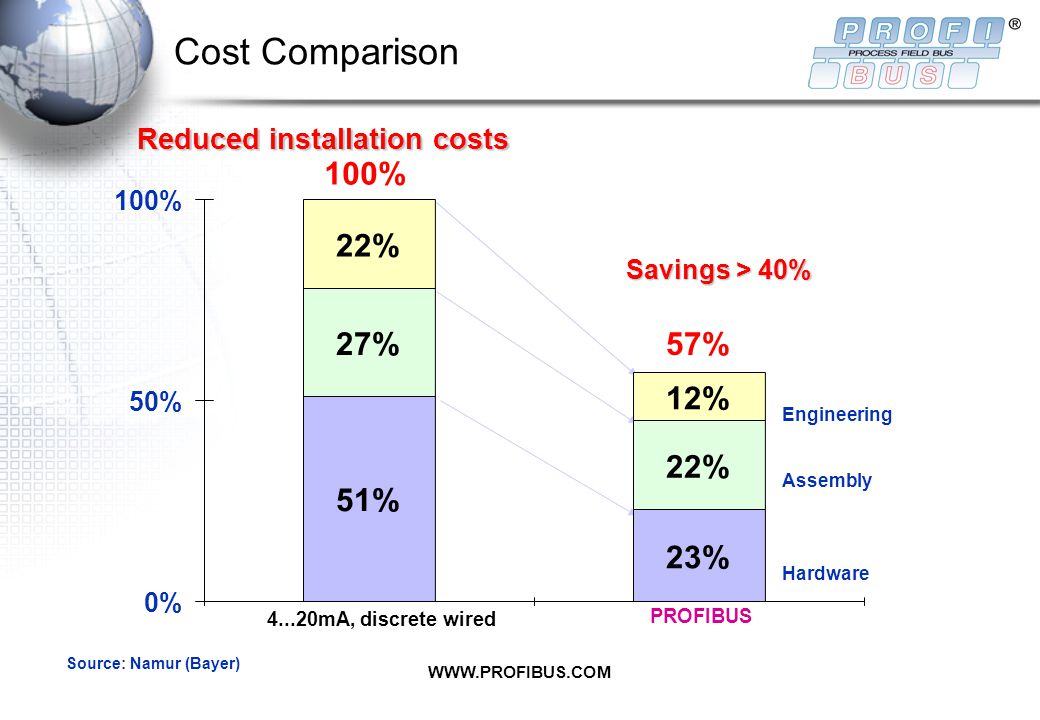

3. WWW.PROFIBUS.COM Engineering Assembly Hardware 51% 23% 27% 22% 12% 0% 50% 100% 57% 4...20mA, discrete wired PROFIBUS Source: Namur (Bayer) Cost Comparison Reduced installation costs Savings > 40%

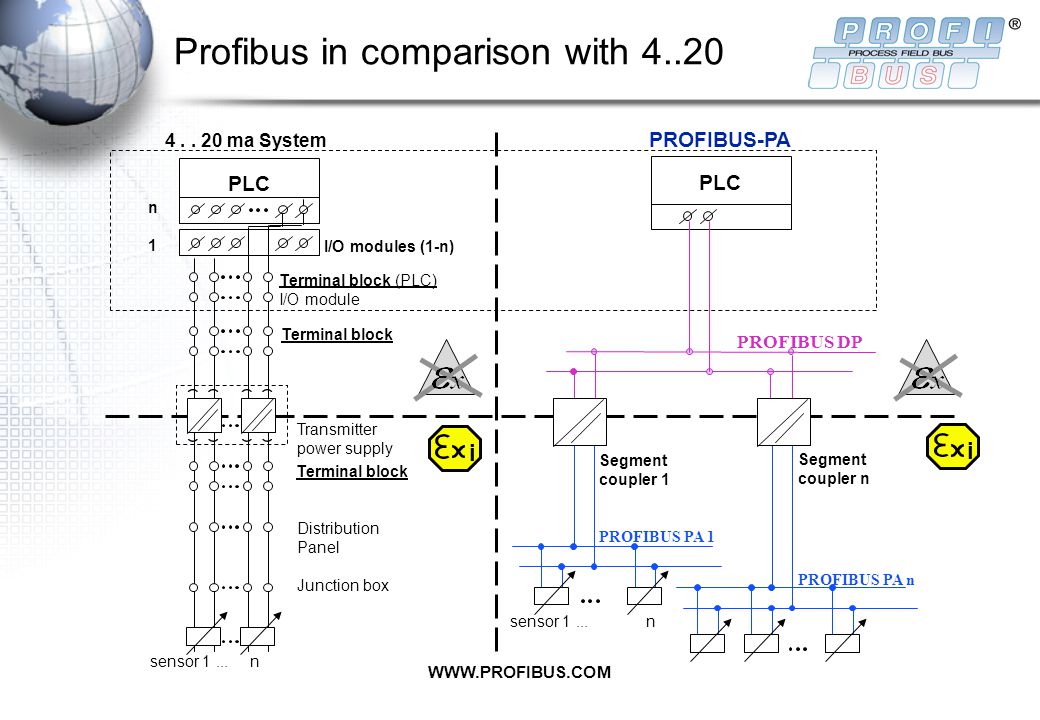

4. WWW.PROFIBUS.COM Profibus in comparison with 4..20

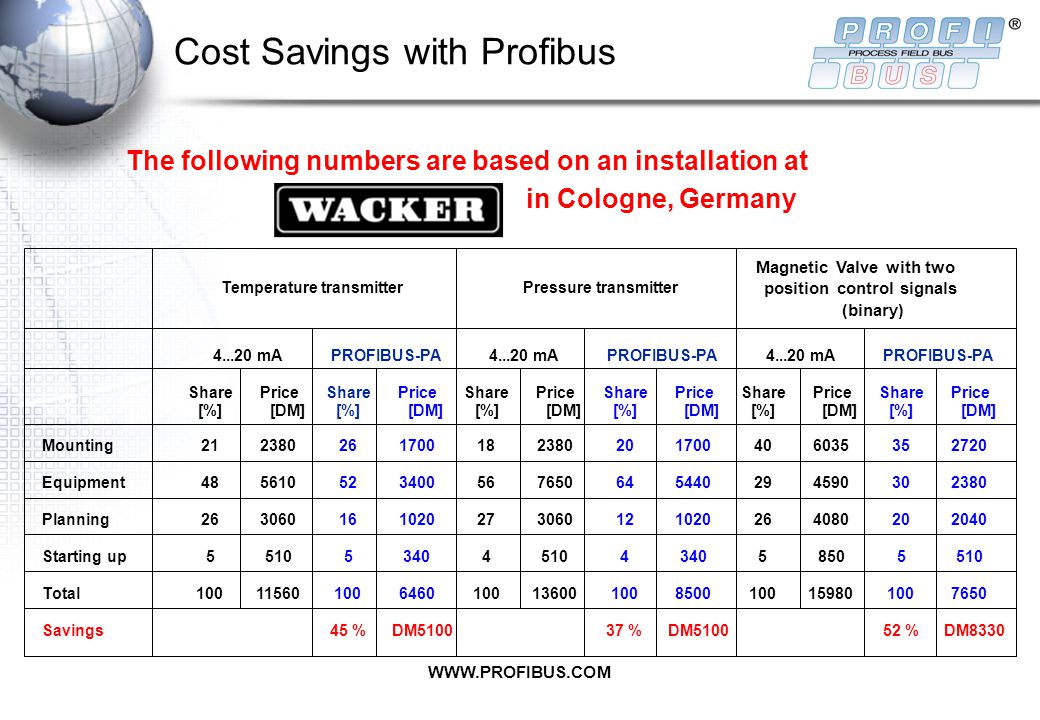

5. WWW.PROFIBUS.COM Cost Savings with Profibus Pressure transmitterTemperature transmitter

6. WWW.PROFIBUS.COM 1989 2004 Installed Base The installed base was greater than 10 Million devices at the end of 2003, with 2 Million sold in 2003 and already.5 Million sold this year. Of the 10 Million, 1.5 Million are in the Process Industries with >300,000 PA devices installed. Detailed case studies are listed in the PROFIBUS Online Product Guide at www.PROFIBUS.com *Status: Q1/2004

7. WWW.PROFIBUS.COM *Status: Q1/2004 More than 2,500 PROFIBUS products from nearly 300 vendors are available today* The latest PROFIBUS Products are detailed in the Online Product Guide at www.PROFIBUS.com Product Range 1989 2004

8. WWW.PROFIBUS.COM 1989 2004 With more than 1200 members, PROFIBUS International is the leading vendor/user organization for industrial communications world-wide* The latest membership list may be obtained online from www.PROFIBUS.com Membership *Status: Q1/2004

9. WWW.PROFIBUS.COM RPA = Regional PROFIBUS Association PCC = PROFIBUS Competence Center PTL = PROFIBUS Test Laboratory Great Britain RPA Germany RPA PCC PTL France RPA Netherlands RPA PCC Norway RPA Korea RPA Italy RPA PTL Japan RPA Ireland RPA Finland RPA Brazil RPA Belgium RPA PCC Denmark RPA Czech Republic RPA China RPA Australia/ New Zealand RPA Sweden RPA PCC USA RPA PTL PCC Switzerland RPA PCC Russia RPA South-East-Asia RPA Poland RPA PCC Southern Africa RPA World-wide Support

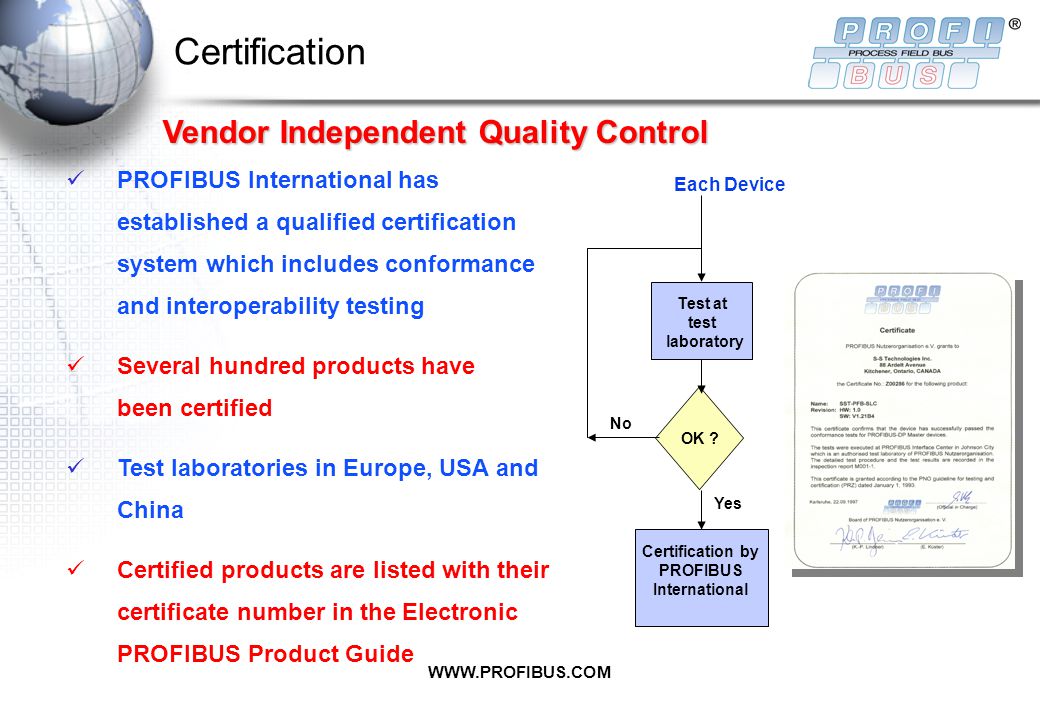

10. WWW.PROFIBUS.COM OK ? Each Device Test at test laboratory Certification by PROFIBUS International No Yes PROFIBUS International has established a qualified certification system which includes conformance and interoperability testing Several hundred products have been certified Test laboratories in Europe, USA and China Certified products are listed with their certificate number in the Electronic PROFIBUS Product Guide Certification Vendor Independent Quality Control

11. WWW.PROFIBUS.COM Profibus Test Labs itm – TU Munich Matthias Roemer Boltzmannstrasse 15 D-85748 Garching Germany Phone: 49-89-289-164 00 Fax: 49-89-289-164 10 Email: roemer@itm.mw. tu-muenchen.de ComDec Werner Goetz Würzburger Strasse 121 D-90766 Fürth Germany Phone: 49-911-750-2074 Fax: 49-911-750-2100 Email: werner.goetz@siemens.com PROFIBUS Interface Center Ron Mitchell One Internet Plaza Johnson City, TN 37605-1255 USA Phone: 423-262-2687 Fax: 423-262-2174 Email: ronald.mitchell@siemens.com ifak e. V. Arne Neumann Steinfeldstrasse (IGZ) D-39179 Barleben Germany Phone: 49-39203-8100 Fax: 49-39203-81100 Email: ane@ifak.fhg.de PROFIBUS Center Nederland Dennis van Booma Joseph Ledelstraat 56 2518 KM Den Haag Netherlands Phone: 31-70-3020-412 Fax: 31-70-3464-275 Email: dbooma@profibuscenter.nl Chinese PROFIBUS Test Laboratory Jiyang Tang No.1 Jiaochangkou Deshengmenwai 100011 Beijing China Phone: 86-10-820-78264 Fax: 86-10-820-78264 Email: tangiy@riamb.ac.cn

12. WWW.PROFIBUS.COM Passive Devices (Slaves) Active Devices (Masters) PLC PC Media Access PROFIBUS differentiates between master and slave devices PROFIBUS

13. WWW.PROFIBUS.COM DP Monomaster System Master (Class 1) Slaves PROFIBUS PLC Master (Class 2) Central Controller exchanges data with the distributed peripherial devices Engineering tool is used for setup/configuration of the slaves Analog or digital peripherial devices such as I/O, drives, transmitters, valves or operator terminals

14. WWW.PROFIBUS.COM DP-Master (class 2) DP-Master (class 1) DP-Master (class 1) DP - Slaves PLC PROFIBUS PC CNC Several DP-Masters may access a DP Slave with read functions but only one Master may write to a slave DP Multi-Master systems consist of: - multiple Masters (class 1 or 2) - 1 to max. 124 DP-Slaves - max. 126 devices on the same bus Distributed inputs and outputs DP Multi-master System Distributed inputs and outputs

15. WWW.PROFIBUS.COM Standardized electronic data sheets are used to permit open, vendor- independent configuration PROFIBUS Configuration tool Bus Configuration PLC PROFIBUS A library with GSD files of PROFIBUS devices is available online at www.PROFIBUS.com System Configuration  GSD-Files contain the communication parameters  EDD-files contain the application parameters

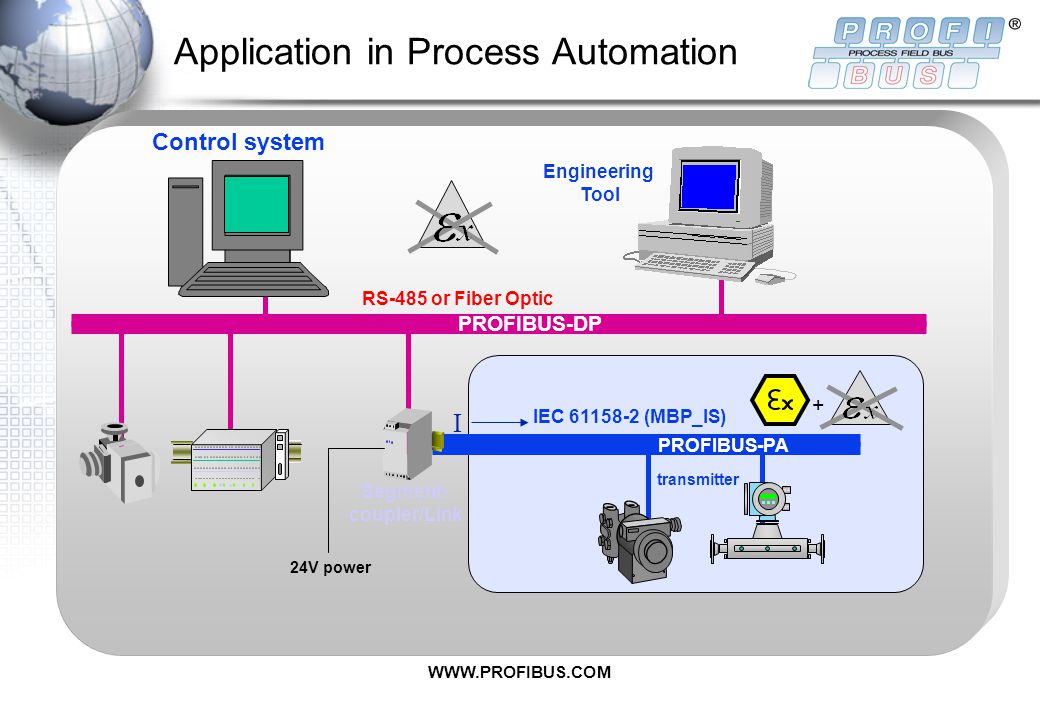

16. WWW.PROFIBUS.COM PROFIBUS-DP Control system Engineering Tool PROFIBUS-PA IEC 61158-2 (MBP_IS) I Segment- coupler/Link transmitter + Application in Process Automation RS-485 or Fiber Optic 24V power

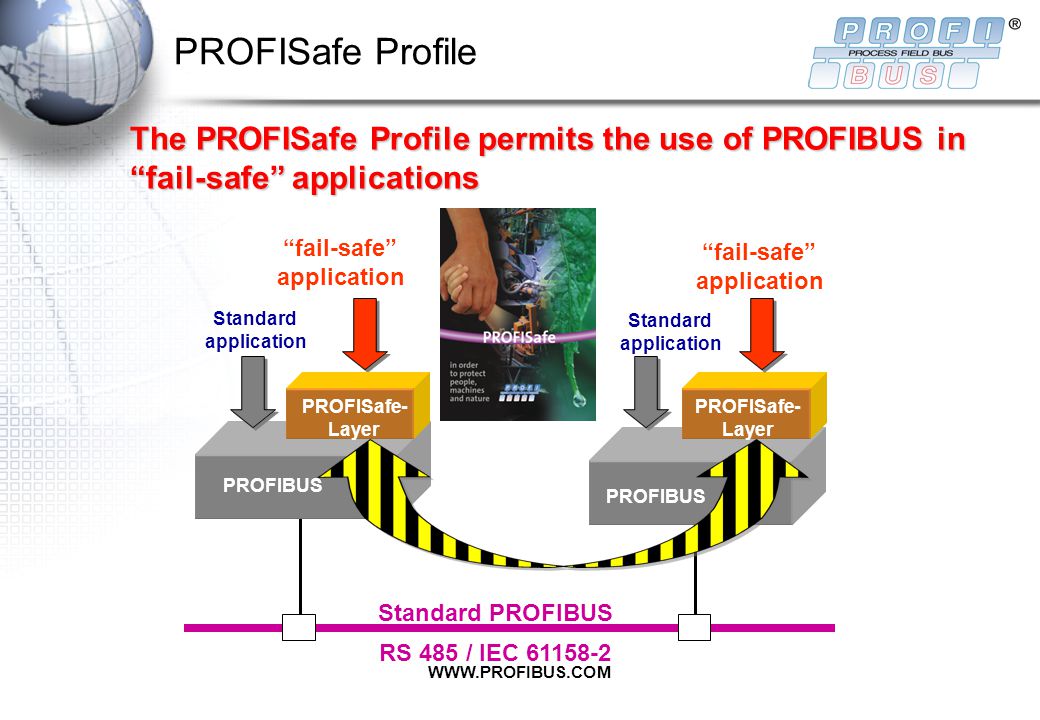

17. WWW.PROFIBUS.COM PROFISafe Profile RS 485 / IEC 61158-2 PROFIBUS Standard application “fail-safe” application Standard PROFIBUS PROFISafe- Layer PROFISafe- Layer The PROFISafe Profile permits the use of PROFIBUS in “fail-safe” applications Standard application PROFIBUS “fail-safe” application

18. WWW.PROFIBUS.COM Motion Control New functions for motion control New functionality has been added to the PROFIBUS protocol (V2):  Slave-to-Slave communication  Clock synchronous transmission  Time synchronization With these new functions, PROFIBUS opens up new applications in motion control With these new functions, Profibus can synchronize 12 axes with a cycle time of less than 2 ms

19. WWW.PROFIBUS.COM PROFINET CONCEPT Engineering, HMI Intelligent field device Ethernet PROFIBUS Proxy Field DeviceDrive Programmable controller Engineering, HMI PROFIBUS and PROFINET are two complementary parts of PROFIBUS International automation technology

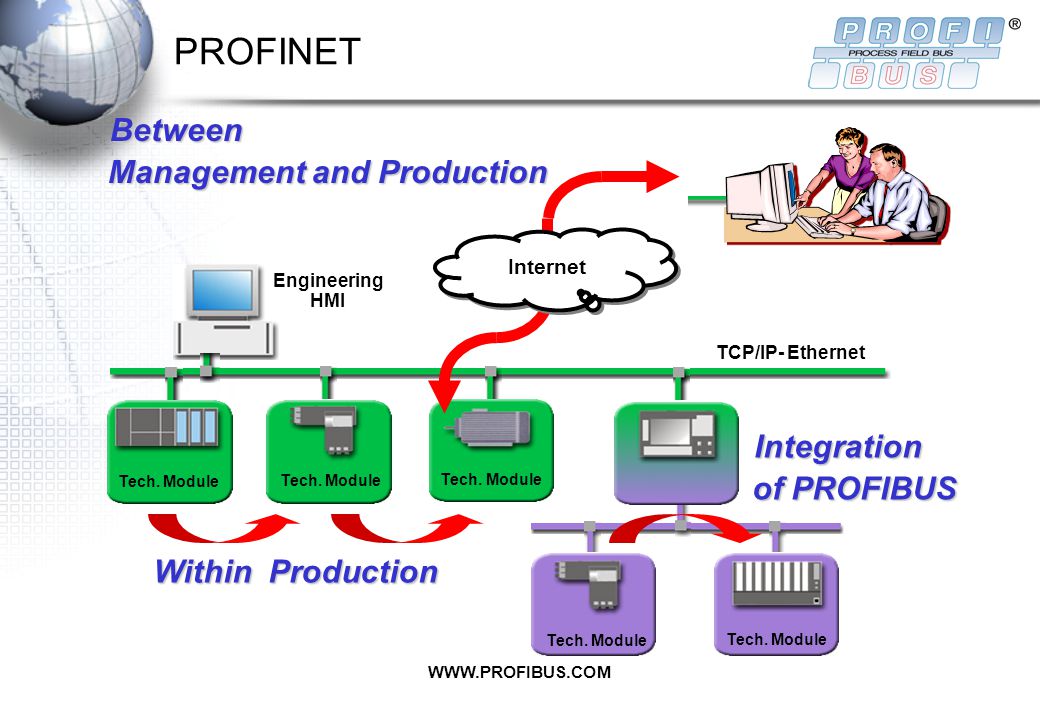

20. WWW.PROFIBUS.COM PROFINET TCP/IP- Ethernet Engineering HMI Tech. Module Internet Between Management and Production Within Production Integration of PROFIBUS

21. WWW.PROFIBUS.COM Manufacturing Automation Car manufacturing Bottling systems Storage systems Building Automation Heating, air-conditioning Process Automation Purification plants Chemical and petrochemical plants Paper and textile industries Power industry and power distribution Power plants Switchgear Pipelines Polymer Storage Glue Production Breweries Car manufacturing, at General Motors, BMW, Ford, FIAT.... Waste Water Purification Bottling Plants Food Production Nearly 1,000,000 applications are operational Building Automation Applications

22. WWW.PROFIBUS.COM North American Users 3M, CT 3M, MN A. Schulman, OH ABB Flexible Automation, MI ABB Seatech, TX Abbott Laboratories, TX Accu-Fab Systems, OR Accusort, PA Acklin Stamping, OH Acme Brick, TX Advanced Energy, CO Advanced System Integration, TX Advantage Industrial Auto., GA AgriNW, WA Air Liquide, TX AIS, IN Alabama Power, AL Alcan, Canada Alliant Techsystems, VA Allied Signal, OH Alpine Engineered Products, TX American Baler, OH American Kuhne, CT American National Can, OH American National Can, TX American Standard, OH Amoco Fabrics, GA Amplex Electric, OH Amycel, TX Anarundel Cty Water Auth., VA Anchor Brewing, CA Andritz Runther, TX Anheuser Busch, MO Applied Digital Engineering, TX Applied Extrusion Tech, VA Aqua Glass, Canada ARCO Alaska, AK Artech, NC ASI, TX ATG, WA ATJ Industrial Auto., Canada Atronix Engineering, OH Autoliv, UT Automation Control, CO Automation Systems, MI Autotec, OH AVCA Corporation, OH Ballard Power, Canada Barnes and Noble, MA Barrilla Pasta, IA Best American Foods, ID

23. WWW.PROFIBUS.COM North American Users Basler Electric, IL Baxter Healthcare, AR Bayer, Mexico Bell & Howell, IL Best Press, NC Bethlehem Steel, OH Biersdorf, CT Blue Bell Creameries, TX Blue Circle Cement, GA Blue Diamond Nut Company, CA Blue Ridge Growers, VA BMH Americas Inc., TX BOC, TX Bodine Test Assembly, CT Boise Cascade, OR Brightstar Synfuels, TX British Aerospace, TN Burlington Industries, VA Burton Snowboards, Canada BWX Technologies, VA C. Kirk Ryan CA Lawton Co., WI CAE Newnes Ltd., Canada CAE, Canada Cal Polymer, ID Calgon, SC Cameron Controls, TX Canrig, TX Capsugel, SC Carpenter Company, TX Carpenter Technology, VA Cast Masters, OH Caterpillar, IL CCL Container, VA Chemrex, MN Chicago Dryer, IL Chiles Drilling, TX Cincinnati Machines, OH Cincinnati Test, OH Circon ACMI, OH City of Houston Public Works, TX City of Jacksonville Public Works, FL City of Los Angeles Public Works, CA City of Phoenix Public Works, AZ Coe Manufacturing, OR Cold Springs – Texas Granite, TX Cole Electric, WI Colgate, NJ Columbia Electric, WA Columbia Pacific Aluminum, CA Compressor Controls, IA

24. WWW.PROFIBUS.COM North American Users Ebner Furnace, OH Edler Industries, CA EDS, MI Electronic Power Design, TX Elgin-Butler Brick, TX Eli Lilly, IN EMD, TX Encore Wire, TX Enerpro, CA Engineered Systems, OH Englewood Electric, FL Englewood Electric, IL ENSCO Kodiak II Environmental Waste H2O, ID EOS Engineering, TX EPCO, OH EPD, TX Davis Standard, CT DECO Tools, OH Defasco Steel, PA Dell Computers, TX Delta Brands, TX Dexter Nonwovens, CT Dmytryka Jacobs Eng, OH Dorner Manufacturing, WI Dow Chemical, TX Dow Corning, MI DSM Engineered Plastics, PA DSM, VA Duke Power, TX Dunlop Tires, AL Eastman Chemicals, TN Eastman Kodak, NY Ebarra Technologies, CA Connexant, CA Conserve II, FL Control Concept Corp., WI Control General, TX Control Panels & Systems, MD Controlled Power & Automation, TN Cooper Tire & Rubber, OH Copes Vulcan CP Films, VA Crane Kemlite, IL Crown, Cork & Seal, TX CSD, MA CTR, SC Cummins Engine, MI Curt Joa, WI Cytec Industries, OH Dan River Mills, VA

25. WWW.PROFIBUS.COM North American Users Evanite Fiber Corp, OR Exion, WI Exonic Systems, MI Exxon Baytown, TX Fairmont Tamper, MN Falmouth Scientific, MA Fiber Visions, GA Findley, OH Fisher Controls, TX Flight Safety Int’l, TX Fogg Filler, MI Forest Products Machinery, GA Formosa Power Fort James Corp, OR Foxjet, TX Framatome Cogema Fuels, VA Frank W. Murphy, TX Friskies, MO Frostbite Brands, OH GAF Materials, MN Galvacor, Canada Gaston County Dyeing, NC GE Fanuc, UT GE Plastics, NY GE Team Controls, TX General Atomic, CA General Mills, MI General Shale Brick, TN Georgia Gulf, TX Georgia Pacific, MI Georgia Pacific, WA Giddings & Lewis, WI Gillette, MA Glassline, OH Global Marine Drilling, TX Globitech, TX Glomar Celtic Sea Glomar Explorer GM PowerTrain, MI Golden Cheese, CA GPM Gas, TX Grobe Electric, AL H.B. Fuller, CA Haarman & Reimer, SC Harmon Motive, IN Harnisfeger, WI Harvard Industries, VA Harza Engineering Co., IL Hauni, VA Hazentech, AR Heidelberg Finishing, OH

26. WWW.PROFIBUS.COM North American Users Heidelberg Web Presses, NH Heidtman Steel, OH Helm Instrument, OH Henkel, OH Henry Filters, OH Hess Electrical, MI Hitec, Canada Hitec, TX Holt Electric, WI Hoosier Magnetics, OH Houston Chronicle, TX HPM Hemscheidt Corp. Huels Huffman, SC Huntair, OR Husky, Canada Hydralift, TX I²S, CT IBM, VT ICD, NJ Imperial Holly, TX Incom, WI Indianapolis Casting, IN Industrial Automation Eng., MN Innovative Controls, OH Innovative Electronics, TX Intec Permaglas, OR Intech, TX Integrated Chemical Solutions, TX Intelicon, OH Intellution, MA Interface Flooring, GA Intevac, CA ITT Automotive, NC ITW/MiniGrip, TX J.R. Simplot, OR Jacobs Engineering, OR Jagenberg, CT Kendall Electric, MD Kendall Electric, WI Kiefel, NH Kirk Lumber, VA Kister, OH Kraft Foods, IL Kvaerner Metals, PA L&H Supply, TN LaFarge Alum., VA Lamb Weston, OR Lemforder, ME Linklater, CA Lockwood Green, TX

27. WWW.PROFIBUS.COM North American Users M&M Mars, IL Mallinkrodt, MO Mantissa Corporation, NC Maple Leaf Bakery, VA Martin Feed Mills, Canada McNaughton-McCay, IL MD/Totco, TX Medical Lake Waste Water, WA MG Generon, TX Micron Technology, ID Middlesex Industries, MA Milliken, SC Minaric, NC MM Controls, OR Mobil Chemical, CT Mobile Oil Pipeline, TX Mobile Oil, TX Molins Richmond, VA Monterrey Mushroom, TX Montgomery Watson, TX MPM Engineering, Canada Nanoose Systems, Canada NASA Cape Kennedy, FL NASA Langley, VA National Envelopes, KS National Instruments, TX National Oilwell, TX NEC, CA Nestle R&D Center, OH Newport News Shipbuilding, VA Noell Crane and Service, TX Northland Electric, MN NorthSails, NV Northwest Cybernetics, OR Norton, TX Novartis Pharmaceuticals, NJ NPC, TX NSC Technologies, IL O’Sullivan Industries, VA Ocean Spray, NJ Ocean Spray, WI OEM, TX OMC Services, TX On Trak Systems, CA Pacific Flow Controls, CA Packard-Hughes, CA Pan Pacific Co., OK Pasadena Paper, TX Pearson Packaging, WA Pemco, WI Perdue Farms, MD

28. WWW.PROFIBUS.COM North American Users Sandvick Sorting, KY Sanibel Island Water, FL Sasib Bakery, TX Sauder Woodworking, OH Savanah Foods, TX Schlumberger, TX Scholle, CA Seacor Gerand Jordan, TX Seacor Vanguard, TX Sematech, TX Seneca Foods, ID Shaffer, TX Shiner Brewery, TX Siebe APV Siemens Automotive, VA Siemens Electrocom, TX Siemens Telecommunications, TX Qtera, FL Quad Graphics, WV Quad+, IL R&B Falcon Drilling, TX RA Hanson, WA RapidPak, WI Rayonier, GA Raytheon, TX Reading and Bates, TX Redhook Brewery, WA Reliant Energy, LA Retrotech, NY Roberts Filters, PA Rockwell Automation, OH RR Donnelly & Sons, TN Rubbermaid, KS Rumsey Electric, PA Petrotech, TX Pfizer, NE Pharmacia Upjohn, MI Philip Morris, VA Philips Lighting, KS Phoenix Environmental, IL PLENCO, WI PML, Canada Polybond, VA Port of Houston, TX Potlatch, ID PPG Industries, PA Praxair, TX PRI Automation, MA Procter & Gamble, OH Promotional Printing, TX Protec Coating, OH

29. WWW.PROFIBUS.COM North American Users Thermoguard Equipment, WA Titan Industries, TX Toledo Transducers, OH Transdyne Controls, GA Transocean (Marianis), TX Tree Top, WA Trident Tooling, OH Trinity Industries, TX Trunkline, TX Trus Joist MacMillan, ID Tru-Si Technologies, CA TRW, AZ Tuchenhagen-Zajac, MD Turtle & Hughes, NJ Tyler Controls, NY UAS, Canada UCB Films, KS TA Engineering, CA Tamko Roofing, MO Taylor Clay, NC Tech Conveyor, NJ Tech Logic, MN Tech Power, TX Technisys, UT TEI Engineering, IN Teledyne Advanced Metals, TN Tennessee Eastern Chemicals, TN Tennessee Valley Authority, TN Texaco, TX Texas Eastern, TX Texas Farm Products, TX Texas Instruments, MA Texas Instruments, TX Thermal Engineering, SC Sierra Nevada Brewing Co., CA Signode – IPS, IL Simpro, TX Simpson Sawmill, WA Sinclair Marine Electric Skagit Smatco, TX SOR Southeastern Containers, VA Standard Gypsum, TX Sterling Berkefeld, Canada Sterns Airport Equipment, TX Stupp, TX Sumitomo, VA Sunkist Growers, CA Surface Combustion, OH Sverdrup, TN Systel, TX

30. WWW.PROFIBUS.COM North American Users WilsonArt, TX Wirtz Manufacturing, MI WL Gore, NC Woodgrain Millwork, ID Woodward Governor, CO WPS Industries, LA WR Grace, MI Wright Industries, TN USS Ronald Reagan Valley Record, CA Varco, TX Vetrotex, TX Wabash Plastics, IN WABCO, SC Walbridge Coatings, OH Walla Walla Waste Water, WA Wallace Printing, IL Warren Electric, LA Warren Electric, TX WC Woods, OH Western Container, TX Wetmore, TX White Oak Semiconductor, VA Williams Pipeline, KS Williamson Printing Corp., TX UCB, IL Ulvac, MA Unilever Unilever, NJ Uniloy-Milacron Manchester, MI Uniroyal, Canada United Copper, TX United Distillers and Vintners, Canada Update Systems, MO US Army Corps of Engineers, KY US Filters, AZ US Gypsum, CA US Postal Service USS (?) New Carrier (CVN 77) USS Carl Vinson USS Chester A. Nimitz USS Harry S. Truman

31. WWW.PROFIBUS.COM The End Questions?
